Mercury 900, 90 (7111698 THRU 7123762) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 900, 90 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 900, 90 BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM	2115-8963A1
2	DRIP TRAY ASSEMBLY, BOTTOM COWL	52862A2
3	PAD, SOUND - DRIP TRAY	37940
4	SCREW, DRIP TRAY TO BOTTOM COWL (1/2")	10-48408
5	HOSE, DRIP TRAY TO BOTTOM COWL (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	BOOT, CONTROL CABLES - BOTTOM COWL	39616
7	SPACER, BOTTOM COWL (COWL FRONT COVER)	76369
8	SCREW, SPACER TO BOTTOM COWL (1/2")	10-48591
9	BOOT, FUEL CONNECTOR - BOTTOM COWL	37637
10	SUPPORT, WIRING HARNESS - BOTTOM COWL	37445
11	SCREW, SUPPORT TO BOTTOM COWL (1 3/4")	10-69029
13	HOSE Comment: TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2")
14	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
15	SCREW Comment: TELL TALE NOZZLE TO BOTTOM COWL (1/2")	10-48408
16	ELBOW, TELL TALE HOSE TO CYLINDER BLOCK	22-782792
17	SHIFT SHAFT ASSEMBLY, UPPER	60304A54
18	BUSHING, SHIFT SHAFT	23-26600
20	LINK ROD ASSEMBLY	73402
21	WASHER, LINK ROD	12-35462
22	NUT, LINK ROD	11-36069
23	WASHER, WAVE - LINK ROD	13-29720
24	BRACKET, ANCHOR - CONTROL CABLES	52732A6
25	CAP, BARREL RETAINER - ANCHOR BRACKET	39519
26	LEVER, NYLON - SHIFT CABLE LOCKING	87609A1
27	PIN, LOCKING LEVER AND COVER FASTENING	17-47175
28	COVER, NYLON - SHIFT CABLE	39667
29	LINK, LOCKING LEVER TO COVER	87609A1
30	SCREW Comment: ANCHOR BRACKET TO CYLINDER BLOCK (1")	10-35386
31	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
32	GUIDE BLOCK, LINK ROD	37896
33	WEAR PLATE, LINK ROD	52100
34	LATCH Comment: CONTROL CABLE FASTENING - ANCHOR BRACKET	8M0036768	38279 CONTROL CABLE FASTENING - ANCHOR BRACKET

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 900, 90 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY	1368-5702A9
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEDLE, SEAT AND GASKET	1395-83181
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
10	COVER, FLOAT BOWL	1395-5680
11	JET, BOWL VENT	1395-5733
12	HOSE, ECONOMIZER	1395-5734
13	SCREW, FLOAT BOWL COVER	10-52195
14	SCREW, FLOAT BOWL COVER	1395-4804
15	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
17	LEVER, THROTTLE (SEE NOTE BELOW) Comment: USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR	8146791
18	SCREW, THROTTLE STOP LEVER	1395-6027
19	SHAFT, THROTTLE	1395-7942
20	TUBE IDLE (#)
21	SCREW, BODY (IDLE TUBE)	1395-4540
22	SHUTTER, THROTTLE	1395-5108
23	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
24	SPRING, IDLE ADJUSTMENT SCREW (#)
25	SCREW, IDLE ADJUSTMENT (#)
26	NOZZLE, MAIN (#)
27	SCREW, PLUG - MAIN NOZZLE	1395-4542
28	JET, MAIN FUEL (.074)	1399-3794
28	JET, MAIN FUEL (.072)	1395-6207
28	JET, MAIN FUEL (.070) - STANDARD	1395-6030
28	JET, MAIN FUEL (.068)	1395-6029
29	SCREW, PLUG - MAIN FUEL JET CHANNEL	1395-4541
30	GASKET, JET CHANNEL PLUG SCREW (#)
31	SPRING, THROTTLE SHAFT RETURN (#)
32	SCREW, BODY CHANNEL	1395-4543
33	WELCH PLUG, BODY CHANNEL (#)
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KIT ( 1 PER CARBURETOR)	1395-51091
34	GASKET, CARBURETOR FLANGE	27-481641
35	NUT, CARBURETOR MOUNTING STUD	11-64809
-	GASKET SET	27-85653A87

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 900, 90 CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	54293A10
2	LOCKWASHER, SOLENOID TERMINAL	13-26996
3	NUT, SOLENOID TERMINAL	11-68219
4	SCREW, CHOKE SOLENOID (3/4")	10-25299
5	LOCKWASHER, CHOKE SOLENOID SCREW	13-8M0204647
6	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID	90548A1
7	CLUSTER Comment: THROTTLE LEVER (UPPER CARBURETOR)	52518
8	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
9	CARBURETOR ASSEMBLY, COMPLETE	1368-5702A9
10	THROTTLE PICK-UP BRACKET ASSEMBLY	53720A2
11	SCREW, THROTTLE BRACKET MOUNTING	10-66104
12	INSERT, THROTTLE COUPLING	28-89694
17	KNOB, CHOKE ROD	90242A1
18	GROMMET, CHOKE ROD	25-20116
19	STRAP, CHOKE KNOB TO CHOKE ROD	49589
20	SCREW, STRAP TO CHOKE KNOB (5/8")	10-77137
22	ROD, CHOKE	48203
23	SCREW, STRAP TO CHOKE ROD (1/2")	10-48591
24	NUT, STRAP TO CHOKE ROD SCREW	11-46438
25	SHUTTER, CHOKE - CARBURETOR	48152
26	STUD, CARBUREOTR - CHOKE SHUTTER PIVOT	16-69037
27	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
28	SCREEN ASSEMBLY, FILTE - CARBURETOR	35-57819
29	SCREW Comment: LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")	10-22523
29	SCREW Comment: UPPER CARBURETOR FILTER SCREEN TO CARB. (1")	10-23015
30	SPRING, UPPER FILTER SCREEN SCREW	24-57818
31	NUT Comment: CARBURETOR FILTER SCREEN FASTENING SCREW	11-20110
32	SPRING, CHOKE ROD TENSION	24-48230
33	STUD, CHOKE ROD SRPING TO CARBURETOR	10-657461
34	SPACER, CHOKE ROD SPRING STUD	23-32427
35	NUT, CHOKE ROD SPRING TO CARBURETOR STUD	11-8M0207775

CLAMP BRACKET AND REVERSE LOCK

Below is the parts list for Mercury 900, 90 CLAMP BRACKET AND REVERSE LOCK:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCRW ASSEMBLY	10-78492A1
2A	SCREW, WASHER ATTACHING	10-78495
2B	WASHER, THUMB SCREW	12-78493
3	CAP, THUMB SCREW	75043
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD Comment: CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY Comment: (NOT USED WITH FULL POWER TRIM)	17-8M0026068	17-49930A 1 (NOT USED WITH FULL POWER TRIM)
13	BOLT Comment: CLAMP BRACKET TO BOAT TRANSOM ( LOWER)	10-68298
13	BOLT Comment: CLAMP BRACKET TO BOAT TRANSOM (UPPER)	10-68299
14	WASHER, CLAMP BRACKET BOLT (LOWER)	12-68410
14	WASHER, CLAMP BRACKET BOLT (UPPER)	12-68300
15	NUT, CLAMP BRACKET BOLT	11-82670912
16	PIN, UPPER SHOCK MOUNTING	55-28416
17	SPRING, COIL - SWIVEL BRACKET Comment: NOT USED WITH FULL POWER TRIM	24-94891
18	PIN, COIL SPRIN MOUNTING Comment: NOT USED WITH FULL POWER TRIM	17-38311
19	SPACER, RUBBER - COIL SPRING POSITIONING Comment: NOT USED WITH FULL POWER TRIM	23-28688
20	TUBE Comment: CUSHING - SHOCK PIN (USED WITH FULL POWER TRIM)	63473
21	TILT LCOK ASSEMBLY (STARBOARD)	76386
22	TILT LOCK ASSEMBLY (PORT)	76385T
23	TUBE, TILT LOCK	79659
25	WASHER Comment: WAVE - TILT LOCK (STARBOARD SIDE ONLY)	13-69150
25A	OIL SEAL, SWIVEL BRACKET (TILT LOCK)	26-22734
25B	WASHER, TILT LOCK (STARBOARD SIDE ONLY)	12-76388
25C	"O" RING, TILT LOCK	25-627021
26	COTTER PIN, TILT LCOK	18-47959
27	REVERSE LOCK ASSEMBLY Comment: NOT USED WITH FULL POWER TRIM	87431
28	SPRING, REVERSE LOCK TENSION Comment: NOT USED WITH FULL POWER TRIM	24-78203A2
29	SHAFT, REVERSE LOCK PIVOT Comment: NOT USED WITH FULL POWER TRIM	56349
30	COTTER PIN, REVERSE LOCK TO SHAFT Comment: NOT USED WITH FULL POWER TRIM	18-45882
31	PIN, LOWER SHOCK MOUNTING	55-28414
32	SCREW, LOWER SHOCK PIN	10-21937
33	NUT, LOWER SHOCK PIN SCREW	11-8M0207775
34	SHOCK ABSORBER Comment: NOT USED WITH FULL POWER TRIM	55-58780A7
35	BUSHING, RUBBER - SHOCK ABSORBER (UPPER) Comment: NOT USED WITH FULL POWER TRIM	23-32171
36	BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: NOT USED WITH FULL POWER TRIM	23-28198
37	SPACER Comment: UPPER SHOCK BUSHING TO CLAMP BRACKET	23-73203
38	WASHER, UPPER BUSHING RETIANER (INNER)	12-28196
39	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
40	WASHER Comment: UPPER AND LOWER BUSHING RETAINER (OUTER)	12-69374
41	SCREW Comment: UPPER AND LOWER SHOCK MOUNTING PIN	10-69375
-	GASKET SET	27-85653A87

COWLING AND FRONT COVER

Below is the parts list for Mercury 900, 90 COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY Comment: (WITHOUT DECALS)	2183-7928A3
2	KNOB, COWL FRONT COVER FASTENING	56849
3	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
4	WASHER, COVER FASTENING KNOB (PLASTIC)	12-59572
5	SPRING, TENSION - FASTENING KNOB	24-30772
6	ROLL PIN, TENSION SPRING TO KNOB	17-29077
7	STRIP, SOUND ABSORBING	31089
8	BAG, STARTER ROPE	38674
9	SEAL, SOUND ABSORBING - UPPER	35769
10	SEAL, SOUND ABSORBING - TOP	53334
11	WRAP AROUND COWL ASSEMBLY Comment: (WITHOUT DECALS)	2136-4660A4
12	COWL LATCH ASSEMBLY	46785A1
13	HOOK, COWL LATCH FASTENING	30413
14	BLANKET, SOUND ABSORBING	30021
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1
--	ADHESIVE COMPOUND, EMBLEM FASTENING	92-271091

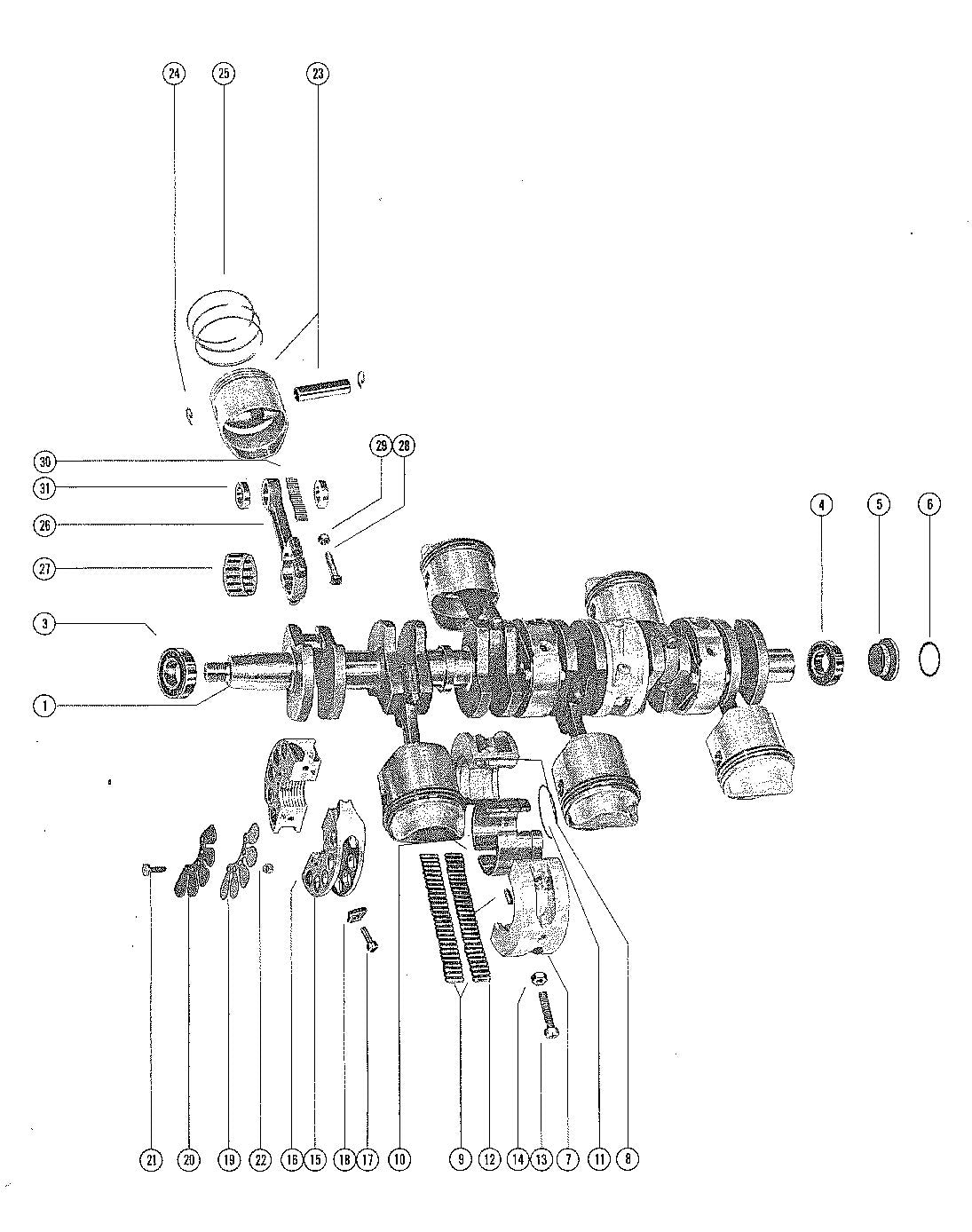

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 900, 90 CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	436-9072A1
3	BEARING, BALL - UPPER	30-62567T
4	BEARING, BALL - LOWER	30-63742T
5	CARRIER ASSEMBLY, "O" RING	54196A6
6	"O" RING, CARRIER	65800
7	CENTER MAIN BEARING ASSEMBLY	535-5397A4
8	DOWL PIN, CENTER MAIN BEARING	17-20032
9	BEARING, NEEDLE - OUTER RACE	29-714221
10	RACE, OUTER (PAIR)	26113T
11	RING, SNAP - OUTER RACE	53-26933
12	DOWEL PIN, STEPPED	17-47246
13	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
14	NUT, BEARING CLAMPING SCREW	11-8M0207775
15	MAIN BEARING ASSEMBLY, VALVE TYPE	540-5266T5
16	DOWEL PIN, MAIN BEARING	17-20032
17	SCREW, MAIN BEARING CLAMPING	10-45775
18	NUT, MAIN BEARING CLAMPING SCREW	11-45774
19	REED SET, MATCHED - MAIN BEARING	34-56007A1
20	REED STOP, MAIN BEARING REED VALVES	34-56008
21	SCREW, REED STOP MOUNTING	10-62204
22	NUT, REED STOP SCREW	11-53153
23	PISTON AND PISTON PIN ASSEMLBY	774-9137A12
24	LOCK RING, PISTON PIN	53-857196	40-52035
25	RING, PISTON	39-78816A12
26	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
27	BEARING ASSEMBLY, CRANKPIN	31-62596A1
28	SCREW, CONNECTING ROD	10-54803
29	NUT, CONNECTING ROD SCREW	11-49091
30	BEARING, NEEDLE - PISTON PIN	29-8M0214934
31	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
--	PISTON AND PISTON ASSEMBLY Comment: .015 OVERSIZE PISTONS AND RINGS	774-9137A13
--	RING, PISTON Comment: .015 OVERSIZE PISTONS AND RINGS	39-78811A12
--	GASKET SET	27-85653A87

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 900, 90 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	852-7393A2
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53862
3	RESTRICITON, CRANKCASE BLEED	66517
4	STUD, CARBURETOR MOUNTING (1 3/16")	16-64936
5	STUD Comment: CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8")	16-64281
6	PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK	17-43044
7	PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING	17-63779
8	STUD Comment: CYLINDER BLOCK TO DRIVE SHAFT HOUSING PALTE (4")	16-64282
9	COVER, STARTER MOTOR BRAKCET - TOP	56029T
10	SCREW, TOP COVER ATTACHING (1 3/8")	10-31984
10	SCREW, TOP COVER ATTACHING (1 3/4")	10-69267
11	LOCKWASHER, TOP COVER SCREWS	13-8M0204647
13	COVER, STARTER MOTOR BRACKET - BOTTOM	76867
14	SCREW, BOTTOM ATTACHING (1 7/8")	10-73279
15	LOCKWASHER, BOTTOM COVER SCREW	13-8M0204647
17	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-57841
17	SCREW, CRANKCSE TO CYLINDER BLOCK (1 3/4")	10-32293
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-73657
18	WASHER Comment: CRANKCASE TO CYLINDER BLOCK SCREWS	12-22753
19	NUT Comment: CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER)	11-29250
20	SCREW, CENTER MAIN BEARING LOCKING	10-20359
21	TAB WASHER, BEARING LOCKING SCREW	14-20091
22	SWITCH, MERCURY	58124A4
23	SCREW Comment: SWITCH TO FRONT MOUNTING BRACKET (1/2")	10-69235
24	SCREW, MERCURY SWITCH LEAD	10-62568
25	CHECK VALVE, BLEED HOSE - UPPER	21-42866
26	HOSE, BLEED (22")	32-9938779
27	CHECK VALVE, BLEED HOSE - LOWER	21-428671
28	ELBOW, BALANCE HOSE	22-20781
29	HOSE, BALANCE - MAIN BERING (6 1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
30	TEE, BALNCE HOSE	22-8585531
-	GASKET SET	27-85653A87

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE

Below is the parts list for Mercury 900, 90 DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, DISTRIBUTOR	393-3736A79
2	STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING	32197
3	PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING	17-27962
4	SPRING, HORSESHOE - DISTRIBUTOR HOUSING	24-27944
5	WASHER Comment: ECONOMIZER COLLAR - DISTRIBUTOR HOUSING	12-53540
6	ECONOMIZER COLLAR ASSEMBLY	55804A1
7	PIN, ECONOMIZER COLLAR - SPRING RETAINER	17-27961
8	FITTING, GREASE - ECONOMIZER COLLAR	22-25094
9	SWIVEL, LINKAGE - ECONOMIZER COLLAR	27947
12A	ROD, LINK - UPPER	67469
13	SWIVEL Comment: UPPER LINK ROD TO THROTTLE CONTROL LEVER	27948
14	LEVER, THROTTLE CONTROL	78992
15	WASHER Comment: WAVE - THROTTLE CONTROL LEVER SWIVEL	13-39954
16	WASHER, THROTTLE CONTROL LEVER SWIVEL	12-8M0204649
17	NUT, UPPER LINK ROD THROTTLE CONTROL LEVER	11-35888
18	SCREW Comment: THROTTLE LEVER TO EXHAUST COVER (1 3/4")	10-31830
19	WASHER, THROTTLE CONTROL LEVER SCREW	12-8M0042641	12-29395
20	BUSHING, THROTTLE CONTROL LEVER SCREW	23-45818
21	NUT, THROTTLE CONTROL LEVER SCREW	11-8M0204726
22	SWIVEL Comment: LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE	37587
23	NUT, THROTTLE CABLE TO LOWER SWIVEL	11-35888
24	COLLAR, THROTTLE ACTUATOR	48692
25	SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")	10-48675
26	NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW	11-64015
27	CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW	52023
28	PLATE, THROTTLE ACTUATOR	48671
29	SCREW Comment: THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")	10-37892
30	WASHER Comment: THROTTLE ACTUATOR PLATE FASTENING SCREW	12-30164
31	LOCKWASHER Comment: THROTTLE ACTUATOR PLATE FASTENING SCREW	13-26996
32	SPACER, THROTTLE ACTUATOR PLATE SCREW	23-48674
33	CAM, THROTTLE ACTUATOR PLATE	58454
34	WASHER, ADAPTOR - DISTRIBUTOR HOUSING	12-46246
35	ADAPTOR ASSEMBLY, DISTRIBUTOR	66165A2
36	FITTING, GREASE - DISTRIBUTOR ADAPTOR	22-25094
37	SCREW Comment: DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")	10-73657
38	WASHER, DISTRIBUTOR HOUSING SCREW	12-20084
40	WIRE Comment: GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET	84-93388A1
41	BRAKCET, STOP	55805
42	SCREW Comment: DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")	10-28636
43	WASHER, STOP BRACKET FASTENING SCREW	12-35462
44	SCREW, STOP BRACKET ADJUSTING (2 1/8")	10-64022
45	NUT, STOP BRACKET ADJUSTING SCREW	11-64015
46	CAP, NYLON - STOP BRACKET ADJUSTING SCREW	52023
47	WASHER, DISTRIBUTOR HOUSING	12-27939
48	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
49	WASHER Comment: WAVE - DISTRIBUTOR BALL BEARING TENSION	13-27959
50	CAP, DISTRIBUTOR HOUSING	54567
51	SPACER, DRIVE PULLEY	23-47250
52	DRIVEN PULLEY ASSEMBLY	29906A1
53	PIN, ROLL - FLANGE LOCATING	17-29908
54	FLANGE, DRIVEN PULLEY	29907
55	KEY, DISTRIBUTOR DRIVER	28-29910
56	SCREW, PULLEY CLAMPING	10-68554
57	BELT, TIMING	20140

DISTRIBUTOR HOUSING AND ROTOR

Below is the parts list for Mercury 900, 90 DISTRIBUTOR HOUSING AND ROTOR:

Position No.	Part Name	OEM Number	Supersedes
1	BALL BEARING, DISTRIBUTOR HOUSING (UPPER)	30-20066
2	NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING	11-54209
3	SLEEVE, ROTOR SHAFT	23-53539
4	HOUSING ASSEMBLY, DISTRIBUTOR	393-3736A79
5	GROUND STRAP ASSEMBLY Comment: DISTRIBUTOR TO CRANKCASE	53417
6	SCREW, GROUND STRAP ATTACHING (3/8")	10-62568
7	FLAME, ARRESTOR, VENT - DISTRIBUTOR HOUSING	58807A1
8	SHIM, BALL BEARING TO DISTRIBUTOR HOUSING	15-55853
9	BALL BEARING, DISTRIBUTOR HOUSING (LOWER)	30-26379
10	SHIM, BALL BEARING TO SPACER	15-21148A1
11	SPACER, ROTOR SHAFT	23-53538
12	RING Comment: RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING	53-26406
13	DISC, ROTOR	393-4313
14	ROTOR, DISTIBUTOR	393-4312
15	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG. Comment: PART OF DISTRIBUTOR CAP ASSEMBLY	54-60768
16	SCREW, DISTRIBUTOR CAP CLAMP (1 1/8") Comment: PART OF DISTRIBUTOR CAP ASSEMBLY	10-65774
17	NUT, DISTRIBUTOR CAP CLAMP SCREW Comment: PART OF DISTRIBUTOR CAP ASSEMBLY	11-26768
18	CABLE ASSEMBLY, CAP TO COIL	84-821945A2
19	GROMMET, HIGH TENSION CABLE	25-26547
20	BOOT, HIGH TENSION CABLE TO COIL	332-2854T01
21	BOOT, HIGH TENSION CABLE	85-94589
22	DISTRIBUTOR CAP ASSEMBLY	393-4841A2
--	BRUSH AND SPPRING ASSEMBLY	393-1293A1
23	FLAME ARRESTOR, VENT - DISTRIBUTOR CAP	58807A1
24	GASKET, DISTRIBUTOR CAP	27-55896
25	SPARK PLUG (CHAMPION L-76V)	33-896329827	33-827C
26	SPARK PLUG LEAD ASS'Y #1, 2, 3, 4, 5, AND 6 Comment: ORDER A-?36549A1! KIT FOR REPLACEMENT OF LEAD WIRE MARKERS.	84-813715A1
--	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
27	PROTECTOR, SPARK PLUG LEAD	85-63709A1
28	BOOT, SPARK PLUG LEAD TO DISTRIBUTOR	85-94589
28A	SLEEVE, SPARK PLUG LEAD (7")	23-622381
29	GROMMET, SPARK PLUG LEADS	25-26547
30	WIRE RETAINER, HIGH TENSION LEADS	45409
31	BRACKET, FRON - WIRE RETAINER	45392
32	BRACKET, REAR - WIRE RETAINER	47398
33	SCREW, FRONT AND REAR BRACKET ATTACHING	10-62568
34	SPACER, RUBBER - HIGH TENSION LEADS	45391
-	GASKET SET	27-85653A87

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 900, 90 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY	1573-5239A4
2	STUD Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
5	COVER, TIRM - DRIVE SHAFT HOUSING	37417
6	SCREW, TRIM COVER TO BOTTOM COWL	10-57807
6A	GROMMET, PLASTIC - TRIM COVER SCREW	25-92012
6B	GROUND STRAP ASSEMBLY, TRIM COVER SCREW	46933A2
6C	SCREW, GROUND STRAP ATTACHING	10-62568
7	TUBE, WATER INLET	32-60897
8	TUBE, EXHAUST	78184T
8A	BOOT, TUBE MOUNT	65638
11	NUT, POWERHEAD STUDS (3/8-24)	11-69254
12	WASHER, POWERHEAD STUDS	12-20553
14	GUIDE, PUSH ROD - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	52887
15	ROD, PUSH - REVERSE LOCK Comment: NOT USED WITH FULL POWER TRIM	47558
16	NUT, JAM - PUSH ROD Comment: NOT USED WITH FULL POWER TRIM	11-69254
17	YOKE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM	47559
19	COTTER PIN, PUSH ROD PIN Comment: NOT USED WITH FULL POWER TRIM	18-25191
20	MOUNT, RUBBER - UPPER	75296
21	WASHER, RUBBER - UPPER MOUNT BOLT	12-47840
22	WASHER, UPPER MOUNT BOLT	12-31263
23	NUT, UPPER MOUNT BOLT	11-8M0204653
24	MOUNT, RUBBER - LOWER	75299
25	SCREW, LOWER MOUNT (5 1/2")	10-75284
26	WASHER, LOWER MOUNT SCREW	12-49339
27	NUT, LOWER MOUNT SCREW	11-25096
28	BUMPER, RUBBER - LOWER MOUNTING SCEW	25067
30	NUT Comment: GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
31	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
32	NUT Comment: GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
33	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
34	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	35608
35	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
36	SCREW Comment: LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING	10-29256
37	COVER, LOWER MOUNT CLAMP	35474T
38	NUT, LOWER MOUNT CLAMP COVER	11-35521
39	SCREW, COVER TO LOWER CLAMP MOUNT	10-29722

END CAP, MANIFOLD AND EXHAUST COVERS

Below is the parts list for Mercury 900, 90 END CAP, MANIFOLD AND EXHAUST COVERS:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	852-7393A2
2	END CAP ASSEMBLY	1134-3197A1
3	OIL SEAL, END CAP	26-41953
4	"O" RING	25-47254
5	SHIM, END CAP TO CRANKCASE (.006-8-10)	15-47248A1
6	SCREW, END CAP MOUNTING	10-30225
7	END CAP ASSEMBLY, LOWER	1148-5410T1
9	OIL SEAL, END CAP	26-41953
10	"O" RING, END CAP	25-32546
11	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
12	SCREW, END CAP MOUNTING (1")	10-30225
13	COVER, WATER JACKET - CYLINDER BLOCK	71808
14	GASKET, WATER JACKET COVER	27-721421
15	SCREW Comment: WATER JACKET COVER TO CYLINDER BLOCK (7/8")	10-53167T
16	WASHER Comment: WATER JACKET COVER FASTENING SCREW	12-8M0042642	12-70132 WATER JACKET COVER FASTENING SCREW
17	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854952
18	PLATE, BAFFLE - EXHAUST MANIFOLD	757781
19	GASKET Comment: BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-854972
20	COVER, EXHAUST MANIFOLD	99896A1
21	SCREW, MANIFOLD COVER MOUNTING	10-53576
22	PLUG, PIPE - EXHAUST MANIFOLD COVER	22-328022
23	COVER, CYLINDER BLOCK	1023-8368A1
24	GASKET, CYLINDR BLOCK COVER	27-981853
25	SCREW.COVER MOUNTING (1")	10-8M0214943
27	PLUG, PIPE - CYLINDER BLOCK COVER	22-68307
28	BRACKET, MOUNT SUPPORT - CYLINDER LBOCK	37440
29	SCREW, BRACKET TO CYLINDER BLOCK (1")	10-35386
30	COVER, TRANSFER PORT (TOP/MIDDLE)	62301
30	COVER, TRANSFER PORT (BOTTOM)	66094
31	GASKET, TRANSFER PORT COVER	27-64941
32	SCREW, TRANSFER PORT COVER MOUNTING (1")	10-8M0214943
32	SCREW Comment: TRANSFER PORT COVER MOUNTING (3/4")	10-28636
33	POINTER, TIMING	43352
34	SCREW, TIMING POINTER ATTACHING (3/4")	10-28636
35	WASHER, TIMING POINTER SCREW	12-35462
36	GROUNG STRAP ASSEMBLY, EXHAUST COVER	46933A3
37	SCREW, GROUNG STRAP ATTACHING (3/8")	10-62568
-	GASKET SET	27-85653A87

EXHAUST EXTENSION PLATE

Below is the parts list for Mercury 900, 90 EXHAUST EXTENSION PLATE:

Position No.	Part Name	OEM Number
1	PLATE ASSEMBLY, EXHAUST EXTENSION	43289A2
2	BUSHING,NYLON - EXHAUST EXTENSION PLATE	23-27132
3	SEAL, EXHAUST EXTENSION PLATE	37918
4	STRIP Comment: RETAINING - EXHAUST EXTENSION PLATE SEAL	99358
5	SCREW Comment: SEAL AND RETAINING STRIP TO EXT. PLATE (1/2")	10-37571
6	DOWEL PIN, EXHAUST EXTENSION PLATE	17-23784
7	GASKET, POWERHEAD TO EXTENSION PLATE	27-692381
8	SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")	10-66023
10	SCREW Comment: HOUSING PLATE TO DRIVE SHAFT HSG. (2")	10-66023
11	GASKET, PLATE TO DRIVE SHAFT HSG. PLATE	27-661021
14	SEAL, DRIVE SHAFT HOUSING PLATE	26-60898
15	PLATE ASSEMLBY, DRIVE SHAFT HOUSING	43290A4
16	SEAL, RUBBER - WATER INLET TUBE	26-38970
17	DOWEL PIN, DRIVE SHAFT HOUSING PLATE	17-23784
18	GASKET Comment: MEGAPHONE TO DRIVE SHAFT HOUSING PLATE	27-62362
19	MEGAPHONE, EXHAUST	99699
20	SCREW Comment: MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8")	10-60480
21	WASHER, MEGAPHONE SCREW	12-8M0204649
22	WASHER, POWERHEAD STUD	12-20553
23	NUT, POWERHEAD STUD	11-82671013
-	GASKET SET	27-85653A87

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 900, 90 FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG, FLYWHEEL PULLER THREADS	19-45907
2	NUT, FLYWHEEL Comment: (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)	11-52901
3	WASHER, FLYWHEEL NUT	12-33001
4	FLYWHEEL ASSEMBLY, COMPLETE Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	225-2494A37
4	FLYWHEEL ASSEMBLY, COMPLETE Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	225-2494A37
5	SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")	10-32417
6	SCREW, PLATE/HUB TO FLEX.PLATE	10-68997
7	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
8	FLANGE, FLYWHEEL PULLEY	29788
9	PULLEY, FLYWHEEL	30306
10	HUB, FLYWHEEL PULLEY	29787
11	STATOR, ALTERNATOR (NOT AS SHOWN)	398-4793
12	SCREW, STATOR TO UPPER END CAP (7/8")	10-75840
13	CLIP, STATOR LEAD FASTENING (5/8")	54-24871
13	CLIP Comment: STATOR/WIRING HARNESS LEADS FASTENING (1/2")	54-22627
14	SCREW, STATOR LEAD CLIP FASTENING (3/8")	10-62568
15	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205

FUEL PUMP AND FUEL LINE ASSEMBLY

Below is the parts list for Mercury 900, 90 FUEL PUMP AND FUEL LINE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	66530A2
2	CHECK VALVE ASSEMBLY	21-30430A7
3	DIAPHRAGM ASSEMBLY	89031A1
4	GASKET, DIAPHRAGM (#)
5	GASKET, CHECK VALVE (#)
6	"O" RING, COVER TO HOUSING (#)
7	GASKET, NYLON - FILTER COVER SCREW (#)
8	SCREEN, FILTER - INLET	35-59072
9	RETAINER, CHECK VALVE	23004
10	SCREW, RETAINER TO FUEL PUMP (1/4")	10-43725
12	COVER, FUEL INLET	35-91078A1
13	SCREW, COVER TO FUEL PUMP (5/8")	10-37370
14	FITTING, FUEL OUTLET	22-19688
15	SCREW, FUEL PUMP TOBASE (1")	10-66686
16	BASE, FUEL PUMP	66575
17	SCREW, FUEL PUMP TO BOTTOM COWL (1 1/2")	10-66687
18	FITTING, PULSE LINE (90 DEG.)	22-19688
19	SPRING, PULSE LINE	24-68434
20	PULSE LINE (3 1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
21	CLAMP, FUEL LINE ATTACHING	54-68424
22	FITTING, PULSE LINE TO TRANSFER COVER (90 DEG.)	22-19688
23	FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
24	ELBOW, FUEL LINE TO ADAPTOR	22-63981
25	FUEL LINE Comment: FUEL PUMP TO UPPER CARBURETOR (15 3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 FUEL PUMP TO UPPER CARBURETOR (15 3/4")
26	CLIP, FUEL LINE ATTACHING	54-22627
27	SCREW, FUEL LINE CLIP (3/8")	10-62568
28	"D" WASHER, FUEL LINE CLIP SCREW	8M0084613	69205
29	FITTING, TEE - UPPER CARBURETOR	22-66328
30	FITTING, TEE - CENTER CARBURETOR	22-64706001
31	FITTING, ELBOW - LOWER CARBURETOR	22-19688
32	FUEL LINE Comment: CARBURETOR TO CARBURETOR (6 1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 CARBURETOR TO CARBURETOR (6 1/4")
33	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
34	STEM, CHECK UNIT ADAPTOR	23069
35	SPRING, ADAPTOR STEM	24-23067T
36	"O" RING, ADAPTOR STEM	25-16524
37	CUP WASHER, ADAPTOR	30188
38	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")	10-69029
-	GASKET SET	27-85653A87

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 900, 90 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
	GEAR HOUSING ASS'Y, OCMP. Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14 UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	1655-7333T24
-	GEAR HOUSING ASS'Y, COMP. Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14 UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	1655-7333T24
1	GEAR HOUSING ASS'Y Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	1655-7333T23
1	GEAR HOUSING ASS'Y Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	1655-7333T23
1A	CONNECOTR ASSEMBLY, SPEEDOMETER Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	22-85822A10
2	DOWEL PIN, GEAR HOUSING LOCATING	17-8M0084726	17-85500
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")	16-57921
4	STUD Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")	16-8M0133358
5	STUD Comment: WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")	16-8M0034463	16-56297 2 WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
6	STUD Comment: WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")	16-306671
7	BEARING, ROLLER - DRIVE SHAFT	31-32898T
8	DRIVE SHAFT	45-42646
9	GEAR, PINION - DRIVE SHAFT	43-68548T3
10	NUT, PINION GEAR TO DRIVE SHAFT	11-35921
11	SPACER, BALL BEARING TO BASE	23-70412
11	SHIM, BALL BEARING TO BASE	15-57007A1
12	ROLLER BEARING, DRIVE SHAFT	31-69220T
14	GASKET, WATER PUMP BASE	27-8M0214962
15	"O" RING, WATER PUMP BASE	25-8M0214923
16	WATER PUMP BASE ASSEMBLY	46-96146A5
17	OIL SEAL, WATER PUMP BASE	26-94038
18	OIL SEAL, WATER PUMP BASE	26-16977
19	DOWL PIN Comment: WATER PUMP BASE TO WATER PUMP BODY	17-35973
20	GASKET Comment: LOWER - WATER PUMP BASE TO FACE PLATE	27-8M0090319	27-85608 1 LOWER - WATER PUMP BASE TO FACE PLATE
21	PLATE Comment: FACE - WATER PUMP BASE TO WATER PUMP BODY	8M0204677
22	GASKET Comment: UPPER - FACE PLATE TO WATER PUMP BODY	27-858524	27-85609 1, 27-85609B 1 UPPER - FACE PLATE TO WATER PUMP BODY
23	WATER PUMP BODY ASSEMBLY	46-96148T1
24	INSERT, WATER PUMP BODY	48752T
26	SEAL, RUBBER - WATER INLET TUBE	26-38970
27	IMPELLER, WATER PUMP	47-89984T4
28	KEY, IMPELLER DRIVE	28-8M0214992
29	SCREW Comment: WATER PUMP BODY TO GEAR HOUSING (2 1/4")	10-30720
30	LOCKWASHER, WATER PUMP BODY SCREW	13-26992
31	WASHER Comment: WATER PUMP BODY FASTENING SCREW AND STUD	12-8M0204649
32	NUT, WATER PUMP FASTENING SCREW	11-35888
33	WASHER, WATER PUMP BODY FASTENING STUD	12-36001
34	NUT, WATER PUMP BODY FASTENING STUD	11-82670911
35	RING Comment: RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
36	SLEEVE, GUIDE - WATE INLET TUBE	23-29804T
37	SEAL, EXHAUST ELBOW	37641001
38	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
39	SHAFT ASSEMBLY, SHIFT - LOWER	76062A1
40	"E" RING, RETAINING - SHIFT SHAFT	53-29641
41	"O" RING, SHIFT SHAFT BUSHING	25-25439
42	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
43	OIL SEAL, SHIFT SHAFT BUSHING	26-8M0204708
44	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-77674
45	SPACER, LOWER - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	78036
46	CAM, REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	43308T1
47	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
47	PLUG, DRAIN (MAGNETIC)	22-8M0058389	22-67892A06
48	WASHER Comment: GREASE FILLER AND VENT HOLE SCREW	12-191833
-	GASKET SET	27-85653A87
-	WATER PUMP KIT	46-96148A8
-	SEAL KIT	26-55682A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 900, 90 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASS'Y, COMP. Comment: THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14 UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	1655-7333T24
-	GEAR HOUSING ASS'Y, COMP. Comment: THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON F12 AND F14 UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	1655-7333T24
1	GEAR HOUSING ASS'Y Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	1655-7333T23
1	GEAR HOUSING ASS'Y Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	1655-7333T23
49	CAM SHIFT Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	760394
49	CAM, SHIFT Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	760394
50	FOLLOWER, CAM	30625
51	SLIDE, CROSS PIN	30624
52	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
53	SHIM Comment: BEARING OUTER RACE TO HOUSING (.002-3-5-10)	15-30923A1
54	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
55	BEARING, ROLLER - FORWARD GEAR	31-30895T
56	FORWARD GEAR	43-68447T1
57	RATCHET, SLIDING GEAR	52-822539T	52-822539, 52-814756, 52-12777
58	PIN, CROSS - RATCHET TO PROPELLAR SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
59	SPRING, RETAINING - CROSS PIN	24-30893
60	SHAFT, PROPELLER	44-93003
61	REVERSE GEAR	43-76250T
62	WASHER Comment: THRUST - BEARING CARRIER TO GEAR HOUSING	12-76358
63	"O" RING, BEARING CARRIER	25-29976
64	BEARING CARRIER ASSEMBLY	41529T2
65	BEARING, ROLLER - BEARING CARRIER	31-30956T
66	OIL SEAL, BEARING CARRIER	26-8M0204670
67	KEY, LOCATING - BEARING CARRIER	28-30281
68	TAB WASHER,GEAR HOUSING COVER	14-52700
69	COVER, GEAR HOUSING	52699
70	TRIM TAB, GEAR HOUSING	97-31640Q4
71	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
72	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
73	NUT Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	11-8M0204653
74	SCREW Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING (1")	10-65210
75	THRUST HUB AND WASHER ASSEMBLY	13191Q01
76	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
77	NUT, PROPELLER	11-52707Q1
-	GASKET SET	27-85653A87

HYDRAULIC PUMP AND CONTROL VALVE

Below is the parts list for Mercury 900, 90 HYDRAULIC PUMP AND CONTROL VALVE:

Position No.	Part Name	OEM Number
1	HYDRAULIC PUMP ASSEMBLY Comment: SEE G2 FOR BREAKDOWN	92975A32
2	"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE	25-48171
3	SCREW, FILLER - HYDRAULCI PUMP	10-79953Q04
4	WASHER Comment: SEALING - HYDRAULIC PUMP FILLER SCREW	12-191833
5	SCREW, VENT - HYDRAULIC PUMP	10-62269
7	BATTERY LEAD (POSITIVE)	32979
8	BATTERY LEAD (NEGATIVE)	32988
9	PLATE, MANIFOLD	45336
10	CONTROL VALVE ASSEMBLY	45197A2
--	"O" RING Comment: PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)	25-48171
11	"O" RING Comment: CONTROL VALVE TO MANIFOLF PLATE (3/4"O.D.)	25-45254
12	"O" RING Comment: CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)	25-48171
13	"O" RING Comment: CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)	25-45253
14	SCREW Comment: VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")	10-56500
15	LOCKWASHER Comment: CONTROL VALVE AND MANIFOLD PLATE SCREW	13-26992
17	PLUG, CONTROL VALVE (1/2-20")	22-46008
18	CONNECTOR AND HARNESS	84-74023A1
22	BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT	45377T
23	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1")	10-35386
24	LOCKWASHER, MOUNTING BRACKET SCREW	13-39107
25	NUT, MOUNTING BRACKET SCREW	11-21908
26	BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")	10-68298
27	NUT, HYDRAULIC PUMP BOLT	11-82670912
28	STARTER SOLENOID	89-853654A1
29	LOCKWASHER Comment: STARTER SOLENOID TERMINAL	13-26996,10,10
30	NUT, STARTER SOLENOID TEMRINAL	10,11-68219
31	LOCKWASHER Comment: STARTER SOLENOID TERMINAL (5/16")	13-8M0204647
32	NUT, STARTER SOLENOID TERMINAL (5/16")	11-8M0204668
33	BOOT, RUBBER - STARTER SOLENOID TERMINAL	46265
34	BRACKET, MOUNTING - STARTER SOLENOID	74407T
35	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")	10-21140
36	LOCKWASHER, MOUNTING BRACKET SCREW	13-26992
37	NUT Comment: MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT	11-24656
38	BUMPER, RUBBER - SOLENOID BRACKET	269011
39	BATTERY LEAD (POSITIVE)	84-79139A2
39	BATTERY LEAD (NEGATIVE)	55992
40	BRACKET, MOUNTING - STARTER SOLENOID	74406
41	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")	10-69028
42	LOCKWASHER, MOUNTING BRACKET SCREW	13-26992
43	SCREW Comment: STARTER SOLENOID TO MOUNTING BRACKET (5/8")	10-34290
44	LOCKWASHER, STARTER SOLENOID SCREW	13-26992
45	NUT, STARTER SOLENOID SCREW	11-21825

HYDRAULIC PUMP ASSEMBLY

Below is the parts list for Mercury 900, 90 HYDRAULIC PUMP ASSEMBLY:

Position No.	Part Name	OEM Number
-	HYDRUALIC PUMP ASSEMBLY, COMPLETE	92975A32
1	"O" RING, HYDRAULIC PUMP	25-48171
2	VALVE BODY AND GEAR ASSEMBLY	392-7734
3	CAN, VALVE BODY	392-2618
4	SCREW, VALVE BODY TO RESERVOIR	10-20411
5	SEAL, RESERVOIR TO VALVE BODY AND GEAR	392-7735
6	RESERVOIR ASSEMBLY	392-2939
7	SCREW, VENT - HYDRAULIC PUMP	10-62269
8	SCREW, FILLER - HYDRAULIC PUMP	10-79953Q04
9	WASHER, SEALING - FILLER SCREW	12-191833
10	WASHER, THRUS - ARMATURE	392-2623
11	ARMATURE, FIELD AND FRAME	392-2943
12	FIELD AND FRAME ASSEMBLY	392-2942
13	BALL, COMMUTATOR END PLATE	392-2944
14	PLATE ASSEMBLY, COMMUTATOR END	392-2940
15	BRUSH SET, COMMUTATOR END PLATE	392-8989
16	SPRING SET, BRUSH TENSION	392-2529
17	BOLT SET Comment: THRU - PLATE AND FRAME TO RESERVOIR	392-2938
18	LOCKWASHER, THRU BOLT	13-26996

IGNITION COIL

Below is the parts list for Mercury 900, 90 IGNITION COIL:

Position No.	Part Name	OEM Number
1	IGNITION COIL ASSEMBLY	332-4895T2
2	PAD, RUBBER - IGNITION COIL	72015
3	COVER, IGNITION COIL	63195
4	SCREW, COIL TO CYLINDER BLOCK (2")	10-88856
5	WASHER, COIL SCREW	12-30164
6	CABLE ASSEMBLY	84-60466A1
7	NUT, IGNITION COIL TERMINAL	10,11-45076
8	CABLE ASSEMBLY, COIL TO SWITCH BOX	84-66054A2
9	SCREW, IGINTION COIL WIRE TO SWITCH BOX (3/8")	10-62568
10	PLATE, COIL MOUNTING	69190

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 900, 90 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC 90 PARTS LIST	90-79176
-	GASKET SET	27-85653A87
-	DECAL SET - SERIAL GROUP #1 Comment: .	37-13137A87
-	DECAL SET - SERIAL GROUP #2	37-13137A87

POWER TRIM CYLINDER REPAIR KITS

Below is the parts list for Mercury 900, 90 POWER TRIM CYLINDER REPAIR KITS:

Position No.	Part Name	OEM Number
-	REPAIR KIT	64507A1
1	"O" RING, (1 1/2" X 1 5/8" X 1/16") (#N.S.S.)
2	"O" RING (3/4" X 15/16" X 1/8") (#N.S.S.)
3	"O" RING (5/8" X 3/4" X 1/16") (#N.S.S.)
4	"O" RING (1 1/4" X 1 7/16" X 1/16") (#N.S.S.)
5	"O" RING (7/32" X 11/32" X 1/16") (#N.S.S.)
6	"O" RING (1 5/8" X 1 13/16" X 1/8") (#N.S.S.)
7	"O" RING (1 5/16" X 1 1/2" X 1/8") (#N.S.S.)
8	"O" RING (1 7/8" X 2" X 1/8") (#N.S.S.)
9	"O" RING (1 3/4" X 1 15/16" X 1/8") (#N.S.S.)
10	SEAL, SLIPPER - PISTON (#N.S.S.)
11	PISTON, ROD - HEAVY DUTY (#N.S.S.)
12	RETAINER ASSEMBLY, PISTON	64505A1
13	ROD, SCRAPER (#N.S.S.)
14	RETAINER, SCRAPER (#N.S.S.)

PROPELLERS (RIGHT HAND ROTATION)

Below is the parts list for Mercury 900, 90 PROPELLERS (RIGHT HAND ROTATION):

Position No.	Part Name	OEM Number
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11") Comment: 3 BLADES	48-77338A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES	48-77340A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES	48-77342A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES	48-77344A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19") Comment: 3 BLADES	48-77346A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21") Comment: 3 BLADES	48-77348A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23") Comment: 3 BLADES	48-77350A45

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES

Below is the parts list for Mercury 900, 90 STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNESS, INTERNAL	84-69236A1
3	CLAMP, WIRING HARNESS TO BOTTOM COWL	54-76368
4	SCREW Comment: WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")	10-690201
5	LOCKWASHER, WIRING HARNESS CLAMP SCREW	13-26996
6	WASHER, WIRING HARNESS CLAMP SCREW	12-30164
7	SPRING, GARTER - INTERNAL WIRING HARNESS	24-28975
8	SCREW, GROUND WIRE TO BOTTOM COWL	10-98256
9	LOCKWASHER, GROUND WIRE SCREW	13-26992
10	CLIP, STATOR LEADS TO BLOCK (1/8")	54-648552
11	SCREW Comment: WIRING HARNESS TO FRONT BRACKET (3/8")	10-62568
12	"D" WASHER, WIRING HARNESS CLIP SCREW	8M0084613	69205
13	TERMINAL BLOCK, STATOR LEADS	45559
14	SCREW,STATOR LEADS TO TERMINAL BLOCK (3/8")	10-62568
15	SWITCH BOX ASSEMBLY	332-2986A21
16	NUT, SWITCH BOX TERMINAL	11-45076
17	SCREW, SWITCH BOX (3/8")	10-29794
18	SCREW Comment: SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")	10-64279
19	NUT, SWITCH BOX SCREW	11-8M0207775
20	CABLE Comment: WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET	84-93389A12
21	SCREW, WIRE CABLE TO STARTER MOTOR	10-69035
22	STOP, RUBBE - STARTER MOTOR	8M0043376	68042
23	SPACER, COLLAR TO TOP MOUNTING CAP	23-56774
24	COLLAR, RUBBER - STARTER MOTOR MOUNT	23-8M0034918	23-8M0001391, 56703
25	STARTER MOTOR ASSEMBLY	50-898265010	50-72467
26	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
27	NUT, STARTER MOTOR TERMINAL	11-64015
28	SOLENOID, STARTER	89-853654A1
29	SCREW, SOLENOID TO BOTTOM COWL (5/8")	10-38601
30	LOCKWASHER Comment: STARTER SOLENOID FASTENING SCREW	13-26992
31	BUMPER, RUBBER - STARTER SOLENOID	269011
32	LOCKWASHER, SOLENOD TERMINAL	10,13-26996
33	NUT, SOLENOID TERMINAL	10,11-68219
34	CABLE, WIRE - STARTER MOTOR TO SOLENOID	84-93388A8
35	LOCKWASHER, SOLENOID TERMINAL (5/16")	13-8M0204647
36	NUT, SOLENOIDD TERMINAL (5/16")	11-8M0204668
37	BOOT, SOLENOID TERMINAL	46265
38	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
39	SCREW, RECTIFIER TO FRONT BRACKET (5/8")	10-37656
42	NUT, STATOR LEADS TO RECTIFIER	11-45076

SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 900, 90 SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number
1	SWIVEL BRACKET ASSEMBLY	1482-6386A4
2	BUSHING, REVERSE LOCK PIVOT SHAFT	23-69132
3	BUSHING, SWIVEL BRACKET	23-69341
4	WASHER, SWIVEL - UPPER	12-69342
5	OIL SEAL, SWIVEL BRACKET	26-37448
6	SCREW, DRIVE - SWIVLE BRACKET	10-47828
7	FITTING, GREASE - SWIVEL BRACKET	22-8M0169589
10	WASHER, SWIVEL PIN - LOWER	12-37429
11	STRAP STOP Comment: DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
12	SCREW Comment: STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")	10-28200
13	NUT, STRAP STOP FASTENING SCREW	11-25269
14	SWIVEL PIN AND ARM ASSEMBLY	17-73593A2
15	YOKE, BOTTOM	73984T
16A	RETAINING RING, BOTTOM YOKE ATTACHING	53-73591
17	BUMPER, STEERINGARM	28203
18	BOLT Comment: STEERING ARM TO UPPER MOUNT (5 7/8")	10-49554
19	NUT, STEERING ARM BOLT FASTENING	11-8M0204653

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 900, 90 TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	COWL, TOP (WITHOUT DECALS)	2114-7934T
2	RETAINER ASSEMBLY, TOP COWL	52733A9
3	PAD, BUMPER - TOP COWL RETAINER	35496
4	SCREW, RETAINER TO TOP COWL (1 1/4")	10-74824
5	LOCKWASHER, RETAINER TO TOP COWL SCREW	13-39107
6	SHIELD, TOP COWL - REAR	76370
7	SCREW, SHIELD TO TOP COWL (5/8")	10-37370
8	LOCKWASHER, SHIELD SCREW	13-37371
9	ROPE, STARTER (FOR MANUAL STARTING ONLY)	47341A11
10	HING, COWL LATCH - TOP COWL	52739
11	LEVER, COWL LATCH HINGE	94918F1
12	PIN, ROLL - COWL LATCH LEVER TO HINGE	17-58998
13	HOOK, TOP COWL LATCH - REAR	55455
14	SCREW, REAR HOOK TO TOP COWL (7/8")	10-22956
15	LOCKWASHER, REAR HOOK MOUNTING SCREW	13-26992
16	FRAME ASSEMBLY, TOP COWL SUPPORT Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	79897A4
16	FRAME ASSEMBLY, TOP COWL SUPPORT Comment: UNITED STATES 5160324 AND UP AUSTRALIA 8056845 AND UP CANADA 7123413 AND UP	79897A4
17	DECAL, TIMING (FLYWHEEL) Comment: UNITED STATES 5160323 AND BELOW AUSTRALIA 8056844 AND BELOW CANADA 7123412 AND BELOW	37-73291
18	MOUNT, RUBBER - TOP COW FRAME	90435
18	MOUNT Comment: RUBBER - TOP COWL FRAME (HEAVY DUTY)	46096
19	NUT, RUBBER MOUNT TO TOP COWL FRAME	11-35888
20	BRACKET, TOP COWL SUPPORT - REAR	86472
21	MOUNT, RUBBER - REAR SUPPORT BRACKET	31014
22	LOCKWASHER Comment: RUBBER MOUNT TO REAR SUPPORT BRACKET	13-26992
23	NUT Comment: RUBBER MOUNT TO REAR SUPPORT BRACKET	11-29598
24	SCREW, REAR BRACKET TO FRAME (1")	10-37562
26	LOCKWASHER, REAR BRACKET SCREW	13-8M0204647
27	SCREW, REAR BRACKET TO BOTTOM COWL (1")	10-37562
28	LOCKWASHER, REAR SUPPORT BRACKET SCREW	13-8M0204647
29	BRACKET ASSEMBLY, TOP COWL - FRONT	42706A1
30	SCREW Comment: FRONT BRACKET TO BOTTOM COWL (1 1/4")	10-60411
31	LOCKWASHER Comment: FRONT SUPPORT BRACKET SCREW	13-26992
32	SCREW Comment: FRONT BRACKET TO TOP COWL FRAME (1 1/2")	10-55511
33	LOCKWASHER Comment: FRONT SUPPORT BRACKET SCREW	13-8M0204647
34	MOUNT, RUBBER FRONT SUPPORT BRACKET	37640
35	LOCKWASHER Comment: RUBBER MOUNT TO FRONT SUPPORT BRACKET	13-8M0204647
36	NUT Comment: RUBBER MOUNT TO FRON SUPPORT BRACKET	11-28770

TRIM CYLINDERS AND HYDRAULIC HOSES

Below is the parts list for Mercury 900, 90 TRIM CYLINDERS AND HYDRAULIC HOSES:

Position No.	Part Name	OEM Number	Supersedes
1	TRIM CYLINDER ASSEMBLY Comment: (SEE "POWER TRIM CYLINDER REPAIR PARTS" FOR REPAIR KIT)	92194A14
1A	GREASE FITTING	22-8M0169589
2	SCREW, BLEED - SHOCK CYLINDER	10-45265
3	"O" RING, SHOCK CYLINDER BLEED SCREW	25-45016
4	SCREW Comment: SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")	10-45264
5	SPACER, SHOCK CYLINDER - LOWER	23-45280
6	BUSHING, RUBBER - SHOCK CYLINDER	23-94907A1
7	BRACKET, MOUNTING - SHOCK CYLINDER (PORT)	89108A3
8	SCREW Comment: MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")	10-45263
9	BOLT Comment: MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
10	WASHER, MOUNTING BRACKET BOLT	12-68410
11	NUT, MOUNTING BRACKET BOLT	11-82670912
12	BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)	89807A1
13	OIL SEAL, STARBOARD MOUNTING BRACKET	26-70608
14	PLUNGER, LIMIT SWITCH ACTUATING	89290
15	SPRING, TENSION - LIMIT SWITCH PLUNGER	24-95881
16	STUD, MOUNTING BRACKET AND CLAMP BRACKET	16-45282
17	LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD	13-8M0204647
18	NUT, MOUNTING BRACKET TO CLAMP BRACKET STUD	11-28770
19	SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")	10-45328
20	WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)	12-37807
21	NUT, SHOCK CYLINDER SCREW	11-20696
22	SPRING, TENSION - ADJUSTING STUD	24-24390
23	STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")	16-8M0034461	16-21085
24	NUT, JAM - LIMIT SWITCH ADJUSTING STUD	11-859124	11-45812
25	CAM, LIMIT SWITCH ADJUSTING STUD	99897
26	PLATE, RETAINING - LIMIT SWITCH CAM	86967
27	SCREW Comment: RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")	10-68513
28	LOCKWASHER, RETAINING PLATE AND CAM SCREW	13-26996
29	SWITCH ASSEMBLY, CUT-OUT LIMIT	45326A2
30	BUSHING, RUBBER - CUT-OUT LIMIT SWITCH	23-45354
31	SCREW Comment: CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")	10-47255
32	COVER, LIMIT SWITCH	45287
33	GASKET, LIMIT SWITCH COVER	27-45275
34	SCREW Comment: LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")	10-24942
35	COVER, INLET - TRANSOM	87774A1
36	GASKET, INLET COVER	27-45274
37	GROMMET, RUBBER - INLET COVER	25-45507
38	SCREW, INLET COVER TO BOAT (2")	10-32866
39	WASHER, INLET COVER SCREW	12-20878
40	NUT, INLET COVER SCREW	11-8M0204718
41	HOSE, TRIM Comment: CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.	32-88005
42	HOSE, LIFT Comment: CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.	32-88006
43	GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE	23-35977
44	TILT STOP	73519A1
45	TUBE, MOUNTING - TILT STOP	69259
46	PIN, MOUNTING TUBE	77669
47	COTTER PIN, MOUNTING TUBE PIN	18-36002

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
