Suzuki DF 90 2024 DF 90AT-440001~ Outboard Motor Parts Diagram & Catalog
24 Jun 2025
0 Comments
Camshaft (DF90A DF90ATH DF90AWQH DF100B)
Back to TopBelow is the parts list for Suzuki 2024 DF 90AT-440001~ Camshaft (DF90A DF90ATH DF90AWQH DF100B):
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | Camshaft, Intake | 12701-87L10-0000 |
| 2 | Camshaft, Exhaust | 12705-87L10-0000 |
| 3 | Sprocket, Camshaft Timing (NT:29) | 12741-90J01-0000 |
| 4 | Sprocket, EXH Camshaft (NT:29) | 12748-87L00-0000 |
| 5 | Bolt, Camshaft | 12749-93J00-0000 |
| 6 | Bolt | 01550-0612A-0000 |
| 7 | Pin | 04221-05109-0000 |
| 8 | Tappet | 12891-69J00-0000 |
| 9-1 | Shim, Tappet (T:2.08) | 12892-69J00-208 |
| 9-2 | Shim, Tappet (T:2.10) | 12892-69J00-210 |
| 9-3 | Shim, Tappet (T:2.12) | 12892-69J00-212 |
| 9-4 | Shim, Tappet (T:2.14) | 12892-69J00-214 |
| 9-5 | Shim, Tappet (T:2.16) | 12892-69J00-216 |
| 9-6 | Shim, Tappet (T:2.18) | 12892-69J00-218 |
| 9-7 | Shim, Tappet (T:2.20) | 12892-69J00-220 |
| 9-8 | Shim, Tappet (T:2.22) | 12892-69J00-222 |
| 9-9 | Shim, Tappet (T:2.24) | 12892-69J00-224 |
| 9-10 | Shim, Tappet (T:2.26) | 12892-69J00-226 |
| 9-11 | Shim, Tappet (T:2.28) | 12892-69J00-228 |
| 9-12 | Shim, Tappet (T:2.30) | 12892-69J00-230 |
| 9-13 | Shim, Tappet (T:2.32) | 12892-69J00-232 |
| 9-14 | Shim, Tappet (T:2.34) | 12892-69J00-234 |
| 9-15 | Shim, Tappet (T:2.36) | 12892-69J00-236 |
| 9-16 | Shim, Tappet (T:2.38) | 12892-69J00-238 |
| 17-9 | Shim, Tappet (T:2.40) | 12892-69J00-240 |
| 18-9 | Shim, Tappet (T:2.42) | 12892-69J00-242 |
| 19-9 | Shim, Tappet (T:2.44) | 12892-69J00-244 |
| 20-9 | Shim, Tappet (T:2.46) | 12892-69J00-246 |
| 21-9 | Shim, Tappet (T:2.48) | 12892-69J00-248 |
| 22-9 | Shim, Tappet (T:2.50) | 12892-69J00-250 |
| 23-9 | Shim, Tappet (T:2.52) | 12892-69J00-252 |
| 24-9 | Shim, Tappet (T:2.54) | 12892-69J00-254 |
| 25-9 | Shim, Tappet (T:2.56) | 12892-69J00-256 |
| 26-9 | Shim, Tappet (T:2.58) | 12892-69J00-258 |
| 27-9 | Shim, Tappet (T:2.60) | 12892-69J00-260 |
| 28-9 | Shim, Tappet (T:2.62) | 12892-69J00-262 |
| 29-9 | Shim, Tappet (T:2.64) | 12892-69J00-264 |
| 30-9 | Shim, Tappet (T:2.66) | 12892-69J00-266 |
| 9-31 | Shim, Tappet (T:2.68) | 12892-69J00-268 |
| 9-32 | Suzuki Shim- DISCONTINUED, Tappet (T:2.70) | 12892-69J00-270 |
| 9-33 | Suzuki Shim- DISCONTINUED, Tappet (T:2.72) | 12892-69J00-272 |
| 9-34 | Shim, Tappet (T:2.74) | 12892-69J00-274 |
| 9-35 | Shim, Tappet (T:2.76) | 12892-69J00-276 |
| 9-36 | Shim, Tappet (T:2.78) | 12892-69J00-278 |
| 9-37 | Shim, Tappet (T:2.80) | 12892-69J00-280 |
| 9-38 | Shim, Tappet (T:2.82) | 12892-69J00-282 |
| 9-39 | Shim, Tappet (T:2.84) | 12892-69J00-284 |
| 9-40 | Shim, Tappet (T:2.86) | 12892-69J00-286 |
| 9-41 | Shim, Tappet (T:2.88) | 12892-69J00-288 |
| 9-42 | Shim, Tappet (T:2.90) | 12892-69J00-290 |
| 10 | Intake Valve | 12911-87L00-0000 |
| 11 | Valve, Exhaust | 12915-87L50-0000 |
| 12 | Spring, Valve | 12921-87J11-0000 |
| 13 | Retainer, Valve Spring | 12931-78G00-0000 |
| 14 | Suzuki Cotter Valve | 12932-24400-0000 |
| 15 | Seat, Valve Spring | 12933-51E00-0000 |
| 16 | Oil Seal (5.5x11x8.2) | 09289-05006-0000 |

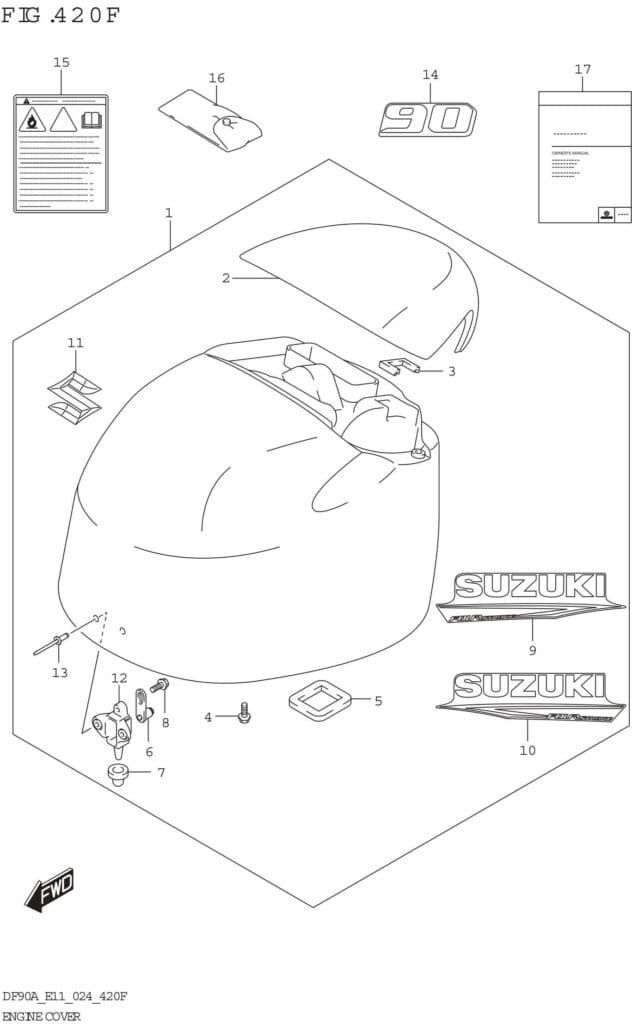

Engine Cover (DF90A DF90ATH)
Back to TopBelow is the parts list for Suzuki 2024 DF 90AT-440001~ Engine Cover (DF90A DF90ATH):
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1-1 | Engine Cover Set (Nebular Black) | 61401-87Y52-YAY |
| 1-2 | Handle, Tilt Up (Black) | 61431-87L21-YAY |
| 1-9 | STBD Engine Cover Stripe | 61443-88L40-0000 |
| 1-10 | Stripe, Engine Cover PORT | 61453-88L40-0000 |
| 14-1 | Mark, Emblem Rear | 61435-87LK0-0000 |
| 17-1 | Manual Owner's | 99011-87LC0-054 |
| 2-1 | Engine Cover Set (Super Cool White) | 61401-87Y62-QTN |
| 2-2 | Handle, Tilt Up (White) | 61431-87L21-QTN |
| 2-9 | STBD Engine Cover Stripe | 61443-88L50-0000 |
| 2-10 | Stripe, Engine Cover PORT | 61453-88L50-0000 |
| 14-2 | Mark, Emblem Rear | 61435-87LL0-0000 |
| 17-2 | Manual Owner's | 99011-87LC0-03B |
| 3 | Seal, Engine Cover | 61439-87L00-0000 |
| 17-3 | Manual Owner's | 99011-87LC0-059 |
| 4 | Suzuki Bolt | 01550-0616C-0000 |
| 5 | Seal, Air Vent | 61476-87L00-0000 |
| 6 | Fastener Comp | 61610-93J00-0000 |
| 7 | Engine Cover Cushion | 09329-10022-0000 |
| 8 | Suzuki Bolt | 01550-0612C-0000 |
| 11 | Emblem, (S) | 68111-87L00-0000 |
| 12 | Bracket, Fastener | 61621-87L00-0000 |
| 13 | Rivet | 09229-04056-0000 |
| 15 | Engine Cover Label | 61458-90J01-0000 |
| 16 | Suzuki Tool Set | 09800-81841-0000 |
