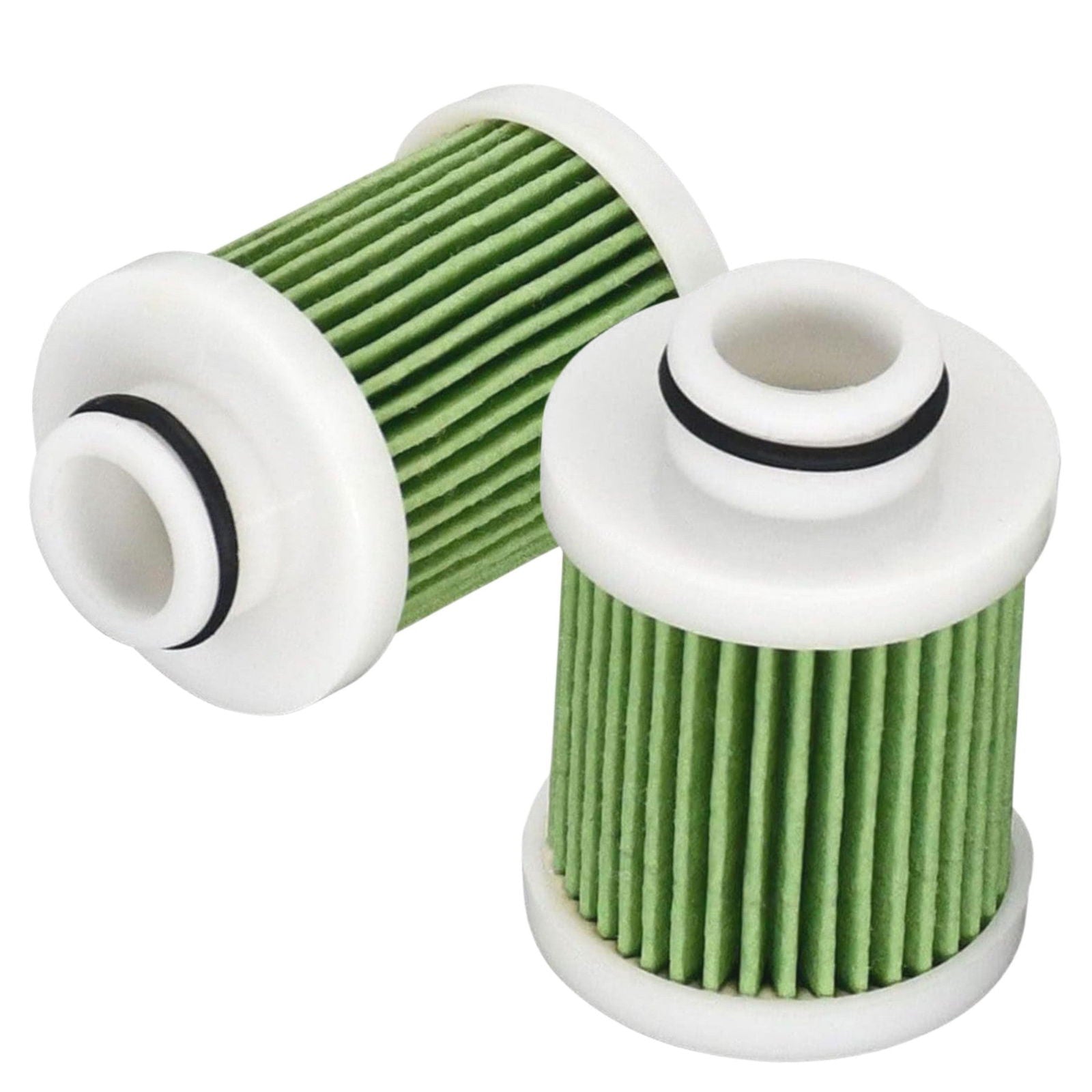

Fuel Filter Element – Fits Suzuki DF100A–DF200AP 4-Stroke (Replaces 15412-92J00/15412-92J01)
This fuel filter element is designed for Suzuki 4-Stroke outboards from 100 to 200 HP, including models DF100A, DF115A, DF140A, DF150A/AP, DF175A/AP, and DF200A/AP manufactured between 2013 and 2021.
It serves as a direct replacement for Suzuki part numbers 15412-92J00, 15412-92J01, and Recmar REC15412-92J00, ensuring precise fitment and reliable performance.
-
Filtration Rating: High-performance 10-micron filtration media protects the fuel system from contaminants.
-
Fuel Type: Compatible with standard gasoline fuel systems.
-
Installation: Designed for direct insertion into the in-line filter housing located on the engine.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Suzuki |
15412-92J00 |
Suzuki |
15412-92J01 |
Recmar |
REC15412-92J00 |
Compatible Engine Models
Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Suzuki |
DF100A |
100 |
4-Stroke |
2013-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF115A |
115 |
4-Stroke |
2013-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF140A |
140 |
4-Stroke |
2013-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF150A |
150 |
4-Stroke |
2018-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF150AP |
150 |
4-Stroke |
All years |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF175A |
175 |
4-Stroke |
2018-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF175AP |
175 |
4-Stroke |
All years |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF200A |
200 |
4-Stroke |
2015-2021 |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Suzuki |
DF200AP |
200 |
4-Stroke |
All years |
15412-92J00/15412-92J01 |
Recommended replacement every 200 hours |
Technical Specifications
Specification |
Value |
Product Type |
Fuel Filter Element |
Installation |
In-line filter on engine |
Filtration Rating |
10 micron |
Fuel Type |
Gasoline |
Connection |
Direct insertion into filter housing |
Housing Material |
Plastic with paper filter media |
Housing Color |
Green |
Dimensions |
Diameter: 30.5 mm max, Height: 42.5 mm max |
Thread Size |
N/A (cartridge-style insertion) |
Warranty |
1 Year (aftermarket), OEM warranty when purchased genuine |
Other Technical Attributes |
ISO9002 certified production (JLM Marine) |
Package Contents
This package includes the following:
- 1 x Fuel Filter Element (15412-92J00/15412-92J01)
Installation Guide
-
Safety First: Shut off the engine completely and disconnect the battery terminals.
-
Locate Filter: Find the fuel filter housing on the engine block.
-
Prevent Spills: Place a rag or small container under the housing to catch any residual fuel.
-
Open Housing: Carefully unscrew or unclip the filter housing cover.
-
Remove Old Filter: Take out the old filter element, paying attention to its orientation.
-
Clean Housing: Wipe the inside of the housing clean with a lint-free cloth.
-
Insert New Filter: Place the new filter into the housing, making sure it is seated correctly.
-
Close Housing: Securely reinstall the housing cover, tightening it to the manufacturer's specification. Do not overtighten.
-
Reconnect Power: Reconnect the battery terminals.
-
Prime System: Prime the fuel system according to your engine's manual to ensure there is no air in the lines.
-
Final Check: Start the engine and carefully inspect the filter housing for any signs of leaks.
Troubleshooting & FAQ
Q: How do I confirm this fits my engine?
A: First, check the "Compatible Engine Models" table to see if your model and year range are listed. This filter is designed for Suzuki 4-stroke outboards DF100A through DF200AP (2013-2021). The most reliable method is to verify that your existing part number is 15412-92J00 or 15412-92J01.
Q: How often should I replace this fuel filter?
A: For optimal engine health and performance, the recommended replacement interval is every 200 hours of operation or at least once per year, whichever comes first.
Q: What are the signs that my fuel filter is clogged and needs replacement?
A: Common symptoms of a failing fuel filter include engine hesitation, a noticeable loss of power, difficulty starting, or frequent stalling, particularly under load. These issues suggest that restricted fuel flow is starving the engine of fuel.
Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
