Suzuki DF 90 2024 DF 90ATH-440001~ Outboard Motor Parts Diagram & Catalog
24 Jun 2025
0 Comments
Drive Shaft Housing (DF90ATH:E40)
Back to TopBelow is the parts list for Suzuki 2024 DF 90ATH-440001~ Drive Shaft Housing (DF90ATH:E40):
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | Drive Shaft Housing, (Black) | 52111-87L00-YAY |
| 2 | Suzuki Bolt (10X44) | 09116-10181-0000 |
| 3 | Suzuki Pin, (8X12) | 09202-08006-0000 |
| 4 | Case, Extension (Black) | 52131-87L00-YAY |
| 5 | Stud Bolt | 09108-10115-0000 |
| 6 | Stud Bolt | 09108-10157-0000 |
| 7 | Suzuki Pin, (8X12) | 09202-08006-0000 |
| 8 | Circlip | 09381-40005-0000 |
| 9 | Bush, Drive Shaft | 57130-87E02-0000 |
| 10 | Protection Anode | 55321-93J01-0000 |
| 11 | Anode Bolt (6X16) | 09116-06236-0000 |
| 12 | Mount, Lower Thrust | 54151-87L01-0000 |
| 13 | Lower Mount, Lower | 54160-87L10-0000 |
| 14 | Bolt, Lower Mount | 54166-95J02-0000 |
| 15 | Suzuki Nut | 09159-12014-0000 |
| 16 | Mount, FWD Lower Side | 54167-87L10-0000 |
| 17 | Washer, Upper Mount Bolt | 54114-90J10-0000 |
| 18 | Lower Mount Bracket, Lower Mount (Black) | 54211-90J01-YAY |
| 19 | Cover, Lower Mount STBD (Black) | 54221-87L00-YAY |
| 20 | Cover, Lower Mount Port (Black) | 54231-87L00-YAY |
| 21 | Suzuki Bolt (10X44) | 09116-10181-0000 |
| 22 | Damper, FWD Stopper | 54180-88L01-0000 |
For Suzuki Outboard Owners:
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Suzuki Parts on Sale

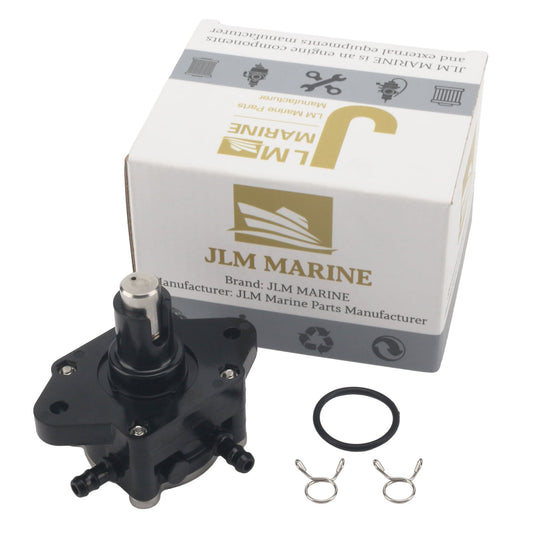

Fuel Pump Assembly for Suzuki DF25A, DF30A 25HP, 30HP Models (15100-94L00, 15100-94L01)
OEM Part Numbers 15100-94L00, 15100-94L01 Compatible Models Suzuki Four-Stroke Engines: DF25A (All Years) DF30A (All Years) Explosion Diagram Package Contents Fuel pump assembly Hose clamp (09401-11423 | 9×1mm) ×2 O-ring (09280-26005 | 2.65×26.5mm ID) ×2 Installation Instructions Ensure the engine is turned off and...
- $37.40
- $37.40
- Unit price
- per

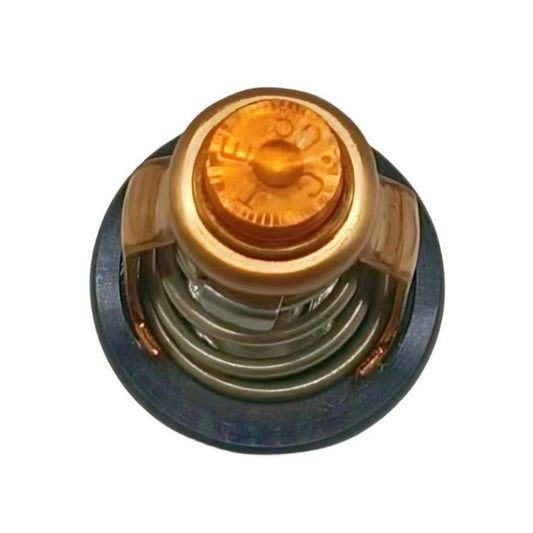

Thermostat 60ºC for Suzuki 9.9-70HP 17670-94402 17670-94400 17670-94404 5031758 17670-94400
Product Details: Replaces OEM Part Numbers: Suzuki: 17670-94404, 17670-94403, 17670-94402, 17670-94401, 17670-94400 Johnson/Evinrude: 5031758 Sierra: 18-3684 Compatible Models: Suzuki Outboard Engines: DF Series: 9.9HP, 15HP, 25HP, 30HP, 40HP, 50HP, 60HP, 70HP DT Series: 35HP, 40HP PU Series: 40HP Technical Specifications: Temperature Rating: 60ºC (140ºF)...
- $27.49
- $27.49
- Unit price
- per

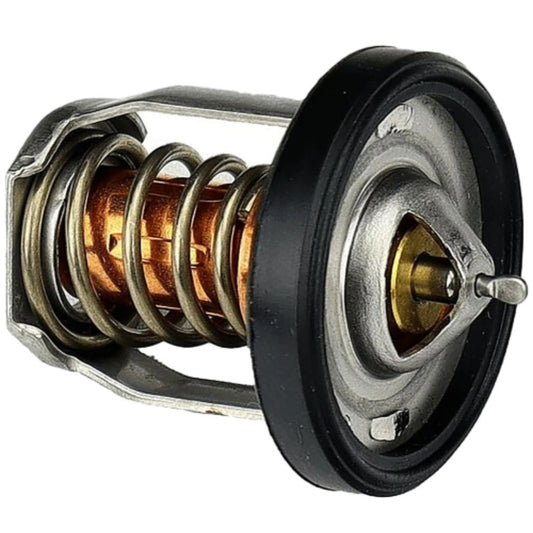

Thermostat for Suzuki Outboard Engines DF 2.5-20HP 17670-91J00 91J01 91J02 5033385
Product Details: Part Numbers: Suzuki OEM: 17670-91J00, 17670-91J01, 17670-91J02 Johnson/Evinrude OMC Equivalent: 5033385 Compatible Models: Suzuki Outboard Engines Four-Stroke Engines: DF2.5 (2006 model year) DF4, DF5, DF6 (2002 and newer) DF9.9B, DF15A, DF20A (2013 and newer) Johnson/Evinrude OMC Engines Compatible with models using OEM...
- $28.00
- $28.00
- Unit price
- per

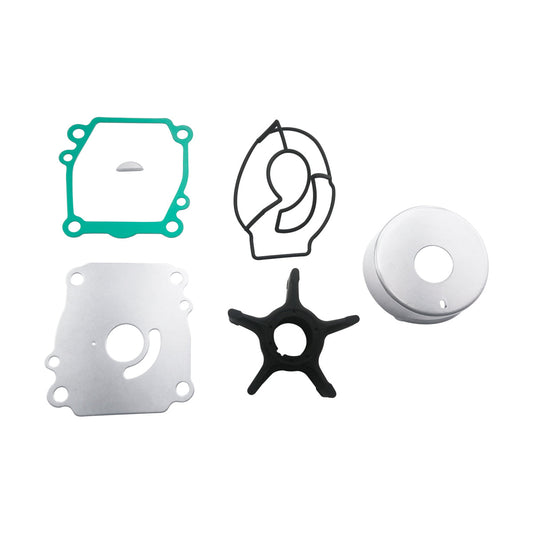

Water Pump Impeller Kit for Suzuki DF100A - DF175AP 17400-92J21
Product Details: Part numbers: 17400-92J21, 17400-92J22, 17400-92J23, 17400-92J23-000. Order number: AM17400-92J21. Suzuki OEM: 17400-92J21, 17400-92J22, 17400-92J23. Compatible Models: Suzuki: Four - Stroke Engines: DF90T (680686 -), DF115T (681518 -), DF115Z, DF100T, DF100, DF115 (2010 - 12), DF100A, DF115A, DF140A (2010+), DF150AP, DF175AP (2009+) Product...
- $35.00
- $35.00
- Unit price
- per

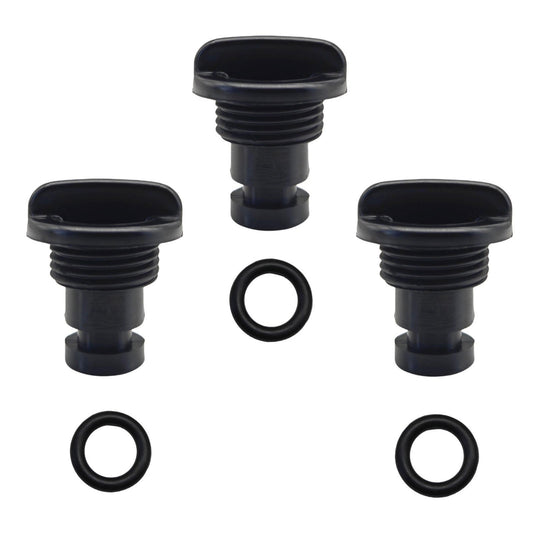

Water Flush Plug Kit for Suzuki 4 Stroke DF 25-140 HP 17913-99E12
Product Details: Part numbers: Suzuki 17913-99E12, 17913-99E11, 17913-99E10 Compatible Models: Suzuki Four-Stroke Engines 25 HP 30 HP 60 HP 70 HP 90 HP 100 HP 115 HP 140 HP Product Features High Quality: Manufactured to OEM specifications using the exact same material as the...
- $17.00
- $17.00
- Unit price
- per

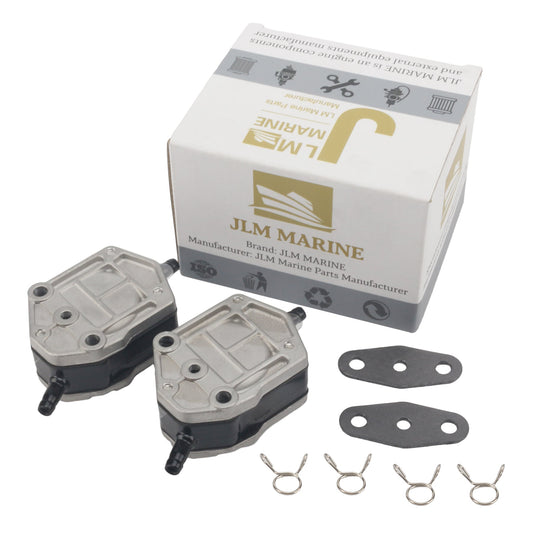

Fuel Pump Assembly for Suzuki Marine 20HP-90HP Models (15100-94300)
OEM Part Numbers 15100-94300, 15100-94312, 15100-94301, 15100-94302, 15100-94303, 15100-94310, 15100-94311 Compatible Models Suzuki Two-Stroke Engines: DT9.9 (1988-1997) DT20 (1986-1988) DT25 (1983-2000) DT30 (1983-2000) DT35 (1980-1989) DT40 (1980-1998) DT50 (1977-1984) DT55 (1985-1997) DT60 (1983-1984) DT65 (1978-1997) Explosion Diagram Technical Specifications Weight: 345g Package Dimensions: 12x10x8.5...
- $28.90
- $28.90
- Unit price
- per

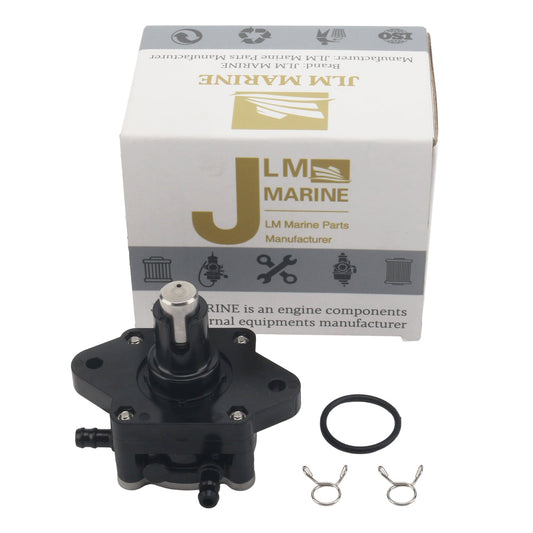

Fuel Pump for Suzuki DF4, DF5, DF6 2003+ Models (15100-91J03, 15100-91J00, 15100-91J01, 15100-91J02)
OEM Part Numbers 15100-91J03, 15100-91J00, 15100-91J01, 15100-91J02 Compatible Models Suzuki Four-Stroke Engines: DF4 (2003+) DF5 (2003+) DF6 (2003+) Explosion Diagram Technical Specifications Weight: 199 g Package Dimensions: 10 x 9 x 6 cm Package Contents Hose clamp 90467-09M09-00 (9 x 1 mm) O-ring 93210-27ME3-00...
- $38.90
$45.00- $38.90
- Unit price
- per

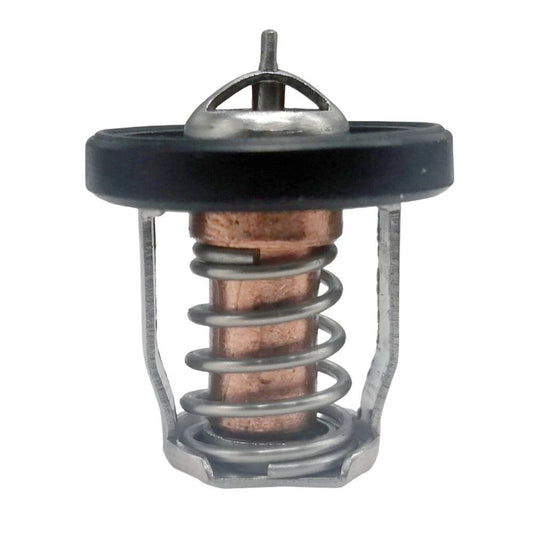

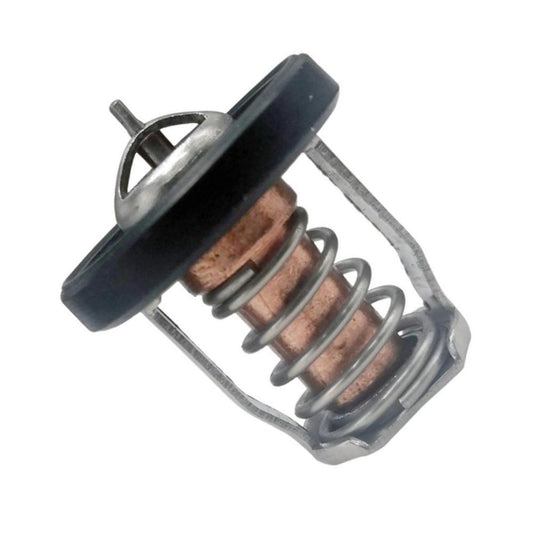

Thermostat for Suzuki Outboards DF8A 9.9 15 20 25 30A 17670-94J00 17670-94J01 17670-94J02 5036226 17670-94J00 / 01 / 02 5036226
Product Details: Part Numbers: Suzuki OEM: 17670-94J00, 17670-94J01, 17670-94J02 Johnson/Evinrude/OMC Equivalent: 5036226 Compatibility: This thermostat is compatible with select Suzuki outboard models (see below). Direct replacement for Suzuki OEM and Johnson/Evinrude/OMC part numbers listed above. Compatible Models: Suzuki Outboards: DF8A / 9.9A DF15 DF20...
- $27.99
- $27.99
- Unit price
- per

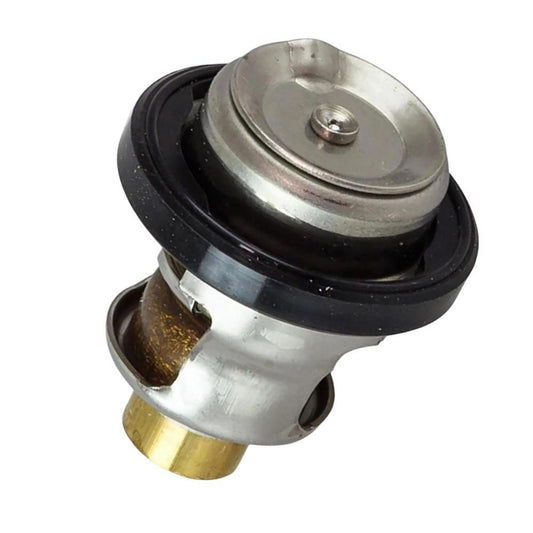

Thermostat for Suzuki Marine Outboard Engines 72° DF40 DF50 DF60 DF70 17670-87J00-000 17670-87J00
Product Details: Replaces OEM Part #: 17670-87J00-000 Compatible Models: Suzuki Four-Stroke Engines: DF40 (1999–2010) DF50X-K10 (1999–2010) DF60 (1998–2009) DF70W-K9 (1998–2009) Technical Specifications: Opening Temperature: 72°C (161.6°F) Function: Regulates engine temperature by opening the cooling circuit at 72°C to prevent overheating. Package Contents: Thermostat ×...
- $25.49
- $25.49
- Unit price
- per

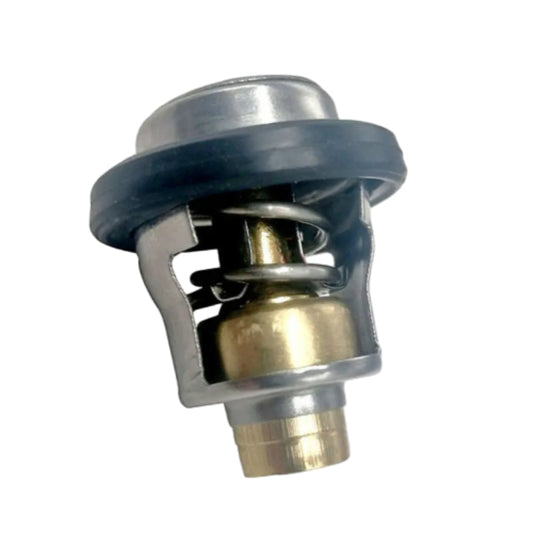

Thermostat 50° for Suzuki DF40/50/60/70 DT9.9/20/25/30/55/65 PU55 17670-93962 17670-93961 17670-93962 ,5030742
Product Details: Replaces Suzuki OEM Part Numbers: 17670-93964 17670-93963 17670-93962 17670-93961 17670-94300 17670-94301 17670-93960 Compatible Models: Suzuki Outboard Engines: DF Series (Four-Stroke): DF 40HP, 50HP, 60HP, 70HP (1998-1999) DT Series (Two-Stroke): DT 9.9HP, 20HP, 25HP, 30HP, 55HP, 65HP PU Series: PU 55HP Technical Specifications:...
- $33.50
- $33.50
- Unit price
- per
Outboard Thermostat 50°C for Suzuki 17670-90J21 17670-90J20
Product Details: Aftermarket Part Numbers: 17670-90J20, 17670-90J21 Equivalent OEM Part Numbers: Suzuki 17670-90J20, Suzuki 17670-90J21 Compatible Models: Suzuki Outboard Engines Four-Stroke Models: DF100A/115A/140A (2013–Present) DF150/175 (2012–2021) DF250AP/300AP (2012–2021) Package Contents: 1 × Thermostat Product Features High Quality: Manufactured to OEM specifications using the exact...
- $17.49
- $17.49
- Unit price
- per

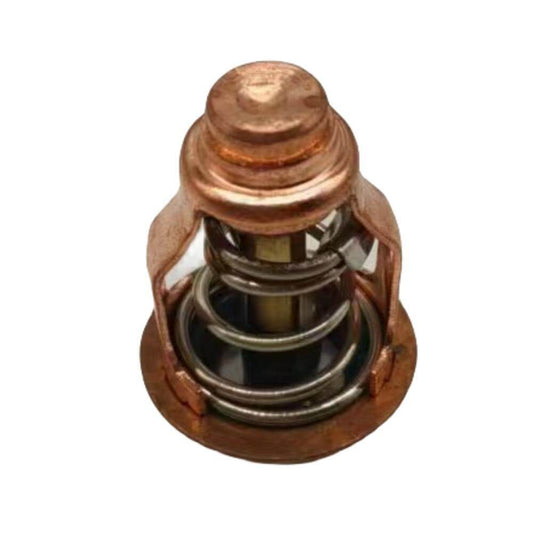

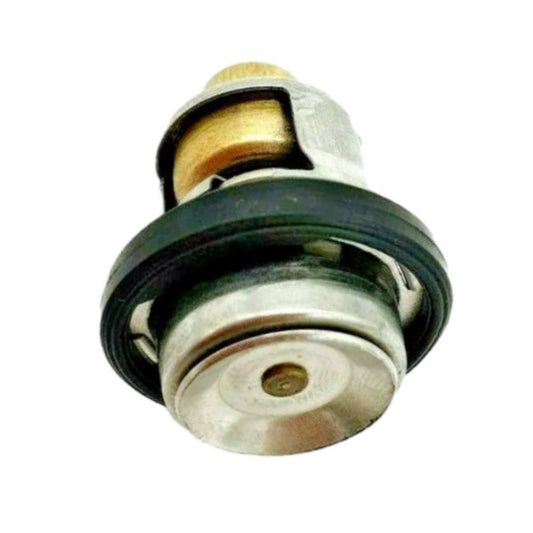

Thermostat 71°C Outboard for Suzuki DF90 DF115 DF140 17670-90J10 17670-90J10
Product Details: Sierra OEM Part Number: 17670-90J10 Equivalent Part Numbers: Suzuki 17670-90J10-000 Temperature Rating: 71°C (160°F) Compatible Models: Suzuki Outboard Engines: DF90: 2001-2008 DF100: 2012-2016 DF115: 2001-2008, 2012-2016 DF140: 2002-2016 DF150: 2006-2016 DF175: 2006-2016 DF200: 2004-2016 DF225: 2004-2016 DF250: 2004-2016 DF300: 2007-2014 Technical Specifications:...
- $25.50
- $25.50
- Unit price
- per
Low Pressure Fuel Pump for Suzuki 40HP-140HP 4-Stroke Models (15100-90J00)
OEM Part Numbers 15100-90J00, 15100-90J01, 15100-90J10, 15100-90J11, 15100-90J1V Compatible Models Suzuki Four-Stroke Engines: DF40A (2010+) DF50A (2010+) DF60A (2010+) DF70A (2009+) DF80A (2009+) DF90 (2001-2008) DF90A (2009+) DF100 (2009+) DF115 (2001+) DF140 (2002+) Explosion Diagram Technical Specifications Weight: 253g Package Dimensions: 12×10×8.5 cm Package...
- $43.90
- $43.90
- Unit price
- per

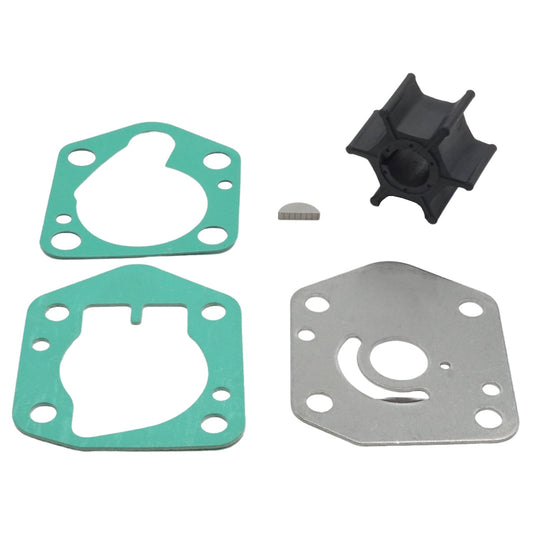

Water Pump Impeller Kit for Suzuki DF9.9B / DF15A / DF20A (2013+) 17400-89812
Product Details: Part numbers: 17400 - 99J01, 09168 - 12017, 09204 - 02004, 09280 - 13004, 09280 - 22019, 09280 - 54001, 09482 - 00661, 15410 - 87L00, 16510 - 45H10, 17413 - 94J00, 55321 - 87J01, 59178 - 97J00. Equivalent part numbers: Suzuki...
- $52.80
- $52.80
- Unit price
- per

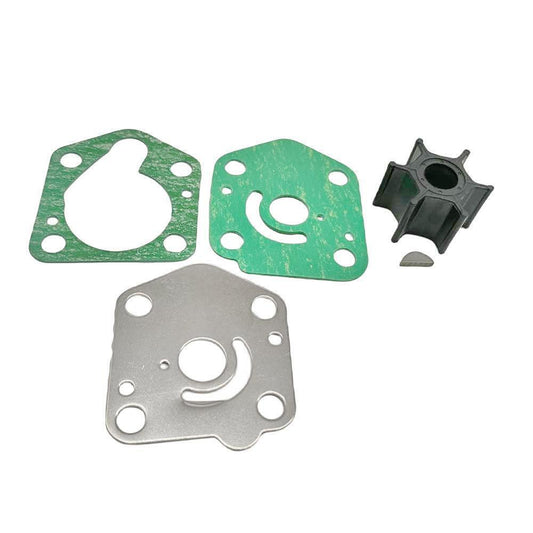

Water Pump Impeller Kit for Suzuki DF9.9 / DF15 17400-94810
