Mercury 90 (6 CYL.) (8071020 AND UP) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
BOTTOM COWL AND SHIFT LINKAGE
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) BOTTOM COWL AND SHIFT LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BOTTOM COWL | 2115-8963A1 | |
| 2 | DRIP TRAY ASSEMBLY, BOTTOM COWL | 52862A2 | |
| 3 | PAD, SOUND - DRIP TRAY | 37940 | |
| 4 | SCREW, DRIP TRAY TO BOTTOM COWL (1/2") | 10-48408 | |
| 5 | HOSE, DRIP TRAY TO BOTTOM COWL (8") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 6 | BOOT, CONTROL CABLES | 39616 | |
| 7 | SPACER, BOTTOM COWL | 76369 | |
| 8 | SCREW, SPACER TO BOTTOM COWL (1/2") | 10-48591 | |
| 9 | BOOT, FUEL CONNECTOR | 37637 | |
| 13 | HOSE, TELL TALE (21-1/2") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 14 | NOZZLE, TELL TALE HOSE TO BOTTOM COWL | 52889 | |
| 15 | SCREW Comment: TELL TALE NOZZLE TO BOTTOM COWL (1/2") | 10-48408 | |
| 16 | ELBOW, TELL TALE HOSE TO CYLINDER BLOCK | 22-782792 | |
| 17 | SHIFT SHAFT ASSEMBLY, UPPER | 60304A54 | |
| 18 | BUSHING, SHIFT SHAFT | 23-26600 | |
| 20 | LINK ROD ASSEMBLY | 73402 | |
| 21 | WASHER, LINK ROD | 12-35462 | |
| 22 | NUT, LINK ROD | 11-826709109 | 11-33825, 11-35045 |
| 23 | WASHER, WAVE - INK ROD | 13-29720 | |
| 24 | BRACKET, ANCHOR - CONTROL CABLES | 52732A6 | |
| 25 | CAP, BARREL RETAINER | 39519 | |
| 26 | LEVER, NYLON - SHIFT CABLE LOCKING | 87609A1 | |
| 27 | PIN, LOCKING LEVER AND COVER | 17-47175 | |
| 28 | COVER, NYLON - SHIFT CABLE | 39667 | |
| 29 | LINK, LOCKING LEVER TO COVER | 87609A1 | |
| 30 | SCREW Comment: ANCHOR BRACKET TO CYLINDER BLOCK (1") | 10-35386 | |
| 31 | SPRING, LINK ROD TO GUIDE BLOCK | 24-20099 | |
| 32 | GUIDE BLOCK, LINK ROD | 37896 | |
| 33 | WEAR PLATE, LINK ROD | 52100 | |
| 34 | LATCH, CONTROL CABLE FASTENING | 8M0036768 | 38279 |
CARBURETOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) CARBURETOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR (TOP) - STAMPED WMK-30 | 1368-7469A6 | |
| 1 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-30 | 1368-7469A8 | |
| 1 | CARBURETOR (TOP) STAMPED WMK-35 | 1368-7469A14 | |
| 1 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-35 | 1368-7469A16 | |
| 1 | CARBURETOR (TOP) STAMPED WMK-39 | 1368-7469A14 | |
| 1 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-39 | 1368-7469A16 | |
| 2 | FLOAT ASSEMBLY, STAMPED WMK-30 | 1395-8673 | |
| 2 | FLOAT ASSEMBLY, STAMPED WMK-35 | 1395-8673 | |
| 2 | FLOAT ASSEMBLY, STAMPED WMK-39 | 1395-8673 | |
| 3 | PIN, FLOAT LEVER PINION (#) | ||
| 4 | LEVER, FLOAT (LOWER) (#) | ||
| 5 | LEVER, FLOAT (UPPER) (#) | ||
| 6 | INLET NEEDLE, SEAT/GASKET - WMK-30 | 1395-83181 | |
| 6 | INLET NEEDLE, SEAT/GASKET - WMK-35/WMK-39 | 1395-83181 | |
| 7 | GASKET, INLET SEAT (#) | ||
| 8 | GASKET, FLOAT BOWL COVER (#) | ||
| 10 | COVER, FLOAT BOWL | 1395-5680 | |
| 11 | JET, BOWL VENT (.092) | 1395-5733 | |
| 12 | HOSE, ECONIMIZER | 1395-5734 | |
| 13 | SCREW, FLOAT BOWL COVER | 10-52195 | |
| 14 | SCREW, FLOAT BOWL COVER | 1395-4804 | |
| 15 | LOCKWASHER, FLOAT BOWL COVER SCREW | 13-26995 | |
| 17 | LEVER, THROTTLE (SEE NOTE BELOW) | 8146791 | |
| 18 | SCREW, THROTTLE STOP LEVER | 1395-6027 | |
| 19 | SHAFT, THROTTLE (TOP) | 1395-7614 | |
| 19 | SHAFT, THROTTLE (CENTER/BOTTOM) | 1395-7942 | |
| 20 | TUBE, IDLE (#) | ||
| 21 | SCREW, BODY (IDLE TUBE) | 1395-4540 | |
| 22 | SHUTTER, THROTTLE | 1395-7874 | |
| 23 | SCREW, THROTTLE SHUTTER (#) | ||
| 24 | SPRING, IDLE ADJUSTMENT SCREW (#) | ||
| 25 | SCREW, IDLE ADJUSTMENT (#) | ||
| 26 | NOZZLE, MAIN (#) | ||
| 27 | SCREW, PLUG - MAIN NOZZLE | 1395-4542 | |
| 28 | JET, MAIN FUEL (.074) | 1399-3794 | |
| 28 | JET, MAIN FUEL (.072) | 1395-6207 | |
| 28 | JET, MAIN FUEL (.070) | 1395-6030 | |
| 28 | JET, MAIN FUEL (.068) - STANDARD | 1395-6029 | |
| 29 | SCREW, PLUG - MAIN FUEL JET CHANNEL | 1395-4541 | |
| 30 | GASKET, JET CHANNEL PLUG SCREW (#) | ||
| 31 | SPRING, THROTTLE SHAFT RETURN (#) | ||
| 32 | SCREW, BODY CHANNEL | 1395-4543 | |
| 33 | WELCH PLUG, GODY CHANNEL (#) | ||
| -- | GASKET AND PACKING SET (1 PER CARBURETOR) | 1395-879194024 | 1399-3523, 1395-4808, 1395-4808B 1 |
| -- | REPAIR PARTS KIT (1 PER CARB.) Comment: WMK-30/WMK-35 | 1395-51091 | |
| -- | REPAIR PARTS KIT (1 PER CARBURETOR) Comment: WMK-39 | 1395-51091 | |
| 34 | GASKET, CARBURETOR FLANGE | 27-481641 | |
| 35 | NUT, CARBURETOR STUD | 11-64809 | |
| - | GASKET SET | 27-85653A87 |
CARBURETOR LINKAGE CHOKE SOLENOID
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) CARBURETOR LINKAGE CHOKE SOLENOID:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CHOKE SOLENOID Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 54293A10 | |
| 2 | LOCKWASHER, SOLENOID TERMINAL Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 13-26996 | |
| 3 | NUT, SOLENOID TERMINAL Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-68219 | |
| 4 | SCREW, CHOKE SOLENOID (3/4") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-25299 | |
| 5 | LOCKWASHER, CHOKE SOLENOID SCREW Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 13-8M0204647 | |
| 6 | PLUNGER AND LINK ASSEMBLY Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 90548A1 | |
| 7 | LEVER, THROTTLE (UPPER CARBURETOR) | 85943A1 | |
| 8 | SCREW, THROTTLE LEVER | 10-60293 | |
| 8A | WASHER, THROTTLE LEVER SCREW | 12-74726 | |
| 9 | CARBURETOR (TOP) - STAMPED WMK-30 | 1368-7469A6 | |
| 9 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-30 | 1368-7469A8 | |
| 9 | CARBURETOR (TOP) - STAMPED WMK-35 | 1368-7469A14 | |
| 9 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-35 | 1368-7469A16 | |
| 9 | CARBURETOR (TOP) - STAMPED WMK-39 | 1368-7469A14 | |
| 9 | CARBURETOR (CENTER/BOTTOM) Comment: STAMPED WMK-39 | 1368-7469A16 | |
| 10 | THROTTLE PICK-UP BRACKET ASSEMBLY | 53720A2 | |
| 11 | SCREW, THROTTLE BRACKET | 10-66104 | |
| 12 | KEY, THROTTLE COUPLING | 28-89694 | |
| 17 | KNOB, CHOKE ROD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 90242A1 | |
| 18 | GROMMET, CHOKE ROD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 25-20116 | |
| 19 | STRAP, CHOKE KNOB TO CHOKE ROD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 49589 | |
| 20 | SCREW, STRAP TO CHOKE KNOB (5/8") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-77137 | |
| 22 | CHOKE ROD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 48203 | |
| 23 | SCREW, STRAP TO CHOKE ROD (1/2") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-48591 | |
| 24 | NUT, STRAP TO CHOKE ROD SCREW Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-46438 | |
| 25 | CHOKE SHUTTER Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 48152 | |
| 26 | STUD, CHOKE SHUTTER PIVOT Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 16-69037 | |
| 27 | NUT, CHOKE SHUTTER STUD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-20110 | |
| 28 | SCREEN ASSEMBLY, FILTER Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 35-57819 | |
| 29 | SCREW, LOWER SCREEN TO CARBURETOR (5/8") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-22523 | |
| 29 | SCREW, UPPER SCREEN TO CARBURETOR (1") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-23015 | |
| 30 | SPRING, UPPER SCREEN SCREW Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 24-57818 | |
| 31 | NUT, SCREEN SCREW Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-20110 | |
| 32 | SPRING, CHOKE ROD TENSION Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 24-48230 | |
| 33 | STUD, CHOKE ROD SPRING TO CARBURETOR Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10-657461 | |
| 34 | SPACER, CHOKE ROD SPRING STUD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 23-32427 | |
| 35 | NUT, CHOKE ROD SPRING STUD Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-8M0207775 |
COWLING AND FRONT COVER
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) COWLING AND FRONT COVER:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FRONT COVER ASS'Y (W/O DECALS) Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 2183-7928A3 | |
| 1 | FRONT COVER ASS'Y (W/O DECALS) Comment: UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 2183-7928A3 | |
| 2 | KNOB, FRONT COVER | 56849 | |
| 3 | WASHER, COVER KNOB (RUBBER) | 12-30771 | |
| 4 | WASHER, COVER KNOB (PLASTIC) | 12-59572 | |
| 5 | SPRING, TENSION - KNOB | 24-30772 | |
| 6 | ROLL PIN, TENSION SPRING TO KNOB | 17-29077 | |
| 7 | STRIP, SOUND Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 31089 | |
| 8 | BAG, STARTER ROPE | 38674 | |
| 9 | SEAL, SOUND - UPPER Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 35769 | |
| 10 | SEAL, SOUND - TOP Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 53334 | |
| 9A | SEAL, SOUND - UPPER Comment: UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 94924 | |
| 11 | WRAP AROUND COWL ASSEMBLY, (W/O DECALS) | 2136-4660A4 | |
| 12 | COWL LATCH ASSEMBLY | 46785A1 | |
| 13 | HOOK, COWL LATCH | 30413 | |
| 14 | BLANKET, SOUND (EARLY MODELS ONLY) | 30021 |
CRANKSHAFT, PISTONS AND CONNECTING RODS
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT ASSEMLBY | 436-9072A1 | |
| 3 | BALL BEARING, UPPER | 30-62567T | |
| 4 | BALL BEARING, LOWER | 30-63742T | |
| 5 | CARRIER ASSEMBLY, "O" RING | 54196A6 | |
| 6 | "O" RING, CARRIER | 65800 | |
| 7 | CENTER MAIN BEARING ASSEMBLY | 535-5397A4 | |
| 8 | DOWEL PIN, CENTER MAIN BEARING | 17-20032 | |
| 9 | NEEDLE BEARING, OUTER RACE | 29-714221 | |
| 10 | RACE, OUTER (PAIR) | 26113T | |
| 11 | SNAP RING, OUTER RACE | 53-26933 | |
| 12 | DOWEL PIN, STEPPED | 17-47246 | |
| 13 | SCREW, CENTER MAIN BEARING | 10-22968 | |
| 14 | NUT, BEARING SCREW | 11-8M0207775 | |
| 15 | MAIN BEARING ASSEMBLY, VALVE TYPE | 540-5266T5 | |
| 16 | DOWEL PIN, MAIN BEARING | 17-20032 | |
| 17 | SCREW, MAIN BEARING | 10-45775 | |
| 18 | NUT, MAIN BEARING SCREW | 11-45774 | |
| 19 | REED SET, MATCHED | 34-56007A1 | |
| 20 | REED STOP, REED VALVES | 34-56008 | |
| 21 | SCREW, REED STOP | 10-62204 | |
| 22 | NUT, REED STOP SCREW | 11-53153 | |
| 23 | PISTON/PISTON PIN ASS'Y (STANDARD) | 774-9137A12 | |
| 23 | PISTON/PISTON PIN ASS'Y (.015 OVERSIZE) | 774-9137A13 | |
| 23 | PISTON/PISTON PIN ASS'Y (.030 OVERSIZE) | 774-9137A14 | |
| 24 | LOCK RING, PISTON PIN | 53-857196 | 40-52035 |
| 25 | PISTON RING (STANDARD) | 39-78816A12 | |
| 25 | PISTON RING (.015 OVERSIZE) | 39-78811A12 | |
| 25 | PISTON RING (.030 OVERSIZE) | 39-88392A12 | |
| 26 | CONNECTING ROD AND CAP ASSEMBLY | 624-8101A3 | |
| 27 | BEARING ASSEMBLY, CRANKPIN | 31-62596A1 | |
| 28 | SCREW, CONNECTING ROD - WITH NUTS | 10-54803 | |
| 29 | NUT, CONNECTING ROD SCREW - WITH NUTS | 11-49091 | |
| 28 | SCREW, CONNECTING ROD - W/O NUTS | 10-91012 | |
| 30 | NEEDLE BEARING, PISTON PIN | 29-8M0214934 | |
| 31 | WASHER, NEEDLE LOCATING | 12-8M0032839 | 12-47247 |
| - | GASKET SET | 27-85653A87 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BLOCK/CRANKCASE ASS'Y Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 852-8311A4 | |
| 1 | BLOCK/CRANKCASE ASS'Y Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 852-8311A4 | |
| 2 | GASKET, CRANKCASE TO CYLINDER BLOCK | 27-53862 | |
| 3 | RESTRICTION, CRANKCASE BLEED | 66517 | |
| 4 | STUD, CARBURETOR (1-3/16") | 16-64936 | |
| 5 | STUD, CRANKCASE TO EXTENSION PLATE (1-7/8") | 16-64281 | |
| 6 | DOWEL PIN, CRANKCASE TO CYLINDER BLOCK | 17-43044 | |
| 7 | DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING | 17-63779 | |
| 8 | STUD, CYLINDER BLOCK TO PLATE (4") | 16-64282 | |
| 9 | COVER, STARTER MOTOR - TOP | 86473 | |
| 10 | SCREW, TOP COVER (1-7/8") | 10-73279 | |
| 11 | LOCKWASHER, TOP COVER SCREWS | 13-8M0204647 | |
| 13 | COVER, STARTER MOTOR - BOTTOM | 76867 | |
| 14 | SCREW, BOTTOM COVER (1-7/8") | 10-73279 | |
| 15 | LOCKWASHER, BOTTOM COVER SCREW | 13-8M0204647 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4") | 10-57841 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4") | 10-32293 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2") | 10-73657 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4") | 10-74824 | |
| 18 | WASHER, CRANKCASE SCREWS | 12-22753 | |
| 19 | NUT, CRANKCASE SCREWS (LOWER) | 11-29250 | |
| 20 | SCREW, CENTER MAIN BEARING LOCKING | 10-20359 | |
| 21 | TAB WASHER, BEARING LOCKING SCREW | 14-20091 | |
| 25 | CHECK VALVE, BLEED HOSE - UPPER | 21-42866 | |
| 26 | HOSE, BLEED (22") | 32-9938779 | |
| 27 | CHECK VALVE, BLEED HOSE - LOWER | 21-428671 | |
| 28 | ELBOW, BALANCE HOSE | 22-996642 | |
| 29 | HOSE, BALANCE - MAIN BEARING (6-1/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 30 | TEE, BALANCE HOSE Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 22-8585531 | |
| 30 | TEE, BLEED BASE Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 22-97231 | |
| - | GASKET SET | 27-85653A87 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY | 1573-5239A4 | |
| 2 | STUD, DRIVE SHAFT HOUSING | 16-56295 | |
| 3 | PLUG, PLASTIC - TRIM TAB SCREW HOLE | 19-64649 | |
| 5 | COVER, TRIM - DRIVE SHAFT HOUWING | 37417 | |
| 6 | SCREW, TRIM COVER TO BOTTOM COWL | 10-57807 | |
| 6A | GROMMET, PLASTIC - TRIM COVER SCREW | 25-92012 | |
| 6B | GROUND STRAP ASSEMBLY, TRIM COVER SCREW | 84-88238T01 | |
| 6C | SCREW, GROUND STRAP ATTACHING | 10-62568 | |
| 7 | TUBE, WATER INLET | 32-60897 | |
| 8 | EXHAUST TUBE | 78184T | |
| 8A | BOOT, EXHAUST TUBE | 65638 | |
| 11 | NUT, POWERHEAD STUDS (3/8-24) | 11-69254 | |
| 12 | WASHER, POWERHEAD STUDS | 12-20553 | |
| 14 | GUIDE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 52887 | |
| 15 | ROD, PUSH Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 47558 | |
| 16 | NUT, JAM - PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 11-69254 | |
| 17 | YOKE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 47559 | |
| 14 | GUIDE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 92704 | |
| 15 | ROD, PUSH Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 43417A2 | |
| 16 | NUT, JAM - PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 11-28770 | |
| 17 | YOKE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 89813 | |
| 19 | COTTER PIN, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM | 18-25191 | |
| 20 | MOUNT, RUBBER - UPPER | 75296 | |
| 21 | WASHER, RUBBER - UPPER MOUNT BOLT | 12-47840 | |
| 22 | WASHER, UPPER MOUNT BOLT | 12-31263 | |
| 23 | NUT, UPPER MOUNT BOLT | 11-8M0204653 | |
| 24 | MOUNT, RUBBER - LOWER | 75299 | |
| 25 | SCREW, LOWER MOUNT (5-1/2") | 10-75284 | |
| 26 | WASHER, LOWER MOUNT SCREW | 12-49339 | |
| 27 | NUT, LOWER MOUNT SCREW | 11-25096 | |
| 28 | BUMPER, RUBBER - LOWER MOUNTING SCREW | 25067 | |
| 30 | NUT, GEAR HOUSING STUDS | 11-8M0204653 | |
| 31 | WASHER, GEAR HOUSING STUDS | 12-45176 | |
| 32 | NUT, GEAR HOUSING STUDS | 11-29489 | |
| 33 | WASHER, GEAR HOUSING STUDS | 12-45176 | |
| 34 | CLAMP, LOWER MOUNT | 35608 | |
| 35 | SPRING, TENSION - LOWER MOUNT CLAMP | 24-35522 | |
| 36 | SCREW, LOWER MOUNT CLAMP | 10-29256 | |
| 37 | COVER, LOWER MOUNT CLAMP | 35474T | |
| 38 | NUT, LOWER MOUNT CLAMP COVER | 11-35521 | |
| 39 | SCREW, COVER TO LOWER CLAMP MOUNT | 10-87884 | |
| 40 | WIRE ASSEMBLY, GROUND | 88238A10 |
END CAPS, MANIFOLD AND EXHAUST COVERS
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) END CAPS, MANIFOLD AND EXHAUST COVERS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYL. BLOCK/CRANKCASE ASS'Y Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 852-8311A4 | |
| 1 | CYL. BLOCK/CRANKCASE ASS'Y Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 852-8311A4 | |
| 2 | END CAP ASSEMBLY | 1161-7616A2 | |
| 3 | OIL SEAL, END CAP | 26-41953 | |
| 4 | "O" RING | 25-47254 | |
| 5 | SHIM, END CAP (.006-10) | 15-73644A1 | |
| 6 | SCREW, END CAP (1") | 10-812618 | 10-73169, 10-847568 |
| 7 | END CAP ASSEMBLY, LOWER | 1148-5410T1 | |
| 9 | OIL SEAL, END CAP | 26-41953 | |
| 10 | "O" RING, END CAP | 25-32546 | |
| 11 | SHIM, END CAP (.005-10) | 15-20085A1 | |
| 12 | SCREW, END CAP (1") | 10-30225 | |
| 13 | COVER, WATER JACKET | 71808 | |
| 14 | GASKET, WATER JACKET COVER | 27-721421 | |
| 15 | SCREW, WATER JACKET COVER (7/8") | 10-53167T | |
| 16 | WASHER, WATER JACKET COVER SCREW | 12-8M0042642 | 12-70132 |
| 17 | GASKET, CYLINDER BLOCK TO BAFFLE PLATE | 27-854952 | |
| 18 | BAFFLE PLATE, EXHAUST MANIFOLD | 757781 | |
| 19 | GASKET Comment: BAFFLE PLATE TO EXHAUST MANIFOLD COVER | 27-854972 | |
| 20 | COVER, EXHAUST MANIFOLD | 99896A1 | |
| 21 | SCREW, MANIFOLD COVER | 10-53576 | |
| 23 | COVER, CYLINDER BLOCK Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 1023-8368A1 | |
| 24 | GASKET, CYLINDER COVER Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 27-981853 | |
| 23 | COVER, CYLINDER BLOCK Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 1023-8368A1 | |
| 24 | GASKET, CYLINDER BLOCK Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 27-981853 | |
| 25 | SCREW, COVER (1") | 10-8M0214943 | |
| 27 | PIPE PLUG, CYLINDER BLOCK COVER | 22-68307 | |
| 28 | BRACKET, MOUNT SUPPORT | 37440 | |
| 29 | SCREW, BRACKET TO CYLINDER BLOCK (1") | 10-35386 | |
| 30 | COVER, TRANSFER PORT | 87872 | |
| 31 | GASKET, TRANSFER PORT COVER | 27-856730 | 27-85653 1 |
| 32 | SCREW, TRANSFER PORT COVER (3/4") | 10-28636 | |
| 33 | GROUND STRAP ASSEMBLY Comment: CYLINDER BLOCK COVER | 46933A3 | |
| 34 | SCREW, GROUND STRAP (3/8") | 10-62568 | |
| - | GASKET SET | 27-85653A87 |

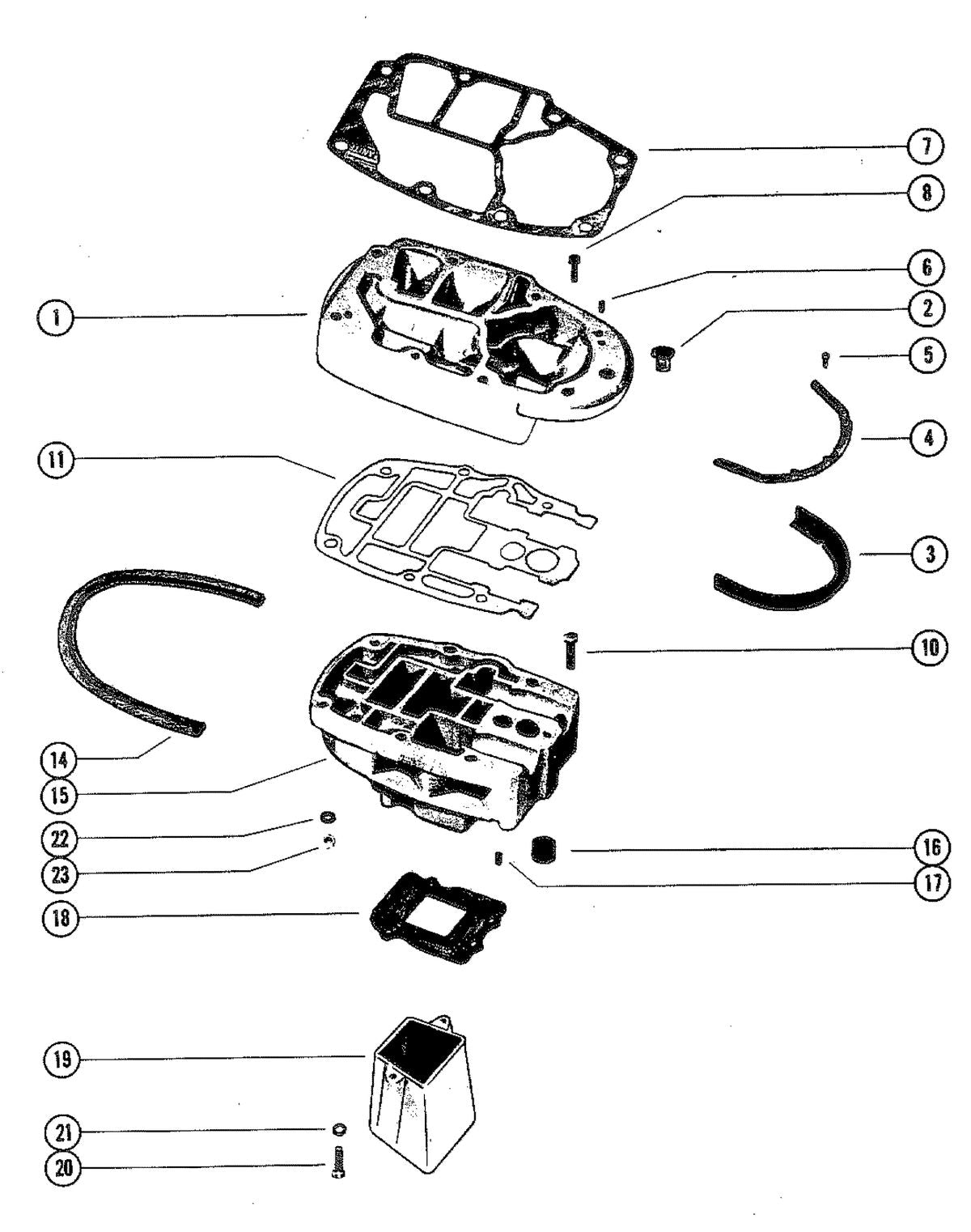

EXHAUST EXTENSION PLATE
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) EXHAUST EXTENSION PLATE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | PLATE ASSEMBLY, EXHAUST EXTENSION | 43289A2 | |
| 2 | BUSHING, NYLON - EXHAUST EXTENSION PLATE | 23-27132 | |
| 3 | SEAL, EXHAUST EXTENSION PLATE | 37918 | |
| 4 | STRIP, RETAINING - PLATE SEAL | 99358 | |
| 5 | SCREW, SEAL AND RETAINING STRIP (1/2") | 10-37571 | |
| 6 | DOWEL PIN, EXHAUST EXTENSION PLATE | 17-23784 | |
| 7 | GASKET, POWERHEAD | 27-692381 | |
| 8 | SCREW, ADAPTOR PLATE TO HOUSING PLATE (2") | 10-66023 | |
| 10 | SCREW Comment: HOUSING PLATE TO DRIVE SHAFT HOUSING (2") | 10-66023 | |
| 11 | GASKET, PLATE TO DRIVE SHAFT HOUSING PLATE | 27-661021 | |
| 14 | SEAL, DRIVE SHAFT HOUSING PLATE | 26-60898 | |
| 15 | PLATE ASSEMBLY, DRIVE SHAFT HOUSING | 43290A4 | |
| 16 | SEAL, RUBBER - WATER INLET TUBE | 26-38970 | |
| 17 | DOWEL PIN, DRIVE SHAFT HOUSING PLATE | 17-23784 | |
| 18 | GASKET, MEGAPHONE | 27-62362 | |
| 19 | MEGAPHONE, EXHAUST | 99699 | |
| 20 | SCREW, MEGAPHONE (1-1/8") | 10-60480 | |
| 21 | WASHER, MEGAPHONE SCREW | 12-8M0204649 | |
| 22 | WASHER, POWERHEAD STUD | 12-20553 | |
| 23 | NUT, POWERHEAD STUD | 11-82671013 | |
| - | GASKET SET | 27-85653A87 |
FLYWHEEL, STARTER MOTOR AND STATOR
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) FLYWHEEL, STARTER MOTOR AND STATOR:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | PLUG, FLYWHEEL | 19-45907 | |
| 2 | NUT, FLYWHEEL | 11-52901 | |
| 3 | WASHER, FLYWHEEL | 12-33001 | |
| 4 | FLYWHEEL ASSEMBLY | 248-8722A7 | |
| 5 | SCREW, FLYWHEEL PLATE | 10-32417 | |
| 6 | SCREW, FLYWHEEL HUB | 10-68997 | |
| 7 | STATOR ASSEMBLY | 398-5454A17 | |
| 8 | SCREW, STATOR (7/8") | 10-75840 | |
| 9 | TRIGGER PLATE | 96455A9 | |
| 10 | CLAMP, TRIGGER HARNESS | 54-61001 | |
| 11 | STARTER MOTOR | 50-898265010 | 50-72467 |
| 12 | COLLAR, STARTER MOTOR | 23-8M0034918 | 23-8M0001391, 56703 |
| 13 | SPACER, STARTER MOTOR | 23-56774 | |
| 14 | STOP, RUBBER - STARTER MOTOR | 8M0043376 | 68042 |
| 15 | WIRE, PLATE TO STARTER MOTOR (BLACK) | 84-93388A1 | |
| 16 | SCREW, CABLE TO STARTER MOTOR | 10-69035 | |
| 17 | WIRE, SOLENOID TO STARTER MOTOR (YELLOW) | 84-93389A6 | |
| 18 | LOCKWASHER, STARTER MOTOR TERMINAL | 13-26992 | |
| 19 | NUT, STARTER MOTOR TERMINAL | 11-64015 |
FUEL PUMP AND FUEL LINE ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) FUEL PUMP AND FUEL LINE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 13527A1 | |
| 2 | CHECK VALVE ASSEMBLY | 21-8M0084277 | 21-30430A14 |
| 3 | DIAPHRAGM ASSEMBLY | 89031A3 | |
| 4 | GASKET, FUEL PUMP (#) | ||
| 5 | GASKET, PULSE CHAMBER (#) | ||
| 6 | GASKET, FUEL PUMP (#) | ||
| 7 | GASKET, CHECK VALVE TO HOUSING (#) | ||
| 8 | SCREEN, FUEL INLET | 35-59072 | |
| 9 | "O" RING, FUEL INLET COVER | 25-35480 | |
| 10 | GASKET, COVER SCREW | 25-38933 | |
| 11 | RETAINER, CHACK VALVE | 23004 | |
| 12 | SCREW, RETAINER | 10-43725 | |
| 13 | BASE, FUEL PUMP | 86295 | |
| 14 | PULSE CHAMBER, FUEL PUMP | 879901 | |
| 15 | COVER, FUEL INLET | 35-91078A1 | |
| 16 | SCREW, FUEL FILTER COVER (5/8") | 10-89766 | |
| 16A | FITTING, INLET COVER | 22-64705 | |
| 17 | SCREW, FUELD PUMP (1-1/2") | 10-73013 | |
| 18 | LOCKWASHER, FUEL PUMP SCREW | 13-26996 | |
| 19 | FITTING, FUEL OUTLET | 22-19688 | |
| 20 | FUEL LINE, FUEL PUMP TO CARBURETOR | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 21 | CLAMP, FUEL LINE ATTACHING | 54-68424 | |
| 22 | FITTING, ELBOW - WUPPER CARBURETOR | 22-19688 | |
| 23 | TEE, FUEL LINE | 22-73318 | |
| 24 | FITTING, TEE - CENTER CARBURETOR | 22-64706001 | |
| 25 | FITTING, ELBOW - LOWER CARBURETOR | 22-19688 | |
| 26 | FUEL LINE, ADAPTOR TO FUEL PUMP (11") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 27 | ELBOW, FUEL LINE TO ADAPTOR | 22-63981 | |
| 28 | ADAPTOR, CHECK UNIT (FUEL LINE) Comment: IDENTIFIED BY 73419 CASTING ON REF. #28 | 22833 | |
| 29 | STEM, CHECK UNIT ADAPTOR Comment: IDENTIFIED BY 73419 CASTING ON REF. #28 | 23069 | |
| 30 | SPRING, ADAPTOR STEM Comment: IDENTIFIED BY 73419 CASTING ON REF. #28 | 24-23067T | |
| 28 | ADAPTOR, CHECK UNIT (FUEL LINE) Comment: IDENTIFIED BY 30186 CASTING ON REF. #28 | 30186 | |
| 29 | STEM, CHECK UNIT ADAPTORS Comment: IDENTIFIED BY 30186 CASTING ON REF. #28 | 30187 | |
| 30 | SPRING, ADAPTOR STEM Comment: IDENTIFIED BY 30186 CASTING ON REF. #28 | 24-30189 | |
| 31 | "O" RING, ADAPTOR STEM | 25-16524 | |
| 32 | CUP WASHER, ADAPTOR | 30188 | |
| 33 | SCREW, ADAPTOR TO BOTTOM COWL (1-3/8") | 10-36154 | |
| 34 | NUT, ADAPTOR SCREW | 11-36069 | |
| 35 | VALVE, ENRICHER Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 42859A2 | |
| 36 | CONNECTOR, ENRICHER VALVE (BOTTOM) Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 22-90275 | |
| 37 | CONNECTOR, ENRICHER VALVE (SIDE) Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 22-73817 | |
| 38 | BRACKET, ENRICHER VALVE Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 90345 | |
| 39 | SCREW, VALVE TO BRACKET Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 10-89075 | |
| 40 | SCREW, BRACKET TO REED BLOCK HOUSING (1/2") Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 10-73286 | |
| 41 | TERMINAL BLOCK, REED BLOCK HOUSING Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 86-45915 | |
| 42 | SCREW, TERMINAL BLOCK Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 10-69079 | |
| 43 | SCREW, WIRE TO TERMINAL BLOCK Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 10-20411 | |
| 44 | FUEL LINE, ENRICHER VALVE Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 32-9912688 | |
| 45 | CONNECTOR, TOP CARBURETOR (90 DEG.) | 22-90275 | |
| - | GASKET SET | 27-85653A87 |
GEAR HOUSING (DRIVE SHAFT)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) GEAR HOUSING (DRIVE SHAFT):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| -- | GEAR HOUSING ASSEMBLY, COMPLETE | 1655-7333T24 | |
| 1 | GEAR HOUSING ASSEMBLY | 1655-7333T23 | |
| 1A | CONNECTOR ASSEMBLY, SPEEDOMETER | 22-85822A10 | |
| 2 | DOWEL PIN, GEAR HOUSING LOCATING | 17-8M0084726 | 17-85500 |
| 3 | STUD, GEAR HOUSING (4") | 16-57921 | |
| 4 | STUD, GEAR HOUSING (2-1/16) | 16-8M0133358 | |
| 5 | STUD, WATER PUMP (3-3/8") | 16-8M0034463 | 16-56297 2 |
| 6 | STUD, WATER PUMP (3-1/8") | 16-69501 | |
| 7 | ROLLER BEARING, DRIVE SHAFT | 31-32898T | |
| 8 | DRIVE SHAFT | 45-42646 | |
| 9 | PINION GEAR, DRIVE SHAFT | 43-68548T3 | |
| 10 | NUT, PINION GEAR TO DRIVE SHAFT | 11-35921 | |
| 11 | SPACER, BALL BEARING | 23-70412 | |
| 11 | SHIM, BALL BEARING | 15-57007A1 | |
| 12 | ROLLER BEARING, DRIVE SHAFT | 31-69220T | |
| 14 | GASKET, WATER PUMP | 27-8M0214962 | |
| 15 | "O" RING, WATER PUMP | 25-8M0214923 | |
| 16 | WATER PUMP BASE ASSEMBLY | 46-96146A5 | |
| 17 | OIL SEAL, WATER PUMP | 26-94038 | |
| 18 | OIL SEAL, WATER PUMP | 26-16977 | |
| 19 | DOWEL PIN, WATER PUMP | 17-35973 | |
| 20 | GASKET, LOWER - WATER PUMP TO FACE PLATE | 27-8M0090319 | 27-85608 1 |
| 21 | FACE PLATE | 8M0204677 | |
| 22 | GASKET, UPPER - FACE PLATE TO WATER PUMP | 27-858524 | 27-85609 1, 27-85609B 1 |
| 23 | WATER PUMP BODY ASSEMBLY | 46-96148T1 | |
| 24 | INSERT, WATER PUMP | 48752T | |
| 26 | SEAL, RUBBER - WATER INLET TUBE | 26-38970 | |
| 27 | IMPELLER, WATER PUMP | 47-89984T4 | |
| 28 | KEY, IMPELLER DRIVE | 28-8M0214992 | |
| 29 | SCREW, WATER PUMP (1/4-20 - HEX HEAD) | 10-30720 | |
| 29 | SCREW, WATER PUMP (14-8 - HEX WASHER HEAD) | 10-8M0215009 | |
| 30 | LOCKWASHER, WATER PUMP SCREW | 13-26992 | |
| 31 | WASHER, WATER PUMP SCREW AND STUD | 12-8M0204649 | |
| 32 | NUT, WATER PUMP SCREW | 11-35888 | |
| 33 | WASHER, WATER PUMP STUD | 12-36001 | |
| 34 | ,NUT, WATER PUMP STUD | 11-82670911 | |
| 35 | RING, RUBBER - DRIVE SHAFT | 25-8M0214918 | |
| 36 | SLEEVE, GUIDE - WATER INLET TUBE | 23-29804T | |
| 37 | SEAL, EXHAUST | 37641001 | |
| 38 | PLATE, SUPPORT - EXHAUST TUBE SEAL | 38051 | |
| 39 | SHAFT ASSEMBLY, SHIFT - LOWER | 76062A1 | |
| 40 | "E" RING, RETAINING - SHIFT SHAFT | 53-29641 | |
| 41 | "O" RING, SHIFT SHAFT BUSHING | 25-25439 | |
| 42 | BUSJING ASSEMBLY, SHIFT SHAFT | 23-77631A2 | |
| 43 | OIL SEAL, SHIFT SHAFT BUSHING | 26-8M0204708 | |
| 44 | WASHER, RUBBER - SHIFT SHAFT BUSHING | 12-77674 | |
| 45 | SPACER, LOWER Comment: NOT USED WITH FULL POWER TRIM | 78036 | |
| 46 | CAM, REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM | 43308T1 | |
| 47 | SCREW, GREASE FILLER AND VENT HOLE | 10-79953Q04 | |
| 47 | PLUG, DRAIN (MAGNETIC) | 22-8M0058389 | 22-67892A06 |
| 48 | WASHER, GREASE FILLER AND VENT HOLE SCREW | 12-191833 | |
| - | WATER PUMP KIT | 46-96148A8 | |
| - | SEAL KIT | 26-55682A1 | |
| - | HEAVY DUTY WATER PUMP KIT | 53168A1 | |
| - | GASKET SET | 27-85653A87 |
GEAR HOUSING (PROPELLER SHAFT)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) GEAR HOUSING (PROPELLER SHAFT):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE | 1655-7333T24 | |
| 1 | GEAR HOUSING ASSEMBLY | 1655-7333T23 | |
| 49 | SHIFT CAM | 760394 | |
| 50 | CAM FOLLOWER | 30625 | |
| 51 | SLIDE, CROSS PIN | 30624 | |
| 52 | SPRING, COMPRESSION - CAM FOLLOWER | 24-30622 | |
| 53 | SHIM, BEARING OURTER RACE (.002-3-5-10) | 15-30923A1 | |
| 54 | TAPERED ROLLER BEARING ASSEMBLY | 31-30894A1 | |
| 55 | ROLLER BEARING, FORWAR GEAR | 31-30895T | |
| 56 | FORWARD GEAR | 43-68447T1 | |
| 57 | RATCHET, SLIDING GEAR | 52-822539T | 52-822539, 52-814756, 52-12777 |
| 58 | CROSS PIN, RATCHET TO PROPELLER SHAFT | 17-8M0100263 | 17-8M0084681, 17-8M0020941, 17-30632 |
| 59 | SPRING, RETAINING - CROSS PIN | 24-30893 | |
| 60 | PROPELLER SHAFT | 44-93003 | |
| 61 | REVERSE GEAR | 43-76250T | |
| 62 | WASHER, THRUST - BEARING CARRIER | 12-76358 | |
| 63 | "O" RING, BEARING CARRIER | 25-29976 | |
| 64 | BEARING CARRIER ASS'Y (W/O GREASE FITTING) | 41529T2 | |
| 64 | BEARING CARRIER ASS'Y - WITH GREASE FITTING | 41529T2 | |
| 64A | GREASE FITTING - WITH GREASE FITTING | 22-8M0169588 | |
| 65 | ROLLER BEARING, BEARING CARRIER | 31-30956T | |
| 66 | OIL SEAL (INSIDE) | 26-8M0204670 | |
| 66 | OIL SEAL (OUTSIDE) - CUTTER | 26-8M0205729 | |
| 67 | KEY, LOCATING - BEARING CARRIER | 28-30281 | |
| 68 | TAB WASHER, GEAR HOUSING COVER | 14-52700 | |
| 69 | COVER, GEAR HOUSING | 52699 | |
| 70 | TRIM TAB, GEAR HOUSING | 97-31640Q4 | |
| 71 | SCREW, TRIM TAB TO GEAR HOUSING (1-3/4) | 10-66024 | |
| 72 | WASHER, DRIVE SHAFT HOUSING STUDS | 12-45176 | |
| 73 | NUT, DRIVE SHAFT HOUSING STUDS | 11-8M0204653 | |
| 74 | SCREW, GEAR HOUSING | 10-65210 | |
| 75 | THRUST HUB | 13191Q01 | |
| 76 | TAB WASHER, PROPELLER NUT | 14-816629Q | 14-816629, 14-31210, 14-816629B |
| 77 | PROPELLER NUT | 11-52707Q1 | |
| - | GASKET SET | 27-85653A87 |
HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | HYDRAULIC PUMP ASSEMBLY, COMPLETE | 92975A32 | |
| 1 | "O" RING, HYDRAULIC PUMP | 25-48171 | |
| 2 | VALVE BODY AND GEAR ASSEMBLY | 392-7734 | |
| 3 | SCREW, VALVE BODY TO RESERVOIR | 10-20411 | |
| 4 | SEAL, RESERVOIR TO VALVE BODY AND GEAR | 392-7735 | |
| 5 | RESERVOIR ASSEMBLY | 392-2939 | |
| 6 | SCREW, VENT - HYDRAULIC PUMP | 10-62269 | |
| 7 | SCREW, FILLER - HYDRAULIC PUMP | 10-79953Q04 | |
| 8 | WASHER, SEALING - FILLER SCREW | 12-191833 | |
| 9 | WASHER, THRUST - ARMATURE | 392-2623 | |
| 10 | ARMATURE, FIELD AND FRAME | 392-2943 | |
| 11 | FIELD AND FRAME ASSEMBLY | 392-2942 | |
| 12 | BALL, COMMUTATOR END PLATE | 392-2944 | |
| 13 | PLATE ASSEMBLY, COMMUTATOR END | 392-2940 | |
| 14 | BRUSH SET, COMMUTATOR END PLATE | 392-8989 | |
| 15 | SPRING SET, BRUSH TENSION | 392-2529 | |
| 16 | BOLT SET Comment: THRU - PLATE AND FRAME TO RESERVOIR | 392-2938 | |
| 17 | LOCKWASHER, THRU BOLT | 13-26996 |
HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | HYDRAULIC PUMP ASSEMBLY | 92975A32 | |
| 1 | "O" RING, HYDRAULIC PUMP | 25-48171 | |
| 2 | VALVE BODY AND GEAR ASSEMBLY | 92975A32 | |
| 3 | SCREW, VALVE BODY TO RESERVOIR | 10-69570 | |
| 4 | SEAL, RESERVOIR TO VALVE BODY AND GEAR | 392-7735 | |
| 5 | RESERVOIR ASSEMBLY (PLASTIC) | 392-7731 | |
| 6 | WASHER, THRUST - ARMATURE | 392-7732 | |
| 7 | ARMATURE, FIELD AND FRAME | 392-7729 | |
| 8 | FIELD AND FRAME ASSEMBLY | 392-8261 | |
| 9 | BALL, COMMUTATOR END PLATE | 392-7730 | |
| 10 | PLATE ASSEMBLY, COMMUTATOR END | 392-8262 | |
| 11 | BRUSH SET, COMMUTATOR END PLATE | 392-8989 | |
| 12 | SPRING SET, BRUSH TENSION | 392-2529 | |
| 13 | BOLT SET Comment: THRU - PLATE AND FRAME TO RESERVOIR | 392-7733 | |
| 14 | COUPLER AND SHAFT | 392-7727 | |
| 15 | FILL PLUG, RESERVOIR | 392-7728 |
MISCELLANEOUS PARTS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | MERC 90 PARTS LIST | 90-92213 | |
| - | GASKET SET | 27-85653A87 | |
| - | DECAL SET | 37-13137A87 |
POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HYDRAULIC PUMP ASS'Y Comment: (PLASTIC RESERVOIR) SEE NOTE | 92975A32 | |
| 2 | "O" RING, MANIFOLD PLATE | 25-48171 | |
| 3 | SCREW, FILLER - HYDRAULIC PUMP | 10-79953Q04 | |
| 4 | WASHER, SEALING - FILLER SCREW | 12-191833 | |
| 5 | SCREW, VENT - HYDRAULIC PUMP | 10-62269 | |
| 6 | PLATE, MANIFOLD | 45336 | |
| 7 | CONTROL VALVE ASSEMBLY | 45197A2 | |
| -- | "O" RING, MANIFOLD PLATE (SEE REF. #2) | 25-48171 | |
| 8 | "O" RING, CONTROL VALVE (3/4" O.D.) | 25-45254 | |
| 9 | "O" RING, CONTROL VALVE (1/2" O.D.) | 25-48171 | |
| 10 | "O" RING, CONTROL VALVE (5/8" O.D.) | 25-45253 | |
| 11 | SCREW Comment: VALVE AND MANIFOLD PLATE TO PUMP (1-1/4") | 10-56500 | |
| 12 | PLUG, CONTROL VALVE (1/2-20") | 22-46008 | |
| 13 | CONNECTOR AND HARNESS | 84-79147A3 | |
| 14 | BRACKET, MOUNTING | 45377T | |
| 15 | SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1") | 10-35386 | |
| 16 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-39107 | |
| 17 | NUT, MOUNTING BRACKET SCREW | 11-21908 | |
| 18 | BOLT, HYDRAULIC PUMP TO BOAT (3-1/4") | 10-68298 | |
| 19 | NUT, HYDRAULIC PUMP BOLT | 11-82671112 | |
| 20 | BRACKET, MOUNTING - STARTER SOLENOID | 94279 | |
| 21 | SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP | 10-28638 | |
| 22 | NUT Comment: MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT | 11-24656 | |
| 23 | STARTER SOLENOID | 8M0185622 | |
| 24 | LOCKWASHER, SOLENOID TERMINAL | 8,13-26995 | |
| 25 | NUT, SOLENOID TERMINAL (8-32) | 11-26419 | |
| 26 | LOCKWASHER, SOLENOID TERMINAL (1/4) | 13-26992 | |
| 27 | NUT, SOLENOID TERMINAL (1/4-20) | 11-94330 | |
| 28 | BOOT, RUBBER - STARTER SOLENOID TERMINAL | 85-861680 | 85-96535 |
| 29 | SCREW Comment: STARTER SOLENOID TO MOUNTING BRACKET | 10-41508 | |
| 30 | LINK, SOLENOID TO SOLENOID | 94275 | |
| 31 | BATTERY LEAD (POSITIVE) | 84-79139A13 | |
| 31 | BATTERY LEAD (NEGATIVE) | 84-79138A1 | |
| 32 | CIRCUIT BREAKER (20AMP.) | 88-8M0085705 | 88-79149 |
| 33 | SCREW, CIRCUIT BREAKER | 10-8M0113176 | |
| 34 | NUT, CIRCUIT BREAKER TERMINAL (10-32) | 11-45076 | |
| 35 | WIRE, SOLENOID TO CIRCUIT BREAKER (RED) | 84-87379A5 | |
| 36 | FUSE ASSEMBLY (90 AMP.) | 88-79023T90 | |
| 37 | WASHER, FUSE TERMINAL | 12-96457 | |
| 38 | NUT, FUSE TERMINAL (1/4-28) | 11-21825 | |
| 39 | WIRE, STARTER SOLENOID (BLACK) | 84-61600A9 |
POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HYDRAULIC PUMP ASS'Y | 92975A32 | |
| 2 | "O" RING, MANIFOLD PLATE | 25-48171 | |
| 3 | SCREW, FILLER - HYDRAULIC PUMP | 10-79953Q04 | |
| 4 | WASHER, SEALING - FILLER SCREW | 12-191833 | |
| 5 | SCREW, VENT - HYDRAULIC PUMP | 10-62269 | |
| 6 | BATTERY LEAD (POSITIVE) | 32979 | |
| 6 | BATTERY LEAD (NEGATIVE) | 32988 | |
| 7 | PLATE, MANIFOLD | 45336 | |
| 8 | CONTROL VALVE ASSEMBLY | 45197A2 | |
| -- | "O" RING, MANIFOLD PLATE (SEE REF. #2) | 25-48171 | |
| 9 | "O" RING, CONTROL VALVE (3/4" O.D.) | 25-45254 | |
| 10 | "O" RING, CONTROL VALVE (1/2" O.D.) | 25-48171 | |
| 11 | "O" RING, CONTROL VALVE (5/8" O.D.) | 25-45253 | |
| 12 | SCREW Comment: VALVE AND MANIFOLD PLATE TO PUMP (1-1/4") | 10-56500 | |
| 13 | PLUG, CONTROL VALVE (1/2-20") | 22-46008 | |
| 14 | CONNECTOR AND HARNESS | 84-74023A1 | |
| 15 | BRACKET, MOUNTING | 45377T | |
| 16 | SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1") | 10-35386 | |
| 17 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-39107 | |
| 18 | NUT, MOUNTING BRACKET SCREW | 11-21908 | |
| 19 | BOLT, HYDRAULIC PUMP TO BOAT (3-1/4") | 10-68298 | |
| 20 | NUT, HYDRAULIC PUMP BOLT | 11-82671112 | |
| 21 | STARTER SOLENOID | 89-853654A1 | |
| 22 | LOCKWASHER, SOLENOID TERMINAL | 10,13-26996 | |
| 23 | NUT, SOLENOID TERMINAL | 10,11-68219 | |
| 24 | LOCKWASHER, SOLENOID TERMINAL (5/16") | 13-8M0204647 | |
| 25 | NUT, SOLENOID TERMINAL (5/16") | 11-8M0204668 | |
| 26 | BOOT, RUBBER - STARTER SOLENOID TERMINAL | 46265 | |
| 27 | BRACKET, MOUNTING - STARTER SOLENOID | 74407T | |
| 28 | SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") | 10-21140 | |
| 29 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-26992 | |
| 30 | NUT Comment: MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT | 11-24656 | |
| 31 | BUMPER, RUBBER - SOLENOID BRACKET | 269011 | |
| 32 | JUMPER WIRE (POSITIVE) | 84-79139A2 | |
| 32 | JUMPER WIRE (NEGATIVE) | 55992 | |
| 33 | BRACKET, MOUNTING - STARTER SOLENOID | 74406 | |
| 34 | SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (3/4") | 10-69028 | |
| 35 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-26992 | |
| 36 | SCREW Comment: STARTER SOLENOID TO MOUNTING BRACKET (5/8") | 10-34290 | |
| 37 | LOCKWASHER, STARTER SOLENOID SCREW | 13-26992 | |
| 38 | NUT, STARTER SOLENOID SCREW | 11-21825 |
POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | REPAIR KIT (SEE NOTE BELOW) | 64507A1 | |
| 1 | "O" RING (1-1/2" X 1-5/8' X 1/16") (#N.S.S.) | ||
| 2 | "O" RING (3/4" X 15/16" X 1/8") (#N.S.S.) | ||
| 3 | "O" RING (5/8" X 3/4" X 1/16") (#N.S.S.) | ||
| 4 | "O" RING (1-1/4" X 1-7/16" X 1/16") (#N.S.S.) | ||
| 5 | "O" RING (7/32" X 11/32' X 1/16") (#N.S.S.) | ||
| 6 | "O" RING (1-5/8" X 1-3/16" X 1/8") (#N.S.S.) | ||
| 7 | "O" RING (1-5/16" X 1-1/2" X 1/8") (#N.S.S.) | ||
| 8 | "O" RING (1-7/8" X 2" X 1/8") (#N.S.S.) | ||
| 9 | "O" RING ( 1-3/4" X 1-15/16" X 1/8") (#N.S.S.) | ||
| 10 | SEAL, SLIPPER - PISTON (#N.S.S.) | ||
| 11 | PISTON, ROD - HEAVY DUTY (#N.S.S.) | ||
| 12 | RETAINER ASSEMBLY, PISTON | 64505A1 | |
| 13 | ROD, SCRAPER (#N.S.S.) | ||
| 14 | RETAINER, SCRAPER (#N.S.S.) |
POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A14)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A14):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | REPAIR KIT (SEE NOTE BELOW) | 92188A2 | |
| 1 | CYLINDER CAP (#N.S.S.) | ||
| 2 | "O" RING (1-1/4" X 1-1/2" X 1/8") (#N.S.S.) | ||
| 3 | SPACER (#N.S.S.) | ||
| 4 | "O" RING (1-7/8" X 2-1/16" X 3/32") (#N.S.S.) | ||
| 5 | "O" RING (3/4" X 15/16' X 3/32") (#N.S.S.) | ||
| 6 | "O" RING (1-1/2" X 1-3/4" X 3/32") (#N.S.S.) |
PROPELLERS (RIGHT HAND ROTATION)
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) PROPELLERS (RIGHT HAND ROTATION):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11") Comment: 3 BLADES | 48-77338A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES | 48-77340A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES | 48-77342A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES | 48-77344A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19") Comment: 3 BLADES | 48-77346A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21") Comment: 3 BLADES | 48-77348A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23") Comment: 3 BLADES | 48-77350A45 |
STARTER MOTOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) STARTER MOTOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STARTER MOTOR ASSEMBLY | 50-898265010 | 50-72467 |
| 1 | DRIVE KIT | 90644 | |
| 2 | DRIVE ASSEMBLY | 685753 | |
| 3 | PLATE, DRIVE END | 75660 | |
| 4 | BOLT, THRU | 10-74968 | |
| 5 | LOCKWASHER, THRU BOLT | 13-61789 | |
| 6 | ARMATURE | 74964 | |
| 7 | BRUSH SET | 898265016 | 75384, 75384 1 |
| 8 | BUSHING, INSULATING | 23-57387 | |
| 9 | WASHER, INPUT STUD | 12-38013 | |
| 10 | LOCKWASHER, INPUT STUD | 13-26992 | |
| 11 | NUT, INPUT STUD | 11-20890 | |
| 12 | HOLDER, BRUSH | 898265014 | 61787 |
| 13 | SCREW, BRUSH AND HOLDER | 10-68586 | |
| 14 | END CAP, COMMUTATOR | 15386001 |
SWITCH BOX AND STARTER SOLENOID
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) SWITCH BOX AND STARTER SOLENOID:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | PLATE, ELECTRICAL MOUNTING | 89748T | |
| 2 | SCREW, PLATE TO CYLINDER BLOCK (1-1/2") | 10-86885 | |
| 2 | SCREW, PLATE TO CYLINDER BLOCK (3/4") | 10-28636 | |
| 2 | SCREW, PLATE TO CYLINDER BLOCK (1-1/8") | 10-455611 | |
| 3 | WASHER, PLATE SCREW | 12-8M0204649 | |
| 4 | SWITCH ASSEMBLY, MERCURY | 87-33386A3 | |
| 5 | SCREW, MERCURY SWITCH TO PLATE (5/8") | 10-25764 | |
| 6 | NUT, WIRE TO MERCURY SWITCH | 11-45076 | |
| 7 | RECTIFIER | 8M0058226 | 816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3 |
| 8 | SCREW, RECTIFIER TO IGNITION PLATE (5/8") | 10-25764 | |
| 9 | NUT, RECTIFIER TERMINALS | 11-45076 | |
| 10 | STARTER SOLENOID Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 89-853654A1 | |
| 11 | LOCKWASHER, SOLENOID TERMINALS Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 10,13-26996 | |
| 12 | NUT, SOLENOID TERMINALS (10-32) Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-68219 | |
| 13 | LOCKWASHER, SOLENOID TERMINALS (5/16") Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 13-8M0204647 | |
| 14 | NUT, SOLENOID TERMINALS (5/16 - 18) Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 11-8M0204668 | |
| 10 | STARTER SOLENOID Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 89-8M0185149 | |
| 11 | LOCKWASHER, SOLENOID TERMINALS Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 8,13-26995 | |
| 12 | NUT, SOLENOID TERMINALS (8-32) Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 11-26419 | |
| 13 | LOCKWASHER, SOLENOID TERMINALS (1/4") Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 13-26992 | |
| 14 | NUT, SOLENOID TERMINALS (1/4 - 20) Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 11-94330 | |
| 15 | SCREW, STARTER SOLENOID TO PLATE (1/2") | 10-38601 | |
| 16 | LOCKWASHER, STARTER SOLENOID SCREW | 13-26992 | |
| 17 | BOOT, TERMINAL - STARTER SOLENOID | 46265 | |
| 18 | LOCATOR, STARTER SOLENOID | 90547 | |
| 19 | SWITCH BOX | 332-7778A12 | |
| 20 | SCREW, SWITCH BOX (1-3/8") | 10-20619 | |
| 21 | SPACER, SWITCH BOX SCREW | 23-94304 | |
| 22 | WIRE ASSEMBLY, SWITCH BOX | 84-60871A10 | |
| 23 | SCREW, WIRE | 10-62568 | |
| 24 | CABLE ASSEMBLY Comment: SWITCH BOX TO SWITCH BOX (WHITE/BLACK) | 84-62310A3 | |
| 25 | NUT, SWITCH BOX TERMINAL | 11-45076 |
SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SWIVEL BRACKET ASSEMBLY | 1482-7670A5 | |
| 3 | BUSHING, SWIVEL BRACKET | 23-69341 | |
| 4 | WASHER, SWIVEL PIN - UPPER | 12-69342 | |
| 5 | OIL SEAL, SWIVEL BRACKET | 26-37448 | |
| 7 | GREASE FITTING, SWIVEL BRACKET | 22-8M0169589 | |
| 10 | WAVE WASHER, SWIVEL PIN - LOWER | 13-88507 | |
| 11 | STRAP STOP Comment: DRIVE SHAFT HOUSING TO SWIVEL BRACKET | 28205T | |
| 12 | SCREW Comment: STRAP STOP TO DRIVE SHAFT HOUSING (2-7/8") | 10-28200 | |
| 13 | NUT, STRAP STOP FASTENING SCREW | 11-25269 | |
| 14 | SWIVEL PIN AND ARM ASSEMBLY | 17-73593A2 | |
| 15 | BOTTOM YOKE | 73984T | |
| 16 | RETAINING REING, BOTTOM YOKE | 53-73591 | |
| 17 | BUMPER, STEERING ARM | 28203 | |
| 18 | BOLT, STEERING ARM TO UPPER MOUNT (5-7/8") | 10-49554 | |
| 19 | NUT, STEERING ARM BOLT | 11-8M0204653 |
THROTTLE LEVER AND LINK RODS
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) THROTTLE LEVER AND LINK RODS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | LEVER, THROTTLE | 79900 | |
| 2 | SCREW, THROTTLE LEVER TO EXHAUST COVER | 10-31830 | |
| 3 | WASHER, THROTTLE LEVER SCREW | 12-8M0042641 | 12-29395 |
| 4 | BUSHING, THROTTLE LEVER SCREW | 23-45818 | |
| 5 | NUT, THROTTLE LEVER SCREW | 11-8M0204726 | |
| 6 | SWIVEL, THROTTLE LEVER TO THROTTLE CABLE | 37587 | |
| 7 | NUT, THROTTLE CABLE TO SWIVEL | 11-35888 | |
| 8 | SCREW, ADJUSTING - THROTTLE LEVER | 10-75168 | |
| 9 | NUT, ADJUSTING SCREW | 11-29598 | |
| 10 | CAP, NYLON - ADJUSTING SCREW | 52023 | |
| 11 | SWIVEL ASSEMBLY, THROTTLE LEVER | 77013A1 | |
| 12 | BUSHING, SWIVEL | 23-26856 | |
| 13 | WASHER, SWIVEL | 12-73288 | |
| 14 | WAVE WASHER, SWIVEL | 13-29402 | |
| 15 | NUT, SWIVEL TO THROTTLE LEVER | 11-45774 | |
| 16 | LINK ROD, THROTTLE | 85300 | |
| 17 | SWIVEL, LINK ROD TO THROTTLE CAM | 23-74213 | |
| 18 | THROTTLE CAM | 85441 | |
| 19 | HOUSING, THROTTLE - UPPER | 85082 | |
| 20 | SPRING, TORSION - SHAFT | 24-95721 | |
| 21 | WASHER, PLASTIC - THROTTLE CAM | 12-85303 | |
| 22 | HOUSING, THROTTLE - LOWER | 79903F1 | |
| 23 | WAVE WASHER, SHAFT | 13-86498 | |
| 24 | SHAFT, THROTTLE AND SPARK ADVANCE | 87937 | |
| 25 | SCREW, THROTTLE HOUSING | 10-28239 | |
| 26 | WASHER, THROTTLE HOUSING SCREW | 12-35462 | |
| 27 | NUT, THROTTLE HOUSING SCREW | 11-8267088 | |
| 28 | SCREW, ADJUSTING - LOWER HOUSING (2-1/4") | 10-75168 | |
| 29 | NUT, ADJUSTING SCREW | 11-29598 | |
| 30 | CAP, NYLON - ADJUSTING SCREW | 52023 | |
| 31 | SCREW, ADJUSTING - LOWER HOUSING (2-1/8") | 10-60464 | |
| 32 | NUT, ADJUSTING SCREW | 11-68219 | |
| 33 | CAP, NYLON - ADJUSTING SCREW | 48039 | |
| 34 | SWIVEL ASSEMLBY, SPARK LINK | 77013A1 | |
| 35 | BUSHING, SWIVEL | 23-26856 | |
| 36 | WASHER, SWIVEL | 12-73288 | |
| 37 | WAVE WASHER, SWIVEL | 13-29402 | |
| 38 | NUT, SWIVEL | 11-45774 | |
| 39 | SPARK LINK | 85301 | |
| 40 | BARREL, SPARK LINK TO TRIGGER | 74897T |
TOP COWL AND SUPPORT BRACKETS
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) TOP COWL AND SUPPORT BRACKETS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TOP COWL (WITHOUT DECALS) Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 2114-7934T | |
| 2 | RETAINER ASSEMBLY, TOP COWL Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 52733A9 | |
| 3 | PAD, BUMPER - TOP COWL RETAINER Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 35496 | |
| 4 | SCREW, RETAINER TO TOP COWL (1-1/4) Comment: UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 10-74824 | |
| 1 | TOP COWL (WITHOUT DECALS) Comment: UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 2114-7934T | |
| 2 | RETAINER ASSEMBLY, TOP COWL Comment: UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 93122A1 | |
| 4 | SCREW, RETAINER TO TOP COWL (7/8") Comment: UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 10-53167T | |
| 5 | LOCKWASHER, RETAINER SCREW | 13-39107 | |
| 6 | SHIELD, TOP COWL - REAR | 76370 | |
| 7 | SCREW, SHIELD TO TOP COWL (5/8") | 10-37370 | |
| 8 | LOCKWASHER, SHIELD SCREW | 13-37371 | |
| 9 | ROPE, STARTER (FOR MANUAL STARTING ONLY) | 47341A11 | |
| 10 | HINGE, COWL LATCH - TOP COWL | 52739 | |
| 11 | LEVER, COWL LATCH HINGE | 94918F1 | |
| 12 | ROLL PIN, COWL LATCH LEVER TO HINGE | 17-58998 | |
| 13 | HOOK, TOP COWL LATCH - REAR | 55455 | |
| 14 | SCREW, REAR HOOK TO TOP COWL (7/8") | 10-22956 | |
| 15 | LOCKWASHER, REAR HOOK SCREW | 13-26992 | |
| 16 | FRAME, TOP COWL SUPPORT | 79897A4 | |
| 18 | MOUNT, RUBBER - TOP COWL FRAME | 90435 | |
| 18 | MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY) | 46096 | |
| 19 | NUT, RUBBER MOUNT | 11-35888 | |
| 20 | BRACKET, TOP COWL SUPPORT - REAR | 86472 | |
| 21 | MOUNT, RUBBER - REAR SUPPORT BRACKET | 31014 | |
| 22 | LOCKWASHER, RUBBER MOUNT | 13-26992 | |
| 23 | NUT, RUBBER MOUNT | 11-29598 | |
| 24 | SCREW, REAR BRACKET TO FRAME (1") | 10-37562 | |
| 26 | LOCKWASHER, REAR BRACKET SCREW | 13-8M0204647 | |
| 27 | SCREW, REAR BRACKET TO BOTTOM COWL (1") | 10-37562 | |
| 28 | LOCKWASHER, REAR SUPPORT BRACKET SCREW | 13-8M0204647 | |
| 29 | BRACKET ASSEMBLY, TOP COWL - FRONT | 42706A1 | |
| 30 | SCREW Comment: FRONT BRACKET TO BOTTOM COWL (1-1/4") | 10-60411 | |
| 31 | LOCKWASHER, FRONT SUPPORT BRACKET SCREW | 13-8M0204647 | |
| 32 | SCREW Comment: FRONT BRACKET TO TOP COWL FRAME (1-1/2") | 10-60411 | |
| 33 | LOCKWASHER, FRONT SUPPORT BRACKET SCREW | 13-8M0204647 | |
| 34 | MOUNT, RUBBER - FRONT SUPPORT BRACKET | 37640 | |
| 35 | LOCKWASHER, RUBBER MOUNT | 13-8M0204647 | |
| 36 | NUT, RUBBER MOUNT | 11-28770 | |
| 37 | POINTER, TIMING | 87991 | |
| 38 | SCREW, TIMING POINTER (3/4") | 10-28636 | |
| 39 | WASHER, TIMING POINTER SCREW | 12-35462 |
TRANSOM BRACKET
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) TRANSOM BRACKET:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TRANSOM BRACKET | 1496-8822A1 | |
| 2 | TILT TUBE | 89099 | |
| 3 | WASHER, WAVE - TILT TUBE | 13-89297 | |
| 4 | NUT, TILT TUBE | 11-858869 | 11-30499 |
| 5 | SPACER, TRANSOM BRACKET STUD | 23-87642 | |
| 6 | STUD Comment: TRANSOM BRACKET - NOT USED WITH POWER TRIM | 16-87643 | |
| 7 | WASHER, TRANSOM BRACKET STUD | 12-36001 | |
| 8 | LOCKWASHER, TRANSOM BRACKET STUD | 13-8M0204647 | |
| 9 | NUT, TRANSOM BRACKET STUD | 11-28770 | |
| 10 | TILT LOCK PIN ASSEMBLY Comment: NOT USED WITH POWER TRIM | 17-8M0026068 | 17-49930A 1 NOT USED WITH POWER TRIM |
| 11 | BOLT, TRANSOM BRACKET (5") | 10-89673 | |
| 12 | WASHER, TRANSOM BRACKET BOLT | 12-68410 | |
| 13 | NUT, TRANSOM BRACKET BOLT | 11-82671112 | |
| 11 | BOLT, TRANSOM BRACKET (6") | 10-677552 | |
| 12 | WASHER, TRANSOM BRACKET BOLT | 12-8M0204648 | |
| 13 | NUT, TRANSOM BRACKET BOLT | 11-91962 | |
| 14 | PIN, UPPER SHOCK MOUNTING | 89116 | |
| 15 | BUSHING, UPPER SHOCK MOUNTING PIN | 23-89117 | |
| 16 | COUPLING, TILT LOCK | 79659 | |
| 17 | COTTER PIN, TILT LOCK | 18-47959 | |
| 18 | OIL SEAL, SWIVEL BRACKET (TILT LOCK) | 26-22734 | |
| 19 | WASHER, TILT LOCK | 12-76388 | |
| 20 | "O" RING, TILT LOCK | 25-627021 | |
| 21 | TILT LOCK | 89105 | |
| 22 | REVERSE LOCK ASS'Y Comment: NOT USED WITH POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 87431 | |
| 23 | SPRING ASS'Y Comment: NOT USED WITH POWER TRIM UNITED STATES 5825802 AND BELOW AUSTRALIA 8071019 AND BELOW CANADA 7170897 AND BELOW | 24-78203A2 | |
| 22 | REVERSE LOCK ASS'Y Comment: NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 14664A3 | |
| 23 | SPRING ASSEMLBY Comment: NOT USED WITH POWER TRIM UNITED STATES 5825803 AND UP AUSTRALIA 8071020 AND UP CANADA 7170898 AND UP | 24-78203A2 | |
| 24 | SHAFT, REVERSE LOCK PIVOT Comment: NOT USED WITH POWER TRIM | 56349 | |
| 25 | COTTER PIN, LOCK TO SHAFT Comment: NOT USED WITH POWER TRIM | 18-45882 | |
| 27 | PIN, LOWER SHOCK MOUNTING | 55-28414 | |
| 28 | SCREW, LOWER SHOCK PIN (2") | 10-21937 | |
| 29 | NUT, LOWER SHOCK PIN SCREW | 11-8M0207775 | |
| 30 | SHOCK ABSORBER Comment: - NOT USED WITH POWER TRIM | 55-58780A7 | |
| 31 | WASHER, UPPER BUSHING RETAINER (INNER) Comment: - NOT USED WITH POWER TRIM | 12-28196 | |
| 32 | BUSHING, RUBBER - SHOCK ABSORBER (UPPER) Comment: - NOT USED WITH POWER TRIM | 23-32171 | |
| 33 | BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: - NOT USED WITH POWER TRIM | 23-28198 | |
| 34 | WASHER, UPPER/LOWER SHOCK PIN (LOWER) Comment: - NOT USED WITH POWER TRIM | 12-69374 | |
| 35 | SCREW, UPPER AND LOWER SHOCK PIN Comment: - NOT USED WITH POWER TRIM | 10-69375 | |
| 36 | SPRING, COIL - SWIVEL BRACKET Comment: - NOT USED WITH POWER TRIM | 24-94891 | |
| 37 | PIN, COIL SPRING MOUNTING Comment: - NOT USED WITH POWER TRIM | 17-38311 | |
| 38 | SPACER, RUBBER - COIL SPRING Comment: - NOT USED WITH POWER TRIM | 23-28688 | |
| - | GASKET SET | 27-85653A87 |
TRIM CYLINDERS AND HYDRAULIC HOSES
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) TRIM CYLINDERS AND HYDRAULIC HOSES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TRIM CYLINDER ASS'Y Comment: (IDENTIFY BY CASTING #78439) | 92194A14 | |
| 1 | TRIM CYLINDER ASS'Y Comment: (IDENTIFY BY NO CASTING #) | 92194A14 | |
| 2 | GREASE FITTING, TRIM CYLINDER | 22-8M0169589 | |
| 3 | SCREW, BLEED | 10-45265 | |
| 4 | "O" RING, BLEED SCREW | 25-45016 | |
| 5 | SCREW Comment: TRIM CYLINDER (1-1/2") - WITH TAPPED HOLE | 10-45264 | |
| 5 | SCREW Comment: TRIM CYLINDER (1-1/2") - WITHOUT TAPPED HOLE | 10-92050 | |
| 6 | WASHER, TRIM CYLINDER BOLT | 12-8M0204648 | |
| 7 | SPACER, TRIM CYLINDER - LOWER | 23-45280 | |
| 8 | BUSHING, RUBBER - TRIM CYLINDER | 23-94907A1 | |
| 9 | BRACKET, TRIM CYLINDER (PORT) | 89108A3 | |
| 10 | OIL SEAL, PORT BRACKET | 26-70608 | |
| 11 | PLUNGER, LIMIT SWITCH ACTUATING | 89290 | |
| 12 | SPRING, TENSION - LIMIT SWITCH PLUNGER | 24-95881 | |
| 13 | STUD, MOUNTING BRACKET | 16-45282 | |
| 14 | LOCKWASHER, MOUNTING BRACKET STUD | 13-8M0204647 | |
| 15 | NUT, MOUNTING BRACKET STUD | 11-28770 | |
| 16 | SCREW, MOUNTING BRACKET (2-1/4") | 10-45263 | |
| 17 | BOLT, MOUNTING BRACKET TO TRANSOM (3-1/4") | 10-68298 | |
| 17 | BOLT, MOUNTING BRACKET TO TRANSOM (5") | 10-89673 | |
| 18 | WASHER, MOUNTING BRACKET BOLT | 12-68410 | |
| 19 | NUT, MOUNTING BRACKET BOLT | 11-82671112 | |
| 20 | BRACKET, TRIM CYLINDER (STARBOARD) | 89111T | |
| 21 | SCREW Comment: TRIM CYLINDER TO MOUNTING BRACKET (3-9/16") | 10-45328 | |
| 22 | WASHER Comment: TRIM CYLINDER SCREW (STARBOARD ONLY) | 12-37807 | |
| 23 | NUT, TRIM CYLINDER SCREW | 11-20696 | |
| 24 | SPRING, TENSION - ADJUSTING STUD | 24-24390 | |
| 25 | STUD, ADJUSTING - CUT-OUT LIMIT SWITCH | 16-8M0034461 | 16-21085 |
| 26 | NUT, JAM - LIMIT SWITCH ADJUSTING STUD | 11-859124 | 11-45812 |
| 27 | CAM, LIMIT SWITCH ADJUSTING STUD | 99897 | |
| 28 | PLATE, RETAINING - LIMIT SWITCH CAM | 86967 | |
| 29 | SCREW, RETAINING PLATE AND CAM | 10-68513 | |
| 30 | LOCKWASHER Comment: RETAINING PLATE AND CAM SCREW | 13-26996 | |
| 31 | SWITCH ASSEMBLY, CUT-OUT LIMIT | 45326A2 | |
| 32 | BUSHING, RUBBER - CUT-OUT LIMIT SWITCH | 23-45354 | |
| 33 | SCREW, CUT-OUT LIMIT SWITCH (9/16") | 10-47255 | |
| 34 | COVER, LIMIT SWITCH | 89272 | |
| 35 | GASKET, LIMIT SWITCH COVER | 27-892731 | |
| 36 | SCREW, LIMIT SWITCH COVER (7/16") | 10-34994 | |
| 37 | WASHER, LIMIT SWITCH COVER SCREW | 12-38833 | |
| 38 | COVER, INLET - TRANSOM | 87774A1 | |
| 39 | GASKET, INLET COVER | 27-87775 | |
| 40 | GROMMET, RUBBER - INLET COVER | 25-45507 | |
| 41 | SCREW, INLET COVER TO BOAT (2") | 10-32866 | |
| 42 | LOCKWASHER, INLET COVER SCREW | 13-26996 | |
| 43 | NUT, INLET COVER SCREW | 11-68219 | |
| 44 | HOSE, TRIM Comment: CYLINDER TO CONTROL VALVE (5') - 12/32" O.D. | 32-88005 | |
| 45 | HOSE, LIFT Comment: CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. | 32-88006 | |
| 46 | GROMMET, RUBBER (3/8" I.D. - 1" LONG) | 23-35977 | |
| 46 | GROMMET, RUBBER (3/8" I.D. - 7/8" LONG) | 23-35977 | |
| 46 | GROMMET, RUBBER (7/16" I.D. - 7/8" LONG) | 25-12602002 | |
| 47 | TILT STOP | 73519A1 | |
| 48 | TUBE, MOUNTING - TILT STOP | 69259 | |
| 49 | PIN, MOUNTING TUBE | 77669 | |
| 50 | TUBE, CUSHION | 63473 | |
| 51 | COTTER PIN, MOUNTING TUBE PIN | 18-36002 | |
| 52 | COTTER PIN, TILT PIN RETAINING | 18-45882 | |
| 53 | WASHER, TILT PIN | 12-39304 | |
| 54 | BUSHING, MOUNTING BRACKET | 23-89112 | |
| 55 | COVER, TRIM CYLINDER Comment: NOT USED ON LATE MODELS | 70679 | |
| 56 | SCREW, TRIM CYLINDER COVER Comment: NOT USED ON LATE MODELS | 10-37655 |
WIRING HARNESS AND IGNITION COIL
Back to TopBelow is the parts list for Mercury 90 (6 CYL.) WIRING HARNESS AND IGNITION COIL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | IGNITION COIL | 339-832757A4 | |
| 2 | COVER, IGNITION COIL | 43542 | |
| 3 | SCREW, IGNITION COIL COVER (2") | 10-88856 | |
| 4 | NUT, IGNITION COIL TERMINAL | 11-45076 | |
| 5 | CABLE ASSEMBLY, IGNITION COIL (BLACK) | 84-60466A1 | |
| 6 | CABLE, HIGH TENSION | 84-813715A1 | |
| 7 | BOOT, COIL END | 332-2854T01 | |
| 8 | PROTECTOR, SPARK PLUG END | 85-63709A1 | |
| 9 | SPARK PLUG (CHAMPION #L76-V) | 33-896329827 | 33-827C |
| 10 | HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6) | 84-85537A2 | |
| 10 | HARNESS, COIL TO SWITCH BOX (#1, 3 AND 5) | 84-85537A1 | |
| 11 | CLIP, HARNESS TO COIL COVER | 54-63153 | |
| 12 | WIRING HARNESS Comment: UNITED STATES 6026608 AND BELOW AUSTRALIA 8074512 AND BELOW CANADA 7185072 AND BELOW | 84-96188A4 | |
| 12 | WIRING HARNESS Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 84-96188A4 | |
| 13 | FUSE Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 88-8M0207796 | |
| 14 | WIRE, FUSE HOLDER Comment: UNITED STATES 6026609 AND UP AUSTRALIA 8074513 AND UP CANADA 7185073 AND UP | 84-95084A2 | |
| 15 | CLAMP, WIRING HARNESS | 54-88608 | |
| 16 | SCREW, WIRING HARNESS CLAMP | 10-28636 | |
| 17 | LOCKWASHER, WIRING HARNESS CLAMP SCREW | 13-26996 | |
| 18 | BRACKET, WIRING HARNESS | 89047 | |
| 19 | SCREW, WIRING HARNESS BRACKET | 10-24637 | |
| 20 | WASHER, BRACKET SCREW | 12-38833 | |
| 21 | NUT, BRACKET SCREW | 11-20110 | |
| 22 | CLAMP, WIRING HARNESS | 88751 | |
| 23 | SCREW, WIRING HARNESS CLAMP | 10-28636 | |
| 24 | WASHER, CLAMP SCREW | 12-20533 | |
| 25 | BATTERY CABLE (POSITIVE) | 84-88439A3 | |
| 25 | BATTERY CABLE (NEGATIVE) | 84-88439A4 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
