BOTTOM COWL AND ADAPTOR PLATE
Back to TopBelow is the parts list for Mercury 75 BOTTOM COWL AND ADAPTOR PLATE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | ADAPTOR PLATE ASSEMBLY Comment: SERIAL 00000000-02721150 | 53504A2 | |
| 1 | ADAPTOR PLATE ASSEMBLY Comment: SERIAL 02810637-09999999 | 56711A2 | |
| 2 | WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE) | 23-13127 | |
| 3 | SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE) | 26-36556 | |
| 4 | SEAL, RUBBER - ADAPTOR PLATE | 39044 | |
| 5 | GASKET, POWERHEAD TO ADAPTOR PLATE | 27-89937 | |
| 6 | SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8") | 10-69026 | |
| 7 | LOCKWASHER, ADAPTOR PLATE SCREW | 13-26992 | |
| 8 | GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING | 27-39050 | |
| 9 | COWL, BOTTOM Comment: SERIAL 00000000-02721150 | 2124-4416A2 | |
| 9 | COWL, BOTTOM Comment: SERIAL 02810637-02958118 | 2124-4416A2 | |
| 9 | COWL, BOTTOM Comment: SERIAL 03016581-09999999 | 2124-4416A2 | |
| 10 | ANCHOR, LATCH - BOTTOM COWL Comment: SERIAL 00000000-02721150 | 39474 | |
| 10 | ANCHOR, LATCH - BOTTOM COWL (NOT AS SHOWN) Comment: SERIAL 02810637-09999999 | 56069 | |
| 11 | SCREW, LATCH ANCHOR TO BOTTOM COWL (1-1/8") | 10-22483 | |
| 12 | LOCKWASHER, LATCH ANCHOR SCREW | 13-26992 | |
| 13 | GROMMET, CHOKE SHAFT - BOTTOM COWL | 25-39054 | |
| 14 | PLATE ASSEMBLY, COVER - BOTTOM COWL Comment: SERIAL 00000000-02958118 | 39051A1 | |
| 15 | PAD, SOUND - COVER PLATE Comment: SERIAL 00000000-02958118 | 39068 | |
| 16 | SCREW, COVER PLATE TO BOTTOM COWL (3/8") Comment: SERIAL 00000000-02958118 | 10-8M0113176 | |
| 14 | COVER, AIR INTAKE - BOTTOM COWL Comment: SERIAL 03016581-09999999 | 59100 | |
| 16 | SCREW, AIR INTAKE COVER TO BOTTOM COWL (3/8") Comment: SERIAL 03016581-09999999 | 10-8M0113176 | |
| 17 | SEAL, SHIFT HANDLE - BOTTOM COWL | 39058 | |
| 18 | MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (STARBOARD) | 39145 | |
| 19 | MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT) | 39144 | |
| 20 | SCREW, RUBBER MOUNT TO BOTTOM COWL (1/2") | 10-96138 | |
| 21 | NUT, ADAPTOR PLATE TO RUBBER MOUNT | 11-8M0207775 | |
| 22 | SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL) | 39565 | |
| 23 | SCREW, NYLON SPOOL TO BOTTOM COWL (5/8") | 10-32228 | |
| 24 | LOCKWASHER, NYLON SPOOL SCREW | 13-26996 | |
| 25 | ADAPTOR, REAR MOUNT TO BOTTOM COWL | 39147 | |
| 26 | SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8") | 10-69026 | |
| 27 | LOCKWASHER, REAR MOUNT ADAPTOR SCREW | 13-26992 | |
| 28 | MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR) | 39146 | |
| 29 | LOCKWASHER, REAR MOUNT | 13-26992 | |
| 30 | NUT, ADAPTOR PLATE TO REAR RUBBER MOUNT | 11-8M0207775 | |
| 31 | ROD, COWL LATCH - BOTTOM COWL | 63648 | |
| 32 | BRACKET, COWL LATCH ROD | 39099 | |
| 33 | SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8") | 10-69026 | |
| 34 | LOCKWASHER, COWL LATCH BRACKET SCREW | 13-26992 | |
| 35 | HANDLE, COWL LATCH ROD (PORT) | 39083 | |
| 36 | HANDLE, COWL LATCH ROD (STARBOARD) | 39098 | |
| 37 | BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL | 23-22981 | |
| 38 | PIN, ROLL - HANDLE TO COWL LATCH ROD | 17-25319 | |
| 39 | TUBE, TELL TALE (11") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 40 | NOZZLE, TELL TALE | 56712 | |
| 41 | SCREW, TELL TALE NOZZLE TO BOTTOM COWL | 10-41228 | |
| -- | STOP SWITCH ASSEMBLY Comment: SERIAL 00000000-02721150 | 32372A2 | |
| 42 | HARNESS, STOP SWITCH Comment: SERIAL 00000000-02721150 | 32372 | |
| 43 | INSULATOR, SLEEVE - INNER SWITCH TERMINALS Comment: SERIAL 00000000-02721150 | 30859 | |
| 44 | SPRING AND CONTACT ASSEMBLY Comment: SERIAL 00000000-02721150 | 24-30858A1 | |
| 45 | COVER ASSEMBLY, STOP SWITCH Comment: SERIAL 00000000-02721150 | 38950A1 | |
| 46 | WASHER, SEALING-STOP SWITCH Comment: SERIAL 00000000-02721150 | 12-38949 | |
| 47 | LOCKWASHER, STOP SWITCH CONNECTOR Comment: SERIAL 00000000-02721150 | 13-21972 | |
| 48 | NUT, STOP SWITCH TO BOTTOM COWL Comment: SERIAL 00000000-02721150 | 11-21971 | |
| 42 | STOP SWITCH ASSEMBLY Comment: SERIAL 02810637-02958118 | 57186A4 | |
| 46 | WASHER, SEALING - STOP SWITCH Comment: SERIAL 02810637-02958118 | 12-38949 | |
| 47 | LOCKWASHER, STOP SWITCH CONNECTOR Comment: SERIAL 02810637-02958118 | 13-21972 | |
| 48 | NUT, STOP SWITCH TO BOTTOM COWL Comment: SERIAL 02810637-02958118 | 11-21971 | |
| 42 | STOP SWITCH ASSEMBLY Comment: SERIAL 03016581-09999999 | 59065A1 | |
| 45 | COVER ASSEMBLY, STOP SWITCH Comment: SERIAL 03016581-09999999 | 38950A1 | |
| 46 | WASHER, STATOR LEAD TO STOP SWITCH Comment: SERIAL 03016581-09999999 | 12-59061 | |
| 47 | LOCKWASHER< STOP SWITCH CONNECTOR Comment: SERIAL 03016581-09999999 | 13-21972 | |
| 48 | NUT, STOP SWITCH TO BOTTOM COWL Comment: SERIAL 03016581-09999999 | 11-21971 | |
| 49 | LOCKWASHER, STATOR TO LEAD STOP SWITCH Comment: SERIAL 03016581-09999999 | 13-26996 | |
| 50 | NUT, STATOR LEAD TO STOP SWITCH Comment: SERIAL 03016581-09999999 | 11-68219 | |
| 51 | GROUND WIRE, BOTTOM COWL (4-1/2") Comment: SERIAL 02810637-02958118 | 57845A1 | |
| 52 | GROUND WIRE, COVER PLATE SCREW (3-5/8") Comment: SERIAL 02810637-02958118 | 46933A1 | |
| 53 | SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8") Comment: SERIAL 02810637-02958118 | 10-8M0113176 | |
| 54 | GROUND WIRE, RUBBER MOUNT SCREW AND NUT Comment: SERIAL 03016581-09999999 | 59796A1 |
CARBURETOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 CARBURETOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY, COMP. (KB-9A) Comment: SERIAL 00000000-02721150 | 1334-3734 | |
| 1 | CARBURETOR ASSEMBLY. COMP. (KB-12A) Comment: SERIAL 02810637-09999999 | 1334-4115 | |
| 2 | FLOAT ASSEMBLY | 1395-8673 | |
| 3 | PIN, FLOAT LEVER PINION (#) | ||
| 4 | LEVER, FLOAT (LOWER) (#) | ||
| 5 | LEVER, FLOAT (UPPER) (#) | ||
| 6 | INLET NEEDLE, SEAT AND GASKET | 1395-92581 | |
| 7 | GASKET, INLET SEAT (#) | ||
| 8 | GASKET, FLOAT BOWL COVER (#) | ||
| 9 | COVER, FLOAT BOWL | 1399-1133 | |
| 10 | SCREW, FLOAT BOWL COVER (SHORT) | 10-52195 | |
| 11 | SCREW, FLOAT BOWL COVER (LONG) | 10-52196 | |
| 12 | LOCKWASHER, FLOAT BOWL COVER SCREW | 13-26995 | |
| 13 | GASKET, STRAINER COVER (LARGE) (#) | ||
| 14 | SCREEN, FILTER | 1399-3938 | |
| 15 | GASKET, STRAINER COVER (SMALL) (#) | ||
| 16 | COVER, STRAINER | 1399-4791A1 | |
| 17 | GASKET, STRAINER COVER SCREW (#) | ||
| 18 | SCREW, STRAINER COVER | 22822 | |
| 19 | SCREW, THROTTLE STOP LEVER | 1395-6027 | |
| 20 | LEVER, THROTTLE STOP | 8146791 | |
| 21 | SHAFT, THROTTLE | 1399-1716 | |
| 22 | TUBE, IDLE (#) | ||
| 23 | GASKET, IDLE TUBE (#) | ||
| 24 | SCREW AND LOCKWASHER, THROTTLE SHUTTER (#) | ||
| 25 | SHUTTER, THROTTLE | 1399-3743 | |
| 26 | WELCH PLUG, BODY CHANNEL (#) | ||
| 27 | SPRING, THROTTLE SHAFT RETURN (#) | ||
| 28 | SCREW, PLUG - BODY CHANNEL | 10-28845 | |
| 29 | MAIN NOZZLE (#) | ||
| 30 | SCREW, PLUG - MAIN NOZZLE | 10-23178 | |
| 31 | JET, MAIN FUEL (.035) - STANDARD Comment: SERIAL 02810637-09999999 | 1399-4188 | |
| 31 | JET, MAIN FUEL (.034) - STANDARD Comment: SERIAL 00000000-02721150 | 1399-3251 | |
| 31 | JET, MAIN FUEL (.032) | 1399-3252 | |
| 31 | JET, MAIN FUEL (.030) | 1399-3810 | |
| 32 | GASKET, MAIN FUEL JET (#) | ||
| 33 | GASKET, JET CHANNEL PLUG SCREW (#) | ||
| 34 | SCREW, PLUG - MAIN FUEL JET CHANNEL | 10-28405 | |
| 35 | SCREW, IDLE ADJUSTMENT | 1399-3742 | |
| 36 | SPRING, IDLE ADJUSTMENT SCREW (#) | ||
| -- | GASKET AND PACKING SET | 1399-1717 | |
| -- | REPAIR PARTS KIT Comment: SERIAL 00000000-02721150 | 1399-3744 | |
| -- | REPAIR PARTS KIT Comment: SERIAL 02810637-09999999 | 1395-92621 | |
| 37 | GASKET, CARBURETOR | 27-63309 | |
| 38 | NUT, CARBURETOR MOUNTING STUD | 11-8M0207775 |
CARBURETOR CHOKE LINKAGE
Back to TopBelow is the parts list for Mercury 75 CARBURETOR CHOKE LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | THROTTLE LEVER ASSEMBLY Comment: SERIAL #2958118 AND BELOW | 59000 | |
| 2 | SCREW, THROTTLE LEVER TO CARBURETOR (1/2") Comment: SERIAL #2958118 AND BELOW | 10-29239 | |
| 1 | THROTTLE LEVER Comment: SERIAL#3016581 AND UP | 59000 | |
| 2 | SCREW, THROTTLE LEVER TO CARBURETOR Comment: SERIAL#3016581 AND UP | 10-20597 | |
| 3 | SHUTTER AND SCREEN, CHOKE - CARBURETOR | 79092 | |
| 4 | SPRING, CHOKE SHUTTER TO LEVER | 24-53310 | |
| 5 | SPRING ASSEMBLY, CARBURETOR | 24-55299A1 | |
| 6 | SCREW, SPRING TO CARBURETOR | 10-55298 | |
| 7 | LEVER, CHOKE | 53188 | |
| 8 | SPRING, TENSION - CHOKE KNOB | 24-53190 | |
| 9 | KNOB, CHOKE | 53200 |
CLAMP AND SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 CLAMP AND SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY (PORT) Comment: SERIAL 00000000-02958118 | 1467-5406A2 | |
| 2 | CLAMP BRACKET ASSEMBLY (STARBOARD) Comment: SERIAL 00000000-02958118 | 1467-5406A2 | |
| 3 | THUMB SCREW ASSEMBLY Comment: SERIAL 00000000-02958118 | 59170A3 | |
| 4 | WASHER, THUMB SCREW Comment: SERIAL 00000000-02958118 | 12-26227 | |
| 1 | CLAMP BRACKET ASSEMBLEY (PORT) Comment: SERIAL 03016581-09999999 | 1468-5570A3 | |
| 2 | CLAMP BRACKET ASSEMBLY (STARBOARD) Comment: SERIAL 03016581-09999999 | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY Comment: SERIAL 03016581-09999999 | 59170A3 | |
| 4 | WASHER, THUMB SCREW Comment: SERIAL 03016581-09999999 | 12-26227 | |
| 5 | WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET | 12-52864 | |
| 6 | TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET | 45757 | |
| 7 | CLIP, SAFETY CHAIN - TILT TUBE | 54-8M0085928 | 54-30954 |
| 8 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 9 | STUD, CLAMP BRACKET SPACER | 16-59622 | |
| 10 | NUT, CLAMP BRACKET STUD | 11-29598 | |
| 11 | SCREW, CLAMP BRACKET TO TRANSCOM (2-3/4") | 10-67982 | |
| 12 | WASHER, CLAMP BRACKET SCREW | 12-67983 | |
| 13 | NUT, CLAMP BRACKET SCREW | 11-8267098 | |
| 14 | TILT LOCK PIN ASSEMBLY | 17-55952A1 | |
| 15 | SPACER, TUBE - REVERSE LOCK LEVER ROD | 23-30813 | |
| 16 | BUSHING, NYLON - REVERSE LOCK LEVER ROD | 23-26856 | |
| 17 | ROD, REVERSE LOCK TO SWIVEL BRACKET Comment: SERIAL 00000000-02721150 | 56663 | |
| 17 | ROD, REVERSE LOCK TO SWIVEL BRACKET Comment: SERIAL 02810637-09999999 | 56663 | |
| 18 | COTTER PIN, REVERSE LOCK LEVER TO ROD | 18-56206 | |
| 19 | LINK, REVERSE LOCK LEVER | 30815 | |
| 20 | REVERSE LOCK LEVER ASSEMBLY | 53267A1 | |
| 21 | BRACKET, STOP | 53435 | |
| 22 | SPRING, EXTENSION - STOP BRACKET | 24-53456 | |
| 23 | SPRING, TENSION - REVERSE LOCK LEVER | 24-30886 | |
| 24 | ROD, LINK - REVERSE LOCK LEVER Comment: SERIAL 00000000-02958118 | 38318 | |
| 24 | ROD, LINK - REVERSE LOCK LEVER Comment: SERIAL 03016581-09999999 | 62257A2 | |
| 25 | ROLL PIN, SWIVEL BRACKET CONTROL LEVER Comment: SERIAL 00000000-02721150 | 17-25905 | |
| 26 | LEVER, CONTROL - REVERSE LOCK Comment: SERIAL 00000000-02721150 | 32351T | |
| 27 | SCREW, CONTROL LEVER TO SWIVEL BRACKET Comment: SERIAL 00000000-02721150 | 10-28789 | |
| 28 | WASHER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 00000000-02721150 | 12-8M0204666 | |
| 29 | SPACER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 00000000-02721150 | 23-31309 | |
| 30 | WASHER, WAVE - CONTROL LEVER FASTENING SCREW Comment: SERIAL 00000000-02721150 | 13-34632 | |
| 31 | WASHER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 00000000-02721150 | 12-24812 | |
| 32 | ROLL PIN, SWIVEL BRACKET CONTROL LEVER Comment: SERIAL 02810637-02958118 | 17-25905 | |
| 33 | LINK ASSEMBLY, REVERSE LOCK Comment: SERIAL 02810637-02958118 | 56636A1 | |
| 34 | LEVER, CONTROL - REVERSE LOCK Comment: SERIAL 02810637-02958118 | 56637T | |
| 35 | SPACER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 02810637-02958118 | 23-56639 | |
| 32 | ROLL PIN, SWIVEL BRACKET CONTROL LEVER Comment: SERIAL 03016581-09999999 | 17-25905 | |
| 33 | LINK ASSEMBLY, REVERSE LOCK Comment: SERIAL 03016581-09999999 | 62257A2 | |
| 34 | LEVER, CONTROL - REVERSE LOCK Comment: SERIAL 03016581-09999999 | 62024T | |
| 35 | SPACER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 03016581-09999999 | 23-31309 | |
| 36 | SCREW, CONTROL LEVER FASTENING Comment: SERIAL 02810637-09999999 | 10-852368 | 10-56682 SERIAL 02810637-09999999 |
| 37 | WASHER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 02810637-09999999 | 12-8M0204666 | |
| 38 | WASHER, WAVE - CONTROL LEVER FASTENING SCREW Comment: SERIAL 02810637-09999999 | 13-34632 | |
| 39 | WASHER, CONTROL LEVER FASTENING SCREW Comment: SERIAL 02810637-09999999 | 12-24812 | |
| 40 | DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET | 20203 | |
| 41 | PLATE, CLAMP - CO-PILOT | 61296 | |
| 42 | SCREW, CLAMP PLATE ADJUSTING Comment: SERIAL 00000000-02721150 | 10-56649 | |
| 42 | SCREW, CLAMP PLATE ADJUSTING Comment: SERIAL 02810637-09999999 | 10-56649 | |
| 43 | SPACER, CLAMP PLATE ADJUSTING SCREW Comment: SERIAL 03016581-09999999 | 23-59573 | |
| 44 | WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW Comment: SERIAL 03016581-09999999 | 13-48239 | |
| 45 | LUBRICAP, GREASE FITTING - SWIVEL BRACKET | 19-77633Q | |
| 46 | FITTING, GREASE - SWIVEL BRACKET | 22-8M0169589 | |
| 47 | SWIVEL BRACKET | 1451-1788 | |
| 48 | "O" RING, SWIVEL BRACKET | 25-25439 | |
| 49 | SERIAL PLATE | 38-31042 | |
| 50 | SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET | 10-28642 | |
| 51 | LEVER, TILT STOP Comment: SERIAL 00000000-02721150 | 63310A1 | |
| 51 | LEVER, TILT STOP Comment: SERIAL 02810637-09999999 | 63310A1 | |
| 52 | SCREW, RETAINING - TILT STOP LEVER | 10-29237 | |
| 53 | NUT, TILT STOP LEVER RETAINING SCREW | 11-8M0207775 | |
| 54 | SCREW, ANCHOR - TILT STOP LEVER | 10-27791 | |
| 55 | WASHER, WAVE - LEVER ANCHOR SCREW | 13-20846 | |
| 56 | NUT, TILT STOP LEVER ANCHOR SCREW | 11-8M0207775 | |
| 57 | SWIVEL PIN, SWIVEL BRACKET TO SADDLE | 17-30688 | |
| 58 | CO-PILOT DISC | 77334 | |
| 59 | SCREW, CO-PILOT DISC TO SADDLE | 10-30679 | |
| 60 | NUT, CO-PILOT DISC FASTENING SCREW | 11-8M0207775 |
CRANKSHAFT AND MAIN BEARING ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 CRANKSHAFT AND MAIN BEARING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT | 421-2224 | |
| 2 | MAIN BEARING ASS'Y (VALVE TYPE) Comment: SERIAL 00000000-02721150 | 550-8122A5 | |
| 2 | MAIN BEARING ASS'Y (VALVE TYPE) Comment: SERIAL 02810637-09999999 | 550-8122A5 | |
| 3 | PIN, DOWEL - MAIN BEARING Comment: SERIAL 00000000-02721150 | 17-20032 | |
| 3 | PIN, DOWEL - MAIN BEARING Comment: SERIAL 02810637-09999999 | 17-20032 | |
| 3 | PIN, DOWEL - REED LOCATING Comment: SERIAL 02810637-09999999 | 17-65855 | |
| 4 | SCREW, MAIN BEARING CLAMPING Comment: SERIAL 00000000-02721150 | 10-37601 | |
| 4 | SCREW, MAIN BEARING CLAMPING Comment: SERIAL 02810637-09999999 | 10-56781 | |
| 5 | PIN, DOWEL - MAIN BEARING TO BLOCK | 17-20032 | |
| 6 | REED SET, MATCHED - MAIN BEARING | 34-31942A1 | |
| 7 | REED STOP, MAIN BEARING REED VALVES | 34-52925 | |
| 8 | SCREW, REED STOP MOUNTING | 10-27304 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY | 837-2756A7 | |
| 2 | CHECK VALVE ASSEMBLY, CRANKCASE | 21-28481A1 | |
| 3 | WELCH PLUG, CYLINDER BLOCK | 19-56688 | |
| 4 | STUD, BLOCK AND CRANKCASE TO DRIVE CHAFT HOUSING | 16-728091 | |
| 5 | STUD, CARBURETOR MOUNTING | 10-657461 | |
| 6 | PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK | 17-21438 | |
| 7 | PLUG, PIPE - CYLINDER BLOCK | 22-328022 | |
| 8 | ELBOW, TELL TALE - CYLINDER BLOCK | 22-996642 | |
| 9 | SCREW, CRANKCASE TO CYLINDER BLOCK (1") | 10-64278 | |
| 10 | SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4") | 10-24624 | |
| 11 | NUT, CRANKCASE FASTENING SCREW | 11-8M0207775 | |
| 12 | SCREW, MAIN BEARING LOCKING (5/8") | 10-98260 | |
| 13 | TAB WASHER, MAIN BEARING LOCKING SCREW | 14-20091 | |
| 14 | SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10) | 15-31412A1 | |
| 15 | BEARING HOUSING ASSEMBLY, UPPER Comment: SERIAL 00000000-02721150 | 1132-2400A1 | |
| 15 | BEARING HOUSING ASSEMBLY, UPPER (NOT AS SHOWN) Comment: SERIAL #2810637 AND UP | 1141-3971A1 | |
| 16 | BEARING, BALL - UPPER BEARING HOUSING | 30-72961 | |
| 17 | BEARING, ROLLER - UPPER BEARING HOUSING | 31-31410 | |
| 18 | OIL SEAL, UPPER BEARING HOUSING Comment: SERIAL 00000000-02721150 | 26-31411 | |
| 18 | OIL SEAL, UPPER BEARING HOUSING Comment: SERIAL 02810637-09999999 | 26-66301 | |
| 19 | "O" RING, UPPER BEARING HOUSING | 25-20863 | |
| 20 | CLAMP, HOLD DOWN RING Comment: SERIAL #2721150 AND BELOW | 54-34598 | |
| 21 | SCREW, RING CLAMP TO BEARING HOUSING (9/16") Comment: SERIAL #2721150 AND BELOW | 10-36205 | |
| 22 | SPRING, RING CLAMP SCREW Comment: SERIAL #2721150 AND BELOW | 24-34731 | |
| 23 | SCREW, UPPER BEARING HOUSING (1/2") | 10-28707 | |
| 24 | GASKET, TRANSFER PORT COVER | 27-780321 | |
| 25 | COVER, TRANSFER PORT | 31430 | |
| 26 | SCREW, PORT COVER TO CYLINDER BLOCK (1/2") Comment: SERIAL #2721150 AND BELOW | 10-20665 | |
| 26 | SCREW, PORT COVER TO CYLINDER BLOCK (5/8") Comment: SERIAL #2721150 AND BELOW | 10-20720 | |
| 26 | SCREW, PORT COVER TO CYLINDER BLOCK (1/2") Comment: SERIAL #2810637 AND UP | 10-20665 | |
| 27 | COVER, CYLINDER BLOCK Comment: SERIAL 00000000-02721150 | 1019-7465A1 | |
| 27 | COVER, CYLINDER BLOCK Comment: SERIAL 02810637-09999999 | 1019-7465A1 | |
| 28 | GASKET, CYLINDER BLOCK TO COVER | 27-41382 | |
| 29 | SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8") Comment: SERIAL #2721150 AND BELOW | 10-64278 | |
| 29 | SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8") Comment: SERIAL #2810637 AND UP | 10-21091 | |
| 30 | NUT, CYLINDER BLOCK COVER MOUNTING SCREW | 11-8M0207775 | |
| 31 | GASKET, CYLINDER BLOCK TO BAFFLE PLATE | 27-78035 | |
| 32 | PLATE, BAFFLE - EXHAUST MANIFOLD | 78034 | |
| 33 | GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER | 27-78035 | |
| 34 | COVER, EXHAUST MANIFOLD | 74919T | |
| 35 | SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4") | 10-28668 | |
| 36 | TERMINAL BLOCK, EXHAUST MANIFOLD COVER Comment: SERIAL #2958118 AND BELOW | 30212 | |
| 37 | SCREW, TERMINAL BLOCK TO MANIFOLD COVER (1/2") Comment: SERIAL #2958118 AND BELOW | 10-35519 | |
| 38 | SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK (3/8") Comment: SERIAL #2958118 AND BELOW | 10-62568 | |
| 39 | CLIP, MAGNETO GROUND LEAD Comment: SERIAL #2721150 AND BELOW SERIAL 00000000-02721150 | 54-24836 | |
| 40 | SCREW, GROUND LEAD CLIP TO MANIFOLD COVER Comment: SERIAL #2721150 AND BELOW | 10-62568 | |
| 41 | "D" WASHER, GROUND LEAD FASTENING SCREW Comment: SERIAL #2721150 AND BELOW | 8M0084613 | 69205 SERIAL #2721150 AND BELOW |
| 42 | BEARING, BALL - CRANKCASE (LOWER) | 30-72961 | |
| 43 | OIL SEAL, CRANKCASE (LOWER) Comment: SERIAL 00000000-02721150 | 26-31411 | |
| 43 | OIL SEAL, CRANCASE (LOWER) Comment: SERIAL 02810637-09999999 | 26-56397 | |
| 44 | SCREW, ADJUSTING - THROTTLE CONTROL (1") | 10-23015 | |
| 45 | NUT, THROTTLE CONTROL ADJUSTING SCREW | 11-68219 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: SERIAL 00000000-02721150 | 1556-2627A2 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: SERIAL 00000000-02721150 | 1558-2641A1 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: SERIAL 02810637-09999999 | 1556-4030A1 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: SERIAL 02810637-09999999 | 1558-4031A1 | |
| 2 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-5/16") | 16-66373 | |
| 3 | NUT, DRIVE SHAFT HOUSING STUD | 11-82670911 | |
| 4 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD | 11-8M0204726 | |
| 5 | COVER, TRIP - DRIVE SHAFT HOUSING | 39025 | |
| 6 | SCREW, TRIM COVER TO BOTTOM COWL (7/16") | 10-25764 | |
| 7 | TUBE, WATER OUTLET (SHORT SHAFT) | 32-39061 | |
| 7 | TUBE, WATER OUTLET (LONG SHAFT) | 32-39062 | |
| 8 | SCREW, FLUSH - DRIVE SHAFT HOUSING Comment: PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIES | 10-79953Q04 | |
| 9 | WASHER, SEALING - FLUSH SCREW Comment: PART OF A-1556-4030A1 AND A-1558-4031A1 DRIVE SHAFT HOUSING ASSEMBLIES | 12-191833 | |
| 10 | GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING | 27-39050 | |
| 11 | NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS | 11-8M0207775 | |
| 11 | NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS | 11-24652 | |
| 12 | BLOCK ASSEMBLY, DRIVE SHAFT Comment: LONG SHAFT | 47259A1 | |
| 13 | SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING (1-1/4") Comment: LONG SHAFT | 10-47225 | |
| 14 | SADDLE | 1559-8448A2 | |
| -- | BUMPER, THRUST - SADDLE | 32021 | |
| 15 | MOUNT ASSEMBLY, LOWER (SEE NOTE BELOW) | 79896A1 | |
| 16 | RING, RETAINING - UPPER AND LOWER MOUNT | 53-26406 | |
| 17 | COVER, LOWER MOUNT | 71490 | |
| 18 | SCREW, LOWER MOUNT COVER TO MOUNT (7/16") | 10-45817 | |
| 19 | COVER, UPPER MOUNT | 71490 | |
| 20 | SCREW, UPPER MOUNT COVER TO MOUNT (3/8") | 10-30675 |
FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
Back to TopBelow is the parts list for Mercury 75 FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | NUT, FLYWHEEL | 11-20696 | |
| 2 | WASHER, FLYWHEEL NUT | 12-36245 | |
| 3 | "O" RING, FLYWHEEL HUB | 25-62701 | |
| 4 | KEY, FLYWHEEL DRIVE | 28-20094 | |
| 5 | FLYWHEEL ASSEMBLY, COMPLETE | 219-2246A4 | |
| 6 | COLLAR, FLYWHEEL DUST SHIELD | 23-34367 | |
| 7 | WASHER, WAVE - MAGNETO CAM TENSION | 13-22027 | |
| 8 | STATOR PLATE ASSEMBLY, COMPLETE | 398-2574A4 | |
| 9 | SHIELD ASSEMBLY, STATOR PLATE | 39326A1 | |
| 10 | SCREW, SHEILD TO STATOR PLATE | 10-49049 | |
| 11 | RING, HOLD DOWN - STATOR PLATE | 33904 | |
| 12 | SCREW, HOLD DOWN RING TO STATOR PLATE | 10-35400 | |
| 13 | CAM, BREAKER | 398-2230 | |
| 14 | SHIM, STATOR PLATE TO UPPER END CAP (.015) | 15-33910015 | |
| 15 | CLAMP, STATOR LEAD | 54-45806 | |
| 16 | SCREW, STATOR LEAD CLIP TO PORT COVER | 10-20720 | |
| 17 | "D" WASHER, LEAD CLIP SCREW | 8M0084613 | 69205 |
| 18 | THROTTLE CAM BRACKET ASSEMBLY | 34363A1 | |
| 19 | SCREW, CAM BRACKET TO STATOR PLATE (1/2") | 10-53296 | |
| 20 | CLIP, THROTTLE CAM BRACKET | 54-34449 | |
| 21 | CAM, THROTTLE | 36000 | |
| 22 | SCREW, THROTTLE CAM TO CAM BRACKET (1/2") | 10-28707 | |
| 23 | SCREW, CONTROL LEVER TO CAM BRACKET (3/4") | 10-34696 | |
| 24 | WASHER, WAVE - CONTROL LEVER SCREW | 13-29720 | |
| 25 | WASHER, CONTROL LEVER SCREW | 12-34392 | |
| 26 | NUT, CONTROL LEVER SCREW | 11-28656 |
FLYWHEEL, STATOR AND IGNITION COIL
Back to TopBelow is the parts list for Mercury 75 FLYWHEEL, STATOR AND IGNITION COIL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | NUT, FLYWHEEL | 11-20696 | |
| 2 | WASHER, FLYWHEEL NUT | 12-36245 | |
| 3 | "O" RING, FLYWHEEL NUT | 25-62701 | |
| 4 | KEY, FLYWHEEL DRIVE | 28-20094 | |
| 5 | FLYWHEEL ASSEMBLY | 239-4174A1 | |
| 6 | WASHER, WAVE - CAM TENSION | 13-35629 | |
| 7 | CAM, BREAKER | 336-3928 | |
| 8 | STATOR ASSEMBLY Comment: SERIAL 02810637-02958118 | 336-3996A7 | |
| 8 | STATOR ASSEMBLY Comment: SERIAL 03016581-09999999 | 336-3996A7 | |
| 9 | SCREW, STATOR TO END CAP (1-1/4") | 10-69560 | |
| 10 | HOUSING ASSEMBLY, CONTACT | 336-3979A1 | |
| 11 | BREAKER ASSEMBLY, CONTACT HOUSING | 336-4318A2 | |
| 12 | SCREW, BREAKER TO CONTACT HOUSING (3/8") | 10-56266 | |
| 13 | CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17") | 56316A2 | |
| 13 | CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17-3/4") | 56317A1 | |
| 14 | BOOT, CABLE | 38938 | |
| 15 | WICK, CAM WIPER - CONTACT HOUSING | 336-3989 | |
| 16 | INSULATOR, CABLE TO CONTACT HOUSING | 336-3981 | |
| 17 | NUT, CABLE INSULATOR | 11-56325 | |
| 18 | HOLDER, CONTACT HOUSING Comment: SERIAL 02810637-02958118 | 336-4429 | |
| 18 | HOLDER, CONTACT HOUSING Comment: SERIAL 03016581-09999999 | 336-4429 | |
| 19 | COVER ASSEMBLY, CONTACT HOUSING | 336-3988A1 | |
| 20 | SCREW, COVER TO CONTACT HOUSING (1/2") | 10-56336 | |
| 21 | WASHER, WEAR - CONTACT HSG. TO BEARING HSG. | 12-56077 | |
| 22 | WASHER, WAVE - CONTACT HSG. TO BEARING HSG. Comment: SERIAL 02810637-02958118 | 13-59145 | |
| 22 | WASHER, WAVE - CONTACT HSG. TO BEARING HSG. Comment: SERIAL 03016581-09999999 | 13-59145 | |
| 23 | CLIP, CONTACT HOUSING AND STATOR LEADS | 54-26550 | |
| 24 | SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING | 10-62568 | |
| 25 | "D" WASHER, CLIP SCREW | 8M0084613 | 69205 |
| 26 | CAM, THROTTLE | 36000 | |
| 27 | SCREW, THROTTLE CAM TO CONTACT HOUSING (1/2") | 10-28707 | |
| 28 | LINK, THROTTLE | 34361 | |
| 29 | SCREW, THROTTLE LINK TO THROTTLE LEVER & CONTACT HSG. (3/4") | 10-34696 | |
| 30 | WASHER, THROTTLE LINK SCREW | 12-34392 | |
| 31 | WASHER, WAVE - THROTTLE LINK SCREW | 13-29720 | |
| 32 | NUT, THROTTLE LINK SCREW | 11-28656 | |
| 33 | JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK | 56757A1 | |
| 34 | SCREW, JUMPER WIRE ATTACHING (5/16") | 10-8M0113176 | |
| 35 | COIL ASSEMBLY, IGNITION Comment: SERIAL 02810637-02958118 | 336-4409A4 | |
| 35 | COIL ASSEMBLY, IGNITION Comment: SERIAL 03016581-09999999 | 336-4409A4 | |
| 36 | JUMPER WIRE ASSEMBLY, COIL TO COIL | 56318A4 | |
| 37 | LOCKWASHER, IGNITION COIL TERMIAL | 13-26996 | |
| 38 | NUT, IGNITION COIL TERMINAL | 11-45076 | |
| 39 | COVER, IGNITION COIL | 56188 | |
| 40 | SCREW, COIL COVER TO COIL MOUNTING BRACKET (2") | 10-56543 | |
| 41 | NUT, COIL COVER SCREW | 11-27164 | |
| 42 | BRACKET, COIL SUPPORT | 56352 | |
| 43 | SCREW, BRACKET TO CYLINDER BLOCK (1-1/4") | 10-22968 | |
| 43 | SCREW, BRACKET TO CYLINDER BLOCK (1") | 10-64278 | |
| 44 | NUT, BRACKET SCREW | 11-8M0207775 | |
| 45 | LEAD ASSEMBLY, HIGH TENSION | 84-813715A1 | |
| 46 | NIPPLE, IGNITION COIL | 332-2854T01 | |
| 47 | PROTECTOR ASSEMBLY, SPARK PLUG | 85-63709A1 | |
| 48 | SPARK PLUG (AC #V40 - FFK) | 33-896329833 | 33-833C |
FUEL PUMP ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 FUEL PUMP ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 89977A1 | |
| 2 | CHECK VALVE ASSEMBLY | 21-30430A2 | |
| 3 | DIAPHRAGM KIT, FUEL PUMP | 53245A1 | |
| 4 | GASKET, FUEL PUMP TO BASE (#) | ||
| 5 | GASKET, FUEL PUMP (#) | ||
| 6 | BASE, FUEL PUMP Comment: SERIAL 00000000-02721150 | 53242 | |
| 6 | BASE, FUEL PUMP Comment: SERIAL 02810637-09999999 | 53241 | |
| 7 | COVER, FUEL PUMP Comment: SERIAL 00000000-02631374 | 53239 | |
| 7 | COVER, FUEL PUMP Comment: SERIAL 02631375-09999999 | 54066 | |
| 8 | CONNECTOR, FUEL PUMP COVER Comment: SERIAL 00000000-02721150 | 22-54064 | |
| 9 | ELBOW, PUMP OUTLET Comment: SERIAL 02810637-09999999 | 22-54090 | |
| 10 | SCREW, FUEL PUMP TO BASE (1-1/2") | 10-32627 | |
| 11 | WASHER, FUEL PUMP SCREW | 12-847883 | 12-20128 |
| 12 | ELBOW, FUEL PUMP TO CARBURETOR (45 ) Comment: SERIAL #2721150 AND BELOW | 22-53246 | |
| 13 | FUEL LINE, FUEL PUMP TO CARBURETOR (5") Comment: SERIAL #2810637 AND UP | 32-64055 | |
| 14 | HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7-1/8") | 32-9912688 | |
| 15 | ELBOW, PRESSURE HOSE TO CYL. BLOCK (90 ) Comment: SERIAL #2721150 AND BELOW | 22-33373001 | |
| 15 | ELBOW, PRESSURE HOSE TO CYL. BLOCK (45 ) Comment: SERIAL #2810637 AND UP | 22-53553 | |
| 16 | CLAMP, PRESSURE HOSE TO ELBOWS | 54-20387 | |
| 17 | FUEL LINE, FUEL PUMP TO ADAPTOR (7") Comment: SERIAL #2721150 AND BELOW | 32-53247 | |
| 17 | FUEL LINE, FUEL PUMP TO ADAPTOR (NOT AS SHOWN) Comment: SERIAL #2810637 AND UP | 32-39485 | |
| 18 | ADAPTOR, CHECK UNIT (FUEL LINE) | 32454 | |
| 19 | SEAL, ADAPTOR TO BOTTOM COWL | 39052 | |
| 20 | SCREW, ADAPTOR TO BOTTOM COWL (1-3/8") Comment: SERIAL #2958118 AND BELOW | 10-73656 | |
| 20 | SCREW, ADAPTOR TO BOTTOM COWL (1-1/8") Comment: SERIAL #3016581 AND UP | 10-98509 | |
| 21 | SPRING, TENSION - ADAPTOR SCREW | 24-28357 | |
| 22 | NUT, ADAPTOR FASTENING SCREW Comment: SERIAL 00000000-02958118 | 11-20110 | |
| 23 | SCREW, FUEL PUMP TO ANCHOR (5/8") Comment: SERIAL 02810637-09999999 | 10-29200 |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
Back to TopBelow is the parts list for Mercury 75 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW SERIAL 00000000-02721150 | 1630-2643A32 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW SERIAL 00000000-02721150 | 1630-2643A33 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW SERIAL 02810637-02958118 | 1630-2643A32 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW SERIAL 00281063-02958118 | 1630-2643A33 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW SERIAL 00301658-09999999 | 1630-4407A4 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW SERIAL 00301658-09999999 | 1630-4407A5 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: SERIAL 00000000-02958118 | 1630-2643A9 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: SERIAL 03016581-09999999 | 1630-4407A1 | |
| 2 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-7/16") | 16-58138 | |
| 3 | STUD, WATER PUMP HOUSING TO GEAR HOUSING (2-3/4") | 16-58136 | |
| 4 | BEARING, ROLLER - DRIVE SHAFT | 31-22756 | |
| 5 | PIN, DOWEL - LOCATING | 17-20032 | |
| 6 | SEAL, RUBBER - WATER INTAKE TUBE | 26-33613 | |
| 7 | WASHER, NYLON - INTAKE TUBE SEAL | 23-86215 | |
| 8 | SCREEN, WATER INTAKE | 35-33425 | |
| 9 | SCREW, WATER INTAKE SCREEN TO GEAR HOUSING | 10-28642 | |
| 10 | SCREW, GREASE FILLER HOLE | 10-79953Q04 | |
| 11 | WASHER, GREASE FILLER HOSE SCREW | 12-191833 | |
| 12 | WASHER, GREASE VENT HOLE SCREW | 19643 | |
| 13 | SCREW, GREASE VENT HOLE | 10-28653 | |
| 14 | SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) Comment: SERIAL 00000000-02721150 | 54640A1 | |
| 14 | SHAFT ASSEMBLY, SHIFT (LONG SHAFT) Comment: SERIAL 00000000-02721150 | 54641A1 | |
| 15 | RING, RETAINING - SHIFT SHAFT Comment: SERIAL 00000000-02721150 | 53-30899 | |
| 14 | SHAFT ASSEMBLY, SHIFT (SHORT SHAFT) Comment: SERIAL 02810637-09999999 | 54640A1 | |
| 14 | SHAFT ASSEMBLY, SHIFT (LONG SHAFT) Comment: SERIAL 02810637-09999999 | 54641A1 | |
| 15 | RING, RETAINING - SHIFT SHAFT Comment: SERIAL 02810637-09999999 | 53-22899 | |
| 16 | BUSHING ASSEMBLY, SHIFT SHAFT | 23-30676A1 | |
| 17 | "O" RING, SHIFT SHAFT BUSHING | 25-26802 | |
| 18 | OIL SEAL, SHIFT SHAFT BUSHING | 26-30696 | |
| 19 | SCREW, SHIFT SHAFT BUSHING RETAINER | 10-39149 | |
| 20 | GEAR, PINION | 43-98696 | |
| 21 | TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW | 14-30377 | |
| 22 | SCREW, PINION GEAR TO DRIVE SHAFT | 10-30376 | |
| 23 | DRIVE SHAFT (SHORT SHAFT) | 45-39078 | |
| 23 | DRIVE SHAFT (LONG SHAFT) | 45-39077 | |
| 24 | SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) | 15-30527A1 | |
| 25 | BEARING, BALL - DRIVE SHAFT | 30-33076 | |
| 26 | RING, RETAINING - BALL BEARING TO DRIVE SHAFT | 53-30523 | |
| 27 | SHIM ASSEMBLY, BALL BEARING TO WATER PUMP (.002-3-5-10) | 15-30527A1 | |
| 28 | WATER PUMP HOUSING ASSEMBLY | 46-46893A3 | |
| 29 | "O" RING, WATER PUMP HOUSING | 25-29439 | |
| 30 | OIL SEAL, WATER PUMP HOUSING | 26-30900T | |
| 31 | SEAL, WATER INTAKE TUBE | 26-33613 | |
| 32 | TUBE, WATER INTAKE | 32-34293 | |
| 33 | INSERT, WATER PUMP HOUSING | 70977T | |
| 34 | PIN, IMPELLER DRIVE Comment: SERIAL 00000000-02721150 | 28-8M0032835 | 28-56655 SERIAL 00000000-02721150 |
| 34 | KEY, IMPELLER DRIVE Comment: SERIAL 02810637-09999999 | 28-8M0032835 | 28-56655 SERIAL 02810637-09999999 |
| 35 | IMPELLER, WATER PUMP | 47-89981 | |
| 36 | PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER | 46895 | |
| 37 | WATER PUMP COVER ASSEMBLY | 93224A1 | |
| 38 | SEAL, WATER PUMP COVER | 26-36558 | |
| 39 | WASHER, NYLON - WATER PUMP COVER | 23-13127 | |
| 40 | OIL SEAL, WATER PUMP COVER | 26-30913 | |
| 41 | WASHER, WATER PUMP HOUSING AND COVER STUDS | 12-20533 | |
| 42 | NUT, WATER PUMP HOUSING AND COVER STUDS | 11-826709109 | 11-33825, 11-35045 |
| 43 | RING, RUBBER - CENTIFUGAL SLINGER (DRIVE SHAFT) | 25-30526 | |
| 44 | SLEEVE, GUIDE - WATER INLET TUBE | 23-31792T | |
| 45 | "O" RING, UPPER - DRIVE SHAFT | 25-48171 |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
Back to TopBelow is the parts list for Mercury 75 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: E BELOW SERIAL 00000000-02721150 | 1630-2643A32 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SERIAL 00000000-02721150 | 1630-2643A33 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SERIAL 02810637-02958118 | 1630-2643A32 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SERIAL 02810637-02958118 | 1630-2643A33 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SERIAL 03016581-09999999 | 1630-4407A4 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SERIAL 03016581-09999999 | 1630-4407A5 | |
| 1 | GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN Comment: SERIAL 00000000-02958118 | 1630-2643A9 | |
| 1 | GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN Comment: SERIAL 03016581-09999999 | 1630-4407A1 | |
| 46 | CAM, SHIFT Comment: SERIAL 00000000-02958118 | 30599 | |
| 46 | CAM, SHIFT Comment: SERIAL 03016581-09999999 | 44434 | |
| 47 | FOLLOWER, SHIFT CAM | 31334 | |
| 48 | SPRING, COMPRESSION - CAM FOLLOWER | 24-31333 | |
| 49 | SHIM ASSEMBLY< BALL BEARING TO HOUSING (.002-3-5-10) | 15-30522A1 | |
| 50 | BEARING, BALL - FORWARD GEAR | 30-21889 | |
| 51 | FORWARD GEAR ASSEMBLY | 43-48577A3 | |
| 52 | BEARING, ROLLER - FORWARD GEAR | 31-22458 | |
| 53 | RATCHET, SLIDING CLUTCH | 52-47581 | |
| 54 | RING, RETAINING - CROSS PIN | 53-32449 | |
| 55 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-30535 | |
| 56 | SHAFT, PROPELLER | 44-47851 | |
| 57 | REVERSE GEAR ASSEMBLY | 43-48578 | |
| 58 | WASHER, THRUST - REVERSE GEAR | 12-30531 | |
| 59 | BEARING, BALL - REVERSE GEAR | 30-21889 | |
| 60 | SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10) | 15-30532A1 | |
| 61 | "O" RING, BEARING CARRIER | 25-30529 | |
| 62 | BEARING CARRIER ASSEMBLY | 30541T1 | |
| 63 | BEARING, ROLLER - BEARING CARRIER | 31-22458 | |
| 64 | OIL SEAL, BEARING CARRIER | 26-30530 | |
| 65 | WASHER, GEAR HOUSING COVER | 12-30528 | |
| 66 | COVER, GEAR HOUSING | 30537 | |
| 67 | THRUST HUB ASSEMBLY, PROPELLER SHAFT | 86665A1 | |
| 68 | WASHER, CUPPED - THRUST HUB | 86665A1 | |
| 69 | PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY) | 48-47670A10 | |
| 69 | PROPELLER ASSEMBLY | 48-47922A10 | |
| 70 | SPACER, SPLINED - PROPELLER SHAFT | 11-64075A1 | |
| 71 | WASHER, PROPELLER NUT Comment: SERIAL 00000000-02958118 | 12-27025 | |
| 72 | NUT, PROPELLER | 11-8M0204653 |
MISCELLANEOUS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 75 MISCELLANEOUS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | DECAL SET | 37-13479A86 | |
| - | DECAL SET | 37-13479A86 | |
| - | DECAL SET | 37-13479A86 | |
| - | GASKET SET (MOTOR OVERHAUL) | 27-89014A80 | |
| - | FLUSHING ASSEMBLY | 24789A1 | |
| - | MERC 75 PARTS LIST | 90-52325 | |
| - | RESISTANT WATER PUMP KIT | 46-46893A6 |

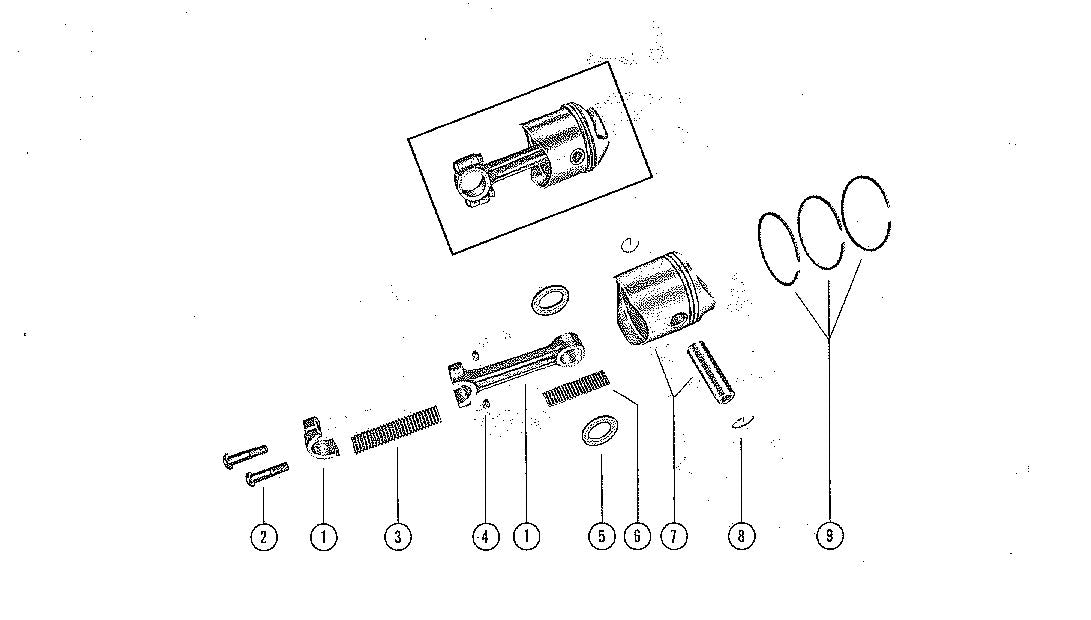

PISTON AND CONNECTING ROD ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 PISTON AND CONNECTING ROD ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CONNECTING ROD ASSEMBLY | 608-7395A2 | |
| 2 | SCREW, CONNECTING ROD | 10-87374 | |
| 3 | BEARING, NEEDLE - CRANKPIN | 29-26815 | |
| 4 | NUT, CONNECTING ROD SCREW | 11-20061 | |
| 5 | WASHER, NEEDLE BEARING RETAINING | 12-31433 | |
| 6 | BEARING, NEEDLE - PISTON PIN | 29-31505 | |
| 7 | PISTON AND PISTON PIN ASSEMBLY | 719-7391T3 | |
| 8 | LOCK RING, PISTON PIN | 40-21666 | |
| 9 | RING, PISTON | 39-21665A12 |
SHIFT CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 75 SHIFT CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HANDLE, SHIFT CONTROL Comment: SERIAL 00000000-02958118 | 59107 | |
| 1 | HANDLE, SHIFT CONTROL Comment: SERIAL 03016581-09999999 | 59107 | |
| 2 | WASHER, SHIFT CONTROL SHAFT | 12-8M0204649 | |
| 3 | NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT | 11-826709109 | 11-33825, 11-35045 |
| 4 | BUSHING, NYLON - SHIFT CONTROL SHAFT | 23-30678 | |
| 5 | WASHER, SHIFT CONTROL SHAFT | 12-37828 | |
| 6 | WASHER, WAVE - SHIFT CONTROL SHAFT | 13-36206 | |
| 7 | LEVER, SHIFT CONTROL (REMOTE) | 63673 | |
| 8 | PIN, SHIFT LEVER TO SHIFT CONTROL SHAFT | 17-99615 | |
| 9 | SHAFT, SHIFT CONTROL | 39047 | |
| 10 | GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL) | 43-30802 | |
| 11 | WASHER, SHIFT CONTROL SHAFT | 12-8M0204649 | |
| 12 | NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT | 11-8267089 | |
| 13 | SPRING, DETENT - SHIFT CONTROL LEVER | 24-39627 | |
| 14 | PLATE, DETENT SPRING | 39601 | |
| 15 | SCREW, PLATE AND SPRING TO ADAPTOR PLATE (1/2") | 10-25764 | |
| 16 | BUSHING, NYLON - UPPER SHIFT SHAFT | 23-30677 | |
| 17 | GEAR, SECTOR - SHIFT SHAFT Comment: SEE NOTE BELOW SERIAL 00000000-02721150 | 43-86686A1 | |
| 17 | GEAR, SECTOR - SHIFT SHAFT Comment: SEE NOTE BELOW SERIAL 02810637-09999999 | 43-86686A1 |
STATOR PLATE ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 STATOR PLATE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW) | 398-2574A4 | |
| 1 | STATOR PLATE AND CORE | 398-2221 | |
| 2 | COIL ASSEMBLY | 398-2568T1 | |
| 3 | CLIP, COIL RETAINING | 398-2321 | |
| 4 | CLIP, COIL RETAINING | 398-2413 | |
| 5 | FELT, CAM - BREAKER | 398-2207 | |
| 6 | CLIP, GROUND WIRE LEAD | 398-732 | |
| 7 | SCREW, GROUND TERMINAL | 10-21130 | |
| 8 | CONDENSER ASSEMBLY | 398-2203 | |
| 9 | SCREW, CONDENSER FASTENING (1-1/4") | 10-38395 | |
| 10 | LOCKWASHER, CONDENSER FASTENING SCREW | 13-21134 | |
| 11 | WASHER, CONDENSER FASTENING SCREW | 12-21135 | |
| 12 | CLAMP, LEAD WIRE | 54-45806 | |
| 13 | WASHER, LEAD WIRE CLAMP SCREW | 12-21135 | |
| 14 | LOCKWASHER, LEAD WIRE CLAMP SCREW | 13-21134 | |
| 15 | NUT, LEAD WIRE CLAMP SCREW | 11-21923T | |
| 16 | NUT, COIL LEAD WIRE CLIP SCREW (SPACER) | 11-21825 | |
| 17 | CLIP, NYLOTN - COIL LEAD WIRE | 54-24836 | |
| 18 | "D" WASHER, COIL LEAD WIRE CLIP | 8M0084613 | 69205 |
| 19 | LOCKWASHER, COIL LEAD WIRE CLIP SCREW | 13-26995 | |
| 20 | NUT, COIL LEAD WIRE CLIP SCREW | 11-26419 | |
| 21 | BREAKER ASSEMBLY | 398-2202 | |
| 22 | SCREW AND LOCKWASHER, BREAKER FASTENING | 10-33988 | |
| 23 | WASHER, TERMINAL SCREW | 12-21135 | |
| 24 | LOCKWASHER, TERMINAL SCREW | 13-21134 | |
| 25 | NUT, TERMINAL SCREW | 11-21923T | |
| 26 | GROUND LEAD, STATOR TO TERMINAL BLOCK | 398-2206 | |
| 27 | SLEEVE< INSULATION - GROUND LEAD | 23-30419 | |
| 28 | LEAD WIRE | 84-821945A46 | 84-813706A46, 52615A 1 |
| 29 | LEAD WIRE - TOP | 84-821945A46 | 84-813706A46, 52615A 1 |
| 30 | PROTECTOR, SPARK PLUG | 85-63709A1 | |
| 31 | MARKER, "TOP" - LEAD WIRE | 20117 | |
| 32 | SPARK PLUG (CHAMPION - L7J) | 33-813472 | |
| 33 | COVER, DUST - STATOR PLATE | 398-2208 | |
| 34 | SCREW, DUST COVER TO STATOR PLATE | 10-36455 | |
| 35 | CLIP, #1 AND #2 STATOR LEAD | 54-24836 | |
| 36 | SCREW, #1 AND #2 STATOR LEAD CLIP FASTENING | 10-8M0113176 | |
| 37 | "D" WASHER, #1 STATOR LEAD FASTENING SCREW | 8M0084613 | 69205 |
| 37 | WASHER, #2 STATOR LEAD FASTENING SCREW | 12-847883 | 12-20128 |
| -- | IGNITION COIL BOND KIT | 92-336731 |
STEERING HANDLE ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 STEERING HANDLE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STEERING HANDLE ASSEMBLY, COMPLETE | 60850A6 | |
| 1 | GRIP, RUBBER - STEERING HANDLE BODY | 27763 | |
| 2 | BODY AND SHAFT, STEERING HANDLE | 35909 | |
| 3 | INDICATOR, SPEED AND LIMIT - STEERING HANDLE | 31001 | |
| 4 | SCREW, SET - SPEED AND SHIFT INDICATOR | 10-31002 | |
| 5 | SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY | 10-22290 | |
| 6 | BUSHING, NYLON - STEERING HANDLE TO BODY | 23-30677 | |
| 7 | HANDLE, STEERING | 49556 | |
| 8 | KNUCKLE, STEERING HANDLE | 49558 | |
| 9 | BUSHING, RUBBER - STEERING HANDLE | 23-49555 | |
| 10 | BUSHING, NYLON - STEERING HANDLE | 23-28100 | |
| 11 | GEAR, BALL - STEERING HANDLE SHAFT | 43-53205 | |
| 12 | PIN, BALL GEAR TO STEERING HANDLE SHAFT | 17-26862 | |
| 13 | RING, RETAINING - BALL GEAR | 53-53204 | |
| 14 | PIVOT, STEERING HANDLE TO BRACKET | 48003 | |
| 15 | SHIM, STEERING HANDLE PIVOT TO BRACKET (.015) | 15-48002015 | |
| 16 | SCREW, STEERING HANDLE TO ARM BRACKET (5/8") | 10-64074 | |
| 17 | UNIVERSAL JOINT ASSEMBLY | 47742A1 | |
| 18 | SLEEVE, UNIVERSAL JOINT | 23-48005 | |
| 19 | GEAR, BALL - UNIVERSAL JOINT | 43-53205 | |
| 20 | PIN, BAL GEAR TO UNIVERSAL JOINT | 17-26862 | |
| 21 | RING, RETAINING - BALL GEAR | 53-53204 | |
| 22 | BRACKET, STEERING ARM | 61629A1 | |
| 23 | BOOT, UNIVERSAL JOINT | 47743 | |
| 24 | BUSHING, STEERING ARM BRACKET | 23-47818 | |
| 25 | SPRING, DETENT - STEERING HANDLE | 24-72847 | |
| 26 | SCREW, DETENT SPRING TO STEERING HANDLE | 10-37655 | |
| 27 | BOOT, RUBBER - THROTTLE CONTROL SHAFT | 39070 | |
| 28 | SCREW, STEERING ARM BRACKET TO SADDLE | 10-30679 | |
| 29 | NUT, STEERING ARM BRACKET FASTENING SCREW | 11-8M0207775 |
THROTTLE CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 75 THROTTLE CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SOCKET, THROTTLE CONTROL | 39038 | |
| 2 | BUSHING, NYLON - THROTTLE CONTROL SOCKET | 23-31011 | |
| 3 | GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET | 43-39030 | |
| 4 | PIN, ROLL - GEAR TO THROTTLE CONTROL SOCKET | 17-24800 | |
| 5 | HOUSING, THROTTLE CONTROL | 39029 | |
| 6 | SCREW, THROTTLE CONTROL HOUSING TO CRANKCASE (1-1/4") | 10-56500 | |
| 7 | LOCKWASHER, THROTTLE CONTROL HOUSING SCREW | 13-26992 | |
| 8 | SPRING, NEUTRAL SPEED LIMITER FOLLOWER | 24-39042 | |
| 9 | SCREW, LIMITER FOLLOWER TO CONTROL HOUSING (1-3/4") | 10-21807 | |
| 10 | WASHER, SPEED LIMITER FOLLOWER SCREW | 12-8M0174819 | |
| 11 | BUSHING, SPEED LIMITER FOLLOWER SCREW | 23-30972 | |
| 12 | FOLLOWER, NEUTRAL SPEED LIMITER | 63308A1 | |
| 13 | NUT, JAM - SPEED LIMITER FOLLOWER SCREW | 11-20088 | |
| 14 | CLAMP, STOP SWITCH LEAD - SPEED LIMITER FOLLOWER SCREW | 54-39788 | |
| 15 | WASHER, SPEED LIMITER FOLLOWER SCREW | 12-8M0204649 | |
| 16 | NUT, SPEED LIMITER FOLLOWER SCREW | 11-8267139 | |
| 17 | STOP, NEUTRAL SPEED LIMITER | 36017 | |
| 18 | SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8") | 10-28710 | |
| 19 | WASHER, NEUTRAL SPEED LIMITER STOP SCREW | 12-24676 | |
| 20 | GEAR AND SHAFT, THROTTLE CONTROL | 43-39031 | |
| 21 | WASHER, WAVE - GEAR AND SHAFT (LOWER) | 13-39041 | |
| 22 | BUSHING, NYLON - GEAR AND SHAFT TO THROTTLE CONTROL HOUSING | 23-30868 | |
| 23 | LEVER ASSEMBLY, THROTTLE CONTROL | 39033A1 | |
| 24 | BUSHING, NYLON - GEAR AND SHAFT (UPPER) | 23-26841 | |
| 25 | PIN, ROLL - THROTTLE CONTROL LEVER TO GEAR AND SHAFT | 17-22896 | |
| 26 | SCREW, ADJUSTING - THROTTLE ADVANCE (1") | 10-23015 | |
| 27 | NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW | 11-68219 |
TOP COWL AND STARTER ASSEMBLY
Back to TopBelow is the parts list for Mercury 75 TOP COWL AND STARTER ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL, TOP | 2123-3953A2 | |
| 2 | BLANKET, SOUND ABSORBING-TOP COWL-TOP | 39080 | |
| 3 | BLANKET, SOUND ABSORBING-TOP COWL | 39071 | |
| 4 | GROMMET, COWL LATCH-TOP COWL | 25-39086 | |
| 5 | COVER ASSEMBLY, FRONT Comment: SERIAL 00000000-02721150 | 2128-2667A8 | |
| 5 | COVER ASSEMBLY, FRONT Comment: SERIAL 02810637-09999999 | 2128-2667A8 | |
| 6 | STRIP, RUBBER-FRONT COVER | 39039 | |
| 7 | SPACER, FRONT COVER STUD | 23-39578 | |
| 8 | NUT, FRONT COVER STUD | 11-8267089 | |
| 9 | STARTER HOUSING ASSEMBLY Comment: SERIAL 00000000-02958118 | 63307A2 | |
| 9 | STARTER HOUSING ASSEMBLY Comment: SERIAL 03016581-09999999 | 63307A2 | |
| 10 | INSERT, ROPE GUIDE-STARTER HOUSING | 57821 | |
| 11 | SEAL, STARTER HOUSING TO TOP COWL | 39043 | |
| 12 | SCREW, STARTER HOUSING TO CRANKCASE (1") | 10-72862 | |
| 12 | SCREW, HOUSING TO BLOCK (3/4") Comment: SERIAL 00000000-02721150 | 10-69069 | |
| 12 | SCREW, HOUSING TO BLOCK (1-1/4") Comment: SERIAL 02810637-09999999 | 10-22968 | |
| 13 | PULLEY, STARTER CABLE Comment: SERIAL 00000000-02721150 | 55860 | |
| 13 | PULLEY, STARTER CABLE Comment: SERIAL 02810637-09999999 | 55860 | |
| 14 | SCREW, CABLE PULLEY TO STARTER OUSING (3/4") | 10-28789 | |
| 15 | WASHER, CABLE PULLEY SCREW | 12-22887 | |
| 16 | SPACER, CABLE PULLEY | 23-309772 | |
| 17 | PLATE, SEAL-TOP COWL | 39084 | |
| 18 | SEAL, TOP COWL PLATE | 39093 | |
| 19 | SCREW, PLATE AND SEAL TO TOP COWL (3/8") | 10-8M0113176 | |
| 20 | SHIELD, TOP COWL-REAR | 39027 | |
| 21 | SCREW, REAR SHIELD TO TOP COWL (5/8") | 10-38055 | |
| 22 | LOCKWASHER, REAR SHIELD SCREW | 13-26996 | |
| 23 | SEAL, TOP COWL (42-1/8") | 56377 | |
| 24 | COWL LATCH ASSEMBLY, TOP COWL | 39088A1 | |
| 25 | SPRING, COMPRESSION-COWL LATCH | 24-59174 | |
| 26 | PIN, ROLL-SPRING TO COWL LATCH | 17-39095 | |
| 27 | SCREW, COWL LATCH TO TOP COWL (3/4") | 10-69069 | |
| 28 | TAB WASHER, SHEAVE SHAFT NUT | 14-20165 | |
| 29 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) | 11-20166 | |
| 30 | RETAINER, STARTER SPRING | 20155 | |
| 31 | SPRING, STARTER REWIND | 24-29340T02 | |
| 32 | BUSHING, STARTER SPRING GUIDE | 23-28912 | |
| 33 | STARTER SHEAVE ASSEMBLY | 50-93696A2 | |
| 34 | PIN, RETAINER-STARTER CABLE | 17-22896 | |
| 35 | WASHER, WAVE-STARTER PAWL | 13-36206 | |
| 36 | PAWL, STARTER | 30596 | |
| 37 | BUSHING, NYLON-SHEAVE SHAFT SPACER | 23-28919 | |
| 38 | SPACER, SHEAVE SHAFT | 23-61005 | |
| 39 | RETAINER, SHEAVE SHAFT TO STARTER SHEAVE | 26179 | |
| 40 | WASHER, SHEAVE SHAFT RETAINER | 12-35559 | |
| 41 | WASHER, WAVE-RETAINER TENSION | 13-20160 | |
| 42 | PLATE, RETAINER-STARTER PAWL | 30595 | |
| 43 | SHAFT, SHEAVE | 35558 | |
| 44 | STARTER CABLE ASSEMBLY | 50-12066Q10 | |
| 45 | HANDLE, STARTER CABLE | 30782 | |
| 46 | RETAINER, STARTER CABLE AND HANDLE | 79470A1 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
