Mercury 70 (3 CYL.) (9135825 THRU 9255130) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
CARBURETOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) CARBURETOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 1379-6071A16 | |
| 1 | CARBURETOR Comment: UNITED STATES 4825249 THRU 5128279 AUSTRALIA 8049850 THRU 8056219 BELGIUM 9176876 THRU 9207525 CANADA 7110248 THRU 7110997 | 1379-6071A17 | |
| 1 | CARBURETOR ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1379-6071A23 | |
| 2 | JET, VENT BOWL (.066) | 1399-4215 | |
| 3 | INLET NEEDLE AND SEAT | 1395-83181 | |
| 4 | GASKET, INLET NEEDLE AND SEAT (#) | ||
| 5 | VENTURI | 1395-6685 | |
| 6 | NOZZLE (#) | ||
| 7 | INLET NEEDLE (#) | ||
| 8 | SPRING, IDLE MIXTURE (#) | ||
| 9 | PIN, FLOAT (#) | ||
| 10 | LEVER, FLOAT (#) | ||
| 11 | FLAOT | 19273 | |
| 12 | FUEL BOWL | 1395-6488 | |
| 13 | GASKET, FUEL BOWL (#) | ||
| 14 | SCREW, FUEL BOWL (#) | ||
| 15 | PLUG, MAIN JET | 1395-6199 | |
| 16 | JET, MAIN (.086) | 1395-5815 | |
| 17 | GASKET, MAIN JET PLUG (#) | ||
| 18 | SCREEN, FUEL INLET (#) | ||
| 19 | WELCH PLUG (9/16") (#) | ||
| 20 | SHAFT, THROTTLE | 1395-4807 | |
| 21 | VALVE, THROTTLE | 1395-6196 | |
| 22 | SCREW, VALVE TO THROTTLE SHAFT (#) | ||
| 23 | SEAL, THROTTLE SHAFT | 1395-6204 | |
| 24 | WASHER, THROTTLE SHAFT | 1395-6203 | |
| 25 | SPRING, THROTTLE RETURN (#) | ||
| 26 | VALVE ASSEMBLY, ENRICHMENT | 1395-6198 | |
| 27 | SCREW, ENRICHMENT BRACKET (#) | ||
| 28 | WELCH PLUG (7/16") (#) | ||
| 29 | GASKET,CARBURETOR | 27-733771 | |
| -- | GASKET KIT | 1395-6200 | |
| -- | REPAIRE PARTS KIT Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 812953 | 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW |
| -- | REPAIRE PARTS KIT Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 812953 | 1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP |
CARBURETOR LINKAGE AND CHOKE SOLENOID
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CHOKE SOLENOID | 60549A7 | |
| 2 | LOCKWASHER, HARNESS LEAD TO CHOKE SOLNOID | 13-26996 | |
| 3 | NUT, HARNESS LEAD TO SOLENOID ATTACHING | 11-68219 | |
| 4 | SCREW, CHOKE SOLENOID ATTACHING (5/8") | 10-33524 | |
| 5 | NUT, CHOKE SOLENOID ATTACHING SCREWS | 11-29250 | |
| 6 | PLUNGER ASSEMBLY, CHOKE SOLENOID | 89008A2 | |
| 7 | CHOKE ROD | 76076A1 | |
| 8 | CHOKE KNOB ASSEMBLY | 90242A1 | |
| 9 | SCREW, WIRE TO CHOKE KNOB | 10-77137 | |
| 10 | GROMMET, CHOKE KNOB | 25-20116 | |
| 13 | CARBURETOR ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 1379-6071A16 | |
| 13 | CARBURETOR ASSEMBLY Comment: UNITED STATES 4825249 THRU 5128279 AUSTRALIA 8049850 THRU 8056219 BELGIUM 9176876 THRU 9207525 CANADA 7110248 THRU 7110997 | 1379-6071A17 | |
| 13 | CARBURETOR ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1379-6071A23 | |
| 14 | SCREW, CARBURETOR TO CRANKCASE (3 3/4") | 10-52743 | |
| 15 | LEVER, THROTTLE | 77583 | |
| 16 | SCREW, LEVER TO CARBURETOR | 10-60293 | |
| 17 | COUPLING ASSEMBLY | 60292A1 | |
| 18 | INSERT, THROTTLE SHAFT COUPLING | 28-89694 | |
| 19 | WASHER, ROLLED-COUPLING | 11-92500 | |
| 20 | SCREW, ROLLED WASHER TO COUPLING | 10-60293 | |
| 21 | PLATE ASSEMBLY, CARBURETOR | 76904A1 | |
| 22 | SEAL, CARBURETOR PLATE | 71090 | |
| 23 | GASKET, CARBURETOR PLATE Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 27-73398 | |
| 24 | GASKET, CARBURETOR PLATE TO CARBURETOR Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 27-76952 | |
| 25 | SCREW, PLATE TO CARBURETOR (7/16") | 10-20367 | |
| 26 | WASHER, PLATE SCREW | 12-8M0204649 |
CLAMP AND SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY Comment: WASHER ATTACHED WITH A RETAINING RING | 1440-8394A1 | |
| 2 | THUMB SCREW ASSEMBLY Comment: WASHER ATTACHED WITH A RETAINING RING | 10-78492A1 | |
| 3 | CAP, THUMB SCREW Comment: WASHER ATTACHED WITH A RETAINING RING | 75043 | |
| 1 | CLAMP BRACKET ASSEMBLY Comment: WASHER ATTACHED WITH A SCREW | 1440-8394A1 | |
| 2 | THUMB SCREW ASSEMBLY Comment: WASHER ATTACHED WITH A SCREW | 10-78492A1 | |
| 2A | SCREW Comment: WASHER TO THUMB SCREW -WASHER ATTACHED WITH A SCREW | 10-78495 | |
| 2B | WASHER Comment: THUMB SCREW -WASHER ATTACHED WITH A SCREW | 12-78493 | |
| 3 | CAP Comment: THUMB SCREW -WASHER ATTACHED WITH A SCREW | 75043 | |
| 4 | TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET | 8M0041936 | 8M0035074, 883067, 30664 2, 74528 |
| 5 | WASHER, CLAMP BRACKET TILT TUBE | 12-52864 | |
| 6 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 7 | CAP, PLASTIC-TILT TUBE | 53078 | |
| 8 | SPACER, CLAMP BRACKET STUD | 23-59624 | |
| 9 | STUD, CLAMP BRACKER (9 1/2") | 16-59625 | |
| 10 | LOCKWASHER, CLAMP BRACKER STUD | 13-8M0204647 | |
| 11 | NUT, CLAMP BRACKET STUD | 11-28770 | |
| 12 | TILT LOCK PIN ASSEMBLY | 17-8M0026068 | 17-49930A 1 |
| 13 | SLEEVE, RUBBER-TILT LOCK PIN BUMPER | 32-28052 | |
| 14 | VOLT, CLAMP BRACKET TO BAOT TRANSOM (3 1/4") | 10-68298 | |
| 15 | WASHER, CLAMP BRACKET BOLT | 12-68410 | |
| 14 | BOLT Comment: CLAMP BRACKET TO BOAT TRANSOM (3")-OLD STYLE CLAMP BRACKET | 10-68299 | |
| 14 | BOLT Comment: CLAMP BRACKET TO BOAT TRANSOME (5")-NEW STYLE CLAMP BRCKET | 10-87302 | |
| 15 | WASHER Comment: CLAMP BRACKET BOLT-NEW STYLE CLAMP BRACKET | 12-28420 | |
| 15 | WASHER, CLAMP BRACKER BOLT | 12-68300 | |
| 16 | NUT, CLAMP BRACKET BOLT | 11-82670912 | |
| 17 | PIN, UPPER SHOCK MOUNTING | 55-28416 | |
| 18 | SWIVEL BRACKET ASSEMBLY Comment: (SHORT SHAFT) | 1489-8597A4 | |
| 18 | SWIVEL BRACKET ASSEMBLY Comment: (LONG SHAFT) | 1490-8599A6 | |
| 19 | OIL SEAL, SWIVEL BRACKER | 26-32911 | |
| 20 | SCREW, DRIVE-SWIVEL BRACKER Comment: UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW | 10-47828 | |
| 21 | FITTING, GREASE | 22-8M0169589 | |
| 21A | OIL SEAL, SWIVEL BRACKET (TILT LOCK) Comment: UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP | 26-22734 | |
| 22 | TILT LOVK, STARBOARD | 76386 | |
| 23 | TILT LOCK, PORT | 76385T | |
| 24 | TUBE, TILT LOCK Comment: UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW | 47802 | |
| 24A | CIOUPLING, TILT LOCK Comment: UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP | 79659 | |
| 24B | "O"RING, TILT LOCK LEVER Comment: UNITED STATES 5285534 AND UP AUSTRALIA 8059595 AND UP BELGIUM 9225256 AND UP CANADA 7129888 AND UP | 25-67202 | |
| 25 | COTTER PIN, TILT LOCK | 18-47959 | |
| 26 | BUSHING, TILT LOCK TUBE Comment: UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW | 23-71574 | |
| 27 | WASHER, WAVE-TILT LOCK TUBE Comment: UNITED STATES 5285533 AND BELOW AUSTRALIA 8059594 AND BELOW BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW | 13-69150 | |
| 28 | SWIVEL PIN AND STEERING ARM ASSEMBLY Comment: (SHORT SHAFT) YOKE IS ATTACHED WITH A NUT | 69540A1 | |
| 28 | SWIVEL PIN AND STEERING ARM ASSEMBLY Comment: (LONG SHAFT) YOKE IS ATTACHED WITH A NUT | 69540A3 | |
| 28 | SWIVEL PIN AND STEERING ARM ASSEMBLY Comment: (SHORT SHAFT) YOKE IS ATTACHED WITH A RETAINING RING | 69540A3 | |
| 28 | SWIVEL PIN AND STEERING ARM ASSEMBLY Comment: (LONG SHAFT) YOKE IS ATTACHED WITH A RETAINING RING | 69540A4 | |
| 29 | BUMPER, STEERING ARM | 30711 | |
| 30 | BOLT, UPPER MOUNT TO SWIVEL PIN (7/16X5 1/4") | 10-66897 | |
| 31 | PIN, REVERSE LOCK SPRING ATTACHING | 17-25598 | |
| 32 | WASHER, SWIVEL PIN TO BOTTOM YOKE (.062) | 12-25176 | |
| 32 | WASHER, SWIVEL PIN TO BOTTOM YOKE (.065) | 12-26837 | |
| 33 | YOKE, BOTTOM Comment: YOKE IS ATTACHED WITH A NUT | 77416T1 | |
| 34 | NUT, BOTTOM YOKE RETAINING Comment: YOKE IS ATTACHED WITH A NUT | 11-71956 | |
| 33 | YOKE BOTTOM Comment: YOKE IS ATTACHES WITH A RETAINING RING | 77416T1 | |
| 34 | RETAINING RING, BOTTOM YOKE Comment: YOKE IS ATTACHES WITH A RETAINING RING | 53-77415 | |
| 35 | PIN, LOWER SHOCK MOUNTING | 55-696531 | |
| 36 | REVERSE LOCK | 87432 | |
| 37 | SPRING AND PIN ASSEMBLY Comment: REVERSE LOCK TENSION | 24-78203A2 | |
| 38 | SHAFT, REVERSE LOCK PIVOT | 56349 | |
| 39 | BUSHING, REVERSE LOCK PIVOT SHAFT | 23-69132 | |
| 40 | COTTER PIN, REVERSE LOCK TO SHAFT | 18-45882 | |
| 41 | SPACER Comment: UPPER SHOCK BUSHING TO CLAMP BRACKET | 23-73203 | |
| 42 | WASHER, LOWER BUSHING RETAINER (INNER) | 12-59378 | |
| 43 | SHOCK ABSORBER | 55-58780A7 | |
| 44 | BUSHING, RUBBER-SHOCK ABSORBER (UPPER) | 23-32171 | |
| 45 | BUSHING, RUBBER-SHOCK ABSORBER (LOWER) | 23-28198 | |
| 46 | WASHER Comment: UPPER AND LOWER BUSHING RETAINER (OUTER) | 12-69374 | |
| 47 | SCREW Comment: UPPER AND LOWER SHOCK MOUNTING PIN ( 3/4") | 10-69375 |
COWL SUPPORT BRACKETS
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) COWL SUPPORT BRACKETS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BRACKET, COWL SUPPORT-TOP | 73641A1 | |
| 2 | SEAL Comment: RUBBER- TOP BRACKET AND COVER MOUNTING PLATE | 62444 | |
| 3 | CLIP, TOP COWL SUPPORT BRACKET Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 79652 | |
| 3 | CLIP, TOP COWL SUPPORT BRACKET Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 79652 | |
| 4 | SCREW, CLIP TO TOP COWL SUPPORT (1/2") | 10-48408 | |
| 6 | SHIELD, FLYWHEEL Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 79490 | |
| 6 | SHIELD, FLYWHEEL Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 79490 | |
| 7 | SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") | 10-37656 | |
| 8 | SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2") | 10-48408 | |
| 9 | BRACKET, COWL SUPPORT - REAR | 74510A2 | |
| 10 | SEAL, REAR BRACKET AND TOP BRACKET | 698761 | |
| 11 | MOUNT Comment: RUBBER-BRACE TO REAR TO REAR SUPPORT BRACKET | 90435 | |
| 12 | WASHER Comment: RUBBER MOUNT TO REAR SUPPORT BRACKET | 12-69057 | |
| 13 | NUT Comment: RUBBER MOUNT TO REAR SUPPORT BRACKET | 11-8M0207775 | |
| 14 | STOP, RUBBER-RAR SUPPORT BRACKET | 269011 | |
| 15 | BRACE, REAR COWL SUPPORT BRACKET (TOP) | 60116 | |
| 16 | SCREW Comment: SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 1/4") | 10-76596 | |
| 17 | MOUNT Comment: RUBBER-FRONT SUPPORT BRACKET TO BRACKET | 90435 | |
| 19 | NUT Comment: RUBBER MOUNT TO FRONT SUPPORT BRACKET | 11-36069 | |
| 20 | BRACKET, RUBBER MOUNT | 71097 | |
| 21 | SCREW, BRACKET TO CRANKCASE (3/4") | 10-824941 | 10-59645, 10-73274 |
| 22 | ATTENUATOR, SOUND Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 79489 | |
| 22 | ATTENUATOR, SOUND Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 79489 | |
| 23 | CLAMP, WIRES TO SOUND ATTENUATOR | 54-28700 | |
| 24 | SCREW, CLAMP SCREW | 10-98253 | |
| 27 | COVER, MANUAL CHOKE | 75841 | |
| 28 | SCREW, COVER TO TOP COVER | 10-38055 | |
| 29 | WASHSER, COVER SCREW | 12-8M0204666 | |
| 30 | AIR MANIFOLD | 73986 | |
| 31 | SCREW, AIR MANIFOLD TO SOUND ATTENUATOR | 10-69093 | |
| 34 | MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER | 90435 | |
| 37 | NUT, RUBBER MOUNT ATTACHING | 11-36069 | |
| 38 | SEAL, FUEL CONNECTOR-SOUND ATTENUATOR | 76410 | |
| 39 | CONNECTOR, ATTENUATOR | 21-428671 | |
| 40 | TUBE, VENT (LOWER) | 32-9938779 | |
| 41 | ELBOW, CRANKCASE VENT (PRESS IN) | 22-15133 | |
| 42 | COVER, SOUND ATTENUATOR (FRONT) | 76578 | |
| 43 | GASKET, FRONT COVER Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 27-76579 | |
| 45 | SCREW Comment: FRONT COVER TO SOUND ATTENUATOR (1/2") | 10-37571 | |
| 46 | PLUG, FRONT COVER | 19-73336 | |
| 47 | PLATE ASSEMBLY, FRONT COVER MOUNTING | 76251A1 | |
| 48 | LATCH, FRONT COVER ATTACHING | 76264 | |
| 49 | SPRING, FRONT COVER LATCH | 24-60295 | |
| 50 | SCREW Comment: COVER PLATE TO SUPPORT BRACKET (5/8") | 10-28635 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 |
COWLING AND FRONT COVER
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) COWLING AND FRONT COVER:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL ASSEMBLY (STARBOARD) - WITHOUT DECALS | 2142-6228A1 | |
| 2 | SEAL, FUEL CONNECTOR-COWL | 26-60297 | |
| 3 | COWL ASSEMBLY (PORT)-WITHOUT DECALS | 2141-6227A1 | |
| 4 | SEAL, CONTROL CABLES-COWL | 26-60298 | |
| 5 | BRACKET, COWL SEALING-REAR | 89717T | |
| 6 | SEAL, REAR BRACKET | 698761 | |
| 7 | BRACKET, COWL HINGE | 90980 | |
| 8 | SCREW Comment: HINGE BRACKET TO REAR BRACKET-LOWER (1 1/8") | 10-455611 | |
| 8 | SCREW Comment: HINGE BRACKET TO REAR BRACKET-UPPER (1 1/8") | 10-75794 | |
| 8A | CAP,HINGE BRACKET SCREW (UPPER) | 75805 | |
| 9 | LOCKWASHER, HINGE BRACKET SCREW | 13-26992 | |
| 10 | WASHER, HINGE BRACKET SCREW | 12-37998 | |
| 10 | WASHER, HINGE BRACKET SCREW (UPPER) | 12-75806 | |
| 11 | PIN, COWL HINGE | 90979 | |
| 12 | SCREW, PIN TO COWL (7/8") | 10-28782 | |
| 13 | LOCKWASHER,PIN ATTACHING SCREW | 13-8M0204647 | |
| 14 | COWL LATCH ASSEMBLY | 46785A5 | |
| 15 | BARRELL, COWL LATCH | 62628 | |
| 16 | SCREW,LATCH ASSEMBLY TO BARREL (7/8") | 10-31312 | |
| 17 | BAR, ADJUSTMENT-COWL LATCH | 15222 | |
| 18 | BARREL, COWL LATCH | 62629 | |
| 19 | SPRING, TENSION - COWL LATCH | 24-62624 | |
| 20 | WASHER, ADJUSTMENT BAR TO BARREL | 12-30164 | |
| 21 | NUT, ADJUSTMENT BAR TO BARREL | 11-859124 | 11-45812 |
| 22 | FRONT COVER ASSEMBLY (WITHOUT DECALS ) Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 2143-7254A3 | |
| 22 | FRONT COVER ASSEMBLY (WITHOUT DECALS) Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 2143-7254A3 | |
| 23 | BLANKET, SOUND ABSORBING Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 795511 | |
| 23 | BLANKET, SOUND ABSORBINS Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 795511 | |
| 24 | HOOK, FRONT COVER FASTENING | 61158T | |
| 25 | SCREW, FASTENING HOOK TO FRONT COVER (3/4") | 10-69570 | |
| 26 | STARTER ROPE ASSEMBLY Comment: (FOR MANUAL STARTING ONLY) | 47341A11 |
CRANKSHAFT, PISTONS AND CONNECTING RODS
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT ASSEMBLY Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 462-8839A2 | |
| 1 | CRANKSHAFT ASSEMBLY Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 462-8839A2 | |
| 2 | BEARING, BALL-LOWER AND UPPER | 30-64424T | |
| 3 | SHIM, LOWER BEARING TO CRANKSHAFT | 15-22369A1 | |
| 4 | CARRIER ASSEMBLY, "O"RING-METAL SEAL CARRIER PRESSED IN CRAN Comment: METAL SEAL CARRIER PRESSED IN CRANKSHAFT | 60834A3 | |
| 5 | "O"RING, CARRIER Comment: METAL SEAL CARRIER PRESSED IN CRANKSHAFT | 64254001 | |
| 6 | MAIN BEARING ASSEMBLY ( VALVE TYPE) | 542-7509A3 | |
| 7 | DOWEL PIN, MAIN BEARING | 17-20032 | |
| 8 | DOWEL PIN (STEPPED) | 17-60282 | |
| 9 | DOWEL PIN, REED STOP | 17-65855 | |
| 10 | REED SET, MATCHED-MAIN BEARING | 34-66051A1 | |
| 11 | REED STOP | 34-65946 | |
| 12 | SCREW, REED STOP MOUNTING (9/16") | 10-77280 | |
| 13 | NUT, REED STOP MOUNTING SCREW | 11-20110 | |
| 14 | SCREW, MAIN BEARING CLAMPING (9/16") | 10-45775 | |
| 15 | NUT, MAIN BEARING SCREW CLAMPING | 11-45774 | |
| 16 | RACE, OUTER(PAIR) | 26113T | |
| 17 | RING, SNAP-OUTER RACE CLAMPING | 53-26933 | |
| 18 | BEARING, NEEDLE | 29-714221 | |
| 19 | PISTON AND PISTON PIN ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 774-9137A12 | |
| 19 | PISTON AND PISTON PIN ASSEMBLY Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 774-9137A12 | |
| 20 | LOCK RING, PISTON PIN | 53-857196 | 40-52035 |
| 21 | RING PISTON | 39-78816A12 | |
| 22 | CONNECTING ROD AND CAP ASSEMBLY | 624-8101A3 | |
| 23 | SCREW, CAP TO CONNECTING ROD (1 1/2") | 10-54803 | |
| 24 | NUT, CONNECTING ROD SCREW | 11-49091 | |
| 25 | BEARING ASSEMBLY, CRANKPIN | 31-62596A1 | |
| 26 | BEARING, NEEDLE-PISTON PIN | 29-8M0214934 | |
| 27 | WASHER, NEEDLE LOCATING | 12-8M0032839 | 12-47247 |
| -- | PISTON AND PISTON PIN ASSEMBLY- (.015) Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 774-9137A13 | |
| -- | PISTON AND PISTON PIN ASSEMBLY- (.015) Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 774-9137A13 | |
| -- | RING, PISTON(.015) | 39-78811A12 | |
| - | GASKET SET | 27-88449A32 | |
| -- | GASKET SET | 27-88449A32 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 865-8362A11 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 865-8362A11 | |
| 1A | RESTRICTOR, CRANKCASE BLEED | 66517 | |
| 2 | GASKET, CRANKCASE TO CYLINDER BLOCK | 27-60286 | |
| 3 | STUD Comment: CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4") | 16-68201 | |
| 4 | DOWEL PIN, CRANKCASE TO CYLINDER BLOCK | 17-43044 | |
| 5 | DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING | 17-20323 | |
| 6 | STUD Comment: BLOCK TO DRIVER SHAFT HOUSING (4") | 16-68203 | |
| 7 | STUD Comment: CLOCK TO DRIVER SHAFT HOUSING (3")-EXHAST SIDE | 16-68202 | |
| 7 | STUD Comment: BLOCK TO DRIVE SHAFT HOUSING (2 9/16")-TRANSFER SIDE | 16-68167 | |
| 8 | COVER, STARTER MOTOR TO CRANKCASE (BOTTOM) Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 76975 | |
| 8 | COVER, STARTER MOTOR TO CRANKCASE (BOTTOM) Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 76975 | |
| 9 | SCREW, STARTER MOTOR COVER (2") | 10-815549 | 10-25503, 10-77065 |
| 11 | COVER, STARTER MOTOR TO CRANKCASE (TOP) | 79735A1 | |
| 12 | SCREW, STARTER MOTOR COVER (2") Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 10-815549 | 10-25503, 10-77065 UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW |
| 12 | SCREW, STARTER MOTOR COVER (1 1/2") | 10-73657 | |
| 12 | SCREW, STARTER MOTOR COVER (2 1/2") Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 10-58414 | |
| 12 | SCREW, STARTER MOTOR COVER (1 3/4") | 10-35385 | |
| 13 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4") | 10-35385 | |
| 14 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2") | 10-73657 | |
| 15 | SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4") | 10-22039 | |
| 16 | WASHER Comment: CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM) | 12-26020 | |
| 17 | NUT Comment: CRANKCASE TO CYLINDER BLOCK SCREW ( BOTTOM) | 11-29250 | |
| 18 | INDICATOR, TIMING Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 76617 | |
| 19 | SCREW, INDICATOR TO STARTER COVER | 10-69022 | |
| 19A | WASHER, INDICATOR SCREW | 12-30164 | |
| 18 | INDICATOR, TIMING | 79736 | |
| 19 | SCREW, INDICATOR TO STARTER COVER | 10-58414 | |
| 19A | WASHER, INDICATOR SCREW | 12-56720 | |
| 20 | END CAP ASSEMBLY, UPPER | 1161-6357A1 | |
| 21 | "O"RING, END CAP | 25-64966 | |
| 22 | OIL SEAL, END CAP | 26-41953 | |
| 23 | SCREW, UPPER END CAP MOUNTING (1") | 10-812618 | 10-73169, 10-847568 |
| 24 | SHIM, UPPER END CAP (.006-8-10) | 15-73644A1 | |
| 25 | END CAP ASSEMBLY, LOWER Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 1144-6691A1 | |
| 25 | END CAP ASSEMBLY, LOWER Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 1144-6691A1 | |
| 26 | "O"RING, END CAP | 25-32546 | |
| 27 | OIL SEAL, END CAP | 26-41953 | |
| 28 | SCREW, LOWER END CAP MOUNTING (1") | 10-30225 | |
| 29 | SHIM, LOWER END CAP (.002-3-5-10) | 15-20085A1 | |
| 30 | CONECTOR, HOSE CYLINDER BLOCK Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 22-291112 | |
| 31 | HOSE, TELL TALE (15") | 32-774572 | |
| 32 | SLEEVE, TELL TALE HOSE | 23-90882 | |
| 33 | NOZZLE, TELLTALE-REAR SUPORT BRACKET | 69555001 | |
| 34 | CLAMP, TELL TALE NOZZLE | 54-70705 | |
| 35 | SCREW, TELLTALE CLAMP | 10-48408 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 1592-8188A8 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 1593-7513A12 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 1592-8188A8 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 1593-7513A12 | |
| 2 | PLUG, PLASTIC-TRIM TAB SCREW HOLE | 19-64649 | |
| 3 | STUD Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4") | 16-8M0022145 | 16-57932 DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4") |
| 4 | STUD Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (3") | 16-57935 | |
| 5 | WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 12-65791 | |
| 6 | NUT Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16") | 11-8M0204653 | |
| 7 | ROD, PUSH-REVERSE LOCK(SHORT SHAFT) | 47835 | |
| 7 | ROD, PUSH-REVERSE LOCK (LONG SHAFT) | 47836 | |
| 8 | NUT, JAM-PUSH ROD | 11-28770 | |
| 9 | ROD END, PUSH ROD | 47837 | |
| 10 | PIN, PUSH ROD TO REVERSE LOCK | 24-78203A2 | |
| 11 | COTTER PIN, PUSH ROD PIN | 18-25191 | |
| 12 | GUIDE, PUSH ROD | 933361 | |
| 13 | COVER, LOWER MOUNT CLAMP | 35474T | |
| 14 | SCREW, COVER TO LOWER MOUNT CLAMP | 10-29722 | |
| 15 | NUT, LOWER MOUNT CLAMP COVER | 11-35521 | |
| 16 | CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING | 69592F1 | |
| 17 | SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8") | 10-29256 | |
| 18 | SPRING, TENTION-LOWER MOIUNT CLAMP | 24-35522 | |
| 19 | MOUNT, RUBBER-LOWER | 75304T1 | |
| 20 | SCREW, LOWER MOUNT (5 1/2") | 10-75284 | |
| 21 | WASHER, LOWER MOUNT SCREW | 12-28051 | |
| 22 | WASHER, RUBBER - LOWER MOUNT SCREW | 12-28053 | |
| 23 | WASHER, LOWER MOUNT SCREW | 12-61709 | |
| 24 | NUT, LOWER MOUNT SCREW | 11-25096 | |
| 25 | MOUNT, RUBBER-UPPER | 923373 | |
| 25A | "O"RING, UPPER MOUNT Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 25-65936 | |
| 26 | PACKING, "U" CUP-UPPER MOUNT COVERS Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 24929 | |
| 27 | COVER, UPPER MOUNT-OUTSIDE HALF Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 79680A1 | |
| 28 | COVER, UPPER MOUNT-INSIDE HALF Comment: UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW | 79680A1 | |
| 26 | SEAL, BELLOWS-UPPER MOUNT Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 96401 | |
| 27 | COVER, UPPER MOUNT- OUTSIDE HALF Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 79680A1 | |
| 28 | COVER, UPPER MOUNT-INSIDE HALF Comment: UNITED STATES 4977157 AND UP AUSTRALIA 8050200 AND UP BELGIUM 9196961 AND UP CANADA 7110998 AND UP | 79681 | |
| 29 | SCREW, UPPER MOUNT COVER-REAR (1 1/2") Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 10-49987 | |
| 30 | SCREW, UPPER MOUNT COVER-FRONT (1 3/4") Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 10-37941 | |
| 31 | NUT, UPPER MOUNT COVER SCREW Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 11-69431 | |
| 29 | SCREW, UPPER MOUNT COVER-REAF (1 3/4") Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 10-69029 | |
| 30 | SCREW, UPPER MOUNT COVER-FRONT (2") Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 10-67916 | |
| 30A | WASHER, UPPER MOUNT COVER SCREW Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 12-8M0204649 | |
| 31 | NUT, UPPER MOUNT COVER SCREW Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 11-36069 | |
| 32 | WASHER, UPPER MOUNT BOLT (4/16 ID) | 12-27727 | |
| 33 | WASHER, RUBBER-UPPER MOUNT BOLT | 12-66966 | |
| 34 | WASHER, UPPER MOUNT BOLT (7/16 ID ) | 12-30514 | |
| 35 | NUT, UPPER MOUNT BOLT | 11-8M0204653 | |
| 36 | GASKET Comment: EXHAUST EXTENTION PLATE TO DRIVE SHAFT HOUSING | 27-385011 | |
| 37 | NUT Comment: POWDERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16") | 11-64809 | |
| 38 | TUBE, EXHAUST(SHORT SHAFT) | 695431 | |
| 38 | TUBE, EXHAUST(LONG SHAFT) | 695441 | |
| 39 | TUBE, WATER INLET(SHORT SHAFT) | 32-37727 | |
| 39 | TUBE, WATER INLET (LONG SHAFT) | 32-45679 | |
| 40 | SLEEVE, WATER INLET TUBE | 23-23651 | |
| 41 | SEAL, TRIM COVER TO DRIVE SHAFT HOUSING | 38157 | |
| 42 | STRIP, RETAINING-TRIM COVER SEAL (SIDE ) | 38154 | |
| 43 | STRIP, RETAINING-TRIM COVER SEAL (REAR) | 38158 | |
| 44 | SCREW Comment: RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING) | 10-48408 |
EXHAUST AND MANIFOLD COVERS
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) EXHAUST AND MANIFOLD COVERS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 865-8362A11 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 865-8362A11 | |
| 2 | CARRIER, GROMMET Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 65848 | |
| 3 | GROMMET, POPPET RELIEF VALVE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 25-64872 | |
| 4 | POPPET, RELIEF VALVE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 86596 | |
| 5 | SPRING Comment: COMPRESSION-POPPET RELIEF VALVE UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 24-64878 | |
| 6 | DIAPHRAM, POPPET RELIEF Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 648771 | |
| 7 | WASHER, DIAPHRAM Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 12-76451 | |
| 8 | SCREW Comment: WASHER AND DIAPHRAM TO POPPET VALVE | 10-69570 | |
| 9 | COVER ASSEMBLY, TRANSFER PASSSAGE | 99523A1 | |
| 10 | GASKET, TRANSFER PASSAGE COVER | 27-768621 | |
| 11 | SCREW Comment: TRANSFER PASSAGE COVER MOUNTING (1 1/8") | 10-38837 | |
| 12 | COVER, CYLINDER BLOCK | 1025-8116A1 | |
| 13 | GASKET, CYLINDER BLOCK COVER Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 27-88449 | |
| 13 | GASKET, CYLINDER BLOCK COVER Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 27-88449 | |
| 14 | SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8") | 10-28667 | |
| 15 | PLUG, CYLINDER BLOCK COVER | 22-328022 | |
| 16 | GASKET, BAFFLE PLATE TO CYLINDER BLOCK | 27-695252 | |
| 17 | GASKET, BAFFLE PLATE TO CYLINDER BLOCK COVER | 27-703351 | |
| 18 | PLATE, BAFFLE-EXHAST MANIFOLD | 69579 | |
| 19 | THERMOSTAT Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 75692 | |
| 20 | GASKET, THERMOSTAT | 27-8M0204714 | |
| 21 | GASKET, PLATE TO EXHAUST MANIFOLD COVER | 27-695242 | |
| 22 | COVER, EXHAUST MANIFOLD Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 74214 | |
| 22 | COVER, EXHAUST MANIFOLD Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 78529 | |
| 23 | SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8") | 10-38837 | |
| 24 | SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4") | 10-74824 | |
| 25 | SCREW, PLATE/MANIFOLD COVER MOUNTING (2") | 10-70602 | |
| 26 | SWITCH,MERCURY | 87-33386A3 | |
| 27 | SCREW, MERCURY SWITCH TO CRANKCASE (1/2") | 10-37655 | |
| 28 | PIN, ROLL-MERCURY SWITCH | 17-36242 | |
| 29 | STA-STRAP, MERCURY SWITCH LEAD | 61990 | |
| 30 | HOSE, CRANKCASE BLEED (12") | 32-9938779 | |
| 31 | FITTING, CRANKCASE BLEED | 21-42863 | |
| 32 | FITTING, VCRANKCASE BLEED (PRESS IN) | 22-56759 | |
| 33 | CLIP, BLEED HOSE | 54-648552 | |
| 34 | SCREW, BLEED HOSE CLIP | 10-62568 | |
| 35 | "C"WASHER, BLEED HOSE CLIP | 8M0084613 | 69205 |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 |
FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | NUT, FLYWHEEL | 11-52901 | |
| 2 | WASHER, FLYWHEEL NUT | 12-33001 | |
| 3 | PLUG, FLYWHEEL PULLER THREADS | 19-45907 | |
| 4 | FLYWHEEL ASSWMBLY Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 248-8722A5 | |
| 4 | FLYWHEEL ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 248-8722A5 | |
| 5 | SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4") | 10-68997 | |
| 6 | SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8") | 10-32417 | |
| 7 | PLATE, SWITCH BOX | 889351 | |
| 8 | GROMMET, SWITCH BOX PLATE | 25-57009001 | |
| 9 | SCREW Comment: SWITCH BOX PLATE TO CYLINDER BLOCK (3/4") | 10-824941 | 10-59645, 10-73274 SWITCH BOX PLATE TO CYLINDER BLOCK (3/4") |
| 10 | WASHER, SWITCH BOX PLATE SCREW | 12-56720 | |
| 11 | SWITCH BOX ASSEMBLY | 332-7778A12 | |
| 12 | SCREW, SWITCH BOX TO PLATE (13/16") | 10-26251 | |
| 13 | WIRE ASSEMBLY, SWITCH BOX SCREW | 46933A6 | |
| 14 | NUT, SWITCH BOX TERMINAL | 11-45076 | |
| 15 | WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN) | 84-60443A3 | |
| 15 | WIRE ASSEMBLY Comment: SWITCH BOX TO COIL (GREEN/WHITE) | 84-62822A1 | |
| 15 | WIRE ASSEMBLY Comment: SWITCH BOX TO COIL (GREEN/RED) | 84-68896A1 | |
| 16 | WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK) | 84-60466A17 | |
| 17 | PLATE, MOUNTING-IGNITION COIL | 73439 | |
| 18 | IGNITION COIL ASSEMBLY Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 300-8M0166172 | |
| 18 | IGNITION COIL ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 339-832757A4 | |
| 19 | NUT, IGNITION COIL TERMINAL | 11-45076 | |
| 20 | COVER, IGNITION COIL | 43542 | |
| 21 | SCREW, COVER TO MOUNTING PLATE (2") | 10-46368 | |
| 22 | STATOR ASSEMBLY Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 398-5704A7 | |
| 22 | STATOR ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 398-5704A7 | |
| 23 | SCREW, STATOR TO UPPER END CAP (7/8") | 10-63136 | |
| 24 | TRIGGER PLATE ASSEMBLY | 96455A8 | |
| 25 | CLAMP, STATOR LEADS ATTACHING | 54-28700 | |
| 26 | SCREW, CLAMP TO CRANKCASE (1/2") | 10-98253 | |
| 27 | WIRE ASSEMBLY, SPARK PLUG | 84-813715A1 | |
| 28 | BOOT, IGNITION COIL END | 332-2854T01 | |
| 29 | SPARK PLUG (AC#V40FFM) | 33-896329827 | 33-827C |
| 29 | SPARK PLUG Comment: (CHAMPION #QL-76V) - CANADA AND BELGIUM | 33-14103550 |
FUEL PUMP, FUEL FILTER AND FUEL LINES
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) FUEL PUMP, FUEL FILTER AND FUEL LINES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 76575A9 | |
| 2 | CHECK VALVE ASSEMBLY | 21-8M0084275 | 21-13424A 1 |
| 3 | DIAPHRAM KIT | 55278A4 | |
| 4 | GASKET, CHECK VALVE TO HOUSING (#) | ||
| 5 | GASKET, FUEL PUMP (#) | ||
| 6 | RETAINER, CHECK VALVE | 23004 | |
| 7 | SCREW, RETAINER TO HOUSING (3/8") | 10-43725 | |
| 8 | SCREW, PUMP MOUNTING (1 5/8") | 10-86885 | |
| 9 | PLUG, PIPE-FUEL PUMP | 22-328022 | |
| 10 | HOSE ASSEMBLY Comment: FUEL PUMP TO EXHAST PLATE (9 1/2") | 32-774572 | |
| 11 | ELBOW, DRIVE SHAFT HSG. AND EXH. PLATE Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 22-996642 | |
| 11 | ELBOW, HOSE TO EXHAST PLAT Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 22-996642 | |
| 12 | HOSE ASSEMBLY, GUEL PUMP TO NOZZLE (10") Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 32-774572 | |
| 12A | SLEEVE, TELL TALE HOSE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 23-90882 | |
| 13 | CLAMP, HOSE TO FUEL PUMP AND FITTING Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 54-68725 | |
| 14 | NOZZLE, TELL TALE-REAR SUPPORT BRACKET Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 69555001 | |
| 15 | CLAMP, TELL TALE NOZZLE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 54-70705 | |
| 16 | SCREW, TELL TALE CLAMP Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 10-48408 | |
| 17 | FITTING, FUEL PUMP ( INLET) | 22-64705 | |
| 18 | FUEL LINE, ADAPTOR TO FUEL PUMP ( 12") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 19 | CLAMP, FUEL LINE ATTACHING | 54-68424 | |
| 20 | FITTING, FUEL LINE TO ADDAPTOR | 22-63187 | |
| 21 | ADAPTOR, CHECK UNIT ( FUEL PUMP) | 22833 | |
| 22 | STEM, CHECK UNIT ADAPTOR | 23069 | |
| 23 | "O"RING, ADAPTOR STEM | 25-16524 | |
| 24 | SPRING, ADAPTOR STEM | 24-23067T | |
| 25 | CUP WASHER, ADAPTOR | 30188 | |
| 26 | SCREW, ADAPTOR TO SUND ATTENTUATOR ( 1 1/4") | 10-76596 | |
| 28 | FUEL LINE, FUEL PUMP/FUEL FILTER COVER (3 1/2") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 29 | BASE, FUEL FILTER AND COVER | 76221 | |
| 30 | SCREW Comment: FILTER BASE TO FRANSFER PASSAGE CAVER (1 3/4") | 10-22698 | |
| 31 | WASHER, FILTER BASE SCREW | 12-34437 | |
| 32 | FILTER, FUEL | 35-59072 | |
| 33 | "O"RING, FILTER COVER | 25-35480 | |
| 34 | COVER, FILTER | 35-91078A1 | |
| 35 | SCREW, FILTER COVER FASTENING (5/8") | 10-37370 | |
| 36 | GASKET, FILTER COVER FASTENING SCREW | 27-25848 | |
| 37 | FITTING, BASE | 22-19688 | |
| 38 | FULE LINE, BASE TO LOWER CARBURETOR (9 1/2") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 39 | TEE, LOWER CARBURETOR | 22-64706001 | |
| 40 | FUEL LINE, CARBURETOT TO CARBURETOR (3") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 41 | FITTING, UPPER CARBURETOR | 22-19688 | |
| 42 | FITTING, FUEL PUMP ( OUTLET) | 22-70007 |
GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 3)(PAGE 1)
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 3)(PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY,COMPLETE (SHORT SHAFT)-SEE NOTE BELOW | 1643-6038A19 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)- SEE NOTE BELOW | 1643-6038A20 | |
| 1 | GEAR HOUSING ASSEMBLY | 1643-6038A6 | |
| 2 | PIN, DOWEL-GEAR HOUSING | 17-8M0084726 | 17-85500 |
| 3 | STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8) | 16-33778 | |
| 4 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16") | 16-8M0034453 | 16-57933 |
| 5 | BEARING, ROLLER-DRIVE SHAFT | 31-62091T | |
| 6 | SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT) | 72849A1 | |
| 6 | SCREEN WATER INTAKE-STARBOARD (LONG SHAFT) | 63850 | |
| 6 | SCREEN, WATER INTAKE-PORT (LONG SHAFT) | 72849A1 | |
| 7 | SCREW, SCREENS TO GEAR HOUSING (1 1/4") | 10-36070 | |
| 8 | NUT,SCREEN TO GEAR HOUSING SCREW | 11-859124 | 11-45812 |
| 9 | PLATE, SUPPORT - EXHAUST TUBE SEAL | 92815 | |
| 10 | SEAL, EXHAUST TUBE | 37721001 | |
| 11 | GEAR, PINION - DRIVE SHAFT | 43-60245 | |
| 12 | NUT, PINION GEAR TO DRIVE SHAFT | 11-55910 | |
| 13 | GASKET, WATER PUMP BASE TO GEAR HOUSING | 27-32771 | |
| 14 | "O" RING, WATER PUMP BASE | 25-26855 | |
| 15 | WATER PUMP BASE ASSEMBLY | 46-73640T01 | |
| 16 | OIL SEAL, WATER PUMP BASE | 26-79831 | |
| 17 | OIL SEAL, WATER PUMP BASE | 26-90562 | |
| 18 | DOWELL PIN, WATER PUMP BASE TO WATER PUMP BODY | 17-35973 | |
| 19 | GASKET, LOWER - WATER PUMP BASE TO FACE PLATE | 27-19553 | |
| 20 | PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY | 32768 | |
| 21 | GASKET, UPPER - FACE PLATE TO WATER PUMP BODY | 27-19551 | |
| 22 | IMPELLER, WATER PUMP | 47-89983T | |
| 23 | KEY, IMPELLER DRIVE | 28-8M0032837 | 28-56662 |
| 24 | WATER PUMP BODY ASSEMBLY | 46-77822A1 | |
| 25 | INSERT, WATER PUMP BODY | 48753 | |
| 26 | WASHER, WATER PUMP BODY AND BASE STUDS | 12-8M0204649 | |
| 27 | NUT, WATER PUMP BODY AND BASE STUDS | 11-36069 | |
| 28 | SEAL, WATER PUMP BODY TO WATER TUBE | 26-38452 | |
| 29 | WASHER, CUPPED - WATER TUBE SEAL | 12-38453 | |
| 30 | RING, RUBBER - CENTRIFUGAL SLINGER | 25-20273 | |
| 31 | SCREW, GREASE FILLER AND VENT HOLE | 10-79953Q04 | |
| 32 | WASHER, GREASE FILLER AND VENT HOLE SCREW | 12-191833 | |
| 35 | SHAFT ASSEMBLY, SHIFT - LOWER | 76063A1 | |
| 36 | CLIP, RETAINING - SHIFT SHAFT | 53-29641 | |
| 37 | "O" RING, SHIFT SHAFT BUSHING | 25-25439 | |
| 38 | BUSHING ASSEMBLY, SHIFT SHAFT | 23-77631A2 | |
| 39 | OIL SEAL, SHIFT SHAFT BUSHING (LOWER) | 26-24590 | |
| 40 | OIL SEAL, SHIFT SHAFT BUSHING (UPPER) | 26-892361 | |
| 41 | WASHER, RUBBER - SHIFT SHAFT BUSHING | 12-31266 | |
| 42 | BASE, LOWER - REVERSE LOCKING- NOT PART OF GEAR HOUSING | 78036 | |
| 43 | CAM, REVERSE LOCKING - NOT PART OF GEAR HOUSING | 43308T1 | |
| 44 | DRIVE SHAFT ASSEMBLY (SHORT SHAFT) | 45-76089A2 | |
| 44 | DRIVE SHAFT ASSEMBLY (LONG SHAFT) | 45-76088A2 | |
| 45 | SPRING, COMPRESSION - DRIVE SHAFT | 24-20254 | |
| 46 | PIN, DRIVE SHAFT | 17-30545 | |
| 47 | SLEEVE, LUBRICATION - DRIVE SHAFT | 88181 | |
| 48 | SHIM, BEARING TO GEAR HOUSING (.002-3-5-10) | 15-20929A1 | |
| 49 | ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT | 31-38146A1 | |
| - | WATER PUMP KIT | 46-73640A2 | |
| - | SEAL KIT | 26-79831A1 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 |
GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 3)(PAGE 2)
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 3)(PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT) SEE NOTE | 1643-6038A19 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE | 1643-6038A20 | |
| 1 | GEAR HOUSING ASSEMBLY (SEE F6 FOR BREAKDOWN) | 1643-6038A6 | |
| 50 | CAM, SHIFT | 760394 | |
| 51 | FOLLOWER, CAM | 38441 | |
| 52 | SLIDE, CROSS PIN | 20843 | |
| 53 | SPRING, COMPRESSION - CAM FOLLOWER | 24-39845 | |
| 54 | SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10) | 15-38374A1 | |
| 55 | TAPERED ROLLER BEARING ASSEMBLY | 31-38356A1 | |
| 56 | BEARING, ROLLER - FORWARD GEAR | 31-21739 | |
| 57 | FORWARD GEAR | 43-60247T5 | |
| 58 | RATCHET, SLIDING CLUTCH | 52-92911T | |
| 59 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-8M0020942 | 17-38113 |
| 60 | SPRING, RETAINING - CROSS PIN | 24-38114 | |
| 61 | SHAFT, PROPELLER | 44-75365 | |
| 62 | REVERSE GEAR | 43-79159T | |
| 63 | SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10) | 15-20927A1 | |
| 64 | WASHER, THRUST - REVERSE GEAR | 12-32004 | |
| 65 | BEARING, BALL - REVERSE GEAR | 30-20839T | |
| 66 | "O" RING, BEARING CARRIER | 25-31986 | |
| 67 | BEARING CARRIER ASSEMBLY | 69386T1 | |
| 68 | BEARING, ROLLER - BEARING CARRIER | 31-21700 | |
| 69 | OIL SEAL, BEARING CARRIER | 26-8M0205511 | |
| 70 | OIL SEAL, BEARING CARRIER - LINE CUTTER | 26-8M0203757 | |
| 71 | KEY, LOCATING- BEARING CARRIER | 28-30281 | |
| 72 | TAB WASHER, GEAR HOUSING COVER | 14-53012 | |
| 73 | COVER, GEAR HOUSING | 11-87763 | |
| 74 | TRIM TAB ASSEMBLY, GEAR HOUSING | 97-31640Q4 | |
| 75 | SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") | 10-66024 | |
| 76 | WASHER, DRIVE SHAFT HOUSING STUD (3/8") | 12-8M0214963 | |
| 77 | NUT Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8") | 11-8M0204726 | |
| 78 | WASHER, DRIVE SHAFT HOUSING STUD (7/16") | 12-65791 | |
| 79 | NUT Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16") | 11-8M0204653 | |
| 80 | THRUST HUB, PROPELLER | 73345A1 | |
| 81 | TAB WASHER, PROPELLER | 14-8M0214942 | |
| 82 | NUT, PROPELLER | 11-69578Q1 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 |
GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 1)
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY Comment: COMPLETE (SHORT SHAFT) UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539A2 | |
| - | GEAR HOUSING ASSEMBLY Comment: COMPLETE (LONG SHAFT) UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539A3 | |
| - | GEAR HOUSING ASSEMBLY Comment: COMPLETE (SHORT SHAFT) UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539A2 | |
| - | GEAR HOUSING ASSEMBLY Comment: COMPLETE (LONG SHAFT) UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539A3 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539T1 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539T1 | |
| 1A | CONNECTOR ASSEMBLY, SPEEDOMETER Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 22-85822A10 | |
| 2 | PIN, DOWEL- GEAR HOUSING | 17-8M0084726 | 17-85500 |
| 3 | STUD Comment: WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8") | 16-33778 | |
| 4 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING | 16-8M0034453 | 16-57933 |
| 5 | BEARING, ROLLER - DRIVE SHAFT | 31-62091T | |
| 6 | SCREEN ASSEMBLY Comment: PORT AND STARBOARD (SHORT SHAFT) | 72849A1 | |
| 6 | SCREEN Comment: WATER INTAKE - STARBOARD- LONG SHAFT | 63850 | |
| 6 | SCREEN Comment: WATER INTAKE - PORT - LONG SHAFT | 72849A1 | |
| 7 | SCREW Comment: WATER INTAKE SCREEN TO GEAR HOUSING | 10-36070 | |
| 8 | NUT Comment: WATER INTAKE SCREEN SCREW | 11-859124 | 11-45812 WATER INTAKE SCREEN SCREW |
| 9 | PLATE, SUPPORT - EXHAUST TUBE | 92815 | |
| 10 | SEAL, EXHAUST TUBE | 37721001 | |
| 11 | GEAR, PINION - DRIVE SHAFT | 43-60245 | |
| 12 | NUT, PINION GEAR TO DRIVE SHAFT | 11-55910 | |
| 13 | GASKET, WATER PUMP BASE TO GEAR HOUSING | 27-19552 | |
| 14 | "O" RING, WATER PUMP BASE | 25-26722 | |
| 15 | WATER PUMP BASE ASSEMBLY | 46-77177A1 | |
| 16 | OIL SEAL, WATER PUMP BASE | 26-79831 | |
| 17 | OIL SEAL, WATER PUMP BASE | 26-90562 | |
| 18 | DOWEL PIN Comment: WATER PUMP BASE TO WATER PUMP BODY | 17-35973 | |
| 19 | GASKET, LOWER Comment: WATER PUMP BASTE TO FACE PLATE | 27-19553 | |
| 20 | PLATE, FACE Comment: WATER PUMP BASE TO WATER PUMP BODY | 32768 | |
| 21 | GAKSET, UPPER Comment: FACE PLATE TO WATER PUMP BODY | 27-19551 | |
| 22 | IMPELLER, WATER PUMP | 47-89983T | |
| 23 | KEY, IMPELLER DRIVE | 28-8M0032837 | 28-56662 |
| 24 | WATER PUMP BODY ASSEMBLY | 46-77822A1 | |
| 25 | INSERT, WATER PUMP BODY | 48753 | |
| 26 | WASHER, WATER PUMP BODY AND BASE STUDS | 12-8M0204649 | |
| 27 | NUT, WATER PUMP BODY AND BASE STUDS | 11-35888 | |
| 28 | SEAL, RUBBER Comment: WATER INLET TUBE (WATER PUMP BODY) | 26-38452 | |
| 29 | WASHER, NYLON - WATER PUMP BODY | 12-38453 | |
| 30 | RING, RUBBER Comment: CENTRIFUGAL SLINGER (DRIVE SHAFT) | 25-20273 | |
| 31 | SCREW, GREASE FILLER | 10-79953Q04 | |
| 31 | SCREW, DRAIN (MAGNETIC) | 22-8M0058389 | 22-67892A06 |
| 32 | WASHER, GREASE FILLER AND DRAIN SCREW | 12-191833 | |
| 35 | SHAFT ASSEMBLY, SHIFT - LOWER | 76063A1 | |
| 36 | CLIP, REATAING - SHIFT SHAFT | 53-29641 | |
| 37 | "O" RING, SHIFT SHAFT BUSHING | 25-25439 | |
| 38 | BUSHING ASSEMBLY, SHIFT SHAFT | 23-77631A2 | |
| 39 | OIL SEAL, SHIFT SHAFT BUSHING | 26-8M0204708 | |
| 41 | WASHER, RUBBER- SHIFT SHAFT BUSHING | 12-77674 | |
| 42 | BASE Comment: LOWER - REVERSE LOCKING NOT PART OF GEAR HOUSING | 78036 | |
| 43 | CAM Comment: REVERSE LOCKING NOT PART OF GEAR HOUSING | 43308T1 | |
| 44 | DRIVE SHAFT ASSEMBLY Comment: (SHORT SHAFT) UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 45-77390A2 | |
| 44 | DRIVE SHAFT ASSEMBLY Comment: (LONG SHAFT) UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 45-77389A2 | |
| 44 | DRIVE SHAFT ASSEMBLY Comment: (SHORT SHAFT) SERIAL GROUP #7 | 45-77390A2 | |
| 44 | DRIVE SHAFT ASSEMBLY Comment: (LONG SHAFT) SERIAL GROUP #7 | 45-77389A2 | |
| 45 | SPRING, COMPRESSION - DRIVE SHAFT | 24-20254 | |
| 46 | PIN, DRIVE SHAFT | 17-30545 | |
| 47 | SLEEVE, LUBRICATION - DRIVE SHAFT | 88181 | |
| 48 | SHIM, BEARING TO GEAR HOUSING (.002-3-5-10-20) | 15-92881A1 | |
| 49 | ROLLER BEARING ASSEMBLY Comment: TAPERED - DRIVE SHAFT | 31-8M0166756 | |
| 49A | SEAT ASSEMBLY, DRIVE SHAFT Comment: SPLINED NYLON SEAL SEAT ON DRIVE SHAFT | 78654A1 | |
| 49B | SEAL, SPLINED - DRIVE SHAFT Comment: SPLINED NYLON SEAL SEAT ON DRIVE SHAFT | 86304 | |
| - | WATER PUMP KIT | 46-77177A3 | |
| - | SEAL KIT | 26-79831A1 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | 27-88449A32 | |
| - | GASKET SET | A-27-76589A89 |
GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 2)
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASS'Y COMP. (SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539A2 | |
| - | GEAR HOUSING ASS'Y COMP. (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539A3 | |
| - | GEAR HOUSING ASS'Y COMP (SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539A2 | |
| - | GEAR ASS'Y COMP. (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539A3 | |
| 1 | GEAR HOUSING ASSEMBLY - F10 Comment: SEE F10 FOR BREAKDOWN UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 1643-9539T1 | |
| 1 | GEARE HOUSING ASSEMBLY Comment: SEE F10 FOR BREAKDOWN UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 1643-9539T1 | |
| 50 | CAM, SHIFT Comment: UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 760394 | |
| 50 | CAM, SHIFT Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 760394 | |
| 51 | FOLLOWER, CAM | 38441 | |
| 52 | SLIDE, CROSS | 20843 | |
| 53 | SPRING, COMPRESSION - CAM FOLLOWER | 24-39845 | |
| 54 | SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10) | 15-38374A1 | |
| 55 | TAPERED ROLLER BEARING ASSEMBLY | 31-38356A1 | |
| 56 | BEARING, ROLLER - FORWARD GEAR | 31-21739 | |
| 57 | FORWARD GEAR ASSEMBLY | 43-60247T5 | |
| 58 | RATCHET, SLIDING CLUTCH | 52-92911T | |
| 59 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-8M0020942 | 17-38113 |
| 60 | SPRING, RETAINING - CROSS PIN | 24-38114 | |
| 61 | SHAFT, PROPELLER | 44-75365 | |
| 62 | REVERSE GEAR ASSEMBLY | 43-79159T | |
| 64 | WASHER, THRUST - REVERSE GEAR | 12-32004 | |
| 65 | BEARING, BALL - REVERSE GEAR | 30-20839T | |
| 66 | "O" RING, BEARING CARRIER | 25-31986 | |
| 67 | BEARING CARRIER ASSEMBLY | 69386T1 | |
| 68 | BEARING, ROLLER - BEARING CARRIER | 31-21700 | |
| 69 | OIL SEAL, BEARING CARRIER | 26-8M0205511 | |
| 70 | OIL SEAL, BEARING CARRIER | 26-8M0203757 | |
| 71 | KEY, LOCATING - BEARING CARRIER | 28-30281 | |
| 72 | TAB WASHER, GEAR HOUSING COVER | 14-53012 | |
| 73 | COVER, GEAR HOUSING | 11-87763 | |
| 74 | TRIM TAB ASSEMBLY, GEAR HOUSING | 97-31640Q4 | |
| 75 | SCREW, TRIM TAB TO GEAR HOUSING | 10-66024 | |
| 76 | WASHER Comment: DRIVE SHAFT HOUSING STUD (3/8') | 12-8M0214963 | |
| 77 | NUT Comment: DRIVE SHAFT HOUSING STUD (3/8") | 11-8M0204726 | |
| 78 | WASHER Comment: DRIVE SHAFT HOUSING GEAR HOUSING STUD (7/16") | 12-65791 | |
| 79 | NUT, DRIVE SHAFT HOUSING TO GEAR STUD (7/16") | 11-8M0204653 | |
| 80 | THRUST HUB, FRONT | 73345A1 | |
| 81 | TAB WASHER, PROPELLER | 14-8M0214942 | |
| 82 | NUT, PROPELLER | 11-69578Q1 |
MISCELLANEOUS PARTS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | PARTS CATALOG - Service | 90-75508 | |
| - | SERVICE MANUAL | 90-861355 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: SERIAL GROUP #1 | 27-88449A32 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: SERIAL GROUP #8 | 27-88449A32 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: SERIAL GROUP #7 | 27-88449A32 | |
| - | DECAL SET - SERIAL GROUP #1 | 37-89329A80 | |
| - | DECAL SET - SERIAL GROUP #8 | 37-89329A80 | |
| - | DECAL SET - SERIAL GROUP #7 | 37-89329A80 |
PROPELLERS (RIGHT HAND ROTATION)
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) PROPELLERS (RIGHT HAND ROTATION):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 10") Comment: 3 BLADES | 48-73132A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 12") Comment: 3 BLADES | 48-73134A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES | 48-73136A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 14") Comment: 3 BLADES | 48-73138A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES | 48-73140A45 | |
| - | PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES | 48-73144A45 |
SHIFT LINKAGE AND EXHAUST PLATE
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) SHIFT LINKAGE AND EXHAUST PLATE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BRACKET, ANDCHOR-CONTROL CABLES | 814283A2 | |
| 2 | LINK ASSEMBLY Comment: SHIFT SHAFT AND ANCHOR BRACKET | 60283A1 | |
| 3 | SPRING, LINK TO ANCHOR BRACKET | 24-20099 | |
| 4 | GUIDE BLOCK, LINK | 37896 | |
| 5 | WEAR PLATE, NYLON-LINK | 52100 | |
| 6 | LATCH, LINK TO ANCHOR BRACKET | 8M0036768 | 38279 |
| 7 | WASHER, LINK LATCH | 12-69056 | |
| 8 | NUT, LINK ATTACHING | 11-36069 | |
| 9 | SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 75355A30 | |
| 9 | SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 75355A32 | |
| 9 | SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 75355A30 | |
| 9 | SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 75355A32 | |
| 11 | WASHER, WAVE-SHIFT SHAFER TO LINK | 13-29720 | |
| 12 | BUSHING, NYLON-SHIFT SHAFT TO LINK | 23-26600 | |
| 13 | WASHER, LINK (SHIFT SHAFT END) | 12-35462 | |
| 14 | CUP, RETAINER-ANCHOR BRACKET | 39519 | |
| 15 | LEVER, LYLON-SHIFT CABLE LOCKING | 87609A1 | |
| 16 | PIN, LOCKING LEVER AND CPVER FASTENING | 17-47175 | |
| 17 | LINK, LOCKING LEVER TO COVER | 87609A1 | |
| 18 | COVER, NYLON-SHIFT CALBE | 39667 | |
| 19 | SCREW Comment: ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8") | 10-69101 | |
| 20 | GASKET, POWERHEAD TO EXHAUST PLATE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 27-884511 | |
| 20 | GASKET, POWERHEAD TO EXHAUST PLATE Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 27-884511 | |
| 21 | EXHAUST PLATE ASSEMBLY Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 79618A3 | |
| 21 | EXHAUST PLATE ASSEMBLY-SERIEL GROUP #5 | 79618A3 | |
| 21 | EXHAUST PLATE ASSEMBLY Comment: UNITED STATES 4977157 THRU 5128279 AUSTRALIA 8050200 THRU 8056219 BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887 | 79618A3 | |
| 21 | ESHAUST PLATE ASSEMBLY Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 79618A3 | |
| 21A | BUSHIING, NYLON-EXHAUST PLATE | 23-27132 | |
| 22 | STUD Comment: EXHAUST PLATE TO DRIVE SHAFT HOSING (1 11/16") | 16-8M0034449 | 16-69058 EXHAUST PLATE TO DRIVE SHAFT HOSING (1 11/16") |
| 23 | STUD Comment: EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8") | 16-68166 | |
| 24 | SEAL, WATER INLET TUBE Comment: UNITED STATES 4825248 AND BELOW AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW | 73156 | |
| 24 | SEAL, WATER INLET TUBE Comment: UNITED STATES 4825249 AND UP AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP CANADA 7110248 AND UP | 26-38452 | |
| 25 | WASHER, NYLON-WATER INLET TUBE SEAL | 12-38453 | |
| 26 | RETAINER, WATER INLET TUBE SEAL Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 38500 | |
| 27 | SCREW, RETAINER TO EXHAUST PLATE (3/4") Comment: UNITED STATES 5128279 AND BELOW AUSTRALIA 8056219 AND BELOW BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW | 10-69069 | |
| 28 | HOUSING, WATER INLET TUBE SEAL Comment: UNITED STATES 5128280 AND UP AUSTRALIA 8056220 AND UP BELGIUM 9207526 AND UP CANADA 7129888 AND UP | 79799 | |
| 29 | GASKET, HOUSING GROUP #7 | 27-797971 | |
| 30 | SCREW, HOUSING TO EXHAUST PLATE GROUP #7 | 10-79798 | |
| 31 | SEAL EXHAUST PLATE | 60307 | |
| 32 | STRIP, RETAINING-EXHAUST PLATE SEAL | 60306 | |
| 33 | SCREW Comment: RETAINING STRIP TO EXHAUST PLATE (3/8") | 10-62568 | |
| 34 | MOUNT Comment: RUBBER-EXHAUST PLATE TO REAR COWL SUPPORT | 90435 | |
| 35 | GROUND STRAP ASS"Y Comment: EXHAUST PLATE TO REAT COWL SUPPORT | 49651A1 | |
| 36 | WASHER, RUBBER MOUNT ATTACHING | 12-69057 | |
| 37 | NUT, RUBBER MOUNT TO EXHAUST PLATE | 11-8267089 | |
| 38 | SCREW Comment: EXHAUST PLATE TO CYLINDER BLOCK (1") | 10-68918 | |
| 38 | SCREW Comment: EXHAUST PLATE TO CYLINDER BLOCK (7/8") | 10-28668 | |
| 39 | GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING | 27-385011 | |
| 40 | EXHAUST TUBE, ADAPTOR | 42718 | |
| 41 | GASKET, EXHAUST TUBE TO EXHAUST PLATE | 27-602801 | |
| 42 | SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4") | 10-28636 |
STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | RECTIFIER ASSEMBLY | 8M0058226 | 816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3 |
| 2 | SCREW, RECTIFIER TO PLATE (5/8") | 10-38055 | |
| 3 | LOCKWASHER, RECTIFIER SCREW | 13-26996 | |
| 4 | NUT, RECTIFIER TERMINAL | 11-45076 | |
| 5 | STARTER SOLENOID | 89-853654A1 | |
| 6 | LOCKWASHER, SOLENOID TERMINAL | 10,13-26996 | |
| 7 | NUT, SOLENOID TERMINAL | 10,11-68219 | |
| 8 | LOCKWASHER, SOLENOID TERMINAL (5/16") | 13-8M0204647 | |
| 9 | NUT, SOLENOID TERMINAL (5/16") | 11-8M0204668 | |
| 10 | BOOT, TERMINAL-STARTER SOLENOID | 46265 | |
| 11 | SCREEW, SOLENOID TO ATTENUATOR (3/4") | 10-69054 | |
| 12 | LOCKWAHER, SOLENOID SCREW | 13-26992 | |
| 13 | STARTER MOTOR ASSEMBLY | 50-44369A1 | |
| 14 | STOP, RUBBER-STARTER MOTOR | 8M0043376 | 68042 |
| 15 | CABLE Comment: STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2") | 84-60872 | |
| 16 | SCREW, CABLE TO STARTER MOTOR (5/8") | 10-69035 | |
| 17 | CABLE Comment: SOLENOID TO STARTER MOTOR-YELLOW (9 1/2") | 84-93389A6 | |
| 18 | LOCKWASHER, STARTER MOTOR TERMINAL | 13-26992 | |
| 19 | NUT, STARTER MOTOR TERMINAL | 11-20890 | |
| 20 | COLLAR, RUBBER-STARTER MOUNT | 23-8M0034918 | 23-8M0001391, 56703 |
| 21 | SPACER, COLLAR TO MOUNTING BRACKETS | 23-56774 | |
| 22 | CABLE, BATTERY TO STARTER SOLENOID | 84-62862A4 | |
| 23 | WIRING HARNESS (INTERNAL) | 84-73204 | |
| 24 | SCREW, WIRING HARNESS ATACHING (1 1/8") | 10-72202 | |
| 27 | BRACKER ASSEMBLY, WIRING HARNESS | 60114A1 | |
| 28 | SEAL, WIRING HARNESS BRACKET | 26-60925 | |
| 29 | SCREW Comment: WIRING HARNESS BRACKET MOUNTING (2 1/8") | 10-89778 |

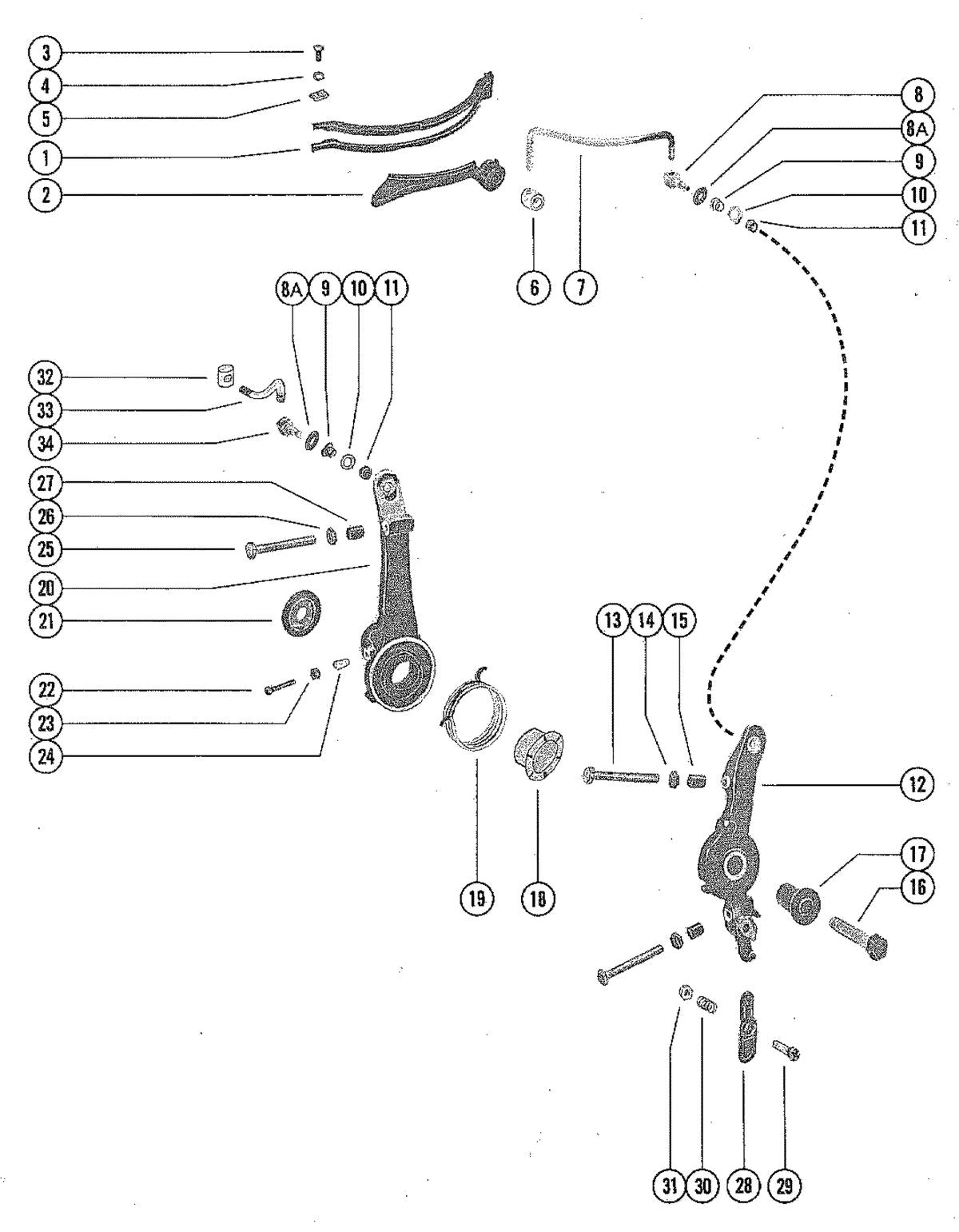

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
Back to TopBelow is the parts list for Mercury 70 (3 CYL.) THROTTLE CONTROL LINKAGE AND SPARK ADVANCE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HOUSING, NYLON-THROTTLE ACTUATOR | 76864 | |
| 2 | CAM, NYLON-THROTTLE ACTUATOR | 77025 | |
| 3 | SCREW, HOUSING TO CRANKCASE (1/2") | 10-37571 | |
| 4 | LOCKWASHER, HOUSING TO CRANKCASE SCREW | 13-26996 | |
| 5 | PLATE, RETAINER-ACTUATOR HOUSING | 60570 | |
| 6 | BARREL, NYLON-THROTTLE LINK ROD | 23-74213 | |
| 7 | ROD, LINK-THROTTLE | 74164 | |
| 8 | SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER | 77013A1 | |
| 8A | WAVE WASHER, LINK ROD SWIVEL | 13-29402 | |
| 9 | BUSHING, LINK ROD SWIVEL | 23-26856 | |
| 10 | WASHER, LINK ROD SWIVEL | 12-73288 | |
| 11 | NUT, LINK ROD SWIVEL | 11-45774 | |
| 12 | LEVER ASSEMBLY, THROTTLE CONTROL | 77032A2 | |
| 13 | SCREW, ADJUSTING-THROTTLE LEVER (2") | 10-67916 | |
| 14 | NUT, JAM-ADJUSTING SCREW | 11-29598 | |
| 15 | CAP, ADJUSTING SCREW | 52023 | |
| 16 | SCREW Comment: THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4") | 10-818165 | 10-55337 THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4") |
| 17 | BUSHING, THROTTLE CONTROL LEVER SCREW | 23-55164 | |
| 18 | BUSHING, THROTTLE CONTROL LEVER SCREW | 23-55171 | |
| 19 | SPRING, RETURN-SPARK ADVANCE LEVER | 24-55162 | |
| 20 | LEVER ASSEMBLY, SPARK ADVANCE | 77031A2 | |
| 21 | WASHER, THROTTL CONTROL LEVER SCREW | 12-68410 | |
| 22 | SCREW, SPARK ADVANCE ADJUSTING (1 1/2") | 10-73656 | |
| 23 | NUT, SPARK ADVANTAGE ADJUSTING SCREW | 11-68219 | |
| 24 | CAP, SPARK ADVANCE ADJUSTING SCREW | 48039 | |
| 25 | SCREW Comment: ADJUSTING-SPARK ADVANCE LEVER (2 1/4") | 10-77650 | |
| 26 | NUT, JAM-ADJUSTING SCREW | 11-29598 | |
| 27 | CAP, ADJUSTING SCREW | 52023 | |
| 28 | LATCH Comment: THROTTLE CONTROL LEVER (THROTTLE CABLE) | 39483 | |
| 29 | SCREW Comment: LATCH TO THROTTLE CONTROL LEVER (7/8") | 10-69026 | |
| 30 | SPRING, COMPRESSION-LATCH SCREW | 24-20099 | |
| 31 | NUT, LATCH ATTACHING SCREW | 11-826709109 | 11-33825, 11-35045 |
| 32 | BARREL, LINK ROD TO STATOR | 74897T | |
| 33 | ROD, LINK-SPARK ADVANCE | 74212 | |
| 34 | SWIVEL, LINK ROD TO SPARK ADVANCE LEVER | 77013A1 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
