Mercury 700 (6 CYL.) (1296411 THRU 1413610) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 700 (6 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL ASSEMBLY	167-1633A2
2	INSERT, TAP-LOCK	21041
3	TRIM MOULDING ASSEMBLY (CHROME)	29229A1
4	SCREW, DECORATIVE - TRIM MOULDING TO BOTTOM COWL	10-29226
5	WASHER, FIBRE - MOULDING FASTENING SCREW	12-24671
6	NUT, NYLON CAP - MOULDING FASTENING SCREW	11-29225
7	LOCKWASHER, MOULDING FASTENING SCREW	13-26995
8	NUT, BRASS - MOULDING FASTENING SCREW	11-26419
9	BAFFLE, BOTTOM COWL	23760
10	SCREW, BAFFLE TO BOTTOM COWL	10-21106
11	CONNECTOR, DISTRIBUTOR VENT TUBE	22-291112
--	ELBOW, DISTRIBUTOR VENT TUBE	22-996642
12	TUBE, VENT - DISTRIBUTOR (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
13	TUBE, VENT - DISTRIBUTOR (13")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
14	BRACKET, RECTIFIER MOUNTING	27971
15	SCREW, BRACKET TO BOTTOM COWL (7/8")	10-22956
16	SCREW, BRACKET TO BOTTOM COWL (1 1/8")	10-21091
17	NUT, RECTIFIER BRACKET MOUNTING SCREW	11-8M0207775
18	BRACKET, COIL FASTENING	26514
19	BAND, COIL BRACKET	26512
20	SCREW, COIL BRACKET TO BOTTOM COWL (3/4")	10-69028
21	SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4")	10-56500
22	NUT, COIL BRACKET SCREW	11-8M0207775
23	SCREW, COIL BAND TO BRACKET	10-26889
24	NUT, COIL BAND SCREW	11-8M0207775
25	STUD, COIL BRACKET TO SUPPORT	16-20077
26	SUPPORT, EXTERNAL WIRING HARNESS	26552
27	WASHER, COIL BRACKET STUD	12-20084
28	NUT, COIL BRACKET STUD	11-862902	11-25594
29	GASKET, POWERHEAD TO BOTTOM COWL	27-26197
30	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING	10-21504
31	BRACKET, CABLE END ANCHOR	20557
32	SCREW, ANCHOR BRACKET TO BOTTOM COWL	10-29200
33	STOP BLOCK, THROTTLE ADJUSTING	21968
34	WASHER, STOP BLOCK SCREW	12-21967
35	SCREW, STOP BLOCK HOLDING	10-28636
36	LEVER, CONTROL	29393
37	SPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFT	24-29109
38	SCREW, CONTROL LEVER TO BOTTOM COWL	10-37612
39	WASHER, CONTROL LEVER SCREW	12-8M0042641	12-29395
40	BUSHING, STEEL - CONTROL LEVER	23-29529
41	PIN ASSEMBLY, CLEVIS YOKE	17-30978A1
42	ROLL PIN, CLEVIS YOKE PIN	17-239281
43	SCREW, CLEVIS PIN TO CONTROL LEVER	10-20584
44	WASHER, WAVE - CLEVIS PIN SCREW	13-29402
45	NUT, CLEVIS PIN SCREW	11-8M0204718
46	LINK, CONTROL LEVER TO VERTICAL LEVER	26591
47	SWIVEL, VERTICAL LEVER	26590
48	WASHER, WAVE - VERTICAL LEVER SWIVEL	13-21067
49	NUT, SWIVEL TO VERTICAL LEVER	11-20110
50	SWIVEL, CONTROL LEVER	27948
51	WASHER, CONTROL LEVER SWIVEL	12-8M0204649
52	NUT, SWIVEL TO CONTROL LEVER	11-8267089
53	LINK ROD ASSEMBLY, CONTROL LEVER END	26589A1
54	ROD, LINK - DRIVE CAM	26588
55	NUT, LINK ROD ADJUSTING	11-25168
56	WASHER, LINK ROD END	12-20533
57	SPRING, TENSION - LINK ROD TO BOTTOM COWL	24-24826
58	COTTER PIN, LINK ROD TO CONTROL LEVER	18-210711
59	CAM, DRIVE - TILTLOCK	29481
60	CAM, TOP - TILTLOCK	29482
61	NUT, CAM FASTENING - PUSH ROD	11-862902	11-25594
62	PLATE, NAME - BOTTOM COWL	38-28150
63	FASTENER, NAME PLATE TO BOTTOM COWL	53-25539

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMLBY, COMPLETE (KA-8A)	1333-1695
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION	17-20853
4	LEVER, FLOAT (LOWER)	1399-102
5	LEVER, FLOAT (UPPER)	1399-101
6	LINLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAT	27-25033
8	SCREW, THROTTLE STOP LEVER	1395-6027
9	LEVER, THROTTLE STOP (SEE NOTE BELOW)	8146791
10	SHAFT, THROTTLE	1399-2012
11	SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)	24-26890
11	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)	24-20869
12	CHOKE SHAFT AND LEVER	1399-1469
13	CLIP, CHOKE SHAFT RETAINING 3	54-28407
14	SCREW, RETAINING CLIP TO LOWER CARBURETOR	10-28408
15	LOCKWASHER, RETAINING CLIP SCREW	13-26995
16	SHUTTER, CHOKE	1399-1470
17	SCREW AND LOCKWASHER, CHOKE SHUTTER	10-23035
18	JET, MAIN FUEL (.061) - STANDARD	1399-1461
18	JET, MAIN FUEL (.059)	1399-1459
18	JET, MAIN FUEL (.057)	1399-1457
18	JET, MAIN FUEL (.055)	1399-1655
18	JET, MAIN FUEL (.053)	1399-1653
19	GASKET, MAIN FUEL JET	27-28409
20	SPRING, IDLE ADJUSTMENT SCREW	24-27160
21	SCREW, IDLE ADJUSTMENT	1399-1713
22	GASKET, FLOAT BOWL COVER	1399-99
23	COVER, FLOAT BOWL	1399-1133
24	SCREEN, FILTER - NOT AS SHOWN	1399-3938
25	SCREW, FLOAT BOWL COVER (SHORT)	10-22625
26	SCREW, FLOAT BOWL COVER (LONG)	10-25850
27	GASKET, STRAINER COVER (LARGE)	27-25851
28	GASKET, STRAINER COVER (SMALL)	27-25849
29	COVER, STRAINER	1399-1135
30	GASKET, STRAINER COVER SCREW	27-25848
31	SCREW, STRAINER COVER FASTENING	10-25822
32	NOZZLE, MAIN	1399-1703
33	SCREW, PLUG - MAIN NOZZLE	10-23178
34	SCREW AND LOCKWASHER, THROTTLE SHUTTER	10-23035
35	SHUTTER, THROTTLE	1399-1480
36	TUBE, IDLE	1399-1702
37	GASKET, IDLE TUBE	27-23180
--	WELCH PLUG, BODY CHANNELK	19-20011
38	SCREW, PLUG - BODY CHANNEL	10-28405
39	GASKET, BODY CHANNEL PLUG SCREW	27-28406
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1399-2015
--	RAPAIR PARTS KIT ( 1 PER CARBURETOR)	1399-1704
40	GASKET, CARBURETOR FLANGE	27-757911
41	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 700 (6 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number	Supersedes
1	CHOKE SOLENOID, TOP COWL	29690
2	TERMINAL, CHOKE SOLENOID LEAD	30050
3	SCREW, CHOKE SOLENOID TO TOP COWL	10-24773
4	LOCKWASHER, CHOKE SOLENOID SCREW	13-26991
5	SCREW, CHOKE SOLENOID TO TOP COWL	10-20540
6	LOCKWASHER, CHOKE SOLENOID SCREW	13-26992
7	CLIP, CHOKE SOLENOID WIRE	54-648552
8	SCREW, WIRE CLIP TO TOP COWL	10-24239
9	"D" WASHER, WIRE CLIP FASTENING SCREW	8M0084613	69205
10	"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL	54-22783
11	GROUND STRAP ASS'Y, CHOKE SOLENOID TO ADAPTOR	26716A1
12	PLUNGER AND LINK ASS'Y, CHOKE SOLENOID	27031A1
13	PLATE, ADAPTOR - PLUNGER TO UPPER CHOKE ROD	27710
14	GROMMET, ADAPTOR PLATE	25-26633
15	WASHER, PLUNGER LIN	12-26014
16	COTTON PIN, PLATE TO PLUNGER LINK	18-26953
17	WASHER, ADAPTOR PLATE SCREW	12-26014
18	LOCKWASHER, ADAPTOR PLATE SCREW	13-26996
19	SCREW, ADAPTOR PLATE TO UPPER CHOKE ROD	10-20055
20	KNOB, CHOKE ROD	90242A1
21	GROMMET, CHOKE ROD	25-20116
22	"U" LINK, CHOKE KNOB TO UPPER CHOKE ROD	22462
23	SCREW. "U" LINK TO CHOKE KNOB	10-69022
24	LOCKWASHER, "U" LINK SCREW	13-26996
25	COTTER PIN, "U" LINK TO UPPER CHOKE ROD	18-26953
26	CHOKE ROD & BRACKET ASSEMBLY (UPPER)	28974A1
27	CHOKE ROD (CENTER)	27983
28	CHOKE ROD (LOWER)	27918
29	SCREW, UPPER ROD TO CENTER ROD TO LOWER ROD	10-30096
30	LOCKWASHER, CHOKE ROD SCREW	13-26994
31	WASHER, CHOKE ROD SCREW	12-27882
32	RIVET, CHOKE ROD TO CHOKE LEVER	17-25391
33	SPRING, CHOKE ROD TENSION	24-28965
34	RETAINER, CHOKE ROD SPRING TO CARBURETOR	27711
35	SCREW, RETAINER TO LOWER CARBURETOR	10-28713
36	CLUSTER, THROTTLE (UPPER CARBURETOR)	27977
37	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
38	CARBURETOR ASSEMBLY, COMPLETE	1333-1695
39	THROTTLE PICKUP BRACKET ASSEMBLY	28007A1
40	CLAMP, UPPER - THROTTLE PICKUP BRACKET	27869
41	CLAMP, LOWER - THROTTLE PICKUP BRACKET	27870
42	SCREW, UPPER AND LOWER CLAMP FASTENING	10-69022
43	SCREW, THROTTLE BRACKET MOUNTING	10-29239
44	BRACKET, COIL LEAD RETAINER	26977
45	SCREW, RETAINER BRACKET TO CENTER CARBURETOR 1	10-98253
46	LOCKWASHER, BRACKET FASTENING SCREW	13-21272

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-1468A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	28122
5	SHIM, CLAMP BRACKET TILT TUBE (.010-.020)	15-25600
6	NUT, TILT TUBE FASTENING	11-8M2014641	11-826713 23
7	CAP, PLASTIC - TILT TUBE	25606
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-22053
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT LOCK PIN BUMPER	32-28052
14	SWIVEL BRACKET ASSEMBLY	1446-1592A1
15	FITTING, GREASE	22-69059
16	OIL SEAL (SEE NOTE BELOW)	26-32911
16	OIL SEAL (SEE NOTE BELOW)	26-32911
17	SPRING, COIL - SWIVEL BRACKET	24-94891
18	PIN, COIL SPRING MOUNTING	17-28658
19	LUBRICAP, SWIVEL PIN GEAR FITTING	19-77633Q
20	SPACER, RUBBER - COIL SPRING POSITIONING	23-28688
21	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
22	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-28211A1
23	BUMPER, TOP YOKE	28203
24	BOLT, TOP YOKE TO UPPER MOUNT	10-28255
25	NUT, TOP YOKE BOLT FASTENING	1397-2218
26	WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)	12-25176
27	SERIAL PLATE	38-29537
28	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
29	STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
30	SCREW, STRAP STOP TO DRIVE SHAFT HOUSING	10-28200
31	NUT, STRAP STOP FASTENING SCREW	11-25269
32	YOKE, BOTTOM	30197
32	YOKE, BOTTOM	30197
33	NUT, SWIVEL PIN RETAINING	11-71956
34	ROD, PUSH - REVERSE LOCK	29484
35	SPRING, REVERSE LOCK TENSION	24-26625
36	REVERSE LOCK ASSEMBLY	26903A4
37	SHAFT, REVERSE LOCK PIVOT	56349
38	WASHER, PUSH ROD	12-20546
39	COTTER PIN, PUSH ROD TO REVERSE LOCK	18-25191
40	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
41	TILT STOP LEVER ASSEMBLY	30200A1
42	SCREW, TILT STOP LEVER ANCHOR	10-28339
43	WASHER, WAVE - LEVER ANCHOR SCREW	13-20846
44	NUT, LEVER ANCHOR SCREW	11-8M0207775
45	PIN, UPPER SHOCK MOUNTING	55-28416
46	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
47	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
48	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
49	SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN	10-28450
50	SHOCK ABSORBER	55-28209
51	BUSHING, RUBBER - SHOCK ABSORBER	23-28198
52	PIN, LOWER SHOCK MOUNTING	55-696531
53	WASHER, LOWER BUSHING RETAINER (INNER)	12-8M0204695
54	BOLT, CLAMP BRACKET TO BOAT TRANSOM	10-68298
55	WASHER, CLAMP BRACKET BOLT	12-68410
56	NUT, CLAMP BRACKET BOLT	11-82670912

COWLING AND FRONT COVER

Below is the parts list for Mercury 700 (6 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	184-2043A3
-	BRACKET, COVER REINFORCEMENT	29560
2	SCREW, BRACKET TO FRONT COVER	10-29226
3	LOCKWASHER, BRACKET FASTENING SCREW	13-26995
4	NUT, BRACKET FASTENING SCREW	11-26419
5	EMBLEM, FRONT COVER	26183A5
6	SCREW, COVER FASTENING	10-29552
7	WASHER, COVER FASTENING SCREW (RUBBER)	12-26162
8	WASHER, COVER FASTENING SCREW (NYLON)	12-27897
9	BUMPER RUBER - FRONT COVER BRACKET	29345
10	BLANKET, SOUNDK ABSORBING	29344
11	WRAP AROUND COWL ASSEMBLY	2120-2509A4
12	HANDLE, COWL LATCH	21060
13	"E"RING, COWL LATCH HINGE PIN	53-21058
14	PIN, HINGE - COWL LATCH HANDLE	17-21057
15	SWIVEL, COWL LATCH	25690
16	HOOK, COWL LATCH FASTENING	25691
17	BLANKET, SOUND ABSORBING - WRAP AROUND COWL	26391
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 700 (6 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number
1	CRANKSHAFT	414-1735
1	CRANKSHAFT	414-1735
2	OILER, FELT - DRIVE SHAFT SPLINE	20043
3	KEY, FLYWHEEL DRIVE	28-20094
4	CENTER MAIN BEARING ASSEMBLY	521-1490A1
5	DOWEL PIN, CENTER MAIN BEARING	17-20032
6	BEARING, NEEDLE - OUTER RACE	29-714221
6	BEARING, NEEDLE - OUTER RACE	29-714221
7	RACE, OUTER (PAIR)	26113T
8	RING, SNAP - OUTER RACE	53-26933
9	DOWEL PIN, STEPPED	17-27732
10	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
11	NUT, BEARING CLAMPING SCREW	11-8M0207775
12	MAIN BEARING ASSEMBLY, VALVE TYPE	527-1999A2
13	DOWEL PIN, MAIN BEARING	17-20032
14	SCREW, MAIN BEARING CLAMPING	10-22654
15	REED SET, MATCHED - MAIN BEARING	34-88498A1
16	REED STOP, MAIN BEARING REED VALVES	34-20053
17	WASHER, REED STOP MOUNTING SCREW	12-26014
18	SCREW, REED STOP MOUNTING	10-20055
19	PISTON AND PISTON PIN ASSEMBLY	724-2537A2
20	LOCK RING, PISTON PIN	40-20057
21	RING, PISTON	39-27841A12
22	CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)	600-2748A2
23	SCREW, CONNECTING ROD	10-45379
24	NUT, CONNECTING ROD SCREW	11-20061
25	BEARING, NEEDLE - CRANKPIN	29-20046T
26	BEARING, NEEDLE - PISTON PIN	29-20063
27	WASHER, NEEDLE LOCATING	12-28121

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	832-1815A2
2	DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING	17-20032
3	BUSHING, CRANKCASE - COWL MOUNTING STUD	23-26348
4	STUD, CARBURETOR MOUNTING	16-21831
5	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
6	STUD, CRANKCASE TO DRIVE SHAFT HOUSING	16-64281
7	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING	16-26135
8	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING	16-26134
9	PLUG, PIPE - BLEED HOLE	22-390721
10	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
10	SCREW, CRANKCASE TO CYLINDER BLOCK (2 7/8")	10-27005
10	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")	10-26132
11	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-78841
11	SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
12	NUT, CRANKCASE FASTENING SCREW	11-29250
13	BRACKET, CLAMP EXTENSION	53-78201
14	SCREW, MAIN BEARING LOCKING	10-20089
15	SCREW, CENTER MAIN BEARING LOCKING	10-20359
16	TAB WASHER, BEARING LOCKING SCREW	14-20091
17	END CAP ASSEMBLY, UPPER	1100-1438A1
18	OIL SEAL	26-41953
19	"O" RING	25-20081
20	BEARING, BALL	30-63742T
21	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-20082A1
22	SCREW, END CAP MOUNTING	10-29198
23	END CAP ASSEMBLY, LOWER	1102-1485A1
24	OIL SEAL (UPPER)	26-41953
24	OIL SEAL (LOWER)	26-29478
25	"O" RING	25-20081
26	BEARING, BALL	30-63742T
--	CHECK VALVE ASSEMBLY, END CAP	21-28481A1
27	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
28	SCREW, END CAP MOUNTING	10-29198
30	GASKET, CYLINDER BLOCK TO MANIFOLD PLATE	27-30089
29	PLATE, EXHAUST MANIFOLD	31085
30	GASKET, MANIFOLD PLATE TO COVER	27-30089
31	COVER, EXHAUST MANIFOLD	31083
32	SCREW, MANIFOLD COVER MOUNTING (7/8")	10-28668
33	CLAMP, SPARK PLUG LEADS TO COVER	54-26519
34	GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO BOTTOM COWL	30109
35	SWITCH, MERCURY	58124A4
36	CLAMP, MERCURY SWITCH HOLDING	54-22875
37	SCREW, CLAMP TO EXHAUST COVER	10-20401
38	"D" WASHER, CLAMP SCREW	8M0084613	69205
39	GASKET, CYLINDER BLOCK COVER	27-26072
40	CYLINDER BLOCK COVER ASSEMBLY	1010-1267A1
41	BUSHING, COVER - COWL MOUNTING STUD	23-26348
42	PLUG, PIPE - WATER PRESSURE HOLE	22-328022
43	SCREW, CYLINDER BLOCK COVER MOUNTING	10-20653
44	NUT, COVER MOUNTING SCREW	11-8M0207775
45	GASKET, TRANSFER PORT COVER	27-279361
46	COVER, TRANSFER PORT	27935
47	SCREW, TRANSFER PORT COVER MOUNTING (5/8")	10-20540
47	SCREW, TRANSFER PORT COVER AND RESISTOR SNUBBER MOUNTING (1	10-24770
48	LOCKWASHER, TRANSFER PORT COVER AND RESISTOR SNUBBER MOUNTIN	13-26992
49	CONNECTOR, CYLINDER BLEED HOSE - LOWER	22-67902
50	HOSE, CYLINDER BLEED (5 1/2") - LOWER	32-9912688
51	TEE, CHECK VALVE AND ADAPTOR	22-25956
52	ADAPTOR AND CHECK VALVE ASSEMBLY	22-28586A1
53	CHECK VALVE ASSEMBLY, ADAPTOR	21-28481A1
54	HOSE, CYLINDER BLEED (6 1/2") - UPPER	32-9912688
55	CHECK VALVE ASSEMBLY, UPPER - BLEED HOSE	22-62365A1
53	CHECK VALVE ASSEMBLY	21-28481A1
56	CLAMP, BLEED HOSE TO CONNECTORS	54-20387

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	PILOT ASSEMBLY	29633A1
2	BEARING BALL - DISTRIBUTOR PILOT	30-20066
3	SPRING, HORSESHOE	24-29275
4	PIN, SPRING TERMINAL	17-27962
5	WASHER, SPRING TERMINAL PIN	12-8M0204649
6	SECTOR GEAR AND PIN ASSEMBLY	43-28509A1
7	PIN SPRING RETAINER	17-27961
8	FITTING, GREASE - SECTOR GEAR 1	22-69059
9	THROTTLE ACTUATOR ASSEMBLY	29558A1
10	BUSHING, NYLON - THROTTLE ACTUATOR	23-26602
11	SCREW, THROTTLE ACTUATOR TO GEAR SECTO	10-20665
12	WASHER, THROTTLE ACTUATOR FASTENING SCREW	12-847883	12-20128
--	LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW	13-26996
13	ADAPTOR, DISTRIBUTOR	30044
14	WASHER, THRUST - DISTRIBUTOR PILOT	12-27939
15	TAB WASHER, CAP LOCKING	14-27960
16	WASHER, WAVE - TAB WASHER TENSION	13-27959
17	CAP, ADAPTOR AND PILOT FASTENING	27955
18	DRIVE SHAFT ASSEMBLY, DISTRIBUTOR	45-28473A1
19	SPRING, DISTRIBUTOR DRIVE SHAFT 1	24-28469
20	BEARING, BALL - DRIVE SHAFT	30-26379
21	RING, SNAP - BALL BEARING RETAINING	53-26406
22	FITTING, GREASE - ADAPTOR	22-25094
23	SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR	10-28668
24	LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW	13-26992
25	SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE	10-78841
26	WASHER, ADAPTOR AND PILOT FASTENING SCREW	12-20084
27	NUT, ADAPTOR AND PILOT FASTENING SCREW	11-22053
28	BELT, TIMING	20140
30	KEY, MAGNETO DRIVING	28-28657
29	SPACER, PULLEY TO MAGNETO ADAPTOR CAP OLD STYLE	23-27957
31	PULLEY, DRIVEN	29783A2
32	FLANGE, DRIVEN PULLEY	20136
--	HUB, DRIVEN PULL NEW STYLE SEE NOTE BELOW	29784
--	DRIVEN PULLEY ASSEMBLY	29783A1
--	ROLL PIN, FLANGE LCOATING	17-24873
--	FLANGE, DRIVEN PULLEY	29785
33	WASHER, PULLEY CLAMPING SCREW	12-20138
34	LOCKWASHER, PULLEY CLAMPING SCREW	13-26996
35	SCREW, PULLEY CLAMPING	10-32228
36	BRACKET, GUIDE RACK	29632
37	GUIDE RACK ASSEMBLY	26610A5
38	GROMMET, GUIDE RACK BRACKET	25-29727
39	SCREW, THROTTLE STOP ADJUSTING	10-64022
40	NUT, THROTTLE STOP ADJUSTING SCREW	11-20890
41	CAP, NYLON - ADJUSTING SCREW	26852
42	RACK AND PIN ASSEMBLY, GUIDE RACK	26827A1
43	PIN,LINK - NYLON RACK	17-26816
44	ROLL PIN, LINK PIN TO NYLON RACK	17-23757
45	SCREW, GUIDE RACK BRACKET TO DISTRIBUTOR ADAPTOR	10-28636
46	WASHER, GUIDE RACK BRACKET FASTENING SCREW	12-20533
47	GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE	30109
48	LEVER, VERTICAL 1	26598
49	LINK, VERTICAL LEVER TO NYLON RACK	26593
50	RIVET, LINK TO VERTICAL LEVER	17-26637
51	NUT, LINK PIN TO VERTICAL LEVER LINK	11-20110
52	BUSHING, NYLON - VERTICAL LEVER (1/2"I.D.)	23-26599
53	BUSHING, STEEL - VERTICAL LEVER	23-26603
54	BUSHING, NYLON - VERTICAL LEVER (1/4"I.D.)	23-26600
55	SCREW, VERTICAL LEVER TO EXHAUST COVER	10-26638
56	WASHER,VERTICAL LEVER FASTENING SCREW	12-68300
57	LEVER, REVERSE THROTTTLE PICKUP	26604
58	SCREW, PICKUP LEVER TO DISTRIBUTOR HOUSIN	10-29155
59	WASHER, PICKUP LEVER FASTENING SCREW	12-8M0204649
60	LOCKWIRE, PICKUP LEVER FASTENING SCREW	29156
61	DISTRIBUTOR ASSEMBLY, COMPLETE	393-1282A13
62	SPARK PLUG	33-813416
63	COIL, IGNITION	898253T24	392-806529A 1
64	"O"RING, IGNITION COIL	25-26543
65	JUMPER ASSEMBLY, COIL TO COIL	26454A1
66	SLEEVE, COIL JJUMPER	32-26627
--	JUMPER, COIL TO COIL	28922
67	CLIP, DISTRIBUTOR PRIMARY GROUND LEAS (1/4-6)	54-24836
68	"D" WASHER, GROUND LEAD CLIP SCREW	8M0084613	69205
69	SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE	10-8M0113176

DISTRIBUTOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 700 (6 CYL.) DISTRIBUTOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	DISTRIBUTOR ASSEMBLY, COMPLETE	393-1282A13
1	HOUSING, PRIMARY	393-1282
2	ELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSING	22-25885A1
3	BREAKER ASSEMBLY, COMPLETE	393-1504A11
4	STUD, PRIMARY LEAD AND TENSION SPRING FASTENING 2	16-29230
5	NUT, PRIMARY LEAD FASTENING	11-29236
6	GROMMET, PLASTIC - BREAKER ASSEMBLY	393-1586
7	WASHER, BREAKER PIVOT PIN	12-26439
8	COTTER PIN, BREAKER TO PIVOT PIN	18-26953
9	CAM WICK & HOLDER ASSEMBLY	393-1287A2
10	SCREW, BREAKER HOLDER TO HOUSING	10-20597
11	CONDENSER	393-1283A1
12	SCREW, CONDENSER TO HOUSING	10-29434
13	WIRE, PRIMARY GROUND 1	393-1656
14	BEARING, BALL - CAM SHAFT	30-26379
15	SHAFT ASSEMBLY, DISTRIBUTOR CAM	393-1541A2
16	BUSHING, NYLON - CAM SHAFT TO ROTOR	23-28933
17	"O"RING, CAM SHAFT	25-26543
18	PIN, ROLL - CAM SHAFT	17-25319
19	WAVE WASHER, BALL BEARING TENSION	13-26917
20	ADAPTOR, HOUSING TO DISTRIBUTOR CAP	393-1278
21	GASKET, HOUSING TO ADAPTOR	27-26412
22	SCREW, ADAPTOR TO HOUSING	10-32651
23	ROTOR, DISTRIBUTOR	393-1280A1
24	GASKET, DISTRIBUTOR CAP TO ADAPTOR	27-26446
25	DISTRIBUTOR CAP ASSEMBLY	393-1927A9
26	BRUSH AND SPRING ASSEMBLY	393-1293A1
27	ELBOW, VENT HOSE - DISTRIBUTOR CAP	22-996642
28	SIDE INLET ASSEMBLY	F1277
29	BRUSH AND SPRING ASSEMBLY	393-1292A1
30	GASKET, SIDE INLET TO DISTRIBUTOR CAP	27-26447
31	SCREW, SIDE INLET TO DISTRIBUTOR CAP	10-29167
32	SCREW, DISTRIBUTOR CAP TO ADAPTOR	10-29158
33	TAB WASHER, DISTRIBUTOR CAP FASTENING SCREW	14-29157
34	HIGH TENSION CABLE ASSEMBLY (COIL#2)	84-821945A37	84-813706A37, 84-93475A33
35	HIGH TENSION CABLE ASSEMBLY (COIL #1)	84-821945A27	84-813706A27, 84-93475A32
36	SLEEVE, TERMINAL END COVER	85-94589
37	CONNECTOR, HIGH TENSION CABLE (CAP END)	8M0084600	20121
38	GROMMET, HIGH TENSIO CABLE	25-26547
39	SPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)	84-813715A1
37	CONNECOTR SPARK PLUG LEAD	8M0084600	20121
36	SLEEVE TERMINAL END COVER	85-94589
41	SLEEVE, SPARK PLUG LEADS	32-30574
42	SLEEVE, SPARK PLUG LEADS	32-46768
43	PROTECTOR, SPARK PLUG	85-63709A1

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY	1529-1665A2
1	DRIVE SHAFT HOUSING ASSEMBLY	1529-1745A2
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-46911
3	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-57935
4	TUBE, WATER INLET	32-29678
5	SEAL, RUBBER - WATER INLET TUBE	26-26207
6	GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL	27-26198
7	WASHER, POWERHEAD STUDS	12-20086
8	NUT, POWERHEAD STUDS	11-8M0204726
9	NUT, POWERHEAD STUDS	11-23161
10	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-29850
11	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
12	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
13	CAP, RUBBER - UPPER MOUNT BOLT NUT	25305
14	NUT, UPPER MOUNT BOLT	11-8M0204653
15	SPACER, UPPER MOUNT BOLT	23-27725
15	SPACER, UPPER MOUNT BOLT	23-30465
16	WASHER, UPPER MOUNT BOLT	12-27728
16	WASHER, UPPER MOUNT BOLT	12-30475
17	WASHER, RUBBER - UPPER MOUNT BOLT	12-27726
18	WASHER, UPPER MOUNT BOLT	12-27727
19	COVER, UPPER MOUNT - OUTSIDE HALF	26218
20	COVER, UPPER MOUNT - INSIDE HALF	26217
21	MOUNT, RUBBER - UPPER	30463
21	MOUNT, RUBBER - UPPER	30463
22	PACKING, "U" CUP	24929
23	SCREW, UPPER MOUNT COVER (1 5/8")	10-20012
24	SCREW, UPPER MOUNT COVER (2 1/4")	10-28775
24	SCREW, UPPER MOUNT COVER (1 7/8")	10-29389
25	WASHER, UPPER MOUNT COVER SCREWS	12-8M0204649
26	NUT, UPPER MOUNT COVER SCREWS	11-35888
27	BUMPER, RUBBER - MOUNTING SCREW	25067
28	SCREW, LOWER MOUNT (5 1/2")	10-24874
29	MOUNT, RUBBER - LOWER	26211
30	WASHER, MOUNTING SCREW	12-24872
31	NUT, MOUNTING SCREW	11-25096
32	COVER, LOWER MOUNT - PORT SIDE	26336
32	COVER, LOWER MOUNT - STARBOARD SIDE	26337
33	SCREW, LOWER MOUNT COVER FASTENING	10-29256

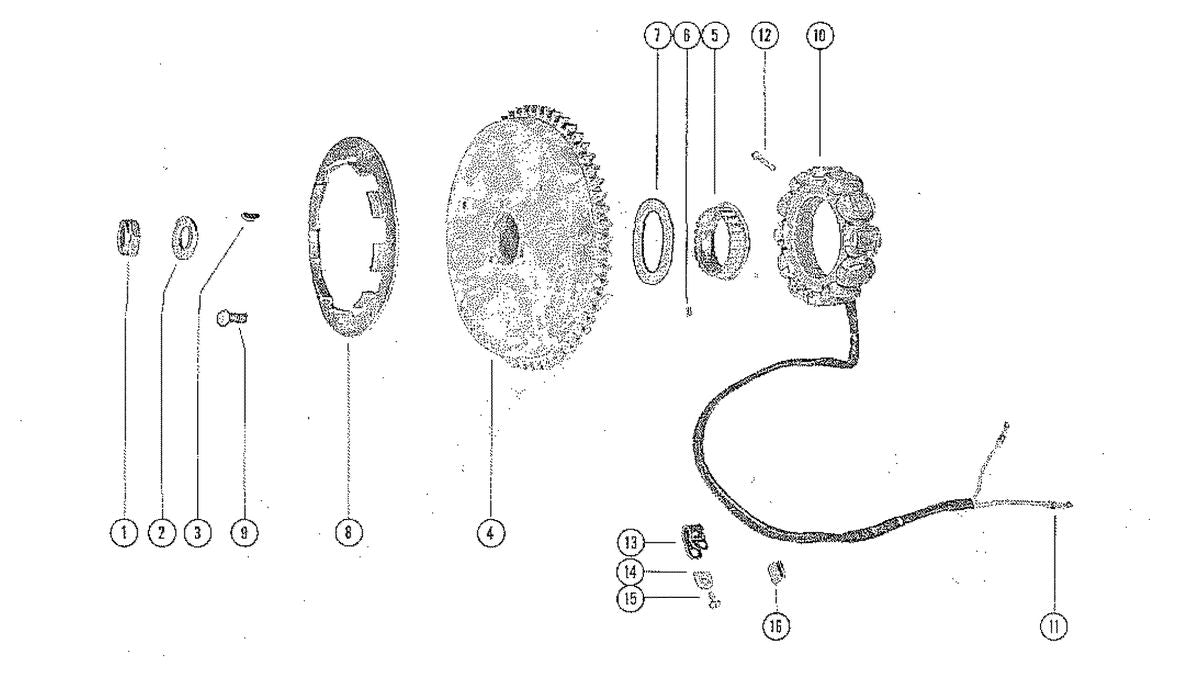

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 700 (6 CYL.) FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-8M0214915
2	WASHER, FLYWHELL NUT	12-26617
3	KEY, FLYWHEEL DRIVE	28-20094
4	FLYWHEEL ASSEMBLY	212-1424A4
5	PULLEY, FLYWHEEL (SEE NOTE BELOW)	22823
7	WASHER, PULLEY TO FLYWHEEL	12-25293
-	FLANGE, FLYWHELEL PULLEY (SEE NOTE BELOW)	29788
-	PULLEY, FLYWHEEL	30306
-	HUB, FLANGE - FLYWHEEL PULLEY	29787
6	DOWEL PIN, PULLEY TO FLYWHEEL	17-26618
8	RATCHET, FLYWHEEL	50-25263
9	SCREW, RATCHET TO FLYWHEEL	10-29238
10	STATOR, ALTERNATOR	398-2035
11	TERMINAL, STATOR LEAD WIRES	30050
12	SCREW, STATOR TO UPPER END CAP	10-29283
13	CLIP, TATOR LEAD TO EXHUAST COVER	54-24836
14	"D"WASHER CLIP FASTENING SCREW	8M0084613	69205
15	SCREW, STATOR LEAD CLIP FASTENING	10-8M0113176
16	"S" CLIP, STATOR LEAD TO BOTTOM COWL	54-22783

FUEL PUMP AND FUEL LINES

Below is the parts list for Mercury 700 (6 CYL.) FUEL PUMP AND FUEL LINES:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY, UPPER	29178A2
1	FUEL PUMP ASSEMBLY, UPPER	30269A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK - FUEL PUMP	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAGM, FUEL PUMP	23014
-	PLUG, PIPE - FUEL PUMP HOUSING OUTLER	22-390721
1	FUEL PUMP ASSEMBLY, LOWER	29178A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAGM, FUEL PUMP	23014
8	COVER, FUEL PUMP	29044
9	GASKET, FUEL PUMP COVER	27-30276
10	SCREW, FUEL PUMP MOUNTING (1 3/4")	10-29126
11	SCREW, FUEL PUMP MOUNTING (1 1/2")	10-29029
12	FUEL LINE, UPPER PUMP TO LOWER CARBURETOR (18 1/2")	32-30035
13	ELBOW, UPPER FUEL PUMP OUTLET	22-22995
14	SLEEVE, RUBBER	22-22946
15	NUT, ELBOW	22-22948
16	FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET (8")	32-29324
13	ELBOW, LOWER FUEL PUMP INLET	22-22995
14	SLEEVE, RUBBER	22-22946
15	NUT, ELBOW	22-22948
--	CONNECTOR, LOWER FUEL PUMP OUTLET	22-23595
--	ELBOW, FUEL PUMP OUTLET	22-24690
17	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")	32-30036
18	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
19	STEM, CHECK UNIT ADAPTOR	23069
20	"O" RING, ADAPTOR STEM	25-16524
21	SPRING, ADAPTOR STEM	24-23067T
22	CUP WASHER, ADAPTOR	30188
23	SCREW, ADAPTOR TO BOTTOM COWL	10-20784
24	NUT, ADAPTOR FASTENING SCREW	11-8M0207775
25	FUEL LINE, CENTER TO LOWER CARBURETOR	32-30040
26	FUEL LINE, UPPER TO CENTER CARBURETOR	32-38527
27	TEE, CENTER AND LOWER CARBURETOR	22-25956

GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION)(700E)

Below is the parts list for Mercury 700 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION)(700E):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1619-1646A4
1	GEAR HOUSING ASSEMBLY	1619-1646A3
2	BEARING, ROLLER - PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")	16-57935
5	STUD, WATER PUMP COVER TO GEAR HOUSING (3")	16-68202
6	STUD, WATER PUMP COVER TO GEAR HOUSING (2 7/8")	16-29592
7	SCREEN, WATER INTAKE	35-29073
8	DRIVE SHAFT (STANDARD)	45-29606
9	GEAR, PINION - DRIVE SHAFT	43-27889
10	WASHER, PINION GEAR TO RETAINING NUT	12-22025
11	NUT, PINION GEAR RETAINING	11-82671317
12	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-20929A1
13	BEARING, BALL - DRIVE SHAFT	30-72961
14	RING, RETAINING - BALL BEARING	53-29116
12	SHIM, DRIVE SHAFT BALL BEARING TO WATER PUMP BASE (.002-3-5	15-20929A1
15	"O" RING, WATER PUMP BASE	25-26855
16	WATER PUMP BASE ASSEMBLY	46-29972A1
17	OIL SEAL, WATER PUMP BASE	26-90562
18	PIN, DOWEL - WATER PUMP BASE TO BODY	17-29596T
19	GASKET, LOWER - WATER PUMP BASE TO PLATE	27-30018
20	PLATE, FACE - WATER PUMP BASE TO BODY	29600
21	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-30019
22	WATER PUMP BODY ASSEMBLY	46-30017A1
23	INSERT, WATER PUMP BODY	29104
24	OIL SEAL, WATER PUMP BODY	26-23517
25	IMPELLER, WATER PUMP	47-30041T
26	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
27	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
28	VALVE, WATER 2	21-26491
29	CLAMP, WATER VALVE TO ADAPTOR	54-26492
30	SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)	15-21158A1
31	LOCKWASHER, WATER PUMP BODY STUDS (5/16)	13-8M0204647
32	NUT, WATER PUMP BODY STUDS (5/16)	11-28770
33	LOCKWASHER, WATER PUMP BODY STUDS (1/4)	13-26992
34	NUT, WATER PUMP BODY STUDS (1/4)	11-29598
35	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-20273
36	SEAL, RUBBER - WATER PUMP BODY	26-38970
37	SLEEVE, WATER INLET TUBE GUIDE	23-29804T
38	SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING	26-26207
39	TUBE, WATER INTAKE - LOWER	32-29602
40	SLEEVE, WATER INTAKE TUBE	23-29591
41	PROPELLER SHAFT AND GEAR ASSEMBLY	44-29776A1
42	PIN, DOWEL - PROPELLER GEAR TO SHAFT	17-26200
--	RING, SNAP - PROPELLER GEAR	53-28757
43	SHIM, ADAPTOR RING TO GEAR HOUSING (.002-3-5)	15-26201A1
44	RING, ADAPTOR - PROPELLER SHAFT BALL BEARING	29780
45	BEARING, BALL - PROPELLER SHAFT ADAPTOR RING	30-28758
46	TAB WASHER, BALL BEARING RETAINING NUT	14-28445
47	NUT, BALL BEARING RETAINING	11-29712
48	"O" RING, BEARING CARRIER	25-26228
49	BEARING CARRIER ASSEMBLY	29778A1
50	BEARING, ROLLER - BEARING CARRIER	31-29610
51	OIL SEAL, BEARING CARRIER	26-29593
52	RACE, INNER - CARRIER ROLLER BEARING	29621
53	SPACER, INNER - BEARING CARRIER	23-29588
54	SLEEVE, SEALING - PROPELLER SHAFT	29609
55	"O" RING, SEALING SLEEVE	25-23145
56	WASHER, GEAR HOUSING COVER	12-29597
57	COVER, GEAR HOUSING	29943
58	SCREW, SET - COVER TO GEAR HOUSING	10-29941
59	PLUG, NYLON - GEAR HOUSING COVER SET SCREW	19-29944
60	SCREW, GEAR HOUSING FLUSHING HOLE	10-29608
61	SEAL, GEAR HOUSING FLUSHING HOLE	26-8M0214917
62	GASKET, GEAR HOUSING FLUSHING HOLE SCREW	27-8M0214916
63	SCREW, GEAR HOUSING VENT	10-28653
64	WASHER, GEAR HOUSING VENT SCREW	19643
65	SCREW, GEAR HOUSING GREASE FILLER HOLE	10-79953Q04
66	WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW	12-191833
67	THRUST HUB AND WASHER ASSEMBLY	29583A1
68	WASHER, CUPPED - THRUST HUB	12-29590
69	WASHER, CUP - PROPELLER SHAFT	12-29585
70	NUT, PROPELLER	11-29594
71	CAP, PROPELLER NUT - BROWN	29803
72	TAB, TRIM - GEAR HOUSING (ALUMINUM)	30192
72	TAB, TRIM - GEAR HOUSING (ZINC)	30192
73	SCREW, TRIM TAB TO GEAR HOUSING	10-29849

GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION)(700E-1)

Below is the parts list for Mercury 700 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION)(700E-1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1619-1768A4
1	GEAR HOUSING ASSEMBLY	1619-1768A1
2	BEARING, ROLLER - PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")	16-57935
5	STUD, WATER PUMP COVER TO GEAR HOUSING (3")	16-68202
6	STUD, WATER PUMP COVER TO GEAR HOUSING (2 7/8")	16-29592
7	DRIVE SHAFT (STANDARD)	45-29606
8	GEAR, PINION - DRIVE SHAFT	43-27889
9	WASHER, PINION GEAR TO RETAINING NUT	12-22025
10	NUT, PINION GEAR RETAINING	11-82671317
11	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-20929A1
12	BEARING, BALL - DRIVE SHAFT	30-72961
13	RING, RETAINING - BALL BEARING	53-29116
11	SHIM, DRIVE SHAFT BALL BEARING TO WATER PUMP BASE (.002-3-5	15-20929A1
14	"O" RING, WATER PUMP BASE	25-26855
15	WATER PUMP BASE ASSEMBLY	46-29972A1
16	OIL SEAL, WATER PUMP BASE	26-90562
17	PIN, DOWEL - WATER PUMP BASE TO BODY	17-29596T
18	GASKET, LOWER - WATER PUMP BASE TO PLATE	27-30018
19	PLATE, FACE - WATER PUMP BASE TO BODY	29600
20	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-30019
21	WATER PUMP BODY ASSEMBLY	46-30017A1
22	INSERT, WATER PUMP BODY	29104
23	OIL SEAL, WATER PUMP BODY	26-23517
24	IMPELLER, WATER PUMP	47-30041T
25	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
26	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
27	VALVE, WATER	21-26491
28	CLAMP, WATER VALVE TO ADAPTOR	54-26492
29	SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)	15-21158A1
30	LOCKWASHER, WATER PUMP BODY STUDS (5/16)	13-8M0204647
31	NUT, WATER PUMP BODY STUDS (5/16)	11-28770
32	LOCKWASHER, WATER PUMP BODY STUDS (1/4)	13-26992
33	NUT, WATER PUMP BODY STUDS (1/4)	11-29598
34	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-20273
35	SEAL, RUBBER - WATER PUMP BODY	26-38970
36	SLEEVE, WATER INLET TUBE GUIDE	23-29804T
37	SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING	26-26207
38	TUBE, WATER INTAKE - LOWER	32-29602
39	SLEEVE, WATER INTAKE TUBE	23-29591
40	PROPELLER SHAFT AND GEAR ASSEMBLY	44-29776A1
41	PIN, DOWEL - PROPELLER GEAR TO SHAFT	17-26200
--	RING, SNAP - PROPELLER GEAR	53-28757
42	SHIM, ADAPTOR RING TO GEAR HOUSING (.002-3-5)	15-26201A1
43	RING, ADAPTOR - PROPELLER SHAFT BALL BEARING	29780
44	BEARING, BALL - PROPELLER SHAFT ADAPTOR RING	30-28758
45	TAB WASHER, BALL BEARING RETAINING NUT	14-28445
46	NUT, BALL BEARING RETAINING	11-29712
47	"O" RING, BEARING CARRIER	25-26228
48	BEARING CARRIER ASSEMBLY	29778A1
49	BEARING, ROLLER - BEARING CARRIER	31-29610
50	OIL SEAL, BEARING CARRIER	26-29593
51	RACE, INNER - CARRIER ROLLER BEARING	29621
52	SPACER, INNER - BEARING CARRIER	23-29588
53	SLEEVE, SEALING - PROPELLER SHAFT	29609
54	"O" RING, SEALING SLEEVE	25-23145
55	WASHER, GEAR HOUSING COVER	12-29597
56	COVER, GEAR HOUSING	29943
58	PLUG, NYLON - GEAR HOUSING COVER SET SCREW	19-29944
59	SCREW, GEAR HOUSING FLUSHING HOLE	10-29608
60	SEAL, GEAR HOUSING FLUSHING HOLE	26-8M0214917
61	GASKET, GEAR HOUSING FLUSHING HOLE SCREW	27-8M0214916
62	SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE	10-79953Q04
63	WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW	12-191833
64	THRUST HUB AND WASHER ASSEMBLY	29583A1
65	WASHER, CUPPED - THRUST HUB	12-29590
66	WASHER, CUP - PROPELLER SHAFT	12-29585
67	NUT, PROPELLER	11-29594
68	CAP, PROPELLER NUT - BROWN	29803
69	WATER PICK-UP ASSEMBLY, GEAR HOUSING	30427A1
70	SCREW, WATER PICK-UP TO GEAR HOUSING (5/8")	10-30586
71	GASKET, WATER PICK-UP TO GEAR HOUSING	27-30296

GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION) (700E)

Below is the parts list for Mercury 700 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION) (700E):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1619-1646A7
1	GEAR HOUSING ASSEMBLY	1619-1646A1
2	BEARING, ROLLER - PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")	16-57935
5	STUD, WATER PUMP COVER TO GEAR HOUSING (3")	16-68202
6	STUD, WATER PUMP COVER TO GEAR HOUSING (2 7/8")	16-29592
7	SCREEN, WATER INTAKE	35-26189
8	DRIVE SHAFT (STANDARD)	45-29606
9	GEAR, PINION - DRIVE SHAFT	43-27889
10	WASHER, PINION GEAR TO RETAINING NUT	12-22025
11	NUT, PINION GEAR RETAINING	11-82671317
12	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-20929A1
13	BEARING, BALL - DRIVE SHAFT	30-72961
14	RING, RETAINING - BALL BEARING	53-29116
12	SHIM, DRIVE SHAFT BALL BEARING TO WATER PUMP BASE (.002-3-5	15-20929A1
15	"O" RING, WATER PUMP BASE	25-26855
16	WATER PUMP BASE ASSEMBLY	46-29972A1
17	OIL SEAL, WATER PUMP BASE	26-90562
18	PIN, DOWEL - WATER PUMP BASE TO BODY	17-29596T
19	GASKET, LOWER - WATER PUMP BASE TO PLATE	27-30018
20	PLATE, FACE - WATER PUMP BASE TO BODY	29600
21	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-30019
22	WATER PUMP BODY ASSEMBLY	46-30017A1
23	INSERT, WATER PUMP BODY	29104
24	OIL SEAL, WATER PUMP BODY	26-23517
25	IMPELLER, WATER PUMP	47-30041T
26	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
27	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
28	VALVE, WATER	21-26491
29	CLAMP, WATER VALVE TO ADAPTOR	54-26492
30	SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)	15-21158A1
31	LOCKWASHER, WATER PUMP BODY STUDS (5/16)	13-8M0204647
32	NUT, WATER PUMP BODY STUDS (5/16)	11-28770
33	LOCKWASHER, WATER PUMP BODY STUDS (1/4)	13-26992
34	NUT, WATER PUMP BODY STUDS (1/4)	11-29598
35	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-20273
36	SEAL, RUBBER - WATER PUMP BODY	26-38970
37	SLEEVE, WATER INLET TUBE GUIDE	23-29804T
38	SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING	26-26207
39	TUBE, WATER INTAKE - LOWER	32-29602
40	SLEEVE, WATER INTAKE TUBE	23-29591
41	SHAFT, PROPELLER	44-29607
42	GEAR, PROPELLER	43-29604
43	PIN, DOWEL - PROPELLER GEAR TO SHAFT	17-26200
44	SHIM, THRUST RING TO GEAR HOUSING (.002-3-5)	15-26201A1
45	RING, THRUST - PROPELLER SHAFT	12-29584
46	BEARING, BALL - PROPELLER GEAR	30-20840
47	TAB WASHER, BEARING RETAINING NUT	14-28445
48	NUT, BALL BEARING RETAINING	11-28444
49	"O" RING, BEARING CARRIER	25-26228
50	BEARING CARRIER ASSEMBLY	29599A1
51	BEARING, ROLLER - BEARING CARRIER	31-29610
52	OIL SEAL, BEARING CARRIER	26-29593
53	RACE, INNER - CARRIER ROLLER BEARING	29621
54	SPACER, INNER - BEARING CARRIER	23-29588
55	SLEEVE, SEALING - PROPELLER SHAFT	29609
56	"O" RING, SEALING SLEEVE	25-23145
57	WASHER, GEAR HOUSING COVER	12-29597
58	COVER, GEAR HOUSING	29943
59	SCREW, GEAR HOUSING FLUSHING HOLE	10-29608
60	SEAL, GEAR HOUSING FLUSHING HOLE	26-8M0214917
61	GASKET, GEAR HOUSING FLUSHING HOLE SCREW	27-8M0214916
62	SCREW, GEAR HOUSING VENT	10-28653
63	WASHER, GEAR HOUSING VENT SCREW	19643
64	SCREW, GEAR HOUSING GREASE FILLER HOLE	10-79953Q04
65	WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW	12-191833
66	THRUST HUB AND WASHER ASSEMBLY	29583A1
67	WASHER, CUPPER - THRUST HUB	12-29590
68	WASHER, CUP - PROPELLER SHAFT	12-29585
69	NUT, PROPELLER	11-29594
70	CAP, PROPELLER NUT - BLACK	29603
71	TAB, TRIM - GEAR HOUSING (ALUMINUM)	30192
71	TAB, TRIM - GEAR HOUSING (ZINC)	30192
72	SCREW, TRIM TAB TO GEAR HOUSING	10-29849

GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION)(700E-1)

Below is the parts list for Mercury 700 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION)(700E-1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1619-1768A2
1	GEAR HOUSING ASSEMBLY	1619-1768A1
2	BEARING, ROLLER - PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")	16-57935
5	STUD, WATER PUMP COVER TO GEAR HOUSING (3")	16-68202
6	STUD, WATER PUMP COVER TO GEAR HOUSING (2 7/8")	16-29592
7	DRIVE SHAFT (STANDARD)	45-29606
8	GEAR, PINION - DRIVE SHAFT	43-27889
9	WASHER, PINION GEAR TO RETAINING NUT	12-22025
10	NUT, PINION GEAR RETAINING	11-82671317
11	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-20929A1
12	BEARING, BALL - DRIVE SHAFT	30-72961
13	RING, RETAINING - BALL BEARING	53-29116
11	SHIM, DRIVE SHAFT BALL BEARING TO WATER PUMP BASE (.002-3-5	15-20929A1
14	"O" RING, WATER PUMP BASE	25-26855
15	WATER PUMP BASE ASSEBMLY	46-29972A1
16	OIL SEAL, WATER PUMP BASE	26-90562
17	PIN, DOWEL - WATER PUMP BASE TO BODY	17-29596T
18	GASKET, LOWER - WATER PUMP BASE TO PLATE	27-30018
19	PLATE, FACE - WATER PUMP BASE TO BODY	29600
20	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-30019
21	WATER PUMP BODY ASSEMBLY	46-30017A1
22	INSERT, WATER PUMP BODY	29104
23	OIL SEAL, WATER PUMP BODY	26-23517
24	IMPELLER, WATER PUMP	47-30041T
25	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
26	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
27	VALVE, WATER	21-26491
28	CLAMP, WATER WALVE TO ADAPTOR	54-26492
29	SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)	15-21158A1
30	LOCKWASHER, WATER PUMP BODY STUDS (5/16)	13-8M0204647
31	NUT, WATER PUMP BODY STUDS (5/16)	11-28770
32	LOCKWASHER, WATER PUMP BODY STUDS (1/4)	13-26992
33	NUT, WATER PUMP BODY STUDS (1/4)	11-29598
34	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-20273
35	SEAL, RUBBER - WATER PUMP BODY	26-38970
36	SLEEVE, WATER INLET TUBE GUIDE	23-29804T
37	SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING	26-26207
38	TUBE, WATER INTAKE - LOWER	32-29602
39	SLEEVE, WATER INTAKE TUBE	23-29591
40	SHAFT, PROPELLER	44-29607
41	GEAR, PROPELLER	43-29604
42	PIN, DOWEL - PROPELLER GEAR TO SHAFT	17-26200
43	SHIM, THRUST RING TO GEAR HOUSING (.002-3-5)	15-26201A1
44	RING, THRUST - PROPELLER SHAFT	12-29584
45	BEARING, BALL - PROPELLER GEAR	30-20840
46	TAB WASHER, BEARING RETAINING NUT	14-28445
47	NUT, BALL BEARING RETAINING	11-28444
48	"O" RING, BEARING CARRIER	25-26228
49	BEARING CARRIER ASSEMBLY	29599A1
50	BEARING, ROLLER - BEARING CARRIER	31-29610
51	OIL SEAL, BEARING CARRIER	26-29593
52	RACE, INNER - CARRIER ROLLER BEARING	29621
53	SPACER, INNER - BEARING CARRIER	23-29588
54	SLEEVE, SEALING - PROPELLER SHAFT	29609
55	"O" RING, SEALING SLEEVE	25-23145
56	WASHER, GEAR HOUSING COVER	12-29597
57	COVER, GEAR HOUSING	29943
58	SCREW, GEAR HOUSING FLUSHING HOLE	10-29608
59	SEAL, GEAR HOUSING FLUSHING HOLE	26-8M0214917
60	GASKET, GEAR HOUSING FLUSHING HOLE SCREW	27-8M0214916
61	SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE	10-79953Q04
62	WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW	12-191833
63	THRUST HUB AND WASHER ASSEMBLY	29583A1
64	WASHER, CUPPED - THRUST HUB	12-29590
65	WASHER, CUP - PROPELLER SHAFT	12-29585
66	NUT, PROPELLER	11-29594
67	CAP, PROPELLER NUT - BLACK	29603
68	PICK-UP, WATER - GEAR HOUSING	30427A1
69	GASKET, WATER PICK-UP TO GEAR HOUSING	27-30296
70	SCREW, WATER PICK-UP TO GEAR HOUSING (1/2")	10-30378
71	SCREW, WATER PICK-UP TO GEAR HOUSING (2 3/4")	10-30298
72	LOCKWASHER, WATER PICK-UP FASTENING SCREW	13-8M0204647
73	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")	10-30206

MERC 700EL PARTS LIST

Below is the parts list for Mercury 700 (6 CYL.) MERC 700EL PARTS LIST:

Position No.	Part Name	OEM Number
-	SWIVEL BRACKET ASSEMBLY	1447-1448A1
-	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-28211A1
-	ROD, PUSH- REVERSE LOCK	29485
-	DRIVE SHAFT HOUSING ASSEMBLY	1533-1667A1
-	DRIVE SHAFT HOUSING ASSEMBLY	1533-1749A1
-	TUBE, WATER INLET	32-29679
-	DRIVE SHAFT	45-29680
-	PIN, LOWER SHOCK MOUNTING	55-28414
-	SCREW, LOWER SHOCK PIN	10-28424
-	NUT, LOWER SHOCK FASTENING SCREW	11-8267089
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: STANDARD ROTATION	1619-1646A5
-	GEAR HOUSING ASSEMBLY, COMPETE Comment: STANDARD ROTATION	1619-1768A3
-	GEAR HOUSING ASSEMBLY, COMPETE Comment: COUNTER ROTATION	1619-1646A6
-	GEAR HOUSING ASSEMBLY, COMPETE	1619-1768A5

OVERSIZE PISTONS AND RINGS

Below is the parts list for Mercury 700 (6 CYL.) OVERSIZE PISTONS AND RINGS:

Position No.	Part Name	OEM Number	Supersedes
--	PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)	724-2553A2
--	RINGS, PISTON (.015 OVERSIZE)	39-28616A12

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES

Below is the parts list for Mercury 700 (6 CYL.) STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNES, INTERNAL	29999
2	TERMINAL, HARNESS AND MERCURY SWITCH LEADS	30050
3	SPRING,GARTER - INTERNAL WIRING HARNESS	24-28975
4	PLATE, WIRING HARNESS TO BOTTOM COWL	26079A2
5	SCREW, HARNESS PALTE FASTENING	10-45893
6	"S"CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL	54-22783
7	RECTIFIER ASSEMBLY	32177A2	29691
8	LOCKWASHER, RECTIFIER MOUNTING SCREW	13-8M0204647
9	NUT, RECTIFIER MOUNTING SCREW	11-21929
10	SLEEVE, RUBBER - RECTIFIER HARNESS LEAD	32-28052
11	SLEEVE, RUBBER - RECTIFIER STATOR LEAD	32-28373
12	SCREW, HARNESS AND STATOR LEADS TO RECTIFIER	10-35400
13	NUT, HARNESS AND STATOR LEADS FATENING SCREW	11-8M0204718
14	STARTER MOTOR ASSEMBLY	50-48720
15	SHIM, STARTER MOTOR TO CRANKCASE FLANGE	15-26496
16	SCREW, STARTER MOTOR TO CRANKCASE FLANGE	10-22698
17	LOCKWASHER, STARTER MOTOR FASTENING SCREW	13-8M0204647
18	BRACKET, SUPPORT - STARTER MOTOR	27026
19	WASHER, THRU BOLT - BRACKET TO STARTER MOTOR	12-24664
20	LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR	13-26992
21	NUT, THRU BOLT - BRACKET TO STARTER MOTOR	11-20890
22	CABLE, WIRE - STARTER TO UPPER STARTER SOLENOID	26511
23	CABLE, WIRE - STARTER TO LOWER STARTER SOLENOID	84-93389A12
24	CLAMP, LOWER CABLE - STARTER TO STARTER SOLENOID	54-20534
25	JUMPER ASSEMBLY, SOLENOID TO SOLENOID	26478A1
26	SLEEVE, JUMPER	32-26627
--	JUMPER, SOLENOID TO SOLENOID	30070
27	SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTER	10-69035
28	SOLENOID, STARTER	32268
29	LEAD, JUMPER - SOLENOID TO SOLENOID	28922
30	LOCKWASHER, SOLENOID TERMINAL (5/16)	13-8M0204647
31	NUT, SOLENOID TERMINAL (5/16)	11-22053
32	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
33	NUT, SOLENOID TERMINALJ	10,11-68219
34	SCREW, SOLENOID TO STARTER MOTOR	10-29238
35	CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET	54-23567
36	"D" WASHER, HARNESS CLAMP	8M0084613	69205
37	SCREW, HARNESS CLAMP FASTENING	10-62568
38	BLOCK, TERMINAL - UPPER FUEL PUMP PAD	29714
39	SCREW, TERMINAL BLOCK FASTENING	10-24241
40	LOCKKWASHER, TERMINAL BLOCK FASTENING SCREW	13-26996
41	WASHER, TERMINAL BLCOK FASTENING SCREW	12-26014
42	RESISTOR	393-1572
43	SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW	30449
44	JUMPER, RESISTOR TO RESISTOR TERMINAL BLOCK	29112
45	SCREW, HARNESS AND RESISTOR LEADS TO TERMINAL BLOCK	10-35400
46	CLIP, WIRING HARNESS TO CRANKCASE AND CYLINDER BLOCK COVER	54-22740
47	"D"WASHER, HARNESS CLIP	8M0084613	69205
48	SCREW, HARNESS CLIP FASTENING	10-8M0113176
--	TERMINAL BLOCK ASSEMBLY EXHAUST COVER	29765A1
49	BLOCK, TERMIANL - EXHAUST COVER	29765
50	BRACKET, TERMINAL BLOCK TO EXHAUST COVER	29764
51	SCREW, TERMINAL BLOCK TO BRACKET	10-22523
52	WASHER, TERMINAL BLOCK FASTENING SCREW	12-26014
53	NUT, TERMIANL BLOCK FASTENING SCREW	11-20110
--	DECAL, TERMIANL BLOCK COLOR LEADS	37-29903
54	SWITCH, MERCURY	58124A4
55	CLAMP, MERCURY SCWITCH	54-22875
56	"D"WASHER, CLAMP FASTENING SCREW	8M0084613	69205
57	SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER	10-20401
58	SCREW, HARNESS AND SWITCH LEADS TO TERMINAL BLOCK	10-35400
59	SWITCH AND HARNESS ASSEMBLY, FORWARD AND REVERSE	29726
--	SWITCH, FOWARD OR REVERSE	29773
--	SPRING, FORWARD OR REVERSE SWITCH	24-29709
60	SCREW, SWITCH AND HARNESSS TO GUIDE RACK BRACKET	10-24219
61	CLIP, REVERSE SWITCH LEAD (1/8-3)	54-25231
62	CLIP, FORWARD SWITCH LEAD (1/4-3)	54-29721
63	"D" WASHER, FORWARD AND REVERSE LEAD CLIP	8M0084613	69205
64	NUT, SWITCH AND HARNESS FASTENING SCREW	11-20437
65	CLIIP, SWITCH AND HARNESS LEAD	54-26550
66	"D" WASHER, HARNESS LEAD CLIP FASTENING SCREW	8M0084613	69205
67	SCREW, HARNESS LEAD CLKIP TO CRANKCASE	10-8M0113176
68	CAM, ACTUATOR - FORWARD AND REVERSE SWITCH	29631
69	SCREW, ACTUATOR CAM TO PILOT ASSEMBLY	10-29722

TOP COWL AND STARTER ASSEMBLY

Below is the parts list for Mercury 700 (6 CYL.) TOP COWL AND STARTER ASSEMBLY:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY	177-1673A2
2	STUD, REAR - TOP COWL TO COVER	16-20500
3	STUD, FRONT - TOP COWL TO CRANKCASE	16-20353
4	GROMMET, CHOKE KNOB	25-20116
5	SCREEN, VENT - TOP COWL	28967
6	SCREW, VENT SCREEN TO TOP COWL	10-26668
7	TRIM MOULDING ASSEMBLEY, TOP COWL	29228A1
8	SCREW, DECORATIVE - MOULDING TO TOP COWL	10-29226
9	SCREW, BRASS - MOULDING TO TOP COWL	10-29227
10	LOCKWASHER, MOULDING FASTENING SCREW	13-26995
11	NUT, MOULDING FASTENING SCREW	11-26419
12	DECAL SET, TOP COWL	37-29834
13	SPACER, TOP COWL STUD	23-20326
14	WASHER, TOP COWL STUD (1/16")	12-20028
15	WASHER, TOP COWL STUD (3/4" OD)	12-69057
--	WASHER, TOP COWL STUD (1/32")	12-20583
16	NUT, TOP COWL FASTENING	11-8267089
17	RETAINER, STARTER SPRING	20155
18	SPRING, STARTER REWIND	24-29340T02
19	BUSHING, SPRING GUIDE	23-20159
20	SHEAVE ASSEMBLY	50-64008A1
21	PAWL, STARTER	20162
22	WASHER, WAVE - STARTER PAWL	13-29402
23	SPACER, SHEAVE SHAFT	23-20158
24	RETAINER, WAVE WASHER	26179
25	WASHER, WAVE WASHER RETAINER	12-26180
26	WASHER, WAVE - RETAINER TENSION	13-20160
27	PLATE, RETAINER - STARTER PAWL	20164
28	SHAFT, SHEAVE	20157
29	STARTER CABLE ASSEMBLY	50-12066Q10
30	HANDLE, STARTER CABLE	28747
31	RETAINER, STARTER CABLE AND HANDLE	79470A1
32	TAB WASHER, SHEAVE SHAFT NU	14-20165
33	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
34	HANDLE, CHROME - TOP COWL	31875
35	HANDLE, INSIDE - TOP COWL	31003
36	BUTTON, BUMPER - TOP COWL HANDLE	29413
37	WASHER, LOWER HANDLE STUD (3/4"OD_	12-69057
38	WASHER, CENTER HANDLE STUD (1/2"OD)	12-8M0204649
39	NUT, INSIDE HANDLE TO CHROME HANDLE STUDS	11-21825
40	SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")	10-56500
41	NUT, FRONT - HANDLE FASTENING SCREW	11-8267089
42	SCREW, CENTER - HANDLE TO TOP COWL (1")	10-29199
43	BUSHING REAR HANDLE STUD	23-29561
44	WASHER, REAR HANDLE STUD	12-8M0204649
45	NUT, REAR HANDLE STUD	11-21825

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
