BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 500 BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL ASSEMBLY	2116-7715A4
2	COVER, PLUG - BOTTOM COWL HARNESS HOLE Comment: REMOVE - NOT REQUIRED ON ELECTRIC ENGINE	57786
3	SCREW, PLUG COVER TO BOTTOM COWL Comment: REMOVE - NOT REQUIRED ON ELECTRIC ENGINE	10-45862
4	LOCKWASHER, PLUG COVER SCREW Comment: REMOVE - NOT REQUIRED ON ELECTRIC ENGINE	13-26996
-	WASHER, PLUG COVER SCREW Comment: REMOVE - NOT REQUIRED ON ELECTRIC ENGINE	12-847883	12-20128 REMOVE - NOT REQUIRED ON ELECTRIC ENGINE
5	STUD, BOTTOM COWL TO REAR SUPPORT BRACKET	16-68169
6	NUT, BOTTOM COWL STUD	11-35888
7	STOP SWITCH ASSEMBLY MANUEL Comment: MANUAL	59065A4
8	SPRING, STOP SWITCH Comment: MANUAL	24-60239
9	CONTACT ASSEMBLY, STOP SWITCH Comment: MANUAL	87-61577A1
10	COVER ASSEMBLY, STOP SWITCH Comment: MANUAL	38950A1
11	WASHER, STOP SWITCH Comment: MANUAL	12-59061
12	LOCKWASHER, STOP SWITCH Comment: MANUAL	13-26996
13	NUT, GROUND LEAD TO STOP SWITVH Comment: MANUAL	11-68219
14	LOCKWASHER, CONNECTOR BASE Comment: MANUAL	13-21972
15	NUT, CONNECTOR BASE TO BOTTOM COWL Comment: MANUAL	11-21971
16	WIRE, SWITCH BOX TO STOP SWITCH Comment: MANUAL	56319A5
17	COVER PLATE ASSEMBLY	60948A1
18	SCREW, COVER PLATE TO BOTTOM COWL (3/8")	10-62568
19	BOOT, CONTROL CABLE	37695
20	BOOT, FUEL CONNECTOR	37637
21	SUPPORT, EXTERNAL WIRING HARNESS ELECTRIC Comment: ELECTRIC	37692
22	SCREW, HARNESS SUPPORT TO BOTTOM COWL (2") Comment: ELECTRIC	10-67916
23	NUT, HARNESS SUPPORT SCREW Comment: ELECTRIC	11-8M0207775
24	HOSE, TELL TALE HOSE TO BOTTOM COWL	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
25	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	69791
26	CLAMP, NOZZLE - TELL TALE	66849
27	SCREW, NOZZLE CLAMP TO BOTTOM COWL (1/2")	10-48408

CARBURETOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 500 CARBURETOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1333-5818
1	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1333-5921
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
9	COVER, FLOAT BOWL Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1399-1133
9	COVER, FLOAT BOWL Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1399-6223
9A	HOSE, ECONOMIZER (#) Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP
9B	JET, ECONOMIZER (.086) Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1395-5815
10	SCREW, FLOAT BOWL COVER (SHORT)	10-52195
11	SCREW, FLOAT BOWL COVER (LONG)	10-52196
12	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
13	GASKET, STRAINER COVER (LARGE)	27-25851
14	SCREEN, FILTER	1399-3938
15	GASKET, STRAINER COVER (SMALL)	27-25849
16	COVER, STRAINER	1399-1135
17	GASKET, STRAINER COVER SCREW (#)
18	SCREW, STRAINER COVER FASTENING (#)
19	SCREW, THROTTLE STOP LEVER	1395-6027
20	LEVER, THROTTLE STOP(SEE NOTE BELOW)	1399-94
21	SHAFT, THROTTLE	1399-2012
22	TUBE, IDLE (#)
23	GASKET, IDLE TUBE (#)
24	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
25	SHUTTER, THROTTLE Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1399-3392
25	SHUTTER, THRORRLE Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1399-5812
26	SPRING, IDLE ADJUSTMENT SCREW (#)
27	SCREW, IDLE ADJUSTMENT (#)
28	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
29	GASKET, JET CHANNEL PLUG SCREW (#)
30	JET, MAIN FUEL (.065) - STANDARD Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1399-1465
30	JET, MAIN FUEL (.063) - STANDARD Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1399-1465
30	JET, MAIN FUEL (.061)	1399-1461
30	JET, MAIN FUEL (.059)	1399-1459
32	NOZZLE, MAIN (#)
33	SCREW, PLUG - MAIN NOZZLE	10-23178
34	SPRING, THROTTLE SHAFT RETURN (#)
35	SCREW, PLUG - BODY CHANNEL	10-28845
36	WELCH PLUG, BODY CHANNEL (#)
--	GASKET AND PAKCING SET (1 PER CARBURETOR)	1399-2015
--	REPAIR PARTS KIT (1 PER CARBURETOR) Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1395-92621
--	REPAIR PARTS KIT (1 PER CARBURETOR Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1399-5930
37	GASLET. CARBURETOR FLANGE	27-31402
38	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 500 CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number	Supersedes
1	CHOKE SOLENOID-ELECTRIC	89-889274	54293A11
2	LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC	13-26996
3	NUT, CHOKE SOLENOID TERMINAL ELECTRIC	11-68219
4	SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC	10-26066
5	LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC	13-8M0204647
6	NUT, CHOKE SOLENOID SCREW ELECTRIC	11-22053
7	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC	54283A2
8	WASHER, PLUNGER AND LINK ELECTRIC	12-30164
9	COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC	18-26953
10	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1333-5818
10	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1333-5921
11	CLUSTER, THROTTLE LEVER (UPPER CARB.)	74371
12	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
13	PICK-UP BRACKET ASSEMBLY	53719A2
13A	INSET COUPLING, THROTTLE SHAFT	28-89694
14	SCREW, PICK-UP BRACKET (3/4")	10-53651
15	KNOB, CHOKE ROD	90242A1
16	GROMMET, CHOKE KNOB	25-20116
17	"U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)	22462
17	"U"LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)	46303
18	SCREW, "U" LINK TO CHOKE KNOB	10-69022
19	LOCKWASHER, "U" LINK SCREW	13-26996
20	COTTER PIN, "U" LINK TO CHOKE ROD	18-26811
21	ROD, CHOKE(MANUAL)	47958
21	ROD, CHOKE(ELECTRIC)	46304
22	RIVET, CHOKE SHUTTER TO CHOKE ROD	17-25391
23	SPRING, TENSION - CHOKE ROD TO CARBURETOR	24-28965
24	SCREW, TENSION SPRING TO CARBURETOR	10-28713
25	RETAINER, SPRING	27711
26	SHUTTER, CHOKE - CARBURETOR	38604
27	BUSHING, NYLON - UPPER CHOKE SHUTTER(ELECTRIC)	23-30438
28	STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")	16-69036
29	WASHER, CHOKE SHUTTER CARBURETOR STUD	12-30164
30	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
31	SCREEN, FILTER - CARBURETOR	35-56197
32	STUD, FILTER SCREEN TO CARBURETOR (1 1/8")	16-69037
33	WASHER, FILTER SCREEN STUD	12-30164
34	NUT, FILTER SCREEN STUD	11-20110

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 500 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	10-78492A1
3	WASHER, THUMB SCREW	12-70988
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT LOCK PIN BUMPER	32-28052
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
15	WASHER, CLAMP BRACKET BOLT	12-68410
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")	10-68299
15	WASHER, CLAMP BRACKET BOLT	12-68300
16	NUT, CLAMP BRACKET BOLT	11-82670912
17	PIN, UPPER SHOCK MOUNTING	55-28416
18	SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)	1489-8597A4
18	SWIVEL BRACKET ASSEMBLY (LONG SHAFT)	1490-8599A6
19	OIL SEAL, SWIVEL BRACKET	26-32911
20	SCREW, DRIVE - SWIVEL BRACKET	10-47828
21	FITTING, GREASE	22-69059
22	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
23	TILT LOCK ASSEMBLY, STARBOARD	76386
24	TILT LOCK ASSEMBLY, PORT	76385T
25	TUBE, TILT LOCK	47802
26	COTTER PIN, TILT LOCK TUBE	18-47959
27	BUSHING, TILT LOCK TUBE	23-71574
28	WASHER, WAVE - TILT LOCK TUBE	13-69150
29	SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)	74316A2
29	SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)	74316A1
30	BUMPER, STEERING ARM	30711
31	BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")	10-33986
32	WASHER, SWIVEL PIN - LOWER	12-47606
33	BRACKET, RIDE GUIDE ATTACHING	76535T
34	STUD, RIDE GUIDE BRACKET TO STEERING ARM (1 1/4")	16-39781
35	NUT, RIDE GUIDE BRACKET STUD	11-8M0204726
36	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
37	WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)	12-25176
37	WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)	12-26837
38	YOKE, BOTTOM	77416T1
39	NUT, SWIVEL PIN RETAINING	11-71956
40	PIN, LOWER SHOCK MOUNTING	55-696531
41	SPRING, REVERSE LOCK TENSION	24-29821
42	REVERSE LOCK ASSEMBLY	87432
43	SHAFT, REVERSE LOCK PIVOT	56349
44	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
45	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
46	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
47	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
48	SHOCK ABSORBER	55-58780A7
49	BUSHING, RUBBER - SHOCK ABSORBER (UPPER)	23-32171
50	BUSHING, RUBBER - SHOCK ABSORBER (LOWER)	23-28198
51	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
52	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")	10-69375A1
53	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
54	SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")	10-37655

COWLING AND FRONT COVER

Below is the parts list for Mercury 500 COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	2182-7927A5
2	KNOB, COWL FRONT COVER FASTENING	56848
3	WASHER, COVER FASTENING KNOB	12-30771
4	WASHER, COVER FASTENING KNOB	12-59572
5	SPRING, TENSION - COVER FASTENING KNOB	24-30772
6	PIN, ROLL - TENSION SPRING TO KNOB	17-29077
7	BLANKET, SOUND ABSORBING	38674
8	SEAL, SOUND - LOWER SECTION	31095
9	SEAL SOUND - UPPER SECTION	38133
10	WRAP AROUND COWL ASSEMBLY	2118-3247A3
11	COWL LATCH ASSEMBLY	46785A1
12	HOOK, COWL LATCH FASTENING	30413
13	BLANKET, SOUND ABSORBING	37794
--	GLUE (BLANKET ADHESIVE)	92-86166Q1

CRANKSHAFT, PISTON AND CONNECTING ROD

Below is the parts list for Mercury 500 CRANKSHAFT, PISTON AND CONNECTING ROD:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT	400-4627
2	CARROER ASSEMBLY, "O" RING	60834A3
3	"O" RING, CARRIER	64254001
4	CENTER MAIN BEARING ASSEMBLY	500-5345A2
5	DOWEL PIN, CENTER MAIN BEARING	17-20032
6	BEARING, NEEDLE	29-20046T
7	RACE, OUTER	20047
8	RING, SNAP - OUTER RACE CLAMPING	53-20048
9	SCREW, CENTER MAIN VEARING CLAMPING (1 1/2")	10-20784
10	NUT, CENTER MAIN BEARING CLAMPING SCREW	11-8M0207775
11	DOWEL PIN, (STEPPED)	17-20379
12	MAIN BEARING ASSEMBLY (VALVE TYPE)	534-3267T25
13	DOWEL PIN, MAIN BEARING	17-20032
14	DOWEL PIN, REED LOCATING	17-65855
15	SCREW, MAIN BEARING CLAMPING (9/16")	10-45775
16	NUT, MAIN BEARING CLAMPING SCREW	11-45774
17	REED SET, MATCHED - MAIN BEARING	34-88498A1
18	REED STOP, MAIN BEARING REED VALVES	34-20053
19	SCREW, REED STOP MOUNTING (9/16")	10-77280
20	NUT, REED STOP MOUNTING SCREW	11-20110
21	PISTON AND PISTON PIN ASSEMBLY	780-9229A7
22	LOCK RING, PISTON PIN	40-828119	40-47276
23	RING, PISTON	39-27841A12
24	CONNECTING ROD AND CAN ASSEMBLY	632-7621A3
25	SCREW, CAP TO CONNECTING ROD	10-45379
26	NUT, CONNECTING ROD SCREW	11-20061
27	BEARING, NEDDLE - CRANKPIN	29-20046T
28	BEARING, NEEDLE-PISONT PIN	29-20063
29	WASHER, NEEDLE LOCATING	12-47275
--	PISOTN AND PISTON PIN ASSEMBLY (.015 OVERSIZE) Comment: OVERSIZE PISTON AND RING	780-9229A10
--	RING, PISTON (.015 OVERSIZE) Comment: OVERSIZE PISTON AND RING	39-28616A12

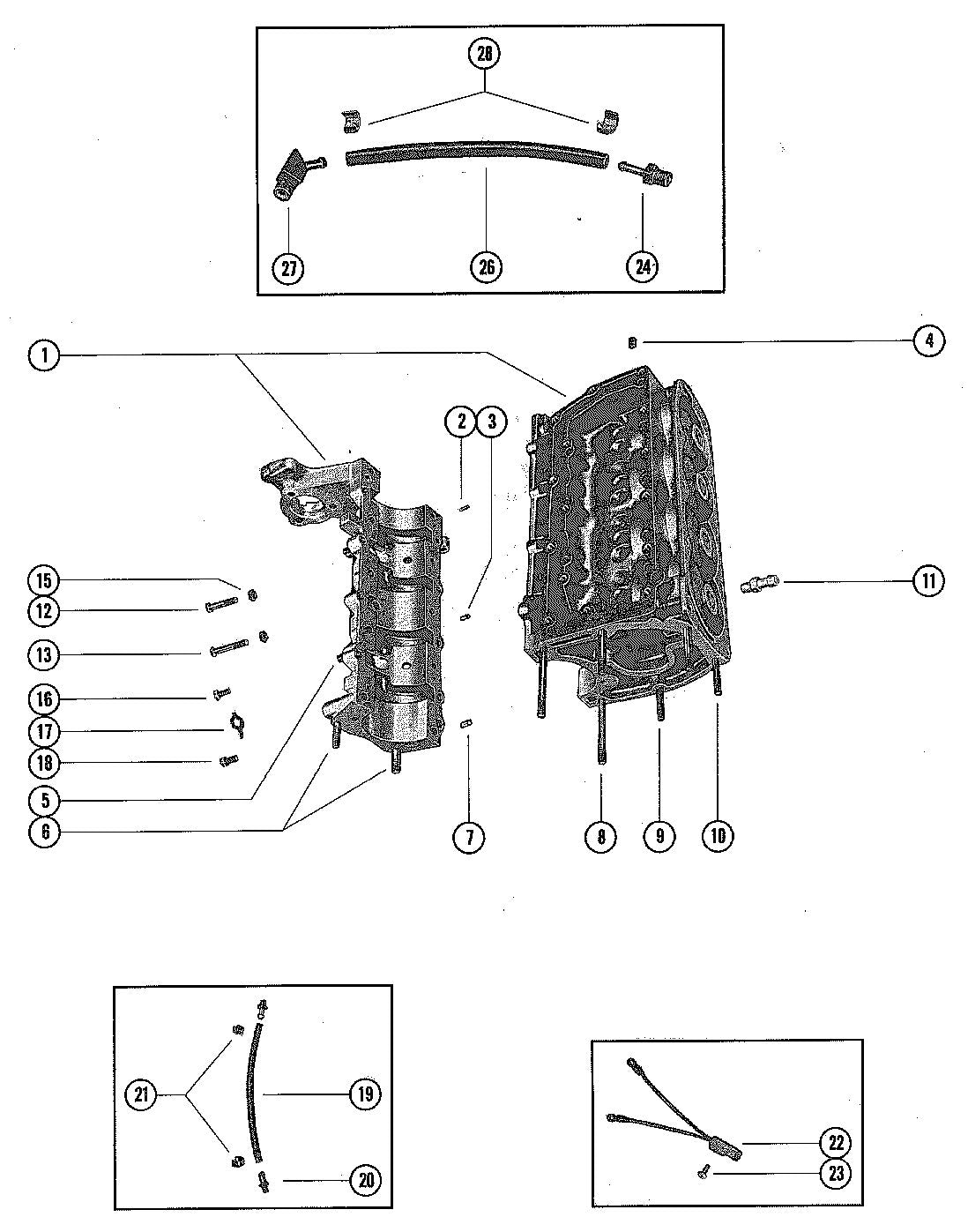

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 500 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	831-5347A3
2	DOWEL PIN. CYLINDER BLOCK TO MAIN BEARING	17-20032
3	DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING	17-20323
4	PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES	22-328022
5	STUD, CARBURETOR MOUNTING (1 1/4")	16-64936
6	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")	16-68165
7	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
8	STUD CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")	16-68168
9	STUD, CYL. BLOCK TO DRIVE SHAFT HOUSING 3 5/16")	16-68166
10	STUD, CYL. CLOCK TO DRIVE SHAFT HOUSING (1 15/16")	16-68167
11	CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK	22-291112
12	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-78841
12	SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
13	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
15	NUT, CRANKCASE SCREW	11-29250
16	SCREW, MAIN BEARING LOCKING (5/8")	10-98260
17	TAB WASHER, BEARING LOCKING SCREW	14-20091
18	SCREW, CENTER MAIN BEARING LOCKING (1")	10-20359
19	TUBE, BALANCE - MAIN BEARING (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK	22-291112
21	CLAMP, BALANCE TUBE TO CONNECTORS	54-20386
22	SWITCH ASSEMBLY, MERCURY	58124A8
23	SCREW, MERCURY SWITCH TO EXH. MANIFORLD COVER (1/2")	10-48408
24	CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)	21-64871A2
26	HOSE, CYLINDER BLEED	32-9938779
27	CONNECTOR, CYLINDER BLEED HOSE (LOWER)	22-56759
28	CLAMP, BLEED HOSE ATTACHING	54-20387

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 500 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1592-8188A8
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1593-7513A12
2	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
3	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")	16-8M0022145	16-57932
4	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")	16-57935
5	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	11-8M0204653
6	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	12-65791
7	ROD, PUSH - REVERSE LOCK (SHORT SHAFT)	47835
7	ROD, PUSH - REVERSE LOCK (LONG SHAFT)	47836
8	NUT, JAM - PUSH ROD	11-28770
9	ROD END, PUSH ROD	47837
10	PIN, REVERSE LOCK LEVER	24-78203A2
11	COTTER PIN, PUSH ROD TO REVERSE LOCK	18-25191
12	GUIDE, PUSH ROD Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	52917
12	GUIDE, PUSH ROD Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	933361
13	COVER, LOWER MOUNT CLAMP	35474T
14	SCREW, COVER TO LOWER MOUNT CLAMP	10-29722
15	NUT, LOWER MOUNT CLAMP COVER	11-35521
16	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	69592F1
17	SCREW, LOWER MOUNT CLAMP/DRIVE SHAFT HSG.	10-29256
18	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
19	MOUNT, RUBBER - LOWER	75304T1
20	BUMPER, RUBBER - LOWER MOUNT SCREW	25067
21	SCREW, LOWER MOUNT SCREW	10-75284
22	WASHER, LOWER MOUNT SCREW	12-28051
23	WASHER, RUBBER - LOWER MOUNT SCREW	12-28053
24	WASHER, LOWER MOUNT SCREW	12-30119
25	NUT, LOWER MOUNT SCREW	11-25096
26	MOUNT, RUBBER - UPPER	75305
26A	"O" RING, UPPER MOUNT	25-65936
27	PACKING, "U" CUP - UPPER MOUNT COVERS	24929
28	COVER, UPPER MOUNT - OUTSIDE HALF	79680A1
29	COVER, UPPER MOUNT - INSIDE HALF	79680A1
30	SCREW, UPPER MOUNT COVER - REAR (1 1/2")	10-49987
31	SCREW, UPPER MOUNT COVER - FRONT (1 3/4")	10-37941
32	NUT, UPPER MOUNT COVER FASTENING SCREW	11-69431
33	WASHER, UPPER MOUNT BOLT (37/64 ID)	12-27727
34	WASHER, RUBBER - UPPER MOUNT BOLT	12-66966
35	WASHER, UPPER MOUNT BOLD (3/8 ID)	12-30519
36	NUT, UPPER MOUNT BOLT	11-23161
37	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
38	NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")	11-64809
39	TUBE, EXHAUST(SHORT SHAFT)	695431
39	TUBE, EXHAUST(LONG SHAFT)	695441
40	TUBE, WATER INLET (SHORT SHAFT)	32-37727
40	TUBE, WATER INLET (LONG SHAFT)	32-45679
41	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	38157
42	STRIP, RETAINING - TRIM COVER SEAL (SIDE)	38154
43	STRIP, RETAINING - TRIM COVER SEAL (REAR)	38158
44	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)	10-48408
45	COVER, TRIM - DRIVE SHAFT HOUSING	37687
46	SCREW, TRIM COVER TO DRIVE SHAFT HOUSING	10-57807
47	GROMMET, TRIM COVER SCREW	25-92012

END CAPS, MANIFOLD AND EXHAUST COVERS

Below is the parts list for Mercury 500 END CAPS, MANIFOLD AND EXHAUST COVERS:

Position No.	Part Name	OEM Number
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SEE PAGE 19 FOR PARTS	831-5347A3
2	END CAP ASSEMBLY, UPPER	1100-3281A1
3	OIL SEAL	26-41953
4	"O" RING, UPPER END CAP	25-20081
5	BALL BEARING, UPPER END CAP	30-63742T
6	SHIM, UPPER END CAP TO CYL. BLOCK/CRANKCASE (.002-3-5-10)	15-20082A1
7	SCREW, UPPER END CAP MONTING (7/8")	10-29256
8	MOUNT, RUBBER - CRANKCASE	90435
9	NUT, CRANKCASE RUBBER MOUNT	11-8M0207775
10	GROUND STRAP, CRANKCASE MOUNT	37996
11	END CAP ASSEMBLY, LOWER	1158-6635T1
13	L, LOWER END CAP	26-41953
14	"O" RING, LOWER END CAP	25-20081
15	BALL BEARING, LOWER END CAP	30-63742T
16	SHIM, LOWER END CAP TO CRANKCASE/BYL. BLOCK (.002-3-5-10)	15-20085A1
17	SCREW, LOWER END CAP MOUNTING (7/8")	10-29256
18	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854913
19	PLAT, BAFFLE - EXJAUST MANIFOLD	90421T01
20	GASKET, BAFFLE PLATE TO EXHAUST COVER	27-854924
21	COVER, EXHUAST MANIFOLD	46112A3
22	SCREW, MANIFOLD COVER TO CYL. BLOCK (1")	10-37562
23	SCREW, MANIFOLD COVER TO CYL. BLOCK - CLIP (1 1/8")	10-38837
24	CLIP, HIGH TENSION LEAD	54-52905
25	COVER ASSEMBLY, CYLINDER BLOCK	1017-7054A1
26	PLUG, PIPE - CYLINDER BLOCK COVER	22-328022
27	GASKET, CYLINDER BLOCK COVER	27-85487
28	SCREW, CYLINDER BLOCK COVER MOUNTING (1")	10-20653
29	NUT, COVER MOUNTING SCREW	104-87
30	MOUNT, RUBBER - CYLINDER BLOCK COVER	90435
31	NUT CYLINDER BLOCK COVER RUBBER MOUNT	11-8M0207775
32	COVER, TRANSFER PORT	27935
33	GASKET, TRANSFER PORT COVER	27-279361
34	SCREW, TRANSFER PORT COVER MOUNTING (5/8")	10-20540

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE

Below is the parts list for Mercury 500 EXHAUST EXTENSION PLATE AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE ASSEMBLY, EXHAUST EXTENSION	42819A2
1	BUSHING, EXHAUST EXTENSION PLATE	23-27132
3	WASHER, NYLON - WATER INLET TUBE	12-38453
4	SEAL, RUBBER - WATER TUBE	26-38452
5	RETAINER, WATER TUBE SEAL	38500
6	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")	10-69069
7	GASKETT, POWERHEAD TO EXHAUST EXTENSION PLATE	27-796501
8	SEAL, RUBBER - EXHAUST EXTENSION PLATE	38156
9	STRIP, RUBBER SEAL RETAINING	99136
10	SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")	10-37571
11	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
12	LEVER, THROTTLE AND SHIFT CABLES	59037A2
13	SPRING, COMPRESSION - QUICK DISCONNECT LEVER	24-38005
14	BUSHING, NYLON - QUICK DISCONNECT LEVER	23-37927
15	PIN, ROLL - QUICK DISCONNECT LEVER	17-239281
16	RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE	37926
17	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")	10-37923
18	GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")	46933A1
19	GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")	46933A2
20	SCREW, GROUND STRAP (3/9" SELF TAPPING)	10-62568
21	SHIFT SHAFT ASSEMBLY, UPPER Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	57244A3
21	SHIFT SHAFT ASSEMBLY, UPPER Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	57244A4
22	COUPLING, UPPER SHIFT SHAFT Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	93960A1
23	BUSHING, NYLON - UPPER SHIFT SHAFT Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	23-26600
21	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	75007A4
21	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	75008A4
24	WASHER, SHIFT CONTROL ACTUATOR	12-24664
25	NUT, SHIFT CONTROL ACUATOR TO UPPER SHIFT SHAFT	11-826709109	11-33825, 11-35045
26	ACTUATOR ASSEMBLY, SHIFT CONTROL Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	37948A5
26	ACTUATOR ASSEMBLY, SHIFT CONTROL Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	72854A3
27	SPRING, SHIFT CABLE	24-37934
28	SCREW, SPRING TO ACTUATOR	10-38069
29	BEARING, NYLON - SHIFT CONTROL ACTUATOR	37932
30	SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")	10-36137
31	LOCKWASHER, BEARING SCREW	13-21272
32	RAIL, SHIFT CONTROL BEARING	37935
33	SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")	10-69028
34	LOCKWASHER, RAIL SCREW	13-26992

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 500 FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-8M0214915
2	WAHSER, FLYWHEEL NUT	12-33001
3	KEYWHEEL DRIVE	28-20094
4	FLYWHEEL ASSEMBLY (MANUAL)	223-2402A13
4	FLYWHEEL ASSEMBLY (ELECTRIC)	223-2403A18
5	RATCHET, FLYWHEEL (MANUAL)	50-88755
6	SCREW, PLATE AND RATCHET (5/16")	10-69088
7	SCREW, FLEX PLATE TO FLYWHEEL (5/8")	10-32417
8	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
9	FLANGE, FLYWHEEL PULLEY	29788
10	PULLEY, FLYWHEEL	30306
11	HUB, FLANGE - FLYWHEEL PULLEY	29787
12	STATOR, ALTERNATOR - FLYWHEEL ELECTRIC	398-2996
13	SCERW, STATOR TO UPPER END CAP (7/8") ELECTRIC	10-57021
14	CLAMP, STATOR LEAD TO CRANKCASE ELCTRIC	54-26550
15	SCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRIC	10-35519
16	"D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC	8M0084613	69205
17	CLIP, STATOR LEAD TO CRANKCASE ELECTRIC	54-46379

FUEL PUMP ASSEMBLY

Below is the parts list for Mercury 500 FUEL PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	66777A1
2	CHECK VALVE ASSEMBLY	21-30430A1
3	DIAPHRAGM KIT	23014A1
4	GASKET, CHECK VALVE TO HOUSING (#)
5	GASKET, FUEL PUMP (#)
6	GASKET, FUEL PUMP COVER (#)
7	RETAINER, CHECK VALVE	23004
8	SCREW, RETAINER TO HOUSING	10-43725
9	COVER, FUEL PUMP	23008
10	SCREW, FUEL PUMP MOUNTING (2 1/8")	10-46368
11	SCREW, FUEL PUMP MOUNTING (1 5/8")	10-88447
12	WASHER, FUEL PUMP SCREW	12-847883	12-20128
13	WASHER, FUEL PUMP SCREW	12-66553
14	BUSHING, GUEL PUMP SCREW	23-65790
15	SLEEVE, FUEL PUMP SCREW	23-31915
16	CONNECTOR, PUMP OUTLET TO FUEL LINE	22-22949
17	SLEEVE, RUBBER - CONNECTOR	22-22946
18	NUT, CONNECTOR TO FUEL LINE	22-22948
19	FUEL LINE, PUMP TO LOWER AND UPPER FILTER	32-32094
20	ELBOW FUEL PUMP INLET	22-22995
21	SLEEVE, RUBBER	22-22947
22	NUT, ELBOW	22-22948
23	FUEL LINE, FUEL PUMP TO ADAPTOR	32-30036
24	CONNECTOR, FUEL LINE TO ADAPTOR	22-37682
25	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
26	STEM, CHECK UNIT ADAPTOR	23069
27	"O" RING, ADAPTOR STEM	25-16524
28	SPRING, ADAPTOR STEM	24-23067T
29	CUP WASHER, ADAPTOR	30188
30	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")-MANUAL	10-69029
30	SCREW, ADAPTOR TO BOTTOM COWL (2")-ELECTRIC	10-67916
31	NUT, ADAPTOR SCREW	11-8M0207775

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1643-6038A18
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1643-6038A5
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1643-6038A7
1	GEAR HOUSING ASSEMBLY	1643-6038A6
2	PIN, DOWEL - GEAR HOUSING	17-21438
3	STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")	16-33778
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")	16-8M0034453	16-57933
5	BEARING, ROLLER - DRIVE UNIT	31-62091T
6	SCREEN, WATER INTAKE - STARBOARD	63850
6	SCREEN, WATER INTAKE - PORT	72849A1
7	SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")	10-36070
8	NUT, WATER INTAKE SCREEN SCREW	11-859124	11-45812
9	PLATE, SUPPORT - EXHAUST TUBE SEAL	92815
10	SEAL, EXHAUST TUBE	37721001
11	GEAR, PINION - DRIVE SHAFT	43-55607
12	NUT, PINION GEAR TO DRIVE SHAFT	11-55910
13	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32771
14	"O" RING, WATER PUMP BASE	25-26855
15	WATER PUMP BASE ASSEMBLY	46-77516A1
16	OIL SEAL, WATER PUMP BASE	26-79831
17	OIL SEAL, WATER PUMP BASE	26-90562
18	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
19	GASKET, LOWER - WATER PUMP BASE TO FACE PLATE	27-19553
20	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	32768
21	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-19551
22	IMPELLER, WATER PUMP	47-89983T
23	KEY, IMPELLER DRIVE	28-8M0032837	28-56662
24	WATER PUMP BODY ASSEMBLY	46-77822A1
25	INSERT, WATER PUMP BODY	48753
26	WASHER, WATER PUMP BODY AND BASE STUDS	12-8M0204649
27	NUT, WATER PUMP BODY AND BASE STUDS	11-826709109	11-33825, 11-35045
28	SEAL, WATER PUMP BODY TO WATER TUBE	26-38452
29	WASHER, CUPPED - WATER TUBE SEAL	12-38453
30	RING, RUBBER - CENTRIFUGAL SLINGER	25-20273
31	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
32	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
33	PLUG, GEAR HOUSING FLUSHING HOLE	19-48750
34	WASHER, GEAR HOUSING FLUSHING HOLE	12-8M0204663
35	SHAFT ASSEMBLY, SHIFT - LOWER Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	76063A1
35	SHAFT ASSEMBLY, SHIFT - LOWER Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	69787A1
36	CLIP, RETAINING - SHIFT SHAFT	53-29641
37	"O" RING, SHIFT SHAFT BUSHING	25-25439
38	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
39	OIL SEAL, SHIFT SHAFT BUSHING (LOWER)	26-24590
40	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
41	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-31266
42	BASE, LOWER - REVERSE LOCKING	78036
43	CAM, REVERSE LOCKING Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	43308T1
43	CAM, REVERSE LOCKING Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	69542
44	DRIVE SHAFT ASSEMBLY (SHORT SHAFT)	45-76089A2
44	DRIVE SHAFT ASSEMBLY (LONG SHAFT)	45-76088A2
45	SPRING, COMPRESSION - DRIVE SHAFT	24-20254
46	PIN, DRIVE SHAFT	17-30545
47	SLEEVE, LUBRICATION - DRIVE SHAFT	88181
48	,SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)	15-20929A1
49	ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT	31-38146A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	1643-6038A18
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW	1643-6038A5
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	1643-6038A7
1	GEAR HOUSING ASSEMBLY (SEE PAGE 34 FOR PARTS BREAKDOWN)	1643-6038A6
50	CAM, SHIFT Comment: UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607	760394
50	CAM, SHIFT Comment: UNITED STATES 4280270 AND UP AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP CANADA 7060608 AND UP	760394
51	FOLLOWER, CAM	38441
52	SLIDE, CROSS PIN	20843
53	SPRING, COMPRESSION - CAM FOLLOWER	24-39845
54	SHIM, BEARING CUP TO GEAR HSG. (.002-3-5-10)	15-38374A1
55	TAPERED ROLLER BEARING ASSEMBLY	31-38356A1
56	BEARING, ROLLER - FORWARD GEAR	31-21739
57	FORWARD GEAR ASSEMBLY	43-55608T4
58	RATCHET, SLIDING CLUTCH	52-92911T
59	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0020942	17-38113
60	SPRING, RETAINING - CROSS PIN	24-38114
61	SHAFT, PROPELLER	44-75365
62	REVERSE GEAR ASSEMBLY	43-79158T
63	SHIM, THRUST WASHER TO GEAR HSG. (.002-3-5-10)	15-20927A1
64	WASHER, THRUST - REVERSE GEAR	12-32004
65	BEARING, BALL - REVERSE GEAR	30-20839T
66	"O" RING, BEARING CARRIER	25-31986
67	BEARING CARRIER ASSEMBLY	69386T1
68	BEARING, ROLLER - BEARING CARRIER	31-21700
69	OIL SEAL, BEARING CARRIER (DOUBLE LIP)	26-8M0205511
70	OIL SEAL, LINE CUTTER	26-8M0203757
71	KEY, LOCATING - BEARING CARRIER	28-30281
72	TAB WASHER, GEAR HOUSING COVER	14-53012
73	COVER, GEAR HOUSING	11-87763
74	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
75	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
76	WASHER, DRIVE SHAFT HOUSING STUD (3/8")	12-8M0214963
77	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")	11-8M0204726
78	WASHER, DRIVE SHAFT HOUSING STUD (7/16")	12-65791
79	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")	11-8M0204653
80	THRUST HUB, FRONT	65758
81	THRUST HUB ASSEMBLY, REAR	62124A1
82	WASHER, CUPPED - THRUST HUB	12-31992
83	NUT, PROPELLER	11-69578Q1

IGNITION DRIVER AND PILOT ASSEMBLY

Below is the parts list for Mercury 500 IGNITION DRIVER AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	IGNITION DRIVER ASSEBMLY, COMPLETE	333-4674A3
2	SHFT, IGNITION DRIVE	45-27951
3	PILOT ASSEMBLY, IGNITION DRIVE	47883A1
4	SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")	10-96138
5	BALL BEARING, IGNITION DRIVE PILOT	30-20066
6	SPRING, HORESHOE - IGNITION DRIVE PILOT	24-27944
7	PIN, ANCHOR - HORSESHOE SPRING TO ANCHOR PIN	17-27962
8	WASHER, HORSESHOE SPRING TO ANCHOR PIN	12-8M0204649
9	EXONOMIZER COLLAR AND PIN ASSEMBLY	48103A1
10	PIN, ECONOMIZER COLLAR - SPRING RETAINER	17-27961
11	FITTING, GREASE - ECONOMIZER COLLAR	22-25094
12	PLATE, THROTTLE ACTUATOR	66778T
13	SCREW, TRHOTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")	10-46420
14	SCREW, ADJUSTING - THROTTLE ACTUATOR (1")	10-23015
15	NUT, THROTTLE ACTUATOR ADJUSTING SCREW	11-68219
16	CAP, THROTTLE ACTUATOR ADJUSING SCREW	48039
17	WASHER, IGNITION DRIVE PILOT TO ADAPTOR	12-46246
18	ADAPTOR, IGNITION DRIVE	66856A1
19	SCREW, ADAPTOR AND PILOT TO CRANKCASE (1-1/4")	10-74824
20	WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW	12-20084
22	FITTING GREASE - IGNITION DRIVE ADAPTOR	22-25094
23	WASHER, IGNITION DRIVER PILOT	12-27939
24	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
25	WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION	13-27959
26	CAP, IGNITION DRIVE ADAPTOR AND PILOT FASTENING	27955
27	KEY, IGNITION DRIVE	28-28657
28	HUB, DRIVEN PULLEY	29784
--	SPACER, DRIVE PULLEY	23-29909
29	DRIVE PULLEY ASSEMBLY	29783A1
30	PIN, ROLL - FLANGE	17-24873
31	FALNGE, DRIVEN PULLEY	29785
32	WASHER, PULLEY SCREW	12-20138
33	SCREW, PULLEY (5/8")	10-64652
34	BELT, TIMING	20140
35	PLATE, THROTTLE STOP	53458
36	SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")	10-28668
37	SCREW, THROTTLE STOP ADJUSTING (1 5/8")	10-20012
38	NUT, THROTTLE STOP ADJUSTING SCREW	11-20013
39	CAP, MYLON - ADJUSTING SCREW	26852
40	SWIVEL, LINKAGE - ECONOMIZER COLLAR	27947
41	LINK ROD	66552
42	SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER	27948
43	LEVER, THROTTLE CONTROL	53143A2
44	BUSHING, THROTTLE LEVER SCREW	23-45818
45	SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")	10-47273
46	WASHER, THROTTLE LEVER SCREW	12-8M0042641	12-29395
47	LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)	39483
48	SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")	10-69026

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
