Mercury 500 (2863739 THRU 8029514) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 500 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 500 BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL ASSEMBLY Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	2116-4381A1
1	BOTTOM COWL ASSEMBLY Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	2116-4381A1
2	COVER, PLUG - BOTTOM COWL HARNESS HOLE Comment: REMOVE - NOT REQUIRED ON ELCTRIC ENGINE	57786
3	SCREW, PLUG COVER TO BOTTOM COWL Comment: REMOVE - NOT REQUIRED ON ELCTRIC ENGINE	10-45862
4	LOCKWASHER, PLUG COVER SCREW Comment: REMOVE - NOT REQUIRED ON ELCTRIC ENGINE	13-26996
-	WASHER, PLUG COVER SCREW Comment: REMOVE - NOT REQUIRED ON ELCTRIC ENGINE	12-847883	12-20128 REMOVE - NOT REQUIRED ON ELCTRIC ENGINE
5	STUD, BOTTOM COWL TO REAR SUPPORT BRACKET	16-68169
6	NUT, BOTTOM COWL STUD	11-8267089
7	TUBE, VENT - IGNITION DRIVER OUTLET (12 5/8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	TUBE, VENT DISTRIBUTOR OUTLET (10 1/2") Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512
8	ELBOW, VENT TUBE TO BOTTOM COWL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	22-31521
9	STRAP, VENT HOSE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	61990
--	CLAMP, VENT HOUSE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	54-49218
--	SCREW, VENT HOUSE CLAMP (5/8") Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	10-21722
--	NUT, VENT HOSE CLAMP SCREW Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	11-8M0207775
10	STOP SWITCH ASSEMBLY--MANUEL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	59065A6
11	INSULATOR, SLEEVE - INNER SWITCH TERMINAL Comment: MANUAL UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	30859
12	SPRING AND CONTRACT ASSEMBLY--MANUAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	24-30858A1
13	COVER ASSEMBLY, STOP SWITCH--MANUAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	38950A1
14	WASHER, SEALING - STOP SWITCH--MANUAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	12-38949
15	LOCKWASHER, CONNECTOR BASE--MANUAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	13-21972
16	NUT, CONNECTOR BASE TO BOTTOM COWL--MANUAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	11-21971
17	STOP SWITCH ASSEMBLY--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	59065A4
18	SPRING, STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	24-60239
19	CONTRACT ASSEMBLY, STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	87-61577A1
20	COVER ASSEMBLY, STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	38950A1
21	WASHER, STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	12-59061
22	LOCKWASHER, STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	13-26996
23	NUT, GROUP LEAD TO STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	11-68219
24	LOCKWASHER, CONNECTOR BASE--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	13-21972
25	NUT, CONNECTOR BASE TO BOTTOM COWL--MAUNAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	11-21971
26	WIRE, SWITCH BOX TO STOP SWITCH--MANUAL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	56319A5
27	COVER PLATE ASSEMBLY Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	60948A1
28	PAD, SOUND - COVER PLATE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	37944
27	COVER PLATE ASSEMBLY Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	60948A1
29	SCREW, COVER PLATE TO BOTTOM COWL (3/8")	10-62568
30	BOOT, CONTROL CABLE	37695
31	BAFFLE, BOTTOM COWL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	23760
32	SCREW, BAFFLE TO BOTTOM COWL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	10-52867
33	BOOT, FUEL CONNECTOR	37637
34	SUPPORT, EXTERNAL WIRING HARNESS ELECTRIC	37692
35	SCREW, HARNESS SUPPORT TO BOTTOM COWL (2") ELECTRIC	10-21937
36	NUT, HARNESS SUPPORT SCREW ELECTRIC	11-8M0207775
37	HOSE, WATER TELL TALE - CYLINDER BLOCK TO BOTTOM COWL (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
38	NOZZEL, TELL TALE HOSE TO BOTTOM COWL	52889
39	SCREW, TELL TALE NOZZLE TO BOTTOM COWL	10-35519

CARBURETOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 500 CARBURETOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	1333-3709
1	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	1333-5818
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
9	COVER, FLOAT BOWL	1399-1133
10	SCREW, FLOAT BOWL COVER (SHORT)	10-52195
11	SCREW, FLOAT BOWL COVER (LONG)	10-52196
12	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
13	GASKET, STRAINER COVER (LARGE) (#)
14	SCREEN FILTER	1399-3938
15	GASKET, STRAINER COVER (SMALL) (#)
16	COVER, STRAINER	1399-1135
17	GASKET, STRAINER COVER SCREW (#)
18	SCREW, STRAINER COVER FASTENING	10-25822
19	SCREW, THROTTLE STOP LEVER	1395-6027
20	LEVER, THROTTLE STOP (SEE NOTE BELOW)	8146791
21	SHAFT, THROTTLE	1399-2012
22	TUBE, IDLE (#)
23	GASKET, IDLE TUBE (#)
24	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
25	SHUTTER, THROTTLE	1399-3392
26	SPRING, IDLE ADJUSTMENT SCREW (#)
27	SCREW, IDLE ADJUSTMENT	1399-1713
28	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
29	GASKET, JET CHANNEL PLUG SCREW (#)
30	JET, MAIN FUEL (.065)	1399-1465
30	JET, MAIN FUEL (.063) - STANDARD	1399-1463
30	JET, MAIN FUEL (.061)	1399-1461
30	JET, MAIN FUEL (.059)	1399-1459
31	GASKET, MAIN FUEL JET (EARLY MODELS ONLY) (#)
32	NOZZLE, MAIN (#)
33	SCREW, PLUG - MAIN NOZZLE	10-23178
34	SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR) (#)
34	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (#)
35	SCREW, PLUG - BODY CHANNEL	10-28845
36	WELCH PLUG, BODY CHANNEL (#)
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1399-2015
--	REPAIR PARTS KIT (1 PER CARBURETOR) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	1395-92621
--	REPAIR PARTS KIT (1 PER CARBURETOR) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	1395-92621
37	GASKET, CARBURETOR FLANGE	27-31402
38	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 500 CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number	Supersedes
1	CHOKE SOLENOID ELECTRIC	89-889274	54293A11
2	LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC	13-26996
3	NUT, CHOKE SOLENOID TERMINAL ELECTRIC	11-68219
4	SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC	10-26066
5	LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC	13-8M0204647
6	NUT, CHOKE SOLENOID SCREW ELECTRIC	11-22053
7	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC	54283A2
8	WASHER, PLUNGER AND LINK ELECTRIC	12-30164
9	COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC	18-26953
10	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	1333-3709
10	CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	1333-5818
11	CLUSTER, THROTTLE LEVER (UPPER CARB.) Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	27917
11	CLUSTER, THROTTLE LEVER (UPPER CARB.) Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	74371
12	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
13	PICK-UP BRACKET ASSEMBLY	53719A2
14	SCREW, PICK-UP BRACKET (3/4")	10-53651
15	KNOB, CHOKE ROD	90242A1
16	GROMMET, CHOKE KNOB	25-20116
17	"U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)	22462
17	"U" LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)	46303
18	SCREW, "U" LINK TO CHOKE KNOB	10-69022
19	LOCKWASHER, "U" LINK SCREW	13-26996
20	COTTER PIN, "U" LINK TO CHOKE ROD	18-26811
21	ROD, CHOKE (MANUAL)	47958
21	ROD, CHOKE (ELECTRIC)	46304
22	RIVET, CHOKE SHUTTER TO CHOKE ROD	17-25391
23	SPRING, TENSION - CHOKE ROD TO CARBURETOR	24-28965
24	SCREW, TENSION SPRING TO CARBURETOR	10-28713
25	RETAINER, SPRING	27711
26	SHUTTER, CHOKE - CARBURETOR	38604
27	BUSHING, NYLON - UPPER CHOKE SHUTTER (ELECTRIC)	23-30438
28	STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")	16-69036
29	WASHER, CHOKE SHUTTER CARBURETOR STUD	12-30164
30	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
31	SCREEN, FILTER - CARBURETOR	35-56197
32	STUD, FILTER SCREEN TO CARBURETOR (1 1/8")	16-69037
33	WASHER, FILTER SCREEN STUD	12-30164
34	NUT, FILTER SCREEN STUD	11-20110

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 500 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	1440-8394A1
1	CLAMP BRACKET ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	1440-8394A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET FILT TUBE	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT LOCK PIN BUMPER	32-28052
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
15	WASHER, CLAMP BRACKET BOLT	12-68410
14	BOLTT, CLAMP BRACKET TO BOAT TRANSOM (3")	10-68299
15	WASHER, CLAMP BRACKET BOLT	12-68300
16	NUT, CLAMP BRACKET BOLT	11-82670912
17	PIN, UPPER SHOCK MOUNTING	55-28416
18	SWIVEL BRACKET ASSEMBLY(SHORT SHAFT Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	1489-8597A4
18	SWIVEL BRACKET ASSEMBLY(LONG SHAFT Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	1490-8599A6
18	SWIVEL BRACKET ASSEMBLY(SHORT SHAFT) Comment: UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP	1489-8597A4
18	SWIVEL BRACKET ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP	1490-8599A6
19	OIL SEAL, SWIVEL BRACKET	26-32911
20	SCREW, DRIVE - SWIVEL BRACKET	10-47828
21	FITTING, GREASE	22-69059
22	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
23	TILT LOCK ASSEMBLY, STARBOARD	76386
24	TILT LOCK ASSEMBLY, PORT	76385T
25	TUBE, TILT LOCK	47802
26	COTTER PIN, TILT LOCK TUBE	18-47959
27	BUSHING, TILT LOCK TUBE	23-47803
28	WASHER, WAVE - TILT LOCK TUBE	13-69150
29	SWIVEL PIN AND STEERING ARM ASSEMBLY(SHORT SHAFT)	74316A2
29	SWIVEL PIN AND STEERING ARM ASSEMBLY(LONG SHAFT)	74316A1
30	BUMPER, STEERING ARM	30711
31	BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")	10-33986
32	WASHER, SWIVEL PIN - LOWER	12-47606
33	BRACKET, RIDE GUIDE ATTACHING	76535T
34	STUD, RIDE GUIDE BRACKET TO STEERING ARM (1 1/4")	16-39781
35	NUT, RIDE GUIDE BRACKET STUD	11-8M0204726
36	SCREW, RIDE GUIDE ATTACHING (1 3/4")	10-31830
37	NUT, RIDE GUIDE ATTACHING SCREW	11-8M0204726
38	SERIAL PLATE	38-56267
39	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
40	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
41	WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)	12-25176
41	WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)	12-26837
42	YOKE, BOTTOM	77416T1
43	NUT, SWIVEL PIN RETAINING	11-71956
44	PIN, LOWER SHOCK MOUNTING	55-696531
45	SPRING, REVERSE LOCK TENSION	24-29821
46	REVERSE LOCK ASSEMBLY	87432
47	SHAFT, REVERSE LOCK PIVOT	56349
48	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
49	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
50	WASHER, UPPER SHOCK BUSING TO CLAMP BRACKET	12-28196
50	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
51	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
52	SHOCK ABSORBER	55-58780A7
53	BUSHING, RUBBER - SHOCK ABSORBER (UPPER)	23-32171
54	BUSHING, RUPPER - SHOCK ABSORBER (LOWER)	23-28198
55	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
56	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")	10-69375A1
57	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
58	SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")	10-37655

COWLING AND FRONT COVER

Below is the parts list for Mercury 500 COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	2182-7927A5
1	COWL FRONT COVER ASSEMBLY Comment: UNITED STATES 3008819 THRU 3235062 AUSTRALIA 3015354 THRU 3244337 CANADA 3015454 THRU 3243512	2182-7927A5
1	COWL FRONT COVER ASSEMBLY Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	2182-7927A5
2	KNOB, COWL FRONT COVER FASTENING	56848
3	WASHER, COVER FASTENING KNOB	12-30771
4	WASHER, COVER FASTENING KNOB	12-59572
5	SPRING, TENSION - COVER FASTENING KNOB	24-30772
6	PIN, ROLL - TENSION SPRING TO KNOB	17-29077
7	BLANKET, SOUND ABSORBING	38674
8	SEAL, SOUND - LOWER SECTION	31095
9	SEAL, SOUND - UPPER SECTION	38133
10	WRAP AROUND COWL ASSEMBLY	2118-3247A3
11	COWL LATCH ASSEMBLY	46785A1
12	HOOK, COWL LATCH FASTENING	30413
13	BLANKET, SOUND ABSORBING	37794
--	GLUE (BLANKET ADHESIVE)	92-86166Q1

CRANKSHAFT, PISTON AND CONNECTING ROD

Below is the parts list for Mercury 500 CRANKSHAFT, PISTON AND CONNECTING ROD:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-8M0214915
2	WASHER, FLYWHEEL NUT	12-33001
3	KEY, FLYWHEEL DRIVE	28-20094
4	CRANKSHAFT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	400-2976A2
5	"O" RING, DRIVE SHAFT SPLINE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	25-29619
4	CRANKSHAFT Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	400-4627
6	CARRIER ASSEMBLY, "O" RING Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	60834A3
7	"O" RING, CARRIER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	64254001
8	CENTER MAIN BEARING ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	500-5345A4
8	CENTER MAIN BEARING ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	500-5345A2
9	DOWEL PIN, CENTER MAIN BEARING	17-20032
10	BEARING, NEEDLE	29-20046T
11	RACE, OUTER	20047
12	RING, SNAP - OUTER RACE CLAMPING	53-20048
13	SCREW, CENTER MAIN BEARING CLAMPING (1 1/2")	10-20784
14	NUT, CENTER MAIN BEARING CLAMPING SCREW	11-8M0207775
15	DOWEL PIN, (STEPPED)	17-20379
16	MAIN BEARING ASSEMBLY (VALVE TYPE)	534-3267T25
17	DOWEL PIN, MAIN BEARING	17-20032
18	DOWEL PIN, REED LOCATING	17-65855
19	SCREW, MAIN BEARING CLAMPING (9/16")	10-45775
20	NUT, MAIN BEARING CLAMPING SCREW	11-45774
21	REED SET, MATCHED - MAIN BEARING	34-88498A1
22	REED STOP, MAIN BEARING REED VALVES	34-20053
23	SCREW, REED STOP MOUNTING (9/16")	10-77280
24	NUT, REED STOP MOUNTING SCREW	11-20110
25	PISTON AND PISTON PIN ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	780-9229A7
25	PISTON AND PISTON PIN ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	780-9229A7
26	LOCK RING, PISTON PIN	40-828119	40-47276
27	RING, PISTON	39-27841A12
28	CONNECTING ROD AND CAP ASSEMBLY	632-7621A3
29	SCREW, CAP TO CONNECTING ROD	10-45379
30	NUT, CONNECTING ROD SCREW	11-20061
31	BEARING, NEEDLE - CRANKPIN	29-20046T
32	BEARING, NEEDLE - PISTON PIN	29-20063
33	WASHER, NEEDLE LOCATING	12-47275
--	PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE) Comment: OVERSIZE PISTON AND RING	780-9229A10
--	RING, PISTON (.015 OVERSIZE) Comment: OVERSIZE PISTON AND RING	39-28616A12

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 500 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 2858814 THRU 3478002 AUSTRALIA 2863739 THRU 8004784 BELGIUM 9001581 THRU 9006163 CANADA 2742142 THRU 7007357	831-5347A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 3478003 THRU 3816307 AUSTRALIA 8004785 THRU 8015989 BELGIUM 9006164 THRU 9047653 CANADA 7007358 THRU 7030747	831-5347A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	831-5347A3
2	DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING	17-20032
3	DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING	17-20323
4	PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES (SERVICE	22-328022
5	STUD, CARBURETOR MOUNTING (1 1/4")	16-64936
6	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")	16-68165
7	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
8	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 11/16")	16-68168
9	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")	16-68166
10	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")	16-68167
11	CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK	22-291112
12	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-78841
12	SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
13	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
14	WASHER, CRANKCASE SCREW	12-20084
15	NUT, CRANKCASE SCREW	11-29250
16	SCREW, MAIN BEARING LOCKING (5/8")	10-98260
17	TAB WASHER, BEARING LOCKING SCREW	14-20091
18	SCREW, CENTER MAIN BEARING LOCKING (1")	10-20359
19	TUBE, BALANCE - MAIN BEARING	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK	22-291112
21	CLAMP, BALANCE TUBE TO CONNECTORS	54-20386
22	SWITCH ASSEMBLY, MERCURY	58124A8
23	SCREW, MERCURY SWITCH TO EXHAUST MANIFOLD COVER (1/2")	10-48408
24	CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	22-62365A1
25	CHECK VALVE ASSEMBLY, BLEED HOSE VALVE Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	21-28481A1
26	HOUSE, CYLINDER BLEED (6 1/2") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	32-9912688
26	HOSE, CYLINDER BLEED (5 1/2") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	32-9912688
27	CONNECTOR, CYLINDER BLEED HOSE (LOWER) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	22-34579
27	CONNECTOR, CYLINDER BLEED HOSE (UPPER) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	22-33373001
24	CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	22-56759
26	HOSE, CYLINDRE BLEED Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	32-9938779
27	CONNECTOR, CYLINDER BLEED HOSE (LOWER) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	21-64871A2
28	CLAMP, BLEED HOSE ATTACHING Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	54-20387

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 500 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 1 SEE CHART	1554-3910A2
1	DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 1 SEE CHART	1564-3913A2
1	DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 2 SEE CHART	1592-8188A8
1	DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 2 SEE CHART	1593-7513A12
2	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
3	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")	16-8M0022145	16-57932
4	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")	16-57935
5	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	11-8M0204653
6	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	12-65791
7	ROD, PUSH - REVERSE LOCK(SHORT SHAFT	47835
7	ROD, PUSH - REVERSE LOCK(LONG SHAFT	47836
8	NUT, JAM - PUSH ROD	11-60049
9	ROD END, PUSH ROD	47837
10	PIN, REVERSE LOCK LEVER	24-78203A2
11	COTTER PIN, PUSH ROD TO REVERSE LOCK	18-25191
12	GUIDE, PUSH ROD	52917
13	COVER, LOWER MOUNT CLAMP	35474T
14	SCREW, COVER TO LOWER MOUNT CLAMP	10-29722
15	NUT, LOWER MOUNT CLAMP COVER	11-35521
16	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	69592F1
17	SCREW, LOWER MOUNT CLAMP?DRIVE SHAFT HSG.	10-29256
18	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
19	MOUNT, RUBBER - LOWER	75304T1
20	BUMPER, RUBBER - LOWER MOUNT SCREW	25067
21	SCREW, LOWER MOUNT (5 1/2")	10-75284
22	WASHER, LOWER MOUNT SCREW	12-28051
23	WASHER, RUBBER - LOWER MOUNT SCREW	12-28053
24	WASHER, LOWER MOUNT SCREW	12-30119
25	NUT, LOWER MOUNT SCREW	11-25096
26	MOUNT, RUBBER - UPPER	75305
26A	"O" RING, UPPER MOUNT Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	25-65936
27	PACKING, "U" CUP - UPPER MOUNT COVERS	24929
28	COVER, UPPER MOUNT - OUTSIDE HALF	79680A1
29	COVER, UPPER MOUNT - INSIDE HALF	79680A1
30	SCREW, UPPER MOUNT COVER - REAR (1 1/2")	10-49987
31	SCREW, UPPER MOUNT COVER - FRONT (1 3/4")	10-37941
32	NUT, UPPER MOUNT COVER FASTENING SCREW	11-35888
33	WASHER, UPPER MOUNT BOLT (37/64 ID)	12-30520
34	WASHER, RUBBER - UPPER MOUNT BOLT	12-30521
35	WASHER, UPPER MOUNT BOLT (3/8 ID)	12-30519
36	NUT, UPPER MOUNT BOLT	11-23161
37	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
38	NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")	11-64809
39	EXHAUST(SHOFT SHAFT)	695431
39	TUBE, EXHAUST(LONG SHAFT)	695441
40	TUBE, WATER INLET(SHORT SHAFT	32-37727
40	TUBE, WATER INLET(LONG SHAFT)	32-45679
41	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	38157
42	STRIP, RETAINING - TRIM COVER SEAL (SIDE)	38154
43	STRIP, RETAINING - TRIM COVER SEAL (REAR)	38158
44	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)	10-48408
45	COVER, TRIM - DRIVE SHAFT HOUSING	37687
46	SCREW, TRIM COVER TO DRIVE SHAFFT HOUSING Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	10-37571
46	SCREW, TRIM COVER TO DRIVE SHAFT HOUSING Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	10-57807
47	GROMMET, TRIM COVER SCREW Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	25-92012

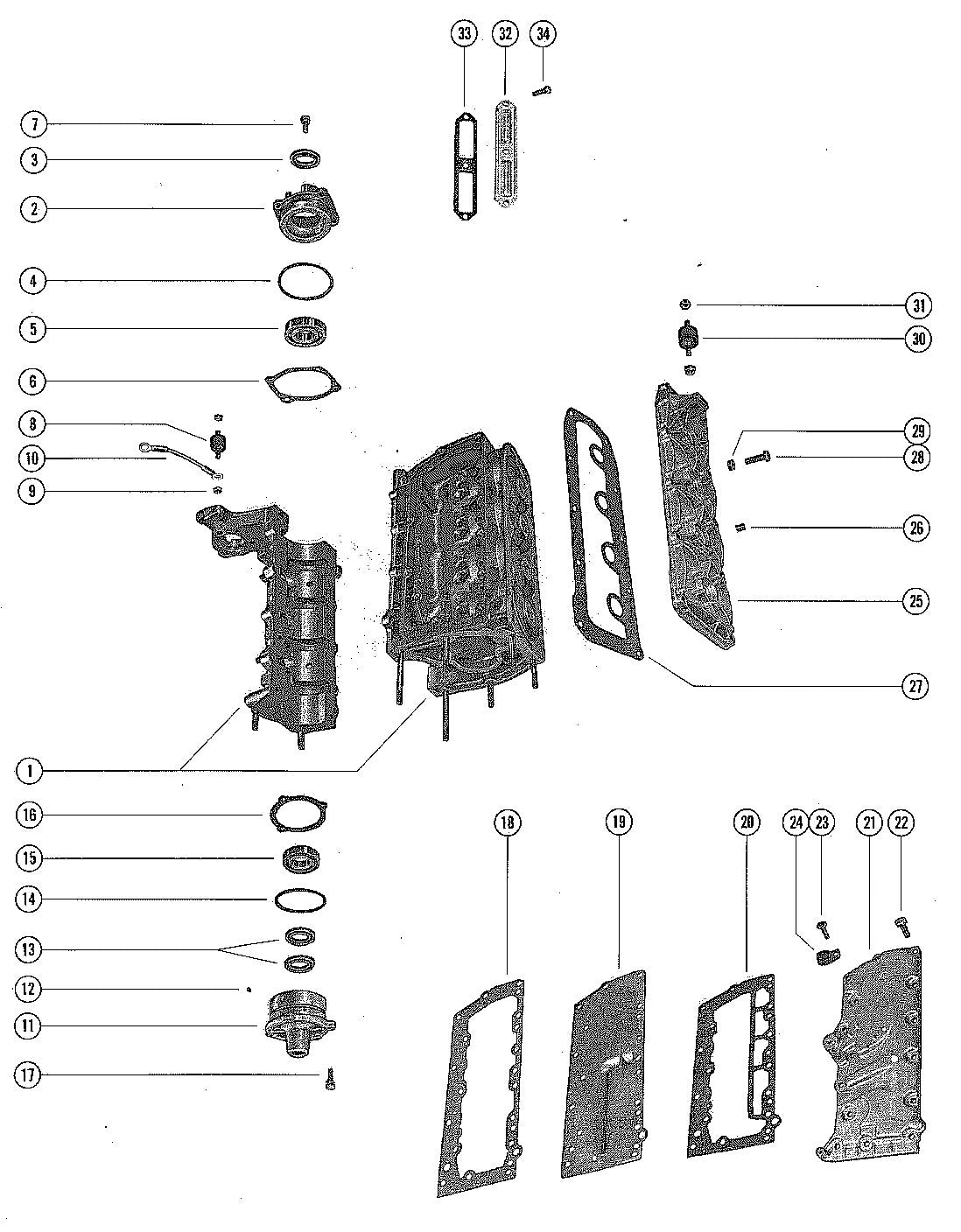

END CAPS, MANIFOLD AND EXHAUST COVERS

Below is the parts list for Mercury 500 END CAPS, MANIFOLD AND EXHAUST COVERS:

Position No.	Part Name	OEM Number
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 2858814 THRU 3478002 AUSTRALIA 2863739 THRU 8004784 BELGIUM 9001581 THRU 9006163 CANADA 2742142 THRU 7007357	831-5347A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 3478003 THRU 3816307 AUSTRALIA 8004785 THRU 8015989 BELGIUM 9006164 THRU 9047653 CANADA 7007358 THRU 7030747	831-5347A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	831-5347A3
2	END CAP ASSEMBLY, UPPER	1100-3281A1
3	OIL SEAL	26-41953
4	"O" RING, UPPER END CAP	25-20081
5	BALL BEARING, UPPER END CAP	30-63742T
6	SHIM, UPPER END CAP TO CYLINDER BLOCK AND CRANKCASE Comment: (.002-3-5-10)	15-20082A1
7	SCREW, UPPER END CAP MOUNTING (7/8")	10-29198
8	MOUNT, RUBBER - CRANCASE	90435
9	NUT, CRANKCASE RUBBER MOUNT	11-8M0207775
10	GROUND STRAP, CRANKCASE MOUNT	37996
11	END CAP ASSEMBLY, LOWER Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	1102-4181A1
11	END CAP ASSEMBLY, LOWER Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	1158-6635T1
12	CHECK VALVE ASSEMBLY, LOWER END CAP Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	21-42657A3
13	OIL SEAL, LOWER END CAP	26-41953
14	"O" RING, LOWER END CAP	25-20081
15	BALL BEARING, LOWER END CAP	30-63742T
16	SHIM, LOWER END CAP TO CRANKCASE AND CYLINDER BLOCK (.002-3-	15-20085A1
17	SCREW, LOWER END CAP MOUNTING (7/8")	10-29198
18	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854913
19	PLATE, BAFFLE - EXHAUST MANIFOLD	90421T01
20	GASKET, BAFFLE PLATE TO EXHAUST COVER	27-854924
21	COVER, EXHAUST MANIFOLD	46112A3
22	SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1")	10-37562
23	SCREW, MANIFOLD COVER TO CYLINDER BLOCK - HIGH TENSION CLIP	10-38837
24	CLIP, HIGH TENSION LEAD	54-52905
25	COVER ASSEMBLY, CYLINBER BLOCK	1017-7054A1
26	PLUG, PIPE - CYLINDER BLOCK COVER	22-328022
27	GASKET, CYLINDER BLOCK COVER	27-85487
28	SCREW, CYLINDER BLOCK COVER MOUNTING (1")	10-20653
29	NUT, COVER MOUNTING SCREW	11-8M0207775
30	MOUNT, RUBBER - CYLINDER BLOCK COVER	90435
31	NUT, CYLINDER BLOCK COVER RUBBER MOUNT	11-8M0207775
32	COVER, TRANSFER PORT	27935
33	GASKET, TRANSFER PORT COVER	27-279361
34	SCREW, TRNASFER PORT COVER MOUNTING (5/8")	10-20540

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE

Below is the parts list for Mercury 500 EXHAUST EXTENSION PLATE AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE ASSEMBLY, EXHAUST EXTENSION	42819A2
2	WASHER, NYLON - WATER INLET TUBE	12-38453
3	SEAL, RUBBER - WATER TUBE	26-38452
4	RETAINER, WATER TUBE SEAL	38500
5	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")	10-69069
6	SCREW, EXHAUST PLATE (1 1/4") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	10-56500
7	NUT, EXHAUST PLATE SCREW Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	11-8M0207775
8	GGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE	27-796501
9	SEAL, RUBBER - EXHAUST EXTENSION PLATE	38156
10	STRIP, RUBBER SEAL RETAINING	99136
11	SCREW, RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")	10-37571
12	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
13	LEVER, THROTTLE AND SHIFT CABLES Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	59037A2
13	LEVER, THROTTLE AND SHIFT CABLES Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	59037A2
14	SPRING, COMPRESSION - QUICK DISCONNECT LEVER	24-38005
15	BUSHING, NYLON - QUICK DISCONNECT LEVER	23-37927
16	PIN, ROLL - QUICK DISCONNECT LEVER	17-239281
17	RETAINER, NYLON BEARING TO EXHAUST EXTENSION PLATE	37926
18	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")	10-37923
19	GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")	46933A1
20	GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")	46933A2
21	SCREW, GROUND STRAP (3/8" SELF TAPPING)	10-62568
22	LOCKWASHER, GROUND STRAP SCREW	13-69432
23	SHIFT SHAFT ASSEMBLY, UPPER(SHORT SHAFT)	57244A3
23	SHIFT SHAFT ASSEMBLY, UPPER(LONG SHAFT)	57244A4
24	COUPLING, UPPER SHIFT SHAFT	93960A1
25	BUSHING, NYLON - UPPER SHIFT SHAFT	23-26600
26	WASHER, SHIFT CONTROL ACTUATOR	12-24664
27	NUT, SHIFT CONTROL ACTUATOR TO UPPER SHIFT SHAFT	11-826709109	11-33825, 11-35045
28	ACTUATOR ASSEMBLY, SHIFT CONTROL Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	37948A5
29	RETAINER, QUICK DISCONNECT LATCH Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	56806
30	LATCH, QUICK DISCONNECT - ACTUATOR Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	56807
31	PIN, ROLL - ACTUATOR Comment: UNITED STATES 2858814 THRU 3572281 AUSTRALIA 2863739 THRU 8006764 BELGIUM 9001581 THRU 9021008 CANADA 2742142 THRU 7014407	17-24800
28	ACTUATOR ASSEMBLY, SHIFT CONTROL Comment: UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP	37948A5
32	SPRING, SHIFT CABLE Comment: UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP	24-37934
33	SCREW, SPRING TO ACTUATOR Comment: UNITED STATES 3572282 AND UP AUSTRALIA 8006765 AND UP CANADA 7014408 AND UP	10-38069
34	BEARING, NYLON - SHIFT CONTROL ACTUATOR	37932
35	SCREW, BEARING TO SHIFT CONTROL ACTUATOR (1")	10-36137
36	LOCKWASHER, BEARING SCREW	13-21272
37	RAIL, SHIFT CONTROL BEARING	37935
38	SCREW, RAIL TO EXHAUST MANIFOLD COVER (3/4")	10-69028
39	LOCKWASHER, RAIL SCREW	13-26992

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 500 FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-8M0214915
2	WASHER, FLYWHEEL NUT	12-33001
3	KEY, FLYWHEEL DRIVE	28-20094
4	FLYWHEEL ASSEMBLY (MANUAL) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	223-2402A13
4	FLYWHEEL ASSEMBLY (ELECTRIC) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	223-2403A18
4	FLYWHEEL ASSEMBLY (MANUAL) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	223-2402A13
4	FLYWHEEL ASSEMBLY (ELECTRIC) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	223-2403A18
5	RATCHET, FLYWHEEL (MANUAL) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	50-39837
6	SCREW, PLATE AND RATCHET (5/8") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	10-32417
5	RATCHET, FLYWHEEL (MANUAL) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	50-88755
6	SCREW, PLATE AND RATCHET (5/16") Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	10-54630
7	SCREW, FLEX PLATE TO FLYWHEEL (5/8")	10-32417
8	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
9	FLANGE, FLYWHEEL PULLEY	29788
10	PULLEY, FLYWHEEL	30306
11	HUB, FLANGE - FLYWHEEL PULLEY	29787
12	STATOR, ALTERNATOR - FLYWHEEL ELECTRIC	398-2996
13	SCREW, STATOR TO UPPER END CAP (7/8") ELECTRIC	10-57021
14	CLAMP, STATOR LEAD TO CRANKCASE ELECTRIC	54-26550
15	SCREW, STATOR LEAD CLAMP FASTENING (1/2") ELECTRIC	10-35519
16	"D" WASHER, STATOR LEAD CLAMP SCREW ELECTRIC	8M0084613	69205
17	CLIP, STATOR LEAD TO CRANKCASE ELECTRIC	54-46379

FUEL PUMP ASSEMBLY

Below is the parts list for Mercury 500 FUEL PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	56677A6
2	CHECK VALVE ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	21-30430A1
3	DIAPHRAGM KIT Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	23014A1
4	GASKET, CHECK VALVE TO HOUSING (#) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747
5	GASKET, FUEL PUMP (#) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747
6	GASKET, FUEL PUMP COVER (#) Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747
7	RETAINER, CHECK VALVE Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	23004
8	SCREW, RETAINER TO HOUSING Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	10-43725
9	COVER, FUEL PUMP	23008
10	SCREW, FUEL PUMP MOUNTING (1 7/8") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	10-30273
11	SCREW, FUEL PUMP MOUNTING (1 1/2") Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	10-73013
1	FUEL PUMP ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66777A1
2	CHECK VALVE ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	21-30430A1
3	DIAPHRAGM KIT Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23014A1
4	GASKET, CHECK VALUE TO HOUSING (#) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP
5	GASKET, FUEL PUMP (#) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP
6	GASKET, FUEL PUMP COVER (#) Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP
7	RETAINER, CHECK VALUE Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23004
8	SCREW, RETAINER TO HOUSING Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	10-43725
9	COVER, FUEL PUMP Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23008
10	SCREW, FUEL PUMP MOUNTING (2 1/8") Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	10-46368
11	SCREW, FUEL PUMP MOUNTING (1 5/8") Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	10-88447
12	WASHER, FUEL PUMP SCREW Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	12-847883	12-20128 UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP
13	WASHER, FUEL PUMP SCREW Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	12-66553
14	BUSHING, FUEL PUMP SCREW Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23-65790
15	SLEEVE, FUEL PUMP SCREW Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23-31915
16	CONNECTOR, PUMP OUTLET TO FUEL LINE	22-22949
17	SLEEVE, RUBBER - CONNECTOR	22-22946
18	NUT, CONNECTOR TO FUEL LINE	22-22948
19	FUEL LINE, PUMP TO LOWER AND UPPER FILTER	32-32094
20	ELBOW, FUEL PUMP INLET	22-22995
21	SLEEVE, RUBBER	22-22946
22	NUT, ELBOW	22-22948
23	FUEL LINE, FUEL PUMP TO ADAPTOR	32-30036
24	CONNECTOR, FUEL LINE TO ADAPTOR	22-37682
25	ADAPTOR, CHECK UNIT (FUEL LINE)	30186
26	STEM, CHECK UNIT ADAPTOR	30187
27	"O" RING, ADAPTOR STEM	25-16524
28	SPRING, ADAPTOR STEM	24-30189
29	CUP WASHER, ADAPTOR	30188
30	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4") - MANUAL	10-69029
30	SCREW, ADAPTOR TO BOTTOM COWL (2") - ELECTRIC	10-21937
31	NUT, ADAPTOR SCREW	11-8M0207775

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A4
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A5
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 1 Comment: SEE CHART. SEE NOTE BELOW	1643-4518A7
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 1 Comment: SEE CHART. SEE NOTE BELOW	1643-4518A8
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)-FIGURE 2 Comment: SEE CHART. SEE NOTE BELOW	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)-FIGURE 2 Comment: SEE CHART. SEE NOTE BELOW	1643-6038A18
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A18
1	GEAR HOUSING ASSEMBLY Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A6
1	GEAR HOUSING ASSEMBLY(FIGURE 1) SEE CHART	1643-4518A6
1	GEAR HOUSING ASSEMBLY(FUGURE 2) SEE CHART	1643-6038A6
1	GEAR HOUSING ASSEMBLY Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A6
2	PIN, DOWEL - GEAR HOUSING	17-21438
3	STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 11/16") - Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	16-57934
3	STUD, WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8")- Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	16-33778
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")	16-8M0034453	16-57933
5	BEARING, ROLLER - DRIVE SHAFT	31-62091T
6	SCREEN, WATER INTAKE - STARBOARD Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	63850
6	SCREEN, WATER INTAKE - PORT Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	72849A1
7	SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4") SERIAL Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	10-36070
8	NUT, WATER INTAKE SCREEN SCREW Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	11-859124	11-45812 UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP
9	PLATE, SUPPRT - EXHAUST TUBE SEAL	92815
10	SEAL, EXHAUST TUBE	37721001
11	GEAR, PINION - DRIVE SHAFT	43-55607
12	NUT, PINION GEAR TO DRIVE SHAFT	11-55910
13	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32771
14	"O" RING, WATER PUMP BASE	25-26855
15	WATER PUMP BASE ASSEMBLY	46-77516A1
16	OIL SEAL, WATER PUMP BASE	26-90562
17	OIL SEAL, WATER PUMP BASE	26-79831
18	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
19	GASKET, LOWER - WATER PUMP BASE TO WATER PUMP BODY	27-19553
20	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	32768
21	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-19551
22	IMPELLER, WATER PUMP	47-89983T
23	KEY, IMPELLER DRIVE	28-8M0032837	28-56662
24	WATER PUMP BODY ASSEMBLY	46-77822A1
25	INSERT, WATER PUMP BODY	48753
26	OIL SEAL, WATER PUMP BODY	26-32121
27	WASHER, WATER PUMP BODY AND BASE STUDS	12-8M0204649
28	WATER PUMP BODY AND BASE STUDS	11-826709109	11-33825, 11-35045
29	SEAL, WATER PUMP BODY TO WATER TUBE	26-38452
30	WASHER, CUPPED - WATER TUBE SEAL	12-38453
31	RING, RUBBER - CENTRIFUGAL SLINGER	25-20273
32	"O" RING, UPPER - DRIVE SHAFT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	25-29619
33	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
34	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
35	PLUG, GEAR HOUSING FLUSHING HOLE	19-48750
36	WASHER, GEAR HOUSING FLUSHING HOLE	12-8M0204663
37	SHAFT ASSEMBLY, SHIFT - LOWER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	55420A1
37	SHAFT ASSEMBLY, SHIFT - LOWER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	76063A1
38	CLIP, RETAINING - SHIFT SHAFT	53-29641
39	"O" RING, SHIFT SHAFT BUSING	25-25439
40	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
41	OIL SEAL, SHIFT SHAFT BUSHING (LOWER)	26-24590
42	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
43	WASHER, RUBBER - SHIFT SHAFT BUSING	12-31266
44	BASE, LOWER - REVERSE LOCKING	78036
45	CAM, REVERSE LOCKING	43308T1
46	DRIVE SHAFT ASSEMBLY(SHORT SHAFT) Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	45-57360A1
46	DRIVE SHAFT ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	45-57359A1
46	DRIVE SHAFT ASSEMBLY(SHORT SHAFT) Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	45-76089A2
46	DRIVE SHAFT ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	45-76088A2
47	SPRING, COMPRESSION - DRIVE SHAFT	24-20254
48	PIN, DRIVE SHAFT	17-30545
49	SLEEVE, LUBRICATION - DRIVE SHAFT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	23-52709
49	SLEEVE, LUBRICATION - DRIVE SHAFT Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	88181
50	SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)	15-20929A1
51	ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT	31-38146A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A4
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A5
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) FIGURE 1 SEE CH Comment: SEE CHART. SEE NOTE BELOW	1643-4518A7
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) FIGURE 1 SEE CHA Comment: SEE CHART. SEE NOTE BELOW	1643-4518A8
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) FIGURE 2 SEE CH Comment: SEE CHART. SEE NOTE BELOW	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) FIGURE 2 SEE CHA Comment: SEE CHART. SEE NOTE BELOW	1643-6038A18
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A17
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A18
1	GEAR HOUSING ASSEMBLY Comment: SEE PAGE 34 FOR BREAKDOWN UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	1626-3927A6
1	GEAR HOUSING ASSEMBLY-FIGURE 1 SEE CHART Comment: SEE PAGE 34 FOR BREAKDOWN	1643-4518A6
1	GEAR HOUSING ASSEMBLY-FIGURE 2 SEE CHART Comment: SEE PAGE 34 FOR BREAKDOWN	1643-6038A6
1	GEAR HOUSING ASSEMBLY Comment: SEE PAGE 34 FOR BREAKDOWN UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	1643-6038A6
52	CAM, SHIFT Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	760394
52	CAM, SHIFT Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	760394
53	FOLLOWER, CAM	38441
54	SLIDE, CROSS PIN	20843
55	SPRING, COMPRESSION - CAM FOLLOWER	24-39845
56	SHIM, BEARING CUP TO GEAR HSG. (.002-3-5-10)	15-38374A1
57	TAPERED ROLLER BEARING ASSEMBLY	31-38356A1
58	BEARING, ROLLER - FORWARD GEAR	31-21739
59	FORWARD GEAR ASSEMBLY	43-55608T4
60	RATCHET, SLIDING CLUTCH	52-92911T
61	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0020942	17-38113
62	SPRING, RETAINING - CROSS PIN	24-38114
63	SHAFT, PROPELLER	44-75365
64	REVERSE GEAR ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	43-79158T
64	REVERSE GEAR ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	43-79158T
65	SHIM, TTHRUST WASHER TO GEAR HSG. (.002-3-5-10)	15-20927A1
66	WASHER, THRUST - REVERSE GEAR	12-32004
67	BEARING, BALL - REVERSE GEAR	30-20839T
68	"O" RING, BEARING CARRIER	25-31986
69	BEARING CARRIER ASSEMBLY	69386T1
70	BEARING ROLLER - BEARING CARRIER	31-21700
71	OIL SEAL, BEARING CARRIER (DOUBLE LIP)	26-56788
72	KEY, LOCATING - BEARING CARRIER	28-30281
73	TAB WASHER, GEAR HOUSING COVER	14-53012
74	COVER, GEAR HOUSING	11-87763
75	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
76	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
77	WASHER, DRIVE SHAFT HOUSING STUD (3/8")	12-8M0214963
78	NUT, DRIVE SHAFT HOUSING TO BEAR HOUSING (3/8")	11-8M0204726
79	WASHER, DRIVE SHAFT HOUSING AND (7/16")	12-45176
80	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")	11-8M0204653
81	THRUST HUB AND WASHER ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	55908A1
82	WASHER, CUPPED - THRUST HUB Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	12-31992
83	WASHER, SPLINED - PROPELLER SHAFT Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	12-55907
84	THRUST HUB ASSEMBLY, FRONT Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	65758
85	WASHER, CUPPED - THRUST HUB Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	12-62123
86	THRUST HUB ASSEMBLY, REAR Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	62124A1
87	WASHER, CUPPED - THRUST HUB Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	12-31992
88	NUT, PROPELLER	11-82671120

IGNITION DRIVER AND PILOT ASSEMBLY

Below is the parts list for Mercury 500 IGNITION DRIVER AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	IGNITION DRIVE ASSEMBLY, COMPLETE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	333-4674A3
1	IGNITION DRIVER ASSEMBLY, COMPLETE Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	333-4674A3
2	SHAFT, IGNITION DRIVER	45-27951
3	PILOT ASSEMBLY, IGNITION DRIVER	47883A1
4	SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")	10-96138
5	BALL BEARING, IGNITION DRIVER PILOT	30-20066
6	SPRING, HORSESHOE - IGNITION DRIVER PILOT	24-27944
7	PIN, ANCHOR - HORSESHOE SPRING TO PILOT	17-27962
8	WASHER, HORSESHOE SPRING TO ANCHOR PIN	12-8M0204649
9	ECONOMIZER COLLAR AND PIN ASSEMBLY	48103A1
10	PIN, ECONOMIZER COLLAR - SPRING RETAINER	17-27961
11	FITTING, GREASE - ECONOMIZER COLLAR	22-25094
12	PLATE, THROTTLE ACTUATOR Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	66778T
12	PLATE, THROTTLE ACTUATOR Comment: UNITED STATES 3235063 THRU 3816307 AUSTRALIA 3244338 THRU 9047653 BELGIUM 9001581 THRU 9047653 CANADA 3243513 THRU 7030747	66778T
12	PLATE, THROTTLE ACTUATOR Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66778T
13	SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2") - SERIA	10-46420
14	SCREW, ADJUSTING - THROTTLE ACTUATOR (1 1/8") - SERIAL GROUP	10-23702
14	SCREW, ADJUSTING - THROTTLE ACTUATOR (1")	10-23015
15	NUT, THROTTLE ACTUATOR ADJUSTING SCREW	11-68219
16	CAP, THROTTLE ACTUATOR ADJUSTING SCREW	48039
17	WASHER, IGNITION DRIVER PILOT TO ADAPTOR	12-46246
18	ADAPTOR, IGNITION DRIVER Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	66856A1
19	SCREW, ADAPTOR AND PILOT TO CRANKCASE (1 1/2") SERIAL GR #11	10-78841
20	WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #11	12-20084
21	NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	11-22053
18	ADAPTOR, IGNITIONA DRIVER Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66856A1
19	SCREW, ADAPTOR AND PILOT AND CRANKCASE (1 1/4") SERL GR #7	10-74824
20	WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #7	12-20084
22	FITTING, GREASE - IGNITION DRIVER ADAPTOR	22-25094
23	WASHER, IGNITION DRIVER PILOT	12-27939
24	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
25	WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION	13-27959
26	CAP, IGNITION DRIVER ADAPTOR AND PILOT FASTENING	27955
27	KEY, IGNITION DRIVER	28-28657
28	HUB, DRIVEN PULLEY	29784
--	SPACER, DRIVEN PULLEY	23-29909
29	DRIVEN PULLEY ASSEMBLY	29783A1
30	PIN, ROLL - FLANGE	17-24873
31	FLANGE, DRIVEN PULLEY	29785
32	WASHER, PULLEY SCREW	12-20138
33	SCREW, PULLEY (5/8")	10-64652
34	BELT, TIMING	20140
35	PLATE, THROTTLE STOP	53458
36	SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")	10-28668
37	SCREW, THROTTLE STOP ADJUSTING (1 1/2")	10-24933
37	SCREW, THROTTLE STOP ADJUSTING (1 5/8")	10-20012
38	NUT, THROTTLE STOP ADJUSTING SCREW	11-20013
39	CAP, NYLON - ADJUSTING SCREW	26852
40	SWIVEL, LINKAGE - ECONOMIZER COLLAR	27947
41	SWIVEL AND LINK ROD ASSEMBLY Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	25996A1
42	NUT, UPPER LINK ROD ADJUSTING Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	11-25168
43	ROD, LINK - UPPER Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	37700
43A	LINK ROD Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66552
44	SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER	27948
45	LEVER, THROTTLE CONTROL	53143A2
46	BUSHING, THROTTLE LEVER SCREW	23-45818
47	SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")	10-47273
48	WASHER, THROTTLE LEVER SCREW	12-8M0042641	12-29395
49	LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)	39483
50	SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")	10-69026
51	SPRING, COMPRESSION - LATCH SCREW	24-20099
52	NUT, LATCH SCREW	11-826709109	11-33825, 11-35045
53	WASHER, UPPER SWIVEL TO THROTTLE LEVER	12-8M0204649
54	NUT, UPPER SWIVEL TO THROTTLE LEVER	11-826709109	11-33825, 11-35045
55	SPARK PLUG (AC V-40-FFM)	33-896329827	33-827C
56	SPACER, IGNITION WIRE	45391
57	BRACKET, TAB - CRANKCASE - IGNITION DRIVER GROUND STRAP	53-78201
58	SCREW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")	10-62568

IGNITION DRIVER ASSEMBLY, COMPLETE

Below is the parts list for Mercury 500 IGNITION DRIVER ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	IGNITION DRIVER ASSEMBLY, COMPLETE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	333-4674A3
-	IGNITION DRIVER ASSEMBLY Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	333-4674A3
1	HOUSING, IGNITION DRIVER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	333-4674A3
1	HOUSING, IGNITION DRIVER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	333-4674A3
2	SCREW, SET - COIL ASSEMBLY FASTENING	10-47183
3	TERMINAL BOARD ASSEMBLY, IGNITION DRIVER	333-3172A1
4	SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")	10-47182
5	COIL ASSEMBLY, IGNITION DRIVER (RED)	333-3175
6	COIL ASSEMBLY, IGNITION DRIVER (BLUE)	333-3176
7	HARNESS, PRIMARY CABLE - IGNITION DRIVER	333-3173
8	CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER	54-47188
9	SCREW, PRIMARY HARNESS CABLE FASTENING (5/8")	10-28259
10	BEARING, BALL - DRIVER END (1 3/8" O.D.)	30-24998
11	SHAFT ASSEMBLY, IGNITION DRIVER	333-4674A3
12	BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)	30-49090
13	CAP, BEARING - IGNITION DRIVER HOUSING	333-3166
14	SCREW, BEARING CAP FASTENING (9/16")	10-37656
15	ROTOR ASSEMBLY, IGNITION DRIVER	333-3143
16	SPRING, CLIP - IGNITION DRIVER ROTOR	54-47187
17	GASKET, IGNITION DRIVER COVER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	27-61031
17	GASKET, IGNITION DRIVER COVER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	27-61031
18	COVER, IGNITION DRIVER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	333-4639A1
18	COVER, IGNITION DRIVER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	333-4639A1
19	SCREW, IGNITION DRIVER COVER FASTENING (3/4")	10-20189
20	TAB WASHER, IGNITION DRIVER COVER FASTENING SCREW	14-29157
21	ELBOW, VENT - IGNITION DRIVER COVER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	22-31521
21	FLAME ARRESTOR, IGNITION DRIVER COVER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	58807A1
22	CAP ASSEMBLY, IGNITION DRIVER	333-3142A3
23	BRUSH AND SPRING ASSEMBLY	333-3165A1
24	GASKET, IGNITION DRIVER CAP	27-47190
25	GROUND STRAP ASSEMBLY	394-1134A2
26	SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")	10-47181
26	SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")	10-73013
27	TAB WASHER, IGNITION DRIVER CAP FASTENING SCREW	14-29157
28	LEAD ASSEMBLY, HIGH TENSION - DRIVER TO COIL	84-821945A8
--	TERMINAL, HIGH TENSION LEAD	8M0084600	20121
--	SLEEVE, HIGH TENSION LEAD TERMINAL COVER	85-94589
29	GROMMET, COIL WIRE BRACKET	25-26547
30	BOOT, HIGH TENSION LEAD CABLE	332-2854T01
31	SPARK PLUG LEAD ASSEMBLY (27 1/2") Comment: ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS.	84-813715A1
--	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
--	SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER	85-94589
32	SLEEVE, SPARK PLUG LEAD (6")	32-46768
33	SLEEVE, SPARK PLUG LEAD (1 1/2") Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	32-46768
34	PROTECTOR ASSEMBLY, SPARK PLUG LEADS	85-63709A1
35	SLEEVE, HIGH TENSION CABLE (3/4") Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	32-46398
--	SEPERATOR, IGNITION LEADS	59126
36	CLIP, IGNITION DRIVER LEAD	54-22627
37	SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")	10-25764
38	"D" WASHER, IGNITION DRIVER LEAD SCREW	8M0084613	69205

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 500 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	GASKET SET Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	27-72486A32
-	GASKET SET Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	27-72486A32
-	MERC 500 PARTS LIST	90-56972
-	DECAL SET Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	37-43198A84
-	DECAL SET Comment: UNITED STATES 3008819 THRU 3235062 AUSTRALIA 3015354 THRU 3244337 CANADA 3015454 THRU 3243512	37-43198A84
-	DECAL SET Comment: UNITED STATES 3235063 THRU 3478002 AUSTRALIA 3244338 THRU 3352806 BELGIUM 9001581 THRU 9006163 CANADA 3243513 THRU 3352754	37-43198A84
-	DECAL SET Comment: UNITED STATES 3478003 THRU 3816307 AUSTRALIA 8004785 THRU 8015989 BELGIUM 9006164 THRU 9047653 CANADA 7007358 THRU 7030747	37-43198A84
-	DECAL SET Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	37-43198A84
-	HEAVY DUTY WATER PUMP KIT	54696A1
-	TACHOMETER ASSEMBLY	79-73370A3
-	MODULE ASSEMBLY	52552A3

STARTER HOUSING

Below is the parts list for Mercury 500 STARTER HOUSING:

Position No.	Part Name	OEM Number
1	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
2	TAB WASHER, SHEAVE SHAFT NUT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	14-20165
2	TAB WASHER, SHEAVE SHAFT NUT Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	14-61004
3	HOUSING, STARTER	57237
4	SCREW, STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")	10-90073
5	LOCKWASHER, STARTER HOUSING SCREW	13-20202
6	PLATE, CABLE GUIDE	37691
7	SCREW, DRIVE - CABLE GUIDE TO STARTER HOUSING	10-358811
8	RETAINER, STARTER SPRING Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	39835
8	RETAINER, STARTER SPRING Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	61002
9	SPRING, STARTER REWIND	24-39502T02
10	SHEAVE ASSEMBLY Comment: UNITED STATES 2858814 THRU 3478002 AUSTRALIA 2863739 THRU 8004784 BELGIUM 9001581 THRU 9006163 CANADA 2742142 THRU 7007357	76053A1
11	BUSHING, SPRING GUIDE Comment: UNITED STATES 2858814 THRU 3478002 AUSTRALIA 2863739 THRU 8004784 BELGIUM 9001581 THRU 9006163 CANADA 2742142 THRU 7007357	23-28912
10	SHEAVE ASSEMBLY Comment: UNITED STATES 3478003 THRU 3816307 AUSTRALIA 8004785 THRU 8015989 BELGIUM 9006164 THRU 9047653 CANADA 7007358 THRU 7030747	76053A1
11	BUSHING, SPRING GUIDE Comment: UNITED STATES 3478003 THRU 3816307 AUSTRALIA 8004785 THRU 8015989 BELGIUM 9006164 THRU 9047653 CANADA 7007358 THRU 7030747	23-63100
10	SHEAVE ASSEMBLY Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	76053A1
11	BUSHING, SPRING GUIDE Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	23-63100
12	PAWL, STARTER	30596
13	WASHER, WAVE - STARTER PAWL	13-36206
14	BUSHING, NYLON - SHEAVE SHAFT SPACER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	23-28919
15	SPACER, SHEAVE SHAFT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	23-61005
15	SPACER, SHEAVE SHAFT Comment: UNITED STATES 3235063 THRU 3478002 AUSTRALIA 3244338 THRU 3352806 BELGIUM 9001581 THRU 9006163 CANADA 3243513 THRU 3352754	23-61005
15	SPACER, SHEAVE SHAFT (PART OF 50-62237A1) Comment: UNITED STATES 3478003 AND UP AUSTRALIA 8004785 AND UP BELGIUM 9006164 AND UP CANADA 7007358 AND UP	23-63061
16	RETAINER, WAVE WASHER	39840
17	WASHER, WAVE WASHER RETAINER	12-57837
18	WASHER, WAVE - RETAINER TENSION	13-20160
19	SPRING, RETAINER PLATE TO STARTER SHEAVE Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	44-26088
20	PLATE, RETAINER - STARTER PAWL Comment: UNITED STATES 2858814 THRU 3816307 AUSTRALIA 2863739 THRU 8015989 BELGIUM 9001581 THRU 9047653 CANADA 2742142 THRU 7030747	66845
19	SPRING, RETAINER PLATE TO STARTER SHEAVE Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	24-66853
19A	RETAINER, SPRING Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66848
20	PLATE, RETAINER - STARTER PAWL Comment: UNITED STATES 3816308 AND UP AUSTRALIA 8015900 AND UP BELGIUM 9047654 AND UP CANADA 7030748 AND UP	66845
21	WASHER, WEAR - SHEAVE SHAFT Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	12-57860
22	SHAFT, SHEAVE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	45477A1
22	SHAFT, SHEAVE Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	61003
23	STARTER CABLE ASSEMBLY	50-12066Q10
23	STARTER CABLE (FOR MANUAL STARTING OF ELECTRIC ENGINE	47341A11
24	HANDLE, STARTER CABLE	28747
25	RETAINER, STARTER CABLE AND HANDLE	79470A1
26	CABLE ASSEMBLY, INTERLOCK	70969
27	SCREW, INTERLOCK CABLE TO EXHAUST PLATE (5/8")	10-32228
28	SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")	10-69022
29	LOCKWASHER, INTERLOCK CABLE SCREW	13-27660
30	WASHER, INTERLOCK CABLE SCREW Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	12-26013
30	WASHER, INTERLOCK CABLE SCREW Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	12-26013
31	CAM, SLIDING - STARTER HOUSING	57236
32	SPRING, SLIDING CAM	24-70086
33	WASHER, INTERLOCK CABLE	12-37998
34	COTTER PIN, INTERLOCK CABLE TO SLIDING CAM	18-26953
35	TOGGLE ASSEMBLY, STARTER INTERLOCK	65757A1
36	SCREW, TOGGLE TO STARTER HOUSING	10-57249
37	BUSHING, TOGGLE SCREW	23-26856
38	SPRING, TOGGLE SCREW	24-57279

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES

Below is the parts list for Mercury 500 STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:

Position No.	Part Name	OEM Number	Supersedes
1	SWITCH BOX ASSEMBLY, COMPLETE	333-3213A3
2	WASHER, SWITCH BOX TERMINAL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	12-45075
3	NUT, SWITCH BOX TERMINAL	11-45076
4	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8")	10-69030
5	RECTIFIER ELECTRIC	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
6	LOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRIC	13-8M0204647
7	NUT, RECTIFIER TO FRONT BRACKET ELECTRIC	11-20922
8	SPACER, RECTIFIER TO FRONT BRACKET ELECTRIC	23-28458
9	SCREW, RECTIFIER TERMINALS (3/8") ELECTRIC	10-20055
10	NUT, RECTIFIER TERMINALS ELECTRIC	11-8M0204718
11	SLEEVE, RECTIFIER TERMINALS ELECTRIC	32-28373
12	BRACKET, RETAINER - HIGH TENSION LEAD	59757
13	SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2")	10-24933
14	SPACER, RETAINER BRACKET TO SUPPORT BRACKET	23-33070
15	NUT, RETAINER BRACKET SCREW	11-8M0207775
16	STARTER MOTOR ASSEMBLY - ELECTRIC Comment: UNITED STATES 2858814 THRU 3091050 AUSTRALIA 2863739 THRU 3099125 CANADA 2742142 THRU 3098195	50-55601A2
16	STARTER MOTOR ASSEMBLY - ELECTRIC Comment: UNITED STATES 3091051 AND UP AUSTRALIA 3099126 AND UP BELGIUM 9001581 AND UP CANADA 3098196 AND UP	50-55601A2
17	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRIC	10-52446
18	LOCKWASHER, STARTER MOTOR SCREW ELECTRIC	13-8M0204647
19	WIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRIC	84-93389A12
20	SCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRIC	10-69035
21	LOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRIC	13-26992
22	NUT, GROUND WIRE SCREW ELECTRIC	11-20890
23	STARTER SOLENOID - ELECTRIC Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	32445A1
23	STARTER SOLENOID - ELECTRIC Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	25661T1
24	LOCKWASHER, SOLENOID TERMINAL ELECTRIC	10,13-26996
25	NUT, SOLENOID TERMINAL ELECTRIC	10,11-68219
26	LOCKWASHER, SOLENOID TERMINAL (5/16") ELECTRIC	13-8M0204647
27	NUT, SOLENOID TERMINAL - INSIDE (5/16") ELECTRIC	11-22053
28	NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16") ELECTRIC	11-26062
29	SCREW, SOLENOID TO STARTER MOTOR (5/8") Comment: ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	10-29238
29	SCREW, SOLENOID TO SUPPORT BRACKET (3/4") Comment: ELECTRIC UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	10-69028
30	NUT, STARTER SOLENOID SCREW ELECTRIC Comment: ELECTRIC	11-8M0207775
31	GROUND STRAP ASSEMBLY ELECTRIC	46715
32	WIRING HARNESS (INTERNAL) ELECTRIC	52770A1
33	SPRING, GARTER - INTERNAL WIRING HARNESS ELECTRIC	24-28975
34	CLAMP, WIRING HARNESS ELECTRIC	54-76368
35	SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRIC	10-45862
36	LOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRIC	13-26996
37	WASHER, WIRING HARNESS CLAMP SCREW ELECTRIC	12-847883	12-20128
38	CLIP, WIRING HARNESS LEAD Comment: , ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	54-26550
39	SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8") Comment: , ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	10-29072
40	"D" WASHER, HARNESS LEAD CLIP ATTACHING SCREW Comment: , ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	8M0084613	69205 , ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512
41	NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW Comment: , ELECTRIC UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	11-24656
42	STA-STRAP, WIRING HARNESS ELECTRIC	61990
43	IGNITION COIL ASSEMBLY, COMPLETE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	332-4895A6
43	IGNITION COIL ASSEMBLY, COMPLETE Comment: UNITED STATES 9008819 AND UP AUSTRALIA 3015354 AND UP BELGIUM 9001581 AND UP CANADA 3015454 AND UP	332-4895A6
44	SCREW, IGNITION COIL CLAMPING	10-46368
45	NUT, IGNITION COIL CLAMPING SCREW	11-8267086
46	SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")	10-45218
47	SCREW, IGNITION COIL TO BOTTOM COWL (1")	10-36137
48	LOCKWASHER, IGNITION COIL SCREW	13-26992

TOP COWL ASSEMBLY

Below is the parts list for Mercury 500 TOP COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL (MANUAL)	2117-4067A1
1	TOP COWL (ELECTRIC)	2117-4068A1
2	HOOK, TOP COWL LATCH - REAR	55455
3	SCREW, REAR HOOK TO TOP COWL (7/8")	10-22956
4	LOCKWASHER, REAR HOOK MOUNTING SCREW	13-26992
5	SHIELD, REAR - TOP COWL	37690
6	SCREW, REAR SHIELD TO TOP COWL	10-37370
7	LOCKWASHER, REAR SHIELD SCREW	13-37371
8	RETAINER ASSEMBLY, TOP COWL Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	55459A5
9	EMBLEM, TOP COWL RETAINER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	37-61018A1
10	PAD, BUMPER - TOP COWL RETAINER Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3015353 CANADA 2742142 THRU 3015453	35496
8	RETAINER ASSEMBLY, TOP COWL Comment: UNITED STATES 3008819 THRU 3235062 AUSTRALIA 3015354 THRU 3244337 CANADA 3015454 THRU 3243512	55459A5
10	PAD, BUMPER - TOP COWL RETAINER Comment: UNITED STATES 3008819 THRU 3235062 AUSTRALIA 3015354 THRU 3244337 CANADA 3015454 THRU 3243512	35496
8	RETAINER ASSEMBLY, TOP COWL Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	55459A5
10	PAD, BUMPER - TOP COWL RETAINER Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	35496
11	SCREW, RETAINER TO TOP COWL (1")	10-35386
12	LOCKWASHER, RETAINER TO TOP COWL SCREW	13-39107
13	LEVER, COWL HATCH HINGE	94918F1
14	HINGE, COWL LATCH - TOP COWL	52739
15	SPRING, COWL LATCH HINGE Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	24-53019
16	PIN, COWL LATCH LEVER TO HINGE	17-58998
17	GROMMET, CHOKE KNOB	25-20116
18	BRACKET, REAR COWL SUPPORT	720201
19	GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET	25-52723
20	MOUNT, RUBBER - REAR SUPPORT BRACKET Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	60577
20	MOUNT, RUBBER - REAR SUPPORT BRACKET Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	60577
21	LOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNT	13-26992
22	WASHER, REAR SUPPORT BRACKET RUBBER MOUNT	12-69056
23	NUT, REAR SUPPORT BRACKET RUBBER MOUNT	11-20088
24	BRACKET ASSEMBLY, FRONT SUPPORT Comment: UNITED STATES 2858814 THRU 3235062 AUSTRALIA 2863739 THRU 3244337 CANADA 2742142 THRU 3243512	60785A2
24	BRACKET ASSEMBLY, FRONT SUPPORT Comment: UNITED STATES 3235063 AND UP AUSTRALIA 3244338 AND UP BELGIUM 9001581 AND UP CANADA 3243513 AND UP	60785A2
25	FLANGE, RUBBER - FRONT SUPPORT BRACKET	37921
26	DECAL, TIMING - FRONT SUPPORT BRACKET	37-46397
27	MOUNT, RUBBER - FRONT SUPPORT BRACKET	31014
28	LOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT	13-26992
29	WASHER, FRONT SUPPORT BRACKET RUBBER MOUNT	12-69057
30	NUT, FRONT SUPPORT BRACKET RUBBER MOUNT	11-20088
31	SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")	10-35386
32	CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET Comment: ELECTRIC	54-25231
32	CLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKET Comment: ELECTRIC	54-24836
33	SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16") Comment: ELECTRIC	10-69079
34	"D" WASHER, CHOKE SOLENOID CLIP SCREW Comment: ELECTRIC	8M0084613	69205 ELECTRIC
35	TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
