Mercury 40 (1 CYL.) (3306257 THRU 8026539) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
BOTTOM COWL ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) BOTTOM COWL ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BOTTOM COWL Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 187-4709 | |
| 1 | BOTTOM COWL Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 187-7711A4 | |
| 2 | LEVER ASSEMBLY, CLAMPING - PORT | 36187A1 | |
| 3 | LEVER ASSEMBLY, CLAMPING - STARBOARD | 36188A1 | |
| 4 | FASTENER, CLAMPING LEVER | 53-55891 | |
| 5 | GROUND STRAP ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 84-60871A7 | |
| 6 | SPRING, GROUND STRAP Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 24-63399 | |
| 7 | BUSHING, NYLON - CLAMPING LEVER | 23-26819 | |
| 8 | BUSHING, RUBBER - CLAMPING LEVER | 23-31293 | |
| 9 | PIN, ROLL - CLAMPING LEVER | 17-58997 | |
| 10 | SCREW, BOTTOM COWL FLUSHING HOLE | 10-79953Q04 | |
| 11 | WASHER, BOTTOM COWL FLUSHING HOLE SCREW | 12-191833 | |
| 12 | NOZZLE, TELL TALE | 56712 | |
| 13 | SCREW, TELL TALE NOZZLE TO BOTTOM COWL | 10-35519 | |
| 14 | TUBE, TELL TALE (7 1/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 15 | ELBOW, TELL TALE - HOSE TO CYLINDER BLOCK | 22-996642 | |
| 16 | GASKET, POWERHEAD TO BOTTOM COWL | 27-89937 | |
| 17 | GASKET, EXHAUST RELEIF COVER TO BOTTOM COWL | 27-55847 | |
| 18 | COVER, EXHAUST RELIEF | 55936 | |
| 19 | SCREW, EXHAUST RELEIF COVER TO BOTTOM COWL (7/16") | 10-69079 |
CARBURETOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CARBURETOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY, COMPLETE (KB-10A) | 1341-8740A1 | |
| 2 | FLOAT ASSEMBLY | 1395-8673 | |
| 3 | PIN, FLOAT LEVER PINION (#) | ||
| 4 | LEVER, FLOAT (LOWER) (#) | ||
| 5 | LEVER, FLOAT (UPPER) (#) | ||
| 6 | INLET NEEDLE, SEAT AND GASKET | 1395-92581 | |
| 7 | GASKET, INLET SEAT (#) | ||
| 8 | GASKET, FLOAT BOWL COVER (#) | ||
| 9 | COVER, FLOAT BOWL | 1399-1133 | |
| 10 | SCREW, FLOAT BOWL COVER (SHORT) | 10-52195 | |
| 11 | SCREW, FLOAT BOWL COVER (LONG) | 10-52196 | |
| 12 | LOCKWASHER, FLOAT BOWL COVER SCREW | 13-26995 | |
| 13 | GASKET, STRAINER COVER (LARGE) (#) | ||
| 14 | SCREEN, FILTER | 1399-3938 | |
| 15 | GASKET, STRAINER COVER (SMALL) (#) | ||
| 16 | COVER, STRAINER | 1399-1135 | |
| 17 | GASKET, STRAINER COVER SCREW (#) | ||
| 18 | SCREW, STRAINER COVER | 10-25822 | |
| 19 | SCREW, THROTTLE STOP LEVER | 1395-6027 | |
| 20 | LEVER, THROTTLE STOP | 8146791 | |
| 21 | SHAFT, THROTTLE | 1399-1716 | |
| 22 | TUBE, IDLE (#) | ||
| 23 | GASKET, IDLE TUBE (#) | ||
| 24 | SCREW AND LOCKWASHER, THROTTLE SHUTTER (#) | ||
| 25 | SHUTTER, THROTTLE | 1399-3739 | |
| 26 | WELCH PLUG, BODY CHANNEL (#) | ||
| 27 | SPRING, THROTTLE SHAFT RETURN (#) | ||
| 28 | SCREW, PLUG - BODY CHANNEL | 10-28845 | |
| 29 | ,MAIN NOZZLE (#) | ||
| 30 | SCREW, PLUG - MAIN NOZZLE | 10-23178 | |
| 31 | JET, MAIN FUEL (.041) | 1399-1896 | |
| 31 | JET, MAIN FUEL (.039) | 1399-2407 | |
| 31 | JET, MAIN FUEL (.036) - STANDARD | 1399-3026 | |
| 31 | JET, MAIN FUEL (.034) | 1399-3251 | |
| 31 | JET, MAIN FUEL (.032) | 1399-3252 | |
| 32 | GASKET, MAIN FUEL JET (#) | ||
| 33 | GASKET, JET CHANNEL PLUG SCREW (#) | ||
| 34 | SCREW, PLUG - MAIN FUEL JET CHANNEL | 10-28405 | |
| 35 | SCREW, IDLE ADJUSTMENT | 1399-3740 | |
| 36 | SPRING, IDLE ADJUSTMENT SCREW (#) | ||
| -- | GASKET AND PACKING SET | 1399-1717 | |
| -- | REPAIR PARTS KIT | 1395-92621 | |
| 37 | GASKET, CARBURETOR TO REED BLOCK | 27-63309 | |
| 38 | WASHER, CARBURETOR MOUNTING STUD | 12-20583 | |
| 39 | NUT, CARBURETOR MOUNTING STUD | 11-24652 |
CARBURETOR CHOKE LINKAGE
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CARBURETOR CHOKE LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | THROTTLE LEVER ASSEMBLY | 59000 | |
| 2 | SCREW, THROTTLE LEVER TO CARBURETOR (3/8") | 10-20597 | |
| 3 | SHUTTER AND SCREEN, CHOKE - CARBURETOR | 79092 | |
| 4 | SPRING, CHOKE SHUTTER TO LEVER | 24-53193 | |
| 5 | SPRING ASSEMBLY, CARBURETOR | 24-55299A1 | |
| 6 | SCREW, SPRING TO CARBURETOR | 10-55298 | |
| 7 | LEVER, CHOKE | 53187 | |
| 8 | SPRING, TENSION - CHOKE KNOB | 24-53190 | |
| 9 | KNOB, CHOKE | 53189 |
CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #1)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY (PORT) | 1468-5570A3 | |
| 2 | CLAMP BRACKET ASSEMBLY (STARBOARD) | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY | 59170A3 | |
| 4 | WASHER, THUMB SCREW | 12-26227 | |
| 5 | WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET | 12-52864 | |
| 6 | TITL TUBE, CLAMP TO SWIVEL BRACKET | 45757 | |
| 7 | CLIP, SAFETY CHAIN - TITE TUBE | 54-8M0085928 | 54-30954 |
| 8 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 9 | STUD, CLAMP BRACKET | 16-59622 | |
| 10 | LOCKWASHER, CLAMP BRACKET STUD | 13-26992 | |
| 11 | NUT, CLAMP BRACKET STUD | 11-29598 | |
| 12 | SPRING, TILT LOCK PIN | 24-62143 | |
| 13 | TILT LOCK PIN ASSEMBLY | 17-55952A1 | |
| 14 | BOLT, CLAMP BRACKET TO BOAT | 10-67982 | |
| 15 | WASHER, CLAMP BRACKET SCREW | 12-67983 | |
| 16 | NUT, CLAMP BRACKET SCREW | 11-8267098 | |
| 17 | SWIVEL BRACKET | 1451-4675 | |
| 18 | "O" RING, SWIVEL BRACKET | 25-25439 | |
| 19 | SERIAL PLATE | 38-31042 | |
| 20 | SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET | 10-28642 | |
| 21 | LUBRICAP, GREASE FITTING - SWIVEL BRACKET | 19-77633Q | |
| 22 | FITTING, GREASE - SWIVEL BRACKET | 22-8M0169589 | |
| 23 | SPACER, TUBE - REVERSE LOCK ROD | 23-30813 | |
| 24 | BUSHING, NYLON - REVERSE LOCK LEVER ROD | 23-26856 | |
| 25 | ROD, REVERSE LOCK TO SWIVEL BRACKET | 56663 | |
| 26 | COTTER PIN, RECERSE LOCK LEVER TO ROD | 18-56206 | |
| 27 | LINK, REVERSE LOCK LEVER | 30815 | |
| 28 | REVERSE LOCK LEVER ASSEMBLY | 53267A1 | |
| 29 | BRACKET, STOP | 53435 | |
| 30 | SPRING, EXTENSION - STOP BRACKET | 24-53456 | |
| 31 | SPRING, TENSION - REVERSE LOCK LEVER | 24-30886 | |
| 32 | LINK ASSEMBLY, REVERSE LEVER | 62257A2 | |
| 33 | ROD, LINK - REVERSE LOCK LEVER | 62256 | |
| 34 | SCREW, LINK TO SWIVEL BRACKET | 10-60355 | |
| 35 | WASHER, WAVE - LINK SCREW | 13-34632 | |
| 36 | ROLL PIN, RELEASE LINK | 17-25905 | |
| 37 | SWIVEL PIN, SWIVEL BRACKET TO SADDLE | 17-30688 | |
| 38 | CO-PILOT DISC | 77334 | |
| 39 | SCREW, CO-PILOT DISC TO SADDLE | 10-30679 | |
| 40 | NUT, CO-PILOT DISC FASTENING SCREW | 11-8M0207775 | |
| 41 | DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THIN) | 62342 | |
| 42 | DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET (THICK) | 20203 | |
| 43 | PLATE, CLAMP - CO-PILOT | 61296 | |
| 44 | SCREW, CLAMP PLATE ADJUSTING Comment: . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT. | 10-62506 | |
| 45 | NUT, CAMPL PLATE ADJUSTING SCREW Comment: . FOR REPLACEMENT OF SCREW AND COTTER PIN USED ON EARLY MODELS IN THIS APPLICATION, ORDER C-10-62506 SCREW AND C-11-62505 NUT. | 11-62505 | |
| 47 | WSHER, CLAMP PLATE ADJJUSTING SCREW | 12-35462 | |
| 48 | WASHER, WAVE - CLAMP PLATE ADJUSTING SCREW | 13-48239 | |
| 49 | LEVER, CONTROL - REVERSE LOCK | 62024T | |
| 50 | SPACER, CLAMP PLATE ADJUSTING SCREW | 23-59573 | |
| 51 | PLATE, LOCKING - CLAMP PLATE ADJUSTING SCREW | 61602 | |
| 52 | LEVER, TITLE STOP | 63310A1 | |
| 53 | SCREW, RETAINING - TILT STOP LEVER | 10-29237 | |
| 54 | NUT, TILT STOP LEVER RETAINING SCREW | 11-8M0207775 | |
| 55 | SCREW, ANCHOR - TILT STOP LEVER | 10-27791 | |
| 56 | WASHER, WAVE - LEVER ANCHOR SCREW | 13-20846 | |
| 57 | NUT, TILT STOP LEVER ANCHOR SCREW | 11-8M0207775 |
CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #2)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY (SERIAL GROUP #2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY (PORT) | 1468-5570A3 | |
| 2 | CLAMP BRACKET ASSEMBLY (STARBOARD) | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY | 59170A3 | |
| 4 | WASHER, THUMB SCREW | 12-26227 | |
| 5 | WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET | 12-52864 | |
| 6 | TILT TUBE, CLAMP TO SWIVEL BRACKET | 45757 | |
| 7 | CLIP, SAFETY CHAIN - TILT TUBE | 54-8M0085928 | 54-30954 |
| 8 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 9 | STUD, CLAMP BRACKET | 16-59622 | |
| 10 | LOCKWASHER, CLAMP BRACKET STUD | 13-26992 | |
| 11 | NUT, CLAMP BRACKET STUD | 11-29598 | |
| 12 | SPRING, TILT LOCK PIN | 24-62143 | |
| 13 | TILT LOCK PIN ASSEMBLY | 17-55952A1 | |
| 14 | BOLT, CLAMP BRACKET TO BOAT | 10-67982 | |
| 15 | WASHER, CLAMP BRACKET SCREW | 12-67983 | |
| 16 | NUT, CLAMP BRACKET SCREW | 11-8267098 | |
| 17 | SWIVEL BRACKET Comment: UNITED STATES 3529446 AND UP AUSTRALIA 8005740 AND UP BELGIUM 9012109 AND UP CANADA 7011058 AND UP | 1471-5822A1 | |
| 17 | SWIVEL BRACKET ASSEMBLY Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 1471-5822A1 | |
| 18 | LUBRICAP, GREASE FITTING - SWIVEL BRACKET Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 19-77633Q | |
| 19 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 22-8M0169589 | |
| 20 | BUSHING, SWIVEL BRACKET | 23-64028 | |
| 21 | BUSHING, NYLON - REVERSE LOCK LEVER ROD | 23-26841 | |
| 22 | ROD, REVERSE LOCK TO SWIVEL BRACKET | 63551 | |
| 23 | COTTER PIN, RECERSE LOCK LEVER TO ROD | 18-45882 | |
| 24 | LEVER, REVERSE LOCK | 63628T | |
| 25 | RETAINER, ROD - REVERSE LOCK | 61007 | |
| 26 | BRACKET, TROLL | 63559T | |
| 27 | SPRING, EXTENSION - TROLL BRACKET | 24-63630 | |
| 28 | GUIDE, SPRING | 63554 | |
| 29 | ROLL PIN, SPRING GUIDE | 17-25319 | |
| 30 | LEVER, CONTROL - TROLL BRACKET | 79744 | |
| 31 | WASHER, WAVE - TROLL BRACKET LEVER | 13-63631 | |
| 32 | SWIVEL PIN, SWIVEL BRACKET TO SADDLE Comment: UNITED STATES 3529446 AND UP AUSTRALIA 8005740 AND UP BELGIUM 9012109 AND UP CANADA 7011058 AND UP | 66559 | |
| 32 | SWIVEL PIN, SWIVEL BRACKET TO SADDLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66559 | |
| 33 | CO-PILOT DISC | 77334 | |
| 34 | SCREW, CO-PILOT DISC TO SADDLE (2 1/4") | 10-30679 | |
| 35 | NUT, CO-PILOT DISC FASTENING SCREW | 11-8M0207775 | |
| 36 | DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET | 20203 | |
| 37 | PLATE, CLAMP - CO-PILOT | 63647 | |
| 38 | SCREW, CLAMP PLATE ADJUSTING (1 5/8") | 10-62506 | |
| 39 | WASHER, CLAMP PLATE ADKJUSTING SCREW | 12-35462 | |
| 40 | LEVER ASSEMBLY, TILT STOP | 63310A1 | |
| 41 | SCREW, TILT STOP LEVER | 10-41433 | |
| 42 | WASHER, WAVE - LEVER ANCHOR SCREW | 13-31030 | |
| 43 | NUT, TILT STOP LEVER SCREW | 11-826709109 | 11-33825, 11-35045 |
| 44 | SCREW, SWIVEL BRACKET (1/4") | 10-36398 |
CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT | 427-3513 | |
| 2 | CARRIER ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 26-72793 | |
| 3 | SEAL, CARRIER ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 26-72793 | |
| 4 | CONNECTING ROD ASSEMBLY | 608-7395A2 | |
| 5 | SCREW, CONNECTINT ROD | 10-87374 | |
| 6 | BEARING, NEEDLE - CRANKPIN | 29-26815 | |
| 7 | NUT, CONNECTING ROD SCREW | 11-20061 | |
| 8 | WASHER, NEEDLE BEARING RETAINING | 12-65967 | |
| 9 | BEARING, NEEDLE - PISTON PIN | 29-31505 | |
| 10 | PISTON AND PISTON PIN ASSEMBLY | 719-7391T3 | |
| 11 | LOCK RING, PISTON PIN | 40-21666 | |
| 12 | RING, PISTON | 39-21665A12 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY | 843-8694A3 | |
| 2 | STUD, SYLINDER BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING | 16-66021 | |
| 3 | STUD, CARBURETOR MOUNTING | 16-66020 | |
| 4 | PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK | 17-8M0084726 | 17-85500 |
| 5 | ELBOW ASSEMBLY, BLEED DRAIN Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 21-64871A2 | |
| 6 | CHECK VALVE ASSEMBLY Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 21-42657A3 | |
| 5 | FITTING ASSEMBLY, BLEED DRAIN Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 21-64871A2 | |
| 7 | HOSE, BLEED DRAIN (7 1/2") | 32-9938779 | |
| 8 | CLAMP, BLEED HOSE ATTACHING | 54-56223 | |
| 9 | ELBOW, BLEED DRAIN | 22-78916 | |
| 10 | ELBOW, 90 - 1/8' MALE (TELL TALE) | 22-996642 | |
| 11 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4") | 10-24624 | |
| 12 | SCREW, CRANKCASE TO CYLINDER BLOCK (1") | 10-64278 | |
| 13 | NUT, CRANKCASE FASTENING SCREW | 11-8M0207775 | |
| 14 | REED BLOCK | 70726 | |
| 15 | REED, INLET VALVE | 34-35836 | |
| 16 | RETAINER, REED | 34-22215 | |
| 17 | SCREW, REED AND RETAINER TO BLOCK (1/4") | 10-28430 | |
| 18 | GASKET, REED BLOCK TO CRANKCASE | 27-357391 | |
| 19 | BEARING, BALL - CRANKCASE (LOWER) | 30-72961 | |
| 20 | OIL SEAL, CRANKCASE (LOWER) | 26-56397 | |
| 21 | SHIM ASSEMBLY, UPPER HOUSING TO BLOCK (.002-3-5-10) | 15-31412A1 | |
| 22 | BEARING HOUSING ASSEMBLY, UPPER | 1132-6352A1 | |
| 23 | BEARING, BALL - UPPER BEARING HOUSING | 30-72961 | |
| 24 | BEARING, ROLLER - UPPER BEARING HOUSING | 31-31410 | |
| 25 | OIL SEAL, UPPER BEARING HOUSING | 26-31411 | |
| 26 | "O" RING, UPPER BEARING HOUSING | 25-20863 | |
| 27 | CLAMP, HOLD DOWN RING | 54-34598 | |
| 28 | SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING (9/16") | 10-36205 | |
| 29 | SPRING, HOLD DOWN RING CLAMP | 24-34731 | |
| 30 | SCREW, UPPER BEARING HOUSING (#12-24 X 1/2) | 10-39002 | |
| 31 | COVER, TRANSFER PORT | 35658 | |
| 32 | GASKET, TRANSFER PORT COVER | 27-35657 | |
| 33 | SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8") | 10-20720 | |
| 34 | COVER, CYLINDER BLOCK Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 1016-7070A1 | |
| 35 | MOUNT, RUBBER - COVER TO TOP COWL Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 31014 | |
| 36 | LOCKWASHER, RUBBER MOUNT Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 13-26992 | |
| 37 | NUT, RUBBER MOUNT TO COVER Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 11-20088 | |
| 34 | COVER ASSEMBLY, CYLINDER BLOCK Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 1016-7070A1 | |
| 35 | MOUNT, RUBBER - COVER TO TOP COWL Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66019 | |
| 36 | LOCKWASHER, RUBBER MOUNT Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 13-20202 | |
| 37 | NUT, RUBBER MOUNT TO COVER Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 11-22053 | |
| 38 | GASKET, COVER TO CYLINDER BLOCK | 27-416151 | |
| 39 | SCREW, SYLINDER BLOCK COVER TO CYLINDER BLOCK (1 1/4") | 10-21091 | |
| 40 | NUT, CYLINDER BLOCK COVER MOUNTING SCREW | 11-8M0207775 | |
| 41 | GASKET, SYLINDER BLOCK TO BAFFLE PLATE | 27-416141 | |
| 42 | PLATE, BAFFLET - EXHAUST MANIFOLD | 46234 | |
| 43 | GASKET, BUFFLE PLATE TO EXHAUST MANIFOLD COVER | 27-416141 | |
| 44 | COVER, EXHAUST MANIFOLD | 46171 | |
| 45 | SCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4") Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-28636 | |
| 45 | SCREW, PLATE/MANIFOLD COVER TO BLOCK (3/4") Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-49668 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1538-3889A2 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1542-3888A2 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1538-8456A1 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1542-8452A1 | |
| 2 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING | 16-66373 | |
| 3 | NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD | 11-82670911 | |
| 4 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD | 11-8M0204726 | |
| 5 | SADDLE Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1539-8450A1 | |
| 5 | SADDLE Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1539-8450A1 | |
| 6 | BUMPER, THRUST - SADDLE Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 64076 | |
| 7 | MOUNT ASSEMBLY, LOWER | 79896A1 | |
| 8 | MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW) | 79985A1 | |
| 9 | RING, RETAINING - UPPER AND LOWER MOUNT | 53-26406 | |
| 10 | COVER, UPPER AND LOWER MOUNT | 71490 | |
| 11 | SCREW, UPPER AND LOWER MOUNT COVER RETAINING (7/16") | 10-45817 | |
| 12 | BLOCK, BEARING - DRIVE SHAFT | 55435 | |
| 13 | GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING | 27-59079 | |
| 14 | NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS | 11-8M0207775 | |
| 14 | NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS | 11-24652 | |
| 15 | TUBE, WATER OUTLET(SHORT SHAFT) | 32-31940 | |
| 15 | TUBE, WATER OUTLET(LONG SHAFT) | 32-32077 | |
| 16 | SEAL, RUBBER - WATER OUTLET TUBE | 26-36556 | |
| 17 | WASHER, NYLON - OUTLET TUBE SEAL | 23-13127 | |
| 18 | LINK ROD, REVERSE LOCK Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 71057 | |
| 19 | SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4") Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-65414 | |
| 20 | LOCKWASHER, CAM RETAINER SCREW Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 13-26992 | |
| 21 | CAM, REVERSE LOCK Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 65216 | |
| 22 | RETAINER, REVERSE LOCK CAM Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 72007 |
FLYWHEEL AND IGNITION COIL
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FLYWHEEL AND IGNITION COIL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FLYWHEEL ASSEMBLY | 236-4475A1 | |
| 2 | KEY, FLYWHEEL DRIVE | 28-20094 | |
| 3 | "O" RING, FLYWHEEL NUT | 25-62701 | |
| 4 | WASHER, FLYWHEEL NUT | 12-36245 | |
| 5 | NUT, FLYWHEEL | 11-20696 | |
| 6 | WASHER, WAVE - CAM TENSION | 13-35629 | |
| 7 | CAM, BREAKER | 336-4465 | |
| 8 | COIL ASSEMBLY, IGNITION | 336-4528T2 | |
| 9 | LOCKWASER, IGNITION COIL TERMINAL | 13-26996 | |
| 10 | NUT, IGNITION COIL TERMINAL | 11-45076 | |
| 11 | COVER, IGNITION COIL | 66355 | |
| 12 | SCREW, COIL COVER TO REAR SUPPORT GRACKET (3 3/4") | 10-61530 | |
| 13 | NUT, COIL COVER SCREW | 11-27164 | |
| 14 | LEAD ASSEMBLY, HIGH TENSION | 84-813715A1 | |
| 15 | NIPPLE, IGNITION COIL | 332-2854T01 | |
| 16 | PROTECTOR ASSEMBLY, SPAR PLUG | 85-63709A1 | |
| 17 | SPARK PLUG (AC #40FFK) | 33-896329833 | 33-833C |
FUEL PUMP AND FUEL LINE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FUEL PUMP AND FUEL LINE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 89977A1 | |
| 2 | CHECK VALVE ASSEMBLY | 21-30430A2 | |
| 3 | DIAPHRAGM KIT, FUEL PUMP | 53245A1 | |
| 4 | GASKET, FUEL PUMP TO BASE (#) | ||
| 5 | GASKET, FUEL PUMP (#) | ||
| 6 | BASE, FUEL PUMP | 53241 | |
| 7 | COVER, FUEL PUMP | 61541 | |
| 8 | SCREW, FUEL PUMP TO BASE (1 1/2") | 10-32627 | |
| 9 | WASHER, FUEL PUMP SCREWS | 12-847883 | 12-20128 |
| 10 | CONNECTOR, HOSE TO FUEL PUMP Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 22-54064 | |
| 10 | ELBOW, HOSE TO FUEL PUMP (45) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 22-61544 | |
| 11 | ELBOW, FUEL PUMP TO CARBURETOR | 22-39079 | |
| 12 | HOSE ASSEMBLY, FUEL PUMP TO CYLINDER BLOCK (4 1/2") | 32-9912688 | |
| 13 | ELBOW, HOSE TO CYLINDER BLOCK (90) | 22-33373001 | |
| 14 | CLAMP, FUEL PUMP HOSE TO ELBOWS | 54-20387 | |
| 15 | FUEL LINE, INLET - ADAPTOR TO FUEL PUMP | 32-61642 | |
| 16 | CUP WASHER, ADAPTOR | 30188 | |
| 17 | SPRING, ADAPTOR STEM | 24-23067T | |
| 18 | "O" RING, ADAPTOR STEM | 25-16524 | |
| 19 | STEM, CHECK UNIT ADAPTOR | 23069 | |
| 20 | ADAPTOR, CHECK UNIT | 22833 | |
| 21 | SCREW, CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4") | 10-37923 |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A4 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A5 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-7360A13 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A1 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-4921A1 | |
| 2 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 1/2") | 16-58138 | |
| 3 | STUD, WATER PUMP HOUSING TO GEAR HOUSING (2 3/4") | 16-58136 | |
| 4 | BEARING, ROLLER - DRIVE SHAFT | 31-22756 | |
| 5 | PIN, DOWEL - LOCATING | 17-20032 | |
| 6 | SEAL, RUBBER - WATER INTAKE TUBE | 26-33613 | |
| - | WASHER, NYLON - INTAKE TUBE SEAL | 23-86215 | |
| 7 | SCREEN WATER INTAKE | 35-33425 | |
| 8 | SCREW, WATER INTAKE SCREEN TO GEAR HOUSING | 10-28642 | |
| 9 | WASHER, GREASE FILLER HOLE SCREW | 12-191833 | |
| 10 | SCREW, GREASE FILLER HOLE | 10-79953Q04 | |
| 11 | WASHER, GREASE VENT HOLE SCREW | 19643 | |
| 12 | SCREW, GREASE VENT HOLE | 10-28653 | |
| 13 | SHAFT ASSEMBLY, SHIFT(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 54640A1 | |
| 13 | SHAFT ASSEMBLY, SHIFT(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 54641A1 | |
| 13 | SHAFT ASSEMBLY, SHIFT(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 71659A1 | |
| 13 | SHAFT ASSEMBLY, SHIFT(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 71658A1 | |
| 14 | RING, RETAINING - SHIFT SHAFT | 53-22899 | |
| 15 | BUSHING ASSEMBLY, SHIFT SHAFT | 23-30676A1 | |
| 16 | "O" RING, SHIFT SHAFT BUSING | 25-26802 | |
| 17 | OIL SEAL, SHIFT SHAFT BUSHING | 26-30696 | |
| 18 | SCREW, SHIFT SHAFT BUSING RETAINER (1/2") | 10-39149 | |
| 19 | GEAR, PINION | 43-98696 | |
| 20 | TAB WASHER, PINION GEAR SCREW | 14-30377 | |
| 21 | SCREW, PINION GEAR TO DRIVE SHAFT (3?4") | 10-30376 | |
| 22 | DRIVE SHAFT(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 45-39078 | |
| 22 | DRIVE SHAFT(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 45-39077 | |
| 22 | DRIVE SHAFT(SHORT SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 45-75034A1 | |
| 22 | DRIVE SHAFT(LONG SHAFT) Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 45-75033A1 | |
| 23 | SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) | 15-30527A1 | |
| 24 | BEARING, BALL - DRIVE SHAFT | 30-33076 | |
| 25 | RING, RETAINING - BALL BEARING | 53-30523 | |
| 26 | SHIM ASSEMBLY, BALL BEARING TO PUMP HOUSING (.002-3-5-10) | 15-30527A1 | |
| 27 | WATER PUMP HOUSING ASSEMBLY | 46-46893A3 | |
| 28 | "O" RING, WATER PUMP HOUSING | 25-29439 | |
| 29 | OIL SEAL, WATER PUMP HOUSING | 26-30900T | |
| 30 | SEAL, WATER INTAKE TUBE | 26-33613 | |
| 31 | TUBE, WATER INTAKE | 32-34293 | |
| 32 | INSERT, WATER PUMP HOUSING | 70977T | |
| 33 | KEY, IMPELLER DRIVE | 28-8M0032835 | 28-56655 |
| 34 | IMPELLER, WATER PUMP | 47-89981 | |
| 35 | PLATE, FACE - WATER PUMP HOUSING TO COVER | 46895 | |
| 36 | WATER PUMP COVER ASSEMBLY | 93224A1 | |
| 37 | SEAL, WATER PUMP COVER | 26-36558 | |
| -- | WASHER, NYLON - WATER PUMP COVER | 23-13127 | |
| 38 | OIL SEAL, WATER PUMP COVER | 26-30913 | |
| 39 | WASHER, WATER PUMP HOUSING AND COVER STUD | 12-20533 | |
| 40 | NUT, WATER PUMP HOUSING STUD | 11-826709109 | 11-33825, 11-35045 |
| 41 | RING, RUBBER - CENTRIFUGAL SLINGER | 25-30526 | |
| 42 | "O" RING, UPPER - DRIVE SHAFT Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 25-48171 | |
| 43 | SLEEVE, GUIDE - INLET TUBE | 23-31792T |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A4 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A5 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-7360A13 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: SEE PAGE 26 FOR PARTS BREAKSOWN UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1622-4408A1 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: SEE PAGE 26 FOR PARTS BREAKSOWN UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 1630-4921A1 | |
| 44 | CAM, SHIFT | 44434 | |
| 45 | FOLLOWER, CAM | 31334 | |
| 46 | SPRING, COMPRESSION - CAM FOLLOWER | 24-31333 | |
| 47 | SHIM ASSEMBLY, BEARING TO GEAR HOUSING (.002-3-5-10) | 15-30522A1 | |
| 48 | BEARING, BALL - FORWARD GEAR | 30-21889 | |
| 49 | FORWARD GEAR ASSEMBLY | 43-48577A3 | |
| 50 | BEARING, ROLLER - FORWARD GEAR | 31-22458 | |
| 51 | RATCHET, SLIDING CLUTCH Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 52-47581 | |
| 51 | RATCHET, SLIDING CLUTCH Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 52-63314 | |
| 52 | RING, RETAINING - CROSS PIN | 53-32449 | |
| 53 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-30535 | |
| 54 | SHAFT, PROPELLER Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 44-47935 | |
| 54 | SHAFT ASSEMBLY, PROPELLER Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 44-75667A2 | |
| 55 | REVERSE GEAR ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 43-48578 | |
| 55 | REVERSE GEAR ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 43-63316 | |
| 56 | WASHER, THRUST - REVERSE GEAR | 12-30531 | |
| 57 | BEARING, BALL - REVERSE GEAR | 30-21889 | |
| 58 | SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10) | 15-30532A1 | |
| 59 | "O" RING, BEARING CARRIER | 25-30529 | |
| 60 | BEARING CARRIER ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 30541T1 | |
| 60 | BEARING CARRIER ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 63317T3 | |
| 61 | BEARING, ROLLER - BEARING CARRIER | 31-22458 | |
| 62 | OIL SEAL, BEARING CARRIER | 26-30530 | |
| 63 | WASHER, GEAR HOUSING COVER | 12-30528 | |
| 64 | COVER, GEAR HOUSING | 30537 | |
| 65 | THRUST HUB ASSEMBLY, PROPELLER SHAFT Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 86665A1 | |
| 66 | WASHER, CUPPED - THRUST HUB | 86665A1 | |
| 66 | GUIDE COLLAR, PROPLELLER Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 86665A1 | |
| 67 | PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 6" PITCH)-SERIAL GR | 48-47944A1 | |
| 67 | PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 6" PITCH)-SERIAL GR | 48-63494A10 | |
| 68 | SPACER, SPLINDER - PROPELLER NUT Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 11-64075A1 | |
| 68 | SPACER, SPLINDER - PROPELLER NUT Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 11-64075A1 | |
| 69 | NUT, PROPELLER Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 11-8M0204653 | |
| 69 | NUT, PROPELLER | 11-64075A1 |
MISCELLANEOUS PARTS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GASKET SET Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 27-78139A80 | |
| - | GASKET SET Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 27-78139A80 | |
| - | DECAL SET Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 37-65778A74 | |
| - | DECAL SET Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9029973 CANADA 7011058 THRU 7025897 | 37-65778A74 | |
| - | DECAL SET Comment: UNITED STATES 3764825 AND UP AUSTRALIA 8014365 AND UP BELGIUM 9029974 AND UP CANADA 7025898 AND UP | 37-65778A74 | |
| - | MERC 40 PARTS LIST | 90-62414 | |
| - | GLUE (BLANKET ADHESIVE) | 92-86166Q1 | |
| - | FUEL TANK ASSEMBLY | 1260-859061A1 |
SHIFT CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) SHIFT CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HANDLE, SHIFT CONTROL Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 59107 | |
| 2 | SHAFT, SHIFT - CONTROL HANDLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 47431 | |
| 3 | BUSHING, NYLON - SHIFT CONTROL HANDLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 23-30678 | |
| 4 | CAM, DETENT - SHIFT SHAFT Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 39588 | |
| 5 | GEAR, HORIZONTAL - SHIFT CONTROL HANDLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 43-30802 | |
| 1 | HANDLE, SHIFT CONTROL Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 93730T | |
| 2 | SHIFT, SHIFT - CONTROL HANDLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66378 | |
| 3 | BUSHING, NYLON - SHIFT CONTROL HANDLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 23-66375 | |
| 4 | CAM, DETENT - SHIFT SHAFT Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66414 | |
| 5 | GEAR, HORIZONTAL - SHIFT CONTROL HANDLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 43-66377 | |
| 6 | WASHER, SHIFT CONTROL HANDLE TO SHAFT | 12-8M0204649 | |
| 7 | NUT, SHIFT CONTROL HANDLE TO SHAFT | 11-826709109 | 11-33825, 11-35045 |
| 8 | SPRING, TENSION - SHIFT CONTROL HANDLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 24-30817 | |
| 9 | PIN, DOWEL - TENSION SPRING TO HANDLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 17-31224 | |
| 10 | PIN, DETENT CAM TO SHIFT SHAFT | 17-25905 | |
| 11 | WASHER, SHIFT CONTROL HANDLE | 12-8M0204649 | |
| 12 | NUT, HORIZONTAL GEAR TO SHIFT CONTROL HANDLE | 11-8267089 | |
| 13 | SPRING, DETENT - CRANKCASE | 24-39627 | |
| 14 | PLATE, DETENT SPRING | 39601 | |
| 15 | SCREW, PLATE AND SPRING TO CRANKCASE (1/2") | 10-25764 | |
| 16 | SHIFT SHAFT, UPPER Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 71660 | |
| 17 | BUSHING, NYLON - SHIFT CONTROL SHAFT | 23-30677 | |
| 18 | GEAR, SECTOR - SHIFT SHAFT | 43-86686A1 |
STATOR AND IGNITION COMPONENTS
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) STATOR AND IGNITION COMPONENTS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COVER ASSEMBLY | 336-4524A1 | |
| 2 | SCREW, COVER TO MODULE (5/8") | 10-60491 | |
| 3 | IGNITION MODULE ASSEMBLY | 336-4516A2 | |
| 4 | SCREW, MODULE TO STATOR (9/16") | 10-59800 | |
| 5 | SCREW, MODULE - COIL LEADS (1/4") | 10-36046 | |
| 6 | LOCKWASHER, MODULE - IGNITION COIL LEAD TERMINALS | 13-26996 | |
| 7 | NUT, MODULE - IGNITION COIL LEAD TERMINALS | 11-45076 | |
| 8 | COIL, HIGH SPEED | 336-4470A1 | |
| 8 | COIL, LOW SPEED | 336-4469A1 | |
| 9 | CLIP, COIL RETAINING | 54-59538 | |
| 10 | CLIP, COIL RETAINING | 54-59539 | |
| 11 | CONDENSER ASSEMBLY | 336-4463 | |
| 12 | SCREW, CONDENSER ATTACHING (7/16") | 10-62269 | |
| 13 | STATOR ASSEMBLY | 336-4476A6 | |
| 14 | PLATE, STATOR HOLD DOWN | 336-4458 | |
| 15 | SCREW, HOLD DOWN PLATE TO STATOR (7/16") | 10-35400 | |
| 16 | SHIM, STATOR PLATE TO UPPER END CAP | 15-33910015 | |
| 17 | WICH, CAM WIPER - STATOR ASSEMBLY | 336-3989 | |
| 18 | MAKER ASSEMBLY, STATOR HOUSING | 336-4318A2 | |
| 19 | SCREW, MAKER TO STATOR HOUSING (3/8") | 10-56266 | |
| 20 | CAM, THROTTLE | 56520 | |
| 21 | SCREW, THROTTLE CAM TO CONTRACT HOUSING | 10-69054 | |
| 22 | WASHER, THROTTLE CAM ATTACHING SCREW | 12-37998 | |
| 23 | JUMPER WIRE ASS'Y, CONDENSER TO COVER (BLACK - 4 1/4") | 56757A5 | |
| 24 | LEAD ASSEMBLY, MODULE TO IDNITION COIL (GREEN - 12 1/4") | 56318A11 | |
| 25 | BOOT, LEAD ASSEMBLY | 38938 | |
| 26 | CABLE ASSEMBLY, STATOR HOUSING (WHITE - 10 3/4") | 56316A4 | |
| 27 | BOOT, CABLE | 38938 | |
| 28 | INSULATOR, CABLE TO CONTRACT HOUSING | 336-4460 | |
| 29 | NUT, CABLE INSULATOR | 11-56325 |
STEERING HANDLE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) STEERING HANDLE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STEERING HANDLE ASSEMBLY, COMP. Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 60850A6 | |
| - | STEERING HANDLE ASSEMBLY, COMP. Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 60850A6 | |
| 1 | GRIP, HANDLE - THROTTLE | 60854 | |
| 2 | CAP, HANDLE THROTTLE | 62251 | |
| 3 | SHAFT, THROTTLE Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 66393 | |
| 4 | HANDLE ASSEMBLY, THROTTLE SHAFT Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 66394A1 | |
| 3 | SHAFT, THROTTLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66393 | |
| 4 | HANDLE ASSEMBLY, THROTTLE SHAFT Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66394A1 | |
| 4A | PIN, THROTTLE HANDLE Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 17-46152 | |
| 5 | WASHER, THROTTLE HANDLE TO STEERING ARM | 12-62252 | |
| 6 | ARM, STEERING HANDLE | 60850 | |
| 7 | GEAR, BALL THROTTLE SHAFT | 43-60852 | |
| 8 | PIN, BALL GEAR TO THROTTLE SHAFT | 17-27088 | |
| 9 | PIVOT, STEEREING HANDLE TO BRACKET | 48003 | |
| 10 | SHIM, HANDLE PIVOT TO BRK. (.015) | 15-48002015 | |
| 11 | SCREW, HANDLE TO ARM BRK. (5/8") Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-64074 | |
| 11 | SCREW, HANDLE TO ARM BRK. (5/8") Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-64074 | |
| 12 | UNIVERSAL JOINT ASSEMBLY | 60857A2 | |
| 13 | GEAR, BALL - UNIVERSAL JOINT | 43-60852 | |
| 14 | PIN, BALL GEAR TO UNIVERSAL JOINT | 17-68436 | |
| 15 | BRACKET, STEERING ARM | 96130A1 | |
| 16 | SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8") | 10-62233 | |
| 17 | SPRING, DETENT - STEERING HANDLE | 24-72847 | |
| 18 | SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2") | 10-30679 | |
| 19 | NUT, STEERING ARM BRACKET FASTENING SCREW | 11-8M0207775 |
THROTTLE CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) THROTTLE CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | GEAR, HORIZONTAL - THROTTLE CONTROL | 43-60856 | |
| 2 | HOUSING, HORIZONTAL GEAR | 60885T | |
| 3 | SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8") | 10-96138 | |
| 4 | SHIM, PINION GEAR TO BOTTOM COWL | 15-64653A1 | |
| 5 | GEAR AND SHAFT ASS'Y, THROTTLE CONTROL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 42666A3 | |
| 5&9 | GEAR AND SHAFT ASS'Y, THROTTLE CONTROL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 42666A3 | |
| 6 | BRACKET, THROTTLE CONTROL LEVER | 62099T | |
| 7 | SCREW, ADJUSTING - THROTTLE (1") | 10-23015 | |
| 8 | NUT, LOCK - THROTTLE ADJUSTING SCREWS | 11-68219 | |
| 9 | LEVER, THROTTLE CONTROL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 42666A3 | |
| 10 | PIN, ROLL - LEVER TO VERTICAL SHAFT | 17-27088 | |
| 11 | LINK, THROTTLE LEVER TO STATOR PLATE | 60920 | |
| 12 | SCREW, THROTTLE LINK TO TTHROTTLE LEVER (3/4") | 10-34696 | |
| 13 | WASHER, THROTTLE LINK CREW | 12-34392 | |
| 14 | WASHER, WAVE - THROTTLE LINK SCREW | 13-29720 | |
| 15 | NUT, THROTTLE LINK SCREW | 11-28656 | |
| 16 | SCREW, THROTTLE LINK TO STATOR PLATE (7/8") | 10-56027 |

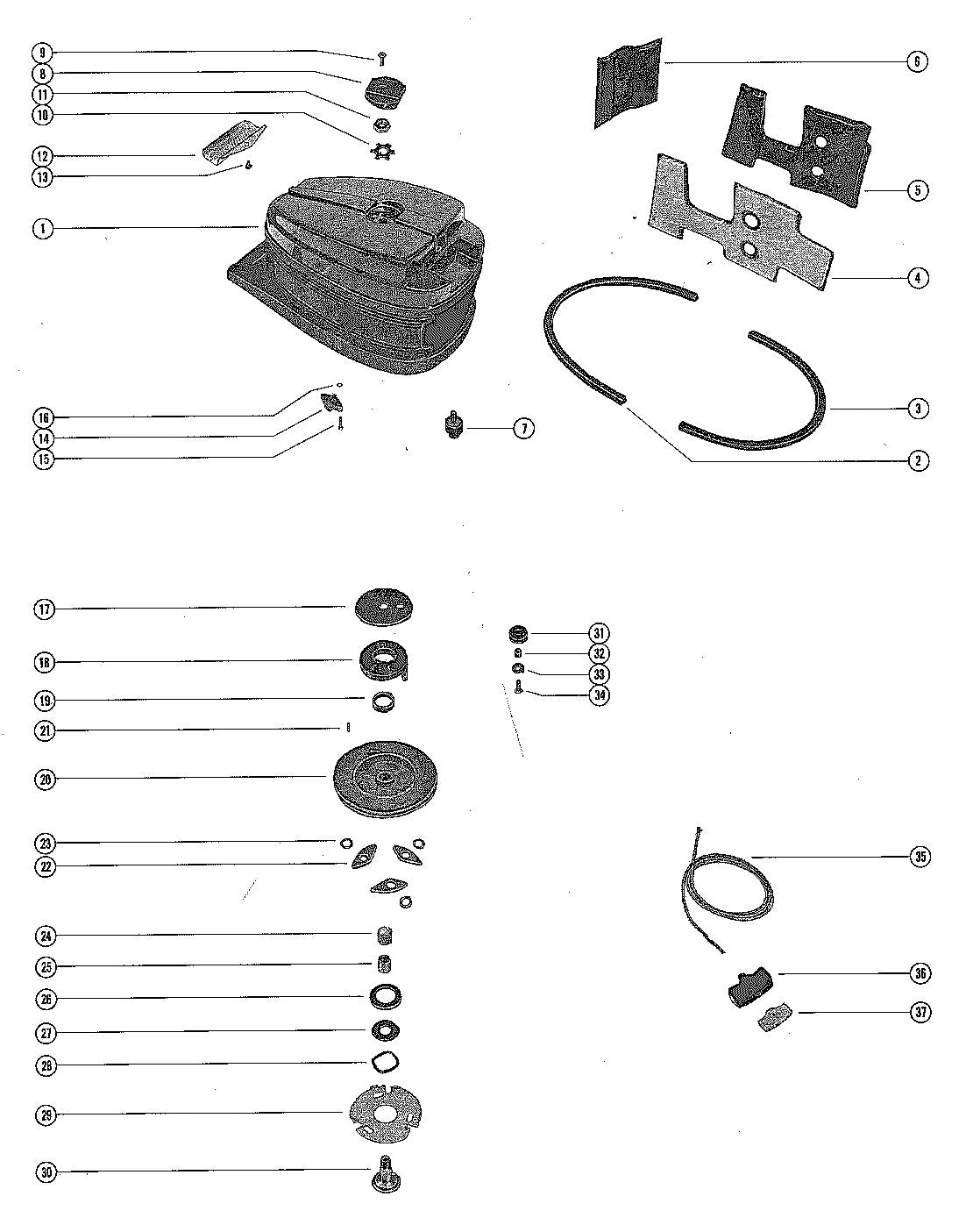

TOP COWL AND STARTER ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) TOP COWL AND STARTER ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 191-7668A2 | |
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 3529446 AND UP AUSTRALIA 8005740 AND UP BELGIUM 9012109 AND UP CANADA 7011058 AND UP | 191-7668A2 | |
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 191-7668A2 | |
| 2 | STRIP, SOUND SEAL - REAR | 39538 | |
| 3 | STRIP, SOUND SEAL - FORWARD | 39537 | |
| 4 | BLANKET, SOUND ABSORBING - STARBOARD Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 46231 | |
| 5 | BLANKET, SOUND ABSORBING - PORT Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 35846 | |
| 6 | BLANKET, SOUND ABSORBING - REAR Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 35848 | |
| 7 | MOUNT, RUBBER - TOP COWL Comment: UNITED STATES 3764824 AND BELOW AUSTRALIA 8014364 AND BELOW BELGIUM 9037733 AND BELOW CANADA 7025897 AND BELOW | 53472 | |
| 7 | MOUNT, RUBBER - TOP COWL Comment: UNITED STATES 3529446 THRU 3764824 AUSTRALIA 8005740 THRU 8014364 BELGIUM 9012109 THRU 9037733 CANADA 7011058 THRU 7025897 | 66018 | |
| 8 | COVER, TRIM - TOP COWL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 89096 | |
| 8 | COVER, TRIM - TOP COWL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 89096 | |
| 9 | SCREW, TRIM COVER TO TOP COWL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-23618 | |
| 9 | SCREW, TRIM COVER TO TOP COWL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 10-64652 | |
| 10 | TAB WASHER, CHEAVE SHAFT NUT | 14-20165 | |
| 11 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) | 11-20166 | |
| 12 | SCREEN, VENT - TO COWL Comment: UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 31908 | |
| 12 | COVER, VENT - TO COWL Comment: PART OF A-191-5032A4 TOP COWL ASSEMBLY UNITED STATES 3529445 AND BELOW AUSTRALIA 8005739 AND BELOW BELGIUM 9012108 AND BELOW CANADA 7011057 AND BELOW | 64601 | |
| 13 | SCREW, VENT SCREEN TO TOP COWL (3/8") Comment: PART OF A-191-5032A4 TOP COWL ASSEMBLY | 10-35519 | |
| 14 | BRACKET, PORT - TOP COWL FASTENING | 39257 | |
| 14 | BRACKET, STARBOARD - TOP COWL FASTENING | 39258 | |
| 15 | SCREW, BRACKET TO TOP COWL (1 1/8") | 10-39514 | |
| 16 | WASHER, BRACKET SCREW (1/16") | 12-8M0204649 | |
| 17 | RETAINER, STARTER SPRING | 20155 | |
| 18 | SPRING ASSEMBLY, STARTER REWIND | 24-29340T02 | |
| 19 | BUSHING, SPRING GUIDE | 23-28912 | |
| 20 | STARTER SHEAVE ASSEMBLY | 50-93696A2 | |
| 21 | PIN, RETAINER - STARTER CABLE | 17-22896 | |
| 22 | PAWL, STARTER | 30596 | |
| 23 | WASHER, WAVE - STARTER PAWL | 13-36206 | |
| 24 | BUSHING, NYLON - SHEAVE SHAFT SPACER | 23-28919 | |
| 25 | SPACER, SHEAVE SHAFT | 23-61005 | |
| 26 | RETAINER, SHEAVE SHAFT TO STARTER CHEAVE | 26179 | |
| 27 | WASHER, SHEAVE SHAFT RETAINER | 12-35559 | |
| 28 | WASHER, WAVE - RETAINER TENSION | 13-20160 | |
| 29 | PLATE, RETAINER - STARTER PAWL | 30595 | |
| 30 | SHAFT, SHEAVE | 35558 | |
| 31 | PULLEY, STARTER CABLE | 55860 | |
| 32 | SPACER, CABLE PULLEY | 23-309772 | |
| 33 | WASHER, PULLEY FASTENING SCREW | 12-22887 | |
| 34 | SCREW, PULLEY TO TOP COWL (3/4") | 10-28789 | |
| 35 | STARTER CABLE ASSEMBLY | 50-12066Q10 | |
| 36 | HANDLE, STARTER CABLE | 30782 | |
| 37 | RETAINER, STARTER CABLE AND HANDLE | 79470A1 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
