Mercury 25 (2 CYL.)(2-STROKE)(International) (0N055505 & Up) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 25 (2 CYL.)(2-STROKE)(International) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Accessories:

Position No.	Part Name	OEM Number	Supersedes
1	TOOL KIT	91-802618
2	ROPE, Starter Safety	50-812639003	50-812639 2
3	FLUSHING PLUG	16841Q02
4	DRAG LINK ASSEMBLY	853824A1
5	CAP	853825
6	SPACER	23-853826
7	LOCK KIT, Reverse	853827A02	853827A 1
8	IGNITION CHECKER	803799A1
9	CABLE ASSEMBLY, White	84-853799A3
10	CABLE ASSEMBLY, Yellow	84-853799A4
11	RECTIFIER KIT	8M0123939
-	RECTIFIER	8538116
-	NOT SOLD SEPARATE, Bracket-Rectifier	NSS
-	GROUND WIRE	84-803820
-	CLAMP	54-8M0130961
-	NOT SOLD SEPARATE, Extension Harness	NSS
-	CLAMP	54-813275
-	CAP	853741
-	GROMMET	25-162313
-	NOT SOLD SEPARATE, Screw	NSS
-	LOCKWASHER	13-16079
-	NUT, Stainless Steel	11-16081
-	BOLT	10-8230426
12	TEST PROPELLER	48-8537906
13	HANDLE, (0.8 Meters) (0.8M)	853828
13	HANDLE, (1.0 Meters) (1.0M)	8538281
-	TILLER HANDLE KIT	8M0136142

Carburetor

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Carburetor:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR	3303-853720A8
2	SCREW	10-16263
3	SPRING	24-16264
4	SCREW, Pilot Adjust	10-8129351
5	SPRING	24-162661
6	LEVER, Throttle	952683
7	ROLLER	853788
8	LOCKWASHER	13-853723
9	NUT	11-853722
10	SCREW	10-162571
11	VAVLE, Float	162546
12	PIN, Valve	853721
13	CLIP	54-16255
14	JET, Pilot	85,162511
15	CAP	16252
16	MAIN NOZZLE	8126501
17	JET, Main	155,162501
18	FLOAT	162531
19	PIN	17-16256
20	O-RING	25-162591
21	FLOAT BOWL	162582
22	SCREW, Drain	10-162611
23	O-RING	25-8537092
24	SCREW	10-162601
25	ROD, Snap	16333
26	ROD, Choke Link Comment: SN# 0N065381 & Below	8M0170572
26	ROD, Choke Link Comment: SN# 0N065382 & Up	8M0170572
27	COVER	8537281
28	BOLT	10-82304223
29	BRACKET, Choke Lever	853726
30	LEVER, Choke	853725
31	BOLT, (M6 x 14)	10-16223
32	WAVE WASHER	13-8537231
33	NUT, Nylon	11-8537227
34	BOLT	10-8230427
35	KNOB, Choke	853724001	853724
36	COTTER PIN	18-8150261
37	BUSHING	25-8537093
-	REPAIR KIT, Carburetor	853780A1

Clamp Bracket

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Clamp Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET, Starboard, Black, 1/2 Inch Thread Comment: SN# 0N074966 & Below	3406-9622T02
1	CLAMP BRACKET, Starboard, 14MM Thread Comment: SN# 0N074967 & Up	3418-898101T26
2	CLAMP BRACKET, Port, Black, 1/2 Inch Thread Comment: SN# 0N074966 & Below	3406-9623T02
2	CLAMP BRACKET, Port, 14MM Thread Comment: SN# 0N074967 & Up	3418-898101T25
3	PAD	12-95379
4	CAP NUT	11-85372214
5	TILT TUBE	898101191	853769
6	NUT Comment: SN# 0N081221 & Below	11-853722029	11-853722 13 SN# 0N081221 & Below
6	NUT, Nylon Comment: SN# 0N081222 & Up	11-853722029	11-853722 13 SN# 0N081222 & Up
7	THRUST ROD	898101207	16198 1
8	SPRING	24-8126455
9	THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size Comment: SN# 0N074966 & Below	10-16200A1
9	THUMB SCREW ASSEMBLY, 14 MM Thread Size Comment: SN# 0N074967 & Up	10-8M0054653	10-804042A02 SN# 0N074967 & Up
10	BOLT	8M0074136
11	ANODE	97-804043
12	NUT	11-400212
13	WASHER, Stainless Steel	12-16826
14	WASHER, Stainless Steel	12-16826
15	DISTANCE PIECE	898101044
16	BOLT	10-8M0098607
17	SET PLATE	879194006	16210 1
18	STOPPER, Tilt	8M0157131
19	PIN, Spring	17-95218016
20	BRACKET	8251131
21	STOP	853774
22	SPRING	24-953832
23	ARM, Reverse Lock	162132
24	SCREW	10-879194007	10-853700
25	WASHER	12-953921
26	SPRING Comment: (Short)	24-953834
26	SPRING Comment: (Long/X-Long/XX-Long)	24-879194008	24-95383 5 (Long/X-Long/XX-Long)
27	ARM, Reverse Lock	162131
28	ROD, Reverse Lock	8537474
29	COTTER PIN	18-8150261
30	SPRING	24-953833
31	LINK, Reverse Lock	8537475
32	LEVER, Reverse Lock Comment: SN# ON148577 & Below	853759T01	853759 1 SN# ON148577 & Below
32	LEVER, Reverse Lock Comment: SN# ON148578 & Up	8M0074784
33	BOLT Comment: SN# ON148577 & Below	10-162612
33	BOLT, Shoulder Comment: SN# ON148578 & Up	10-803790001	804049 SN# ON148578 & Up
34	WAVE WASHER Comment: SN# ON148577 & Below	13-17641
34	WASHER Comment: SN# ON148578 & Up	12-16192
35	WASHER	12-953921
36	GRIP	8M0183798
37	BUTTON	8M0051399	853776
38	BOLT	10-879194310	10-16126 3, 10-823042056
39	WASHER	12-16192
40	NUT	11-879194337	11-853722023
41	WASHER Comment: SN# ON148578 & Up	12-953925
42	BUSHING Comment: SN# ON148578 & Up	23-898103107

Cowling, 0N160522 and below

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Cowling, 0N160522 and below:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY, Silver - Un Decaled	2189-8M0063889
1	TOP COWL ASSEMBLY, Black - Un Decaled	2189-8M0063888	2189-853778T09, 2189-853778A09, 2189-853778A 1
2	SEAL	8107511
3	INLET, Air Comment: (Black)	853779T01	853779 1 (Black)
3	INLET, Air Comment: (Silver)	8M0071849
4	NUT, (M6) Stainless Steel	11-400212
5	LOCKWASHER, (M6)	13-400256
6	WASHER, Stainless Steel	12-953921
7	SEAL, Rubber	25-162281
8	DECAL SET Comment: (Mercury 30)	37-853797A06
8	DECAL SET Comment: (Mariner 30)	37-853797A03	37-853797A01, 37-853797A 2 (Mariner 30)
8	DECAL SET Comment: (25 SeaPro)	37-859257A02
8	DECAL SET Comment: (25 Marathon)	37-858841A02
8	DECAL SET, (Jet 25)	37-879147A20
9	BOTTOM COWL	100-8M0149928
10	GROMMET	25-8537095
11	GROMMET	25-162312
12	GROMMET	25-162261
13	GROMMET	25-162311
14	BOLT, (M6 x 14)	10-16223
15	LOCKWASHER, (M6)	13-400256
16	WASHER	12-953921
17	HOOK	162221
18	WAVE WASHER	13-16221
19	WASHER	12-953922
20	BUSHING	23-163365
21	SEAL	26-16219
22	HOOK LEVER	162186
23	NIPPLE	22-898101961	22-812960 3
24	BOLT	10-16830
25	WASHER	12-161404
26	WASHER	12-161404
27	SPACER	23-853715007
28	MOUNT, Rubber	23-8537437

Cowling, 0N160523 and up

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Cowling, 0N160523 and up:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY, Silver - Undecaled	100-8M0143374
1	TOP COWL ASSEMBLY, Black - Undecaled	100-8M0143371
2	SEAL	8107511
3	INLET, Air Comment: (Black)	8M0065230
3	INLET, Air Comment: (Silver)	8M0065232
4	NUT, Nylon	11-8537227
6	WASHER, Stainless Steel	12-953921
8	DECAL SET Comment: (Mercury 30)	37-853797A06
8	DECAL SET Comment: (Mariner 30)	37-853797A03	37-853797A01, 37-853797A 2 (Mariner 30)
8	DECAL SET Comment: (25 SeaPro)	37-859257A02
8	DECAL SET Comment: (25 Marathon)	37-858841A02
8	DECAL SET, (Jet 25)	37-879147A20
9	BOTTOM COWL	100-8M0149928
10	GROMMET	25-8537095
11	GROMMET	25-162312
12	GROMMET	25-162261
13	GROMMET	25-162311
14	BOLT, (M6 x 14)	10-16223
15	LOCKWASHER, (M6)	13-400256
16	WASHER	12-953921
17	HOOK	162221
18	WAVE WASHER	13-16221
19	WASHER	12-953922
20	BUSHING	23-163365
21	SEAL	26-16219
22	HOOK LEVER	162186
23	NIPPLE	22-898101961	22-812960 3
24	BOLT	10-16830
25	WASHER	12-161404
26	WASHER	12-161404
27	SPACER	23-853715007
28	MOUNT, Rubber	23-8537437

Crankshaft, Pistons and Connecting Rod

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Crankshaft, Pistons and Connecting Rod:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	474-803672A07	474-9614A07
2	CRANKSHAFT	463-813044A01	463-813044 1
3	PIN, Crank	813046T01	813046 1
4	CONNECTING ROD	629-813047T01	629-813047 1
5	BEARING, Needle	31-8130482
6	CRANKSHAFT	463-8M0090847
7	BEARING, Ball	30-16049T02
8	SEAL KIT	26-853707A1
9	PIN	17-161791
10	CRANKSHAFT	463-8M0090848
11	CRANKSHAFT	463-813045T01	463-813045 1
-	PISTON ASSEMBLY Comment: (Standard), services one piston SN# 0N062931 & Up	700-8M0082174
-	PISTON ASSEMBLY Comment: (.5 Oversize), services one piston SN# 0N062931 & Up	700-8M0082175
12	CLIP	53-160571
13	PIN, Piston	41-803680003
14	PISTON Comment: (Standard) SN# 0N062930 & Below	779-879194T01	779-9615 1 (Standard) SN# 0N062930 & Below
14	PISTON, Standard Comment: SN# 0N062931 & Up	779-879194T01	779-9615 1 SN# 0N062931 & Up
14	PISTON Comment: (.5mm Oversize) SN# 0N062930 & Below	96161
14	PISTON, .5 mm Oversize Comment: SN# 0N062931 & Up	779-804886T03	779-898101653, 9616 1 SN# 0N062931 & Up
15	RING SET, Piston Comment: (Standard) Services engine	39-16054A4
15	RING SET, Piston Comment: (Standard) Services one piston	39-8M0080351
15	RING SET, Piston Comment: (.5mm Oversize) Services engine	39-16055A4
15	RING SET, Piston Comment: (.5mm Oversize) Services one piston	39-8M0080350
16	BEARING, Needle	31-8130483
17	BEARING, Ball	30-8M0119217
18	KEY	28-160531
19	C CLIP	53-853714	53-803676
20	BEARING, Ball	30-16049T02
21	SHIM	15-853716
22	SPACER	23-853715
-	POWERHEAD ASSEMBLY Comment: SN# ON160572 & Below	853787A07	853787A04, 853787A 2 SN# ON160572 & Below
-	POWERHEAD ASSEMBLY Comment: SN# ON160573 & Up	8M0190579

Cylinder Block, SN 0N162743 and below

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Cylinder Block, SN 0N162743 and below:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK	800-8M0190577
2	FITTING	22-8129602
3	PIN, Dowel	17-9521814
4	BOLT Comment: SN# 0N123304 & Below	10-166951
4	BOLT Comment: SN# 0N123305 & Up	10-8M0047832
5	BOLT	10-8M0106721	10-16695 2, 10-8M0065483
6	WASHER	12-4002217
7	NIPPLE	22-812960006
8	CONNECTOR	22-8M0064617	22-812960, 22-95301
9	CLIP	54-95332002
10	TUBING, (220 mm) Comment: Design I	32-95223009
10	TUBING Comment: Design II, cut to 230 mm	32-879194473
11	O-RING	25-853709
12	SEAL, Oil - Upper	26-853707
13	END CAP, Upper	1100-853708
14	SET RING	853710
15	GUIDE PLATE	853711
16	BOLT, (M6 x 20)	10-168283
17	CYLINDER HEAD	979-9630T02
-	WELCH PLUG	19-898101264
18	GASKET	27-8M0119224
19	BOLT	10-168302
20	CAP	8537052
21	GASKET	27-8M0214960
22	THERMOSTAT	853704
23	SPARK PLUG Comment: (NGK-B7HS-10)	33-8M0181925
23	SPARK PLUG, (NGK# BR7HS-10) Comment: (NGK-BR7HS-10)	33-8M0181925
24	BOLT Comment: SN# ON160572 & Below	10-8M0106720
24	BOLT Comment: SN# ON160573 & Up	10-8M0065567
25	WASHER Comment: SN# ON160572 & Below	12-8M0106725	12-8M0106719, 12-8M0065568, 12-16238 1 SN# ON160572 & Below
25	WASHER Comment: SN# ON160573 & Up	12-8M0106725	12-8M0106719, 12-8M0065568, 12-16238 1 SN# ON160573 & Up
26	BOLT, (M6 x 16)	10-16832
27	ANODE	97-823913Q	823913, 95271
28	TUBING, (250 mm)	32-851848018
29	COVER, Exhaust	853706
30	GASKET	27-812939018	27-812939 2
31	BOLT AND LOCKWASHER, Electroplated (M5 x 18)	10-898103A79	10-879194010, 10-815068 1
31	BOLT AND WASHER, Dacrotized (M5 x 18)	10-8M0130965
32	THRUST RING	853712
33	SEAL, Oil - Lower	26-8537071
34	SEAL, Oil	26-8537072
35	O-RING	25-8537091
36	END CAP, Lower	1100-853713T	1100-853713
37	BOLT, (M6 x 16)	10-16832
38	LOCKWASHER, (M6)	13-400256
39	CHECK VALVE	21-42657A3
-	HEAD BOLT/GROUND CABLE KIT Comment: SN# ON160523 & Up	10-8M0074837
40	GROUND WIRE	84-853740
-	GASKET SET, Powerhead Comment: SN# 0N076150 & Below	27-8M0119225
-	GASKET SET, Powerhead Comment: SN# 0N076151 & Up	27-8M0119225
-	POWERHEAD ASSEMBLY	853787A07	853787A04, 853787A 2

Cylinder Block, SN 0N162744 and up

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Cylinder Block, SN 0N162744 and up:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK	800-8M0190577
2	FITTING	22-8129602
3	PIN, Dowel	17-9521814
4	BOLT Comment: SN# 0N123305 & Up	10-8M0047832
5	BOLT	10-8M0106721	10-16695 2, 10-8M0065483
6	WASHER	12-4002217
7	NIPPLE	22-812960006
8	CONNECTOR	22-8M0064617	22-812960, 22-95301
9	CLIP	54-95332002
10	TUBING Comment: Cut to 230 mm	32-879194473
11	O-RING	25-853709
12	SEAL, Oil - Upper	26-853707
13	END CAP, Upper	1100-853708
14	SET RING	853710
15	GUIDE PLATE	853711
16	BOLT, (M6 x 20)	10-168283
-	CYLINDER HEAD ASSEMBLY	979-8M0080094
17	CYLNDER HEAD	979-8M0074301
18	ANODE KIT	97-8M0135965
19	GASKET	27-8M0119224
20	BOLT	10-168302
21	CAP	8537052
22	GASKET	27-8M0214960
23	THERMOSTAT	853704
24	SPARK PLUG Comment: (NGK-B7HS-10)	33-8M0181925
24	SPARK PLUG, (NGK# BR7HS-10) Comment: (NGK-BR7HS-10)	33-8M0181925
25	BOLT Comment: SN# ON160573 & Up	10-8M0065567
26	WASHER Comment: SN# ON160573 & Up	12-8M0106725	12-8M0106719, 12-8M0065568, 12-16238 1 SN# ON160573 & Up
28	TUBING, (250 mm)	32-851848018
29	COVER, Exhaust	853706
30	GASKET	27-812939018	27-812939 2
31	BOLT AND LOCKWASHER, Electroplated (M5 x 18)	10-898103A79	10-879194010, 10-815068 1
31	BOLT AND WASHER, Dacrotized (M5 x 18)	10-8M0130965
32	THRUST RING	853712
33	SEAL, Oil - Lower	26-8537071
34	SEAL, Oil	26-8537072
35	O-RING	25-8537091
36	END CAP, Lower	1100-853713T	1100-853713
37	BOLT, (M6 x 16)	10-16832
38	LOCKWASHER, (M6)	13-400256
39	CHECK VALVE	21-42657A3
-	HEAD BOLT/GROUND CABLE KIT Comment: SN# ON160523 & Up	10-8M0074837
40	GROUND WIRE	84-853740
-	GASKET SET, Powerhead Comment: SN# 0N076151 & Up	27-8M0119225
-	POWERHEAD ASSEMBLY Comment: SN# ON162744 & Up	8M0190579

Driveshaft Housing

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Driveshaft Comment: (Short-Black)	1500-8M0065998	1599-812942T01, 1599-812942 1 (Short-Black)
1	HOUSING, Driveshaft Comment: (Long-Black)	1500-8M0065999	1599-812943T01, 1599-812943 1 (Long-Black)
2	BOLT Comment: (Use with Washer)	10-8230423
2	SCREW Comment: (Use without Washer)	10-8M0145484
3	WASHER Comment: (Use where Applicable)	12-8M0135942
4	BOLT	10-8129354
5	WASHER	12-161405
6	WASHER	12-161407
7	MOUNT, Lower	8M0074132
8	WASHER, Stainless Steel	12-879194340	12-895141
9	BOLT	10-8M0098607
10	RETAINER	853772005	853772
11	SCREW	10-812935008	10-812935 3
12	WASHER	12-161406
13	MOUNT, Upper	8M0074133
14	BUMPER	853773
15	BOLT Comment: (Short)	10-879194307	10-16695006 (Short)
15	BOLT Comment: (Long)	10-879194308
16	WASHER	12-8M0135942
17	SEAL	853986
18	FLUSH PLUG	19-879194296	19-803592, 19-16116
19	GASKET	27-95220
20	PIN, Dowel	17-16119
21	GASKET	27-853987001	27-853987
22	SHIFT ROD JOINT Comment: (Included With Complete Gear Housing Replacement)	853768
23	PIN, Dowel Comment: (Included With Complete Gear Housing Replacement)	17-952189
24	GROMMET	25-8537094
25	SHIFT ROD	161862
26	LEVER, Shift	813027008	813027 3
26	LEVER, Shift Comment: (Jet)	898101923
27	SPACER	23-8537153
28	SEAL, Oil	26-8537075
29	BUSHING	23-8537434
30	LEVER, Shift Rod	161842
31	NUT, Nylon	11-85372212
32	SHIM	15-853795
33	BRACKET	853767
34	BOLT, (M6 x 16)	10-16832
35	WASHER, Stainless Steel	12-16826
36	SPRING	24-8130281
37	STOPPER	30-812937	30-16182
38	PLATE, Stopper	853766
39	SCREW	10-898101354	10-95396 2
40	TUBE, Water Comment: (Short)	32-161691
40	TUBE, Water Comment: (Long)	32-161701
40	TUBE, Water Comment: (X-Long)	32-161702
40	TUBE, Water Comment: (XX-Long)	32-161703
41	LOCK PLATE	8107531
42	BOLT	10-162231
43	SEAL	26-161711
44	SEAL	26-8537074
45	PLATE Comment: (Jet)	898101924
46	BOLT, Stainless Steel Comment: (Jet)	10-8248324
-	GASKET SET, Gearcase	27-8M0089639	27-95220A 1
-	GASKET SET, Powerhead Comment: SN# 0N076150 & Below	27-8M0119225
-	GASKET SET, Powerhead Comment: SN# 0N076151 & Up	27-8M0119225
-	POWERHEAD ASSEMBLY Comment: SN# ON160572 & Below	853787A07	853787A04, 853787A 2 SN# ON160572 & Below
-	POWERHEAD ASSEMBLY Comment: SN# ON160573 & Below	8M0190579

Driveshaft Housing Extension Kits

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Driveshaft Housing Extension Kits:

Position No.	Part Name	OEM Number	Supersedes
1	EXTENSION KIT Comment: (X-Long-Black - 3 Inches)	853783T01	853783A 1 (X-Long-Black - 3 Inches)
2	EXTENSION KIT Comment: (XX-Long-Black - 5 Inches)	853784T01	853784A 1 (XX-Long-Black - 5 Inches)
3	STUD Comment: (X-Long)	16-853789
4	STUD Comment: (X-Long)	16-853789003	16-853789 1 (X-Long)
5	WASHER Comment: (X-Long)	12-8M0135942
6	NUT Comment: (X-Long)	11-879194337	11-853722023 (X-Long)
7	SCREW Comment: (X-Long)	10-879194306	10-16698006 (X-Long)
8	BOLT Comment: (X-Long)	10-879194308
9	WASHER Comment: (X-Long)	12-8M0135942
10	TUBE, Water Comment: (X-Long)	32-161702
10	TUBE, Water Comment: (XX-Long)	32-161703
11	CAM ROD Comment: (X-Long)	161743
11	CAM ROD Comment: (XX-Long)	161744
12	RETAINER Comment: (XX-Long)	853794
13	DRIVESHAFT Comment: (XX-Long)	45-161364

Electric Starter Components

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Electric Starter Components:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR KIT, Electric	50-853805T04	50-853805A 2, 50-853805A 4
1	STARTER MOTOR ASSEMBLY	50-853805T01	50-853805A 1
2	DRIVE KIT	853806
3	BRUSH (Positive)	853807
4	BRUSH (Negative)	8538071
5	HOLDER, Brush	853808
6	BOLT	10-16126
7	LOCKWASHER	13-17025
8	NUT, (M8) Stainless Steel	11-400213
9	RUBBER	853819
10	CABLE ASSEMBLY, Starter	84-8M0069818	84-853815 1
11	CAP	85-8538161
12	SOLENOID, Starter	89-853809T	89-853809
13	NUT, (M6) Stainless Steel	11-400212
14	LOCKWASHER, (M6)	13-400256
15	BOLT, (M6 x 16)	10-16832
16	PLATE, Electrical Mounting	8M0103003
17	BRACKET	8M0103004
18	BOLT	10-953964
19	BOLT	10-16705	10-95302
20	CLAMP	54-8M0130961
21	NUT, Stainless Steel	11-16081
22	LOCKWASHER	13-16079
23	BOLT	10-953963
24	RECTIFIER	8538116
25	GROUND WIRE	84-803820
26	SCREW, (25 mm)	10-16123
27	COLLAR	23-9528611
28	LOCKWASHER, (M6)	13-400256
29	NUT, (M6) Stainless Steel	11-400212
30	TERMINAL BLOCK	86-853812
31	WIRE ASSEMBLY, Fuse	84-853813A1
32	FUSE	88-853814
33	CAP	85-853816
34	WIRE, Battery	84-853815
35	BOLT, (M6 x 14)	10-16223
36	GROUND WIRE	84-8537402
37	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
38	SPIRAL RAP	853818

Electric Starter Optional Parts

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Electric Starter Optional Parts:

Position No.	Part Name	OEM Number	Supersedes
1	SOLENOID ASSEMBLY, Choke (Electric Remote)	853829A1
2	PLUNGER (Electric Remote)	853830
3	HOOK (Electric Remote)	853831
4	PIN, Dowel (Electric Remote)	17-952189
5	ROD, Choke Shaft (Electric Remote)	853832001	853832
6	NUT (Electric Remote)	11-85372210
7	SCREW (Electric Remote)	10-162454
8	CLAMP (Electric Remote)	54-17169
9	SCREW (Electric Remote)	10-16827
10	GROMMET (Electric Remote)	25-162262
11	SWITCH ASSEMBLY, Neutral (Electric Tiller)	87-8M0127937
12	SPACER	23-803842
13	WASHER (Electric Tiller)	12-9539211
14	PLATE (Electric Tiller)	853823
15	MAIN SWITCH (Electric Tiller)	87-853820A1
16	PROTECTOR (Electric Tiller)	853821
-	STARTER MOTOR KIT, Electric	50-853805T04	50-853805A 2, 50-853805A 4

Electrical Components

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Electrical Components:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL	262-815024T05	262-815024 3
2	NUT, Gold	11-851832001
3	WASHER	12-8537011
4	SCREW	10-8230315
5	PLATE ASSEMBLY, Coil	853737T03	853737A 3
6	COIL, Charger	160743
7	SCREW	10-8230312
8	SCREW	10-8230314
9	GUIDE, Wire	853738
10	COIL, Exciter	803702T	803702
11	SCREW	10-8230313
12	GUIDE PLATE Comment: (Shown as Reference #15 on Cylinder Block)	853711
13	SET RING Comment: (Shown as Reference #14 on Cylinder Block)	853710
14	SCREW	10-8230315
15	CLAMP	54-17169
16	COIL, Ignition	8M0047311	16064T05
17	BOOT, With Resistance	85-855543
18	GROUND WIRE	84-853740
19	BOLT, (M6 x 20)	10-167051
20	LOCKWASHER, (M6)	13-400256
21	NUT, (M6) Stainless Steel	11-400212
22	PLATE, Electrical Mounting	853739
23	CD UNIT	8M0180178
24	BOLT	10-8230421
25	WASHER	12-953921
26	WASHER, Rubber	12-953923
27	COLLAR	23-952868
28	WASHER, (Rubber)	12-953924
29	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
30	CAP	853741
31	PLUG	19-853994	19-853994001
32	CABLE, Ground (Manual)	84-8M0069817
33	BOLT, (M6 x 14) (Manual)	10-16223
34	SWITCH ASSEMBLY, Stop - Lanyard	87-823037A2
35	LANYARD	823054
36	SCREW	10-8555445
37	SCREW	10-8230316
38	CLAMP	54-953952
39	BOLT	10-168301
40	NUT, (M8) Stainless Steel	11-400213
41	CLAMP	54-803563005	54-803563 1

Fuel Pump

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Fuel Pump:

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	853729A1
2	SCREW	10-823042071
3	COVER	853730
4	DIAPHRAGM	853731
5	GASKET	27-8537031
6	NUT	11-8537222
7	SCREW	10-853698
8	CHECK VALVE	853732
9	DIAPHRAGM SET	8537311
10	WASHER	12-8M0135942
11	NUT, (M8) Stainless Steel	11-400213
12	FILTER ASSEMBLY, Fuel Comment: SN# 0N072166 & Below	35-8M0088825	35-853733T03, 35-853733T02, 35-853733A 2, 35-898101T68 SN# 0N072166 & Below
12	FILTER ASSEMBLY, Fuel Comment: SN# 0N072167 & Up	35-8M0088825	35-853733T03, 35-853733T02, 35-853733A 2, 35-898101T68 SN# 0N072167 & Up
13	O-RING Comment: SN# 0N072166 & Below	25-8518151
14	O-RING Comment: SN# 0N072166 & Below	25-851815
14	O-RING Comment: SN# 0N072167 & Up	25-851815006
15	CUP Comment: SN# 0N072166 & Below	8537351
15	CUP Comment: SN# 0N072167 & Up	853735002
16	FILTER Comment: SN# 0N072166 & Below	35-8537331
16	FILTER	35-853733002
17	HOSE, (150 mm) (Cut to 140mm) Comment: Design I	32-851848006	32-851848028 Design I
17	TUBING, Cut to 110mm Comment: Design II	32-8M0057113	32-879194470, 32-95394 9 Design II
18	NUT	11-17480
19	CONNECTOR, Fuel	22-853736
20	GASKET	27-803663017
21	TUBING, (230 mm)	32-851848029
22	SCREW	10-162451
23	GASKET	27-8M0084271	27-853702008, 27-853702 2
24	TUBING, Rubber (160 mm)	32-851848010
25	CLAMP	54-953951
26	CLIP, Stainless Steel	54-95395
-	GASKET SET, Powerhead Comment: SN# 0N076150 & Below	27-8M0119225
-	GASKET SET, Powerhead Comment: SN# 0N076151 & Up	27-8M0119225

Fuel Tank(Plastic - 6.6 Gallon)

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Fuel Tank(Plastic - 6.6 Gallon):

Position No.	Part Name	OEM Number	Supersedes
1	TANK ASSEMBLY, Fuel - Plastic 6.6 Gallon	1259-859063A1
2	GAUGE/CAP ASSEMBLY	823536
3	CONNECTOR KIT, Fuel	22-8M0175545
4	O-RING	25-823533	25-18471
5	SCREEN	35-823534	35-18029
6	FUEL LINE ASSEMBLY	32-8M0126969
7	CLAMP	54-853798
8	CONNECTOR, Fuel	22-8M0120628
9	BULB ASSEMBLY, Primer	13330Q07
10	CHECK VALVE ASSEMBLY (Inlet)	21-13331A3
11	CHECK VALVE ASSEMBLY (Outlet)	21-13331A4
12	CLAMP, Nylon (Large)	54-4158210
13	CLAMP, Nylon (Small)	54-41582Q7
14	CONNECTOR, (.250-18)	22-89771Q2
15	CLAMP, Nylon	54-41582Q7

Gear Housing, Driveshaft

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Gear Housing, Driveshaft:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: Short	1668-8M0070907	1668-8M0057250, 1668-825132T37, 1668-825132T06, 1668-825132A 6 Short
-	GEAR HOUSING ASSEMBLY Comment: Long SN# 0N079615 & Below	1668-8M0070908	1668-8M0057251, 1668-825132T38, 1668-825132T28, 1668-825132A28, 1668-825132A 8 Long SN# 0N079615 & Below
-	GEAR HOUSING ASSEMBLY, Complete Comment: Long SN# 0N079616 & Up	1668-8M0070908	1668-8M0057251, 1668-825132T38, 1668-825132T28, 1668-825132A28, 1668-825132A 8 Long SN# 0N079616 & Up
1	GEAR HOUSING ASSEMBLY, Basic	1668-8M0057242	1668-825132T34, 1668-825132T29, 1668-825132T04, 1668-825132A 4
2	BEARING, Needle	31-813048006	31-813048 4
3	PLUG	22-8M0229353
4	GASKET	27-95220
5	STRAINER SET, Water	853763
6	SCREW	10-879194326	10-898101165
7	NUT	11-85372210
8	STRAINER, Water	16133
9	SCREW	10-898101959	10-879194324, 10-823042051
10	TRIM TAB	853762	853762 1
11	BOLT, (M6 x 20)	10-167051
12	CAM	8M0172382
13	CAM ROD Comment: Short	161732
13	CAM ROD Comment: Long	161742
13	CAM ROD Comment: X-Long	161743
13	CAM ROD Comment: XX-Long	161744
14	PIN	17-16179
15	BUSHING	23-161762
16	O-RING	25-161772
17	O-RING	25-161782
18	BOLT	10-8230427
19	WASHER	12-953921
20	RETAINER Comment: XX-Long	853794
21	NUT	11-85372211
22	GEAR, Pinion (12 Teeth)	43-16138T01
23	SPRING	24-8126454
24	PIPE	853765T	853765
25	DRIVESHAFT Comment: Short	45-161352
25	DRIVESHAFT Comment: Long	45-16136T02
25	DRIVESHAFT Comment: X-Long	45-161363
25	DRIVESHAFT Comment: XX-Long	45-161364
26	KEY	28-161551
27	BEARING, Tapered roller	30-16128T02
28	SHIM, (0.1)	15-813276001
28	SHIM, (0.15)	15-813276015
28	SHIM, (0.3)	15-813276003
28	SHIM, (0.5)	15-813276005
29	SEAL, Oil	26-161622
30	O-RING	25-8537096
31	PIN, Dowel	17-952188
32	HOUSING, Water Pump	46-8260531
33	GASKET	27-161602
34	WEAR PLATE	161592
35	GASKET	27-161582
36	IMPELLER	47-8M0214912
37	INSERT	161572
38	HOUSING, Upper Water Pump	46-161562
39	BOLT	10-823042046	10-823042 5
40	SEAL	26-161681
-	REPAIR KIT, Water Pump	853792T01	853792A 1
-	REPAIR KIT, Water Pump - Chrome	853792A2
-	GASKET SET, Gearcase	27-8M0089639	27-95220A 1

Gear Housing, Propeller Shaft

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Gear Housing, Propeller Shaft:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: (Short)	1668-8M0070907	1668-8M0057250, 1668-825132T37, 1668-825132T06, 1668-825132A 6 (Short)
-	GEAR HOUSING ASSEMBLY Comment: (Long) SN# 0N079615 & Below	1668-8M0070908	1668-8M0057251, 1668-825132T38, 1668-825132T28, 1668-825132A28, 1668-825132A 8 (Long) SN# 0N079615 & Below
-	GEAR HOUSING ASSEMBLY, Complete Comment: (Long) SN# 0N079616 & Up	1668-8M0070908	1668-8M0057251, 1668-825132T38, 1668-825132T28, 1668-825132A28, 1668-825132A 8 (Long) SN# 0N079616 & Up
1	GEAR HOUSING ASSEMBLY, Basic	1668-8M0057242	1668-825132T34, 1668-825132T29, 1668-825132T04, 1668-825132A 4
41	SHIM, (0.1) (0.1)	15-161631
41	SHIM, (0.15) (0.15)	15-8132761
42	BEARING, Ball	30-16128T01
43	GEAR, Forward	43-8M0183179
44	FOLLOWER, Cam	161521
45	BALL, Steel	30-161322
46	HOLDER	853764003	853764
47	SPRING	24-8126453
48	CLUTCH	52-898103030	52-812946 1
49	PIN	17-161501
50	SPRING	24-176672
51	PROPELLER SHAFT	44-19513T01
52	WASHER	12-161401
53	GEAR, Reverse	43-812945T02	43-812945 2
54	CARRIER ASSEMBLY, Bearing Comment: SN# 0N188716 & Below	8M0070880	825119T01, 825119A 1 SN# 0N188716 & Below
54	CARRIER ASSEMBLY, Bearing Comment: SN# 0N188717 & Up	8M0070880	825119T01, 825119A 1 SN# 0N188717 & Up
55	O-RING	25-161311
56	BEARING, Ball	30-16132T01
57	BEARING, Needle	31-813048T05	31-813048 5
58	SEAL, Oil Comment: SN# 0N188716 & Below	26-161301
58	SEAL, Oil Comment: SN# 0N188717 & Up	26-8M0079092
59	BOLT	10-879194273	10-823042050
60	THRUST HUB	161452
61	PROPELLER Comment: (14 Inch Pitch)	48-8M0047582	48-853790T, 48-853790 (14 Inch Pitch)
61	PROPELLER Comment: (13 Inch Pitch)	QA2200R	48-853790T01, 48-853790 1 (13 Inch Pitch)
61	PROPELLER Comment: (12 Inch Pitch)	48-896900A40	48-853790008 (12 Inch Pitch)
61	PROPELLER Comment: (11 Inch Pitch)	QA2196R	48-853790T02, 48-853790 2 (11 Inch Pitch)
61	PROPELLER Comment: (10 Inch Pitch)	48-8M0135335
61	PROPELLER Comment: (9 Inch Pitch)	QA2192R	48-853790T07, 48-853790007, 48-853790 4 (9 Inch Pitch)
61	PROPELLER Comment: (8 Inch Pitch)	QA2190R	48-853790T05, 48-853790 5 (8 Inch Pitch)
-	RUBBER HUB	8797821
-	HUB, Rubber Comment: (Military)	897001T
62	WASHER	12-161402
63	PROP NUT	11-161471
64	COTTER PIN	18-8150264
65	BOLT	10-879194307	10-16695006
66	WASHER	12-8M0135942
-	GASKET SET, Gearcase Comment: SN# 0N188716 & Below	27-8M0089639	27-95220A 1 SN# 0N188716 & Below
-	GASKET SET, Gearcase Comment: SN# 0N188717 & Up	27-8M0089639	27-95220A 1 SN# 0N188717 & Up

Jet Unit

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Jet Unit:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Jet Unit-Complete	NSS
1	HOUSING, Volute	879345T89	879147A17
2	HOSE, Lube	32-827490
3	GATE, Reverse - With Bumper	878378
4	SHIFT LINKAGE KIT	878376
5	SHIFT CAM	898101657
6	ADAPTOR PLATE	898101922
7	BOLT	10-898101795
8	WASHER, Stainless Steel	12-879194340	12-895141
9	BOLT	10-879194307	10-16695006
10	WASHER	12-879194342	12-898101654
11	NUT	11-879194337	11-853722023
12	BOLT	10-879194254	10-823042045
13	WASHER	12-879194342	12-898101654
14	BOLT, (M6 x 16)	10-16832
15	WASHER, Stainless Steel	12-16826
16	NOT SOLD SEPARATE, Screw	NSS
17	DRIVESHAFT ASSEMBLY	879345T90	879147A19
18	SLEEVE	23-827189
19	NUT	11-827190
20	SCREW	10-878388001
21	BOLT	10-879194256	10-823042076
22	WASHER	12-879194342	12-898101654
23	IMPELLER	47-855708T25	47-801414T25, 47-801414 25
24	KEY, Impeller	28-801405625
25	SHIM, Impeller	15-801404625
26	TAB WASHER	14-801403625
27	HOUSING ASSEMBLY, Intake	801412T01
28	LINER	827188T04
29	ANODE KIT	97-889246A72
30	BOLT, (M6 x 25)	10-801432001
31	WASHER	12-879652003
32	BOLT, (M6 x 16)	10-16832
33	BOLT, (M6 x 20)	10-167051

Jet Water Pump Components

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Jet Water Pump Components:

Position No.	Part Name	OEM Number	Supersedes
1	PIN, Dowel	17-952188
2	TUBE, Water	32-161701
3	SEAL	26-161681
4	BOLT	10-879194252	10-898101656
5	WASHER, Stainless Steel	12-16826
6	HOUSING, Upper Water Pump	46-161562
7	INSERT	161572
8	IMPELLER	47-8M0214912
9	KEY	28-161551
10	GASKET	27-161582
11	PLATE, Guide	898101921
12	GASKET	27-898101381
13	HOUSING, Water Pump	889246025

Manifold/Reed

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Manifold/Reed:

Position No.	Part Name	OEM Number	Supersedes
1	MANIFOLD ASSEMBLY, Inlet	8M0130960
2	STUD	16-8M0106728
3	BOLT	10-168284
4	GASKET Comment: (30) SN# 0N076150 & Below	27-853702007	27-853702 1, 27-853702010 (30) SN# 0N076150 & Below
4	GASKET Comment: (30) SN# 0N076151 & Up	27-853702007	27-853702 1, 27-853702010 (30) SN# 0N076151 & Up
5	LOCKWASHER, (M6)	13-400256
6	NUT, (M6) Stainless Steel	11-400212
7	REED BLOCK ASSEMBLY	853719T	853719
8	SCREW	10-8230311
9	LOCKWASHER	13-16818
10	WASHER	12-809931044	12-809931042, 13-815064, 12-95222
11	RESTRICTOR Comment: (25)	885193
-	REPAIR KIT, Carburetor	853780A1
-	GASKET SET, Powerhead Comment: SN# 0N076150 & Below	27-8M0119225
-	GASKET SET, Powerhead Comment: SN# 0N076151 & Up	27-8M0119225
-	POWERHEAD ASSEMBLY	853787A07	853787A04, 853787A 2

Recoil Starter

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Recoil Starter:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER ASSEMBLY, Recoil	812632T04	812632A 2, 812632A04
1	HOUSING, Starter	812632T01	812632 1
2	SPRING, Starter	24-8126451
3	REEL	812633T01	812633 1
4	SPRING	24-812634005	24-812634 1
5	SPRING	24-8126342
6	SHAFT, Starter	853753
7	WASHER	12-4002217
8	LOCKWASHER	13-8537233
9	BOLT	10-8M0106739
10	E RING	53-953181
11	WASHER	12-898101937	12-16238
12	RATCHET	812635T01	812635 1
13	BUSHING	23-8537432
14	PIN, Roll	17-952187
15	NUT, (M8) Stainless Steel	11-400213
16	LOCKWASHER	13-8537233
17	LEVER, Shift Interlock	8M0102997
18	GUIDE	853754
19	SCREW, (M6 x 25)	10-8M0204707
20	LOCKWASHER, (M6)	13-400256
21	PLATE, Seal	161102
22	HANDLE, Starter Rope	8126401
23	O-RING	25-16109
24	ROPE, Starter	50-8126391
25	RETAINER	853755
26	PLATE	853756
27	BOLT	10-8M0106739
28	LOCKWASHER	13-17025
29	SCREW, (M6 x 25)	10-8M0204707
30	LOCKWASHER, (M6)	13-400256
31	BOLT	10-168284
32	PULLEY	812642T01	812642 1
33	STUD	16-8M0106733
34	BRACKET, Starter	853758
35	WASHER	12-4002217
36	NUT	11-8537228
37	SEAL Comment: SN# ON160523 & Up	8M0084268	8M0065066 SN# ON160523 & Up

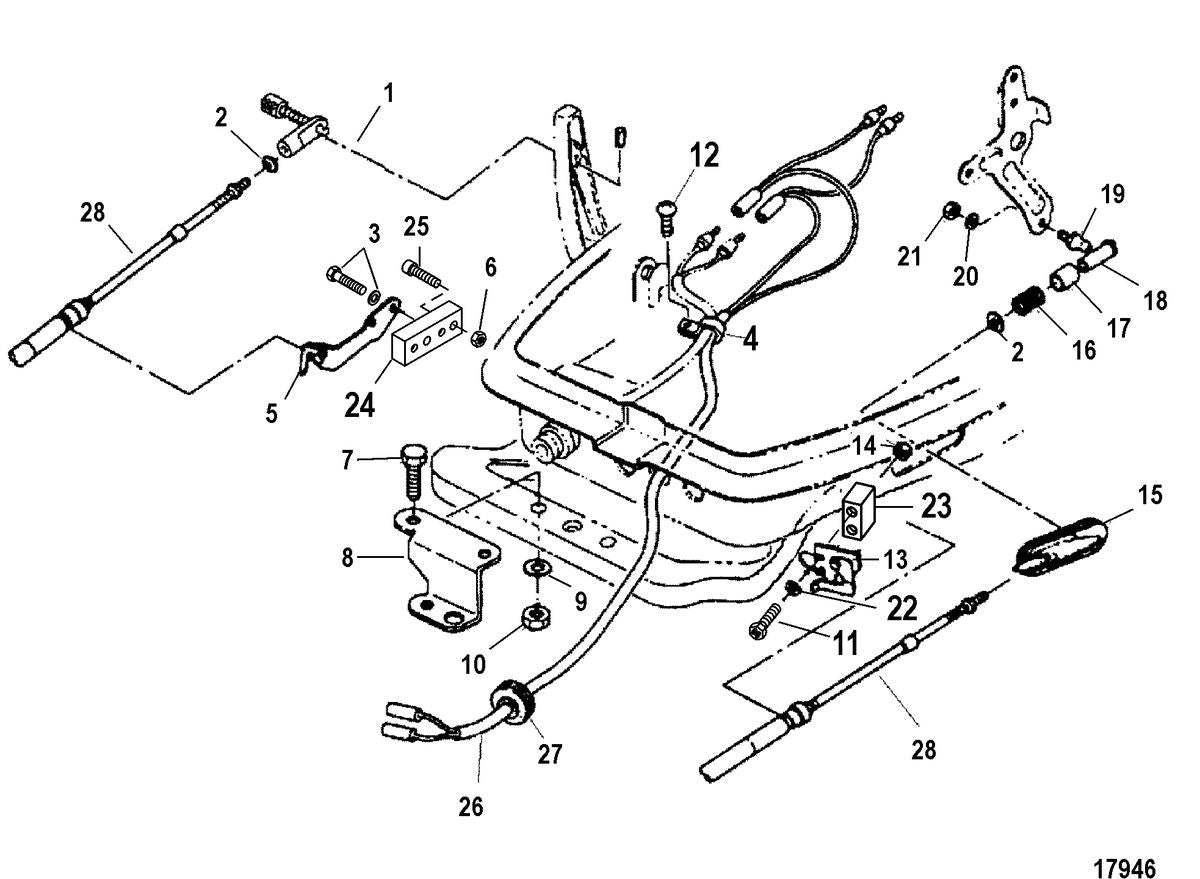

Remote Control Attaching Kit

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Remote Control Attaching Kit:

Position No.	Part Name	OEM Number	Supersedes
-	ATTACHING KIT, Remote Control Comment: SN# 0N114998 & Below	853800T01	853800A 1 SN# 0N114998 & Below
-	ATTACHING KIT, Remote Control Comment: SN# 0N114999 & Up	853800A02
1	CONNECTOR SHIFT KIT	853804
2	WASHER	12-17029
3	BOLT	10-167051
4	CLAMP	54-17169
5	RETAINER, Shift Cable	8538021
6	NUT, (M6) Stainless Steel	11-400212
7	BOLT	10-8230428
8	PLATE, Steering Hook	8538022
9	WASHER	12-16192
10	NUT, (M8) Stainless Steel	11-400213
11	SCREW/WASHER KIT, Includes Reference 22 Comment: SN# 0N114998 & Below	10-898103A79	10-879194010, 10-815068 1 SN# 0N114998 & Below
11	SCREW Comment: SN# 0N114999 & Up	10-898103206
12	SCREW	10-16827
13	RETAINER, Throttle Cable	853802
14	NUT, Stainless Steel	11-16081
15	GROMMET	25-853803
16	SPRING	24-17028
17	CAP	17027
18	BRACKET	17026
19	BALL JOINT	853801
20	LOCKWASHER, (M6)	13-400256
21	NUT, (M6) Stainless Steel	11-400212
22	LOCKWASHER	13-16079
23	SPACER Comment: SN# 0N114999 & Up	23-898103207
24	SPACER Comment: SN# 0N114999 & Up	23-898103209
25	SCREW Comment: SN# 0N114999 & Up	10-898103208
26	CABLE ASSEMBLY Comment: (3.9M)	84-853799A1
26	CABLE ASSEMBLY Comment: (5.9M)	84-853799A2
27	GROMMET	25-162262
28	NOT SOLD SEPARATE, Throttle/Shift Cable Comment: (See Accessory Guide)	NSS

Remote Control-4000 Side Mount(Non Power Trim)

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Remote Control-4000 Side Mount(Non Power Trim):

Position No.	Part Name	OEM Number	Supersedes
-	REMOTE CONTROL, Electric Start - Non Power Trim	8M0178532
1	NOT SOLD SEPARATE, Housing, Front	NSS
2	DECAL, (F-N-R)	37-170622
3	NOT SOLD SEPARATE, Decal, Throttle Friction	NSS
4	NOT SOLD SEPARATE, Decal, Run/Off	NSS
5	HARNESS ASSEMBLY	84-850731A2
6	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
7	PLUG	19-11023
8	HANDLE KIT	8M0205858
9	NOT SOLD SEPARATE, Hub, Handle	NSS
10	SCREW, (M8 x 30)	10-4007154
11	WASHER	12-8M0207778
12	SCREW, (M5 x 18)	10-40118107
13	SCREW, (M4 x 10)	10-4005685
14	BRACKET, Lock Bar Support	16921
15	SCREW, (M4 x 10)	10-87775510
16	LOCK BAR, Red	8M0207317
17	SPRING	24-16924
18	GRIP	8811411
19	PLUG	881146
20	CAP/DECAL ASSEMBLY	881137A1
21	SCREW, (M5 x 18)	10-40118107
22	LOCKWASHER, External	13-16923
23	HOLDER, Neutral Lock	16899T
24	COVER	16917
25	SCREW, (M6 x 110)	10-40116110T	10-40116110
26	KNOB, Throttle Friction	881145
27	WASHER	12-16896
28	RING, Retaining	53-13194
29	ARM ASSEMBLY, Brake	16895
30	BEARING, (1.750 Inside Diameter)	23-16875
31	WASHER	12-16874
32	PLUG, Male	13541
32	CAP, Female	13540
33	NUT, (M5) Stainless Steel	11-401385
34	CLIP ASSEMBLY	54-85899A1
35	NOT SOLD SEPARATE, Gear Shift Assembly	NSS
36	BEARING, (.750 Inside Diameter)	23-16868
37	WASHER	12-16870
38	ROLLER, Cam	16873
39	NOT SOLD SEPARATE, Drive Gear	NSS
40	NOT SOLD SEPARATE, Plate, Stud Assembly	NSS
41	SCREW, (M4 x 6)	10-4005683
42	CLIP	16886
43	SPRING	24-16888
44	ROLLER	16884
45	DRUM ASSEMBLY	16883
46	WAVE WASHER	13-16922
47	NOT SOLD SEPARATE, Cover, Bottom	NSS
48	NOT SOLD SEPARATE, Cover, Top	NSS
49	BEARING, (.810 Inside Diameter)	23-16887
50	SCREW, (M5 x 12)	10-40118106
51	LEVER ASSEMBLY, With Decal	16919A1
52	NOT SOLD SEPARATE, Decal, Lift for Fast Idle	NSS
53	WASHER, (.255 x .620 x .030) Stainless Steel	12-35280
54	NUT, (M6)	11-401196
55	SPACER	17063T
56	BUSHING	23-71942
57	SWITCH ASSEMBLY, Ignition	87-17009A5
58	NUT, Special - Black Nylon	11-879755	11-93543
59	COVER ASSEMBLY, Key	90468A1
60	SCREW, (M5 x 10)	10-40056105
61	ROLLER, Detent	16879
62	CLIP	16880
63	SPRING	24-16882
64	SCREW, (M3 x 16)	10-4005647
65	SWITCH ASSEMBLY	87-17277T
66	SWITCH ASSEMBLY	87-91941A8
67	LANYARD ASSEMBLY	15920Q54
68	SPACER KIT, Rigging	850753A1
69	SCREW, (M6 x 20)	10-4008820
70	INDICATOR, Shift Load Tool	91-892542A01

Service/Support Material

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Service/Support Material:

Position No.	Part Name	OEM Number
-	PARTS MANUAL, 25/25 Jet/30HP (2 Cyl/430cc) International	90-803821006
-	OWNERS MANUAL	90-885575
-	OPERATION MANUAL, 25/30 2-Stroke	90-10261081
-	SUPPLEMENT	90-10257081

Shift Linkage (Jet)

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Shift Linkage (Jet):

Position No.	Part Name	OEM Number	Supersedes
1	SHIFT ROD	898101641
2	NUT	11-400212
3	NUT	11-898101644
4	LINK ROD	898101642
5	LINK ROD	898101643
6	SPRING	24-898101645
7	WASHER, Stainless Steel	12-16826
8	CLIP, Bow-Tie	54-8M0021224	18-898101920, 18-8M0012495

Starter Lock

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Starter Lock:

Position No.	Part Name	OEM Number	Supersedes
1	CAP NUT	11-8537229
2	SPRING	24-8126452
3	WASHER	12-16335
4	LOCK LEVER, Starter	853761
5	E RING	53-160572
6	LOCK ROD, Starter	8537473
6	ROD, Starter Lock Comment: (Jet)	8M0157279
7	SNAP, Link Rod	8M0169412
8	LEVER, Interlock Comment: (Non-Jet)	853759
9	SCREW	10-162453
10	WASHER	12-953921
11	WAVE WASHER	13-8537232
12	BUSHING	23-8537433
13	ROD JOINT	8537451
14	WASHER	12-953925
15	COTTER PIN	18-8150262
16	NUT	11-16081
17	ROD, Starter Lock Arm	8537472
18	SNAP, Link Rod	853748
19	LEVER, Stop	8M0096696	853760
20	WASHER, Stainless Steel	12-16826
21	CAP	853745
22	ROD, Throttle Stop Arm	8537461
23	BALL JOINT	853744001	853744
24	SET RING Comment: (Shown as Reference #14 on Cylinder Block)	853710
25	HOUSING, Starter Comment: (Shown as Reference #1 on Recoil Starter)	812632T01	812632 1 (Shown as Reference #1 on Recoil Starter)
26	PLATE, Stopper Comment: (Shown as Reference #38 on Driveshaft Housing)	853766
27	ARM, Starter Lock Comment: (Jet)	853759003

Swivel Bracket

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Swivel Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET	1400-8M0161543
2	FITTING, Grease	22-824969
3	BOLT	10-879194260	10-823042041
4	BUSHING	23-8537435
5	FRICTION PLATE	162052
6	SPRING	24-953831
7	SCREW, (M8 x 30)	10-4000354
8	WIRE, Ground	84-898101089	84-803779, 84-853740 1
9	BOLT, (M6 x 12)	10-8230427
10	SHAFT ASSEMBLY, Steering	853770T01	853770A 1
11	C CLIP	53-8537141
12	WASHER	12-879194002	12-16140 3
13	THRUST PLATE, Upper	162041
14	WIRE, Ground	84-898101091	84-878357
15	BUSHING	23-8537436
16	WASHER	12-162382
17	LOCK PLATE	8537721
18	NUT	11-85372215
19	THRUST PLATE	16204004
20	YOKE, Bottom	853786
21	BUMPER	8537731
22	C-RING	53-8537142
23	O-RING	25-16109003

Throttle Linkage

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Throttle Linkage:

Position No.	Part Name	OEM Number	Supersedes
1	BALL JOINT	853744001	853744
2	CAP	853745
3	NUT, Stainless Steel	11-16081
4	LINK ROD	853746004	853746 2
5	SCREW, (25 mm)	10-16123
6	STUD Comment: SN# 0N073024 & Below	16-879194297	16-853718 1, 16-811654002 SN# 0N073024 & Below
7	BUSHING	23-853743
8	WASHER	12-8M0135942
9	NUT, Nylon	11-95374
10	ARM, Actuator	8M0103002
11	LINK ROD	853747009	853747, 853747 6
12	SNAP, Link Rod	853748002
13	ROD JOINT	8537451
14	PIN	853749001	853749
14	PIN	853749001	853749
15	NUT, (M6) Stainless Steel	11-400212
16	WASHER	12-953925
17	COTTER PIN	18-8150262
18	SCREW	10-162452
19	WASHER	12-953921
20	CAM, Throttle	8537503
21	WAVE WASHER	13-8537232
22	BUSHING	23-8537431
23	SNAP, Link Rod	8M0169412
24	ROD, Throttle Link	853747010	853747 1
25	SET RING Comment: (Shown as Reference #14 on Cylinder Block)	853710
26	SHAFT, Throttle Comment: (Shown as Reference #16 on Tiller Handle)	160932
-	TILLER HANDLE KIT	8M0136142

Tiller Handle

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Tiller Handle:

Position No.	Part Name	OEM Number	Supersedes
-	HANDLE ASSEMBLY Comment: Design I	8M0133194
-	HANDLE ASSEMBLY, With Friction Control, Includes numbers 25/26/27/28 Comment: Design II	8M0133194
1	HANDLE, Steering Comment: Design I	8M0055716	16075T02 Design I
1	HANDLE, Steering, Use with Friction Control Comment: Design II	8M0055716	16075T02 Design II
2	DECAL	37-8M0097201
3	GRIP	160861
4	SCREW	10-8150461
5	SPACER	23-8537152
6	COTTER PIN	18-8150263
7	SPACER	23-16191
8	BUSHING	23-16336
9	WAVE WASHER	13-8537232
10	SHAFT, Throttle	160931
11	BOLT	10-8M0111108	10-8M0102998
12	BOLT	10-8M0050498	10-8M0047526, 10-823042 2
13	NUT, Nylon	11-8537227
14	BOLT	10-16830
15	BRACKET	853752
16	SHAFT, Throttle	160932
17	GROMMET	25-16823
18	GROMMET (Electric)	25-16226
19	COLLAR	23-952869
20	WASHER	12-16192
21	COLLAR	23-9528610
22	GEAR, Pinion	43-853751
23	PIN, Roll	17-952186
24	WASHER, Stainless Steel	12-16826
25	BOLT, Component of 8M0055714 Comment: Design II	10-8M0204707
26	CLAMP, Friction - Throttle, Component of 8M0055714 Comment: Design II	8M0051382	813026001 Design II
27	SPRING, Stainless Steel, Component of 8M0055714 Comment: Design II	24-8M0051384	24-892777 Design II
28	NUT, Component of 8M0055714 Comment: Design II	8M0051383	11-892776 Design II
-	TILLER HANDLE KIT Comment: Design I	8M0136142
-	TILLER HANDLE KIT, With Friction Control Comment: Design II	8M0136142

Tools

Below is the parts list for Mercury 25 (2 CYL.)(2-STROKE)(International) Tools:

Position No.	Part Name	OEM Number	Supersedes
1	PULLER ASSEMBLY TOOL, Flywheel	91-8M0059838	91-804552001
2	INSTALL/REMOVER TOOL, Piston Pin	91-8539962
3	MOUNT RUBBER PULLER KIT	91-85399618
4	TOOL (For Removing)	91-8539966
5	TOOL (For Replacing)	91-8539968
6	WRENCH TOOL	91-85399612
7	SOCKET TOOL, Bevel Gear B Nut	91-85399614
8	INSTALL TOOL, Clutch Pin	91-85399610
9	PULLER TOOL, Bearing	91-8M0060180	91-853996 4
10	BACKLASH MEASURING TOOL	91-85399616
11	PULLER KIT, Needle Roller Bearing	91-895195A01	91-853996 20
12	FLANGE	91-8031332
13	SHAFT	91-8031333
14	WASHER	12-1614010
15	NUT	11-85372220
16	FLANGE	91-8031336
17	GUIDE TOOL	91-8031337
-	EXPANDER TOOL, Piston Ring Comment: (Not Shown)	91-24697
-	TOOL, Bearing Outer Press Rod Comment: (Not Shown)	91-895212
-	TOOL, Bearing Outer Press Plate Comment: (Not Shown)	91-895213001
-	TOOL, Bearing Outer Press Guide Comment: (Not Shown)	91-895214
-	TOOL, Bevel Gear A Set Comment: (Not Shown)	91-895215
-	TOOL, Backlash Measuring Collar Comment: (Not Shonw)	91-895216004
-	TOOL, Conedisk Spring, D-12 Comment: (Not Shown)	91-895217
-	TOOL, Shimming Gauge Comment: (Not Shown)	91-895218
-	TOOL, Thickness Gauge Comment: (Not Shown)	91-895219
-	TOOL, Flywheel Puller Comment: (Not Shown)	91-8M0059838	91-804552001 (Not Shown)
-	TOOL, Flywheel Stripper Comment: (Not Shown)	91-8M0059838	91-804552001 (Not Shown)
-	GUN AND LUBE Comment: (Jet)	91-30500K2

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
