Mercury XR10 (9792200 THRU 0P016999) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury XR10 Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury XR10 Accessories:

Part Name	OEM Number	Supersedes
LINE ASSEMBLY, Fuel (8 Feet) (8 FT.) Comment: WITH QUICK DISCONNECT	32-877680Q8
LINE ASSEMBLY, Fuel (12 Feet) Comment: WITH QUICK DISCONNECT	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 WITH QUICK DISCONNECT
LINE ASSEMBLY, Fuel (8 Feet) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q8
LINE ASSEMBLY, Fuel (12 Feet) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 WITH QUICK DISCONNECT ENGINE END ONLY
LINE ASSEMBLY, Fuel (12 Feet) Comment: NO FITTINGS	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 NO FITTINGS
STARTER MOTOR KIT, Electric Comment: (XR/MAGNUM 10/VIKING)	50-90983A5
CONVERSION KIT, Tiller Handle Start Switch Comment: (XR/MAGNUM 10/VIKING)	87-823609A7
HARNESS ASSEMBLY, Engine Wiring Comment: (XR/MAGNUM 10/VIKING)	84-12334A2
ATTACHING KIT, Remote Control	42805A6
CONVERSION KIT, Side Shift Comment: (XR/MAGNUM 10/VIKING)	821190A3
EXTENSION KIT Comment: (BLACK)	12426A7
EXTENSION KIT Comment: (GRAY)	12426A8
LEVER ASSEMBLY, Tilt Lock	830578A1
ANTI-ICING KIT, Carburetor	828517A1
THERMOSTAT KIT	14586A3
HIGH ENERGY IGNITION KIT	339-7370A40
COIL KIT, Lighting	42282A4
REGULATOR KIT, Lighting	95845A5
CHARGING KIT, Battery	62351A10
FLUSHING ATTACHMENT	12612Q2
MOTOR LOCK	14171Q2
ATTACHING KIT, Starboard Comment: (Starboard Cable Entry)	11606A1
ATTACHING KIT, Port Comment: (Port Cable Entry)	11606A2
ATTACHING KIT, Cable And Pulley	12569A1

Carburetor(XR10/Magnum 10)

Below is the parts list for Mercury XR10 Carburetor(XR10/Magnum 10):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (WMC-23)	1392-8846A24
1	CARBURETOR Comment: (WMC-48)	1392-827005T08	1392-827005T 5 (WMC-48)
1	CARBURETOR Comment: (WMC-48A)	1392-827005T08	1392-827005T 5 (WMC-48A)
1	CARBURETOR Comment: (WMC-49A-NORWAY)	1392-9726T18
2	VALVE, Throttle Comment: (WMC-23/48/48A)	815133
2	VALVE, Throttle Comment: (WMC-49/49A)	1395-823716
3	SHAFT, Throttle (INCLS. SCREW/SPRING) Comment: (WMC-23/48/48A)	813022
3	SHAFT, Throttle (INCLS. SCREW & SPRING) Comment: (WMC-49/49A)	19267
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE, Inlet Needle	98551
7	JET, (.052) Comment: (WMC-23/48/48A)	1395-6359
-	JET, (.072) Comment: (WMC-49/49A)	1395-6207
8	PLUG	1395-9171
9	COVER Comment: (WMC-23)	813618	1395-9165 (WMC-23)
9	COVER, Diaphragm Comment: (WMC-48/48A/49/49A)	1395-823648
10	SCREW	1395-9697
11	BODY	15827A1
12	SCREW	1395-9643
13	PLATE	1395-9699
14	SCREW	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR KIT	1395-8237072
17	COVER	1395-9637
18	PLUG	1395-9762
19	GASKET, Carburetor	27-192061
20	DIAPHRAGM/GASKET	1395-9635
21	LEVER, Fast Idle	128053
22	BRACKET, Primer	12803
23	NUT	11-821979	11-97877
24	SCREW, (#6-32 x .750)	10-12110
25	SPRING, Tension	24-11277
26	SCREW, (M5 x 12)	10-400018
27	SCREW, (#8-32 x .500) Stainless Steel	10-79965
28	LEVER, Primer	112731
29	CAM BLOCK	11280
30	CLIP, Retaining	53-11278
31	BEZEL ASSEMBLY, Choke	12804A1
32	PRIMER KNOB	128022
33	SCREW, (M5 x 30)	10-40056110
34	NUT, (M5) Stainless Steel	11-400211
35	COVER, Carburetor Comment: USE WHERE APPLICABLE	174421
36	PLUG Comment: USE WHERE APPLICABLE	19-47579
37	IDLE WIRE	445541
38	DECAL (SLOW/FAST)	37-129701
39	INSERT	41750T
40	SCREW, (M5 x 30)	10-40056110
41	RESTRICTOR PLATE Comment: (NORWAY)	125681
-	GASKET SET, Engine	27-42364A92

Carburetor, SeaPro/Marathon10 & 15

Below is the parts list for Mercury XR10 Carburetor, SeaPro/Marathon10 & 15:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (WMC-42)	1392-817404T4
1	CARBURETOR Comment: (WMC-50A-SEAPRO/MARATHON 10)	1392-817404T09	1392-817404T 7 (WMC-50A-SEAPRO/MARATHON 10)
1	CARBURETOR Comment: (WMC-50B-SEAPRO/MARATHON 10)	1392-817404T09	1392-817404T 7 (WMC-50B-SEAPRO/MARATHON 10)
1	CARBURETOR Comment: (WMC-55- SEAPRO/MARATHON 15)	1392-851908T06	1392-851908T 4 (WMC-55- SEAPRO/MARATHON 15)
1	CARBURETOR Comment: (WMC-55A- SEAPRO/MARATHON 15)	1392-851908T06	1392-851908T 4 (WMC-55A- SEAPRO/MARATHON 15)
2	VALVE, Throttle Comment: (WMC-42/55/55A)	1395-823716
2	VALVE, Throttle Comment: (WMC-50/50A/50B)	815133
3	SHAFT, Throttle (INCLS. SCREW & SPRING) Comment: (WMC-42/55/55A)	19267
3	SHAFT, Throttle (INCLS. SCREW & SPRING) Comment: (WMC-50/50A/50B)	813022
4	BOWL, Fuel	1395-811353
4A	SCREW, Bowl Drain	1395-811360
5	FLOAT	1395-91691
5A	SHAFT	F10064
6	VALVE, Inlet Needle	98551
7	JET, (.064) Comment: (WMC-42)	1399-4216
7	JET, (.052) Comment: (WMC-50/50A/50B)	1395-6359
7	JET, (.072) Comment: (WMC-55/55A)	1395-6207
8	PLUG	1395-9171
9	LEVER, Throttle Comment: (WMC-42)	1395-811352
9	NOT SOLD SEPARATE, Throttle Lever (Part of Reference #3) Comment: (WMC-50/50A/50B/55/55A)	NSS
10	SHAFT, Choke	1395-8113541
11	BODY	15827A1
12	SCREW	1395-9643
13	PLATE	1395-9699
14	SCREW	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR KIT	1395-8237072
17	COVER	1395-9637
18	VALVE, Choke	1395-811806	1395-811355
19	GASKET, Carburetor (USE WHERE APPLICABLE)	27-192061
20	DIAPHRAGM/GASKET	1395-9635
21	LEVER, Choke	1395-811805	817406
23	COVER, Carburetor	174421
24	PLUG	19-47579
25	SCREW, (M5 x 30)	10-40056110
26	INSERT	41750T
27	KNOB, Choke	817424
28	BEZEL ASSEMBLY, Choke	12804A1
29	CLIP, Retaining	53-11278
30	INSERT, Choke Bezel	817426
31	LINK, Choke	817425
32	SCREW, (M5 x 30)	10-40056110
33	NUT, (M5) Stainless Steel	11-400211
-	GASKET SET, Engine	27-42364A92
-	POWERHEAD ASSEMBLY, Complete Comment: SN# 9831799 & Below	19072T88
-	POWERHEAD ASSEMBLY Comment: SN# USA-0G112450/BEL-9831800 & Up	19072T97

Clamp Bracket

Below is the parts list for Mercury XR10 Clamp Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY Comment: (Port-Black) SN# USA-0G031927/BEL-9803667 & Up	3404-8894A8
1	CLAMP BRACKET ASSEMBLY (Port-Gray) Comment: SN# USA-0G031927/BEL-9803667 & Up	3404-8894A9
2	CLAMP BRACKET ASSEMBLY Comment: (Starboard-Black) SN# USA-0G031927/BEL-9803667 & Up	3403-8892A6
2	CLAMP BRACKET ASSEMBLY Comment: (Starboard-Gray) SN# USA-0G031927/BEL-9803667 & Up	3403-8892A7
1/2	CLAMP BRACKET ASSEMBLY Comment: (Port/Starboard-Black) SN# USA-0G031926/BEL-9803666 & Below	3404-8894A11
1/2	CLAMP BRACKET ASSEMBLY Comment: (Port/Starboard-Gray) SN# USA-0G031926/BEL-9803666 & Below	3404-8894A12
3	THUMB SCREW ASSEMBLY, (16 mm)	10-92767A3
4	WASHER	12-73719
5	SHOULDER SCREW, Hex	10-768042
6	SPACER	23-8M0084719
7	SCREW, (M6 x 40)	10-4000333
8	DECAL, Tilt Position	37-12869
9	SHUTTLE	814427
10	TILT TUBE	42078
11	CLIP	54-8M0085928	54-30954
12	NUT, (.875)	11-93164
13	WASHER, Nylon	12-71421
14	LEVER ASSEMBLY, Tilt Return	42390A1
15	STRAP, PORT SIDE	90901
16	SCREW, (M6 x 1.0)	10-42498
17	WAVE WASHER	13-31030
18	BOLT, (.250-20 x 3.50)	10-43216
19	WASHER	12-67983
20	NUT, (.250-20)	11-8267118

Cowls

Below is the parts list for Mercury XR10 Cowls:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY Comment: (BLACK)	2191-9420T10
1	TOP COWL ASSEMBLY Comment: (GRAY)	2191-8M0094069	2191-9420T12 (GRAY)
1	TOP COWL ASSEMBLY Comment: (SILVER)	2191-8M0094069	2191-9420T12 (SILVER)
2	SEAL	444621
3	SOUND BLANKET KIT	13691A02
4	LATCH ASSEMBLY, Cowl	817104A3
5	LATCH HOOK	180402
6	SCREW, (.250-20 x 1.50)	10-852530
7	SHIELD	12873T
8	SCREW, (M5 x 12)	10-400018
9	BOTTOM COWL Comment: (BLACK)	2192-9204A1
9	BOTTOM COWL Comment: (GRAY)	2192-9204A2
10	PLUG	15061001
11	SWITCH ASSEMBLY, Stop	87-11083A6
12	LANYARD ASSEMBLY	15920Q54
13	RETAINER, Brass	8M0032846	12044 1
14	LEVER, Cowl Latch	44461A1
15	BUSHING	23-76470
16	WAVE WASHER	13-69708
17	SPACER	11394
18	PLUG	12154
19	GROMMET (USE WHERE APPLICABLE)	25-12602002
20	DECAL, EPA Label Information Comment: (1998) (SEAPRO/MARATHON)	37-855577A4

Crankshaft, Pistons and Flywheel

Below is the parts list for Mercury XR10 Crankshaft, Pistons and Flywheel:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, (M14)	11-818591
2	FLYWHEEL ASSEMBLY	260-859231T19	260-859231T 8
3	BEARING	17794A1
4	SEAL	26-818901	26-42197
5	CRANKSHAFT ASSEMBLY	400-8M0083309	468-8471A 2
6	SLEEVE	818630A1
7	BEARING, Ball, Lower	30-41341
8	RING, Snap (SMALL) (USE WHERE APPLICABLE)	53-20940
9	RING, Retaining	53-42132
10	WASHER	12-13031
11	SEAL, Oil - Lower, LOWER	26-125661
12	KEY, Woodruff	28-20094
13	BEARING, Roller	31-878158	31-41342
14	SEAL, Oil - Upper, UPPER	26-125671
15	CONNECTING ROD ASSEMBLY	637-8477A2
16	SCREW, (M5 x 16)	10-823460	10-40081 16
17	BEARING ASSEMBLY, Roller	31-42076A1
18	BEARING, Needle	29-42186
19	BEARING, Thrust	12-8M0012297	43348
20	PISTON ASSEMBLY Comment: (STANDARD)	784-9747T2
20	PISTON ASSEMBLY Comment: (.015 O.S.)	784-9747A4
21	RING SET, Piston Comment: (STANDARD)	39-18212A4
21	RING SET, Piston Comment: (.015 O.S.)	39-18212A1
22	LOCK RING	40-422021
23	WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)	12-824451
-	POWERHEAD ASSEMBLY, Complete Comment: SN# 9831799 & Below	19072T88
-	POWERHEAD ASSEMBLY Comment: SN# USA-0G112450/BEL-9831800 & Up	19072T97

Cylinder Block and Covers

Below is the parts list for Mercury XR10 Cylinder Block and Covers:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK Comment: SN# 9831799 & Below	881-9727T2
1	CYLINDER BLOCK Comment: SN# usa-0G112450/BEL-9831800 & Up	881-9727T12
2	PIN, Dowel	17-85171
3	STUD, (M8 x 37.1)	16-424632
4	CHECK VALVE	21-426982
5	TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches)	32-892024122	32-99130122
6	STUD	16-8161949
7	SCREW, (M8 x 55)	10-421251
8	PIN, Groove	17-17866
9	NUT, (M6)	11-401386
10	GASKET, Powerhead	27-191861
11	REED BLOCK Comment: SN# USA-0G438000/BEL-9927000 & Up	828435A3
11	REED BLOCK Comment: (Rubber Coated (1) Piece Design) SN# USA-0G437999/BEL-9926999 & Below	828435A3
12	REED BLOCK ASSEMBLY Comment: (Replaced by (1) Piece Design Reed Block)	828435A3
13	CHECK VALVE Comment: (Replaced by (1) Piece Design Reed Block)	21-42657A3
14	SEAL Comment: (Replaced by (1) Piece Design Reed Block)	26-42137
15	GASKET Comment: (Replaced by (1) Piece Design Reed Block)	27-195982
16	SCREW, (M3.5 x 8) Comment: (Replaced by (1) Piece Design Reed Block)	10-4005764
17	REED Comment: (Replaced by (1) Piece Design Reed Block)	34-825141	34-42044, 34-42044 10 (Replaced by (1) Piece Design Reed Block)
18	STOP, Reed Comment: (Replaced by (1) Piece Design Reed Block)	179031
19	SCREW, (M6 x 16)	10-4000171
20	NUT, (M8) Stainless Steel	11-400213
21	COVER	8M0048005	42521001
22	SCREW, (M6 x 25)	10-40062129
23	GASKET	27-19185
24	PLATE, Baffle	42365
25	GASKET	27-19184
26	SCREW, (M6 x 25)	10-40062129
27	FITTING, Barbed	22-56759
28	TUBING, (20.00 Feet Bulk) (Cut to 5.25 and 7 Inches)	32-892024122	32-99130122
29	FITTING	22-59169003
30	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
31	GASKET Comment: SN# 9831799 & Below	27-192031
32	COVER, Intake Comment: SN# 9831799 & Below	19107F1
33	O-RING Comment: SN# USA-0G112450/BEL-9831800 & Up	25-891935	25-831884 SN# USA-0G112450/BEL-9831800 & Up
34	COVER, Intake Comment: SN# USA-0G112450/BEL-9831800 & Up	826383F1
35	HOSE, (57.00 Inches Bulk)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
36	FITTING, BOTTOM COWL	22-94848
37	COVER ASSEMBLY	1033-8906A02
38	GASKET	27-19207002
39	COVER	8M0039352	14673 2
40	GASKET	27-19205002
41	SCREW, (M6 x 25)	10-40062129
42	THERMOSTAT (120 DEGREES)	14586
43	GASKET	27-8M0204714
44	CONNECTOR (STRAIGHT)	22-291112
45	SCREW, (M6 x 25)	10-40062129
46	STUD Comment: (NORWAY MODELS)	16-429173
-	GASKET SET, Engine	27-42364A92
-	POWERHEAD ASSEMBLY, Complete Comment: SN# 9831799 & Below	19072T88
-	POWERHEAD ASSEMBLY Comment: SN# USA-0G112450/BEL-9831800 & Up	19072T97

Driveshaft Housing

Below is the parts list for Mercury XR10 Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY Comment: (SHORT) BLACK	1596-822154A1
1	HOUSING ASSEMBLY Comment: (LONG) BLACK	1597-822155A1
1	HOUSING ASSEMBLY Comment: (SHORT) GRAY	1596-822154A2
1	HOUSING ASSEMBLY Comment: (LONG) GRAY	1597-822155A2
2	GASKET, Driveshaft Housing	27-195992
3	MOUNT	8M0039074	42189 2
4	COVER, Mount Comment: (BLACK)	42374F6
4	COVER Comment: (GRAY)	42374F5
5	SCREW, (M6 x 80)	10-4009238
6	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
7	NUT, (M6) Stainless Steel	11-400212
8	SCREW, (M6 x 35) Stainless Steel	10-40011131
9	SEAL, Adapter Plate	26-11287001
10	ADAPTOR PLATE Comment: (NO EXHAUST TUBE) USE WITH DESIGN II WATER TUBE	8M0036855	41344 9 (NO EXHAUST TUBE) USE WITH DESIGN II WATER TUBE
10	ADAPTOR PLATE ASSEMBLY Comment: (WITH EXHAUST TUBE) USE WITH DESIGN II WATER TUBE	41344T6
11	TUBE ASSEMBLY, Water Comment: (SHORT) USE WITH DESIGN II WATER TUBE	32-881203A1
11	TUBE ASSEMBLY, Water Comment: (LONG) USE WITH DESIGN II WATER TUBE	32-881203A2
10	ADAPTOR PLATE Comment: (NO TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	413448
10	ADAPTOR PLATE ASSEMBLY Comment: (1-1/8 IN. I.D. TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	41344A3
12	TUBE, Water Comment: (SHORT) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	32-42123
12	TUBE, Water Comment: (LONG) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	32-42122
13	HOLDER Comment: USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	42371
14	GASKET Comment: USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	27-192012
15	SCREW, (M5 x 16) Stainless Steel Comment: USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	10-40011107
16	SPACER Comment: USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3	23-42465
17	SEAL	26-42380001
18	BLOCK, Bearing Comment: (LONG)	445551
-	GASKET SET, Engine	27-42364A92

Fuel Filter Assembly

Below is the parts list for Mercury XR10 Fuel Filter Assembly:

Position No.	Part Name	OEM Number	Supersedes
1	FILTER ASSEMBLY, Fuel	35-889527A07	35-8M0111436, 35-87946A15
2	BALL	858731	91935
3	FILTER ASSEMBLY	35-87946Q04
4	SEAL	25-897536	25-98277
5	HOSE, (57.00 Inches Bulk)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	HOSE, (57.00 Inches Bulk)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
8	GROMMET	25-18202
9	CONNECTOR KIT, Fuel	22-15781A9
10	SCREW, (M6 x 25)	10-8M0204707

Gear Housing(Driveshaft)(2.00:1 Gear Ratio)

Below is the parts list for Mercury XR10 Gear Housing(Driveshaft)(2.00:1 Gear Ratio):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: (SHORT) BLACK	1666-8833T13
-	GEAR HOUSING ASSEMBLY Comment: (LONG) BLACK	1666-8833T15
-	GEAR HOUSING ASSEMBLY Comment: (SHORT) GRAY	1666-8833T14
-	GEAR HOUSING ASSEMBLY Comment: (LONG) GRAY	1666-8833T16
1	GEAR HOUSING ASSEMBLY, Basic-Black Comment: (BLACK)	1600-8M0083312	1666-8833A17 (BLACK)
1	GEAR HOUSING ASSEMBLY, Basic-Gray Comment: (GRAY)	1666-8833A18
2	BUSHING, (.31 x .45 x .50)	23-12009
3	FITTING KIT, Magnetic, Plug Fill/Drain	22-8M0058389	22-67892A06
4	WASHER, Fiber	12-191833
5	SLEEVE ASSEMBLY	822244A1
6	SLEEVE	23-823944
7	BUSHING	23-823943
8	SCREW, (.375-16 x .250)	10-79953Q04
9	WASHER, Fiber	12-191833
10	SCREEN	35-421991
11	SCREW, (.250-14 x .88)	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW, (.250-14 x .88)	10-13954
14	SEAL	26-42133
15	GEAR, Pinion - 13-26	43-8219251
16	WASHER	12-41369
17	BEARING, Roller	31-22756
18	BASE ASSEMBLY, Water Pump	46-42040T5
19	GASKET	27-192043
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW, (#10-16 x .500)	10-48408
23	QUAD RING	25-822236
24	SEAL, Oil	26-413651
25	GASKET, Water Pump Plate	27-19202001
26	TUBE ASSEMBLY, Water	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	SEAL	26-421021
30	IMPELLER	47-42038Q02
31	KEY ASSEMBLY	28-8M0173458
32	GUIDE	444671
33	SCREW, (M6 x 30)	10-8M0214957
34	WASHER, (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)	12-8M0204649
35	CAM	42039
36	SHIFT SHAFT Comment: (SHORT)	8M0026064	42145 (SHORT)
36	SHIFT SHAFT Comment: (LONG)	8M0026065	42146 (LONG)
37	E RING	53-42389
38	GUIDE	8M0036770	42126
39	SCREW, (M5 x 25) Stainless Steel	10-40011109
40	NUT, (M5)	11-401385
41	DRIVESHAFT Comment: (SHORT)	45-823389
41	DRIVESHAFT Comment: (LONG)	45-823390
42	THRUST WASHER	12-822248
-	PUMP KIT, Water	46-42089A5
-	GASKET SET, Engine	27-42364A92
-	SEAL KIT	26-41365A3

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio

Below is the parts list for Mercury XR10 Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: (SHORT) BLACK	1666-8833T13
-	GEAR HOUSING ASSEMBLY Comment: (LONG) BLACK	1666-8833T15
-	GEAR HOUSING ASSEMBLY Comment: (SHORT) GRAY	1666-8833T14
-	GEAR HOUSING ASSEMBLY Comment: (LONG) GRAY	1666-8833T16
1	GEAR HOUSING ASSEMBLY, Basic-Black Comment: (BLACK)	1600-8M0083312	1666-8833A17 (BLACK)
1	GEAR HOUSING ASSEMBLY, Basic-Gray Comment: (GRAY)	1666-8833A18
43	BEARING ASSEMBLY, Roller	31-821321A1
44	GEAR ASSEMBLY, Forward (26 TEETH)	43-821924A1
45	BUSHING	23-41367
46	FOLLOWER, Cam	813139	42131
47	CLUTCH ASSEMBLY	52-821930A1
48	PIN, Cross	17-823951
49	SPRING	24-42204
50	PROPELLER SHAFT	44-821929
51	GEAR, Reverse - 13/26	43-821926T1
52	CARRIER ASSEMBLY, Bearing	42144T3
53	O-RING, (1.984 x .139)	25-8M0214923
54	BUSHING	23-821927
55	SEAL	26-99325
56	SEAL, Oil	26-821928
57	SCREW, (M8 x 50)	10-82407110
58	SCREW, (M8 x 30)	10-8240717
59	PROPELLER, (9.00 x 9.00)	48-828156A12	48-42522A12, 48-828156A45
60	SPACER	23-420911
61	NUT, (M10)	11-40140
62	THRUST HUB Comment: (1.390 DIA.)	821932
62	THRUST HUB Comment: (1.510 DIA.)	8219321
63	CUP ASSEMBLY, Reverse Exhaust Block	822559Q01	822559A 1
-	GASKET SET, Engine	27-42364A92
-	SEAL KIT	26-41365A3

Ignition Components

Below is the parts list for Mercury XR10 Ignition Components:

Position No.	Part Name	OEM Number	Supersedes
1	STATOR ASSEMBLY	86617A20
2	SCREW, (M5 x 25)	10-4000120
3	SCREW, (M5 x 12)	10-400018
4	TRIGGER ASSEMBLY	98450A10
5	CLIP	11100
6	SWITCHBOX ASSEMBLY	339-7452A19
7	SCREW, (M5 x 20)	10-40019108
8	SCREW, (#10-16 x .500)	10-48408
9	COIL KIT	339-832757A4
10	SCREW, (M6 x 45)	10-40112
11	TAB WASHER	88173
12	BUSHING	23-88171
13	NUT, Brass	10-32,11-45076
14	CABLE SET, High Tension (5 and 8.25 Inch)	84-813715A2
15	BOOT/TERMINAL KIT	85-63709A1
16	SPARK PLUG (NGK#BPZ8HS)	33-14814568
16	SPARK PLUG (NGK#BP8HS-15)	33-8M0114746
17	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	STATOR ASSEMBLY	86704A10
19	SCREW, (M5 x 30)	10-4000123
20	TERMINAL BLOCK	86-638131
21	SCREW, (#10-16 x .625) Stainless Steel	10-48409
22	SCREW, (#10-16 x .375)	10-62568
23	CABLE ASSEMBLY, (4.00 Inches) Black	84-88807A16

Manual Starter

Below is the parts list for Mercury XR10 Manual Starter:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER ASSEMBLY, Recoil	42207A7
1	HOUSING ASSEMLBY, Manual Starter	8M0070659
1	HOUSING, Starter	42207T02
2	BUSHING	8M0183792
3	RING, Retaining	53-818853	53-42689
4	SPRING	24-86857T01
5	PULLEY, Starter	42034T04
6	ROPE	50-12066Q10
7	SPRING	24-86851T02
8	CAM	868501
9	RING, Retaining	53-86849T01
10	SPRING	24-868523
11	CAM	86853T01
12	SCREW	10-826253	10-97516, 10-818838
13	PAD	833161T	833161, 90478
14	REST	19018T
15	SUPPORT	12674
16	SCREW, (M5 x 35)	10-40019111
17	SPACER	23-309772
18	NUT, (M5)	11-401385
19	LEVER (UPPER)	42171T
20	WASHER, (.203 x .500 x .032)	12-8M0204666
21	LEVER (LOWER)	42173T
22	SCREW, (#10-16 x .500)	10-48408
23	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
24	HANDLE ASSEMBLY	85174A1
25	STUD, (M6 x 32) Comment: SEAPRO/MARATHON MODELS	16-8161945
26	NUT, (M6) Comment: SEAPRO/MARATHON MODELS	11-401386

Service/Support Material

Below is the parts list for Mercury XR10 Service/Support Material:

Part Name	OEM Number	Supersedes
PARTS MANUAL, XR/MAGNUM 10/SEAPRO/MARATHON 10/SEAPRO/MARATHON 15	90-81639994
SERVICE MANUAL	90-827242R02	90-827242R 1
OWNERS GUIDE Comment: (XR10/MAGNUM 10)	90-10104980
OWNERS GUIDE Comment: (SEA PRO & MARATHON MODELS)	90-10142980
DECAL SET Comment: (XR10)	37-816290A96	37-816290A94, 37-816290A90 (XR10)
DECAL SET Comment: (XR10 - BLACK/WHITE CHECKERED FLAG)	37-809903A96
DECAL SET Comment: (Magnum 10) SN# 9891022 & Below	37-816291A94	37-816291A92, 37-816291A91, 37-816291A90 (Magnum 10) SN# 9891022 & Below
DECAL SET Comment: (Magnum 10) SN# 9891023 & Up	37-816291A96
DECAL SET Comment: (BLACK 10 - NORWAY)	37-824089A96	37-824089A95 (BLACK 10 - NORWAY)
DECAL SET Comment: (MAGNUM 10 - NORWAY)	37-824090A01	37-803180A99, 37-824090A95 (MAGNUM 10 - NORWAY)
DECAL SET Comment: (SEAPRO 10)	37-826305A01	37-826305A98, 37-817633A95, 37-817633A91, 37-850443A97 (SEAPRO 10)
DECAL SET Comment: (MARATHON 10)	37-8588351
DECAL SET Comment: (SEAPRO 15)	37-826305A01	37-826305A98, 37-817633A95, 37-817633A91, 37-850443A97 (SEAPRO 15)
DECAL SET Comment: (MARATHON 15)	37-8588351
DECAL, EPA Label Information Comment: (1998)	37-855577A4

Swivel Bracket

Below is the parts list for Mercury XR10 Swivel Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET ASSEMBLY Comment: (Black) SN# USA-0G031926/BEL-9803666 & Below	3402-8831A13
1	SWIVEL BRACKET ASSEMBLY Comment: (Gray) SN# USA-0G031926/BEL-9803666 & Below	3402-8831A14
1	SWIVEL BRACKET ASSEMBLY Comment: (Black) SN# USA-0G031927/BEL-9803667 & Up	3402-8831T08
1	SWIVEL BRACKET ASSEMBLY Comment: (Gray) SN# USA-0G031927/BEL-9803667 & Up	3402-8831A9
2	FITTING, Grease	22-8M0169589
3	PLATE ASSEMBLY, Co-Pilot	42124A2
4	BEARING	23-421402
5	BEARING, Thrust - Upper	23-42080T01
6	BUSHING	23-42139
7	SEAL	26-42077
8	THRUST WASHER	12-42373
9	SPRING	24-421301
10	BRACKET	42082T04
11	PIN	17-420811
12	HOOK, Reverse Lock	8M0075731	42141 1
13	PIN, Pivot Comment: DESIGN I	17-830741A1
14	WASHER, (.390 x .600 x .032) Comment: DESIGN I	91963
15	PIN ASSEMBLY, Pivot Comment: DESIGN II	17-830741A1
16	NOT SOLD SEPARATE, Retaining Ring Comment: DESIGN II	NSS
17	WASHER, (.390 x .600 x .032) Comment: DESIGN II	91963
18	SPRING	24-42128
19	CARRYING HANDLE (#42085 2) Comment: (BLACK)
19	CARRYING HANDLE Comment: (GRAY)	42085F5
20	SPRING	24-42127
21	RING, Retaining	53-13194
22	ROD	821961
23	DISC	8165621
24	PLATE KIT	821958A1
25	SCREW, (M6 x 13) Stainless Steel	10-40011126
26	BRAKE PLATE	821957
27	WASHER	12-29330
28	HANDLE	821959
29	NUT, (.375-24)	11-8M0204726
-	DECAL, Co-Pilot	37-8237011

Swivel Head and Steering Handle

Below is the parts list for Mercury XR10 Swivel Head and Steering Handle:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL HEAD Comment: (BLACK)	42213A24
1	SWIVEL HEAD Comment: (GRAY)	42213A25
2	BUSHING	23-823939
3	PLATE, Tiller Handle Comment: (USE WITH 6MM SCREWS REF #4)	822147
3	PLATE Comment: (USE WITH 5MM SCREWS REF #4)	8221471
4	SCREW, (M5 x 16) Stainless Steel	10-40011107
4	SCREW, (M6 x 16)	10-4006731
5	WASHER	12-822145
6	WAVE WASHER	13-826792	13-34678 1, 13-822144
7	WASHER	12-822146
8	ARM ASSEMBLY, Steering Handle Comment: (BLACK)	821468A66	821468T 8 (BLACK)
8	ARM ASSEMBLY, Steering Handle Comment: (GRAY)	821468T9
9	RETAINER	822441
10	SCREW, (M5 x 16) Stainless Steel	10-40011107
11	COVER KIT Comment: (HANDLE SHIFT)	822148A3
11	COVER KIT Comment: (SIDE SHIFT)	822148A2
12	PULLEY	822150
13	NOT SOLD SEPARATE, Pulley Case (PART OF REF. #11)	NSS
14	SCREW, (#10-16 x .500)	10-878608	10-812832
15	CABLE, Throttle Comment: (HANDLE SHIFT)	43242T09
15	CABLE, Throttle Comment: (SIDE SHIFT)	432426
16	SLEEVE Comment: (HANDLE SHIFT)	85-9600910
16	SLEEVE, (12.00 Inches) Comment: (SIDE SHIFT)	85-960099
17	DECAL Comment: (HANDLE SHIFT)	37-8242002
17	DECAL Comment: (SIDE SHIFT)	37-8242004
18	GRIP	8M0221732
19	SWITCH ASSEMBLY, Stop	87-8M0104615
20	KNOB, Throttle	821972T	821972
21	LOCK, Throttle	892995	821971
22	SCREW, (M6 x 25)	10-8M0204707
23	HANDLE, Throttle Comment: (HANDLE SHIFT)	822429
23	HANDLE, Throttle Comment: (SIDE SHIFT)	821465
24	TILLER TUBE	821463T01	821463A 1
25	SPRING	24-96203

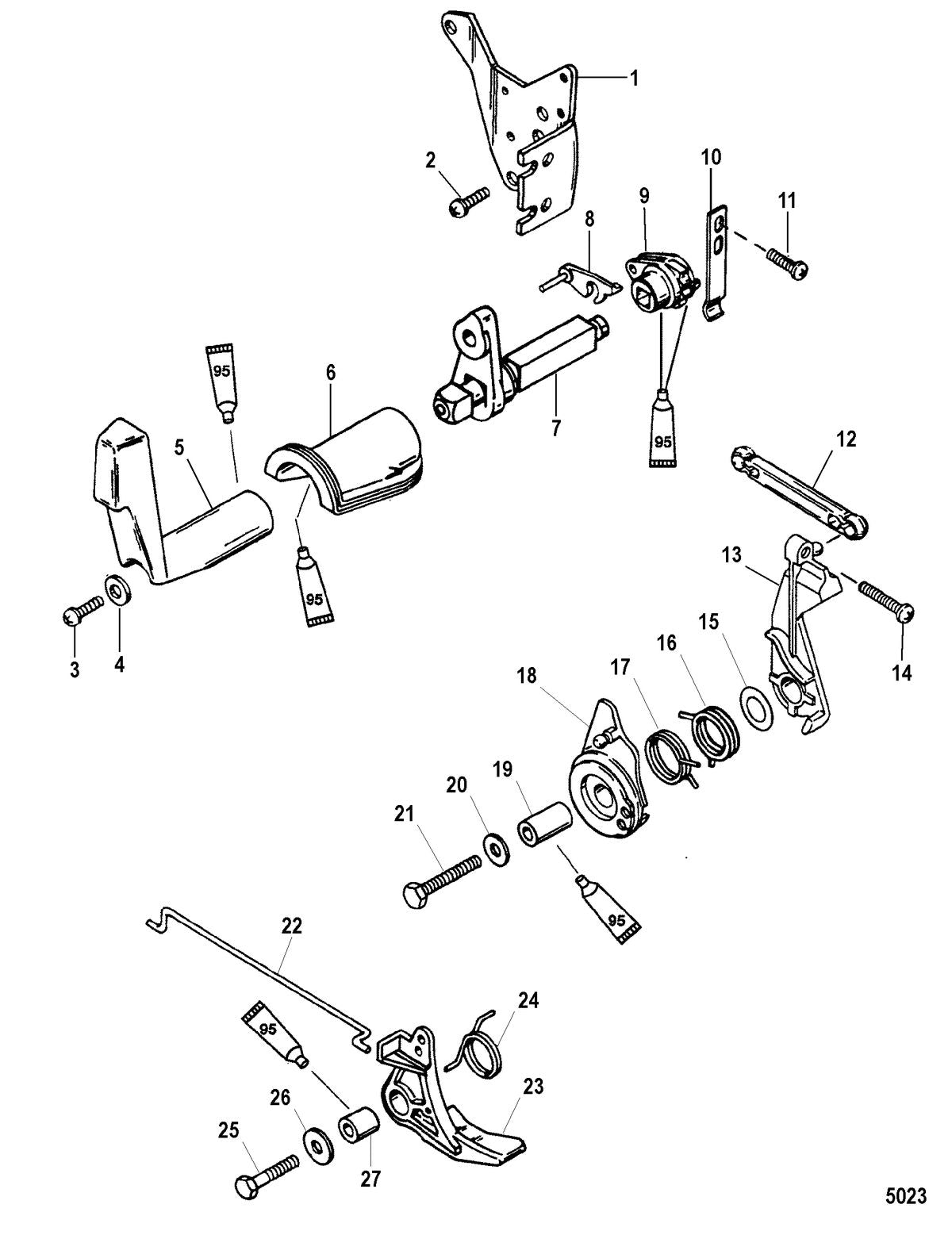

Throttle and Shift Linkage(Side Shift)

Below is the parts list for Mercury XR10 Throttle and Shift Linkage(Side Shift):

Position No.	Part Name	OEM Number
1	BRACKET, Cable	421811
2	SCREW, (M6 x 16)	10-4000171
3	SCREW, (M5 x 16)	10-40056107
4	WASHER	12-4002314
5	SHIFT HANDLE	421571
6	GROMMET	44459001
7	SHIFT SHAFT	8155501
8	LEVER	42156
9	LEVER	42153
10	SPRING	24-39627
11	SCREW, (M5 x 8)	10-400011
12	TIMING LINK	421671
13	LEVER, Control	421631
14	SCREW, (M5 x 35)	10-40019111
15	WAVE WASHER	13-69708
16	SPRING	24-42164
17	SPRING	24-13676
18	ACTUATOR	421662
19	BUSHING	23-421621
20	WASHER, (.255 x .620 x .030) Stainless Steel	12-69056
21	SCREW, (M6 x 40)	10-4000333
22	LINK INTERLOCK	42161
23	LEVER	421592
24	SPRING	24-42160
25	SCREW, (M6 x 30)	10-4000331
26	WASHER, (.255 x .620 x .030) Stainless Steel	12-69056
27	BUSHING	23-421581

Throttle and Shift Linkage(Tiller Handle Models)

Below is the parts list for Mercury XR10 Throttle and Shift Linkage(Tiller Handle Models):

Position No.	Part Name	OEM Number	Supersedes
1	CONTROL PLATFORM	8M0047593	8M0041751, 42148 3
2	GEAR	94085A1
3	SCREW, (M6 x 30)	10-826650
4	WASHER	12-8M0214930
5	SPACER (SHORT)	23-856737	23-42149
6	NUT, (M6) Stainless Steel	11-400212
7	LEVER, Primary	42151
8	SCREW, (M6 x 40)	10-4000333
9	SPACER (LONG)	23-856738	23-42150
10	SCREW, (M6 x 16)	10-4000171
11	TIMING LINK	421671
12	LEVER, Control	421631
13	SCREW, (M5 x 35)	10-40019111
14	ACTUATOR	421662
15	LINK INTERLOCK	42161
16	SCREW, (M6 x 40)	10-4000333
17	WASHER, (.255 x .620 x .030) Stainless Steel	12-69056
18	BUSHING	23-421621
19	SPRING	24-42164
20	WAVE WASHER	13-69708
21	SPRING	24-13676
22	LINK ASSEMBLY, Throttle	8M0084745
23	SOCKET	8M0084742
24	LEVER	421592
25	BUSHING	23-421581
26	SPRING	24-42160
27	SCREW, (M6 x 30)	10-4000331
28	WASHER, (.255 x .620 x .030) Stainless Steel	12-69056
29	LEVER	42156
30	LEVER	42153
31	SHIFT SHAFT	8155501
32	SHIFT LINK	815567T02	815567A 1
33	SCREW, (M5 x 8)	10-400011
34	SPRING	24-39627

Tools-Special

Below is the parts list for Mercury XR10 Tools-Special:

Position No.	Part Name	OEM Number
-	INSTALLER TOOL, Bushing And Seal	91-824785T1
-	INSTALLER TOOL, Bearing	91-13664
-	PULLER ASSEMBLY, Bearing	91-83165T
-	PULLER KIT, Bearing	91-31229A7
-	REMOVAL TOOL, Bushing	91-824787
-	GAUGE TOOL, Carburetor	91-36392
-	GAUGE TOOL	91-29287
-	REMOVAL TOOL, Bearing	91-824788A1
-	INSTALLATION TOOL, Driveshaft Bushing	91-824790A1
-	HOLDER TOOL, Flywheel	91-8M0161873
-	HOLDER TOOL	91-8M0161873
-	HOLDER TOOL	91-8M0161873
-	FLYWHEEL PULLER	91-83164M
-	MANDREL	91-13655T
-	MULTI METER	91-99750A1
-	INSTALLER TOOL, Piston Pin	91-13663T1
-	EXPANDER TOOL, Piston Ring	91-24697
-	STAND TOOL, Powerhead	91-13662T1
-	PULLER PLATE	91-37241
-	SERVICE TACHOMETER	91-59339
-	PULLER ASSEMBLY, Slide Hammer	91-34569A1
-	PLIERS, Snap Ring	91-24283
-	TESTER, Eight Chamber (EIGHT CHAMBER)	91-850439T1
-	GAP TOOL, Single Chamber (SINGLE CHAMBER)	91-63998A1
-	TIMING LIGHT	91-99379
-	TORQUE WRENCH, (0-150 lb-in)	91-66274
-	PULLER PLATE	91-37241
-	NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG 40-4)	NSS
-	NOT SOLD SEPARATE, Collet (Snap-On #CG 40-15)	NSS
-	NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG40A6)	NSS

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
