CARBURETOR ASSEMBLY

Below is the parts list for Mercury V-225 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number
	CARBURETIR (TOP) WH-5	1386-7599A1
1	CARBURETOR (CENTER) WH-5	1386-7599A2
1	CARBURETOR (BOTTOM) WH-5	1386-7599A3
1	CARBURETOR (TOP) WH-20	1386-7599A11
1	CARBURETOR (CENTER) WH-20	1386-7599A12
1	CARBURETOR (BOTTOM) WH-20	1386-7599A13
3	GASKET, COVER PLATE (#)
4	PLATE, COVER	1395-6032
5	SCREW, COVER PLATE (#)
6	FUEL BOWL (TOP)	1395-7823
6	FUEL BOWL (CENTER/BOTTOM)	1395-7822
7	SCREW, FUEL BOWL (#)
8	PLUG, MAIN JET	1395-6025
9	GASKET, MAIN JET (#)
10	JET, MAIN FUEL (.072)	1395-6207
11	SCREW, FLOAT PIN (#)
12	GASKET, INLET NEEDLE AND SEAT (#)
13	INLET NEEDLE AND SEAT ASSEMBLY	1395-7824
15	GASKET, NOZZLE BOSS (#)
16	FLOAT	1395-9267
17	PIN, FLOAT LEVER (#)
18	GASKET, FUEL BOWL (#)
19	PLUG, IDLE AIR BLEED JET	1395-4541
20	GASKET, BLEED JEY PLUG (#)
21	JET, IDLE AIR (.042) - WH-15	1399-5315
19	JET, IDLE AIR (.046 - WH-20	1399-5317
22	SCREW, THROTTLE LEVER	1395-6027
23	LEVER, THROTTLE	87607
24	SPRING, THROTTLE RETURN (#)
25	SPACER, THROTTLE LEVER	1395-6031
26	SHAFT, THROTTLE	1395-6022
27	RING, RETAINER - THROTTLE SHAFT (#)
28	VALVE, THROTTLE	1395-6023
29	SCREW, THROTTLE VALVE (#)
-	GASKET AND PACKING SET	1395-6452
-	REPAIR PARTS KIT	1395-7826

COWL MOUNTING BRACKET

Below is the parts list for Mercury V-225 COWL MOUNTING BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, REAR COWL	76258A2
2	NOZZLE, TELL TALE	22-76256
4	SEAL, REAR COWL BRACKET TO COWL	67984
5	SEAL, REAR COWL BRACKET TO COWL	67228
6	SEAL, REAR COWL BRACKET TO COWL	67999
7	HOSE, TELL TALE (9") - USE WITHOUT REF. #7B TEE	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7A	HOSE, TELL TALE (4") - USE WITH REF. #7B TEE	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7B	TEE, TELL TALE HOSE - USE WITH REF. #7B TEE	22-90824001
8	STA-STRAP, TELL TALE HOSE	61990
9	BRACKET ASSEMBLY, COWL SUPPORT	86386A1
10	SCREW, REAR COWL BRACKET (1-1/2")	10-66687
11	HOUSING, COWL HINGE - PORT	85651
11	HOUSING, COWL HINGE - STARBOARD	85650
12	SCREW, COWL HINGE HOUSING (1")	10-64278
13	WASHER, COWL HINGE HOUSING SCREW	12-20583
14	NUT, COWL HINGE HOUSING SCREW	11-8267089
15	BRACKET, COWL MOUNTING - LOWER	87587
16	RETAINER, WIRING HARNESS	88804
17	SCREW, RETAINER TO BRACKET (1-3/4")	10-88865
18	SEAL, CONTROL CABLES	88508
19	HOUSING, COWL LATCH	67241
20	SCREW, COWL LATCH HOUSING (3/4")	10-57807
21	COWL LATCH	87608
22	SPRING, COWL LATCH	24-60295
23	SCREW, GROMMET AND LOWER BRACKET	10-69093
24	WASHER, LOWER BRACKET SCREW (LARGE)	12-35280
25	WASHER, LOWER BRACKET SCREW (SMALL)	12-69057
26	GROMMET, LOWER BRACKET	25-88033
27	BUSHING, LOWER BRACKET GROMMET	23-88180

COWLS AND FRONT COVER

Below is the parts list for Mercury V-225 COWLS AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL ASSEMBLY, PORT (WITHOUT DECALS)	2151-7523A2
2	SEAL, CONTROL CABLE	67260
3	PAD, COWL ASSEMBLY TO FRONT COVER	67258
4	BLANKET, SOUND-COWL (PORT)	88227
5	BRACKET, COWL ATTACHING - UPPER	879871
6	BRACKET, COWL ATTACHING - LOWER	87985
7	SCREW, UPPER AND LOWER BRACKETS	10-35386
8	SHIELD INLET - COWL (STARBOARD)	68049
8	SHIELD, INLET - COWL (PORT)	68048
9	SCREW, SHIELD TO COWL	10-57807
10	COWL ASSEMBLY, STARBOARD (WITHOUT DECALS)	2150-7524A1
11	BLANKET, SOUND - COWL (STARBOARD)	88227
12	SEAL, HARNESS	90274
13	LATCH, COWL - PORT	97461A2
14	LATCH, COWL - STARBOARD	87899
15	SCREW, COWL LATCH	10-95700
16	WASHER, COWL LATCH SCREW	12-22887
17	COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)	2149-7532A2
18	BLANKET, SOUND - COWL FRONT COVER	90984
19	HOOK, COWL FRONT COVER ATTACHING	87907
20	SCREW, HOOK TO COWL FRONT COVER	10-95700
21	STARTER ROPE ASSEMBLY Comment: (FOR MANUAL STARTING)	47341A11

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury V-225 CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	455-8745T5
2	BALL BEARING, CRANKSHAFT (LOWER)	30-67923T
3	RETAINING RING, BALL BEARING	53-67446
4	CARRIER ASSEMBLY, SEAL	54196A6
5	SEAL, CARRIER	65800
6	RING, SEALING - CRANKSHAFT (.124 THICK)	39-67377T
7	ROLLER BEARING, CRANKSHAFT	31-93495T
8	RETAINING RING, ROLLER BEARING	53-67444
10	PISTON ASSEMBLY (STARBOARD)	766-8666T41
10	PISTON ASSEMBLY (PORT)	766-8667T41
11	PISTON RING ASSEMBLY	39-813011A12	39-78996A12
12	LOCK RING, PISTON	53-857196	40-52035
13	CONNECTING ROD ASSEMBLY	636-8119A6
14	SCREW, CONNECTING ROD	10-76349
15	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
16	ROLLER BEARING ASSEMBLY, CRANKSHAFT END	8M0234886
17	NEEDLE BEARING, PISTON END	29-67483
-	GASKET SET	27-89221A80

CYLINDER BLOCK AND END CAPS

Below is the parts list for Mercury V-225 CYLINDER BLOCK AND END CAPS:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASS'Y	858-7801A3
2	STUD, POWERHEAD (1-7/8")	16-76175
3	STUD, POWERHEAD (5-1/2")	16-670654
3	STUD, POWERHEAD (6-15/16")	16-8M0034454	16-78438 5
4	DOWELL PIN, LOCATING	17-43044
5	DOWEL PIN, CYLINDER BLOCK	17-8M0036405	17-67296
6	GASELETT, SEALING	27-11338
7	COVER, STARTER MOTOR (UPPER)	8M0088723	42249 1
8	SCREW, COVER TO CRANKCASE (1-1/2")	10-73657
9	LOCKWASHER, STARTER MOTOR COVER SCREW	13-8M0204647
10	COVER, STARTER MOTOR (LOWER)	76867
11	SCREW, COVER TO CRANKCASE (2")	10-815549	10-25503, 10-77065
12	SCREW, CRANKCASE TO CYLINDER BLOCK (3-1/4")	10-66717
12	SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")	10-74824
13	END CAP ASSEMBLY, UPPER	1159-8454T2
14	"O" RING, END CAP (3" I.D.)	25-67206
14	"O" RING END CAP (2-7/8" I.D.)	25-54029
15	ROLLER BEARING, END CAP	31-93496T
16	OIL SEAL, END CAP	26-41953
17	SCREW, UPPER END CAP TO CYLINDER BLOCK (1")	10-30225
19	SCREW, SET - CYLINDER BLOCK (3/16")	10-24220
20	PLUG, CYLINDER BLOCK (WATER JACKET)	22-38407
21	STUD Comment: FLYWHEEL COVER TO CYLINDER BLOCK (1-7/8")	16-15094
23	SPACER, FLYWHEEL COVER STUD	23-67269
24	WASHER, FLYWHEEL COVER STUD	12-8M0204663
25	WASHER, FLYWHEEL COVER STUD	12-22887
26	NUT, FLYWHEEL COVER STUD	11-816874	11-73651, 11-816873, 11-90052
27	BRACKET, FLYWHEEL COVER	87691
28	SCREW, BRACKET TO CRANKCASE (1")	10-8M0214943
29	STUD, FLYWHEEL COVER TO BRACKET (1")	16-8M0034435	16-15093
30	END CAP ASSEMBLY, LOWER	1156-7809T1
31	"O" RING, END CAP	25-62700
32	OIL SEAL, END CAP	26-41953
33	SCREW Comment: LOWER END CAP TO CYLINDER BLOCK (3/4")	10-28636
34	LOCKWASHER, LOWER END CAP SCREW	13-26992
35	SCREW, ADJUSTING - CYLINDER BLOCK	10-64022
36	NUT, JAM - ADJUSTING SCREW	11-64015
37	CAP, NYLON - ADJUSTING SCREW	52023
-	GASKET SET	27-89221A80

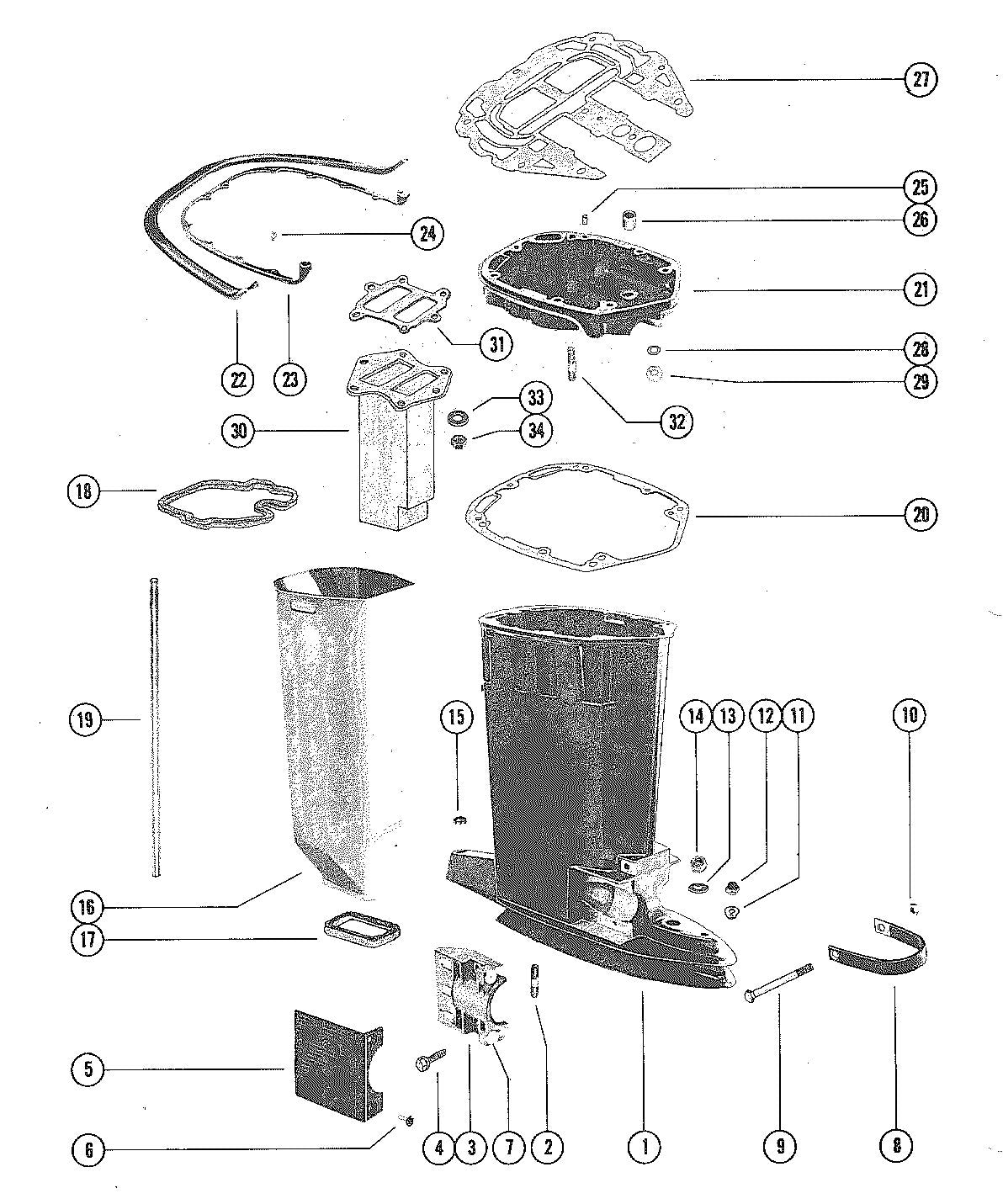

DRIVE SHAFT HOUSING AND EXHAUST TUBE

Below is the parts list for Mercury V-225 DRIVE SHAFT HOUSING AND EXHAUST TUBE:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY	1590-8343A7
2	STUD, DRIVE SHAFT HOUSING (LONG SHAFT)	16-56295
2	STUD, DRIVE SHAFT HOUSING (EXTRA LONG SHAFT)	16-74732
3	CLAMP, LOWER MOUNT	54-8M0036782	54-67076
4	SCREW, LOWER MOUNT CLAMP (1-1/4")	10-66727
5	COVER, LOWER MOUNT CLAMP	100-8M4500752	8M0001130, 67077T
6	SCREW, COVER ATTACHING (5/8")	10-88417
7	NUT, NYLON - COVER TO CLAMP SCREW	11-35521
8	STRAP, SWIVEL BRACKET RETAINING	67703
9	SCREW, STRAP TO DRIVE SHAFT HOUSING	10-67769
10	NUT, STRAP TO DRIVE SHAFT HOUSING SCREW	11-25269
11	WASHER, GEAR HOUSING STUD	12-73862
12	NUT, GEAR HOUSING STUD (CAP)	11-29489
13	WASHER, GEAR HOUSING STUD	12-45176
14	NUT, GEAR HOUSING STUD	11-8M0204653
15	PLUG, DRIVE SHAFT HOUSING	19-64649
16	TUBE, EXHAUST	89743
17	SEAL, EXHAUST TUBE-LOWER	66350001
18	SEAL, EXHAUST TUBE - UPPER	86027
19	TUBE, WATER (LONG SHAFT)	32-8M0042788	32-859097 1
19	TUBE, WATER (EXTRA LONG SHAFT)	32-8M0042790	32-859097 2
20	GASKET, DRIVE SHAFT HOUSING TO PLATE	27-991734
21	PLATE ASSEMBLY, DRIVE SHAFT HOUSING	41945A6
22	SEAL, BRACKET	707482
23	BRACKET, SEAL RETAINING	68011
24	SCREW, BRACKET TO PLATE (1/2")	10-48408
25	DOWEL PIN, LOCATING	17-43044
26	SEAL, WATER TUBE	26-38970
27	GASKET, DRIVE SHAFT HOUSING PLATE	27-991772
28	WASHER, POWERHEAD STUD	12-20553
29	NUT, POWERHEAD STUD	11-69254
30	DIFFUSER, EXHAUST	41941T
31	GASKET, EXHAUST DIFFUSER	27-782461
32	STUD, DIFFUSER TO PLATE	16-66021
33	WASHER, DIFFUSER STUD	12-20533
34	NUT, DIFFUSER STUD	11-30506
--	SPACER ASSEMBLY (EXTRA LONG SHAFT)	78148A1
--	PIN, LOCATING -SPACER (EXTRA LONG SHAFT)	17-43044
--	GASKET SET	27-89221A80

ENRICHER VALVE AND SOUND ATTENUATOR

Below is the parts list for Mercury V-225 ENRICHER VALVE AND SOUND ATTENUATOR:

Position No.	Part Name	OEM Number
1	BRACKET, COWL MOUNTING - UPPER	67245T
2	GROMMET, COWL MOUNTING BRACKET	25-67272
3	MOUNT, COWL MOUNTING BRACKET	90435
4	WASHER, MOUNT ATTACHING	12-21249
5	NUT, MOUNT ATTACHING	11-8267089
6	HIGH SPEED CONTROL ASSEMBLY	90552A2
7	GASKET, SOUND ATTENUATOR TO CARBURETOR	27-89221
8	PLATE, SOUND ATTENUATOR	88509
9	INLET, SOUND ATTENUATOR	43440T
10	SCREW, INLET TO SOUND ATTENUATOR	10-48408
11	GASKET, COVER	27-877361
12	COVER, SOUND ATTENUATOR	93518A1
13	SCREW, COVER TO SOUND ATTENUATOR	10-48408
14	SCREW, SOUND ATTENUATOR (3-1/4")	10-88488
15	SCREW, SOUND ATTENUATOR (2-1/2")	10-884891
16	WASHER, SOUND ATTENUATOR SCREW Comment: USED ON EARLY STYLE ENGINES	12-35462
17	GROMMET, SOUND ATTENUATOR SCREW Comment: USED ON EARLY STYLE ENGINES	25-89079
18	VALVE, ENRICHER	42859A2
19	CONNECTOR, ENRICHER VALVE (BOTTOM)	22-90275
20	CONNECTOR, ENRICHER VALVE (SIDE)	22-67902
21	BRACKET, ENRICHER VALVE	90345
22	SCREW, VALVE TO BRACKET	10-89075
23	SCREW, BRACKET TO REED BLOCK HOUSING (7/8")	23-28688
24	TERMINAL BLOCK, REED BLOCK HOUSING	86-45915
25	SCREW, TERMINAL BLOCK ATTACHING	10-69079
26	SCREW, WIRE TO TERMINAL BLOCK	10-69079
27	FUEL LINE, MIDDLE CARBURETOR TO VALVE	32-9938779
28	FUEL LINE Comment: VALVE TO CARBURETOR TO CARBURETOR	32-9912688
-	GASKET SET	27-89221A80

EXHAUST MANIFOLD AND EXHAUST PLATE

Below is the parts list for Mercury V-225 EXHAUST MANIFOLD AND EXHAUST PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASS'Y	858-7801A3
2	GASKET, DIVIDER PLATE	27-904841
3	PLATE, DIVIDER	99169A1
4	SEAL, DIVIDER PLATE	26-814754	42838 1, 69668, 88726
5	COVER, EXHAUST MANIFOLD	95067
6	SCREW, COVER AND PLATE TO CYLINDER BLOCK (1-1/4")	10-74824
7	"J" CLIP, COVER AND PLATE SCREW	54-47483
8	MOUNT, RUBBER - EXHAUST MANIFOLD COVER	90435
9	WASHER, RUBBER MOUNT	12-21249
10	NUT, RUBBER MOUNT	11-8267089
11	COVER, RELIEF VALVE	8M0039767	68729 1
12	SCREW, COVER TO CYLINDER BLOCK (1-1/8")	10-38837
13	GASKETT, RELIEF VALVE PLATE	27-78690002
14	PLATE, RELIEF VALVE	65664
15	DIAPHRAM	648771
16	WASHER, DIAPHRAGM SCREW	12-76451
17	SCREW, DIAPHRAGM TO PLATE (3/4")	10-69570
18	SPRING, COMPRESSION - POPPET VALVE	24-64878
19	POPPET, VALVE	86596
20	CARRIER, POPPET RELIEF	65848
21	GROMMET, POPPET RELIEF	25-64872
22	GASKET, EXHAUST PLATE	27-8231422
23	PLATE ASSEMBLY, EXHAUST	41944A5
24	ELBOW, EXHAUST PLATE	22-996642
25	SEAL, EXHAUST PLATE	707482
26	BRACKET, SEAL REATAINING	680101
27	SCREW, BRACKET TO EXHAUST PLATE (1/2")	10-48408
28	DOWEL PIN, LOCATING - EXHAUST PLATE	17-43044
31	BUSHING, EXHAUST PLATE	23-27132
32	SCREW, EXHAUST PLATE (1-1/4")	10-66727
33	SCREW, EXHAUST PLATE (2-1/2")	10-68783
34	SCREW, EXHAUST PLATE (3-1/2")	10-898833	10-66725
-	GASKET SET	27-89221A80

FLYWHEEL, STARTER MOTOR AND IGNITION COILS

Below is the parts list for Mercury V-225 FLYWHEEL, STARTER MOTOR AND IGNITION COILS:

Position No.	Part Name	OEM Number	Supersedes
1	COVER ASSEMBLY, FLYWHEEL	79918A1
2	MARKER, TIMING	79022
3	SCREW, TIMING MARKER	10-37572
4	WASHER, TIMING MARKER SCREW	12-72761
5	PLUG, FLYWHEEL	19-45907
5A	PLUG, FLYWHEEL COVER	19-89219001
6	NUT, FLYWHEEL	11-52901
7	WASHER, FLYWHEEL	12-33001
8	FLYWHEEL ASSEMBLY, COMPLETE	257-7555A3
9	SCREW, FLYWHEEL PLATE	10-32417
10	SCREW, FLYWHEEL HUB	10-68997
11	STATOR ASSEMBLY	398-5454A7
12	SCREW, STATOR (7/8")	10-75840
13	LOCKWASHER, STATOR SCREW	13-26996
14	CLIP, STATOR HARNESS	54-22875
15	SCREW, CLIP TO CYLINDER BLOCK	10-69079
16	"C" WASHER, HARNESS CLIP	8M0084613	69205
17	TRIGGER PLATE ASSEMBLY	96455A9
18	CLAMP Comment: TRIGGER HARNESS AND STATOR HARNESS	54-8M0024808
19	PIVOT, TRIGGER PLATE	74897T
20	LINK ROD, TRIGGER PLATE	76035
21	NUT, LINK ROD	11-45076
22	BALL JOINT, TRIGGER PLATE	62459T
23	NUT, BALL JOINT	11-46438
24	STARTER MOTOR (BOSCH)	50-86976
25	COLLAR, STARTER MOTOR	23-8M0034918	23-8M0001391, 56703
27	STOP, RUBBER - STARTER MOTOR	8M0043376	68042
28	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
29	NUT, STARTER MOTOR TERMINAL	11-20890
30	WIRE, SOLENOID TO STARTER MOTOR (YELLOW)	84-93389A5
31	SCREW, CABLE TO STARTER MOTOR	10-69035
32	WIRE, PLATE TO STARTER MOTOR (BLACK)	84-93388A1
33	COVER, IGNITION COIL	67614
34	SCREW, IGNITION COIL COVER (1-5/8")	10-88447
35	COIL ASSEMBLY, IGNITION	339-832757A4
36	NUT, IGNITION COIL TERMINAL	11-45076
37	GROUND STRAP, IGNITION COIL (BLACK)	84-88807A6
38	CABLE, HIGH TENSION	84-813715A1
39	BOOT, HIGH TENSION CABLE	332-2854T01
40	PROTECTOR, HIGH TENSION CABLE	85-63709A1
41	SPARK PLUG (AC#V40FFM)	33-896329827	33-827C
42	HARNESS ASSEMBLY Comment: COIL TO SWITCH BOX (#2, 4 AND 6)	84-69738A7
42	HARNESS ASSEMBLY Comment: COIL TO SWITCH BOX (#1, 3 AND 5)	84-69739A2

FUEL PUMP AND CARBURETOR

Below is the parts list for Mercury V-225 FUEL PUMP AND CARBURETOR:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (TOP) WH-15	1386-7599A1
1A	CARBURETOR (CENTER)WH-15	1386-7599A2
1B	CARBURETOR (BOTTOM) WH-15	1386-7599A3
1	CARBURETOR (TOP) WH-20	1386-7599A11
2	CARBURETOR (CENTER) WH-20	1386-7599A12
3	CARBURETOR (BOTTOM) WH-20	1386-7599A13
2	TEE, FUEL INLET (UPPER AND MIDDLE)	1395-7900
3	FITTING, FUEL INLET (LOWER)	1395-7901
4	GASKET, CARBURETOR	27-67751
5	NUT, CARBURETOR MOUNTING	11-8M0207775
6	HOSE, CARBURETOR FUEL PUMP (17"-4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	CLAMP, FUEL HOSE TO CARBURETOR	54-68424
8	FUEL PUMP ASSEMBLY	88853A1
9	CHECK VALVE ASSEMBLY	21-30430A11
10	DIAPHRAM ASSEMBLY	90363A1
11	GASKET, FUEL PUMP (#)
12	GASKET, PULSE CHAMBER (#)
13	GASKET, FUEL PUMP (#)
14	GASKET, CHECK VALVE TO HOUSING (#)
15	SCREEN, FUEL INLET	35-59072
16	"O" RING, FUEL INLET COVER (#)
17	GASKET, COVER SCREW (#)
18	DOWEL PIN, FUEL PUMP LOCATING	17-26618
19	CHECK VALVE ASSEMBLY, FUEL PUMP	21-42657A3
20	RETAINER, CHECK VALVE	23004
21	SCREW, RETAINER ATTACHING	10-43723
22	BASE, FUEL PUMP	90728
23	CHAMBER, PULSE - FUEL PUMP	88848
24	COVER, FUEL FILTER	35-91078A1
25	SCREW, FUEL FILTER COVER (5/8")	10-89766
26	SCREW, FUEL PUMP (1-1/2")	10-88447
27	LOCKWASHER, FUEL PUMP SCREW	13-26996
28	FITTING, FUEL OUTLET	22-54090
29	SPRING, COMPRESSION	24-86207
30	RETAINER, SPRING	86026
31	CAP, SPRING END	86252
32	FUEL LINE, INLET (6-3/4")	32-89020
33	FITTING, INLET FUEL LINE (90 DEG.)	22-63981
34	ADAPTOR, CHECK UNIT	22833
35	STEM, CHECK UNIT ADAPTOR	23069
36	"O" RING, ADAPTOR STEM	25-16524
37	SPRING, ADAPTOR STEM	24-23067T
38	CUP WASHER, ADAPTOR	30188
39	SCREW, ADAPTOR TO LOWER BRACKET	10-76596
40	THROTTLE LINK	87604
41	THROTTLE LEVER ASSEMBLY	828277A1
43	CLEVIS PIN Comment: THROTTLE LEVERS TO THROTTLE LINK	17-67297
44	WASHER, CLEVIS PIN	12-89302
45	COTTER PIN, CLEVIS PIN ATTACHING	18-26953
46	SCREW Comment: THROTTLE LEVERS TO THROTTLE STOP (3/4")	10-15124
47	LOCKWASHER, THROTTLE LEVERS SCREW	13-26996
48	WASHER, THROTTLE LEVERS SCREW	12-24676
49	ROLLER, LOWER THROTTLE LEVER	67748
-	GASKET SET	27-89221A80

GEAR HOUSING (DRIVE SHAFT)

Below is the parts list for Mercury V-225 GEAR HOUSING (DRIVE SHAFT):

Position No.	Part Name	OEM Number	Supersedes
	GEAR HOUSING ASS'Y COMPLETE (LONG SHAFT)	1647-9148T84
	GEAR HOUSING ASS'Y, COMP. (EXTRA LONG SHAFT)	1647-9148T85
1	GEAR HOUSING ASSEMBLY	1647-8688T9
1A	CONNECTOR ASSEMBLY, SPEEDOMETER	22-85822A10
2	INSERT, WATER-STARBOARD	66885
2	INSERT, WATER-PORT	66884
3	SCREW, INSERT TO GEAR HOUSING	10-76156
4	NUT, INSERT TO GEAR HOUSING SCREW	11-859124	11-45812
5	DOWEL PINE, GEAR HOUSING LOCATING	17-43044
6	STUD, GEAR HOUSING (3-1/8")(LONG SHAFT)	16-786382
6	STUD, GEAR HOUSING (9")(EXTRA LONG SHAFT)	16-78639
7	STUD, GEAR HOUSING (2-1/16") ( LONG SHAFT)	16-8M0133358
7	STUD, GEAR HOUSING (7-1/16")(EXTRA LONG SHAFT)	16-74730
8	STUD, WATER PUMP (3-3/8")	16-8M0034463	16-56297 2
9	STUD,WATER PUMP(3-1/8")	16-69501
10	BEARING,ROLLER-DRIVE SHAFT	31-35934A1
11	SLEEVE, LUBRICATION	23-98621
12	DRIVE SHAFT ASSEMBLY (LONG SHAFT)	45-98682A1
12	DRIVE SHAFT ASSEMBLY (EXTRA LONG SHAFT)	45-41509A2
13	SPRING, DRIVE SHAFT PIN	24-34576
14	PIN, DRIVE SHAFT	17-30545
15	GEAR, PINION	43-98647
16	NUT,PINION GEAR TO DRIVE SHAFT	11-35921
17	SHIM ASSEMBLY, ROLLER BEARING	15-57007A1
18	ROLLER BEARING, DRIVE SHAFT	31-53079A1
19	GASKET,WATER PUMP	27-8M0214962
20	"O"RING,WATER PUMP BASE	25-8M0214923
21	WATER PUMP BASE ASSEMBLY	46-96146A6
22	OIL SEAL, WATER PUMP BASE	26-89238
23	OIL SEAL, WATER PUMP BASE	26-16977
24	DOWEL PIN, WATER PUMP	17-35973
25	GASKET, LOWER-WATER PUMP	27-8M0090319	27-85608 1
26	PLATE, FACE	8M0204677
27	GASKET,UPPER-WATER PUMP	27-858524	27-85609 1, 27-85609B 1
28	WATER PUMP BODY ASSEMBLY	46-96148T1
29	INSERT, WATER PUMP BODY	48752T
30	SEAL, RUBBER-WATER INLET TUBE	26-38970
31	IMPELLER, WATER PUMP	47-89984T4
32	KEY,IMPELLER DRIVE	28-8M0214992
33	SCREW,WATER PUMP (2-1/4"-HEX HEAD)	10-30720
33	SCREW,WATER PUMP (2-1/4"-HEX WASHER HEAD)	10-8M0215009
34	WASHER, WATER PUMP SCREW AND STUD	12-8M0204649
35	NUT, WATER PUMP STUD	11-35888
36	WASHER, WATER PUMP BODY STUD	12-36001
37	NUT, WATER PUMP BODY STUD	11-826709111	11-45592
38	RING Comment: RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
39	SLEEVE, GUIDE-WATER INLET TUBE	23-29804T
40	SHAFT, SHIFT-LOWER	789022
41	"E"RING,RETAINING-SHIFT SHAFT	53-29641
42	RETAINING RING	53-78907
43	"O"RING,SHIFT SHAFT BUSHING	25-25439
44	BUSHING ASSEMBLY,SHIFT SHAFT	23-77631A2
45	OIL SEAL, SHIFT SHAFT BUSHING	26-892361
46	WASHER,RUBBER-SHIFT SHAFT BUSHING	12-77674
47	SCREW, GREASE FILLER	10-79953Q04
47A	SCREW,DRAIN (MAGNETIC)	22-8M0058389	22-67892A06
48	WASHER, GREASE FILLER AND DRAIN SCREW	12-191833
-	GASKET SET	27-89221A80
-	WATER PUMP REPAIR KIT	46-96148A8
-	SEAL REPAIR KIT	26-55682A1

GEAR HOUSING (PROPELLER SHAFT)

Below is the parts list for Mercury V-225 GEAR HOUSING (PROPELLER SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASS'Y,COMP.(LONG SHAFT)	1647-9148T84
-	GEAR HOUSING ASS'Y,COMP.(EXTRA LONG SHAFT)	1647-9148T85
1	GEAR HOUSING ASS'Y Comment: SEE "TRANSOM BRACKETS" FOR BREAKDOWN	1647-8688T9
49/50	CAM FOLLOWER	89594A1
51	ROD,CLUTCH ACTUATOR	79911A1
52	SPRING, COMPRESSION	24-79910
53	WASHER,COMPRESSION SPRING	12-78910
54	PIN, SPRING LOCATOR	17-8M0084245	17-78906
55	SHIM, BEARING OUTER RACE(.002-3-5-10)	15-47397A1
56	TAPERED ROLLER BEARING ASSEMBLY	31-78172A1
57	ROLLER BEARING, FORWARD GEAR	31-73363T
58	FORWARD GEAR	43-43491T1
59	RATCHET, SLIDING CLUTCH	52-823174T	52-823174, 52-78959
60	CROSS PIN,RATCHET TO PROPELLER SHAFT	17-8M0084243	17-78905
61	DETENT PIN, RATCHET	17-78909
62	SPRING, RETAINING-CROSS PIN	24-78962
63	PROPELLER SHAFT	44-94148
64	REVERSE GEAR	43-78908
65	THRUST RING Comment: BEARING CARRIER TO GEAR HOUSING	681001
66	BALL BEARING, REVERSE GEAR	30-88957T
67	"O"RING, BEARING CARRIER	25-8M0214920
68	BEARING CARRIER ASSEMBLY	43567T1
69	ROLLER BEARING, BEARING CARRIER	31-30956T
70	OIL SEAL, BEARING CARRIER (INNER)	26-8M0204670
70A	OIL SEAL, BEARING CARRIER (OUTER)-CUTTER	26-8M0205729
71	KEY,LOCATING-BEARING CARRIER	28-30281
72	TAB WASHER, GEAR HOUSING COVER	14-79447
73	COVER, GEAR HOUSING	8M2011027	79448
74	TRIM TAB, GEAR HOUSING	97-31640Q4
75	SCREW,TRIM TAB TO GEAR HOUSING (1-3/4")	10-66024
76	WASHER, DRIVE SHAFT HOUSING STUDS	12-45176
77	NUT,DRIVE SHAFT HOUSING STUDS	11-8M0204653
78	SCREW, GEAR HOUSING ( LONG SHAFT)	10-65210
78	SCREW, GEAR HOUSING (EXTRA LONG SHAFT)	10-74727
79	THRUST HUB	12-835467Q01	12-835467 1
80	WASHER,SPLINED-PROPELLER NUT	12-31211Q03
81	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
82	PROPELLER NUT	11-52707Q1
-	GASKET SET	27-89221A80

HYDRAULIC PUMP AND MOUNTING BRACKETS

Below is the parts list for Mercury V-225 HYDRAULIC PUMP AND MOUNTING BRACKETS:

Position No.	Part Name	OEM Number
1	HYDRAULIC PUMP ASSEMBLY	823653A9
4	WIRE,SOLENOID TO SOLENOID (RED)	84-87379A2
4	WIRE,SOLENOID TO SOLENOID (BLACK)	84-61600A9
5	BATTERY CABLE, RED (POSITIVE)	84-79139A9
5	BATTERY CABLE, BALCK (NEGATIVE)	84-79138A4
6	PLATE, MOUNTING	87760T
7	SCREW,MOUNTING PLATE TO BRACKET (3/4")	10-39349
8	LOCKWASHER,MOUNTING PLATE SCREW	13-8M0204647
9	SCREW,HYDRAULIC PUMP (5/8")	10-90271
10	LOCKWASHER,HYDRAULIC PUMP SCREW	13-58643
11	BRACKET, HYDRAULIC PUMP	87762
12	BOLT,BRACKET TO TRANSOM (3-1/2")	10-69698
13	LOCKWASHER, BRACKET SCREW	13-58643
14	NUT, BRACKET SCREW	11-46335
15	BRACKET, MOUNTING-STARTER SOLENOID	90318
16	SCREW, MOUNTING BRACKET (5/8")	10-90285
17	WASHER, MOUNTING BRACKET SCREW	12-56720
18	NUT, MOUNTING BRACKET TO HYDRAULIC PUMP	11-8M0204718
19	TERMINAL BLOCK	86-45915
21	SCREW,WIRE TO TERMINAL BLOCK (3/8")	10-62568
22	HARNESS ASSEMBLY, HYDRAULIC PUMP	84-74023A1
23	RETAINER, HARNESS TO MOUNTING BRACKET	88075
26	STARTER SOLENOID	89-853654A1
27	SCREW, STARTER SOLENOID TO BRACKET (3/8")	10-41508
28	LOCKWASHER Comment: STARTER SOLENOID TERMINAL (5/16")	13-8M0204647
29	NUT, STARTER SOLENOID TERMINAL (5/16-18)	11-8M0204668
30	BOOT, RUBBER-STARTER SOLENOID TERMINAL	46265
31	LOCKWASHER,STARTER SOLENOID TERMINAL	10,13-26996
32	NUT, STARTER SOLENOID TERMINAL (10-32)	11-68219

HYDRAULIC PUMP ASSEMBLY

Below is the parts list for Mercury V-225 HYDRAULIC PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	HYDRAULIC PUMP ASSEMBLY	823653A9
1	ADAPTOR	89492T
2	COUPLING	803852	89493
3	MANUAL RELEASE (INCLUDES 2 "O" RINGS)	96598A1
3	MANUAL RELEASE (INCLUDES 3 "O" RINGS)	96598A1
4	PUMP (INCLUDES SCREWS)	89495
5	FILTER	35-89496
6	"O"RING, MOTOR END	25-89498
7	"O"RING, RESERVOIR END	25-89497
8	DIPSTICK	89499
9	RESERVOIR	90587T
10	SCREW, RESERVOIR (INCLUDES "O" RING)	10-90588
11	THRU STUD (SHORT)	16-90589
11	THRU STUD (LONG)	16-90590
--	MOTOR, HYDRAULIC PUMP	17649A02
12	END FRAME, DRIVE END	89484
13	ARMATURE	89485
14	WASHER,THRUST - ARMATURE	12-89482
15	FIELD AND FRAME	89486
16	BRUSH CARD	89487
17	END FRAME, COMMUTATOR END	89488
18	THRU BOLT, MOTOR (4-1/4")	10-89483
18	THRU BOLT, MOTOR (4-9/16")	10-89489
19	NUT,THRU BOLT AND STUD	11-89481

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury V-225 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC V-225 PARTS MANUAL	90-90673
-	DECAL SET	37-89992A80
-	GASKET SET	27-89221A80

PROPELLERS RIGHT HAND ROTATION

Below is the parts list for Mercury V-225 PROPELLERS RIGHT HAND ROTATION:

Position No.	Part Name	OEM Number	Supersedes
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 25") Comment: 3 BLADES	48-78126A45
-	PROPELLER ASSEMBLY(PITCH 23") Comment: (STAINLESS STEEL) 3 BLADES	48-16320A46
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23") Comment: 3 BLADES	48-832834A45	48-78124A45 3 BLADES
-	PROPELLER ASSEMBLY (PITCH 21") Comment: (STAINLESS STEEL) 3 BLADES	48-16318A46
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21") Comment: 3 BLADES	48-832832A45	48-78122A45, 48-832832ARA 3 BLADES
-	PROPELLER ASSEMBLY (PITCH 19") Comment: (STAINLESS STEEL) 3 BLADES	48-16316A46
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19") Comment: 3 BLADES	48-832830A45	48-78120A45, 48-832830ARA 3 BLADES
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES	48-832828A45	48-78118A45 3 BLADES
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES	48-78116A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES	48-78114A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11") Comment: 3 BLADES	48-78112A45

REED BLOCK AND CYLINDER HEAD

Below is the parts list for Mercury V-225 REED BLOCK AND CYLINDER HEAD:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER HEAD	95095
2	GASKET, CYLINDER HEAD	27-41244T02
3	SCREW, CYLINDER HEAD (2-1/2")	10-668631
4	COVER ASSEMBLY, CYLINDER	1026-7270A1
5	GASKET, CYLINDER COVER	27-65788
6	SCREW, CYLINDER COVER (1-1/4")	10-74824
7	"J" CLIP, CYLINDER COVER SCREW	54-47483
8	THERMOSTAT	75692
9	GASKET, THERMOSTAT	27-8M0204714
10	COVER, THERMOSTAT	90390A1
11	SCREW, THERMOSTAT COVER (2"- FLANGE HEAD)	10-66023
11	SCREW, THERMOSTAT COVER (2")	10-815549	10-25503, 10-77065
11	SCREW, THERMOSTAT COVER (1")	10-35386
12	FITTING, THERMOSTAT COVER TO WATER HOSES	22-68728
13	HOSE, WATER DISTRIBUTION (10" AND 14")	32-77653101
14	FITTING, ELBOW - WATER HOSES	22-687271
15	STA-STRAP, WATER HOSES	61990
16	TEMPERATURE SENDER	78799
18	COVER, TEMPERATURE SENDER	78286
19	TERMINAL BLOCK	86-45915
20	SCREW Comment: TERMINAL BLOCK TO CYLINDER BLOCK (3/8")	10-69079
21	SCREW, LEADS TO TERMINAL BLOCK (3/8")	10-69079
22	HOUSING, REED BLOCK (7/8")	87628F2
24	GASKET, REED BLOCK HOUSING	27-127754
25	REED BLOCK	87692
26	REED ASSEMBLY	34-19719A1
27	REED STOP	903911
28	SCREW Comment: REED AND REED STOPS TO REED BLOCK (3/8")	10-57583T
29	STUD, CARBURETOR MOUNTING	16-270372
30	CHECK VALVE, BLEED HOSE (STRAIGHT)	21-426585
31	ELBOW, BLEED H OSE (PRESS IN)	22-15133
32	TEE, BLEED HOSE	22-59169003
33	FITTING, BLEED HOSE (PRESS IN)	22-56759
34	HOSE, BLEED	32-9938779
35	ELBOW, REED BLOCK (45 DEG.)	22-782792
36	ELBOW, REED BLOCK (90 DEG.)	22-996642
37	TEE, REED BLOCK	22-8585531
38	HOSE, REED BLOCK (2-3/4"-4")	32-7889214
39	FITTING, PULSE HOSE	22-54090
40	HOSE, PULSE (6-3/4")	32-9072925
41	CHECK VALVE, BLEED HOSE (PRESS-IN)	21-426233
42	ELBOW, REED BLOCK (WITH 1/16" BARB) - 90 DEG.	22-93890
43	TEE, REED BLOCK (WITH 1/16" BARB)	22-93891
-	GASKET SET	27-89221A80

SWIVEL BRACKET AND STEERING ARM

Below is the parts list for Mercury V-225 SWIVEL BRACKET AND STEERING ARM:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET ASSEMBLY	1491-9225A3
2	OIL SEAL, SWIVEL BRAKET (LOWER)	26-87735
3	BUSHING, SWIVEL BRACKET - LOWER AND UPPER	23-818764	23-67669
4	"O" RING, SWIVEL BRACKET - UPPER	25-33466
5	SPACER, SWIVEL BRACKET - UPPER	23-67668
6	FITTING, GREASE	22-8M0169589
7	TILT TUBE	99170A2
8	WAVE WASHER, TILT TUBE	13-88750
9	"O" RING, TILT TUBE	25-48462
10	NUT, TILT (7/8'-14)	11-858869	11-30499
10	NUT, TILT TUBE (1"-14)	11-859133	11-34862, 11-90068F 3, 11-90068F 4
11	GROMMET, SWIVEL BRACKET	25-88341
12	OIL SEAL, SWIVEL BRACKET	26-85023
13	WASHER, TILT LOCK LEVER	12-87161
14	"O" RING, TILT LOCK LEVER	25-48171
15	LEVER ASSEMBLY, TILT LOCK (PORT)	85030A2
15	LEVER ASSEMBLY, TILT LOCK (STARBOARD)	85028A2
16	BUSHING, TILT LEVER RELEASE	23-86600
17	SPRING, TILT LEVER RELEASE	24-85367
18	PLUNGER, TILT LEVER RELEASE	41052
19	STUD, PLUNGER	16-88876
20	KNOB, PLUNGER	86603
21	COUPLING, TILT LOCK LEVER	864751
22	COTTER PIN, LEVER TO COUPLING	18-87200
23	SPRING, TENSION - COUPLING	24-88049
24	COTTER PIN, COUPLING SPRING	18-93861
25	WAVE WASHER, BOTTOM YOKE	13-78854
26	YOKE, BOTTOM	86580A1
27	RETAINING RING, BOTTOM YOLK	53-67684
28	BUMPER, BOTTOM YOKE SCREW	25067
29	SCREW, BOTTOM YOKE ATTACHING (5-7/8")	10-898831	10-63474
30	MOUNT, BOTTOM YOKE	78249
31	WASHER, BOTTOM YOKE SCREW	12-49339
32	NUT, BOTTOM YOKE SCREW	11-25096
33	WASHER, THRUST - SWIVEL BRACKET	12-67670
34	SWIVEL PIN AND STEERING ARM ASSEMBLY	17-840792A1
35	SCREW, STEERING ARM TO UPPER MOUNT	10-8M0176309
36	MOUNT, RUBBER - UPPER	78687T
37	WASHER, UPPER MOUNT BOLT	12-66921
38	WASHER, UPPER MOUNT BOLT	12-78688
39	NUT, UPPER MOUNT BOLT	11-8M0204653
40	BUMPER, STEERING ARM	67754
41	STEERING LINK ASSEMBLY	92876A12
42	SCREW Comment: STEERING LINK TO STEERING ARM (1-1/4")	10-849838	10-14000 STEERING LINK TO STEERING ARM (1-1/4")
43	NUT, STEERING LINK SCREW	11-8M0204726
44	WASHER, STEERING LINK SCREW	12-34931
45	GROUND WIRE ASSEMBLY	88238A10
46	TRIM SENDER ASSEMBLY	86485A5
46	TRIM SENDER ASSEMBLY	86485A5
46	TILT SWITCH ASSEMBLY	86485A6
47	STRAP, SWITCH AND SENDER	88342
48	SCREW, STRAP TO SWIVEL BRACKET	10-87926
49	CLAMP, SWITCH AND SENDER LEADS	54-54457
50	SCREW, CLAMP TO SWIVEL BRACKET	10-98256
51	WASHER, CLAMP SCREW	12-8M0204649
-	GASKET SET	27-89221A80

TACHOMETER, TRIM GAUGE AND ALARM HORN

Below is the parts list for Mercury V-225 TACHOMETER, TRIM GAUGE AND ALARM HORN:

Position No.	Part Name	OEM Number	Supersedes
1	TACHOMETER	79-895283Q43	79-825348A 1
2	BRACKET, MOUNTING-TACHOMETER	79101T
3	NUT, TACHOMETER TERMINAL	10-32,11-45076
4	WIRE, TRIM GAUGE (BLACK-1-1/2")	84-86322A7
4	WIRE, TRIM GAUGE (PURPLE-1-1/2")	84-86323A5
5	TRIM GAUGE	79-895292Q41	79-825338A 1, 79-825338A 3
6	BRACKET, MOUNTING-TRIM GAUGE	79480
7	LIGHT BULB, TRIM GAUGE AND TACHOMETER	88-72729
8	SOCKET, TRIM GAUGE AND TACHOMETER	88-79888
9	NUT, TRIM GAUGE TERMINAL (8-32)	11-26419
10	LOCKWASHER, TRIM GAUGE TERMINAL	8,13-26995
11	HARNESS	84-86396A8
12	ALARM HORN AND WIRE ASSEMBLY	68878A6
13	HORN, ALARM	68878A6
14	COVER, ALARM HORN	68879
15	SPACER, ALARM HORN	23-8M0084588
16	WASHER, ALARM HORN	12-24676
17	SCREW, ALARM HORN	10-35401

THROTTLE LEVER AND SHIFT SHAFT

Below is the parts list for Mercury V-225 THROTTLE LEVER AND SHIFT SHAFT:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, ANCHOR - CONTROL CABLES	814283A2
2	SCREW, ANCHOR BRACKET	10-53167T
3	LINK ROD ASSEMBLY	67073A1
4	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
5	GUIDE BLOCK, LINK ROD	37896
6	WEAR PLATE, LINK ROD	52100
7	LATCH, CONTROL CABLE FASTENING	8M0036768	38279
8	WASHER, LATCH	12-69056
9	NUT, LINK ROD	11-826709109	11-33825, 11-35045
10	SHIFT SHAFT ASSEMBLY (LONG SHAFT)	79932A16
10	SHIFT SHAFT ASSEMBLY (EXTRA LONG SHAFT)	79932A17
12	WAVE WASHER, LINK ROD	13-29720
13	BUSHING, NYLON - LINK ROD	23-26600
14	WASHER, LINK ROD	12-24664
15	NUT, LINK ROD TO SHIFT SHAFT	11-826709109	11-33825, 11-35045
16	CAP, BARREL RETAINER - ANCHOR BAR	39519
17	LEVER, NYLON - SHIFT CABLE LOCKING	87609
18	PIN, LOCATING LEVER AND COVER	17-47175
19	LINK, LOCKING LEVER TO COVER	87609A1
20	COVER, NYLON - SHIFT CABLE	90211
21	THROTTLE CAM (CASTING #89715)	89735
21	THROTTLE CAM (CASTING #95790)	95791
21A	SPRING, THROTTLE RETURN	24-91821
22	BUSHING, THROTTLE CAM	23-26600
23	STUD, THROTTLE CAM	16-20353
24	NUT, THROTTLE CAM STUD	11-36069
25	BARREL, THROTTLE CONTROL ROD	8M0221994
26	ROD, THROTTLE CONTROL	95829
27	LEVER, THROTTLE CONTROL	410952
28	SCREW, THROTTLE AND SPARK LEVER (1-3/4")	10-818165	10-55337
29	BUSHING, THROTTLE LEVER	23-55164
30	BUSHING, SPARK ADVANCE LEVER	23-55171
31	SPRING, THROTTLE AND SPARK ADVANCE LEVER	24-68784
32	WASHER, SPARK ADVANCE LEVER	12-68410
33	LEVER, SPARK ADVANCE	41094A3
34	SCREW, SPARK LEVER - STOP (2-3/4")	10-75168
35	NUT, SPARK ADVANCE LEVER STOP SCREW	11-29598
36	SCREW, SPARK ADVANCE LEVER - STOP (1-1/4")	10-69560
37	NUT, SPARK ADVANCE LEVER STOP SCREW	11-68219
38	CAP, SPARK ADVANCE LEVER STOP SCREW	48039
39	CAP, SPARK ADVANCE LEVER STOP SCREW	52023
40	SCREW, CABLE LATCH TO THROTTLE LEVER	10-69026
41	LATCH, CABLE	39483
42	SPRING, CABLE LATCH TO THROTTLE LEVER	24-20099
43	NUT, CABLE LATCH SCREW	11-826709109	11-33825, 11-35045
44	SCREW, THROTTLE LEVER _ STOP (2-1/8")	10-64022
45	NUT, THROTTLE LEVER STOP SCREW	11-64015
46	CAP, THROTTLE LEVER STOP SCREW	52023

TRANSOM BRACKETS

Below is the parts list for Mercury V-225 TRANSOM BRACKETS:

Position No.	Part Name	OEM Number
1	BRACKET, TRANSOM (PORT)	1494-7476T1
2	SCREW, BRACKET TO TRANSOM (6")	10-677552
2	SCREW, BRACKET TO TRANSOM (4")	10-67757
3	WASHER, BRACKET SCREW	12-8M0204648
4	NUT, BRACKET SCREW	11-35000
5	BRACKET, TRANSOM (STARBOARD)	1495-7478T1
6	BOLT, TILT	10-87180
7	NUT, TILT BOLT	11-82671317
8	TRIM CYLINDER ASSEMBLY	79610A6
9	BUSHING, TRIM CYLINDER	23-86489
10	WASHER, TRANSOM BRACKET	12-85022
11	SPRING, TRIM CYLINDER	24-30316
12	PIVOT PIN, TRIM CYLINDER	17-85020T
13	SHAFT, TRIM CYLINDER	85024
14	BEARING, TRIM SHAFT	23-86637
15	PIN, TRIM CYLINDER	17-91862
16	PLATE, PIVOT PIN	85026T
17	SCREW, PLATE TO TRANSOM BRACKET	10-28636
18	WASHER, PLATE SCREW	12-8M0204649
19	SPACER, TRANSOM BRACKET	85035T
20	SCREW, SPACER TO TRANSOM BRACKET	10-70732
21	WASHER, SPACER SCREW	12-8M0204649
22	PLATE ASSEMBLY, TRANSOM BRACKET	89949A1
23	SCREW, PLATE TO TRANSOM BRACKET	10-90192
24	HOSE, HYDRAULIC - PORT	32-89024A1
25	HOSE, HYDRAULIC - STARBOARD	32-89023A2
26	CLAMP, HYDRAULIC HOSE	54-88512
27	SCREW, CLAMP TO TRANSOM BRACKET	10-88829
28	LOCKWASHER, CLAMP SCREW	13-26996
29	COVER, INLET-HYDRAULIC HOSE	87871T
30	GASKET, INLET COVER	27-87775
31	SCREW, INLET COVER	10-32866
32	WASHER, INLET COVER SCREW	12-20878
33	NUT, INLET COVER SCREW	11-8M0204718
34	GROMMET, INLET COVER	25-45507
35	CONNECTOR, HYDRAULIC HOSE	22-87207

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER

Below is the parts list for Mercury V-225 WIRING HARNESS, STARTER SOLENOID AND RECTIFIER:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE, IGNITION	434292
2	SWITCH BOX	332-7778A12
3	SCREW, SWITCH BOX (2-1/4")	10-90815
4	SPACER, SWITCH BOX SCREW	23-94304
5	BUSHING, SWITCH BOX SCREW	23-94453
6	NUT, SWITCH BOX TERMINAL	11-45076
7	WIRE ASSEMBLY, GROUND	84-60871A10
8	NUT, SWITCH BOX TERMINAL	10-62568
9	CABLE Comment: SWITCH BOX TO SWITCH BOX (WHITE/BLACK)	84-62310A2
10	SCREW, IGNITION PLATE (1-1/4")	10-60411
11	LOCKWASHER, IGNITION PLATE SCREW	13-8M0204647
12	WASHER, IGNITION PLATE SCREW	12-36042
13	WASHER, IGNITION PLATE SCREW (RUBBER)	12-67264
14	BUSHING, IGNITION PLATE SCREW	23-67268
15	CABLE ASSEMBLY, BLACK	84-65999A3
16	SCREW, CABLE TO IGNITION PLATE (5/8")	10-38055
17	RECTIFIER	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
18	SCREW, RECTIFIER TO IGNITION PLATE (5/8")	10-38055
20	NUT, RECTIFIER TERMINALS	11-45076
21	MERCURY SWITCH	87-33386A3
22	SCREW, MERCURY SWITCH (5/8")	10-38055
23	NUT, MERCURY SWITCH TERMINAL	11-45076
25	SCREW, LEAD ATTACHING (1/2")	10-22028
26	BATTERY CABLE (POSITIVE)	84-88439A14
26	BATTERY CABLE (NEGATIVE)	84-88439A2
27	HARNESS, ENGINE	84-96220A4
28	STA-STRAP, HARNESS AND CABLES	61990
29	SOLENOID, STARTER	89-853654A1
30	SCREW, SOLENOID TO IGNITION PLATE (5/8")	10-20540
31	LOCKWASHER, SOLENOID SCREW	13-26992
32	CABLE ASSEMBLY, UPPER MOUNT (BLACK)	84-65999A2
33	LOCKWASHER, SOLENOID TERMINALS	10,13-26996
34	NUT, SOLENOID TERMINALS (5/16")	11-68219
36	LOCKWASHER, SOLENOID TERMINALS (5/16")	13-8M0204647
37	NUT, SOLENOID TERMINALS (5/16 - 18)	11-8M0204668

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
