Mercury V-115 DFI (2.5L) (0G960500 THRU 0T178499) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury V-115 DFI (2.5L) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury V-115 DFI (2.5L) Accessories:

Part Name	OEM Number	Supersedes
DECK FILL KIT, Oil	15969A3
DIODE ASSEMBLY (DUAL ENGINE)	812497A2
FLUSHING ATTACHMENT	44357Q2
FLUSH COUPLING	22-852400	56-820386A55
HOSE ASSEMBLY, Fuel Comment: (SUPPLIED WITH ENGINE)	32-858610A31	32-858610A10, 32-16789A18 (SUPPLIED WITH ENGINE)
HOSE ASSEMBLY, Fuel (8 Feet) Comment: WITH QUICK DISCONNECT	32-877680Q8
HOSE ASSEMBLY, Fuel (12 Feet) Comment: WITH QUICK DISCONNECT	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 WITH QUICK DISCONNECT
HOSE ASSEMBLY, Fuel (8 Feet) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q8
HOSE ASSEMBLY, Fuel (12 Feet) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 WITH QUICK DISCONNECT ENGINE END ONLY
HOSE ASSEMBLY, Fuel (12 Feet) Comment: NO FITTINGS	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 NO FITTINGS
SWITCH/LANYARD KIT	87-19674Q2
MERCATHODE KIT	88334A2
HOSE EXTENSION KIT	41729A3
VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	17334A2
CONVERSION KIT Comment: (DIGITAL TO ANALOG)	859653A1
SMARTCRAFT CONVERSION KIT, Analog to Digital Comment: (ANALOG TO DIGITAL)	859649A2
SMART SPEED/SMART TACH Comment: (0-80 MPH/0-7000 RPM)(GREY FACE)	79-859030A2
SMART SPEED/SMART TACH Comment: (0-120MPH/0-7000RPM)(GREY FACE)	79-859035A1
SMART TACH KIT Comment: (0-7000 RPM)(GREY FACE)	79-859019A1
TACHOMETER/SPEEDOMETER KIT Comment: (0-80 MPH/0-7000 RPM)(WHITE FACE)	79-859070A2
SMART SPEED/SMART TACH Comment: (0-120MPH/0-7000RPM)(WHITE FACE)	79-859071A1
SMART TACH KIT Comment: (0-7000 RPM)(WHITE FACE)	79-859067A1

Air Compressor Components

Below is the parts list for Mercury V-115 DFI (2.5L) Air Compressor Components:

Position No.	Part Name	OEM Number	Supersedes
1	COMPRESSOR ASSEMBLY, Air (Without Pulley)	8M0060053	8M0057463, 8M0050656, 899113A03, 831998A21, 831998A16, 831998A22, 831998A13, 831998T 9, 831998A14
2	NOT SOLD SEPARATE, Body	NSS
3	END CAP ASSEMBLY	1100-8M0050792	1173-828131A12, 1173-828131A09, 1173-828131A 8
4	NOT SOLD SEPARATE, Retaining Ring	NSS
5	O-RING	25-89224
6	O-RING, (2.739 x .070)	25-832804
7	SCREW, (M6 x 20)	10-82130020
8	CONNECTING ROD ASSEMBLY	653-833146T06	653-833146T04, 653-833146T05, 653-833146T 3
9	NOT SOLD SEPARATE, Bearing	NSS
10	NOT SOLD SEPARATE, Bearing	NSS
11	PISTON ASSEMBLY (W/RINGS AND PIN)	828222A4
12	NOT SOLD SEPARATE, Oil Scraper Ring	NSS
13	NOT SOLD SEPARATE, Top Ring	NSS
14	NOT SOLD SEPARATE, Oil Ring	NSS
15	NOT SOLD SEPARATE, Wrist Pin	NSS
16	NOT SOLD SEPARATE, Piston with Wrist Pin	NSS
17	RING, Lock	53-8348101
18	REED PLATE ASSEMBLY	835088A10	835088A 4
19	O-RING, (3.489 x .070)	25-67207
20	O-RING, (2.739 x .070)	25-832804
21	SEAL	26-828225
22	HEAD ASSEMBLY, Compressor	835087A3
23	FITTING, Straight	22-8307532
24	SCREW, (M8 x 35)	10-82446035
25	SENSOR ASSEMBLY, Temperature	13536A12
26	RETAINER	137151
27	SCREW, (M8 x 12)	10-81893412
28	O-RING, (.468 x .078)	25-831985	25-885187
29	PLUG, Pipe (.125-27) Brass	22-390721
30	FITTING	22-151331
31	FITTING, Straight (.125-27)	22-16604
32	FITTING, Elbow - 45 Degree - Brass (.125-27)	22-851975
33	FITTING	22-14868
34	FITTING	22-856744	22-856744 1
35	NOT SOLD SEPARATE, Decal-Mexico	NSS
36	NOT SOLD SEPARATE, Decal-Assembly Instructions	NSS
37	SCREW, (M10 x 25) Hex Flange - Stainless Steel	10-4010825
38	STUD, (.312-18/.312-24 x 4.190)	16-858762001	16-8M0020427, 16-858762
39	WASHER, Special	12-854640
40	NUT, (.312-24) Stainless Steel	11-82670911
41	PULLEY	8M0175171
42	SCREW, (M6 x 12)	10-85593912
43	GROMMET	25-855349002	25-855349
-	O-RING KIT	25-832804A03	25-832804A 1

Air Handler

Below is the parts list for Mercury V-115 DFI (2.5L) Air Handler:

Position No.	Part Name	OEM Number	Supersedes
1	COVER ASSEMBLY	827325T9
2	GROMMET	25-8M0153609
3	FILTER	35-853333T	35-853333
4	COVER	853352
5	GROMMET	25-857101
6	GROMMET Comment: (150/115/TRACKER)	25-855613
7	GROMMET Comment: (135)	25-8556131
8	AIR HANDLER ASSEMBLY Comment: (135/150)	855633T21	855633T10 (135/150)
8	AIR HANDLER ASSEMBLY Comment: (115)	858703T3
9	SHIM	15-856139
9	SHIM (.010 THICK)	15-8561391
10	DECAL, Caution, Start In Gear	37-881865	37-825064
11	BRACKET	855756A1
12	SLEEVE	23-803818
13	SCREW, (M6 x 16)	10-1993716
14	PUMP ASSEMBLY	8M0047624	855843 2
15	CLAMP, (15.7)	54-8M0214911
16	HOSE	32-856778
17	ELBOW	22-855802A1
18	FITTING	22-880862A1
19	O-RING, (.530 x .082)	25-805062
20	GROMMET	25-856928
21	ENCODER	8285581
22	SCREW, (#10-24 x .620)	10-418051
23	WASHER, (.203 x .500 x .032)	12-8M0204666
24	J CLIP	54-97224
25	SCREW, (.250-20 x 1.500) Stainless Steel	10-817504
26	PIN	8215832
27	DECAL, EPA Label Information Comment: (2000)(SEE NOTE)	37-804657A00
28	TIE STRAP, (14.00 Inches)	61990
29	CABLE ASSEMBLY	84-88807A27
30	SCREW, (M6 x 10)	10-82130010
31	CLAMP	54-633001
32	CLAMP, Connector	8261151
33	NOT SOLD SEPARATE, Vapor Separator Assembly	NSS
34	TIE STRAP, (5.50 Inches)	8M0214940
-	POWERHEAD ASSEMBLY	854008T00

Air Handler Components

Below is the parts list for Mercury V-115 DFI (2.5L) Air Handler Components:

Position No.	Part Name	OEM Number	Supersedes
-	AIR HANDLER ASSEMBLY Comment: (135/150)	855633T21	855633T10 (135/150)
-	AIR HANDLER ASSEMBLY Comment: (115)	858703T3
1	ADAPTOR PLATE KIT	855420T02
2	GASKET	27-146973
3	GASKET	27-8500581
4	REED BLOCK Comment: (115)	855952T4
4	REED BLOCK Comment: (135/150)	855952T2
5	SCREW, (.250-20 x .880)	10-55715
6	PUMP ASSEMBLY, Oil	8M0185614
7	BUSHING	23-855364
8	GROMMET	25-855362001	25-855362
9	SCREW, (M8 x 35)	10-81893435
10	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
11	PLENUM KIT, Air	850248A2
12	ELBOW	22-8554242
13	SENSOR ASSEMBLY, Temperature	8M0214984
14	O-RING, (.301 x .070)	25-627021
15	SCREW, (M4 x 16)	10-4001987
16	THROTTLE BODY KIT Comment: (115)	855422A2
16	THROTTLE BODY KIT Comment: (135/150)	855422A1
17	O-RING	25-855423
18	SCREW, (M6 x 40)	10-82130040
19	SCREW, (M8 x 30)	10-81893430
20	SENSOR, MAP	854445
21	BRACKET	884522	804873, 841095
22	SCREW, (M6 x 16)	10-1993716
-	POWERHEAD ASSEMBLY	854008T00

Air Hoses

Below is the parts list for Mercury V-115 DFI (2.5L) Air Hoses:

Position No.	Part Name	OEM Number	Supersedes
1	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
4	CLAMP, Hose (15.3)	54-8M0214964
5	HOSE	32-8502512
6	SLEEVE, (16.00 Inches)	23-85687631
7	HOSE/FITTING ASSEMBLY, Air Balance	32-804823
8	HOSE/FITTING ASSEMBLY	32-804824
9	O-RING KIT	804532	25-803987
10	FITTING, Straight (.125-27)	22-16604
11	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
-	POWERHEAD ASSEMBLY	854008T00

Bottom Cowl

Below is the parts list for Mercury V-115 DFI (2.5L) Bottom Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL (PORT)	100-8M0107321
2	BOTTOM COWL (STARBOARD)	103-834815A1
3	SEAL, Cowl (41.00 Inches)	8M0109217	8M0043272, 825318 1
4	RIGGING KIT	875266A2
5	INSERT (BOTTOM)	859435T	859435
6	INSERT (TOP)	859434T	859434
7	FOAM	859343
8	SCREW, (#10-16 x 1.12)	10-92799
9	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
10	SCREW, (M6 x 40)	10-82130040
11	RETAINER	831209
12	PLUG	19-821908
13	WASHER	12-821915
14	CHECK VALVE	8219631
15	O-RING, (.299 x .103)	25-30641
16	FITTING	22-821952
17	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	HOSE	32-8M0039077	32-832078 2
19	CLAMP, (28.6)	54-850896
20	FITTING	22-8320763
21	FITTING, Tell-Tale	22-8M0077650	821904
22	IDLE EXHAUST BOOT, Exhaust	889847	828216
23	CHECK VALVE ASSEMBLY, Drain	21-817519A1
24	SWITCH ASSEMBLY	87-8M0042301	87-896620, 87-856990, 87-850691, 87-18286A40
25	SCREW, (M6 x 75)	10-824868
26	FRONT HANDLE, Black	889740A02	821253F 1, 821253F 2, 821253F 4
27	BUSHING	23-335891
28	O-RING, (.614 x .070)	25-48462
29	PAWL	8219423
30	WASHER, (.281 x .734 x .063)	12-69057
31	NUT, (M6) Stainless Steel	11-401366
32	SCREW, (#10-16 x .625)	10-8214281
33	CLIP	54-822873

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury V-115 DFI (2.5L) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	455-850690T2
2	WEAR SLEEVE	78662
3	BEARING, Ball (LOWER)	30-67923T
4	RING	53-67446
5	CARRIER ASSEMBLY	54196A6
6	PACKING	65800
7	RING, Sealing	39-67377T
8	BEARING KIT	31-16756A6
9	NOT SOLD SEPARATE	NSS
10	PISTON Comment: (STARBOARD) (STANDARD)	2716-858789T2
10	PISTON Comment: (PORT) (STANDARD)	2716-858790T2
10	PISTON ASSEMBLY Comment: (STARBOARD) (.015 O/S)	2716-858789A4
10	PISTON ASSEMBLY Comment: (PORT) (.015 O/S)	2716-858790A4
11	RING SET, Piston Comment: (STANDARD)	39-853306A12
11	RING SET, Piston Comment: (.015 O.S)	39-857120T12
12	LOCK RING	53-857196	40-52035
13	CONNECTING ROD KIT	644-818141A13	644-818141A 2
14	SCREW, (.312-24 x .875)	10-763491
15	WASHER	12-8M0012298	12-812876
16	BEARING KIT	8M0234886
17	BEARING, Needle	29-8M0204691
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	POWERHEAD ASSEMBLY	854008T00

Cylinder Block and End Caps

Below is the parts list for Mercury V-115 DFI (2.5L) Cylinder Block and End Caps:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	884-828340A16
2	STUD, Powerhead (1-3/4 IN.)	16-8M0034455	16-818138 4
3	STUD, (.375 x 5.620) Comment: (5-1/2 Inches)	16-670654
3	STUD, (.375 x 6.870) Comment: (6-3/4 Inches)	16-8M0034454	16-78438 5 (6-3/4 Inches)
4	PIN, Dowel - Without Hole (.375 x .625)	17-43044
5	PIN (BEARING RACE)	17-8M0036405	17-67296
6	COVER	8M0111325
7	SCREW, (.312-18 x 1.500) Hex Flange	10-828213
8	COVER (BOTTOM)	76867
9	SCREW, (.312-18 x 2.00) Hex Flange	10-828214
10	SCREW, (.375-16 x 3.250)	10-66717
11	SCREW, (.312-18 x 1.250)	10-74824
12	CAP, Nylon	26852
13	SCREW, (.250-20 x 1.750)	10-856832
14	NUT, (.250-20)	11-64015
15	END CAP ASSEMBLY	1159-832760T1
16	O-RING, (2.800 x .103)	25-54029
17	BEARING KIT	31-16756A4
18	NOT SOLD SEPARATE, Bearing Race	NSS
19	SEAL	26-41953
20	SCREW WITH LOCKWASHER, (.312-18 x 1.00)	10-30225
21	END CAP ASSEMBLY	1156-7809T1
22	O-RING, (3.237 x .103)	25-62700
23	SEAL	26-41953
24	SCREW, (.250-20 x .750)	10-28636
25	LOCKWASHER, (.250) Stainless Steel	13-26992
26	BRACKET	8538821
27	LEVER, Throttle Position Indicator	8519371
28	SCREW, (M6 x 25)	10-82130025
29	BUSHING	23-8318701
30	GROMMET	25-8M0190980
31	INDICATOR, Throttle Position (INSIDE)	8M6005165
32	TPS COVER	8582261
33	SCREW, (#10-32 x 2.00)	10-8508281
34	LINK, Throttle	8M0084738
35	CABLE ASSEMBLY, Battery - Negative	84-88439A26
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	POWERHEAD ASSEMBLY	854008T00

Cylinder Head

Below is the parts list for Mercury V-115 DFI (2.5L) Cylinder Head:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER HEAD (PORT)	858405T2
1	CYLINDER HEAD (STARBOARD)	858406T2
2	SCREW, (.375-16 x 3.00) (2 IN)	10-832971
3	PIN, Dowel (.250 x .625)	17-63779
4	GASKET	27-8M0204714
5	COVER	8M0039353	830737 2
6	THERMOSTAT, 62Â° Celsius (143Â° Fahrenheit)	833072003	833072
7	SCREW, (M6 x 25)	10-82130025
8	SENSOR ASSEMBLY, Temperature (STARBOARD)	13536A14
9	RETAINER	137151
10	SCREW, (M8 x 12)	10-81893412
11	SEAL	25-8M0149612
12	SEAL	8597721
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	POWERHEAD ASSEMBLY	854008T00

Digital Electric Parts

Below is the parts list for Mercury V-115 DFI (2.5L) Digital Electric Parts:

Position No.	Part Name	OEM Number	Supersedes
1	HARNESS ASSEMBLY	84-859244A2
2	PLUG, Male	13541
3	HARNESS ASSEMBLY	84-859743T2
4	SENDER ASSEMBLY, Trim	859187A1
5	SENSOR, Speed/Temperature	859223A01	859223
6	HARNESS ASSEMBLY, Diagnostic Adaptor	84-859316T1

Driveshaft Housing and Exhaust Tube

Below is the parts list for Mercury V-115 DFI (2.5L) Driveshaft Housing and Exhaust Tube:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, Driveshaft - Black - Long Comment: (LONG)	1590-8343T10
1	HOUSING, Driveshaft - Black - X-Long Comment: (X-LONG)	3503-813563T1
2	STUD, (.437 x 2.69)	16-56295
3	SCREW, (.500-20 x 6.00)	10-898831	10-63474
4	CABLE ASSEMBLY, Ground	88238A10
5	MOUNT	77327
6	WASHER, (.8125)	12-49339
7	CABLE ASSEMBLY, Ground	88238A10
8	NUT, (.500-20)	11-898832	11-826708 17
9	SCREW, (.250-20 x .500) Stainless Steel	10-41508
10	WASHER, (.453 x .812 x .105) Stainless Steel	12-45176
11	NUT, (.437-20) Stainless Steel	11-8M0204653
12	CLAMP	54-8M0036782	54-67076
13	SCREW, (.312-18 x 1.250)	10-66727
14	COVER, Black	100-8M4500752	8M0001130, 67077T
15	SCREW, (#12-24 x .620)	10-88417
16	NUT	11-35521
17	WASHER	12-48926
18	NUT, (.437-20) Stainless Steel	11-8M0204653
19	WASHER, (.406 x .734 x .063)	12-20553
20	NUT	11-69254
21	BOOT, Idle Exhaust	8M0039081	828212
22	PLUG	19-64649
23	GASKET	27-991734
24	SEAL (LOWER)	66350001
25	TUBE, Exhaust	18276T
26	SEAL (UPPER)	8M0039076	17726 1
27	EXTENSION, Exhaust Comment: (150)	812834A2
27	EXTENSION, Exhaust Comment: (135/115)	879288T71	41942 4 (135/115)
28	TUBE, Water Comment: (LONG)	32-8M0042788	32-859097 1 (LONG)
28	TUBE Comment: (X-LONG)	32-8M0042790	32-859097 2 (X-LONG)
29	PLATE ASSEMBLY, Driveshaft Housing	18233A20
30	SEAL	8M0043165	814701 2
31	BRACKET	68011
32	SCREW, (#10-16 x .500)	10-878608	10-812832
33	PIN, Dowel - Without Hole (.375 x .625)	17-43044
34	SEAL	26-38970
35	SCREW, (.250-20 x .750) Stainless Steel	10-90192
36	GASKET	27-183076
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98

Dual Engine Tie Bar Kit

Below is the parts list for Mercury V-115 DFI (2.5L) Dual Engine Tie Bar Kit:

Position No.	Part Name	OEM Number	Supersedes
-	EXTENSION KIT, Dual Engine	92876A9
1	TUBE ASSEMBLY	71565A2
2	O-RING, (.614 x .070)	25-48462
3	MOUNT	41055
4	TAB WASHER	14-42100
5	NUT, (.875-14)	11-8M0041651	11-37984
6	TAB WASHER	88404
7	SCREW, (.250-28 x 1.250)	10-38601
8	BRACKET	17729A1
9	SCREW, (.312-24 x 1.250)	10-62055
10	TAB WASHER	17728
11	SCREW, (.375-24 x 1.38)	10-140001
12	NUT, (.375-24) Stainless Steel	11-8M0204726
13	STEERING EYE	8M0026167	8M0005848, 97933 1
14	SLEEVE, (1.625)	23-23651
15	TUBING, (4.00 Inches)	97931
16	COUPLER, (15.00 Inches)	8M0026098	814951 3
17	NUT, (.562-18)	11-42099
18	COUPLING	22-821169
19	WASHER, (.406 x .734 x .063) Stainless Steel Comment: (.734 O.D.)	12-34931
19	WASHER, (.390 x .625 x .062) Stainless Steel Comment: (.625 O.D.)	12-37828
20	SCREW, (.375-24 x 1.5)	10-94319

Electrical Components

Below is the parts list for Mercury V-115 DFI (2.5L) Electrical Components:

Position No.	Part Name	OEM Number	Supersedes
1	NOT SOLD SEPARATE, Coil Plate Assembly	NSS
2	PLATE, Coil	8M0011731	850675 3
3	COIL KIT	339-856991A1
4	CABLE ASSEMBLY, Hi Tension	84-881908T	84-821945T74, 84-821945T65
5	SPACER	850676F1
6	SCREW, (.250-20 x 3.250)	10-850898
7	GROMMET	25-833155
8	BUSHING	23-8502341
9	WASHER, (.281 x .625 x .065) Stainless Steel	12-35044
10	NUT, (.250-20)	11-8267098
11	SCREW, (.312-18 x 1.250)	10-60411
12	WASHER	12-49436
13	SCREW, (M6 x 14)	10-82129114
14	SPARK PLUG	33-889597Q	33-889597001, 33-855672 1
15	HARNESS ASSEMBLY, Trim	84-819514A14
16	RELAY ASSEMBLY	8M0207773
17	NOT SOLD SEPARATE, Decal-Trim Relay	NSS
18	BRACKET	828102
19	BUSHING	23-8M0214955
20	GROMMET	25-818967
21	SCREW, (M6 x 25)	10-82129125
22	SCREW, (M6 x 35)	10-82129135
23	BUSHING	23-91912
24	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
25	HARNESS ASSEMBLY, Engine Wiring	84-858229T1
26	NOT SOLD SEPARATE, Fuse Cover	NSS
27	HARNESS ASSEMBLY	84-856624A2
28	FUSE, Mini - Yellow - 20 Ampere	88-832969T20	88-832969 20
29	CLIP	8590881
30	ECU, Engine Control Unit Comment: (115)	858891T28	858891 28 (115)
30	ECU, Engine Control Unit Comment: (135)	858891T24	858891 24 (135)
30	ECU, Engine Control Unit Comment: (150)	858891T25	858891 25 (150)
31	SCREW, (M6 x 25)	10-82130025
32	BUSHING	23-8318701
33	GROMMET	25-8M0190980
34	SCREW, (M6 x 14)	10-82129114
35	CLIP, (1.00)	54-858755
36	PLATE, Solenoid Mounting	833137F1
37	SCREW, (M6 x 12)	10-82130012
38	SCREW, (M6 x 14)	10-82129114
39	SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)	89-817109A2
40	GROMMET	25-822179
41	SCREW, (M6 x 25)	10-82129125
42	CABLE ASSEMBLY, Yellow/Black	84-93388A14
43	BUSHING	23-8M0214955
44	CABLE ASSEMBLY, Battery - Positive	84-88439A25
45	LOCKWASHER, (.312)	13-53166
46	NUT, (.312-18)	11-8M0204668
47	NUT, Brass	10-32,11-45076
48	CABLE ASSEMBLY, (4.00 Inches) Black	84-88807A16
49	CAP NUT,	10-32,11-813938
50	BOOT, Insulator - Red	85-8500671
51	BOOT, Insulator - Yellow	85-8500673
52	CLIP	54-828991T	54-828991

Exhaust Manifold and Exhaust Plate

Below is the parts list for Mercury V-115 DFI (2.5L) Exhaust Manifold and Exhaust Plate:

Position No.	Part Name	OEM Number	Supersedes
1	GASKET	27-190506
2	PLATE, Exhaust Divider	828343T3
3	SEAL, (12.50 Inches)	26-814754	42838 1, 69668, 88726
4	SCREW AND WASHER, (.312-18 x 1.500)	10-8263561
5	SCREW, (.312-18 x 1.00) (5/16-18 X 1 IN.)	10-881190	10-855288
6	PLUG, (.375-18) Hex - Steel	22-8M0204657
7	COVER	8M0039767	68729 1
8	SCREW, (.312-18 x 1.250)	10-74824
9	SCREW, (#10-16 x .750)	10-69570
10	WASHER	12-76451
11	DIAPHRAGM	144791
12	DEFLECTOR, Water	16496
13	PLATE	16497A1
14	GASKET	27-78690002
15	SPRING	24-42996
16	POPPET	14480
17	GROMMET	25-64872
18	CARRIER	65848
19	GASKET	27-991764
20	PLATE, Exhaust	850814T2
21	PIN, Dowel - Without Hole (.375 x .625)	17-43044
22	SEAL	8M0043164	814701 1
23	BRACKET	680101
24	SCREW, (#10-16 x .500)	10-878608	10-812832
25	GROMMET	25-19565002
26	WASHER, (.406 x .734 x .063)	12-20553
27	NUT	11-69254
28	BUSHING	23-27132
29	SCREW, (.312-18 x 1.250)	10-66727
30	SCREW, (.312-18 x 2.50)	10-68783
31	SCREW, (.375-16 x 3.50)	10-898833	10-66725
32	BRACKET ASSEMBLY, Front	812905T	812905A 5
33	SCREW, (.3125-18 x .50)	10-8055571
34	WASHER	12-187031
35	GROMMET	25-18778001
36	BRACKET ASSEMBLY, Rear	18578T09
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	POWERHEAD ASSEMBLY	854008T00

Flywheel and Alternator

Below is the parts list for Mercury V-115 DFI (2.5L) Flywheel and Alternator:

Position No.	Part Name	OEM Number	Supersedes
1	ALTERNATOR	857006T	834832
2	SCREW, (M10 x 100) Hex Flange - Stainless Steel	10-8M0012503	10-40108100
3	SCREW, (M10 x 120) Hex Flange - Stainless Steel	10-40108120
4	WASHER, (.390 x 1.00 x .06)	12-8M0042641	12-29395
5	MOUNT	23-856975	849639
6	BRACKET	858391T01	858391T, 856972T
7	WASHER, (.406 x 1.250 x .089)	12-845998
8	BRACKET	858393T01	858393T, 856973T
9	NUT, (M10) Brass/Nickel Plated	11-826292
10	SCREW, (M10 x 55)	10-82446155
11	CABLE ASSEMBLY	84-856583T2
12	PIN	8215832
13	BRACKET	857142T	856974T
14	SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch	10-812618	10-73169, 10-847568
15	SPRING	24-855798001	24-855798
16	ARM TENSIONER ASSEMBLY	856815T2
17	STUD, (M10 x 85)	16-8M0034457	16-856900
18	NUT, (M10) Brass/Nickel Plated	11-826292
19	BUSHING	23-8568941
20	WASHER	12-4002320
21	PULLEY	8M6005030
22	SCREW, (M10 x 35) Hex Flange - Stainless Steel	10-4010835
23	BELT	57-828507Q4
24	FLYWHEEL	281-834936T6
25	NUT, (.625-18)	11-52901
26	WASHER, (.641 x 1.250 x .190)	12-33001
27	PLUG, Yellow	19-45907

Fuel Hoses

Below is the parts list for Mercury V-115 DFI (2.5L) Fuel Hoses:

Position No.	Part Name	OEM Number	Supersedes
1	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
2	CLAMP, Hose (15.3)	54-8M0214964
3	CONNECTOR	22-858955
4	HOSE, (57.00 Inches Bulk) (Cut to 7-1/2 Inches)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
5	TUBING	32-8M0064784	32-897972, 32-856822A 1
6	CONNECTOR	22-822769
7	NOT SOLD SEPARATE, Cap	NSS
8	HOSE ASSEMBLY, (25.50 Inches)	32-8M0062344	32-858757A 1
9	HOSE	32-804822
10	TUBING (INCLUDES ORINGS)	32-8048211
11	CHECK VALVE	21-8557611
12	HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)	32-8M0043979	32-856822A 2
13	HOSE	32-8M0064634	32-856778 70
14	HOSE	32-8M0064635	32-856778 87
15	SLEEVE, (27.00 Inches Bulk)	23-85686953

Fuel Pump

Below is the parts list for Mercury V-115 DFI (2.5L) Fuel Pump:

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	14360T75
2	NOT SOLD SEPARATE, Body-Fuel Pump	NSS
3	DIAPHRAGM KIT	21-857005A1
4	NOT SOLD SEPARATE, Retainer	NSS
5	NOT SOLD SEPARATE, Spring	NSS
6	NOT SOLD SEPARATE, Cap	NSS
7	NOT SOLD SEPARATE, Spring	NSS
8	NOT SOLD SEPARATE, Cap	NSS
9	NOT SOLD SEPARATE, Diaphragm	NSS
10	GASKET	27-8M0204705
11	NOT SOLD SEPARATE, Gasket-Boost	NSS
12	NOT SOLD SEPARATE, Gasket-Pulse	NSS
13	PLATE	987752
14	NOT SOLD SEPARATE, Decal	NSS
15	SCREW, (M5 x 40), Fuel Pump	10-82104540
15	SCREW, (M6 x 50), Pump to Crankcase	10-82130050
16	BASE	144303
17	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
18	FITTING	22-291112
19	FITTING, Elbow 45 Degree (1.25)	22-782792
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	POWERHEAD ASSEMBLY	854008T00

Fuel Rails

Below is the parts list for Mercury V-115 DFI (2.5L) Fuel Rails:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL RAIL ASSEMBLY Comment: (PORT)	858221A3
2	FUEL RAIL ASSEMBLY Comment: (STARBOARD)	858222A3
3	CLAMP	54-804830
4	CLAMP	54-8048311
5	CLAMP	54-804833
6	CLAMP	54-804832
7	PLUG	19-804834
8	PLUG	19-804835
9	VALVE ASSEMBLY, (.5 Inch Diameter)	804837
10	VALVE KIT, Fuel	8M0047053	883542, 804838A 1
11	CAP	22-805515	19-804839001, 19-804839
12	INJECTOR	804841
13	O-RING KIT	25-804840
14	O-RING KIT	25-804530
15	DIAPHRAGM ASSEMBLY	804533
16	SPRING	24-804534
17	O-RING	25-804536
18	COVER	804535001	804535
19	SCREW PACKAGE, (M5 x 16) (2 Per)	804526
20	O-RING KIT	804532	25-803987
21	SCREW PACKAGE, (M5 x 8) (2 Per) (M5 x 8)	10-804525001	804525
22	O-RING KIT	25-804529
23	SEAL KIT	26-804875	26-835083
24	INJECTOR	8M6001743	8M0065916, 883078A05, 883078A 4
25	STUD, (M10 x 91)	16-8M0063255
26	NUT, (M10) Brass/Nickel Plated	11-826292
27	WASHER ASSEMBLY, Cupped	12-828694A1
28	CLIP	54-859376
-	POWERHEAD ASSEMBLY	854008T00

Gear Housing(Driveshaft)(Standard/Counter Rotation)

Below is the parts list for Mercury V-115 DFI (2.5L) Gear Housing(Driveshaft)(Standard/Counter Rotation):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (Long-Standard-1.87:1)	1647-9148T84
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-Standard-1.87:1)	1647-9148T85
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (Long-Standard-2:1)	1647-9148T81
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-Standard-2:1)	1647-9148T82
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-Counter Rotation-1.87:1)	1647-9148T86
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-Counter Rotation-2:1)	1647-9148T83
1	GEAR HOUSING ASSEMBLY, Basic	1647-9148T93
2	PIN, Dowel - Without Hole (.375 x .625)	17-43044
3	STUD, (.437-14/.437-20 x 3.120) Comment: (LONG)	16-786382
3	STUD, (.438 x 3.82 Inches) Comment: (X-LONG)	16-8M0034464	16-18978 3 (X-LONG)
4	STUD, (.437-14/.437-20 x 2.060)	16-8M0133358
5	STUD, (.312-18/.324-24 x 3.380)	16-8M0034463	16-56297 2
6	STUD, (.250-20/.250-28 x 3.125)	16-306671
7	FILLER BLOCK	8M0039169	67891
8	BEARING ASSEMBLY, Roller	31-42647A1
9	ANODE	97-826134Q	826134, 826134A 1
10	SCREW, (M6 x 40)	10-4000333
11	NUT, (M6)	11-401386
12	TUBING, (52.00 Inches) Comment: (Cut to 10 Inches-Long)	32-85944975
12	TUBING, (52.00 Inches) Comment: (Cut to 12 Inches-X-Long)	32-85944975
13	FITTING	22-881866	22-859432
14	NOT SOLD SEPARATE, Pinion Gear Comment: (1.87:1- 15 Teeth-150-Part of 43-828174A2 or 43-828701A1)	NSS
14	GEAR, Pinion Comment: (2:1 - 14 Teeth-115/135)	43-44101T3
15	WASHER	12-92721
16	NUT, (.625-18)	11-35921
17	SHIM SET	15-42637A1
18	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
19	WASHER, Fiber	12-191833
20	SHIFT SHAFT	789022
21	O-RING, (.862 x .103)	25-25439
22	BUSHING ASSEMBLY	23-77631A2
23	SEAL, Oil	26-8M0204708
24	WASHER	12-77674
25	DRIVESHAFT Comment: (LONG)	45-897624T	45-44000 1 (LONG)
25	DRIVESHAFT Comment: (X-LONG)	45-897625T	45-44209 1 (X-LONG)
26	BEARING, Roller	31-8M0146566
27	NOT SOLD SEPARATE, Cup	NSS
28	RETAINER	8245191
29	BASE ASSEMBLY, Water Pump	46-8M0077147	46-42579A 3
30	NOT SOLD SEPARATE, Retainer	NSS
31	GASKET	27-8M0204678
32	O-RING, (2.175 x .175)	25-8M0142854
33	SEAL, Oil	26-89238
34	SEAL, Oil	26-16977
35	GASKET	27-8M0090319	27-85608 1
36	GASKET	27-858524	27-85609 1, 27-85609B 1
37	FACE PLATE	8M0204677
38	BODY ASSEMBLY, Water Pump	46-96148T1
39	INSERT	48752T
40	SEAL	26-38970
41	IMPELLER	47-89984T3
42	KEY	28-8M0214992
43	SCREW, (#14-8 x 2.25)	10-8M0215009
44	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
45	NUT, (.250-28)	11-8267119
46	WASHER	12-36001
47	NUT	11-13436
48	SLEEVE	23-29804T
-	BODY ASSEMBLY, Water Pump	46-96148A8
-	SEAL KIT	26-89238A2
-	GEAR ASSEMBLY, Pinion/Forward Comment: (2:1)	43-803612T2
-	GEAR ASSEMBLY, Pinion/Forward Comment: (1.87:1)	43-803615T2
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	BEARING AND SEAL KIT (W/O FORWARD BRG.)	31-803033T1

Gear Housing, Propeller Shaft - Counter Rotation

Below is the parts list for Mercury V-115 DFI (2.5L) Gear Housing, Propeller Shaft - Counter Rotation:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-LONG - 1.87:1)	1647-9148T86
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-LONG - 2:1)	1647-9148T83
1	GEAR HOUSING ASSEMBLY, Basic	1647-9148T93
2	FOLLOWER ASSEMBLY	89594A1
3	SHIFT CAM	789562
4	ROD	828287
5	SHIM SET	15-44491A1
6	ADAPTOR ASSEMBLY, Bearing	828830A2
7	BEARING ASSEMBLY, Needle Rollers	31-814653T	31-814653, 31-814653001
8	THRUST WASHER	12-815481
9	BEARING, Thrust	31-815480
10	GEAR ASSEMBLY, Reverse - 15/28 Comment: (1.87:1 Gear Ratio-150)	43-828702A2
10	GEAR ASSEMBLY, Reverse - 14/28 Comment: (2:1 Gear Ratio-135)	43-828704A2
11	BEARING ASSEMBLY, Roller	31-15844
12	SPRING	24-30893
13	CLUTCH	52-859340T	52-854735T, 52-828288
14	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
15	PIN, Detent	17-828356
16	PROPELLER SHAFT	44-828951
17	GEAR ASSEMBLY, Forward - 15/28 Comment: (1.87:1 Gear Ratio-150)	43-828701A1
17	GEAR ASSEMBLY, Forward - 14/28 Comment: (2:1 Gear Ratio-135)	43-828703A1
18	SPACER SHIM , (.206)	23-1761514
18	SPACER SHIM , (.208)	23-1761515
18	SPACER SHIM, (.210)	23-1761516
18	SPACER SHIM, (.212)	23-1761517
18	SPACER SHIM, (.214)	23-1761518
18	SPACER SHIM, (.216)	23-1761519
18	SPACER SHIM, (.218)	23-1761520
18	SPACER SHIM, (.220)	23-1761521
18	SPACER SHIM, (.222)	23-1761522
18	SPACER SHIM, (.224)	23-1761523
18	SPACER SHIM, (.226)	23-1761524
18	SPACER SHIM, (.228)	23-1761525
18	SPACER SHIM, (.230)	23-1761526
19	BEARING, Thrust	31-815480
20	THRUST WASHER	12-815481
21	ADAPTOR ASSEMBLY, Bearing	828831A3
22	BEARING ASSEMBLY, Needle Rollers	31-814653T	31-814653, 31-814653001
23	THRUST WASHER	12-18448
24	BEARING, Thrust	31-15842
25	RACE, Thrust	8182911
26	KEEPER	814605
27	O-RING	25-8M0214920
28	CARRIER ASSEMBLY, Bearing	818290A4
29	BEARING, Needle	31-30956T
30	SEAL, Oil Comment: (INSIDE)	26-14077
31	SEAL Comment: (OUTSIDE)	26-8M0204670
32	TAB WASHER	14-183231
33	KEY	28-30281
34	RETAINER	8M2011027	79448
35	TRIM TAB	31640T07
36	SCREW, (.437-14 x 1.750)	10-8M0204686
37	SCREW, (.375-16 x 1.00)	10-65210
38	WASHER, (.453 x .812 x .105) Stainless Steel	12-45176
39	NUT, (.437-20) Stainless Steel	11-8M0204653
40	NOT SOLD SEPARATE, Decal-Counter Rotation	NSS
-	SEAL KIT	26-89238A2
-	BEARING AND SEAL KIT (W/O Foward Bearing)	31-803034T1
-	FOLLOWER ASSEMBLY, Clutch/Cam	52-803491T1
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98
-	GEAR ASSEMBLY, Pinion/Forward	43-803616T1
-	GEAR ASSEMBLY, Pinion/Forward Comment: (1.87:1)	43-803616T1
-	GEAR ASSEMBLY, Pinion/Forward Comment: (2:1)	43-803613T1

Gear Housing, Propeller Shaft - Standard Rotation

Below is the parts list for Mercury V-115 DFI (2.5L) Gear Housing, Propeller Shaft - Standard Rotation:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (Long-1.87:1)	1647-9148T84
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-1.87:1)	1647-9148T85
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (Long-2:1)	1647-9148T81
-	GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) Comment: (X-Long-2:1)	1647-9148T82
1	GEAR HOUSING ASSEMBLY, Basic	1647-9148T93
2	FOLLOWER ASSEMBLY	89594A1
3	SHIFT CAM	789562
4	ROD	828287
5	GEAR ASSEMBLY, Forward 1.87:1 - 15/28 Comment: (150)	43-878613A2
5	GEAR ASSEMBLY, Forward Comment: (2:1 - 14/28)(115/135)	43-878615A2
6	SHIM SET	15-44491A1
7	BEARING SET, Cup And Cone	31-30894A1
8	NOT SOLD SEPARATE, Cup	NSS
9	BEARING, Needle	31-30895T
10	RING, Retaining	53-856823
11	CLUTCH	52-859340T	52-854735T, 52-828288
12	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
13	PIN, Detent	17-828356
14	SPRING	24-30893
15	PROPELLER SHAFT	44-94148
16	GEAR ASSEMBLY, Reverse - 15/28 Comment: (150)	43-828175A1
16	GEAR ASSEMBLY, Reverse - 14/28 Comment: (115/135)	43-828177A1
17	SPACER	23-824108
18	RING, Thrust	681001
19	BEARING, Ball	30-88957T
20	O-RING	25-8M0214920
21	CARRIER ASSEMBLY, Bearing	43567T1
22	BEARING, Needle	31-30956T
23	SEAL, Oil (INSIDE)	26-14077
24	SEAL (OUTSIDE)	26-8M0204670
25	KEY	28-30281
26	TAB WASHER	14-79447
27	RETAINER	8M2011027	79448
28	TRIM TAB	31640T07
29	ANODE KIT Comment: (Tracker and 150 Long)	97-76214Q5
30	SCREW, (.437-14 x 1.750)	10-8M0204686
31	SCREW, (.375-16 x 1.00)	10-65210
32	WASHER, (.453 x .812 x .105) Stainless Steel	12-45176
33	NUT, (.437-20) Stainless Steel	11-8M0204653
-	SEAL KIT	26-89238A2
-	GEAR ASSEMBLY, Pinion/Forward Comment: (2:1)	43-803612T2
-	GEAR ASSEMBLY, Pinion/Forward Comment: (1.87:1)	43-803615T2
-	FOLLOWER ASSEMBLY, Clutch/Cam	52-803491T1
-	BEARING AND SEAL KIT (Without FORWARD BRG.)	31-803033T1
-	GASKET SET, Engine	27-8M0046714	27-814754A00, 27-814754A98

Instrumentation

Below is the parts list for Mercury V-115 DFI (2.5L) Instrumentation:

Position No.	Part Name	OEM Number	Supersedes
1	SWITCH ASSEMBLY, Lanyard	87-19674A1
2	SCREW, (.190-16 x 1.750) Stainless Steel	10-18303
3	ADAPTER	813679	12051
4	LANYARD ASSEMBLY	15920Q54
5	SCREW, (#10-32 x 2.00) Stainless Steel	10-32866
6	CLAMP, Mounting	18321
7	WASHER, (.200 x .440 x .032)	12-24676
8	NUT, Stainless Steel	10-32,11-68219
9	RETAINER	79146
10	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
11	DIODE ASSEMBLY	812497A2
12	CABLE ASSEMBLY, (6.00 Inches)	84-11149A2
13	WARNING GAUGE KIT Comment: (NON DIGITAL)	79-859699A1
14	CLAMP	850020
15	LOCKWASHER, Star	8,13-825361
16	NUT, Brass	8-32,11-26419
17	LAMP	88-15163
18	SOCKET, Light Bulb	88-79888
19	CABLE ASSEMBLY, (20.00 Feet)	84-835359A1

Oil Injection Components

Below is the parts list for Mercury V-115 DFI (2.5L) Oil Injection Components:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET KIT	12335A1
2	CORD/HOOK KIT	12323A1
3	TANK	1257-87421
4	CAP ASSEMBLY	36-43298A2
5	NOT SOLD SEPARATE, Insert	NSS
6	O-RING, (2.225 x .210)	25-11332
7	SENDER ASSEMBLY, Oil Level Comment: (NON-DIGITAL)	816190A4
8	SENDER ASSEMBLY, Oil Level Comment: (DIGITAL)	816190A5
9	O-RING, (2.225 x .210)	25-11332
10	TUBE	32-99802
11	HOSE, (114.00 Inches)	32-99439
12	RESERVOIR ASSEMBLY, Oil	1200-8M0063190	833069T 9
13	NOT SOLD SEPARATE, Oil Reservoir	NSS
14	NOT SOLD SEPARATE, Decal-Reservoir	NSS
15	GROMMET	25-855362001	25-855362
16	WASHER	12-49436
17	SCREW, (.312-18 x 1.250)	10-60411
18	BUSHING	23-855364
19	SWITCH ASSEMBLY	87-856156T02	87-856156A 2
20	SCREW, (.164-18 x .375)	10-58376
21	WASHER, (.203 x .562 x .060) Stainless Steel	12-72761
22	CLAMP	54-814634

Oil Lines

Below is the parts list for Mercury V-115 DFI (2.5L) Oil Lines:

Position No.	Part Name	OEM Number	Supersedes
1	TUBING, (36.00 Inches Bulk) (Cut to 24 Inches)	32-8M0054152	32-856060 65
2	TUBING, (36.00 Inches Bulk) (Cut to 18-1/2 Inches)	32-8M0054152	32-856060 65
3	TUBING, (36.00 Inches Bulk) (Cut to 15-1/2 Inches)	32-8M0054152	32-856060 65
4	TUBING, (36.00 Inches Bulk) (Cut to 24-1/2 Inches) Comment: SN# 05149501 & Below	32-8M0054152	32-856060 65 SN# 05149501 & Below
4	TUBING, (36.00 Inches Bulk) (Cut to 24-1/2 Inches) Comment: SN# 0T149502 & Up	32-8M0054152	32-856060 65 SN# 0T149502 & Up
5	CHECK VALVE	21-858805
6	TIE STRAP, (5.50 Inches)	8M0214940
7	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
8	HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
9	TUBING, (25.00 Inches Bulk) (Cut to 24 Inches)	32-82381455
10	TUBING, (33.00 Inches Bulk) (Cut to 32 Inches)	32-85583464
11	CONNECTOR	22-858955
12	CHECK VALVE	21-426982
13	CHECK VALVE	21-426233
14	TUBING, (20.00 Feet Bulk) (Cut to 19 Inches)	32-892024122	32-99130122
15	CHECK VALVE	21-8781051
16	FITTING	22-8M0207780
17	NOT SOLD SEPARATE, Cap	NSS
18	HOSE	32-875289
19	HOSE, (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	CHECK VALVE	21-826810
21	TUBING, (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
22	FILTER, In Line	35-875284T01	35-875284001, 35-875284
23	HOSE, (2.00 Inches)	32-875283
24	TUBING, (36.00 Inches Bulk) (Cut to 27 Inches) Comment: SN# 0T149502 & Up	32-8M0054152	32-856060 65 SN# 0T149502 & Up
-	POWERHEAD ASSEMBLY	854008T00

Power Trim Components

Below is the parts list for Mercury V-115 DFI (2.5L) Power Trim Components:

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM ASSEMBLY, Complete	855998A11	855998A08, 855998A07, 855998A10, 855998A09, 855998A05, 855998A 3
1	MANIFOLD ASSEMBLY	811604F	811604T
2	PLUG, Pipe (.0625-27)	22-56800
3	CYLINDER ASSEMBLY	880952A03	880952A02, 880952A 1
4	ROD, Trim Piston	823553T	823553, 811609
5	GUIDE KIT	878239A02	878239A 1
6	REPAIR KIT	811607A1
7	CHECK VALVE KIT	811610A1
8	GUIDE ASSEMBLY	1100-8M0021648	878243A 1
9	PISTON ASSEMBLY (Port)	878413A1
9	PISTON ASSEMBLY, Power Trim (Starboard)	878414T01	878414A 1
10	TRIM FILTER ASSEMBLY	35-12184A1
11	MANUAL RELEASE ASSEMBLY	893929A01	813442A 2
12	E RING	53-815949001	53-812844, 53-835104
13	O-RING KIT	811612A3
14	PUMP	811617T1
15	PLUG ASSEMBLY	19-811613
16	SCREW, (M6 x 14)	10-4000327
17	WASHER	12-4002315
18	COVER	811611
19	DRIVE JOINT	828710
20	TRIM MOTOR	878265A4
21	SCREW (LONG)	10-881768A1
21	SCREW (SHORT)	10-811616
22	SHAFT ASSEMBLY	8M0142997
23	PLUG, Pipe (.0625-27)	22-56800
24	PIN, Groove	17-878267	17-44431
25	PIN, Trilobe	17-821539	17-13794, 17-19603
26	SHAFT	99625002
27	ANODE KIT	97-818298Q1
28	SCREW, (M6 x 25)	10-8M0204707
29	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
30	SCREW, (M10 x 30)	10-4000377
31	WASHER	12-4002319
32	CLAMP	54-26550
33	SCREW, (#10-16 x .600)	10-878609	10-812832 1
34	C WASHER	8M0084613	69205
35	STRIKER PLATE	8M0045383	99630 1
36	LOCKWASHER, (.375)	13-58643
37	NUT, (.375-24)	11-46335
38	DECAL, Caution-Power Trim	37-435301
39	CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)	32-828547353
40	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275

Power Trim Motor

Below is the parts list for Mercury V-115 DFI (2.5L) Power Trim Motor:

Position No.	Part Name	OEM Number
-	TRIM MOTOR	878265A4
1	BRUSH AND SEAL KIT	828714A1
2	ARMATURE KIT	828713T1
3	END FRAME (COMPLETE)	828715A1

Service/Support Material

Below is the parts list for Mercury V-115 DFI (2.5L) Service/Support Material:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 115/135/150 DFI (2.5L)	90-80350200
-	SERVICE MANUAL	90-8M0057453	90-859494R02, 90-859494R 1
-	OWNERS MANUAL	90-10199001
-	DECAL SET Comment: (BLACK 115 LONG)	37-804685A00
-	DECAL SET Comment: (BLACK 115 X-LONG/SALTWATER)	37-804686A00
-	DECAL SET Comment: (BLACK 135 LONG)	37-854291A04	37-854291A00, 37-854291A98 (BLACK 135 LONG)
-	DECAL SET Comment: (BLACK 135 XL/CXL)	37-854292A04	37-854292A03, 37-854292A00, 37-854292A99, 37-854292A98 (BLACK 135 XL/CXL)
-	DECAL SET Comment: (BLACK 150 LONG)	37-854294A06	37-854293A04, 37-854293A00, 37-854293A98 (BLACK 150 LONG)
-	DECAL SET Comment: (BLACK 150 XL/CXL)	37-854294A04	37-854294A03, 37-854294A00, 37-854294A99, 37-854294A98 (BLACK 150 XL/CXL)
-	DECAL SET Comment: (GRAY 115 LONG)	37-804683A00
-	DECAL SET Comment: (GRAY 115 X-LONG/SALTWATER)	37-804684A00
-	DECAL SET Comment: (GRAY 135 LONG)	37-854295A03	37-854295A01, 37-854295A98, 37-854296A99, 37-854296A98 (GRAY 135 LONG)
-	DECAL SET Comment: (GRAY 135 XL/CXL)	37-854295A03	37-854295A01, 37-854295A98, 37-854296A99, 37-854296A98 (GRAY 135 XL/CXL)
-	DECAL SET Comment: (GRAY 150 LONG)	37-854297A03	37-854297A01, 37-854297A98, 37-854298A99, 37-854298A98 (GRAY 150 LONG)
-	DECAL SET Comment: (GRAY 150 XL/CXL)	37-854297A03	37-854297A01, 37-854297A98, 37-854298A99, 37-854298A98 (GRAY 150 XL/CXL)
-	DECAL SET Comment: (TRACKER 115)	37-804682A00
-	DECAL SET Comment: (TRACKER 135)	37-803988A99
-	DECAL SET Comment: (TRACKER 150)	37-802643A98
-	DECAL, EPA Label Information Comment: (2000) (SEE NOTE)	37-804657A00

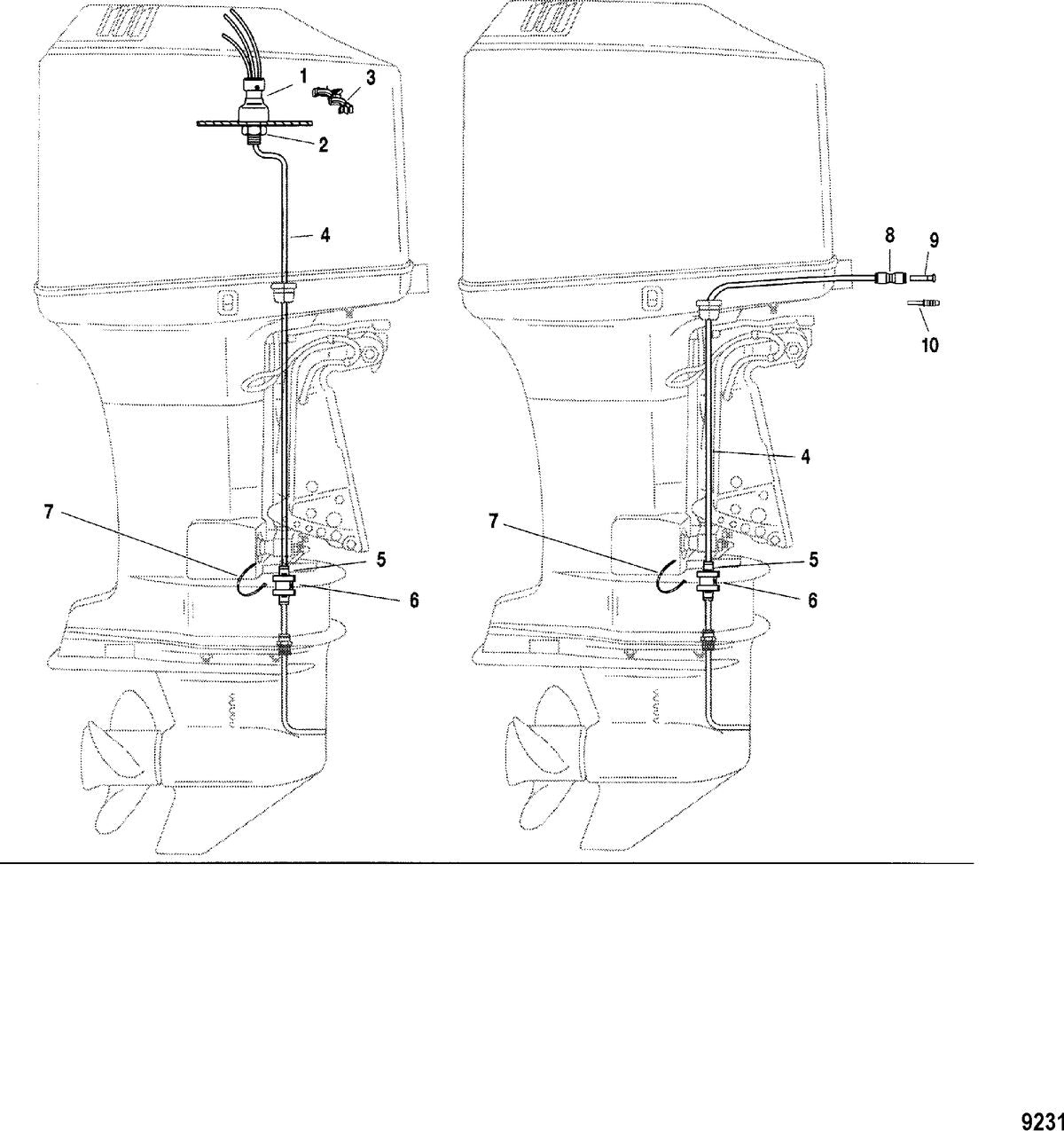

Speedometer Pickup System

Below is the parts list for Mercury V-115 DFI (2.5L) Speedometer Pickup System:

Position No.	Part Name	OEM Number	Supersedes
-	SENSOR ASSEMBLY, Pitot Comment: (DIGITAL)	881879T11	881879011, 881879A 6 (DIGITAL)
1	NOT SOLD SEPARATE Comment: (DIGITAL)	NSS
2	FITTING Comment: (DIGITAL)	22-8M0207782
3	CLIP, (.625) Comment: (DIGITAL)	54-858954
4	TUBING, (52.00 Inches)	32-85944975
5	FITTING	22-859448T	22-859448
6	GROMMET	25-8M0153609
7	TIE STRAP, (11.750 Inches)	54-850181
8	COUPLER Comment: (NON-DIGITAL)	22-8M0214971
9	PLUG Comment: (NON-DIGITAL)	22-859732
10	FITTING, Adapter	22-8M0214970

Starter Motor

Below is the parts list for Mercury V-115 DFI (2.5L) Starter Motor:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-898265013	50-856996T
2	PLATE	75660
3	THRU BOLT	10-749681
4	DRIVE KIT	8236401
5	PINION	898265015	86177 1
6	ARMATURE	8236381
7	BRUSH/SPRING KIT	898265016	75384, 75384 1
8	HOLDER	898265014	61787
9	END CAP	15386001
10	SCREW	F15158
11	LOCKWASHER, (.250) Stainless Steel	13-26992
12	NUT, (.250-20)	11-64015
13	LOCKWASHER, (.250) Stainless Steel	13-26992
14	NUT, (.250-20) Brass	11-94330
15	DECAL, Warning, High Voltage	37-8272822
16	BOOT, Insulator - Yellow	85-8500673
17	COLLAR	23-8M0034918	23-8M0001391, 56703
18	STOP, Rubber	8M0043376	68042
19	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel	10-69035
20	CABLE ASSEMBLY, (6.00 Inches) Black	84-93388A1
21	LOCKWASHER, (.250) Stainless Steel	13-26992
22	NUT, (.250-20)	11-20890

Swivel Bracket and Steering Arm

Below is the parts list for Mercury V-115 DFI (2.5L) Swivel Bracket and Steering Arm:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET ASSEMBLY, Black	1499-8M0102865	1499-8710T20
2	O-RING	25-8M0214926
3	BUSHING	23-818764	23-67669
4	SPACER	23-816039
5	SEAL, Oil (LOWER)	26-87735
6	FITTING, Grease	22-8M0169589
7	BUSHING	23-821207	23-99608
8	THRUST WASHER	12-816432
9	YOKE ASSEMBLY, Bottom	86580A1
10	RING, Retaining	53-67684
11	STRIKER PLATE	8M0045383	99630 1
12	LOCKWASHER, (.375)	13-58643
13	NUT, (.375-24)	11-46335
14	SCREW, (.250-28 x .500)	10-64014
15	NOT SOLD SEPARATE, Decal-Serial Overlaminate	NSS
16	SENDER ASSEMBLY, Trim Comment: (NON DIGITAL)	8M0074846	821180A 6 (NON DIGITAL)
17	SCREW, (#10-24 x .750)	10-852368	10-56682
18	LOCKWASHER, Stainless Steel	10,13-26996
19	WASHER, (.203 x .406 x .040)	12-89302
20	SWIVEL PIN ASSEMBLY, Steering Arm Comment: (CARBON STEEL)	17-67706A55
20	SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel Comment: (STAINLESS STEEL)	17-8M0132731
21	SCREW, (.437-20 x 7.50)	10-8M0176309
22	BUMPER	8M0000516	88882 1
23	MOUNT	77326
24	WASHER	12-66921
25	WASHER	12-78688
26	NUT, (.437-20) Stainless Steel	11-8M0204653
27	LINK ROD ASSEMBLY	92876A12
28	SCREW, (.375-24 x 1.25)	10-849838	10-14000
29	NUT, (.375-24) Stainless Steel	11-8M0204726
30	WASHER, (.390 x .625 x .062) Stainless Steel	12-37828
31	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275

Throttle Lever and Shift Shaft

Below is the parts list for Mercury V-115 DFI (2.5L) Throttle Lever and Shift Shaft:

Position No.	Part Name	OEM Number	Supersedes
1	LEVER	8M0040990	850389 1
2	SCREW, (.375-16 x 1.75)	10-818165	10-55337
3	BUSHING	23-55164
4	SPACER	23-858959
5	SCREW, (.250-20 x 2.125)	10-64022
6	NUT, (.250-20)	11-64015
7	CAP, Nylon	26852
8	INSERT	42927
9	WASHER	12-35459
10	NUT, (M6)	11-401386
11	CAM Comment: (135/150)	8562211
12	CAM Comment: (115)	858847
13	BALL, Threaded Comment: (115)	8235694
14	BUSHING	23-856895	23-883392
15	SCREW, (M8 x 40)	10-81893440
16	BUSHING	23-8M0215006
17	BEARING	30-856896	30-856896 1
18	LINK	8508152
19	ROLLER	67748
20	LEVER	8502861
21	SCREW, (M5 x 16)	10-40056107
22	WASHER, (.203 x .406 x .040)	12-89302
23	LOCKWASHER, External	10,13-69432
24	BRACKET, Anchor	814283T6
25	LATCH	98889
26	DRIVE SCREW	10-42975
27	CUP	39519
28	WEAR PLATE	52100
29	LATCH	8M0036768	38279
30	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
31	NUT, (.250-28)	11-826709109	11-33825, 11-35045
32	SCREW, (.312-18 x .880) Stainless Steel	10-28782
33	GUIDE BLOCK	814284
34	SPRING	24-20099
35	LINK ROD ASSEMBLY	67073A1
36	SHIFT SHAFT ASSEMBLY Comment: (LONG)	79932A16
36	SHIFT SHAFT ASSEMBLY Comment: (X-LONG)	79932A17
37	NOT SOLD SEPARATE, Roll Pin	NSS
38	NOT SOLD SEPARATE, Shift Shaft Lever-Upper	NSS
39	BUSHING	23-26856
40	WAVE WASHER	13-29720
41	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
42	NUT, (.250-28)	11-826709109	11-33825, 11-35045
43	SWITCH	87-8M0052931	87-814281A 2
44	SCREW, (#6-32 x .875)	10-77478
45	WASHER	12-27882

Tools, Special

Below is the parts list for Mercury V-115 DFI (2.5L) Tools, Special:

Position No.	Part Name	OEM Number	Supersedes
-	INDICATOR TOOL, Backlash Comment: GEAR HOUSING	91-8M0053505	91-78473 GEAR HOUSING
-	INDICATOR TOOL, Backlash Comment: GEAR HOUSING	91-196601
-	MANDREL, Bearing Driver Cup Comment: GEAR HOUSING	91-31106T
-	DRIVER TOOL, Bearing Cup Comment: GEAR HOUSING	91-87120T
-	INSTALLATION TOOL, Bearing Comment: GEAR HOUSING	91-18601
-	PRE LOAD TOOL, Bearing Comment: GEAR HOUSING	91-14311A04
-	PULLER KIT, Bearing Comment: GEAR HOUSING	91-31229A7
-	MANDREL Comment: GEAR HOUSING	91-15755T
-	DRIVE HEAD TOOL Comment: GEAR HOUSING	91-36569T
-	DRIVER ROD TOOL, Needle Bearings Comment: GEAR HOUSING	91-37323
-	WRENCH TOOL, Driveshaft Bearing Comment: GEAR HOUSING	91-36571T
-	INSTALLER TOOL, Bearing Comment: GEAR HOUSING	91-38628T
-	NUT, (.625-18) Comment: GEAR HOUSING	11-24156
-	PLATE Comment: GEAR HOUSING	91-29310
-	WASHER Comment: GEAR HOUSING	12-34961
-	RETAINING TOOL, Bearing Comment: GEAR HOUSING	91-43506T
-	TOOL, Cover Nut Comment: GEAR HOUSING	91-73688
-	INSTALL TOOL, Cross Pin Comment: GEAR HOUSING	91-86642
-	DIAL INDICATOR TOOL Comment: GEAR HOUSING	91-58222A1
-	HOLDING TOOL, Dial Indicator Comment: GEAR HOUSING	91-89897
-	FOWARD GEAR INSTALLATION TOOL Comment: GEAR HOUSING	91-815850
-	INSTALLER TOOL, Needle Bearing - Forward Gear Comment: GEAR HOUSING	91-86943T
-	NUT TOOL, Gear Housing Cover Comment: GEAR HOUSING	91-61069T
-	GUIDE PLATE Comment: GEAR HOUSING	91-816243
-	PULLER JAWS Comment: GEAR HOUSING	91-816242
-	WASHER Comment: GEAR HOUSING	12-37429
-	MANDREL Comment: GEAR HOUSING	91-92788T
-	DRIVER, Oil Seal Comment: GEAR HOUSING	91-31108T
-	LOCATION TOOL, Pinion Comment: GEAR HOUSING	91-12349A05
-	LOCATION TOOL, Pinion Gear Comment: GEAR HOUSING	91-74776T
-	PROPELLER SHAFT Comment: GEAR HOUSING	44-93003
-	INSTALLER TOOL, Bearing Comment: GEAR HOUSING	91-816292
-	PULLER TOOL Comment: GEAR HOUSING	91-85716
-	PULLER JAW ASSEMBLY Comment: GEAR HOUSING	91-46086A1
-	PULLER PLATE Comment: GEAR HOUSING	91-37241
-	INSTALLATION TOOL, Bearing Adaptor Comment: GEAR HOUSING	91-18605A2
-	PULLER ASSEMBLY, Slide Hammer Comment: GEAR HOUSING	91-34569A1
-	REMOVAL/INSTALL TOOL, Shift Shaft Bushing Comment: GEAR HOUSING	91-31107T
-	TORQUE WRENCH, (0-150 lb-in) Comment: GEAR HOUSING	91-66274
-	ISOLATOR KIT, Battery Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	84-8M0094239	84-815366A 5 ELECTRICAL/IGNITION TRIM/TILT SYSTEM
-	CARTRIDGE Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-8226086
-	HARNESS ASSEMBLY, DDT Adaptor Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	84-822560A5
-	HOLDER TOOL Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-52344
-	PULLER KIT, Flywheel Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-849154T1
-	CABLE ASSEMBLY, DDT Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	84-825003A1
-	DIGITAL DIAGNOSTIC TESTER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-823686A2
-	MULTI METER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-99750A1
-	SWITCH ASSEMBLY Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-52024A1
-	SERVICE TACHOMETER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-59339
-	TESTER, Eight Chamber, EIGHT CHAMBER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-850439T1
-	GAP TOOL, Single Chamber, SINGLE CHAMBER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-63998A1
-	TESTER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-850439T1
-	TACH INTERFACE MODULE Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-825824A2
-	TIMING LIGHT Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-99379
-	ALIGNMENT TOOL Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-112301
-	MULTI METER Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-99750A1
-	TEST GAUGE KIT Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-52915A6
-	SPANNER WRENCH Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-74951
-	HEAT LAMP Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-63209
-	REMOVER TOOL, Trim Rod Guide Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-44487T1
-	REMOVAL TOOL, Trim Rod Comment: ELECTRICAL/IGNITION TRIM/TILT SYSTEM	91-44486A1
-	GAUGE TOOL Comment: POWERHEAD	91-29287
-	SLEEVE Comment: POWERHEAD	91-55919
-	HOLDER TOOL Comment: POWERHEAD	91-52344
-	PULLER KIT, Flywheel Comment: POWERHEAD	91-849154T1
-	LIFTING EYE Comment: POWERHEAD	91-904551
-	INSTALLER KIT Comment: POWERHEAD	91-77109A3
-	REMOVAL TOOL, Piston Pin Lock Ring Comment: POWERHEAD	91-52952T1
-	EXPANDER TOOL, Piston Ring Comment: POWERHEAD	91-24697
-	INSTALLER KIT, Piston Pin Comment: POWERHEAD	91-74607A3
-	STAND TOOL Comment: POWERHEAD	91-30591T1
-	CAP TOOL, Flywheel Puller Comment: POWERHEAD	91-24161
-	COMPRESSOR TOOL, Ring Comment: POWERHEAD	91-823237T	91-823237 POWERHEAD
-	COMPRESSOR TOOL, Ring (2.0L) Comment: POWERHEAD	91-65494T
-	COMPRESSOR TOOL (2.5L) Comment: POWERHEAD	91-818773T	91-818773 POWERHEAD
-	TORQUE WRENCH, (0-150 lb-in) Comment: POWERHEAD	91-66274
-	PULLER PLATE Comment: POWERHEAD	91-37241
-	PRESSURE GAUGE Comment: DFI	91-881834A1
-	SCREW, (M5 x 25) Comment: DFI	10-4007325
-	INSTALLATION TOOL, Seal/Teflon Ring Comment: DFI	91-8519803
-	SIZING TOOL, Seal/Teflon Ring Comment: DFI	91-8519802
-	GAUGE KIT Comment: DFI	91-881833A03	91-881833A 2 DFI
-	MULTI METER Comment: DFI	91-99750A1

Top Cowl

Below is the parts list for Mercury V-115 DFI (2.5L) Top Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY Comment: (BLACK)	4021-852552T3
1	TOP COWL ASSEMBLY Comment: (SILVER)	4021-852552T4
2	INLET, Air - Black Comment: (BLACK)	821256T03	821256T 1 (BLACK)
2	INLET, Air - Silver Comment: (SILVER)	821256T2
3	SCREW, (M6 x 16)	10-82130016
4	SOUND BLANKET KIT	854607A1
5	NOT SOLD SEPARATE, Sound Blanket-Top Back	NSS
6	NOT SOLD SEPARATE, Sound Blanket-Port	NSS
7	NOT SOLD SEPARATE, Sound Blanket-Starboard	NSS
8	NOT SOLD SEPARATE, Sound Blankek-Front	NSS
9	NOT SOLD SEPARATE, Sound Blanket-Back	NSS
10	CAP PLUG	19-823865
11	HANDLE ASSEMBLY, Black Comment: (BLACK)	831207A16	831207A14, 831207T 3, 831207T10 (BLACK)
11	HANDLE ASSEMBLY, Silver Comment: (SILVER)	831207A15	831207A 4 (SILVER)
12	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
13	SPACER	23-831214
14	WASHER, Wave	13-12134
15	CAM, Latch Shaft	8M0001081	889566, F481777, F48177
16	WASHER	12-8M0214930
17	LOCKWASHER, (.250) Stainless Steel	13-26992
18	SCREW, (M6 x 16)	10-1993716
19	BRACKET, Front	8M0036792	821249M 2
20	BUMPER, Latch	815477
21	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
22	NUT, (M6) Stainless Steel	11-401366
23	RING, Retaining	53-8237951
24	ROLLER	8M0207770
25	PIN, Roll	8155381
26	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
27	NOT SOLD SEPARATE, Decal-Counter Rotation	NSS
28	NOT SOLD SEPARATE, Decal-Break In	NSS

Transom Brackets

Below is the parts list for Mercury V-115 DFI (2.5L) Transom Brackets:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET ASSEMBLY, Transom-Starboard	3426-828334T03
2	BRACKET ASSEMBLY, Transom-Port	3425-828333T08
3	FITTING, Grease (PORT)	22-8M0169588
4	TILT TUBE	826125A1
5	NUT, (1.00-14) Brass/Nickel Plate	11-826135
6	O-RING, (.612 x .103)	25-45711
7	WASHER	13-88750
8	NUT, (.875-14)	11-826164
9	SCREW, (.500-20 x 4.500)	10-8M0149747
10	WASHER, (.530 x .870 x .105) Stainless Steel	12-8M0204665
11	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel	12-8M0204648
12	NUT, (.500-20)	11-82671117
13	LEVER ASSEMBLY, Tilt Lock	8M0115104	8M0115103, 99629T 2
14	SPRING, Tension	24-830899
15	NYLINER	23-65830
16	SPRING, Compression	24-830900
17	KNOB	99633
18	PIN, Groove	17-99615
19	PIN	17-893709	17-99617

Vapor Separator Components

Below is the parts list for Mercury V-115 DFI (2.5L) Vapor Separator Components:

Position No.	Part Name	OEM Number	Supersedes
1	COVER KIT	855432A1
2	FITTING, Straight, STRAIGHT	22-8568431
3	FITTING, (90 Degree)	22-196881
4	SEAL	26-803878
5	FITTING KIT, Pump Outlet	22-855437A2
6	NOT SOLD SEPARATE, O Ring	NSS
7	SCREW AND WASHER, (#8-32 x .750)	1395-808612	1399-5132
8	GASKET	27-855528
9	FLOAT KIT	8M6004920
10	SHAFT	F10064
11	VALVE, Needle	8M6004917
12	SCREW, (#6-32 x .187)	1395-5902
13	PUMP KIT	855427A1
14	SLEEVE	8M6000589	23-855428
15	BOWL KIT	855434A1
16	SEAL	26-8554331
17	PLUG KIT	19-855435A1
18	ELBOW	22-8554245
19	FILTER KIT	35-18458Q4
20	PROBE	8M0204710

Water Hoses

Below is the parts list for Mercury V-115 DFI (2.5L) Water Hoses:

Position No.	Part Name	OEM Number	Supersedes
1	FITTING	22-8603001
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	HOSE, (48.00 Inches Bulk) (Cut to 20 Inches)	32-77653101
4	FITTING, (.250-18) 90 Degree - Brass	22-687271
5	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
6	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
7	TUBING, (15.00 Inches Bulk) (Cut to 7 Inches)	32-85833939
8	STRAINER	35-8348084
9	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
10	TUBING, (15.00 Inches Bulk), Cut to (4-1/2 Inches)	32-85833939
11	FITTING	22-291112
12	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
13	TUBING, (32.00 Inches Bulk) (Cut to 18-1/2 Inches)	32-83476463
14	FITTING	22-881866	22-859432
15	TUBING, (44.00 Inches Bulk) (Cut to 15 Inches)(Gray)	32-85978571
16	FITTING	22-8M0207782
17	SENSOR, (0-50 PSI) (TAN)	71-8M0157742
18	CLIP, (.625)	54-858954
19	TEE, Fitting Comment: (NON-DIGITAL)	22-875207
20	TUBING, (44.00 Inches Bulk) Comment: (NON-DIGITAL)	32-85978571
21	COUPLER Comment: (NON-DIGITAL)	22-8M0214971
22	PLUG Comment: (NON-DIGITAL)	22-859732
23	FITTING, Adapter Comment: (NON-DIGITAL)	22-8M0214970
24	TUBING, (5.00 Inches) Comment: (NON-DIGITAL)	32-85978515
25	FITTING	22-858459
26	HOSE, (48.00 Inches Bulk) (Cut to 9-3/4 Inches)	32-77653101
27	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
28	FITTING, (.250-18) 90 Degree - Brass	22-687271
29	CLAMP	54-814634
30	HOSE, (48.00 Inches Bulk) (Cut to 15-1/2 Inches)	32-77653101
31	HOSE, (48.00 Inches Bulk) (Cut to 11-3/4 Inches)	32-77653101
32	FITTING, Straight (.125-27)	22-16604
-	POWERHEAD ASSEMBLY	854008T00

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
