Mercury 90 (6 CYL.) (8060545 THRU 8060694) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 90 (6 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 90 (6 CYL.) BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM	2115-8963A1
2	DRIP TRAY ASSEMBLY, BOTTOM COWL	52862A2
3	PAD, SOUND - DRIP TRAY	37940
4	SCREW, DRIP TRAY TO BOTTOM COWL (1/2")	10-48408
5	HOSE, DRIP TRAY TO BOTTOM COWL (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	BOOT, CONTROL CABLES - BOTTOM COWL	39616
7	SPACER, BOTTOM COWL (COWL FRONT COVER)	76369
8	SCREW, SPACER TO BOTTOM COWL (1/2")	10-48591
9	BOOT, FUEL CONNECTOR - BOTTOM COWL	37637
10	SUPPORT, WIRING HARNESS - BOTTOM COWL	37445
11	SCREW, SUPPORT TO BOTTOM COWL (1 3/4")	10-69029
11A	NUT, SUPPORT SCREW	11-36069
13	HOSE Comment: TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2")
14	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
15	SCREW Comment: TELL TALE NOZZLE TO BOTTOM COWL (1/2")	10-48408
16	ELBOW, TELL TALE HOSE TO CYLINDER BLOCK	22-782792
17	SHIFT SHAFT ASSEMBLY, UPPER	60304A54
18	BUSHING, SHIFT SHAFT	23-26600
20	LINK ROD ASSEMBLY	73402
21	WASHER, LINK ROD	12-35462
22	NUT, LINK ROD	11-826709109	11-33825, 11-35045
23	WASHER, WAVE - LINK ROD	13-29720
24	BRACKET, ANCHOR - CONTROL CABLES	52732A6
25	CAP, BARREL RETAINER - ANCHOR BRACKET	39519
26	LEVER, NYLON - SHIFT CABLE LOCKING	87609A1
27	PIN, LOCKING LEVER AND COVER FASTENING	17-47175
28	COVER, NYLON - SHIFT CABLE	39667
29	LINK, LOCKING LEVER TO COVER	87609A1
30	SCREW Comment: ANCHOR BRACKET TO CYLINDER BLOCK (1")	10-35386
31	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
32	GUIDE BLOCK, LINK ROD	2115-3807
33	WEAR PLATE, LINK ROD	52100
34	LATCH Comment: CONTROL CABLE FASTENING - ANCHOR BRACKET	8M0036768	38279 CONTROL CABLE FASTENING - ANCHOR BRACKET

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY (TOP)	1368-7469A1
1	CARBURETOR ASSEMBLY (CENTER/BOTTOM)	1368-7469A3
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET	1395-83181
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
10	COVER, FLOAT BOWL	1395-5680
11	JET, BOWL VENT	1395-5733
12	HOSE, ECONOMIZER	1395-5734
13	SCREW, FLOAT BOWL COVER	10-52195
14	SCREW, FLOAT BOWL COVER	1395-4804
15	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
17	LEVER, THROTTLE Comment: USED ON CENTER AND LOWER CARBURETORONLY--REPLACED WITH A-85943A1 LEVER ON UPPER CARBURETOR	8146791
18	SCREW, THROTTLE STOP LEVER	1395-6027
19	SHAFT, THROTTLE (TOP)	1395-7614
19	SHAFT, THROTTLE (CENTER/BOTTOM)	1395-7942
20	TUBE, IDLE (#)
21	SCREW, BODY (IDLE TUBE)	1395-4540
22	SHUTTER, THROTTLE	1395-5108
23	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
24	SPRING, IDLE ADJUSTMENT SCREW (#)
25	SCREW, IDLE ADJUSTMENT (#)
26	NOZZLE, MAIN (#)
27	SCREW, PLUG - MAIN NOZZLE	1395-4542
28	JET, MAIN FUEL (.074)	1399-3794
28	JET, MAIN FUEL (.072)	1395-6207
28	JET, MAIN FUEL (.070) - STANDARD	1395-6030
28	JET, MAIN FUEL (.068)	1395-6029
29	SCREW, PLUG - MAIN FUEL JET CHANNEL	1395-4541
30	GASKET, JET CHANNEL PLUG SCREW (#)
31	SPRING, THROTTLE SHAFT RETURN (#)
32	SCREW, BODY CHANNEL	1395-4543
33	WELCH PLUG, BODY CHANNEL (#)
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KITS (1 PER CARBURETOR)	1395-51091
34	GASKET, CARBURETOR FLANGE	27-481641
35	NUT, CARBURETOR MOUNTING STUD	11-64809
-	GASKET SET	27-85653A87

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 90 (6 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	54293A10
2	LOCKWASHER, SOLENOID TERMINAL	13-26996
3	NUT, SOLENOID TERMINAL	11-68219
4	SCREW, CHOKE SOLENOID (3/4")	10-25299
5	LOCKWASHER, CHOKE SOLENOID SCREW	13-8M0204647
6	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID	90548A1
7	LEVER, THROTTLE (UPPER CARBURETOR)	85943A1
8	SCREW, THROTTLE LEVER	10-60293
8A	WASHER, THROTTLE LEVER SCREW	12-74726
9	CARBURETOR ASSEMBLY (TOP)	1368-7469A1
9	CARBURETOR ASSEMBLY (CENTER/BOTTOM)	1368-7469A3
10	THROTTLE PICK-UP BRACKET ASSEMBLY	53720A2
11	SCREW, THROTTLE BRACKET MOUNTING	10-66104
12	INSERT, THROTTLE COUPLING	28-89694
17	KNOB, CHOKE ROD	90242A1
18	GROMMET, CHOKE ROD	25-20116
19	STRAP, CHOKE KNOB TO CHOKE ROD	49589
20	SCREW, STRAP TO CHOKE KNOB (5/8")	10-77137
22	ROD, CHOKE	48203
23	SCREW, STRAP TO CHOKE ROD (1/2")	10-48591
24	NUT, STRAP TO CHOKE ROD SCREW	11-46438
25	SHUTTER, CHOKE - CARBURETOR	48152
26	STUD, CARBURETOR - CHOKE SHUTTER PIVOT	16-69037
27	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
28	SCREEN ASSEMBLY, FILTER - CARBURETOR	35-57819
29	SCREW Comment: LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")	10-22523
29	SCREW Comment: UPPER CARBURETOR FILTER SCREEN TO CARB. (1")	10-23015
30	SPRING, UPPER FILTER SCREEN SCREW	24-57818
31	NUT Comment: CARBURETOR FILTER SCREEN FASTENING SCREW	11-20110
32	SPRING, CHOKE ROD TENSION	24-48230
33	STUD, CHOKE ROD SPRING TO CARBURETOR	10-657461
34	SPACER, CHOKE ROD SPRING STUD	23-32427
35	NUT, CHOKE ROD SPRING TO CARBURETOR STUD	11-8M0207775

CLAMP BRACKET AND REVERSE LOCK

Below is the parts list for Mercury 90 (6 CYL.) CLAMP BRACKET AND REVERSE LOCK:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	10-78492A1
2A	SCREW, WASHER ATTACHING	10-78495
2B	WASHER, THUMB SCREW	12-78493
3	CAP, THUMB SCREW	75043
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET Comment: (NOT USED WITH FULL POWER TRIM)	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY Comment: (NOT USED WITH FULL POWER TRIM)	17-8M0026068	17-49930A 1 (NOT USED WITH FULL POWER TRIM)
13	BOLT Comment: CLAMP BRACKET TO BOAT TRANSOM (LOWER)	10-68298
13	BOLT Comment: CLAMP BRACKET TO BOAT TRANSOM (UPPER)	10-68299
14	WASHER, CLAMP BRACKET BOLT (LOWER)	12-68410
14	WASHER, CLAMP BRACKET BOLT (UPPER)	12-68300
15	NUT, CLAMP BRACKET BOLT	11-82670912
16	PIN, UPPER SHOCK MOUNTING	55-28416
17	SPRING, COIL - SWIVEL BRACKET Comment: NOT USED WITH FULL POWER TRIM	24-94891
18	PIN, COIL SPRING MOUNTING Comment: NOT USED WITH FULL POWER TRIM	17-38311
19	SPACER, RUBBER - COIL SPRING POSITING Comment: NOT USED WITH FULL POWER TRIM	23-28688
20	TUBE Comment: CUSHION - SHOCK PIN (USED WITH FULL POWER TRIM)	63473
21	TILT LOCK ASSEMBLY (STARBOARD)	76386
22	TILT LOCK ASSEMBLY (PORT)	76385T
23	TUBE, TILT LOCK	79659
25	WASHER Comment: WAVE - TILT LOCK (STARBOARD SIDE ONLY)	13-69150
25A	OIL SEAL, SWIVEL BRACKET (TILT LOCK)	26-22734
25B	WASHER, TILT LOCK (STARBOARD SIDE ONLY)	12-76388
25C	"O" RING, TILT LOCK	25-627021
26	COTTER PIN, TILT LOCK	18-47959
27	REVERSE LOCK ASSEMBLY Comment: NOT USED WITH FULL POWER TRIM	87431
28	SPRING, REVERSE LOCK TENSION Comment: NOT USED WITH FULL POWER TRIM	24-78203A2
29	SHAFT, REVERSE LOCK PIVOT Comment: NOT USED WITH FULL POWER TRIM	56349
30	COTTER PIN, REVERSE LOCK TO SHAFT Comment: NOT USED WITH FULL POWER TRIM	18-45882
31	PIN, LOWER SHOCK MOUNTING	55-28414
32	SCREW, LOWER SHOCK PIN	10-21937
33	NUT, LOWER SHOCK PIN SCREW	11-8M0207775
34	SHOCK ABSORBER Comment: NOT USED WITH FULL POWER TRIM	55-58780A7
35	BUSHING, RUBBER - SHOCK ABSORBER (UPPER) Comment: NOT USED WITH FULL POWER TRIM	23-32171
36	BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: NOT USED WITH FULL POWER TRIM	23-28198
37	SPACER Comment: UPPER SHOCK BUSHING TO CLAMP BRACKET	23-73203
38	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
39	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
40	WASHER Comment: UPPER AND LOWER BUSHING RETAINER (OUTER)	12-69374
41	SCREW Comment: UPPER AND LOWER SHOCK MOUNTING PIN	10-69375
-	GASKET SET	27-85653A87

COWLING AND FRONT COVER

Below is the parts list for Mercury 90 (6 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY Comment: (WITHOUT DECALS)	2183-7928A3
2	KNOB, COWL FRONT COVER FASTENING	56849
3	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
4	WASHER, COVER FASTENING KNOB (PLASTIC)	12-59572
5	SPRING, TENSION - FASTENING KNOB	24-30772
6	ROLL PIN, TENSION SPRING TO KNOB	17-29077
7	STRIP, SOUND ABSORBING	31089
8	BAG, STARTER ROPE	38674
9	SEAL, SOUND ABSORBING - UPPER	35769
10	SEAL, SOUND ABSORBING - TOP	53334
11	WRAP AROUND COWL ASSEMBLY Comment: (WITHOUT DECALS)	2136-4660A4
12	COWL LATCH ASSEMBLY	46785A1
13	HOOK, COWL LATCH FASTENING	30413
14	BLANKET, SOUND ABSORBING	30021
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1
--	ADHESIVE COMPOUND, EMBLEM FASTENING	92-271091

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 90 (6 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	436-9072A1
3	BEARING, BALL - UPPER	30-62567T
4	BEARING, BALL -LOWER	30-63742T
5	CARRIER ASSEMBLY, "O" RING	54196A6
6	"O"RING, CARRIER	65800
7	CENTER MAIN BEARING ASSEMBLY	535-5397A4
8	DOWEL PIN, CENTER MAIN BEARING	17-20032
9	BEARING, NEEDLE - OUTER RACE	29-714221
10	RACE, OUTER (PAIR)	26113T
11	RING, SNAP - OUTER RACE	53-26933
12	DOWEL PIN, STEPPED	17-47246
13	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
14	NUT, BEARING CLAMPING SCREW	11-8M0207775
15	MAIN BEARING ASSEMBLY, VALVE TYPE	540-5266T5
16	DOWEL PIN, MAIN BEARING	17-20032
17	SCREW, MAIN BEARING CLAMPING	10-45775
18	NUT, MAIN BEARING CLAMPING SCREW	11-45774
19	REED SET, MATCHED - MAIN BEARING	34-56007A1
20	REED STOP, MAIN BEARING REED VALVES	34-56008
21	SCREW, REED STOP MOUNTING	10-62204
22	NUT, REED STOP SCREW	11-53153
23	PISTON AND PISTON PIN ASSEMBLY	774-9137A12
24	LOCK RING, PISTON PIN	53-857196	40-52035
25	RING, PISTON	39-78816A12
26	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
27	BEARING ASSEMBLY, CRANKPIN	31-62596A1
28	SCREW, CONNECTING ROD	10-54803
29	NUT, CONNECTING ROD SCREWS	11-49091
30	BEARING, NEEDLE - PISTON PIN	29-8M0214934
31	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
--	PISTON AND PISTON PIN ASSEMBLY Comment: .015 OVERSIZE PISTONS AND RINGS	774-9137A13
--	RING, PISTON Comment: .015 OVERSIZE PISTONS AND RINGS	39-78811A12
--	GASKET SET	27-85653A87

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	852-7741A2
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53862
3	RESTRICTION, CRANKCASE BLEED	66517
4	STUD, CARBURETOR MOUNTING (1 3/16")	16-64936
5	STUD Comment: CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8")	16-64281
6	PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK	17-43044
7	PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING	17-63779
8	STUD Comment: CYLINDER BLOCK TO DRIVE SHAFT HOUSING PLATE (4")	16-64282
9	COVER, STARTER MOTOR BRACKET - TOP	86473
10	SCREW, TOP COVER ATTACHING (2")	10-815549	10-25503, 10-77065
11	LOCKWASHER, TOP COVER SCREWS	13-8M0204647
13	COVER, STARTER MOTOR BRACKET - BOTTOM	76867
14	SCREW, BOTTOM COVER ATTACHING (1 7/8")	10-73279
15	LOCKWASHER, BOTTOM COVER SCREW	13-8M0204647
17	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-57841
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")	10-32293
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-73657
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")	10-74824
18	WASHER Comment: CRANKCASE TO CYLINDER BLOCK SCREWS	12-22753
19	NUT Comment: CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER)	11-29250
20	SCREW, CENTER MAIN BEARING LOCKING	10-20359
21	TAB WASHER, BEARING LOCKING SCREW	14-20091
25	CHECK VALVE, BLEED HOSE - UPPER	21-42866
26	HOSE, BLEED (22")	32-9938779
27	CHECK VALVE, BLEED HOSE - LOWER	21-428671
28	ELBOW, BALANCE HOSE	22-996642
29	HOSE, BALANCE - MAIN BEARING (6 1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
30	TEE, BALANCE HOSE	22-8585531
-	GASKET SET	27-85653A87

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY	1573-5239A4
2	STUD Comment: DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
5	COVER, TRIM - DRIVE SHAFT HOUSING	37417
6	SCREW, TRIM COVER TO BOTTOM COWL	10-57807
6A	GROMMET, PLASTIC - TRIM COVER SCREW	25-92012
6B	GROUND STRAP ASSEMBLY, TRIM COVER SCREW	46933A2
6C	SCREW, GROUND STRAP ATTACHING	10-62568
7	TUBE, WATER INLET	32-60897
8	TUBE, EXHAUST	78184T
8A	BOOT, TUBE MOUNT	65638
11	NUT, POWERHEAD STUDS (3/8-24)	11-69254
12	WASHER, POWERHEAD STUDS	12-20553
14	GUIDE, PUSH ROD - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	52887
15	ROD, PUSH - REVERSE LOCK Comment: NOT USED WITH FULL POWER TRIM	47558
16	NUT, JAM - PUSH ROD Comment: NOT USED WITH FULL POWER TRIM	11-69254
17	YOKE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM	47559
19	COTTER PIN, PUSH ROD PIN Comment: NOT USED WITH FULL POWER TRIM	18-25191
20	MOUNT, RUBBER - UPPER	75296
21	WASHER, RUBBER - UPPER MOUNT BOLT	12-47840
22	WASHER, UPPER MOUNT BOLT	12-31263
23	NUT, UPPER MOUNT BOLT	11-8M0204653
24	MOUNT, RUBBER - LOWER	75299
25	SCREW, LOWER MOUNT (5 1/2")	10-75284
26	WASHER, LOWER MOUNT SCREW	12-49339
27	NUT, LOWER MOUNT SCREW	11-25096
28	BUMPER, RUPPER - LOWER MOUNTING SCREW	25067
30	NUT Comment: GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
31	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
32	NUT Comment: GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
33	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
34	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	35608
35	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
36	SCREW Comment: LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING	10-29256
37	COVER, LOWER MOUNT CLAMP	35474T
38	NUT, LOWER MOUNT CLAMP COVER	11-35521
39	SCREW, COVER TO LOWER CLAMP MOUNT	10-29722

END CAP, MANIFOLD AND EXHAUST COVERS

Below is the parts list for Mercury 90 (6 CYL.) END CAP, MANIFOLD AND EXHAUST COVERS:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	852-7741A2
2	END CAP ASSEMBLY	1161-5940A2
3	OIL SEAL, END CAP	26-41953
4	"O" RING	25-47254
5	SHIM, END CAP TO CRANKCASE (.006-10)	15-73644A1
6	SCREW, END CAP MOUNTING (1")	10-812618	10-73169, 10-847568
7	END CAP ASSEMBLY, LOWER	1148-5410T1
9	OIL SEAL, END CAP	26-41953
10	"O" RING, END CAP	25-32546
11	SHIM, END CAP TO CRANKCASE (.005-10)	15-20085A1
12	SCREW, END CAP MOUNTING (1")	10-30225
13	COVER, WATER JACKET - CYLINDER BLOCK	71808
14	GASKET, WATER JACKET COVER	27-721421
15	SCREW Comment: WATER JACKET COVER TO CYLINDER BLOCK (7/8")	10-53167T
16	WASHER Comment: WATER JACKET COVER FASTENING SCREW	12-8M0042642	12-70132 WATER JACKET COVER FASTENING SCREW
17	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854952
18	PLATE, BAFFLE - EXHAUST MANIFOLD	757781
19	GASKET Comment: BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-854972
20	COVER, EXHAUST MANIFOLD	99896A1
21	SCREW, MANIFOLD COVER MOUNTING	10-53576
23	COVER, CYLINDER BLOCK	1023-8368A1
24	GASKET, CYLINDER BLOCK COVER	27-981853
25	SCREW, COVER MOUNTING (1")	10-8M0214943
27	PLUG, PIPE - CYLINDER BLOCK COVER	22-68307
28	BRACKET, MOUNT SUPPORT - CYLINDER BLOCK	37440
29	SCREW, BRACKET TO CYLINDER BLOCK (1")	10-35386
30	COVER, TRANSFER PORT	87872
31	GASKET, TRANSFER PORT COVER	27-856730	27-85653 1
32	SCREW Comment: TRANSFER PORT COVER MOUNTING (3/4")	10-28636
33	GROUND STRAP ASSEMBLY Comment: CYLINDER BLOCK COVER	46933A3
34	SCREW, GROUND STRAP ATTACHING (3/8")	10-62568
-	GASKET SET	27-85653A87

EXHAUST EXTENSION PLATE

Below is the parts list for Mercury 90 (6 CYL.) EXHAUST EXTENSION PLATE:

Position No.	Part Name	OEM Number
1	PLATE ASSEMBLY, EXHAUST EXTENSION	43289A2
2	BUSHING, NYLON - EXHAUST EXTENSION PLATE	23-27132
3	SEAL, EXHAUST EXTENSION PLATE	37918
4	STRIP, RETAINING Comment: EXHAUST EXTENSION PLATE SEAL	99358
5	SCREW Comment: SEAL AND RETAINING STRIP TO EXT. PLATE (1/2")	10-37571
6	DOWEL PIN, EXHAUST EXTENSION PLATE	17-23784
7	GASKET, POWERHEAD TO EXTENSION PLATE	27-692381
8	SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")	10-66023
10	SCREW, HOUSING PLATE TO DRIVE SHAFT HGS. (2")	10-66023
11	GASKET, PLATE TO DRIVE SHAFT HSG. PLATE	27-661021
14	SEAL, DRIVE SHAFT HOUSING PLATE	26-60898
15	PLATE ASSEMBLY, DRIVE SHAFT HOUSING	43290A4
16	SEAL, RUBBER - WATER INLET TUBE	26-38970
17	DOWL PIN, DRIVE SHAFT HOUSING PLATE	17-23784
18	GASKET Comment: MEGAPHONE TO DRIVE SHAFT HOUSING PLATE	27-62362
19	MEGAPHONE, EXHAUST	99699
20	SCREW Comment: MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8")	10-60480
21	WASHER, MEGAPHONE SCREW	12-8M0204649
22	WASHER, POWERHEAD STUD	12-20553
23	NUT, POWERHEAD STUD	11-82671013
-	GASKET SET	27-85653A87

FLYWHEEL, STARTER MOTOR AND STATOR

Below is the parts list for Mercury 90 (6 CYL.) FLYWHEEL, STARTER MOTOR AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG, FLYWHEEL	19-45907
2	NUT, FLYWHEEL ATTACHING	11-52901
3	WASHER, FLYWHEEL ATTACHING	12-33001
4	FLYWHEEL, ASSEMBLY, COMP.	248-8722A7
5	SCREW, FLYWHEEL PLATE	10-32417
6	SCREW, FLYWHEEL HUB	10-68997
7	STATOR ASSEMBLY	398-5454A17
8	SCREW, STATOR ATTACHING (7/8")	10-75840
9	TRIGGER PLATE ASSEMBLY	96455A9
10	CLAMP, TRIGGER HARNESS	54-61001
11	STARTER MOTOR	50-898265010	50-72467
12	COLLAR, STARTER MOTOR	23-8M0034918	23-8M0001391, 56703
13	SPACER, STARTER MOTOR	23-56774
14	STOP, RUBBER - STARTER MOTOR	8M0043376	68042
15	WIRE ASSEMBLY Comment: PLATE TO STARTER MOTOR (BLACK)	84-93388A1
16	SCREW, CABLE TO STARTER MOTOR	10-69035
17	WIRE ASSEMBLY Comment: SOLENOID TO STARTER MOTOR (YELLOW)	84-93389A6
18	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
19	NUT, STARTER MOTOR TERMINAL	11-64015

FUEL PUMP AND FUEL LINE ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) FUEL PUMP AND FUEL LINE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	13527A1
2	CHECK VALVE ASSEMBLY	21-8M0084277	21-30430A14
3	DIAPHRAGM ASSEMBLY	89031A3
4	GASKET, FUEL PUMP (#)
5	GASKET, PULSE CHAMBER (#)
6	GASKET, FUEL PUMP (#)
7	GASKET, CHECK VALVE TO HOUSING (#)
8	SCREEN, FUEL INLET	35-59072
9	"O" RING, FUEL INLET COVER (#)
10	GASKET, COVER ATTACHING SCREW (#)
11	RETAINER, CHECK VALVE	23004
12	SCREW, RETAINER ATTACHING	10-43725
13	BASE, FUEL PUMP	86295
14	CHAMBER, PULSE - FUEL PUMP	879901
15	COVER, FUEL INLET	35-91078A1
16	SCREW, FUEL FILTER COVER ATTACHING (5/8")	10-37370
17	SCREW, FUEL PUMP ATTACHING (1 1/2")	10-73013
18	LOCKWASHER, FUL PUMP ATTACHING SCREW	13-26996
19	FITTING, FUEL OUTLET	22-19688
20	FUEL LINE Comment: FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4")
21	CLAMP, FUEL LINE ATTACHING	54-68424
22	FITTING, ELBOW - UPPER CARBURETOR	22-19688
23	TEE, FUEL LINE	22-73318
24	FITTING, TEE - CENTER CARBURETOR	22-64706001
25	FITTING, ELBOW - LOWER CARBURETOR	22-19688
26	FUEL LINE, ADAPTOR TO FUEL PUMP (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
27	ELBOW, FUEL LINE TO ADAPTOR	22-63981
28	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
29	STEM, CHECK UNIT ADAPTOR	23069
30	SPRING, ADAPTOR STEM	24-23067T
31	"O" RING, ADAPTOR STEM	25-16524
32	CUP WASHER, ADAPTOR	30188
33	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")	10-69029
34	NUT, ADAPTOR SCREW	11-36069
-	GASKET SET	27-85653A87

GEAR HOUSING ASSEMBLY, COMPLETE

Below is the parts list for Mercury 90 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASS'Y, COMP.(SEE NOT BELOW)	1655-7333T24
1	GEAR HOUSING ASS'Y	1655-7333T23
1A	CONNECTOR ASSEMBLY, SPEEDOMETER	22-85822A10
2	DOWEL PIN, GEAR HOUSING LOCATING	17-8M0084726	17-85500
3	STUD Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING (4")	16-57921
4	STUD Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")	16-8M0133358
5	STUD Comment: WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")	16-8M0034463	16-56297 2 WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
6	STUD Comment: WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")	16-306671
7	BEARING, ROLLER - DRIVE SHAFT	31-32898T
8	DRIVE SHAFT	45-42646
9	GEAR, PINION - DRIVE SHAFT	43-68548T3
10	NUT, PINION GEAR TO DRIVE SHAFT	11-35921
11	SPACER, BALL BEARING TO BASE	23-70412
11	SHIM, BALL BEARING TO BASE	15-57007A1
12	ROLLER BEARING, DRIVE SHAFT	31-69220T
14	GASKET, WATER PUMP BASE	27-8M0214962
15	"O" RING, WATER PUMP BASE	25-8M0214923
16	WATER PUMP BASE ASSEMBLY	46-96146A5
17	OIL SEAL, WATER PUMP BASE	26-94038
18	OIL SEAL, WATER PUMP BASE	26-16977
19	DOWEL PIN Comment: WATER PUMP BASE TO WATER PUMP BODY	17-35973
20	GASKET Comment: LOWER - WATER PUMP BASE TO FACE PLATE	27-8M0090319	27-85608 1 LOWER - WATER PUMP BASE TO FACE PLATE
21	PLATE Comment: FACE - WATER PUMP BASE TO WATER PUMP BODY	8M0204677
22	GASKET Comment: UPPER - FACE PLATE TO WATER PUMP BODY	27-858524	27-85609 1, 27-85609B 1 UPPER - FACE PLATE TO WATER PUMP BODY
23	WATER PUMP BODY ASSEMBLY	46-96148T1
24	INSERT, WATER PUMP BODY	48752T
26	SEAL, RUBBER - WATER INLET TUBE	26-38970
27	IMPELLER, WATER PUMP	47-89984T4
28	KEY, IMPELLER DRIVE	28-8M0214992
29	SCREW Comment: WATER PUMP BODY TO GEAR HOUSING (2 1/4")	10-30720
30	LOCKWASHER, WATER PUMP BODY SCREW	13-26992
31	WASHER Comment: WATER PUMP BODY FASTENING SCREW AND STUD	12-8M0204649
32	NUT, WATER PUMP FASTENING SCREW	11-35888
33	WASHER, WATER PUMP BODY FASTENING STUD	12-36001
35	RING, RUBBER Comment: CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
36	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
37	SEAL, EXHAUST ELBOW	37641001
38	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
39	SHAFT ASSEMBLY, SHIFT - LOWER	76062A1
40	"E" RING, RETAINING - SHIFT SHAFT	53-29641
41	"O" RING, SHIFT SHAFT BUSHING	25-25439
42	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
43	OIL SEAL, SHIFT SHAFT BUSHING	26-8M0204708
44	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-77674
45	SPACER, LOWER - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	78036
46	CAM, REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	43308T1
47	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
47	PLUG, DRAIN (MAGNETIC)	22-8M0058389	22-67892A06
48	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
-	GASKET SET	27-85653A87
-	GEAR HOUSING ASS'Y, COMP. Comment: THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON C10 AND C12	1655-7333T24
1	GEAR HOUSING ASS'Y	1655-7333T23
49	CAM, SHIFT	760394
50	FOLLOWER, CAM	30625
51	SLIDE, CROSS PIN	30624
52	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
53	SHIM Comment: BEARING OUTER RACE TO HOUSING (.002-3-5-10)	15-30923A1
54	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
55	BEARING, ROLLER - FORWARD GEAR	31-30895T
56	FORWARD GEAR	43-68447T1
57	RATCHET, SLIDING GEAR	52-822539T	52-822539, 52-814756, 52-12777
58	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
59	SPRING, RETAINING - CROSS PIN	24-30893
60	SHAFT, PROPELLER	44-93003
61	REVERSE GEAR	43-76250T
62	WASHER, THRUST Comment: BEARING CARRIER TO GEAR HOUSING	12-76358
63	"O" RING, BEARING CARRIER	25-29976
64	BEARING CARRIER ASSEMBLY	41529T2
65	BEARING, ROLLER - BEARING CARRIER	31-30956T
66	OIL SEAL, BEARING CARRIER	26-8M0204670
67	KEY, LOCATING - BEARING CARRIER	28-30281
68	TAB WASHER, GEAR HOUSING COVER	14-52700
69	COVER, GEAR HOUSING	52699
70	TRIM TAB, GEAR HOUSING	97-31640Q4
71	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
72	WASHER Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
73	NUT Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	11-8M0204653
74	SCREW Comment: GEAR HOUSING TO DRIVE SHAFT HOUSING (1")	10-65210
75	THRUST HUB	13191Q01
76	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
77	NUT, PROPELLER	11-52707Q1
-	GASKET SET	27-85653A87

HYDRAULIC PUMP AND CONTROL VALVE

Below is the parts list for Mercury 90 (6 CYL.) HYDRAULIC PUMP AND CONTROL VALVE:

Position No.	Part Name	OEM Number
1	HYDRAULIC PUMP ASSEMBLY Comment: SEE C14 FOR BREAKDOWN	92975A32
2	"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE	25-48171
3	SCREW, FILLER - HYDRAULIC PUMP	10-79953Q04
4	WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW	12-191833
5	SCREW, VENT - HYDRAULIC PUMP	10-62269
7	BATTERY LEAD (POSITIVE)	32979
8	BATTERY LEAD (NEGATIVE)	32988
9	PLATE, MANIFOLD	45336
10	CONTROL VALVE ASSEMBLY	45197A2
--	"O"RING Comment: PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)	25-48171
11	"O" RING Comment: CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)	25-45254
12	"O"RING Comment: CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)	25-48171
13	"O"RING Comment: CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)	25-45253
14	SCREW Comment: VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")	10-56500
15	LOCKWASHER Comment: CONTROL VALVE AND MANIFOLD PLATE SCREW	13-26992
17	PLUG, CONTROL VALVE (1/2-20")	22-46008
18	CONNECTOR AND HARNESS	84-74023A1
22	BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT	45377T
23	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1")	10-35386
24	LOCKWASHER, MOUNTING BRACKET SCREW	13-39107
25	NUT, MOUNTING BRACKET SCREW	11-21908
26	BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")	10-68298
27	NUT, HYDRAULIC PUMP BOLT	11-82670912
28	STARTER SOLENOID	89-853654A1
29	LOCKWASHER Comment: STARTER SOLENOID TERMINAL	13-26996,10,10
30	NUT, STARTER SOLENOID TERMINAL	10,11-68219
31	LOCKWASHER Comment: STARTER SOLENOID TERMINAL (5/16")	13-8M0204647
32	NUT, STARTER SOLENOID TERMINAL (5/16")	11-8M0204668
33	BOOT, RUBBER - STARTER SOLENOID TERMINAL	46265
34	BRACKET, MOUNTING - STARTER SOLENOID	74407T
35	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")	10-21140
36	LOCKWASHER, MOUNTING BRACKET SCREW	13-26992
37	NUT Comment: MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT	11-24656
38	BUMPER, RUBBER - SOLENOID BRACKET	269011
39	BATTERY LEAD (POSITIVE)	84-79139A2
39	BATTERY LEAD (NEGATIVE)	55992
40	BRACKET, MOUNTING - STARTER SOLENOID	74406
41	SCREW Comment: MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")	10-69028
42	LOCKWASHER, MOUNTING BRACKET SCREW	13-26992
43	SCREW Comment: STARTER SOLENOID TO MOUNTING BRACKET (5/8")	10-34290
44	LOCKWASHER, STARTER SOLENOID SCREW	13-26992
45	NUT, STARTER SOLENOID SCREW	11-21825

HYDRAULIC PUMP ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) HYDRAULIC PUMP ASSEMBLY:

Position No.	Part Name	OEM Number
-	HYDRAULIC PUMP ASSEMBLY, COMPLETE	92975A32
1	"O" RING, HYDRAULIC PUMP	25-48171
2	VALVE BODY AND GEAR ASSEMBLY	392-7734
3	CAN, VALVE BODY	392-2618
4	SCREW, VALVE BODY TO RESERVIOR	10-20411
5	SEAL, RESERVOIR TO VALVE BODY AND GEAR	392-7735
6	RESEVOIR ASSEMBLY	392-2939
7	SCREW, VENT - HYDRAULIC PUMP	10-62269
8	SCREW, FILLER - HYDRALIC PUMP	10-79953Q04
9	WASHER, SEALING - FILLER SCREW	12-191833
10	WASHER, THRUST - ARMATURE	392-2623
11	ARMATURE, FIELD AND FRAME	392-2943
12	FIELD AND FRAME ASSEMBLY	392-2942
13	BALL, COMMUTATOR END PLATE	392-2944
14	PLATE ASSEMBLY, COMMUTATOR END	392-2940
15	BRUSH SET, COMMUTATOR END PLATE	392-8989
16	SPRING SET, BRUSH TENSION	392-2529
17	BOLT SET Comment: THUR - PLATE AND FRAME TO RESERVIOR	392-2938
18	LOCKWASHER, THRU BOLT	13-26996

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 90 (6 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC 90 PARTS LIST	90-86153
-	GASKET SET	27-85653A87
-	DECAL SET	37-13137A87

POWER TRIM CYLINDER REPAIR KITS

Below is the parts list for Mercury 90 (6 CYL.) POWER TRIM CYLINDER REPAIR KITS:

Position No.	Part Name	OEM Number
	REPAIR KIT	64507A1
1	"O" RING (1 1/2" X 1 1/5" X 1/16") (#N.S.S.)
2	"O" RING (3/4" X 15/16" X 1/8") (#N.S.S.)
3	"O" RING (5/8" X 3/4" X 1/16") (#N.S.S.)
4	"O" RING (1 1/4" X 1 7/16" X 1/16") (#N.S.S.)
5	"O" RING (7/32" X 11/32" X 1/16") (#N.S.S.)
6	"O" RING (1 5/8" X 1 13/16" X 1/8") (#N.S.S.)
7	"O" RING (1 5/16" X 1 1/2" X 1/8") (#N.S.S.)
8	"O" RING (1 7/8: X 2: X 1/8") (#N.S.S.)
9	"O" RING (1 3/4" X 1 15/16" X 1/8:) (#N.S.S.)
10	SEAL, SLIPPER - PISTON (#N.S.S.)
11	PISTON, ROD - HEAVY DUTY (#N.S.S.)
12	RETAINER ASSEMBLY, PISTON	64505A1
13	ROD, SCRAPER (#N.S.S.)
14	RETAINER, SCRAPER (#N.S.S.)

PROPELLERS (RIGHT HAND ROTATION)

Below is the parts list for Mercury 90 (6 CYL.) PROPELLERS (RIGHT HAND ROTATION):

Position No.	Part Name	OEM Number
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11") Comment: 3 BLADES	48-77338A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES	48-77340A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES	48-77342A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES	48-77344A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19") Comment: 3 BLADES	48-77346A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21") Comment: 3 BLADES	48-77348A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23") Comment: 3 BLADES	48-77350A45

SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 90 (6 CYL.) SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number
1	SWIVEL BRACKET ASSEMBLY	1482-6386A4
2	BUSHING, REVERSE LOCK PIVOT SHAFT	23-69132
3	BUSHING, SWIVEL BRACKET	23-69341
4	WASHER, SWIVEL PIN - UPPER	12-69342
5	OIL SEAL, SWIVEL BRACKET	26-37448
6	SCREW, DRIVE - SWIVEL BRACKET	10-47828
7	FITTING, GREASE - SWIVEL BRACKET	22-8M0169589
10	WASHER, SWIVEL PIN - LOWER	12-37429
11	STRAP STOP Comment: DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
12	SCREW Comment: STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")	10-28200
13	NUT, STRAP STOP FASTENING SCREW	11-25269
14	SWIVEL PIN AND ARM ASSEMBLY	17-73593A2
15	YOKE, BOTTOM	73984T
16A	RETAINING RING, BOTTOM YOKE ATTACHING	53-73591
17	BUMPER, STEERING ARM	28203
18	BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")	10-49554
19	NUT, STEERING ARM BOLT FASTENING	11-8M0204653

THROTTLE LEVER AND LINK RODS

Below is the parts list for Mercury 90 (6 CYL.) THROTTLE LEVER AND LINK RODS:

Position No.	Part Name	OEM Number	Supersedes
1	LEVER, THROTTLE	79900
2	SCREW, THROTTLE LEVER TO EXHAUST COVER	10-31830
3	WASHER, THROTTLE LEVER SCREW	12-8M0042641	12-29395
4	BUSHING, THROTTLE LEVER SCREW	23-45818
5	NUT, THROTTLE LEVER SCREW	11-8M0204726
6	SWIVEL, THROTTLE LEVER TO THROTTLE CABLE	37587
7	NUT, THROTTLE CABLE TO SWIVEL	11-8M0204726
8	SCREW, ADJUSTING - THROTTLE LEVER	10-75168
9	NUT, ADJUSTING SCREW	11-29598
10	CAP, NYLON - ADJUSTING SCREW	52023
11	SWIVEL ASSEMBLY, THROTTLE LEVER	77013A1
12	BUSHING, SWIVEL	23-26856
13	WAHSER, SWIVEL	12-73288
14	WAVE WASHER, SWIVEL	13-29402
15	NUT, SWIVEL TO THROTTLE LEVER	11-45774
16	LINK ROD, THROTTLE	85300
17	SWIVEL, LINK ROD TO THROTTLE CAM	23-74213
18	THROTTLE CAM	85441
19	HOUSING, THROTTLE - UPPER	85082
20	SPRING, TORSION - SHAFT	24-95721
21	WASHER, PLASTIC - THROTTLE CAM	12-85303
22	HOUSING, THROTTLE - LOWER	79903F1
23	WAVE WASHER, SHAFT	13-86498
24	SHAFT, THROTTLE AND SPARK ADVANCE	87937
25	SCREW, THROTTLE HOUSING	10-28239
26	WASHER, THROTTLE HOUSING SCREW	12-35462
27	NUT, THROTTLE HOUSING SCREW	11-8267088
28	SCREW, ADJUSTING - LOWER HOUSING (2 1/4")	10-75168
29	NUT, ADJUSTING SCREW	11-29598
30	CAP, NYLON - ADJUSTING SCREW	52023
31	SCREW, ADJUSTING - LOWER HOUSING (1 1/2")	10-25158
32	NUT, ADJUSTING SCREW	11-68219
33	CAP, NYLON - ADJUSTING SCREW	48039
34	SWIVEL ASSEMBLY, SPARK LINK	77013A1
35	BUSHING, SWIVEL	23-26856
36	WASHER, SWIVEL	12-73288
37	WAVE WASHER, SWIVEL	13-29402
38	NUT, SWIVEL	11-45774
39	SPARK LINK	85301
40	BARREL, SPARK LINK TO TRIGGER	74897T

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 90 (6 CYL.) TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	COWL, TOP (WITHOUT DECALS)	2114-7934T
2	RETAINER ASSEMBLY, TOP COWL	52733A9
3	PAD, BUMPER - TOP COWL RETAINER	35496
4	SCREW, RETAINER TO TOP COWL (1 1/4")	10-74824
5	LOCKWASHER, RETAINER TO TOP COWL SCREW	13-39107
6	SHIELD, TOP COWL - REAR	76370
7	SCREW, SHIELD TO TOP COWL (5/8")	10-37370
8	LOCKWASHER, SHIELD SCREW	13-37371
9	ROPE, STARTER (FOR MANUAL STARTING ONLY)	47341A11
10	HINGE, COWL LATCH - TOP COWL	52739
11	LEVER, COWL LATCH HINGE	94918F1
12	PIN, ROLL - COWL LATCH LEVER TO HINGE	17-58998
13	HOOK, TOP COWL LATCH - REAR	55455
14	SCREW, REAR HOOK TO TOP COWL (7/8")	10-22956
15	LOCKWASHER, REAR HOOK MOUNTING SCREW	13-26992
16	FRAME, TOP COWL SUPPORT	79897A4
18	MOUNT, RUBBER - TOP COWL FRAME	90435
18	MOUNT, RUBBER - TOP COWL FRAME Comment: (HEAVY DUTY)	46096
19	NUT, RUBBER MOUNT TO TOP COWL FRAME	11-35888
20	BRACKET, TOP COWL SUPPORT - REAR	86472
21	MOUNT, RUBBER - REAR SUPPORT BRACKET	31014
22	LOCKWASHER Comment: RUBBER MOUNT TO REAR SUPPORT BRACKET	13-26992
23	NUT Comment: RUBBBER MOUNT TO REAR SUPPORT BRACKET	11-29598
24	SCREW, REAR BRACKET TO FRAME (1")	10-37562
26	LOCKWASHER, REAR BRACKET SCREW	13-8M0204647
27	SCREW, REAR BRACKET TO BOTTOM COWL (1")	10-37562
28	LOCKWASHER, REAR SUPPORT BRACKET SCREW	13-8M0204647
29	BRACKET ASSEMBLY, TOP COWL - FRONT	42706A1
30	SCREW Comment: FRONT BRACDET TO BOTTOM COWL (1 1/4")	10-60411
31	LOCKWASHER Comment: FRONT SUPPORT BRACKET SCREW	13-8M0204647
32	SCREW Comment: FRONT BRACKET TO TOP COWL FRAME (1 1/2")	10-60411
33	LOCKWASHER, FRONT SUPPORT BRACKET SCREW	13-8M0204647
34	MOUNT, RUBBER FRONT SUPPORT BRACKET	37640
35	LOCKWASHER Comment: RUBBER MOUNT TO FRONT SUPPORT BRACKET	13-8M0204647
36	NUT Comment: RUBBER MOUNT TO FRONT SUPPORT BRACKET	11-28770
37	POINTER, TIMING	87991
38	SCREW, TIMING POINTER ATTACHING (3/4")	10-28636
39	WASHER, TIMING POINTER SCREW	12-35462

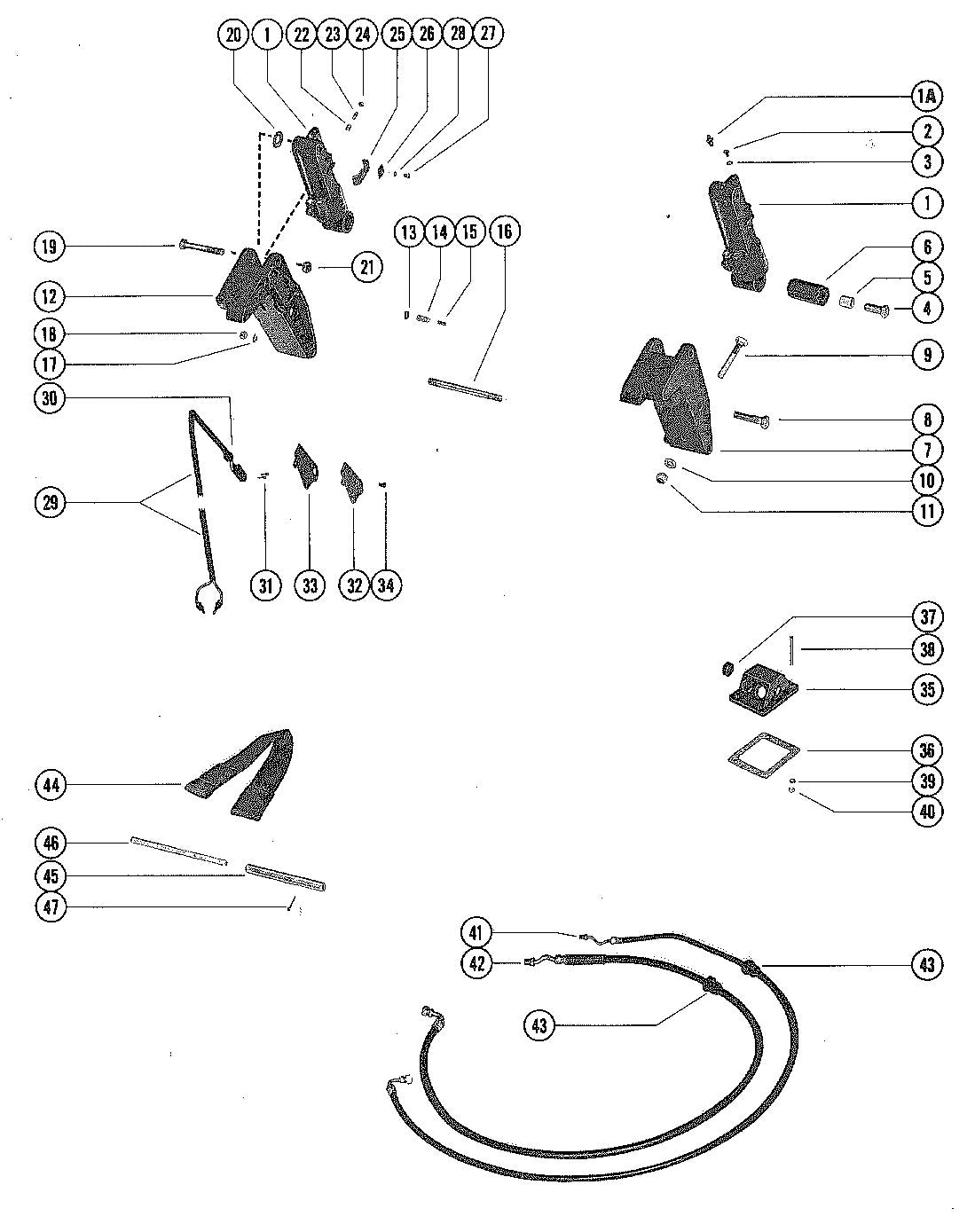

TRIM CYLINDERS AND HYDRAULIC HOSES

Below is the parts list for Mercury 90 (6 CYL.) TRIM CYLINDERS AND HYDRAULIC HOSES:

Position No.	Part Name	OEM Number	Supersedes
1	TRIM CYLINDER ASSEMBLY	92194A14
1A	GREASE FITTING	22-8M0169589
2	SCREW, BLEED - SHOCK CYLINDER	10-45265
3	"O" RING, SCHOCK CYLINDER BLEED SCREW	25-45016
4	SCREW Comment: SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")	10-45264
5	SPACER, SHOCK CYLINDER - LOWER	23-45280
6	BUSHING, RUBBER - SHOCK CYLINDER	23-94907A1
7	BRACKET, MOUNTING - SHOCK CYLINDER (PORT)	89108A3
8	SCREW Comment: MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")	10-45263
9	BOLT Comment: MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
10	WASHER, MOUNTING BRACKET BOLT	12-68410
11	NUT, MOUNTING BRACKET BOLT	11-82670912
12	BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)	89807A1
13	OIL SEAL, STARBOARD MOUNTING BRACKET	26-70608
14	PLUNGER, LIMIT SWITCH ACTUATING	89290
15	SPRING, TENSION - LIMIT SWITCH PLUNGER	24-95881
16	STUD, MOUNTING BRACKET AND CLAMP BRACKET	16-45282
17	LOCKWASHER Comment: MOUNTING BRACKET TO CLAMP BRACKET STUD	13-8M0204647
18	NUT Comment: MOUNTING BRACKET TO CLAMP BRACKET STUD	11-28770
19	SCREW Comment: SCHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")	10-45328
20	WASHER Comment: SHOCK CYLINDER SCREW (STARBOARD ONLY)	12-37807
21	NUT, SHOCK CYLINDER SCREW	11-20696
22	SPRING, TENSION - ADJUSTING STUD	24-24390
23	STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16")	16-8M0034461	16-21085
24	NUT, JAM - LIMIT SWITCH ADJUSTING STUD	11-859124	11-45812
25	CAM, LIMIT SWITCH ADJUSTING STUD	99897
26	PLATE, RETAINING - LIMIT SWITCH CAM	86967
27	SCREW Comment: RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8")	10-68513
28	LOCKWASHER, RETAINING PLATE AND CAM SCREW	13-26996
29	SWITCH ASSEMBLY, CUT-OUT LIMIT	45326A2
30	BUSHING, RUBBER - CUT-OUT LIMIT SWITCH	23-45354
31	SCREW Comment: CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")	10-47255
32	COVER, LIMIT SWITCH	45287
33	GASKET, LIMIT SWITCH COVER	27-45275
34	SCREW Comment: LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")	10-24942
35	COVER, INLET - TRANSOM	87774A1
36	GASKET, INLET COVER	27-45274
37	GROMMET, RUBBER - INLET COVER	25-45507
38	SCREW, INLET COVER TO BOAT (2")	10-32866
39	WASHER, INLET COVER SCREW	12-20878
40	NUT, INLET COVER SCREW	11-8M0204718
41	HOSE Comment: TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.	32-88005
42	HOSE Comment: LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.	32-88006
43	GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE	23-35977
44	TILT STOP	73519A1
45	TUBE, MOUNTING - TILT STOP	69259
46	PIN, MOUNTING TUBE	77669
47	COTTER PIN, MOUNTING TUBE PIN	18-36002

WIRING HARNESS, SWITCH BOX AND IGNITION COIL

Below is the parts list for Mercury 90 (6 CYL.) WIRING HARNESS, SWITCH BOX AND IGNITION COIL:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE, ELECTRICAL MOUNTING	89748T
2	SCREW, PLATE TO CYLINDER BLOCK (1 1/2")	10-86885
2	SCREW, PLATE TO CYLINDER BLOCK (3/4")	10-28636
2	SCREW, PLATE TO CYLINDER BLOCK (1")	10-28667
3	WASHER, PLATE SCREW	12-8M0204649
4	SWITCH ASSEMBLY, MERCURY	87-33386A3
5	SCREW, MERCURY SWITCH TO PLATE (5/8")	10-25764
6	NUT, WIRE TO MERCURY SWITCH	11-45076
7	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
8	SCREW, RECTIFIER TO IGNITION PLATE (5/8")	10-25764
9	NUT, RECTIFIER TERMINALS	11-45076
10	SOLENOID, STARTER	89-853654A1
11	SCREW, STARTER SOLENOID TO PLATE (1/2")	10-38601
12	LOCKWASHER, STARTER SOLENOID SCREW	13-26992
13	LOCKWASHER, SOLENOID TERMINALS	10,13-26996
14	NUT, SOLENOID TERMINALS (10-32)	11-68219
15	LOCKWASHER, SOLENOID TERMINALS (5/16")	13-8M0204647
16	NUT, SOLENOID TERMINALS (5/16 - 18)	11-8M0204668
17	WIRING HARNESS, INTERNAL	84-85532A1
18	CLAMP, WIRING HARNESS TO BOTTOM COWL	54-76368
19	SCREW Comment: WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")	10-690201
20	LOCKWASHER, WIRING HARNESS CLAMP SCREW	13-26996
21	WASHER, WIRING HARNESS CLAMP SCREW	12-30164
22	SPRING, GARTER - INTERNAL WIRING HARNESS	24-28975
23	SCREW, GROUND WIRE TO BOTTOM COWL	10-98256
24	LOCKWASHER, GROUND WIRE SCREW	13-26992
25	SWITCH BOX ASSEMBLY	332-7778A12
26	SCREW, SWITCH BOX TO IGNITION COIL (7/8")	10-26251
27	CABLE ASS'Y Comment: SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)	84-62310A3
28	NUT, SWITCH BOX TERMINAL	11-45076
29	COIL ASSEMBLY, IGNITION	339-832757A4
30	COVER, IGNITION COIL	43542
31	SCREW, IGNITION COIL COVER (2")	10-88856
32	NUT, IGNITION COIL TERMINAL	11-45076
33	CABLE ASSEMBLY, IGNITION COIL (BLACK)	84-60466A1
34	CABLE, HIGH TENSION	84-813715A1
35	BOOT, HIGH TENSION CABLE	332-2854T01
36	PROTECTOR, HIGH TENSION CABLE	85-63709A1
37	SPARK PLUG (CHAMPION #L76-V)	33-896329827	33-827C
38	HARNESS ASSEMBLY Comment: COIL TO SWITCH BOX (#2,4 AND 6)	84-85537A2
38	HARNESS ASSEMBLY Comment: COIL TO SWITCH BOX (#1,3 AND 5)	84-85537A1
39	CLIP, HARNESS TO COIL COVER	54-63153
40	INSULATOR, STARTER SOLENOID	85-78866

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
