Mercury 800 (4 CYL. ), 80 (4 CYL.) (7146213 THRU 7208572) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 800 (4 CYL. ), 80 (4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM	2158-8708T
2	COVER, AIR INLET	74303
3	SCREW, (#10-16 x .375), COVER TO BOTTOM COWL	10-62568
3A	WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW	12-30164
4	GASKET, BOTTOM COWL	27-73646
5	BOOT, CONTROL CABLES - BOTTOM COWL	39616
6	BOOT, FUEL CONNECTOR - BOTTOM COWL	37637
10	HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (14-3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
11	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
12	SCREW, (#10-16 x .500), TELL TALE NOZZLE TO BOTTOM COWL	10-48408
13	ELBOW, TELL TALE HOSE TO CYLINDER BLOCK	22-782792
14	SHIFT SHAFT ASSEMBLY, UPPER Comment: (SHORT SHAFT)	60304A55
14	SHIFT SHAFT ASSEMBLY, UPPER Comment: (LONG SHAFT)	60304A54
16	BUSHING, SHIFT SHAFT	23-26856
17	SHIFT LINK	73402
18	WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD (SHIFT LEVER END)	12-35462
19	NUT, LINK ROD	11-36069
20	WAVE WASHER, LINK ROD	13-29720
21	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
22	GUIDE BLOCK, LINK ROD	37896
23	BRACKET, ANCHOR - CONTROL CABLES	52732A6
24	CUP, BARREL RETAINER - ANCHOR	39519
25	LEVER, NYLON - SHIFT CABLE LOCKING	87609A1
26	PIN, LOCKING LEVER AND COVER FASTENING	17-47175
27	COVER, NYLON - SHIFT CABLE	39667
28	LINK, LOCKING LEVER TO COVER	87609A1
29	SCREW, (.312-18 x 1.00), ANCHOR BRACKET TO CYLINDER BLOCK	10-35386
30	WEAR PLATE, LINK ROD	52100
31	LATCH Comment: CONTROL CABLE FASTENING - ANCHOR BRACKET	8M0036768	38279 CONTROL CABLE FASTENING - ANCHOR BRACKET
-	GASKET SET	27-73645A87

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY (TOP) Comment: STAMPED WM-12	1379-6071A57
1	CARBURETOR ASSEMBLY (BOTTOM) Comment: STAMPED WM-12	1379-6071A58
1	CARBURETOR ASSEMBLY (TOP) Comment: STAMPED WM-14	1379-6071A57
1	CARBURETOR ASSEMBLY (BOTTOM) Comment: STAMPED WM-14	1379-6071A58
2	JET, (.072), VENT BOWL Comment: (WM-10)	1395-6207
2	JET, Main (.092), VENT BOWL Comment: (WM-12) (WM-14)	1395-5733
3	NEEDLE, Inlet	1395-83181
4	NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT	NSS
5	VENTURI ASSEMBLY Comment: (WM-10)	1395-6685
5	VENTURI, Plastic Comment: (WM-12) (WM-14)	52106A1
6	NOT SOLD SEPARATE, NOZZLE	NSS
7	NOT SOLD SEPARATE, IDLE NEEDLE	NSS
8	NOT SOLD SEPARATE, SPRING, IDLE MIXTURE	NSS
9	NOT SOLD SEPARATE, FLOAT PIN	NSS
10	NOT SOLD SEPARATE, FLOAT LEVER	NSS
11	FLOAT	19273
12	BOWL, Fuel	1395-6488
13	NOT SOLD SEPARATE, GASKET, FUEL BOWL	NSS
14	NOT SOLD SEPARATE, SCREW, FUEL BOWL	NSS
15	PLUG, MAIN JET	1395-6199
16	JET, Main (.090) Comment: (WM-10)	1395-6247
16	JET, (.082), MAIN Comment: (WM-12) (WM-14)	1399-3518
17	NOT SOLD SEPARATE, GASKET, MAIN JET PLUG	NSS
18	NOT SOLD SEPARATE, SCREEN, FUEL INLET	NSS
19	NOT SOLD SEPARATE, WELCH PLUG (9/16")	NSS
20	SHAFT, Throttle (TOP)	1395-4807
20	SHAFT, THROTTLE (BOTTOM)	1395-7942
21	VALVE, THROTTLE Comment: (WM-10)	1395-6196
21	VALVE, THROTTLE Comment: (WM-12) (WM-14)	1395-7639
22	NOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFT	NSS
23	SEAL, THROTTLE SHAFT	1395-6204
24	WASHER, THROTTLE SHAFT	1395-6203
25	NOT SOLD SEPARATE, SPRING, THROTTLE RETURN	NSS
26	VALVE ASSEMBLY, ENRICHMENT	1395-6198
27	NOT SOLD SEPARATE, SCREW, ENRICHMENT BRACKET	NSS
28	NOT SOLD SEPARATE, WELCH PLUG (7/16")	NSS
29	GASKET, CARBURETOR	27-733771
-	GASKET KIT	1395-6200
-	REPAIR PARTS KIT Comment: (WM-10)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-10)
-	REPAIR PARTS KIT Comment: (WM-12)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-12)
-	REPAIR PARTS KIT Comment: (WM-14)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-14)
-	GASKET SET	27-73645A87

CARBURETOR LINKAGE

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) CARBURETOR LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	SOLENOID ASSEMBLY, Choke	54293A10
2	SCREW, (.312-18 x .750)	10-824941	10-59645, 10-73274
3	LOCKWASHER, (.312), CHOKE SOLENOID SCREW	13-8M0204647
5	LOCKWASHER, Stainless Steel, CHOKE SOLENOID TERMINAL	10,13-26996
6	NUT, Stainless Steel, CHOKE SOLENOID TERMINAL	10-32,11-68219
7	PLUNGER ASSEMBLY	89008A2
8	ROD, Choke	73400
9	KNOB ASSEMBLY	90242A1
10	SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB	10-77137
11	GROMMET, CHOKE KNOB	25-20116
12	WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)	84-74263
13	SCREW, (#10-16 x .375), WIRE TO CHOKE ROD	10-62568
14	CARBURETOR ASSEMBLY (TOP) Comment: STAMPED WM-12	1379-6071A57
14	CARBURETOR ASSEMBLY (TOP) Comment: STAMPED WM-14	1379-6071A57
14A	CARBURETOR ASSEMBLY (BOTTOM) Comment: STAMPED WM-12	1379-6071A58
14A	CARBURETOR ASSEMBLY (BOTTOM) Comment: STAMPED WM-14	1379-6071A58
15	FITTING, CARBURETOR	22-19688
16	SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE	10-52743
17	COUPLING ASSEMBLY, LOWER CARBURETOR	53720A2
18	KEY, COUPLING	28-89694
19	SCREW, (#8-32 x .790), COUPLING TO CARBURETOR	10-66104
20	WASHER, COUPLING SCREW	12-74726
21	ACTUATOR, THROTTLE (UPPER CARBURETOR)	73847
22	SCREW, (#5-40 x .500), ACTUATOR TO UPPER CARBURETOR	10-60293
23	PLATE, CARBURETOR	73408
24	GASKET, CARBURETOR PLATE	27-73398
25	GASKET, CARBURETOR PLATE TO CARBURETOR	27-76952
26	SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR	10-28635
27	SEAL, CARBURETOR PLATE	73647
-	GASKET SET	27-73645A87

CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT):

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A2
2	THUMB SCREW ASSEMBLY	10-78492A1
3	SCREW, (.312-24 x .680), THUMB SCREW	10-78495
4	WASHER, THUMB SCREW	12-78493
5	CAP, THUMB SCREW	75043
6	TILT TUBE	8M0041936	8M0035074, 883067, 30664 2, 74528
7	WASHER, TILT TUBE	13-89634
8	NUT, (.875-14), TILT TUBE	11-858869	11-30499
9	CAP, PLASTIC - TILT TUBE	53078
10	SPACER, CLAMP BRACKET STUD	23-59624
11	STUD Comment: NON POWER TRIM	16-59625
12	WASHER, CLAMP BRACKET STUD	12-36001
13	LOCKWASHER, (.312), CLAMP BRACKET STUD	13-8M0204647
14	NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD	11-28770
15	PIN ASSEMBLY, Tilt Lock Comment: NON POWER TRIM	17-8M0026068	17-49930A 1 NON POWER TRIM
16	BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM	10-68298
17	WASHER, CLAMP BRACKET BOLT	12-68410
16	SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO TRANSOM	10-68299
17	WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT	12-68300
18	NUT, CLAMP BRACKET BOLT	11-82671112
19	PIN, UPPER SHOCK MOUNTING	55-28416
20	TILT LOCK ASSEMBLY, STARBOARD	76386
21	TILT LOCK ASSEMBLY, PORT	76385T
22	O-RING, (.301 x .070), TILT LOCK	25-627021
23	WASHER, TILT LOCK	12-76388
24	SEAL, Oil, SWIVEL BRACKET (TILT LOCK)	26-22734
25	COUPLING, TILT LOCK	79659
26	COTTER PIN, TILT LOCK COUPLING	18-47959
27	LOCK ASSEMBLY, Reverse Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	87431
27	LOCK ASSEMBLY, Reverse Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	14664A3
28	SPRING Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	24-78203A2
28	SPRING Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	24-78203A2
29	SHAFT, REVERSE LOCK PIVOT Comment: NON POWER TRIM	56349
30	BUSHING, PIVOT SHAFT Comment: NON POWER TRIM	23-69132
31	COTTER PIN, LOCK TO SHAFT Comment: NON POWER TRIM	18-45882
32	PIN, LOWER SHOCK MOUNTING	55-696531
33	SHOCK ABSORBER MERCURY Comment: NON POWER TRIM	55-58780A7
34	BUSHING, UPPER SHOCK BUSHING TO BRACKET Comment: NON POWER TRIM	23-73203
35	WASHER, UPPER BUSHING RETAINER (INNER) Comment: NON POWER TRIM	12-28196
36	BUSHING, RUBBER - SHOCK ABSORBER (UPPER) Comment: NON POWER TRIM	23-32171
37	BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: NON POWER TRIM	23-28198
38	WASHER, UPPER/LOWER SHOCK PIN (LOWER) Comment: NON POWER TRIM	12-69374
39	SCREW, UPPER AND LOWER SHOCK PIN Comment: NON POWER TRIM	10-69375
-	GASKET SET	27-73645A87

COWLING AND FRONT COVER

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COVER ASSEMBLY, Cowl - Front (W/O DECALS) Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	2182-7927A8
1	FRONT COVER ASSEMBLY (W/O DECALS) Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	2182-7927A8
2	KNOB, FRONT VOER Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	73786
2	KNOB, FRONT COVER Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	56849
3	WASHER, COVER KNOB (RUBBER)	12-30771
4	WASHER, COVER KNOB (STEEL)	12-75246
5	SPRING, TENSION - COVER KNOB	24-30772
6	PIN, Roll, TENSION SPRING TO KNOB	17-29077
7	ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER (FOR MANUAL STARTING ONLY)	47341A11
8	SEAL, SOUND ABSORBING Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	71040
9	PAD, SOUND ABSORBING Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	94923
10	BLANKET, SOUND ABSORBING	38674
11	SEAL, SOUND - UPPER Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	54143
12	WRAP AROUND COWL ASSEMBLY Comment: (WITHOUT DECALS)	2119-3248A16
13	LATCH ASSEMBLY, Cowl	46785A1
14	HOOK, COWL LATCH	30413

CRANKSHAFT, PISTON AND CONNECTING ROD

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) CRANKSHAFT, PISTON AND CONNECTING ROD:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	440-9074A2
2	BEARING, Ball, UPPER	30-62567T
3	BEARING, Ball, LOWER	30-63742T
4	CARRIER ASSEMBLY	54196A6
5	PACKING, CARRIER	65800
6	BEARING ASSEMBLY, Main (VALVE TYPE)	540-5266T5
7	PIN, Dowel, MAIN BEARING	17-20032
8	SCREW, (#12-28 x .560) , MAIN BEARING CLAMPING	10-45775
9	NUT, MAIN BEARING CLAMPING SCREW	11-45774
10	REED SET, MATCHED - MAIN BEARING	34-56007A1
11	STOP, Reed, MAIN BEARING REED VALVES	34-56008
12	SCREW, REED STOP MOUNTING	10-62204
13	NUT, REED STOP MOUNTING SCREW	11-53153
14	BEARING ASSEMBLY, Center Main	535-5397A4
15	PIN, Dowel, CENTER MAIN BEARING	17-20032
16	BEARING, Needle	29-714221
17	RACE, OUTER (PAIR)	26113T
18	RING, Snap, OUTER RACE CLAMPING	53-26933
19	SCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPING	10-22968
20	NUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREW	11-8M0207775
21	PIN, Dowel, STEPPED	17-47246
22	PISTON ASSEMBLY	774-9137A12
22	PISTON ASSEMBLY Comment: (.015 O.S.)	774-9137A13
22	PISTON ASSEMBLY Comment: (.030 O.S.)	774-9137A14
23	RING, Lock, PISTON PIN	53-857196	40-52035
24	RING Comment: (STANDARD)	39-78816A12
24	RING SET, Piston - .015 Oversize	39-78811A12
24	RING SET, Piston - .030 Oversize	39-88392A12
25	CONNECTING ROD ASSEMBLY	624-8101A3
26	SCREW, (.250-28 Special), CONNECTING ROD Comment: W/O NUT	10-91012
26	SCREW, (.250-28 x 1.500), CONNECTING ROD Comment: WITH NUT	10-54803
27	NUT, CONNECTING ROD SCREW Comment: WITH NUT	11-49091
28	BEARING ASSEMBLY, CRANKPIN	31-62596A1
29	BEARING, PISTON PIN	29-8M0214934
30	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
-	GASKET SET	27-73645A87

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	871-8338A3
1	CYLINDER BLOCK ASSEMBLY Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	871-8338A3
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53650
3	COVER, STARTER MOTOR (UPPER)	56029T
4	SCREW, (.312-18 x 1.375), COVER TO CRANKCASE	10-31984
4	SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE	10-35385
5	LOCKWASHER, (.312), COVER SCREW	13-8M0204647
6	COVER, STARTER MOTOR (LOWER)	76867
7	SCREW, COVER TO CRANKCASE (1-7/8")	10-73279
7	SCREW, COVER TO CRANKCASE (5-1/2")	10-73658
8	STUD, (.375-16/.375-24 x 1.880)	16-64281
9	PIN, Dowel, CRANKCASE TO CYLINDER BLOCK	17-43044
10	PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING	17-63779
11	RESTRICTOR, CRANKCASE BLEED	66517
12	STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")	16-64282
13	SCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCK	10-57841
13	SCREW, (1.25), CRANKCASE TO CYLINDER BLOCK (1-1/4")	10-74824
14	SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK	10-73657
15	SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING	10-20359
16	TAB WASHER, BEARING LOCKING SCREW	14-20091
17	CHECK VALVE, BLEED HOSE - TOP	21-42866
19	HOSE, CYLINDER BLEED (15-1/2")	32-9938779
20	FITTING ASSEMBLY, BLEED HOSE - BOTTOM	21-428671
21	ELBOW	22-996642
22	HOSE, BALANCE (6-1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
23	FITTING, BALANCE HOSE TO CYLINDER BLOCK - LOWER	22-130342
24	HOSE, BALANCE (5")	32-9938779
25	CONNECTOR, AIR INLET COVER	22-56759
-	GASKET SET	27-73645A87
-	POWERHEAD	97471T87

DRIVESHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) DRIVESHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	HOUSING ASSEMBLY, Driveshaft Comment: (SHORT SHAFT)	1575-5240A4
1	HOUSING ASSEMBLY, Driveshaft - Mercury Comment: (LONG SHAFT)	1573-5239A4
2	STUD, (.437 x 2.69), DRIVESHAFT HOUSING TO GEAR HOUSING	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
4	COVER, TRIM - DRIVESHAFT HOUSING	37417
5	SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO BOTTOM COWL	10-57807
6	GROMMET, TRIM COVER SCREW	25-92012
7	CABLE ASSEMBLY, TRIM COVER SCREW	84-88238T01
8	SCREW, (#10-16 x .375), GROUND STRAP ATTACHING	10-62568
9	TUBE, WATER INLET Comment: (SHORT SHAFT)	32-62864
9	TUBE, WATER INLET Comment: (LONG SHAFT)	32-60897
10	TUBE, EXHAUST Comment: (SHORT SHAFT)	65370
10	TUBE, EXHAUST Comment: (LONG SHAFT)	78184T
11	BOOT, EXHAUST TUBE	65638
12	GUIDE, PUSH ROD Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	52887
12	GUIDE, PUSH ROD Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	92704
13	ROD, PUSH Comment: (SHORT SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	47591
13	ROD, PUSH Comment: (LONG SHAFT) NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	47558
13	ROD, PUSH Comment: (SHORT SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	92708
13	RING, PUSH Comment: (LONG SHAFT) NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	22707
14	NUT, JAM - PUSH ROD Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	11-69254
14	NUT, (.312-24) Stainless Steel, JAM - PUSH ROD Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	11-28770
15	YOKE, PUSH ROD Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	47559
15	ROD END, PUSH ROD Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	89813
17	COTTER PIN, PUSH ROD PIN Comment: NON POWER TRIM	18-25191
18	MOUNT, RUBBER - UPPER Comment: (SHORT SHAFT)	75297
18	MOUNT, RUBBER - UPPER Comment: (LONG SHAFT)	75296
19	WASHER, RUBBER - UPPER MOUNT BOLT	12-47840
20	WASHER, UPPER MOUNT BOLT	12-31263
21	NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT	11-8M0204653
22	MOUNT, RUBBER - LOWER Comment: (SHORT SHAFT)	75300
22	MOUNT, RUBBER - LOWER Comment: (LONG SHAFT)	75298
23	SCREW, UPPER MOUNT (5-1/2")	10-75284
24	BUMPER, RUBBER - LOWER Comment: (SHORT SHAFT)	66336
25	NUT, MOUNT SCREW	11-25096
26	BUMPER, RUBBER - MOUNTING SCREW	25067
27	NUT, (.437-20) Stainless Steel, GEAR HOUSING	11-8M0204653
28	WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS	12-45176
29	NUT, GEAR HOUSING STUDS	11-29489
30	WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS	12-45176
31	CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING	35608
32	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
33	SCREW, (.312-18 x .875), LOWER MOUNT CLAMP TO HOUSING	10-29256
34	COVER, LOWER MOUNT CLAMP	35474T
35	NUT, LOWER MOUNT CLAMP COVER	11-35521
36	SCREW, (#12-14 x .920), COVER TO LOWER CLAMP MOUNT	10-87884
37	CABLE ASSEMBLY, Ground	88238A10

END CAPS, MANIFOLD AND EXHAUST COVER

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) END CAPS, MANIFOLD AND EXHAUST COVER:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	871-8338A3
1	CYLINDER BLOCK ASSEMBLY Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	871-8338A3
2	END CAP ASSEMBLY, UPPER	1161-5940A2
3	SEAL, Oil	26-41953
4	O-RING	25-47254
5	SHIM, END CAP TO CRANKCASE (.006-10)	15-73644A1
6	SCREW, UPPER END CAP (1")	10-812618	10-73169, 10-847568
7	POINTER, TIMING	43352
8	SCREW, (.75 In.), TIMING POINTER (3/4")	10-65746
9	WASHER, TIMING POINTER SCREW	12-20533
10	END CAP ASSEMBLY, LOWER	1148-5410T1
11	SEAL, Oil	26-41953
12	O-RING	25-32546
13	SHIM SET, END CAP TO CRANKCASE (.005-10)	15-20085A1
14	SCREW AND LOCKWASHER, (.312-18 x 1.00), LOWER END CAP	10-30225
15	GASKET, WATER JACKET COVER	27-73665
16	COVER, WATER JACKET - CYLINDER BLOCK	76198
17	SCREW, (.312-18 x .880), WATER JACKET COVER	10-53167T
18	WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW	12-8M0042642	12-70132
19	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854981
20	PLATE, BAFFLE	73436
21	GASKET, BAFFLE PLATE TO EXHAUST COVER	27-854961
22	COVER, EXHAUST MANIFOLD	78277A1
23	SCREW, (.312-18 x 1.125), MANIFOLD COVER	10-53576
24	COVER, CYLINDER BLOCK Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	1021-7699
24	COVER, CYLINDER BLOCK Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	1021-8340
25	GASKET, CYLINDER BLOCK COVER Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	27-85493
25	GASKET, CYLINDER BLOCK COVER Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	27-961711
26	SCREW, CYLINDER BLOCK COVER (1")	10-8M0214943
27	COVER, TRANSFER PORT - TOP	733201
27	COVER, TRANSFER PORT - BOTTOM	87872
28	GASKET, TRANSFER PORT COVER	27-73645
29	SCREW, (.250-20 x .750), TRANSFER PORT COVER	10-49668
30	BRACKET, MOUNT SUPPORT - CYLINDER BLOCK	37440
31	SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK	10-35386
32	STRAP ASEMBLY, Ground, EXHAUST COVER SCREW	46933A3
33	SCREW, (#10-16 x .375), GROUND STRAP	10-62568
34	PLUG, PIPE - CYLINDER BLOCK COVER	22-68307
-	GASKET SET	27-73645A87

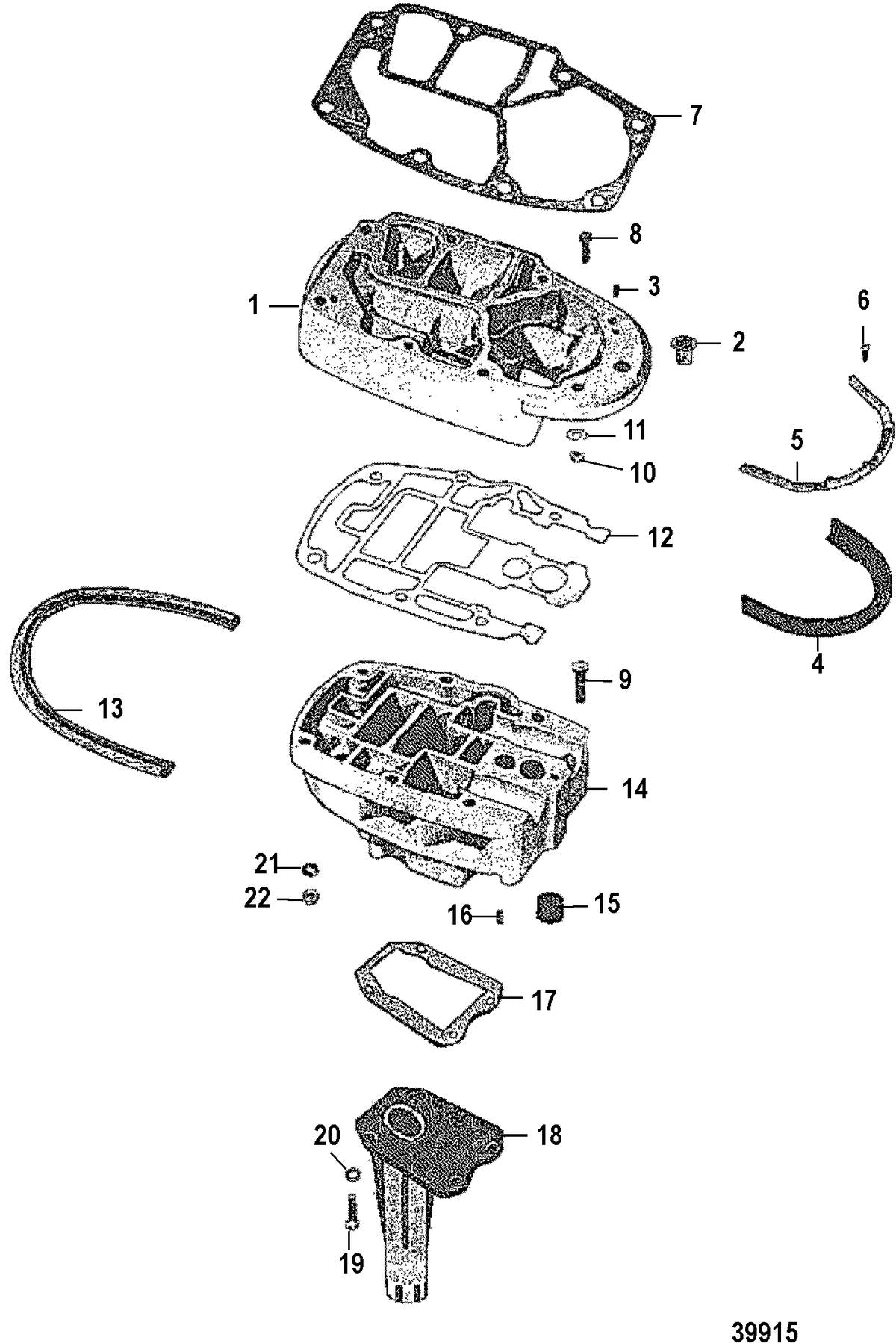

EXHAUST EXTENSION PLATE

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) EXHAUST EXTENSION PLATE:

Position No.	Part Name	OEM Number
1	PLATE ASSEMBLY, EXHAUST EXTENSION	43289A2
2	BUSHING, NYLON - EXHAUST EXTENSION PLATE	23-27132
3	PIN, Dowel, EXHAUST EXTENSION PLATE	17-23784
4	SEAL, EXHAUST EXTENSION PLATE	37918
5	STRIP, RETAINING - EXHAUST EXTENSION PLATE	99358
6	SCREW, (.190-32 x .500), SEAL AND RETAINING STRIP TO EXHAUST PLATE	10-37571
7	GASKET, POWERHEAD	27-692381
8	SCREW, (.312-18 x 2.00) Flange Head, ADAPTOR PLATE TO HOUSING PLATE	10-66023
9	SCREW, (.312-18 x 2.00) Flange Head, HOUSING PLATE TO DRIVESHAFT HOUSING	10-66023
10	NUT, CRANKCASE STUDS	11-69254
11	WASHER, CRANKCASE STUDS	12-20553
12	GASKET, DRIVESHAFT HOUSING PLATE	27-661021
13	SEAL, DRIVESHAFT HOUSING PLATE	26-60898
14	PLATE ASSEMBLY, DRIVESHAFT HOUSING	43290A4
15	SEAL, RUBBER - WATER INLET TUBE	26-38970
16	PIN, Dowel, DRIVESHAFT HOUSING PLATE	17-23784
17	GASKET, EXHAUST TUBE	27-69860
18	TUBE, Exhaust	99698
19	SCREW, EXHAUST TUBE TO DRIVESHAFT HOUSING PLATE (3/4")	10-65414
20	LOCKWASHER, (.250) Stainless Steel, EXHAUST TUBE SCREW	13-26992
21	WASHER, POWERHEAD STUDS	12-20553
22	NUT, (.375-24), POWERHEAD STUDS	11-82671013
-	GASKET SET	27-73645A87

FLYWHEEL, STATOR AND IGNITION COIL

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) FLYWHEEL, STATOR AND IGNITION COIL:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, (.625-18), FLYWHEEL	11-52901
2	WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT	12-33001
3	PLUG, Yellow, FLYWHEEL PULLER THREADS	19-45907
4	FLYWHEEL ASSEMBLY	248-8722A6
5	SCREW, (.312-24 x .750), PLATE/HUB TO FLEXIBLE PLATE	10-68997
6	SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL	10-32417
7	PLATE, SWITCH BOX	90332
8	GROMMET, SWITCH BOX	25-57009001
9	SCREW, (.312-18 x .750)	10-824941	10-59645, 10-73274
10	WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW	12-56720
11	J CLIP, SWITCH BOX WIRES AND FUEL LINE	54-47483
12	SWITCHBOX ASSEMBLY	332-5772A7
13	SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE	10-20619
14	WIRE ASSEMBLY	84-65999A5
16	NUT, Brass, SWITCH BOX TERMINAL	10-32,11-45076
17	MERCURY SWITCH ASSEMBLY	58124A19
18	SCREW, (.190-32 x .500), MERCURY SWITCH TO PLATE	10-37571
19	TERMINAL BLOCK	86-66986
20	SCREW, (.190-32 x .62), TERMINAL BLOCK TO PLATE	10-38055
21	SCREW, (#10-32 x .500), WIRE TO TERMINAL BLOCK	10-37655
22	CLIP, WIRES AND HARNESS	54-23567
23	SCREW, (#10-16 x .500), CLIP TO PLATE	10-48408
24	C WASHER, CLIP SCREW	8M0084613	69205
28	J CLIP, TRIGGER PLATE HARNESS	54-47483
29	PLATE, MOUNTING - IGNITION COIL	73395
30	SCREW, (.250-20 x .875) Stainless Steel, MOUNTING PLATE TO CRANKCASE	10-28668
31	COIL ASSEMBLY, Ignition	339-832757A4
33	NUT, Brass, IGNITION COIL TERMINAL	10-32,11-45076
34	COVER, IGNITION COIL	87554
35	SCREW, (.190-32 x 2.00), COVER TO MOUNTING PLATE	10-88856
36	WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW	12-30164
37	STRAP, PRIMARY HARNESS	77672
37A	SCREW, (#10-16 x .500), STRAP ATTACHING	10-48408
38	STATOR ASSEMBLY	398-5454A26
39	SCREW, (#10-24 x .880), STATOR TO UPPER END CAP	10-75840
40	TRIGGER PLATE ASSEMBLY	96453A2
41	HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)	84-77617
42	HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)	84-77618
43	CLAMP, HARNESS ATTACHING	54-45806
44	SCREW, (#10-16 x .500), CLAMP TO CRANKCASE	10-48408
45	C WASHER, HARNESS CLAMP SCREW	8M0084613	69205
46	WIRE ASSEMBLY, SPARK PLUG	84-813715A1
47	BOOT, IGNITION COIL	332-2854T01
48	BOOT/TERMINAL KIT, SPARK PLUG	85-63709A1
49	SPARK PLUG (AC#V40FFK)	33-896329833	33-833C
49	SPARK PLUG Comment: Canada/Belgium	33-14103550
50	RETAINER, WIRE	78278
51	SCREW, (#10-16 x .500), WIRE RETAINER	10-48408
52	WASHER, WIRE RETAINER SCREW	12-21273
53	RETAINER, SPARK PLUG WIRE	63319
54	SCREW, (.250-28 x 1.00), RETAINER TO CYLINDER BLOCK COVER	10-46378
55	NUT, (.250-28), RETAINER SCREW	11-20013

FUEL PUMP AND FUEL LINES

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) FUEL PUMP AND FUEL LINES:

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	73434A5
2	CHECK VALVE ASSEMBLY	21-8M0084276	21-30430A13
3	DIAPHRAGM KIT	55278A5
4	NOT SOLD SEPARATE, GASKET, CHECK VALVE	NSS
5	NOT SOLD SEPARATE, GASKET, FUEL PUMP	NSS
6	RETAINER, CHECK VALVE	23004
7	SCREW, CHECK VALVE TO FUEL PUMP (1/4")	10-43725
8	FILTER, Fuel	35-73532
9	O-RING, (1.237 x .103), COVER TO FUEL PUMP	25-35480
10	COVER, FUEL PUMP	35-14805A2
11	SCREW, (#10-32 x .580), COVER TO FUEL PUMP	10-37370
12	GASKET, COVER SCREW	27-25848
13	SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")	10-70939
13	SCREW, (.250-20 x 1.375), FUEL PUMP TO UPPER TRANSFER COVER	10-69067
14	FITTING, FUEL PUMP (OUTLET)	22-64705
15	LINE, Fuel, TEE TO FUEL PUMP (11")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
16	TEE, Plastic, FUEL LINE	22-73318
17	LINE, Fuel, CARBURETOR TO TEE TO CARBURETOR (3")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
18	CLAMP, FUEL LINE ATTACHING	54-68424
19	LINE, Fuel, ADAPTOR TO FUEL PUMP (15")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR	22-63187
21	ADAPTOR, CHECK UNIT (FUEL LINE) Comment: IDENTIFIED BY 73419 CASTING ON REF. #21	22833
21	ADAPTOR, CHECK UNIT (FUEL LINE) Comment: IDENTIFIED BY 30186 CASTING ON REF. #21	30186
22	STEM, CHECK UNIT ADAPTOR Comment: IDENTIFIED BY 73419 CASTING ON REF. #21	23069
22	STEM, CHECK UNIT ADAPTOR Comment: IDENTIFIED BY 30186 CASTING	30187
23	O-RING, ADAPTOR STEM Comment: IDENTIFIED BY 73419 CASTING ON REF. #21	25-16524
23	O-RING, ADAPTOR STEM Comment: IDENTIFIED BY 30186 CASTING	25-16524
24	SPRING, ADAPTOR STEM Comment: IDENTIFIED BY 73419 CASTING ON REF. #21	24-23067T
24	STRIP, ADAPTOR STEM Comment: IDENTIFIED BY 30186 CASTING	31089
25	WASHER, ADAPTOR	30188
26	SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL	10-36154
27	NUT, ADAPTOR SCREW	11-36069
-	GASKET SET	27-73645A87

GEAR HOUSING(DRIVESHAFT)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) GEAR HOUSING(DRIVESHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT)	1655-7333A27
-	GEAR HOUSING ASSEMBLY, COMPLTE Comment: (LONG SHAFT)	1655-7333A25
1	GEAR HOUSING ASSEMBLY, BASIC	1655-7333T23
1A	CONNECTOR ASSEMBLY, SPEEDOMETER	22-85822A10
2	PIN, GEAR HOUSING LOCATING	17-8M0084726	17-85500
3	STUD, (.437-14/.437-20 x 4.00), GEAR HOUSING	16-57921
4	STUD, (.44 x 2.06), GEAR HOUSING	16-8M0133358
5	STUD, (.312 x 3.38), WATER PUMP	16-8M0034463	16-56297 2
6	STUD, WATER PUMP (3-1/8")	16-69501
7	BEARING, ROLLER - DRIVESHAFT	31-32898T
8	DRIVESHAFT Comment: (SHORT SHAFT)	45-69250
8	DRIVESHAFT Comment: (LONG SHAFT)	45-42646
9	GEAR, Pinion, DRIVESHAFT	43-75316T
10	NUT, (.625-18), PINION GEAR TO DRIVESHAFT	11-35921
11	SPACER, BEARING TO WATER PUMP	23-70412
11	SHIM, BEARING TO WATER PUMP	15-57007A1
12	BEARING, Roller, DRIVESHAFT	31-69220T
14	GASKET, WATER PUMP TO GEAR HOUSING	27-8M0214962
15	O-RING, (1.984 x .139), WATER PUMP	25-8M0214923
16	BASE ASSEMBLY, Water Pump	46-96146A5
17	SEAL, Oil, WATER PUMP BASE	26-94038
18	SEAL, Oil, WATER PUMP BASE	26-16977
19	PIN, Dowel, WATER PUMP	17-35973
20	GASKET, LOWER - WATER PUMP	27-8M0090319	27-85608 1
21	FACE PLATE, WATER PUMP	8M0204677
22	GASKET, UPPER - WATER PUMP	27-858524	27-85609 1, 27-85609B 1
23	BODY ASSEMBLY, Water Pump	46-96148T1
24	INSERT, WATER PUMP	48752T
26	SEAL, RUBBER - WATER INLET TUBE	26-38970
27	IMPELLER, WATER PUMP	47-89984T4
28	KEY, IMPELLER DRIVE	28-8M0214992
29	SCREW, (.250-20 x 2.25), WATER PUMP	10-30720
29	SCREW, (#14-8 x 2.25), WATER PUMP	10-8M0215009
30	LOCKWASHER, (.250) Stainless Steel, WATER PUMP SCREW	13-26992
31	WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD	12-8M0204649
32	NUT, (.250-28) Stainless Steel, WATER PUMP FASTENING SCREW	11-35888
33	WASHER, WATER PUMP STUD	12-36001
34	NUT, (.312-24) Stainless Steel, WATER PUMP STUD	11-82670911
35	RING, Rubber, DRIVESHAFT	25-8M0214918
36	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
37	SEAL, EXHAUST TUBE	37641001
38	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
39	SHAFT ASSEMBLY, SHIFT	76062A1
40	E RING, RETAINING - SHIFT SHAFT	53-29641
41	O-RING, (.862 x .103), SHIFT SHAFT BUSHING	25-25439
42	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
43	SEAL, Oil, SHIFT SHAFT HOUSING	26-8M0204708
44	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-77674
45	SPACER, LOWER - REVERSE LOCKING Comment: NON POWER TRIM	78036
46	CAM, REVERSE LOCKING Comment: NON POWER TRIM	43308T1
47	SCREW, (.375-16 x .250), GREASE FILLER AND VENT HOLE	10-79953Q04
47	SCREW, Magnetic, DRAIN	22-8M0058389	22-67892A06
48	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
-	GASKET SET	27-73645A87
-	REPAIR KIT, Water Pump	46-96148A8
-	SEAL KIT, Gear Housing	26-55682A1
-	PUMP KIT, Water - Heavy Duty	53168A1

GEAR HOUSING(PROPELLER SHAFT)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) GEAR HOUSING(PROPELLER SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT)	1655-7333A27
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG SHAFT)	1655-7333A25
1	GEAR HOUSING ASSEMBLY, BASIC	1655-7333T23
51	CAM, Shift Control	760394
52	FOLLOWER	30625
53	SLIDE, CROSS PIN	30624
54	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
55	SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)	15-30923A1
56	BEARING SET, Cup And Cone	31-30894A1
57	BEARING, Needle, FORWARD GEAR	31-30895T
58	GEAR ASSEMBLY, Forward	43-75314T2
59	RATCHET, SLIDING CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
60	PIN, Cross, RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
61	SPRING, RETAINING - CROSS PIN	24-30893
62	PROPELLER SHAFT	44-93003
63	GEAR, Reverse	43-77562T
65	WASHER, BEARING CARRIER TO GEAR HOUSING	12-76358
67	O-RING, BEARING CARRIER	25-29976
68	CARRIER ASSEMBLY, Bearing Comment: (W/O GREASE FITTING)	41529T2
68	CARRIER ASSEMBLY, Bearing Comment: (WITH GREASE FITTING)	41529T2
68A	FITTING, Grease	22-8M0169588
69	BEARING, Needle, BEARING CARRIER	31-30956T
70	SEAL, BEARING CARRIER - INNER	26-8M0204670
70A	SEAL, Oil, BEARING CARRIER - OUTER	26-8M0205729
71	KEY, LOCATING - BEARING CARRIER	28-30281
72	TAB WASHER, GEAR HOUSING COVER	14-52700
73	COVER, GEAR HOUSING	52699
74	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
75	SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING	10-66024
76	WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS	12-45176
77	NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS	11-8M0204653
78	SCREW, (.375-16 x 1.00), GEAR HOUSING	10-65210
79	THRUST HUB	13191Q01
82	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
83	NUT	11-52707Q1
-	GASKET SET	27-73645A87

HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR):

Position No.	Part Name	OEM Number
-	PUMP ASSEMBLY, Hydraulic, COMPLETE	92975A32
1	O-RING, (.364. x .070), HYDRAULIC PUMP	25-48171
2	VALVE BODY AND GEAR ASSEMBLY	392-7734
3	SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR	10-20411
4	SEAL, RESERVOIR TO VALVE BODY AND GEAR	392-7735
5	RESERVOIR ASSEMBLY	392-2939
6	SCREW, VENT - HYDRAULIC PUMP	10-62269
7	SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP	10-79953Q04
8	WASHER, SEALING - FILLER SCREW	12-191833
9	WASHER, THRUST - ARMATURE	392-2623
10	ARMATURE, FIELD AND FRAME	392-2943
11	FIELD AND FRAME ASSEMBLY	392-2942
12	BALL, COMMUTATOR END PLATE	392-2944
13	PLATE ASSEMBLY, COMMUTATOR END	392-2940
14	BRUSH SET, COMMUTATOR END PLATE	392-8989
15	SPRING SET, BRUSH TENSION	392-2529
16	BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR	392-2938
17	LOCKWASHER, Stainless Steel, THRU BOLT	10,13-26996

HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR):

Position No.	Part Name	OEM Number
-	PUMP ASSEMBLY, Hydraulic	92975A32
1	O-RING, (.364. x .070), HYDRAULIC PUMP	25-48171
2	VALVE BODY AND GEAR ASSEMBLY	92975A32
3	SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR	10-69570
4	COUPLER AND SHAFT	392-7727
5	SEAL, RESERVOIR TO VALVE BODY AND GEAR	392-7735
6	RESEROVIR ASSEMBLY (PLASTIC)	392-7731
7	WASHER, THRUST - ARMATURE	392-7732
8	ARMATURE, FIELD AND FRAME	392-7729
9	FIELD AND FRAME ASSEMBLY	392-8261
10	BALL, COMMUTATOR END PLATE	392-7730
11	PLATE ASSEMBLY, COMMUTATOR END	392-8262
12	BRUSH SET, COMMUTATOR END PLATE	392-8989
13	SPRING SET, BRUSH TENSION	392-2529
14	BOLT SET, Thru- Plate and Frame to Reservoir	392-7733
15	FILL PLUG, RESERVOIR	392-7728

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	PARTS MANUAL, MERC 80	90-90672
-	GASKET SET	27-73645A87
-	DECAL SET	37-93152A81

POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE):

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)	92975A32
2	O-RING, (.364. x .070), MANIFOLD PLATE	25-48171
3	SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP	10-79953Q04
4	WASHER, SEALING - FILLER SCREW	12-191833
5	SCREW, VENT - HYDRAULIC PUMP	10-62269
6	PLATE, MANIFOLD	45336
7	VALVE ASSEMBLY, Control	45197A2
--	O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)	25-48171
8	O-RING, CONTROL VALVE (3/4" O.D.)	25-45254
9	O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)	25-48171
10	O-RING, CONTROL VALVE (5/8" O.D.)	25-45253
11	SCREW, (.250-28 x 1.250), VALVE AND MANIFOLD PLATE TO PUMP	10-56500
12	PLUG, CONTROL VALVE (1/2-20")	22-46008
13	HARNESS ASSEMBLY	84-79147A3
14	BRACKET, MOUNTING	45377T
15	SCREW, (.312-18 x 1.00), MOUNTING BRACKET TO HYDRAULIC PUMP	10-35386
16	LOCKWASHER, (.312-24), MOUNTING BRACKET SCREW	13-39107
17	NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW	11-21908
18	BOLT, (.375-16 x 3.250), HYDRAULIC PUMP TO BOAT	10-68298
19	NUT, HYDRAULIC PUMP BOLT	11-82671112
20	BRACKET, MOUNTING, STARTER SOLENOID	94279
21	SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP	10-28638
22	NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT	11-24656
23	SOLENOID, Starter	8M0185622
24	LOCKWASHER, Stainless Steel, SOLENOID TERMINAL	8,13-26995
25	NUT, Brass, SOLENOID TERMINAL	8-32,11-26419
26	LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL	13-26992
27	NUT, (.250-20) Brass, SOLENOID TERMINAL	11-94330
28	BOOT, RUBBER - STARTER SOLENOID TERMINAL	85-861680	85-96535
29	SCREW, STARTER SOLENOID TO MOUNTING BRACKET	10-41508
30	LINK, SOLENOID TO SOLENOID	94275
31	CABLE ASSEMBLY, Battery (POSITIVE)	84-79139A13
31	CABLE ASSEMBLY (NEGATIVE)	84-79138A1
32	BREAKER, Circuit - 20 Ampere	88-8M0085705	88-79149
33	SCREW, CIRCUIT BREAKER	10-8M0113176
34	NUT, Brass, CIRCUIT BREAKER TERMINAL	10-32,11-45076
35	WIRE, SOLENOID TO CIRCUIT BREAKER (RED)	84-87379A5
36	FUSE ASSEMBLY, 90 Ampere	88-79023T90
37	WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL	12-96457
38	NUT, (.250-28), FUSE TERMINAL	11-21825
39	WIRE, STARTER SOLENOID (BLACK)	84-61600A9

POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE):

Position No.	Part Name	OEM Number
1	PUMP ASSEMBLY, Hydraulic (METAL RESERVOIR)	92975A32
1	PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)	92975A32
2	O-RING, (.364. x .070), MANIFOLD PLATE	25-48171
3	SCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMP	10-79953Q04
4	WASHER	12-191833
5	SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP	10-62269
6	LEAD, Battery (POSITIVE)	32979
6	LEAD, Battery (NEGATIVE)	32988
7	PLATE, MANIFOLD	45336
8	VALVE ASSEMBLY, Control	45197A2
--	O-RING, (.364. x .070) (SEE REF. #2)	25-48171
9	O-RING, CONTROL VALVE (3/4" O.D.)	25-45254
10	O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)	25-48171
11	O-RING, CONTROL VALVE (5/8" O.D.)	25-45253
12	SCREW, (.250-28 x 1.250)	10-56500
13	PLUG, CONTROL VALVE (1/2-20")	22-46008
14	HARNESS ASSEMBLY	84-74023A1
15	BRACKET, MOUNTING	45377T
16	SCREW, (.312-18 x 1.00)	10-35386
17	LOCKWASHER, (.312-24)	13-39107
18	NUT, (.312-18) Cad Plated	11-21908
19	BOLT, (.375-16 x 3.250), HYDRUALIC PUMP TO BOAT	10-68298
20	NUT	11-82671112
21	SOLENOID, Starter	89-853654A1
22	LOCKWASHER, Stainless Steel, SOLENOID TERMINAL	10,13-26996
23	NUT, Stainless Steel, SOLENOID TERMINAL	10-32,11-68219
24	LOCKWASHER, (.312), SOLENOID TERMINAL	13-8M0204647
25	NUT, (.312-18), SOLENOID TERMINAL	11-8M0204668
26	BOOT, RUBBER - STARTER SOLENOID TERMINAL	46265
27	BRACKET, MOUNTING - STARTER SOLENOID	74407T
28	SCREW, (.250-28 x .50)	10-21140
29	LOCKWASHER, (.250) Stainless Steel	13-26992
30	NUT	11-24656
31	BUMPER, RUBBER - SOLENOID BRACKET	269011
32	WIRE ASSEMBLY, Jumper (POSITIVE)	84-79139A2
32	WIRE, Jumper (NEGATIVE)	55992
33	BRACKET, MOUNTING - STARTER SOLENOID	74406
34	SCREW, (.250-28 x .750) Stainless Steel	10-69028
35	LOCKWASHER, (.250) Stainless Steel	13-26992
36	SCREW, (.250-28 x .625)	10-32417
37	LOCKWASHER, (.250) Stainless Steel	13-26992
38	NUT, (.250-28)	11-21825

POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3):

Position No.	Part Name	OEM Number
-	REPAIR KIT (SEE NOTE BELOW)	64507A1
1	Not Sold Separate, O-RING (1-1/2" X 1-5/8" X 1/16") (#N.S.S.)
2	Not Sold Separate (3/4" X 15/16" X 1/8") (#N.S.S.)
3	Not Sold Separate, O-RING (5/8" X 3/4" X 1/16") (#N.S.S.)
4	Not Sold Separate, O-RING (1-1/4" X 1-7/16" X 1/16") (#N.S.S.)
5	Not Sold Separate, O-RING (7/32" X 11/32" X 1/16") (#N.S.S.)
6	Not Sold Separate, O-RING (1-5/8" X 1-13/16" X 1/8") (#N.S.S.)
7	Not Sold Separate, O-RING (1-5/16" X 1-1/2" X 1/8") (#N.S.S.)
8	Not Sold Separate, O-RING (1-7/8" X 2" X 1/8") (#N.S.S.)
9	Not Sold Separate, O-RING (1-3/4" X 1-15/16" X 1/8") (#N.S.S.)
10	Not Sold Separate, SEAL, SLIPPER - PISTON (#N.S.S.)
11	Not Sold Separate, PISTON, ROD - HEAVY DUTY (#N.S.S.)
12	RETAINER ASSEMBLY, PISTON	64505A1
13	Not Sold Separate, ROD, SCRAPER (#N.S.S.)
14	Not Sold Separate, RETAINER, SCRAPER (#N.S.S.)

POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14:

Position No.	Part Name	OEM Number
-	REPAIR KIT (SEE NOTE)	92188A2
1	Not Sold Separate, Cylinder Cap (#N.S.S.)
2	Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8") (#N.S.S.)
3	Not Sold Separate, Spacer (#N.S.S.)
4	Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32") (#N.S.S.)
5	Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32") (#N.S.S.)
6	Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32") (#N.S.S.)

PROPELLERS(RIGHT HAND ROTATION)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) PROPELLERS(RIGHT HAND ROTATION):

Position No.	Part Name	OEM Number
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11") Comment: 3 BLADES	48-77338A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13") Comment: 3 BLADES	48-77340A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15") Comment: 3 BLADES	48-77342A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17") Comment: 3 BLADES	48-77344A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19") Comment: 3 BLADES	48-77346A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21") Comment: 3 BLADES	48-77348A45
-	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23") Comment: 3 BLADES	48-77350A45

STARTER MOTOR AND WIRING HARNESS

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) STARTER MOTOR AND WIRING HARNESS:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-893891T	50-66015T 1
2	COLLAR, RUBBER - STARTER MOTOR	23-8M0034918	23-8M0001391, 56703
3	SPACER, COLLAR TO BRACKET	23-56774
4	STOP, RUBBER - STARTER MOTOR	8M0043376	68042
5	CABLE ASSEMBLY, MOTOR TO SOLENOID Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	84-93389A1
5	CABLE ASSEMBLY, MOTOR TO SOLENOID Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	84-93389A1
6	LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL	13-26992
7	NUT, (.250-20), STARTER MOTOR TERMINAL	11-64015
8	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel	10-69035
9	RECTIFIER	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
10	SCREW, (#10-32 x .620), RECTIFIER TO PLATE	10-37656
13	NUT, Brass, RECTIFIER TERMINAL	10-32,11-45076
14	SOLENOID, Starter Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	89-853654A1
14	SOLENOID ASSEMBLY, Starter Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	89-8M0185149
15	LOCKWASHER, Stainless Steel, SOLENOID TERMINAL Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	10,13-26996
15	LOCKWASHER, Stainless Steel, SOLENOID TERMINAL Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	8,13-26995
16	NUT, Stainless Steel, SOLENOID TERMINAL Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	10-32,11-68219
16	NUT, Brass, SOLENOID TERMINAL Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	8-32,11-26419
17	LOCKWASHER, (.312), SOLENOID TERMINAL Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	13-8M0204647
17	LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	13-26992
18	NUT, (.312-18), SOLENOID TERMINAL Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	11-8M0204668
18	NUT, (.250-20) Brass, SOLENOID TERMINAL Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	11-94330
19	BOOT, TERMINAL - STARTER SOLENOID	46265
20	SCREW, (.250-28 x 1.250), SOLENOID BOTTOM COWL	10-38601
21	LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW	13-26992
22	LOCATOR, STARTER SOLENOID	90547
23	CABLE ASSEMBLY, Positive - Battery	84-88439A3
23	CABLE ASSEMBLY, Battery - Negative	84-88439A4
24	HARNESS ASSEMBLY Comment: SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below	84-96233A2
24	HARNESS ASSEMBLY Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	84-96233A2
24A	FUSE, 20 Ampere Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	88-8M0207796
24B	CABLE ASSEMBLY, FUSE Comment: SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up	84-95084A2
25	CLAMP, WIRING HARNESS	54-88608
26	SCREW, (.250-20 x .750), WIRING HARNESS CLAMP	10-28636
27	LOCKWASHER, Stainless Steel, WIRING HARNESS CLAMP SCREW	10,13-26996
28	BRACKET, WIRING HARNESS	89047
29	SCREW, (#10-32 x .625), WIRING HARNESS BRACKET	10-32228
30	WASHER, BRACKET SCREW	12-38833
31	CLAMP, WIRING HARNESS	88751
32	SCREW, (.250-20 x .750), WIRING HARNESS CLAMP	10-28636
33	WASHER, CLAMP SCREW	12-20533

STARTER MOTOR ASSEMBLY(BOSCH)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) STARTER MOTOR ASSEMBLY(BOSCH):

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR ASSEMBLY	50-893891T	50-66015T 1
1	DRIVE KIT	90643
2	DRIVE ASSEMBLY	685753
3	PLATE ASSEMBLY, DRIVE END	75660
4	BOLT, THRU	10-75385
5	LOCKWASHER, THRU BOLT	13-61789
6	ARMATURE	75386
7	BRUSH/SPRING KIT	898265016	75384, 75384 1
8	BUSHING, INSULATING	23-57387
9	WASHER, INPUT STUD	12-38013
10	LOCKWASHER, INPUT STUD	13-26992
11	NUT, (.250-20), INPUT STUD	11-20890
12	HOLDER, BRUSH	898265014	61787
13	SCREW, BRUSH AND HOLDER	10-68586
14	END CAP ASSEMBLY, COMMUTATOR	15386001

STARTER MOTOR ASSEMBLY(PRESTOLITE)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) STARTER MOTOR ASSEMBLY(PRESTOLITE):

Position No.	Part Name	OEM Number
1	MOTOR DRIVE	392-8848
2	PLATE ASSEMBLY, DRIVE END	392-8852
3	BUSHING, DRIVE END PLATE	392-8853
4	ARMATURE	392-8857
5	PACKAGE, ARMATURE THRUST WASHER	392-8856
6	END CAP ASSEMBLY, COMMUTATOR	392-8849
7	PLATE/HOLDER ASSEMBLY, Brush	392-8850
8	BRUSH AND TERMINAL SET	392-8851
9	SPRING SET, BRUSH (2 SPRINGS PER SET)	392-8854
10	BOLT, THRU - END CAP TO END PLATE (1/4-28)	392-8855

SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number
1	SWIVEL BRACKET ASSEMBLY Comment: (SHORT SHAFT)	1490-7256A2
1	SWIVEL BRACKET ASSEMBLY Comment: (LONG SHAFT)	1482-7670A5
2	BUSHING, SWIVEL BRACKET	23-69341
3	WASHER, SWIVEL PIN - UPPER	12-69342
4	SEAL, Oil, SWIVEL BRACKET	26-37448
6	FITTING, Grease	22-8M0169589
7	PIN, REVERSE LOCK SPRING ATTACHING (SHORT SHAFT)	17-25598
8	WAVE WASHER, SWIVEL PIN (LOWER)	13-88507
9	STRAP, Stop, DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
10	SCREW, (.375-24 x 3.125), STRAP STOP TO HOUSING Comment: SHORT SHAFT	10-56743
10	SCREW, (.375-24 x 2.875), STRAP STOP TO HOUSING Comment: LONG SHAFT	10-28200
11	NUT, (.375-24), STRAP STOP FASTENING SCREW	11-25269
12	SWIVEL PIN ASSEMBLY, Steering Arm Comment: (SHORT SHAFT)	17-73594A2
12	SWIVEL PIN ASSEMBLY, Steering Arm Comment: (LONG SHAFT)	17-73593A2
13	YOKE, BOTTOM	73984T
15	RING, Retaining, YOKE ATTACHING	53-73591
16	BUMPER, STEERING ARM	28203
17	BOLT, (.437-20 x 5.875), STEERING ARM TO UPPER MOUNT	10-49554
18	NUT, (.437-20) Stainless Steel, STEERING ARM BOLT FASTENING	11-8M0204653

THROTTLE LEVER AND SPARK ADVANCE LEVER

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) THROTTLE LEVER AND SPARK ADVANCE LEVER:

Position No.	Part Name	OEM Number	Supersedes
1	LEVER	73416
2	LATCH, THROTTLE LEVER (THROTTLE CABLE)	73404
3	SCREW, (.250-28 x .875) Stainless Steel, LATCH TO THROTTLE LEVER	10-59702
4	SPRING, LATCH SCREW	24-20099
5	NUT, LATCH SCREW	11-36069
6	SCREW, ADJUSTING - THROTTLE LEVER (1-3/4")	10-69029
7	NUT, JAM - ADJUSTING SCREW	11-29598
8	CAP, NYLON - ADJUSTING SCREW	52023
9	ARM, SPARK ADVANCE	73414
10	SCREW, ADJUSTING - SPARK ADVANCE ARM (1-3/8")	10-73656
11	NUT, Stainless Steel, JAM - ADJUSTING SCREW	10-32,11-68219
12	CAP, NYLON - ADJUSTING SCREW	48039
13	SCREW, ADJUSTING - SPARK ADVANCE ARM (2")	10-67916
14	NUT, JAM - ADJUSTING SCREW	11-29598
15	CAP, NYLON - ADJUSTING SCREW	52023
16	SCREW, (.375-16 x 1.75) Comment: LEVER AND ARM TO CYLINDER BLOCK (1-3/4")	10-818165	10-55337 LEVER AND ARM TO CYLINDER BLOCK (1-3/4")
17	BUSHING, LEVER AND ARM SCREW	23-55164
18	BUSHING, FLANGE - LEVER AND ARM SCREW	23-55171
19	SPRING, RETURN - LEVER AND ARM SCREW	24-73375
20	WASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREW	12-46765
21	BARREL, NYLON - LEVER AND ARM	8M0221994
22	LINK ROD, THROTTLE	73374
23	CAM, Throttle	73432
24	HOUSING, THROTTLE CAM	77001
25	SCREW, (#10-16 x .880), HOUSING TO CRANKCASE	10-69013
26	LINK ROD, SPARK ADVANCE	77010
27	SWIVEL ASSEMBLY, LINK ROD TO ARM	76158A1
28	BUSHING, NYLON - LINK ROD SWIVEL	23-26856
29	WAVE WASHER, LINK ROD SWIVEL	13-29402
30	WASHER, LINK ROD SWIVEL	12-73288
31	NUT, , LINK ROD SWIVEL	10-32,11-20110
32	SPACER, THROTTLE CAM HOUSING	77158

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	COWL, TOP (WITHOUT DECALS) Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	2114-7934T
1	TOP COWL ASSEMBLY (WITHOUT DECALS) Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	2114-7934T
2	RETAINER ASSEMBLY, TOP COWL Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	93122A1
2	RETAINER ASSEMBLY, TOP COWL Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	52733A9
3	GASKET, BUMPER - TOP COWL RETAINER Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	27-25496
4	SCREW, (.312-18 x 1.250), RETAINER TO TO COWL Comment: SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	10-74824
4	SCREW, (.312-18 x .880), RETAINER TO TOP COWL Comment: SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	10-53167T
5	LOCKWASHER, (.312-24), RETAINER SCREW	13-39107
6	SHIELD, TOP COWL - REAR	76370
7	SCREW, (#10-32 x .580), SHIELD TO TOP COWL	10-37370
8	LOCKWASHER, SHIELD SCREW	13-37371
9	HINGE, COWL LATCH - TOP COWL	52739
10	LEVER, COWL LATCH HINGE	94918F1
11	PIN, COWL LATCH LEVER TO HINGE	17-58998
12	HOOK, TOP COWL LATCH - REAR	55455
13	LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW	13-26992
14	SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL	10-22956
15	FRAME, SUPPORT - TOP COWL	73401T
16	MOUNT, RUBBER - SUPPORT FRAME	37640
17	LOCKWASHER, (.312), RUBBER MOUNT	13-8M0204647
18	NUT, (.312-24) Stainless Steel, RUBBER MOUNT	11-28770
19	SCREW, (.312-18 x 1.00) Stainless Steel, SUPPORT FRAME TO FRONT FRAME	10-37562
20	LOCKWASHER, (.312), SUPPORT FRAME SCREW	13-8M0204647
21	MOUNT, RUBBER - TOP COWL FRAME	90435
22	NUT, (.250-28) Stainless Steel, RUBBER MOUNT (UPPER)	11-35888
23	NUT, (1/4-28), RUBBER MOUNT (LOWER)	11-8M0207775
24	BRACKET, TROP COWL SUPPORT - REAR	52468
25	MOUNT, RUBBER - REAR SUPPORT BRACKET	31014
26	LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT	13-26992
27	NUT, (.250-28) Stainless Steel, RUBBER MOUNT	11-29598
28	SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME	10-37562
29	LOCKWASHER, (.312), REAR BRACKET SCREW	13-8M0204647
30	SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWL	10-37562
31	LOCKWASHER, (.312), REAR BRACKET SCREW	13-8M0204647
32	FRAME, FRONT SUPPORT	99649T
33	SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER	10-37562
34	LOCKWASHER, (.312), FRAME SCREW	13-8M0204647
35	COVER, SILENCER	89590
36	GASKET, SILENCER COVER	27-76168A2
37	SCREW, (.250-20 x .750)	10-28638

TRANSOM BRACKET(LONG SHAFT)

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) TRANSOM BRACKET(LONG SHAFT):

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, Transom	1496-8822A1
2	TILT TUBE	89099
3	WAVE WASHER	13-89297
4	NUT, (.875-14), TILT TUBE	11-858869	11-30499
5	SPACER, TRANSOM BRACKET STUD	23-87642
6	STUD Comment: NON POWER TRIM	16-87643
7	WASHER, TRANSOM BRACKET STUD	12-36001
8	LOCKWASHER, (.312), TRANSOM BRACKET STUD	13-8M0204647
9	NUT, (.312-24) Stainless Steel, TRANSOM BRACKET STUD	11-28770
10	PIN ASSEMBLY, Tilt Lock Comment: NON POWER TRIM	17-8M0026068	17-49930A 1 NON POWER TRIM
11	SCREW, (.375-16 x 5.00), TRANSOM BRACKET TO TRANSOM	10-89673
12	WASHER, TRANSOM BRACKET BOLT	12-68410
13	NUT, TRANSOM BRACKET BOLT	11-82671112
11	BOLT, TRANSOM BRACKET TO TRANSOM (6")	10-677552
12	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT	12-8M0204648
13	NUT, (.500-20), TRANSOM BRACKET BOLT	11-91962
14	PIN, UPPER SHOCK MOUNTING	89116
15	BUSHING, UPPER SHOCK MOUNTING PIN	23-89117
16	COUPLING, TILT LOCK	79659
17	COTTER PIN, TILT LOCK	18-47959
18	SEAL, Oil, SWIVEL BRACKET (TILT LOCK)	26-22734
19	WASHER, TILT LOCK	12-76388
20	O-RING, (.301 x .070), TILT LOCK	25-627021
21	TILT LOCK	89105
22	LOCK ASSEMBLY, Reverse Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	87431
22	LOCK ASSEMBLY, Reverse Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	14664A3
23	SPRING Comment: NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below	24-78203A2
23	SPRING Comment: NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up	24-78203A2
24	SHAFT, REVERSE LOCK PIVOT Comment: NON POWER TRIM	56349
25	COTTER PIN, LOCK TO SHAFT Comment: NON POWER TRIM	18-45882
27	PIN, LOWER SHOCK MOUNTING	55-28414
28	SCREW, LOWER SHOCK PIN (2")	10-21937
29	NUT, (1/4-28X7/32), LOWER SHOCK PIN SCREW	11-8M0207775
30	SHOCK ABSORBER MERCURY Comment: NON POWER TRIM	55-58780A7
31	WASHER, UPPER BUSHING RETAINER (INNER) Comment: NON POWER TRIM	12-28196
32	BUSHING, RUBBER, - SHOCK ABSORBER (UPPER) Comment: NON POWER TRIM	23-32171
33	BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: NON POWER TRIM	23-28198
34	WASHER, UPPER/LOWER SHOCK PIN (LOWER) Comment: NON POWER TRIM	12-69374
35	SCREW, UPPER AND LOWER SHOCK PIN Comment: NON POWER TRIM	10-69375
-	GASKET SET	27-73645A87

TRIM CYLINDERS AND HYDRAULIC HOSES

Below is the parts list for Mercury 800 (4 CYL. ), 80 (4 CYL.) TRIM CYLINDERS AND HYDRAULIC HOSES:

Position No.	Part Name	OEM Number	Supersedes
1	TRIM CYLINDER Comment: (IDENTIFY BY CASTING #78439)	92194A14
1	TRIM CYLINDER Comment: (IDENTIFY BY NO CASTING #)	92194A14
2	FITTING, Grease, TRIM CYLINDER	22-8M0169589
3	SCREW, (#10-32 x .3125), BLEED	10-45265
4	O-RING, BLEED SCREW	25-45016
5	SCREW, (.500-20 x 1.500), TRIM CYLINDER Comment: WITH TAPPED HOLE	10-45264
5	SCREW, (.500-20 x 1.500), TRIM CYLINDER Comment: WITHOUT TAPPED HOLE	10-92050
6	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRIM CYLINDER BOLT	12-8M0204648
7	SPACER, TRIM CYLINDER - LOWER	23-45280
8	BUSHING, RUBBER - TRIM CYLINDER	23-94907A1
9	BRACKET, TRIM CYLINDER (PORT)	89108A3
10	SEAL, Oil, PORT BRACKET	26-70608
11	PLUNGER, LIMIT SWITCH ACTUATING	89290
12	SPRING, TENSION - LIMIT SWITCH PLUNGER	24-95881
13	STUD, (.312-24 x 16.620), MOUNTING BRACKET	16-45282
14	LOCKWASHER, (.312), MOUNTING BRACKET STUD	13-8M0204647
15	NUT, (.312-24) Stainless Steel, MOUNTING BRACKET STUD	11-28770
16	SCREW, (.500-20 x .2.250), MOUNTING BRACKET	10-45263
17	BOLT, (.375-16 x 3.250), MOUNTING BRACKET TO TRANSOM	10-68298
17	SCREW, (.375-16 x 5.00), MOUNTING BRACKET TO TRANSOM	10-89673
18	WASHER, MOUNTING BRACKET BOLT	12-68410
19	NUT, MOUNTING BRACKET BOLT	11-82671112
20	BRACKET, TRIM CYLINDER (STARBOARD)	89111T
21	SCREW, (.437-20 x 3.560), TRIM CYLINDER TO MOUNTING BRACKET	10-45328
22	WASHER, TRIM CYLINDER SCREW Comment: (STARBOARD ONLY)	12-37807
23	NUT, TRIM CYLINDER SCREW	11-20696
24	SPRING, TENSION - ADJUSTING STUD	24-24390
25	STUD, (#10-32 x .930), ADJUSTING - CUT-OUT LIMIT SWITCH	16-8M0034461	16-21085
26	NUT, Stainless Steel, JAM - LIMIT SWITCH ADJUSTING STUD	10-32,11-859124	11-45812
27	CAM, LIMIT SWITCH ADJUSTING STUD	99897
28	PLATE, RETAINING - LIMIT SWITCH CAM	86967
29	SCREW, (#10-32 x .375) Stainless Steel, RETAINING PLATE AND CAM	10-68513
30	LOCKWASHER, Stainless Steel, RETAINING PLATE AND CAM SCREW	10,13-26996
31	SWITCH ASSEMBLY, CUT- OUT LIMIT	45326A2
32	BUSHING, RUBBER - CUT-OUT LIMIT SWITCH	23-45354
33	SCREW, (#4-40 x .625), CUT OUT LIMIT SWITCH	10-47255
34	COVER, LIMIT SWITCH	89272
35	GASKET, LIMIT SWITCH COVER	27-892731
36	SCREW, (#10-32 x 1.00) Stainless Steel, LIMIT SWITCH COVER	10-34994
37	WASHER, LIMIT SWITCH COVER SCREW	12-38833
38	COVER, INLET - TRANSOM	87774A1
39	GASKET, INLET COVER	27-87775
40	GROMMET, RUBBER - INLET COVER	25-45507
41	SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT	10-32866
42	LOCKWASHER, Stainless Steel, INLET COVER SCREW	10,13-26996
43	NUT, Stainless Steel, INLET COVER SCREW	10-32,11-68219
44	HOSE, TRIM-CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.	32-88005
45	HOSE, LIFT-CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.	32-88006
46	GROMMET, RUBBER (3/8" I.D. - 1" LONG)	23-35977
46	GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)	23-35977
46	GROMMET, RUBBER (7/16" I.D. -7/8" LONG)	25-12602002
47	STRAP, Tilt Stop	73519A1
48	TUBE, MOUNTING - TILT STOP	69259
49	PIN, MOUNTING TUBE	77669
50	TUBE, CUSHION	63473
51	COTTER PIN, MOUNTING TUBE PIN	18-36002
52	COTTER PIN, TILT PIN RETAINING	18-45882
53	WASHER, TILT PIN	12-39304
54	BUSHING, MOUNTING BRACKET	23-89112
55	COVER, TRIM CYLINDER Comment: NOT USED ON LATE MODELS	70679
56	SCREW, (#10-32 x .500), TRIM CYLINDER COVER Comment: NOT USED ON LATE MODELS	10-37655

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
