Mercury 8 SEAPRO (2 CYL.)(International) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Use the Table of Contents below to jump to each diagram. For more details, click the part name or the OEM number to view its detailed page. A free PDF version of the catalog can be downloaded at the bottom of this page.

Accessories
Carburetor
Clamp and Swivel Brackets
Cowling
Crankshaft, Pistons and Connecting Rods
Cylinder Block
Driveshaft Housing
Electric Start Kit
Electrical
Fuel Tank Assembly(Plastic 3.2 Gallon)
Gear Housing(Driveshaft)
Gear Housing, Propeller Shaft
Gear Shift

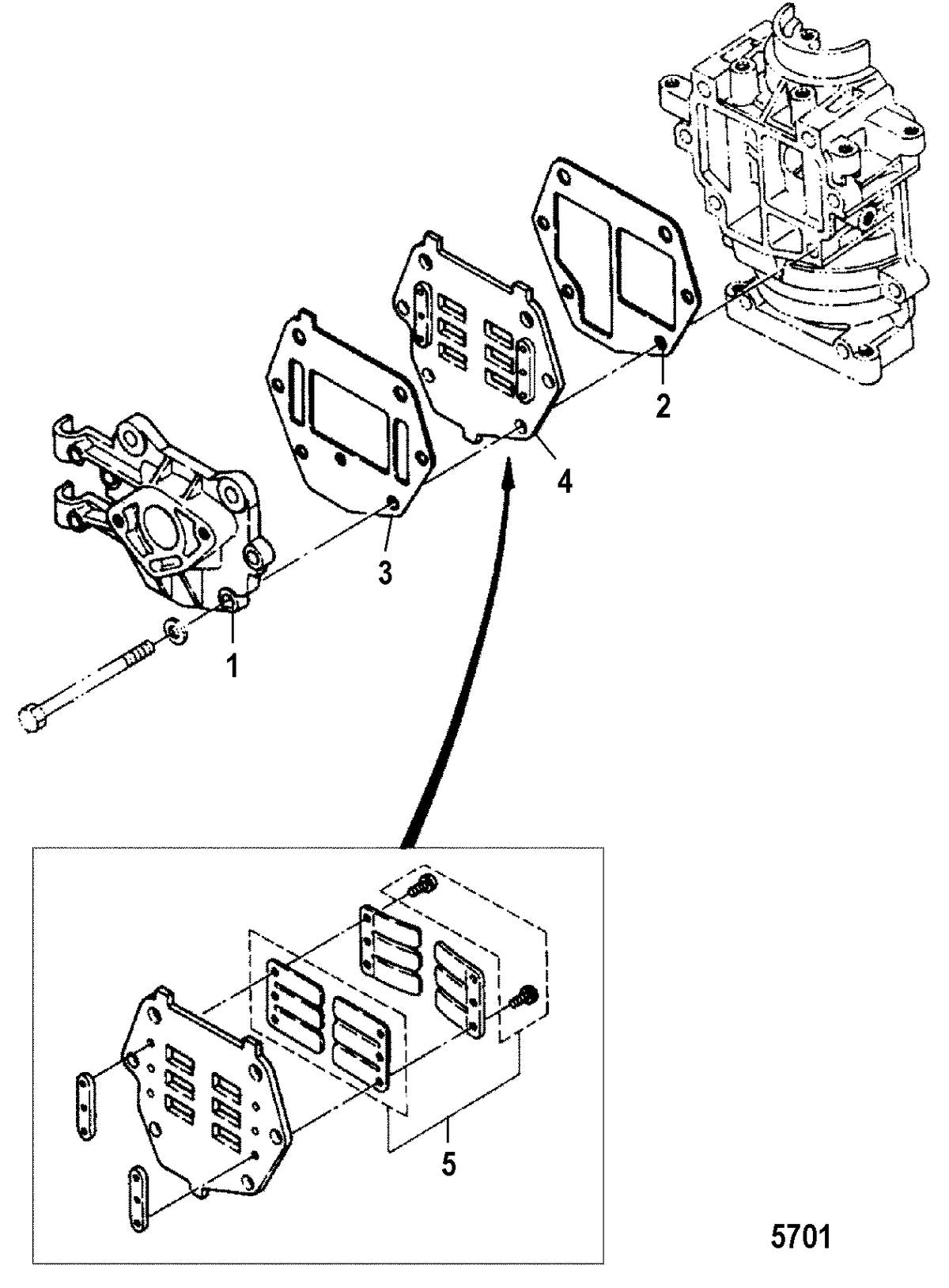

Inlet Manifold
Recoil Starter
Service\Support Materials
Steering Handle
Throttle Linkage
Tools

Accessories

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Accessories:

Position No.	Part Name	OEM Number	Supersedes
1	CABLE ASSEMBLY, Yellow	84-853799A4
2	CABLE ASSEMBLY, White	84-853799A3
3	IGNITION CHECKER	803799A1
4	ALTERNATOR SET	804977T01	804977A 1
5	SCREW (#10-823031 15)
6	HARNESS ASSEMBLY	84-17175
7	RECTIFIER KIT	8M0123939
8	ATTACHING KIT, Remote Control	8M0059840	803583A05

Carburetor

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Carburetor:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (9.8)	3303-803687T02	3303-803687A 2 (9.8)
1	CARBURETOR Comment: (8 SeaPro)	3303-803687T03	3303-803687A 3 (8 SeaPro)
2	MAIN NOZZLE Comment: (9.8)	8036921
2	MAIN NOZZLE Comment: (8 SeaPro)	8036922
3	JET, Main Comment: (9.8)	95,8036881
3	JET, Main Comment: (8 SeaPro)	98,8036882
4	JET, Pilot Comment: (9.8)	50,8036891
4	JET, Pilot (#803689 2) Comment: (8 SeaPro)	48
5	CAP	16252
6	FLOAT	16253
7	FLOAT VALVE	898101063	16254 4
8	PIN, Valve	853721
9	CLIP	54-16255
10	PIN	17-16256
11	SCREW	10-162571
12	FLOAT BOWL	803691T01	803691 1
13	O-RING	25-16259
14	SCREW	10-162601
15	SCREW, Drain	10-16261
16	GASKET	27-16262
17	SCREW	10-16263
18	SPRING	24-16264
19	SCREW, Pilot Adjust	10-8129351
20	SPRING	24-16266
21	BODY, Pump	16268
22	CHECK VALVE	21-16269
23	SCREW (#10-851813 1)
24	NUT (#11-851814 1)
25	COVER, Pump	16272
26	SCREW	10-162606
27	GASKET	27-16274
28	DIAPHRAGM	16275
29	DIAPHRAGM	16325
30	GASKET	27-16326
31	COVER, Carburetor	855540
32	GASKET	27-855541
33	GASKET	27-8555411
34	SCREW	10-855542
35	GASKET	27-16327
36	SPACER	23-8537151
37	BOLT, (M6 x 85)	10-855809003	10-16329002
38	LOCKWASHER, (M6)	13-400256
39	WASHER, Stainless Steel	12-953921
40	SILENCER, Air	8036971
41	FILTER, Fuel	35-8M0157133
42	TUBING	32-804889130
43	TUBING	32-804889130
44	GROMMET	25-162262
45	CLIP, Stainless Steel	54-95395
46	CONNECTOR, Fuel	22-853736
47	NUT	11-17480
48	ROD, Choke	8M0155129
49	GROMMET	25-16332
50	ROD, Snap	16333
-	REPAIR KIT, Carburetor	803826A2
-	GASKET SET, Powerhead Comment: (9.8)	27-8M0146273
-	GASKET SET, Powerhead Comment: (8 SeaPro)	27-8M0146271

Clamp and Swivel Brackets

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Clamp and Swivel Brackets:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET, Starboard	3406-9622T6
2	CLAMP BRACKET, Port	3406-96231
3	BOLT	10-898101337	10-95373
4	NUT, (M8)	11-95374
5	WASHER	12-16192
6	WASHER	12-95375
7	DISTANCE PLATE	161931
8	SCREW	10-16194
9	SPRING	24-161951
10	SCREW	10-16196
11	WASHER	12-16197
12	THRUST ROD	16198004
13	SPRING	24-8150931
14	CLAMP SCREW ASSEMBLY	10-16200
15	NOT SOLD SEPARATE, Clamp Screw	NSS
16	NOT SOLD SEPARATE, Pin	NSS
17	PAD	12-95379
18	SWIVEL BRACKET	3407-803772T01	3407-803772 1
19	SHAFT, Steering	803773T01	803773 1
20	THRUST PLATE	8037741
21	O-RING	25-8126412
22	BUSHING	23-163366
23	FRICTION PLATE	162052
24	SPRING	24-953831
25	SCREW, (M8 x 30)	10-4000354
26	RUBBER, Mount	8037753
27	RUBBER, Damper	8037781
28	BRACKET, Mount, Starboard	803776T08	803776008, 803776 2
29	BRACKET, Mount, Port	803776T09	803776009, 803776 3
30	BOLT, Stainless Steel	10-8M0102279	10-823042 22
31	RUBBER, Mount, Lower (Side)	8037754
32	RUBBER, Mount, Lower (Front)	8037755
33	STOPPER ASSEMBLY, Tilt	815094A04	815094A 1
34	NOT SOLD SEPARATE, Grip	NSS
35	BUSHING	825113
36	SPRING	24-813028	24-16183
37	SET PLATE	16210002
38	BOLT	10-8230427
39	FITTING, Grease	22-824969
40	CAP	808599
41	LOCK, Reverse	8040451
42	SHAFT, Reverse Lock (#804046 1)
43	E RING	53-953181
44	SPRING	24-804905
45	LINK, Reverse Lock	8037871
46	SNAP, Link Rod	853748
47	JOINT	804906
48	COTTER PIN	18-8150267

Cowling

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Cowling:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL	4000-803791T01	4000-803791 1
2	BOLT	10-16705	10-95302
3	WASHER, Stainless Steel	12-16826
4	HOOK LEVER	162181
5	SEAL	26-16219
6	BUSHING	23-16220
7	WAVE WASHER	13-16221
8	COVER HOOK	16222
9	BOLT	10-8230427
10	WASHER, Stainless Steel	12-953921
11	WASHER	12-953922
12	GROMMET	25-16226
13	GROMMET	25-162312
14	GROMMET	25-162284
15	GROMMET	25-16823
16	TOP COWL ASSEMBLY, Black - Without Decals	100-8M0073908	114-803792A10, 114-803792A 1
16	TOP COWL ASSEMBLY, Silver - Without Decals	100-8M0073909	114-803792A11, 114-803792A 2
16	TOP COWL ASSEMBLY (9.8)	114-8M0062861
16	TOP COWL ASSEMBLY (8 SeaPro)	114-8M0062861
17	SEAL, Rubber	25-162282
18	TILT HANDLE	803793T02	803793 2
19	NUT, (M6) Stainless Steel	11-400212
20	WASHER, Stainless Steel	12-16826
21	LOCKWASHER, (M6)	13-400256
22	SEAL, Rubber	8M0130233

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	474-8M0047721	474-804885T, 474-804885A 1
2	CRANKSHAFT	474-804885T01	474-804885 1
3	CRANKSHAFT	474-804885T02	474-804885 2
4	CRANKSHAFT	474-804885T03	474-804885 3
5	CRANKSHAFT	474-804885T04	474-804885 4
6	PIN, Crank	8036731
7	CONNECTING ROD	629-803674T01	629-803674 1
8	BEARING, Needle	31-8036751
9	BEARING, Ball	30-16049
10	SEAL, Oil	26-85370711
11	THRUST PLATE	8537122
12	BEARING, Ball	30-16049
13	SEAL, Oil	26-898101285	26-803514
14	BEARING, Needle	31-8036752
15	PISTON Comment: (Standard)	779-804886T	779-804886 (Standard)
15	PISTON Comment: (0.5 Oversize)	779-804886T05	779-804886 5 (0.5 Oversize)
16	RING, Piston Comment: (Standard), services whole engine	39-803678A3
16	RING, Piston Comment: (0.5 Oversize), services whole engine	39-803678A4
16	RING, Piston Comment: (Standard), services one piston	39-8M0080355
16	RING, Piston Comment: (0.5 Oversize), services one piston	39-8M0080354
17	PIN, Piston	41-8036801
18	CLIP	53-16057
19	KEY	28-16053
-	GASKET SET, Powerhead Comment: (9.8)	27-8M0146273
-	GASKET SET, Powerhead Comment: (8 SeaPro)	27-8M0146271
-	SHORT BLOCK ASSEMBLY Comment: (9.8)	61-8M0163357
-	SHORT BLOCK ASSEMBLY Comment: (8 SeaPro)	803679A3

Cylinder Block

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Cylinder Block:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK Comment: (9.8)	878-803660T05	878-803660A05, 878-803660A 2 (9.8)
1	CYLINDER BLOCK Comment: (8 SeaPro)	878-803660T04	878-803660A04 (8 SeaPro)
2	PIN, Dowel	17-16119
3	NIPPLE Comment: SN# 0N010764 & Below	22-8129601
3	CONNECTOR Comment: SN# 0N010765 & Up	22-8M0064617	22-812960, 22-95301 SN# 0N010765 & Up
4	BLEED VALVE Comment: SN# 0N010764 & Below	21-853696
4	NIPPLE Comment: SN# 0N010765 & Up	22-812960006
5	BOLT	10-166983
6	BOLT	10-166984
7	BOLT	10-166985
8	WASHER	12-809931044	12-809931042, 13-815064, 12-95222
9	BOLT	10-8150687
10	WASHER	12-4002217
11	LUBRICATION PIPE, (230 mm) Comment: SN# 0N010764 & Below	32-8129405
11	HOSE, Rubber with Arrow (730mm) Comment: SN# 0N010765 & Up	32-898101272
12	LUBRICATION PIPE, (230 mm) Comment: SN# 0N010764 & Below	32-8129405
12	HOSE, Rubber with Arrow (730mm) Comment: SN# 0N010765 & Up	32-898101272
13	CLIP	54-95224
14	CYLINDER HEAD Comment: (9.8)	979-803662T01	979-803662 1 (9.8)
14	CYLINDER HEAD Comment: (8 SeaPro)	979-803662T02	979-803662 2 (8 SeaPro)
15	GASKET	27-8M0146268
16	BOLT	10-166985
17	WASHER	12-809931044	12-809931042, 13-815064, 12-95222
18	THERMOSTAT	8M0228411
19	SPARK PLUG, (NGK#BP7HS-10)	33-8M0114744
19	SPARK PLUG, (NGK#BPR7HS-10)	33-17719547
20	COVER, Exhaust	8036662
21	COVER, Exhaust (#803666 3) Comment: (9.8)
21	COVER, Exhaust Comment: (8 SeaPro)	8036664
22	GASKET Comment: (9.8)	27-803663031	27-803663 8 (9.8)
22	GASKET Comment: (8 SeaPro)	27-803663027	27-803663 14 (8 SeaPro)
23	BOLT	10-8150683
24	WASHER	12-809931044	12-809931042, 13-815064, 12-95222
25	HEAD, Crank Case	1100-853713T02	1100-853713 2
26	GASKET	27-8M0147008
27	SEAL, Oil	26-85370712
28	SEAL, Oil	26-85370710
29	SPACER	23-8537155
30	BOLT	10-167051
31	GASKET	27-8M0151533
32	CLAMP	54-813275
-	GASKET SET, Powerhead Comment: (9.8)	27-8M0146273
-	GASKET SET, Powerhead Comment: (8 SeaPro)	27-8M0146271
-	SHORT BLOCK ASSEMBLY Comment: (9.8)	61-8M0163357
-	SHORT BLOCK ASSEMBLY Comment: (8 SeaPro)	803679A3

Driveshaft Housing

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Driveshaft (Short)	1599-804901T	1599-804901
1	HOUSING, Driveshaft (Long)	1599-804902T	1599-804902
2	BOLT	10-8M0147119
3	GASKET	27-803663028
4	PIN, Dowel	17-161191
5	GROMMET	25-161181
6	PIPE, Exhaust (#803727 1)
7	GASKET	27-803728002
8	BOLT	10-82304231
9	CABLE ASSEMBLY, Ground	84-898101091	84-878357
10	BOLT	10-8230427
-	GASKET SET, Lower Unit	27-8M0082883	27-8M0065830, 27-804908A02

Electric Start Kit

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Electric Start Kit:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR KIT	804975T01	8M0063876, 804975A 1
-	FLYWHEEL CUP	261-804976T	261-804976
-	ALTERNATOR SET	804977T01	804977A 1
-	STARTER MOTOR ASSEMBLY	50-803835T01	50-803835A 1
-	BOLT	10-161267
-	LOCKWASHER	13-17025
-	BRACKET, Starter Motor	803839
-	BOLT	10-823042073	10-898101955
-	LOCKWASHER	13-17025
-	SOLENOID, Starter	89-853809T	89-853809
-	BOLT	10-879194274	10-823042 12
-	NUT, (M6) Stainless Steel	11-400212
-	SWITCH, Neutral	87-8M0127937
-	ACTUATOR, Neutral Switch	803841
-	WASHER	12-9539211
-	RECTIFIER COMPLETE	804980T01	804980A 1
-	SCREW, (25 mm)	10-16123
-	LOCKWASHER	13-16079
-	NUT, Stainless Steel	11-16081
-	CLAMP	54-803563005	54-803563 1
-	CLAMP	54-813275
-	BOLT	10-8107551
-	WIRE, Battery	84-853815
-	WIRE ASSEMBLY, Fuse	84-853813A1
-	CABLE ASSEMBLY, Starter	84-8M0069818	84-853815 1
-	CAP, Starter Terminal	85-8538161
-	CAP, Cord	85-853816
-	CLAMP	54-953952
-	MAIN SWITCH ASSEMBLY	87-804981

Electrical

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Electrical:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL CUP	261-804976T01	261-804976 1
2	PLATE ASSEMBLY, Coil	8M0135298
3	COIL, Exciter	804988T	804988
4	SCREW (#10-823031 15)
5	HOLDER	804990
6	SCREW	10-8230314
7	CD UNIT	803704T01	803704 1
8	CAP	85-8555431
8	BOOT, With Resistance	85-855543
9	NOT SOLD SEPARATE, Terminal	NSS
10	SPACER	23-8537156
11	BOLT	10-16705	10-95302
12	BOLT	10-168308
13	WASHER, Stainless Steel	12-16826
14	SET PLATE	804890T	804890
15	SCREW	10-16194
16	STOPPER, Coil Plate Comment: (9.8)	804891T	804891 (9.8)
16	STOPPER Comment: (8 SeaPro)	8048911
17	SCREW	10-8555441
18	NUT	11-16071
19	WASHER	12-16072
20	SWITCH ASSEMBLY, Stop - Lanyard	87-823037A2
21	LANYARD	823054
22	FLYWHEEL CUP Comment: (Electric)	261-804976T	261-804976 (Electric)
23	ALTERNATOR SET Comment: (Electric)	804977T01	804977A 1 (Electric)

Fuel Tank Assembly(Plastic 3.2 Gallon)

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Fuel Tank Assembly(Plastic 3.2 Gallon):

Position No.	Part Name	OEM Number	Supersedes
1	TANK ASSEMBLY, Fuel (Plastic)	1260-859061A1
2	GAUGE/CAP ASSEMBLY	823535
NS	GASKET, Fuel Cap	27-8169771
3	CONNECTOR KIT, Fuel	22-8M0175544
4	O-RING	25-823533	25-18471
5	SCREEN	35-823534	35-18029
6	FUEL LINE ASSEMBLY	32-8M0126969
7	CLAMP	54-853798
8	CONNECTOR, Fuel, Engine End	22-8M0120628
9	BULB ASSEMBLY, Primer	13330Q07
10	CHECK VALVE ASSEMBLY (Inlet)	21-13331A3
11	CHECK VALVE ASSEMBLY (Outlet)	21-13331A4
12	CLAMP (Large)	41582-10
13	CLAMP, Nylon (Small)	54-41582Q7
14	CONNECTOR, (.250-18), Fuel Tank	22-89771Q2
15	CLAMP, Nylon	54-41582Q7

Gear Housing(Driveshaft)

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Gear Housing(Driveshaft):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (Short)	1600-8M0172380
-	GEAR HOUSING ASSEMBLY, Complete (Long)	1668-8M0070902	1668-803729T12, 1668-803729A 6
1	GEAR HOUSING ASSEMBLY, Basic	1668-803729T04	1668-803729A 4
2	BEARING, Needle	31-8036753
3	BOLT	10-8M0147119
4	PLUG	22-8M0229353
5	PLUG	22-8M0229353
6	GASKET	27-95220
7	ANODE	97-823913Q	823913, 95271
8	BOLT, (M6 x 16)	10-16832
9	DRIVESHAFT (Short)	45-803738T15	45-803738015, 45-803738 2
9	DRIVESHAFT (Long)	45-803738T16	45-803738016, 45-803738 3
10	BEARING, Ball	30-161326
11	GEAR, Pinion	43-8M0156176
12	IMPELLER	47-8M0214945
13	PIN, Roll - Stainless Steel	17-9521811
14	HOUSING, Water Pump - Upper	46-803750A02	46-803750 2
15	LINER, Stainless Steel	8037511
16	GUIDE PLATE, Stainless Steel	8037531
17	GASKET	27-8M0072137	27-16158015
18	GASKET	27-8M0072138	27-16158014
19	BOLT, Stainless Steel	10-879194305	10-16126 8
20	WASHER, Stainless Steel	12-16826
21	HOUSING, Water Pump - Lower	46-803750A01	46-803750 3, 46-803750004
22	GASKET	27-8M0072139	27-16158 7
23	SEAL, Oil	26-95348
24	SHIM	15-8537955
25	PIPE, Water (Short)	32-8037552
25	PIPE, Water (Long) (#32-803755 3)
26	GROMMET (#25-804899 1)
27	GROMMET	25-804903
28	RETAINER	16165
29	BOLT	10-823042
-	REPAIR KIT, Water Pump	853792A5
-	GASKET SET, Lower Unit	27-8M0082883	27-8M0065830, 27-804908A02

Gear Housing, Propeller Shaft

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Gear Housing, Propeller Shaft:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (Short)	1600-8M0172380
-	GEAR HOUSING ASSEMBLY, Complete (Long)	1668-8M0070902	1668-803729T12, 1668-803729A 6
1	GEAR HOUSING ASSEMBLY, Basic	1668-803729T04	1668-803729A 4
30	BEARING, Ball	30-8037331
31	GEAR, Forward	43-8M0156174
32	GEAR, Reverse	43-8M0156178
33	WASHER	12-16140
34	SHIM, (0.1)	15-16141
34	SHIM, (0.15)	15-813277
35	PROPELLER SHAFT	44-8M0070782	44-803744002, 44-803744 1
36	CLUTCH	52-8037451
37	PIN, Clutch	17-16150
38	SPRING, (51 mm)	24-892777002	24-17667 4
39	FOLLOWER, Cam	16152
40	RETAINER	8537642
41	CARRIER ASSEMBLY, Bearing	803732T03	803732A 2
42	O-RING	25-16131
43	SEAL, Oil	26-16130
44	BEARING, Ball	30-16128
45	BOLT	10-167051
46	THRUST HOLDER	8M0131240
47	PROPELLER, (8.5)	48-897618A10	48-895183A10
47	PROPELLER, (6.5)	48-897610A10	48-895180A10
47	PROPELLER, (7)	48-897614A10	48-804974005, 48-804974002, 48-895181A10, 48-895182A10
48	PROP NUT	11-16147
49	COTTER PIN	18-815026	18-16073, 18-99046M
50	WASHER	12-16146
-	GASKET SET, Lower Unit	27-8M0082883	27-8M0065830, 27-804908A02

Gear Shift

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Gear Shift:

Position No.	Part Name	OEM Number	Supersedes
1	CAM	8M0090459
2	COTTER PIN	18-8150263
3	CAM ROD Comment: (Short)	8037602
3	CAM ROD (#803760 3) Comment: (Long)
4	BUSHING	23-16176
5	O-RING	25-161771
6	O-RING	25-16178
7	LEVER, Shift	8037631
8	GROMMET	25-8037591
9	LOCK LEVER, Starter	804904
10	BUSHING	23-163361
11	LEVER, Shift Rod	8037681
12	CLIP	54-851863
13	STOPPER	24-8M0138736
14	BOLT	10-8107551
15	CLAMP	8M0138737
16	SHIFT ROD	8037662
17	JOINT	8037671
18	COTTER PIN	18-8150263
19	E RING	53-953182
-	GASKET SET, Lower Unit	27-8M0082883	27-8M0065830, 27-804908A02

Inlet Manifold

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Inlet Manifold:

Position No.	Part Name	OEM Number	Supersedes
1	MANIFOLD, Inlet	804887T	804887
2	GASKET, Inner	27-803663032	27-803663 11
3	GASKET, Outer	27-803663026	27-803663 12
4	VALVE ASSEMBLY, Reed	803686T02	34-804888A 1, 803686A 2
5	REED VALVE SET	803686T02	34-804888A 1, 803686A 2
-	GASKET SET, Powerhead Comment: (9.8)	27-8M0146273
-	GASKET SET, Powerhead Comment: (8 SeaPro)	27-8M0146271
-	SHORT BLOCK ASSEMBLY Comment: (9.8)	61-8M0163357
-	SHORT BLOCK ASSEMBLY Comment: (8 SeaPro)	803679A3

Recoil Starter

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Recoil Starter:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER ASSEMBLY, Recoil	803716T02	803716A 2
2	HOUSING, Starter	803716T	803716 2
3	SPRING SET, Starter	24-812645T	24-812645, 24-16102
4	SHEEVE, Starter	812633
5	SPRING, Return	24-812634
6	RATCHET	8M0060217	812635
7	SPRING, Friction	24-812636
8	BOLT	10-8M0060218
9	FRICTION PLATE	812638
10	ROPE	50-12066Q10
11	HANDLE, Starter Rope	812640
12	RETAINER	812641
13	PLATE, Seal	161101
14	PULLEY, Starter	812642
15	SCREW AND LOCKWASHER	10-168281
16	LOCK, Starter	17634
17	SCREW	10-8555449
18	COLLAR	23-895130	23-17637, 23-17637001
19	SPRING	24-812645007	24-17638
20	CAM	8037211
21	WAVE WASHER	13-17641
22	SCREW	10-855544
23	ROD, Snap	898101933
24	LOCK ROD, Starter	8036815
25	BOLT	10-16705	10-95302
26	LOCKWASHER, (M6)	13-400256
27	BRACKET, Starter Comment: (Port)	8049001
28	BRACKET, Starter Comment: (Starboard)	8049002
29	BOLT	10-168282
30	CLAMP	54-813275
31	COLLAR	23-855545

Service\Support Materials

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Service\Support Materials:

$Mercury 8 SEAPRO (2 CYL.)(International) Service\Support Materials Diagram$

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 8HP Seapro/ 9.8 HP International	90-80491400
-	DECAL SET (8/9.8)	37-804994A00

Steering Handle

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Steering Handle:

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE, Steering	16075T4
2	BUSHING	23-8518584
3	WASHER	12-804508	12-804016
4	WAVE WASHER	13-804017
5	STOPPER	804896
6	STUD BOLT	16-815028
7	LOCKWASHER, (M6)	13-400256
8	NUT, (M6) Stainless Steel	11-400212
9	GRIP	8M0065582
10	SHAFT, Throttle	16093
11	SPACER	23-16191
12	BUSHING	23-16336
13	SCREW	10-16094
14	BRACKET	16338
15	SCREW	10-16827
16	FRICTION PIECE	813026	16337
17	SCREW, Adjusting	10-16087
18	WASHER, Stainless Steel	12-16826
19	NUT, (M6) Stainless Steel	11-400212
20	WIRE, Throttle	804898
21	GROMMET	25-804899
22	DECAL	37-8M0097201

Throttle Linkage

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Throttle Linkage:

Position No.	Part Name	OEM Number	Supersedes
1	LEVER, Advancer (#803709 1)
2	DRUM, Throttle	804892
3	HOLDER	8M0102999
4	SCREW	10-16059
5	ARM, Throttle	804894
6	BALL JOINT	853744001	853744
7	CAP	853745
8	NUT	11-16081
9	NUT, (M6) Stainless Steel	11-400212
10	LINK ROD, Advancer	8036814
11	SNAP, Link Rod	853748
12	ROD, Throttle Link	8M0102314	804895
13	ROD, Snap	16333

Tools

Below is the parts list for Mercury 8 SEAPRO (2 CYL.)(International) Tools:

Position No.	Part Name	OEM Number	Supersedes
1	PULLER KIT, Needle Roller Bearing	91-895195A01	91-853996 20
2	FLANGE	91-8031332
3	SHAFT	91-8031333
4	WASHER	12-1614010
5	NUT	11-85372220
6	FLANGE	91-8031336
0	TOOL, Backlash Measuring Sub-Assembly Comment: (Not Shown)	91-895216A01
0	TOOL, Backlash Measuring Arm Comment: (Not Shown)	895216002
0	TOOL, Flywheel Puller Comment: (Not Shown)	91-8M0059838	91-804552001 (Not Shown)
0	TOOL, Flywheel Stripper Comment: (Not Shown)	91-8M0059838	91-804552001 (Not Shown)

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
