Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ACCESSORIES

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) ACCESSORIES:

Part Name	OEM Number	Supersedes
OIL (CASE)	92-828000A12
TILLER HANDLE KIT	828030A3
TILL HANDLE KIT	828030A4
ELECTRIC START KIT	828003A1
BATTERY CHARGING KIT (RECTIFIER)	828038A1
TILLER HANDLE HARNESS/START BUTTON ASSEMBLY	828004A1
REMOTE CONTROL HARNESS ASSEMBLY	84-828022A2
CO-PILOT KIT	831257A1
REMOTE CONTROL ATTACHING KIT	828020A1
SIDE SHIFT CONVERSION KIT	831259A1
EXTENSION KIT	828032A1
EXTENSION KIT	828032A2
FUEL LINE (8 FT.)	32-877680Q8
FUEL LINE (12 FT.)	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 WITH QUICK DISCONNECT
FUEL LINE (8 FT.)	32-877681Q8
FUEL LINE (12 FT.)	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 WITH QUICK DISCONNECT ENGINE END ONLY
FUEL LINE	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 NO FIITINGS

Accessories

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Accessories:

Position No.	Part Name	OEM Number	Supersedes
-	BATTERY CHARGING KIT, Rectifier	828038A1
-	CO-PILOT KIT	831257A1
-	ELECTRIC START KIT	828003A1
-	EXTENSION KIT	828032A1
-	EXTENSION KIT	828032A2
-	FLUSHING ATTACHMENT	12612Q2
-	LINE ASSEMBLY, Fuel (8 Feet)	32-877680Q8
-	LINE ASSEMBLY, Fuel (12 Feet)	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 With Quick Disconnect
-	LINE ASSEMBLY, Fuel (8 Feet)	32-877681Q8
-	LINE ASSEMBLY, Fuel (12 Feet)	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 With Quick Disconnect Engine End Only
-	LINE ASSEMBLY, Fuel (12 Feet)	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 No Fittings
-	VOLTAGE REGULATOR ASSEMBLY	84125T
-	MOTOR LOCK	14171Q2
-	OIL, Case	92-828000A12
-	WRENCH/SCREWDRIVER, Spark Plug	91-8M0026088	91-96086
-	REMOTE CONTROL ATTACHING KIT	828020A1
-	HARNESS ASSEMBLY, Remote Control	84-828022A2
-	CONVERSION KIT	831259A1
-	TILLER HANDLE KIT	828030A3
-	TILL HANDLE KIT	828030A4
-	CONVERSION KIT, Tiller Handle	828004A1
0	CHARGING KIT, 10 Ampere	856557A1
0	CHARGING KIT, Battery	856558A2
0	STARTER MOTOR KIT, Electric	50-856555A1
0	HOSE ASSEMBLY, Fuel	32-858610A38	32-858610A19, 32-858697A 2 (Original Equipment)
0	HOSE ASSEMBLY, Fuel (8 Feet)	32-877680Q8
0	HOSE ASSEMBLY, Fuel (12 Feet)	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 (With Quick Disconnect)
0	HOSE ASSEMBLY, Fuel (8 Feet)	32-877681Q8
0	HOSE ASSEMBLY, Fuel (12 Feet)	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 (With Quick Disconnect Engine End Only)
0	HOSE ASSEMBLY, Fuel (12 Feet)	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 (No Fittings)
0	ATTACHING KIT, Remote Control	856553A2
0	HARNESS KIT, Remote Control	84-856554A1
0	TILLER HANDLE KIT	856537A5
0	SWITCH KIT, Tiller Handle Start Button	856556A2

BOTTOM COWL

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) BOTTOM COWL:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL	4000-825780F1
1	BOTTOM COWL	4000-825780F2
2	LEVER-COWL LATCH	825782F1
2	LEVER-COWL LATCH	825782F2
3	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
4	WAVE WASHER	13-12134
5	LATCH HOOK	893766	825783
6	WASHER	12-8M0214930
7	SCREW (M6 X 16)	10-4006731
8	SCREW (M6 X 35)	10-40011131
9	WASHER	12-69057
10	GROMMET	25-828129
11	GROMMET	25-828129
12	BUSHING	23-826618
13	DECAL-SHIFT	37-111851
14	GROMMET	25-826849
15	SCREW (M6 X 25)	10-40011129
16	WASHER	12-69057
17	GROMMET	25-828129
18	GROMMET	25-828129
19	BUSHING	23-826618
20	COVER	25-857002	25-826808 (MANUAL)
20	COVER	827403
21	SCREW (M6 X 20)	10-8M0204741
22	COVER	825569
23	GROMMET	25-825784

Bottom Cowl

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Bottom Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL	4000-825780F1
2	LEVER, Cowl Latch	825782F1
3	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
4	WASHER, Wave	13-12134
5	LATCH HOOK	893766	825783
6	WASHER	12-8M0214930
7	SCREW, (M6 x 16) Stainless Steel	10-4006731
8	SCREW, (M6 x 35) Stainless Steel	10-40011131
9	WASHER, (.281 x .734 x .063)	12-69057
10	GROMMET	25-828129
11	GROMMET	25-828129
12	BUSHING	23-826618
13	GROMMET	25-826849
14	SCREW, (M6 x 25) Stainless Steel	10-40011129
15	WASHER, (.281 x .734 x .063)	12-69057
16	GROMMET	25-828129
17	GROMMET	25-828129
18	BUSHING	23-826618
19	COVER	25-857002	25-826808
20	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
21	COVER	825569
22	GROMMET	25-825784
23	NOT SOLD SEPARATE, Decal-Unleaded Fuel	NSS
1	BOTTOM COWL	4000-835416A1
2	COVER	25-857002	25-826808
3	LATCH HOOK	852480
4	SCREW, (M6 x 16)	10-4006731
5	WASHER	12-8M0214930
6	BUSHING	23-826618
7	GROMMET	25-828129
8	WASHER, (.281 x .734 x .063)	12-69057
9	GROMMET	25-855289T	25-855289
10	LEVER, Cowl Latch	825782F1
11	SCREW, (M6 x 35 MM)	10-1993735
12	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
13	WASHER, Wave	13-12134
14	CONNECTOR, Fuel - Brass	22-8M0182334
15	SCREW, (M6 x 25) Stainless Steel	10-40011129
16	GROMMET, Fuel Connector	25-18202
17	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	TUBING, (13.00 Inches)	32-85682931
18	HOSE, (.187) (26.00 Inches Bulk)	32-9912878
19	PLUG	826037
20	FITTING	22-813613
21	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
22	NOT SOLD SEPARATE, Decal Unleaded Fuel	NSS
23	SHIFT DECAL	37-111851

CAMSHAFT/OIL PUMP

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) CAMSHAFT/OIL PUMP:

Position No.	Part Name	OEM Number	Supersedes
1	BELT	825657
2	NUT	11-825717
3	WASHER	12-825718
4	WASHER	12-825716
5	GEAR-DRIVE	43-825715
6	KEY	28-8M0084803	28-84403M
7	FILTER-OIL/SCREEN	35-825467T02	825467T 1
8	HOUSING	825499
9	O-RING	25-84464M
10	WASHER	12-82214M
11	BOLT	10-84931M
12	BOLT	10-82500930
13	BOLT	10-826957M	10-91725M
14	WASHER	12-825498
15	GEAR-DRIVEN	43-825494T	43-825494
16	WASHER	12-82710M
17	OIL SEAL	26-825455
18	CAMSHAFT	825454
19	OIL PUMP ASSEMBLY	825456T1
20	O-RING	25-825462
21	O-RING	25-827016
22	O-RING	25-825438
23	O-RING	25-84464M
24	BOLT	10-8248326
-	POWERHEAD	61-822775T7
-	GASKET SET	27-825847A95

CARBURETOR

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) CARBURETOR:

Position No.	Part Name	OEM Number	Supersedes
-	CARBURETOR	3323-855107T02	3323-855107T 1 (S/N-0H013399 & BELOW)
-	CARBURETOR	3323-827973T1
-	CARBURETOR	3323-855107T02	3323-855107T 1 (S/N-0H014138 & UP)
1	SCREW	10-82980M
2	LOCKWASHER	13-82212M
3	STARTER SET	827473T	827473M
4	O-RING	25-827472T	25-827472M
5	PIPE	32-827471M
6	CLAMP	54-827482M
7	SEAL	26-827468M
8	SCREW-AIR ADJUSTING	10-827469M
8	SCREW-AIR ADJUSTING	10-809125M
9	SPRING	24-80437M
10	PLUG	19-855237	19-802702003, 19-809583 (S/N-0H014138 & UP)
11	SCREW	10-826931M
12	SPRING-PILOT ADJUSTING	24-82596M
13	STUD	16-825522
14	FLOAT PIN	17-80451M
15	ROD-ACCELERATOR PUMP	827485M
15	ROD-ACCELERATOR PUMP	809127M
16	NUT	11-82537M
17	SHAFT-CHOKE	827486M
18	WASHER	12-827488M
19	CLIP	53-827489M
20	MAIN NOZZLE	827467M
21	MAIN JET	91741M
22	SCREW	10-809128M
19	MAIN NOZZLE	809123M
20	MAIN JET /	82625M
21	O-RING	25-809124M
23	VALVE-NEEDLE	14182M
24	JET-PILOT	827465M
25	GASKET	27-80960M
26	PLUG-MAIN NOZZLE	19-827466M
27	FLOAT	827470M
28	GASKET-FLOAT CHAMBER	27-827463M
29	FILTER	35-827474M
30	JET-STARTER	827475M
31	VALVE-CHOKE	827483M
32	SCREW	10-827480M
33	GASKET	27-827481M
34	SCREW-DRAIN	10-827477M
35	O-RING	25-827476M
36	FLOAT BOWL	827464M
37	LOCKWASHER	13-82206M
38	SCREW	10-91738M
39	SPRING	24-827479M
40	DIAPHRAGM	827478M
41	COVER	827484M
41	COVER	809126M
42		24-827487M
43	LOCKWASHER	13-82206M
44	SCREW	10-83509M
45	SEAL	26-827737
-	STOP-THROTTLE	828099
-	NUT-PUSH	11-821285
-	CARB REPAIR KIT	827493M

CLAMP BRACKET

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) CLAMP BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET	3404-8894A8
1	CLAMP BRACKET	3404-8894A9
2	CLAMP BRACKET	3403-8892A6
2	CLAMP BRACKET	3403-8892A7
3	THUMB SCREW ASSEMBLY	10-92767A3
4	WASHER-THUMB SCREW	12-73719
5	SCREW-WASHER ATTACHING	10-768042
6	SPACER	23-8M0084719
7	SCREW	10-4000333
8	DECAL (TILT)	37-12869
9	SHUTTLE-TILT LOCK	814427
10	TILT TUBE (MANUAL)	42078
11	CLIP-SAFETY	54-8M0085928	54-30954
12	NUT-TILT TUBE	11-93164
13	WASHER-TILT TUBE	12-71421
14	LEVER ASSEMBLY-TILT RETURN	42390A1
15	STRAP-TILT STOP - PORT SIDE	90901
16	SCREW-STRAP TO CLAMP BRACKET	10-42498
17	WAVE WASHER-TILT STOP STRAP SCREW	13-31030
18	BOLT-CLAMP BRACKET TO TRANSOM	10-43216
19	WASHER-CLAMP BRACKET BOLT	12-67983
20	NUT-CLAMP BRACKET BOLT	11-8267118
21	TILT TUBE	8M0041936	8M0035074, 883067, 30664 2, 74528 ELECTRIC
22	NUT	11-93164
23	SPACER	23-113841
24	SCREW	10-4000354
25	WASHER	12-56720
26	BRACKET	11607
27	NUT	11-401388
28	TIE ROD	11606T
29	BALL JOINT	29698
30	WASHER (.39 X .546 X .1)	12-8M0109680
31	WASHER (.97 X .56 X .19)	12-30521
32	WASHER (.390 X .625 X .062)	12-37828
33	SPACER	23-66751
34	NUT (.375-24)	11-8M0204726
35	SEAL KIT	19624A1

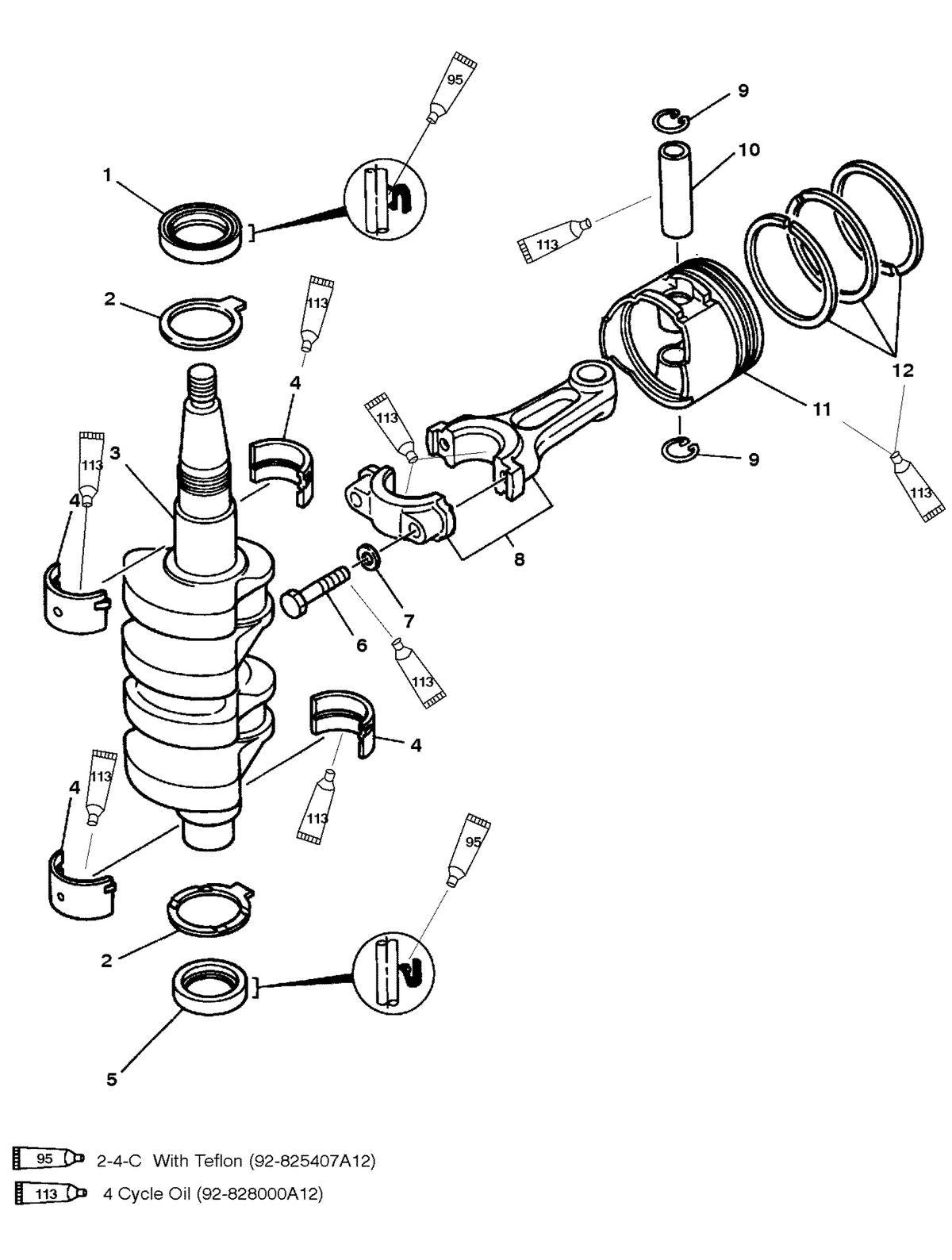

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	SEAL-OIL	26-825704
2	BEARING-THRUST	31-825710
3	CRANKSHAFT	400-825703
4	BEARING-MAIN	31-825706T	31-825706 (BROWN)
4	BEARING-MAIN	31-825706T10	31-825706 10 (BLACK)
4	BEARING-MAIN	31-825706T20	31-825706 20 (BLUE)
5	SEAL-OIL	26-825705
6	BOLT	10-825708
7	WASHER	12-825709
8	CONNECTING ROD	600-825707A2
9	CIRCLIP	53-82343M
10	PISTON PIN	41-825713
11	PISTON	700-825711T	700-825711 (STANDARD) SEE NOTE
11	PISTON	700-8257112
11	PISTON	700-825711T1
12	RING-PISTON	39-825712T1
12	RING-PISTON	39-8257123
12	RING-PISTON	39-825712T2
-	POWERHEAD	61-822775T7
-	GASKET SET	27-825847A95

CYLINDER BLOCK AND CRANKCASE

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) CYLINDER BLOCK AND CRANKCASE:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKCASE ASSEMBLY	900-825688A1
2	PIN-DOWEL	17-825689
3	BOLT	10-41885M
4	BOLT	10-41837M
5	GASKET-CYLINDER BLOCK	27-825847
6	GASKET-INNER EXHAUST COVER	27-825693
7	COVER-INNER EXHAUST	825692
8	GASKET-OUTER EXHAUST COVER	27-825694
9	BOLT	10-893745025
10	COVER-OUTER EXHAUST	825695
10	COVER-OUTER EXHAUST	827736A1
11	FITTING	22-83326M
12	BOLT	10-82500930
13	O-RING	25-825483
14	THERMOSTAT	855676003	825212001, 825212, 855676
15	GASKET-COVER	27-825701
16	COVER-THERMOSTAT	825700
17	BOLT	10-8257021
18	PIPE	22-8830591
19	HOSE (16 IN.)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	GASKET-CYLINDER HEAD	27-8254821
21	CYLINDER HEAD ASSEMBLY	900-825720A1
22	GUIDE	825721
23	CIRCLIP	53-825038	825722
24	FITTING	22-83326M
25	BOLT	10-8M0205943
26	SPARK PLUG	33-827859
27	PLUG	825437
28	O-RING	25-825438
29	ANODE	825435
30	SCREW	10-825436
31	BOLT	10-825480
32	BOLT	10-825479
33	SEAL	825488
34	GROMMET	25-825485
35	COVER-CYLINDER HEAD	825484
36	PIPE-BREATHER	825486
37	NIPPLE	22-83326M
38	BOLT	10-8257021
39	O-RING	25-8M0052669	25-825492
40	PLUG-OIL	859578A1
41	DIPSTICK	19-825795
42	HOSE	32-826864
43	CONNECTOR-T	22-818993
44	HOSE (2 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
45	HOSE (1-1/2 IN.)	32-9912878
46	CONNECTOR	827335
46	TEE	22-733181
47	HOSE	32-825434
48	HOSE (10 IN.) )	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 (NON BODENSEE)
49	HOSE	32-826863
50	FITTING	826861
-	POWERHEAD	61-822775T7
-	GASKET SET	27-825847A95

Camshaft/Oil Pump

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Camshaft/Oil Pump:

Position No.	Part Name	OEM Number	Supersedes
1	BELT	825657
2	NUT	11-825717
3	WASHER	12-825718
4	WASHER	12-825716
5	GEAR, Drive	43-825715
6	KEY	28-8M0084803	28-84403M
7	FILTER ASSEMBLY, Oil/Screen	35-825467T02	825467T 1
8	HOUSING	825499
9	O-RING	25-84464M
10	BOLT	10-84931M
11	BOLT, (M6 x 30)	10-82500930
12	BOLT	10-826957M	10-91725M
13	WASHER	12-825498
14	GEAR, Driven	43-825494T	43-825494
15	WASHER	12-82710M
16	SEAL, Oil	26-825455
17	CAMSHAFT	825454
18	PUMP ASSEMBLY, Oil	825456T1
19	O-RING	25-825462
20	O-RING	25-827016
21	O-RING	25-825438
22	O-RING	25-84464M
23	BOLT, (M6 x 25)	10-8248326
24	WASHER	12-82214M
-	POWERHEAD ASSEMBLY	61-822775T7
-	GASKET SET	27-825847A95

Carburetor

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Carburetor:

Position No.	Part Name	OEM Number	Supersedes
-	CARBURETOR	3323-827973T1
1	SCREW	10-82980M
2	LOCKWASHER	13-82212M
3	STARTER ASSEMBLY	827473T	827473M
4	O-RING	25-827472T	25-827472M
5	PIPE	32-827471M
6	CLAMP	54-827482M
7	SEAL	26-827468M
8	SCREW, Air Adjusting	10-809125M
9	SPRING	24-80437M
10	PLUG	19-855237	19-802702003, 19-809583
11	SCREW	10-826931M
12	SPRING, Pilot Adjusting	24-82596M
13	STUD	16-825522
14	PIN, Float	17-80451M
15	ROD, Accelerator Pump	809127M
16	NUT	11-82537M
17	SHAFT, Choke	827486M
18	WASHER	12-827488M
19	CLIP	53-827489M
20	MAIN NOZZLE	809123M
21	MAIN JET	82625M
22	O-RING	25-809124M
23	VALVE	14182M
24	JET, Pilot	827465M
25	GASKET	27-80960M
26	PLUG, Main Nozzle	19-827466M
27	FLOAT	827470M
28	GASKET, Float Chamber	27-827463M
29	FILTER	35-827474M
30	JET, Starting	827475M
31	VALVE, Choke	827483M
32	SCREW	10-827480M
33	GASKET	27-827481M
34	SCREW, Drain	10-827477M
35	O-RING	25-827476M
36	FLOAT BOWL	827464M
37	LOCKWASHER	13-82206M
38	SCREW	10-91738M
39	SPRING	24-827479M
40	DIAPHRAGM	827478M
41	COVER	809126M
42	SPRING	24-827487M
43	LOCKWASHER	13-82206M
44	SCREW, (M4 x 10)	10-83509M
45	SEAL, Rubber	26-827737
-	STOP, Throttle	828099
-	PUSH NUT	11-821285
-	REPAIR KIT, Carburetor	827493M
1	CARBURETOR	3323-856919T2
1	CARBURETOR	3323-835382A2
1	CARBURETOR	3323-856918A1
1	CARBURETOR	3323-835382T04	3323-835382T 3 (13.5/15) (Without Tamper Cap)
1	CARBURETOR	3323-835382T04	3323-835382T 3 (13.5/15) (With Tamper Cap)
-	CAP, Tamper	19-854248002
2	SCREW, (M4 x 10)	10-809571
3	COVER	8095721
4	GASKET	809573
5	SCREW, Throttle	10-8095781
6	SPRING	24-8095791
7	SCREW, (M4 x 5)	10-811248M	10-852787 3
8	COVER	802705
9	SCREW, (M3 x 5)	10-8026921
10	PILOT JET,	45,8027011
11	PLUG	19-802702
12	MAIN NOZZLE	802700
12	MAIN NOZZLE	8027001
12	MAIN NOZZLE	8027002
13	O-RING	25-11802M
14	JET, Main	104,802701
14	JET, Main	103,8027012
14	JET, Main	68,8027013
15	SCREW, (M4 x 5)	10-8095711
16	VALVE, Needle	8095701
17	FLOAT	809569
18	PIN	17-11794M
19	GASKET	27-802699	27-802699 1
20	FILTER	35-802704
21	FLOAT BOWL ASSEMBLY	802690T3
21	FLOAT BOWL ASSEMBLY	802690T3
21	FLOAT BOWL ASSEMBLY	802690T2
22	RING, Retaining	53-802693
23	CAP	802698
24	SEAL	802697
25	DIAPHRAGM	802695
26	SPRING	24-802696
27	PLATE	802694
28	SCREW, (M4 x 8)	10-802692
29	PLUG, Drain (M4 x 5)	22-14183M
30	GASKET	27-8026911
31	SCREW, Drain (M5 x 6)	10-8095783
32	GASKET	27-802691
33	SCREW, (M4 x 12)	10-81758M
34	CHECK VALVE	21-802703
35	NOT SOLD SEPARATE, Spring-Air Adjusting	NSS
36	NOT SOLD SEPARATE, O-Ring	NSS
37	NOT SOLD SEPARATE, Screw-Air Adjusting	NSS
38	PLUG	19-855237	19-802702003, 19-809583
39	SEAL, Rubber	26-827737
40	STOP, Throttle	859200
41	PUSH NUT	11-821285
-	REPAIR KIT, Carburetor	802706A1

Clamp Bracket

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Clamp Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	3404-8894A8
2	CLAMP BRACKET	3403-8892A6
3	THUMB SCREW ASSEMBLY, (16 mm)	10-92767A3
4	WASHER	12-73719
5	SHOULDER SCREW, Hex	10-768042
6	NOT SOLD SEPARATE, Handle	NSS
7	NOT SOLD SEPARATE, Rivet	NSS
8	SPACER	23-8M0084719
9	SCREW, (M6 x 40)	10-4000333
10	DECAL, Tilt Position	37-12869
11	SHUTTLE	814427
12	TILT TUBE	42078
13	CLIP	54-8M0085928	54-30954
14	NUT, (.875)	11-93164
15	WASHER, Nylon	12-71421
16	LEVER ASSEMBLY, Tilt Return	42390A1
17	NOT SOLD SEPARATE, Knob	NSS
18	NOT SOLD SEPARATE, Screw	NSS
19	NOT SOLD SEPARATE, Spring	NSS
20	STRAP, Port Side	90901
21	SCREW, (M6 x 1.0)	10-42498
22	WAVE WASHER	13-31030
23	BOLT, (.250-20 x 3.50)	10-43216
24	WASHER	12-67983
25	NUT, (.250-20)	11-8267118
26	NOT SOLD SEPARATE, Decal-Tilt Lock	NSS
27	NOT SOLD SEPARATE, Decal-Tilt Limit	NSS
1	BRACKET ASSEMBLY, Transom	1497-8796A7
2	BRACKET ASSEMBLY, Transom	1497-8794A9
3	THUMB SCREW ASSEMBLY	10-92767A6
3	THUMB SCREW ASSEMBLY, (16 mm)	10-92767A3
4	NOT SOLD SEPARATE, Rivet	NSS
5	NOT SOLD SEPARATE, Handle	NSS
6	SHOULDER SCREW, Hex	10-768042
7	WASHER, Thumb Screw	12-73719
8	NUT, (.250-28) Stainless Steel	11-826709109	11-33825, 11-35045
9	NUT, (.875)	11-93164
10	SCREW, (M6 x 40)	10-4000333
11	HANDLE, Carrying	41042
12	SPACER	23-818538
13	WASHER, Nylon, Tilt Tube	12-71421
14	TILT TUBE	8M0035075	883068, 41171
15	WASHER, Nylon, Tilt Tube	12-71421
16	DECAL, Co-Pilot	37-8237011
17	PIN ASSEMBLY, Tilt	17-56373A2
18	SPRING	24-92995
19	SCREW, (M6 x 40)	10-4000333
20	NUT, (.875)	11-93164
21	CLIP, Safety	54-8M0085928	54-30954
22	SCREW, (.312-18 x 3.500) Stainless Steel	10-814945	F1417
23	WASHER	12-67981
24	NUT, (.312)	11-815848
25	NUT, (.250-28) Stainless Steel	11-826709109	11-33825, 11-35045
26	SCREW, (.250-28 x 1.00)	10-41523
27	LEVER, Tilt Stop-Starboard Side	96965
28	NUT, (.250-28) Stainless Steel	11-826709109	11-33825, 11-35045
29	SPRING, Tilt Stop Lever Screw	24-44581
30	SCREW, (.250-28 x 1.75)	10-41524
31	SCREW, (.250-28 x 1.75)	10-41524
32	WAVE WASHER, Tilt Stop Strap Screw	13-31030
33	NUT, (.250-28) Stainless Steel	11-826709109	11-33825, 11-35045
34	STRAP, Tilt Stop-Port Side	90901
35	SCREW, (.250-28 x 1.00)	10-41523

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	SEAL, Oil	26-825704
2	BEARING, Thrust	31-825710
3	CRANKSHAFT	400-825703
4	BEARING, Main (Brown)	31-825706T	31-825706
4	BEARING, Main (Black)	31-825706T10	31-825706 10
4	BEARING, Main (Blue)	31-825706T20	31-825706 20
5	SEAL, Oil	26-825705
6	BOLT	10-825708
7	WASHER	12-825709
8	CONNECTING ROD	600-825707A2
9	CLIP	53-82343M
10	PIN, Piston	41-825713
11	PISTON	700-825711T	700-825711 Standard - Bare Piston
11	PISTON	700-8257112
11	PISTON	700-825711T1
12	RING, Piston	39-825712T1
12	RING, Piston	39-8257123
12	RING, Piston	39-825712T2
13	NOT SOLD SEPARATE, Piston Ring	NSS
14	NOT SOLD SEPARATE, Oil Ring	NSS
-	POWERHEAD ASSEMBLY	61-822775T7
-	GASKET SET	27-825847A95

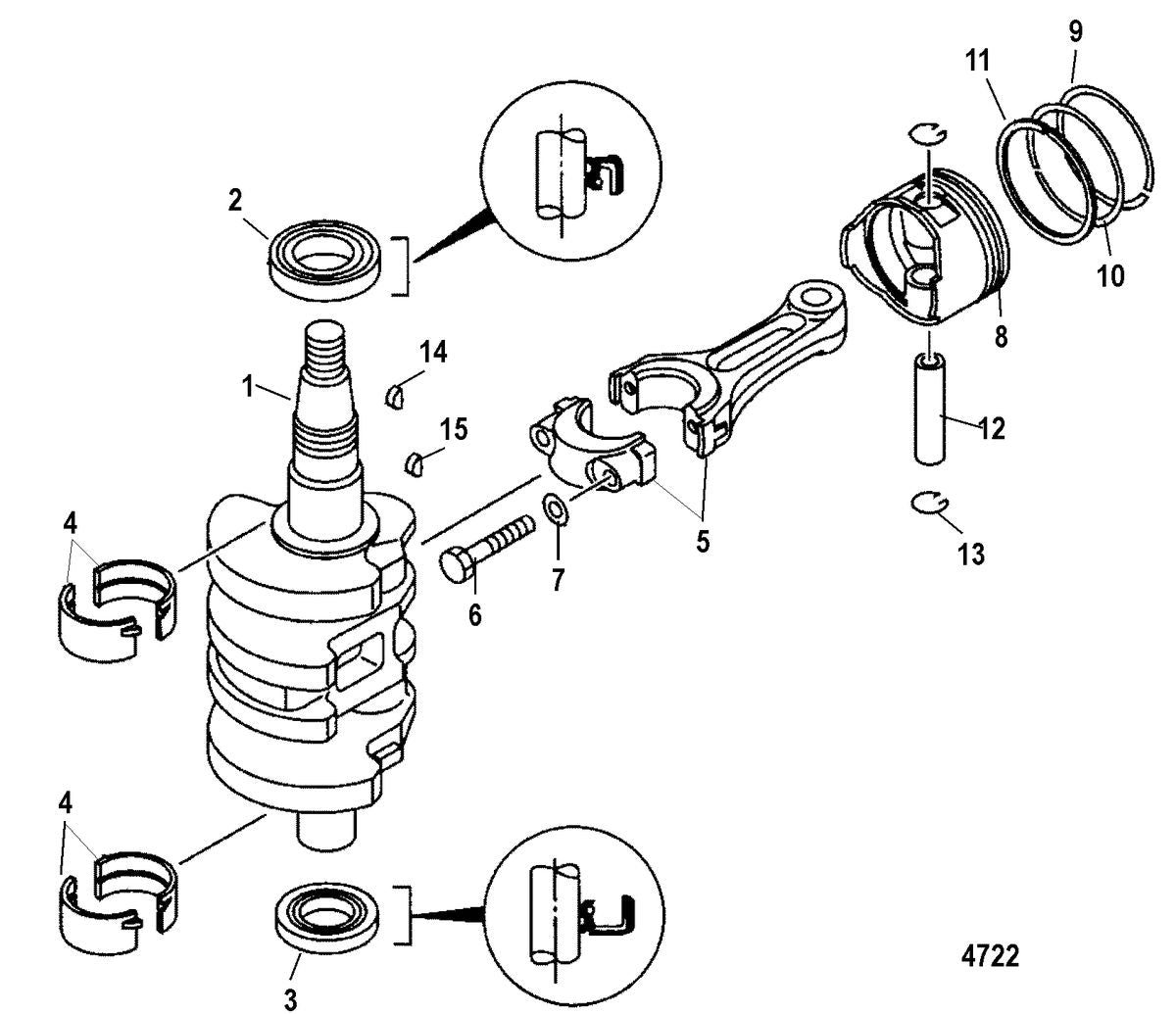

Crankshaft, Pistons, And Connecting Rods

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Crankshaft, Pistons, And Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT	400-834957
2	SEAL, Oil	26-855680
3	SEAL, Oil	26-855681
4	BEARING	31-834960
4	BEARING	31-83496010
4	BEARING	31-83496020
5	CONNECTING ROD	600-834961T1
6	BOLT, (M7 x 38)	10-850844
7	WASHER	12-855682
8	PISTON	700-834963T	700-834963
9	RING, Piston	39-850846
10	RING, Piston	39-850847
11	RING, Oil	39-825839
12	PIN, Piston	41-825713
13	CLIP	53-82343M
14	KEY	28-8M0057164	28-81914M SN# USA-0T800999/BEL-0P267999 & Below
14	KEY	28-8M0057164	28-81914M SN# USA-0T801000/BEL-0P268000 & Up
15	KEY	28-8M0084803	28-84403M
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

Cylinder Block and Covers

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Cylinder Block and Covers:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK	900-8M0055024	900-835407A02, 900-835407A 1
2	PIN, Dowel	17-825689
3	BOLT, (M8 x 55)	10-8M0101617
4	BOLT, (M6 x 14)	10-43092M
5	PIPE PLUG	22-822644
6	GASKET	27-834952002	27-834952
7	COVER, Exhaust	834953T02	834953T, 834953
8	FITTING	22-83326M
9	THERMOSTAT, (60C/140F)	855676003	825212001, 825212, 855676 SN# USA-0T979999/BEL-0P325499 & Below
9	THERMOSTAT, (60C/140F)	855676A1
10	COVER, Thermostat	8M0188835
11	GASKET	27-8M0177107
12	BOLT, (M6 x 30)	10-82500930
13	HOSE	8M0060022	32-855694
14	CLAMP	54-888441	54-884385 SN# USA-0T800999/BEL-0P267999 & Below
14	CLAMP, Oetiker (12.8 mm)	54-888441	54-884385 SN# USA-0T801000/BEL-0P268000 & Up
15	HOSE, (57.00 Inches Bulk), To Telltale	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 (Cut to 14 Inch Length) SN# USA-0T003862 & Up
15	HOSE, (57.00 Inches Bulk), To Telltale	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 (Cut to 16 Inch Length) SN# USA-0T003861 & Below
16	FILTER, Oil	35-8M0162832
16	FILTER ASSEMBLY, Oil	35-8M0162832
17	NIPPLE, (M20)	822625
18	GROMMET	25-855690
19	BREATHER COVER	834974
20	SEAL	26-850850
21	BOLT, (M6 x 20)	10-8257021
22	PLATE, Oil Deflection	855922A2
23	GASKET	27-8354272
24	PLATE, Oil Deflection	855922A2
25	GASKET	27-8354271
26	SCREW, (M8 x 35) Stainless Steel	10-40011151
27	WASHER	12-4002317
28	ANODE	97-8M0099896	97-855678
29	GROMMET	25-825040
30	COVER	855776
31	BOLT, (M5 x 12)	10-855778
32	PLATE	855779
33	BOLT, (M6 x 20)	10-8257021
34	CABLE, Choke	8533442
35	NUT, (.375-24)	11-46335
36	BRACKET	855732
37	RING, Retaining	53-27290
38	SCREW, (M6 x 13) Stainless Steel	10-40011126
39	SOCKET	817428	830875 (Handle)
40	DIPSTICK	19-8354262
41	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
42	PIPE JOINT	22-8830591
43	HOSE	32-896122	32-852485 SN# USA-0T979999/BEL-0P325499 & Below
43	HOSE	32-896122	32-852485 SN# USA-0T980000/BEL-0P325500 & Up
44	SCREEN, Oil	852484
45	CLAMP	54-8556951
46	CLAMP	54-8556961
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

Cylinder Block and Crankcase

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Cylinder Block and Crankcase:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKCASE ASSEMBLY	900-825688A1
2	PIN, Dowel	17-825689
3	BOLT	10-41885M
4	BOLT	10-41837M
5	GASKET, Cylinder Block	27-825847
6	GASKET, Inner Exhaust Cover	27-825693
7	COVER, Inner Exhaust	825692
8	GASKET, Outer Exhaust Cover	27-825694
9	SCREW, (M6 x 25)	10-893745025
10	COVER ASSEMBLY, Outer Exhaust	827736A1
11	FITTING	22-83326M
12	BOLT, (M6 x 30)	10-82500930
13	O-RING	25-825483
14	THERMOSTAT	855676003	825212001, 825212, 855676
15	GASKET, Cover	27-825701
16	COVER, Thermostat	825700
17	BOLT, (M6 x 20)	10-8257021
18	PIPE JOINT	22-8830591
19	HOSE, (57.00 Inches Bulk), Cut to 16 Inches	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	GASKET, Cylinder Head	27-8254821
21	CYLINDER HEAD ASSEMBLY	900-825720A1
22	GUIDE	825721
23	CIRCLIP	53-825038	825722
24	FITTING	22-83326M
25	SCREW, (M6 x 35)	10-8M0205943
26	SPARK PLUG	33-827859
27	PLUG	825437
28	O-RING	25-825438
29	ANODE	825435
30	SCREW	10-825436
31	BOLT	10-825480
32	BOLT	10-825479
33	SEAL	825488
34	GROMMET	25-825485
35	COVER, Cylinder Head	825484
36	PIPE, Breather	825486
37	FITTING	22-83326M
38	BOLT, (M6 x 20)	10-8257021
39	O-RING	25-8M0052669	25-825492
40	PLUG	859578A1
41	DIPSTICK	19-825795
42	HOSE	32-826864
43	CONNECTOR, Tee	22-818993
44	TUBING, (.312) (70.00 Inches Bulk), Cut to 2 Inches	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
45	HOSE, (.187) (26.00 Inches Bulk), Cut to 1-1/2 Inches	32-9912878
46	TEE	22-733181
47	HOSE	32-825434
48	HOSE	32-826863
49	FITTING	826861
50	NOT SOLD SEPARATE, Plug-Serial Number	NSS
51	NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance	NSS
52	NOT SOLD SEPARATE, Decal-Bodensee Certification	NSS
-	POWERHEAD ASSEMBLY	61-822775T7
-	GASKET SET	27-825847A95

Cylinder Head

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Cylinder Head:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER HEAD ASSEMBLY	900-835430A1
1	CYLINDER HEAD ASSEMBLY	835430T08
1	CYLINDER HEAD ASSEMBLY	900-835430A1
1	CYLINDER HEAD ASSEMBLY	900-835430A2
1	CYLINDER HEAD ASSEMBLY	835430T08
2	GUIDE, Intake	850835
3	CIRCLIP	53-825038	825722
4	PIPE PLUG	22-822644
5	BOLT, (M8 x 78)	10-855677
6	PIN, Dowel	17-825689
7	SCREW, (M6 x 25)	10-893745025
8	GASKET	27-8M0052705	27-850836
9	COVER	834954
10	SEAL	850837
11	BOLT, (M6 x 20)	10-8257021
12	SPARK PLUG, NGK-DPR6EA-9	33-827858Q	33-827858
13	PLUG ASSEMBLY, Oil	859578A1
14	NOT SOLD SEPARATE, O-Ring	NSS
15	NOT SOLD SEPARATE, Decal-recomm. Eng. Oil/Valve Cle.	NSS
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

DRIVESHAFT HOUSING

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) DRIVESHAFT HOUSING:

Position No.	Part Name	OEM Number	Supersedes
1	SEAL-RUBBER	26-825807
2	SEAL	26-825806
3	DAMPER	26-825805
4	O-RING	25-825804
5	BOLT	10-825773
6	SCREW (M6 X 20)	10-8M0204741
7	WASHER	12-8M0204649
8	PIN-DOWEL	17-82364M
9	SEAL-OIL	26-827406
10	EXHAUST GUIDE	825574A2
11	SEAL	825771
12	SEAL-OIL	26-85023
13	HOUSING-SEAL	827395
14	SEAL	825580
15	GUIDE	825581
16	SCREW	10-825582
17	STRAINER	825766
18	BOLT	10-825767
19	O-RING	25-825579
20	RELIEF VALVE	825578A1
21	GASKET-OIL PAN	27-8257741
22	SEAL	825765
23	OIL PAN	825764
24	O-RING	25-825770
25	DRAIN PLUG	825769
26	DAMPER	825768
27	SEAL	26-827241
28	WATER TUBE	32-825775
28	WATER TUBE	32-826035
29	GASKET	27-8258281
30	EXHAUST MANIFOLD	825772T	825772
31	BOLT	10-825773
32	COVER	825777
33	GASKET	27-8257781
34	PIN-DOWEL	17-82364M
35	HOUSING ASSEMBLY	1500-825538F1
35	HOUSING ASSEMBLY	1500-825835F1
35	HOUSING ASSEMBLY	1500-825538F2
35	HOUSING ASSEMBLY	1500-825835F2
36	COVER	825796F1
36	COVER	825797F1
36	COVER	825796F2
36	COVER	825797F2
37	SCREW (SELF-TAPPING)	10-4007841
38	COVER-OIL DRAIN	825798F1
38	COVER-OIL DRAIN	825798F2
39	SCREW (M8 X 40)	10-830106
40	MOUNT	8M0039074	42189 2
41	COVER-MOUNT	42374F6
41	COVER-MOUNT	42374F5
42	SCREW-MOUNT COVER	10-4009238
43	LOCKWASHER	13-400256
44	NUT-COVER SCREW	11-400212
45	PIPE	826682
46	PIPE	825575
47	WASHER	12-84273M
48	BUSHING	827336
49	NUT	11-84282M
50	SEAL	26-827947
51	SCREW (M5 X 10)	10-40056105
52	FUNNEL-OIL DRAIN	828364
-	GASKET SET	27-825847A95

Driveshaft Housing

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	SEAL, Rubber	26-825807
2	SEAL	26-825806
3	DAMPER	26-825805
4	O-RING	25-825804
5	BOLT	10-825773
6	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
7	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
8	PIN, Dowel	17-82364M
9	SEAL, Oil	26-827406
10	EXHAUST GUIDE	825574A2
11	SEAL	825771
12	SEAL, Oil	26-85023
13	HOUSING, Seal	827395
14	SEAL	825580
15	GUIDE	825581
16	SCREW	10-825582
17	STRAINER	825766
18	BOLT	10-825767
19	RELIEF VALVE ASSEMBLY	825578A1
20	O-RING	25-825579
21	GASKET, Oil Pan	27-8257741
22	SEAL	825765
23	PAN, Oil	825764
24	PLUG, Drain	825769
25	O-RING	25-825770
26	DAMPER	825768
27	SEAL	26-827241
28	TUBE, Water	32-825775
28	TUBE, Water	32-826035
29	GASKET	27-8258281
30	MANIFOLD, Exhaust	825772T	825772
31	BOLT	10-825773
32	COVER	825777
33	GASKET	27-8257781
34	PIN, Dowel	17-82364M
35	HOUSING ASSEMBLY	1500-825538F1
35	HOUSING ASSEMBLY	1500-825835F1
36	COVER	825796F1
36	COVER	825797F1
37	SCREW, Self-Tapping	10-4007841
38	COVER, Oil Drain	825798F1
39	SCREW, (M8 x 40)	10-830106
40	MOUNT	8M0039074	42189 2
41	COVER, Mount	42374F6
42	SCREW, (M6 x 80)	10-4009238
43	LOCKWASHER, (M6)	13-400256
44	NUT, (M6) Stainless Steel	11-400212
45	PIPE	826682
46	PIPE	825575
47	WASHER	12-84273M
48	BUSHING	827336
49	NUT	11-84282M
50	SEAL	26-827947
51	SCREW, (M5 x 10)	10-40056105
52	FUNNEL, Oil Drain	828364
-	GASKET SET	27-825847A95
1	HOUSING, Driveshaft	1505-852995F1
1	HOUSING, Driveshaft	1506-835409T1
2	MOUNT, Upper	835410T2
2	MOUNT, Upper	835410T2
2	MOUNT, Upper	856157T	856157 (Bigfoot)
3	SCREW, (M8 x .98)	10-8136911
4	BUMPER	826276
5	GASKET	27-8M0204692
6	PLUG, Drain	8288181
7	COVER	853577T
8	GASKET	27-854617
9	SCREW, (M6 x 16)	10-4006731
10	SEAL	26-827947
11	TUBE, Water	32-852993
11	TUBE, Water	32-855260
11	TUBE, Water	32-855252
11	TUBE, Water	32-855253
12	SEAL	26-8272411
13	SEAL, Oil	26-413651
14	SEAL	852432
15	BRACKET	856179
16	SLEEVE	856196
17	COVER	850862F2
18	COVER	850863F2
19	SCREW, Adjusting (M6 x 55)	10-814776	10-42978
20	NUT, (M6) Stainless Steel	11-401386
21	BUMPER	8224211
22	GROMMET	25-855299
23	ADAPTOR	853963F1
24	BUSHING, (.31 x .45 x .50)	23-12009
25	SCREW, (M8 x 50)	10-82407110
26	SCREW, (M8 x 30)	10-8240717
27	RELIEF VALVE ASSEMBLY	825578A1
28	O-RING	25-825579
29	PIN, Dowel	17-82364M
30	PLUG	22-68307

ELECTRICAL COMPONENTS

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) ELECTRICAL COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	NUT	11-82390M
2	WASHER	12-82214M
3	BUSHING	23-17044M
4	BRACKET	825682T	825682 ELECTRIC MODELS
5	GROMMET	25-97687M
6	WASHER	12-8M0204649
7	SCREW (M6 X 20)	56-8M0206596
8	RECTIFIER/REGULATOR ASSEMBLY	825680T	825680 ELECTRIC MODELS
9	SCREW	10-8248326
10	WIRE	825679
11	SWITCH-OIL PRESSURE	825678
12	BRACKET	825671
13	SCREW	10-84058M
14	CDI UNIT	825667T	825667
15	CABLE (MANUAL)	84-824912A6
16	SCREW	10-84058M
17	STA STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	CLAMP	825674
19	HARNESS-ENGINE (ELECTRIC)	84-827630A4
20	BOOT	84-825102A1
21	GROMMET	25-82069M
22	CABLE-FUSE	84-859451A1
23	FUSE	88-8M0207796
24	CABLE-FUSE	84-95084A19
25	SCREW	10-825502
26	COVER	825673
27	SCREW	10-8248326
28	PLATE	825672
29	IGNITION COIL ASSEMBLY	825668T	825668
30	PILOT LIGHT (MANUAL)	825656
31	SWITCH	87-11083A30
32	LANYARD SWITCH	15920Q54
33	RETAINER	8M0032846	12044 1
34	SCREW	10-4000326
35	WASHER	12-8M0204649
36	BRACKET	826011
37	BRACKET	8M0010250	95643M ELECTRIC MODELS
38	STARTER RELAY	826009T1
39	WASHER	12-827205
40	NUT	11-827204
41	BATTERY CABLE	84-88439A29
42	WIRE	826012
43	CAP	85-826574
44	GROMMET	25-828114
45	RETAINER	92753
46	DIODE ASSEMBLY	83-42551A3
47	CABLE	84-824372A1
48	CLAMP	54-805625	54-15754, 54-99118 ELECTRIC MODELS
49	LOCKWASHER	13-400256
50	NUT	11-400212
-	POWERHEAD	61-822775T7

Electrical Components

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Electrical Components:

Position No.	Part Name	OEM Number	Supersedes
1	WIRE	825679
2	SWITCH, Oil Pressure	825678
3	BRACKET	825671
4	BOLT, (M6 x 20)	10-84058M
5	CDI UNIT	825667T	825667
6	CABLE ASSEMBLY, Manual	84-824912A6
7	BOLT, (M6 x 20)	10-84058M
8	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
9	CLAMP	825674
10	HIGH TENSION LEAD	84-825102A1
11	GROMMET	25-82069M
12	SCREW	10-825502
13	COVER	825673
14	BOLT, (M6 x 25)	10-8248326
15	PLATE	825672
16	COIL ASSEMBLY, Ignition (Includes Leads and Boots)	825668T	825668
17	PILOT LIGHT, Manual	825656
18	SWITCH ASSEMBLY	87-11083A30
19	LANYARD ASSEMBLY	15920Q54
20	RETAINER, Brass	8M0032846	12044 1
-	POWERHEAD ASSEMBLY	61-822775T7
1	BRACKET	835403T1
1	BRACKET	835403T	835403 (Manual)
2	CLAMP	54-855686
3	BOLT, (M6 x 20)	10-855810
4	SCREW, (M6 x 25 MM)	10-8248326
5	WASHER	12-855811
6	GROMMET	25-97687M
7	COLLAR	23-852473
8	RECTIFIER/REGULATOR	854650T2
9	BOLT, (M6 x 16)	10-811188T	10-811188M, 10-852776 8 (Electric)
10	CAP, Female	13540
10	PLUG, Male	13541
11	CABLE ASSEMBLY, Brown/White	84-11149A43
12	CABLE ASSEMBLY	84-824372A1
13	BRACKET	8M0010250	95643M (Electric)
14	RELAY	825096T01	89-825096T, 89-825096, 89-95642M (Electric)
15	WASHER	12-827205
16	NUT, (M6)	11-827204
17	LOCKWASHER, (M6)	13-400256
18	NUT, (M6) Stainless Steel	11-400212
19	BOOT	85-826574
20	LEAD WIRE	855742
21	NUT, (.250-20) Brass	11-94330
22	HARNESS ASSEMBLY, Engine Wiring	84-859312T1
23	RETAINER	92753
24	CABLE ASSEMBLY, Battery - Positive	84-88439A29
25	CABLE ASSEMBLY, Battery - Negative	84-88439A30
26	HARNESS ASSEMBLY, Fuse	84-859451A1
27	FUSE, Yellow - 20 Ampere	88-812619	88-860608 (1 Piece Design)
28	COVER, Fuse	828054
29	SCREW, (M6 x 12)	10-82130012
30	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
31	CABLE ASSEMBLY, Fuse	84-859451A1
32	FUSE, 20 Ampere	88-8M0207796
33	CABLE ASSEMBLY, Fuse	84-95084A19
34	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
35	CABLE ASSEMBLY	84-824912A6
36	CDI UNIT	835401T1
37	BOLT, (M6 x 20)	10-84058M
38	COIL ASSEMBLY, Ignition - Includes Leads and Boots	855685T	855685
39	HIGH TENSION LEAD	84-825102A1
40	GROMMET	25-82069M
41	SWITCH, Oil Pressure	853524
42	NOT SOLD SEPARATE, Screw	NSS
43	LEAD WIRE	853537
44	RECTIFIER/REGULATOR	835406
45	BOLT, (M6 x 16)	10-811188T	10-811188M, 10-852776 8 (Manual)
46	SOLENOID ASSEMBLY	89-853598T	89-853598 (Electric Non/Handle)
47	BRACKET	853599T	853599 (Electric Non/Handle)
48	HOOK WIRE	853601
49	SCREW, (M5 x 8)	10-855739
50	GROMMET	25-91782M
51	O-RING	25-82258M
52	BOLT, (M6 x 16)	10-811188T	10-811188M, 10-852776 8 (Electric Non/Handle)
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01

Extension Kit-Driveshaft Housing (828032A1/A2)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Extension Kit-Driveshaft Housing (828032A1/A2):

Position No.	Part Name	OEM Number
1	EXTENSION KIT	828032A1
1	EXTENSION KIT	828032A2
2	BUSHING, (.31 x .45 x .50)	23-12009
3	BUSHING	23-123691
4	HOUSING	123702
5	RETAINER	14107001
6	RING, Snap	53-14094
7	DRIVESHAFT, (X-Long)	45-826745
8	SHIFT SHAFT	826874
9	TUBE, Water (X-Long)	32-827231
10	SCREW, (M8 x 50)	10-82407110
11	SCREW, (M8 x 30)	10-8240717
12	QUAD RING	25-822236
13	GASKET	27-192043
14	GASKET	27-19202001

FUEL PUMP

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) FUEL PUMP:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP	825470T	825470, 827742
1	FUEL PUMP	825470T	825470, 827742 (BODENSEE)
2	CHECK VALVE	827441M
3	DIAPHRAGM	827442M
4	SCREW	10-827443M
5	DIAPHRAGM	809129M
6	SCREW	10-83509M
7	WASHER	12-82847M
8	SEAL	809130M
9	SCREW	10-80954M
10	TUBING (21 IN.)	32-9912878
11	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
12	STRAINER	35-80365M
13	HOSE	32-825632
14	CLIP	54-82047M
15	SCREW (M6 X 30)	10-40019130
16	LOCKWASHER	13-400256
17	WASHER	12-8M0204649
18	CLIP	54-82047M
19	HOSE	32-82012M
20	O-RING	25-825478
21	CLIP	54-54457
22	WASHER	12-8M0204649
23	SCREW (M6 X 12)	10-4000326
24	FUEL CONNECTOR	22-8M0182334
25	GROMMET-FUEL CONNECTOR	25-18202
26	SCREW (M6 X 20)	10-8M0204741
27	TUBING (10 IN.)	32-9912878
28	TUBING (10 IN.)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 BODENSEE

Flywheel

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Flywheel:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, (M16)	11-96650M
2	WASHER	12-96651M
3	FLYWHEEL	856031
3	FLYWHEEL	835397
4	COIL, Charging	835399T	835399
5	BOLT, (M6 x 25)	10-853536
6	COIL, Lighting	835387
6	COIL, Lighting	855944
7	BOLT, (M6 x 30)	10-858530	10-879194068 (Manual)
7	BOLT, (M6 x 40)	10-853531
8	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
9	PULSER	835395
10	BOLT, (M6 x 16)	10-811188T	10-811188M, 10-852776 8
11	NOT SOLD SEPARATE, Decal-Warning Neutral	NSS

Fuel Pump

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Fuel Pump:

Position No.	Part Name	OEM Number	Supersedes
1	PUMP, Fuel	825470T	825470, 827742
2	CHECK VALVE	827441M
3	DIAPHRAGM	827442M
4	SCREW	10-827443M
5	DIAPHRAGM	809129M
6	SCREW, Idle Speed	10-83509M
7	WASHER	12-82847M
8	SEAL	809130M
9	SCREW	10-80954M
10	HOSE, (.187) (26.00 Inches Bulk), Cut to 21 Inches	32-9912878
11	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
12	FILTER	35-80365M
13	HOSE	32-825632
14	CLAMP	54-82047M
15	SCREW, (M6 x 30)	10-40019130
16	LOCKWASHER, (M6)	13-400256
17	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
18	CLAMP	54-82047M
19	HOSE	32-82012M
20	O-RING	25-825478
21	J CLIP	54-54457
22	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
23	SCREW, (M6 x 12)	10-4000326
24	CONNECTOR, Fuel - Brass	22-8M0182334
25	GROMMET	25-18202
26	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
27	HOSE, (.187) (26.00 Inches Bulk), Cut to 10 Inches	32-9912878
28	HOSE, (57.00 Inches Bulk), Cut to 10 Inches	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
1	PUMP ASSEMBLY, Fuel	835389T02	835389T 1
2	NOT SOLD SEPARATE, Body	NSS
3	CHECK VALVE	21-41888M
4	DIAPHRAGM	8095613
5	SPRING	24-8095622
6	PLUNGER	8095632
7	SPRING	24-8095623
8	SCREW, (M4 x 30)	10-8095641
9	DIAPHRAGM	8095614
10	SCREW, (M3 x 5)	10-41889M
11	NUT, (M4)	11-8237515
12	PIN	17-8095662
13	FILTER, Fuel, To Fuel Connector	35-816296A3
13	FILTER, To Fuel Connector	35-80365M
14	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 SN# 0T003862 & Up
14	CLAMP	54-82047M
15	HOSE, Molded	32-896273
15	HOSE (2.44 Inches)	32-8M0060021	32-852469 SN# 0T003861 & Below
16	SCREW, (M6 x 25)	10-855683
17	O-RING	25-825478
18	CLAMP	54-82047M
19	HOSE, To Carb	32-8M0053527	32-855985
20	CLAMP	54-83577M
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

Fuel Tank

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Fuel Tank:

Position No.	Part Name	OEM Number	Supersedes
1	TANK ASSEMBLY, Fuel	1260-859060A2
2	CAP ASSEMBLY, Fuel	36-816976Q1
3	GASKET, Fuel Cap	27-8169771
4	CONNECTOR KIT, Fuel	22-8M0175544
5	NOT SOLD SEPARATE, Connector	NSS
6	O-RING	25-823533	25-18471
7	NOT SOLD SEPARATE, Tube	NSS
8	SCREEN	35-823534	35-18029

GEAR HOUSING (DRIVE SHAFT)(2.00:1 GEAR RATIO)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) GEAR HOUSING (DRIVE SHAFT)(2.00:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING-COMPLETE	1666-8833T25
-	GEAR HOUSING-COMPLETE	1666-8833T27
-	GEAR HOUSING-COMPLETE	1666-8833T26
-	GEAR HOUSING-COMPLETE	1666-8833T28
1	GEAR HOUSING	1600-8M0083312	1666-8833A17 (BLACK)
1	GEAR HOUSING	1666-8833A18
2	BUSHING-GEAR HOUSING	23-12009
3	DRAIN SCREW	22-8M0058389	22-67892A06
4	SEALING WASHER	12-191833
5	SLEEVE ASSEMBLY	822244A1
6	SLEEVE	23-823944
7	BUSHING	23-823943
8	SCREW PLUG KIT	10-79953Q04
9	SEALING WASHER	12-191833
10	SCREEN	35-421991
11	SCREW	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW	10-13954
14	SEAL	26-42133
15	PINION GEAR (13 TEETH)	43-8219251
16	WASHER-THRUST	12-41369
17	BEARING	31-22756
18	WATER PUMP BASE	46-42040T5
19	GASKET	27-192043
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW	10-48408
23	QUAD RING	25-822236
24	OIL SEAL	26-413651
25	GASKET	27-19202001
26	WATER TUBE	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	SEAL	26-421021
30	IMPELLER	47-42038Q02
31	KEY ASSEMBLY	28-8M0173458
32	GUIDE	444671
33	SCREW-WATER PUMP	10-82684430
34	WASHER	12-8M0204649
35	CAM-SHIFT	42039
36	SHIFT SHAFT	825536
36	SHIFT SHAFT	826873
37	NUT	11-400212
38	COUPLER	822419
39	SHIFT SHAFT (UPPER)	826875
40	E-RING	53-42389
41	GUIDE	8M0036770	42126
42	SCREW	10-40011109
43	NUT-GUIDE SCREW	11-401385
44	DRIVE SHAFT	45-825537
44	DRIVE SHAFT	45-825843
45	THRUST WASHER	12-822248
-	SEAL KIT	26-41365A3
-	REPAIR KIT	46-42089A5
-	ENGINE GASKET SET	27-825847A95

GEAR HOUSING (PROPELLER SHAFT)(2.00:1 GEAR RATIO)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) GEAR HOUSING (PROPELLER SHAFT)(2.00:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING-COMPLETE	1666-8833T25
-	GEAR HOUSING-COMPLETE	1666-8833T27
-	GEAR HOUSING-COMPLETE	1666-8833T26
-	GEAR HOUSING-COMPLETE	1666-8833T28
1	GEAR HOUSING	1600-8M0083312	1666-8833A17 (BLACK)
1	GEAR HOUSING	1666-8833A18
46	ROLLER BEARING	31-821321A1
47	FORWARD GEAR (26 TEETH)	43-821924A1
48	BUSHING	23-41367
49	CAM FOLLOWER	813139	42131
50	CLUTCH ASSEMBLY	52-821930A1
51	CROSS PIN	17-823951
52	SPRING	24-42204
53	PROPELLER SHAFT	44-821929
54	REVERSE GEAR (26 TEETH)	43-821926T1
55	BEARING CARRIER	42144T3
56	O-RING	25-8M0214923
57	BUSHING	23-821927
58	OIL SEAL	26-99325
59	OIL SEAL	26-821928
60	SCREW	10-82407110
61	SCREW	10-8240717
62	PROPELLER	48-828156A12	48-42522A12, 48-828156A45 (MANUAL - 9 X 9)
62	PROPELLER	48-828154A12	48-42521A12, 48-828154A45 (MANUAL - 9 X 8)
62	PROPELLER	48-828150A12	48-42524A12, 48-828148A12, 48-42518A11, 48-828148A45, 48-828150A45 (ELECTRIC - 9-3/4 X 5-1/2)
62	PROPELLER	48-828152A12	48-42520A12, 48-828152A45 (8 BODENSEE)
63	PROPELLER NUT	11-40140
64	THRUST HUB	8219321
65	SPACER	23-420911
66	REVERSE THRUST CUP	822559Q01	822559A 1
-	SEAL KIT	26-41365A3
-	ENGINE GASKET SET	27-825847A95

Gear Housing(Driveshaft)(2.00:1 Gear Ratio)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing(Driveshaft)(2.00:1 Gear Ratio):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)	1666-8833T33
-	GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)	1666-8833T35
1	GEAR HOUSING ASSEMBLY, Basic-Black	1600-8M0083312	1666-8833A17 (Basic - Black)
2	BUSHING, (.31 x .45 x .50)	23-12009
3	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
3	FITTING KIT, Magnetic, Plug Fill/Drain	22-8M0058389	22-67892A06 SN# USA-0T979999/BEL-0P325499 & Below
3	PLUG KIT, Drain (Magnetic)	22-8M0058389	22-67892A06 SN# USA-0T980000/BEL-0P325500 & Up
4	SEAL	12-191833
5	SLEEVE ASSEMBLY	822244A1
6	SLEEVE	23-823944
7	BUSHING	23-823943
8	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
9	SEAL	12-191833
10	SCREEN	35-421991
11	SCREW, (.250-14 x .88)	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW, (.250-14 x .88)	10-13954
14	SEAL	26-42133
15	GEAR, Pinion - 13-26	43-8219251
16	WASHER, Thrust	12-41369
17	BEARING, Roller	31-22756
18	BASE ASSEMBLY, Water Pump	46-42040T5
19	GASKET	27-192043
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW, (#10-16 x .500)	10-48408
23	QUAD RING	25-822236
24	SEAL, Oil	26-413651
25	GASKET, Water Pump Plate	27-19202001
25	GASKET	27-19202001
26	TUBE ASSEMBLY, Water	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	NOT SOLD SEPARATE, Insert	NSS
30	SEAL	26-421021
31	IMPELLER	47-42038Q02
31	IMPELLER	47-42038Q02
32	KEY ASSEMBLY	28-8M0173458
33	NOT SOLD SEPARATE, Washer	NSS
34	GUIDE	444671
35	SCREW, (M6 x 30)	10-82684430
36	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
37	CAM	42039
38	SHIFT SHAFT	855280
38	SHIFT SHAFT	855281
39	NUT, (M6) Stainless Steel	11-400212
40	COUPLER	822419
41	SHIFT SHAFT (Upper)	8529941
42	E RING	53-42389
43	DRIVESHAFT	45-825537
43	DRIVESHAFT	45-825843
44	THRUST WASHER	12-822248
-	SEAL KIT	26-41365A3
-	PUMP KIT, Water	46-42089A5

Gear Housing(Driveshaft)(2.42:1 Gear Ratio)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing(Driveshaft)(2.42:1 Gear Ratio):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)	1665-8669T33
-	GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)	1600-8M0084519	1665-8669A46 (X-Long - Black)
1	GEAR HOUSING ASSEMBLY, Basic-Black	1600-8M0083538	1665-8669A21 (Basic - Black)
2	NOT SOLD SEPARATE, Sleeve	NSS
3	SEAL	26-99325
4	BEARING, Roller	31-41326
5	PIN, Dowel (.187 x .530)	17-8M0084726	17-85500
6	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
7	SEAL	12-191833
8	SCREEN, Water Inlet Port	35-41133
9	SCREW, (M5 x 40)	10-40031112
10	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
10	FITTING KIT, Magnetic, Plug Fill/Drain	22-8M0058389	22-67892A06 SN# USA-0T979999/BEL-0P325499 & Below
10	PLUG KIT, Drain (Magnetic)	22-8M0058389	22-67892A06 SN# USA-0T980000/BEL-0P325500 & Up
11	SEAL	12-191833
12	SCREEN	35-41134
13	NUT, (M5) Stainless Steel	11-401365
14	BEARING ASSEMBLY, Roller	31-98294A1
15	NOT SOLD SEPARATE, Cup	NSS
16	GEAR, Pinion - 12-29	43-854498
17	NUT	11-828490
18	GASKET	27-993261
19	FACE PLATE	85083
20	WASHER	12-866451
21	KEY	28-8M0214993
22	IMPELLER	47-8M0204712
23	WASHER	12-866451
24	O-RING	25-69202
25	PUMP ASSEMBLY, Water	46-99157A02
25	PUMP ASSEMBLY, Water	46-99157A02
26	NOT SOLD SEPARATE, Insert	NSS
27	SEAL	26-85090001
27	SEAL	26-85090001
28	O-RING	25-86203
29	SCREW, (M6 x 16)	10-8248324
30	SHIFT SHAFT	854503
30	SHIFT SHAFT	854504
31	NUT, (M6) Stainless Steel	11-400212
32	COUPLER	822419
33	SHIFT SHAFT, Upper	8529941
34	DRIVESHAFT	45-854501
34	DRIVESHAFT	45-854502
35	BOOT	85552001
35	BOOT	85552001
36	RETAINER	93878
37	O-RING, (.734 x .139)	25-35276
38	O-RING, (.239 x .174)	25-85594
39	WASHER	12-85091
40	SPRING	24-93007
41	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
42	PIN, (.078 x .437)	17-85593
43	SHIFT CAM	85562A2
44	PIN, Drive	17-85096
45	SLEEVE, Water Tube	23-29804T
-	SEAL KIT	26-85090A2
-	PUMP KIT, Water	46-99157T2

Gear Housing, Driveshaft - 2.00:1 Gear Ratio

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing, Driveshaft - 2.00:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete	1666-8833T25
-	GEAR HOUSING ASSEMBLY, Complete	1666-8833T27
1	GEAR HOUSING ASSEMBLY, Basic	1600-8M0083312	1666-8833A17
2	BUSHING, (.31 x .45 x .50)	23-12009
3	FITTING KIT, Magnetic, Plug Fill/Drain	22-8M0058389	22-67892A06
4	WASHER, Fiber	12-191833
5	SLEEVE ASSEMBLY	822244A1
6	SLEEVE	23-823944
7	BUSHING	23-823943
8	SCREW KIT, (.375-16 x .250)	10-79953Q04
9	WASHER, Fiber	12-191833
10	SCREEN	35-421991
11	SCREW, (.250-14 x .88)	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW, (.250-14 x .88)	10-13954
14	SEAL	26-42133
15	GEAR, Pinion - 13-26, 13 Teeth	43-8219251
16	WASHER	12-41369
17	BEARING, Roller	31-22756
18	BASE ASSEMBLY, Water Pump	46-42040T5
19	GASKET	27-192043
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW, (#10-16 x .500)	10-48408
23	QUAD RING	25-822236
24	SEAL, Oil	26-413651
25	GASKET, Water Pump Plate	27-19202001
26	TUBE ASSEMBLY, Water	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	NOT SOLD SEPARATE, Insert	NSS
30	SEAL	26-421021
31	IMPELLER	47-42038Q02
32	KEY ASSEMBLY	28-8M0173458
33	NOT SOLD SEPARATE, Washer	NSS
34	GUIDE	444671
35	SCREW, (M6 x 30)	10-82684430
36	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
37	CAM	42039
38	SHIFT SHAFT	825536
38	SHIFT SHAFT	826873
39	NUT, (M6) Stainless Steel	11-400212
40	COUPLER	822419
41	SHIFT SHAFT, Upper	826875
42	E RING	53-42389
43	GUIDE	8M0036770	42126
44	SCREW, (M5 x 25) Stainless Steel	10-40011109
45	NUT, (M5)	11-401385
46	DRIVESHAFT	45-825537
46	DRIVESHAFT	45-825843
47	THRUST WASHER	12-822248
-	SEAL KIT	26-41365A3
-	PUMP KIT, Water	46-42089A5
-	GASKET SET	27-825847A95

Gear Housing, Prop Shaft - 2.00:1 Gear Ratio

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing, Prop Shaft - 2.00:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete	1666-8833T25
-	GEAR HOUSING ASSEMBLY, Complete	1666-8833T27
1	GEAR HOUSING ASSEMBLY, Basic	1600-8M0083312	1666-8833A17
48	BEARING ASSEMBLY, Roller	31-821321A1
49	NOT SOLD SEPARATE, Cup	NSS
50	GEAR ASSEMBLY, Forward, 26 Teeth	43-821924A1
51	BUSHING	23-41367
52	FOLLOWER, Cam	813139	42131
53	CLUTCH ASSEMBLY	52-821930A1
54	PIN, Cross	17-823951
55	SPRING	24-42204
56	PROPELLER SHAFT	44-821929
57	GEAR, Reverse - 13/26	43-821926T1
58	CARRIER ASSEMBLY, Bearing	42144T3
59	O-RING, (1.984 x .139)	25-8M0214923
60	BUSHING	23-821927
61	SEAL	26-99325
62	SEAL, Oil	26-821928
63	SCREW, (M8 x 50)	10-82407110
64	SCREW, (M8 x 30)	10-8240717
65	PROPELLER, 3-Blade (9.25 x 7.00)	48-828152A12	48-42520A12, 48-828152A45
66	NUT, (M10)	11-40140
67	THRUST HUB	8219321
68	SPACER	23-420911
-	SEAL KIT	26-41365A3
-	GASKET SET	27-825847A95

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
0	GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)	1666-8833T33
0	GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)	1666-8833T35
1	GEAR HOUSING ASSEMBLY, Basic-Black	1600-8M0083312	1666-8833A17 (Basic - Black)
2	BEARING ASSEMBLY, Roller	31-821321A1
3	NOT SOLD SEPARATE, Cup	NSS
4	GEAR ASSEMBLY, Forward (13-26)	43-821924A1
5	BUSHING	23-41367
6	FOLLOWER, Cam	813139	42131
7	CLUTCH ASSEMBLY	52-821930A1
8	PIN, Cross	17-823951
9	SPRING	24-42204
10	PROPELLER SHAFT	44-821929
11	GEAR, Reverse - 13/26	43-821926T1
12	CARRIER, Bearing	42144T3
13	O-RING, (1.984 x .139)	25-8M0214923
14	BUSHING	23-821927
15	SEAL	26-99325
16	SEAL, Oil	26-821928
17	SCREW, (M8 x 50)	10-82407110
18	SCREW, (M8 x 30)	10-8240717
19	PROPELLER, (9.00 x 9.00)	48-828156A12	48-42522A12, 48-828156A45
20	NUT, (M10)	11-40140
21	THRUST HUB	8219321
22	SPACER	23-420911
-	SEAL KIT	26-41365A3

Gear Housing, Propeller Shaft - 2.42:1 Gear Ratio

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Gear Housing, Propeller Shaft - 2.42:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)	1665-8669T33
-	GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)	1600-8M0084519	1665-8669A46 (X-Long - Black)
1	GEAR HOUSING ASSEMBLY, Basic-Black	1600-8M0083538	1665-8669A21 (Basic - Black)
45	TRIM TAB	97-98432Q6
46	SCREW, (M8 x 30)	10-4000354
47	WASHER, (.323 x .563 x .063) Stainless Steel	12-8M0042642	12-70132
48	BEARING ASSEMBLY, Roller	31-8M0103470	31-99328A 1
49	NOT SOLD SEPARATE, Cup	NSS
50	GEAR ASSEMBLY, Forward - 12/29	43-854496A1
51	BUSHING	23-85557
52	FOLLOWER, Cam	85094
53	SPRING	24-38114
54	CLUTCH	52-41040T1
55	PIN	17-8M0020999	17-85093
56	SPRING	24-88680
57	PROPELLER SHAFT	44-8166231
58	GEAR, Reverse - 12/29	43-854497T	43-854497
59	CARRIER ASSEMBLY, Bearing	99906T1
60	BEARING, Roller	31-21739
61	SEAL, Oil, Inner	26-41132
62	SEAL, Oil, Outer	26-41131
63	O-RING	25-85549
64	PLATE	87293
65	SCREW, (M5 x 16)	10-90883
66	SCREW, (M10 x 35)	10-87810178
67	WASHER	12-43328
68	THRUST HUB ASSEMBLY	858498	8M0027793, 85128A 1
69	PROPELLER	48-19636A10
70	PROP NUT	11-88228
-	SEAL KIT	26-85090A2

INTAKE

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) INTAKE:

Position No.	Part Name	OEM Number
1	SCREW	10-826679
2	LOUVER	825588
3	FUNNEL	825826
4	FUNNEL &	827739
5	PIPE-BREATHER	825486
6	GASKET	27-825589
7	BOLT (M6 X 45)	10-4000334
8	WASHER	12-8M0204649
9	MANIFOLD	825584
10	GASKET-MANIFOLD	27-825586
11	GASKET-MANIFOLD	27-825587
12	WASHER	12-82214M
13	NUT	11-82390M
14	GASKET-MANIFOLD	27-825585
15	CLAMP	54-28700
16	HOLDER-GUIDE	825600
17	STUD	16-827317
18	CLAMP (USE WHERE APPLICABLE)	54-8M0024808
19	NUT	11-400212
20	PIPE-BREATHER	825597
21	FITTING-TELLTALE	22-813613
21	FITTING-TELLTALE	22-813613
22	PIPE-BREATHER &	827734
23	CAP	19-824473
24	SCREW	10-825511
25	SEPARATOR-OIL	825590
26	GASKET-OIL SEAL HOUSING	27-825592
27	SEPARATOR-OIL	825591
28	SCREW	10-84272M
29	HOSE	32-825598
30	HOSE	32-825632
31	SCREW	10-84272M
32	BREATHER	825593
33	BREATHER	825594
34	WASHER	12-82847M
35	SCREW	10-825515
36	GASKET-BREATHER	27-825596
37	SCREW	10-84272M
38	BREATHER	825595
-	GASKET SET	27-825847A95

INTAKE/EXHAUST VALVE

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) INTAKE/EXHAUST VALVE:

Position No.	Part Name	OEM Number	Supersedes
1	VALVE-INTAKE	825439
2	VALVE-EXHAUST	825440
3	WASHER	825441
4	SEAL	26-822647
5	SPRING-INNER	24-825442
6	RETAINER	827747
7	COTTER PIN-VALVE	28-893554	28-822651
8	LIFTER-VALVE	825445
9	ARM-ROCKER VALVE	825447A1
10	SCREW-VALVE ADJUSTING	10-825448
11	NUT	11-825449
12	SPRING	24-825452
13	COLLAR	825451
14	SPRING	24-825453
15	SHAFT-ROCKER	825450
16	RETAINER	825443
-	POWERHEAD	61-822775T7
-	GASKET SET	27-825847A95

Intake

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Intake:

Position No.	Part Name	OEM Number	Supersedes
1	SCREW	10-826679
2	LOUVER	825588
3	FUNNEL	827739
4	PIPE, Breather	825486
5	GASKET	27-825589
6	SCREW, (M6 x 45)	10-4000334
7	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
8	MANIFOLD	825584
9	GASKET, Manifold	27-825586
10	GASKET, Manifold	27-825587
11	WASHER	12-82214M
12	NUT, (M6)	11-82390M
13	GASKET, Manifold	27-825585
14	CLAMP	54-28700
15	HOLDER, Guide	825600
16	STUD	16-827317
17	NUT, (M6) Stainless Steel	11-400212
18	FITTING	22-813613
19	PIPE, Breather	827734
20	PLUG	19-824473
21	SCREW	10-825511
22	SEPARATOR, Oil	825590
23	GASKET, Oil Seal Housing	27-825592
24	SEPARATOR, Oil	825591
25	SCREW	10-84272M
26	HOSE	32-825598
27	HOSE	32-825632
28	SCREW	10-84272M
29	BREATHER	825593
30	BREATHER	825594
31	WASHER	12-82847M
32	SCREW	10-825515
33	GASKET, Breather	27-825596
34	SCREW	10-84272M
35	BREATHER	825595
36	DECAL, Warning, High Voltage	37-8272822
-	GASKET SET	27-825847A95
1	MANIFOLD, Intake	835385T	835385
2	GASKET	27-853525
3	PIN, Dowel	17-82364M
4	BOLT, (M6 x 40)	10-853531
5	INSULATOR	853526
6	GASKET	27-835383
7	O-RING	25-8250572
8	SILENCER	835386T	835386
9	DECAL, Warning	37-8272822
10	PLATE	803872	879194062
11	COLLAR	855780
12	BOLT, (M6 x 100)	10-8M0100009	10-855809002, 10-855809
13	HOSE	32-852463
14	PLATE, Restrictor	882759
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

Intake/Exhaust Valve

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Intake/Exhaust Valve:

Position No.	Part Name	OEM Number	Supersedes
1	VALVE, Intake	825439
2	VALVE, Exhaust	825440
3	WASHER	825441
4	SEAL, Valve Stem	26-822647
5	SPRING, Inner	24-825442
6	RETAINER	827747
7	KEY	28-893554	28-822651
8	LIFTER, Valve	825445
9	ARM ASSEMBLY, Rocker Valve	825447A1
10	SCREW	10-825448
11	NUT	11-825449
12	SPRING	24-825452
13	COLLAR	825451
14	SPRING	24-825453
15	SHAFT, Rocker	825450
16	RETAINER	825443
-	POWERHEAD ASSEMBLY	61-822775T7
-	GASKET SET	27-825847A95

Intake/Exhaust Valves

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Intake/Exhaust Valves:

Position No.	Part Name	OEM Number	Supersedes
1	VALVE, Intake	850838T	850838
2	VALVE, Exhaust	850839T	850839
3	SEAT, Valve Spring	855959
4	SPRING, Valve	24-850840
5	RETAINER	822650
6	KEY	28-893554	28-822651
7	SEAL, Valve Stem	26-822647
8	ROCKER ARM ASSEMBLY	850841A1
9	SCREW	10-825046
10	NUT	11-826150	11-858274
11	SHAFT, Rocker	850842
12	COLLAR	825451
12	COLLAR	825451
13	COLLAR	880135
14	COLLAR	880134
15	SPRING	24-825452
16	SPRING	24-825453
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

MISCELLANEOUS INFORMATION

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) MISCELLANEOUS INFORMATION:

Part Name	OEM Number	Supersedes
PARTS MANUAL	90-80913195
SERVICE MANUAL	90-827857R1
DECAL SET	37-826335A00	37-826335A98, 37-826335A96, 37-826335A95 (BLACK 9.9) S/N-0H013399 & BELOW
DECAL SET	37-809727A00	37-809727A98, 37-809727A96 (BLACK 8 BODENSEE) S/N-0H013399 & BELOW
DECAL SET	37-826335A00	37-826335A98, 37-826335A96, 37-826335A95 (BLACK 9.9) S/N-0H013400 &
DECAL SET	37-809727A00	37-809727A98, 37-809727A96 (BLACK 8 BODENSEE) S/N-0H013400 &
DECAL SET	37-826336A03	37-826336A01, 37-826336A98, 37-826336A97, 37-826336A95 (GRAY 9.9) S/N-0H009514 & BELOW
DECAL SET	37-809710A98	37-809710A97, 37-809710A96 (GRAY 8 BODENSEE) S/N-0H009514 & BELOW
DECAL SET	37-826336A03	37-826336A01, 37-826336A98, 37-826336A97, 37-826336A95 (GRAY 9.9) S/N-0H009515 THRU 0H013399
DECAL SET	37-809710A98	37-809710A97, 37-809710A96 (GRAY 8 BODENSEE) S/N-0H009515 THRU 0H013399
DECAL SET	37-826336A03	37-826336A01, 37-826336A98, 37-826336A97, 37-826336A95 (GRAY 9.9) S/N-0H013400 & UP
DECAL SET	37-809710A98	37-809710A97, 37-809710A96 (GRAY 8 BODENSEE) S/N-0H013400 & UP
DECAL SET	37-853556A97
OWNERS MANUAL	90-10108980
OWNERS MANUAL	90-10192980
SERVICE MANUAL	90-827857R1

Oil Pump/Camshaft

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Oil Pump/Camshaft:

Position No.	Part Name	OEM Number	Supersedes
1	CAMSHAFT	834956
1	CAMSHAFT	834956004
1	CAMSHAFT	834956
1	CAMSHAFT	880136A1
1	CAMSHAFT	880136A02
2	O-RING	25-825462
3	GASKET	27-853523
4	BOLT, (M6 x 35)	10-850879
5	KEY	28-8M0084803	28-84403M
6	SEAL, Oil	26-825455
7	WASHER	12-82710M
8	GEAR, Driven	43-834973T	43-834973
9	WASHER	12-825498
10	BOLT	10-826957M	10-91725M
11	PUMP ASSEMBLY, Oil	834967T2
11	PUMP ASSEMBLY, Oil	834967A1
12	GEAR, Drive	43-8M0063224	43-834955
13	WASHER	12-850843
14	NUT, (M28)	11-855679
15	TIMING BELT	57-835392Q	835392 SN# USA-0T800999/BEL-0P267999 & Below
15	TIMING BELT	57-835392Q	835392 SN# USA-0T801000/BEL-0P268000 & Up
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	802733A98
-	POWERHEAD ASSEMBLY	879783A01
-	GASKET SET, Powerhead	27-835427A00	27-835427A98

Powerhead Gasket Set Components

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Powerhead Gasket Set Components:

Position No.	Part Name	OEM Number	Supersedes
-	GASKET SET, Powerhead	27-835427A00	27-835427A98
0	O-RING, Fuel Pump	25-825478
0	O-RING, Camshaft	25-825462
0	GASKET, Oil Pump	27-853523
0	SEAL, Oil, Camshaft	26-825455
0	GASKET, Intake Manifold	27-853525
0	GASKET, Isulator	27-835383
0	O-RING, Silencer	25-8250572
0	SEAL, Valve Stem	26-822647
0	GASKET, Exhaust Cover	27-834952002	27-834952
0	GASKET, Thermostat Cover	27-8M0177107
0	SEAL, Breather Cover	26-850850
0	PLATE, Oil Deflection	855922A2
0	GASKET, Oil Deflection Plate	27-8354272
0	GASKET, Cylinder Head	27-8M0052705	27-850836
0	SEAL, Cylinder Head	850837
0	O-RING, Oil Plug	25-8M0052669	25-825492 (Not Used For This Application)
0	SEAL, Oil, Crankshaft-Top	26-855680
0	SEAL, Oil, Crankshaft-Bottom	26-855681

STARTER ASSEMBLY (MANUAL)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) STARTER ASSEMBLY (MANUAL):

Position No.	Part Name	OEM Number
1	STARTER ASSEMBLY	825635T1
2	HOUSING	827444M
3	THRUST WASHER	12-827451M
4	STARTER ROPE	50-12066Q10
5	SPRING-STARTER	24-827446M
6	DRUM-SHEAVE	827445M
7	COVER-STARTER HOUSING	827459M
8	LOCKWASHER	13-82186M
9	BOLT	10-82417M
10	STOPPER	827453M
11	SPRING	24-827456M
12	LINK	827457M
13	WASHER	12-82213M
14	COTTER PIN	18-43089M
15	PLATE-DRIVE	827458M
16	DAMPER	827461M
17	COVER	827460M
18	SPRING-DRIVE PLATE	24-827449M
19	WASHER-THRUST	12-827447M
20	ROLLER-ROPE	11704M
21	BUSHING	23-11705M
22	LOCKWASHER	13-11706M
23	LOCKWASHER	13-82212M
24	BOLT	10-82405M
25	PULLEY	827448M
26	PIN	17-825527
27	BUSHING	23-827450M
28	WASHER-DRIVE PAWL	12-827462M
29	NUT	11-82383M
30	BOLT	10-825528
31	SPRING-RETURN	24-827455M
32	ARM	827454M
33	WASHER	12-827452M
34	HANDLE	85174A1
35	BOLT (M8 X 30)	10-4000354
36	WASHER	12-4002317
37	STEERING CABLE	825650
38	BOLT (M5 X 12)	10-82239312
39	STAY	825651
40	STAY	825801

STARTER MOTOR ASSEMBLY

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) STARTER MOTOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR	825991A2
1	RETAINER	96360M
2	GEAR	97694T
3	BRACKET	814981M
4	O-RING	25-814982M
5	WASHER KIT	12-96364M
6	ARMATURE	96365M
7	STATOR	96366M
8	SPRING	24-84927M
9	BRUSH	96368M
10	BRUSH HOLDER	96367M
11	BRUSH	96369M
12	BRACKET	96370M
13	BOLT	10-84929M
14	NUT	11-827204
15	WASHER	12-827205
16	SCREW	10-827208
17	BATTERY CABLE	84-88439A30
18	BRACKET	826008T	826008
19	SCREW	10-4000354
20	WASHER	12-4002317
21	SCREW	10-827207

STATOR/ROTOR

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) STATOR/ROTOR:

Position No.	Part Name	OEM Number	Supersedes
1	SHAFT	825663
2	COVER-FLYWHEEL	825662T	825662
3	SCREW	10-825510
4	COLLAR	825665
5	GROMMET	25-11416T
6	NUT	11-81770M
7	WASHER	12-81814M
8	ROTOR	825658
8	ROTOR	826016
9	BOLT	10-827029
10	STATOR	827399
10	STATOR	825659
11	MAGNETO BASE	825660T	825660
12	SCREW	10-827027
13	SCREW	10-827026
14	PIN-DOWEL	17-825010
15	KEY	28-8M0057164	28-81914M
16	PULSER	825661
17	SCREW (M5 X 10)	10-82104510

SWIVEL BRACKET

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) SWIVEL BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET	3402-8831T08
1	SWIVEL BRACKET	3402-8831A9
2	GREASE FITTING	22-8M0169589
3	BEARING	23-421402
4	THRUST BEARING-UPPER	23-42080T01
5	BUSHING-LOWER	23-42139
6	SEAL	26-42077
7	THRUST WASHER-LOWER	12-42373
8	SPRING	24-421301
9	BRACKET	42082T04
10	PIN	17-420811
11	HOOK-REVERSE LOCK	8M0075731	42141 1
12	PIVOT PIN	17-830741A1
13	WASHER-PIVOT PIN	91963
14	RETAINING RING	53-832720
15	SPRING	24-42128
16	CARRYING HANDLE (#42085 2)
16	CARRYING HANDLE	42085F5
17	SPRING-REVERSE HOOK	24-42127
18	E-RING	53-13194
19	ROD	821961
20	BRAKE DISC	8165621
21	SWIVEL HEAD PLATE	821958A1
22	SCREW	10-40011126
23	BRAKE PLATE	821957
24	WASHER	12-29330
25	HANDLE	821959
26	NUT	11-8M0204726
-	DECAL-CO-PILOT	37-8237011

SWIVEL HEAD AND STEERING HANDLE

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) SWIVEL HEAD AND STEERING HANDLE:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL HEAD	825551A2
1	SWIVEL HEAD	825551A3
2	BUSHING	23-823939
3	PLATE	826648
4	SCREW (M5 X .8 X 16)	10-40011107
5	WASHER	12-822145
6	WAVE WASHER	13-826792	13-34678 1, 13-822144
7	WASHER	12-822146
-	TILLER HANDLE-COMPLETE	821468T65	821468T10, 821468A10 (BLACK) SIDE SHIFT
-	TILLER HANDLE-COMPLETE	821468T11	821468A11 (GRAY) SIDE SHIFT
-	TILLER HANDLE-COMPLETE	821468T12	821468A12 (BLACK) 9.9 HANDLE SHIFT
-	TILLER HANDLE-COMPLETE	821468T13	821468A13 (GRAY) 9.9 HANDLE SHIFT
-	TILLER HANDLE-COMPLETE	821463T84	821463A84 (BLACK) 8 BODENSEE HANDLE SHIFT
-	TILLER HANDLE-COMPLETE	821463A85
8	STEERING HANDLE ARM	821468A66	821468T 8 (BLACK)
8	STEERING HANDLE ARM	821468T9
9	RETAINER	822441
10	SCREW (M5 X .8 X 16)	10-40011107
11	COVER KIT	822148A3
12	PULLEY	822150
13	PULLEY CASE (PART OF REF. #11)	NSS
14	SCREW (10-16)	10-878608	10-812832
15	THROTTLE CABLE	43242T09
15	THROTTLE CABLE	43242T09
16	SLEEVE	85-9600910
17	DECAL	37-8242004
17	DECAL	37-8242002
18	GRIP	8M0221732
19	STOP SWITCH	87-8M0104613
20	THROTTLE FRICTION KNOB	821972T	821972
21	THROTTLE FRICTION LOCK	892995	821971
22	SCREW (M6 X 1 X 25)	10-8M0204707
23	THROTTLE HANDLE	821465
23	THROTTLE HANDLE	822429
23	THROTTLE HANDLE	831853
24	TILLER TUBE	821463T01	821463A 1
25	SPRING	24-96203
26	WASHER	12-4002317
27	STUD	16-825552
28	SCREW (M6 X 12	10-4000326
29	WASHER	12-8M0204649
30	PLATE	825541
31	SEAL	26-825547
32	MOUNT	825540
33	CLAMP	825544
34	SCREW (M8 X 30)	10-4000354
35	WASHER	12-4002317
36	SEAL	26-825543
37	BRACKET	825545
38	DAMPER	825546
39	NUT	11-401368
-	STOP-THROTTLE HANDLE	828133

Service/Support Material

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Service/Support Material:

Part Name	OEM Number	Supersedes
PARTS MANUAL, 8 Bodensee 4-Stroke	90-803014
SERVICE MANUAL	90-827857R1
OWNERS MANUAL	90-10108980
DECAL SET	37-809727A00	37-809727A98, 37-809727A96 (BLACK 8 BODENSEE)
DECAL SET	37-809710A98	37-809710A97, 37-809710A96 (GRAY 8 BODENSEE)
PARTS MANUAL, 9.9/13.5/15 (323cc) 8/9.9/15 Bodensee 4-Stroke	90-803183
OWNERS MANUAL	90-10185990
OWNERS MANUAL	90-10185002
OWNERS MANUAL	90-10210001
OWNERS MANUAL	90-10185010
OWNERS MANUAL	90-10210010
OWNERS MANUAL	90-10185020
OWNERS MANUAL	90-10210020
OWNERS MANUAL	90-10185030
OWNERS MANUAL	90-10185040
OWNERS MANUAL	90-10185050
SERVICE MANUAL	90-856159R02	90-856159R 1
DECAL SET	37-809727A00	37-809727A98, 37-809727A96 (8 Bodensee)
DECAL, Bodensee Certification	37-856924
DECAL SET	37-802739A05
DECAL SET	37-802739A00	37-802739A98 (15-Black-Non-Bigfoot) (2000 Thru 2004)
DECAL SET	37-802739A00	37-802739A98 (15-Black-Non-Bigfoot) (1998/1999)
DECAL SET	37-802741A05
DECAL SET	37-802741A00	37-802741A98 (15-Black-Bigfoot) (2000 Thru 2004)
DECAL SET	37-802741A00	37-802741A98 (15-Black-Bigfoot) (1998/1999)
DECAL SET	37-802740A03	37-802740A01, 37-802740A98, 37-802742A98 (15 Gray Non-Bigfoot) (1998-2000)
DECAL SET	37-802740A03	37-802740A01, 37-802740A98, 37-802742A98 (15 Gray Bigfoot) (1998-2000)
DECAL SET	37-802740A03	37-802740A01, 37-802740A98, 37-802742A98 (All 15 Gray ) (2001-2002)
DECAL SET	37-802740A03	37-802740A01, 37-802740A98, 37-802742A98 (All 15 Gray) (2003 And Above)
DECAL SET	37-803158A00	37-803158A99 (9.9-Black-Sailpower And BigfootI) (Tracker 2002 And Above)
DECAL SET	37-826335A00	37-826335A98, 37-826335A96, 37-826335A95 (9.9-Black-Non-Bigfoot) (2000 And Above)
DECAL SET	37-826335A00	37-826335A98, 37-826335A96, 37-826335A95 (9.9-Black-Non-Bigfoot) (1998/1999)
DECAL SET	37-826336A03	37-826336A01, 37-826336A98, 37-826336A97, 37-826336A95 (All 9.9 Gray) (1998-2002)
DECAL SET	37-826336A03	37-826336A01, 37-826336A98, 37-826336A97, 37-826336A95 (All 9.9 Gray) (2003 And Above)
DECAL SET	37-803159A99
DECAL SET	37-853556A97
DECAL SET	37-881842A05
DECAL SET	37-881842A01
DECAL SET	37-881843A03	37-881843A01 (13.5-Gray) (Export) (2001-2002)
DECAL SET	37-881843A03	37-881843A01 (13.5 Gray) (Export) (2003 And Above)
DECAL, CA Very Low Emission	37-8834338
DECAL, EPA Label Information	37-856985A20	37-856985 20 (1999)
DECAL, EPA Label Information	37-804652A00
DECAL, EPA Label Information	37-804652A01
DECAL, EPA Label Information	37-804652A02
DECAL, EPA Label Information	37-804652A03
DECAL, EPA Label Information	37-804652A04
DECAL, EPA Label Information	37-804652A05

Starter Assembly

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Starter Assembly:

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE REST	850865A1
2	SEAL	8M0043417
3	HANDLE ASSEMBLY	85174A1
4	NOT SOLD SEPARATE, Retainer	NSS
5	PILOT LAMP	8524791
6	NUT	11-856949
7	SCREW, (M6 x 16)	10-8147762
-	RECOIL ASSEMBLY	8M0049883	850864
8	HOUSING	853541
9	COLLAR	23-852473
10	SHEAVE, Starter	50-8527732
11	PAWL	852777
12	SPRING, Starter	24-852778
13	DRIVEPLATE ASSEMBLY	852780
14	SPRING, Drive Pawl	24-852778T01	24-852778 1
15	SPRING	24-8527782
16	SPRING, Return	24-8527783
17	CIRCLIP	53-852784
18	BOLT	10-852785
19	GROMMET	25-852786
20	ROPE	50-12066Q10
21	STOPPER	8527881
22	SPRING, Return	24-8560361
23	SPRING	24-856036
24	BOLT, (M6 x 20)	10-84058M
25	BOLT, (M6 x 90)	10-855783
26	WASHER	12-82213M
27	NUT, (M6)	11-82390M
28	PLUG	19-858768	19-855741 (Electric Non-Handle)
29	PLUG	19-822513002	19-822513 1 (Electric Non-Handle) SN# USA-0T979999/BEL-0P325499 & Below
29	PLUG	19-822513002	19-822513 1 (Electric Non-Handle) SN# USA-0T980000/BEL-0P325500 & Up
30	HOUSING	853541
31	COLLAR	23-852473
32	DECAL, Caution-Start in Gear	37-881865	37-825064 (Start In Gear) (Electric)
33	NOT SOLD SEPARATE, Decal	NSS
34	COVER	855691
35	GROMMET	25-8527681
36	NOT SOLD SEPARATE, Decal	NSS
37	DECAL, EPA Label Information	37-856985A20	37-856985 20 (1999)
37	DECAL, EPA Label Information	37-804652A00
37	DECAL, EPA Label Information	37-804652A01
37	DECAL, EPA Label Information	37-804652A02
37	DECAL, EPA Label Information	37-804652A03
37	DECAL, EPA Label Information	37-804652A04
37	DECAL, EPA Label Information	37-804652A05

Starter Assembly, Manual

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Starter Assembly, Manual:

Position No.	Part Name	OEM Number
1	STARTER ASSEMBLY	825635T1
2	HOUSING	827444M
3	THRUST WASHER	12-827451M
4	ROPE	50-12066Q10
5	SPRING, Starter	24-827446M
6	DRUM, Sheave	827445M
7	COVER, Starter Housing	827459M
8	WASHER	13-82186M
9	BOLT	10-82417M
10	STOPPER	827453M
11	SPRING	24-827456M
12	LINK	827457M
13	WASHER	12-82213M
14	COTTER PIN	18-43089M
15	PLATE, Drive	827458M
16	DAMPER	827461M
17	COVER	827460M
18	SPRING, Drive Plate	24-827449M
19	THRUST WASHER	12-827447M
20	PULLEY KIT	11704A1
21	BUSHING	23-11705M
22	LOCKWASHER	13-11706M
23	LOCKWASHER	13-82212M
24	BOLT	10-82405M
25	PULLEY	827448M
26	PIN	17-825527
27	BUSHING	23-827450M
28	WASHER, Drive Pawl	12-827462M
29	NUT	11-82383M
30	BOLT	10-825528
31	SPRING, Return	24-827455M
32	ARM	827454M
33	WASHER	12-827452M
34	HANDLE ASSEMBLY	85174A1
35	NOT SOLD SEPARATE, Retainer	NSS
36	SCREW, (M8 x 30)	10-4000354
37	WASHER	12-4002317
38	CABLE, Steering	825650
39	SCREW, (M5 x 12)	10-82239312
40	STAY	825651
41	STAY	825801

Starter Motor

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Starter Motor:

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M8 x 45)	10-4000357
2	WASHER	12-4002317
3	STARTER MOTOR ASSEMBLY	50-859168T	50-852570T, 50-852570 (Nut Design)
3	STARTER MOTOR ASSEMBLY	50-859168T	50-852570T, 50-852570 (Retaining Ring Design)
4	THRU BOLT	10-965662
5	DRIVE KIT	891752	90643 4 (Nut Design)
6	DRIVE KIT	906432
7	ARMATURE	8236383
7	ARMATURE	8236385
8	PINION	68575T2
9	DRIVE CAP	8236391
10	CAP, Commutator	8119012
11	BRUSH/SPRING KIT	898265016	75384, 75384 1
12	HOLDER	898265014	61787
13	SCREW	F15158

Stator/Rotor

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Stator/Rotor:

Position No.	Part Name	OEM Number	Supersedes
1	SHAFT	825663
2	COVER, Flywheel	825662T	825662
3	SCREW	10-825510
4	COLLAR	825665
5	GROMMET	25-11416T
6	NUT	11-81770M
7	WASHER	12-81814M
8	ROTOR	825658
9	BOLT	10-827029
10	STATOR	827399
11	MAGNETO BASE	825660T	825660
12	SCREW	10-827027
13	SCREW	10-827026
14	PIN, Dowel	17-825010
15	KEY	28-8M0057164	28-81914M
16	PULSER	825661
17	SCREW, (M5 x 10)	10-82104510
18	NOT SOLD SEPARATE, Decal-Emergency Start Procdure	NSS
19	NOT SOLD SEPARATE, Decal-Flywheel Cover	NSS
20	DECAL, EPA Label Information, Export	37-855920
21	NOT SOLD SEPARATE, Decal-Servicing Referral	NSS
22	NOT SOLD SEPARATE, Decal-Warning-Neutral	NSS

Swivel Bracket

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Swivel Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET	3402-8831T08
2	FITTING, Grease	22-8M0169589
3	BEARING	23-421402
4	BEARING, Thrust - Upper	23-42080T01
5	BUSHING	23-42139
6	SEAL	26-42077
7	THRUST WASHER	12-42373
8	SPRING	24-421301
9	BRACKET	42082T04
10	PIN	17-420811
11	HOOK, Reverse Lock	8M0075731	42141 1
12	PIN ASSEMBLY, Pivot	17-830741A1
13	WASHER, (.390 x .600 x .032)	91963
14	RING, Retaining	53-832720
15	SPRING	24-42128
16	CARRYING HANDLE (#42085 2)
17	SPRING	24-42127
18	RING, Retaining	53-13194
19	ROD	821961
20	DISC	8165621
21	PLATE KIT	821958A1
22	SCREW, (M6 x 13) Stainless Steel	10-40011126
23	BRAKE PLATE	821957
24	WASHER	12-29330
25	HANDLE	821959
26	NUT, (.375-24)	11-8M0204726
27	DECAL, Co-Pilot	37-8237011
28	NOT SOLD SEPARATE, Decal-Serial Overlaminate	NSS
1	SWIVEL BRACKET	3415-822237A3
2	FITTING, Grease	22-8M0169589
3	FITTING, Grease	22-8M0169589
4	FITTING, Grease	22-8M0169589
5	BUSHING	23-855628A1
6	NOT SOLD SEPARATE, O-Ring	NSS
7	NOT SOLD SEPARATE, Bushing	NSS
8	NOT SOLD SEPARATE, Bushing	NSS
9	NOT SOLD SEPARATE, Washer	NSS
10	ROD	821961
11	DISC	8165621
12	PLATE KIT	821958A1
13	SCREW, (M6 x 13) Stainless Steel	10-40011126
14	BRAKE PLATE	821957
15	WASHER	12-29330
16	HANDLE	821959
17	NUT, (.375-24) Stainless Steel	11-8M0204726
18	HOOK ASSEMBLY, Reverse Lock	98830A4
19	SPRING	24-96018
20	SPRING	24-97427
20	SPRING	24-879894	24-12755 (Handle)
21	RING, Retaining	53-13194
22	PIN	17-13195
23	BRACKET	12756
24	SPRING	24-12754
25	LEVER	12758
26	RING, Retaining	53-13194
27	SCREW, (.375-24 x 1.25)	10-849838	10-14000 (Electric - Non-Handle) SN# USA-0T979999/BEL-0P325499 & Below
27	SCREW, (.375-24 x 1.250)	10-849838	10-14000 SN# USA-0T980000/BEL-0P325500 & Up
28	ATTACHING KIT, Steering Link	41323A03
29	WASHER, (.390 x .625 x .062) Stainless Steel	12-37828
30	NUT, (.375-24) Stainless Steel	11-8M0204726
31	BRACKET ASSEMBLY	96186A2
32	SCREW, (M10 x 25 MM)	10-1993325
33	LOCKWASHER, (M10)	13-400248
34	SWIVEL HEAD ASSEMBLY	854801T2
35	SHAFT, Reverse Lock	858338A1
36	BUSHING	23-F536813
37	GUIDE	8M0036770	42126
38	SCREW, (M5 x 25) Stainless Steel	10-40011109
39	NUT, (M5) Stainless Steel	11-401385
40	LINK ROD KIT, Reverse Lock	858338A3
41	BOLT, (M5 x 6)	10-858407
42	STUD, (M10 x 1.5 x 97)	16-854819
43	WASHER	12-4002320
44	NUT, (M10) Stainless Steel	11-4013610
45	MOUNT	8M0039074	42189 2
46	COVER	854729T1
47	COVER	854728T1
48	SCREW, (M8 x 100)	10-19943100
49	SCREW, (M8 x 60)	10-1994360
50	WASHER	12-36001
51	NUT, (M8) Stainless Steel	11-400213
52	NOT SOLD SEPARATE, Decal-Serial Overlaminate	NSS

Swivel Head and Steering Handle

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Swivel Head and Steering Handle:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL HEAD	825551A2
2	BUSHING	23-823939
3	PLATE	826648
4	SCREW, (M5 x 16) Stainless Steel	10-40011107
5	WASHER	12-822145
6	WAVE WASHER	13-826792	13-34678 1, 13-822144
7	WASHER	12-822146
-	TILLER HANDLE ASSEMBLY, Complete	821463T84	821463A84
8	ARM ASSEMBLY, Steering Handle	821468A66	821468T 8
9	RETAINER	822441
10	SCREW, (M5 x 16) Stainless Steel	10-40011107
11	COVER	822148A3
12	PULLEY	822150
13	NOT SOLD SEPARATE, Case	NSS
14	SCREW, (#10-16 x .500)	10-878608	10-812832
15	CABLE, Throttle	43242T09
16	SLEEVE	85-9600910
17	DECAL	37-8242002
18	GRIP	8M0221732
19	SWITCH ASSEMBLY, Stop	87-8M0104613
20	KNOB, Throttle	821972T	821972
21	LOCK, Throttle	892995	821971
22	SCREW, (M6 x 25)	10-8M0204707
23	HANDLE, Throttle	831853
24	TILLER TUBE	821463T01	821463A 1
25	SPRING	24-96203
26	WASHER	12-4002317
27	STUD	16-825552
28	SCREW, (M6 x 12)	10-4000326
29	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
30	PLATE	825541
31	SEAL	26-825547
32	MOUNT	825540
33	CLAMP	825544
34	SCREW, (M8 x 30)	10-4000354
35	WASHER	12-4002317
36	SEAL	26-825543
37	BRACKET	825545
38	DAMPER	825546
39	NUT, (M8)	11-401368

THROTTLE LINKAGE (ELECTRIC-REMOTE CONTROL)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) THROTTLE LINKAGE (ELECTRIC-REMOTE CONTROL):

Position No.	Part Name	OEM Number
1	PLUG	826037
2	STRAP	8280471
3	SCREW (M6 X 16)	10-4006731
4	SHIFT ARM	826025A1
5	NUT-PUSH	11-825677
6	RETAINER	822459
7	SCREW (M5 X 12)	10-82239312
8	SCREW (M6 X 20)	10-8M0204741
9	LINK	828050
10	LINK-JOINT	826065
11	NUT	11-8237515
12	THROTTLE LINK	825790
13	LINK-JOINT	826137
14	PLATE	826034
15	SCREW (M6 X 16)	10-4006731
16	SLIDE	828049
17	SPRING	NLA
18	THROTTLE ARM	826028A2
19	RETAINER	822459
20	NUT-PUSH	11-825677
21	E CLIP	53-8237951
22	SHIFT SHAFT	852494A5
23	INTERLOCK LEVER	826063
24	SCREW (M5 X 35)	10-40011111
25	SCREW	10-825510
26	LOCKWASHER	13-400256
27	WASHER	12-8M0214930
28	COVER	826031
29	SCREW (M6 X 20)	10-8M0204741
30	PLATFORM	8260241
31	SEAL	828007
32	SCREW (M5 X 12)	10-82239312
33	PLATE	824994
34	SPRING	24-824993
35	SPRING	24-824992

THROTTLE LINKAGE (MANUAL)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) THROTTLE LINKAGE (MANUAL):

Position No.	Part Name	OEM Number	Supersedes
1	SHIFT HANDLE	825792
2	GROMMET	25-825781
3	SCREW (M5 X 12)	10-82239312
4	STRAP	8280471
5	SCREW (M6 X 16)	10-4006731
6	SCREW (M6 X 20)	10-8M0204741
7	WASHER	12-8M0214930
8	LINK-SLIDING	830880	826064
9	LINK-JOINT	826065
10	NUT	11-8237515
11	THROTTLE LINK	825790
12	LINK-JOINT	826137
13	PULLEY	825787A2
14	BUSHING (SIDE SHIFT)	23-825788
15	NUT	11-401196
16	SPRING	24-824992
17	SPRING	24-824993
18	PLATE	824994
19	SCREW (M5 X 12)	10-82239312
20	SCREW (M5 X 35)	10-40011111
21	INTERLOCK LEVER	826063
22	HORIZONTAL SHIFT SHAFT	852494A5
23	SCREW (M6 X 20) (SIDE SHIFT)	10-8M0204741
24	CONTROL PLATFORM	8257863
25	BUSHING (SIDE SHIFT)	23-825789
26	PLUG	826037
27	GEAR-DRIVEN	826021
28	COVER	826022
29	SCREW (M6 X 20)	10-8M0204741
30	GEAR-DRIVER	826019

TOP COWL

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) TOP COWL:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL	114-854654T3
1	TOP COWL	114-854654T4
1	TOP COWL	114-854654T3
1	TOP COWL	114-854654T4
2	AIR INLET SHIELD	825554F1
2	AIR INLET SHIELD	825554F2
3	SCREW (M6 X 16)	10-4006731
4	BRACKET (REAR)	8M0038412	822426 1
5	SCREW (M4 X 14.5)	10-8231871
6	LOCKWASHER	13-26995
7	NUT	11-8237515
8	BRACKET	893763	18173
9	SCREW (M6 X 16)	10-4006731
10	NUT	11-8237515
11	LOCKWASHER	13-26995
12	LATCH	826649
13	COVER	827702T	827702
14	SCREW (M4 X 14.5)	10-8231871
15	SEAL	8M0043391	828237 1
16	SOUND BLANKET KIT	825567A1
17	STARTER ROPE	47341A11
18	SUPPORT	8258271
19	SCREW (M6 X 20)	10-8M0204741
20	SCREW (M6 X 14)	10-82129114
21	BRACKET	827501
22	SCREW (M6 X 13)	10-40011126
23	HANDLE REST	825655A5
24	PLUG (REMOTE CONTROL)	19-822513
23	HANDLE REST	825655A5
24	PLUG	19-822513002	19-822513 1 I.D. OF REST ROPE HOLE IS 1/3 IN.
25	PLUG-LIGHT (REMOTE CONTROL)	19-827870
26	DECAL	37-8302584
27	DECAL	37-8500534
27	DECAL	37-8500534
27	DECAL	37-8263367
28	SEAL	8249952
29	DECAL-EPA INFO	37-855577A23	37-855577 23 (1998)

Throttle Linkage

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Throttle Linkage:

Position No.	Part Name	OEM Number	Supersedes
1	STRAP	8280471
2	SCREW, (M6 x 16) Stainless Steel	10-4006731
3	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
4	WASHER	12-8M0214930
5	LINK, Sliding	830880	826064
6	LINK, Joint	826065
7	NUT, (M4)	11-8237515
8	LINK, Throttle	825790
9	LINK, Joint	826137
10	PULLEY ASSEMBLY	825787A2
11	NUT, (M6)	11-401366
12	SPRING, Detent	24-824992
13	SPRING, Backing	24-824993
14	SPRING, Plate	824994
15	SCREW, (M5 x 12)	10-82239312
16	SCREW, (M5 x 35) Stainless Steel	10-40011111
17	LEVER, Interlock	826063
18	SHIFT SHAFT ASSEMBLY, Horizontal	852494A5
19	PLATFORM	8257863
20	PLUG	826037
21	GEAR, Driven	826021
22	COVER	826022
23	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
24	GEAR, Driver	826019

Throttle/Shift Linkage(Handle Models)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Throttle/Shift Linkage(Handle Models):

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M6 x 20)	10-8248291
2	COVER	856905
3	NOT SOLD SEPARATE (Decal-F,N,R)	NSS
4	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
5	BRACKET	856909
6	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
7	WASHER	12-8M0214930
8	PULLEY ASSEMBLY	825787A2
9	BUSHING	23-825788
10	NUT, (M6) Stainless Steel	11-401366
11	LINK, Throttle	882818	850871 1
12	SHIFT PLATFORM KIT	856904A2
13	SHAFT	8569111
14	PLUG	19-48323
15	SHIFT PLATFORM	856904A2
16	SHAFT	856911
17	RING, Retaining	53-95019
18	SEAL	856910
19	RING, Retaining	53-857213
20	WAVE WASHER	13-69150
21	SHIFT HANDLE	856906
22	SHIFT LINK	856908
23	LEVER, Shift	856907
24	SCREW, (M5 x 12)	10-82239312
25	SHIFT SHAFT ASSEMBLY, Horizontal	852494A5
25	SHIFT SHAFT ASSEMBLY, Horizontal	852494A6
26	LEVER, Interlock	855609
26	LEVER, Interlock	826063
27	SCREW, (M5 x 35) Stainless Steel	10-40011111
28	SPRING, Detent	24-824992
29	SPRING, Backing	24-824993
30	SPRING, Plate	824994
31	SCREW, (M5 x 12)	10-82239312
32	STRAP	8280471
33	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
34	SEAL	8354191
35	SWITCH ASSEMBLY	87-11083A30
36	RETAINER, Brass	8M0032846	12044 1
37	LANYARD ASSEMBLY	15920Q54
38	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
39	WIRE	852472
40	BRACKET	855888F
41	SCREW, (M5 x 12)	10-82239312
42	SWITCH ASSEMBLY	87-8M0052929	87-813960A 5 (Electric)
43	PLATE	824923
44	SCREW, (M3.5 x 20)	10-82470620

Throttle/Shift Linkage(Non-Handle Models)

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Throttle/Shift Linkage(Non-Handle Models):

Position No.	Part Name	OEM Number	Supersedes
1	STRAP	8280471
2	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
3	SCREW, (M5 x 12)	10-82239312
4	SPRING, Plate	824994
5	SPRING, Backing	24-824993
6	SPRING, Detent	24-824992
7	SHIFT SHAFT ASSEMBLY, Horizontal	852494A6
7	SHIFT SHAFT ASSEMBLY, Horizontal	852494A5
8	LEVER, Interlock	855609
8	LEVER, Interlock	826063
9	SCREW, (M5 x 35) Stainless Steel	10-40011111
10	REMOTE CONTROL PLATFORM	835415F
11	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
12	COVER	852498
13	SCREW, (M6 x 20)	10-832047
14	LEVER, Shift Shaft	8524961
15	SCREW, (M5 x 12)	10-82239312
16	SHIFT LINK ASSEMBLY	852497A2
17	SOCKET	817428	830875
18	NUT, Brass	10-32,11-45076
19	RING, Retaining	53-857213
20	SEAL	8354191
21	LEVER, Shift	850856
22	BUSHING	23-91912
23	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
24	RETAINER	822459
25	PUSH NUT	11-825677
26	LEVER, Throttle	850857
27	RETAINER	822459
28	PUSH NUT	11-825677
29	SCREW, (M6 x 45)	10-82129145
30	BUSHING	23-855765
31	SLIDE	828049
32	LINK, Throttle	882817	835420 SN# USA-0T800999/BEL-0P267999 & Below
32	LINK, Throttle	882817	835420 SN# USA-0T801000/BEL-0P268000 & Up
33	RING, Retaining	53-8237951
34	GROMMET	25-828114
35	PLUG	19-855937
36	CLAMP	54-28700
37	SCREW, (M5 x 12)	10-82239312

Tiller Handle

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Tiller Handle:

Position No.	Part Name	OEM Number	Supersedes
-	TILLER HANDLE ASSEMBLY	821468T65	821468T10, 821468A10 (Black)
1	COVER KIT	822148A3
2	PULLEY	822150
3	NOT SOLD SEPARATE, Body	NSS
4	SCREW, (#10-16 x .500)	10-878608	10-812832
5	CABLE, Throttle	43242T09
6	SLEEVE	85-9600910
7	ARM ASSEMBLY, Steering Handle	821468A66	821468T 8 (Black)
8	SCREW, (M5 x 16) Stainless Steel	10-40011107
9	SCREW, (M5 x 16) Stainless Steel	10-40011107
10	KNOB, Throttle	821972T	821972
11	SPRING	24-96203
12	LOCK, Throttle	892995	821971
13	SCREW, (M6 x 25)	10-8M0204707
14	TILLER TUBE	821463T01	821463A 1
15	DECAL	37-8242003
16	HANDLE, Throttle	821465
17	GRIP	8M0221732
18	SWITCH ASSEMBLY, Stop	87-8M0104613
19	RETAINER	822441
20	BUSHING	23-823939
21	WASHER	12-822145
22	WAVE WASHER	13-826792	13-34678 1, 13-822144
23	WASHER	12-822146
24	BRACKET, Steering Arm	822841F1
25	SCREW, (M10 x 80)	10-4000384
26	PLATE	826648
27	HOUSING	889734	823917 2 (Electric Handle) SN# USA-0T800999/BEL-0P267999 & Below
27	HOUSING, Switch	889734	823917 2 (Electric Handle) SN# USA-0T801000/BEL-0P268000 & Up
28	CLIP	824918
29	SWITCH ASSEMBLY	87-823609A8
30	DECAL, Start	37-855262

Tools

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Tools:

Position No.	Part Name	OEM Number	Supersedes
1	NOT SOLD SEPARATE, Oil Filter Wrench (Obtain Locally)	NSS
2	FLYWHEEL PULLER	91-83164M
3	HOLDER TOOL, Flywheel	91-8M0161873
4	COMPRESSOR TOOL, Piston Ring	FT2997	FJ7081, FJ8785, FJ8786, FJ8787, FJ8788, FJ8789
6	COMPRESSOR TOOL, Valve Spring	91-809494A1
7	REMOVER TOOL, Valve Guide	91-809495001	91-809495A 1
8	INSTALLER TOOL, Valve Guide Bushing	91-809496A1
9	REAMER TOOL, Valve Guide	91-809497A1
10	NOT SOLD SEPARATE, Valve Seat Cutter Kit (Obtain Locally)	NSS
11	WRENCH	91-828999
12	PULLER PLATE	91-37241
13	PULLER ASSEMBLY	91-83165T
14	PULLER ASSEMBLY, Slide Hammer	91-34569A1
15	INSTALLER TOOL, Bearing	91-13664
15	INSTALLER TOOL, Bearing Carrier	91-93843T1
16	REMOVAL TOOL, Bearing	91-824788A1
17	INSTALLATION TOOL, Driveshaft Bushing	91-824790A1
18	MANDREL	91-13658T
19	REMOVAL TOOL, Bushing	91-824787
20	INSTALLER TOOL, Bushing And Seal	91-824785T1
21	PLATE	91-29310
22	NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG40-4)	NSS
23	NOT SOLD SEPARATE, Collet (Jaws)(Snap-On #CG40A6)	NSS
24	TESTER KIT	FT8950

Tools, Special

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Tools, Special:

Position No.	Part Name	OEM Number	Supersedes
-	INSTALLER TOOL, Bushing And Seal	91-824785T1
-	INSTALLER TOOL, Bearing	91-13664
-	MANDREL KIT, Bearing	91-83166M
-	PULLER KIT, Bearing	91-31229A7
-	REMOVAL TOOL, Bushing	91-824787
-	GAUGE TOOL, Carburetor	91-36392
-	GAUGE TOOL	91-29287
-	REMOVAL TOOL, Bearing	91-824788A1
-	BUSHING TOOL, Driveshaft	91-824790A1
-	HOLDER TOOL, Flywheel	91-8M0161873
-	FLYWHEEL PULLER	91-83164M
-	MANDREL	91-13655T
-	MANDREL	91-13658T
-	EXPANDER TOOL, Piston Ring	91-24697
-	PULLER PLATE	91-37241
-	PULLER ASSEMBLY, Slide Hammer	91-34569A1
-	AIR GAP TOOL, Eight Chamber	91-830230T
-	GAP TOOL, Single Chamber	91-63998A1
-	TORQUE WRENCH, (0-150 lb-in)	91-66274
-	PULLER PLATE	91-37241
-	WRENCH TOOL, Valve Adjuster	91-809498	91-809498A 1
-	INSTALLER TOOL, Valve Guide Bushing	91-809496A1
-	REAMER TOOL, Valve Guide	91-809497A1
-	REMOVER TOOL, Valve Guide	91-809495001	91-809495A 1
-	COMPRESSOR TOOL, Valve Spring	91-809494A1
-	NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG 40-4)	NSS
-	NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG40A6)	NSS

Top Cowl

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Top Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY	114-854654T3
1	TOP COWL ASSEMBLY	114-854654T4
2	BRACKET, Rear	8M0038412	822426 1
3	SCREW, (M4 x 14.5)	10-8231871
4	LOCKWASHER, Stainless Steel	8,13-26995
5	NUT, (M4)	11-8237515
6	BRACKET ASSEMBLY, Latch Roller	893763	18173
7	SCREW, (M6 x 16)	10-4006731
8	NUT, (M4)	11-8237515
9	LOCKWASHER, Stainless Steel	8,13-26995
10	LATCH	826649
11	COVER	827702T	827702
12	SCREW, (M4 x 14.5)	10-8231871
13	SEAL, Cowl	8M0043391	828237 1
14	SOUND BLANKET, Side	825567A1
15	NOT SOLD SEPARATE, Sound Blacket-Top	NSS
16	ROPE AND HANDLE KIT, Manual Starting	47341A11
17	SUPPORT	8258271
18	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
19	SCREW, (M6 x 14)	10-82129114
20	BRACKET	827501
21	SCREW, (M6 x 13) Stainless Steel	10-40011126
22	HANDLE REST	825655A5
23	DECAL	37-8500534
24	SEAL	8249952
1	TOP COWL ASSEMBLY	114-852413T3
1	TOP COWL ASSEMBLY	114-852413T4
2	BRACKET	852490F
3	COVER	827702T	827702
4	LATCH	826649
5	SCREW, (M4 x 12)	10-8231872
6	LOCKWASHER, Stainless Steel	8,13-26995
7	NUT, (M4)	11-8237515
8	NOT SOLD SEPARATE, Insert	NSS
9	SCREW, (#10-16 x .50)	10-95700
10	BRACKET ASSEMBLY	852491A1
11	SCREW, (M6 x 13) Stainless Steel	10-40011126
12	ROLLER	18745
13	SEAL, Cowl	8M0043391	828237 1
14	ROPE AND HANDLE KIT, Manual Starting	47341A11
15	NOT SOLD SEPARATE, Starter Rope	NSS

VISUAL WARNING KIT

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) VISUAL WARNING KIT:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE ASSEMBLT-Lamp Mounting	17334A4
2	LAMP	88-17429
3	BRACKET	76424
4	STUD	16-55422
5	WASHER	12-24676
6	NUT	11-68219
7	TERMINAL BLOCK	86-45915
8	SCREW (#8-5/8 IN.)	10-16324
9	SCREW (10-16 X 3/8 IN.)	10-878607	10-817626
10	CABLE	84-11149A3

Visual Warning

Below is the parts list for Mercury 8 HP (BODENSEE) 4-STROKE HP (International) Visual Warning:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE ASSEMBLY, Lamp Mounting	17334A4
2	LAMP	88-17429
3	BRACKET	76424
4	STUD, (#10-32 x 2.00)	16-55422
5	WASHER, (.200 x .440 x .032)	12-24676
6	NUT, Stainless Steel	10-32,11-68219
7	TERMINAL BLOCK	86-45915
8	SCREW, (#8 x .625)	10-16324
9	SCREW, (#10-16 x .375)	10-878607	10-817626
10	CABLE ASSEMBLY	84-11149A3
11	INSULATOR, (2.00 Inch)	85-623594
12	SCREW, (#10-32 x .250)	10-24231
13	NUT AND LOCKWASHER,	10-32,11-27164

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
