Mercury 75 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND STOP SWITCH ASSEMBLY

Below is the parts list for Mercury 75 BOTTOM COWL AND STOP SWITCH ASSEMBLY:

Position No.	Part Name	OEM Number
1	COWL, BOTTOM	2159-6681A2
2	MOLDING, BOTTOM COWL	79300
3	PLUG, BOTTOM COWL (MANUAL)	74360
4	GROMMET, CHOKE SHAFT - BOTTOM COWL	39778
5	COVER, ACCESS HOLE	66353
6	COVER, ACCESS HOLE	65479
7	ANCHOR, LATCH - BOTTOM COWL	39474
8	SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8")	10-22483
9	LOCKWASHER, LATCH ANCHOR SCREW	13-26992
10	WASHER, NYLON - WATER OUTLET TUBE	23-13127
11	SEAL, RUBBER - WATER OUTLET TUBE	26-36556
12	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING Comment: (3/4")	10-38111
13	LOCKWASHER, BOTTOM COWL SCREW	13-26992
14	GASKET, POWERHEAD TO ADAPTOR PLATE	27-89937
15	RETAINER, WIRING HARNESS (BOTTOM COWL) Comment: ELECTRIC	74354
16	SCREW, RETAINER TO BOTTOM COWL Comment: ELECTRIC	10-48408
17	SPRING, CABLE TO ARM LATCH	24-78810
18	LATCH, ARM - BOTTOM COWL	78809
19	PIN, ARM LOCATING	29-714221
20	LATCH, BODY - BOTTOM COWL	78808
21	SCREW, LATCH TO BOTTOM COWL	10-32228
22	GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING	27-39050
23	STOP SWITCH ASSEMBLY Comment: MANUAL	87-69508A31
24	LOCKWASHER, STOP SWITCH Comment: MANUAL	13-69845
25	NUT, STOP SWITCH Comment: MANUAL	11-69844

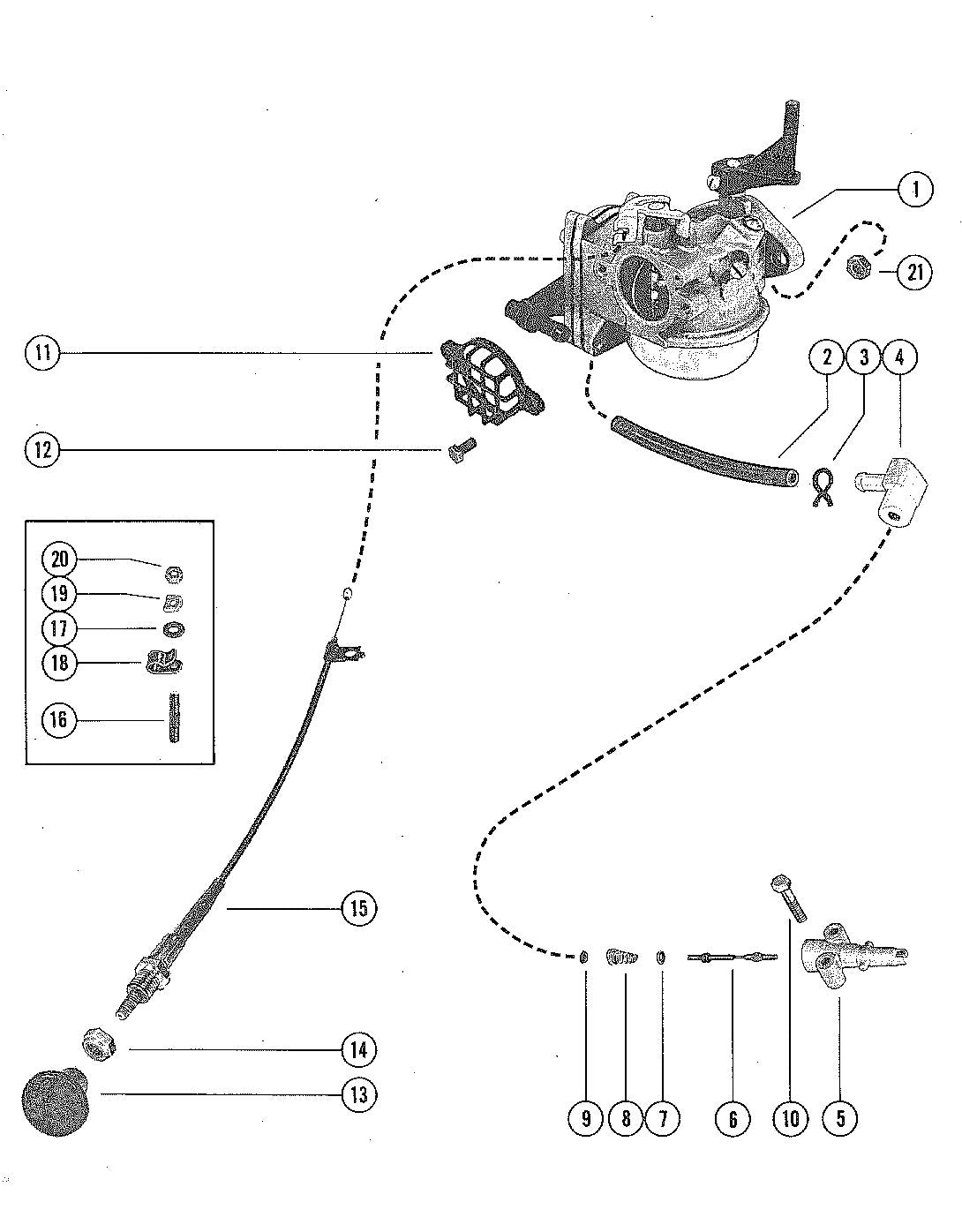

CARBURETOR AND CHOKE ASSEMBLY

Below is the parts list for Mercury 75 CARBURETOR AND CHOKE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE	1364-8783A14
2	FUEL LINE, ADAPTOR TO CARBURETOR	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
3	CLAMP, FUEL LINE ATTACHING	54-68424
4	FITTING, FUEL LINE TO ADAPTOR	22-98750
5	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
6	STEM, CHECK UNIT ADAPTOR	23069
7	"O" RING, ADAPTOR STEM	25-16524
8	SPRING, ADAPTOR STEM	24-23067T
9	CUP WASHER, ADAPTOR	30188
10	SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")	10-37923
11	SCREEN, CARBURETOR	65552
12	SCREW, SCREEN TO CARBURETOR	10-69022
13	KNOB, CHOKE	86381
14	NUT, CHOKE CABLE TO BOTTOM COWL	11-73710
15	CABLE, CHOKE	72465
16	STUD, CHOKE CABLE TO CARBURETOR	16-69036
17	WASHER, CHOKE CABLE STUD	12-8M0204666
18	CLIP, TRIGGER LEADS	54-24836
19	"D" WASHER, TRIGGER LEAD CLIP	8M0084613	69205
20	NUT, CHOKE CABLE STUD	11-45076
21	NUT, CARBURETOR ATTACHING	11-8M0207775

CARBURETOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 75 CARBURETOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY	1364-8783A14
2	WELCH PLUG, BODY CHANNEL (LARGE) (#)
3	SCREW, IDLE MIXTURE (#)
4	SPRING, IDLE MIXTURE SCREW (#)
5	SPRING. RETURN - THROTTLE SHAFT (#)
6	MAIN NOZZLE (#)
7	FLOAT	1395-9293
8	PIN, FLOAT RETAINING (#)
9	FUEL BOWL	1399-5127
10	GASKET, FUEL BOWL (#)
11	SCREW, FUEL BOWL TO CARBURETOR	1399-5128
12	GASKET, FUEL BOWL SCREW (#)
13	INLET NEEDLE AND SPRING	1399-6141
14	WELCH PLUG, BODY CHANNEL (SMALL) (#)
15	JET, MAIN FUEL (.045)	1399-1765
16	PLUG, BODY CHANNEL (#)
19	CHOKE SHUTTER	1399-7274
20	SCREW, CHOKE SHUTTER TO CHOKE SHAFT	10-23035
21	VENTURI	69764
22	GASKET, FUEL PUMP DIAPHRAGM (#)
23	DIAPHRAGM, FUEL PUMP (#)
24	BODY, FUEL PUMP	1399-5129
25	GASKET, FUEL PUMP DIAPHRAGM (#)
26	DIAPHRAGM, FUEL PUMP (#)
27	BODY, STRAINER	1399-5131
28	SCREW, STRAINER BODY TO CARBURETOR	1395-808612	1399-5132
29	SCREEN, STRAINER	1399-5758
30	GASKET, STRAINER COVER (#)
31	COVER ASSEMBLY, STRAINER (INLET)	99941
32	SCREW, STRAINER COVER TO BODY (#)
33	GASKET, STRAINER COVER SCREW (#)
34	CHOKE SHAFT	1399-5827
35	SPRING, RETURN - CHOKE SHAFT (#)
36	THROTTLE SHAFT	1399-5133
37	LEVER, THROTTLE	63646
38	SCREW, THROTTLE LEGER ATTACHING	1395-6027
39	IDLE TUBE (#)
40	GASKET, IDLE TUBE (#)
41	SCREW, PLUG - IDLE TUBE	10-23178
42	THROTTLE SHUTTER	1399-5759
43	SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT (#)
44	GASKET, CARBURETOR FLANGE	27-63309
--	GASKET SET	1399-5135
--	REPAIR PARTS KIT	1399-879194026	1399-5136, 1399-5139, 1399-5760, 1399-5800, 1399-5963, 1399-6142, 1399-6348, 1399-7569, 1399-7573
--	DIAPHRAGM AND GASKET KIT	1399-5137

CLAMP BRACKET ASSEMBLY

Below is the parts list for Mercury 75 CLAMP BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY (PORT) Comment: WASHER ATTACHED WITH A RETAINING RING.	1468-5570A3
2	CLAMP BRACKET ASSEMBLY (STARBOARD) Comment: WASHER ATTACHED WITH A RETAINING RING.	1467-5571A3
3	THUMB SCREW ASSEMBLY Comment: WASHER ATTACHED WITH A RETAINING RING.	10-77190A3
1	CLAMP BRACKET ASSEMBLY (PORT) Comment: WASHER ATTACHED WITH A SCREW	1468-5570A3
2	CLAMP BRACKET ASSEMBLY (STARBOARD) Comment: WASHER ATTACHED WITH A SCREW	1467-5571A3
3	THUMB SCREW ASSEMBLY Comment: WASHER ATTACHED WITH A SCREW	10-77190A3
4	SCREW, THUMB SCREW Comment: WASHER ATTACHED WITH A SCREW	10-768042
4A	WASHER, THUMB SCREW Comment: WASHER ATTACHED WITH A SCREW	12-73719
5	WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET	12-71421
6	TILT TUBE, CLAMP TO SWIVEL BRACKET	96962
7	PLUG, TILT TUBE	19-39333
8	CLIP, SAFETY CHAIN - TILT TUBE	54-8M0085928	54-30954
9	NUT, TILT TUBE FASTENING	11-858869	11-30499
10	HANDLE, CARRYING	71420
11	STUD, CLAMP BRACKET	16-71417
12	LOCKWASHER, CLAMP BRACKET STUD	13-26992
13	NUT, CLAMP BRACKET STUD	11-29598
14	SPRING, TILT LOCK PIN	24-62143
15	TILT LOCK PIN ASSEMBLY	17-71418A2
16	BOLT, CLAMP BRACKET TO BOAT	10-67982
17	WASHER, CLAMP BRACKET SCREW	12-67983
18	NUT, CLAMP BRACKET SCREW	11-8267098

CRANKSHAFT AND MAIN BEARING ASSEMBLY

Below is the parts list for Mercury 75 CRANKSHAFT AND MAIN BEARING ASSEMBLY:

Position No.	Part Name	OEM Number
1	CRANKSHAFT	421-5275
3	SEAL, CRANKSHAFT	26-72793
4	MAIN BEARING ASSEMBLY (VALVE TYPE)	550-8122A5
5	PIN, DOWEL - MAIN BEARING	17-20032
5	PIN, DOWEL - REED LOCATING	17-65855
6	SCREW, MAIN BEARING CLAMPING	10-56781
7	PIN, DOWEL - MAIN BEARING TO BLOCK	17-20032
8	REED SET, MATCHED - MAIN BEARING	34-31942A1
9	REED STOP, MAIN BEARING REED VALVES	34-20053
10	SCREW, REED STOP MOUNTING	10-27304

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 75 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASS'Y	837-6542A5
2	STUD, BLOCK AND CRANKCASE Comment: TO DRIVE SHAFT HOUSING	16-728091
3	STUD, CARBURETOR MOUNTING	10-657461
4	PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK	17-8M0084726	17-85500
5	SCREW, ADJ. - THROTTLE CONTROL (1 1/4")	10-69560
6	NUT, THROTTLE CONTROL ADJUSTING SCREW	11-68219
7	FITTING, BLEED DRAIN - CYLINDER BLOCK (TOP)	22-56759
8	HOSE, BLEED DRAIN (10 1/2")	32-9938779
10	CHECK VALVE, BLLED - CRANKCASE (BOTTOM)	21-42863
11	ELBOW, TEEL TALE - CYLINDER BLOCK	22-996642
12	SCREW, CRANKCASE TO CYLINDER BLOCK	10-76621
13	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-73280
15	SCREW, MAIN BEARING LOCKING (5/8")	10-98260
16	TAB WASHER, MAIN BEARING LOCKING SCREW	14-20091
17	SHIM, UPPER HOUSING TO CYLINDER BLOCK Comment: (.002-3-5-10)	15-31412A1
18	BEARING HOUSING ASSEMBLY, UPPER	1164-6413A1
19	BEARING, BALL - UPPER BEARING HOUSING	30-72961
20	BEARING, ROLLER - UPPER BEARING HOUSING	31-31410
21	OIL SEAL, UPPER BEARING HOUSING	26-66301
22	"O" RING, UPPER BEARING HOUSING	25-20863
23	SCREW, UPPER BEARING HOUSING (1/2")	10-76611
23A	TAB WASHER, UPPER BEARING HOUSING SCREW	14-78102
24	GASKET, INTAKE COVER	27-780321
25	COVER, INTAKE	78033
26	SCREW, INTAKE COVER TO CYLINDER BLOCK	10-26537
27	COVER ASSEMBLY, CYLINDER BLOCK	1019-7465A1
28	PLUG, CYLINDER BLOCK COVER	22-390721
29	GASKET, CYLINDER BLOCK COVER	27-41382
30	SCREW, CYL. BLOCK COVER TO CYLINDER BLOCK Comment: (1")	10-8M0214943
32	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-78035
33	PLATE, BAFFLE - EXHAUST MANIFOLD	78034
34	GASKET, BAFFLE PLATE	27-78035
35	COVER, EXHAUST MANIFOLD	74919T
36	SCREW Comment: BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")	10-28668
37	BEARING, BALL - CRANKCASE (LOWER)	30-72961
38	OIL SEAL, CRANKCASE (LOWER)	26-66301

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 75 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1556-8451A1
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1558-8453A1
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING Comment: (2 5/16")	16-66373
3	NUT, DRIVE SHAFT HOUSING STUD Comment: (3/8 - 24)	11-8M0204726
4	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD ( Comment: (5/16 - 24)	11-82670911
5	COVER, TRIM - DRIVE SHAFT HOUSING	72471
6	SCREW, TRIM COVER TO BOTTOM COWL (1/2")	10-64652
7	HOSE, TELL TALE (9 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
8	TUBE, WATER OUTLET Comment: SHORT SHAFT	32-39061
8	TUBE, WATER OUTLET Comment: LONG SHAFT	32-39062
9	SCREW, FLUSH - DDRIVE SHAFT HOUSING	10-79953Q04
10	WASHER, SEALING - FLUSH SCREW	12-191833
11	GASKET Comment: ADAPTOR PLATE TO DRIVE SHAFT HOUSING	27-39050
12	NUT Comment: DRIVE SHAFT HOUSING TO POWERHEAD STUDS	11-24652
12	NUT Comment: DRIVE SHAFT HOUSING TO POWERHEAD STUDS	11-24652
13	BLOCK, DRIVE SHAFT Comment: LONG SHAFT	55435
15	SADDLE ASSEMBLY	1559-8448A2
16	BUMPER, THRUST - SADDLE	64076
17	MOUNT, LOWER AND UPPER Comment: .	79896A1
18	RING, RETAINING - UPPER AND LOWER MOUNT	53-26406
19	COVER, LOWER MOUNT	71490
20	SCREW, LOWER MOUNT COVER TO MOUNT (7/16")	10-72169
21	LINK ROD, REVERSE LOCK	71057
22	SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING Comment: (3/4")	10-65414
23	CAM, REVERSE LOCK	65216
24	RETAINER, REVERSE LOCK CAM	72007

ELECTRIC COMPONENTS

Below is the parts list for Mercury 75 ELECTRIC COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR	50-78011
2	SCREW, STARTER MOTOR TO CYLINDER BLOCK Comment: (1 1/4")	10-55511
3	LOCKWASHER, STARTER MOTOR SCREW	13-8M0204647
6	WIRE ASSEMBLY, STARTING SWITCH (YELLOW)	84-76741A1
7	SWITCH, STARTING	87-73883
8	WASHER, STARTING SWITCH	12-30516
9	NUT, STARTING SWITCH	11-74394
10	PROTECTOR, STARTING SWITCH	74515
11	CABLE, BATTERY	84-72535A4
12	GROMMET, BATTERY CABLE	25-74444
13	SCREW, BATTERY CABLE ATTACHING (5/16")	10-45742
14	SCREW, BATTERY CABLE ATTACHING (7/8")	10-98253
15	LIGHTING STATOR ASSEMBLY	74367A15
16	SCREW, LIGHTING STATOR ATTACHING (1 5/8")	10-73696
17	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
18	SCREW, RECTIFIER TO MANIFOLD COVER (1/2")	10-48408
19	SPACER, RECTIFIER SCREW	23-62769
20	NUT, RECTIFIER TERMINAL	11-45076
21	WIRE ASSEMBLY, RECTIFIER TO STARTING SWITCH Comment: (RED)	84-61393A6
22	VOLTAGE REGUALTOR Comment: BELGIUM	95845T
23	SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER Comment: BELGIUM: (1")	10-74841
24	SPACER, VOLTAGE REFULATOR SCREW Comment: BELGIUM	23-62769
25	NUT, VOLTAGE REFULATOR TERMINAL Comment: BELGIUM	11-45076
26	HARNESS ASSEMBLY, VOLTAGE REGULATOR Comment: BELGIUM: (BLACK/RED)	84-74725A1
27	PLUG, HARNESS -BELGIUM	71663
28	PLUG, HARNESS TO BOTTOM COWL -BELGIUM	74361
29	HARNESS ASSEMBLY, LIGHTING (EXTERNAL) -BELGIUM	84-65017A4
15	LIGHTING STATOR ASSEMBLY -BELGIUM	74367A15

FLYWHEEL AND IGNITION COIL

Below is the parts list for Mercury 75 FLYWHEEL AND IGNITION COIL:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL ASSEMBLY (MANUAL)	251-6105A1
1	FLYWHEEL ASSEMBLY (ELECTRIC)	251-6105A1
1	FLYWHEEL ASSEMBLY (BELGIUM)	251-6105A1
2	KEY, FLYWHEEL DRIVE	28-50094
3	WASHER, FLYWHEEL NUT	12-36245
5	COIL ASSEMBLY, IGNITION	339-5748A
4	NUT, FLYWHEEL	11-20696
6	LOCKWASHER, IGNITION COIL TERMINAL	13-26996
7	NUT, IGNITION COIL TERMINAL	11-4506
8	COVER, IGNITION COIL	66355
9	SCREW, COIL COVER TO REAR SUPPORT BRACKET Comment: (4 5/8")	10-72074
10	NUT, COIL COVER SCREW	11-20110
11	LEAD ASSEMBLY, HIGH TENSION	84-813715A1
12	NIPPLE, IGNITION COIL	332-2854T01
13	PROTECTOR ASSEMBLY, SPARK PLUG Comment: .	85-63709A1
14	SPARK PLUG (AC#V40FFK)	33-896329833	33-833C

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 75 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: NOT MACHINED FOR ANODE KIT	1630-7360A12
-	GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: NOT MACHINED FOR ANODE KIT	1630-7360A13
-	GEAR HOUSING ASS'Y , COMP.(SHORT SHAFT) Comment: MACHINED FOR ANODE KIT	1630-7360A12
-	GEAR HOUSING ASS'Y, COMP.(LONG SHAFT) Comment: MACHINED FOR ANODE KIT	1630-7360A13
1	GEAR HOUSING ASS'Y Comment: NOT MACHINED FOR ANODE KIT	1630-7360A11
1	GEAR HOUSING ASS'Y Comment: MACHINED FOR ANODE KIT	1630-7360A11
2	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING Comment: (3 7/16")	16-58138
3	STUD, WATER PUMP HOUSING TO GEAR HOUSING Comment: (2 3/4")	16-58136
4	BEARING, ROLLER - DRIVE SHAFT	31-22756
5	PIN, DOWEL - LOCATING	17-20032
6	SEAL, RUBBER - WATER INTAKE TUBE	26-33613
7	WASHER, NYLON - INTAKE TUBE SEAL	23-86215
8	SCREEN, WATER INTAKE	35-33425
9	SCREW, WATER INTAKE SCREEN TO GEAR HOUSING	10-28642
10	SCREW, GREASE FILLER HOLE	10-79953Q04
11	WASHER, GREASE FILLER HOLE SCREW	12-191833
12	WASHER, GREASE VENT HOLE SCREW	19643
13	SCREW, GREASE VENT HOLE	10-28653
14	SHAFT ASSEMBLY, SHIFT (SHORT SHAFT)	71659A1
14	SHAFT ASSEMBLY, SHIFT (LONG SHAFT)	71658A1
15	RING, RETAINING - SHIFT SHAFT	53-22899
16	BUSHING ASSEMBLY, SHIFT SHAFT	23-30676A1
17	"O" RING, SHIFT SHAFT BUSHING	25-26802
18	OIL SEAL, SHIFT SHAFT BUSHING	26-30696
19	SCREW, SHIFT SHAFT BUSHING	10-39149
20	GEAR, PINION	43-98696
21	TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW	14-30377
22	SCREW, PINION GEAR TO DRIVE SHAFT	10-30376
23	DRIVE SHAFT (SHORT SHAFT)	45-75034
23	DRIVE SHAFT (LONG SHAFT)	45-75033
24	SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING Comment: (.002-3-5-10)	15-30527A1
25	BEARING, BALL - DRIVE SHAFT	30-70944
26	RING, RETAINING - BALL BEARING TO DRIVE SHAFT	53-30523
27	SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING Comment: (.002-3-5-10)	15-30527A1
28	WATER PUMP HOUSING ASSEMBLY	46-70941T01
29	"O" RING, WATER PUMP HOUSING	25-29439
30	OIL SEAL, WATER PUMP HOUSING	26-30900T
31	SEAL, WATER INTAKE TUBE	26-33613
32	TUBE, WATER INTAKE	32-34293
33	INSERT, WATER PUMP HOUSING	70977T
34	KEY, IMPELLER DRIVE	28-8M0032835	28-56655
35	IMPELLER, WATER PUMP	47-89981
36	PLATE, FACE - WATER PUMP HOUSING TO Comment: WATER PUMP COVER	46895
37	WATER PUMP COVER ASSEMBLY	93224A1
38	SEAL, WATER PUMP COVER	26-36558
39	WASHER, NYLON - WATER PUMP COVER	23-13127
40	OIL SEAL, WATER PUMP COVER	26-30913
41	WASHER, WATER PUMP HOUSING AND COVER STUDS	12-20533
42	NUT, WATER PUMP HOUSING AND COVER STUDS	11-35888
43	RING, RUBBER - CENTRIFUGAL SLINGER Comment: (DRIVE SHAFT)	25-30526
44	SLEEVE, GUIDE - WATER INLET TUBE	23-31792T

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 75 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number
-	GEAR HOUSING ASS'Y- COMP.(SHORT SHAFT) Comment: NOT MACHINED FOR ANODE KIT	1630-7360A12
-	GEAR HOUSING ASS'Y- COMP.(LONG SHAFT) Comment: NOT MACHINED FOR ANODE KIT	1630-7360A13
-	GEAR HOUSING ASS'Y- COMP.(SHORT SHAFT) Comment: MACHINED FOR ANODE KIT	1630-7360A12
-	GEAR HOUSING ASS'Y- COMP.(LONG SHAFT) Comment: MACHINED FOR ANODE KIT	1630-7360A13
1	GEAR HOUSING ASS'Y - NOT MACHINED FOR ANODE KIT	1630-7360A11
1	GEAR HOUSING ASS'Y - MACHINED FOR ANODE KIT	1630-7360A11
46	CAM, SHIFT	44434
47	FOLLOWER, SHIFT CAM	31334
48	SPRING, COMPRESSION - CAM FOLLOWER	24-76298
49	SHIM ASSEMBLY, BALL BEARING TO HOUSING Comment: (.002-3-5-10)	15-30522A1
50	BEARING, BALL - FORWARD GEAR	30-21889
51	FORWARD GEAR	43-48577A3
52	BEARING, ROLLER - FORWARD GEAR	31-22458
53	RATCHET, SLIDING CLUTCH	52-63314
54	RING, RETAINING - CROSS PIN	53-32449
55	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-30535
56	SHAFT ASSEMBLY, PROPELLER	44-75667A2
57	REVERSE GEAR	43-63316
58	SLEEVE, THRUST - REVERSE GEAR	71479
59	BEARING, BALL - REVERSE GEAR	30-21889
60	SHIM ASSEMBLY, THRUST WASHER TO HOUSING Comment: (.002-3-5-10)	15-30532A1
61	"O" RING, BEARING CARRIER	25-30529
62	BEARING CARRIER ASSEMBLY	72673T1
63	BEARING, ROLLER - BEARING CARRIER	31-22458
64	OIL SEAL, BEARING CARRIER	26-66022
66	COVER, GEAR HOUSING	86236
67	COLLAR, PROPELLER GUIDE	86665A1
68	PROPELLER ASS'Y, 8 1/2" DIA., 8" PITCH, 3 BLADES Comment: (ALUMINUM)	48-87572A10
68	PROPELLER ASS'Y, 9" DIA., 9" PITCH, 2 BLADES Comment: (ALUMINUM)	48-47922A10
68	PROPELLER ASS'Y, 9" DIA., 10" PITCH, 2 BLADES Comment: (ALUMINUM)	48-47922A10
68	PROPELLER ASS'Y Comment: (SHIPPED WITH ENGINE FROM FACTORY)	48-47670A10
68	PROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES Comment: (NYLON)	48-65012A1
--	THRUST HUB Comment: (USED WITH NYLON PROP ONLY)	66606
69	SPACER, PROPELLER SHAFT Comment: (PART OF PROPELLER SHAFT ASSEMBLY)	11-64075A1
--	WASHER, PROPELLER SHAFT	12-79553
70	NUT, PROPELLER	11-64075A1

IGNITION COMPONENTS

Below is the parts list for Mercury 75 IGNITION COMPONENTS:

Position No.	Part Name	OEM Number
1	STATOR ASSEMBLY	339-5209A9
2	SCREW, STATOR TO END CAP (7/8")	10-66707
3	SCREW, STATOR TO END CAP (3/8")	10-35400
4	COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)	339-6119A1
4	COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)	339-6120A1
5	CLIP, COIL RETAINING	54-59538
6	CLIP, COIL RETAINING	54-65927
7	TERMINAL BLOCK, STATOR	86-85365
8	SCREW, TERMINAL BLOCK TO STATOR (5/8")	10-38055
9	NUT, TERMINAL BLOCK SCREW	11-46438
11	TRIGGER HOUSING ASSEMBLY	338-7283A3
14	LINK, TRIGGER HOUSING TO THROTTLE LEVER	42501
15	NUT, PUSH - LINK TO TRIGGER HOUSING	11-65110
16	SWITCH BOX	339-6222A10
17	SCREW, SWITCH ATTACHING (1/2")	10-69022
18	WASHER, SWITCH BOX ATTACHING SCREW	12-8M0204666
19	STA-STRAP	61990
20	SCREW, GROUND LEAD TO CYLINDER BLOCK	10-45218

PISTON AND CONNECTING ROD ASSEMBLY

Below is the parts list for Mercury 75 PISTON AND CONNECTING ROD ASSEMBLY:

Position No.	Part Name	OEM Number
1	CONNECTING ROD ASSEMBLY	608-7395A2
2	SCREW, CONNECTING ROD	10-87374
3	BEARING, NEEDLE - CRANKPIN	29-26815
4	NUT, CONNECTING ROD SCREW	11-20061
5	WASHER, NEEDLE BEARING RETAINING	12-65967
6	BEARING, NEEDLE - PISTON PIN	29-31505
7	PISTON AND PISTON PIN ASSEMBLY	719-7391T3
8	LOCK RING, PISTON PIN	40-21666
9	RING, PISTON	39-21665A12

SHIFT CONTROL LINKAGE

Below is the parts list for Mercury 75 SHIFT CONTROL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE, SHIFT CONTROL (MANUAL)	93730T
1	HANDLE, SHIFT CONTROL (ELECTRIC)	93730T
2	WASHER, SHIFT CONTROL SHAFT	12-8M0204649
3	NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT	11-826709109	11-33825, 11-35045
4	BUSHING, NYLON - SHIFT CONTROL SHAFT	23-66375
5	LEVER, SHIFT CONTROL (REMOTE)	74350
6	PIN, SHIFT LEVER TO SHIFT CONTROL SHAFT	17-25905
7	SHAFT, SHIFT CONTROL	66379
8	GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL)	43-66377
9	WASHER, SHIFT CONTROL SHAFT	12-8M0204649
10	NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT	11-8267089
11	SPRING, DETENT - SHIFT CONTROL LEVER	24-39627
12	PLATE, DETENT SPRING	39601
13	SCREW, PLATE AND SPRING TO ADAPTOR PLATE Comment: (1/2")	10-25764
14	BUSHING, NYLON - UPPER SHIFT SHAFT	23-27132
15	GEAR, SECTOR - SHIFT SHAFT	43-86686A1
16	SHIFT SHAFT	71660

STEERING HANDLE ASSEMBLY

Below is the parts list for Mercury 75 STEERING HANDLE ASSEMBLY:

Position No.	Part Name	OEM Number
-	STEERING HANDLE ASSEMBLY, COMPLETE	60850A6
1	GRIP, HANDLE	60854
2	CAP, HANDLE	62251
3	SHAFT, THROTTLE	66393
4	HANDLE, THROTTLE SHAFT	66394A1
5	PIN, STEERING HANDLE	17-46152
6	WASHER, THROTTLE HANDLE TO STEERING ARM	12-62252
7	ARM, STEERING HANDLE	60850
8	GEAR, BALL - THROTTLE SHAFT	43-60852
9	PIN, BALL GEAR GO THROTTLE SHAFT	17-27088
10	PIVOT, STEERING HANDLE TO BRACKET	48003
11	SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)	15-48002015
12	SCREW, STEERING HANDLE TO ARM BRACKET (5/8")	10-64074
13	UNIVERSAL JOINT ASSEMBLY	60857A2
14	GEAR, BALL - UNIVERSAL JOINT	43-60852
15	PIN, BALL GEAR TO UNIVERSAL JOINT	17-77564
16	BRACKET ASSEMBLY, STEERING ARM	96130A1
17	SCREW Comment: DETENT SPRING TO STEERING ARM BRACKET (5/8")	10-62233
18	SPRING, DETENT - STEERING HANDLE	24-72847
19	SCREW, STEERING ARM BRACKET TO SADDLE	10-78038

SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 75 SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number
1	SWIVEL BRACKET ASSEMBLY	1471-7324A1
2	FITTING, GREASE - SWIVEL BRACKET	22-8M0169589
4	BUSHING, SWIVEL BRACKET	23-64028
5	BUSHING, NYLON - REVERSE LOCK LEVER ROD	23-26841
6	ROD, REVERSE LOCK TO SWIVEL BRACKET	71419
7	COTTER PIN, REVERSE LOCK LEVER TO ROD	18-45882
8	LEVER, REVERSE LOCK	63628T
9	RETAINER, ROD - REVERSE LOCK	61007
10	BRACKET, TROLL	63559T
11	SPRING, EXTENSION - TROLL BRACKET	24-63630
12	GUIDE, SPRING	63551
13	ROLL PIN, SPRING GUIDE	17-25319
14	LEVER, CONTROL - TROLL BRACKET	79744
15	WASHER, WAVE - TROLL BRACKET LEVER	13-63631
16	TUBE, SWIVEL BRACKET TO SADDLE	66559
17	CO-PILOT DISC	77334
18	SCREW, CO-PILOT DISC TO SADDLE	10-78038
20	DISC, FRICTION Comment: CLAMP PLATE AND SWIVEL BRACKET	20203
21	PLATE ASSEMBLY, CLAMP - CO-PILOT	72845A1
22	SCREW, CLAMP PLATE ADJUSTING	10-36154
23	WASHER, CLAMP PLATE ADJUSTING SCREW	12-35462
24	LEVER ASSEMBLY, TILT STOP	63310A1
25	SCREW, TILT STOP LEVER	10-41433
26	WASHER, WAVE - LEVER ANCHOR SCREW	13-31030
27	NUT, TILT STOP LEVER SCREW	11-35888
29	STOP, REVERSE LOCK	72794
30	SCREW, REVERSE STOP TO SWIVEL BRACKET	10-71056
31	LOCKWASHER, REVERSE STOP SCREW	13-26992
32	WASHER, REVERSE STOP SCREW	12-71055

THROTTLE CONTROL LINKAGE

Below is the parts list for Mercury 75 THROTTLE CONTROL LINKAGE:

Position No.	Part Name	OEM Number
1	GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET	43-60856
2	HOUSING, THROTTLE CONTROL	60885T
3	SCREW Comment: THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4")	10-69069
4	FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER	63308A1
5	SCREW, LIMITER FOLLOWER TO BOTTOM COWL Comment: (1 1/8")	10-20653
6	WASHER, SPEED LIMITER FOLLOWER SCREW	12-8M0204649
6A	SPRING, NEUTRAL SPEED LIMITER FOLLOWER	24-39042
7	BUSHING, SPEED LIMITER FOLLOWER SCREW	23-63320
8	STOP, NEUTRAL SPEED LIMITER	36017
9	SCREW Comment: NEUTRAL SPEED LIMITER SOTP TO FOLLOWER (5/8")	10-28710
10	WASHER, NEUTRAL SPEED LIMITER STOP SCREW	12-24676
11	GEAR, THROTTLE CONTROL	43-60858
12	SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)	15-64653A1
13	LEVER ASSEMBLY, THROTTLE CONTROL	66374A2
14	PIN, ROLL Comment: THROTTLE CONTROL LEVER TO CONTROL SHAFT	17-76207

TOP COWL AND STARTER ASSEMBLY

Below is the parts list for Mercury 75 TOP COWL AND STARTER ASSEMBLY:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY	2160-7264A10
2	SEAL, TOP COWL (16 1/2")	654893
3	BLANKET, TOP COWL - TOP	66942
4	BLANKET, TOP COWL - SIDE	85544
5	BLANKET, TOP COWL - FRONT	69522
6	GROMMET, COWL LATCH - TOP COWL	25-39086
7	COVER, FRONT	71502
8	NUT, SPEED - FRONT COVER TO COWL	11-65517
9	BUMPER, COWL - REAR	69346
10	PIN, TOP COWL CATCH	17-72856
11	WASHER, TOP COWL CATCH (LOWER)	12-65567
11A	WASHER, TOP COWL CATCH (UPPER)	12-35280
12	SPRING, COMPRESSION - COWL CATCH	24-79351
13	NUT, COWL CATCH TO TOP COWL	11-8M0207775
14	STARTER HOUSING ASSEMBLY	91871A1
15	INSERT, ROPE GUIDE - STARTER HOUSING	77859
15A	RING, RETAINING - ROPE GUIDE INSERT	77860
16	SEAL, STARTER HOUSING TO TOP COWL	654991
17	SCREW, STARTER HOUSING TO CRANKCASE (1")	1395-7262
18	PULLEY, STARTER CABLE	55860
19	SCREW, CABLE PULLEY TO STARTER HOUSING Comment: (3/4")	10-28789
20	WASHER, CABLE PULLEY SCREW	12-22887
21	SPACER, CABLE PULLEY	23-309772
22	TAB WASHER, SHEAVE SHAFF NUT	14-20165
23	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
24	RETAINER, STARTER SPRING	20155
25	SPRING, STARTER REWIND	24-29340T02
26	BUSHING, STARTER SPRING GUIDE	23-28912
27	STARTER SHEAVE ASSEMBLY	50-93696A2
28	PIN, RETAINER - STARTER CABLE	17-22896
29	SHAFT, INTERLOCK	74359
30	LEVER, LOCK	74353
31	LEVER, FOLLOWER	74351
32	ROLL PIN, INTERLOCK SHAFT	17-38489
33	BUSHING, NYLON - INTERLOCK SHAFT	23-26856
34	SPRING, TORSION - INTERLOCK SHAFT	24-74347
35	WASHER, WAVE - STARTER PAWL	13-36206
36	PAWL, STARTER	30596
37	BUSHING, NYLON - SHEAVE SHAFT SPACER	23-28919
38	SPACER, SHEAVE SHAFT	23-61005
39	RETAINER, SHEAVE SHAFT TO STARTER SHEAVE	26179
40	WASHER, SHEAVE SHAFT RETAINER	12-35559
41	WASHER, WAVE - RETAINER TENSION	13-20160
42	PLATE, RETAINER - STARTER PAWL	30595
43	SHAFT, SHEAVE	35558
44	STARTER CABLE ASSEMBLY	50-12066Q10
45	HANDLE, STARTER CABLE	77998
46	RETAINER ASSEMBLY Comment: STARTER CABLE AND HANDLE	79470A1

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
