Mercury 75 (4 CYL.) (9393856 & Up) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 75 (4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

AUTO-BLEND

Below is the parts list for Mercury 75 (4 CYL.) AUTO-BLEND:

Position No.	Part Name	OEM Number
-	AUTO-BLEND	1301931
1	TANK KIT, Oil	16612
2	HANDLE KIT	13996
3	CAP, OIL TANK	36-13986
4	HARDWARE KIT	16614
5	PLUG KIT, Drain	19-13979
6	DIAPHRAGM KIT	16611
7	BRACKET	13990
8	BAND	13993
9	BRACKET (LEFT)	13983
10	BRACKET (RIGHT)	13984
11	COVER	16613
12	FILTER/SENSOR KIT, Oil	35-13985
13	HORN KIT	13987
14	HARNESS ASSEMBLY	84-13988
15	FUSE (.5 AMP)	88-13989
16	FILTER KIT, Fuel	35-18089
17	VINYL TUBE	32-13992
18	TUBE KIT, Fuel	32-13995
19	STRAINER ASSEMBLY, Oil	15387A1
20	CHECK VALVE KIT	21-16615
21	GASKET KIT	27-16616

AUTO-BLEND(WITHOUT WARNING HORN)

Below is the parts list for Mercury 75 (4 CYL.) AUTO-BLEND(WITHOUT WARNING HORN):

Position No.	Part Name	OEM Number
1	AUTO BLEND ASSEMBLY	130194
1	TANK KIT, Oil	16612
2	HANDLE KIT	13996
3	CAP, OIL TANK	36-16619
4	HARDWARE KIT	16614
5	PLUG KIT, Drain	19-13979
6	DIAPHRAGM KIT	16611
7	BRACKET KIT, Mounting	16620
8	BAND	13993
9	BRACKET (LEFT)	13983
10	BRACKET (RIGHT)	13984
11	COVER	16613
12	FILTER/SENSOR KIT, Oil	35-13985
13	FILTER KIT, Fuel	35-18576
14	VINYL TUBE	32-13992
15	STRAINER, Oil	16618
16	CHECK VALVE KIT	21-16615
17	PLATE	16621
18	MODULE KIT	19265
19	BRACKET KIT	16623
20	GASKET KIT	27-16616
21	HARNESS ASSEMBLY, AUTO-BLEND	84-14585A1

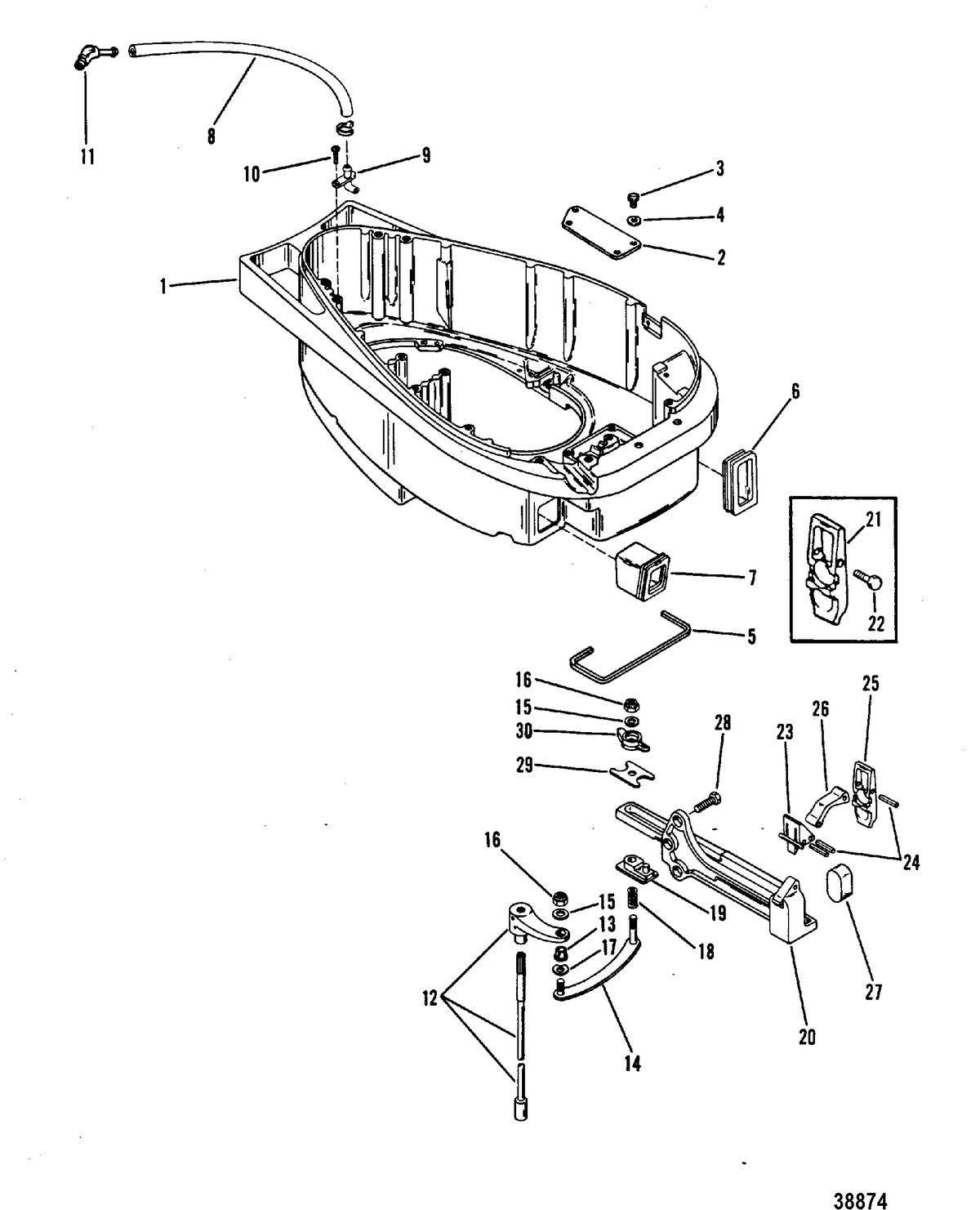

BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 75 (4 CYL.) BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM Comment: MERCURY	2158-8708T
1	COWL, BOTTOM Comment: MARINER	2158-8708T6
2	COVER, AIR INLET	74303
3	SCREW, (#10-16 x .375), COVER TO BOTTOM COWL	10-62568
4	WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW	12-30164
5	GASKET, BOTTOM COWL	27-73646
6	BOOT, CONTROL CABLES-BOTTOM COWL	39616
7	BOOT, FUEL CONNECTOR-BOTTOM COWL	37637
8	LINE, (57.00 Inches Bulk), TELL TALE (14-3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
9	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
10	SCREW, (#10-16 x .500), TELL TALE NOZZLE TO BOTTOM COWL	10-48408
11	ELBOW, TELL TALE HOSE TO CYLINDER BLOCK	22-782792
12	SHIFT SHAFT ASSEMBLY, UPPER	60304A54
13	BUSHING, SHIFT SHAFT	23-26856
14	SHIFT LINK	73402
15	WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD	12-35462
16	NUT, LINK ROD	11-36069
17	WAVE WASHER, LINK ROD	13-29720
18	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
19	GUIDE BLOCK, LINK ROD	37896
20	BRACKET, ANCHOR-CONTROL CABLES	52732A6
21	LATCH Comment: NEW STYLE	98889
22	DRIVE SCREW, LATCH Comment: NEW STYLE	10-42975
23	LEVER, NYLON-SHIFT CABLE LOCKING Comment: OLD STYLE	87609A1
24	PIN, LOCKING LEVER AND COVER FASTENING Comment: OLD STYLE	17-47175
25	COVER, NYLON-SHIFT CABLE Comment: OLD STYLE	90211
26	LINK, LOCKING LEVER TO COVER Comment: OLD STYLE	65799T
27	CUP, BARREL RETAINER-ANCHOR	39519
28	SCREW, (.312-18 x 1.00), ANCHOR BRACKET TO CYLINDER BLOCK	10-35386
29	WEAR PLATE, LINK ROD	52100
30	LATCH, CONTROL CABLE FASTENING Comment: ANCHOR BRACKET	8M0036768	38279 ANCHOR BRACKET
-	GASKET SET	27-73645A87

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 75 (4 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY Comment: (TOP)(WM-14)	1379-6071A57
1	CARBURETOR ASSEMBLY Comment: (BOTTOM)(WM-14)	1379-6071A58
1	CARBURETOR Comment: (TOP)(WM-17)	1379-6071A57
1	CARBURETOR Comment: (BOTTOM)(WM-17)	1379-6071A58
2	JET, Main (.092)	1395-5733
3	NEEDLE AND SEAT, Inlet	192711
4	NOT SOLD SEPARATE, GASKET-INLET NEEDLE AND SEAT	NSS
5	VENTURI, Plastic	52106A1
6	NOT SOLD SEPARATE, NOZZLE	NSS
7	NOT SOLD SEPARATE, IDLE NEEDLE	NSS
8	NOT SOLD SEPARATE, SPRING-IDLE MIXTURE	NSS
9	NOT SOLD SEPARATE, FLOAT PIN	NSS
10	NOT SOLD SEPARATE, FLOAT LEVER	NSS
11	FLOAT	19273
12	BOWL, Fuel Comment: (WM-14)	1395-6195
12	BOWL, Fuel Comment: (WM-17)	1395-9483
13	NOT SOLD SEPARATE, GASKET-FUEL BOWL	NSS
14	NOT SOLD SEPARATE, SCREW-FUEL BOWL	NSS
15	PLUG, MAIN JET	1395-6199
16	JET, (.082), MAIN	1399-3518
17	NOT SOLD SEPARATE, GASKET-MAIN JET PLUG	NSS
18	NOT SOLD SEPARATE, SCREEN-FUEL INLET	NSS
19	NOT SOLD SEPARATE, WELCH PLUG (9/16")	NSS
20	SHAFT, Throttle Comment: (TOP)	1395-4807
20	SHAFT, THROTTLE Comment: (BOTTOM)	1395-7942
21	VALVE, THROTTLE	1395-7639
22	NOT SOLD SEPARATE, SCREW-VALVE TO THROTTLE SHAFT	NSS
23	SEAL, THROTTLE SHAFT	1395-6204
24	WASHER, THROTTLE SHAFT	1395-6203
25	NOT SOLD SEPARATE, SPRING-THROTTLE RETURN	NSS
26	VALVE ASSEMBLY, ENRICHMENT	1395-6198
27	NOT SOLD SEPARATE, SCREW-ENRICHMENT BRACKET	NSS
28	NOT SOLD SEPARATE, WELCH PLUG (7/16")	NSS
29	GASKET, CARBURETOR	27-733771
-	GASKET KIT	1395-6200
-	REPAIR KIT Comment: (WM-14)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-14)
-	REPAIR KIT Comment: (WM-17)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834 (WM-17)
-	GASKET SET	27-73645A87

CARBURETOR LINKAGE

Below is the parts list for Mercury 75 (4 CYL.) CARBURETOR LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	SOLENOID ASSEMBLY, Choke	54293A10
2	SCREW, (.312-18 x .750)	10-824941	10-59645, 10-73274
3	LOCKWASHER, (.312), CHOKE SOLENOID SCREW	13-8M0204647
4	LOCKWASHER, Stainless Steel, CHOKE SOLENOID TERMINAL	10,13-26996
5	NUT, Stainless Steel, CHOKE SOLENOID TERMINAL	10-32,11-68219
6	PLUNGER ASSEMBLY	89008A2
7	ROD, Choke	73400
8	KNOB ASSEMBLY	90242A1
9	SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB	10-77137
10	GROMMET, CHOKE KNOB	25-20116
11	WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)	84-74263
12	SCREW, (#10-16 x .375), WIRE TO CHOKE ROD	10-62568
13	CARBURETOR ASSEMBLY (TOP)	1379-6071A57
14	CARBURETOR ASSEMBLY (BOTTOM)	1379-6071A58
15	FITTING, CARBURETOR	22-19688
16	SCREW, (.312-18 x 3.750)	10-52743
17	COUPLING ASSEMBLY, LOWER CARBURETOR	53720A2
18	KEY, COUPLING	28-89694
19	SCREW, (#8-32 x .790)	10-66104
20	ACTUATOR, THROTTLE (UPPER CARBURETOR)	73847
21	SCREW, (#5-40 x .500)	10-60293
22	PLATE, CARBURETOR	73408
23	GASKET, CARBURETOR PLATE	27-73398
24	GASKET, CARBURETOR PLATE TO CARBURETOR	27-76952
25	SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR	10-28635
26	SEAL, CARBURETOR PLATE	73647

COWLING AND FRONT COVER

Below is the parts list for Mercury 75 (4 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	FRONT COVER ASSEMBLY Comment: (MERCURY)	2182-7927A8
1	FRONT COVER Comment: (MARINER)	2163-6393A6
2	KNOB Comment: (MERCURY)	56849
2	KNOB Comment: (MARINER)	73786
3	WASHER, COVER KNOB (RUBBER)	12-30771
4	WASHER, COVER KNOB (STEEL)	12-75246
5	SPRING, TENSION-COVER KNOB	24-30772
6	PIN, Roll, TENSION SPRING TO KNOB	17-29077
7	ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER	47341A11
8	PAD, SOUND ABSORBING Comment: (MERCURY)	94923
8	SEAL, SOUND ABSORBING Comment: (MARINER)	76434
9	BLANKET, SOUND ABSORBING	38674
10	WRAP AROUND COWL ASSEMBLY Comment: (MERCURY)	2119-3248A16
10	WRAP AROUND COWL Comment: (MARINER)	2164-6394A7
11	LATCH ASSEMBLY, Cowl	46785A1
12	HOOK, COWL LATCH	30413

CRANKSHAFT, PISTON AND CONNECTING ROD

Below is the parts list for Mercury 75 (4 CYL.) CRANKSHAFT, PISTON AND CONNECTING ROD:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	440-9074A2
2	BEARING, Ball, UPPER	30-62567T
3	BEARING, Ball, LOWER	30-63742T
4	CARRIER ASSEMBLY	54196A6
5	PACKING, CARRIER	65800
6	BEARING ASSEMBLY, Main (VALVE TYPE)	540-5266T5
7	PIN, Dowel, MAIN BEARING	17-20032
8	SCREW, (#12-28 x .560) , MAIN BEARING	10-45775
9	NUT, MAIN BEARING CLAMPING SCREW	11-45774
10	REED SET, MATCHED-MAIN BEARING	34-56007A1
11	STOP, Reed, MAIN BEARING REED VALVES	34-56008
12	SCREW, REED STOP MOUNTING	10-62204
13	NUT, REED STOP MOUNTING SCREW	11-53153
14	BEARING ASSEMBLY, Center Main	535-5397A4
15	PIN, Dowel, CENTER MAIN BEARING	17-20032
16	BEARING, Needle	29-714221
17	RACE, OUTER (PAIR)	26113T
18	RING, Snap, OUTER RACE CLAMPING	53-26933
19	SCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPING	10-22968
20	NUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREW	11-8M0207775
21	PIN, Dowel, STEPPED	17-47246
22	PISTON ASSEMBLY Comment: (STANDARD)	774-9137A12
22	PISTON ASSEMBLY Comment: (.015 O.S.)	774-9137A13
22	PISTON ASSEMBLY Comment: (.030 O.S.)	774-9137A14
23	RING, Lock	53-857196	40-52035
24	RING Comment: (STANDARD)	39-78816A12
24	RING SET, Piston - .015 Oversize	39-78811A12
24	RING SET, Piston - .030 Oversize	39-88392A12
25	CONNECTING ROD ASSEMBLY	624-8101A3
26	SCREW, (.250-28 Special), CONNECTING ROD	10-91012
27	BEARING ASSEMBLY, CRANKPIN	31-62596A1
28	BEARING, PISTON PIN	29-8M0214934
29	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
30	SHIM, UPPER BALL BEARING	15-38095A1
-	GASKET SET	27-73645A87

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 75 (4 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	871-8338A3
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53650
3	COVER, STARTER MOTOR(UPPER)	56029T
4	SCREW, (.312-18 x 1.375), COVER TO CRANKCASE	10-31984
4	SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE	10-35385
5	LOCKWASHER, (.312), COVER SCREW	13-8M0204647
6	COVER, STARTER MOTOR (LOWER)	76867
7	SCREW, (.312-18 x 1.880), COVER TO CRANKCASE	10-73279
7	SCREW, COVER TO CRANKCASE (5-1/2")	10-73658
8	STUD, (.375-16/.375-24 x 1.880)	16-64281
9	PIN, Dowel, CRANKCASE TO CYLINDER BLOCK	17-43044
10	PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING	17-63779
11	RESTRICTOR, CRANKCASE BLEED	66517
12	STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")	16-64282
13	SCREW, (.312-18 x 2.750)	10-57841
13	SCREW, (.312-18 x 1.250)	10-74824
13	SCREW, (.312-18 x 1.50)	10-73657
14	SCREW, (.375-16 x 1.00)	10-20359
15	TAB WASHER, BEARING LOCKING SCREW	14-20091
16	CHECK VALVE, BLEED HOSE-TOP	21-42866
17	HOSE, CYLINDER BLEED (15-1/2")	32-9938779
18	CHECK VALVE, BLEED HOSE-BOTTOM	21-428671
19	ELBOW	22-996642
20	LINE, (57.00 Inches Bulk), BALANCE (6-1/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
21	TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER	22-130342
22	HOSE, BALANCE (5")	32-9938779
23	CONNECTOR, AIR INLET COVER	22-56759
24	WASHER, POWERHEAD STUDS	12-20553
25	NUT, POWERHEAD STUDS	11-69254
25	NUT, (.375-24), POWERHEAD STUDS	11-82671013
-	POWERHEAD Comment: (Use with Triangular Fuel Pump)	97471T87
-	POWERHEAD ASSEMBLY Comment: (Use with Square Fuel Pump)	97471T87

DRIVESHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 75 (4 CYL.) DRIVESHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	HOUSING ASSEMBLY, Driveshaft - Mercury	1573-5239A4
1	HOUSING ASSEMBLY, Driveshaft - Mariner	1573-5239A51
2	STUD, (.437 x 2.69)	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-64649
4	COVER, TRIM MERCURY	37417
4	COVER, TRIM MARINER	37417F2
5	SCREW, (#10-16 x .750) Stainless Steel	10-57807
6	GROMMET, TRIM COVER SCREW	25-92012
7	CABLE ASSEMBLY, TRIM COVER SCREW	84-88238T01
8	SCREW, (#10-16 x .375), GROUND STRAP ATTACHING	10-62568
9	TUBE, WATER INLET	32-60897
10	TUBE, EXHAUST	78184T
11	BOOT, EXHAUST TUBE	65638
12	MOUNT, RUBBER - LOWER	75298
13	SCREW, UPPER MOUNT	10-43426
14	NUT, MOUNT SCREW	11-25096
15	WASHER, (.875 Inch Outside Diameter), UPPER MOUNT SCREW	12-30119
16	CABLE ASSEMBLY, Ground	88238A10
17	WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS	12-45176
18	NUT, GEAR HOUSING STUDS	11-29489
19	WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUDS	12-45176
20	NUT, (.437-20) Stainless Steel, GEAR HOUSING	11-8M0204653
21	CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING	35608
22	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
23	SCREW, (.312-18 x .875)	10-29256
24	COVER, LOWER MOUNT CLAMP Comment: (MERCURY)	35474T
24	COVER, Lower Mount Clamp Comment: (MARINER)	35474F2
25	NUT, LOWER MOUNT CLAMP COVER	11-35521
26	SCREW, (#12-14 x .920)	10-87884
27	SCREW, (.375-24 x 2.875), DRIVESHAFT HOUSING Comment: (Use where Applicable)	10-28200
28	WASHER, HOUSING SCREW Comment: (Use where Applicable)	12-34714
29	NUT, (.375-24), HOUSING SCREW Comment: (Use where Applicable)	11-25269
30	SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE	10-41508
31	WASHER, (.8125), LOWER MOUNT	12-49339

END CAPS, MANIFOLD AND EXHAUST COVER

Below is the parts list for Mercury 75 (4 CYL.) END CAPS, MANIFOLD AND EXHAUST COVER:

Position No.	Part Name	OEM Number	Supersedes
2	END CAP ASSEMBLY, UPPER	1161-5940A2
3	SEAL	26-41953
4	O-RING	25-47254
5	SHIM, END CAP TO CRANKCASE (.006-10)	15-73644A1
6	SCREW, UPPER END CAP (1")	10-812618	10-73169, 10-847568
7	POINTER, TIMING	43352
8	SCREW, (.250-20 x .75), TIMING POINTER (3/4")	10-65746
9	WASHER, TIMING POINTER SCREW	12-20533
10	END CAP ASSEMBLY, LOWER	1148-5410T1
11	SEAL	26-41953
12	O-RING	25-32546
13	SHIM SET, END CAP TO CRANKCASE (.005-10)	15-20085A1
14	SCREW AND LOCKWASHER, (.312-18 x 1.00)	10-30225
15	GASKET, WATER JACKET COVER	27-73665
16	COVER, WATER JACKET-CYLINDER BLOCK	76198
17	SCREW, (.312-18 x .880), WATER JACKET COVER	10-53167T
18	WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW	12-8M0042642	12-70132
19	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-854981
20	PLATE, BAFFLE	73436
21	GASKET, BAFFLE PLATE TO EXHAUST COVER	27-854961
22	COVER, EXHAUST MANIFOLD	78277A1
23	SCREW, (.312-18 x 1.125), MANIFOLD COVER	10-53576
24	COVER, CYLINDER BLOCK	1021-8340
25	GASKET, CYLINDER BLOCK COVER	27-961711
26	SCREW, CYLINDER BLOCK COVER (1")	10-8M0214943
27	COVER, TRANSFER PORT-TOP Comment: (TRIANGLE FUEL PUMP)	733201
27	COVER, TRANSFER PORT-TOP Comment: (SQUARE FUEL PUMP)	14429A1
28	COVER, TRANSFER PORT-BOTTOM	87872
29	GASKET, TRANSFER PORT COVER	27-73645
30	SCREW, (.250-20 x .750), TRANSFER PORT COVER	10-49668
31	BRACKET, MOUNT SUPPORT-CYLINDER BLOCK	37440
32	SCREW, (.312-18 x 1.00)	10-35386
33	STRAP ASEMBLY, Ground Comment: EXHAUST COVER SCREW	46933A3
34	SCREW, (#10-16 x .375), GROUND STRAP	10-62568
35	SWITCH ASSEMBLY, Temperature	87-96829A1
36	TERMINAL BLOCK	86-45915
37	SCREW, (#10-16 x .375), TERMINAL BLOCK	10-62568
38	SCREW, (#10-24 x .50), TERMINAL BLOCK	10-72169
-	GASKET SET	27-73645A87

EXHAUST EXTENSION PLATE

Below is the parts list for Mercury 75 (4 CYL.) EXHAUST EXTENSION PLATE:

Position No.	Part Name	OEM Number
1	PLATE ASSEMBLY, EXHAUST EXTENSION	43289A2
2	BUSHING, NYLON-EXHAUST EXTENSION PLATE	23-27132
3	PIN, Dowel, EXHAUST EXTENSION PLATE	17-23784
4	SEAL, EXHAUST EXTENSION PLATE	37918
5	STRIP, RETAINING - EXHAUST EXTENSION PLATE	99358
6	SCREW, (.190-32 x .500)	10-37571
7	GASKET, POWERHEAD	27-692381
8	SCREW, (.312-18 x 2.00) Flange Head	10-66023
9	SCREW, (.312-18 x 2.00) Flange Head	10-66023
10	GASKET, DRIVESHAFT HOUSING PLATE	27-661021
11	SEAL, DRIVESHAFT HOUSING PLATE	26-60898
12	PLATE ASSEMBLY, DRIVESHAFT HOUSING	43290A4
13	SEAL, RUBBER - WATER INLET TUBE	26-38970
14	PIN, Dowel, DRIVESHAFT HOUSING PLATE	17-23784
15	TUBE, Exhaust	99698
16	SCREW (3/4 Inches)	10-65414
-	GASKET SET	27-73645A87

FLYWHEEL, STATOR AND IGNITION COIL

Below is the parts list for Mercury 75 (4 CYL.) FLYWHEEL, STATOR AND IGNITION COIL:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG, Yellow, FLYWHEEL PULLER THREADS	19-45907
2	NUT, (.625-18), FLYWHEEL	11-52901
3	WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT	12-33001
4	FLYWHEEL ASSEMBLY	248-8722A6
5	SCREW, (.312-24 x .750)	10-68997
6	SCREW, (.250-28 x .625)	10-32417
7	PLATE, SWITCH BOX	90332
8	GROMMET, SWITCH BOX	25-57009001
9	SCREW, (.312-18 x .750)	10-824941	10-59645, 10-73274
10	WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW	12-56720
11	J CLIP, SWITCH BOX WIRES AND FUEL LINE	54-47483
12	SWITCHBOX ASSEMBLY	332-5772A7
13	SCREW, (#12-24 x 1.25)	10-20619
14	WIRE ASSEMBLY	84-65999A5
15	NUT, Brass, SWITCH BOX TERMINAL	10-32,11-45076
16	MERCURY SWITCH ASSEMBLY	58124A19
17	SCREW, (.190-32 x .500)	10-37571
18	TERMINAL BLOCK	86-66986
19	SCREW, (.190-32 x .62)	10-38055
20	SCREW, (#10-32 X .380)	10-42813
21	CLIP, WIRES AND HARNESS	54-22875
22	SCREW, (#10-16 x .500)	10-35519
23	C WASHER, CLIP SCREW	8M0084613	69205
24	J CLIP, TRIGGER PLATE HARNESS	54-47483
25	PLATE, MOUNTING-IGNITION COIL	73395
26	SCREW, (.250-20 x .875) Stainless Steel	10-28668
27	COIL ASSEMBLY, Ignition	339-832757A4
28	NUT, Brass, IGNITION COIL TERMINAL	10-32,11-45076
29	COVER, IGNITION COIL	87554
30	SCREW, (.190-32 x 2.00)	10-88856
31	WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW	12-30164
32	STRAP, PRIMARY HARNESS	77672
33	SCREW, (#10-16 x .500), STRAP ATTACHING	10-48408
34	STATOR ASSEMBLY	398-5454A26
35	SCREW, (#10-24 x .880)	10-75840
36	TRIGGER PLATE ASSEMBLY	96453A2
37	HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)	84-77617
38	HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)	84-77618
39	CLAMP, HARNESS ATTACHING	54-45806
40	SCREW, (#10-16 x .500)	10-35519
41	C WASHER, HARNESS CLAMP SCREW	8M0084613	69205
42	LEAD ASSEMBLY, SPARK PLUG	84-813715A1
43	BOOT/TERMINAL KIT, SPARK PLUG	85-63709A1
45	SPARK PLUG (NGK-BUHW-2)	33-896329833	33-833C
45	SPARK PLUG Comment: CANADA AND BELGIUM	33-14103Q
46	RETAINER, WIRE	78278
47	SCREW, (#10-16 x .500), WIRE RETAINER	10-35519
48	WASHER, WIRE RETAINER SCREW	12-21273
49	RETAINER, SPARK PLUG WIRE	63319
50	SCREW, (.250-28 x 1.00)	10-46378
51	NUT, (.250-28), RETAINER SCREW	11-20013

FUEL PUMP AND FUEL LINES(SQUARE FUEL PUMP)

Below is the parts list for Mercury 75 (4 CYL.) FUEL PUMP AND FUEL LINES(SQUARE FUEL PUMP):

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	NOT SOLD SEPARATE, CHECK VALVE-RUBBER	NSS
4	NOT SOLD SEPARATE, GASKET-BOOST	NSS
5	NOT SOLD SEPARATE, DIAPHRAGM	NSS
6	NOT SOLD SEPARATE, GASKET-PULSE	NSS
7	NOT SOLD SEPARATE, SPRING	NSS
8	NOT SOLD SEPARATE, CAP	NSS
9	NOT SOLD SEPARATE, DISC-RUBBER	NSS
10	NOT SOLD SEPARATE, RETAINER	NSS
11	NOT SOLD SEPARATE, SPRING	NSS
12	NOT SOLD SEPARATE, CAP	NSS
13	PLATE, FUEL PUMP	987752
14	PLUG, Pipe (.0625-27)	22-56800
15	FITTING	22-19688
16	SCREW, FUEL PUMP	10-90190
16	SCREW, 10-32 x 1.50, FUEL PUMP	10-73013
17	WASHER, FUEL PUMP SCREW	12-89302
18	SCREW, FUEL PUMP	10-40057132
19	WASHER, FUEL PUMP SCREW	12-4002215
20	TUBING	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
21	FILTER, Fuel	35-816296Q2
22	CLAMP, FUEL TUBING	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
23	FITTING, FUEL LINE	22-64705
24	LINE, (57.00 Inches Bulk)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
25	TEE, Plastic, FUEL LINE	22-73318
26	CONNECTOR, FUEL LINE TO ADAPTOR	22-34982
27	ADAPTOR, CHECK UNIT	30186
28	STEM, CHECK UNIT ADAPTOR	30187
29	O-RING, ADAPTOR STEM	25-16524
30	SPRING, ADAPTOR STEM	24-30189
31	WASHER, ADAPTOR	30188
32	SCREW, (.250-28 x 1.380)	10-36154
33	NUT, ADAPTOR SCREW	11-36069
-	GASKET SET	27-73645A87

FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP)

Below is the parts list for Mercury 75 (4 CYL.) FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP):

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	73434A5
2	CHECK VALVE ASSEMBLY	21-8M0084276	21-30430A13
3	DIAPHRAGM ASSEMBLY	55278A5
4	NOT SOLD SEPARATE, GASKET-CHECK VALVE	NSS
5	NOT SOLD SEPARATE, GASKET-FUEL PUMP	NSS
6	SPRING	24-86207
7	CAP	86252
8	RETAINER, CHECK VALVE	23004
9	SCREW, (#6-32 x .380)	10-43725
10	FILTER, Fuel	35-73532
11	O-RING, (1.237 x .103), COVER TO FUEL PUMP	25-35480
12	COVER, FUEL FILTER	35-14805A2
13	SCREW, (#10-32 x .580), COVER TO FUEL PUMP	10-37370
14	GASKET, COVER SCREW	27-25848
15	SCREW Comment: (1-7/8")	10-70939
15	SCREW, (.250-20 x 1.375)	10-69067
16	FITTING, FUEL PUMP Comment: W/O INLINE FILTER	22-64705
17	LINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11") Comment: W/O INLINE FILTER	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 W/O INLINE FILTER
18	TEE, Plastic, FUEL LINE	22-73318
19	LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	CLAMP, FUEL LINE	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
21	LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
22	FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR	22-63187
23	ADAPTOR, CHECK UNIT	30186
24	STEM, CHECK UNIT ADAPTOR	30187
25	O-RING, ADAPTOR STEM	25-16524
26	SPRING, ADAPTOR STEM	24-30189
27	WASHER, ADAPTOR	30188
28	SCREW, (.250-28 x 1.380)	10-36154
29	NUT, ADAPTOR SCREW	11-36069
30	FITTING (90 DEG. ) Comment: WITH INLINE FILTER	22-19688
31	LINE, (57.00 Inches Bulk) Comment: WITH INLINE FILTER	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 WITH INLINE FILTER
32	FILTER, Fuel Comment: WITH INLINE FILTER	35-816296Q03	35-816296Q, 35-816296, 35-16494 WITH INLINE FILTER
-	GASKET SET	27-73645A87

GEAR HOUSING(DRIVESHAFT)

Below is the parts list for Mercury 75 (4 CYL.) GEAR HOUSING(DRIVESHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: (MERCURY)	1655-7333A25
-	GEAR HOUSING ASSEMBLY Comment: (MARINER)	1655-7333A41
1	GEAR HOUSING ASSEMBLY (BASIC) Comment: (MERCURY)	1655-7333T23
1	GEAR HOUSING ASSEMBLY (BASIC) Comment: (MARINER)	1655-7333A43
2	CONNECTOR ASSEMBLY, SPEEDOMETER	22-85822A10
3	PIN, Dowel (.187 x .530)	17-8M0084726	17-85500
4	STUD, (.437-14/.437-20 x 4.00), GEAR HOUSING	16-57921
5	STUD, (.44 x 2.06), GEAR HOUSING	16-8M0133358
6	STUD, (.312 x 3.38), WATER PUMP	16-8M0034463	16-56297 2
7	STUD, WATER PUMP (3-1/8")	16-69501
8	BEARING, ROLLER - DRIVE SHAFT	31-32898T
9	DRIVESHAFT	45-42646
10	GEAR, Pinion, DRIVESHAFT	43-75316T
11	NUT, (.625-18), PINION GEAR TO DRIVESHAFT	11-35921
12	SPACER, BEARING TO WATER PUMP	23-70412
13	SHIM, BEARING TO WATER PUMP	15-57007A1
14	BEARING, Roller, DRIVESHAFT	31-69220T
15	GASKET, WATER PUMP TO GEAR HOUSING	27-8M0214962
16	O-RING, (1.984 x .139), WATER PUMP	25-8M0214923
17	BASE ASSEMBLY, Water Pump	46-96146A5
18	SEAL, Oil, WATER PUMP BASE	26-94038
19	SEAL, Oil, WATER PUMP BASE	26-16977
20	GASKET, LOWER - WATER PUMP	27-8M0090319	27-85608 1
21	FACE PLATE, FAEC - WATER PUMP	8M0204677
22	GASKET, UPPER - WATER PUMP	27-858524	27-85609 1, 27-85609B 1
23	BODY ASSEMBLY, Water Pump	46-96148T1
24	INSERT, WATER PUMP	48752T
25	SEAL, RUBBER - WATER INLET TUBE	26-38970
26	IMPELLER, WATER PUMP	47-89984T4
27	KEY, IMPELLER DRIVE	28-8M0214992
28	SCREW, (#14-8 x 2.25), WATER PUMP	10-8M0215009
29	WASHER, WATER PUMP SCREW	12-20583
30	WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD	12-8M0204649
31	NUT, (.250-28), WATER PUMP FASTENING SCREW	11-8267119
32	WASHER, WATER PUMP STUD	12-36001
33	NUT, (.312-24) Stainless Steel, WATER PUMP STUD	11-82670911
34	RING, Rubber	25-8M0214918
35	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
36	SEAL, EXHAUST TUBE	37641001
37	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
38	SHAFT ASSEMBLY, SHIFT	76062A1
39	E RING, RETAINING - SHIFT SHAFT	53-29641
40	O-RING, (.862 x .103), SHIFT SHAFT BUSHING	25-25439
41	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
42	SEAL, Oil, SHIFT SHAFT HOUSING	26-8M0204708
43	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-77674
44	BASE, LOWER - REVERSE LOCKING Comment: NOT USED WITH POWER TRIM	78036
45	CAM, REVERSE LOCKING Comment: NOT USED WITH POWER TRIM	43308T1
46	SCREW, (.375-16 x .250), GREASE FILLER AND VENT HOLE	10-79953Q04
46	SCREW, Magnetic, DRAIN	22-8M0058389	22-67892A06
47	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
-	GASKET SET	27-73645A87
-	REPAIR KIT, Water Pump	46-96148A8
-	SEAL KIT, Gear Housing	26-55682A1
-	PUMP KIT, Water - Heavy Duty	53168A1

GEAR HOUSING(PROPELLER SHAFT)

Below is the parts list for Mercury 75 (4 CYL.) GEAR HOUSING(PROPELLER SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY Comment: (MERCURY)	1655-7333A25
-	GEAR HOUSING ASSEMBLY Comment: (MARINER)	1655-7333A41
1	GEAR HOUSING ASSEMBLY (BASIC) Comment: (MERCURY)	1655-7333T23
1	GEAR HOUSING ASSEMBLY (BASIC) Comment: (MARINER)	1655-7333A43
48	CAM, Shift Control	760394
49	FOLLOWER ASSEMBLY, Cam	44532A1
51	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
52	SHIM, BEARING OUTER RACE TO GEAR HOUSING Comment: (.002-3-5-10)	15-30923A1
53	BEARING SET, Cup And Cone	31-30894A1
54	GEAR ASSEMBLY, Forward	43-75314T2
55	BEARING, Needle, FORWARD GEAR	31-30895T
56	RATCHET, SLIDING CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
57	PIN, Cross, RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
58	SPRING, RETAINING - CROSS PIN	24-30893
59	PROPELLER SHAFT	44-93003
60	GEAR, Reverse	43-77562T
61	THRUST WASHER	12-76358
62	O-RING, BEARING CARRIER	25-29976
63	CARRIER ASSEMBLY, Bearing	41529T2
64	FITTING, Grease	22-8M0169588
65	BEARING, Needle, BEARING CARRIER	31-30956T
66	SEAL, BEARING CARRIER - INNER	26-8M0204670
67	SEAL, Oil, BEARING CARRIER - OUTER	26-8M0205729
68	KEY, LOCATING - BEARING CARRIER	28-30281
69	TAB WASHER, GEAR HOUSING COVER	14-52700
70	COVER, GEAR HOUSING	52699
71	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
72	SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING	10-66024
73	WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS	12-45176
74	NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS	11-8M0204653
75	SCREW, (.375-16 x 1.00), GEAR HOUSING	10-65210
76	THRUST HUB	13191Q01
77	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
78	PROP NUT KIT, (.750-16)	11-52707Q1
-	GASKET SET	27-73645A87
-	SEAL KIT, Gear Housing	26-55682A1

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 75 (4 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	PARTS MANUAL, 75 Hp	90-13289
-	OWNERS MANUAL Comment: (MERCURY)	90-110252
-	OWNERS MANUAL (MARINER)	90-110273
-	GASKET SET	27-73645A87
-	DECAL SET Comment: (BROWN)(MERCURY)	37-13484A87
-	DECAL SET Comment: (SILVER)(MERCURY)	37-13484A87
-	DECAL SET Comment: (SILVER-OIL INJECTION)(MERCURY)	37-13484A87
-	DECAL SET Comment: (MARINER)	37-11624A87
-	DECAL SET Comment: (OIL INJECTED)(MARINER)	37-11624A87

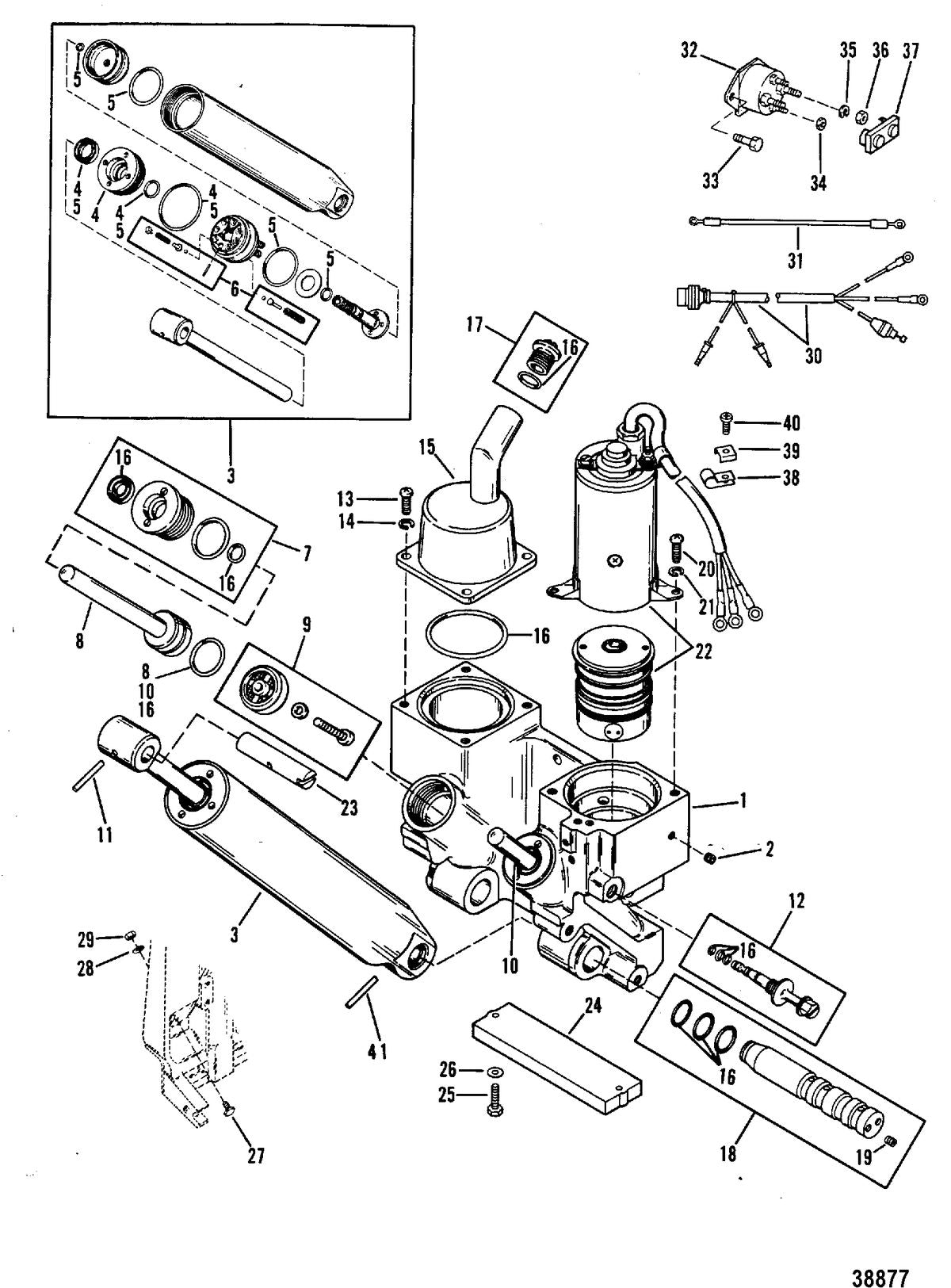

POWER TRIM COMPONENTS

Below is the parts list for Mercury 75 (4 CYL.) POWER TRIM COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	MANIFOLD ASSEMBLY Comment: (MERCURY)	99659A21
1	MANIFOLD ASSEMBLY Comment: (MARINER)	99659A22
2	PIPE PLUG, MANIFOLD	22-56800
3	TRIM CYLINDER ASSEMBLY (MERCURY) Comment: (MERCURY)	41493A7
3	TRIM CYLINDER ASSEMBLY Comment: (MARINER)	41493A7
4	GUIDE ASSEMBLY	41492A1
5	REPAIR KIT	25-41478A1
6	CHECK VALVE KIT	41482A2
7	GUIDE ASSEMBLY, TRIM ROD	1100-8M0021648	878243A 1
8	PISTON ASSEMBLY, Power Trim, PORT	878413A1
9	TRIM FILTER ASSEMBLY	35-12184A1
10	PISTON/ROD ASSEMBLY, Power Trim, STARBOARD	878414T01	878414A 1
11	PIN, Groove, TRIM CYLINDER (UPPER)	17-821539	17-13794, 17-19603
12	VALVE ASSEMBLY	99660A1
13	SCREW, (M6 x 14), COVER	10-4000327
14	WASHER, COVER SCREW	12-4002315
15	COVER, MANIFOLD	99642
16	O-RING KIT	25-48462A4
17	PLUG ASSEMBLY	19-99609A1
18	SHAFT ASSEMBLY	99641A1
19	PIPE PLUG, SHAFT	22-56800
20	SCREW, (M6 x 14), PUMP AND MOTOR	10-4000327
21	LOCKWASHER, (M6)	13-400256
22	PUMP AND MOTOR	826729A10	826729A09, 826729A08, 826729A07, 826729A 4
23	SHAFT, UPPER	99625002
24	ANODE ASSEMBLY	97-818298Q1
25	SCREW, (M6 x 35), ANODE	10-4000332
26	WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW	12-8M0204649
27	STRIKER PLATE, TRIM SHAFT	8M0045383	99630 1
28	LOCKWASHER, (.375)	13-58643
29	NUT, (.375-24)	11-46335
30	HARNESS ASSEMBLY, Control, POWER TRIM	84-99695A1
31	WIRE ASSEMBLY, (23.00 Inches) (Red)	84-79139A17
31	WIRE ASSEMBLY, (2.750 Inches) (Red)	84-87379A14
31	CABLE ASSEMBLY, (3.50 Inches) Black	84-88807A8
32	SOLENOID, Starter	8M0185622
33	SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID	10-41508
34	NUT, Brass, SOLENOID TERMINAL	8-32,11-26419
35	LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL	13-26992
36	NUT, (.250-20) Brass, SOLENOID TERMINAL	11-94330
37	INSULATOR, STARTER SOLENOID	85-97861
38	J CLIP, PUMP WIRE	54-8M0024808
39	C WASHER, CLIP SCREW	8M0084613	69205
40	SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET	10-69079
41	PIN, Groove, TRIM CYLINDER (LOWER)	17-878267	17-44431

Power Trim Pump(Eaton Rectangular Motor)

Below is the parts list for Mercury 75 (4 CYL.) Power Trim Pump(Eaton Rectangular Motor):

Position No.	Part Name	OEM Number	Supersedes
-	PUMP AND MOTOR	826729A10	826729A09, 826729A08, 826729A07, 826729A 4
1	FRAME AND FIELD KIT	12659
2	SPRING KIT, Brush	12665
3	BRUSH CARD KIT	13506
4	PUMP AND END FRAME KIT	12662
5	SEAL KIT, Pump	126631
6	END FRAME KIT	12660
7	ARMATURE KIT	12661
8	THRU BOLT KIT	12664

Power Trim Pump(Prestolite Round Motor)

Below is the parts list for Mercury 75 (4 CYL.) Power Trim Pump(Prestolite Round Motor):

Position No.	Part Name	OEM Number	Supersedes
-	PUMP ASSEMBLY, Power Trim	826729A10	826729A09, 826729A08, 826729A07, 826729A 4
1	PUMP ASSEMBLY	826729A10	826729A09, 826729A08, 826729A07, 826729A 4
2	O-RING KIT	392-8996
3	ARMATURE	392-8986
4	FRAME AND FIELD	392-8987
5	O-RING, HEAD	392-8992
6	SPRING KIT, BRUSH	392-8993
7	HEAD, COMMUTATOR END	392-8988
8	BRUSH KIT	392-8989
9	THRU BOLT KIT	392-8994
10	CLAMP, LEAD WIRE	392-8985
11	NUT, PACKING	392-8990
12	O-RING, PACKING NUT	392-8991

STARTER MOTOR AND WIRING HARNESS

Below is the parts list for Mercury 75 (4 CYL.) STARTER MOTOR AND WIRING HARNESS:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-893891T	50-66015T 1
2	COLLAR, RUBBER-STARTER MOTOR	23-8M0034918	23-8M0001391, 56703
3	SPACER, COLLAR TO BRACKET	23-56774
4	STOP, RUBBER-STARTER MOTOR	8M0043376	68042
5	WIRE, MOTOR TO SOLENOID (YELLOW)	84-93389A8
6	LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL	13-26992
7	NUT, (.250-20), STARTER MOTOR TERMINAL	11-64015
8	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel	10-69035
9	RECTIFIER	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
10	SCREW, (#10-32 x .620), RECTIFIER TO PLATE	10-37656
11	NUT, Brass, RECTIFIER TERMINAL	10-32,11-45076
12	SOLENOID ASSEMBLY, Starter	89-8M0185149
13	LOCKWASHER, Stainless Steel, SOLENOID TERMINAL	8,13-26995
14	NUT, Brass, SOLENOID TERMINAL	8-32,11-26419
15	LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL	13-26992
16	NUT, (.250-20) Brass, SOLENOID TERMINAL	11-94330
17	SCREW, (.250-20 x .620) Stainless Steel	10-28635
18	LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW	13-26992
19	INSULATOR, STARTER SOLENOID	85-97861
20	CABLE ASSEMBLY, (6.00 Inches) Black, GROUND	84-93388A1
21	CABLE ASSEMBLY, Positive - Battery	84-88439A3
21	CABLE ASSEMBLY, Battery - Negative	84-88439A4
22	HARNESS ASSEMBLY	84-96233A2
23	FUSE, 20 Ampere	88-8M0207796
25	CLAMP, WIRING HARNESS	54-88608
26	SCREW, (.250-20 x .750), WIRING HARNESS CLAMP	10-28636
27	BRACKET, WIRING HARNESS	89047
28	SCREW, (#10-32 x .625), WIRING HARNESS BRACKET	10-32228
29	WASHER, BRACKET SCREW	12-38833
30	CLAMP, WIRING HARNESS	88751
31	SCREW, (.250-20 x .750), WIRING HARNESS CLAMP	10-28636
32	WASHER, CLAMP SCREW	12-20533

STARTER MOTOR ASSEMBLY(BOSCH)

Below is the parts list for Mercury 75 (4 CYL.) STARTER MOTOR ASSEMBLY(BOSCH):

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR ASSEMBLY	50-893891T	50-66015T 1
1	DRIVE KIT	90643
2	DRIVE ASSEMBLY	685753
3	PLATE, DRIVE END	75660
4	BOLT, THRU	10-75385
6	ARMATURE	75386
7	BRUSH/SPRING KIT	898265016	75384, 75384 1
8	BUSHING, INSULATING	23-57387
9	WASHER, INPUT STUD	12-38013
10	LOCKWASHER, (.250) Stainless Steel, INPUT STUD	13-26992
11	NUT, (.250-20), INPUT STUD	11-20890
12	HOLDER, BRUSH	898265014	61787
13	SCREW, BRUSH AND HOLDER	10-68586
14	END CAP, COMMUTATOR	15386001

STARTER MOTOR ASSEMBLY(PRESTOLITE)

Below is the parts list for Mercury 75 (4 CYL.) STARTER MOTOR ASSEMBLY(PRESTOLITE):

Position No.	Part Name	OEM Number
1	MOTOR DRIVE	392-8848
2	PLATE ASSEMBLY, DRIVE END	392-8852
3	BUSHING, DRIVE END PLATE	392-8853
4	ARMATURE	392-8857
5	PACKAGE, ARMATURE THRUST WASHER	392-8856
6	END CAP ASSEMBLY, COMMUTATOR	392-8849
7	PLATE/HOLDER ASSEMBLY, Brush	392-8850
8	BRUSH AND TERMINAL SET	392-8851
9	SPRING SET, BRUSH (2 SPRINGS PER SET)	392-8854
10	BOLT, THRU - END CAP TO END PLATE (1/4-28)	392-8855

SWIVEL BRACKET AND STEERING ARM

Below is the parts list for Mercury 75 (4 CYL.) SWIVEL BRACKET AND STEERING ARM:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET ASSEMBLY	1499-8M0102865	1499-8710T20
2	SEAL, Oil, SWIVEL BRACKET (LOWER)	26-87735
3	BUSHING, SWIVEL BRACKET - LOWER AND UPPER	23-818764	23-67669
4	O-RING, SWIVEL BRACKET - UPPER	25-33466
5	SPACER, SWIVEL BRACKET - UPPER	23-67668
6	FITTING, Grease	22-8M0169589
7	BUSHING, SWIVEL BRACKET	23-821207	23-99608
8	SWIVEL PIN ASSEMBLY	99661A2
9	SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT	10-99621
10	MOUNT, RUBBER - UPPER	75296
11	WASHER, UPPER MOUNT BOLT	12-47840
12	WASHER, UPPER MOUNT BOLT	12-31263
13	NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT	11-8M0204653
14	LINK ASSEMBLY, Steering	92876A12
15	SCREW, (.375-24 x 1.25)	10-849838	10-14000
16	NUT, (.375-24), STEERING LINK SCREW	11-8M0204726
17	WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM	12-34931
18	WAVE WASHER, BOTTOM YOKE	13-78854
19	YOKE, Bottom Comment: (MERCURY)	99644F1
19	YOKE, Bottom Comment: (MARINER)	99644F2
20	RING, Retaining, BOTTOM YOKE	53-67684
21	WASHER, THRUST - SWIVEL BRACKET	12-67670
22	LOCK, Reverse Comment: NOT USED WITH POWER TRIM	14664A2
23	NUT, (.312-24) Stainless Steel, JAM - PUSH ROD Comment: NOT USED WITH POWER TRIM	11-82670911
24	YOKE, PUSH ROD Comment: NOT USED WITH POWER TRIM	996361
25	SPRING, PUSH ROD NUT Comment: NOT USED WITH POWER TRIM	24-44297
26	WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD Comment: NOT USED WITH POWER TRIM	12-8M0042642	12-70132 NOT USED WITH POWER TRIM
27	PUSH ROD Comment: NOT USED WITH POWER TRIM	43414
28	GUIDE, PUSH ROD Comment: NOT USED WITH POWER TRIM	92704
29	BUSHING, REVERSE LOCK SHAFT Comment: NOT USED WITH POWER TRIM	23-69132
30	PIN, Clevis, REVERSE LOCK Comment: NOT USED WITH POWER TRIM	17-99663
31	COTTER PIN, CLEVIS PIN Comment: NOT USED WITH POWER TRIM	18-25191
32	SPRING, REVERSE LOCK Comment: NOT USED WITH POWER TRIM	24-996261
33	COTTER PIN, SPRING Comment: NOT USED WITH POWER TRIM	18-47959
34	SHAFT, REVERSE LOCK Comment: NOT USED WITH POWER TRIM	99606
35	COTTER PIN, SHAFT Comment: NOT USED WITH POWER TRIM	18-45882
36	BRACKET, SHOCK ABSORBER Comment: NOT USED WITH POWER TRIM	99653
37	SHAFT, SHOCK ABSORBER (LOWER) Comment: NOT USED WITH POWER TRIM	99619
38	PIN, Groove, SHOCK ABSORBER Comment: NOT USED WITH POWER TRIM	17-821539	17-13794, 17-19603 NOT USED WITH POWER TRIM
39	SCREW, (M10 x 30), BRACKET	10-4000377
40	LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW	13-400258
41	ANODE ASSEMBLY	97-818298Q1
42	SCREW, (M6 x 35), ANODE	10-4000332
43	WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW	12-8M0204649
44	SHOCK ABSORBER Comment: (MERCURY) NOT USED WITH POWER TRIM	55-99724T15
44	SHOCK ABSORBER Comment: (MARINER) NOT USED WITH POWER TRIM	55-99724T15
45	BUSHING, SHOCK ABSORBER Comment: NOT USED WITH POWER TRIM	23-821207	23-99608 NOT USED WITH POWER TRIM
46	SHAFT, SHOCK ABSORBER (UPPER) Comment: NOT USED WITH POWER TRIM	99625002
47	BUMPER, TOP YOKE	28203
-	REPAIR KIT, Shock Absorber	41760A2
-	GASKET SET	27-73645A87

THROTTLE LEVER AND SPARK ADVANCE LEVER

Below is the parts list for Mercury 75 (4 CYL.) THROTTLE LEVER AND SPARK ADVANCE LEVER:

Position No.	Part Name	OEM Number	Supersedes
1	LEVER, Throttle	73416
2	LATCH, THROTTLE LEVER	73404
3	SCREW, (.250-28 x .875) Stainless Steel	10-59702
4	SPRING, LATCH SCREW	24-20099
5	NUT, LATCH SCREW	11-36069
6	SCREW, ADJUSTING-THROTTLE LEVER (1-3/4")	10-69029
7	NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW	11-29598
8	CAP, NYLONG-ADJUSTING SCREW	52023
9	ARM, SPARK ADVANCE	73414
10	SCREW, ADJUSTING-SPARK ADVANCE ARM (1-3/8")	10-73656
11	NUT, Stainless Steel, JAM-ADJUSTING SCREW	10-32,11-68219
12	CAP, NYLON-ADJUSTING SCREW	48039
13	SCREW, ADJUSTING-APRK ADVANCE ARM (2")	10-67916
14	NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW	11-29598
15	CAP, NYLON-ADJUSTING SCREW	52023
16	SCREW, (.375-16 x 1.75)	10-818165	10-55337
17	BUSHING, LEVER AND ARM SCREW	23-55164
18	BUSHING, FLANGE-LEVER AND ARM SCREW	23-55171
19	SPRING, RETURN-LEVER AND ARM SCREW	24-73375
20	WASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREW	12-46765
21	BARREL, NYLON-LEVER AND ARM	8M0221994
22	LINK ROD, THROTTLE	73374
23	CAM, Throttle	73432
24	HOUSING, THROTTLE CAM	77001
25	SCREW, (#10-16 x .880), HOUSING TO CRANKCASE	10-69013
26	SPACER, THROTTLE CAM HOUSING	77158
27	LINK ROD, SPARK ADVANCE	77010
28	SWIVEL ASSEMBLY, LINK ROD TO ARM	76158A1
29	BUSHING, NYLON-LINK ROD SWIVEL	23-26856
30	WAVE WASHER, LINK ROD SWIVEL	13-29402
31	WASHER, LINK ROD SWIVEL	12-73288
32	NUT, , LINK ROD SWIVEL	10-32,11-20110

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 75 (4 CYL.) TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY Comment: MERCURY	2114-7934T
1	TOP COWL ASSEMBLY, Mariner	2162-6392T6
2	RETAINER ASSEMBLY Comment: MERCURY	93122A1
2	RETAINER ASSEMBLY Comment: MARINER	76440
3	SCREW, (.312-18 x .880) Comment: MERCURY	10-53167T
3	SCREW, (.312-18 x .75) Comment: MARINER	10-25299
4	LOCKWASHER, (.312-24)	13-39107
5	SHIELD Comment: MERCURY	76370
5	SHIELD Comment: MARINER	76433
6	SCREW, (#10-16 x .625) Stainless Steel	10-48409
7	HINGE, COWL LATCH-TOP COWL	52739
8	LEVER, COWL LATCH HINGE	94918F1
9	PIN, COWL LATCH LEVER TO HINGE	17-58998
10	HOOK, TOP COWL LTECH-REAR	55455
11	SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL	10-22956
12	LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW	13-26992
13	FRAME, SUPPORT-TOP COWL	73401T
14	MOUNT, RUBBER-SUPPORT FRAME	37640
15	LOCKWASHER, (.312), RUBBER MOUNT	13-8M0204647
16	NUT, (.312-24) Stainless Steel, RUBBER MOUNT	11-28770
17	SCREW, (.312-18 x 1.00) Stainless Steel	10-37562
18	LOCKWASHER, (.312), SUPPORT FRAME SCREW	13-8M0204647
19	MOUNT, RUBBER-TOP COWL FRAME	90435
20	NUT, (1/4-28X7/32), RUBBR MOUNT (UPPER)	11-8M0207775
21	BRACKET, TOP COWL SUPPORT-REAR	52468
22	MOUNT, RUBBER-REAR SUPPORT BRACKET	31014
23	LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT	13-26992
24	NUT, (.250-28) Stainless Steel, RUBBER MOUNT	11-29598
25	SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME	10-37562
26	LOCKWASHER, (.312), REAR BRACKET SCREW	13-8M0204647
27	SCREW, (.312-18 x 1.00) Stainless Steel	10-37562
28	LOCKWASHER, (.312), REAR BRACKET SCREW	13-8M0204647
29	FRAME, FRONT SUPPORT	99649T
30	SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER	10-37562
31	LOCKWASHER, (.312), FRAME SCREW	13-8M0204647
32	COVER, SILENCER	89590
33	GASKET, SILENCER COVER	27-76168A2
34	SCREW, (.250-20 x .750)	10-28638

TRANSOM BRACKET

Below is the parts list for Mercury 75 (4 CYL.) TRANSOM BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET ASSEMBLY, Transom (STARBOARD) Comment: MERCURY	3401-8718F7
1	BRACKET ASSEMBLY, Transom (STARBOARD) Comment: MARINER	3401-8718F8
2	BRACKET ASSEMBLY, Transom (PORT) Comment: MERCURY	3400-8716A8
2	BRACKET ASSEMBLY, Transom (PORT) Comment: MARINER	3400-8716A9
3	FITTING, Grease, PORT TRANSOM BRACKET	22-8M0169588
4	PIN ASSEMBLY, Tilt Lock (NON-POWER TRIM)	17-8M0026068	17-49930A 1
5	TILT TUBE	99170A2
6	NUT, (1.00-14), TILT TUBE	11-859133	11-34862, 11-90068F 3, 11-90068F 4
7	O-RING, (.612 x .103), TILT TUBE	25-45711
8	WASHER, TILT TUBE	13-88750
9	NUT, (.875-14), TILT TUBE	11-858869	11-30499
10	SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM	10-8M0149747
11	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT	12-8M0204648
12	NUT, (.500-20), TRANSOM BRACKET BOLT	11-91962
13	LEVER ASSEMBLY, TILT LOCK	8M0115104	8M0115103, 99629T 2
14	WAVE WASHER, TILT LEVER	13-99611
15	NYLINER, TILT LEVER	23-65830
16	KNOB, TILT LOCK LEVER Comment: (MERCURY)	99633
16	KNOB, TILT LOCK LEVER Comment: (MARINER)	99633
17	PIN, Groove	17-99615
18	SPRING	24-99622
19	PIN, Groove	17-99604
20	BOLT ASSEMBLY, TILT LOCK	10-96930A1
21	NUT, (.375-24)	11-23161

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
