Mercury 75 (3 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ACCESSORIES

Below is the parts list for Mercury 75 (3 CYL.) ACCESSORIES:

Part Name	OEM Number	Supersedes
CARBURETOR ANTI-ICING KIT	828155A4
EXTENSION KIT Comment: (2-1/2 IN. - BLACK)	816696A8
EXTENSION KIT Comment: (2-1/2 IN. -GRAY)	816696A9
EXTENSION KIT Comment: (5 IN. - BLACK)	12092A10
EXTENSION KIT Comment: (5 IN. -GRAY)	12092A11
FLUSHING ATTACHMENT	44357Q2
FUEL LINE Comment: (8 FT.) WITH QUICK DISCONNECT	32-877680Q8
FUEL LINE Comment: (12 FT.) WITH QUICK DISCONNECT	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 (12 FT.) WITH QUICK DISCONNECT
FUEL LINE Comment: (8 FT.) WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q8
FUEL LINE Comment: (12 FT.) WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 (12 FT.) WITH QUICK DISCONNECT ENGINE END ONLY
FUEL LINE Comment: NO FITTINGS	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 NO FITTINGS
MERCATHODE	88334A2
MERCATHODE MONITOR	86300A5
POWER TRIM SWITCH KIT (WITH OR WITHOUT TILLER)	87-18286A18
SHIFT ATTACHING KIT Comment: (JET 65)	850000A3
POWER TRIM KIT	826729A10	826729A09, 826729A08, 826729A07, 826729A 4
TILLER HANDLE KIT Comment: (BLACK - 1996 & OLDER)	12022A18
TILLER HANDLE KIT Comment: (GRAY - 1996 & OLDER)	12022A18
TILLER HANDLE KIT Comment: (BLACK - 1997 & NEWER)	12022A40
TILLER HANDLE KIT Comment: (GRAY - 1997 & NEWER)	12022A40
VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	17334A2
VOLTAGE REGULATOR KIT	88825A6

ATTENUATOR PLATE

Below is the parts list for Mercury 75 (3 CYL.) ATTENUATOR PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	ATTENUATOR COVER	42969A3
2	SCREW (10-16 X .60)	10-878609	10-812832 1
3	ATTENUATOR PLATE	42970A2
4	WASHER	12-4002217
5	NUT	11-826365
6	CAP	39519
7	LATCH	98889
8	SCREW-DRIVE	10-42975
9	GASKET	27-151724
10	MAIN THROTTLE LINK	8252041
11	ROLLER	67748
12	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
13	TUBING (5 1/4 IN.) Comment: (USE W/WME-29/30/31/41/46/47/48/49 CARBS)	32-9912878
14	LINK ROD	8M0084744
15	ARM ASSEMBLY	11399A1
16	SCREW (M5 X 6)	10-40056103
17	WASHER	12-8M0204666
18	GASKET	27-828479
19	TUBING (1-1/2 IN.) Comment: USE W/WME-59/61/62/75/77/78 CARBS ELECTRIC	32-9912878
20	TUBING (3-1/4 IN.) Comment: USE W/WME-59/61/62/75/77/78 CARBS ELECTRIC	32-9912878
21	TUBING (5-1/4 IN.) Comment: USE W/WME-59/61/62/75/77/78 CARBS ELECTRIC	32-9912878
22	FITTING-TEE Comment: USE W/WME-59/61/62/75/77/78 CARBS ELECTRIC	22-830285
20	TUBING (5-1/4 IN.) Comment: USE W/WME-60/76 CARBS MANUAL	32-9912878
21	TUBING (5-1/4 IN.) Comment: USE W/WME-60/76 CARBS MANUAL	32-9912878
-	GASKET SET	27-43004A99

BLEED SYSTEM (USA-0G127500/BEL-9836633 & UP)

Below is the parts list for Mercury 75 (3 CYL.) BLEED SYSTEM (USA-0G127500/BEL-9836633 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	TUBING (12-1/2 IN.)	32-892024122	32-99130122
2	TUBING (6 IN.)	32-892024122	32-99130122
3	TUBING (3-1/2 IN.)	32-892024122	32-99130122
4	TUBING (2-1/2 IN.)	32-892024122	32-99130122
5	FITTING-TEE	22-59169003
6	CHECK VALVE	21-149126
7	FITTING	22-15133
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

BOTTOM COWL

Below is the parts list for Mercury 75 (3 CYL.) BOTTOM COWL:

Position No.	Part Name	OEM Number	Supersedes
1	STARBOARD BOTTOM COWL Comment: (BLACK)	100-8M0107327
1	STARBOARD BOTTOM COWL Comment: (GRAY)	2187-821873A2
1	STARBOARD BOTTOM COWL Comment: (TRACKER-GRAPHITE GRAY)	2187-821873A3
2	GROMMET	25-822556003	25-822556 2
3	SEAL	8M0109216
4	SEAL-LOWER COWL	8238052
5	PORT BOTTOM COWL Comment: (BLACK)	100-8M0107328	2188-821874A 1 (BLACK)
5	PORT BOTTOM COWL Comment: (GRAY)	2188-821874A2
5	PORT BOTTOM COWL Comment: (TRACKER-GRAPHITE GRAY)	2188-821874A3
6	GROMMET	25-822555001	25-822555
7	SEAL	8M0109216
8	SEAL-LOWER COWL	8238052
9	SWITCH Comment: (POWER TRIM)	87-8M0042301	87-896620, 87-856990, 87-850691, 87-18286A40 (POWER TRIM)
10	RETAINER	8M0032848	812443 1
11	TELL TALE FITTING	22-813613
12	HOSE (28 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
13	CHECK VALVE DRAIN	21-817519A2
14	SCREW (M6 X 40)	10-82130040
15	HANDLE Comment: (BLACK)	8M0041366	820000A 2 (BLACK)
15	HANDLE Comment: (GRAY)	820000A3
15	HANDLE Comment: (TRACKER-GRAPHITE GRAY)	820000A6
16	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
17	WAVE WASHER	13-F2047
18	CAM	8M0001081	889566, F481777, F48177
19	WASHER	12-8M0214930
20	LOCKWASHER	13-26992
21	SCREW (1/4-20 X 5/8 IN.)	10-28635
22	RETAINER	822363T1
23	NUT	11-401386
24	WASHER	12-8M0214930
25	PLUG Comment: (NON POWER TRIM/MANUAL TILT ASSIST)	812830T01	812830 1 (NON POWER TRIM/MANUAL TILT ASSIST)

CARBURETOR (WME-29/30/31/41/46/47/48/49)

Below is the parts list for Mercury 75 (3 CYL.) CARBURETOR (WME-29/30/31/41/46/47/48/49):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (TOP) Comment: 75 MANUAL-WME-47	3301-821679A23	3301-821679A 7 75 MANUAL-WME-47
1	CARBURETOR (CENTER) Comment: 75 MANUAL-WME-47	3301-821679A24	3301-821679A 8 75 MANUAL-WME-47
1	CARBURETOR (BOTTOM) Comment: 75 MANUAL-WME-47	3301-821679A25	3301-821679A 9 75 MANUAL-WME-47
1	CARBURETOR (TOP) Comment: 75 ELECTRIC-WME-46	3301-821679A20	3301-821679A 4 75 ELECTRIC-WME-46
1	CARBURETOR (CENTER) Comment: 75 ELECTRIC-WME-46	3301-821679A21	3301-821679A 5 75 ELECTRIC-WME-46
1	CARBURETOR (BOTTOM) Comment: 75 ELECTRIC-WME-46	3301-824924T50	3301-821679A22, 3301-821679A 6, 3301-824924T40, 3301-824924T25, 3301-824924A25, 3301-824924A10 75 ELECTRIC-WME-46
1	CARBURETOR (TOP) Comment: 75 ELECTRIC-WME-48 NON -OIL	3301-821679A26	3301-821679A14 75 ELECTRIC-WME-48 NON -OIL
1	CARBURETOR (CENTER) Comment: 75 ELECTRIC-WME-48 NON -OIL	3301-821679A27	3301-821679A15 75 ELECTRIC-WME-48 NON -OIL
1	CARBURETOR (BOTTOM) Comment: 75 ELECTRIC-WME-48 NON -OIL	3301-821679A28	3301-821679A16 75 ELECTRIC-WME-48 NON -OIL
1	CARBURETOR (TOP) Comment: 90-WME-49	3301-821946T30	3301-821946A30, 3301-821946A 7 90-WME-49
1	CARBURETOR (CENTER) Comment: 90-WME-49	3301-821946A31	3301-821946A 8 90-WME-49
1	CARBURETOR (BOTTOM) Comment: 90-WME-49	3301-821946A32	3301-821946A 9 90-WME-49
2	GASKET-FLANGE	27-151724
3	SCREW-THROTTLE VALVE	10-F10155
4	THROTTLE VALVE Comment: (WME-29/30/31/41)	1395-97242
4	THROTTLE VALVE Comment: (WME-46/47/48/49)	1395-97244
5	RETAINING RING (#)
6	FLOAT SHAFT	F10064
7	THROTTLE SHAFT (CENTER)	1395-8236321
8	SCREW-LEVER ADJUSTMENT	1395-823634
9	SCREW	1395-811220
10	COVER PLATE	1395-811221
11	GASKET-COVER PLATE (#)
12	SPRING-IDLE NEEDLE (#)
13	IDLE NEEDLE (#)
14	JET (.094) Comment: (WME-29)	1395-8423
15	THROTTLE SHAFT (UPPER/LOWER)	1395-823632
16	SPRING-THROTTLE RETURN (#)
17	GASKET-NOZZLE WELL	1395-808738
18	GASKET-FUEL BOWL (#)
19	INLET NEEDLE VALVE	10-95951
20	FLOAT	1395-9594
21	FUEL BOWL (UPPER) Comment: (WME-30/46/47/49)	1395-811695	1395-811217 (WME-30/46/47/49)
21	FUEL BOWL (UPPER) Comment: (WME-29/31/41/48)	1395-811696	1395-9589 (WME-29/31/41/48)
21	FUEL BOWL (CENTER/LOWER)	1395-811693	1395-9590
22	SCREW-FUEL BOWL	1395-808612	1399-5132
23	PLUG	1395-811694	1395-9596 1
24	SEAL (CONSISTS OF 4 SEALS)	1395-802731
25	MAIN FUEL JET (.050) Comment: (75)	1395-6028
25	MAIN FUEL JET (.052) Comment: (75)	1395-6359
25	MAIN FUEL JET (.054) Comment: (75)	1399-5225
25	MAIN FUEL JET (.062) Comment: (90)	1399-4217
25	MAIN FUEL JET (.064) Comment: (90)	1399-4216
25	MAIN FUEL JET (.044) Comment: (BELGIUM)	1395-7394
25	MAIN FUEL JET (.046) Comment: (BELGIUM)	1399-5317
-	CARB GASKET KIT	1395-8112231
-	CARB REPAIR KIT	1395-8236354
-	GASKET SET	27-43004A99

CARBURETOR (WME-59/60/61/62/75/76/77/78)

Below is the parts list for Mercury 75 (3 CYL.) CARBURETOR (WME-59/60/61/62/75/76/77/78):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (TOP) Comment: 75 MANUAL-WME-76	3301-824924T26	3301-824924A26, 3301-824924A11 75 MANUAL-WME-76
1	CARBURETOR (CENTER) Comment: 75 MANUAL-WME-76	3301-824924T27	3301-824924A27, 3301-824924A12 75 MANUAL-WME-76
1	CARBURETOR (BOTTOM) Comment: 75 MANUAL-WME-76	3301-824924T28	3301-824924A28, 3301-824924A13 75 MANUAL-WME-76
1	CARBURETOR (TOP) Comment: 75 ELECTRIC-WME-75	3301-824924T48	3301-824924T38, 3301-824924T23, 3301-824924A23, 3301-824924A 8 75 ELECTRIC-WME-75
1	CARBURETOR (CENTER) Comment: 75 ELECTRIC-WME-75	3301-824924T49	3301-824924T39, 3301-824924T24, 3301-824924A24, 3301-824924A 9 75 ELECTRIC-WME-75
1	CARBURETOR (BOTTOM) Comment: 75 ELECTRIC-WME-75	3301-824924T50	3301-821679A22, 3301-821679A 6, 3301-824924T40, 3301-824924T25, 3301-824924A25, 3301-824924A10 75 ELECTRIC-WME-75
1	CARBURETOR (TOP) Comment: 75 ELECTRIC-WME-77 NON -OIL	3301-824924T29	3301-824924A29, 3301-824924A14 75 ELECTRIC-WME-77 NON -OIL
1	CARBURETOR (CENTER) Comment: 75 ELECTRIC-WME-77 NON -OIL	3301-824924T30	3301-824924A30, 3301-824924A15 75 ELECTRIC-WME-77 NON -OIL
1	CARBURETOR (BOTTOM) Comment: 75 ELECTRIC-WME-77 NON -OIL	3301-824924T31	3301-824924A31, 3301-824924A16 75 ELECTRIC-WME-77 NON -OIL
1	CARBURETOR (TOP) Comment: 90-WME-78	3301-824854T15	3301-824854T 6 90-WME-78
1	CARBURETOR (CENTER) Comment: 90-WME-78	3301-824854T16	3301-824854T 7 90-WME-78
1	CARBURETOR (BOTTOM) Comment: 90-WME-78	3301-824854T17	3301-824854T 8 90-WME-78
1	CARBURETOR (TOP) Comment: 90-WME-62	3301-824854T15	3301-824854T 6 90-WME-62
1	CARBURETOR (CENTER) Comment: 90-WME-62	3301-824854T16	3301-824854T 7 90-WME-62
1	CARBURETOR (BOTTOM) Comment: 90-WME-62	3301-824854T17	3301-824854T 8 90-WME-62
2	GASKET-FLANGE	27-151724
3	SCREW-THROTTLE VALVE	10-F10155
4	THROTTLE VALVE	1395-97244
5	RETAINING RING (#)
6	FLOAT SHAFT	F10064
7	THROTTLE SHAFT (CENTER)	1395-8236321
8	SCREW-LEVER ADJUSTMENT	1395-823634
9	SCREW	1395-811220
10	COVER PLATE	1395-811221
-	CARB GASKET KIT	1395-8112231
-	CARB REPAIR KIT	1395-8236354
-	GASKET SET	27-43004A99
11	GASKET-COVER PLATE (#)
12	SPRING-IDLE NEEDLE (#)
13	IDLE NEEDLE (#)
14	THROTTLE LEVER (TOP/BOTTOM)	1395-8087461
15	THROTTLE SHAFT (TOP/BOTTOM)	1395-823632
16	SPRING-THROTTLE RETURN (#)
17	GASKET-NOZZLE WELL	1395-808738
18	GASKET-FUEL BOWL (#)
19	INLET NEEDLE VALVE	10-95951
20	FLOAT	1395-9594
21	FUEL BOWL (UPPER) Comment: (WME-60)	1395-811695	1395-811217 (WME-60)
21	FUEL BOWL (CENTER/LOWER) Comment: (WME-60)	1395-811693	1395-9590 (WME-60)
21	FUEL BOWL Comment: (WME-59/61/62/75/76/77/78)	1395-811693	1395-9590 (WME-59/61/62/75/76/77/78)
22	SCREW-FUEL BOWL	1395-808612	1399-5132
23	PLUG KIT	1395-811694	1395-9596 1
24	SEAL (CONSISTS OF 4 SEALS)	1395-802731
25	MAIN FUEL JET (.052)(TOP) Comment: (WME-59)	1395-6359
25	MAIN FUEL JET (.054)(CENTER/BOTTOM) Comment: (WME-59)	1399-5225
25	MAIN FUEL JET (.054) Comment: (WME-60/61/76/77)	1399-5225
25	MAIN FUEL JET (.062)(TOP) Comment: (WME-62)	1399-4217
25	MAIN FUEL JET (.064)(CENTER/BOTTOM) Comment: (WME-62)	1399-4216
25	MAIN FUEL JET (.044) Comment: (BELGIUM)	1395-7394
25	MAIN FUEL JET (.052)(TOP) Comment: (WME-75)	1395-6359
25	MAIN FUEL JET (.054)(CENTER/BOTTOM) Comment: (WME-75)	1399-5225
25	MAIN FUEL JET (.062)(TOP) Comment: (WME-78)	1399-4217
25	MAIN FUEL JET (.064)(CENTER/BOTTOM) Comment: (WME-78)	1399-4216
-	CARB GASKET KIT	1395-8112231
-	CARB REPAIR KIT	1395-8236354

CO-PILOT

Below is the parts list for Mercury 75 (3 CYL.) CO-PILOT:

Position No.	Part Name	OEM Number	Supersedes
-	CO-PILOT REPLACEMENT Comment: ROD LENGTH IS 12-5/8 IN.	56-52148A7
1	PILOT ROD Comment: ROD LENGTH IS 12-5/8 IN.	52148
-	CO-PILOT REPLACEMENT Comment: ROD LENGTH IS 14-5/8 IN.	56-52148A7
1	PILOT ROD Comment: ROD LENGTH IS 14-5/8 IN.	521481
2	NUT ASSEMBLY	11-52155A1
3	SCREW	10-36137
4	KNOB-PRONG	821621
5	ROD	873491
6	BUSHING	23-521512
7	WASHER	12-8M0042642	12-70132
8	NUT	11-826709111	11-45592

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 75 (3 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT	493-827616T1
2	BALL BEARING (LOWER)	30-43011T
3	WEAR SLEEVE	786611
4	O-RING	25-35126
5	RING ASSEMBLY	39-818412A4
6	KEY	28-91800
7	DRIVER GEAR	43-43019A1
8	ROLLER BEARING ASSEMBLY (UPPER)	31-43013T3
9	OIL SEAL	26-8M0214932
10	O-RING	25-823683	25-64067
11	ROLLER BEARING ASSEMBLY	42943A1
12	PISTON ASSEMBLY Comment: (STANDARD)	2704-826191T4
12	PISTON ASSEMBLY Comment: (.015 O.S.)	2704-821896A3
12	PISTON ASSEMBLY Comment: (.030 O.S.)	2704-821896A4
13	LOCK RING	53-857196	40-52035
14	PISTON RING ASSEMBLY Comment: (STANDARD)	39-822321A12	39-822321A 8, 39-824905A12 (STANDARD)
14	PISTON RING ASSEMBLY Comment: (.015 O.S.)	39-822321A1
14	PISTON RING ASSEMBLY Comment: (.030 O.S.)	39-822321A2
15	CONNECTING ROD ASSEMBLY	646-818846T6
16	WASHER	12-8M0012298	12-812876
17	NEEDLE BEARING	29-8M0214954
18	SCREW	10-94320
19	ROLLER BEARING ASSEMBLY	31-844338A01	31-43012A04
-	GASKET SET	27-43004A99
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

CYLINDER BLOCK (USA-0G127499/BEL-9836632 & BELOW)

Below is the parts list for Mercury 75 (3 CYL.) CYLINDER BLOCK (USA-0G127499/BEL-9836632 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
32	COVER ASSEMBLY	1034-9003A2
33	GASKET	27-430057
34	PIPE PLUG	22-328022
35	LIFTING EYE	823462
36	THERMOSTAT	14586
37	GASKET	27-8M0204714
38	GASKET	27-430068
39	COVER	8M0047619	884297, 42885 3
40	SCREW-AIR VENT HOLE	10-12896
41	SCREW (35 MM)	10-82127335
42	SCREW	10-69570
43	WASHER	12-94182
44	DIAPHRAGM	648771
45	SCREW	10-48409
46	WASHER	12-8M0204666
47	RETAINER	44290T
48	TEMPERATURE SENDER Comment: (ELECTRIC)	78799
48	TEMPERATURE SENDER Comment: (MANUAL)	787992
49	SCREW	10-82127335
50	CLAMP	54-814634
51	BOOT	99162001
52	OIL WARNING MODULE	14857A16
53	REV LIMITER Comment: (NON OIL INJECTION)	821889A31	821889A12, 816392A 2, 821889A 8 (NON OIL INJECTION)
54	SCREW (M6 X 1 X 50)	10-82130050
54	SCREW (M6 X 1 X 30)	10-4010630
55	WASHER	12-8M0204649
56	HARNESS-SPEED LIMITER Comment: (NON OIL INJECTION)	84-823147A6
57	HARNESS ADAPTOR	84-11149A8
-	GASKET SET	27-43004A99
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98
1	CYLINDER BLOCK ASSEMBLY	876-898208A01	876-8947T57
2	SCREW	10-4009680
3	ADJUSTING SCREW	10-814776	10-42978
4	NUT	11-400212
5	CAP	42942
6	CHECK VALVE (PRESS-IN)	21-426233
7	CARRIER ASSEMBLY	813801A1
8	CHECK VALVE	21-42657A3
9	DOWEL PIN (BEARING RACE)	17-8M0036405	17-67296
10	DOWEL PIN	17-43044
11	SCREW Comment: (DESIGN I)	16-821676A1
12	STUD Comment: DESIGN II	16-821676A1
13	WASHER Comment: DESIGN II	12-8M0214963
14	NUT Comment: DESIGN II	11-40140
15	COVER (BOTTOM)	76867
16	SCREW	10-81742750
17	COVER (TOP)	428841
18	CARRIER Comment: USE WHERE APPLICABLE	65848
19	GROMMET Comment: USE WHERE APPLICABLE	25-64872
20	POPPET VALVE	86596T
21	SPRING	24-42996
22	PLUG KIT	824703A1
23	TUBING (19 IN.)	32-892024122	32-99130122
24	SCREW	10-82127335
25	COVER Comment: NON OIL INJECTION	12621
26	GASKET Comment: NON OIL INJECTION	27-126201
27	SCREW Comment: NON OIL INJECTION	10-82104512
28	WASHER Comment: NON OIL INJECTION	12-4002314
29	STUD	16-8161949
30	WASHER	12-8M0204663
31	NUT	11-816872
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

CYLINDER BLOCK (USA-S/N-0G127500/BEL-9836633 & UP)

Below is the parts list for Mercury 75 (3 CYL.) CYLINDER BLOCK (USA-S/N-0G127500/BEL-9836633 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	876-898208A01	876-8947T57
2	SCREW (M10 X 80)	10-4009680
3	ADJUSTING SCREW (M6 X 55)	10-814776	10-42978
4	NUT	11-400212
5	CAP	42942
6	CHECK VALVE (PRESS-IN)	21-426233
7	CARRIER ASSEMBLY	813801A1
8	CHECK VALVE	21-42657A3
9	DOWEL PIN (BEARING RACE)	17-8M0036405	17-67296
10	DOWEL PIN	17-43044
11	STUD (M10 X 136)	16-821676A1
12	WASHER	12-8M0214963
13	NUT	11-40140
14	COVER (BOTTOM)	76867
15	SCREW (M8 X 50)	10-81742750
16	COVER (TOP)	428841
17	CARRIER Comment: USE WHERE APPLICABLE	65848
18	GROMMET Comment: USE WHERE APPLICABLE	25-64872
19	POPPET VALVE	86596T
20	SPRING	24-42996
21	PLUG KIT	824703A1
22	SCREW (M8 X 35)	10-82127335
23	COVER Comment: NON OIL INJECTION	12621
24	GASKET Comment: NON OIL INJECTION	27-126201
25	SCREW (M5 X 12) Comment: NON OIL INJECTION	10-82104512
26	WASHER (USE WHERE APPLICABLE) Comment: NON OIL INJECTION	12-4002314
27	STUD	16-8161949
28	WASHER	12-8M0204663
29	NUT	11-816872
30	COVER ASSEMBLY	1034-9003A2
31	GASKET	27-430057
32	PIPE PLUG	22-328022
33	LIFTING EYE Comment: NON OIL INJECTION	823462
34	WASHER Comment: NON OIL INJECTION	12-475331
35	THERMOSTAT Comment: (OIL INJECTION)	14586
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98
36	GASKET	27-8M0204714
37	GASKET	27-430068
38	COVER	8M0047619	884297, 42885 3
39	SCREW-AIR VENT HOLE (USE WHERE APPLICABLE)	10-12896
40	SCREW (M8 X 35)	10-82127335
41	SCREW(10-16 X 3/4)	10-69570
42	WASHER	12-94182
43	DIAPHRAGM	648771
44	SCREW (10-16 X 5/8)	10-48409
45	WASHER	12-8M0204666
46	RETAINER	44290T
47	TEMPERATURE SENDER Comment: (DESIGN I)	78799
48	TEMPERATURE SENDER Comment: (DESIGN II)	787992
49	SCREW (M8 X 35)	10-82127335
50	CLAMP	54-814634
51	BOOT	99162001
52	OIL WARNING MODULE Comment: USA-S/N-0G127500 THRU 0G437999 BEL-9836633 THRU 9926999	14857A16
53	OIL WARNING MODULE Comment: USA-S/N-0G438000 THRU 0G589999/BEL-9927000 THRU 9973099)	14857A16
54	REV LIMITER Comment: (ELECTRIC) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999	821889A51	821889A40, 821889A29, 821889A19 (ELECTRIC) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999
54	REV LIMITER Comment: (MANUAL) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999	821889A34	821889A22 (MANUAL) USA-S/N-0G127500 THRU 0G437999 BEL-S/N9836633 THRU 9926999
54	REV LIMITER Comment: (ELECTRIC) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099	821889A51	821889A40, 821889A29, 821889A19 (ELECTRIC) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099
54	REV LIMITER Comment: (MANUAL) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099	821889A49	821889A41 (MANUAL) USA-S/N-0G438000 THRU 0G589999 BEL-9927000 THRU 9973099
54	REV LIMITER Comment: (ELECTRIC) USA-S/N-0G590000/BEL-9973100 & UP	821889A51	821889A40, 821889A29, 821889A19 (ELECTRIC) USA-S/N-0G590000/BEL-9973100 & UP
54	REV LIMITER Comment: (MANUAL) USA-S/N-0G590000/BEL-9973100 & UP	821889A49	821889A41 (MANUAL) USA-S/N-0G590000/BEL-9973100 & UP
55	SCREW (M6 X 1 X 50)	10-82130050
55	SCREW (M6 X 1 X 30)	10-82130030
56	WASHER	12-8M0204649
57	HARNESS-SPEED LIMITER Comment: (NON OIL INJECTION)	84-823147A6
58	HARNESS ADAPTOR Comment: (ELECTRIC NON OIL INJECTION	84-11149A8
59	HARNESS-ADAPTOR Comment: (USA-S/N-0G590000/BEL-9973100 & UP)	84-855212A1
60	PLUG	13541
-	GASKET SET	27-43004A99
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

DRIVE SHAFT HOUSING

Below is the parts list for Mercury 75 (3 CYL.) DRIVE SHAFT HOUSING:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY Comment: (BLACK)	1598-8974T23
1	DRIVE SHAFT HOUSING ASSEMBLY Comment: (GRAY)	1598-8974T23
1	DRIVE SHAFT HOUSING Comment: (TRACKER-GRAPHITE GRAY)	1598-8974A28
1	DRIVE SHAFT HOUSING ASSEMBLY Comment: (BLACK-JET)	1598-8974A26
1	DRIVE SHAFT HOUSING ASSEMBLY Comment: (GRAY-JET)	1598-8974A27
2	STUD (100MM) Comment: (LONG)	16-903501
2	STUD (166MM) Comment: (LL)	16-8M0034445	16-816866 4 (LL)
3	SCREW (M10 X 1.5 X 45) Comment: (LONG)(DESIGN I)	10-4000380
4	STUD (63MM) Comment: (LONG)(DESIGN II)	16-9035012
4	STUD (124M) Comment: (LL)	16-8M0034446
5	WASHER	12-45176
6	NUT	11-40140
7	GUIDE Comment: (NON POWER TRIM)	429222
8	SPEEDOMETER PICK-UP ASSEMBLY	22-85822A4
9	CONNECTOR (90 DEGREES)	22-433351
10	CONNECTOR (STRAIGHT)	22-85822T
11	REVERSE HOOK ASSEMBLY Comment: NON POWER TRIM	14664A2
12	PUSH ROD Comment: NON POWER TRIM	16686
13	SHAFT Comment: NON POWER TRIM	99606
14	COTTER PIN Comment: NON POWER TRIM	18-45882
15	BUSHING Comment: NON POWER TRIM	23-69132
16	SPRING Comment: NON POWER TRIM	24-996261
17	COTTER PIN Comment: NON POWER TRIM	18-47959
18	WASHER Comment: NON POWER TRIM	12-8M0042642	12-70132 NON POWER TRIM
19	SPRING Comment: NON POWER TRIM	24-16733
20	YOKE Comment: NON POWER TRIM	996361
21	JAM NUT Comment: NON POWER TRIM	11-82670911
22	CLEVIS PIN Comment: NON POWER TRIM	17-99663
23	COTTER PIN Comment: NON POWER TRIM	18-25191
24	MOUNT Comment: (OIL INJECTION) (JET 65)	42930A1
24	MOUNT Comment: (NON OIL INJECTION)	44343T1
25	BOLT (M12 X 1.75 X 154)	10-898835001	10-42973
26	COVER Comment: (BLACK)	100-8M4500752	8M0001130, 67077T (BLACK)
26	COVER Comment: (GRAY)	67077F1
26	COVER Comment: (TRACKER-GRAPHITE GRAY)	100-8M4500752	8M0001130, 67077T (TRACKER-GRAPHITE GRAY)
27	SCREW (12-24 X 5/8 IN.)	10-88417
28	WASHER	12-30119
29	NUT	11-8M0204662
30	GROUND WIRE ASSEMBLY	88238A10
31	SCREW (1/4-20 X 3/8)	10-41508
32	CLAMP	8M0036730	93192
33	NUT	11-35521
34	SCREW (M8 X 1.25 X 25)	10-4010725
35	SPACER Comment: (BLACK)(2-1/2 IN.) LL & X-LONG	816696T7
35	SPACER Comment: (GRAY)(2-1/2 IN.) LL & X-LONG	816696T8
35	SPACER Comment: (BLACK)(5 IN.) LL & X-LONG	12092A3
35	SPACER Comment: (GRAY)(5 IN.) LL & X-LONG	12092A4
36	DOWEL PIN Comment: LL & X-LONG	17-43044
36	DOWEL PIN (W/HOLE) Comment: LL & X-LONG	17-8M0084244	17-43043 LL & X-LONG
37	NUT Comment: LL & X-LONG	11-40140
38	STUD (124MM) Comment: (2-1/2 IN. SPACER) LL & X-LONG	16-8M0034446
38	STUD (190MM) Comment: (5 IN. SPACER) LL & X-LONG	16-903503
39	STUD (166MM) Comment: (2-1/2 IN. SPACER) LL & X-LONG	16-8M0034445	16-816866 4 (2-1/2 IN. SPACER) LL & X-LONG
39	STUD (227MM) Comment: (5 IN. SPACER) LL & X-LONG	16-903502

ELECTRICAL (USA-0G127499/BEL-9836632 & BELOW)

Below is the parts list for Mercury 75 (3 CYL.) ELECTRICAL (USA-0G127499/BEL-9836632 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	IGNITION PLATE	42968A23
2	SWITCH BOX ASSEMBLY	18495A26
3	SCREW (10-16 X 7/16 IN.)	10-69079
4	SCREW (M5 X .8 X 30)	10-40011110
5	STARTER SOLENOID	89-8M0185146
6	GROMMET	25-818967
7	BUSHING	23-8M0214955
8	NUT (8-32)	11-26419
9	SCREW	10-40011109
10	WASHER	12-4002314
11	WIRE (BLACK)	84-88807A6
12	LOCKWASHER (1/4 IN.)	13-26992
13	NUT (1/4-20)	11-64015
14	SCREW	10-82155025
15	HIGH TENSION CABLE	84-813715A7
16	PROTECTOR	85-63709A1
17	SPARK PLUG (NGK #BUHW-2)	33-896329833	33-833C
17	SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW-2)	33-14103Q
17	SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW)	33-14103550
18	VOLTAGE REGULATOR	8M0084173	883072T, 854515T 1
19	SCREW	10-4010635
20	HARNESS	84-821546A3
21	IGNITION COIL ASSEMBLY	339-832757A4
22	NUT	11-45076
23	CABLE-IGNITION COIL (BLACK - 3-1/4 IN.)	84-824912A1
24	RECTIFIER	17602T02
25	SCREW	10-40007107
26	NUT	11-45076
27	COVER	43542
28	SCREW	10-40007115
29	WASHER	12-89302
30	TERMINAL BLOCK	86-45915
31	SCREW	10-48408
32	COVER	124174
33	SCREW	10-40007114
34	BATTERY CABLE Comment: (POSITIVE)	84-88439A11
34	BATTERY CABLE Comment: (NEGATIVE)	84-88439A4
35	ENGINE HARNESS Comment: (ELECTRIC)	84-41591A13
36	FUSE (20 AMP)	88-8M0207796

ELECTRICAL (USA-0G127500 - 0G437999)(BEL-9836633 - 9926999)

Below is the parts list for Mercury 75 (3 CYL.) ELECTRICAL (USA-0G127500 - 0G437999)(BEL-9836633 - 9926999):

Position No.	Part Name	OEM Number	Supersedes
1	HARNESS	84-821546A3
2	SWITCH BOX	18495A26
3	SCREW (M5 X 12)	10-82239312
4	SCREW (M5 X .8 X 30)	10-40011110
5	VOLTAGE REGULATOR	8M0084173	883072T, 854515T 1
6	SCREW	10-4010635
7	STARTER SOLENOID	89-817109A2
8	BUSHING	23-8M0214955
9	NUT (8-32)	11-26419
10	SCREW	10-40011109
11	WASHER	12-4002314
12	WIRE (BLACK - 3-1/2 IN.)(USE WHERE APPLICABLE)	84-88807A6
12	WIRE (BLACK - 5 IN.)	84-88807A39
12	WIRE (BLACK - 6 IN.)	84-88807A40
12	WIRE (RED - 7-1/2 IN.)(USE WHERE APPLICABLE)	84-79139A2
13	LOCKWASHER (5/16 IN.)	13-53166
14	NUT (5/16-8)	11-8M0204668
15	SCREW	10-82155025
16	HIGH TENSION CABLE	84-813715A7
17	PROTECTOR	85-63709A1
18	SPARK PLUG (NGK #BUHW-2) 20	33-896329833	33-833C
18	SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW-2) 20	33-14103Q
18	SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW) 20	33-14103550
19	IGNITION PLATE	8268192
20	CABLE-IGNITION COIL (BLACK - 7 IN.)	84-824912A2
20	CABLE-IGNITION COIL (BLACK - 3-1/4 IN.)	84-824912A1
21	IGNITION COIL ASSEMBLY	339-832757A4
22	NUT	11-45076
23	RECTIFIER	17602T02
24	SCREW	10-40007107
25	NUT	11-45076
26	COVER	43542
27	SCREW	10-40007115
28	WASHER	12-89302
29	COVER	826820
30	SCREW (M5 X .08 X 30)	10-40011110
31	BATTERY CABLE Comment: (POSITIVE)	84-88439A3
31	BATTERY CABLE Comment: (POSITIVE-ELEC.-NON/OIL)	84-88439A11
31	BATTERY CABLE Comment: (NEGATIVE)	84-88439A4
32	TERMINAL BLOCK Comment: DOUBLE QTY.'S FOR ELECTRIC MODELS	86-45915
33	SCREW Comment: DOUBLE QTY.'S FOR ELECTRIC MODELS	10-48408
34	ENGINE HARNESS Comment: (ELECTRIC)	84-41591A13
35	FUSE (20 AMP)	88-8M0207796

ELECTRICAL (USA-S/N-0G438000/BEL-9937000 & UP)

Below is the parts list for Mercury 75 (3 CYL.) ELECTRICAL (USA-S/N-0G438000/BEL-9937000 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	IGNITION PLATE	8327531
2	SCREW (M8 X 30)	10-40011150
3	WASHER	12-56720
4	BUSHING	23-8502341
5	GROMMET	25-833155
6	SCREW (M5 X 12) Comment: ELECTRIC	10-82239312
7	CLAMP Comment: ELECTRIC	8261151
8	CABLE (10 IN.)	84-88807A44
9	SCREW (M5 X 12)	10-82239312
10	WASHER	12-89302
11	HARNESS-ENGINE Comment: ELECTRIC	84-850043A2
12	FUSE Comment: ELECTRIC	88-812619	88-860608 ELECTRIC
13	HARNESS-IGNITION Comment: ELECTRIC	84-850046A2
14	BATTERY CABLE Comment: (POSITIVE) ELECTRIC	84-88439A3
15	BOOT Comment: ELECTRIC	85-830233
16	CDM	827509A10	827509A 4
17	HI-TENSION CABLE	84-821945A61
18	BOOT	85-63709A1
19	SPARK PLUG (NGK #BUHW-2) 20	33-896329833	33-833C
19	SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW) 20	33-14103550
20	SCREW (M6 X 16)	10-82129116
21	STARTER SOLENOID Comment: ELECTRIC	89-817109A2
22	BUSHING Comment: ELECTRIC	23-8M0214955
23	GROMMET Comment: ELECTRIC	25-822179
24	NUT (8-32) Comment: ELECTRIC	11-45076
25	CABLE Comment: ELECTRIC	84-88807A16
26	LOCKWASHER (5/16 IN.) Comment: ELECTRIC	13-8M0204647
27	NUT (5/16-8) Comment: ELECTRIC	11-8M0204668
28	SCREW (M6 X 25) Comment: ELECTRIC	10-82129125
29	VOLTAGE REGULATOR Comment: ELECTRIC	8M0084173	883072T, 854515T 1 ELECTRIC
30	STA-STRAP Comment: ELECTRIC	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 ELECTRIC
31	SCREW (M6 X 35) Comment: ELECTRIC	10-82129135
32	J CLIP Comment: ELECTRIC	54-54457
33	CABLE Comment: ELECTRIC	84-93388A8
34	CLAMP	54-834813
35	HARNESS-ENGINE Comment: (MANUAL)	84-850044A2
36	WASHER	12-36001

EXHAUST PLATE

Below is the parts list for Mercury 75 (3 CYL.) EXHAUST PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	EXHAUST PLATE ASSEMBLY	42954A5
2	DOWEL PIN	17-23784
3	SCREW (M8 X 35)	10-40011151
3	SCREW (M8 X 70)	10-40011158
4	MOUNT Comment: (NON OIL INJECTION)(LL)	881900T03	881900T02, 881900T01, 881900T, 44344T 2 (NON OIL INJECTION)(LL)
4	MOUNT Comment: (OIL INJECTION) (JET 65)	8M0021331	881901, 42949 2 (OIL INJECTION) (JET 65)
5	SCREW (M8 X 50)	10-4010750
6	SCREW (M12 X 175)	10-898487	10-42974
7	WASHER	12-32834
8	WASHER	12-8M0204648
9	NUT	11-896963	11-859129, 11-90099
10	GASKET	27-430086
11	EXHAUST TUBE	87917216T	42966 4
11	EXHAUST TUBE Comment: (BELGIUM)(INCLUDES RESTRICTOR PLATE)	42966A1
12	SCREW (M8 X 35)	10-40011151
13	SEAL-EXHAUST TUBE	8M0039075	42962
14	GROMMET	25-89417004
15	WATER TUBE (13-1/4 IN.)	32-8M0042791	32-881201 1
15	WATER TUBE (15-3/4 IN.)	32-8M0042793	32-881201 3
15	WATER TUBE (18-1/4 IN.)	32-8M0042792	32-881201 2
16	CLAMP	824661
17	SEAL (UPPER)	814080001	814080
18	SCREW (M8 X 50)	10-4010750
19	BRACKET ASSEMBLY (LOWER) Comment: (BLACK)	42953A5
19	BRACKET ASSEMBLY (LOWER) Comment: (GRAY)	42953A6
19	BRACKET ASSEMBLY (LOWER) Comment: (TRACKER-GRAPHITE GRAY)	42953A7
20	SEAL	43405
21	GROMMET Comment: (POWER TRIM - S/N-0G360002 & BELOW)	25-12602002
21	GROMMET Comment: (NON POWER TRIM/MANUAL TILT ASSIST)	25-8M0179867
22	GROMMET Comment: (POWER TRIM - S/N-0G360003 & UP)	25-19565002
23	SCREW (M8 X 50)	10-81742750
24	BUSHING	23-48237
25	SHIFT SHAFT ASSEMBLY Comment: (UPPER - ELECTRIC) (S/N-USA-0G589999/BEL-9973099 & BELOW)	79932A9
25	SHIFT SHAFT ASSEMBLY Comment: (UPPER - ELECTRIC) (S/N-0G590000/BEL-9973100 & UP)	79932A20
25	SHIFT SHAFT ASSEMBLY Comment: (UPPER - MANUAL)	79932A23
26	SHIFT LINK Comment: (S/N-USA-0G589999/BEL-9973099 & BELOW)	42912A1
26	SHIFT LINK Comment: (S/N-USA-0G590000/BEL-9973100 & UP)	42912A3
27	BUSHING	23-48475
28	NUT	11-401386
29	SPACER Comment: (LONG)	23-813745	23-43041 (LONG)
29	SPACER Comment: (X-LONG)(LL)	23-11289
30	COUPLING Comment: (POWER TRIM/MANUAL TILT ASSIST)	43585
31	COUPLING Comment: (NON POWER TRIM)	43053
-	GASKET SET	27-43004A99

FLYWHEEL AND STARTER MOTOR (USA-0G437999/BEL-9926999 &BELOW

Below is the parts list for Mercury 75 (3 CYL.) FLYWHEEL AND STARTER MOTOR (USA-0G437999/BEL-9926999 &BELOW:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL PLUG	19-45907
2	COVER ASSEMBLY	812777T1
3	NUT	11-42979
4	WASHER	12-33001
5	FLYWHEEL ASSEMBLY Comment: (ELECTRIC)	261-859234T31	261-859234T17, 261-878226T14, 261-859234T16, 261-9008A66 (ELECTRIC)
5	FLYWHEEL ASSEMBLY Comment: (MANUAL)	268-815902A5
6	STATOR Comment: (ELECTRIC)	398-9873A35
6	STATOR Comment: (MANUAL)	398-832074A4
7	SCREW	10-4007325
8	TRIGGER ASSEMBLY	99021A13
9	STARTER MOTOR	50-893891T	50-66015T 1
10	COLLAR	23-8M0034918	23-8M0001391, 56703
11	RUBBER STOP	8M0043376	68042
12	WIRE (BLACK)	84-93388A1
13	SCREW	10-69035
14	WIRE (BLACK)	84-93388A6
15	LOCKWASHER	13-26992
16	NUT	11-64015

FLYWHEEL AND STARTER MOTOR (USA-0G438000/BEL-9927000 & UP)

Below is the parts list for Mercury 75 (3 CYL.) FLYWHEEL AND STARTER MOTOR (USA-0G438000/BEL-9927000 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL PLUG	19-45907
2	COVER ASSEMBLY	812777T1
3	NUT	11-42979
4	WASHER	12-33001
5	FLYWHEEL ASSEMBLY Comment: (ELECTRIC)	261-878226T10	261-859234T12, 261-9008A58 (ELECTRIC)
6	FLYWHEEL ASSEMBLY Comment: (MANUAL)	261-878226T8
7	STATOR Comment: (ELECTRIC)	398-832075A21	398-832075A 4 (ELECTRIC)
7	STATOR Comment: (MANUAL)	398-832074A11	398-832074A 5 (MANUAL)
8	SCREW (M5 X 30)	10-4013930
9	TRIGGER ASSEMBLY	854512T	834820T
10	STA-STRAP	56762
11	SWIVEL BASE	93254
12	SWIVEL BALL	93421
13	STARTER MOTOR	50-893891T	50-66015T 1
14	COLLAR	23-8M0034918	23-8M0001391, 56703
15	RUBBER STOP	8M0043376	68042
16	WIRE (BLACK)	84-93388A1
17	SCREW (1/4-20 X 5/8)	10-69035
18	BATTERY CABLE Comment: (NEGATIVE)	84-88439A4
19	LOCKWASHER	13-26992
20	NUT	11-64015

FUEL PUMP

Below is the parts list for Mercury 75 (3 CYL.) FUEL PUMP:

Position No.	Part Name	OEM Number	Supersedes
37	TUBING Comment: NON OIL INJECTED DESIGN I	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 NON OIL INJECTED DESIGN I
38	NUT Comment: NON OIL INJECTED DESIGN I	11-401386
39	FUEL FILTER Comment: NON OIL INJECTED DESIGN I	35-891642T03	35-87946T14, 35-87946T16 NON OIL INJECTED DESIGN I
40	BRACKET Comment: NON OIL INJECTED DESIGN I	821698
41	SCREW Comment: NON OIL INJECTED DESIGN I	10-4000327
42	WASHER Comment: NON OIL INJECTED DESIGN I	12-8M0204649
37	TUBING (17 IN.) Comment: NON OIL INJECTED DESIGN II	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 NON OIL INJECTED DESIGN II
39	FUEL FILTER Comment: NON OIL INJECTED DESIGN II	35-826634T01	35-826634T, 35-826634 NON OIL INJECTED DESIGN II
40	BRACKET Comment: NON OIL INJECTED DESIGN II	827961
43	HOSE (13 IN.)(A PRODUCT IMPROVEMENT) Comment: NON OIL INJECTED DESIGN II	32-83476463
44	INSULATING SLEEVE (A PRODUCT IMPROVEMENT) Comment: NON OIL INJECTED DESIGN II	23-83312531
45	SCREW (M6 X 14) Comment: NON OIL INJECTED DESIGN II	10-82129114
46	SCREW (M6 X 30) Comment: NON OIL INJECTED DESIGN II	10-4010630
47	WASHER Comment: NON OIL INJECTED DESIGN II	12-8M0214930
48	BUSHING Comment: NON OIL INJECTED DESIGN II	23-42116
49	GROMMET Comment: NON OIL INJECTED DESIGN II	25-42117
50	PRIMER BULB Comment: MANUAL	858763	816877 3 MANUAL
51	TEE FITTING Comment: MANUAL	22-59169003
52	TUBING (6 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
53	TUBING (9-1/2 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
54	TUBING (2-1/2 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
55	TUBING (2-1/2 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
56	TUBING (2-1/2 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
57	TUBING (6 IN.) Comment: MANUAL	32-892024122	32-99130122 MANUAL
1	FUEL PUMP ASSEMBLY	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	CHECK VALVE (#)
4	CHECK VALVE (#)
5	RETAINER (#)
6	SPRING (#)
7	CAP (#)
8	GASKET-BOOST (#)
9	CAP (#)
10	SPRING (#)
11	GASKET-PULSE (#)
12	DIAPHRAGM (#)
13	GASKET	27-8M0204705
14	BASE	144303
15	PLATE	987752
16	ELBOW	22-996642
17	SCREW-FUEL PUMP (M5 X 40)	10-82104540
18	SCREW-PUMP TO BLOCK(M6 X 50)	10-82130050
19	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
20	TUBING (2-1/2 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
21	NIPPLE	22-291112
22	TUBING (2 IN.) Comment: OIL INJECTION	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 OIL INJECTION
23	FUEL LINE Comment: OIL INJECTION	32-19017A1
24	FUEL FILTER Comment: OIL INJECTION	35-816296Q2
25	TUBING (6 IN.) Comment: (NON OIL INJECTED)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 (NON OIL INJECTED)
26	MOLDED HOSE Comment: OIL INJECTED	32-822554
27	PLUG Comment: OIL INJECTED	19-822772
28	CHECK VALVE Comment: OIL INJECTED	22-8189941
29	FUEL CONNECTOR	22-816856Q3
-	O RING	25-16524
30	SCREW (M6 X 35)	10-4010635
31	GROMMET	25-145091
32	ENRICHER VALVE Comment: (S/N-0G437999/BEL-9926999 & BELOW)	89-819503A2
33	ENRICHER VALVE Comment: (S/N-0G438000/BEL-9927000 & UP)	89-819503A1
34	TUBING (15 IN.)	32-1430165
35	TUBING (8 IN.) Comment: (USE W/WME-29/30/31/41/46/47/48/49 CARBS)	32-1430165
35	TUBING (11-1/2 IN.) Comment: (USE W/WME-59/60/61/62/ 75/76/77/78 CARBS)	32-9912688
36	CLAMP Comment: (1.10)	54-18887
36	CLAMP Comment: (STAMPED '1' - 1.14)	54-188871
-	GASKET SET	27-43004A99
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

GEAR HOUSING (DRIVE SHAFT)(3 JAW REVERSE CLUTCH)

Below is the parts list for Mercury 75 (3 CYL.) GEAR HOUSING (DRIVE SHAFT)(3 JAW REVERSE CLUTCH):

Position No.	Part Name	OEM Number	Supersedes
1	GEAR HOUSING Comment: (BLACK) BASIC	1667-9011T73
1	GEAR HOUSING Comment: (GRAY) BASIC	1667-9011T74
1	GEAR HOUSING Comment: (TRACKER-GRAPHITE GRAY) BASIC	1667-9011T80
2	DOWEL PIN (FRONT)	17-8M0084244	17-43043
3	DRAIN SCREW	10-79953Q04
4	SCREW (MAGNETIC)	22-8M0058389	22-67892A06
5	WASHER-SEALING	12-191833
6	DOWEL PIN (REAR)	17-43044
7	TRIM TAB Comment: (USE W/GH W/O ANODES)	97-31640Q4
8	TRIM TAB Comment: (USE W/GH WITH ANODES)	31640T07
9	SCREW (7/16-14 X 1-1/4)	10-825427	10-15942
10	WASHER	12-45176
11	CARRIER	43040T1
12	OILER TUBE	43046
13	ANODE Comment: DESIGN II	97-826134Q	826134, 826134A 1 DESIGN II
14	SCREW Comment: DESIGN II	10-4000333
15	NUT Comment: DESIGN II	11-401386
16	PINION GEAR (13 TEETH)	43-44484T
17	NUT	11-35921
18	SHIFT CAM	760394
19	TAPERED ROLLER BEARING	31-42677A1
20	SHIM ASSEMBLY	15-44492A1
21	DRIVE SHAFT ASSEMBLY Comment: (LONG-32 IN.)	45-43031A1
21	DRIVE SHAFT ASSEMBLY Comment: (LL-34-1/2 IN.)	45-43032A6
21	DRIVE SHAFT ASSEMBLY Comment: (X-LONG-37 IN.)	45-43032A4
22	WEAR SLEEVE ASSEMBLY	42461A1
23	COVER ASSEMBLY	43055A4
24	GASKET	27-8M0214931
25	OIL SEAL (LOWER)	26-43036
26	OIL SEAL (UPPER)	26-43035
27	GASKET	27-430331
28	GASKET	27-8172771
29	WATER PUMP ASSEMBLY	817275A2
30	FACE PLATE	8M0204709
31	SCREW (M6 X 30)	10-8M0214957
32	SEAL	430232
33	KEY	28-8M0204723
34	IMPELLER	47-43026T2
35	SCREW (M6 X 25)	10-8248326
36	SHIFT SHAFT ASSEMBLY Comment: (LONG-12 IN.)	43048A1
36	SHIFT SHAFT ASSEMBLY Comment: (LL-14-1/2 IN.)	430482
36	SHIFT SHAFT ASSEMBLY Comment: (X-LONG-17 IN.)	43049A1
37	E-RING	53-29641
38	BUSHING ASSEMBLY	23-43052A4
39	O-RING	25-8M0204681
40	OIL SEA	26-8M0204708
41	SCREW (M6 X 25)	10-8248326
-	G/H SEAL KIT	26-43035A4
-	W/P REPAIR KIT	46-8M0113799
-	GASKET SET	27-43004A99

GEAR HOUSING (DRIVE SHAFT)(6 JAW REVERSE CLUTCH)

Below is the parts list for Mercury 75 (3 CYL.) GEAR HOUSING (DRIVE SHAFT)(6 JAW REVERSE CLUTCH):

Position No.	Part Name	OEM Number	Supersedes
1	GEAR HOUSING Comment: (BLACK) BASIC	1667-9011G59
1	GEAR HOUSING Comment: (GRAY) BASIC	1667-9011G60
2	DOWEL PIN (FRONT)	17-8M0084244	17-43043
3	DRAIN SCREW	10-79953Q04
4	SCREW (MAGNETIC)	22-8M0058389	22-67892A06
5	WASHER-SEALING	12-191833
6	DOWEL PIN (REAR)	17-43044
7	TRIM TAB	31640T07
8	SCREW (7/16-14 X 1-1/4)	10-825427	10-15942
9	WASHER	12-45176
10	CARRIER	43040T1
11	OILER TUBE	43046
12	ANODE	97-826134Q	826134, 826134A 1
13	SCREW	10-4000333
14	NUT	11-401386
15	PINION GEAR (ALSO PART OF 43-850033A2)(13 TEETH)	43-44484T
16	NUT	11-35921
17	SHIFT CAM	850307
18	TAPERED ROLLER BEARING	31-42677A1
19	SHIM ASSEMBLY	15-44492A1
20	DRIVE SHAFT ASSEMBLY Comment: (LONG-32 IN.)	45-43031A1
20	DRIVE SHAFT ASSEMBLY Comment: (LL-34-1/2 IN.)	45-43032A6
20	DRIVE SHAFT ASSEMBLY Comment: (X-LONG-37 IN.)	45-43032A4
21	WEAR SLEEVE ASSEMBLY	42461A1
22	COVER ASSEMBLY	43055A4
23	GASKET	27-8M0214931
24	OIL SEAL (LOWER)	26-43036
25	OIL SEAL (UPPER)	26-43035
26	GASKET	27-430331
27	GASKET	27-8172771
28	WATER PUMP ASSEMBLY	817275A2
29	FACE PLATE	8M0204709
30	SCREW (M6 X 30)	10-8M0214957
31	SEAL	430232
32	KEY	28-8M0204723
33	IMPELLER	47-43026T2
34	SCREW (M6 X 25)	10-8248326
35	SHIFT SHAFT ASSEMBLY Comment: (LONG-12 IN.)	853906A1
35	SHIFT SHAFT ASSEMBLY Comment: (LL-14-1/2 IN.)	853907A1
35	SHIFT SHAFT ASSEMBLY Comment: (X-LONG-17 IN.)	853908A1
36	E-RING	53-29641
37	BUSHING ASSEMBLY	23-43052A4
38	O-RING	25-8M0204681
39	OIL SEAL	26-8M0204708
40	SCREW (M6 X 25)	10-8248326
-	G/H SEAL KIT	26-43035A4
-	W/P REPAIR KIT	46-8M0113799
-	GASKET SET	27-43004A99

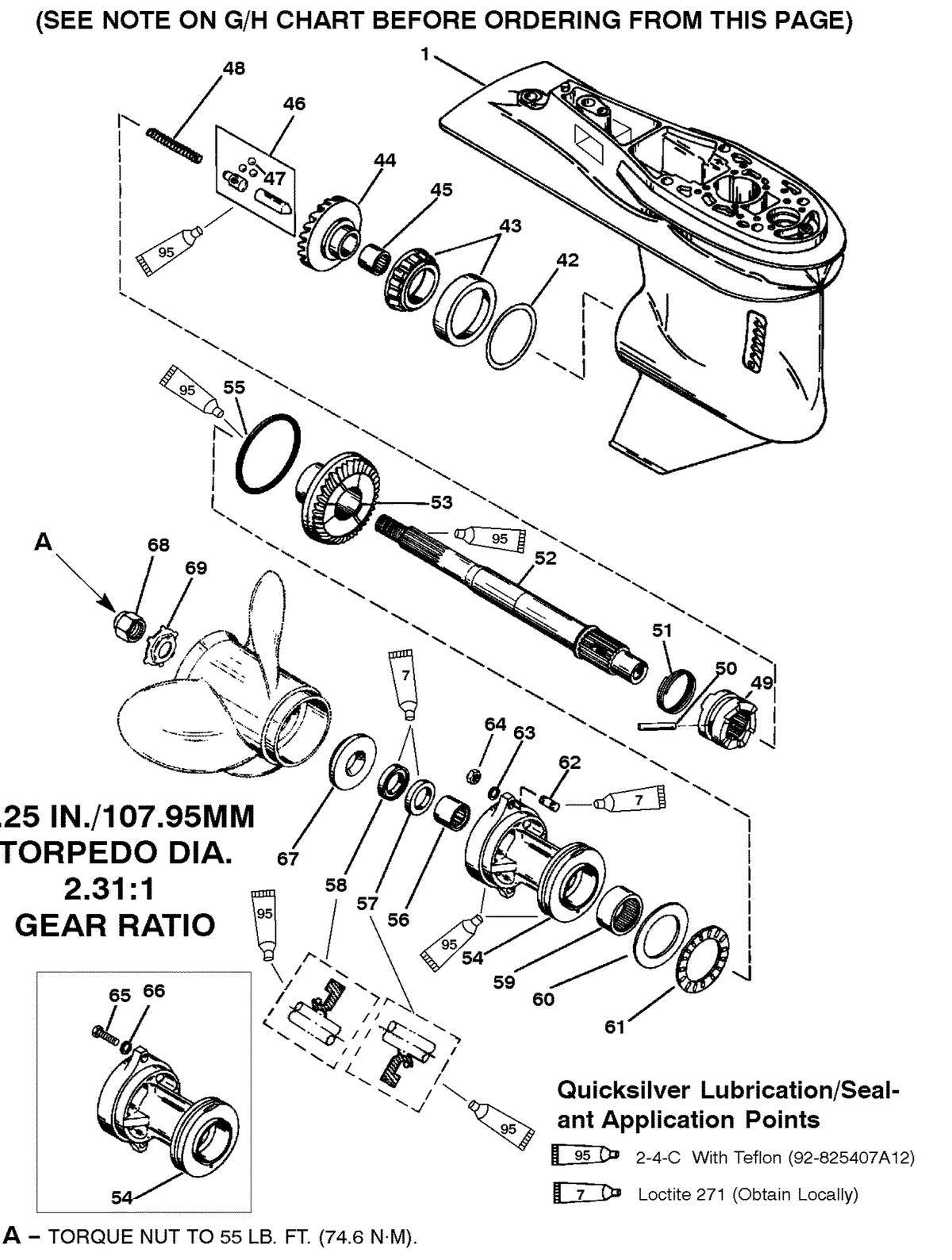

GEAR HOUSING (PROP SHAFT)(3 JAW REVERSE CLUTCH)

Below is the parts list for Mercury 75 (3 CYL.) GEAR HOUSING (PROP SHAFT)(3 JAW REVERSE CLUTCH):

Position No.	Part Name	OEM Number	Supersedes
1	GEAR HOUSING Comment: (BLACK)	1667-9011T73
1	GEAR HOUSING Comment: (GRAY)	1667-9011T74
1	GEAR HOUSING Comment: (TRACKER-GRAPHITE GRAY)	1667-9011T80
42	SHIM ASSEMBLY	15-44491A1
43	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
44	FORWARD GEAR (30 TEETH)	43-12634T02
45	ROLLER BEARING	31-30895T
46	CAM FOLLOWER ASSEMBLY	850315A1
47	BALL	30-44530
48	SPRING	24-30622
49	CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
50	CROSS PIN	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
51	SPRING	24-30893
52	PROPELLER SHAFT	44-12238T
53	REVERSE GEAR (30 TEETH)	43-12635T
54	BEARING CARRIER ASSEMBLY	8M0168901
55	O-RING	25-8M0214974
56	ROLLER BEARING	31-30956T
57	OIL SEAL (INNER)	26-8M0205728
58	OIL SEAL (OUTER)	26-8M0205729
59	ROLLER BEARING	31-12578T
60	THRUST WASHER	12-12577
61	THRUST BEARING	31-12576
62	STUD (M8 X 48) Comment: DESIGN II	16-8M0034456	16-42917 2 DESIGN II
63	WASHER Comment: DESIGN II	12-8M0042642	12-70132 DESIGN II
64	NUT Comment: DESIGN II	11-401378
65	SCREW Comment: DESIGN I	10-4000354
66	WASHER Comment: DESIGN I	12-4002317
67	THRUST HUB ASSEMBLY Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	13191Q01
68	PROPELLER NUT ASSEMBLY Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	11-52707Q1
69	TAB WASHER GEAR HOUSING Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	14-816629Q	14-816629, 14-31210, 14-816629B THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
-	G/H SEAL KIT	26-43035A4
-	GASKET SET	27-43004A99

GEAR HOUSING (PROP SHAFT)(6 JAW REVERSE CLUTCH)

Below is the parts list for Mercury 75 (3 CYL.) GEAR HOUSING (PROP SHAFT)(6 JAW REVERSE CLUTCH):

Position No.	Part Name	OEM Number	Supersedes
1	GEAR HOUSING Comment: (BLACK)	1667-9011G59
1	GEAR HOUSING Comment: (GRAY)	1667-9011G60
41	FORWARD GEAR (30 TEETH)	43-859472A3
42	SHIM ASSEMBLY	15-44491A1
43	TAPERED ROLLER BEARING	31-30894A1
44	ROLLER BEARING	31-30895T
45	CAM FOLLOWER ASSEMBLY	850315A1
46	BALL	30-44530
47	SPRING	24-850327
48	CLUTCH	52-850048T	52-850048
49	CROSS PIN	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
50	SPRING	24-30893
51	PROPELLER SHAFT	44-8M0140445
52	REVERSE GEAR (30 TEETH)	43-850034T	43-850034
53	BEARING CARRIER ASSEMBLY	8M0168901
54	O-RING	25-8M0214974
55	ROLLER BEARING	31-30956T
56	OIL SEAL (INNER)	26-8M0205728
57	OIL SEAL (OUTER)	26-8M0205729
58	ROLLER BEARING	31-12578T
59	THRUST WASHER	12-12577
60	THRUST BEARING	31-12576
61	STUD (M8 X 48)	16-8M0034456	16-42917 2
62	WASHER	12-855941
63	NUT	11-401378
64	THRUST HUB ASSEMBLY Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	13191Q01
65	PROPELLER NUT ASSEMBLY Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	11-52707Q1
66	TAB WASHER GEAR HOUSING Comment: THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT	14-816629Q	14-816629, 14-31210, 14-816629B THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
-	G/H SEAL KIT	26-43035A4
-	GASKET SET	27-43004A99

GEAR HOUSING CHART (2.31:1 GEAR RATIO)

Below is the parts list for Mercury 75 (3 CYL.) GEAR HOUSING CHART (2.31:1 GEAR RATIO):

Position No.	Part Name	OEM Number
-	GEAR HOUSING Comment: (LONG) (BLACK) 6 JAW REVERSE CLUTCH	1667-9011J15
-	GEAR HOUSING ( Comment: X-LONG) (BLACK) 6 JAW REVERSE CLUTCH	1667-9011J23
-	GEAR HOUSING Comment: (LL) (BLACK) 6 JAW REVERSE CLUTCH	1667-9011J21
-	GEAR HOUSING Comment: (LONG) (GRAY) 6 JAW REVERSE CLUTCH	1667-9011J18
-	GEAR HOUSING Comment: (X-LONG) (GRAY) 6 JAW REVERSE CLUTCH	1667-9011J26
-	GEAR HOUSING Comment: (LL) (GRAY) 6 JAW REVERSE CLUTCH	1667-9011G56
-	GEAR HOUSING Comment: (TRACKER-GRAPHITE GRAY) 6 JAW REVERSE CLUTCH	1667-9011G75
-	GEAR HOUSING Comment: (LONG) (BLACK) 3 JAW REVERSE CLUTCH	1667-9011J16
-	GEAR HOUSING Comment: (X-LONG) (BLACK) 3 JAW REVERSE CLUTCH	1667-9011G34
-	GEAR HOUSING Comment: (LL) (BLACK) 3 JAW REVERSE CLUTCH	1667-9011G35
-	GEAR HOUSING Comment: (LONG) (GRAY) 3 JAW REVERSE CLUTCH	1667-9011J19
-	GEAR HOUSING Comment: (X-LONG) (GRAY) 3 JAW REVERSE CLUTCH	1667-9011J27
-	GEAR HOUSING Comment: (LL) (GRAY) 3 JAW REVERSE CLUTCH	1667-9011G38
-	GEAR HOUSING Comment: (TRACKER-GRAPHITE GRAY) 3 JAW REVERSE CLUTCH	1667-9011G75

INDUCTION MANIFOLD AND REED BLOCK

Below is the parts list for Mercury 75 (3 CYL.) INDUCTION MANIFOLD AND REED BLOCK:

Position No.	Part Name	OEM Number	Supersedes
1	EXHAUST COVER/PLATE KIT	42878A2
2	GASKET	27-43004009
3	SCREW (M8 X 35)	10-82127335
4	ELBOW	22-996642
5	GASKET	27-430075
6	SHIFT RAIL	42881A1
7	TAB WASHER	14-42981
8	SCREW (M8 X 25)	10-40001134
9	SLIDE	988851
10	NUT	11-401386
11	WASHER	12-35459
12	NUT	11-401386
13	LOWER END CAP ASSEMBLY	1169-858552T2
14	CHECK VALVE	21-426585
15	OIL SEAL	26-41953
16	O-RING	25-89224
17	SCREW (M10 X 25)	10-4010825
18	REED BLOCK ASSEMBLY	8M0219198
19	GASKET	27-139376
20	REED SET	34-43018A1
21	TAB WASHER	14-429821
22	RETAINER	42924
23	SCREW (M6 X 16)	10-4000171
24	BRACKET Comment: (NON OIL-INJECTION)	8M0039350	821944 1 (NON OIL-INJECTION)
24	BRACKET Comment: (OIL-INJECTION)	827514
25	WASHER	12-8M0204663
26	WING NUT	11-816872
27	STUD	16-8161949
28	INDUCTION MANIFOLD	884296T	42967 2
29	SCREW (M8 X 35)	10-82127335
30	SCREW (M8 X 40)	10-81742740
31	STUD (M8 X 132)	16-824470	16-42985, 16-42985 1
32	SCREW (#3 CYLINDER)(M8 X 110)	10-40001167
33	TUBING (4 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
34	TEE FITTING Comment: (ELECTRIC)	22-432881
34	TEE FITTING Comment: (MANUAL)	855781
35	ELBOW	22-996642
36	DECAL-EPA INFO Comment: (1998) (SEE NOTE)	37-855577A10	37-855577 10 (1998) (SEE NOTE)
-	GASKET SET	27-43004A99
-	POWERHEAD	809837T97	809837A97, 809837A96, 15081A95, 809837A98

JET PUMP ASSEMBLY

Below is the parts list for Mercury 75 (3 CYL.) JET PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	JET PUMP ASSEMBLY Comment: (BLACK) S/N-0G582704 & BELOW	856143A1
-	JET PUMP ASSEMBLY Comment: (GRAY) S/N-0G582704 & BELOW	856143A1
-	JET PUMP ASSEMBLY Comment: (S/N-0G582705 & UP)	856143A1
1	HOUSING-PUMP Comment: (S/N-0G582704 & BELOW)	801411T90	801411 90 (S/N-0G582704 & BELOW)
1	HOUSING-PUMP Comment: (S/N-0G582705 & UP)	855767T90	855767 90 (S/N-0G582705 & UP)
2	HOSE-LUBE	32-827490
3	IMPELLER	47-855708115	47-801414 90, 47-801414115
4	HOUSING-INTAKE Comment: S/N-0G582704 & BELOW	80141290
5	LINER Comment: S/N-0G582704 & BELOW	8271883
6	DRIVESHAFT Comment: S/N-0G582704 & BELOW	45-80141390
7	HOUSING-INTAKE Comment: S/N-0G582705 & UP	85576890
8	LINER Comment: S/N-0G582705 & UP	855771
9	DRIVESHAFT Comment: S/N-0G582705 & UP	45-85576990
10	SLEEVE	23-8271891
11	NUT	11-8271901
12	KEY	28-801405875
13	SHIM-IMPELLER	15-801404875
14	TAB WASHER	14-801403875
15	SCREW (.312-18 X 1) Comment: S/N-0G582704 & BELOW	10-848497
16	SCREW (1/4-20 X .875) Comment: S/N-0G582704 & BELOW	10-19923088
16	SCREW (.312-18 x 1) Comment: S/N-0G582705 & UP	10-848497
17	STUD (.312 X 18 X 1.81) Comment: S/N-0G582705 & UP	16-855840
18	NUT Comment: S/N-0G582705 & UP	11-82670910
19	PIN-DOWEL	17-801407
20	SCREW (1/4-20 X .625)	10-19923062
21	SCREW (.312-18 X 1.25)	10-60411
22	BRACKET-CABLE SUPPORT	801410
23	NUT (.312-18)	11-82670910
24	SCREW (M10 X 60)	10-4010860
25	SCREW (M10 X 90)	10-4010890
26	ADAPTOR-PUMP	808747
27	SCREW (M10 X 70)	10-4010870
28	SCREW (.38-16 X 4)	10-843575
29	WASHER	12-8M0214963

JET PUMP COMPONENTS

Below is the parts list for Mercury 75 (3 CYL.) JET PUMP COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	REV LIMITER Comment: (USA-0G438000/BEL-9927000 & UP)	821889A50	821889A42 (USA-0G438000/BEL-9927000 & UP)
2	REV LIMITER Comment: USA-0G437999/ BEL-9926999 & BELOW	821889T24	821889A24, 821889A18 USA-0G437999/ BEL-9926999 & BELOW
3	HARNESS-ADAPTOR-REV LIMITER Comment: USA-0G437999/ BEL-9926999 & BELOW	84-823147A6
4	HARNESS-ADAPTOR Comment: USA-0G437999/ BEL-9926999 & BELOW	84-11149A8
5	SCREW (M6 X 50)	10-82130050
5	SCREW (M6 X 30)	10-82130030
6	GREASE KIT	91-30500A2
7	GASKET (USE WHERE APPLICABLE)	27-430331
8	GASKET	27-8172771
9	WATER PUMP ASSEMBLY	817275A2
10	FACE PLATE	8M0204709
11	SCREW (M6 X 1 X 30)	10-82684430
12	SEAL	430232
13	KEY	28-8M0204723
14	IMPELLER	47-43026T2
-	G/H SEAL KIT	26-43035A4
-	W/P REPAIR KIT	46-8M0113799
-	GASKET SET	27-43004A99

KEY CHART

Below is the parts list for Mercury 75 (3 CYL.) KEY CHART:

Position No.	Part Name	OEM Number	Supersedes
0	KEY 1A	894911
0	KEY 1B	894912
0	KEY 1C	894913
0	KEY 1D	894914
0	KEY 1E	894915
0	KEY 1F	894916
0	KEY 2A	894917
0	KEY 2B	894918
0	KEY 2C	894919
0	KEY 2D	8949110
0	KEY 2E	8949111
0	KEY 2F	8949112

MANUAL TILT ASSIST COMPONENTS

Below is the parts list for Mercury 75 (3 CYL.) MANUAL TILT ASSIST COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
-	TRIM PUMP ASSEMBLY	835249T1
1	SHOCK ROD ASSEMBLY	893932A01	853891A 1
2	O RING REBUILD KIT-CYLINDER	25-893917A01	25-809872A 1
3	MEMORY PISTON ASSEMBLY	893903A01
4	CYLINDER ASSEMBLY	893934A01	835250A 1
5	SCREW AND SEAL KIT	893919A01	813433A 2
6	ACCUMULATOR ASSEMBLY	893933A01	835458A 1
7	VALVE BODY ASSEMBLY	893921A01	813455T 4
8	CAM KIT	893923A01	813457A 3
9	VELOCITY VALVE KIT	893924A01	809881A 1
10	CHECK SYSTEM REPAIR KIT	893925A01	809882A 1
-	O RING KIT	25-893922A01	25-809880A 2

MISCELLANEOUS INFORMATION

Below is the parts list for Mercury 75 (3 CYL.) MISCELLANEOUS INFORMATION:

Part Name	OEM Number	Supersedes
SERVICE MANUAL	90-8M0127990
OWNERS GUIDE Comment: (SEAPRO/MARATHON)	90-10182980
OWNERS GUIDE	90-10180980
OWNERS GUIDE Comment: (JET 65)	90-10138980
OWNERS GUIDE Comment: (TRACKER)	90-10162980
DECAL SET ( Comment: BLACK 75 ELECTRIC)	37-808549A00	37-808549A96, 37-808549A94 BLACK 75 ELECTRIC)
DECAL SET Comment: (BLACK 90) BLACK 75 ELECTRIC)	37-823417A00	37-823417A96, 37-823417A94 (BLACK 90) BLACK 75 ELECTRIC)
DECAL SET Comment: (BLACK 65 JET) (DESIGN I)	37-826327A00	37-826327A96, 37-826327A95 (BLACK 65 JET) (DESIGN I)
DECAL SET Comment: (BLACK 65 JET) (DESIGN II)	37-826327A00	37-826327A96, 37-826327A95 (BLACK 65 JET) (DESIGN II)
DECAL SET Comment: (GRAY 75 ELECTRIC) USA-S/N-0G437999/BEL-9926999 & BELOW	37-823419A01	37-823419A97, 37-823419A94 (GRAY 75 ELECTRIC) USA-S/N-0G437999/BEL-9926999 & BELOW
DECAL SET Comment: (GRAY 90) USA-S/N-0G437999/BEL-9926999 & BELOW	37-823420A03	37-823420A01, 37-823420A97, 37-823420A94, 37-830166A99 (GRAY 90) USA-S/N-0G437999/BEL-9926999 & BELOW
DECAL SET Comment: (GRAY 65 JET) USA-S/N-0G437999/BEL-9926999 & BELOW	37-826328A97	37-826328A95 (GRAY 65 JET) USA-S/N-0G437999/BEL-9926999 & BELOW
DECAL SET Comment: (GRAY 75 ELECTRIC) USA-S/N-0G4378000/BEL-9927000 & UP	37-823419A01	37-823419A97, 37-823419A94 (GRAY 75 ELECTRIC) USA-S/N-0G4378000/BEL-9927000 & UP
DECAL SET Comment: (GRAY 90) USA-S/N-0G4378000/BEL-9927000 & UP	37-823420A03	37-823420A01, 37-823420A97, 37-823420A94, 37-830166A99 (GRAY 90) USA-S/N-0G4378000/BEL-9927000 & UP
DECAL SET Comment: (GRAY 65 JET) USA-S/N-0G4378000/BEL-9927000 & UP	37-826328A97	37-826328A95 (GRAY 65 JET) USA-S/N-0G4378000/BEL-9927000 & UP
DECAL SET Comment: (75 ELECTRIC SEAPRO)	37-826315A01	37-826315A95, 37-823414A94, 37-823414A93 (75 ELECTRIC SEAPRO)
DECAL SET Comment: (75 MANUAL SEAPRO)	37-826317A01	37-826317A95, 37-823415A94, 37-823415A93 (75 MANUAL SEAPRO)
DECAL SET Comment: (75 MANUAL MARATHON)	37-826316A00	37-826316A95, 37-823418A94, 37-823418A93 (75 MANUAL MARATHON)
DECAL SET Comment: (75 ELECTRIC MARATHON)	37-826318A03	37-826318A00, 37-826318A95, 37-823423A94, 37-823423A93 (75 ELECTRIC MARATHON)
DECAL SET Comment: (75 SCATTO) INTERNATIONAL ENGINES	37-824100A95
DECAL SET Comment: (75 TYPHOON) INTERNATIONAL ENGINES	37-824099A95
DECAL SET Comment: (TRACKER 90) S/N-0G301750 & BELOW	37-808571A94
DECAL SET Comment: (TRACKER 75) S/N-0G301750 & BELOW	37-808622A94
DECAL SET Comment: (TRACKER 75) S/N-0G301751 & UP	37-808622A96
DECAL SET Comment: (TRACKER 90) S/N-0G301751 & UP	37-808571A96
DECAL EPA INFO Comment: (1998) (SEE NOTE)	37-855577A10	37-855577 10 (1998) (SEE NOTE)

OIL INJECTION (S/N-USA-0G301750/BEL-9885504 & BELOW)

Below is the parts list for Mercury 75 (3 CYL.) OIL INJECTION (S/N-USA-0G301750/BEL-9885504 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	OIL TANK ASSEMBLY	1200-892845A04	1277-828361A 3
2	COVER ASSEMBLY	36-821902A1
3	GASKET	27-8220612
4	LATCH	824612
5	SPRING	24-824611
6	SCREW	10-4005666
7	WASHER	12-27882
8	GROOVE PIN	17-822059
8	ROLL PIN (.093 X 1.250)	17-825259
9	VENT ASSEMBLY	19299A1
10	VALVE	21-64871
11	SCREW	10-4010630
12	WASHER	12-8M0214930
13	GROMMET	25-42117
14	BUSHING	23-42116
15	BOOT	99161
16	BASE	42888
17	SCREW	10-82155050
18	SWITCH ASSEMBLY	87-12886A6
19	SCREW	10-58376
20	WASHER	12-72761
21	DRIVEN GEAR	43-430204
22	O-RING	25-8M0204667
23	ADAPTOR ASSEMBLY	17335A3
24	BUSHING	23-17597
25	JOURNAL BUSHING	23-17596
26	OIL PUMP	42959A2
27	SCREW	10-82104540
28	TUBING (5-1/2 IN.)	32-82381335
29	TUBING (11 IN.)	32-82381455
30	STA-STRAP Comment: (8 IN.)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 (8 IN.)
30	STA-STRAP Comment: (5-1/2 IN.)	8M0214940
-	GASKET SET	27-43004A99

OIL INJECTION (S/N-USA-0G301751/BEL-9885505 & UP)

Below is the parts list for Mercury 75 (3 CYL.) OIL INJECTION (S/N-USA-0G301751/BEL-9885505 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	OIL TANK	1277-8M0219216
2	CAP ASSEMBLY	828475A1
3	O RING	25-26318T
4	DIPSTICK	828793
5	NUT	11-65110
6	VENT ASSEMBLY	19299A1
7	VALVE	21-64871
8	BRACKET	8287201
9	BOOT	99160001
10	SCREW (M6X20)	10-4010620
11	GROMMET	25-825380001	25-825380
12	BUSHING	23-828350
13	WASHER	12-817274	12-817274 1
14	SCREW (M8X35)	10-81893435
15	SWITCH ASSEMBLY	87-12886A6
16	SCREW (.164-18 X .375)	10-58376
17	WASHER	12-72761
18	DRIVEN GEAR	43-430204
19	O-RING	25-8M0204667
20	ADAPTOR ASSEMBLY	17335A3
21	BUSHING	23-17597
22	JOURNAL BUSHING	23-17596
23	OIL PUMP	42959A2
24	SCREW (M5 X 40)	10-82104540
25	TUBING (6 IN.)	32-82381335
26	TUBING (11 IN.)	32-82381455
27	STA-STRAP Comment: (8 IN.)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 (8 IN.)
27	STA-STRAP Comment: (5-1/2 IN.)	8M0214940
-	GASKET SET	27-43004A99

POWER TRIM(BLACK FILL PLUG)S/N-USA-0G360002/BEL-9934136 &BE

Below is the parts list for Mercury 75 (3 CYL.) POWER TRIM(BLACK FILL PLUG)S/N-USA-0G360002/BEL-9934136 &BE:

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM PUMP	8M0171817
1	SHOCK ROD ASSEMBLY	8M0171821
2	CYLINDER END CAP	813428
3	CYLINDER SEAL KIT	813432A3
4	MEMORY PISTON KIT	810776
5	CYLINDER	893916A01	811669A 1
6	SCREW AND SEAL KIT	811678A6
7	PUMP/MANIFOLD	809901A2
8	ROCKER ARM	823180A1
9	SCREW KIT	10-813436
10	DRIVE SHAFT	8116711
11	SEAL KIT (W/CASE BOLTS)	811626A3
12	RESERVOIR	8116731
13	PLUG KIT	22-8134351
14	RELIEF VALVE KIT	893929A01	813442A 2
15	FRAME AND FIELD KIT	8116241
16	ARMATURE KIT	8116271
17	BRUSH SPRING KIT	12665
18	BRUSH CARD KIT	811625
19	ANCHOR PIN	17-818898
20	GROOVE PIN	17-821539	17-13794, 17-19603
21	SHAFT	99625002
22	TRIM HARNESS ASSEMBLY	84-17201A2
23	SCREW	10-878607	10-817626
24	C-WASHER	8M0084613	69205
25	CLAMP	54-22875
26	SOLENOID	89-8M0185145
27	BUSHING	23-8M0214955
28	GROMMET	25-818967
29	SCREW	10-40011109
30	WASHER	12-4002314
31	NUT (8-32 BRASS)	11-26419
32	LOCKWASHER	13-26992
33	NUT (1/4 - 20)	11-64015
34	CABLE Comment: (RED - 2-3/4 IN.) (USE WHERE APPLICABLE)	84-87379A14
34	CABLE Comment: (BLACK - 3-1/2 IN.)	84-88807A6

POWER TRIM(YELLOW FILL PLUG)S/N-USA-0G360003/BEL-9934137 &U

Below is the parts list for Mercury 75 (3 CYL.) POWER TRIM(YELLOW FILL PLUG)S/N-USA-0G360003/BEL-9934137 &U:

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM PUMP	8M0171818
1	SHOCK ROD KIT	8M0171821
2	O RING REBUILD KIT	25-8M0171819
3	MEMORY PISTON ASSEMBLY	8M0171822
4	CYLINDER ASSEMBLY	893916A01	811669A 1
5	TRIM LIMIT VALVE KIT	893905A02	809873A 1
6	PUMP ASSEMBLY	893906A02	809874A 1
7	MOTOR KIT	893907A02	809885A 2
8	RESERVOIR PLUG	22-8134351
9	MANUAL RELEASE ASSEMBLY	893929A01	813442A 2
10	MANIFOLD KIT	893909A02	809875A 1
11	SCREW KIT (MOTOR)	10-809876A1
12	DRIVE SHAFT	809877A1
13	FILTER KIT	35-893912A02	809878A 1
14	P.O. CHECK ASSEMBLY KIT	893913A02	809879A 1
-	O RING KIT (COMPLETE TRIM)	25-893914A02	25-809880A 1
15	GROOVE PIN	17-821539	17-13794, 17-19603
16	ANCHOR PIN	17-818898
17	SHAFT	99625002
18	SCREW (M6 X 25) Comment: (USA-0G437999/BEL-9926999 & BELOW)	10-40011109
19	RELAY	8M0207773
20	BUSHING	23-8M0214955
21	GROMMET	25-818967
22	BRACKET	828102
23	HARNESS ASSEMBLY Comment: (USA-0G437999/BEL-9926999 & BELOW)	84-819514A4
24	HARNESS ASSEMBLY Comment: USA-0G438000/BEL-9927000 & UP	84-8M0092077
25	SCREW (M6 X 25) Comment: USA-0G438000/BEL-9927000 & UP	10-82129125
26	CLAMP	54-22740
27	SCREW (10-16 X 3/8)	10-878609	10-812832 1
28	C WASHER	8M0084613	69205
29	TRIM HARNESS ASSEMBLY Comment: (USE WHERE APPLICABLE)	84-17201A2

STARTER ASSEMBLY (MANUAL)

Below is the parts list for Mercury 75 (3 CYL.) STARTER ASSEMBLY (MANUAL):

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE ASSEMBLY	85174A2
2	REST	8220721
3	SEAL	8M0043270	823241
4	SCREW (M6 X 50)	10-82130050
5	WASHER	12-69057
6	SPACER	23-8217021
7	BUSHING	23-816086
8	GROMMET	25-815795
9	NUT Comment: (S/N-0G699128 & BELOW)	11-401366
9	NUT Comment: (S/N-0G699129 & UP)	11-401386
10	WASHER Comment: (S/N-0G699128 & BELOW)	12-69057
10	WASHER Comment: S/N-0G699129 & UP	12-69057
11	BRACKET Comment: S/N-0G699129 & UP	855596
12	BRACKET Comment: S/N-0G699129 & UP	855597
13	SCREW Comment: S/N-0G699129 & UP	10-40011129
14	WASHER Comment: S/N-0G699129 & UP	12-35462
15	PULLEY KIT Comment: S/N-0G699129 & UP	11704A1
16	SPACER Comment: S/N-0G699129 & UP	NSS
17	WASHER Comment: S/N-0G699129 & UP	12-67983
18	INTERLOCK CABLE	8567541
19	SCREW (10-16 X 5/8)	10-8214281
20	WASHER	12-73288
21	COTTER PIN	18-26811
22	SCREW	10-878608	10-812832
23	PUSH NUT Comment: (DESIGN I)	11-821027	F2133 (DESIGN I)
24	WASHER Comment: DESIGN II	12-35462
25	COTTER PIN Comment: DESIGN II	18-26811
-	STARTER HOUSING	816728T14	816728A14, 816728A12, 816728A11, 816728A10, 816728A 9
26	SPRING	24-826791	24-816718 1
27	INTERLOCK LEVER Comment: (S/N-0G242650 & BELOW)	8166902
27	INTERLOCK LEVER Comment: (S/N-0G242651 & UP)	8166903
28	CAM	816712T01	816712 1
29	RETAINER	816711
30	SCREW (10-16 X 1)	10-8182491
31	FELT PAD Comment: (DESIGN I)	833161T	833161, 90478 (DESIGN I)
32	WASHER Comment: (DESIGN II)	13-826229
33	SPRING	24-86857T01
34	STARTER SHEAVE	50-825269T01	50-825269A 1
35	SPRING	24-86851T02
36	CAM	868501
37	RETAINING RING	53-86849T01
38	STARTER ROPE	50-12066Q10
39	STARTER HOUSING	816728T05	816728 5
40	SPRING	24-868523
41	CAM	86853T01
42	SCREW (1/4-20)	10-826253	10-97516, 10-818838
43	BUSHING	8M0183792
44	RETAINING RING	53-818853	53-42689

STARTER MOTOR

Below is the parts list for Mercury 75 (3 CYL.) STARTER MOTOR:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR ASSEMBLY	50-893891T	50-66015T 1
1	DRIVE KIT	90643
2	DRIVE ASSEMBLY	685753
3	PLATE	75660
4	THRU BOLT	10-75385
5	ARMATURE	75386
6	BRUSH SET	898265016	75384, 75384 1
7	BUSHING	23-57387
8	WASHER (AMER. BOSCH #WA-1728)	NSS
9	LOCKWASHER	13-26992
10	NUT	11-20890
11	BRUSH HOLDER	898265014	61787
12	SCREW (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT	NSS
13	END CAP	15386001

STEERING HANDLE COMPONENTS

Below is the parts list for Mercury 75 (3 CYL.) STEERING HANDLE COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	STEERING ARM Comment: (BLACK)	12020A3
1	STEERING ARM Comment: (GRAY )	12020A4
-	GREASE FITTING	22-8M0169589
2	BUSHING	23-42992T02
3	HOUSING	48414
4	PLATE	48519
5	GASKET	27-48518
6	SCREW (10-16 X 3/5 IN.)	10-878609	10-812832 1
7	SCREW (10-16 X 1/2 IN.)	10-878608	10-812832
8	CLAMP	54-889729	54-12013
9	SCREW (M5 X 40)	10-40007112
10	NUT	11-816874	11-73651, 11-816873, 11-90052
11	THROTTLE HANDLE/STOP SWITCH KIT	87-823609A15	87-15823A 6, 96495A 3, 87-15823A 5
12	STOP SWITCH	87-8M0104612	87-823609A 5
13	THROTTLE TUBE	12018A4
14	SCREW (10-16 X 3/8 IN.)	10-62568
15	GRIP	8M0221732
16	CLIP	54-648551
17	NUT	11-40140
18	CONDUIT	8885242
19	GUIDE TUBE	8M0026078	89566 1
20	BARREL	89578
21	SET SCREW	10-824081	10-89601
22	CABLE	12019
23	GUIDE	8M0204660
24	ANCHOR	20007
25	SET SCREW	10-8M0204644
26	SCREW (M10 X 105)	10-823567105	10-817430105
27	CAP	48416
28	WASHER	12-4002319
29	WASHER	12-12024
30	SPACER	23-146011
31	WASHER	12-8M0214963
1	BRACKET ASSEMBLY Comment: (BLACK)	12022A22
1	BRACKET ASSEMBLY Comment: (GRAY)	12022A23
2	SCREW (3/8-24 X 1-1/4 IN.)	10-849838	10-14000
3	NUT	11-8M0204726
4	STUD (5/16 X 2-1/2)	16-8M0034421	16-822320
5	SPACER	822263
6	WASHER	12-8M0204690
7	NUT	11-82670911
8	GROMMET	121051
9	HARNESS ASSEMBLY Comment: (22 IN.)	84-12649A4
9	HARNESS ASSEMBLY Comment: (33 IN.)	84-12649A5
10	KEY SWITCH Comment: ( KEYS LISTED UNDER KEY CHART )	87-88107A5
11	NUT	11-879755	11-93543
12	PLUG Comment: (ELECTRIC)	13541
13	COVER	12015A1
14	SCREW (10-16 X 1/2)	10-878608	10-812832
15	PLUG Comment: (NON POWER TRIM)	19-889730	19-12014 (NON POWER TRIM)
16	STOP SWITCH ASSEMBLY	87-11083A4
17	LANYARD	15920Q54
18	RETAINER	8M0032846	12044 1
19	SCREW (M8 X 1.25 X 50)	10-4000358
20	TAB WASHER	14-42981
21	BUSHING	23-889732	23-42992 1
22	SHIFT LEVER Comment: (BLACK)	12021A1
22	SHIFT LEVER Comment: (GRAY)	12021A2
23	WASHER	12-815351
24	STUD (3/8-24 X 1-1/8)	16-8M0034452	16-58152
25	KNOB	98530
26	SHIFT ROD	495636
27	ROD END	48419T
28	BUSHING	23-26856
29	WASHER	12-8M0204649
30	COTTER PIN	18-25191
31	DETENT ASSEMBLY	12016A2
32	TRIM SWITCH Comment: POWER TRIM	87-14645A4
33	NUT Comment: POWER TRIM	49440
34	STOP HARNESS Comment: MANUAL	84-815851A2
35	CABLE Comment: MANUAL	84-821028A2
36	PLUG Comment: MANUAL	815803
37	HORN	816051A2
38	CABLE	84-11149A3
39	ADAPTOR HARNESS Comment: (MANUAL) (USE WHERE APPLICABLE)	84-11149A10
40	CABLE Comment: (RED/YELLOW - 3-1/2 IN. - ELECTRIC)	84-86324A2
41	BRACKET	824930T2
42	SWITCH ASSEMBLY	87-8M0052927	87-813960A 3
43	SCREW (M3.5 X 0.6 X 20)	10-88075020
44	HARNESS ASSEMBLY Comment: (USE WHERE APPLICABLE)	84-824934A1
45	PLATE	824923
46	HARNESS Comment: (USA-S/N-0G437999/BEL-9926999 & BELOW)	84-824934A2
46	HARNESS Comment: (USA-S/N-0G4378000/BEL-9927000 & UP)	84-824934A3

SWIVEL BRACKET AND STEERING ARM

Below is the parts list for Mercury 75 (3 CYL.) SWIVEL BRACKET AND STEERING ARM:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET Comment: (BLACK) NON-POWER TRIM	1499-8M0102865	1499-8710T20 (BLACK) NON-POWER TRIM
1	SWIVEL BRACKET Comment: (GRAY) NON-POWER TRIM	1499-8710T21
1	SWIVEL BRACKET Comment: (BLACK) MANUAL TILT ASSIST/POWER TRIM	1400-8M0220957
1	SWIVEL BRACKET Comment: (GRAY) MANUAL TILT ASSIST/POWER TRIM	3408-818904T2
1	SWIVEL BRACKET Comment: (TRACKER-GRAPHITE GRAY) MANUAL TILT ASSIST/POWER TRIM	3408-818904T4
2	OIL SEAL (LOWER)	26-87735
3	BUSHING	23-818764	23-67669
4	O-RING	25-8M0214926
5	SPACER	23-816039
6	GREASE FITTING	22-8M0169589
7	BUSHING	23-821207	23-99608
8	SCREW (1/4-28 X 1/2)	10-64014
9	STEERING LINK ASSEMBLY	92876A12
10	SCREW (3/8 X 24 X 1-1/8)	10-849838	10-14000
11	NUT	11-8M0204726
12	WASHER	12-34931
13	BUMPER-TOP YOKE Comment: (X-LONG/LL)	8M0000516	88882 1 (X-LONG/LL)
14	SWIVEL PIN/STEERING ARM Comment: (BLACK)	99661A35
14	SWIVEL PIN/STEERING ARM Comment: (GRAY)	99661A36
14	SWIVEL PIN/STEERING ARM Comment: (TRACKER-GRAPHITE GRAY)	99661A35
15	THRUST WASHER	12-816432
16	SHOCK Comment: (BLACK) NO STAMPING	55-99724T15
16	SHOCK Comment: (GRAY) NO STAMPING	55-99724T15
16	SHOCK Comment: (BLACK) STAMPED A12 OR A17	55-99724T15
16	SHOCK Comment: (GRAY) STAMPED A12 OR A17	55-99724T15
17	GROOVE PIN	17-821539	17-13794, 17-19603
18	SHAFT (UPPER)	99625002
19	BOTTOM YOKE Comment: (BLACK)	42961A06
19	BOTTOM YOKE Comment: (GRAY)	42961T2
19	BOTTOM YOKE Comment: (TRACKER-GRAPHITE GRAY)	42961A5
20	RETAINING RING	53-67684
21	BRACKET Comment: NON POWER TRIM	99653
22	SHAFT (LOWER) Comment: NON POWER TRIM	99619
23	GROOVE PIN Comment: NON POWER TRIM	17-821539	17-13794, 17-19603 NON POWER TRIM
24	SCREW (M10 X 1.5 X 30) Comment: NON POWER TRIM	10-4000377
25	WASHER Comment: NON POWER TRIM	12-4002319
25	LOCKWASHER Comment: (JET) NON POWER TRIM	13-400256
26	ANODE ASSEMBLY	97-818298Q1
27	SCREW (M6 X 1 X 25)	10-8M0204707
28	WASHER	12-8M0204649
29	BUMPER-BOTTOM YOKE Comment: (X-LONG/LL)	11288001

THROTTLE LEVER AND LINKAGE

Below is the parts list for Mercury 75 (3 CYL.) THROTTLE LEVER AND LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	THROTTLE LEVER	42946T1
2	SCREW (M5 X 35) Comment: DESIGN II	10-827008
3	CAP Comment: DESIGN II	826264
4	SPRING Comment: DESIGN II	24-826382
5	ADJUSTING SCREW Comment: DESIGN I	10-817582	10-814775, 10-42977 DESIGN I
6	JAM NUT Comment: DESIGN I	11-400211
7	SPARK ADVANCE LEVER	429471
8	ADJUSTING SCREW (M6 X 55)	10-814776	10-42978
9	JAM NUT	11-400212
10	NYLON CAP	42942
11	BUSHING	23-812930A1
12	SCREW (M10 X 45)	10-4007180
13	WASHER	12-42980
14	SPRING	24-55162
15	PIN	42927
16	WASHER	12-35459
17	NUT	11-401386
18	SPARK ADVANCE ROD	878172	42918
19	SWIVEL BASE	93254
20	SWIVEL BALL	93421
21	THROTTLE ROD	878420T	878420, 42919
22	SPRING	24-14159
23	BUSHING	23-8M0215006
24	THROTTLE CAM	42948A7
25	STUD (M6 X 40)	16-8161949
26	WASHER	12-69056
27	NUT	11-401386

TILLER HANDLE ADAPTOR KIT (JET 65)

Below is the parts list for Mercury 75 (3 CYL.) TILLER HANDLE ADAPTOR KIT (JET 65):

Position No.	Part Name	OEM Number	Supersedes
-	TILLER HANDLE ADAPTOR KIT	850000A3
1	THROTTLE SHAFT CABLE	832001A6
2	NUT	11-401386
3	SLIDE	988851
4	BRACKET	828095
5	BRACKET	824930T2
6	CLIP	54-64646
7	SCREW (M6 X 13)	10-40011126
8	CABLE RETAINING BLOCK	828096
9	WASHER	12-8M0204649
10	SCREW (1/4-28 X 1-3/4)	10-71958
11	LOCKWASHER	13-26992
12	SHIFT CABLE RETAINING BLOCK	828094
13	SET SCREW	10-72734
14	WASHER	12-35459
15	NUT	11-35888
16	SWITCH	87-8M0052927	87-813960A 3
17	SCREW	10-88075020
18	PLATE	824923
19	CABLE	84-824934A1

TOOLS - SPECIAL

Below is the parts list for Mercury 75 (3 CYL.) TOOLS - SPECIAL:

Position No.	Part Name	OEM Number	Supersedes
-	CARBURETOR SCALE Comment: (CARBURETOR)	91-36392
-	FLYWHEEL HOLDER Comment: ELECTRICAL/IGNITION	91-52344
-	FLYWHEEL PULLER Comment: ELECTRICAL/IGNITION	91-849154T1
-	MULTI-METER/DVA TESTER Comment: ELECTRICAL/IGNITION	91-99750A1
-	REMOTE STARTER SWITCH Comment: ELECTRICAL/IGNITION	91-52024A1
-	SERVICE TACHOMETER Comment: ELECTRICAL/IGNITION	91-59339
-	SPARK GAP TESTER-EIGHT CHAMBER Comment: ELECTRICAL/IGNITION	91-850439T1
-	SPARK GAP TESTER-SINGLE CHAMBER Comment: ELECTRICAL/IGNITION	91-63998A1
-	SPARK TESTER Comment: ELECTRICAL/IGNITION	91-850439T1
-	TIMING LIGHT Comment: ELECTRICAL/IGNITION	91-99379
-	TPI/CDM TEST HARNESS Comment: ELECTRICAL/IGNITION	84-825207A1
-	ALIGNMENT TOOL Comment: TRIM/TILT SYSTEM	91-112301
-	COLLET (SNAP ON - CG41-14) (#) Comment: TRIM/TILT SYSTEM
-	EXPANDING ROD (SNAP ON - CG41-11) (#) Comment: TRIM/TILT SYSTEM
-	DOWN PRESSURE KIT Comment: TRIM/TILT SYSTEM	91-822778A3
-	MULTI-METER DVA TESTER Comment: TRIM/TILT SYSTEM	91-99750A1
-	SPANNER WRENCH Comment: TRIM/TILT SYSTEM	91-74951
-	TORCH LAMP Comment: TRIM/TILT SYSTEM	91-63209
-	COMPRESSION TESTER Comment: POWERHEAD	91-29287
-	FLYWHEEL HOLDER Comment: POWERHEAD	91-52344
-	FLYWHEEL PULLER Comment: POWERHEAD	91-849154T1
-	LIFTING EYE Comment: POWERHEAD	91-904551
-	LOCKRING INSTALLATION TOOL Comment: POWERHEAD	91-77109A3
-	PISTON PIN TOOL Comment: POWERHEAD	91-74607A3
-	PISTON RING EXPANDER Comment: POWERHEAD	91-24697
-	POWERHEAD STAND Comment: POWERHEAD	91-812549T	91-812549 POWERHEAD
-	PROTECTOR CAP Comment: POWERHEAD	91-24161
-	SNAP RING PLIERS Comment: POWERHEAD	91-24283
-	TORQUE WRENCH (0-150 LB. IN.) Comment: POWERHEAD	91-66274
-	BACKLASH INDICATOR TOOL Comment: GEAR HOUSING	91-8M0053505	91-78473 GEAR HOUSING
-	BACKLASH INDICATOR UPDATE KIT Comment: GEAR HOUSING	91-196601
-	BEARING DRIVER CUP Comment: GEAR HOUSING	91-31106T
-	BEARING INSTALLATION TOOL Comment: GEAR HOUSING	91-13945
-	BEARING INSTALLATION TOOL Comment: GEAR HOUSING	91-14309T02
-	BEARING PRELOAD TOOL Comment: GEAR HOUSING	91-14311A04
-	BEARING PULLER ASSY. Comment: GEAR HOUSING	91-83165T
-	BEARING RACE TOOL Comment: GEAR HOUSING	91-14308T02
-	BEARING REMOVAL & INSTALLATION TOOL Comment: GEAR HOUSING	91-31229A7
-	NUT Comment: GEAR HOUSING	11-24156
-	BEARING DRIVER Comment: GEAR HOUSING	91-15755T
-	DRIVER HEAD Comment: GEAR HOUSING	91-36569T
-	DRIVER HEAD ROD Comment: GEAR HOUSING	91-37323
-	PILOT WASHER Comment: GEAR HOUSING	91-37350T
-	BEARING RETAINING TOOL Comment: GEAR HOUSING	91-43506T
-	DIAL INDICATOR ADAPTOR Comment: GEAR HOUSING	91-83155
-	DIAL INDICATOR GAUGE Comment: GEAR HOUSING	91-58222A1
-	DRIVESHAFT HOLDING TOOL Comment: GEAR HOUSING	91-56775T
-	FORWARD GEAR BEARING INSTALLER Comment: GEAR HOUSING	91-826872
-	OIL SEAL DRIVER Comment: GEAR HOUSING	91-13949
-	OIL SEAL DRIVER Comment: GEAR HOUSING	91-31108T
-	PINION GEAR LOCATING TOOL Comment: GEAR HOUSING	91-12349A05
-	PULLER JAWS Comment: GEAR HOUSING	91-46086A1
-	PULLER PLATE Comment: GEAR HOUSING	91-37241
-	SLIDE HAMMER Comment: GEAR HOUSING	91-34569A1
-	THRUST BEARING Comment: GEAR HOUSING	31-85560
-	TORQUE WRENCH 0-150 LB. IN. Comment: GEAR HOUSING	91-66274
-	WEAR SLEEVE INSTALLATION TOOL Comment: GEAR HOUSING	91-14310T1

TOP COWL (S/N-USA-0G301750/BEL-9885504 & BELOW)

Below is the parts list for Mercury 75 (3 CYL.) TOP COWL (S/N-USA-0G301750/BEL-9885504 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL Comment: (BLACK)(ELECTRIC) SEE NOTE	4012-822360A14	4012-822360A 6 (BLACK)(ELECTRIC) SEE NOTE
1	TOP COWL Comment: (SILVER)(ELECTRIC) SEE NOTE	4012-822360A15	4012-822360A 7, 4012-822360A16, 4012-822360A 9 (SILVER)(ELECTRIC) SEE NOTE
1	TOP COWL Comment: (GRAY)(ELECTRIC)	4012-822360A15	4012-822360A 7, 4012-822360A16, 4012-822360A 9 (GRAY)(ELECTRIC)
1	TOP COWL Comment: (TRACKER-GRAPHITE GRAY)(ELECTRIC)	4025-828353A12	4012-822360A17, 4012-822360A 8 (TRACKER-GRAPHITE GRAY)(ELECTRIC)
1	TOP COWL Comment: (BLACK)(MANUAL)	4026-828354T6
1	TOP COWL Comment: (GRAY)(MANUAL)	100-8M0107148
2	BRACKET-COVER LATCH	819813T1
3	BRACKET-ROLLER LATCH	893763	18173
4	LOCKWASHER	13-53166
5	SCREW	10-90285
6	GUIDE	F481434
7	PUSH NUT	11-91925
8	SCREW (3/4 IN.)	10-822512
9	SOUND BLANKET KIT	823685A02	823685A 1
10	TRAP DOOR Comment: (BLACK) OIL INJECTED	821912A1
10	TRAP DOOR Comment: (SILVER) OIL INJECTED	821912A2
10	TRAP DOOR Comment: (TRACKER-GRAPHITE GRAY) OIL INJECTED	821912A3
11	SEAL-TRAP DOOR Comment: OIL INJECTED	8239671
12	HINGE PIN Comment: OIL INJECTED	17-8220551
13	SCREW Comment: OIL INJECTED	10-82104512
14	WASHER Comment: OIL INJECTED	12-8M0214930
15	UPPER CAP Comment: (BLACK)	8218751
15	UPPER CAP Comment: (SILVER)	821875F2
15	UPPER CAP Comment: (GRAY)	821875F4
15	UPPER CAP Comment: (TRACKER-GRAPHITE GRAY)	821875F3
16	NUT Comment: ( OIL INJECTED)	11-401386
17	CATCH	8239601
18	SCREW (1/2 IN.)	10-878608	10-812832
19	CAP PLUG	19-823865
20	SCREW	10-82130016
21	STARTER ROPE Comment: (MANUAL STARTING)	47341A11

TOP COWL (S/N-USA-0G301751/BEL-9885505 & UP)

Below is the parts list for Mercury 75 (3 CYL.) TOP COWL (S/N-USA-0G301751/BEL-9885505 & UP):

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY Comment: (BLACK-ELECTRIC)	100-8M0107146
1	TOP COWL ASSEMBLY Comment: (SILVER-ELECTRIC)	4025-828353T8
1	TOP COWL ASSEMBLY Comment: (TRACKER-SILVER COWL/BLACK CAP)	4025-828353T9
1	TOP COWL ASSEMBLY Comment: (BLACK-MANUAL)	4026-828354T6
1	TOP COWL ASSEMBLY Comment: (SILVER-MANUAL)	100-8M0107148
2	CAP-COWL	828716A2
3	SEAL	828352
4	SEAL	8283511
5	UPPER CAP Comment: (BLACK)	8218751
5	UPPER CAP Comment: (SILVER)	821875F2
6	BRACKET-COVER LATCH	819813T1
7	BRACKET-ROLLER LATCH	893763	18173
8	LOCKWASHER	13-53166
9	SCREW (5/16-18 X 5/8)	10-90285
10	GUIDE	F481434
11	PUSH NUT	11-91925
12	SCREW (1/4-20 X 1)	10-822512
13	CAP PLUG	19-823865
14	SCREW (M6 X 16)	10-82130016
15	SUPPORT	823830
16	SCREW (M4 X 14.5)	10-8231871
17	LOCKWASHER	13-26995
18	BRACKET	8233941
19	NUT	11-8237515
20	SOUND BLANKET KIT	823685A02	823685A 1
21	STARTER ROPE Comment: (MANUAL STARTING)	47341A11

TRANSOM BRACKET (MANUAL TILT ASSIST)

Below is the parts list for Mercury 75 (3 CYL.) TRANSOM BRACKET (MANUAL TILT ASSIST):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET Comment: (STARBOARD) BLACK	3426-828334T02	3426-828334F 1 (STARBOARD) BLACK
2	TRANSOM BRACKET Comment: (PORT) BLACK	3425-828333T07	3425-828333A 3 (PORT) BLACK
1	TRANSOM BRACKET Comment: (STARBOARD) GRAY	3426-828334F2
2	TRANSOM BRACKET Comment: (PORT) GRAY	3425-828333A4
3	GREASE FITTING Comment: (PORT)	22-8M0169588
4	TILT PIN ASSEMBLY	17-8M0026068	17-49930A 1
5	DECAL-TILT/LOCK	37-830253	37-814743 3, 37-826546
6	TILT TUBE	99170A2
7	NUT	11-826135
8	O-RING	25-45711
9	WAVE WASHER	13-88750
10	NUT	11-826164
11	BOLT (4-1/2 IN.)	10-8M0149747
12	WASHER	12-8M0204648
13	NUT	11-91962
14	SPRING	24-830899
15	TILT LOCK LEVER	8M0109798	821176T02, 821176T 1
16	BUSHING	23-65830
17	SPRING	24-830900
18	KNOB	99633
19	GROOVE PIN	17-99615
20	PIN	17-893709	17-99617
21	NUT	11-826709110	11-846128, 11-F1892, F15142, MVP09802T
22	LINK ROD	8353511
23	ARM	832042
24	BUSHING	23-832040
25	TILT LEVER	832039
26	KNOB	8M0007469	19621
27	MANUAL TILT ASSEMBLY Comment: (BREAKDOWN FOUND ON MANUAL TILT ASSIST COMPONENTS)	835249T1
28	TILT SHAFT (UPPER)	99625002
29	ANCHOR PIN	17-818898
30	PIN	17-821539	17-13794, 17-19603
31	ANCHOR BRACKET Comment: (BLACK)	8M0086406	818771T 1 (BLACK)
31	ANCHOR BRACKET Comment: (GRAY)	818771T8
32	SCREW	10-4000377
33	WASHER	12-4002319
33	LOCKWASHER Comment: (JET)	13-400256
34	NUT	11-40114
35	ANODE ASSEMBLY	97-818298Q1
36	SCREW (M6 X 25)	10-8M0204707
37	WASHER	12-8M0204649

TRANSOM BRACKET (NON POWER TRIM & POWER TRIM)

Below is the parts list for Mercury 75 (3 CYL.) TRANSOM BRACKET (NON POWER TRIM & POWER TRIM):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET Comment: (STARBOARD) BLACK	3401-8718F7
2	TRANSOM BRACKET Comment: (PORT) BLACK	3400-8716A8
1	TRANSOM BRACKET Comment: (STARBOARD) GRAY	3401-8718F8
2	TRANSOM BRACKET Comment: (PORT) GRAY	3400-8716A9
1	TRANSOM BRACKET Comment: (STARBOARD) TRACKER GRAPHITE GRAY	3401-8718F10
2	TRANSOM BRACKET Comment: (PORT) TRACKER GRAPHITE GRAY	3400-8716A10
3	GREASE FITTING Comment: (PORT)	22-8M0169588
4	TILT PIN ASSEMBLY Comment: NON POWER TRIM	17-8M0026068	17-49930A 1 NON POWER TRIM
5	DECAL-TILT/LOCK Comment: NON POWER TRIM	37-830253	37-814743 3, 37-826546 NON POWER TRIM
6	TILT TUBE	99170A2
7	NUT	11-826135
8	O-RING	25-45711
9	WAVE WASHER	13-88750
10	NUT	11-826164
11	BOLT (4-1/2 IN.)	10-8M0149747
12	WASHER	12-8M0204648
13	NUT	11-91962
14	STOP	814207
15	TILT LOCK LEVER Comment: (NON POWER TRIM)	99629A3
16	TILT LOCK LEVER Comment: (POWER TRIM)	8M0109798	821176T02, 821176T 1 (POWER TRIM)
17	WAVE WASHER	13-99611
18	BUSHING	23-65830
19	KNOB	99633
20	GROOVE PIN	17-99615
21	SPRING	24-99622
22	GROOVE PIN	17-99604
23	BOLT ASSEMBLY	10-96930A1
24	NUT	11-23161
25	ANCHOR BRACKET Comment: (BLACK) POWER TRIM	8M0086406	818771T 1 (BLACK) POWER TRIM
25	ANCHOR BRACKET Comment: (GRAY) POWER TRIM	818771T8
25	ANCHOR BRACKET Comment: (TRACKER-GRAPHITE GRAY) POWER TRIM	818771T8
26	SCREW Comment: POWER TRIM	10-4000377
27	WASHER Comment: POWER TRIM	12-4002319
28	NUT Comment: POWER TRIM	11-40114

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
