Mercury 650 (4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL ASSEMBLY	186-1781A2
2	PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL)	19-824928001	19-824928, 19-32297
3	TRIM MOULDING ASSEMBLY	29997A1
4	SPLICER, TRIM MOUNDING - REAR	29998
5	SCREW, DECORATIVE - MOULDING TO BOTTOM COWL	10-29226
6	WASHER, FIBER - MOULDING FASTENING SCREW	12-24671
7	NUT, NYLON CAP - MOULDING FASTENING SCREW	11-29225
8	LOCKWASHER, MOULDING FASTENING SCREW	13-26995
9	NUT, BRASS - MOULDING FASTENING SCREW	11-26419
10	BAFFLE, BOTTOM COWL	30005
11	SCREW, BAFFLE TO BOTTOM COWL	10-21106
12	BRACKET, RECTIFIER MOUNTING	33016
13	SCREW, BRACKET TO BOTTOM COWL (1 1/8")	10-21091
14	SCREW, BRACKET TO BOTTOM COWL ( 1 1/4")	10-56500
15	NUT, RECTIFIER BRACKET MOUNTING SCREW	11-8M0207775
16	BRACKET, PIVOT PIN TO BOTTOM COWL	30003
17	PIN, PIVOT - BOTTOM COWL	17-30004
18	NUT, PIVOT PIN FASTENING	11-20696
19	GASKET, POWERHEAD TO BOTTOM COWL	27-29914
20	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING	10-76621
21	BRACKET, CABLE END ANCHOR	20557
22	SCREW, ANCHOR BRACKET TO BOTTOM COWL	10-29200
23	LEVER, THROTTLE CONTROL	29532
24	LEVER, SHIFT CONTROL	30612
25	BUSHING, THROTTLE AND SHIFT LEVER	23-29529
26	SCREW, THROTTLE AND SHIFT LEVER FASTENING	10-47273
27	WASHER, THROTTLE AND SHIFT LEVER FASTENING SCREW	12-8M0042641	12-29395
28	PIN ASSEMBLY, CLEVIS YOKE	17-30978A1
29	ROLL PIN, CLEVIS YOKE PIN	17-239281
30	SCREW, CLEVIN PIN AND FASTENING	10-20584
31	WASHER, WAVE - PIN FASTENING SCREW	13-29402
32	NUT, PIN FASTENING SCREW	11-8M0204718
33	SHIFT SHAFT ASSEMBLY, UPPER	30789A1
34	ROD (SLEEVE), SHIFT CONTROL END	27714
35	NUT, SHIFT SHAFT END ADJUSTING	11-25168
36	ROD, LINK - SHIFT SHAFT END	30630
37	COTTER PIN, LINK ROD TO SHIFT SHAFT	18-25191
38	WASHER, LINK ROD	12-20583
39	SPRING, DETENT	24-30621
40	SCREW, DETENT SPRING TO BOTTOM COWL	10-98256
41	WASHER, DETENT SPRING SCREW	12-69057
42	NUT, DETENT SPRING SCREW	11-8M0207775
43	NIPPLE, MAGNETO VENT TUBE Comment: 2 ELBOWS (22-25885) WERE USED ON LATER PRODUCTION ENGINES	22-291112
44	ELBOW, MAGNETO VENT TUBE Comment: 2 ELBOWS (22-25885) WERE USED ON LATER PRODUCTION ENGINES	22-996642
44	ELBOW, MAGNETO VENT TUBE Comment: 2 ELBOWS (22-25885) WERE USED ON LATER PRODUCTION ENGINES	22-996642
45	TUBE, VENT - MAGNETO OUTLET (10 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
46	SUPPORT, EXTERNAL WIRING HARNESS	30238
47	SCREW, HARNESS SUPPORT TO BOTTOM COWL	10-26066
48	WASHER, HARNESS SUPPORT FASTENING SCREW	12-20084
49	NUT, HARNESS SUPPORT FASTENING SCREW	11-29250

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMBLY, COMPLETE (KC-2A)	1335-2088
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION	17-20853
4	LEVER, FLOAT (LOWER)	1399-102
5	LEVER, FLOAT (UPPER)	1399-101
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAL	27-25033
8	GASKET, FLOAT BOWL COVER	1399-99
9	COVER, FLOAT BOWL	1399-1133
10	SCREW, FLOAT BOWL COVER (SHORT)	10-22625
11	SCREW, FLOAT BOWL COVER (LONG)	10-25850
12	GASKET, STRAINER COVER (LARGE)	27-25851
13	SCREEN, FILTER	1399-3938
14	GASKET, STRAINER COVER (SMALL)	27-25849
15	COVER, STRAINER	1399-4791A1
16	GASKET, STRAINER COVER SCREW	27-25848
17	SCREW, STRAINER COVER FASTENING	10-25822
18	SCREW, THROTTLE STOP LEVER	1395-6027
19	LEVER, THROTTLE STOP Comment: USE ON LOWER CARBURETOR ONLY -- REPLACED WITH 33148 CLUSTER ON UPPER CARBURETOR	8146791
20	SHAFT, THROTTLE	1399-2012
21	TUBE, IDLE	1399-2178
22	GASKET, IDLE TUBE	27-23180
23	SCREW AND LOCKWASHER, THROTTLE SHUTTER	10-23035
24	SHUTTER, THROTTLE	1399-2180
25	SPRING, IDLE ADJUSTMENT SCREW	24-27160
26	SCREW, IDLE ADJUSTMENT	1399-1713
27	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
28	GASKET, JET CHANNEL PLUG SCREW	27-28406
29	JET, MAIN FUEL (.073)	1399-2013
29	JET, MAIN FUEL (.071) - STANDARD	1399-2011
29	JET, MAIN FUEL (.069)	1399-1962
29	JET, MAIN FUEL (.067)	1399-1467
30	GASKET, MAIN FUEL JET	27-28409
31	NOZZLE, MAIN	1399-2179
32	SCREW, PLUG - MAIN NOZZLE	10-28846
33	SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)	24-26890
33	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)	24-20869
34	WELCH PLUG, BODY CHANNEL	19-32299
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1399-2015
--	REPAIR PARTS KIT (1 PER CARBURETOR)	1395-92621
35	GASKET, CARBURETOR FLANGE	27-31402
36	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 650 (4 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number	Supersedes
1	CHOKE SOLENOID, TOP COWL	29690
2	TERMINAL, CHOKE SOLENOID LEAD	30050
3	SPACER, CHOKE SOLENOID SCREW	23-33018
4	SCREW, CHOKE SOLENOID TO TOP COWL (1 1/4")	10-33024
5	LOCKWASHER, CHOKE SOLENOID SCREW	13-26991
6	SCREW, CHOKE SOLENOID TO TOP COWL ( 1 3/8")	10-24770
7	LOCKWASHER, CHOKE SOLENOID SCREW	13-26992
8	GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR	397-421A2
9	CLIP, CHOKE SOLENOID WIRE	54-648552
10	"D" WASHER, WIRE CLIP FASTENING SCREW	8M0084613	69205
11	SCREW, WIRE CLIP TO TOP COWL	10-24239
12	"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL	54-22783
13	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID	48315A4
14	WASHER, PLUNGER AND LINK	12-30164
15	COTTER PIN, LINK TO UPPER CHOKE LEVER	18-26953
16	KNOB, CHOKE ROD	90242A1
17	GROMMET, CHOKE ROD	25-20116
18	"U" LINK, CHOKE KNOB TO CHOKE ROD	22462
19	SCREW, "U" LINK TO CHOKE KNOB	10-69022
20	LOCKWASHER, "U" LINK SCREW	13-26996
21	COTTER PIN, "U" LINK TO CHOKE ROD	18-26953
22	SHUTTER, CHOKE - CARBURETOR	47804
23	BUSHING, NYLON - UPPER CHOKE SHUTTER	23-30438
24	ROD, CHOKE	33003
25	RIVET, CHOKE SHUTTER TO CHOKE ROD	17-25391
26	STUD, CARBURETOR - CHOKE SHUTTER PIVOT	16-30172
27	WASHER, CHOKE SHUTTER CARBURETOR STUD	12-30164
28	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
29	SPRING, TENSION - CHOKE ROD 1	24-32428
30	STUD, CHOKE ROD SPRING TO CARBURETOR	10-657461
31	SPACER, CHOKE ROD SPRING STUD	23-32427
32	NUT, CHOKE ROD SPRING TO CARBURETOR STUD	11-8M0207775
33	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)	74371
34	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
35	CARBURETOR ASSEMBLY, COMPLETE	1335-2088
36	THORTTLE PICK-UP BRACKET ASSEMBLY	53649A2
37	SCREW, THROTTLE BRACKET MOUNTING	10-29239

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-3296A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	SHIM, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-22053
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT LOCK PIN BUMPER 1	32-28052
14	SWIVEL BRACKET ASSEMBLY	1453-2688A1
15	FITTING, GREASE	22-69059
16	OIL SEAL	26-31783
17	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
18	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
19	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-31772A1
20	BUMPER, TOP YOKE	28203
21	BOLT, TOP YOKE TO UPPER MOUNT	10-30453
22	NUT, TOP YOKE BOLT FASTENING	11-8M0204653
23	WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)	12-31815
24	BOOT, RUBBER - UPPER SHIFT SHAFT	31234
25	SERIAL PLATE	38-56267
26	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
27	STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
28	SCREW, STRAP STOP TO DRIVE SHAFT HOUSING	10-28200
29	NUT, STRAP STOP FASTENING SCREW	11-25269
30	YOKE, BOTTOM	31775
31	NUT, SWIVEL PIN RETAINING	11-71956
32	SPRING, REVERSE LOCK TENSION	24-29821
33	REVERSE LOCK ASSEMBLY	26903A4
34	SHAFT, REVERSE LOCK PIVOT	56349
35	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
36	TILT STOP LEVER ASSEMBLY	30126A1
37	SCREW, TILT STOP LEVER ANCHOR	10-30128
38	WASHER, WAVE - LEVER ANCHOR SCREW	13-31030
39	NUT, LEVER ANCHOR SCREW	11-29250
40	PIN, UPPER SHOCK MOUNTING	55-28416
41	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
42	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
43	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
44	SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN	10-28450
45	SHOCK ABSORBER	55-58780A7
46	BUSHING, RUBBER - SHOCK ABSORBER (LOWER)	23-28198
47	BUSHING, RUBBER - SHOCK ABSORBER (UPPER)	23-32171
48	PIN, LOWER SHOCK MOUNTING	55-696531
49	WASHER, LOWER BUSHING RETAINER (INNER)	12-8M0204695
50	BOLT, CLAMP BRACKET TO BOAT TRANSOM	10-68298
51	WASHER, CLAMP BRACKET BOLT	12-68410
52	NUT, CLAMP BRACKET BOLT	11-82670912

COWLING AND FRONT COVER (650E)

Below is the parts list for Mercury 650 (4 CYL.) COWLING AND FRONT COVER (650E):

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	2182-7927A8
2	EMBLEM, FRONT COVER	26183A5
3	SCREW, BRACKET TO FRONT COVER	10-29226
4	LOCKWASHER, BRACKET FASTENING SCREW	13-26995
5	NUT, BRACKET FASTENING SCREW	11-26419
6	BUMPER, RUBBER-FRONT COVER BRACKET	29345
7	KNOB, COWL FRONT COVER FASTENING	56848
8	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
9	WASHER, COVER FASTENING KNOB (STEEL)	12-26825
10	SPRING, TENSION-FASTENING KNOB	24-30772
11	ROLL PIN, TENSION SPRING TO KNOB	17-29077
12	BLANKET, SOUND ABSORBING-FRONT COVER	33551
13	STRIP, SOUND ABSORBING	31095
14	WRAP AROUND COWL ASSEMBLY	2110-2383A2
15	HANDLE, COWL LATCH	46785A1
16	"E" RING, COWL LATCH HINGE PIN	53-21058
17	PIN, HINGE-COWL LATCH HANDLE	17-21057
18	SWIVEL, COWL LATCH	46785A1
19	HOOK, COWL LATCH FASTENING	30413
20	BLANKET, SOUND ABSORBING-WRAP AROUND COWL	31935
21	DECAL, WRAP AROUND COWL - PORT	37-56433A2
22	DECAL, WRAP AROUND COWL - STARBOARD	37-56433A2
23	DECAL, WRAP AROUND COWL - REAR	37-56433A2
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1
--	ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING	92-271091

COWLING AND FRONT COVER (650E-1)

Below is the parts list for Mercury 650 (4 CYL.) COWLING AND FRONT COVER (650E-1):

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	2182-7927A8
2	DECAL, "MERC 650"	37-37844
3	DECAL, FRONT COVER EMBLEM	37-37838
4	KNOB, COWL FRONT COVER FASTENING	56849
5	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
6	WASHER, COVER FASTENING KNOB (STEEL)	12-27129
7	SPRING, TENSION - COVER FASTENING KNOB	24-30772
8	ROLL PIN TENSION SPRING TO KNOB	17-29077
9	BLANKET, SOUND ABSORBING - FRONT COVER	38674
10	STRIP, SOUND - LOWER SECTION	31095
11	SEAL, SOUND - UPPER SECTION	35552
12	WRAP AROUND COWL ASSEMBLY	2110-2383A2
13	HANDLE, COWL LATCH	46785A1
14	PIN, HANGE - HANDLE TO COWL LATCH	17-21057
15	"E" RING, HANDLE TO COWL LATCH HINGE PIN	53-21058
16	SWIVEL, COWL LATCH	46785A1
17	HOOK, COWL LATCH FASTENING	30413
18	DECAL, WRAP AROUND COWL - STARBOARD	37-56433A2
19	DECAL, WRAP AROUND COWL - PORT	37-56433A2
20	BLANKET, SOUND ABSORBING - WRAP AROUND COWL	31935
--	GLUE, ADHESIVE - SOUND BLANKET FASTENING	92-86166Q1

CRANKSHAFT, PISTON AND CONNECTING ROD

Below is the parts list for Mercury 650 (4 CYL.) CRANKSHAFT, PISTON AND CONNECTING ROD:

Position No.	Part Name	OEM Number
1	CRANKSHAFT	418-3249A3
2	KEY, FLYWHEEL DRIVE	28-45554
3	MAIN BEARING ASSEMBLY (VALVE TYPE)	533-2761A3
4	DOWEL PIN, MAIN BEARING	17-20032
5	SCREW, MAIN BEARING CLAMPING	10-25313
6	NUT, MAIN BEARING CLAMPING SCREW	11-29469
7	REED SET, MATCHED - MAIN BEARING	34-32203A1
8	REED STOP, MAIN BEARING REED VALVES	34-64632
9	SCREW, REED STOP MOUNTING	10-77280
10	NUT, REED STOP MOUNTING SCREW	11-29469
11	CENTER MAIN BEARING ASSEMBLY	531-1884A3
12	DOWEL PIN, CENTER MAIN BEARING	17-20032
13	BEARING, NEEDLE	29-714221
14	RACE, OUTER (PAIR)	26113T
15	RING, SNAP - OUTER RACE CLAMPING	53-26933
16	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
17	NUT, MAIN BEARING CLAMPING SCREW	11-8M0207775
18	DOWEL PIN (STEPPED)	17-31245
19	"O" RING, DRIVE SHAFT SPLINE	25-8M0214919
20	PISTON AND PISTON PIN ASSEMBLY	732-2735A2
21	LOCK RING, PISTON PIN	40-32118
22	RING, PISTON	39-32921
23	CONNECTING ROD AND CAP ASSEMBLY	611-1885A4
24	SCREW, CAP TO CONNECTING ROD	10-45379
25	NUT, CONNECTING ROD SCREW	11-20061
26	BEARING, NEEDLE - CRANKPIN	29-47897
27	BEARING, NEEDLE - PISTON PIN	29-39656
28	WASHER, NEEDLE LOCATING	12-29681
--	PISTON AND PISTON PIN ASSEMBLY (.015) Comment: OVERSIZE PISTON AND RING	732-2739A2
--	RING, PISTON (.015) Comment: OVERSIZE PISTON AND RING	39-33945

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	END CAP ASSEMBLY, UPPER	1128-1890A1
2	OIL SEAL	26-41953
3	"O" RING	25-31305
4	BALL BEARING	30-62567T
5	SHIM, UPPER END CAP TO CRANKCASE (.002-3-5-10)	15-31283A1
6	SCREW, UPPER END CAP MOUNTING	10-30225
7	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	834-2412A3
8	BUSHING, CRANKCASE - COWL MOUNTING STUD	23-26348
9	DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING	17-20032
10	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
11	PLUG, PIPE - WATER PRESSURE HOLE (CYLINDER BLOCK)	22-328022
12	STUD, CARBURETOR MOUNTING (1 1/4")	16-21831
13	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")	16-64281
14	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")	16-26134
15	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")	16-26135
16	EXTENSION, EXHAUST - CYLINDER BLOCK Comment: N.L.A.-ORDER 36066A1 KIT	36066A1
16	EXTENSION, EXHAUST - CYLINDER BLOCK	36066A1
--	GASKET, EXHAUST EXTENSION TO CYLINDER BLOCK	27-36059
--	LOCKWASHER, EXHAUST EXTENSION FASTENING SCREW	13-8M0204647
17	SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (5/16 - 18 X 3/4	10-25299
17	SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (1/4 - 20 X 3/4)	10-29282
18	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")	10-26132
18	SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")	10-32293
18	SCREW, CRANKCASE TO CYLINDER BLOCK (2")	10-21449
19	SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")	10-33008
--	WASHER, GROUND STRAP AND CRANKCASE SCREW	12-20084
20	NUT, CRANKCASE TO CYLINDER BLOCK SCREW	11-29250
21	SCREW, MAIN BEARING LOCKING	10-36351
22	TAB WASHER, BEARING LOCKING SCREW	14-20091
23	SCREW, CENTER MAIN BEARING LOCKING	10-20359
24	END CAP ASSEMBLY, LOWER	1126-1751A1
25	CHECK VALVE ASSEMBLY, END CAP	21-28481A1
26	OIL SEAL, LOWER	26-29478
27	OIL SEAL, UPPER	26-41953
28	"O" RING	25-20081
29	BALL BEARING	30-63742T
30	SHIM, LOWER END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
31	SCREW, LOWER END CAP MOUNTING	10-30225
32	TUBE, BALANCE - MAIN BEARING	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
33	ELBOW, BALANCE TUBE TO MAIN BEARING SCREW	22-996642
34	CLAMP, BALANCE TUBE TO ELBOW	54-20386
35	GASKET, CYLINDER BLOCK TO MAINFOLD PLATE	27-33529
36	PLATE, EXHAUST MANIFOLD	37447
37	GASKET, MANIFOLD PLATE TO MAINFOLD COVER	27-33530
38	COVER, EXHAUST MAINFOLD	30190
39	SCREW, MANIFOLD PLATE AND COVER MOUNTING	10-28667
40	SCREW, MANIFOLD PLATE, COVER AND CLAMP MOUNTING	10-28666
41	WASHER, PLATE, COVER AND CLAMP MOUNTING SCREW	12-20028
42	CLAMP, SPARK PLUG LEADS TO COVER	54-29425
43	GROUND STRAP, CYLINDER BLOCK TO BOTTOM COWL	30109
44	SWITCH, MERCURY	58124A1
45	CLAMP, MERCURY SWITCH TO MANIFOLD COVER	54-22875
46	"D" WASHER, CLAMP FASTENING SCREW	8M0084613	69205
47	SCREW, MERCURY SWITCH CLAMP TO MAINFOLD COVER	10-20401
44	SWITCH, MERCURY	58124A1
47	SCREW, MERCURY SWITCH TO MANIFOLD COVER	10-28708
48	GASKET, CYLINDER BLOCK COVER	27-33015
49	CYLINDER BLOCK COVER ASSEMBLY	1012-2077A1
50	BUSHING, COVER - COWL MOUNTING STUD	23-26348
51	SCREW, CYLINDER BLOCK COVER MOUNTING	10-21091
52	NUT, COVER MOUNTING SCREW	11-8M0207775
53	GASKET, TRANSFER PORT COVER	27-31304
54	COVER, TRANSFER PORT	31288
55	SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")	10-20540
56	CHECK VALVE ASSEMBLY, UPPER - BLEED HOSE	22-62365A1
57	CHECK VALVE ASSEMBLY	21-28481A1
58	HOSE, CYLINDER BLEED (8 1/2")	32-9912688
59	CONNECTOR, LOWER - BLEED HOSE	22-67902
60	CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR	54-20387

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT ASSEMBLY	1540-2384A2
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-56295
3	COVER, TRIM - DRIVE SHAFT HOUSING	35638A1
4	SCREW, TRIM COVER TO DRIVE SHAFT HOUSING	10-30742
5	DECAL, "FULL GEAR SHIFT" - STARBOARD	37-31924
6	DECAL, "FULL GEAR SHIFT" - PORT	37-31925
1	DRIVE SHAFT HOUSING ASSEMBLY	1540-2384A2
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-56295
3A	TRIM COVER ASSEMBLY, DRIVE SHAFT HOUSING	35638A1
4A	DECAL, TRIM COVER - PORT AND STARBOARD	37-35393
5A	SCREW, TRIM COVER TO DRIVE SHAFT HOUSING	10-30742
7	TUBE, WATER INLET	32-33013
8	SEAL, RUBBER - WATER INLET TUBE	26-26207
9	SLEEVE, RUBBER - WATER INLET TUBE	23-29591
10	GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL	27-26198
11	WASHER, POWERHEAD STUDS	12-20086
12	NUT, POWERHEAD STUDS	11-8M0204726
13	NUT, POWERHEAD STUDS	11-23161
14	PLUG, PLASTIC - WATER PICK-UP SCREW HOLE	19-32298
15	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
16	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
17	ROD, PUSH - REVERSE LOCK	30721
18	PIN, REVERSE LOCK LEVER	17-30615
19	SPRING, TENSION - PUSH ROD	24-30618
20	LEVER, REVERSE LOCK	52920
21	WASHER, PUSH ROD	12-20546
22	COTTER PIN, PUSH ROD TO REVERSE LOCK	18-25191
23	BOOT, RUBBER - PUSH ROD	30614
24	RETAINER, PUSH ROD RUBBER BOLT	31039
25	CAP, RUBBER - UPPER MOUNT BOLT NUT	25305
26	NUT, UPPER MOUNT BOLT	11-8M0204653
27	WASHER, UPPER MOUNT BOLT	12-30514
28	WASHER, RUBBER - UPPER MOUNT BOLT	12-30516
29	WASHER, UPPER MOUNT BOLT	12-30515
30	COVER, UPPER MOUNT - OUTSIDE HALF	26218
31	COVER, UPPER MOUNT - INSIDE HALF	26217
32	MOUNT, RUBBER - UPPER	37396
33	PACKING, "U" CUP	24929
34	SCREW, UPPER MOUNT COVER (1 5/8")	10-20012
35	SCREW, UPPER MOUNT COVER (2 1/8")	10-28775
36	WASHER, UPPER MOUNT COVER SCREWS	12-8M0204649
37	NUT, UPPER MOUNT COVER SCREWS	11-35888
38	BUMPER, RUBBER - MOUNTING SCREW	25067
39	SCREW, UPPER MOUNT (5 1/2")	10-75284
40	MOUNT, RUBBER - LOWER	37397
41	NUT, MOUNTING SCREW	11-25096
42	COVER, LOWER MOUNT - PORT SIDE	26336
42	COVER, LOWER MOUNT - STARBOARD SIDE	26337
43	SCREW, LOWER MOUNT COVER FASTENING	10-29256
44	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	35608
45	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
46	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING	10-29256
47	NUT, LOWER MOUNT CLAMP COVER	11-35521
48	COVER, LOWER MOUNT CLAMP	35474T
49	SCREW, COVER TO LOWER MOUNT CLAMP	10-29722

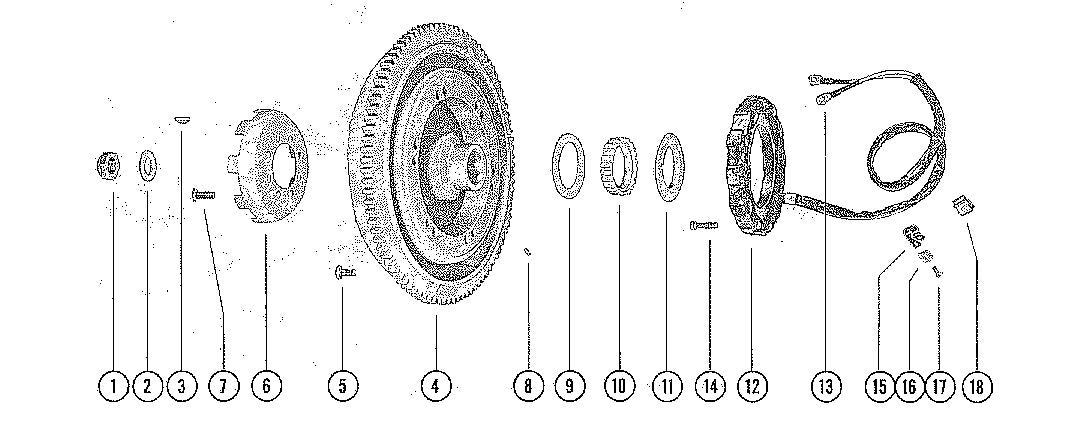

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 650 (4 CYL.) FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	845-3304A1
2	WASHER, FLYWHEEL NUT	12-33001
3	KEY, FLYWHEEL DRIVE	28-45554
4	FLYWHEEL ASSEMBLY, COMPLETE	216-2094A5
5	SCREW, FLEXIBLE PLATE TO FLYWHEEL	10-32156
6	RATCHET ASSEMBLY	50-33000A1
7	SCREW, RATCHET TO FLYWHEEL	10-32417
8	PIN, DOWEL - PULLEY LOCATING	17-26618
9	FLANGE, FLYWHEEL PULLEY	29788
10	PULLEY, FLYWHEEL	30306
11	HUB, FLYWHEEL PULLEY	29787
12	STATOR, ALTERNATOR	398-2171
13	TERMINAL, STATOR LEAD WIRE	30050
14	SCREW, STATOR TO UPPER END CAP	10-57021
15	CLIP, STATOR LEAD TO CRANKCASE FLANGE	54-26550
16	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
17	SCREW, STATOR LEAD CLIP TO CRANKCASE FLANGE	10-62568
18	"S" CLIP, STATOR LEAD TO BOTTOM COWL	54-22783

FUEL PUMP AND FUEL LINE ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) FUEL PUMP AND FUEL LINE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY - UPPER	30269A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK - FUEL PUMP	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAGM, FUEL PUMP	23014
8	FUEL PUMP ASSEMBLY - LOWER	30461A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK - FUEL PUMP	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAGM, FUEL PUMP	23014
9	COVER, FUEL PUMP	30275
10	GASKET, FUEL PUMP COVER	27-30276
11	SCREW, FUEL PUMP MOUNTING (1 1/2") - UPPER/LOWER PUMP	10-29878
12	SCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMP	10-30274
13	SCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMP	10-30273
14	FUEL LINE ASS'Y, UPPER PUMP TO UPPER CARBURETOR (13 1/2")	32-33154A1
15	ELBOW (45 ), UPPER CARBURETOR	22-8M0123050
16	ELBOW, UPPER FUEL PUMP OUTLET	22-30174
17	SLEEVE, FUEL PUMP OUTLET ELBOW	22-30175
18	NUT, FUEL PUMP OUTLET ELBOW	22-30177
19	FUEL LINE ASS'Y, LOWER PUMP TO UPPER PUMP (12 3/8")	32-31552A1
20	FUEL LINE ASS'Y, LOWER PUMP TO LOWER CARBURETOR (19 3/4")	32-31553A1
21	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET	32-30176
22	ELBOW, LOWER FUEL PUMP INLET	22-30174
23	SLEEVE, FUEL PUMP INLET ELBOW	22-30175
24	NUT, FUEL PUMP INLET ELBOW	22-30177
25	ADAPTOR, CHECK UNIT (FUEL LINE)	30186
26	STEM, CHECK UNIT ADAPTOR	30187
27	"O" RING, ADAPTOR STEM	25-16524
28	SPRING, ADAPTOR STEM	24-30189
29	CUP WASHER, ADAPTOR	30188
30	SCREW, ADAPTOR TO BOTTOM COWL	10-56500
31	NUT, ADAPTOR FASTENING SCREW	11-8M0207775
32	FUEL LINE ASSEMBLY, UPPER TO LOWER CARBURETOR (6")	32-31550A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 650 (4 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) Comment: 1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31	1623-2022A7
1	GEAR HOUSING ASSEMBLY	1623-2022A1
2	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")	16-57921
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")	16-8M0133358
4	STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")	16-30669
5	STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")	16-306671
6	BEARING, ROLLER - DRIVE SHAFT	31-32898T
7	DRIVE SHAFT (STANDARD)	45-38459
8	GEAR, PINION - DRIVE SHAFT	43-31419
9	NUT, PINION GEAR TO DRIVE SHAFT	11-30932
10	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-30278A1
11	BEARING, BALL - DRIVE SHAFT	30-63326T
12	RING, RETAINING - BALL BEARING	53-30726
13	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32438
14	"O" RING, WATER PUMP BASE	25-8M0204651
15	WATER PUMP ASSEMBLY	46-48758A1
16	OIL SEAL, WATER PUMP BASE	26-94038
17	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-29596T
18	GASKET, LOWER - WATER PUMP BASE TO FACE PLATE	27-8M0090319	27-85608 1
19	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	8M0204677
20	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-858524	27-85609 1, 27-85609B 1
21	WATER PUMP BODY ASSEMBLY	46-96148A8
22	INSERT, WATER PUMP BODY	30915
23	OIL SEAL, WATER PUMP BODY	26-16977
24	IMPELLER, WATER PUMP	47-89984T4
25	PIN, IMPELLER DRIVE	17-8M0214994
26	SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)	10-30720
27	LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)	13-26992
28	NUT, WATER PUMP BODY FASTENING STUDS (1/4)	11-29598
29	LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)	13-8M0204647
30	NUT, WATER PUMP BODY FASTENING STUD (5/16)	11-28770
31	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
32	SEAL, RUBBER - WATER PUMP BODY	26-38970
33	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
34	"O" RING, UPPER - DRIVE SHAFT	25-8M0214919
35	SHAFT, SHIFT - LOWER	25136
36	CLIP, RETAINING - SHIFT SHAFT	53-29641
37	"O" RING, SHIFT SHAFT BUSHING	25-25439
38	BUSHING ASSEMBLY, SHIFT SHAFT	23-8M0112749
39	OIL SEAL, SHIFT SHAFT BUSHING	26-892361
40	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-31266
41	CAM, LOWER - REVERSE LOCKING	52918
42	CAM, UPPER - REVERSE LOCKING	52919
43	SPACER, NYLON - REVERSE LOCKING CAM	23-30607
44	PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE	22-390721
45	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
46	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
47	SCREW, GEAR HOUSING FLUSHING HOLE	10-29608
48	GASKET, GEAR HOUSING FLUSHING HOLE SCREW	27-8M0214916
49	SEAL, GEAR HOUSING FLUSHING HOLE	26-8M0214917

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 650 (4 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) Comment: 1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31	1623-2022A7
1	GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)	1623-2022A1
50	CAM, SHIFT	760394
51	FOLLOWER, CAM	30625
52	SLIDE, CROSS PIN	30624
53	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
54	SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)	15-30923A1
55	FORWARD GEAR ASSEMBLY	43-53100A3
56	BEARING, ROLLER - FORWARD GEAR	31-30895T
57	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
58	CUP, TAPERED ROLLER BEARING	31-31092
59	RATCHET, SLIDING CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
60	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
61	SPRING, RETAINING - CROSS PIN	24-30893
62	SHAFT, PROPELLER	44-47900A2
--	REVERSE GEAR ASSEMBLY, COMPLETE	43-31887
63	REVERSE GEAR ASSEMBLY	43-31887
64	BEARING, BALL - REVERSE GEAR	30-31265
65	WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING	12-71143A1
66	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-29955A1
67	"O" RING, BEARING CARRIER	25-29976
68	BEARING CARRIER ASSEMBLY	31284T1
69	BEARING, ROLLER - BEARING CARRIER	31-30956T
70	OIL SEAL, BEARING CARRIER	26-8M0204670
71	KEY, LOCATING - BEARING CARRIER	28-30281
72	WASHER, GEAR HOUSING COVER	12-29957
73	COVER, GEAR HOUSING	52699
74	WASHER, THRUST - BEARING CARRIER	12-31013
75	THRUST HUB AND WASHER ASSEMBLY	30581A1
76	WASHER, CUPPED - THRUST HUB	12-29590
77	WASHER, SPLINED - PROPELLER SHAFT	12-31211Q03
78	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
79	NUT, PROPELLER	11-29594
80	TRIM TAB, GEAR HOUSING	97-31640Q4
81	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-32470
82	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")	10-30206

MAGNETO ADAPTOR AND PILOT ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) MAGNETO ADAPTOR AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number
1	SHAFT, DRIVE - MAGNETO	45-33007
2	MAGNETO PILOT ASSEMBLY	39561A1
3	SPRING, HORSESHOE - MAGNETO PILOT	24-27944
4	PIN, ANCHOR - HORSESHOE SPRING TO PILOT	17-27962
5	STOP, SPARK ADVANCE - MAGNETO PILOT	33020
6	BEARING, BALL - MAGNETO PILOT	30-20066
7	SCREW, PILOT ASSEMBLY TO MAGNETO	10-30110
8	ECONOMISER COLLAR AND PIN ASSEMBLY	33870A1
8	ECONOMISER COLLAR AND PIN ASSEMBLY	48103A1
9	PIN, ECONOMISER COLLAR - SPRING RETAINER	17-27961
10	FITTING, GREASE - ECONOMISER COLLAR	22-25094
11	THROTTLE ACTUATOR ASSEMBLY	33147A1
12	BUSHING, NYLON - THROTTLE ACTUATOR	23-26602
13	SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR	10-31009
14	ADAPTOR, MAGNETO	30408
15	FITTING, GREASE - MAGNETO ADAPTOR	22-25094
16	SCREW, MAGNETO ADAPTOR AND PILOT TO CRANKCASE	10-78841
17	WASHER, MAGNETO ADAPTOR AND PILOT FASTENING SCREW	12-20084
18	NUT, MAGNETO ADAPTOR AND PILOT FASTENING SCREW	11-22053
19	WASHER, MAGNETO PILOT	12-27939
20	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
21	WASHER, WAVE - MAGNETO BALL BEARING TENSION	13-27959
22	CAP, MAGNETO ADAPTOR AND PILOT FASTENING	27955
23	SPACER, DRIVEN PULLEY	23-29909
24	DRIVEN PULLEY ASSEMBLY	29906A1
25	PIN, ROLL - FLANGE LOCATING	17-29908
26	FLANGE, DRIVEN PULLEY	29907
27	KEY, MAGNETO DRIVING	28-29910
28	LOCKWASHER, PULLEY CLAMPING SCREW	13-26996
29	SCREW, PULLEY CLAMPING	10-41506
30	BELT, TIMING	20140

MAGNETO ASSEMBLY (INTERNAL PARTS)

Below is the parts list for Mercury 650 (4 CYL.) MAGNETO ASSEMBLY (INTERNAL PARTS):

Position No.	Part Name	OEM Number
-	MAGNETO ASSEMBLY, COMPLETE (4D-4)	394-2271A2
1	FRAME, MAGNETO HOUSING	394-1570
2	SCREW, SET - COIL BRIDGE	10-25510
3	LOCKWIRE, COIL BRIDGE SET SCREW	394-1051
4	BEARING, BALL (DRIVE END)	30-24998
5	MAGNETIC ROTOR AND SHAFT	394-1067A1
6	BEARING, BALL (OPPOSITE DRIVE END)	30-49090
7	SUPPORT, BALL BEARING	394-1637
8	SCREW AND LOCKWASHER, SUPPORT TO FRAME	10-25509
9	WIRE ASSEMBLY, PRIMARY GROUND LEAD	84-60466A13
10	SCREW, PRIMARY GROUND	10,10-29182
11	WASHER, PRIMARY GROUND TERMINAL HOLDING	12-30267
12	INSULATOR, PRIMARY GROUND TERMINAL	394-1579
13	WASHER, INSULATING - PRIMARY GROUND SCREW	12-29099
14	BUSHING, INSULATING - HOUSING FRAME	23-62769
15	WASHER, PRIMARY GROUND SCREW	12-26014
16	NUT, LOCK - PRIMARY GROUND SCREW	11-24656
17	NUT, PRIMARY GROUND SCREW	11-68219
18	COIL ASSEMBLY	394-1128A1
19	CLIP, COIL - HIGH TENSION	394-1050
20	LOCKWASHER, COIL TERMINAL	13-23836
21	NUT, COIL CLIP FASTENING	394-1131
22	BREAKER ASSEMBLY	393-1504A11
23	GROMMET, PLASTIC - BREAKER BRACKET	393-1586
24	STUD, PRIMARY LEAD/TENSION SPRING FASTENING	16-29230
25	NUT, PRIMARY LEAD FASTENING	11-29236
26	HOLDER AND CAM WICK ASSEMBLY	394-1106A1
27	WASHER, BREAKER PIVOT PIN	12-26439
28	COTTER PIN, BREAKER TO PIVOT PIN	18-26953
29	SCREW, BREAKER HOLDER TO HOUSING	10-20597
30	CONDENSER	394-1130A1
31	SCREW AND LOCKWASHER, CONDENSER FASTENING	10-25509
32	GASKET, MAGNETO COVER	27-29166
33	COVER, MAGNETO	394-1577A2
34	SCREW, COVER TO FRAME	10-29418
35	TAB WASHER, COVER FASTENING SCREW	14-29157
36	MAGNETO ROTOR ASSEMBLY	394-2602A1
37	CLIP, SPRING	394-1110
38	GASKET, END CAP COVER	27-25725
39	END CAP COVER ASSEMBLY	394-1561A2
40	BRUSH AND SPRING ASSEMBLY	394-1056A1
41	SCREW, HIGH TENSION CABLE FASTENING	10-25517
42	PIPE PLUG, END CAP COVER (NOT REQUIRED ON LATER MODELS)	29121
43	SCREW, END CAP COVER TO MAGNETO COVER	10-29418
44	TAB WASHER, COVER FASTENING SCREW	14-29157
45	ELBOW, PLASTIC - MAGNETO COVER VENT	22-996642

MAGNETO VERTICAL LINKAGE AND EXTERNAL PARTS

Below is the parts list for Mercury 650 (4 CYL.) MAGNETO VERTICAL LINKAGE AND EXTERNAL PARTS:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE, THROTTLE STOP	53458
2	DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)	37-29315
3	SCREW, ADJUSTING - THROTTLE STOP	10-24933
4	NUT, THROTTLE STOP ADJUSTING SCREW	11-20088
5	CAP, NYLON - ADJUSTING SCREW	26852
6	SCREW, THROTTLE STOP PLATE TO ADAPTER (5/8") Comment: SEE BLOCK COMMENTS	10-69035
7	SWIVEL AND LINK ROD ASSEMBLY	25996A1
8	NUT, ADJUSTING - UPPER LINK ROD	11-25168
9	ROD, LINK - UPPER	27949
9	ROD, LINK - UPPER	35626
10	SWIVEL, LINKAGE - ECONOMISER COLLAR	27947
11	SWIVEL, UPPER AND LOWER LINK RODS	27948
12	LEVER, LINKAGE - UPPER	30582
13	WASHER, UPPER AND LOWER SWIVEL	12-8M0204649
14	NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET	11-8267089
15	SCREW, SET - LINKAGE LEVER	10-25781
16	SHAFT, VERTICAL	33019
17	TUBE, VERTICAL SHAFT	32-35899
18	BUSHING, NYLON - VERTICAL SHAFT	23-26954
19	WASHER, VERTICAL SHAFT - CENTER	12-20553
20	ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS	17-25319
21	LEVER, LINKAGE - LOWER	30788
22	ROD, LINK - LOWER	33004
23	SPACER, VERTICAL SHAFT - LOWER	23-33017
24	SPARK PLUG	33-813413	33-30578
25	PROTECTOR, SPARK PLUG	85-63709A1
26	CLIP, HIGH TENSION LEAD CABLE FASTENING	54-29425
27	CABLE, HIGH TENSION LEAD - SPARK PLUG	84-821945A46	84-813706A46, 52615A 1
28	"O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER	25-25429
29	MAGNETO ASSEMBLY, COMPLETE (4D-4)	394-2271A2
30	CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO	54-25231
31	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
32	SCREW, LEAD CLIP TO MAGNETO	10-20401
33	GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE	394-1134A1

MERC 650EL PARTS LIST

Below is the parts list for Mercury 650 (4 CYL.) MERC 650EL PARTS LIST:

Position No.	Part Name	OEM Number
-	SWIVEL BRACKET ASSEMBLY	1447-4771A1
-	SHIFT SHAFT ASSEMBLY	30790A1
-	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-31773A1
-	PIN, LOWER SHOCK MOUNTING	55-28414
-	SCREW, LOWER SHOCK PIN	10-28424
-	NUT, LOWER SHOCK PIN SCREW	11-8267089
-	DRIVE SHAFT HOUSING ASSEMBLY	1541-2385A4
-	DRIVE SHAFT HOUSING ASSEMBLY	1541-2385A4
-	TUBE, WATER INLET	32-33014
-	ROD, PUSH- REVERSE LOCK	30608
-	DRIVE SHAFT	45-38460
-	SHIPPING CARTON	94-33874

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES

Below is the parts list for Mercury 650 (4 CYL.) STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNESS, INTERNAL	33155
2	TERMINAL, HARNESS AND SWITCH LEADS	30050
3	PLATE, WIRING HARNESS TO BOTTOM COWL	26079A2
4	SCREW, WIRING HARNESS AND PLATE TO BOTTOM COWL	10-45893
5	SPRING, GARTER - INTERNAL WIRING HARNESS	24-28975
6	"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL	54-22783
7	BLOCK, TERMINAL - EXHAUST COVER	30212
8	SCREW, HARNESS LEADS TO TERMINAL BLOCK	10-33152
9	SCREW, TERMINAL BLOCK TO EXHAUSE COVER	10-62568
10	STARTER MOTOR ASSEMBLY (DELCO-REMY)	50-58788A3
11	SCREW, STARTER MOTOR TO CRANKCASE FLANGE	10-22698
12	LOCKWASHER, STARTER MOTOR FASTENING SCREW	13-8M0204647
13	SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR	10-69035
14	PLATE, SPACER - STARTER MOTOR TO BRACKET	31057
15	BRACKET, SUPPORT - STARTER MOTOR	38747
16	LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR	13-24669
17	NUT, THRU BOLT - BRACKET TO STARTER MOTOR	11-20890
18	CLIP, HARNESS LEAD WIRES TO SUPPORT BRACKET (3/8-6)	54-22740
19	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
20	SCREW, LEAD WIRE CLIP FASTENING	10-8M0113176
21	CLIP, HARNESS LEAD WIRE TO SUPPORT BRACKET (9/16-6)	54-23567
22	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
23	SCREW, LEAD WIRE CLIP FASTENING	10-8M0113176
24	SOLENOID, STARTER	32445A1
25	SCREW, SOLENOID TO STARTER MOTOR	10-29238
26	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
27	NUT, SOLENOID TERMINAL	10,11-68219
28	GROUND STRAP ASSEMBLY, SOLENOID TO STARTER MOTOR	28016A1
29	CABLE, WIRE - SOLENOID TO STARTER MOTOR	84-93389A12
30	LOCKWASHER, SOLENOID TERMINAL (5/16)	13-8M0204647
31	NUT, SOLENOID TERMINAL (5/16)	11-22053
32	RECTIFIER ASSEMBLY	32177A2	29691
33	LOCKWASHER, RECTIFIER MOUNTING SCREW	13-8M0204647
34	NUT, RECTIFIER MOUNTING SCREW	11-21929
35	SLEEVE, RUBBER - RECTIFIER HARNESS LEAD	32-28373
36	SCREW, HARNESS AND STATOR LEADS TO RECTIFIER	10-35400
37	NUT, HARNESS AND STATOR LEAD FASTENING SCREW	11-8M0204718

TOP COWL AND STARTER ASSEMBLY

Below is the parts list for Mercury 650 (4 CYL.) TOP COWL AND STARTER ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY	182-1895A2
2	STUD, FRONT-TOP COWL TO CRANKCASE	16-33071
3	GROMMET, CHOKE KNOB	25-20116
4	SPACER, TOP COWL FRONT STUDS	23-33070
5	REVEAL, AIR INTAKE	31476
6	SCREW, REVEAL TO TOP COWL	10-37370
7	LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW	13-26996
8	SCREEN, VENT-TOP COWL	31475
9	SCREW, VENT SCREEN TO TOP COWL	10-26668
10	PLATE ASSEMBLY, COWL MOUNTING	31298A1
11	STUD, REAR-TOP COWL TO COVER	16-20353
12	SCREW, PLATE ASSEMBLY TO TOP COWL	10-28668
13	WASHER, TOP COWL STUD (1/16")	12-20028
14	WASHER, TOP COWL STUD (3/4" OD)	12-69057
15	WASHER, TOP COWL STUD (1/32")	12-20583
16	NUT, TOP COWL FASTENING	11-8267089
17	RETAINER, STARTER SPRING	20155
18	SPRING, STARTER REWIND	24-29340T02
19	BUSHING, SPRING GUIDE	23-28912
20	SHEAVE ASSEMBLY	50-30994
21	PAWL, STARTER	30596
22	WASHER, WAVE-STARTER PAWL	13-36206
23	BUSHING, NYLON-SHEAVE SHAFT SPACER	23-28919
24	SPACER, SHEAVE SHAFT	45477A1
25	RETAINER, WAVE WASHER	26179
26	WASHER, SHEAVE SHAFT TO STARTER SHEAVE	12-26180
27	WASHER, WAVE-WASHER TENSION	13-20160
28	PLATE, RETAINER-STARTER PAWL	30595
29	SHAFT, SHEAVE	45477A1
30	TAB WASHER, SHEAVE SHAFT NUT	14-20165
31	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
32	STARTER CABLE ASSEMBLY	50-12066Q10
33	HANDLE, STARTER CABLE	28747
34	RETAINER, STARTER CABLE AND HANDLE	79470A1
35	PLATE, ROPE GUIDE SEE NOTE BELOW Comment: REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL	30045
36	SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL Comment: REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL	3-48,10-28642
35	PLATE, ROPE GUIDE Comment: REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL	35800
36	SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL Comment: REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL	6-32,10-358811
37	HANDLE, CHROME-TOP COWL	31463
38	HANDLE ASSEMBLY, INSIDE-TOP COWL	31487
39	PAD, BUMPER-TOP COWL HANDLE	30896
39	PAD, BUMPER-TOP COWL HANDLE	35496
40	WASHER, CHROME HANDLE TO INSIDE HANDLE STUD	12-20533
41	NUT, CHROME HANDLE TO INSIDE HANDLE FASTENING	11-826709109	11-33825, 11-35045
42	SCREW, FRONT-HANDLE TO TOP COWL (1")	10-29199
43	WASHER, FRONT SCREW-HANDLE TO TOP COWL	12-20533
44	NUT, HANDLE TO TOP COWL STUD	11-826709109	11-33825, 11-35045
45	TRIM MOULDING ASSEMBLY-TOP COWL	29980A1
46	SCREW, DECORATIVE-MOULDING TO TOP COWL	10-29226
47	SCREW, BRASS-MOULDING TO TOP COWL	10-29227
48	LOCKWASHER, MOULDING FASTENING SCREW	13-26995
49	NUT, MOULDING FASTENING SCREW	11-26419

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
