Mercury 650 (3 CYL.) (7073473 THRU 7087822) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 650 (3 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE (SHORT SHAFT)	1379-6071A5
1	CARBURETOR ASSEMBLY, COMPLETE (LONG SHAFT)	1379-6071A9
2	JET, VENT BOWL (.072)-SHORT SHAFT	1395-6207
2	JET, VENT BOWL (.052) LONG SHAFT	1395-6359
3	INLET NEEDLE AND SEAT	1395-83181
4	GASKET, INLET NEEDLE AND SEAT (#)
5	VENTURI ASSEMBLY	1395-6685
6	NOZZLE (#)
7	SCREW, IDLE MIXTURE (#)
8	SPRING, IDLE MIXTURE (#)
9	PIN, FLOAT (#)
10	LEVER, FLOAT (#)
11	FLOAT	19273
12	FUEL BOWL	1395-6206
13	GASKET, FUEL BOWL (#)
14	SCREW, FUEL BOWL (#)
15	PLUG, MAIN JET	1395-6199
16	JET, MAIN (.080)-SHORT SHAFT	1395-6201
16	JET, MAIN (.088)-LONG SHAFT	1395-6202
17	GASKET, MAIN JET PLUG (#)
18	SCREEN, FUEL INLET (#)
19	WELCH PLUG (9/16") (#)
20	SHAFT, THROTTLE	1395-4807
21	VALVE, THROTTLE	1395-6196
22	SCREW, VALVE TO THROTTLE SHAFT (#)
23	SEAL, THROTTLE SHAFT	1395-6204
24	WASHER, THROTTLE SHAFT	1395-6203
25	SPRING, THROTTLE RETURN (#)
26	VALVE ASSEMBLY, ENRICHMENT	1395-6198
27	SCREW, ENRICHMENT BRACKET (#)
28	WELCH PLUG (7/16") (#)
29	GASKET, CARBURETORO	27-733771
--	GASKET KIT	1395-6200
--	REPAIR PARTS KIT (SHORT SHAFT)	1395-6208
--	REPAIR PARTS KIT (LONG SHAFT)	812953	1395-6205, 19272, 19274, 812954, 1395-6360, 812955, 1395-7212, 812985, 1395-7834

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 650 (3 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	60549A7
2	LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID	13-26996
3	NUT, HARNESS LEAD TO SOLENOID ATTACHING	11-68219
4	SCREW, CHOKE SOLENOID ATTACHING (5/8")	10-33524
5	NUT, CHOKE SOLENOID ATTACHING SCREWS	11-29250
6	PLUNGER ASSEMBLY, CHOKE SOLENOID	89008A2
7	CHOKE ROD	76076A1
8	CHOKE KNOB ASSEMBLY	90242A1
9	SCREW, WIRE TO CHOKE KNOB	10-77137
10	GROMMET, CHOKE KNOB	25-20116
13	CARBURETOR ASSEMBLY (SHORT SHAFT)	1379-6071A5
13	CARBURETOR ASSEMBLY (LONG SHAFT)	1379-6071A9
14	SCREW, CARBURETOR TO CRANKCASE (3 3/4")	10-52743
15	LEVER, THROTTLE	60568
16	SCERW, LEVER TO CARBURETOR	10-60293
17	COUPLING ASSEMBLY	60292A1
18	INSERT, THROTTLE SHAFT COUPLING	28-89694
19	WASHER, ROLLED COUPLING	11-92500
20	SCREW, ROLLED WASHER TO COUPING	10-60293
21	PLATE ASSEMBLY, CARBURETOR	76904A1
22	SEAL, CARBURETOR PLATE	71090
23	GASKET, CARBURETOR PLATE	27-73398
24	GASKET, CARBURETOR PLATE TO CARBURETOR	27-76952
25	SCREW, PLATE TO CARBURETOR (7/16")	10-20367
26	WASHER, PLATE SCREW	12-8M0204649

CLAMP AND SWIVEL BRACKET ASSEMBLY (G2)

Below is the parts list for Mercury 650 (3 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY (G2):

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	10-78492A1
3	CAP, THUMB SCREW	75043
4	TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC -TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET (9 1/2")	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER-TILT LOCK PIN BUMPER	32-28052
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
15	WASHER, CLAMP BRACKET BOLT	12-68410
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")	10-68299
15	WASHER, CLAMP BRACKET BOLT	12-68300
16	NUT, CLAMP BRACKET BOLT	11-82670912
17	PIN, UPPER SHOCK MOUNTING	55-28416
18	SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)	1489-8597A4
18	SWIVEL BRACKET ASSEMBLY (LONG SHAFT)	1490-8599A6
19	OIL SEAL, SWIVEL BRACKET	26-32911
20	SCREW, DRIVE-SWIVEL BRACKET	10-47828
21	FITTING, GREASE	22-8M0169589
22	TILT LOCK ASSEMBLY, STARBOARD	76386
23	TILT LOCK ASSEMBLY, PORT	76385T
24	TUBE, TILT LOCK	47802
25	COTTER PIN, TILT LOCK	18-47959
26	BUSHING, TILT LOCK TUBE	23-71574
27	WASHER, WAVE-TILT LOCK TUBE	13-69150
28	SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)	69540A1
28	SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)	69540A2
29	BUMPER, STEERING ARM	30711
30	BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")	10-66897
31	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
32	WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)	12-25176
32	WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)	12-26837
33	YOKE, BOTTOM	77416T1
34	NUT, SWIVEL PIN RETAINING	11-71956
35	PIN, LOWER SHOCK MOUNTING	55-696531
36	REVERSE LOCK	87432
37	SPRING, REVERSE LOCK TENSION	24-29821
38	SHAFT, REVERSE LOCK PIVOT	56349
39	BUSHING, REVERSE PIVOT SHAFT	23-69132
40	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
41	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-73203
42	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
43	SHOCK ABSORBER	55-58780A7
44	BUSHING, RUBBER-SHOCK ABSORBER (UPPER)	23-32171
45	BUSHING, RUBBER-SHOCK ABSORBER (LOWER)	23-28198
46	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
47	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")	10-69375A1
48	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
49	SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")	10-37655

COWL SUPPORT BRACKETS

Below is the parts list for Mercury 650 (3 CYL.) COWL SUPPORT BRACKETS:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, COWL SUPPORT-TOP	73641A1
2	SEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATE	62444
3	CLIP, TOP COWL SUPPORT BRACKET	79652
4	SCREW, CLIP TO TOP COWL SUPPORT (1/2")	10-48408
5	WASHER, CLIP TO TOP COWL SUPPORT BRACKET	12-45075
6	SHIELD FLYWHEEL	79490
7	SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")	10-37656
8	SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")	10-48408
9	BRACKET, COWL SUPPORT-REAR	74510A2
10	SEAL, REAR BRACKET AND TOP BRACKET	698761
11	MOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKET	90435
12	WASHER, RUBBER MOUNT TO REAT SUPPORT BRACKET	12-69057
13	NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET	11-826709109	11-33825, 11-35045
14	STOP, RUBBER-REAR SUPPORT BRACKET	269011
15	BRACE, REAR COWL SUPPORT BRACKET (TOP)	60116
16	SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 3/8")	10-24878
17	MOUNT, RUBBER- FRONT SUPPORT BRACKET TO BRACKET	90435
18	WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET	12-69057
19	NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET	11-8267089
20	BRACKET, RUBBER MOUNT	71097
21	SCREW, BRACKET TO CRANKCASE (3/4")	10-39349
22	ATTENUATOR, SOUND	79489
23	COVER, TOP-SOUND ATTENUATOR	76218
24	GASKET, TOP COVER	27-71096
25	SCREW, TOP COVER TO SOUND ATTENUATOR (1/2")	10-37571
26	WASHER, TOP COVER SCREW	12-8M0204666
27	COVER, MANUAL CHOKE	75841
28	SCREW, COVER TO TOP COVER	10-37978
29	WASHER, COVER SCREW	12-8M0204666
30	AIR MANIFOLD	73986
31	SCREW, AIR MANIFOLD TO SOUND ATTENUATOR	10-69093
32	WASHER, AIR MANIFOLD SCREW	12-8M0204649
34	MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER	90435
36	WASHER, RUBBER MOUNT ATTACHING	12-69057
37	NUT, RUBBER MOUNT ATTACHING	11-8267089
38	SEAL, FUEL CONNECTOR-FRONT SUPPORT BRACKET	76410
39	CONNECTOR ASSEMBLY, ATTENUATOR	21-428671
40	TUBE, VENT (LOWER)	32-9938779
41	FITTING, CRANKCASE VENT (PRESS IN)	22-56759
42	COVER, SOUND ATTENUATOR (FRONT)	72956
43	GASKET, FRONT COVER	27-76579
45	SCREW, FRONT COVER TO SOUND ATTENUATOR (1/2")	10-37571
46	PLUG, FRONT COVER	19-73336
47	PLATE ASSEMBLY, FRONT COVER MOUNTING	76251A1
48	LATCH, FRONT COVER ATTACHING	76264
49	SPRING, FRONT COVER LATCH	24-60295
50	SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")	10-28635

COWLING AND FRONT COVER

Below is the parts list for Mercury 650 (3 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number	Supersedes
1	COWL ASSEMBLY (STARBOARD)	2142-6228A1
2	SEAL, FUEL CONNECTOR-COWL	26-60297
3	COWL ASSEMBLY (PORT)	2141-6227A1
4	SEAL, CONTROL CABLES-COWL	26-60298
5	BRACKET, COWL SEALING-REAR	89717T
6	SEAL, REAR BRACKET	698761
7	BRACKET, COWL HINGE	90980
8	SCREW, HINGE BRACKET TO REAR BRACKET-LOWER (1 1/8")	10-455611
8	SCREW, HINGE BRACKET TO REAR BRACKET- UPPER (1 1/8')	10-75794
8A	CAP, HINGE BRACKET SCREW (UPPER)	75805
9	LOCKWASHER, HINGE BRACKET SCREW	13-26992
10	WASHER, HINGE BRACKET SCREW	12-37998
10	WASHER, HINGE BRACKET SCREW (UPPER)	12-75806
11	PIN, COWL HINGE	90979
12	SCREW, PIN TO COWL (7/8")	10-28782
13	LOCKWASHER, PIN ATTACHING SCREW	13-8M0204647
14	COWL LATCH ASSEMBLY	46785A5
15	BARREL, COWL LATCH	62628
16	SCREW, LATCH ASSEMBLY TO BARREL (7/8")	10-31312
17	BAR, ADJUSTMENT-COWL LATCH	15222
18	BARREL, COWL LATCH	62629
19	SPRING, TENSION-COWL LATCH	24-62624
20	WASHER, ADJUSTMENT BAR TO BARREL	12-30164
21	NUT, ADJUSTMENT BAR TO BARREL	11-859124	11-45812
22	COWL FRONT COVER ASSEMBLY	2143-7254A3
23	BLANKET, SOUND ABSORBING-FRONT COVER	795511
24	HOOK, COWL FRONT COVER FASTENING	61158T
25	SCREW, FASTENING HOOK TO COWL FRONT COVER (3/4")	10-69570
26	STARTER ROPE ASSEMBLY (FOR MANUAL STARTING ONLY)	47341A11

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 650 (3 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	462-8839A2
2	BEARING, BALL-LOWER AND UPPER	30-64424T
3	SHIM, LOWER BEARING TO CRANKSHAFT	15-22369A1
4	CARRIER ASSEMBLY, "O"RING	60834A3
5	"O" RING, CARRIER	64254001
6	MAIN BEARING ASSEMBLY (VALVE TYPE)	542-7509A3
7	DOWEL PIN, MAIN BEARING	17-20032
8	DOWEL PIN (STEPPED)	17-60282
9	DOWEL PIN, REED STOP	17-65855
10	REED SET, MATCHED-MAIN BEARING	34-66051A1
11	REED STOP	34-65946
12	SCREW, REED STOP MOUNTING (9/16")	10-77280
13	NUT, REED STOP MOUNTING SCREW	11-20110
14	SCREW, MAIN BEARING CLAMPING (9/16")	10-45775
15	NUT, MAIN BEARING SCREW CLAMPING	11-45774
16	RACE, OUTER (PAIR)	26113T
17	RING, SNAP-OUTER RACE CLAMPING	53-26933
18	BEARING, NEEDLE	29-714221
19	PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT)	774-9137A12
19	PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT)	774-9137A12
20	LOCK RING, PISTON PIN	53-857196	40-52035
21	RING, PISTON	39-78816A12
22	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
23	SCREW, CAP TO CONNECTING ROD (1 1/2")	10-54803
24	NUT, CONNECTING ROD SCREW	11-49091
25	BEARING ASSEMBLY, CRANKPIN	31-62596A1
26	BEARING, NEEDLE-PISTON PIN	29-8M0214934
27	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
--	PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT) (.015)	774-9137A13
--	PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT) (.015)	774-9137A13
--	RING, PISTON (.015)	39-78811A12

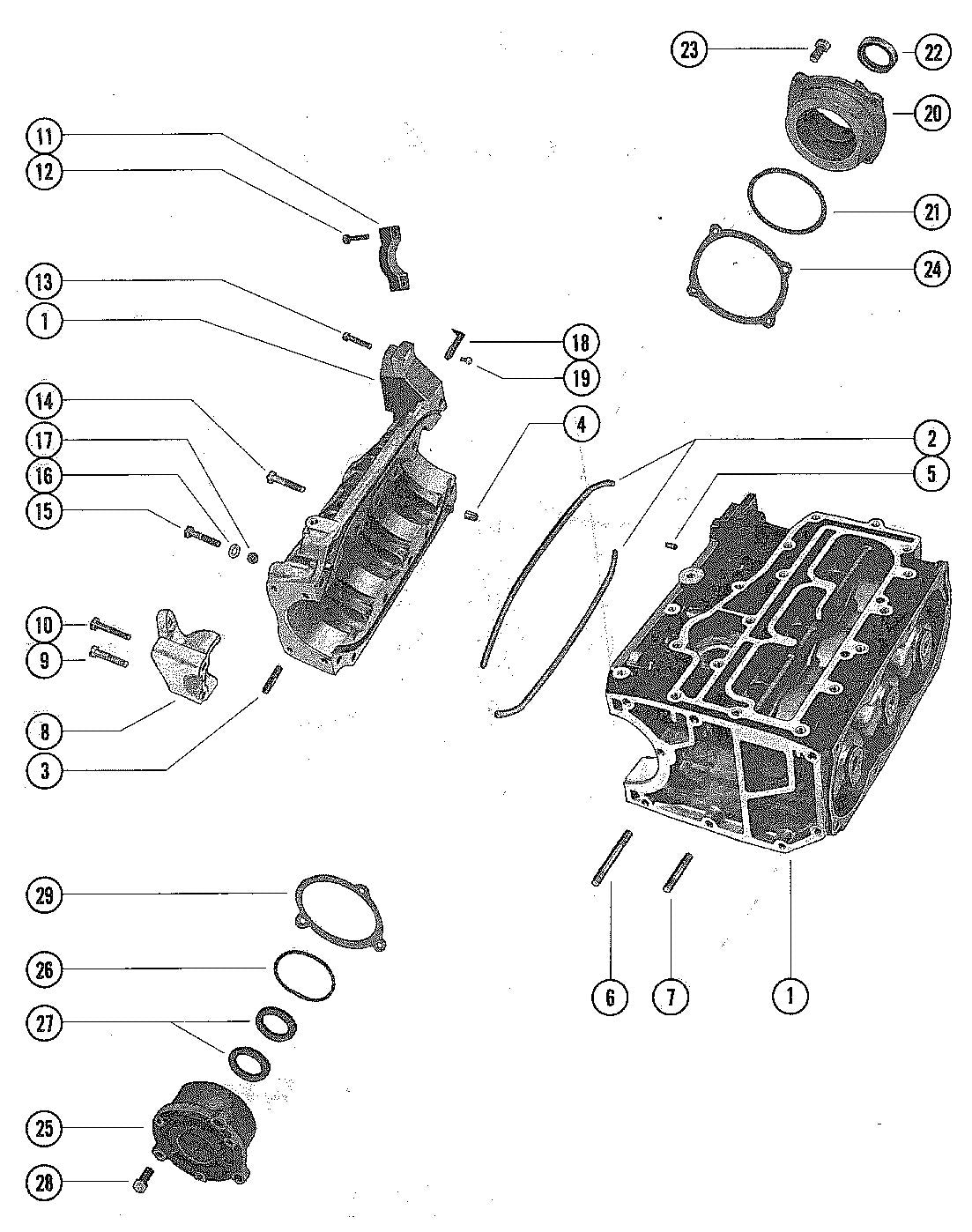

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)	869-6005A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)	865-5890A3
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-60286
3	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")	16-68201
4	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
5	DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING	17-20323
6	STUD, BLOCK TO DRIVE SHAFT HOUSING (4")	16-68203
7	STUD, BLOCK TO DRIVE SHAFT HSG (3")-EXHAUST SIDE	16-68202
7	STUD, BLOCK TO DRIVE SHAFT HSG. (2 9/16")-TRANSFER SIDE	16-68167
8	COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)	76975
9	SCREW, STARTER MOTOR COVER TO CRANKCASE (2")	10-73657
10	SCREW, STARTER MOTOR COVER TO CRANKCASE (1 3/4")	10-22698
11	COVER, STARTER MOTOR TO CRANKCASE (TOP)	79735A1
12	SCREW, STARTER MOTOR COVER TO CRANKCASE (2")	10-815549	10-25503, 10-77065
13	SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")	10-35385
14	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-73657
15	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
16	WASHER, CRANKCASE TO CYLINDER BLOCK SCREW	12-26020
17	NUT, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)	11-29250
18	INDICATOR, TIMING	73217
19	SCREW, INDICATOR TO STARTER COVER	10-69022
20	END CAP ASSEMBLY, UPPER	1161-6357A1
21	"O"RING, END CAP	25-64966
22	OIL SEAL, END CAP	26-41953
23	SCREW, UPPER END CAP MOUNTING (1")	10-812618	10-73169, 10-847568
24	SHIM, UPPER END CAP (.006-8-10)	15-73644A1
25	END CAP ASSEMBLY, LOWER	1144-6691A1
26	"O"RING, END CAP	25-32546
27	OIL SEAL, END CAP	26-41953
28	SCREW, LOWER END CAP MOUNTING (1")	10-30225
29	SHIM, LOWER END CAP (.002-3-5-10)	15-20085A1

DRIVE SHAFT HOUSING ASSEMBLY (G4)

Below is the parts list for Mercury 650 (3 CYL.) DRIVE SHAFT HOUSING ASSEMBLY (G4):

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1592-8188A8
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1593-7513A12
2	PLUG, PLASTIC-TRIM TAB SCREW HOLE	19-64649
3	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")	16-8M0022145	16-57932
4	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")	16-57935
5	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-65791
6	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	11-8M0204653
7	ROD, PUSH-REVERSE LOCK (SHORT SHAFT)	47835
7	ROD, PUSH-REVERSE LOCK (LONG SHAFT)	47836
8	NUT, JAM-PUSH ROD	11-28770
9	ROD END, PUSH ROD	47837
10	PIN, PUSH ROD TO REVERSE LOCK	24-78203A2
11	COTTER PIN, PUSH ROD PIN	18-25191
12	GUIDE, PUSH ROD	933361
13	COVER, LOWER MOUNT CLAMP	35474T
14	SCREW, COVER TO LOWER MOUNT CLAMP (5/8")	10-29722
15	NUT, LOWER MOUNT CLAMP COVER	11-35521
16	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	69592F1
17	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")	10-29256
18	SPRING, TENSION-LOWER MOUNT CLAMP	24-35522
19	MOUNT, RUBBER-LOWER	75304T1
20	SCREW, LOWER MOUNT (5 1/2")	10-75284
21	WASHER, MOUNT SCREW	12-28051
22	WASHER, RUBBER-LOWER MOUNT SCREW	12-28053
23	WASHER, LOWER MOUNT SCREW	12-61709
24	NUT, LOWER MOUNT SCREW	11-25096
25	MOUNT, RUBBER-UPPER	923373
25A	"O"RING, UPPER MOUNT	25-65936
26	PACKING, "U" CUP-UPPER MOUNT SCREW	24929
27	COVER, UPPER MOUNT-OUTSIDE HALF	79680A1
28	COVER, UPPER MOUNT-INSIDE HALF	79680A1
29	SCREW, UPPER MOUNT COVER-REAR (1 1/2")	10-71959
30	SCREW, UPPER MOUNT COVER-FRONT (1 3/4")	10-71958
30A	WASHER, UPPER MOUNT COVER SCREW	12-8M0204649
31	NUT, UPPER MOUNT COVER SCREW	11-36069
32	WASHER, UPPER MOUNT BOLT (4/16 ID)	12-27727
33	WASHER, RUBBER- UPPER MOUNT BOLT	12-66966
34	WASHER, UPPER MOUNT BOLT (7/16 ID)	12-30514
33	WASHER, RUBBER-UPPER MOUNT BOLT	12-66966
34	WASHER, UPPER MOUNT BOLT (7/16 ID)	12-30514
35	NUT, UPPER MOUNT BOLT	11-8M0204653
36	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
37	NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")	11-64809
38	TUBE, EXHAUST (SHORT SHAFT)	695431
38	TUBE, EXHAUST (LONG SHAFT)	695441
39	TUBE, WATER INLET (SHORT SHAFT)	32-37727
39	TUBE, WATER INLET (LONG SHAFT)	32-45679
40	SLEEVE, WATER INLET TUBE	23-23651
41	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	38157
42	STRIP, RETAINING-TRIM COVER SEAL (SIDE)	38154
43	STRIP, RETAINING-TRIM COVER SEAL (REAR)	38158
44	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)	10-48408

EXHAUST AND MANIFOLD COVERS

Below is the parts list for Mercury 650 (3 CYL.) EXHAUST AND MANIFOLD COVERS:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)	869-6005A3
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)	865-5890A3
2	CARRIER, GROMMET	65848
3	GROMMET, POPPET RELIEF VALVE	25-64872
4	POPPET, RELIEF VALVE	86596
5	SPRING, COMPRESSION-POPPET RELIEF VALVE	24-64878
6	DIAPHRAGM, POPPET VALVE	648771
7	WASHER, DIAPHRAGM	12-76451
8	SCREW, WASHER AND DIAPHRAGM TO POPPET VALVE	10-69570
9	COVER, TRANSFER PASSAGE	73216A1
10	GASKET, TRANSFER PASSAGE COVER	27-73442
11	SCREW, TRANSFER PASSAGE COVER MOUNTING (1 1/8")	10-38837
12	COVER, CYLINDER BLOCK	1025-8116A1
13	GASKET, CYLINDER BLOCK COVER	27-88449
14	SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")	10-28667
15	PLUG, CYLINDER BLOCK COVER	22-328022
16	GASKET, BAFFLE PLATE TO CYLINDER BLOCK	27-695252
17	GASKET, BAFFLE PLATE TO CYLINDER BLOCK COVER	27-703351
18	PLATE, BAFFLE-EXHAUST MANIFOLD	69579
19	THERMOSTAT	75692
20	GASKET, THERMOSTAT	27-8M0204714
21	GASKET, PLATE TO EXHAUST MANIFOLD COVER	27-695242
22	COVER, EXHAUST MANIFOLD	74214
23	SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8")	10-38837
24	SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4")	10-74824
25	SCREW, PLATE/MANIFOLD COVER MOUNTING (2")	10-70602
26	SWITCH, MERCURY	87-33386A3
27	SCREW, MERCURY SWITCH TO CRANKCASE (1/2")	10-37655
28	PIN, ROLL-MERCURY SWITCH	17-36242
29	STA-STRAP, MERCURY SWITCH LEAD	61990
30	HOSE, CRANKCASE BLEED (12")	32-9938779
31	FITTING, CRANKCASE BLEED	21-64871A3
32	FITTING, CRANKCASE BLEED (PRESS IN)	22-56759
33	CLIP, BLEED HOSE	54-648552
34	SCREW, BLEED HOSE CLIP	10-62568
35	"C"WASHER, BLEED HOSE CLIP	8M0084613	69205

FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-52901
2	WASHER, FLYWHEEL NUT	12-33001
3	PLUG, FLYWHEEL PULLER THREADS	19-45907
4	FLYWHEEL ASSEMBLY	248-8722A5
5	SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")	10-68997
6	SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")	10-32417
7	PLATE, SWITCH	889351
8	GROMMET, SWITCH BOX PLATE	25-57009001
9	SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")	10-824941	10-59645, 10-73274
10	WASHER, SWITCH BOX PLATE SCREW	12-56720
11	SWITCH BOX ASSEMBLY	332-7778A12
12	SCREW, SWITCH BOX TO PLATE (13/16")	10-26251
13	WIRE ASSEMBLY, SWITCH BOX SCREW	46933A6
14	NUT, SWITCH BOX TERMINAL	11-45076
15	WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)	84-60443A3
15	WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)	84-62822A1
15	WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)	84-68896A1
16	WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)	84-60466A17
17	PLATE, MOUNTING-IGNITION COIL	73439
18	IGNITION COIL ASSEMBLY	300-8M0166172
19	NUT, IGNITION COIL TERMINAL	11-45076
20	COVER, IGNITION COIL	43542
21	SCREW, COVER TO MOUNTING PLATE (2")	10-46368
22	STATOR ASSEMBLY	398-5704A7
23	SCREW, STATOR TO UPPER END CAP (7/8")	10-63136
24	TRIGGER PLATE ASSEMBLY	96455A8
25	CLAMP, STATOR LEADS ATTACHING	54-28700
26	SCREW, CLAMP TO CRANKCASE (1/2")	10-98253
27	WIRE ASSEMBLY, SPARK PLUG	84-813715A1
28	BOOT, IGNITION COIL END	332-2854T01
29	SPARK PLUG (AC#V40FFM)	33-896329827	33-827C
30	SHIM, STATOR	15-74049

FUEL PUMP, FUEL FILTER AND FUEL LINES

Below is the parts list for Mercury 650 (3 CYL.) FUEL PUMP, FUEL FILTER AND FUEL LINES:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	62973A4
2	CHECK VALVE ASSEMBLY	21-30430A3
3	DIAPHRAGM KIT	55278A1
4	GASKET, CHECK VALVE TO HOUSING (#)
5	GASKET, FUEL PUMP (#)
6	RETAINER, CHECK VALVE	23004
7	SCREW, RETAINER TO HOUSING (3/8")	10-43725
8	SCREW, PUMP MOUNTING (1 5/8")	10-86885
9	PLUG, PIPE-FUEL PUMP	22-328022
10	HOSE ASSEMBLY, FUEL PUMP TO EXHAUST PLATE (9 1/2")	32-774572
11	ELBOW, HOSE TO EXHAUST PLATE	22-996642
12	HOSE ASSEMBLY, FUEL PUMP TO TELL TALE NOZZLE (8 1/2")	32-774572
13	CLAMP, HOSE TO FUEL PUMP AND FITTING	54-68725
14	NOZZLE, TELL TALE-REAR SUPPORT BRACKET	69555001
15	CLAMP, TELL TALE NOZZLE	54-70705
16	SCREW, TELL TALE CLAMP	10-69079
17	FITTING, FUEL PUMP (INLET)	22-64705
18	FUEL LINE, ADAPTOR TO FUEL PUMP (12")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
19	CLAMP, FUEL LINE ATTACHING	54-68424
20	FITTING, FUEL LINE TO ADAPTOR	22-63187
21	ADAPTOR, CHECK UNIT (FUEL PUMP)	22833
22	STEM, CHECK UNIT ADAPTOR	23069
23	"O"RING, ADAPTOR STEM	25-16524
24	SPRING, ADAPTOR STEM	24-23067T
25	CUP WASHER, ADAPTOR	30188
26	SCREW, ADAPTOR TO SOUND ATTENTUATOR (1 3/8")	10-36154
28	FUEL LINE, FUEL PUMP/FUEL FILTER COVER (2 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
29	BASE, FUEL FILTER AND COVER	76221
30	SCREW, FILTER BASE TO TRANSFER PASSAGE COVER (1 1/4")	10-22698
31	WASHER, FILTER BASE SCREW	12-34437
32	FILTER, FUEL	35-59072
33	"O"RING, FILTER COVER	25-35480
34	COVER, FILTER	35-91078A1
35	SCREW, FILTER COVER FASTENING (5/8")	10-32228
36	GASKET, FILTER COVER FASTENING SCREW	27-25848
37	FITTING, BASE	22-19688
38	FUEL LINE, BASE TO LOWER CARBUETOR (9 1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
39	TEE, LOWER CARBURETOR	22-64706001
40	FUEL LINE, CARBURETOR TO CARBURETOR (3")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
41	FITTING, UPPER CARBURETOR	22-19688
42	FITTING, FUEL PUMP (OUTLET)	22-70007

GEAR HOUSING ASSEMBLY, COMPLETE (G6)

Below is the parts list for Mercury 650 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (G6):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTE	1643-6038A9
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTE	1643-6038A10
1	GEAR HOUSING ASSEMBLY	1643-6038A6
2	PIN, DOWEL-GEAR HOUSING	17-21438
3	STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")	16-33778
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")	16-8M0034453	16-57933
5	BEARING, ROLLER-DRIVE SHAFT	31-62091T
6	SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT)	72849A1
6	SCREEN, WATER INTAKE-STARBOARD -LONG SHAFT	63850
6	SCREEN, WATER INTAKE-PORT -LONG SHAFT	72849A1
7	SCREW, SCREENS TO GEAR HOUSING (1 1/4")	10-36070
8	NUT, SCREEN TO GEAR HOUSING SCREW	11-859124	11-45812
9	PLATE, SUPPORT-EXHAUST TUBE SEAL	92815
10	SEAL, EXHAUST TUBE	37721001
11	GEAR, PINION-DRIVE SHAFT	43-60245
12	NUT, PINION GEAR TO DRIVE SHAFT	11-55910
13	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32771
14	"O"RING, WATER PUMP BASE	25-26855
15	WATER PUMP BASE ASSEMBLY	46-73640T01
16	OIL SEAL, WATER PUMP BASE	26-79831
17	OIL SEAL, WATER PUMP BASE	26-90562
18	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
19	GASKET, LOWER-WATER PUMP BASE TO FACE PLATE	27-19553
20	PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY	32768
21	GASKET, UPPER-FACE PLATE TO WATER PUMP BODY	27-19551
22	IMPELLER, WATER PUMP	47-89983T
23	KEY, IMPELLER DRIVE	28-8M0032837	28-56662
24	WATER PUMP BODY ASSEMBLY	46-77822A1
25	INSERT, WATER PUMP BODY	48753
26	WASHER, WATER PUMP BODY AND BASE STUDS	12-8M0204649
27	NUT, WATER PUMP BODY AND BASE STUDS	11-36069
28	SEAL, WATER PUMP BODY TO WATER TUBE	26-38452
29	WASHER, CUPPED-WATER TUBE SEAL	12-38453
30	RING, RUBBER-CENTRIFUGAL SLINGER	25-20273
31	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
32	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
35	SHAFT ASSEMBLY, SHIFT-LOWER	69787A1
36	CLIP, RETAINING-SHIFT SHAFT	53-29641
37	"O"RING, SHIFT SHAFT BUSHING	25-25439
38	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
39	OIL SEAL, SHIFT SHAFT BUSHING (LOWER)	26-24590
40	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
41	WASHER, RUBBER-SHIFT SHAFT BUSHING	12-31266
42	BASE, LOWER-REVERSE LOCKING	78036
43	CAM, REVERSE LOCKING	69542
44	DRIVE SHAFT ASSEMBLY (SHORT SHAFT)	45-76089A2
44	DRIVE SHAFT ASSEMBLY (LONG SHAFT)	45-76088A2
45	SPRING, COMPRESSION-DRIVE SHAFT	24-20254
46	PIN, DRIVE SHAFT	17-30545
47	SLEEVE, LUBRICATION-DRIVE SHAFT	88181
48	SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)	15-20929A1
49	ROLLER BEARING ASSEMBLY, TAPERED-DRIVE SHAFT	31-38146A1

GEAR HOUSING ASSEMBLY, COMPLETE (G8)

Below is the parts list for Mercury 650 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (G8):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTE	1643-6038A9
-1	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTE	1643-6038A10
1	GEAR HOUSING ASSEMBLY (SEE G6 FOR BREAKDOWN)	1643-6038A6
50	CAM SHIFT	760394
51	FOLLOWER, CAM	38441
52	SLIDE, CROSS PIN	20843
53	SPRING, COMPRESSION-CAM FOLLOWER	24-39845
54	SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)	15-38374A1
55	TAPERED ROLLER BEARING ASSEMBLY	31-38356A1
56	BEARING, ROLLER-FOWARD GEAR	31-21739
57	FORWARD GEAR ASSEMBLY	43-60247T5
57	FORWARD GEAR ASSEMBLY	43-60247T5
58	RATCHET, SLIDING CLUTCH	52-92911T
59	PIN, CROSS-RATCHET TO PROPELLER SHAFT	17-8M0020942	17-38113
60	SPRING, RETAINING-CROSS PIN	24-38114
61	SHAFT, PROPELLER	44-75365
62	REVERSE GEAR ASSEMBLY	43-79159T
63	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-20927A1
64	WASHER, THRUST-REVERSE GEAR	12-32004
65	BEARING, BALL-REVERSE GEAR	30-20839T
66	"O"RING, BEARING CARRIER	25-31986
67	BEARING CARRIER ASSEMBLY	69386T1
68	BEARING, ROLLER-BEARING CARRIER	31-21700
69	OIL SEAL, BEARING CARRIER	26-8M0205511
70	OIL SEAL, BEARING CARRIER-LINE CUTTER	26-8M0203757
71	KEY, LOCATING-BEARING CARRIER	28-30281
72	TAB WASHER, GEAR HOUSING COVER	14-53012
73	COVER, GEAR HOUSING	11-87763
74	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
75	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
76	WASHER, DRIVE SHAFT HOUSING STUD (3/8")	12-8M0214963
77	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")	11-8M0204726
78	WASHER, DRIVE SHAFT HOUSING STUD (7/16")	12-65791
79	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")	11-8M0204653
80	THRUST HUB, PROPELLER	65758
81	THRUST HUB ASSEMBLY, REAR	62124A1
82	WASHER, CUPPED-THRUST HUB	12-31992
83	NUT, PROPELLER	11-69578Q1

MISCELLANEOUS PARTS/ACCESORIES

Below is the parts list for Mercury 650 (3 CYL.) MISCELLANEOUS PARTS/ACCESORIES:

Position No.	Part Name	OEM Number
-	MERC 650E PARTS LIST	90-74972
-	GASKET SET (MOTOR OVERHAUL)	27-88449A32
-	DECAL SET	37-73930A76

SHIFT LINKAGE AND EXHAUST PLATE

Below is the parts list for Mercury 650 (3 CYL.) SHIFT LINKAGE AND EXHAUST PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, ANCHOR-CONTROL CABLES	814283A2
2	LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET	60283A1
3	SPRING, LINK TO ANCHOR BRACKET	24-20099
4	GUIDE BLOCK, LINK	37896
5	WEAR PLATE, NYLON-LINK	52100
6	LATCH, LINK TO ANCHOR BRACKET	8M0036768	38279
7	WASHER, LINK LATCH	12-69056
8	NUT, LINK ATTACHING	11-826709109	11-33825, 11-35045
9	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)	75007A3
9	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)	75008A5
11	WASHER, WAVE-SHIFT SHAFT TO LINK	13-29720
12	BUSHING, NYLON-SHIFT SHAFT TO LINK	23-26600
13	WASHER, LINK (SHIFT SHAFT END)	12-24664
14	CUP, RETAINER-ANCHOR BRACKET	39519
15	LEVER, NYLON-SHIFT CABLE LOCKING	87609A1
16	PIN, LOCKING LEVER AND COVER FASTENING	17-47175
17	LINK, LOCKING LEVER TO COVER	87609A1
18	COVER, NYLON-SHIFT CABLE	39667
19	SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")	10-69101
20	GASKET, POWERHEAD TO EXHAUST PLATE	27-60317
21	EXHAUST PLATE ASSEMBLY	73712A3
21A	BUSHING, NYLON-EXHAUST PLATE	23-27132
22	STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")	16-8M0034449	16-69058
23	STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")	16-68166
24	SEAL, WATER INLET TUBE	73156
25	WASHER, NYLON-WATER INLET TUBE SEAL	12-38453
26	RETAINER, WATER INLET TUBE SEAL	38500
27	SCREW, RETAINER TO EXHAUST PLATE (3/4")	10-69069
28	SEAL, EXHAUST PLATE	60307
29	STRIP, RETAINING-EXHAUST PLATE SEAL	60306
30	SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")	10-62568
31	MOUNT, RUBBER-EXHAUST PLATE TO REAR COWL SUPPORT	90435
32	GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT	49651A1
33	WASHER, RUBBER MOUNT ATTAHCING	12-69057
34	NUT, RUBBER MOUNT TO EXHAUST PLATE	11-8267089
35	SCREW, EXHAUST PLATE PLATE TO CYLINDER BLOCK (1")	10-37562
36	GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING	27-385011
37	EXHAUST TUBE, ADAPTOR	58911
38	GASKET, EXHAUST TUBE TO EXHAUST PLATE	27-602801
39	SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")	10-28636

STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
2	SCREW, RECTIFIER TO PLATE (5/8")	10-38055
3	LOCKWASHER, RECTIFIER SCREW	13-26996
4	NUT, RECTIFIER TERMINAL	11-45076
5	STARTER SOLENOID	89-853654A1
6	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
7	NUT, SOLENOID TERMINAL	10,11-68219
8	LOCKWASHER, SOLENOID TERMINAL (5/16")	13-8M0204647
9	NUT, SOLENOID TERMINAL (5/16")	11-8M0204668
10	BOOT, TERMINAL-STARTER SOLENOID	46265
11	SCREW, SOLENOID TO TOP COVER (3/4")	10-69054
12	WASHER, SOLENOID SCREW	13-26992
13	STARTER MOTOR ASSEMBLY	50-44369A1
14	STOP, RUBBER- STARTER MOTOR	8M0043376	68042
15	CABLE, STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")	84-60872
16	SCREW, CABLE TO STARTER MOTOR (5/8")	10-28635
17	CABLE, SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")	84-93389A6
18	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
19	NUT, STARTER MOTOR TERMINAL	11-20890
20	COLLAR, RUBBER-STARTER MOUNT	23-8M0034918	23-8M0001391, 56703
21	SPACER, COLLAR TO MOUNTING BRACKETS	23-56774
22	CABLE, BATTERY TO STARTER SOLENOID	84-62862A4
23	WIRING HARNESS (INTERNAL)	84-73204
24	SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")	10-69560
25	NUT, WIRING HARNESS SCREW	11-46438
26	BRACKET ASSEMBLY, WIRING HARNESS	60114A1
27	SEAL, WIRING HARNESS BRACKET	26-60925
28	SCREW, WIRING HARNESS BRACKET MOUNTING (2 1/4")	10-89778

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE

Below is the parts list for Mercury 650 (3 CYL.) THROTTLE CONTROL LINKAGE AND SPARK ADVANCE:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, NYLON-THROTTLE ACTUATOR	76864
2	CAM, NYLON-THROTTLE ACTUATOR	77025
3	SCREW, HOUSING TO CRANKCASE (1/2")	10-37571
4	LOCKWASHER, HOUSING TO CRANKCASE SCREW	13-26996
5	PLATE, RETAINER-ACTUATOR HOUSING	60570
6	BARREL, NYLON-THROTTLE LINK ROD	23-74213
7	ROD, LINK-THROTTLE	74164
8	SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER	73783
9	BUSHING, LINK ROD SWIVEL	23-26856
10	WASHER, LINK ROD SWIVEL	12-73288
11	NUT, LINK ROD SWIVEL	11-45774
12	LEVER, THROTTLE CONTROL	77032A2
13	SCREW, ADJUSTING-THROTTLE LEVER (2")	10-67916
14	NUT, JAM-ADJUSTING SCREW	11-29598
15	CAP, ADJUSTING SCREW	52023
16	SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")	10-818165	10-55337
17	BUSHING, THROTTLE CONTROL LEVER SCREW	23-55164
18	BUSHING, THROTTLE CONTROL LEVER SCREW	23-55171
19	SPRING, RETURN-SPARK ADVANCE LEVER	24-55162
20	LEVER, SPARK ADVANCE	77031A2
21	WASHER, THROTTLE CONTROL LEVER SCREW	12-68410
22	SCREW, SPARK ADVANCE ADJUSTING (1 3/8")	10-73656
23	NUT, SPARK ADVANCE ADJUSTING SCREW	11-68219
24	CAP, SPARK ADVANCE ADJUSTING SCREW	48039
25	SCREW, ADJUSTING-SPARK ADVANCE LEVER (2")	10-67916
26	NUT, JAM-ADJUSTING SCREW	11-29598
27	CAP, ADJUSTING SCREW	52023
28	LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)	39483
29	SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")	10-69026
30	SPRING, COMPRESSION-LATCH SCREW	24-20099
31	NUT, LATCH ATTACHING SCREW	11-826709109	11-33825, 11-35045
32	BARREL, LINK ROD TO STATOR	74897T
33	ROD, LINK-SPARK ADVANCE	74212
34	SWIVEL, LINK ROD TO SPARK ADVANCE LEVER	73783

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
