Mercury 650 (3 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE (WMK-5)	1360-4663A1
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET	1395-83181
7	GASKET, FLOAT INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
9	COVER, FLOAT BOWL	1399-5152
10	SCREW, FLOAT BOWL COVER (SHORT)	10-52195
11	SCREW, FLOAT BOWL COVER (LONG)	1395-4804
12	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
13	SCREEN, FILTER	1395-4805
14	SCREW, THROTTLE STOP LEVER	1395-4806
15	SHAFT, THROTTLE	1395-4807
16	TUBE, IDLE (#)
17	SCREW, BODY (IDLE TUBE)	1395-4540
18	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
19	SHUTTER, THROTTLE	1395-9017
20	SPRING, IDLE ADJUSTMENT SCREW	24-27160
21	SCREW, IDLE ADJUSTMENT	1399-3515
22	SCREW, PLUG - MAIN FUEL JET CHANNEL	1395-4541
23	GASKET, JET CHANNEL PLUG SCREW (#)
24	JET, MAIN FUEL (.076)	1399-3796
24	JET, MAIN FUEL (.074) - STANDARD	1399-3794
24	JET, MAIN FUEL (.072)	1395-6207
24	JET, MAIN FUEL (.070)	1395-6030
25	NOZZLE, MAIN (#)
26	SCREW, PLUG - MAIN NOZZLE	1395-4542
27	SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR) (#)
27	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (#)
28	WELCH PLUG, BODY CHANNEL (#)
29	SCREW, BODY CHANNEL	1395-4543
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KIT (1 PER CARBURETOR)	1395-51091
30	GASKET, CARBURETOR FLANGE	27-481641
31	NUT, CARBURETOR MOUNTING STUD	11-862902	11-25594

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 650 (3 CYL.) CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	60549A7
2	LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID	13-26996
3	NUT, HARNESS LEAD TO CHOKE SOLENOID ATTACHING	11-68219
4	SCREW, CHOKE SOLENOID ATTACHING (5/8")	10-33524
5	NUT, CHOKE SOLENOID ATTACHING SCREWS	11-29250
6	PLUNGER ASSEMBLY, CHOKE SOLENOID	56074A5
7	CARBURETOR ASSEMBLY, COMPLETE	1360-4663A1
8	LEVER, THROTTLE	60568
9	COUPLING ASSEMBLY, THROTTLE SHAFT	60292A1
10	INSERT, THROTTLE SHAFT COUPLING	28-89694
11	HOUSING, CHOKE	60120
12	SCREW, CHOKE HOUSING MOUNTING (5/8")	10-38055
13	LEVER, MANUAL CHOKE	60312
14	WASHER, WAVE - CHOKE LEVER TO CHOKE HOUSING SCREW	13-34632
15	WASHER, CHOKE LEVER TO CHOKE HOUSING SCREW	12-34392
16	SCREW, CHOKE LEVER TO CHOKE HOUSING (3/8")	10-20597
17	ROD, CHOKE	60305
18	SPRING, TENSION - CHOKE ROD	24-60288
19	CHOKE ARM LEVER ASSEMBLY	60290A1
20	SHUTTER, CHOKE - CARBURETOR	60291
21	SCREW, CHOKE SHUTTER TO CHOKE LEVER (1/4")	10-60846

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET (9 1/2")	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT LOCK PIN BUMPER	32-28052
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
15	WASHER, CLAMP BRACKET BOLT	12-68410
14	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")	10-68299
15	WASHER, CLAMP BRACKET BOLT	12-68300
16	NUT, CLAMP BRACKET BOLT	11-82670912
17	PIN, UPPER SHOCK MOUNTING	55-28416
18	SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)	1489-8597A4
18	SWIVEL BRACKET ASSEMBLY (LONG SHAFT)	1490-8599A6
19	OIL SEAL, SWIVEL BRACKET	26-32911
20	SCREW, DRIVE - SWIVEL BRACKET	10-47828
21	FITTING, GREASE	22-69059
22	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
23	TILK LOCK ASSEMBLY, STARBOARD	76386
24	TILT LOCK ASSEMBLY, PORT	76385T
25	TUBE, TILT LOCK	47802
26	COTTER PIN, TILT LOCK TUBE	18-47959
27	BUSHING, TILT LOCK TUBE	23-47803
28	WASHER, WAVE - TILT LOCK TUBE	13-69150
29	SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)	60316A2
29	SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)	69540A2
30	BUMPER, STEERING ARM	30711
31	BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")	10-33986
32	SCREW, RIDE-GUIDE ATTACHING (1 3/4")	10-31830
33	NUT, RIDE-GUIDE ATTACHING SCREW	11-8M0204726
34	SERIAL PLATE	38-56267
35	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
36	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
37	WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)	12-25176
37	WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)	12-26837
38	YOKE, BOTTOM	77416T1
39	NUT, SWIVEL PIN RETAINING	11-71956
40	PIN, LOWER SHOCK MOUNTING	55-696531
41	REVERSE LOCK ASSEMBLY	87432
42	SPRING, REVERSE LOCK TENSION	24-29821
43	SHAFT, REVERSE LOCK PIVOT	56349
44	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
45	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
46	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
47	WASHER, LOWER BUSHING RETAINER (INNER)	12-59378
48	SHOCK ABSORBER	55-58780A7
49	BUSHING, RUBBER - SHOCK ABSORBER (UPPER)	23-32171
50	BUSHING, RUBBER - SHOCK ABSORBER (LOWER)	23-28198
51	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
52	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4"(	10-69375A1
53	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
54	SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")	10-37655

COWL SUPPORT BRACKETS

Below is the parts list for Mercury 650 (3 CYL.) COWL SUPPORT BRACKETS:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, COWL SUPPORT - TOP	60117
2	SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE	62444
3	SCREW, TOP COWL BRACKET ATTACHING (3/4")	10-60300
4	NUT, SUPPORT BRACKET ATTACHING SCREW	11-8M0207775
5	SHIELD ASSEMBLY, FLYWHEEL	62501A1
6	SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") - REAR	10-48409
7	SCREW, SHIELD TO TOP SUPPORT BRACKET (3/8") - FRONT	10-62568
8	BRACKET, COWL SUPPORT - REAR	60112
9	RETAINER, SPARK PLUG LEADS	60299
10	SCREW, RETAINER TO REAR SUPPORT BRACKET (1/2")	10-69079
11	MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET	90435
12	WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET	12-69057
13	NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET	11-8267089
14	BRACE, REAR COWL SUPPORT BRACKET (TOP)	60116
15	GROUND STRAP ASS'Y BRACE TO REAR SUPPORT BRACKET	49651A1
16	SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8")	10-24644
17	NUT, SUPPORT BRACKET BRACE ATTACHING SCREW	11-8M0207775
18	BRACKET, COWL SUPPORT (FRONT)	64926
19	RETAINER, WIRING HARNESS AND BATTERY CABLE	61344
20	SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2")	10-35519
21	MOUNT, RUBBER - FRONT SUPPORT BRACKET	90435
22	WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET	12-69057
23	NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET	11-8267089
24	MOUNT, RUBBER - FRONT SUPPORT TO DISTRIBUTOR ADAPTOR	90435
25	GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET	49651A1
26	WASHER, RUBBER MOUNT ATTACHING	12-69057
27	NUT, RUBBER MOUNT ATTACHING	11-8267089
28	SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET	76410
29	BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT)	62391
30	DRIP TRAY, FRONT SUPPORT BRACKET	65915A2
31	BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET	62869
32	HOSE, DRIP TRAY TO REAR SUPPORT BRACKET	32-9912688
33	SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (1/2")	10-35519
34	CLP, HOSE TO REAR SUPPORT BRACKET	54-22740
35	SCREW, HOSE CLIP FASTENING (7/16")	10-69079
36	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
34	CLIP, HOSE TO EXHAUST PLATE	54-22875
35	SCREW, HOSE CLIP FASTENING (7/16")	10-69079
36	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
37	PLATE, FRONT COVER MOUNTING	76251A1
38	LATCH, FRONT COVER ATTACHING	76264
39	SPRING, FRONT COVER LATCH	24-60295
40	SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")	10-38601
41	NUT, ATTACHING SCREW COVER PLATE	11-8M0207775
42	HOSE, TELL TALE - REAR BRACKET TO EXHAUST PLATE	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
43	ELBOW, TELL TALE HOSE TO EXHAUST EXTENSION PLATE	22-996642
44	NOZZLE, TELL TALE HOSE TO REAR SUPPORT BRACKET	52889
45	SCREW, NOZZLE TO REAR SUPPORT BRACKET (1/2")	10-35519

COWLING AND FRONT COVER

Below is the parts list for Mercury 650 (3 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL ASSEMBLY (STARBOARD)	2142-6228A1
2	SEAL, RUBBER - COWL	61661
3	SEAL, FUEL CONNECTOR - COWL	26-60297
4	BLANKET, SOUND ABSORBING (LOWER)	61634
5	BLANKET, SOUND ABSORBING (UPPER)	61633
6	SEAL, RUBBER - COWL	61662
7	COWL ASSEMBLY (PORT)	2141-6227A1
2	SEAL, RUBBER - COWL	61661
6	SEAL, RUBBER - COWL	61662
8	SEAL, CONTROL CABLES - COWL	26-60298
9	BLANKET, SOUND ABSORBING (UPPER)	61631
10	BLANKET, SOUND ABSORBING (LOWER)	61632
11	BRACKET, COWL SEALING - REAR	60121
12	BRACKET, COWL HINGE	90980
13	SCREW, HINGE BRACKET TO COWL SEALING BRACKET (1 1/8")	10-455611
14	LOCKWASHER, HINGE BRACKET SCREW	13-26992
15	WASHER, HINGE BRACKET SCREW	12-37998
16	PIN, COWL HINGE	90979
17	SCREW, PIN TO COWL (7/8")	10-53167T
18	LOCKWASHER, PIN ATTACHING SCREW	13-8M0204647
18A	WASHER, PIN ATTACHING SCREW (STARBOARD SIDE ONLY)	12-20722
19	COWL LATCH ASSEMBLY	46785A5
20	BARREL, COWL LATCH	62628
21	SCREW, LATCH ASSEMBLY TO BARREL (7/8")	10-31312
22	BAR, ADJUSTMENT - COWL LATCH	15222
23	BARREL, COWL LATCH	62629
24	SPRING, TENSION - COWL LATCH	24-62624
25	WASHER, ADJUSTMENT BAR TO BARREL	12-30164
26	NUT, ADJUSTMENT BAR TO BARREL	11-53153
27	COWL FRONT COVER ASSEMBLY	2143-7254A3
28	BLANKET, SOUND ABSORBING - FRONT COVER	61663
29	HOOK, COWL FRONT COVER FASTENING	61158T
30	SCREW, FASTENING HOOK TO COWL FRONT COVER (3/4")	10-69570
31	STARTER ROPE ASSEMBLY (FOR MANUAL STARTING ONLY)	47341A11

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 650 (3 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	462-8839A2
2	BEARING, BALL - UPPER	30-64424T
3	BEARING, BALL - LOWER	30-64424T
4	SHIM, LOWER BEARING TO CRANKSHAFT	15-22369A1
5	CARRIER ASSEMBLY, "O" RING	60834A3
6	"O" RING, CARRIER	25-35276
7	MAIN BEARING ASSEMBLY (VALVE TYPE)	542-4846A1
8	DOWEL PIN, MAIN BEARING	17-20032
9	DOWEL PIN (STEPPED)	17-60282
10	DOWEL PIN, REED STOP	17-65855
11	REED SET, MATCHED - MAIN BEARING	34-66051A1
12	REED STOP	34-65946
13	SCREW, REED STOP MOUNTING (9/16")	10-77280
14	NUT, REED STOP MOUNTING SCREW	11-20110
15	SCREW, MAIN BEARING CLAMPING (9/16")	10-45775
16	NUT, MAIN BEARING SCREW CLAMPING	11-45774
17	RACE, OUTER (PAIR)	26113T
18	RING, SNAP - OUTER RACE CLAMPING	53-26933
19	BEARING, NEEDLE	29-714221
20	PISTON AND PISTON PIN ASSEMBLY	774-9137A12
21	LOCK RING, PISTON PIN	53-857196	40-52035
22	RING, PISTON	39-78816A12
23	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
24	SCREW, CAP TO CONNECTING ROD (1 1/2")	10-54803
25	NUT, CONNECTING ROD SCREW	11-49091
26	BEARING ASSEMBLY, CRANKPIN	31-62596A1
27	BEARING, NEEDLE - PISTON PIN	29-8M0214934
28	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247
--	PISTON AND PISTON PIN ASSEMBLY (.015)	774-9137A13
--	RING, PISTON (.015)	39-78811A12

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	855-4553A3
2	GASKET, CRANKCASE TO CYLINDER BLOCK	27-60286
3	STUD, CARBURETOR MOUNTING (1 1/4")	16-21831
4	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")	16-68201
5	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK	17-43044
6	DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING	17-20323
7	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/4")	16-20984
8	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3") - EXHAUST	16-68202
8	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 9/16") - TRA	16-68167
9	RESTRICTION, CYLINDER BLEED	66517
10	COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)	60115
11	SCREW, STARTER MOTOR COVER TO CRANKCASE (2 3/4")	10-26132
12	NUT, STARTER MOTOR COVER SCREW	11-29250
13	SCREW, STARTER MOTOR COVER TO CRANKCASE (2 3/4")	10-57841
14	LOCKWASHER, STARTER MOTOR COVER SCREW	13-8M0204647
15	PIPE PLUG, CRANKCASE	22-328022
16	COVER, STARTER MOTOR TO CRANKCASE (TOP)	79735A1
17	SCREW, STARTER MOTOR COVER TO CRANKCASE (2")	10-21449
18	SCREW, STARTER MOTOR COVER TO CRANKCASE (2 1/2")	10-26132
19	NUT, STARTER MOTOR COVER SCREW	11-29250
20	SCREW, CRANKCASE TO CYLINDER BLOCK (7/8")	10-69094
21	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")	10-69090
22	SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
23	WASHER, CRANKCASE TO CYLINDER BLOCK SCREW	12-26020
24	NUT, CRANKCASE TO CYLINDER BLOCK SCREW	11-29250
25	INDICATOR, TIMING	62397
26	END CAP ASSEMBLY UPPER	1143-4390A1
27	"O" RING, END CAP	25-47254
28	CHECK VALVE ASSEMBLY, END CAP	21-42657A3
29	OIL SEAL, END CAP	26-41953
30	SCREW, UPPER END CAP MOUNTING (1")	10-30225
31	SHIM, UPPER END CAP (.006-8-10)	15-47248A1
32	END CAP ASSEMBLY, LOWER	1144-4888A1
33	"O" RING, END CAP	25-32546
34	OIL SEAL, END CAP	26-41953
35	CHECK VALVE ASSEMBLY, END CAP	21-42657A3
36	SCREW, LOWER END CAP MOUNTING (1")	10-30225
37	SHIM, LOWER END CAP (.002-3-5-10)	15-20085A1
38	COVER, TRANSFER PASSAGE	58910
39	GASKET, TRANSFER PASSAGE COVER	27-60311
40	SCREW, TRANSFER PASSAGE COVER MOUNTING (1 1/8")	10-38837
41	COVER, CYLINDER BLOCK	1025-8116A1
42	GASKET, CYLINDER BLOCK COVER	27-88449
43	SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")	10-21091
44	NUT, COVER MOUNTING SCREWS	11-8M0207775
45	PLUG, CYLINDER BLOCK COVER	22-328022
46	GASKET, BAFFLE PLATE TO CYLINDER BLOCK	27-60309
47	PLATE, BAFFLE - EXHAUST MANIFOLD	58913
48	GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-60308
49	COVER, EXHAUST MANIFOLD	58912
50	SCREW, THROTTLE LEVER ADJUSTING (2 1/8")	10-64022
51	NUT, THROTTLE LEVER ADJUSTING SCREWS	11-20890
52	CAP, NYLON - THROTTLE LEVER ADJUSTING SCREWS	52023
53	SCREW, BAFFLE PLTAE AND EXHAUST MANIFOLD COVER MOUNTING (1 1	10-60411
54	SWITCH, MERCURY	58124A15
55	SCREW, MERCURY SWITCH TO CRANKCASE (1/2")	10-48591
56	PIN, ROLL - MERCURY SWITCH	17-36242
57	STA-STRAP, MERCURY SWITCH LEAD	61990
58	HOSE, CRANKCASE BLEED (12")	32-892024122	32-99130122
59	FITTING, CRANKCASE BLEED (PART OF CYLINDER BLOCK AND CRANKCA	22-56759

DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE

Below is the parts list for Mercury 650 (3 CYL.) DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, DISTRIBUTOR	332-4797A9
2	WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING	12-60569
3	ADAPTOR, DISTRIBUTOR	60576
4	PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING	17-8M0084726	17-85500
5	SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 1/4")	10-69090
6	NUT, DISTRIBUTOR ADAPTOR SCREW	11-29250
7	FITTING, GREASE - DISTRIBUTOR ADAPTOR	22-25094
8	CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET	84-60871A3
9	WASHER, DISTRIBUTOR ADAPTOR	12-27939
10	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
11	WASHER, WAVE - DISTRIBUTOR ADAPTOR	13-27959
12	CAP, DISTRIBUTOR HOUSING	54567
13	SPACER, DRIVE PULLEY	23-29909
14	DRIVEN PULLEY ASSEMBLY	29906A1
15	PIN, ROLL - FLANGE LOCATING	17-29908
16	FLANGE, DRIVEN PULLEY	29907
17	KEY, DISTRIBUTOR DRIVER	28-29910
18	SCREW, PULLEY CLAMPING (1/2")	10-68554
19	BELT, TIMING	20140
20	ROD, LINK - SPARK ADVANCE	60571
21	BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING	8M0221994
22	SWIVEL, LINK ROD TO SPARK ADVANCE LEVER	27947
23	LEVER, THROTTLE CONTROL	60578
24	SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")	737-5537
25	BUSHING, THROTTLE CONTROL LEVER SCREW	23-55164
26	BUSHING, THROTTLE CONTROL LEVER SCREW	23-55171
27	SPRING, RETURN - SPARK ADVANCE LEVER	24-55162
28	LEVER, SPARK ADVANCE	60579
29	WASHER, THROTTLE CONTROL LEVER SCREW	12-68410
30	SCREW, SPARK ADVANCE ADJUSTING (1 1/4")	10-45210
31	NUT, SPARK ADVANCE ADJUSTING SCREW	11-68219
32	CAP, SPARK ADVANCE ADJUSTING SCREW	48039
33	LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)	39483
34	SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")	10-69026
35	SPRING, COMPRESSION - LATCH SCREW	24-20099
36	NUT, LATCH ATTACHING SCREW	11-826709109	11-33825, 11-35045
37	ROD, LINK - THROTTLE	60573
38	SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER	27947
39	BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM	8M0221994
40	CAM, NYLON - THROTTLE ACTUATOR	65914
41	HOUSING, NYLONG - THROTTLE ACTUATOR	76864
42	SCREW, HOUSING TO CRANKCASE (1/2")	10-37571
43	LOCKWASHER, HOUSING TO CRANKCASE SCREW	13-26996
44	PLATE, RETAINER - ACTUATOR HOUSING	60570

DISTRIBUTOR HOUSING AND ROTOR

Below is the parts list for Mercury 650 (3 CYL.) DISTRIBUTOR HOUSING AND ROTOR:

Position No.	Part Name	OEM Number	Supersedes
1	BALL BEARING, DISTRIBUTOR HOUSING (UPPER)	30-20066
2	NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING	11-54209
3	SLEEVE, ROTOR SHAFT	23-60566
4	HOUSING ASSEMBLY, DISTRIBUTOR	332-4797A9
5	GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE	53417
6	SCREW, GROUND STRAP ATTACHING (3/8")	10-62568
7	FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING	58807A1
8	CLAMP, DISTRIBUTOR LEADS TO DISTRIBUTOR HOUSING	54-22875
9	SCREW, DISTRIBUTOR LEAD CLIP FASTENING (3/8")	10-62568
10	"D" WASHER, CLIP SCREW	8M0084613	69205
11	CLIP, DISTRIBUTOR LEADS TO FRONT SUPPORT BRACKET	54-22740
12	SCREW, DISTRIBUTOR LEAD CLIP (7/16")	10-69079
13	"D" WASHER, CLIP SCREW	8M0084613	69205
14	SHIM, BEARING TO SPACER	15-21148A1
15	BALL BEARING, DISTRIBUTOR HOUSING (LOWER)	30-26379
16	SHIM, BEARING TO DISTRIBUTOR HOUSING	15-55853
17	SPACER, ROTOR SHAFT	23-53538
18	RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING	53-26406
19	DISC, ROTOR	332-4801
20	ROTOR, DISTRIBUTOR	337-4603
21	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING	54-60768
22	SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")	10-62802
23	NUT, DISTRIBUTOR CAP CLAMP SCREW	11-26768
24	GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING	27-55896
25	DISTRIBUTOR CAP ASSEMBLY	393-4606A2
26	BRUSH AND SPRING ASSEMBLY	393-1293A1
27	FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP	58807A1
28	SPARK PLUG LEAD ASSEMBLY #1, #2 AND #3	84-813715A1
--	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
29	SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR	85-94589
30	GROMMET, SPARK PLUG LEAD	25-26547
31	RETAINER, HIGH TENSION LEADS	63319
31A	RETAINER, HIGH TENSION LEADS	62877
32	SCREW, HIGH TENSION LEAD RETAINER (3/4")	10-28638
33	SPARK PLUG (CHAMPION L-77V)	33-896329827	33-827C
34	PROTECTOR, SPARK PLUG LEAD	85-63709A1
35	SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3) Comment: ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS	23-57459
36	HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL	84-821945A10	84-813706A10, 84-60870A 4
37	BOOT, HIGH TENSION CABLE TO COIL	332-2854T01
38	GROMMET, HIGH TENSION LEAD	25-26547
39	GROMMET, HIGH TENSION LEAD	25-56474
40	SLEEVE, HIGH TENSION CABLE	85-94589
41	CLIP, HIGH TENSION LEAD TO CRANKCASE	54-22627
42	SCREW, HIGH TENSION CLIP (7/16")	10-69079
43	"D" WASHER, CLIP SCREW	8M0084613	69205
44	BRACKET, COIL WIRE	59757
45	SCREW, BRACKET TO CRANKCASE (5/8")	10-69054
46	LOCKWASHER, BRACKET SCREW	13-26992

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 650 (3 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1592-8188A8
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1593-7513A12
2	PLUG, PLASTIC - TRIM TAB SCREW HOLD	19-824928001	19-824928, 19-32297
3	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")	16-8M0022145	16-57932
4	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")	16-57935
5	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	12-45176
6	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")	11-8M0204653
7	ROD, PUSH - REVERSE LOCK (SHORT SHAFT)	47835
7	ROD, PUSH - REVERSE LOCK (LONG SHAFT)	47836
8	NUT, JAM - PUSH ROD	11-60049
9	ROD END, PUSH ROD	47837
10	PIN, PUSH ROD TO REVERSE LOCK	24-78203A2
11	COTTER PIN, PUSH ROD PIN	18-25191
12	GUIDE, PUSH ROD	52917
13	COVER, LOWER MOUNT CLAMP	35474T
14	SCREW, COVER TO LOWER MOUNT CLAMP (5/8")	10-29722
15	NUT, LOWER MOUNT CLAMP COVER	11-35521
16	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	69592F1
17	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")	10-29256
18	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
19	MOUNT, RUBBER - LOWER	75304T1
20	SCREW, LOWER MOUNT (5 1/2")	10-75284
21	WASHER, LOWER MOUNT SCREW	12-28051
22	WASHER, RUBBER - LOWER MOUNT SCREW	12-28053
23	WASHER, LOWER MOUNT SCREW	12-61709
24	NUT, LOWER MOUNT SCREW	11-25096
25	MOUNT, RUBBER - UPPER	75305
26	PACKING, "U" CUP - UPPER MOUNT COVERS	24929
27	COVER, UPPER MOUNT - OUTSIDE HALF	79680A1
28	COVER, UPPER MOUNT - INSIDE HALF	79680A1
29	SCREW, UPPER MOUNT COVER - REAR (1 1/2")	10-49987
30	SCREW, UPPER MOUNT COVER - FRONT (1 3/4")	10-37941
31	NUT, UPPER MOUNT COVER FASTENING SCREW	11-35888
32	WASHER, UPPER MOUNT BOLT (37/64 ID)	12-30520
33	WASHER, RUBBER - UPPER MOUNT BOLT	12-30521
34	WASHER, UPPER MOUNT BOLT (3/8 ID)	12-30519
35	NUT, UPPER MOUNT BOLT	11-23161
36	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-385011
37	NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")	11-64809
38	TUBE, EXHAUST (SHORT SHAFT)	695431
38	TUBE, EXHAUST (LONG SHAFT)	695441
39	TUBE, WATER INLET (SHORT SHAFT)	32-37727
39	TUBE, WATER INLET (LONG SHAFT)	32-45679
40	SLEEVE, WATER INLET TUBE	23-23651
41	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	38157
42	STRIP, RETAINING - TRIM COVER SEAL (SIDE)	38154
43	STRIP, RETAINING - TRIM COVER SEAL (REAR)	38158
44	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)	10-48408

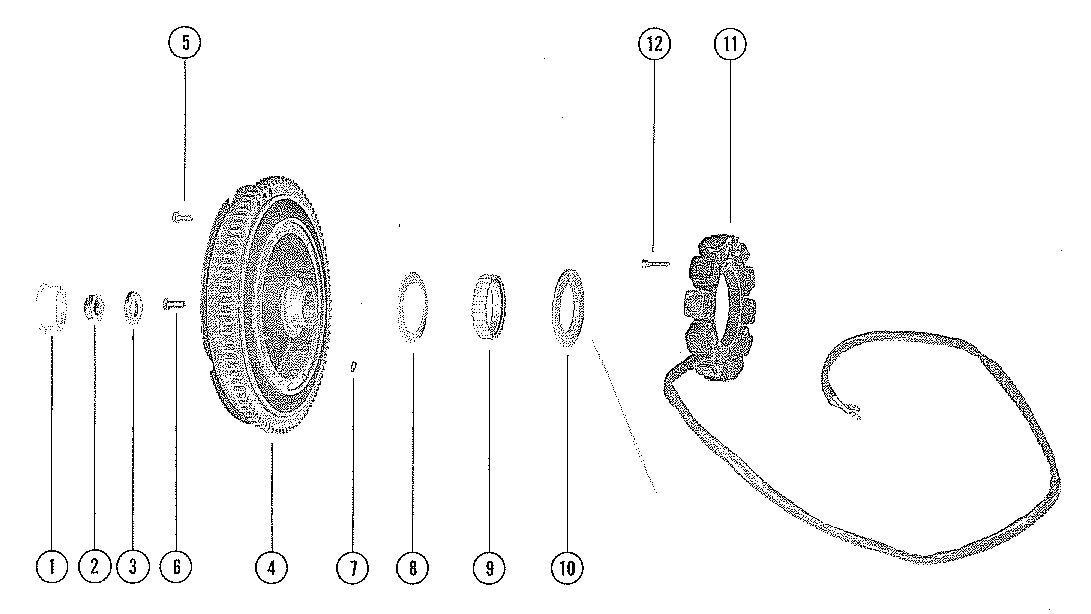

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 650 (3 CYL.) FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number
1	PLUG, FLYWHEEL PULLER THREADS	19-45907
2	NUT, FLYWHEEL	11-52901
3	WASHER, FLYWHEEL NUT	12-33001
4	FLYWHEEL ASSEMBLY, COMPLETE	225-4591A7
5	SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")	10-32417
6	SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")	10-68997
7	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
8	FLANGE, FLYWHEEL PULLEY	29788
9	PULLEY, FLYWHEEL	30306
10	HUB, FLYWHEEL PULLEY	29787
11	STATOR, ALTERNATOR	398-4634
12	SCREW, STATOR TO UPPER END CAP (7/8")	10-57021

FUEL PUMP, FUEL FILTER AND FUEL LINE

Below is the parts list for Mercury 650 (3 CYL.) FUEL PUMP, FUEL FILTER AND FUEL LINE:

Position No.	Part Name	OEM Number
1	FUEL PUMP ASSEMBLY	55156A5
2	CHECK VALVE ASSEMBLY	21-30430A3
3	DIAPHRAGM KIT	55278A1
4	GASKET, CHECK VALVE TO HOUSING (#)
5	GASKET, FUEL PUMP (#)
6	RETAINER, CHECK VALVE	23004
7	SCREW, RETAINER TO HOUSING (1/4")	10-43725
8	SCREW, PUMP MOUNTING (1 5/8'0	10-86885
9	PLUG, PIPE - FUEL PUMP	22-328022
10	FUEL LINE ASSEMBLY, FUEL PUMP/FUEL FILTER HSG. (2 3/4")	32-60814A1
11	HOUSING, FUEL FILTER AND COVER	58907
12	SCREW, FILTER HOUSING TO TRANSFER PASSAGE COVER (1 1/4")	10-74824
13	WASHER, FUEL FILTER HOUSING MOUNTING SCREW	12-34437
14	GASKET, FILTER COVER (BOTTOM)	27-25851
15	ELEMENT, FUEL FILTER	1399-3938
16	GASKET, FILTER COVER (TOP)	27-25849
17	COVER, FUEL FILTER	1399-4791A1
18	SCREW, FILTER COVER FASTENING (5/8")	10-25822
19	GASKET, FILTER COVER FASTENING SCREW	27-25848
20	FUEL LINE, FILTER COVER TO UPPER CARBURETOR (5 7/8")	32-38527
21	ELBOW, (45O) - UPPER CARBURETOR	22-8M0123050
21A	ELBOW, LOWER CARBURETOR	22-36567
22	FUEL LINE, FILTER COVER TO LOWER CARBURETOR (7 1/8")	32-62989A1
23	FUEL LINE ASSEMBLY, FUEL PUMP TO ADAPTOR (15")	32-55829
24	NUT, FUEL LINE	22-30177
25	SLEEVE, FUEL LINE	22-30175
26	CONNECTOR, FUEL LINE	22-30468
27	ADAPTOR, CHECK UNIT (FUEL LINE)	30186
28	STEM, CHECK UNIT ADAPTOR	30187
29	"O" RING, ADAPTOR STEM	25-16524
30	SPRING, ADAPTOR STEM	24-30189
31	CUP WASHER, ADAPTOR	30188
32	SCREW, ADAPTOR TO FRONT SUPPORT BRACKET (1 3/8")	10-24644
33	NUT, ADAPTOR FASTENING SCREW	11-8M0207775

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 650 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW	1643-6038A19
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW	1643-6038A20
1	GEAR HOUSING ASSEMBLY	1643-6038A6
2	PIN, DOWEL - GEAR HOUSING	17-21438
3	STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")	16-33778
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")	16-8M0034453	16-57933
5	BEARING, ROLLER - DRIVE SHAFT	31-62091T
6	PLATE, SUPPORT - EXHAUST TUBE SEAL	92815
7	SEAL, EXHAUST TUBE	37721001
8	GEAR, PINION - DRIVE SHAFT	43-60245
9	NUT, PINION GEAR TO DRIVE SHAFT	11-55910
10	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32771
11	"O" RING, WATER PUMP BASE	25-26855
12	WATER PUMP BASE ASSEMBLY	46-77516A1
13	OIL SEAL, WATER PUMP BASE	26-79831
14	OIL SEAL, WATER PUMP BASE	26-90562
15	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
16	GASKET, LOWER - WATER PUMP BASE TO FACE PLATE	27-19553
17	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	32768
18	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-19551
19	IMPELLER, WATER PUMP	47-89983T
20	KEY, IMPELLER DRIVE	28-8M0032837	28-56662
21	WATER PUMP BODY ASSEMBLY	46-77822A1
22	INSERT, WATER PUMP BODY	48753
23	OIL SEAL, WATER PUMP BODY	26-32121
24	WASHER, WATER PUMP BODY AND BASE STUDS	12-8M0204649
25	NUT, WATER PUMP BODY AND BASE STUDS	11-826709109	11-33825, 11-35045
26	SEAL, WATER PUMP BODY TO WATER TUBE	26-38452
27	WASHER, CUPPED - WATER TUBE SEAL	12-38453
28	RING, RUBBER - CENTRIFUGAL SLINGER	25-20273
29	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
30	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
31	PLUG, GEAR HOUSING FLUSHING HOLE	19-48750
32	WASHER, GEAR HOUSING FLUSHING HOLE	12-8M0204663
33	SHAFT ASSEMBLY, SHIFT - LOWER	76063A1
34	CLIP, RETAINING - SHIFT SHAFT	53-29641
35	"O" RING, SHIFT SHAFT BUSHING	25-25439
36	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
37	OIL SEAL, SHIFT SHAFT BUSHING (LOWER)	26-24590
38	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
39	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-31266
40	BASE, LOWER - REVERSE LOCKING	78036
41	CAM, REVERSE LOCKING	43308T1
42	DRIVE SHAFT ASSEMBLY (SHORT SHAFT)	45-76089A2
42	DRIVE SHAFT ASSEMBLY (LONG SHAFT)	45-76088A2
43	SPRING, COMPRESSION - DRIVE SHAFT	24-20254
44	PIN, DRIVE SHAFT	17-30545
45	SLEEVE, LUBRICATION - DRIVE SHAFT	88181
46	SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)	15-20929A1
47	ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT	31-38146A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 650 (3 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW	1643-6038A19
-	GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW	1643-6038A20
1	GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR BREAKDOWN)	1643-6038A6
48	CAM, SHIFT	760394
49	FOLLOWER, CAM	38441
50	SLIDE, CROSS PIN	20843
51	SPRING, COMPRESSION - CAM FOLLOWER	24-39845
52	SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)	15-38374A1
53	TAPERED ROLLER BEARING ASSEMBLY	31-38356A1
54	BEARING, ROLLER - FORWARD GEAR	31-21739
55	FORWARD GEAR ASSEMBLY	43-60247T5
56	RATCHET, SLIDING CLUTCH	52-92911T
57	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0020942	17-38113
58	SPRING, RETAINING - CROSS PIN	24-38114
59	SHAFT PROPELLER	44-75365
60	REVERSE GEAR ASSEMBLY	43-79159T
61	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-20927A1
62	WASHER, THRUST - REVERSE GEAR	12-32004
63	BEARING, BALL - REVERSE GEAR	30-20839T
64	"O" RING, BEARING CARRIER	25-31986
65	BEARING CARRIER ASSEMBLY	69386T1
66	BEARING, ROLLER - BEARING CARRIER	31-21700
67	OIL SEAL, BEARING CARRIER (DOUBLE LIP)	26-56788
68	KEY, LOCATING - BEARING CARRIER	28-30281
69	TAB WASHER, GEAR HOUSING COVER	14-53012
70	COVER, GEAR HOUSING	11-87763
71	TRIM TAB ASSEMBLY, GEAR HOUSING	97-31640Q4
72	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
73	WASHER, DRIVE SHAFT HOUSING STUD (3/8")	12-8M0214963
74	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")	11-8M0204726
75	WASHER, DRIVE SHAFT HOUSING STUD (7/16")	12-45176
76	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")	11-8M0204653
77	THRUST HUB ASSEMBLY, FRONT	65758
78	WASHER, CUPPED - THRUST HUB	12-62123
79	THRUST HUB ASSEMBLY, REAR	62124A1
80	WASHER, CUPPED - THRUST HUB	12-31992
81	NUT, PROPELLER	11-82671120

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 650 (3 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC 650E PARTS LIST	90-61761
-	GASKET SET (MOTOR OVERHAUL)	27-69524A75
-	DECAL SET	37-73930A76
-	EXTRA HEAVY DUTY WATER KIT	54696A1
-	TACHOMETER ASSEMBLY	79-73370A3

SHIFT LINKAGE AND EXHAUST PLATE

Below is the parts list for Mercury 650 (3 CYL.) SHIFT LINKAGE AND EXHAUST PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, ANCHOR - CONTROL CABLES	814283A2
2	LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET	60283A1
3	SPRING, LINK TO ANCHOR BRACKET	24-20099
4	GUIDE BLOCK, LINK	37896
5	WEAR PLATE, NYLON - LINK	52100
6	LATCH, LINK TO ANCHOR BRACKET	8M0036768	38279
7	WASHER, LINK LATCH	12-69056
8	NUT, LINK ATTACHING	11-826709109	11-33825, 11-35045
9	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)	60304A2
9	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)	60304A1
10	COUPLING, SHIFT SHAFT	93960A1
11	WASHER, WAVE - SHIFT SHAFT TO LINK	13-29720
12	BUSHING, NYLON - SHIFT SHAFT TO LINK	23-26600
13	WASHER, LINK (SHIFT SHAFT END)	12-24664
14	CUP, RETAINER - ANCHOR BRACKET	39519
15	LEVER, NYLON - SHIFT CABLE LOCKING	87609A1
16	PIN, LOCKING LEVER AND COVER FASTENING	17-47175
17	LINK, LOCKING LEVER TO COVER	39536
18	COVER, NYLON - SHIFT CABLE	39667
19	SCREW, ANCHOR BRACKET TO CRANKCASE AND CYL BLOCK (7/8")	10-53167T
20	GASKET, POWERHEAD TO EXHAUST PLATE	27-60317
21	EXHAUST PLATE ASSEMBLY	74007A1
22	STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")	16-8M0034449	16-69058
23	STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")	16-68166
24	SEAL, WATER INLET TUBE	26-38452
25	WASHER, NYLON - WATER INLET TUBE SEAL	12-38453
26	RETAINER, WATER INLET TUBE SEAL	38500
27	SCREW, RETAINER TO EXHAUST PLATE (3/4")	10-69069
28	SEAL, EXHAUST PLATE	60307
29	STRIP, RETAINING - EXHAUST PLATE SEAL	60306
30	SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")	10-62568
31	MOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORT	90435
32	GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT	49651A1
33	WASHER, RUBBER MOUNT ATTACHING	12-69057
34	NUT, RUBBER MOUNT TO EXHAUST PLATE	11-8267089
35	SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")	10-35386
36	GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING	27-385011
37	EXHAUST TUBE, ADAPTOR	58911
38	GASKET, EXHAUST TUBE TO EXHAUST PLATE	27-602801
39	SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")	10-49668

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS

Below is the parts list for Mercury 650 (3 CYL.) STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS:

Position No.	Part Name	OEM Number	Supersedes
1	SWITCH BOX ASSEMBLY, COMPLETE	332-4796A6
2	NUT, SWITCH TERMINAL	11-45076
3	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")	10-64022
4	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")	10-63506
5	NUT, SWITCH BOX SCREW ATTACHING	11-8M0207775
6	CLAMP, ELECTRICAL LEADS TO SWITCH BOX	54-22875
7	SCREW, CLAMP TO SWITCH BOX (7/16")	10-69079
8	"D" WASHER, CLAMP FASTENING SCREW	8M0084613	69205
9	CABLE ASSEMBLY, COIL TO SWITCH BOX (GREEN)	56318A5
10	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
11	NUT, RECTIFIER TERMINAL	11-45076
12	SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (1/2")	10-25764
13	STARTER MOTOR ASSEMBLY	50-44369A1
14	STOP, RUBBER - STARTER MOTOR	8M0043376	68042
15	CABLE, STARTER TO FRONT SUPPORT BRACKET (9 1/2")	84-60872
16	SCREW, CABLE TO STARTER MOTOR (5/8")	10-69035
17	CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW)	84-68890
18	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
19	NUT, STARTER MOTOR TERMINAL	11-20890
20	COLLAR, RUBBER - STARTER MOTOR MOUNT	23-8M0034918	23-8M0001391, 56703
21	SPACER, COLLAR TO MOUNTING BRACKETS	23-56774
22	STARTER SOLENOID	89-853654A1
23	SCREW, SOLENOID TO FRONT SUPPORT BRACKET (5/8")	10-69054
24	LOCKWASHER, SOLENOID MOUNTING SCREW	13-26992
25	SCREW, SOLENOID TO FRONT SUPPORT BRACKET (1/2")	10-98256
26	NUT, SOLENOID MOUNTING SCREW	11-8M0207775
27	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
28	NUT, SOLENOID TERMINAL	10,11-68219
29	LOCKWASHER, SOLENOID TERMINAL (5/16")	13-8M0204647
30	NUT, SOLENOID TERMINAL (5/16")	11-21908
31	CABLE, BATTERY TO STARTER SOLENOID	84-61378A2
32	WIRING HARNESS (INTERNAL)	84-60795
33	SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")	10-72202
34	NUT, WIRING HARNESS SCREW	11-46438
35	BRACKET ASSEMBLY, WIRING HARNESS	60114A1
36	SEAL, WIRING HARNESS BRACKET	26-60925
37	SCREW, WIRING HARNESS BRACKET MOUNTING (2 3/8")	10-69082
38	GROMMET, WIRING HARNESS BRACKET SCREW	25-92012
39	STA-STRAP, INTERNAL WIRING HARNESS	61990
40	IGNITION COIL (2 7/8" HIGH) Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	336-4592A1
41	PAD, RUBBER - COIL Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	56270
42	COVER, COIL (USE WITH A-336-4592A1 COIL) Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	56188
40	IGNITION COIL (3 3/8" HIGH) Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	332-4895T2
41	PAD, RUBBER - COIL Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	72015
42	COVER, COIL (USE WITH A-332-4595A1 COIL) Comment: TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM	63195
43	BRACKET, COIL MOUNTING	62094
44	SCREW, COIL AND BRACKET TO CYLINDER BLOCK (2")	10-88856
45	CABLE ASSEMBLY, GROUND - MOUNTING SCREW	84-60466A1
46	LOCKWASHER, IGNITION COIL TERMINAL	10,13-26996
47	NUT, IGNITION COIL TERMINAL	10,11-45076

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
