Mercury 600 (6 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ACCESSORIES

Below is the parts list for Mercury 600 (6 CYL.) ACCESSORIES:

Position No.	Part Name	OEM Number	Supersedes
-	MERC 600E PARTS LIST, COMPLETE	90-30077
-	GASKET SET (MOTOR OVERHAUL)	27-28359A1
-	SHIPPING CARTON (MOTOR)	29791
-	SHIPPING CARTON (FUEL TANK)	94-29616
-	BULK LINE (DISTRIBUTOR VENT TUBES) PER FOOT	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
-	BULK LINE (JUMPER LEAD SLEEVES) PER FOOT	32-26626
-	BATTERY BOX ASSEMBLY	32144
-	GLUE (BLACKET ADHESIVE)	92-86166Q1
-	DECAL SET	37-29834
-	DECAL SOLUTION (PINT BOTTLE)	92-25143
-	GASKET & PACKING SET (CARBURETOR)	1399-1717
-	REPAIR PARTS KIT (CARBURETOR)	1399-1719
-	TEST PROPELLER	48-28369
-	GEAR LUBRICANT	92-29409

BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL ASSEMBLY	167-1632A2
2	INSET, TAP-LOCK	21041
3	BAFFLE, BOTTOM COWL	23760
4	SCREW, BAFFLE TO BOTTOM COWL	10-21106
5	CONNECTOR, DISTRIBUTOR VENT TUBE	22-291112
6	TUBE, VENT - DISTRIBUTOR (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	TUBE, VENT - DISTRIBUTOR (13")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
8	BRACKET, RECTIFER MOUNTING	27971
9	SCREW, BRACKET TO BOTTOM COWL (7/8")	10-22956
10	SCREW, BRACKET TO BOTTOM COWL (1 1/8")	10-21091
11	NUT, RECTIFIER BRACKET MOUNTING SCREW	11-8M0207775
12	BRACKET, COIL FASTENING	26514
13	BAND, COIL BRACKET	26512
14	SCREW, OIL BRACKET TO BOTTOM COWL (3/4")	10-69028
15	SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4")	10-56500
16	NUT, COIL BRACKET SCREW	11-8M0207775
17	SCREW, COIL BAND TO BRACKET	10-26889
18	NUT, COIL BAND SCREW	11-8M0207775
19	STUD, COIL BRACKET TO SUPPORT	16-20077
20	SUPPORT, EXTERNAL WIRING HARNESS	26552
21	WASHER, COIL BRACKET STUD	12-20084
22	NUT, COIL BRACKET STUD	11-862902	11-25594
23	GASKET, POWERHEAD TO BOTTOM COWL	27-26197
24	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING	10-21504
25	BRACKET, CABLE END ANCHOR	20557
26	SCREW, ANCHOR BRACKET TO BOTTOM COWL	10-29200
27	STOP BLOCK, THROTTLE ADJUSTING	21968
28	WASHER, STOP BLCK SCREW	12-21967
29	SCREW, STOP BLOCK HOLDING	10-28636
30	LEVER, CONTROL	29393
31	SPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFT	24-29109
32	SCREW, CONTROL LEVER TO BOTTOM COWL	10-37612
33	WASHER, CONTROL LEVER SCREW	12-8M0042641	12-29395
34	BUSHING, STEEL CONTROL LEVER	23-29529
35	PIN ASSEMBLY, CLEVIS YOKE	17-30978A1
36	ROLL PIN, CLEVIS YOKE PIN	17-239281
37	SCREW, CLEVIS PIN TO CONTROL LEVER	10-20584
38	WASHER, WAVE - CLEVIS PIN SCREW	13-29402
39	NUT, CLEVIS PIN SCREW	11-8M0204718
40	LINK, CONTROL LEVER TO VERTICAL LEVER	26591
41	SWIVEL, VERTICAL LEVER	26590
42	WASHER, WAVE - VERTICAL LEVER SWIVEL	13-21067
43	NUT, SWIVEL TO VERTICAL LEVER	11-20110
44	SWIVEL, CONTROL LEVER	27948
45	WASHER, CONTROL LEVER SWIVEL	12-8M0204649
46	NUT, SWIVEL TO CONTROL LEVER	11-8267089
47	LINK ROD ASSEMBLY, CONTROL LEVER END	26589A1
48	ROD, LINK - DRIVE CAM	26588
49	NUT, LINK ROD ADJUSTING	11-25168
50	WASHER, LINK ROD END	12-20533
51	SPRING, TENSION - LINK ROD TO BOTTOM COWL	24-24826
52	COTTER PIN, LINK ROD TO CONTROL LEVER	18-210711
53	CAM, DRIVE - TILTLOCK	29481
54	CAM, TOP - TILTLOCK	29482
55	NUT, CAM FASTENING - PUSH ROD	11-862902	11-25594
56	PLATE, NAME - BOTTOM COWL	38-28150
57	FASTENER, NAME PLATE TO BOTTOM COWL	53-25539

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMBLY, COMPLETE (KB-3A)	1334-1664
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION	17-20853
4	LEVER, FLOAT (LOWER)	1399-102
5	LEVER, FLOAT (UPPER)	1399-101
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAT	27-25033
8	SCREW, THROTTLE STOP LEVER	1395-6027
9	LEVER, THROTTLE STOP (SEE NOTE BELOW)	8146791
10	SHAFT, THROTTLE	1399-1716
11	SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)	24-26890
11	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)	24-20869
12	JET, MAIN FUEL (.057) - STANDARD	1399-1457
12	JET, MAIN FUEL (.055)	1399-1655
12	JET, MAIN FUEL (.053)	1399-1653
12	JET, MAIN FUEL (.051)	1399-1651
13	GASKET, MAIN FUEL JET	27-28409
14	SPRING, IDLE ADJUSTING SCREW	24-27160
15	SCREW, IDLE ADJUSTMENT	1399-1713
16	GASKET, FLOAT BOWL COVER	1399-99
17	COVER, FLOT BOWL	1399-1133
18	ELEMENT, FILTER	1399-3938
19	SCREW, FLOAT BOWL COVER (SHORT)	10-22625
20	SCREW, FLOAT BOWL COVER (LONG)	10-25850
21	GASKET, STRAINER COVER (LARGE)	27-25851
22	GASKET, STRAINER COVER (SMALL)	27-25849
23	COVER, STRAINER	1399-1135
24	GASKET, STRAINER COVER SCREW	27-25848
25	SCREW, STRAINER COVER FASTENING	10-25822
26	NOZZLE, MAIN	1399-1715
27	SCREW, PLUG - MAIN NOZZLE	10-23178
28	SCREW AND LOCKWASHER, THROTTLE SHUTTER	10-23035
29	SHUTTER, THROTTLE	1399-107
30	TUBE, IDLE	1399-1714
31	GASKET, IDLE TUBE	27-23180
32	SCREW, PLUG - BODY CHANNEL	10-28845
33	WELCH PLUG, BODY CHANNEL	19-20011
34	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
35	GASKET, JET CHANNEL PLUG SCREW	27-28406
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1399-1717
--	REPAIR PARTS KIT (1 PER CARBURETOR)	1399-1719
36	GASKET, CARBURETOR FLANGE	27-20183
37	NUT, CARBURETOR MOUNTING STUD	11-24652

CARBURETOR LINKAGE & CHOKE SOLENOID

Below is the parts list for Mercury 600 (6 CYL.) CARBURETOR LINKAGE & CHOKE SOLENOID:

Position No.	Part Name	OEM Number	Supersedes
1	CHOKE SOLENOID, TOP COWL	29690
2	TERMINAL, CHOKE SOLENOID LEAD	30050
3	SCREW, CHOKE SOLENOID TO TOP COWL	10-24773
4	LOCKWASHER, CHOKE SOLENOID SCREW	13-26991
5	SCREW, CHOKE SOLENOID TO TOP COWL	10-20540
6	LOCKWASHER, CHOKE SOLENOID SCREW	13-26992
7	CLIP, CHOKE SOLENOID WIRE	54-648552
8	SCREW, WIRE CLIP TO TOP COWL	10-24239
9	"D" WASHER, WIRE CLIP FASTENING SCREW	8M0084613	69205
10	"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL	54-22783
11	GROUND STRAP ASS'Y, CHOKE SOLENOID TO ADAPTOR	26716A1
12	PLUNGER AND LINK ASS'Y, CHOKE SOLENOID	27031A1
13	PLATE, ADAPTOR - PLUNGER TO UPPER CHOKE ROD	27126
14	GROMMET, ADAPTOR PLATE	25-26633
15	WASHER, PLUNGER LINK	12-26014
16	COTTER PIN, PLATE TO PLUNGER LINK	18-26953
17	LOCKWASHER, ADAPTOR PLATE SCREW	13-26994
18	SCREW, ADAPTOR PLATE TO UPPER CHOKE ROD	10-21281
19	KNOB, CHOKE ROD	90242A1
20	GROMMET, CHOKE ROD	25-20116
21	"U" LINK, CHOKE KNOB TO UPPER CHOKE ROD	29702
22	SCREW, "U" LINK TO CHOKE KNOB	10-69022
23	LOCKWASHER, "U" LINK SCREW	13-26996
24	COTTER, PIN, "U" LINK TO UPPER CHOKE ROD	18-26953
25	SCREW, CHOKE LEVER PIVOT PIN	10-20176
26	SHUTTER, CHOKE	30014
27	SPRING, CHOKE SHUTTER	24-26067
28	CHOKE LEVER ASSEMBLY (UPPER CARBURETOR)	26645A1
29	BUSHING, NYLON - UPPER CHOKE LEVER	23-26888
30	CHOKE LEVER ASSEMBLY (CENTER AND LOWER CARBURETOR)	25881A1
31	COTTER PIN, CHOKE AND ROD FASTENING	18-26953
32	ROD, CHOKE	29701
33	RIVET, CHOKE LEVER TO CHOKE ROD	17-25391
34	SPRING, CHOKE ROD POSITIONING	24-28965
35	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)	27977
36	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
37	CARBURETOR ASSEMBLY, COMPLETE	1334-1664
38	THROTTLE PICKUP BRACKET ASSEMBLY	28007A3
39	CLAMP, UPPER - THROTTLE PICKUP BRACKET	27869
40	CLAMP, LOWER - THROTTLE PICKUP BRACKET	27870
41	SCREW, UPPER AND LOWER CLAMP FASTENING	10-69022
42	SCREW, THROTTLE BRACKET MOUNTING	10-29239
43	BRACKET, COIL AND RETAINER	26977
44	SCREW, RETAINER BRACKET TO CENTER CARBURETOR	10-98253
45	LOCKWASHER, BRACKET FASTENING SCREW	13-21272

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-1464A1
2	THUMBS SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET	28122
5	SHIM, CLAMP BRACKET TILT TUBE (.010 - .020)	15-25600
6	NUT, TILT TUBE FASTENING	11-8M2014641	11-826713 23
7	CAP, PLASTIC - TILT TUBE	25606
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-22053
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SWIVEL BRACKET ASSEMBLY	1442-1401A1
13	SWIVEL BRACKET ASSEMBLY	1441-1533A1
14	FITTING, GREASE	22-69059
15	OIL SEAL	26-32911
16	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
17	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
18	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-28211A1
18	SWIVEL PIN AND TOP YOKE ASSEMBLY	17-28254A2
19	BUMPER, TOP YOKE	28203
20	BOLT, TOP YOKE TO UPPER MOUNT	10-28255
21	NUT, TOP YOKE BOLT FASTENING	11-8M0204653
22	WASHER, SWIVEL PIN (TOP WASHER OPTIONAL)	12-25176
23	SERIAL PLATE	38-29536
24	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
25	YOKE, BOTTOM	30197
26	NUT, SWIVEL PIN RETAINING	11-71956
27	ROD, PUSH - REVERSE LOCK	29484
27	ROD, PUSH - REVERSE LOCK	29485
28	SPRING, REVERSE LOCK TENSION	24-26625
29	REVERSE LOCK ASSEMBLY	26903A4
30	SHAFT, REVERSE LOCK PIVOT	56349
31	WASHER, PUSH ROD	12-20546
32	COTTER PIN, PUSH ROD TO REVERSE LOCK	18-25191
33	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
--	LEVER, TILT STOP (STARBOARD SIDE)	29057
34	LEVER, TILT STOP (PORT SIDE)	29056
35	SCREW, TILT STOP LEVER ANCHOR	10-27791
36	SPACER, TILT STOP LEVER	23-29055
37	WASHER, WAVE - LEVER ANCHOR SCREW	13-34632
38	SHIM, LEVER ANCHOR SCREW (.010)	15-20473
39	NUT, LEVER ANCHOR SCREW	11-8M0207775
40	SCREW, TILT STOP LEVER RETAINING	10-27791
41	WASHER, WAVE - RETAINING SCREW	13-20846
42	NUT, LEVER RETAINING SCREW	11-8M0207775
43	BOLT, CLAMP BRACKET TO BOAAT TRANSOM	10-68298
44	WASHER, CLAMP BRACKET BOLT	12-68410
45	NUT, CLAMP BRACKET BOLT	11-82670912

COWLING AND FRONT COVER

Below is the parts list for Mercury 600 (6 CYL.) COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	184-2043A3
-	BRACKET, COVER REINFORCEMENT	29560
2	SCREW, BRACKET TO FRONT COVER	10-29226
3	LOCKWASHER, BRACKET FASTENING SCREW	13-26995
4	NUT, BRACKET FASTENING SCREW	11-26419
5	EMBLEM, FRONT COVER (SEE NOTE BELOW)	26183A5
6	SCREW, COVER FASTENING	10-29552
7	WASHER, COVER FASTENING SCREW (RUBBER)	12-26162
8	WASHER, COVER FASTENING SCREW (NYLON)	12-27897
9	BUMPER, RUBBER - FRONT COVER BRACKET	29345
10	BLANKET, SOUD ABSORBING	29344
11	WRAP AROUND COWL ASSEMBLY	2120-2509A4
12	HANDLE, COWL LATCH	21060
13	"E" RING, COWL LATCH HINGE PIN	53-21058
14	PIN, HINGE - COWL LATCH HANDLE	17-21057
15	SWIVEL, COWL LATCH	25690
16	HOOK, COWL LATCH FASTENING	25691
17	BLANKET, SOUND ABSORBING - WRAP AROUND COWL	26391
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1

CRANKSHAFT,PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 600 (6 CYL.) CRANKSHAFT,PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number
1	CRANKSHAFT	414-1735
2	OILER,FELT-DRIVE SHAFT SPLINE	20043
3	KEY,FYWHEEL DRIVE	28-20094
4	CENTER MAIN BEARING ASSEMBLY	521-1490A1
5	DOWEL PIN,CENTER MAIN BEARING	17-20032
6	,BEARING,NEEDLE-OUTER RACE	29-714221
7	RACE,OUTER (PAIR)	26113T
8	RING,SNAP-OUTER RACE	53-26933
9	DOWEL PIN,STEPPED	17-27732
10	SCREW,CENTER MAIN BEARING CLAMPING	10-22968
11	NUT,BEARING CLAMPING SCREW	11-8M0207775
12	MAIN BEARING ASSEMBLY,VALVE TYPE	527-1999A2
13	DOWEL PIN,MAIN BEARING	17-20032
14	SCREW,MAIN BEARING CLAMPING	10-22654
15	REED SET ,MATCHED-MAIN BEARING	34-88498A1
16	REED STOP,MAIN BEARING REED VALVES	34-20053
17	WASHER,REED STOP MOUNTING SCREW	12-26014
18	SCREW,REED STOP MOUNTING	10-20055
19	PISTON AND PISTON PIN ASSEMBLY	724-2537A2
20	LOCK RING,PISTON PIN	40-20057
21	RING,PISTON	39-27841A12
22	CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)	600-2748A2
23	SCREW,CONNECTING ROD	10-45379
24	,NUT,CONNECTING ROD SCREW	11-20061
25	BEARING,NEEDLE-CRANKPIN	29-20046T
26	BEARING,NEEDLE-PISTON PIN	29-20063
27	WASHER,NEEDLE LOCATING	12-28121
--	PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)	724-2553A2
--	RINGS,PISTONS (.105 OVERSIZE)	39-28616A12

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	832-1815A3
2	DOWEL PIN,CYLINDER BLOCK TO MAIN BEARING	17-20032
3	BUSHING,CRANKCASE-COWL MOUNTING STUD	23-26348
4	STUD,CARBURETOR MOUNTING	16-25385
5	DOWEL PIN,CRANKCASE TO SYLINDER BLOCK	17-43044
6	STUD,CRANKCASE TO DRIVE SHAFT HOUSING	16-64281
7	STUD,CYLINDER BLOCK TO DRIVE SHAFT HOUSING	16-26135
8	STUD,CYLINDER BLOCK TO DRIVE SHAFT HOUSING	16-26134
9	SCREW,CRANKCASE TO CYLINDER BLOCK (2 3/4")	10-22039
9	SCREW,CRANKCASE TO CYLINDER BLOCK (2 7/8")	10-27005
10	SCREW,CRANKCASE TO CYLINDER BLOCK (2 1/2")	10-26132
11	SCREW,CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-78841
11	SCREW,CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
12	NUT,CRANKCASE FASTENING SCREW	11-29250
13	BRACKET,CLAMP EXTENSION	53-78201
14	SCREW,MAIN BEARING LOCKING	10-20089
15	SCREW,CENTER MAIN BEARING LOCKING	10-20359
16	TAB WASHER,BEARING LOCKING SCREW	14-20091
17	END CAP ASSEMBLY,UPPER	1100-1438A1
18	OIL SEAL	26-41953
19	"O" RING	25-20081
20	BEARING,BALL	30-63742T
21	AP TO CRANKCASE (.002-3-5-10)	15-20082A1
22	SCREW,END CAP MOUNTING	10-29198
23	END CAP ASSEMBLY,LOWER	1102-1485A1
24	OIL SEAL	89396Q01
24	OIL SEAL	26-29478
25	"O" RING	25-20081
26	BEARING,BALL	30-63742T
--	,CHECK VALVE ASS'Y,END CAP	21-28481A1
27	SHIM,END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
28	SCREW,END CAP MOUNTING	10-29198
30	GASKET,CYLINDER BLOCK TO MANIFOLD PLATE	27-30089
29	PLATE,EXHAUST MANIFOLD	31085
30	GASKET,MANIFOLD PLATE TO COVER	27-30089
31	COVER,EXHAUST MANIFOLD	31083
32	SCREW,MANIFOLD COVER MOUNTING (7/8")	10-28668
33	CLAMP,SPARK PLUG LEADS TO COVER	54-26519
34	GROUND STRAP ASSEMBLY,CYLINDER BLOCK TO BOTTOM COWL	30109
35	GASKET,CYLINDER BLOCK COVER	27-26072
36	CYLINDER BLOCK COVER ASSEMBLY	1010-1267A1
37	,BUSHING,COVER-COWL MOUNTING STUD	23-26348
38	SCREW,CYLINDER BLOCK COVER MOUNTING	10-20653
39	NUT,COVER MOUNTING SCREW	11-8M0207775
40	GASKET,TRANSFER PORT COVER	27-279361
41	COVER,TRAMSFER PORT	27935
42	SCREW, TRANSFER PORT COVER MOUNTING (5/8")	10-20540
42	SCREW,TRANSFER PORT COVER AND RESISTOR SNUBBER MOUNTING (1 3	10-24770
43	LOCKWASHER,TRANSFER PORT COVER AND RESIST.SNUBBER MNTG SCREW	13-26992
44	CONNECTOR,CYLINDER BLEED HOSE-LOWER	22-67902
45	HOSE,CYLINDER BLEED (5 1/2")-LOWER	32-9912688
46	TEE,CHECK VALVE AND ADAPTOR	22-25956
47	ADAPTOR AND CHECK VALVE ASSEMBLY	22-28586A1
48	CHECK VALVE ASSEMBLY,ADAPTOR	21-28481A1
49	HOSE,CYLINDER BLEED (6 1/2")-UPPER	32-9912688
50	CHECK VALVE ASSEMBLY,UPPER-BLEED HOSE	22-62365A1
48	CHECK VALVE ASSEMBLY	21-28481A1
51	CLAMP,BLEED HOSE TO CONNECTORS	54-20387

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	PILOT ASSEMBLY	29633A1
2	BEARING, BALL - DISTRIBUTOR PILOT	30-20066
3	SPRING, HORSESHOE	24-29275
4	PIN, SPRING TERMINAL	17-27962
5	WASHER, SPRING TERMINAL PIN	12-8M0204649
6	SECTOR GEAR AND PIN ASSEMBLY	43-28509A1
7	PIN, SPRING RETAINER	17-27961
8	FITTING, GREASE - SECTOR GEAR	22-69059
9	THROTTLE ACTUATOR ASSEMBLY	29558A1
10	BUSHING, NYLON - THROTTLE ACTUATOR	23-26602
11	SCREW, THROTTLE ACTUATOR TO GEAR SECTOR	10-20665
12	WASHER, THROTTLE ACTUATOR FASTENING SCREW	12-847883	12-20128
--	LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW	13-26996
13	ADAPTOR, DISTRIBUTOR	30044
14	WASHER, THRUST - DISTRIBUTOR PILOT	12-27939
15	TAB WASHER, CAP LOCKING	14-27960
16	WASHER, WAVE - TAB WASHER TENSION	13-27959
17	CAP, ADAPTOR AND PILOT FASTENING	27955
18	DRIVE SHAFT ASSEMBLY, DISTRIBUTOR	45-28473A1
19	SPRING, DISTRIBUTOR DRIVE SHAFT	24-28469
20	BEARING, BALL - DRIVE SHAFT	30-26379
21	RING, SNAP - BALL BEARING RETAINING	53-26406
22	FITTING, GREASE - ADAPTOR	22-25094
23	SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR	10-28668
24	LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW	13-26992
25	SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE	10-78841
26	WASHER, ADAPTOR AND PILOT FASTENING SCREW	12-20084
27	NUT, ADAPTOR AND PILOT FASTENING SCREW	11-22053
28	BELT, TIMING	20140
29	SPACER, DRIVEN PULLEY	23-27957
30	KEY, MAGNETO DRIVING	28-28657
31	PULLEY, DRIVEN	29783A2
32	FLANGE, DRIVE PULLEY	20136
33	WASHER, PULLEY CLAMPING SCREW	12-20138
34	LOCKWASHER, PULLEY CLAMPING SCREW	13-26996
35	SCREW, PULLEY CLAMPING	10-32228
36	BRACKET, GUIDE RACK	29632
37	GUIDE RACK ASSEMBLY	26610A5
38	GROMMET, GUIDE RACK BRACKET	25-29727
39	SCREW, THROTTLE STOP ADJUSTING	10-64022
40	NUT, THROTTLE STOP ADJUSTING SCREW	11-20890
41	CAP, NYLON - ADJUSTING SCREW	26852
42	RACK AND PIN ASSEMBLY, GUIDE RACK	26827A1
43	PIN, LINK - NYLON RACK	17-26816
44	ROLL PIN, LINK PIN TO NYLON RACK	17-23757
45	SCREW, GUIDE RACK BRACKET TO DISTRIBUTOR ADAPTOR	10-28636
46	WASHER, GUIDE RACK BRACKET FASTENING SCREW	12-20533
47	GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE	30109
48	LEVER, VERTICAL	26598
49	LINK, VERTICAL LEVER TO NYLON RACK	26593
50	RIVET, LINK TO VERTICAL LEVER	17-26637
51	NUT, LINK PIN TO VERTICAL LEVER LINK	11-20110
52	BUSHING, NYLON - VERTICAL LEVER (1/2" I.D.)	23-26599
53	BUSHING, STEEL - VERTICAL LEVER	23-26603
54	BUSHING, NYLON - VERTICAL LEVER (1/4" I.D.)	23-26600
55	SCREW, VERTICAL LEVER TO EXHAUST COVER	10-26638
56	WASHER, VERTICAL LEVER FASTENING SCREW	12-68300
57	LEVER, REVERSE THROTTLE PICKUP	26604
58	SCREW, PICKUP LEVER TO DISTRIBUTOR HOUSING	10-29155
59	WASHER, PICKUP LEVER FASTENING SCREW	12-20533
60	LOCKWIRE, PICKUP LEVER FASTENING SCREW	29156
61	DISTRIBUTOR ASSEMBLY, COMPLETE	393-1282A13
62	SPARK PLUG	33-813416
63	COIL, IGNITION	898253T24	392-806529A 1
64	"O" RING, IGNITION COIL	25-26543
65	JUMPER ASSEMBLY, COIL TO COIL	26454A1
66	SLEEVE, COIL JUMPER	32-26627
67	CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6)	54-24836
68	"D" WASHER, GROUND LEAD CLIP SCREW	8M0084613	69205
69	SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE	10-8M0113176

DISTRIBUTOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 600 (6 CYL.) DISTRIBUTOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	DISTRIBUTOR ASSEMBLY, COMPLETE	393-1282A13
1	HOUSING, PRIMARY	393-1282
2	ELBOW ASSEMBLY, VENT HOSE-PRIMARY HOUSING	22-25885A1
3	BREAKER ASSEMBLY, COMPLETE	393-1504A11
4	STUD, PRIMARY LEAD AND TENSION SPRING FASTENING	16-29230
5	NUT, PRIMARY LEAD FASTENING	11-29236
6	GROMMET, PLASTIC-BREAKER ASSEMBLY	393-1586
7	WASHER, BREAKER PIVOT PIN	12-26439
8	COTTER PIN, BREAKER TO PIVOT PIN	18-26953
9	CAM WICK & HOLDER ASSEMBLY	393-1287A2
10	SCREW, BREAKER HOLDER TO HOUSING	10-20597
11	CONDENSER	393-1283A1
12	SCREW, CONDENSER TO HOUSING	10-29434
13	WIRE, PRIMARTY GROUND	393-1656
14	BEARING, BALL-CAM SHAFT	30-26379
15	SHAFT ASSEMBLY, DISTRIBUTOR CAM	393-1541A2
16	BUSHING, NYLON-CAM SHAFT TO ROTOR (SEE NOTE BELOW)	23-28933
17	"O"RING, CAM SHAFT	25-26543
18	PIN, ROLL-CAM SHAFT	17-25319
19	WAVE WASHER, BALL BEARING TENSION	13-26917
20	ADAPTOR, HOUSING TO DISTRIBUTOR CAP	393-1278
21	GASKET, HOUSING TO ADAPTOR	27-26412
22	SCREW, ADAPTOR TO HOUSING	10-32651
23	ROTOR, DISTRIBUTOR	393-1280A1
24	GASKET, DISTRIBUTOR CAP TO ADPTOR	27-26446
25	DISTRIBUTOR CAP ASSEMBLY	393-1927A9
26	BRUSH AND SPRING ASSEMBLY	393-1293A1
27	ELBOW, VENT HOSE-DISTRIBUTOR CAP	22-996642
28	SIDE INLET ASSEMBLY	393-1277A3
29	BRUSH AND SPRING ASSEMBLY	393-1292A1
30	GASKET, SIDE INLET TO DISTRIBUTOR CAP	27-26447
31	SCREW, SIDE INLET TO DISTRIBUTOR CAP	10-29167
32	SCREW, DISTRIBUTOR CAP TO ADAPTOR	10-29158
33	,TAB WASHER. DISTRIBUTOR CAP FASTENING SCREW	14-29157
34	,HIGH TENSION CABLE ASSEMBLY (COIL #2)	84-821945A37	84-813706A37, 84-93475A33
35	HIGH TENSION CABLE ASSEMBLY (COIL#1)	84-821945A27	84-813706A27, 84-93475A32
36	,,SLEEVE, TERMINAL AND COVER	85-94589
37	CONNECTOR, HIGH TENSION CABLE (CAP END)	8M0084600	20121
38	,,GROMMET, HIGH TENSION CABLE	25-26547
39	,SPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)	84-813715A1
40	SPARK PLUG LEAD ASSEMBLY (#1,2 AND 6	84-813715A1
37	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
36	SLEEVE, TERMINAL END COVER	85-94589
41	SLEEVE, SPARK PLUG LEADS	32-30574
42	SLEEVE, SPARK PLUG LEADS	32-46768
43	PROTECTOR, SPARK PLUG	85-63709A1

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY	1529-1564A2
1	DRIVE SHAFT HOUSING ASSEMBLY	1533-1565A1
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")	16-46911
3	TUBE, WATER INLET	32-26490
3	TUBE, WATER INLET	32-27867
4	SEAL, RUBBER - WATER INLET TUBE	26-26207
5	GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL	27-26198
6	WASHER, POWERHEAD STUDS	12-20086
7	NUT, POWERHEAD STUDS	11-8M0204726
8	NUT, POWERHEADS STUDS	11-23161
9	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (7/16")	10-29081
10	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (7/16")	11-8M0204653
11	CAP, RUBBER - UPPER MOUNT BOLT NUT	25305
12	NUT, UPPER MOUNT BOLT	11-8M0204653
13	SPACER, UPPER MOUNT BOLT	23-27725
14	WASHER, UPPER MOUNT BOLT	12-27728
15	WASHER, RUBBER - UPPER MOUNT BOLT	12-27726
16	WASHER, UPPER MOUNT BOLT	12-27727
17	COOVER, UPPER MOUNT - OUTSIDE HALF	26218
18	COVER, UPPER MOUNT - INSIDE HALF	26217
19	MOUNT, RUBBER - UPPER	30463
20	PACKING, "U" CUP	24929
21	SCREW, UPPER MOUNT COVER (1 5/8")	10-20012
22	SCREW, UPPER MOUNT COVER (2 1/4")	10-28775
22	SCREW, UPPER MOUNT COVER (1 7/8")	10-29389
23	WASHER, UPPER MOUNT COVER SCREWS	12-8M0204649
24	NUT, UPPER MOUNT COVER SCREWS	11-35888
25	BUMPER, RUBBER - MOUNTING SCREW	25067
26	SCREW, UPPER MOUNT (5 1/2")	10-24874
27	MOUNT, RUBBER - LOWER	26211
28	WASHER, MOUNTING SCREW	12-24872
29	NUT, MOUNTING SCREW	11-25096
30	COVER, LOWER MOUNT (PORT SIDE)	26336
30	COVER, LOWER MOUNT (STARBOARD SIDE)	26337
31	SCREW, LOWER MOUNT COVER FASTENING	10-29256

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 600 (6 CYL.) FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, FLYWHEEL	11-8M0214915
2	WASHER, FLYWHEEL NUT	12-26617
3	KEY, FLYWHEEL DRIVE	28-20094
4	FLYWHEEL ASSEMBLY	212-1424A4
5	PULLEY, FLYWHEEL	22823
6	DOWEL PIN, PULLEY TO FLYWHEEL	17-26618
7	WASHER, PULLEY TO FLYWHEEL	12-25293
8	RATCHET, FLYWHEEL	50-25263
9	SCREW, RATCHET TO FLYWHEEL	10-29238
10	STATOR, ALTERNATOR	398-2035
11	TERMINAL, STATOR LEAD WIRES	30050
12	SCREW, STATOR TO UPPER END CAP	10-29283
13	CLIP, STATOR LEAD TO EXHAUST COVER	54-24836
14	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205
15	SCREW, STATOR LEAD CLIP FASTENING	10-8M0113176
16	"S" CLIP, STATOR LEAD TO BOTTOM COWL	54-22783

FUEL PUMP AND FUEL LINES

Below is the parts list for Mercury 600 (6 CYL.) FUEL PUMP AND FUEL LINES:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY, UPPER	29178A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK - FUEL PUMP	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAM, FUEL PUMP	23014
-	PLUG, PIPE - FUEL PUMP HOUSING OUTLET	22-390721
1	FUEL PUMP ASSEMBLY, LOWER	29178A2
2	GASKET, CHECK VALVE TO HOUSING	27-23005
3	VALVE, CHECK	21-8M0082362	21-30430, 21-F177330, F84330-1
4	RETAINER, CHECK VALVE	23004
5	SCREW, RETAINER TO HOUSING	10-43725
6	GASKET, FUEL PUMP	27-24863
7	DIAPHRAGM, FUEL PUMP	23014
8	COVER, FUEL PUMP	29044
9	GASKET, FUEL PUMP COVER	27-30276
10	SCREW, FUEL PUMP MOUNTING (1 3/4")	10-29126
11	SCREW, FUEL PUMP MOUNTING (1 1/2")	10-29029
12	FUEL LINE, UPPER PUMP TO LOWER CARBURETOR	32-30035
13	ELBOW, UPPER FUEL PUMP OUTLET	22-22995
14	SLEEVE, RUBBER	22-22946
15	NUT, ELBOW	22-22948
16	FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET (8")	32-29324
13	ELBOW, LOWER FUEL PUMP INLET	22-22995
14	SLEEVE, RUBBER	22-22946
15	NUT, ELBOW	22-22948
17	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP	32-30036
18	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
19	STEM, CHECK UNIT ADAPTOR	23069
20	"O" RING, ADAPTOR STEM	25-16524
21	SPRING, ADAPTOR STEM	24-23067T
22	CUP WASHER, ADAPTOR	30188
23	SCREW, ADAPTOR TO BOTTOM COWL	10-20784
24	NUT, ADAPTOR FASTENING SCREW	11-8M0207775
25	FUEL LINE, CENTER TO LOWER CARBURETOR	32-30040
26	FUEL LINE, UPPER TO CENTER CARBURETOR	32-38527
27	TEE, CENTER AND LOWER CARBURETOR	22-25956

GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION)

Below is the parts list for Mercury 600 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1613-1587A2
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)	1613-1587A3
1	GEAR HOUSING ASSEMBLY	1613-1587A1
2	BEARING, ROLLING- PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING	16-57935
5	SCREEN, WATER INTAKE	35-29073
6	STUD, WATER PUMP COVER FASTENING	16-28771
7	DRIVE SHAFT (STANDARD)	45-26196
7	DRIVE SHAFT (LONG)	45-27866
8	GEAR, PINION	43-27889
9	WASHER, PINION GEAR TO RETAINING NUT	12-22025
10	NUT, PINION GEAR RETAINING	11-82671317
11	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING	15-20929A1
12	BEARING, BALL - DRIVE SHAFT	30-72961
13	"O"RING, DRIVE SHAFT CARRIER	25-26722
14	OIL SEAL CARRIER ASSEMBLY, DRIVE SHAFT	26191A1
15	OIL SEAL, CARRIER	26-90562
16	COVER, CARRIER RETAINER	26192
17	WASHER, WAVE - RETAINER COVER TO CARRIER	13-26494
18	WATERPUMP CARTRIDGE ASSEMBLY	46-26188A2
19	INSERT, WATER PUMP CARTRIDGE	29104
20	KEY, CARTRIDGE LOCATING	28-28657
21	IMPELLER, WATER PUMP	47-30041T
22	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
23	GASKET, LOWER - WATER PUMP COVER	27-26187
24	PLATE, FACE - WATER PUMP COVER	26185
25	GASKET, UPPER - WATER PUMP COVER	27-26186
26	WATER PUMP COVER ASSEMBLY	26219A1
27	OIL SEAL	26-23517
28	SEAL, RUBBER - WATER INLET TUBE	26-26207
28	SEAL, RUBBER - WATER INLET TUBE TO GEAR HOUSING	26-26207
29	RING, RUBBER - CENTRIFUGAL SLINGER	25-20273
30	TUBE, WATER INTAKE - LOWER	32-29273
31	SLEEVE, WATER INTAKE TUBE	32-26208
32	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
33	VALVE, WATER	21-26491
34	CLAMP, VALVE TO ADAPTOR	54-26492
35	SHIM, VALVE ADAPTOR TO GEAR HOUSING	15-21158A1
36	PROPELLER SHAFT ASSEMBLY	44-28762A1
37	GEAR, PROPELLER	43-28761
38	DOWEL PIN, PROPELLER GEAR TO SHAFT	17-26200
39	RING, SNAP - PROPELLER GEAR	53-28757
40	SHIM, ADAPTOR RING TO GEAR HOUSING	15-26201A1
41	BEARING, BALL - PROPELLER SHAFT SLEEVE	30-28758
42	RING, ADAPTOR - BALL BEARING	28759
43	TAB WASHER, BEARING RETAINGING NUT	14-28445
44	NUT, BALL BEARING RETAINGING	11-28444
45	"O"RING, BEARING ADAPTOR	25-26228
46	OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT	28760A1
47	OIL SEAL, CARRIER	26-26226
48	WASHER, GEAR HOUSING COVER	12-26193
49	COVER, GEAR HOUSING	26194
50	LOCKWASHER, WATER PUMP COVER STUDS	13-8M0204647
51	NUT, WATER PUMP COVER STUDS	11-28770
52	SCREW, GREASE FILLER AND FLUSHING HOLE	10-79953Q04
53	WASHER, GREASE FILLER AND FLUSHING HOLE SCREW	12-191833
54	SCREW, GEAR HOUSING VENT	10-28653
55	WASHER, GEAR HOUSING VENT SCREW	19643
56	WASHER, BACKING - PROPELLER SHAFT (1/8)	12-26334
57	WASHER, BACKING - PROPELLER SHAFT (1/32)	12-26331
58	TAB WASHER, PROPELLER NUT	14-26333
59	NUT, PROPELLER	11-26335

GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION)

Below is the parts list for Mercury 600 (6 CYL.) GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD ROTATION):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)	1613-1563A2
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)	1613-1563A5
1	GEAR HOUSING ASSEMBLY	1613-1563A1
2	BEARING, ROLLER - PROPELLER AND DRIVE SHAFT	31-62091T
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING	16-8M0133358
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING	16-57935
5	SCREEN, WATER INTAKE	35-26189
6	STUD, WATER PUMP COVER FASTENING	16-28771
7	DRIVE SHAFT (STANDARD)	45-26196
7	DRIVE SHAFT (LONG)	45-27866
8	GEAR, PINION	43-27889
9	WASHER, PINION GEAR TO RETAINING NUT	12-22025
10	NUT, PINION GEAR RETAINING	11-82671317
11	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING	15-20929A1
12	BEARING, BALL - DRIVE SHAFT	30-72961
13	"O" RING, DRIVE SHAFT CARRIER	25-26722
14	OIL SEAL CARRIER ASSEMBLY,DRIVE SHAFT	26191A1
15	OIL SEAL, CARRIER	26-90562
16	COVER, CARRIER RETAINER	26192
17	WASHER, WAVE - RETAINER COVER TO CARRIER	13-26494
18	WATER PUMP CARTRIDGE ASSEMBLY	46-26188A2
19	INSERT, WATER PUMP CARTRIDGE	29104
20	KEY, CARTRIDGE LOCATING	28-28657
21	IMPELLER, WATER PUMP	47-30041T
22	PIN, IMPELLER DRIVE	28-8M0032837	28-56662
23	GASKET, LOWER - WATER PUMP COVER	27-26187
24	PLATE, FACE - WATER PUMP COVER	26185
25	GASKET, UPPER - WATER PUMP COVER	27-26186
26	WATER PUMP COVER ASSEMBLY	26219A1
27	OIL SEAL	26-23517
28	SEAL, RUBBER - WATER INLET TUBE	26-26207
28	SEAL, RUBBER - WATER INLET TUBE TO GEAR HOUSING	26-26207
29	RING, RUBBER - CENTRIFUGAL SLINGER	25-20273
30	TUBE, WATER INTAKE - LOWER	32-26489
31	SLEEVE, WATER INTAKE TUBE	32-26208
32	WATER VALVE AND ADAPTOR ASSEMBLY	22-26220A1
33	VALVE, WATER	21-26491
34	CLAMP, VALVE TO ADAPTOR	54-26492
35	SHIM, VALVE ADAPTOR TO GEAR HOUSING	15-21158A1
36	SHAFT, PROPELLER	44-26213
37	GEAR, PROPELLER	43-28443
38	DOWEL PIN, PROPELLER GEAR TO SHAFT	17-26200
39	SHIM, ADAPTOR RING TO GEAR HOUSING	15-26201A1
40	RING, ADAPTOR - BALL BEARING	26202
41	BEARING, BALL - PROPELLER GEAR	30-20840
42	TAB WASHER, BEARING RETAINING NUT	14-28445
43	NUT, BALL BEARING RETAINING	11-28444
44	"O" RING, BEARING ADAPTOR	25-26228
45	OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT	28442A1
46	OIL SEAL, CARRIER	26-26226
47	WASHER, GEAR HOUSING COVER	12-26193
48	COVER, GEAR HOUSING	26194
49	LOCKWASHER, WATER PUMP COVER STUDS	13-8M0204647
50	NUT, WATER PUMP COVER STUDS	11-28770
51	SCREW, GREASE FILLER AND FLUSHING HOLE	10-79953Q04
52	WASHER, GREASE FILLER AND FLUSHING HOLE SCREW	12-191833
53	SCREW, GEAR HOUSING VENT	10-28653
54	WASHER, GEAR HOUSING VENT SCREW	19643
55	WASHER, BACKING - PROPELLER SHAFT (1/8)	12-26334
56	WASHER, BACKING - PROPELLER SHAFT (1/32)	12-26331
57	TAB WASHER, PROPELLER NUT	14-26333
58	NUT, PROPELLER	11-26335

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS

Below is the parts list for Mercury 600 (6 CYL.) STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNESS, INTERNAL	29999
2	TERMINAL, HARNESS AND MERCURY SWITCH LEADS	30050
3	SPRING, GARTER-INTERNAL WIRING HARNESS	24-28975
4	PLATE, WIRING HARNESS TO BOTTOM COWL	26079A2
5	SCREW, HARNESS PLATE FASTENING	10-45893
6	"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL	54-22783
7	RECTIFIER ASSEMBLY	32177A2	29691
8	LOCKWASHER, RECTIFIER MOUNTING SCREW	13-8M0204647
9	,NUT, RECTIFIER MOUNTING SCREW	11-21929
10	SLEEVE, RUBBER-RECTIFIER HARNESS LEAD	32-28052
11	SLEEVE, RUBBER - RECTIFIER STATOR LEAD	32-28373
12	SCREW, HARNESS AND STATOR LEAD TO RECTIFIER	10-35400
13	NUT, HARNESS AND STATOR LEADS FASTENING SCREW	11-8M0204718
14	STARTER MOTOR ASSEMBLY	50-48720
15	SHIM, STARTER MOTOR TO CRANKCASE FLANGE	15-26496
16	SCREW, STARTER MOTOR TO CRANKCASE FLANGE	10-22698
17	LOCKWASER, STARTER MOTOR FASTENING SCREW	13-8M0204647
18	BRACKET, SUPPORT-STARTER STARTER MOTOR	27026
19	WASHER, THRU BOLT-BRACKET TO STARTER MOTOR	12-24664
20	LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR	13-26992
21	NUT, THRU BOLT-BRACKET TO STARTER MOTOR	11-20890
22	CABLE, WIRE-STARTER TO UPPER STARTER SOLENOID	26511
23	CABLE, WIRE-STARTER TO LOWER STARTER SOLENOID	84-93389A12
24	CLAMP, LOWER CABLE-STARTER TO STARTER SOLENOID	54-20534
25	JUMPER ASSEMBLY, SOLENOID TO SOLENOID	26478A1
26	SLEEVE, JUMPER	32-26627
27	SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR	10-69035
28	SOLENOID, STARTER	32268
29	LEAD, JUMPER-SOLENOID TO SOLENOID	28922
30	LOCKWASHERM SOLENOID TERMINAL (5/16)	13-8M0204647
31	NUT, SOLENOID TERMINAL (5/16)	11-22053
32	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
33	NUT, SOLENOID TERMINAL #10)	11-68219
34	SCREW, SOLENOID TO STARTER MOTOR	10-29238
35	CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET	54-23567
36	"D" WASHER, HARNESS CLAMP	8M0084613	69205
37	SCREW, HARNESS CLAMP FASTENING	10-62568
38	BLOCK, TERMINAL-UPPER FUEL PUMP PAD	29714
39	SCREW, TERMINAL BLOCK FASTENING	10-24241
40	LOCKWASHER, TERMINAL BLOCK FASTENING SCREW	13-26996
41	WASHER, TERMINAL BLOCK FASTENING SCREW	12-26014
42	RESISTOR	393-1572
43	SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW	30449
44	JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK	29112
45	SCREW, HARNESS AND RESISTOR LEADS TO TERMINAL BLOCK	10-35400
46	CLIP, WIRING HARNESS TO CRANKCASE AND CYLINDER BLOCK COVER	54-22740
47	"D" WASHER, HARNESS CLIP	8M0084613	69205
48	SCREW, HARNESS CLIP FASTENING	10-8M0113176
49	BLOCK, TERMINAL-EXHAUST COVER	29765
50	BRACKET, TERMINAL BLOCK TO EXHAUST COVER	29764
51	SCREW, TERMINAL BLOCK TO BRACKET	10-22523
52	WASHER, TERMINAL BLOCK FASTENING SCREW	12-26014
53	NUT, TERMINAL BLOCK FASTENING SCREW	11-20110
--	DECAL, TERMINAL BLOCK COLOR LEADS	37-29903
54	SCREW, HARNESS AND SWITCH EADS TO TERMINAL BLOCK	10-35400
55	SWITCH AND HARNESS ASSEMBLY, FORWARD AND REVERSE	29726
56	SCREW, SWITCH AND HARNESS TO GUIDE RACK BRACKET	10-24219
57	CLIP, REVERSE SWITCH LEAD (1/8-3)	54-25231
58	CLIP, FORWARD SWITCH LEAD (1/4-3)	54-29721
59	"D" WASHER, FORWARD AND REVERSE LEAD CLIP	8M0084613	69205
60	NUT, SWITCH AND HARNESS FASTENING SCREW	11-20437
61	CLIP, SWITCH AND HARNESS LEAD	54-26550
62	"D" WASHER, HARNESS LEAD CLIP FASTENING SCREW	8M0084613	69205
63	SCREW, HARNESS LEAD CLIP TO CRANKCASE	10-8M0113176
64	CAM, ACTUATOR-FORWARD AND REVERSE SWITCH	29631
65	SCREW, ACTUATOR CAM TO PILOT ASSEMBLY	10-29722

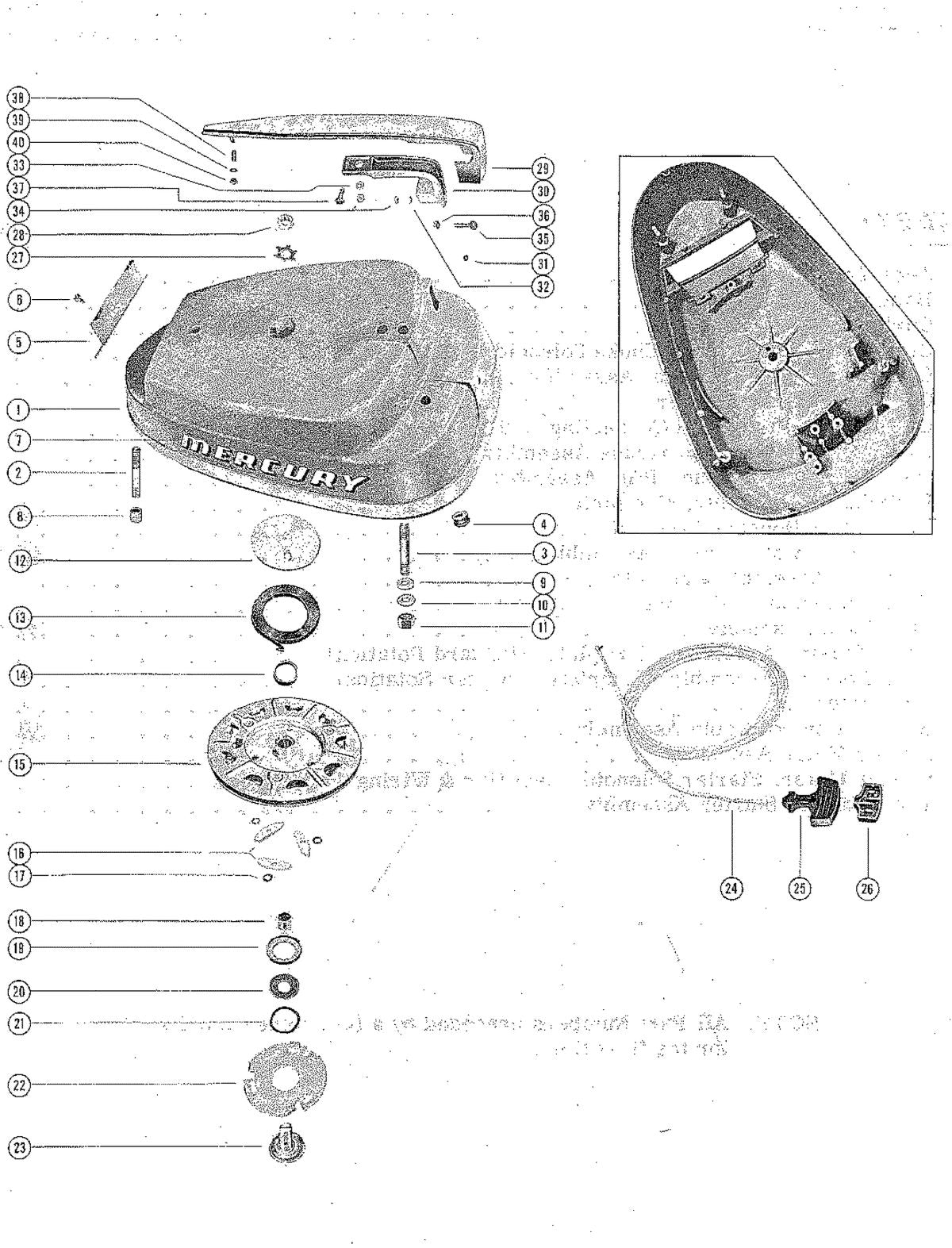

TOP COWL AND STARTER ASSEMBLY

Below is the parts list for Mercury 600 (6 CYL.) TOP COWL AND STARTER ASSEMBLY:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY	177-1657A2
2	STUD, REAR - TOP COWL TO COVER	16-20500
3	STUD, FRONT - TOP COWL TO CRANKCASE	16-20353
4	GROMMET, CHOKE KNOB	25-20116
5	SCREEN, VENT - TOP COWL	28967
6	SCREW, VENT SCREEN TO TOP COWL	10-26668
7	DECAL SET, TOP COWL	37-29834
8	SPACER, TOP COWL STUD	23-20326
9	WASHER, TOP COWL STUD (1/16")	12-20028
10	WASHER, TOP COWL STUD (3/4" OD)	12-69057
--	WASHER, TOP COWL STUD (1/32")	12-20583
11	NUT, TOP COWL FASTENING	11-8267089
12	RETAINER, STARTER SPRING	20155
13	SPRING, STARTER REWIND	24-29340T02
14	BUSHING, SPRING GUIDE	23-20159
15	SHEAVE ASSEMBLY	50-64008A1
16	PAWL, STARTER	20162
17	WASHER, WAVE - STARTER PAWL	13-29402
18	SPACER, SHEAVE SHAFT	23-20158
19	RETAINER, WAVE WASHER	26179
20	WASHER, WAVE WASHER RETAINER	12-26180
21	WASHER, WAVE - RETAINER TENSION	13-20160
22	PLATE, RETAINER - STARTER PAWL	20164
23	SHAFT, SHEAVE	20157
24	STARTER CABLE ASSEMBLY	50-12066Q10
25	HANDLE, STARTER CABLE	28747
26	RETAINER, STARTER CABLE AND HANDLE	79470A1
27	TAB WASHER, SHEAVE SHAFT NUT	14-20165
28	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
29	HANDLE, CHROME - TOP COWL	31875
30	HANDLE, INSIDE - TOP COWL	31003
31	BUTTON, BUMPER - TOP COWL HANDLE	29413
32	WASHER, LOWER HANDLE STUD (3/4" OD)	12-69057
33	WASHER, CENTER HANDLE STUD (1/2" OD)	12-8M0204649
34	NUT, INSIDE HANDLE TO CHROME HANDLE STUDS	11-21825
35	SCREW, FRONT _ HANDLE TO TOP COWL (1 1/4")	10-56500
36	NUT, FRONT - HANDLE FASTENING SCREW	11-8267089
37	SCREW, CENTER - HANDLE TO TOP COWL (1")	10-29199
38	BUSHING, REAR HANDLE STUD	23-29561
39	WASHER, REAR HANDLE STUD	12-8M0204649
40	NUT, REAR HANDLE STUD	11-21825

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
