Mercury 60 (4-STROKE)(4 CYL.) (0P094500 THRU 0P206999) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 60 (4-STROKE)(4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ACCESSORIES

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) ACCESSORIES:

Position No.	Part Name	OEM Number	Supersedes
-	KEY SWITCH KIT, Remote Ignition	15000A7
-	HOSE ASSEMBLY, Fuel (8 Feet) Comment: (WITH QUICK DISCONNECT)	32-877680Q8
-	HOSE ASSEMBLY, Fuel (12 Feet) Comment: (WITH QUICK DISCONNECT)	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 (WITH QUICK DISCONNECT)
-	HOSE ASSEMBLY, Fuel (8 Feet) Comment: (WITH QUICK DISCONNECT ENGINE END ONLY)	32-877681Q8
-	HOSE ASSEMBLY, Fuel (12 Feet) Comment: (WITH QUICK DISCONNECT ENGINE END ONLY)	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 (WITH QUICK DISCONNECT ENGINE END ONLY)
-	HOSE ASSEMBLY, Fuel (12 Feet) Comment: (NO FITTINGS)	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 (NO FITTINGS)
-	LINE ASSEMBLY, Fuel Comment: (STANDARD WITH ENGINE)	32-877680Q8
-	ATTACHING KIT, Remote Control	880093A1
-	SENDER KIT, Oil Pressure	8M0068785	828019A 1
-	SENDER KIT, Power Trim	821400A2
-	POWER TRIM KIT	8M0055008	855654A 5
-	TILLER HANDLE KIT	880095A09
-	BRACKET ASSEMBLY, Steering Comment: (W/O CARRYING HANDLE)	816667A2
-	EXTENSION KIT Comment: (NON-BIGFOOT- Converts 20 In. to 22-1/2 In.)(50/60 Only)	816696A12
-	EXTENSION KIT, Driveshaft - 5 Inch Comment: (BIGFOOT)	12092A18

ADAPTOR PLATE

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) ADAPTOR PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	DIPSTICK	8M0162935
2	DIPSTICK TUBE	825989003	825989 2
3	SEAL	8560552
4	HEAT SHIELD	8289151
5	PIN, Dowel	17-23784
6	FITTING, Elbow - 90 Degree (.125-27)	22-629101
7	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
8	SEAL, Oil	26-66301
9	BUSHING	23-859594
10	PLUG, Pipe (.500-14)	22-384073
11	ADAPTOR PLATE KIT	825228A17	825228T 9
12	PLUG	19-822464
13	PLUG	19-48323
14	O-RING	25-845746
15	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
16	BODY, Oil Pressure Relief Comment: (DESIGN II)	8M0210772
17	PLATE, Oil Pickup-Top	893765	854789
18	HOSE, Oil Pickup	32-854793
19	BAFFLE	893700	854791 1
20	CLAMP	54-855228	54-888988014
21	SCREW, (M6 x 50)	10-4007455
22	DEFLECTOR, Oil Comment: (DESIGN I)	856592
23	BODY ASSEMBLY, Oil Pressure Relief Comment: (DESIGN I)	8M0210772
24	GASKET	27-8M0213113
-	GASKET SET	27-859352A01

BOTTOM COWL

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) BOTTOM COWL:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL Comment: (LONG-PORT)	4020-826277T1
2	BOTTOM COWL Comment: (LONG-STBD.)	4020-826278T7
3	SCREW, (M6 x 30)	10-82684430
4	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
5	SEAL	825238002	825238 1
6	WASHER	12-855576
7	GASKET	27-855627
8	SCREW, (M6 x 60)	10-82684460
9	FITTING	22-827948
10	BOOT	826273001	826273
11	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
12	LEVER, Cowl Latch	825782F1
13	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
14	WASHER, Wave	13-12134
15	LATCH HOOK	893766	825783
16	SCREW, (M6 x 16)	10-1993716
17	GROMMET	25-19565002
18	SWITCH, Trim	87-8M0235191

CAMSHAFT

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) CAMSHAFT:

Position No.	Part Name	OEM Number	Supersedes
1	CAMSHAFT	400-8M0183247
2	PUMP ASSEMBLY, Oil	857087T1
3	O-RING	25-857096
4	NOT SOLD SEPARATE	NSS
5	O-RING	25-857094
6	O-RING	25-857093
7	SCREW, (M6 x 16)	10-875206
8	SCREW, (M6 x 40)	10-4000333
9	PIN, Dowel	17-878183	17-893581
10	PIN	17-826149	17-893566
-	GASKET SET	27-859352A01
-	CYLINDER HEAD ASSEMBLY	893505T01	857082A 5

CARBURETOR

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) CARBURETOR:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (TOP)	3329-857102T2
1	CARBURETOR Comment: (UPPER CENTER)	3329-857102T3
1	CARBURETOR Comment: (LOWER CENTER)	3329-857102T7
1	CARBURETOR Comment: (BOTTOM)	3329-857102T4
2	SCREW	10-854246
3	PLATE	854245
4	GASKET	27-8542572
5	ENRICHENER	854254T3
6	NOT SOLD SEPARATE	NSS
7	PLATE	854255
8	CAP	19-880814
9	SCREW, Adjusting	10-880841
10	O-RING	25-880842
11	SPRING	24-880815
12	JET (SLOW)	803912	803912 38
13	O-RING	25-880843
14	PLUG	19-880844
15	JET (MAIN)	98,803915
16	MAIN NOZZLE	8039142
17	VALVE, Float	854247
18	FLOAT	8542531
19	PIN, Float	17-8542581
20	SCREW	10-880845
21	GASKET	27-8542573
22	FLOAT BOWL Comment: (TOP)	8039161
22	FLOAT BOWL Comment: (CENTERS/BOTTOM)	8039171
23	SCREW	10-8542463
24	SCREW, Drain	10-8542464
25	WASHER	12-8542591
26	SCREW, Synchronization Comment: (TOP/CENTERS)	10-803925
27	SPRING Comment: (TOP/CENTERS)	24-880846
28	SPRING Comment: (TOP/CENTERS)	24-803923
29	SCREW Comment: (BOTTOM)	10-803913
30	SPRING Comment: (BOTTOM)	24-854249
31	SPRING	24-880847
32	PLUNGER	8542511
33	SCREW	10-880848
34	NOT SOLD SEPARATE	NSS
35	PLUNGER ROD	880849
-	REPAIR KIT, Carburetor Comment: (1 Per Carburetor)	8542561

CRANKSHAFT

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) CRANKSHAFT:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT	413-857077T02	413-857077T 1
2	SEAL	8M0151047
3	SEAL	8M0151048
4	CONNECTING ROD	600-893530T01	662-856065T 1
5	BOLT	10-8M0049884
6	BEARING, Brown	23-893630	23-825021
6	BEARING, Black	23-893630001	23-825021 1
6	BEARING, Blue	23-893630002	23-825021 2
7	PISTON ASSEMBLY Comment: (STANDARD)	700-893524T08	700-893524T07, 713-856064A 1 (STANDARD)
7	PISTON, w/o Rings Comment: (.25MM Oversized)(Bare Piston)	700-893524T01	713-856064 2 (.25MM Oversized)(Bare Piston)
7	PISTON, w/o Rings Comment: (.50MM Oversized)(Bare Piston)	700-893524T02	713-856064 3 (.50MM Oversized)(Bare Piston)
8	RING SET, Piston (TOP) Comment: (STANDARD)	39-893525A01	39-833099A 1 (STANDARD)
8	RING, Piston (TOP) Comment: (.25MM Oversized)	39-893525A02	39-833100T 2 (.25MM Oversized)
8	RING, Piston (TOP) Comment: (.50MM Oversized)	39-893525A03	39-833100T 3 (.50MM Oversized)
9	NOT SOLD SEPARATE, Piston (SECOND) Comment: (STANDARD)	NSS
9	NOT SOLD SEPARATE, Piston (SECOND) Comment: (.25MM Oversized)	NSS
9	NOT SOLD SEPARATE, Piston (SECOND) Comment: (.50MM Oversized)	NSS
10	RING, Oil	39-893950	39-893527, 39-833101 1
11	PIN, Piston	41-893863	41-825016
12	RETAINER	40-825017	40-825017F
-	POWERHEAD ASSEMBLY	61-893678T03	61-878344T03, 61-878344T02, 61-878344T01
-	GASKET SET	27-859352A01

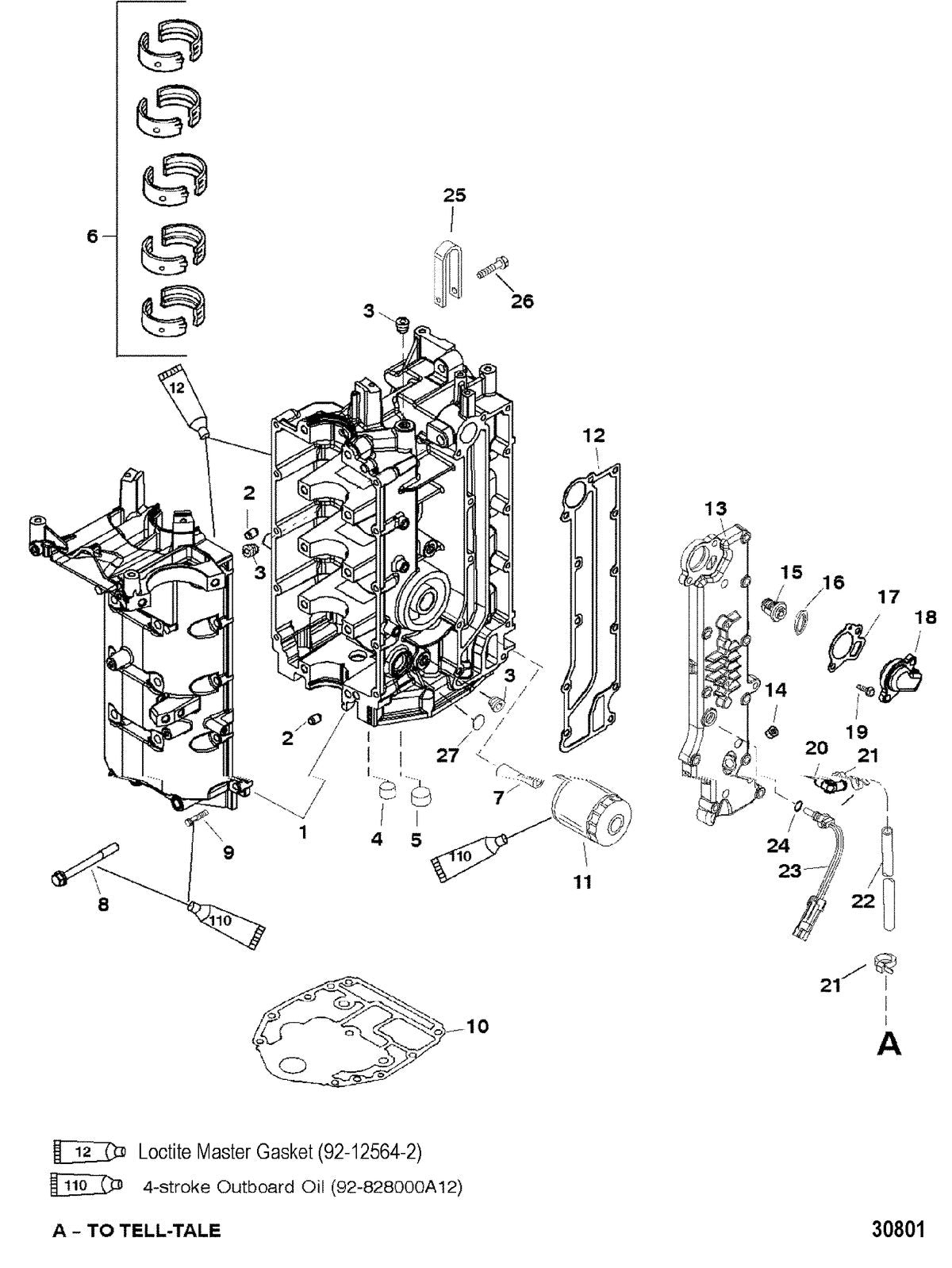

CYLINDER BLOCK AND CRANKCASE

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) CYLINDER BLOCK AND CRANKCASE:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK	800-893502T02	809-857015T 6
2	PIN, Dowel	17-825010
3	PLUG	22-479452
4	PLUG, Pipe (1/2-14)	22-384073
5	PLUG, Pipe (.750-14)	22-416223
6	BEARING, Brown	23-893631	23-825024
6	BEARING, Black	23-893631001	23-825024 1
6	BEARING, Blue	23-893631002	23-825024 2
7	NIPPLE, (M20)	822625
8	SCREW, (M8 x 82)	10-82506182
9	SCREW, (M6 x 35)	10-8M0205943
10	GASKET	27-8M0213112
11	FILTER, Oil	35-8M0162829
12	GASKET	27-8M0224375
13	COVER, Exhaust	8M0188836
14	PLUG	22-479452
15	THERMOSTAT	14586
16	GASKET	27-8M0204714
17	GASKET	27-8M0177107
18	COVER	8M0188835
19	SCREW, (M6 x 35)	10-8M0205943
20	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
21	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
22	TUBING, (.312) (70.00 Inches Bulk) (Cut to 11 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
23	SENSOR ASSEMBLY, Temperature	8M0214984
24	O-RING, (.301 x .070)	25-627021
25	LIFTING EYE	893697	852560 1
26	SCREW, (M8 x 35)	10-857139
27	NOT SOLD SEPARATE	NSS
-	POWERHEAD ASSEMBLY	61-893678T03	61-878344T03, 61-878344T02, 61-878344T01
-	GASKET SET	27-859352A01

CYLINDER HEAD

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) CYLINDER HEAD:

Position No.	Part Name	OEM Number	Supersedes
-	CYLINDER HEAD ASSEMBLY	893505T01	857082A 5
1	CYLINDER HEAD ASSEMBLY	893505T06	893505A02, 857082A 6
2	GUIDE	858266
3	SCREW, (M6 x 8)	10-4000325
4	WASHER	12-859768	12-893586
5	SEAL, Oil	26-893549	26-858267
6	PIPE PLUG	22-875209
7	SEAL	25-8M0011870	25-857083
8	COVER	8M0174400
9	NOT SOLD SEPARATE	NSS
10	PLATE, Baffle	858277
11	SCREW, (M4 x 10)	10-4005685
12	FITTING, Elbow - 90 Degree (.125-27)	22-629101
13	GASKET	27-8M0118179
14	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
15	SCREW, (M9 x 95)	10-82503395
16	PIN, Dowel	17-825010
17	PLUG ASSEMBLY, Oil	859578A1
18	O-RING, (.921 x .139)	25-8M0204673
19	NOT SOLD SEPARATE, Decal	NSS
20	NOT SOLD SEPARATE, Decal	NSS
21	NOT SOLD SEPARATE, POWERHEAD ID	NSS
22	DIAPHRAGM	826060
23	DASHPOT Comment: (NON HANDLE)	877844
24	SCREW, (M6 x 13) Stainless Steel	10-40011126
25	HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)	32-77653101
26	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
27	SCREW, (M6 x 25)	10-893745025
-	POWERHEAD ASSEMBLY	61-893678T03	61-878344T03, 61-878344T02, 61-878344T01
-	GASKET SET	27-859352A01
-	CYLINDER HEAD ASSEMBLY	893505T01	857082A 5

DRIVESHAFT HOUSING

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) DRIVESHAFT HOUSING:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Driveshaft	1503-852421T07	1503-852421T 5
2	PIPE, Exhaust	825220T06
3	SCREW, (M8 x 110) Stainless Steel	10-824459110
4	SCREW, (M8 x 45)	10-88960845
5	PLUG, Drain	8288181
6	GASKET	27-8M0204692
7	BUMPER	826276
8	GROMMET	8M0151042
9	STUD, (M10 x 50) Comment: (NON-BIGFOOT)	16-823984
9	STUD, (M10 x 100) Comment: (BIGFOOT)	16-903501
10	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
11	NUT, (M10)	11-40140
12	TUBE, Water	32-897971A01	32-888591001, 32-888591, 32-825250 1
13	GUIDE	54-828529
14	BUMPER Comment: (LONG)	8M0043364	828706 (LONG)
15	SEAL, Water Tube	42941001
16	PLATE	893770	854471
17	SCREW, (M10 x 25 MM)	10-1993325
18	SPEEDOMETER PICK UP	22-85822A7
19	CONNECTOR, Straight	22-85822T
20	FITTING	22-8M0181450
21	SPACER	23-813745	23-43041
22	COUPLING	43585
23	BUSHING	23-855623
24	WASHER, (.453 x .812 x .105) Stainless Steel	12-45176
25	NUT, (M10)	11-40140
26	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275

ELECTRICAL COMPONENTS

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) ELECTRICAL COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	RELAY	825096T01	89-825096T, 89-825096, 89-95642M
2	BRACKET	8M0010250	95643M
3	SOLENOID PLATE	825074
4	NUT, (M6) Stainless Steel	11-401386
5	CABLE ASSEMBLY, Battery - Positive	84-88439A9
6	BOOT, Insulator - Red	85-880786
7	CABLE ASSEMBLY, (8.50 Inches)	84-93388A16
8	CABLE ASSEMBLY, Battery - Negative	84-88439A4
9	STARTER MOTOR ASSEMBLY (SEE BREAKDOWN ON STARTER MOTOR)	50-893888T	50-888161T, 50-884044T, 50-859377T
10	SCREW, (M8 x 45) Stainless Steel	10-40011153
11	PRESSURE SWITCH	87-8M0098207	87-8M0070107, 87-828040 1
12	SENSOR	8M0082988	8M0030022, 828358 2
13	SCREW, (M5 x 16) Stainless Steel	10-40011107
14	SCREW, (M6 x 25)	10-82130025
15	WASHER	12-8M0214930
16	PLATE	859224	856604
17	RETAINER	856836001	856836, 856039
18	BRACKET	856040
19	SCREW, (M6 x 14)	10-82129114
20	RETAINER	92753
21	BUSHING	23-856954
22	GROMMET	25-8M0190980
23	ECM, Engine Control Module	87843303S	878433A 3
24	BUSHING	23-8539201
25	SCREW, (M6 x 40)	10-82129140
26	SPARK PLUG, NGK-DPR6EA-9	33-827858Q	33-827858
27	COIL ASSEMBLY, Ignition	339-859738T1
28	NOT SOLD SEPARATE, Decal Comment: (COIL ID #1)	NSS
29	NOT SOLD SEPARATE, Decal Comment: (COIL ID #2)	NSS
30	NOT SOLD SEPARATE, Decal Comment: (COIL ID #3)	NSS
31	NOT SOLD SEPARATE, Decal Comment: (COIL ID #4)	NSS
32	SCREW, (M6 x 30)	10-82684430
33	HARNESS ASSEMBLY, Engine Wiring	84-857111T2
34	FUSE, Yellow - 20 Ampere (SFE)	88-812619	88-860608
35	COVER, Fuse	828054
36	HARNESS ASSEMBLY, Extension Comment: (HANDLE)	84-852375A6
37	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
38	REGULATOR, Voltage	883071T1
39	BRACKET	893771	858413
40	FOAM PAD	8308971
41	SCREW, (M6 x 40)	10-8248329
42	SCREW, (M6 x 10)	10-82129110
43	SCREW, (M6 x 16)	10-8248324
44	PLUG, Male	13541
45	SCREW, (M8 x 25) Stainless Steel	10-40011149
46	NUT, (.250-20) Brass	11-94330
-	POWERHEAD ASSEMBLY	61-893678T03	61-878344T03, 61-878344T02, 61-878344T01

FLYWHEEL

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) FLYWHEEL:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL COVER	859284T2
2	SCREW, (M6 x 25 MM)	10-8248326
3	DECAL, EPA Label Information Comment: (SEE NOTE)	37-804655A01
4	FLYWHEEL	284-832010T32	284-832010T31, 284-832010T26, 284-832010T14, 284-832010A 8
5	GEAR, Driven	8331045
6	NOT SOLD SEPARATE, Decal	NSS
7	NOT SOLD SEPARATE, Decal	NSS
8	NOT SOLD SEPARATE, Decal	NSS
9	NUT	11-893789	11-81773M
10	WASHER	12-893762	12-84436M
11	SCREW, (M5 x 30)	10-4013930
12	STATOR	398-852387T7
13	LOAD RING	834838
14	GEAR, Drive	833102T	833102
15	SCREW, (M10 x 40)	10-82761140
16	WASHER	12-4002320
17	KEY, Woodruff	28-91800
18	KEY	28-893761
19	BELT	8M0151040
20	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
-	POWERHEAD ASSEMBLY	61-893678T03	61-878344T03, 61-878344T02, 61-878344T01
-	CYLINDER HEAD ASSEMBLY	893505T01	857082A 5

FUEL LINES

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) FUEL LINES:

Position No.	Part Name	OEM Number	Supersedes
1	CONNECTOR	22-822771
2	FITTING, 45 Degree	22-878404
3	Y-CONNECTOR	22-878593
4	CLIP	54-878425
5	HOSE	32-878181
6	TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 IN)	32-85682239
7	HOSE	32-82381310
8	LINKAGE	8566101
9	BUSHING	23-803896
10	COTTER PIN	18-880850
11	WASHER	12-8542592
12	HOSE	32-856607
13	HOSE	32-856609
14	HOSE and SLEEVE	32-856611
15	HOSE	32-880773
16	HOSE	32-856613
17	HOSE	32-880772
18	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
19	TIE STRAP, (4.00 Inches)	56762

FUEL PUMP

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) FUEL PUMP:

Position No.	Part Name	OEM Number	Supersedes
1	FILTER, Fuel	35-877565T1
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	HOSE, (57.00 Inches Bulk) (Cut to 14 IN.)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
4	HOSE, (57.00 Inches Bulk) (Cut to 19 IN.)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
5	CONNECTOR ASSEMBLY, Fuel	22-8M0148585
-	O-RING, Fuel Connector	25-16524
6	PUMP, Fuel	826398T3
7	SCREW, (M5 x 35)	10-809564
8	COVER	809565
9	DIAPHRAGM	8095611
10	SCREW, (M3 x 5)	10-41889M
11	NUT	11-82537M
12	CHECK VALVE	21-41888M
13	DIAPHRAGM	8095612
14	PIN	17-8095661
15	SPRING	24-809562
16	NUT, (M5)	11-82388M
17	SPRING	24-8095621
18	PLUNGER	8095631
19	O-RING	25-8M0052669	25-825492
20	SCREW, (M6 x 30)	10-82684430
21	PLUG	19-854310	806899
22	J CLIP	54-8M0024808
23	DEFLECTOR, Cowl	8M0007776	893698001, 856603 1
-	GASKET SET	27-859352A01

GEAR HOUSING(DRIVESHAFT)(1.83:1 GEAR RATIO)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) GEAR HOUSING(DRIVESHAFT)(1.83:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)	1671-9760T41
1	GEAR HOUSING ASSEMBLY, Basic	1671-9760T42
2	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
3	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
4	WASHER	12-191833
5	PIN, Dowel - With Hole (.375 x .625)	17-8M0084244	17-43043
6	PIN, Dowel - Without Hole (.375 x .625)	17-43044
7	PLUG, Pipe (.0625-27)	22-878089
8	BEARING, Roller	31-812768
9	SEAL/PLATE KIT	818226A1
10	NOT SOLD SEPARATE	NSS
11	GEAR, Pinion - 12 Teeth	43-859103T
12	NUT, (.437-20)	11-55910
13	SHIFT SHAFT ASSEMBLY	859607A1
14	E RING	53-29641
15	BUSHING ASSEMBLY	23-813696A2
16	O-RING, (.987 x .103)	25-45258
17	SEAL, Oil	26-8M0204708
18	DRIVESHAFT, Long	45-859102
19	SHIM SET	15-812770A1
20	BEARING ASSEMBLY, Roller	31-8M0166756
21	NOT SOLD SEPARATE	NSS
22	NUT	11-8128201
23	BASE ASSEMBLY, Water Pump	46-812966A7
24	O-RING, (1.859 x .139)	25-8M0204651
25	SEAL, Oil	26-814669
26	SEAL, Oil	26-814670
27	IMPELLER	47-19453T
28	KEY	28-8M0032831	28-19699
29	WASHER	12-8M0204720
30	PUMP ASSEMBLY, Water	46-812966A12
31	GASKET (LOWER)	27-8M0224241
32	GASKET, Upper Water Pump	27-822189
33	FACE PLATE	19700A2
34	SCREW, (M6 x 16)	10-8248324
35	CAM, Shift Control	760394
36	COUPLER	8M0151045
-	SEAL KIT, Gear Housing	26-814669A2
-	REPAIR KIT, Water Pump	46-812966A12

GEAR HOUSING(DRIVESHAFT)(2.31:1 GEAR RATIO)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) GEAR HOUSING(DRIVESHAFT)(2.31:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: (COMPLETE)	1667-9011G90
1	GEAR HOUSING ASSEMBLY, Basic Comment: (BASIC)	1667-9011G59
2	PIN, Dowel - With Hole (.375 x .625) (FRONT)	17-8M0084244	17-43043
3	TUBE, Oiler	43046
4	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
5	WASHER	12-191833
6	PIN, Dowel - Without Hole (.375 x .625) (REAR)	17-43044
7	TRIM TAB	31640T07
8	SCREW, (.437-14 x 1.250) Stainless Steel	10-825427	10-15942
9	WASHER, (.453 x .812 x .105) Black Oxide	12-451761
10	CARRIER ASSEMBLY	43040T1
11	NOT SOLD SEPARATE	NSS
12	ANODE	97-826134Q	826134, 826134A 1
13	NUT, (M6) Stainless Steel	11-401386
14	SCREW, (M6 x 40)	10-4000333
15	GEAR, Pinion (13 Teeth)	43-44484T
16	NUT, (.625-18)	11-35921
17	CAM, Shift Control	850307
18	BEARING ASSEMBLY, Tapered Roller	31-42677A1
19	SHIM SET	15-44492A1
20	DRIVESHAFT ASSEMBLY	45-859105A1
21	SLEEVE/RING KIT	42461A1
22	NOT SOLD SEPARATE	NSS
23	COVER ASSEMBLY, Water Pump	43055A4
24	GASKET	27-430331
25	GASKET	27-8M0214931
26	SEAL, Oil (LOWER)	26-43036
27	SEAL, Oil (UPPER)	26-43035
28	GASKET	27-8172771
29	HOUSING KIT, Upper Water Pump	817275A2
30	FACEPLATE	8M0204709
31	SCREW, (M6 x 30)	10-8M0214957
32	SEAL	8M0204658
33	KEY	28-8M0204723
34	IMPELLER	47-43026T2
35	SCREW, (M6 x 25 MM)	10-8248326
36	SHIFT SHAFT ASSEMBLY	853906A1
37	E RING	53-29641
38	BUSHING ASSEMBLY	23-43052A4
39	O-RING, (1.424 x .103)	25-8M0204681
40	SEAL, Oil	26-8M0204708
41	SCREW, (M6 x 25 MM)	10-8248326
42	FACE SEAL	26-861415	26-816575
-	SEAL KIT, Gear Housing	26-43035A4
-	REPAIR KIT, Water Pump	46-8M0113799
-	REPAIR KIT, Water Pump Impeller	47-8M0100526	47-43026Q06

GEAR HOUSING(PROP SHAFT)(1.83:1 GEAR RATIO)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) GEAR HOUSING(PROP SHAFT)(1.83:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)	1671-9760T41
1	GEAR HOUSING ASSEMBLY, Basic	1671-9760T42
37	SHIM SET	15-812769A1
38	BEARING ASSEMBLY, Tapered Roller	31-8M0103476	31-812767A 1
39	NOT SOLD SEPARATE	NSS
40	GEAR, Forward - 22 Teeth	43-859101T2
41	BEARING, Roller	31-21739
42	FOLLOWER, Cam	8129291
43	SLIDE	20843
44	SPRING	24-38114
45	CLUTCH	52-813697T	52-813697
46	PIN, Cross	17-8M0020942	17-38113
47	SPRING	24-815418
48	PROPELLER SHAFT	44-14493
49	GEAR, Reverse - 22 Teeth	43-859104T
50	BEARING, Ball	30-20839T
51	CARRIER ASSEMBLY, Bearing	8M0168900
52	O-RING	25-815460
53	BEARING, Needle	31-21700
54	SEAL, Oil	26-8M0205511
55	SEAL, Oil	26-8M0203757
56	SCREW, (M8 x 30)	10-85594030
57	WASHER, (.323 x .590 x .112) Stainless Steel	12-855941
58	INSERT, Threaded	8227731
59	NOT SOLD SEPARATE	NSS
60	TRIM TAB, Zinc	17264T2
61	SCREW, (M10 x 30)	10-4000377
62	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
63	THRUST HUB	73345A1
64	PROP NUT KIT	11-69578Q1
65	TAB WASHER	14-8M0214942
66	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
67	SCREW, (M10 x 45)	10-4000380
-	SEAL KIT, Gear Housing	26-814669A2

GEAR HOUSING(PROP SHAFT)(2.31:1 GEAR RATIO)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) GEAR HOUSING(PROP SHAFT)(2.31:1 GEAR RATIO):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)	1667-9011G90
1	GEAR HOUSING ASSEMBLY, Basic	1667-9011G59
2	BEARING SET, Cup And Cone	31-30894A1
3	NOT SOLD SEPARATE	NSS
4	GEAR ASSEMBLY, Forward - 30 Teeth	43-859472A3
5	BEARING, Needle	31-30895T
6	RING, Retaining	53-856823
7	FOLLOWER KIT, Cam	850315A1
8	BALL	30-44530
9	NOT SOLD SEPARATE	NSS
10	SPRING	24-850327
11	CLUTCH	52-850048T	52-850048
12	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
13	SPRING	24-30893
14	PROPELLER SHAFT	44-8M0140445
15	GEAR, Reverse (30 Teeth)	43-850034T	43-850034
16	CARRIER ASSEMBLY, Bearing	8M0168901
17	O-RING, (3.609 x .139)	25-8M0214974
18	BEARING, Needle	31-30956T
19	SEAL, Oil (INNER)	26-8M0205728
20	SEAL, Oil (OUTER)	26-8M0205729
21	BEARING, Roller	31-12578T
22	THRUST WASHER	12-12577
23	BEARING, Thrust	31-12576
24	STUD, (M8 x 48)	16-8M0034456	16-42917 2
25	WASHER, (.323 x .590 x .112) Stainless Steel	12-855941
26	NUT, (M8)	11-401378
27	SHIM SET	15-44491A1
28	INSERT, Threaded	8227731
29	NOT SOLD SEPARATE, Decal	NSS
30	NOT SOLD SEPARATE, Decal	NSS
31	THRUST WASHER	13191Q01
32	PROP NUT KIT, (.750-16)	11-52707Q1
33	TAB WASHER	14-816629Q	14-816629, 14-31210, 14-816629B
34	SCREW, (M10 x 45)	10-4000380
35	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
-	SEAL KIT, Gear Housing	26-43035A4

INTAKE

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) INTAKE:

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M6 x 90)	10-82615890
2	INTAKE, Air	857105T
3	O-RING	25-8250572
4	PLATE	857103T
5	ISOLATOR Comment: (60 HP)	857104T
5	ISOLATOR Comment: (40/50 HP)	857104T1
6	PLUG	19-827633
7	ATTENUATOR, Sound Comment: (USE W/ FLAT BUSHING)	857106A1
7	ATTENUATOR KIT, Sound Comment: (USE W/TAPERED BUSHING)	857106A1
8	BUSHING Comment: (FLAT)	23-822003
8	BUSHING Comment: (TAPERED)	23-856954
9	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
10	TIE STRAP, (11.750 Inches)	54-850181
11	SEAL	26-856128001	26-856128
12	O-RING	25-8250572
13	O-RING	25-856525
14	PIN, Dowel	17-23784
15	SCREW, (M6 x 25 MM)	10-8248326
16	BREATHER HOSE	32-8M0182223
17	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	DECAL, Caution, Start In Gear	37-881865	37-825064
-	GASKET SET	27-859352A01

INTAKE/EXHAUST VALVE

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) INTAKE/EXHAUST VALVE:

Position No.	Part Name	OEM Number	Supersedes
1	VALVE, Exhaust	8M0065029	832991T 3
2	VALVE, Intake	832990T3
3	SEAL	26-858271
4	SPRING, Valve - Outer	24-893552	24-858268
5	RETAINER	822650
6	KEY	28-893554	28-822651
7	ROCKER ARM	898821A01
8	SCREW	10-825046
9	NUT	11-826150	11-858274
10	SHAFT, Rocker	8570851
11	NOT SOLD SEPARATE	NSS
12	BRACKET	893560	859577
13	BRACKET	893561	858275
14	SPRING	24-893562	24-825052 1
15	SCREW, (M8 x 23)	10-875218
16	GASKET	27-893645	27-859576
17	PIN	17-859575	17-893584
18	SPRING, Overload	24-893563	24-889775, 24-881858
-	CYLINDER HEAD ASSEMBLY	893505T01	857082A 5

LINKAGE(HANDLE)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) LINKAGE(HANDLE):

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M8 x 70) Stainless Steel	10-40011158
2	SCREW, (M6 x 60)	10-8147763
3	NUT, (M6)	11-401196
4	CAP	42942
5	LEVER ASSEMBLY, Throttle	822682A4
6	BUSHING	23-825078
7	SCREW, (M6 x 25 MM)	10-8248326
8	SHIFT GUIDE	858245
9	SCREW, (M5 x 12)	10-82239312
10	SHIFT SLIDE	858246
11	DETENT/SPRING KIT	12016A2
12	NOT SOLD SEPARATE	NSS
13	SHIFT ROD	858247
14	COTTER PIN	18-210711
15	NUT, (M6) Stainless Steel	11-401386
16	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
17	SHIFT LINK	858248
18	BUSHING	23-48475
19	LEVER ASSEMBLY, Shift Shaft	850166T2
20	BUSHING	23-850165
21	CAM, Throttle	8535853
22	SPACER	23-309772
23	WASHER	12-4002314
24	SCREW, (M5 x 16)	10-40056107
25	SWITCH	87-8M0052927	87-813960A 3
26	PLATE	824923
27	SCREW, (M3.5 x 20) Stainless Steel	10-88075020
28	BRACKET Comment: (HANDLE)	830294T1
29	DASHPOT Comment: (NON-HANDLE)	877844
30	SCREW, (M6 x 13) Stainless Steel	10-40011126
31	LEVER, Throttle	822682A4
32	RETAINER	826587	826587 1

LINKAGE(REMOTE)

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) LINKAGE(REMOTE):

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M8 x 70) Stainless Steel	10-40011158
2	SCREW, (M6 x 60)	10-8147763
3	NUT, (M6)	11-401196
4	CAP Comment: (50/60)	42942
5	LEVER ASSEMBLY, Throttle	822682A4
6	RETAINER	883160
7	BUSHING	23-825078
8	RETAINER	822459
9	LEVER, Shift	8259571
10	BRACKET	827706A4
11	LATCH	98889
12	SCREW, (M6 x 16)	10-8248324
13	SLEEVE	23-15885
14	SHIFT ROD	893777	850162
15	GUIDE, Shift Rod	8501631
16	SHIFT LINK	893769A01	850255A 1
17	BUSHING	23-48475
18	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
19	NUT, (M6) Stainless Steel	11-401386
20	COTTER PIN	18-210711
21	LEVER ASSEMBLY, Shift Shaft	850166T2
22	BUSHING	23-850165
23	CAM, Throttle	8535853
24	SPACER	23-309772
25	WASHER	12-4002314
26	SCREW, (M5 x 16)	10-40056107
27	SPACER, Throttle Stop Comment: (40)	881283F
28	LEVER, Throttle	822682A4
29	RETAINER	826587	826587 1

POWER TRIM

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) POWER TRIM:

Position No.	Part Name	OEM Number	Supersedes
-	PUMP ASSEMBLY, Power Trim	8M0055011	893517T01, 855654T09, 855654T08, 855654T 4
1	SHOCK ROD KIT	893943A01	855833A 1
2	PISTON ASSEMBLY, Memory	8M0171822
3	O-RING KIT, Rebuild	25-8M0171819
4	NOT SOLD SEPARATE	NSS
5	CYLINDER ASSEMBLY	893904T01	811228A 1
6	VALVE KIT, Trim Limit Comment: (NON-BIGFOOT)	893905A02	809873A 1 (NON-BIGFOOT)
6	VALVE KIT, Trim Limit Comment: (BIGFOOT)	893944A01	809873A 2 (BIGFOOT)
7	PUMP ASSEMBLY	893906A02	809874A 1
8	MOTOR KIT	893907A02	809885A 2
9	PLUG	22-8134351
10	MANUAL RELEASE ASSEMBLY	893929A01	813442A 2
11	MANIFOLD KIT	893909A02	809875A 1
12	SCREW KIT (MOTOR)	10-809876A1
13	DRIVESHAFT/SEAL KIT	809877A1
14	FILTER KIT	35-893912A02	809878A 1
15	POPPET KIT	893913A02	809879A 1
16	CABLE ASSEMBLY	88238A18
-	O-RING KIT (COMPLETE TRIM)	25-893914A02	25-809880A 1
17	PIN, Trilobe	17-821539	17-13794, 17-19603
18	PIN	17-19607
19	PIN	17-822869001	17-822869
-	HARNESS/RELAY ASSEMBLY, Trim	84-826802T18
20	HARNESS ASSEMBLY, Trim	84-826802T17
21	RELAY ASSEMBLY	8M0207773
22	BRACKET	828102
23	GROMMET	25-818967
24	BUSHING	23-8M0214955
25	NOT SOLD SEPARATE	NSS
26	SCREW, (M6 x 30)	10-82684430

SERVICE/SUPPORT MATERIAL

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) SERVICE/SUPPORT MATERIAL:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 40/50/60 (4 Cylinder) Carb 4-Stroke	90-87982801
-	OWNERS MANUAL	90-10223020
-	SERVICE MANUAL	90-858896
-	TOOL KIT	91-8M0162977
-	DECAL SET Comment: (40 BIGFOOT)	37-854695A00	37-854695A98 (40 BIGFOOT)
-	DECAL SET Comment: (40 BIGFOOT)(GRAY)	37-883523A01
-	DECAL SET Comment: (TRACKER 50/50 BIGFOOT)	37-850482A97
-	DECAL SET Comment: (TRACKER 40 BIGFOOT )	37-883229A01
-	DECAL SET Comment: (BLACK 50)	37-826337A00	37-826337A98, 37-826337A96, 37-826337A95 (BLACK 50)
-	DECAL SET Comment: (BLACK 60)	37-879753A01
-	DECAL SET Comment: (GRAY 50)	37-826338A01	37-826338A98, 37-826338A97, 37-826338A96, 37-826338A95 (GRAY 50)
-	DECAL SET Comment: (TRACKER 60 BIGFOOT)	37-883522A01
-	DECAL SET Comment: (GRAY 60)	37-879754A01
-	DECAL SET Comment: (TRACKER 60)	37-883522A01
-	DECAL, EPA Label Information Comment: (SEE NOTE)	37-804655A02

STARTER MOTOR

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) STARTER MOTOR:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-893888T	50-888161T, 50-884044T, 50-859377T
2	THRU BOLT	15384
3	DRIVE KIT	891752	90643 4
4	ARMATURE	8236386
5	PINION	68575T2
6	DRIVE CAP	8236392
7	CAP, Commutator	8119013
8	BRUSH/SPRING KIT	898265016	75384, 75384 1
9	HOLDER	898265014	61787
10	SCREW	F15158
11	DECAL, Warning, High Voltage	37-8272822

STEERING ARM

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) STEERING ARM:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, (M12)	11-896963	11-859129, 11-90099
2	STRAP Comment: (DESIGN III)(THICK STRAP)	893773002	827923 2, 893773001, 827923 1 (DESIGN III)(THICK STRAP)
3	MOUNT	8M0224385
4	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
5	BUMPER	8M0156878
6	RING, Retaining	53-89531
7	ARM, Steering	8M0118183
8	BRACKET Comment: (NON-HANDLE)	816667F1
9	TAB WASHER Comment: (NON-HANDLE)	14-8M0009820	14-816669F 1 (NON-HANDLE)
10	SCREW, (M10 x 30) Comment: (NON-HANDLE)	10-4000377
11	BOLT, (M12 x 154)	10-898835001	10-42973
12	SPACER	23-8279971
13	SWIVEL TUBE	8M0219909
14	CABLE ASSEMBLY	84-88238T01
15	CABLE ASSEMBLY, Ground	8M0207768
16	SCREW, (M10 x 105) Hex Flange - Stainless Steel	10-823567105	10-817430105
17	BRACKET	893703	828985
18	SCREW, (#10-16 x .375) Comment: (SELF-TAPPING)	10-878607	10-817626 (SELF-TAPPING)
19	NUT, (.375-24) Stainless Steel Comment: (HANDLE)	11-8M0204726
20	LEVER Comment: (HANDLE)	823792
21	WASHER Comment: (HANDLE)	12-29330
22	ROD (THREADED) Comment: (HANDLE)	821961
23	BRAKE PLATE Comment: (HANDLE)	821957
24	DISC Comment: (HANDLE)	8165621
25	PLATE Comment: (HANDLE)	8M0007471	823791 (HANDLE)
26	DISC Comment: (HANDLE)	8165621
27	SHOULDER SCREW, Hex Comment: (HANDLE)	10-768042
28	WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel Comment: (DESIGN I)	12-4002321
29	STRAP Comment: (Qty. of 1 used on DESIGN I)	893773002	827923 2, 893773001, 827923 1 (Qty. of 1 used on DESIGN I)
30	WASHER Comment: (DESIGN II)	12-20959

SWIVEL BRACKET

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) SWIVEL BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	ATTACHING KIT, Engine Steering Comment: (ELECTRIC NON HANDLE)	19608A14
2	SCREW, (.375-24 x 1.500) Comment: (ELECTRIC NON HANDLE)	10-823919
3	WASHER, (.390 x .546 x .12) Comment: (ELECTRIC NON HANDLE)	12-8M0109680
4	WASHER, (.390 x .625 x .062) Stainless Steel Comment: (ELECTRIC NON HANDLE)	12-37828
5	NUT, (.375-24) Stainless Steel Comment: (ELECTRIC NON HANDLE)	11-8M0204726
6	PUCK Comment: (ELECTRIC NON HANDLE)	822397
7	BUSHING	23-8217711
8	SWIVEL BRACKET	1401-850066T01	1401-850066A 1
9	BEARING	23-19606
10	FITTING, Grease Comment: (QTY. OF 3 REQUIRED ON HANDLE VERSIONS)	22-8M0169589
11	DECAL, Co-Pilot Comment: (HANDLE)	37-8237011
12	NOT SOLD SEPARATE, Decal	NSS
13	BUSHING (LOWER)	23-821777
14	SEAL	26-8M0205512
15	SCREW, (M8 x 10) Stainless Steel Comment: (HANDLE)	10-4008910
15	SCREW, (M8 x 25) Stainless Steel Comment: (NON-HANDLE)	10-40011149
16	SEAL Comment: (NON-HANDLE)	8282451

TILLER HANDLE

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) TILLER HANDLE:

Position No.	Part Name	OEM Number	Supersedes
1	COVER KIT	822148T06	822148A 6
2	PULLEY	822150
3	NOT SOLD SEPARATE	NSS
4	SCREW, (#10-16 x .500) Comment: (SELF TAPPING)	10-878608	10-812832 (SELF TAPPING)
5	CABLE ASSEMBLY, Throttle (30.50 Inches)	4324210
6	CABLE ASSEMBLY, Throttle (41.50 Inches)	4324211
7	SLEEVE, (12.00 Inches)	85-960099
8	SCREW, (M8 x 25 MM)	10-82526225
9	COVER	8M0072298	822407F 1
10	BUSHING	23-821477
11	ARM, Steering Handle	828813T1
12	RETAINER	822441
13	SCREW, (M5 x 16) Stainless Steel	10-40011107
14	SCREW, (M6 x 25)	10-8M0204707
15	LOCK, Throttle	892995	821971
16	SPRING	24-96203
17	KNOB, Throttle	821972T	821972
18	TILLER TUBE	8M0138696
19	DECAL	37-8242004
20	HANDLE, Throttle	821465
21	GRIP	8M0221732
22	SWITCH, Stop	87-8M0104614	87-823609A14, 87-823609A13
23	CLIP	823687
24	SWITCH, Stop	87-11083A31
25	RETAINER, Brass	8M0032846	12044 1
26	BRACKET, Tiller	821455A4
27	WAVE WASHER	13-826792	13-34678 1, 13-822144
28	BUSHING	23-821477
29	WASHER	12-827314
30	CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)	32-828547633
31	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
32	DECAL, F-N-R Shift	37-82409316
33	LANYARD ASSEMBLY	15920Q54
34	SCREW, (M8 x 35) Stainless Steel	10-40011151
35	HANDLE	830180A01	830180
36	BUSHING	23-830181
37	TAB WASHER	14-8M0009820	14-816669F 1
38	SCREW, (M10 x 90)	10-82484890

TOOLS

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) TOOLS:

Position No.	Part Name	OEM Number	Supersedes
1	FLUSHING ATTACHMENT	44357Q2
2	PUMP, Crankcase Oil	802889Q1
3	WRENCH, Oil Filter	91-802653Q02	91-802653Q 1
4	HOLDER TOOL, Flywheel	91-8M0161873
5	FLYWHEEL PULLER	91-83164M
6	TIMING LIGHT	91-99379
7	ADAPTOR TOOL, Direct Voltage	91-890451
8	TACH MULTI METER, DMT 2000 Digital	91-854009A3
9	DIGITAL DIAGNOSTIC TESTER	91-823686A2
10	CARTRIDGE	91-8226086
11	HARNESS ASSEMBLY, Adaptor	84-822560A7
12	HARNESS ASSEMBLY, Adaptor	84-822560A10
13	GAUGE TOOL, Carburetor	91-36392
14	REMOVER TOOL, Valve Guide	91-809495001	91-809495A 1
15	INSTALLER TOOL, Valve Guide Bushing	91-809496A1
16	REAMER TOOL, Valve Guide	91-809497A1
17	COMPRESSOR TOOL, Valve Spring	91-809494A1
18	NOT SOLD SEPARATE	NSS
19	COMPRESSOR TOOL, Piston Ring	FT2997	FJ7081, FJ8785, FJ8786, FJ8787, FJ8788, FJ8789
20	ANTI-CORROSION GREASE, 8 oz	92-8M0071838
21	EXPANDER TOOL, Piston Ring	91-24697
22	SPANNER WRENCH	91-74951
23	DOWN PRESSURE KIT	91-822778A3
24	HEAT LAMP	91-63209
25	INSTALLATION TOOL, Bearing	91-877321A1
26	CLAMP TOOL, Tubing	91-804063
-	PULLER KIT, Bearing	91-31229A7
27	NOT SOLD SEPARATE (P/N-CG-41-11)	NSS
28	NOT SOLD SEPARATE (P/N -CG-41-14)	NSS
29	NUT, (.625-18)	11-24156
30	WASHER	12-34961
31	PLATE	91-29310
32	SHAFT	91-31229
33	WRENCH TOOL, Driveshaft Bearing	91-36571T
34	DRIVER ROD TOOL, Needle Bearings	91-37323
35	MANDREL	91-15755T
36	DRIVE HEAD TOOL	91-36569T
37	PULLER	91-27780
38	PULLER PLATE	91-37241
39	DRIVER HEAD TOOL	91-37312T
40	INSTALLER TOOL, Needle Bearing	91-817011T	91-817011
41	CABLE ASSEMBLY, DDT, 10FT.	84-825003A1
42	VACUUMMATE, Carburetor	91-8098712
43	INSTALLER TOOL, Seal	91-817007T	91-817007
44	RETAINING TOOL, Bearing	91-43506T
45	INSTALLER TOOL, Bearing	91-817005
46	INSTALLER TOOL, Water Pump Base Seal	91-817006
47	LOCATION TOOL, Pinion Gear	91-817008A2
48	DRIVER TOOL, Bearing Cup	91-817009T	91-817009, 91-31361
49	LOCATION TOOL, Pinion	91-12349A05
50	INSTALLATION TOOL, Bearing	91-13945
51	DRIVER TOOL, Oil Seal	91-13949
52	RACE TOOL, Bearing	91-14308T02
53	INSTALLATION TOOL, Bearing	91-14309T02
54	WEAR SLEEVE INSTALLATION TOOL	91-14310T1
55	PRE LOAD TOOL, Bearing	91-14311A04
56	INDICATOR TOOL, Backlash	91-196601
-	INDICATOR TOOL, Backlash (2.31:1 GEAR RATIO)	91-8M0053505	91-78473
57	MANDREL, Bearing Driver Cup	91-31106T
58	DRIVER, Oil Seal	91-31108T
59	PULLER ASSEMBLY, Slide Hammer	91-34569A1
60	PULLER JAW ASSEMBLY	91-46086A1
61	MANDREL	91-37350T
62	HOLDING TOOL, Driveshaft	91-817070
63	DIAL INDICATOR TOOL	91-58222A1
64	PULLER TOOL	91-85716
65	ADAPTER KIT, Dial Indicator	91-83155
66	PULLER ASSEMBLY	91-83165T
67	INSTALLATION TOOL, Bearing	91-856875A1
68	BACKLASH INDICATOR TOOL	91-817057A02	91-817057A 1
69	DRIVER TOOL, Bearing	91-817058A1
70	HOLDING TOOL, Driveshaft	91-877840A1

TRANSOM BRACKET

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) TRANSOM BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET ASSEMBLY, Transom Comment: (PORT)	3418-822866T04	3418-822866A 1 (PORT)
2	FITTING, Grease	22-8M0169588
3	PIN, Groove	17-99604
4	BRACKET, Transom Comment: (STARBOARD)	3418-822865T05	3418-822865F 2 (STARBOARD)
5	LEVER ASSEMBLY, Tilt Lock	893704T01	19618A 2
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB	812709	812709T, 812709F 1
10	PIN, Groove	17-99615
11	WASHER	12-19619
12	BRACKET, Anchor	18486F5
13	ANODE KIT	97-818298Q1
14	SCREW, (M6 x 25)	10-8M0204707
15	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
16	SCREW, (M8 x 30) Comment: (30 MM)	10-4000354
17	SCREW, (M8 x 35) Comment: (35 MM)	10-4000355
18	LOCKWASHER, (M8)	13-400257
19	NUT, (M8) Stainless Steel	11-401388
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT, (.875-14)	11-858869	11-30499
22	SEAL KIT Comment: (NON-HANDLE)	19624A1
23	O-RING, (.583 x .103) Comment: (NON-HANDLE)	25-29619
24	SPACER Comment: (NON-HANDLE)	23-78861
25	CLIP	54-22740
26	C WASHER	8M0084613	69205
27	SCREW, (#10-16 x .600)	10-878609	10-812832 1
28	SCREW, (.500-20 x 4.00)	10-814259
29	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel	12-8M0204648
30	NUT, (.500-20)	11-82671117
31	SCREW, (M10 x 40) Stainless Steel	10-4009040
32	WASHER	12-4002319
33	NUT, (M10)	11-40140

TRIM SWITCH KIT

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) TRIM SWITCH KIT:

Position No.	Part Name	OEM Number	Supersedes
-	SWITCH KIT, Trim (10.00 Feet)	87-18286A18
1	RETAINER	18861
2	ADAPTOR	814820	812978
3	NOT SOLD SEPARATE	NSS
4	FUSE, 20 Ampere	88-8M0207796
5	CABLE ASSEMBLY	84-95084A2
6	CABLE ASSEMBLY, (6.00 Inches)	84-11149A2
7	SCREW, (#10-32 x 2.25)	10-19209
7	SCREW, (#10-16 x 2.25)	10-813523

Top Cowl

Below is the parts list for Mercury 60 (4-STROKE)(4 CYL.) Top Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY Comment: (BLACK)	4019-875300T36	4019-825239T 3 (BLACK)
1	TOP COWL ASSEMBLY Comment: (SILVER)	4019-825239T4
2	NOT SOLD SEPARATE	NSS
3	LATCH Comment: (BLACK)	826291F1
3	LATCH Comment: (SILVER)	826291F1
4	SCREW, (M4 x 14.5)	10-8231871
5	LOCKWASHER, Stainless Steel	8,13-26995
6	NUT, (M4)	11-8237515
7	SEAL	8M0153618
8	SOUND BLANKET KIT	825243A03	825243A 2
9	NOT SOLD SEPARATE	NSS
10	BRACKET ASSEMBLY, Latch Roller	893763	18173
11	SCREW, (M6 x 16)	10-4006731
12	BRACKET	8M0038412	822426 1
13	SCREW, (M4 x 14.5)	10-8231871
14	LOCKWASHER, Stainless Steel	8,13-26995
15	NUT, (M4)	11-8237515
16	ROPE AND HANDLE KIT, Manual Starting	47341A11

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
