Mercury 60 (1916139 THRU 2529894) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 60 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND ADAPTOR PLATE

Below is the parts list for Mercury 60 BOTTOM COWL AND ADAPTOR PLATE:

Position No.	Part Name	OEM Number
1	ADAPTOR PLATE ASSEMBLY	47260A2
1	ADAPTOR PLATE ASSEMBLY	47260A2
2	WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)	23-13127
3	SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)	26-36556
4	SEAL, RUBBER - ADAPTOR PLATE	39044
5	GASKET, POWERHEAD PLATE Comment: SERIAL #2080069-09999999	27-89937
5	GASKET, POWERHEAD TO ADAPTOR PLATE Comment: SERIAL 00000000-#2080068	27-89937
5	GASKET, POWERHEAD TO ADAPTOR PLATE(USE THUR SERIAL #2080068)	27-89937
6	SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")	10-69026
7	LOCKWASHER, ADAPTOR PLATE SCREW	13-26992
8	GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING	27-39050
9	COWL, BOTTOM	2124-2649
10	ANCHOR, LATCH - BOTTOM COWL	39085
11	SCREW, LATCH ANCHOR TO BOTTOM COWL (3/4")	10-22485
12	LOCKWASHER, LATCH ANCHOR SCREW	13-26992
13	GROMMET, CHOKE SHAFT - BOTTOM COWL	25-39054
14	PLATE ASSEMBLY, COVER - BOTTOM COWL	39051A1
15	PAD, SOUND - COVER PLATE	39068
16	SCRW, COVER PLATE TO BOTTOM COWL (3/8")	10-8M0113176
17	SEAL, SHIFT HANDLE - BOTTOM COWL	39058
18	MOUNT, RUBBER _ BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)	39145
19	MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)	39144
20	SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")	10-29238
21	NUT, ADAAPTOR PLATE TO RUBBER MOUNT	11-8M0207775
22	SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)	39565
23	SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")	10-32228
24	LOCKWASHER NYLON SPOOL SCREW	13-26996
25	ADAPTOR, REAR MOUNT TO BOTTOM COWL	39147
26	SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")	10-69026
27	LOCKWASHER, REAR MOUNT ADAPTOR SCREW	13-26992
28	MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)	39146
29	LOCKWASHER, REAR MOUNT	13-26992
30	NUT, REAR MOUNT TO ADAPTOR	11-20088
31	NUT, ADAPTOR PLATE TO REAR RUBBER MOUNT	11-8M0207775
32	ROD, COWL LATCH - BOTTOM COWL	63648
33	BRACKET, COWL LATCH ROD	39099
34	SCREW, COWL LATCH BRACKET TO BOTTOM COWL (15/16")	10-69026
35	LOCKWSHER, COWL LATCH BRACKET SCREW	13-26992
36	HANDLE, COWL LATCH ROD(PORT)	39083
37	HANDLE, COWL LATCH ROD (STARBOARD)	39098
38	BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL	23-22981
39	PIN, ROLL - HANDLE TO COWL LATCH ROD	17-25319
40	SLEEVE, COWL LATCH ROD(EARLY MODELS ONLY)	32-28373
--	STOP SWITCH ASSEMBLY	32372A2
41	HARNESS, STOP SWITCH	32372
42	INSULATOR, SLEEVE - INNER SWITCH TERMINALS	30859
43	SPRING AND CONTACT ASSEMBLY	24-30858A1
44	COVER ASSEMBLY, STOP SWITCH	38950A1
45	WASHER, SEALING - STOP SWITCH	12-38949
46	LOCKWASHER, STOP SWITCH CONNECTOR	13-21972
47	NUT, STOP SWITCH TO BOTTOM COWL	11-21971
48	SCRW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")	10-8M0113176

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 60 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number
1	CARBURETOR ASSEMBLY, COMP (KB-6B)	1334-2697
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION	17-20853
4	LEVER, FLOAT (LOWER)	1399-102
5	LEVER, FLOAT (UPPER)	1399-101
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET NEEDLE AND SEAT	27-25033
8	GASKET, FLOAT BOWL COVER	1399-99
9	COVER, FLOAT BOWL	1399-113
10	SCREW, FLOAT BOWL COVER (SHORT)	10-22625
11	SCREW, FLOAT BOWL COVER (LONG)	10-25850
12	GASKET, STRAINTER COVER (LARGE)	27-25851
13	SCREEN, FILTER	1399-3938
14	GASKET, STRAINER COVER (SMALL)	27-25849
15	COVER, STRAINER	1399-1135
16	GASKET, STRAINER COVER SCREW	27-25848
17	SCREW, STRAINER COVER	10-25822
18	SCREW, THROTTLE STOP LEVER	1395-6027
19	LEVER, THROTTLE STOP	8146791
20	SHAFT, THROTTLE	1399-1716
21	TUBE, IDLE	1399-2037
22	GASKET, IDLE TUBE	27-23180
23	SCREW/LOCKWASHER, THROTTLE SHUTTER	10-23035
24	SHUTTER, THROTTLE	1399-699
25	WELCH PLUG, BODY CHANNEL	19-20011
26	SPRING, THROTTLE SHAFT RETURN	24-26890
27	SCREW, PLUG - BODY CHANNEL	10-28845
28	MAIN NOZZLE	1399-2709
29	SCREW, PLUG - MAIN NOZZLE	10-23178
30	JET, MAIN FUEL (.045) - STANDARD	1399-1765
30	JET, MAIN FUEL (.043)	1399-1864
30	JET, MAIN FUEL (.041)	1399-1896
31	GASKET, MAIN FUEL JET	27-28409
32	GASKET, JET CHANNEL PLUG SCREW	27-28406
33	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
34	SCREW,IDLE ADJUSTMENT	1399-2038
35	SPRING, IDLE ADJUSTMENT SCREW	24-27160
--	GASKET AND PACKING SET	1399-1717
--	REPAIR PARTS KIT	1399-2710
36	GASKET, CARBURETOR FLANGE	27-63309
37	NUT, CARBURETOR MOUNTING STUDS	11-8M0207775
38	WASHER, CARBURETOR MOUNTING STUD	12-20583

CARBURETOR CHOKE LINKAGE

Below is the parts list for Mercury 60 CARBURETOR CHOKE LINKAGE:

Position No.	Part Name	OEM Number
1	THROTTLE LEVER ASSEMBLY	59000
2	SCREW, THROTTLE LEVER TO CARBURETOR (1/2")	10-29239
3	SPRING, CHOKE SHUTTER TO LEVER	24-32283
4	LEVER ASSEMBLY, CHOKE SHUTTER	31920A2
5	SHAFT, CHCOKE LEVER TO CHOKE KNOB	39148
6	BUSHING, NYLON - CHOKE LEVER SHAFT	23-26841
7	WASHER, CHOKE LEVER SHAFT	12-30283
8	SPRING, TENSION - CHOKE LEVER SHAFT	24-39040
9	COTTER PIN, CHOKE LEVER SHAFT	18-25191
10	KNOB, CHOKE	39055
11	PIN, ROLL - CHOKE KNOB TO SHAFT	17-22896
12	SHUTTER, CHOKE - CARBURATOR	34245
13	SCREW, CHOKE SHUTTER TO CARBURETOR (3/4")	10-31919
14	WASHER, WAVE - CHOKE SHUTTER SCREW	13-34632
15	SPACER, CHOKE SHUTTER SCREW	23-31313

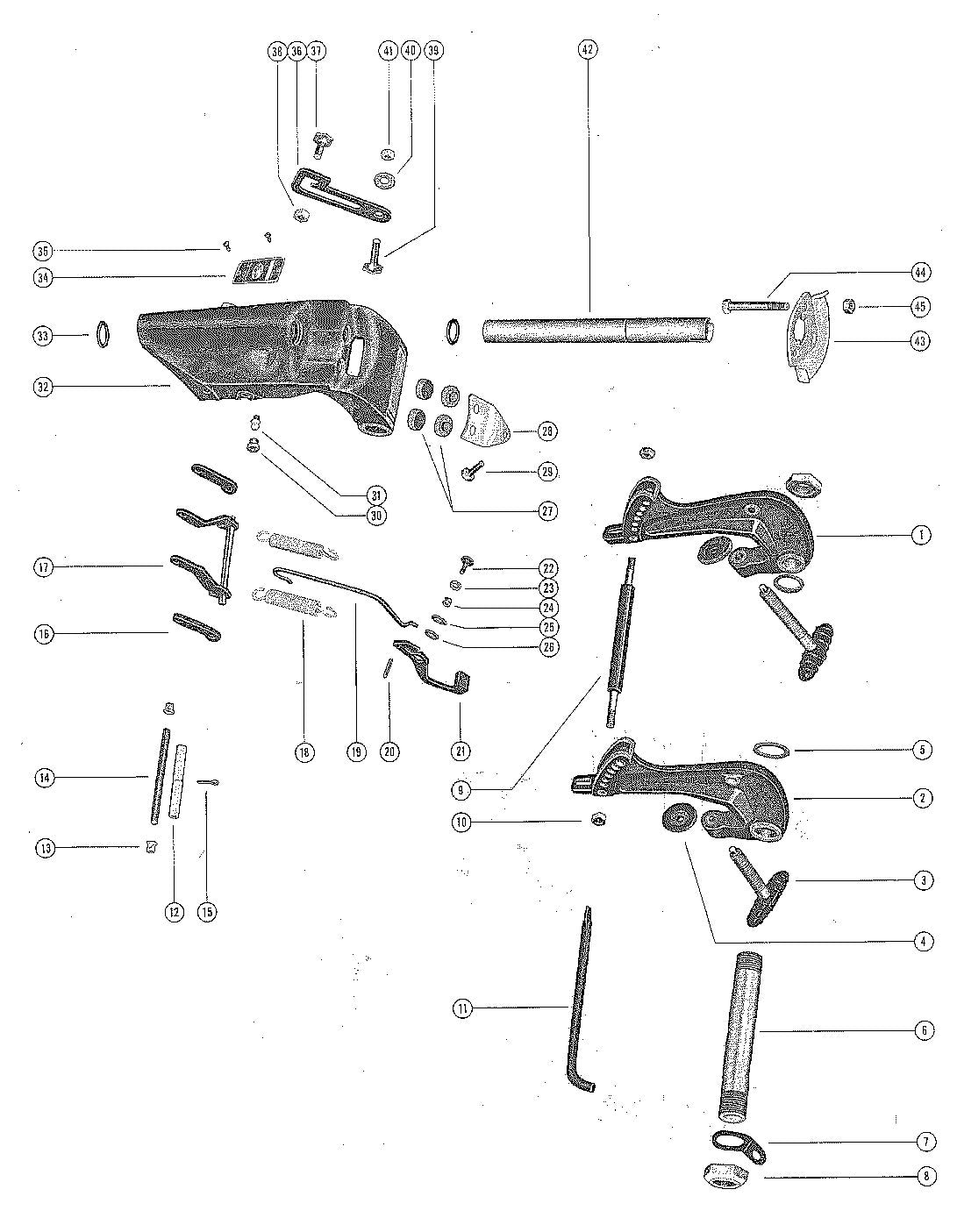

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 60 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY (PORT)	1467-5406A2
2	CLAMP BRACKET ASSEMBLY (STARBOARD)	1467-5406A2
3	THUMB SCREW ASSEMBLY	59170A3
4	WASHER, THUMB SCREW	12-26227
5	SHIM ASSY, TILT TUBE-CLAMP TO BRACKET (.010-.020)	12-52864
6	TILT TUBE, CLAMP TO SWIVEL BRACKET	45757
6	TILT TUBE, CLAMP TO SWIVEL BRACKET	45757
7	CLIP, SAFETY CHAIN - TILT TUBE	54-8M0085928	54-30954
8	NUT, TILT TUBE FASTENING	11-858869	11-30499
9	STUD, CLAMP BRACKET SPACER	16-59622
10	NUT, CLAMP BRACKET STUD FASTENING	11-8M0207775
11	TILT LOCK PIN ASSEMBLY	17-55952A1
12	SPACER, TUBE - REVERSE LOCK LEVER ROD	23-30813
13	BUSHING, NYLON - REVERSE LOCK LEVER ROD	23-26856
14	ROD, REVERSE LOCK TO SWIVEL BRACKET	56663
15	COTTER PIN, REVERSE LOCK LEVER TO ROD	18-56206
16	LINK, REVERSE LOCK LEVER	30815
17	REVERSE LOCK LEVER ASSEMBLY	30807A1
18	SPRING, TENSION - REVERSE LOCK LEVER	24-31918
19	ROD, LINK - REVERSE LOCK LEVER	38318
20	PIN, ROLL - SWIVEL BRACKET CONTROL LEVER	17-25905
21	LEVER, CONTROL - REVERSE LOCK	32351T
22	SCREW, CONTROL LEVER TO SWIVEL BRACKET	10-28789
23	WASHER, CONTROL LEVER SCREW	12-8M0204666
24	SPACER, CONTROL LEVER FASTENING SCREW	23-31309
25	WASHER, WAVE - CONTROL LEVER FASTENING SCREW	13-34632
26	WASHER, CONTROL LEVER FASTENING SCREW	12-24812
27	DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET	20203
28	PLATE, CLAMP - CO-PILOT	61296
29	SCREW, CLAMP PLATE ADJUSTING	10-56649
30	LUBRICAP, GREASE FITTING	19-77633Q
31	FITTING, GREASE - SWIVEL BRACKET	22-8M0169589
32	SWIVEL BRACKET	1451-1788
33	"O" RING, SWIVEL BRACKET	25-25439
34	SERIAL PLATE	38-31042
35	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-28642
36	LEVER, TILT STOP	63310A1
37	SCREW, RETAINING - TILT STOP LEVER	10-29237
38	NUT, TILT STOP LEVER RETAINING SCREW	11-8M0207775
39	SCREW, ANCHOR - TILT STOP LEVER	10-27791
40	WASHER, WAVE - LEVER ANCHOR SCREW	13-20846
41	NUT, TILT STOP LEVER ANCHOR SCREW	11-8M0207775
42	SWIVEL PIN, SWIVEL BRACKET TO SADDLE	17-30688
43	CO-PILOT DISC	77334
44	SCREW, CO-PILOT DISC TO SADDLE	10-30679
45	NUT, CO-PILOT DISC FASTENING SCREW	11-8M0207775

CRANKSHAFT AND MAIN BEARING ASSEMBLY

Below is the parts list for Mercury 60 CRANKSHAFT AND MAIN BEARING ASSEMBLY:

Position No.	Part Name	OEM Number
1	CRANKSHAFT	419-2223
2	MAIN BEARING ASSEMBLY (VALVE TYPE)	529-2721A3
3	PIN, DOWEL - MAIN BEARING	17-20032
4	SCREW, MAIN BEARING CLAMPING	10-68918
5	CHECK VALVE ASSEMBLY, MAIN BEARING	21-28481A1
6	PIN, DOWEL - MAIN BEARING BLOCK	17-20032
7	REED SET, MATCHED - MAIN BEARING	34-23087A1
8	REED STOP, MAIN BEARING REED VALVES	34-21721
9	SCREW, REED STOP MOUNTING	10-27304

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 60 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	835-2650A2
1	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	835-2752A2
2	CHECK VALVE ASSEMBLY, CRANKCASE	21-28481A1
3	STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING	16-728091
4	STUD, CARBURETOR MOUNTING	10-657461
5	PIN, DOWEL - CRANKCASE TO CYLIDNER BLOCK	17-21438
6	PLUG, PIPE _ CYLINDER BLOCK	22-328022
7	SCREW, CRANKCASE TO CYLINDER BLOCK (1")	10-64278
8	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-24624
9	NUT, CRANKCASE FASTENING SCREW	11-8M0207775
10	SCREW, MAIN BEARING LOCKING	10-20665
11	LOCKWASHER, MAIN BEARING LOCKING SCREW	13-21709
12	SHIM ASS"Y, UPPER HSG. TO CYLINDER BLOCK(.002-3-5-10)	15-30502A1
13	BEARING HOUSING ASSEMBLY, UPPER	1131-2405A1
14	BEARING, BALL - UPPER BEARING HOUSING	30-72961
15	BEARING, ROLLER - UPPER BEARING HOUSING	31-31410
16	OIL SEAL, UPPER BEARING HOUSING	26-31411
17	"O" RING, UPPER BEARING HOUSING	25-20826
18	CLAMP, HOLD DOWN RING	54-34598
19	SCREW, RING CLAMP TO BEARING HOUSING	10-36205
20	SPRING, RING CLAMP SCREW	24-34731
21	SCREW, UPPER BEARING HOUSING (1/2")	10-39002
22	GASKET, TRANSFER PORT COVER	27-22656
23	COVER, TRANSFER PORT	30654
24	SCREW, PORT COVER TO CYLINDER BLOCK (1/2")	10-20665
24	SCREW, PORT COVER TO CYLINDER BLOCK (5/8")	10-20720
25	COVER, CYLINDER BLOCK	1018-2652
26	GASKET, CYLINDER BLOCK COVER	27-30504
27	SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK	10-64278
28	NUT, CYLINDER BLOCK COVER SCREW	11-8M0207775
29	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-30656
30	PLATE, BAFFLE - EXHAUST MANIFORLD	39096
31	GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-30656
32	COVER, EXHAUST MANIFOLD	46163
32	COVER, EXHAUST MANIFOLD	46163
33	SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING	10-28636
34	TERMINAL BLOCK, EXHAUST MAIFOLD COVER	30212
35	SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER	10-72169
36	SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK	10-62568
37	CLIP, MAGNETO GOUND LEAD	54-24836
38	SCREW, GROUOND LEAD CLIP TO MANIFOLD COVER	10-62568
39	"D" WASHER, GROUND LEAD FASTENING SCREW	8M0084613	69205
40	BEARNG, BALL - CRANKCASE (LOWER)	30-72961
41	OIL SEAL, CRANKCASE (LOWER)	26-30943
42	SCREW, ADJUSTING - THROTTLE CONTROL	10-23015
43	NUT, THROTTLE CONTROL ADJUSTING SCREW	11-68219

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 60 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1556-2627A2
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1558-2641A1
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-34378
3	NUT, DRIVE SHAFT HOUSING STUD	11-82670911
4	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD	11-8M0204726
5	COVER, TRIM - DRIVE SHAFT HOUSING	39025
6	SCREW, TRIM COVER TO BOTTOM COWL (7/16")	10-25764
7	TUBE, WATER OUTLET(SHORT SHAFT)	32-39061
7	TUBE, WATER OUTLET(LONG SHAFT)	32-39062
8	SCREW, FLUSH - DRIVE SHAFT HOUSING	10-79953Q04
9	WASHER, SEALING - FLUSH SCREW	12-191833
10	GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING	27-39050
11	NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS	11-8M0207775
11	NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS	11-8M0207775
11	NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS	11-24652
12	BLOCK, DRIVE SHAFT(LONG SHAFT) Comment: SERIAL 00000000-#2195578	47259A1
12	BLOCK ASSEMBLY, DRIVE SHAFT(LONG SHAFT) Comment: SERIAL #2195579-09999999	47259A1
13	SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING(LONG SHAFT) ST Comment: SERIAL #2195579-09999999	10-47225
14	SADDLE	1559-8448A2
--	BUMPER, THRUST - SADDLE (LONG SHAFT)	32021
15	MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW)	79985A1
16	MOUNT ASSEMBLY, LOWER	79896A1
17	RING, RETAINING - UPPER AND LOWER MOUNT	53-26406
18	COVER, LOWER MOUNT	71490
18	COVER, LOWER MOUNT	71490
18	COVER, LOWER MOUNT	71490
19	COVER, UPPER MOUNT	71490
19	COVER, UPPER MOUNT	71490
20	SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT(3/8")	10-30675
20	SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")	10-30675
20	SCREW, LOWER MOUNT COVER TO MOUNT(7/16")	10-45817

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE

Below is the parts list for Mercury 60 FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	NUT,FLYWHEEL	11-20696
2	WASHER, FLYWHEEL NUT	12-36245
3	"O" RING, FLYWHEEL HUB	25-62701
4	KEY, FLYWHEEL DRIVE	28-20094
5	FLYWHEEL ASSEMBLY, COMPLETE	219-2246A4
6	COLLAR, FLYWHEEL DUST SHIELD	23-34367
7	WASHER, WAVE _ MAGNETO CAM TENSION	13-22027
8	STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)	398-2574A4
9	SHIELD ASSEMBLY, STATOR PLATE	39326A1
10	SCREW, SHIELD TO STATOR PLATE	10-45742
11	LOCKWASHER, SHIELD SCREW	13-26996
12	RING, HOLD DOWN - STATOR PLATE	33904
13	SCREW, HOLD DOWN RING TO STATOR PLATE	10-35400
14	CAM, BREAKER	398-2230
15	SHIM, STATAOR PLATE TO UPPER END CAP (.015)	15-33910015
16	CLAMP, STATOR LEAD	54-45806
17	SCREW, STATOR LEAD CLIP TO PORT COVER	10-20720
18	"D" WASHER, LEAD CLIP SCREW	8M0084613	69205
19	THROTTLE CAM BRACKET ASSEMBLY	34363A1
20	SCREW, CAM BRACKET TO STATOR PLATE	10-53296
21	CLIP, THROTTLE CAM BRACKET	54-34449
22	CAM, THROTTLE	36000
23	SCREW, THROTTLE CAM TO CAM BRACKET	10-53296
24	SCREW, CONTROL LEVER TO CAM BRACKET	10-34696
25	WASHER, WAVE _ CONTROL LEVER SCREW	13-29720
26	WASHER, CONTROL LEVER SCREW	12-34392
27	NUT, CONTROL LEVER SCREW	11-28656

FUEL PUMP ASSEMBLY

Below is the parts list for Mercury 60 FUEL PUMP ASSEMBLY:

Position No.	Part Name	OEM Number
1	FUEL PUMP ASSEMBLY	39082A4
2	CHECK VALVE ASSEMBLY	21-22974A3
3	DIAPHRAGM KIT, FUEL PUMP	31503A1
4	GASKET, FUEL PUMP TO SPACER (#)
5	SCREW, FUEL PUMP TO SPACER (1")	10-68918
6	SPACER, FUEL PUMP	39259
7	ELBOW, FUEL PUMP TO CARBURETOR	22-39079
8	ELBOW, FUEL PUMP SPACER TO PRESSURE HOSE	22-33373001
9	HOSE, PRESSURE - FUEL PUMP (4 3/8")	32-9912688
10	ELBOW, CYCLINDER BLOCK TO PRESSURE HOSE	22-33373001
11	CLAMP, PRESSURE HOSE FASTENING	54-20387
12	FUEL LINE, FUEL PUMP TO ADAPTOR (5 1/4")	32-39485
13	ADAPTOR, CHECK UNIT (FUEL LINE)	32454
14	SEAL, ADAPTOR TO BOTTOM COWL	39052
15	SCREW, ADAPTOR TO BOTTOM COWL (1 3/8")	10-73656
16	SPRING, ADAPTOR SCREW	24-28357
17	NUT, ADAPTOR SCREW	11-20110

GEAR HOUSING ASSEMBLY, COMPLETE

Below is the parts list for Mercury 60 GEAR HOUSING ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW	1630-2643A13
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW	1630-2643A13
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: ALUMINUM WATER PUMP AND 2 RAMP RATCHET. SEE NOTE BELOW	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: ALUMINUM WATER PUMP AND 2 RAMP RATCHET. SEE NOTE BELOW	1630-2643A13
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: PLASTIC WATER PUMP AND 3 RAMP RATCHET. SEE NOTE BELOW.	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) Comment: PLASTIC WATER PUMP AND 3 RAMP RATCHET. SEE NOTE BELOW.	1630-2643A13
1	GEAR HOUSING ASSEMBLY	1630-2643A9
1	GEAR HOUSING ASSEMBLY	1630-2643A9
2	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING(3 7/16")	16-58138
3	STUD, WATER PUMP HOUSING TO GEAR HOUSING(2 7/16")	16-30717
3	STUD, WATER PUMP HOUSING TO GEAR HOUSING (2 7/8")	16-29592
4	BEARING, ROLLER - DRIVE SHAFT	31-22756
5	PIN, DOWEL - LOCATING	17-20032
6	SEAL, RUBBER - WATER INTAKE TUBE	26-33613
7	WASHER, NYLON - INTAKE TUBE SEAL	23-86215
8	SCREEN, WATER INTAKE	35-33425
9	SCREW, WATER INTAKE SCREEN TO GEAR HOUSING	10-28642
10	WASHER, GREASE FILLER HOSE SCREW	12-191833
11	SCREW, GREASE FILLER HOLE	10-79953Q04
12	WASHER, GREASE VENT HOLE SCREW	19643
13	SCREW, GREASE VENT HOLE	10-28653
14	SHAFT, SHIFT - LOWER(SHORT SHAFT)	54640A1
14	SHAFT, SHIFT - LOWER(LONG SHAFT)	54641A1
15	RING, RETAINING - SHIFT SHAFT	53-30899
16	BUSHING ASSEMBLY, SHIFT SHAFT	23-30676A1
17	"O" RING, SHIFT SHAFT BUSHING	25-26802
18	OIL SEAL, SHIFT SHAFT BUSHING	26-30696
19	SCREW, SHIFT SHAFT BUSHING RETAINER	10-39149
20	"O" RING, LOWER SHIFT SHAFT	25-38933
21	GEAR, PINION(2 RAMP RATCHET)	43-48577A2
21	GEAR, PINION(3 RAMP RATCHET)	43-98696
22	TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW	14-30377
23	SCREW, PINION GEAR TO DRIVE SHAFT	10-30376
24	DRIVE SHAFT(SHORT SHAFT)	45-39078
24	DRIVE SHAFT(LONG SHAFT)	45-39077
25	SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING(.002-3-5-10)	15-30527A1
26	BEARING, BALL - DRIVE SHAFT	30-33076
27	RING, RETAINING - BALL BEARING TO DRIVE SHAFT	53-30523
28	SHIM ASSEMBLY, BALL BEARING TO WATER PUMP(.002-3-5-10)	15-30527A1
29	WATER PUMP HOUSING ASSEMBLY	46-46893A6
29	WATER PUMP HOUSING ASSEMBLY(ALUMINUM)	46-46893A6
29	WATER PUMP HOUSING ASSEMBLY(PLASTIC)	46-46893A3
30	"O" RING, WATER PUMP HOUSING	25-29439
31	OIL SEAL, WATER PUMP HOUSING	26-30900T
32	SEAL, WATER INTAKE TUBE	26-33613
33	TUBE, WATER INTAKE	32-34293
34	INSERT, WATER PUMP HOUSING	31707
34	INSERT, WATER PUMP HOUSING	70977T
35	PIN, IMPELLER DRIVE	28-8M0032835	28-56655
36	IMPELLER, WATER PUMP	47-89981
37	PLAT, FACE - WATER PUMP HOUSING TO WATER PUMP COVER	30674
37	PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER	46895
38	WATER PUMP COVER ASSEMBLY	30593A1
38	WATER PUMP COVER ASSEMBLY(ALUMINUM)	46922A1
38	WATER PUMP COVER ASSEMBLY(PLASTIC)	93224A1
39	SEAL, WATER PUMP COVER	26-36558
40	WASHER, NYLON - WATER PUMP COVER	23-13127
41	OIL SEAL, WATER PUMP COVER	26-30913
42	WASHER, WATER PUMP HOUSING AND COVER STUDS	12-46897
43	NUT, WATER PUMP HOUSING AND COVER STUDS	11-8M0207775
44	RING, RUBBER - CENTRIFUGAL SLINGER(DRIVER SHAFT)	25-30526
45	SLEEVE, GUIDE - WATER INLET TUBE	23-31792T
46	"O" RING, UPPER - DRIVE SHAFT	25-48171
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW	1630-2643A13
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW	1630-2643A12
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW	1630-2643A13
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) ALUMINUM WATER	1630-2643A26
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) ALUMINUM WATER P	1630-2643A27
-	GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) PLASTIC WATER P	1630-2643A26
-	GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) PLASTIC WATER PU	1630-2643A27
1	GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN	1630-2643A9
1	GEAR HOUSING ASSEMBLY SEE PAGE 23 FOR PARTS BREAKDOWN	1630-2643A9
47	CAM, SHIFT	30599
48	FOLLOWER, SHIFT CAM	31334
49	SPRING, COMPRESSION - CAM FOLLOWER	24-31333
50	SHIM ASSEMBLY, FORWARD GEAR BALL BEARING TO GEAR HOUSING(.0	15-30522A1
51	BEARING, BALL - FORWARD GEAR	30-21889
52	FORWARD GEAR ASSEMBLY(2 RAMP RATCHET)	43-30880A1
52	FORWARD GEAR ASSEMBLY(3 RAMP RATCHET)	43-48577A3
53	BEARING, ROLLER - FORWARD GEAR	31-22458
54	RATCHET ASSEMBLY, SLIDING CLUTCH(2 RAMP RATCHET)	52-32473A1
54	RATCHET ASSEMBLY, SLIDING CLUTCH(3 RAMP RATCHET)	52-47581
55	RING, RETAINING - CROSS PIN (PART OF A-52-32473A1 RATCHET	53-32449
56	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-30535
57	SHAFT, PROPELLER	44-33581
57	SHAFT, PROPELLER	44-47935
58	REVERSE GEAR ASSEMBLY(2 RAMP RATCHET)	43-30882A3
58	REVERSE GEAR ASSEMBLY(3 RAMP RATCHET)	43-48578
59	WASHER, THRUST - REVERSE GEAR	12-30531
60	BEARING, BALL - REVERSE GEAR	30-21889
61	SHIM ASSEMBLY, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-30532A1
62	"O" RING, BEARING CARRIER	25-30529
63	BEARING CARRIER ASSEMBLY	30541T1
64	BEARING, ROLLER - BEARING CARRIER	31-22458
65	OIL SEAL, BEARING CARRIER	26-30530
66	WASHER, GEAR HOUSING COVER	12-30528
67	COVER, GEAR HOUSING	30537
68	COLLAR, GUIDE - PROPELLER SHAFT	23-33582
70	PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH) SHIPPED W	48-45890A1
70	PROPELLER ASSEMBLY(3 BLADE - ALUMINUM - 5" PITCH) SHIPPED WI	48-45890A1
70	PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)	48-34398A1
70	PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 6" PITCH)	48-45890A1
70	PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 4" PITCH)	48-45890A1
71	WASHER, SPLINE - PROPELLER SHAFT	12-30524
72	WASHER, PROPELLER NUT	12-20084
73	NUT, PROPELLER	11-82670911
73	NUT, PROPELLER	11-46356
68	THRUST HUB ASSEMBLY, PROPELLER SHAFT	86665A1
69	WASHER, CUPPED - THRUST HUB	86665A1
70	PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 5" PITCH) SHIPPED W	48-47944A1
70	PROPELLER ASSEMBLY (2 BLADE - BRONZE - 8" PITCH)	48-47920A1
70	PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 8" PITCH)	48-47938A1
71	SPACER, SPLINED - PROPELLER SHAFT	11-64075A1
72	WASHER, PROPELLER NUT	12-27025
73	NUT, PROPELLER	11-8M0204653

PISTON AND CONNECTING ROD ASSEMBLY

Below is the parts list for Mercury 60 PISTON AND CONNECTING ROD ASSEMBLY:

Position No.	Part Name	OEM Number
1	CONNECTING ROD ASSEMBLY	605-378A2
2	SCREW, CONNECTING ROD	10-21637
3	BEARING, NEEDLE - CRANKPIN	29-22591
4	NUT, CONNECTING ROD SCREW	11-46438
5	WASHER, NEEDLE BEARING RETAINING	12-30373
6	BEARING, NEEDLE - PISTON PIN	29-22591
7	PISTON/PIN ASS'Y Comment: SERIAL 00000000-#2382277	703-3375A6
7	PISTON/PIN ASS'Y Comment: SERIAL #2382278-09999999	703-3375A6
8	LOCK RING, PISTON PIN	40-22652
9	RING, PISTON	39-22593

SHIFT CONTROL LINKAGE

Below is the parts list for Mercury 60 SHIFT CONTROL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE, SHIFT CONTROL	59107
2	WASHER, SHIFT CONTROL SHAFT	12-8M0204649
3	NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT	11-826709109	11-33825, 11-35045
4	BUSHING, NYLON - SHIFT CONTROL SHAFT	23-30678
5	SPRING, TENSION - SHIFT CONTROL SHAFT	24-30817
6	WASHER, SHIFT CONTROL SHAFT	12-37828
7	WASHER, WAVE-SHIFT CONTROL SHAFT	13-36206
8	LEVER, SHAFT CONTROL (REMOTE)	63673
9	PINK SHIFT LEVER TO SHIFT CONTROL SHAFT	17-99615
10	SHAFT, SHIFT CONTROL	39047
11	GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL)	43-30802
12	WASHER, SHIFT CONTROL SHAFT	12-8M0204649
13	NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT	11-8267089
14	SPRING, DETENT - SECTOR GEAR	24-30816
15	SCREW, DETENT SPRING TO BOTTOM COWL (5/8")	10-28639
16	LOCKWASHER, DETENT SPRING SCREW	13-21272
17	SPRING, DETENT - SHIFT CONTROL LEVER	24-39627
18	PLATE, DETENT SPRING	39601
19	SCREW, SPRING PLATE TO ADAPTOR PLATE	10-25764
20	BUSHING, NYLON - UPPER SHIFT SHAFT	23-30677
21	SHIFT SHAFT ASSEMBLY UPPER(USE THRU SERIAL #2080068)	45250A2
21	SHIFT SHAFT ASSEMBLY, UPPER (STARTED WITH SERIAL #2080069)	45250A2
22	GEAR, SECTOR - UPPER SHIFT SHAFT	43-32453

STATOR PLATE ASSEMBLY

Below is the parts list for Mercury 60 STATOR PLATE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)	398-2574A4
1	STATOR PLATE AND CORE	398-2221
2	COIL ASSEMBLY	398-2568T1
3	CLIP, COIL RETAINING	398-2321
4	CLIP, COIL RETAINING	398-2413
5	FELT, CAM _ BREAKER	398-2207
6	CLIP, GROUND WIRE LEAD	398-732
7	SCREW, GROUND TERMINAL	10-21130
8	CONDENSER ASSEMBLY	398-2203
9	SCREW, CONDENSER FASTENING (1 1/4")	10-38395
10	LOCKWASHER, CONDENSER FASTENING SCREW	13-21134
11	WASHER, CONDENSER FASTENING SCREW	12-21135
12	CLAMP, LEAD WIRE	54-45806
13	WASHER, LEAD WIRE CLAMP SCREW	12-21135
14	LOCKWASHER, LEAD WIRE CLAMP SCREW	13-21134
15	NUT, LEAD WIRE CLAMP SCREW	11-21923T
17	CLIP, NYLON -COIL LEAD WIRE	54-24836
18	"D" WASHER, COIL LEAD WI RE CLIP	8M0084613	69205
19	LOCKWASHER, COIL LEAD WIRE CLIP SCREW	13-26995
20	NUT, COIL LEAD WIRE CLIP SCREW	11-26419
21	BREAKER ASSEMBLY	398-2202
22	SCREW AND LOCKWASHER, BREAKER FASTENING	10-33988
23	WASHER, TERMINAL SCREW	12-21135
24	LOCKWASHER, TERMINAL SCREW	13-21134
25	NUT, TERMINAL SCREW	11-21923T
26	GROUND LEAD, STATOR TO TERINAL BLOCK	398-2206
27	SLEEVE, INSULATION - GROUND LEAD	23-30419
28	LEAD WIRE	84-821945A46	84-813706A46, 52615A 1
29	LEAD WIRE _ TOP	84-821945A46	84-813706A46, 52615A 1
30	PROTECTOR, SPARK PLUG	85-63709A1
31	MARKER, "TOP" - LEAD WIRE	20117
32	SPARK PLUG (CHAMPION - J7J)	33-22805
32	SPARK PLUG (CHAMPION - L7J)	33-813472
33	COVER, DUST - STATOR PLATE	398-2208
34	SCREW, DUST COVER TO STATOR PLATE	10-36455
35	CLIP, #1 AND #2 STATOR LEAD	54-24836
35	CLIP, #1 AND #2 STATOR LEAD	54-24836
36	SCREW, #1 AND #2 STATO RLEAD CLIP FASTENING	10-8M0113176
36	SCREW, #1 AND #2 STATO RLEAD CLIP FASTENING	10-8M0113176
37	"D" WASHER, #1 STATOR LEAD FASTENING SCREW	8M0084613	69205
37	WASHER, #2 STATOR LEAD FASTENING SCREW	12-847883	12-20128
--	IGNITION COIL BOND KIT	92-336731

STEERING HANDLE ASSEMBLY

Below is the parts list for Mercury 60 STEERING HANDLE ASSEMBLY:

Position No.	Part Name	OEM Number
-	STEERING HANDLE ASSEMBLY, COMPLETE	39184A2
-	STEERING HANDLE ASSEMBLY, COMPLETE Comment: SERIAL 00000000-#2380027	60850A6
-	STEERING HANDLE ASSEMBLY, COMPLETE Comment: SERIAL #2380028-09999999	60850A6
1	GRIP, RUBBER - STERING HANDLE BODY	27763
2	BODY AND SHAFT, STEERING HANDLE	35909
3	INDICTOR, SPEED AND LIMIT - STEERING HANDLE	31001
4	SCREW, SET - SPEED AND SHIFT INDICATOR	10-31002
5	SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY	10-22290
6	BUSHING NYLON - STEERING HANDLE TO BODY	23-30677
7	STEERING HANDLE ASSEMBLY	39184A1
7	STEERING HANDLE ASSEMBLY Comment: SERIAL 00000000-#2380027	49556A3
7A	HANDLE, STEERING Comment: SERIAL #2380028-09999999	49556
7B	KNUCKLE, STEERING HANDLE Comment: SERIAL #2380028-09999999	49558
7C	BUSHING, RUBBER - STEERING HANDLE Comment: SERIAL #2380028-09999999	23-49555
8	BUSHING, NYLON - STEERING HANDLE	23-28100
9	WASHER, STEERING HANDLE SHAFT	12-30283
10	SPRING, STEERING HANDLE SHAFT	24-26703
11	RETAINER, YOKE PIN HOLDING	39211
12	YOKE, STEERING HANDLE SHAFT	39208
13	PIN, YOKE TO STEERING HANDLE SHAFT	17-26862
14	GEAR, BALL - STEERING HANDLE SHAFT	43-47765
15	PIN, BALL GEAR TO STEERING HANDLE SHAFT	17-26862
16	RING, RETAINING - BALL GEAR	53-47821
17	PIVOT, STEERING HANDLE TO BRACKET	39218
18	SHIM, STEERING HANDLE PIVOT TO BRACKET	15-26707
19	WASHER, WAVE - STEERING HANDLE PIVOT TO BRACKET	13-39227
20	LOCKWASHER, STEERING HANDLE SCREW	13-39228
21	SCREW, STEERING HANDLE TO ARM BRACKET (1/2")	10-96138
22	THROTTLE CONTROL SHAFT ASSEMBLY	39046A1
17	PIVOT, STEERING HANDLE TO BRACKET	48003
18	SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)	15-48002015
21	SCREW, STEERING HANDLE TO ARM BRACKET (5/8")	10-64074
22A	UNIVERSAL JOINT ASSEMBLY	47742A1
23	SLEEVE, UNIVERSAL JOINT	23-48005
24	GEAR, BALL - UNIVERSAL JOINT	43-47765
25	PIN, BALL GEAR TO UNIVERSAL JOINT	17-26862
26	RING, RETAINING - BALL GEAR	53-47821
27	SCREW, THROTTLE CONTROL SHAFT TO BRACKET	10-96138
28	PLATE, NYLON - THROTTLE CONTROL SHAFT	39210
29	SHIELD, STEERING HANDLE	39185
30	BRACKET, STEERING ARM	39056
30	BRACKET, STEERING ARM	61629A1
31	BOOT, UNIVERSAL JOINT	47743
32	BUSHING, STEERING ARM BRACKET	23-47818
33	SPRING, DETENT - STEERING HANDLE	24-72847
34	SCREW, DETENT SPRING TO STEERING HANDLE	10-37655
35	BOOT, RUBBER - THROTTLE CONTROL SHAFT	39070
36	SCREW, STEERING ARM BRACKET TO SADDLE	10-30679
37	NUT, STEERING ARM BRACKET FASTENING SCREW	11-8M0207775

THROTTLE CONTROL LINKAGE

Below is the parts list for Mercury 60 THROTTLE CONTROL LINKAGE:

Position No.	Part Name	OEM Number
1	SOCKET, THROTTLE CONTROL	39038
2	NYLON - THROTTLE CONTROL SOCKET	23-31011
3	GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET	43-39030
4	PIN, ROLL - GEAR TO THROTTLE CONTROL SOCKET	17-24800
5	HOUSING, THROTTLE CONTROL	39029
6	SCREW, THROTTLE CONTROL HSG, TO CRANKCASE (1 1/4")	10-56500
7	R, THROTTLE CONTROL HOUSING SCREW	13-26992
8	CLAMP, STOP SWITCH LEAD - THROTLE CONTROL HOUSING	54-39788
9	SCREW, CLAMP TO THROTTLE CONTROL HOUSING (1/2")	10-21140
10	WASHER, CLAMP TO THROTTLE CONTROL HOUSING SCREW	12-8M0204649
11	GEAR AND SHAFT, THROTTLE CONTROL	43-39031
12	WASHER, WAVE _ GEAR AND SHAFT (LOWER)	13-39041
13	BUSHING, NYLON - GEAR AND SHAFT TO CONTROL HOUSING	23-30868
14	LEVER ASSEMBLY, THROTTLE CONTROL	39034A1
15	BUSHING, NYLON - GEAR AND SHAFT(UPPER)	23-26841
16	PIN, ROLL - THROTTLE CONTROL LEVER TO GEAR AND SHAFT	17-22896
17	SCREW, ADJUSTING - THROTTLE ADVANCED	10-23015
18	NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW	11-68219

TOP COWL AND STARTER ASSEMBLY

Below is the parts list for Mercury 60 TOP COWL AND STARTER ASSEMBLY:

Position No.	Part Name	OEM Number
1	COWL, TOP	2123-3953A2
1	COWL TOP	2123-3953A2
2	BANKET, SOUND ABSORBING - TOP COWL - TOP	39080
3	BLANKET, SOUND ABSORBING - TOP COWL	39071
4	GROMMET, COWL LATCH - TOP COWL	25-39086
5	COVER ASSEMBLY, FRONT	2128-2667A8
5	COVER ASSEMBLY, FRONT	2128-2667A8
5	COVER ASSEMBLY,FRONT	2128-2667A8
6	STRIP, RUBBER - FRONT COVER	39039
7	SPACER, FRONT COVER STUD	23-39578
8	NUT, FRONT COVER STUD	11-8267089
9	STARTER HOUSING ASSEMBLY	63307A2
10	INSERT, ROPE GUIDE - STARTER HOUSING	57821
11	SEAL, STARTER HOUSING TO TOP COWL	39043
12	SCREW, STARTER HO USING TO CRANKCASE (1")	10-64278
12	SCREW, STARTER HOUSING TO CYLINDER BLOCK (3/4")	10-22485
13	LOCKWASHER, STARTER HOUSING SCREW	13-26992
12	SCREW, STARTER HOUSING TO CRANKCASE (1")	10-72862
12	SCREW, STARTER HOUSING TO CYLINDER BLOCK (3/4")	10-69069
14	PULLEY, STARTER CABLE	55860
15	SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")	10-28789
16	WASHER, CABLE PULLEY SCREW	12-22887
17	SPACER, CABLE PULLEY	23-309772
18	PLATE, SEAL - TOP COWL	39084
19	SEAL, TOP COWL PLATE	39093
20	SCREW, PLATE AND SEAL TO TOP COWL (3/8")	10-8M0113176
21	SHIELD, TOP COWL - REAR	39027
22	SCREW, REAR SHIELD TO TOP COWL (5/8")	10-38055
23	LOCKWASHER, REAR SHIELD SCREW	13-26996
24	SEAL, TOP COWL (33 1/2")	56377
25	SEAL, TOP COWL - FRONT (4 3/4")	56377
26	COWL LATCH ASSEMBLY, TOP COWL	39088A1
27	SPRING, COMPRESSION - COWL LATCH	24-59174
28	PIN, ROLL - SPRING TO COWL LATCH	17-39095
29	SCREW, COWL LATCH TO TOP COWL (3/4")	10-22485
30	LOCKWASHER, COWL LATCH SCREW	13-26992
31	TAB WASHER, SHEAVE SHAFT NUT	14-20165
32	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
33	RETAINER, STARTER SPRING	20155
34	SPRING, STARTER REWIND	24-29340T02
35	BUSHING STARTER SPRING GUIDE	23-28912
36	STARTER SHEAVE ASSEMBLY	50-93696A2
37	PIN, RETAINER - STARTER CABLE	17-22896
38	WASHER, WAVE - STARTER PAWL	13-36206
39	PAWL, STARTER	30596
40	BUSHING, NYLON - SHEAVE SHAFT SPACER	23-28919
41	SPACER, SHEAVE SHAFT	23-61005
42	RETAINER, SHEAVE SHAFT TO STARTER SHEAVE	26179
44	WASHER, WAVE - RETAINER TENSION	13-20160
45	PLATE, RETAINER - STARTER PAWL	30595
46	SHAFT, SHEAVE	35558
47	STARTER CABLE ASSEMBLY	50-12066Q10
47	STARTER CABLE ASSEMBLY	50-12066Q10
48	HANDLE, STARTER CABLE	30782
49	RETAINER, STARTER CABLE AND HANDLE	79470A1

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
