Mercury 6 (0A197112 THRU 0D280999) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 6 Outboard Motor Parts Diagram & Catalog – Free PDF Download

CARBURETOR , WMC 17\17B\17C\18\18A\18B\20/20A/20B\23

Below is the parts list for Mercury 6 CARBURETOR , WMC 17\17B\17C\18\18A\18B\20/20A/20B\23:

$Mercury 6 CARBURETOR , WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 Diagram$

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (6)(WMC-20B)	1392-9503T21
1	CARBURETOR (8)(WMC-18B)	1392-9266T22
1	CARBURETOR (9.9)(WMC-23)	1392-8846A24
2	VALVE, Throttle	1395-9473
2	VALVE, Throttle (WMC-23)	815133
3	SHAFT, Throttle (WMC-17/18/20)	1395-804707	1395-9698, 1395-803859, 1395-9698 1
3	SHAFT (WMC-17C/18A/18B/20A/20B)	1395-804707	1395-9698, 1395-803859, 1395-9698 1
3	SHAFT, Throttle (WMC-23)(INCL.SCREW/SPRING)	813022
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE	1395-803861	1395-879194048, 1395-9855
7	JET, Main Fuel (.042) (6)	1399-5315
7	JET, (.046) (8)	1399-5317
7	JET, Main (.056) (9.9)	1399-5213
7	JET, (.052) (9.9)	1395-6359
8	PLUG, JET RETAINER	1395-9171
9	COVER, DIAPHRAGM	813618	1395-9165
10	SCREW (WMC-17/18/20)	1395-9697
10	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	1395-9697
11	BODY	15827A1
12	SCREW, FUEL PUMP COVER	1395-9643
13	PLATE (WMC-17/18/20)	1395-9177
13	PLATE (WMC-17B/17C/18A/18B/20A/20B/23)	1395-9699
14	SCREW (WMC-17/18/20)	1395-9696
14	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR PARTS KIT	1395-96481
16	REPAIR KIT (WMC-23)	1395-8237072
17	COVER, FUEL PUMP	1395-9637
18	PLUG	1395-9762
19	GASKET, Carburetor	27-192061
19A	DIAPHRAGM/GASKET	1395-9635
20	IDLE WIRE	445541
21	LEVER, Fast Idle	128053
22	BRACKET, Primer	12803
23	PUSH NUT	11-821979	11-97877
24	SCREW, (#6-32 x .750)	10-12110
25	SPRING, Tension	24-11277
26	SCREW, (M5 x 30)	10-40056110
26	SCREW, (M5 x 12)	10-400018
27	SCREW, (#8-32 x .500) Stainless Steel	10-79965
28	LEVER, Primer	112731
29	CAM BLOCK	11280
30	CLIP, Retaining	53-11278
31	BEZEL ASSEMBLY, Choke	12804A1
32	PRIMER KNOB	128022
33	SCREW, (M5 x 30)	10-40056110
33	SCREW, (#10-16 x 1.12)	10-92799
34	NUT, (M5) Stainless Steel	11-400211
35	COVER	17442
36	PLUG	19-47579
37	CHOKE, Electric	1395-823433	1395-9701
38	GASKET, ELECTRIC CHOKE	27-44426
39	DECAL (SLOW/FAST)	37-129701

CARBURETOR ASSEMBLY(15)

Below is the parts list for Mercury 6 CARBURETOR ASSEMBLY(15):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (WMC-39)	1392-9726T19
2	VALVE, Throttle (WMC-28)	19268
2	VALVE, Throttle (WMC-39)	1395-823716
3	SHAFT, Throttle (INCLS.SCREW & SPRING)	19267
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE	1395-803861	1395-879194048, 1395-9855
7	JET, Main Fuel (.066)	1399-4215
8	PLUG, JET RETAINER	1395-9171
9	COVER, DIAPHRAGM	813618	1395-9165
10	SCREW, DIAPHRAGM COVER	1395-9697
11	BODY	15827A1
12	SCREW, FUEL PUMP COVER	1395-9643
13	PLATE, COVER	1395-9699
14	SCREW, COVER PLATE	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR PARTS KIT	1395-8237072
17	COVER, FUEL PUMP	1395-9637
18	PLUG	1395-9762
19	GASKET, Carburetor	27-192061
20	DIAPHRAGM/GASKET	1395-9635
21	LEVER, Fast Idle	128053
22	BRACKET, Primer	12803
23	PUSH NUT	11-821979	11-97877
24	SCREW, (#6-32 x .750)	10-12110
25	SPRING, Tension	24-11277
26	SCREW, (M5 x 30)	10-40056110
26	SCREW, (M5 x 12)	10-400018
27	SCREW, (#8-32 x .500) Stainless Steel	10-79965
28	LEVER, Primer	112731
29	CAM BLOCK	11280
30	CLIP, Retaining	53-11278
31	BEZEL ASSEMBLY, Choke	12804A1
32	PRIMER KNOB	128022
33	SCREW, (M5 x 30)	10-40056110
34	NUT, (M5) Stainless Steel	11-400211
35	COVER	17442
36	PLUG	19-47579
37	IDLE WIRE	445541
38	DECAL (SLOW/FAST)	37-129701

CARBURETOR(WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A)

Below is the parts list for Mercury 6 CARBURETOR(WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY Comment: (6)	1392-9503A5
1	CARBURETOR ASSEMBLY Comment: (8)	1392-9266T22
1	CARBURETOR ASSEMBLY Comment: (9.9)	1392-8846A24
2	VALVE, Throttle	1395-9473
3	SHAFT, Throttle	1395-804707	1395-9698, 1395-803859, 1395-9698 1
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE, INLET NEEDLE	1395-803861	1395-879194048, 1395-9855
7	JET, MAIN FUEL (.039) Comment: (6)	1395-9548
7	JET, (.046), MAIN FUEL Comment: (8)	1399-5317
7	JET, Main (.056) Comment: (9.9)	1399-5213
8	PLUG, JET RETAINER	1395-9171
9	COVER, DIAPHRAGM	813618	1395-9165
10	SCREW, DIAPHRAGM COVER	1395-9697
11	COVER/FUEL PUMP KIT Comment: Kit includes: screws, nut, bearing, cover,body asy, gasket, spring and diaphragm.	1395-9702
12	SCREW, FUEL PUMP COVER	1395-9173
13	PLATE, COVER	1395-9177
14	SCREW, COVER PLATE	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR PARTS KIT	1395-96481
16A	PLUG	1395-9762
17	GASKET, Carburetor	27-192061
18	IDLE WIRE	445541
19	LEVER, Fast Idle	128053
20	BRACKET, Primer	12803
21	PUSH NUT, FAST IDLE LEVER	11-821979	11-97877
22	SCREW, (#6-32 x .750), FAST IDLE LEVER	10-12110
23	SPRING, Tension	24-11277
24	SCREW, (M5 x 30), PRIMER BRACKET	10-40056110
25	SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET	10-79965
26	LEVER, Primer	112731
27	CAM BLOCK	11280
28	CLIP, Retaining	53-11278
29	BEZEL ASSEMBLY, Choke	12804A1
30	KNOB, PRIMER	128022
31	SCREW, (M5 x 30), STOP-CARBURETOR	10-40056110
32	NUT, (M5) Stainless Steel, STOP CREW	11-400211
33	CHOKE, Electric	1395-823433	1395-9701
34	DECAL (SLOW/FAST)	37-129701
-	GASKET SET	27-42364A92

CLAMP BRACKET

Below is the parts list for Mercury 6 CLAMP BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	3404-8894A11
1	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	3404-8894A12
2	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	3403-8892A3
2	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	3403-8892A4
3	THUMB SCREW ASSEMBLY, (14 mm)	10-92767A1
3	THUMB SCREW ASSEMBLY, (16 mm)	10-92767A3
4	WASHER, THUMB SCREW	12-73719
5	SCREW, WASHER ATTACHING	10-768042
6	SPACER, CLAMP BRACKET STUD Comment: (STUD ASSEMBLY)	23-43431
6	SPACER Comment: (SCREW ASSEMBLY)	23-8M0084719
7	STUD, CLAMP BRACKET Comment: (STUD ASSEMBLY)	16-42129
7A	SCREW, (M6 x 40) Comment: (SCREW ASSEMBLY)	10-4000333
8	LOCKWASHER, (M6), CLAMP BRACKET STUD Comment: (STUD ASSEMBLY)	13-400256
9	NUT, (M6) Stainless Steel, CLAMP BRACKET STUD Comment: (STUD ASSEMBLY)	11-400212
10	TILT TUBE Comment: (NOTE: USE 30664 ON ELECTRIC LONG W/REMOTE CONTROL.)	42078
11	CLIP, SAFETY	54-8M0085928	54-30954
12	NUT, (.875), TILT TUBE	11-93164
13	WASHER, Nylon, TILT TUBE	12-71421
14	LEVER ASSEMBLY, Tilt Return	42390A1
15	STRAP, TILT STOP - PORT SIDE	90901
16	SCREW, (M6 x 1.0), STRAP TO CLAMP BRACKET	10-42498
17	WAVE WASHER, TILT STOP STRAT SCREW	13-31030
18	BOLT, (.250-20 x 3.50), CLAMP TO TRANSOM	10-43216
19	WASHER, CLAMP BRACKET BOLT	12-67983
21	SHUTTLE, TILT LOCK (NEW DESIGN)	814427
22	DECAL, Tilt Position	37-12869

COWLS

Below is the parts list for Mercury 6 COWLS:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY (BLACK)	2191-9420T10
1	TOP COWL ASSEMBLY (GRAY)	2191-8M0094069	2191-9420T12
2	SEAL	444621
3	SOUND BLANKET KIT	13691A02
4	LATCH, Cowl	16471A1
5	LATCH ASSEMBLY, Cowl	817104A3
6	LATCH HOOK	180402
7	SHIELD, REAR (BLACK)	11354
7	SHIELD, REAR (GRAY)	12873T
8	SCREW, (M5 x 12), REAR SHIELD	10-400018
9	BOTTOM COWL (BLACK)	2192-9204A1
9	BOTTOM COWL (GRAY)	2192-9204A2
9A	PLUG	15061001
10	PLUG, BOTTOM COWL (MANUAL)	12154
10	GROMMET, Bottom Cowl (ELECTRIC)	121532
11	SWITCH ASSEMBLY, Stop	87-11083A6
12	LANYARD ASSEMBLY	15920Q54
13	RETAINER, Brass, STOP SWITCH	8M0032846	12044 1
14	LEVER, Cowl Latch	44461A1
15	BUSHING, COWL LATCH LEVEER	23-76470
16	SPACER, LATCH	11394
17	SCREW, (M6 x 30), LATCH AND LEVER	10-40019130
17	SCREW, (M6 x 35), LATCH AND LEVER	10-40019131
18	WAVE WASHER, LATCH AND LEVER SCREW	13-69708

CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9)

Below is the parts list for Mercury 6 CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9):

Position No.	Part Name	OEM Number	Supersedes
1	SHAFT, FLYWHEEL Comment: (USE WITH STUB SHAFT)	42691
1A	NUT, (M14)	11-818591
2	FLYWHEEL ASSEMBLY Comment: (USE WITH STUB SHAFT)	260-859231T6
2	FLYWHEEL ASSEMBLY Comment: (USE WITH NUT)	260-859231T19	260-859231T 8 (USE WITH NUT)
3	RING GEAR, FLYWHEEL	43-99301
4	SCREW, (M5 x 13), RING GEAR TO FLYWHEEL	10-88190313
5	CRANKSHAFT ASSEMBLY	400-8M0083309	468-8471A 2
6	SEAL, Oil (DESIGN I)	818630A1
6A	SLEEVE (INCLUDES O-RING - DESIGN II)	818630A1
7	BEARING, Ball, LOWER	30-41341
8	RING, Snap (SMALL) (OLD DESIGN)	53-20940
9	RING, Retaining	53-42132
10	WASHER, LOWER	12-13031
11	SEAL, Oil - Lower	26-125661
12	KEY, Woodruff	28-20094
13	BEARING, Roller	31-878158	31-41342
14	SEAL, Oil - Upper	26-125671
15	CONNECTING ROD ASSEMBLY	637-8477A2
16	SCREW, (M5 x 16)	10-823460	10-40081 16
17	BEARING ASSEMBLY, Roller	31-42076A1
18	BEARING, Needle, PISTON END	29-42186
19	BEARING, Thrust	12-8M0012297	43348
20	PISTON ASSEMBLY	773-9756T2
21	RING ASSEMBLY Comment: (CONTAINS 4 RECTANGULAR PISTON RINGS AS SHOW IN FIGURE #1)	39-42079A4
21	RING SET, Piston Comment: (CONTAINS 4 KEYSTONE PISTON RINGS AS SHOWN IN FIGURE #2)	39-18514A4
22	LOCK RING	40-42202
23	BEARING KIT, Center Main, MAIN BEARING	41373A1
24	SEAL, MAIN BEARING	26-818901	26-42197
-	POWERHEAD ASSEMBLY, COMPLETE Comment: (6)(USE WITH WMC-20/20A CARB.)	12893T97
-	POWERHEAD ASSEMBLY, COMPLETE Comment: (6) (USE WITH WMC-20B CARB.)	12893T97
-	POWERHEAD ASSEMBLY, Complete Comment: (6/8/9.9)	811686T97	811686A97, 811686A92, 12893A86 (6/8/9.9)

CRANKSHAFT, PISTONS AND FLYWHEEL(15)

Below is the parts list for Mercury 6 CRANKSHAFT, PISTONS AND FLYWHEEL(15):

Position No.	Part Name	OEM Number	Supersedes
1	SHAFT, FLYWHEEL Comment: (USE WITH STUB SHAFT)	42691
1A	NUT, (M14)	11-818591
2	FLYWHEEL ASSEMBLY Comment: (USE WITH STUB SHAFT)	260-859231T6
2	FLYWHEEL ASSEMBLY Comment: (USE WITH NUT)	260-859231T19	260-859231T 8 (USE WITH NUT)
3	RING GEAR, FLYWHEEL	43-99301
4	SCREW, (M5 x 13), RING GEAR TO FLYWHEEL	10-88190313
5	CRANKSHAFT ASSEMBLY	400-8M0083309	468-8471A 2
6	SEAL, Oil, CRANKSHAFT (DESIGN I)	818630A1
6A	SLEEVE (INCLUDES O-RING - DESIGN II)	818630A1
7	BEARING, Ball, CRANKSHAFT-LOWER	30-41341
8	RING, Snap, BALL BEARING (SMALL) (OLD DESIGN)	53-20940
9	RING, Retaining	53-42132
10	WASHER, LOWER	12-13031
11	SEAL, Oil - Lower	26-125661
12	KEY, Woodruff	28-20094
13	BEARING, Roller, CRANKSHAFT-UPPER	31-878158	31-41342
14	SEAL, Oil - Upper, CRANKSHAFT	26-125671
15	CONNECTING ROD ASSEMBLY	637-8477A2
16	SCREW, (M5 x 16), CONNECTING ROD	10-823460	10-40081 16
17	BEARING ASSEMBLY, Roller	31-42076A1
18	BEARING, Needle, PISTON END	29-42186
19	BEARING, Thrust	12-8M0012297	43348
20	PISTON ASSEMBLY (STANDARD)	784-9747T2
20	PISTON ASSEMBLY (.015 O.S.)	784-9747A4
21	RING SET, Piston (STANDARD)	39-18212A4
21	RING SET, Piston (.015 O.S.)	39-18212A1
22	LOCK RING	40-42202
23	BEARING	17794A1
24	SEAL, MAIN BEARING	26-818901	26-42197
25	BEARING ASSEMBLY, Roller	31-42076A1
-	POWERHEAD ASSEMBLY, Complete Comment: (15)	19072T88

CYLINDER BLOCK AND COVERS

Below is the parts list for Mercury 6 CYLINDER BLOCK AND COVERS:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY Comment: (USEW/W/MC-20/20A/20B CARB)	875-8473T20
1	CYLINDER BLOCK ASSEMBLY Comment: (6/8/9.9)	875-8473T21
1	CYLINDER BLOCK Comment: (15)	881-9727T2
2	PIN, Dowel, CYLINDER BLOCK	17-85171
3	STUD, CARBURETOR	16-424632
4	CHECK VALVE, BLEED HOSE	21-426982
5	HOSE, BLEED	32-99130100
6	STUD, CYLINDER BLOCK	16-8161949
7	SCREW, (M8 x 55), CRANKCASE TO CYLINDER BLOCK	10-421251
7A	PIN, Groove Comment: (15)	17-17866
8	NUT, (M6), CYLINDER BLOCK STUD	11-401386
9	GASKET, Powerhead	27-191861
10	REED BLOCK ASSEMBLY	828435A3
11	CHECK VALVE	21-42657A3
12	SEAL, REED BLOCK	26-42137
13	GASKET, REED BLOCK	27-195982
14	SCREW, (M6 x 16), REED BLOCK	10-4000171
15	REED	34-825141	34-42044, 34-42044 10
16	STOP, Reed	179031
17	SCREW, (M3.5 x 8), REED ATTACHING	10-4005764
18	NUT, (M8) Stainless Steel, CARBURETOR STUD	11-400213
19	COVER, EXHAUST	8M0048005	42521001
20	SCREW, (M6 x 25), EXHAUST COVER TO CYLINDER BLOCK	10-40062129
21	GASKET, EXHAUST COVER	27-19185
22	PLATE, Baffle	42365
23	GASKET, BAFFLE PLATE	27-19184
24	COVER, Intake Comment: FITTING IS INSTALLED IN BLOCK	19107F1
25	FITTING, Barbed Comment: FITTING IS INSTALLED IN BLOCK	22-56759
24	COVER ASSEMBLY, Intake Comment: ELBOW IS INSTALLED IN INTAKE COVER	17863A1
25	FITTING Comment: ELBOW IS INSTALLED IN INTAKE COVER	22-15133
26	HOSE	32-99130100
27	FITTING	22-59169003
28	TIE STRAP, (4.00 Inches)	56762
29	GASKET, INTAKE COVER	27-192031
30	SCREW, (M6 x 25), COVER TO CYLINDER BLOCK	10-40062129
31	LINE, (57.00 Inches Bulk), TELL TALE	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
32	FITTING, TELL TALE HOSE-BOTTOM COWL	22-94848
33	COVER ASSEMBLY	1033-8906A02
34	GASKET	27-19207002
35	COVER, THERMOSTAT	8M0039352	14673 2
36	GASKET	27-19205002
37	SCREW, (M6 x 25)	10-40062129
38	THERMOSTAT (120)	14586
39	GASKET, THERMOSTAT	27-8M0204714
40	CONNECTOR (STRAIGHT)(NEW DESIGN)	22-291112
40	ELBOW (OLD DESIGN)	22-996642
41	SCREW, (M6 x 25), COVER ATTACHING	10-40062129
-	POWERHEAD ASSEMBLY Comment: (6) (Use with WMC-20/20A Carb)	12893T97
-	POWERHEAD ASSEMBLY Comment: (6) (Use with WMC-20B Carb)	12893T97
-	POWERHEAD ASSEMBLY, Complete Comment: (6/8/9.9)	811686T97	811686A97, 811686A92, 12893A86 (6/8/9.9)
-	POWERHEAD ASSEMBLY, Complete Comment: (15)	19072T88

DRIVESHAFT HOUSING

Below is the parts list for Mercury 6 DRIVESHAFT HOUSING:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY (SHORT) (BLACK)	1596-822154A1
1	HOUSING ASSEMBLY (LONG) (BLACK)	1597-822155A1
1	HOUSING ASSEMBLY (SHORT) (GRAY)	1596-822154A2
1	HOUSING ASSEMBLY (LONG) (GRAY)	1597-822155A2
2	GASKET, DRIVESHAFT HOUSING	27-195992
3	MOUNT	8M0039074	42189 2
4	NO LONGER AVAILABLE, COVER-MOUNT (SEE NOTE) (#N.L.A.)
4	COVER, Mount (BLACK) Comment: USE W/2 HOLE SWIVEL TUBE	42374F6
4	COVER, MOUNT (GRAY) Comment: USE W/2 HOLE SWIVEL TUBE	42374F5
5	SCREW, (M6 x 80), MOUNT COVER	10-4009238
6	LOCKWASHER, (M6)	13-400256
7	NUT, (M6) Stainless Steel, COVER SCREW	11-400212
8	SCREW, (M6 x 35) Stainless Steel, DRIVESHAFT HOUSING TO PLATE	10-40011131
9	ADAPTOR PLATE (NO TUBE) (6/8)	413448
9	ADAPTOR PLATE ASSEMBLY (1"I.D. TUBE) Comment: (9.9/210 CC SAILPOWER)	41344A4
9	ADAPTOR PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	41344A3
10	SEAL, Adapter Plate	26-11287001
11	TUBE, Water (SHORT)	32-42123
11	TUBE, Water (LONG)	32-42122
11	TUBE, Water (X-LONG)	32-421231
12	HOLDER, WATER TUBE	42371
13	GASKET, WATER TUBE HOUSING	27-192012
14	SEAL, WATER TUBE	26-42380001
15	SPACER, WATER TUBE	23-42465
16	SCREW, (M5 x 16) Stainless Steel, HOUSING TO ADAPTOR PLATE	10-40011107
17	BLOCK, Bearing (LONG)	445551
18	HOUSING, Drive Shaft Extension (X-LONG)	124262
19	BUSHING, X-LONG	23-123691
20	HOUSING, BEARING (X-LONG)	123702
21	RETAINER, BEARING (X-LONG)	14107001
22	RING, Snap, X-LONG	53-14094
-	SWIVEL TUBE REPLACEMENT, COMPLETE (BLACK) Comment: INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS	42213A14
-	SWIVEL TUBE REPLACEMENT, COMPLETE (GRAY) Comment: INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS	42213A15

ELECTRIC COMPONENTS

Below is the parts list for Mercury 6 ELECTRIC COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	COVER (TOP)	95815
2	COVER (BOTTOM)	95828
3	SWITCH ASSEMBLY, Start	87-95810A1
4	BOOT	55741001
5	SWITCH ASSEMBLY	87-88890A2
6	CABLE ASSEMBLY (RED)	84-79139A20
10	STRAP	95814
11	FASTENER	95813
12	SCREW, (M5 x 20)	10-40019108
13	SCREW	10-4005727
14	WASHER	12-45771
15	SCREW, (#10-16 x .375)	10-62568
16	SCREW, (#10-16 x .750)	10-69570
17	RECTIFIER	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
18	SCREW, (#10-16 x .625) Stainless Steel	10-48409
19	NUT, Brass	10-32,11-45076
20	SOLENOID ASSEMBLY, Starter	89-8M0185149
21	SCREW, (M6 x 14)	10-4000327
22	NUT, Brass	8-32,11-26419
23	NUT, (.250-20)	11-64015
24	WIRE ASSEMBLY (YELLOW)	84-88809A5
25	CABLE ASSEMBLY, Battery (RED)	84-88439A27
25	CABLE ASSEMBLY, Battery (BLACK)	84-88439A28
26	BRACKET (OLD DESIGN)	92439
27	SCREW, (M6 x 14) (OLD DESIGN)	10-4000327
28	WASHER, (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	12-35044
29	NUT, (M6) Stainless Steel (OLD DESIGN)	11-400212
30	CLAMP, Worm Gear (OLD DESIGN)	54-815504310	54-18076 2, 54-32523, F700551, FI5537158, FI5537122, FI5538482
31	STATOR ASSEMBLY	86704A10
32	SCREW, (M5 x 30)	10-4000123
33	STARTER MOTOR ASSEMBLY	50-8M0033984	50-893889T, 50-90983T 1
34	DRIVE KIT	96561
35	DRIVE	96562
36	END CAP	96563T
37	ARMATURE	96565
38	END CAP	96564T
39	THRU BOLT	10-96566
40	SCREW, (M8 x 55)	10-421251
41	RETAINER	424291
42	HARNESS ASSEMBLY, Engine Wiring Comment: (REMOTE CONTROL MODELS)	84-12334A2
43	FUSE, 20 Ampere	88-8M0207796
44	HOLDER, Fuse (OLD DESIGN)	134731
45	RETAINER	12152
46	RETAINER	92753
47	J CLIP	54-8M0024808

ELECTRIC COMPONENTS(VOLTAGE REGULATOR AND HARNESS)

Below is the parts list for Mercury 6 ELECTRIC COMPONENTS(VOLTAGE REGULATOR AND HARNESS):

Position No.	Part Name	OEM Number
1	REGULATOR, Voltage	95845T
2	SCREW, (#10-16 x 1.12)	10-92799
3	NUT, Brass	10-32,11-45076
4	HARNESS ASSEMBLY (BLACK/RED) (20")	84-74725A2
5	PLUG	71663
6	HARNESS ASSEMBLY (BLACK/BLACK)	84-65017A2
6	HARNESS ASSEMBLY, Battery End (BLACK/RED) (62")	84-65017A10
9	TERMINAL BLOCK	86-638131
10	SCREW, (#10-16 x .625) Stainless Steel	10-48409
11	SCREW, (#10-16 x .375)	10-62568

FUEL FILTER ASSEMBLY

Below is the parts list for Mercury 6 FUEL FILTER ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FILTER ASSEMBLY, Fuel	35-889527A07	35-8M0111436, 35-87946A15
2	BALL, FUEL FILTER	858731	91935
3	FILTER ASSEMBLY	35-87946Q04
4	SEAL, FUEL FILTER	25-897536	25-98277
5	LINE, (57.00 Inches Bulk), FILTER TO CARBURETOR	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	LINE, (57.00 Inches Bulk), FILTER TO ADAPTOR	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	TIE STRAP, (8.00 Inches), FUEL LINE	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
8	GROMMET	25-18202
9	CONNECTOR KIT, Fuel (90 DEG.) (NEW DESIGN)	22-15781A9
9	CONNECTOR (STRAIGHT) (OLD DESIGN)	8M0121326
10	SCREW, (M6 x 30), ADAPTOR	10-4000331
10	SCREW, (M6 x 25), ADAPTOR	10-8M0204707

Gear Hsg(Driveshaft)(Design II-Refer to Reference #41)

Below is the parts list for Mercury 6 Gear Hsg(Driveshaft)(Design II-Refer to Reference #41):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- BLACK	1666-8833T13
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK	1666-8833T15
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- GRAY	1666-8833T14
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY	1666-8833T16
1	GEAR HOUSING ASSEMBLY, Basic-Black Comment: (Black)	1600-8M0083312	1666-8833A17 (Black)
1	GEAR HOUSING ASSEMBLY, Basic-Gray Comment: (Gray)	1666-8833A18
2	BUSHING, (.31 x .45 x .50), GEAR HOUSING	23-12009
3	SCREW	22-8M0058389	22-67892A06
4	O-RING, Rubber	25-8M0204684
5	SLEEVE ASSEMBLY	822244A1
6	SLEEVE	23-823944
7	BUSHING	23-823943
8	SCREW KIT	10-79953Q04
9	O-RING, Rubber	25-8M0204684
10	SCREEN	35-421991
11	SCREW, (.250-14 x .88)	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW, (.250-14 x .88)	10-13954
14	SEAL	26-42133
15	GEAR, Pinion - 13-26	43-8219251
16	WASHER, THRUST	12-41369
17	BEARING, Roller	31-22756
18	BASE ASSEMBLY, Water Pump	46-42040T5
19	GASKET	27-192043
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW, (#10-16 x .500)	10-48408
23	QUAD RING	25-822236
24	SEAL, Oil	26-413651
25	GASKET, Water Pump Plate	27-19202001
26	TUBE ASSEMBLY, Water	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	SEAL	26-421021
30	IMPELLER	47-42038Q02
31	KEY ASSEMBLY	28-8M0173458
32	GUIDE	44467
33	SCREW, (M6 x 30), WATER PUMP	10-4000331
34	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
35	CAM, SHIFT	42039
36	SHIFT SHAFT (SHORT)	8M0026064	42145
36	SHIFT SHAFT (LONG)	8M0026065	42146
37	E RING	53-42389
38	GUIDE	8M0036770	42126
39	SCREW, (M5 x 25)	10-40011109
40	NUT, (M5), GUIDE SCREW	11-401385
41	DRIVESHAFT (SHORT)	45-823389
41	DRIVESHAFT (LONG)	45-823390
42	THRUST WASHER	12-822248
-	GASKET SET, Engine	27-42364A92
-	SEAL KIT	26-41365A3
-	PUMP KIT, Water	46-42089A5

Gear Hsg(Driveshaft-Design I-Refer to Reference #17)

Below is the parts list for Mercury 6 Gear Hsg(Driveshaft-Design I-Refer to Reference #17):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)	1666-8833T13
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)	1666-8833T15
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)	1666-8833T14
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)	1666-8833T16
1	GEAR HOUSING ASSEMBLY (BLACK)	1666-8833A1
1	GEAR HOUSING ASSEMBLY (GRAY)	1666-8833A4
2	BUSHING, (.31 x .45 x .50)	23-12009
3	SCREW, Magnetic	22-8M0058389	22-67892A06
4	WASHER, Fiber	12-191833
5	SLEEVE KIT	42086A1
6	SLEEVE	23-41345
7	SLEEVE	23-42191001
8	SCREW, (#10-32 x 0.25)	10-28653
8	SCREW, (.375-16 x .250)	10-79953Q04
9	SEAL (USE WITH 10-32 SCREW)	19643
9	WASHER, Fiber (USE WITH .375-16 X .250 SCREW)	12-191833
10	SCREEN	35-421991
11	SCREW, (.250-14 x .88)	10-13954
12	ANODE ASSEMBLY	97-42121Q02
13	SCREW, (.250-14 x .88)	10-13954
14	SEAL	26-42133
15	GEAR, Pinion	43-420411
16	WASHER, THRUST	12-41369
17	DRIVESHAFT (SHORT)	45-42192
17	DRIVESHAFT (LONG)	45-42193
17	DRIVESHAFT (X-LONG)	45-12367
18	BASE ASSEMBLY, Water Pump	46-42040T5
19	No Longer Available, GASKET (SEE DESIGN I DRAWING) Comment: (DESIGN I WATER PUMP BASE WITH A RAISED RIB - REPLACEMENT GASKET IS NLA. ORDER COMPLETE WATER PUMP BASE ASSY 46-42040A3)	NLA
19	GASKET (SEE DESIGN II DRAWING) Comment: (DESIGN II WATER PUMP BASE WITH A FLAT SURFACE - REPLACEMENT GASKET IS 27-19204--2)	27-192041
20	SEAL	26-33613
21	RETAINER	42375
22	SCREW, (#10-16 x .500)	10-48408
23	QUAD RING	25-822236
24	SEAL, Oil	26-413651
25	GASKET, Water Pump Plate	27-19202001
26	TUBE ASSEMBLY, Water	32-42185A1
27	FACE PLATE	42200
28	COVER ASSEMBLY	46-42089A2
29	SEAL	26-421021
30	IMPELLER	47-42038Q02
31	KEY ASSEMBLY	28-8M0173458
32	GUIDE	44467
33	SCREW, (M6 x 30), WATER PUMP	10-4000331
34	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
35	CAM, SHIFT	42039
36	SHIFT SHAFT (SHORT)	8M0026064	42145
36	SHIFT SHAFT (LONG)	8M0026065	42146
36	SHIFT SHAFT (X-LONG)	12368
37	E RING	53-42389
38	GUIDE	8M0036770	42126
39	SCREW, (M5 x 25)	10-40011109
40	NUT, (M5), GUIDE SCREW	11-401385
-	SEAL KIT	26-41365A3
-	PUMP KIT, Water	46-42089A5
-	GASKET SET, Engine	27-42364A92

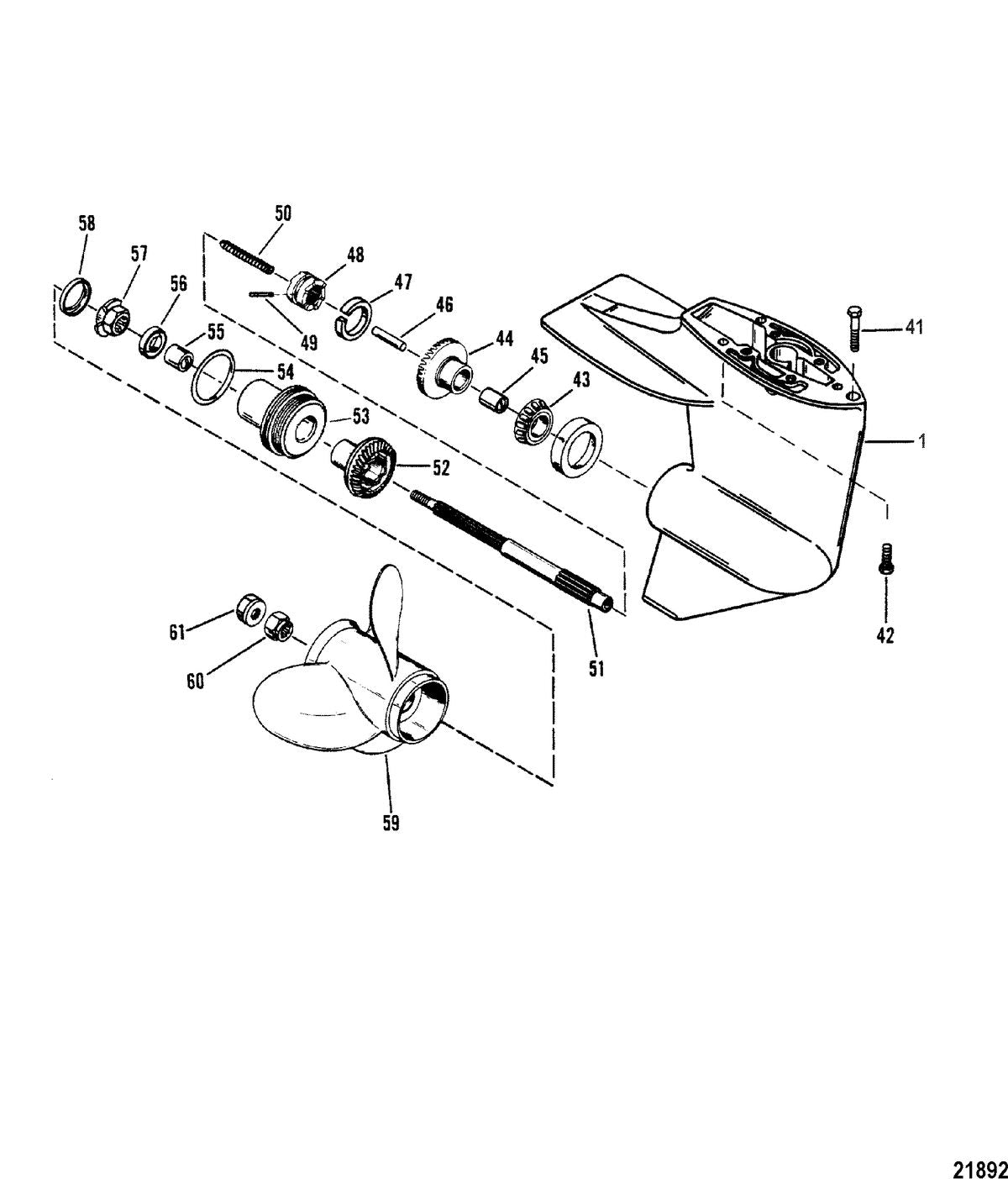

Gear Hsg(Propshaft-Design I-Refer to Driveshaft Drawing)

Below is the parts list for Mercury 6 Gear Hsg(Propshaft-Design I-Refer to Driveshaft Drawing):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)	1666-8833T13
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)	1666-8833T15
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)	1666-8833T14
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)	1666-8833T16
1	GEAR HOUSING ASSEMBLY (BLACK)	1666-8833A1
1	GEAR HOUSING ASSEMBLY (GRAY)	1666-8833A4
41	SCREW	10-82407110
42	SCREW, (M8 x 30)	10-8240717
43	BEARING ASSEMBLY, Roller	31-821321A1
44	GEAR ASSEMBLY, Forward	43-41371A1
45	BUSHING	23-41367
46	FOLLOWER, Cam	813139	42131
47	RING, Retaining	53-32449
48	CLUTCH	52-43217
49	PIN, Cross	17-30535
50	SPRING	24-42204
51	PROPELLER SHAFT	44-41370
52	GEAR, Reverse	43-44115T
53	CARRIER ASSEMBLY, Bearing	42144T2
54	O-RING, (1.984 x .139)	25-8M0214923
55	BUSHING	23-41368
56	SEAL, Oil	26-66022
57	THRUST HUB	42037
58	CAP	42201
59	PROPELLER (9" X 9")	48-828156A12	48-42522A12, 48-828156A45
59	PROPELLER (9" X 10-1/2")	48-828158A12	48-17874A12, 48-828158A45
59	PROPELLER (SAILPOWER)	48-828150A12	48-42524A12, 48-828148A12, 48-42518A11, 48-828148A45, 48-828150A45
60	SPACER	23-420911
61	NUT, (M10)	11-40140
-	GASKET SET, Engine	27-42364A92
-	SEAL KIT	26-41365A3

IGNITION COMPONENTS

Below is the parts list for Mercury 6 IGNITION COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	STATOR ASSEMBLY	86617A20
2	SCREW, (M5 x 25)	10-4000120
3	SCREW, (M5 x 12) (MANUAL)	10-400018
4	TRIGGER ASSEMBLY	98450A10
5	CLIP, TRIGGER LEAD	11100
6	SWITCHBOX ASSEMBLY	339-7452A19
7	SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK	10-40019108
8	SCREW, (#10-16 x .500), GROUND WIRE	10-48408
9	COIL ASSEMBLY, Ignition	339-832757A4
10	SCREW, (M6 x 45), IGNITION COIL	10-40112
11	TAB WASHER	88173
12	BUSHING, COIL	23-88171
13	NUT, Brass, COIL TERMINAL	10-32,11-45076
14	CABLE SET, High Tension (5 and 8.25 Inch), HIGH TENSION	84-813715A2
15	BOOT/TERMINAL KIT, SPARK PLUG	85-63709A1
16	SPARK PLUG (NGK #BP8HS-10) Comment: 6/8/9.9 H.P.	33-8M0114745
16	SPARK PLUG (NGK#BP8H-N-10 Comment: 6/8/9.9 H.P.	33-816737Q	33-816737 2 6/8/9.9 H.P.
16	SPARK PLUG, (NGK # BPZ8HS-10) (CAN./BEL.) Comment: 6/8/9.9 H.P.	33-938
16	SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.) Comment: 6/8/9.9 H.P.	33-938
16	SPARK PLUG (NGK#BP8HS-15) Comment: 15 H.P.	33-8M0114746
16	SPARK PLUG (NGK#BPZ8HS-15) Comment: 15 H.P.	33-14814568
17	TIE STRAP, (5.50 Inches)	8M0214940

LINK ROD AND COMPONENTS(ELECTRIC LONG W/REMOTE CONTROL)

Below is the parts list for Mercury 6 LINK ROD AND COMPONENTS(ELECTRIC LONG W/REMOTE CONTROL):

Position No.	Part Name	OEM Number	Supersedes
1	TUBE	8M0041936	8M0035074, 883067, 30664 2, 74528
2	NUT, (.875)	11-93164
3	SPACER	23-113841
4	BRACKET	11607
5	SCREW, (M8 x 30)	10-4000354
6	WASHER, (.330 x .750 x .060) Stainless Steel	12-56720
7	NUT, (M8)	11-401388
8	TIE ROD (STARBOARD)	11606T
9	BALL JOINT	29698
10	WASHER, (.390 x .546 x .12)	12-8M0109680
11	WASHER, (.97 x .56 x .19)	12-30521
12	WASHER, (.406 x .734 x .063) Stainless Steel	12-34931
13	NUT, (.375-24)	11-8M0204726
14	SPACER, (.250 x .390 x .630) Stainless Steel	23-66751
15	SEAL KIT	19624A1

MANUAL STARTER(DESIGN I)

Below is the parts list for Mercury 6 MANUAL STARTER(DESIGN I):

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, STARTER	42207A1
2	BUSHING, STARTER ROPE	8M0183792
3	RING, Retaining	53-818853	53-42689
4	SPRING ASSEMBLY, Recoil Starter	42194A2
6	LEVER, LOCK (UPPER)	42171T
7	WASHER, (.203 x .500 x .032), UPPER LOCK LEVER	12-8M0204666
8	LEVER, LOCK (LOWER)	42173T
9	SCREW, (#10-16 x .500), LOWER LOCK LEVER	10-48408
10	SPACER, STARTER HOUSING SCREW	23-43787
11	SCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHING	10-8M0204741
12	REST Comment: (ROPE BUSHING IS SEPARATE)	19018T
12	REST Comment: (ROPE BUSHING IS MOLDED)	19018T
13	BUSHING, Rope Comment: (ROPE BUSHING IS SEPARATE)	44180
14	WASHER, REST SCREW Comment: (ROPE BUSHING IS SEPARATE)	12-4002313
15	SUPPORT	12674
16	SCREW, (M5 x 35), REST TO STARTER HOUSING	10-40019111
17	SPACER, REST SCREW	23-309772
18	NUT, (M5), REST SCREW	11-401385
19	SHEAVE, STARTER	42034A2
20	CAP, STARTER SHEAVE	19-427071
20	CAP, STARTER SHEAVE (CAP PLUG)	19-817362	19-F681971
21	TAB, STARTER SHEAVE	42209
22	SCREW, (#10-16 x .500), TAB	10-48408
23	ROPE, STARTER	50-12066Q10
24	HANDLE ASSEMBLY, STARTER ROPE	85174A1

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 6 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 6/8/9.9/15 Hp	90-811286	90-13724, 90-19466
-	OWNERS GUIDE (BLACK)	90-12048930
-	OWNERS GUIDE (GRAY)	90-14138930
-	DECAL SET (9.9/210 SAILPOWER) Comment: DESIGN I	37-14012A89
-	DECAL SET (BLACK- 6 THRU 9.9) Comment: DESIGN I	37-12836A89
-	DECAL SET (BLACK-15) Comment: DESIGN I	37-13478A88
-	DECAL SET (GRAY- 6 THRU 15) Comment: DESIGN I	37-810458A92	37-810458A91, 37-810458A90, 37-12876A86, 37-810459A91, 37-810459A90, 37-813042A89 DESIGN I
-	DECAL SET (GRAY 8 SAILMATE) Comment: DESIGN I	37-808560A03	37-808560A01, 37-808560A97, 37-808560A94, 37-822787A93 DESIGN I
-	DECAL SET (BLACK-6) Comment: DESIGN II	37-808522A00	37-808522A96, 37-808522A94, 37-835011A96 DESIGN II
-	DECAL SET (BLACK -8) Comment: DESIGN II	37-808526A00	37-808526A96, 37-808526A94 DESIGN II
-	DECAL SET (BLACK- 9.9) Comment: DESIGN II	37-12836A00
-	DECAL SET (9.9 SAILPOWER) Comment: DESIGN II	37-808523A96	37-808523A94 DESIGN II
-	DECAL SET (BLACK-15) Comment: DESIGN II	37-13478A00
-	DECAL SET (GRAY-6) Comment: DESIGN II	37-808524A03	37-808524A01, 37-808524A97, 37-808524A94, 37-808524A96 DESIGN II
-	DECAL SET (GRAY-8) Comment: DESIGN II	37-808545A03	37-808545A01, 37-808545A97, 37-808545A94 DESIGN II
-	DECAL SET (8 SAILMATE) Comment: DESIGN II	37-808560A03	37-808560A01, 37-808560A97, 37-808560A94, 37-822787A93 DESIGN II
-	DECAL SET (GRAY-9.9) Comment: DESIGN II	37-808525A03	37-808525A01, 37-808525A97, 37-808525A94 DESIGN II
-	DECAL SET (GRAY-15) Comment: DESIGN II	37-808546A03	37-808546A01, 37-808546A97, 37-808546A94 DESIGN II

Manual Starter(Design II)

Below is the parts list for Mercury 6 Manual Starter(Design II):

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Starter	42207T02
2	BUSHING	8M0183792
3	RING, Retaining	53-818853	53-42689
4	REST	19018T
5	SUPPORT	12674
6	SCREW, (M5 x 35)	10-40019111
7	SPACER	23-309772
8	NUT, (M5)	11-401385
9	LEVER, LOCK (UPPER)	42171T
10	WASHER, (.203 x .500 x .032)	12-8M0204666
11	LEVER, LOCK (LOWER)	42173T
12	SCREW, (#10-16 x .500)	10-48408
13	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
14	SPACER, STARTER HOUSING SCREW	23-43787
15	SPRING	24-86857T01
16	PULLEY, Starter	42034T04
17	ROPE	50-12066Q10
18	HANDLE ASSEMBLY	85174A1
19	SPRING	24-86851T02
20	CAM	868501
21	RING, Retaining	53-86849T01
22	SPRING	24-868523
23	CAM	86853T01
24	SCREW	10-826253	10-97516, 10-818838
25	PAD	833161T	833161, 90478

REMOTE CONTROL ATTACHING COMPONENTS

Below is the parts list for Mercury 6 REMOTE CONTROL ATTACHING COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, (M6 x 35)	10-4000332
2	BRACKET, Control Arm	42809
3	WASHER, (.203 x .500 x .032)	12-8M0204666
3	WASHER, (.520 x 1.500 x .06)	12-12132
3	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
4	BUSHING	23-823807	23-42806
5	CONTROL ARM Comment: REF. #11 is 9-1/8 Inch	42810A8
5	CONTROL ARM Comment: REF. #11 is 8-3/8 Inch	42810A8
6	ARM, Throttle Control Comment: REF. #11 is 9-1/8 Inch	428071
6	ARM, Throttle Control Comment: REF. #11 is 8-3/8 Inch	428071
7	E RING Comment: REF. #11 is 9-1/8 Inch	53-61319
8	BUSHING Comment: REF. #11 is 9-1/8 Inch	23-889731	23-12136 REF. #11 is 9-1/8 Inch
9	LEVER Comment: REF. #11 is 9-1/8 Inch	42800
10	COTTER PIN Comment: REF. #11 is 9-1/8 Inch	18-210711
11	SHIFT LINK Comment: REF. #11 is 9-1/8 Inch	42741
11	SHIFT SHAFT Comment: REF. #11 is 8-3/8 Inch (USE W/SWIVEL BALL/SWIVEL BASE)	815550A1
5	ARM ASSEMBLY, Control Comment: USE W/REF. #12	42810A8
8	BUSHING Comment: USE W/REF. #12	23-889731	23-12136 USE W/REF. #12
10	COTTER PIN Comment: USE W/REF. #12	18-210711
12	SHIFT LINK Comment: (USE W/O SWIVEL BALL/SWIVEL BASE)	878169	815569 1 (USE W/O SWIVEL BALL/SWIVEL BASE)
13	NUT, (M6)	11-401386
14	RETAINER	428021
15	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
16	RETAINER	424291
17	CLIP	54-11372
18	LINK ASSEMBLY, Throttle	8M0084741
19	SOCKET	8M0084742
20	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
21	TAB WASHER (OLD DESIGN)	14-11371
22	SCREW, (M6 x 16)	10-4000171
23	BRACKET ASSEMBLY	42805A3
24	PIN, Latch	11373
25	PIN	17-239281
26	DRIVE SCREW	10-42975
27	WASHER, Wave	13-12134

SWIVEL BRACKET AND STEERING HANDLE

Below is the parts list for Mercury 6 SWIVEL BRACKET AND STEERING HANDLE:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL TUBE (BLACK) Comment: REF #6 is 1 Inch - 14	42213A14
1	SWIVEL TUBE (GRAY) Comment: REF #6 is 1 Inch - 14	42213A15
1	SWIVEL TUBE REPLACEMENT (BLACK) Comment: REF #6 is 1-1/8 Inch - 12	42213A14
1	SWIVEL TUBE REPLACEMENT (GRAY) Comment: REF #6 is 1-1/8 Inch - 12	42213A15
2	FITTING, Grease	22-8M0169589
3	No Longer Available, BRACKET (BLACK) (ORDER 42213A14) Comment: REF #6 is 1 Inch - 14	NLA
3	No Longer Available, BRACKET (GRAY) (ORDER 4213A15) Comment: REF #6 is 1 Inch - 14	NLA
3	BRACKET ASSEMBLY (BLACK) Comment: REF #6 is 1-1/8 Inch - 12	44397A15
3	BRACKET ASSEMBLY (GRAY) Comment: REF #6 is 1-1/8 Inch - 12	44397A16
4	SCREW, (M5 x 25) Comment: REF #6 is 1 Inch - 14	10-40019109
4	SCREW, (M4 x 20) Comment: REF #6 is 1 Inch - 14	10-4005688
4	SCREW, (M5 x 30) Stainless Steel Comment: REF #6 is 1-1/8 Inch - 12	10-40011110
5	WASHER, BRACKET Comment: REF #6 is 1 Inch - 14	12-177821
5	WASHER Comment: REF #6 is 1-1/8 Inch - 12	12-177821
6	NUT, BRACKET (BLACK) Comment: REF #6 is 1 Inch - 14	11-859133	11-34862, 11-90068F 3, 11-90068F 4 REF #6 is 1 Inch - 14
6	NUT, (1.00-14), BRACKET (GRAY) Comment: REF #6 is 1 Inch - 14	11-859133	11-34862, 11-90068F 3, 11-90068F 4 REF #6 is 1 Inch - 14
6	NUT Comment: REF #6 is 1-1/8 Inch - 12	11-816880	11-817027T REF #6 is 1-1/8 Inch - 12
7	BUSHING, BRACKET Comment: REF #6 is 1 Inch - 14	23-85973
7	BUSHING Comment: REF #6 is 1-1/8 Inch - 12	23-817026
8	CABLE, THROTTLE (TILLER HANDLE SHIFT)	42210
8	CABLE, THROTTLE (SIDE SHIFT)	422111
9	NUT, (M6) Stainless Steel, THROTTLE CABLE	11-400212
10	TUBE ASSEMBLY, STEERING	99333A2
11	HANDLE ASSEMBLY, Throttle (TILLER HANDLE SHIFT)	87-823609A10	14025A 4, 14170A 5
11	HANDLE ASSEMBLY, Throttle (SIDE SHIFT)	87-823609A10	14025A 4, 14170A 5
12	DECAL, THROTTLE (APPLY ON HANDLE)	37-13239
12	DECAL, THROTTLE (APPLY ON TUBE) (BLACK)	37-140121
12	DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4")	37-140122
12	DECAL (APPLY ON TUBE - 3.15"X 2-1/2")	37-140123
12	DECAL (INTERNATIONAL SYMBOLS)	37-140124
13	SCREW, (#12-14 x .375), THROTTLE HANDLE	10-37342
14	SWITCH KIT, Stop - Throttle Handle	87-823609A10	14025A 4, 14170A 5
15	BOOT ASSEMBLY, STOP SWITCH	11099A1
16	GRIP, RUBBER	8M0221732
17	SWIVEL BRACKET ASSEMBLY (BLACK)	3402-8831A13
17	SWIVEL BRACKET ASSEMBLY (GRAY)	3402-8831A14
18	FITTING, Grease	22-8M0169589
19	BUSHING, UPPER	23-42140
20	BEARING, Thrust - Upper	23-42080T01
21	BUSHING, LOWER	23-42139
22	SEAL	26-42077
23	THRUST WASHER, LOWER	12-42373
24	PLATE ASSEMBLY, CO-PILOT	42124A1
25	HOOK, REVERSE LOCK	8M0075731	42141 1
26	SPRING, REVERSE HOOK	24-42127
27	BRACKET	42082T04
28	SPRING	24-421301
29	PIN	17-420811
30	RING, Retaining	53-13194
31	PIN, Pivot	17-830741A1
32	WASHER, (.390 x .600 x .032), PIVOT PIN	91963
33	SPRING	24-42128
34	CARRYING HANDLE (#42085 2)
35	TUBE ASSEMBLY	975501
36	GROMMET	25-12602002
37	GROMMET	25-8M0179867

THROTTLE AND SHIFT LINKAGE(SIDE SHIFT MODELS)

Below is the parts list for Mercury 6 THROTTLE AND SHIFT LINKAGE(SIDE SHIFT MODELS):

Position No.	Part Name	OEM Number
1	BRACKET, Cable	42181
2	SCREW, (M5 x 20)	10-4000117
3	LEVER	421592
4	SCREW, (M6 x 30)	10-4000331
5	WASHER	12-8M0214930
6	BUSHING	23-421581
7	SPRING	24-42160
8	LEVER	42156
9	LEVER	42153
10	SPRING	24-39627
11	PLATE (OLD DESIGN)	39601
12	SCREW, (M5 x 16)	10-400035
12	SCREW, (M5 x 8)	10-400011
13	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	42152
14	ACTUATOR (2 PIECE SHIFT SHAFT)	421541
15	SHIFT SHAFT ( W/BALL SOCKET)	815550A1
16	SHIFT SHAFT (W/O BALL SOCKET)	8155501
17	SHIFT HANDLE (USE W/REF. #13 & 14 OR 15)	42157
17	SHIFT HANDLE (USE W/REF. #16)	421571
18	GROMMET	44459001
19	TAB WASHER (OLD DESIGN)	14-12003
20	TIMING LINK	421671
21	LEVER, Control	421631
22	SCREW, (M5 x 30)	10-40056110
22	SCREW, (M5 x 35)	10-40019111
23	ACTUATOR	421662
24	LINK INTERLOCK	42161
25	SCREW, (M6 x 40)	10-4000333
26	WASHER	12-8M0214930
27	BUSHING	23-421621
28	SPRING	24-13676
29	WAVE WASHER	13-69708
30	SPRING	24-42164
31	SCREW, (M5 x 16)	10-40056107
32	BUSHING	23-421821
33	ACTUATOR	42183
34	WASHER	12-8M0214930
35	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
36	LINK	42184
37	WASHER	12-4002314

THROTTLE AND SHIFT LINKAGE(TILLER HANDLE SHIFT MODELS)

Below is the parts list for Mercury 6 THROTTLE AND SHIFT LINKAGE(TILLER HANDLE SHIFT MODELS):

Position No.	Part Name	OEM Number	Supersedes
1	CONTROL PLATFORM	421482
2	GEAR	94085A1
3	SCREW, (M6 x 30)	10-4000331
4	WASHER	12-8M0214930
5	SPACER (SHORT)	23-856737	23-42149
6	NUT, (M6) Stainless Steel	11-400212
8	LEVER, Primary	42151
9	SCREW, (M6 x 40)	10-4000333
10	SPACER (LONG)	23-856738	23-42150
11	SCREW, (M6 x 16)	10-4000171
12	TIMING LINK	421671
13	LEVER, Control	421631
14	SCREW, (M5 x 30)	10-40056110
14	SCREW, (M5 x 35)	10-40019111
15	ACTUATOR	421662
16	LINK INTERLOCK	42161
17	SCREW, (M6 x 40)	10-4000333
18	WASHER	12-8M0214930
19	BUSHING	23-421621
20	SPRING	24-42164
21	WAVE WASHER	13-69708
22	SPRING	24-13676
23	LINK ASSEMBLY, Throttle	8M0084745
24	SOCKET	8M0084742
25	LEVER	421592
26	BUSHING	23-421581
27	SPRING	24-42160
28	SCREW, (M6 x 30)	10-4000331
29	WASHER	12-8M0214930
30	LEVER	42156
31	LEVER	42153
32	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	42152
33	LEVER (2 PIECE SHIFT SHAFT)	421551
34	SCREW, (M5 x 16) (2 PIECE SHIFT SHAFT)	10-400035
35	TAB WASHER (2 PIECE SHIFT SHAFT)	14-11371
36	SHIFT LINK (2 PIECE SHIFT SHAFT)	1938511
37	SHIFT SHAFT (1 PIECE SHIFT SHAFT)	815550A1
38	SWIVEL BASE (1 PIECE SHIFT SHAFT)	93254
39	SWIVEL BALL (1 PIECE SHIFT SHAFT)	93421
40	SWIFT LINK (1 PIECE SHIFT SHAFT)	1938522
41	SHIFT SHAFT Comment: (USE WITHOUT SWIVEL BALL/SWIVEL BASE)	8155501
42	SHIFT LINK Comment: (USE WITHOUT SWIVEL BALL/SWIVEL BASE)	815567T02	815567A 1 (USE WITHOUT SWIVEL BALL/SWIVEL BASE)
43	SCREW, (M5 x 16)	10-400035
43	SCREW, (M5 x 8)	10-400011
44	SPRING	24-39627
45	PLATE (OLD DESIGN)	39601

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
