Mercury 50 (3 CYL.) (0D000750 THRU 0G290584) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 50 (3 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ATTENUATOR PLATE

Below is the parts list for Mercury 50 (3 CYL.) ATTENUATOR PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	SOUND ATTENUATOR	19662
2	SCREW	10-814776	10-42978
3	CAP PLUG	19-815784	22-14685
4	SEAL	26-812889
5	SOUND ATTENUATOR PLATE	812874
6	SCREW	10-4000363
7	THROTTLE LINK Comment: (MULTIPLE PIECE DESIGN)	825204T03	825204 3 (MULTIPLE PIECE DESIGN)
8	ADJUSTING LINK Comment: (MULTIPLE PIECE DESIGN)	812883
9	SCREW Comment: (MULTIPLE PIECE DESIGN)	10-48408
10	WASHER Comment: (MULTIPLE PIECE DESIGN)	12-8M0204666
11	ARM	11399A1
12	ROLLER	67748
13	SCREW	10-40056103
14	WASHER	12-8M0204666
15	TUBING (4-1/4")	32-9912878
16	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
17	GASKET	27-8144461
18	THROTTLE LINK Comment: (SINGLE PIECE DESIGN)	825204T03	825204 3 (SINGLE PIECE DESIGN)
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91

CARBURETOR (WME-22/22B/23/24/35)

Below is the parts list for Mercury 50 (3 CYL.) CARBURETOR (WME-22/22B/23/24/35):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (TOP) Comment: 50 - WME-23	3301-815406A1
1	CARBURETOR (CENTER) Comment: 50 - WME-23	3301-815406A2
1	CARBURETOR (BOTTOM) Comment: 50 - WME-23	3301-815406A3
1	CARBURETOR (TOP) Comment: 55 - WME-23	3301-821946A45	3301-821946T24, 3301-821946A24, 3301-821946A 1 55 - WME-23
1	CARBURETOR (CENTER) Comment: 55 - WME-23	3301-821946A46	3301-821946T25, 3301-821946A25, 3301-821946A 2 55 - WME-23
1	CARBURETOR (BOTTOM) Comment: 55 - WME-23	3301-821946A47	3301-821946T26, 3301-821946A26, 3301-821946A 3 55 - WME-23
1	CARBURETOR (TOP) Comment: 60 - WME-22B	3301-815405A4
1	CARBURETOR (CENTER) Comment: 60 - WME-22B	3301-815405A5
1	CARBURETOR (BOTTOM) Comment: 60 - WME-22B	3301-815405A6
2	GASKET, FUEL BOWL	NSS
3	RETAINING RING	NSS
4	FUEL BOWL (UPPER) Comment: WME-22/23	1395-811695	1395-811217 WME-22/23
4	FUEL BOWL (CENTER/BOTTOM) Comment: WME-22/23	1395-811693	1395-9590 WME-22/23
4	FUEL BOWL (UPPER) Comment: WME-22B/24/35	1395-811695	1395-811217 WME-22B/24/35
4	FUEL BOWL (CENTER/BOTTOM) Comment: WME-22B/24/35	1395-811693	1395-9590 WME-22B/24/35
5	THROTTLE SHAFT (UPPER/BOTTOM)	1395-811218
6	THROTTLE SHAFT (CENTER)	1395-811219
7	THROTTLE VALVE Comment: WME-22/23/24	1395-811216	814678 WME-22/23/24
7	THROTTLE VALVE Comment: WME-22B/35	1395-9593
8	FLOAT	1395-9594
9	FLOAT SHAFT	NSS
10	INLET NEEDLE VALVE	1395-879194011	1395-9595
11	PLUG Comment: WME -22/23	1395-811694	1395-9596 1 WME -22/23
11	PLUG KIT Comment: WME-22B/24/35	1395-811694	1395-9596 1 WME-22B/24/35
12	GASKET, PLUG	NSS
13	GASKET, COVER PLATE	NSS
14	GASKET, FLANGE	27-8144461
15	SCREW, THROTTLE VALVE	NSS
16	SCREW, COVER PLATE	1395-811220
17	SCREW, FUEL BOWL	1395-808612	1399-5132
18	COVER PLATE	1395-811221
19	MAIN FUEL JET (.052 - 50)	1395-6359
19	MAIN FUEL JET (.068 - 55/60)	1395-6029
19	MAIN FUEL JET (.070 - 60)	1395-6030
20	VENT JET (.090) Comment: (NOT USED ON WME-35)	1395-6247
21	GASKET	NSS
22	SPRING	NSS
23	SPRING	NSS
24	IDLE NEEDLE	NSS
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	CARB REPAIR KIT	1395-8236354
-	CARB GASKET KIT	1395-8112231

CARBURETOR (WME-26/27/28/28/43/44/45)

Below is the parts list for Mercury 50 (3 CYL.) CARBURETOR (WME-26/27/28/28/43/44/45):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (TOP) Comment: 50 - WME-26	3301-821679T17	3301-821679A17, 3301-821679A 1 50 - WME-26
1	CARBURETOR (CENTER) Comment: 50 - WME-26	3301-821679T18	3301-821679A18, 3301-821679A 2 50 - WME-26
1	CARBURETOR (BOTTOM) Comment: 50 - WME-26	3301-821679T19	3301-821679A19, 3301-821679A 3 50 - WME-26
1	CARBURETOR (TOP) Comment: 55 - WME-27	3301-821946A45	3301-821946T24, 3301-821946A24, 3301-821946A 1 55 - WME-27
1	CARBURETOR (CENTER) Comment: 55 - WME-27	3301-821946A46	3301-821946T25, 3301-821946A25, 3301-821946A 2 55 - WME-27
1	CARBURETOR (BOTTOM) Comment: 55 - WME-27	3301-821946A47	3301-821946T26, 3301-821946A26, 3301-821946A 3 55 - WME-27
1	CARBURETOR (TOP) Comment: 60 - WME-28	3301-821946T42	3301-821946T27, 3301-821946A27, 3301-821946A 4 60 - WME-28
1	CARBURETOR (CENTER) Comment: 60 - WME-28	3301-821946T43	3301-821946T28, 3301-821946A28, 3301-821946A 5 60 - WME-28
1	CARBURETOR (BOTTOM) Comment: 60 - WME-28	3301-821946T44	3301-821946T29, 3301-821946A29, 3301-821946A 6 60 - WME-28
1	CARBURETOR (TOP) Comment: 50 - WME-43	3301-821679T17	3301-821679A17, 3301-821679A 1 50 - WME-43
1	CARBURETOR (CENTER) Comment: 50 - WME-43	3301-821679T18	3301-821679A18, 3301-821679A 2 50 - WME-43
1	CARBURETOR (BOTTOM) Comment: 50 - WME-43	3301-821679T19	3301-821679A19, 3301-821679A 3 50 - WME-43
1	CARBURETOR (TOP) Comment: 55/60 SEAPRO/MARATHON 60 PONTOON WME-44	3301-821946A45	3301-821946T24, 3301-821946A24, 3301-821946A 1 55/60 SEAPRO/MARATHON 60 PONTOON WME-44
1	CARBURETOR (CENTER) Comment: 55/60 SEAPRO/MARATHON 60 PONTOON WME-44	3301-821946A46	3301-821946T25, 3301-821946A25, 3301-821946A 2 55/60 SEAPRO/MARATHON 60 PONTOON WME-44
1	CARBURETOR (BOTTOM) Comment: 55/60 SEAPRO/MARATHON 60 PONTOON WME-44	3301-821946A47	3301-821946T26, 3301-821946A26, 3301-821946A 3 55/60 SEAPRO/MARATHON 60 PONTOON WME-44
1	CARBURETOR (TOP) Comment: 60 - WME-45	3301-821946T42	3301-821946T27, 3301-821946A27, 3301-821946A 4 60 - WME-45
1	CARBURETOR (CENTER) Comment: 60 - WME-45	3301-821946T43	3301-821946T28, 3301-821946A28, 3301-821946A 5 60 - WME-45
1	CARBURETOR (BOTTOM) Comment: 60 - WME-45	3301-821946T44	3301-821946T29, 3301-821946A29, 3301-821946A 6 60 - WME-45
2	GASKET, FUEL BOWL	NSS
3	RETAINING RING	NSS
3A	LEVER, OIL PUMP Comment: WME43/45 - BOTTOM	1395-8113522
3B	SCREW, OIL PUMP LEVER Comment: WME43/45 - BOTTOM	1395-8086121
4	FUEL BOWL (UPPER)	1395-811695	1395-811217
4	FUEL BOWL (CENTER/BOTTOM)	1395-811693	1395-9590
5	THROTTLE SHAFT (UPPER) Comment: 50/60	1395-823632
6	THROTTLE SHAFT (CENTER) Comment: 50/60	1395-823633
6	THROTTLE SHAFT (BOTTOM) Comment: 50/60	1395-823636
5	THROTTLE SHAFT (UPPER/BOTTOM) Comment: WME-27	1395-823632
6	THROTTLE SHAFT (CENTER) Comment: WME-44	1395-823633
7	THROTTLE VALVE Comment: 50 - WME 26	1395-823637
7	THROTTLE VALVE Comment: 55/60 - WME 27/28	1395-9593
7	THROTTLE VALVE Comment: WME 43/44/45	97243
8	FLOAT	1395-9594
9	FLOAT SHAFT	F10064
10	INLET NEEDLE VALVE	1395-879194011	1395-9595
11	PLUG KIT	1395-811694	1395-9596 1
12	SEAL, BOWL DRAIN	NSS
13	GASKET, COVER PLATE	NSS
14	GASKET, FLANGE	27-8144461
15	SCREW, THROTTLE VALVE	10-F10155
16	SCREW, COVER PLATE	1395-811220
17	SCREW, FUEL BOWL Comment: (WME 26/27/28)	1395-808612	1399-5132 (WME 26/27/28)
17	SCREW, FUEL BOWL Comment: (WME 43/44/45)	1395-808612	1399-5132 (WME 43/44/45)
18	COVER PLATE	1395-811221
19	MAIN FUEL JET Comment: (.048 - 50)	1395-6246
19	MAIN JET Comment: (.060 - 55/60 SEAPRO/MARATHON/PONTOON)	1395-6487
19	MAIN FUEL JET Comment: (.062 - 60)	1399-4217
20	VENT JET Comment: (.090) (50/60)	1395-6247
21	GASKET, NOZZLE WELL	NSS
22	SPRING, IDLE NEEDLE	NSS
23	SPRING, THROTTLE RETURN	NSS
24	IDLE NEEDLE	NSS
25	SCREW, THROTTLE ADJUSTMENT (UPPER/BOTTOM)	1395-823634
-	CARB REPAIR KIT	1395-8236354
-	CARB GASKET KIT	1395-8112231
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91

CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)

Below is the parts list for Mercury 50 (3 CYL.) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET (BLACK) Comment: (PORT)	3508-818881A2
1	TRANSOM BRACKET (GRAY) Comment: (PORT)	3508-818881A3
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	TRANSOM BRACKET (BLACK) Comment: (STARBOARD)	3507-818880F1
4	TRANSOM BRACKET (GRAY) Comment: (STARBOARD)	3507-818880F2
5	TILT LOCK LEVER (BLACK)	893704T01	19618A 2
5	TILT LOCK LEVER (GRAY)	19618A3
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB (BLACK)	812709	812709T, 812709F 1
9	KNOB (GRAY)	812709T6
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET (BLACK)	18486F5
12	ANCHOR BRACKET (GRAY)	18486F6
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY	17-8M0026068	17-49930A 1
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT	11-858869	11-30499
23	THUMB SCREW ASSEMBLY	10-818883A1
24	WASHER	12-818884
25	SCREW	10-768042
26	SCREW	10-814259
27	WASHER	12-8M0204648
28	NUT	11-91962
29	LINK	8M0084737
30	TILT LEVER	19615A05
31	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
32	WASHER	12-815796
33	WAVE WASHER	13-99611
34	TILT KNOB	8M0007469	19621
35	SCREW	10-19611
37	MOUNTING BRACKET (STARBOARD)	812432F5
37	MOUNTING BRACKET (PORT)	812433F5
38	SCREW	10-88432
39	WASHER	12-8M0042641	12-29395
40	NUT	11-862903	11-13437 1
41	SHIM	15-821722

CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)

Below is the parts list for Mercury 50 (3 CYL.) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP):

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET (BLACK) Comment: (PORT)	3420-8M0084195	3420-822868A 1 (PORT)
1	CLAMP BRACKET (GRAY) Comment: (PORT)	3420-822868A2
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	CLAMP BRACKET (BLACK) Comment: (STARBOARD)	3419-822867F1
4	CLAMP BRACKET (GRAY) Comment: (STARBOARD)	3419-822867F2
5	TILT LOCK LEVER (BLACK)	893704T01	19618A 2
5	TILT LOCK LEVER (GRAY)	19618A3
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB (BLACK)	812709	812709T, 812709F 1
9	KNOB (GRAY)	812709T6
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET (BLACK)	18486F5
12	ANCHOR BRACKET (GRAY)	18486F6
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY	17-8M0026068	17-49930A 1
19A	SPRING	24-821461
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT	11-858869	11-30499
23	THUMB SCREW ASSEMBLY	10-818883A1
24	WASHER	12-818884
25	SCREW	10-768042
26	SCREW	10-814259
27	WASHER	12-8M0204648
28	NUT	11-91962
29	LINK	8M0084737
30	TILT LEVER	19615A05
31	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
32	WASHER	12-8M0042643	12-19605
33	WAVE WASHER	13-99611
34	TILT KNOB	8M0007469	19621
35	SCREW	10-19611
37	MOUNTING BRACKET (STARBOARD)	812432F5
37	MOUNTING BRACKET (PORT)	812433F5
38	SCREW	10-88432
39	WASHER	12-8M0042641	12-29395
40	NUT	11-862903	11-13437 1
41	SHIM	15-821722

COWLING

Below is the parts list for Mercury 50 (3 CYL.) COWLING:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL (BLACK) Comment: 50/60 (WITHOUT DECALS)	100-8M0107016
1	TOP COWL (GRAY) Comment: 50/60 (WITHOUT DECALS)	4000-813010T14	4000-813010A14, 4000-813010A 9, 4000-813010T13, 4000-813010A13 50/60 (WITHOUT DECALS)
1	TOP COWL (SILVER) Comment: 50/60 (WITHOUT DECALS)	4000-813010T14	4000-813010A14, 4000-813010A 9, 4000-813010T13, 4000-813010A13 50/60 (WITHOUT DECALS)
1	TOP COWL (TRACKER) Comment: 50/60 (WITHOUT DECALS)	4000-813010T14	4000-813010A14, 4000-813010A 9, 4000-813010T13, 4000-813010A13 50/60 (WITHOUT DECALS)
1	TOP COWL (BLACK) Comment: 55 (WITHOUT DECALS)	100-8M0107142
1	TOP COWL (SILVER) Comment: 55 (WITHOUT DECALS)	4005-816534T14	4005-816534A14, 4005-816534A 9 55 (WITHOUT DECALS)
2	AIR INLET SHIELD	824666	813095 1
3	SCREW	10-4006731
4	WASHER (OLD DESIGN)	12-24664
5	STARTER ROPE (MANUAL STARTING)	47341A11
6	COWL SUPPORT BRACKET (FRONT) (BLACK)	813548A3
6	COWL SUPPORT BRACKET (FRONT ) (GRAY)	813548A4
6	COWL SUPPORT BRACKET (FRONT) (SILVER)	813548A6
6	COWL SUPPORT BRACKET (FRONT) (TRACKER)	813548A5
6A	SCREW (M4)	10-8231871
6B	LOCKWASHER	13-26995
6C	NUT	11-8237515
7	COWL SUPPORT BRACKET (REAR)	813549A2
7A	SCREW (M4)	10-8231871
7B	LOCKWASHER	13-26995
7C	NUT	11-8237515
8	SOUND BLANKET KIT	814336A02	814336A 1
9	SEAL	8M0043150	44462 2
10	OIL LEVEL GAUGE Comment: 50/60	813504A1
11	GROMMET Comment: 50/60	813505
12	RETAINER Comment: 50/60	113171
13	SPEEDNUT Comment: 50/60	11-65110
14	COWL MOUNT	813546003	813546 2
15	BRACKET	893763	18173
16	SCREW	10-4006731
17	BOTTOM COWL (BLACK) Comment: (WITHOUT DECALS)	2197-812512A8
17	BOTTOM COWL (GRAY) Comment: (WITHOUT DECALS)	2197-812512A9
17	BOTTOM COWL (TRACKER) Comment: (WITHOUT DECALS)	2197-812512A10	2197-812512A 7 (WITHOUT DECALS)
18	SEAL	8M0043162	813607
19	SCREW	10-4000335
20	WASHER	12-35280
21	WAVE WASHER	13-37642
22	BUSHING	23-19428
23	COWL LATCH LEVER (BLACK)	813547F1
23	COWL LATCH LEVER (GRAY)	813547F1
23	COWL LATCH LEVER (TRACKER)	813547F3
24	COWL LATCH BUSHING	826354A1
25	LATCH CAM	813604
26	NUT	11-401386
27	CABLE	84-88807A28
28	SCREW	10-878607	10-817626
29	ANCHOR BRACKET	19812T03
30	DRIVE SCREW	10-42975
31	LATCH	98889
32	CUP	39519
33	TELLTALE FITTING	22-813613
34	HOSE	32-7568058
35	PLUG Comment: (NON-POWER TRIM)	812830T01	812830 1 (NON-POWER TRIM)
36	RETAINER	8M0032848	812443 1
37	BEZEL (OLD DESIGN) Comment: (POWER TRIM)	824896	814307, 814296 (POWER TRIM)
38	SWITCH ASSEMBLY Comment: (POWER TRIM)	87-8M0042301	87-896620, 87-856990, 87-850691, 87-18286A40 (POWER TRIM)
39	SCREW	10-40011151
40	SEAL	813606003	813606 2
41	SEAL	813605003	813605 2
42	TRIM COVER (BLACK)	812717T1
42	TRIM COVER (GRAY)	812717T6
42	TRIM COVER (TRACKER)	812717F1
43	SCREW	10-4006731
44	RELAY ASSEMBLY Comment: (POWER TRIM) (SEE NOTE)	813939A2
NS	RELAY Comment: (POWER TRIM)	821509T01	821509, 853292 (POWER TRIM)
45	SCREW Comment: POWER TRIM	10-40011130
46	AIR DEFLECTOR KIT	823593A1

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 50 (3 CYL.) CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	478-9611T1
2	BALL BEARING	30-63742T
3	RETAINING RING	53-812877
4	KEY	28-91800
5	DRIVER GEAR	43-43019A2
6	ROLLER BEARING ASSEMBLY (TOP)	31-812873A1
7	OIL SEAL	26-419531
8	ROLLER BEARING ASSEMBLY (CENTER)	812881A1
9	PISTON ASSEMBLY (STANDARD)	783-9613T1
9	PISTON ASSEMBLY (.015 O.S.)	783-9613T2
9	PISTON ASSEMBLY (.030 O.S.)	783-9613T3
10	LOCK RING	53-857196	40-52035
11	PISTON RING (STANDARD)	39-19721A6
11	PISTON RING (.015 O.S.)	39-19721A1
11	PISTON RING (.030 O.S.)	39-19721A2
12	CONNECTING ROD ASSEMBLY	640-9612A6
13	WASHER	12-8M0012298	12-812876
14	NEEDLE BEARING	29-8M0214934
15	SCREW	10-91012
16	ROLLER BEARING	8M0234886
-	POWERHEAD ASSEMBLY COMPLETE (50) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811208T91	811208A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (55) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	821744T92	821744A92 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (60) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811209T91	811209A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD (ALL) Comment: (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)	811209T93	811209A93 (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)

CYLINDER BLOCK AND CRANKCASE

Below is the parts list for Mercury 50 (3 CYL.) CYLINDER BLOCK AND CRANKCASE:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK (50) Comment: (S/N 0D181999 & BELOW)	883-9755A9
1	CYLINDER BLOCK (55) Comment: (S/N 0D181999 & BELOW)	883-9755T14
1	CYLINDER BLOCK (60) Comment: (S/N 0D181999 & BELOW)	883-9755T10
1	CYLINDER BLOCK (ALL) Comment: (S/N 0D182000 & ABOVE)	883-9755T15
2	SCREW	10-81742780
3	SCREW	10-81742730
4	CHECK VALVE	21-426585
5	HOSE (16")	32-892024122	32-99130122
6	CHECK VALVE (PRESS-IN)	21-426233
7	CARRIER ASSEMBLY	812888A1
8	CHECK VALVE	21-42657A3
9	ADJUSTING SCREW	10-814776	10-42978
10	JAM NUT	11-400212
11	CAP	42942
12	DOWEL PIN (LOCATING)	17-43044
13	DOWEL PIN (BEARING RACE)	17-8M0084653	17-812870 1
14	COVER	18597
15	SCREW	10-81742750
16	CARRIER Comment: (50/60 - DESIGN I)	65848
17	GROMMET Comment: (50/60 - DESIGN I)	25-64872
18	GASKET Comment: (USE W/DESIGN I REF'S # 16 & 17)	27-8128671
18	GASKET Comment: (DESIGN II - W/O REF'S #16 & 17)	27-8128672
19	STUD	16-8161949
20	PIPE PLUG	22-185981
21	SCREW	10-817430110	10-40096110
22	SCREW (20MM - QTY. OF 3 ON 55) Comment: (USE W/DESIGN I REF'S # 16 & 17)	10-81742720
22A	SCREW (55) Comment: (USE W/DESIGN I REF'S # 16 & 17)	10-12896
22	SCREW (25MM - QTY. OF 3 ON 55) Comment: (DESIGN II - W/O REF'S # 16 & 17)	10-40011149
22A	SCREW (55) Comment: (DESIGN II - W/O REF'S # 16 & 17)	10-12896
23	POPPET VALVE Comment: 50/60	8128821
24	DIAPHRAGM Comment: 50/60 (USE W/DESIGN I REF'S # 16 & 17)	812887
24	DIAPHRAGM Comment: (50/60) (DESIGN II - W/O REF'S #16 & 17)	812887002	812887 1 (50/60) (DESIGN II - W/O REF'S #16 & 17)
25	WASHER Comment: (50/60)	12-94182
26	SCREW Comment: (50/60)	10-69570
27	SPRING Comment: (50/60)	24-90392
27	SPRING (60 PONTOON) Comment: (50/60)	24-42996
28	THERMOSTAT (143) Comment: (50/60)	75692
28	THERMOSTAT (120) Comment: 50/60	14586
29	GASKET Comment: 50/60	27-8M0204714
30	PIPE PLUG	22-328022
31	TEMPERATURE SENDER	787992
32	RETAINER	889733	44552
33	SCREW	10-878609	10-812832 1
34	WASHER	12-8M0204666
35	WASHER Comment: (50/60)	12-8M0204663
36	WASHER Comment: (50/60)	12-69056
37	WING NUT Comment: (50/60)	11-816872
38	ELBOW Comment: (50/60)	22-996642
38	ELBOW Comment: (55)	22-782792
39	COVER Comment: (USE W/DESIGN I REF'S # 16 & 17)	19074
39	COVER Comment: (DESIGN II - W/O REF'S #16 & 17)	8M0036859	19074 1 (DESIGN II - W/O REF'S #16 & 17)
40	FITTING Comment: (50/60)	22-56759
41	COVER Comment: (55)(S/N 0A000000-0D181999)	8129961
41	COVER Comment: (55)(S/N 0D182000-0Z999999)	8129962
42	O-RING Comment: (55)	25-48462
43	SCREW Comment: (55)	10-40011108
45	LIFTING EYE Comment: (55)	821595
46	SCREW Comment: 55 (45MM - USE W/DESIGN I REF'S # 16 & 17)	10-821616
46	SCREW Comment: 55 (55MM - DESIGN II - W/O REF'S #16 & 17 )	10-821606
47	NUT Comment: (55)	11-401368
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	POWERHEAD ASSEMBLY COMPLETE (50) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811208T91	811208A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (55) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	821744T92	821744A92 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (60) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811209T91	811209A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (ALL) Comment: (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)	811209T93	811209A93 (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)

DRIVE SHAFT HOUSING

Below is the parts list for Mercury 50 (3 CYL.) DRIVE SHAFT HOUSING:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVESHAFT HOUSING (SHORT) (BLACK)	3516-816528A1
1	DRIVESHAFT HOUSING (SHORT) (GRAY)	3516-816528T2
1	DRIVESHAFT HOUSING (LONG) (BLACK)	3510-9864T6
1	DRIVESHAFT HOUSING (LONG) (GRAY)	3510-9864T7
1	DRIVESHAFT HOUSING (LONG) (TRACKER)	3510-9864T6
1	DRIVESHAFT HOUSING (JET 45) (BLACK)	3516-816528A3
1	DRIVESHAFT HOUSING (JET 45) (GRAY)	3516-816528A4
2	STUD	16-903507
2	STUD (60 PONTOON - LONG)	16-903501
2	STUD (60 PONTOON - LL)	16-8M0034445	16-816866 4
3A	STUD (60 PONTOON - LL)	16-8M0034446
3	SCREW	10-4000380
4	WASHER	12-45176
5	WASHER	12-8M0214963
6	NUT	11-40140
7	SPEEDOMETER PICK-UP ASSEMBLY	22-85822A7
8	FITTING	22-8M0181450
9	CONNECTOR (STRAIGHT)	22-85822T
10	BOLT	10-898835001	10-42973
11	LOWER MOUNT	42930A1
12	WASHER	12-30119
13	GROUND WIRE	88238A10
14	NUT	11-8M0204662
15	SCREW	10-40011149
16	CLAMP	8M0036730	93192
17	NUT	11-35521
18	COVER (BLACK)	100-8M4500752	8M0001130, 67077T
18	COVER (GRAY)	67077F1
18	COVER (TRACKER)	100-8M4500752	8M0001130, 67077T
19	SCREW	10-88417
20	SPACER	23-813745	23-43041
20	SPACER (60 PONTOON - LL)	23-8137451
21	COUPLING	43585

ELECTRICAL COMPONENTS (50/60)

Below is the parts list for Mercury 50 (3 CYL.) ELECTRICAL COMPONENTS (50/60):

Position No.	Part Name	OEM Number	Supersedes
1	ELECTRICAL PLATE Comment: (W/ 6MM SCREW HOLES)	19745A8
2	RETAINING PLATE	814674A1
3	SCREW Comment: (6MM)	10-8240631
4	SCREW Comment: (6MM)	10-824063
3	SCREW (USE W/REF. #39) Comment: (5MM)	10-40011106
4	SCREW Comment: (5MM)	10-40011109
5	IGNITION COIL Comment: (SERIAL 0G116484 & BELOW)	339-832757A4
5	IGNITION COIL Comment: (SERIAL 0G116485 & ABOVE)	339-832757A4
6	CABLE (3-1/2")	84-88807A6
7	NUT (10-32)	11-45076
8	SPARK PLUG LEAD KIT	84-821945A52	84-813706A52
9	SPARK PLUG (NGK #BU8H)	33-13686Q
9	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	33-896329885
9	SPARK PLUG (NGK #BP8H-N-10)	33-816737Q	33-816737 2
9	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	33-938
10	SWITCH BOX	19052A8
11	BOOT	813643
12	RETAINER (OLD DESIGN)	814760
13	GROMMET	25-813742
14	FUSE SOCKET (1 RING/1 BULLET CONNECTOR)	88-19637A2
14	FUSE SOCKET (2 BULLET CONNECTORS)	88-19637A3
15	FUSE	88-812619	88-860608
16	RECTIFIER (OLD DESIGN)	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
17	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
18	BATTERY CABLE	84-88439A4
19	HARNESS ( LEAD HAS RING TERMINAL) (GRAY)	84-19061A4
19	HARNESS ( LEAD HAS BULLET CONNECTOR) (GRAY)	84-19061A4
20	GROMMET	25-813741
21	SOLENOID (DESIGN I)	89-8M0185149
22	NUT	11-26419
23	WASHER	13-26992
24	NUT (1/4-20)	11-64015
25	WASHER	12-4002314
26	CABLE (9-1/4")	84-79139A24
27	CABLE (7")	84-88807A31
28	CABLE (96")	84-88439A9
29	COVER	814795T
30	SCREW (5MM)	10-40007107
31	SCREW (8MM)	10-40011149
32	OIL WARNING MODULE Comment: (SERIAL 0A000000-0G116484)	14857A16
32	OIL WARNING MODULE Comment: (SERIAL 0G116485-0Z999999)	14857A16
33	SCREW	10-40011109
34	SOLENOID Comment: (DESIGN II)	89-8M0185147
35	BUSHING Comment: (DESIGN II)	23-8M0214955
36	GROMMET Comment: (DESIGN II)	25-818967
37	SCREW (30MM) Comment: (DESIGN II)	10-40011110
38	SCREW (5MM)	10-400039
39	VOLTAGE REGULATOR	8M0084173	883072T, 854515T 1
40	CABLE	84-813524A2
41	SPEED LIMITER Comment: (MARATHON 60)	821889A31	821889A12, 816392A 2, 821889A 8 (MARATHON 60)
42	ADAPTOR HARNESS Comment: (MARATHON 60)	84-823147A6

ELECTRICAL COMPONENTS (55)

Below is the parts list for Mercury 50 (3 CYL.) ELECTRICAL COMPONENTS (55):

Position No.	Part Name	OEM Number	Supersedes
1	ELECTRICAL PLATE Comment: (W/ 6MM SCREW HOLES)	19745A8
2	RETAINING PLATE	814674A1
3	SCREW Comment: (6MM)	10-8240631
4	SCREW Comment: (6MM)	10-824063
3	SCREW (M5 X .8 X 13) Comment: (5MM)	10-40011106
4	SCREW (M5 X .8 X 25) Comment: (5MM)	10-40011109
5	IGNITION COIL Comment: (SERIAL 0A000000-0G116484)	339-832757A4
5	IGNITION COIL Comment: (SERIAL 0G116485-0Z999999)	339-832757A4
6	CABLE (3-1/2")	84-88807A6
7	NUT (10-32)	11-45076
8	SPARK PLUG LEAD KIT	84-821945A52	84-813706A52
9	SPARK PLUG (NGK #BU8H)	33-13686Q
9	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	33-896329885
9	SPARK PLUG (NGK #BP8H-N-10)	33-816737Q	33-816737 2
9	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	33-938
10	SWITCH BOX	19052A8
11	BOOT	813643
12	SCREW	10-40007106
13	GROMMET	25-813742
14	PLUG	19-816031
15	GROMMET	25-813741
16	COVER	814795T
17	TERMINAL BLOCK	17602T02
18	SCREW	10-40011149
19	REV LIMITER	821889A31	821889A12, 816392A 2, 821889A 8
-	ADAPTOR HARNESS (3-1/2")	84-11149A10
-	ADAPTOR HARNESS (15")	84-823147A6
20	SCREW	10-40011109
21	SCREW	10-40007107

EXHAUST PLATE

Below is the parts list for Mercury 50 (3 CYL.) EXHAUST PLATE:

Position No.	Part Name	OEM Number	Supersedes
1	EXHAUST PLATE ASSEMBLY	19653T2
-	CHECK VALVE	21-817519A1
2	DOWEL PIN	17-23784
3	UPPER MOUNT	1400-8M4501491	8M0021336, 881899, 812893T, 812893
4	SCREW	10-40011153
5	SCREW	10-898835001	10-42973
6	WASHER	12-32834
7	WASHER	12-8M0204648
8	NUT	11-896963	11-859129, 11-90099
9	SCREW	10-40011158
10	GASKET	27-8M0000820	27-812866
11	BUSHING	23-48237
12	SHIFT SHAFT (UPPER)(SHORT)	815639A2
12	SHIFT SHAFT (UPPER)(LONG - 50/60)	812891A1
12	SHIFT SHAFT (UPPER)(LONG - 55)	815639A1
12	SHIFT SHAFT (60 PONTOON - ELECTRIC)	812891A3
12	SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)	815639A3
13	SHIFT LINK Comment: (USE WITH WAVE WASHER)	812872A1
14	BUSHING Comment: (USE WITH WAVE WASHER)	23-42994
15	WAVE WASHER Comment: (USE WITH WAVE WASHER)	13-29720
16	WASHER Comment: (USE WITH WAVE WASHER)	12-24664
13	SHIFT LINK Comment: (USE W/O WAVE WASHER)	812872A1
14	BUSHING Comment: (USE W/O WAVE WASHER)	23-48475
17	NUT	11-401386
18	WATER TUBE (SHORT)	32-8M0042795	32-881200 2
18	WATER TUBE (LONG)	32-8M0042794	32-881200 1
19	GROMMET	25-93221002
20	EXHAUST TUBE	8M0045214	19655 1
21	SCREW	10-40011153
22	SEAL	812886001	812886
23	CLAMP	99019
24	SEAL (UPPER)	42941001
25	SCREW	10-40011155
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91

EXTENSION COMPONENTS

Below is the parts list for Mercury 50 (3 CYL.) EXTENSION COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	SPACER (BLACK) Comment: 55	816696A3
1	SPACER (GRAY) Comment: 55	816696A4
1	SPACER (TRACKER) Comment: 55	816696A5
1	SPACER (BLACK) Comment: 60	816696T5
1	SPACER (GRAY) Comment: 60	816696T6
2	DOWEL PIN	17-43044
3	DOWEL PIN	17-8M0084244	17-43043
4	WATER TUBE	817401A1
5	SEAL (OLD DESIGN)	26-38970
6	SEAL	26-821093
7	O-RING	25-8M0204645
8	WASHER	12-8M0214963
9	NUT	11-40140
10	STUD	16-8M0034425

FLYWHEEL (55)

Below is the parts list for Mercury 50 (3 CYL.) FLYWHEEL (55):

Position No.	Part Name	OEM Number
1	FLYWHEEL	261-9008A48
2	NUT	11-42979
3	WASHER	12-33001
4	STATOR	398-832074A4
5	SCREW	10-4013930
6	TRIGGER	99021A16

FLYWHEEL AND STARTER MOTOR (50/60)

Below is the parts list for Mercury 50 (3 CYL.) FLYWHEEL AND STARTER MOTOR (50/60):

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL PLUG	19-89219001
2	FLYWHEEL COVER Comment: DESIGN II	812777T1
3	TIMING MARKER Comment: DESIGN I	79022
4	SCREW Comment: DESIGN I	10-37572
5	WASHER Comment: DESIGN I	12-72761
6	NUT	11-42979
7	WASHER	12-33001
8	FLYWHEEL	261-9008A50
9	STATOR (STAMPED 398-9710A22)	398-9873A38
9	STATOR (STAMPED 398-9710A23)	398-9873A35
9	STATOR (STAMPED 398-9710A34)	398-832075A19	398-832075A13, 398-9710A36
10	SCREW	10-4013930
11	TRIGGER	99021A16
12	STARTER MOTOR	50-44369A1
13	COLLAR	23-8M0034918	23-8M0001391, 56703
14	STOP	8M0043376	68042
15	WIRE	84-88807A31
16	SCREW	10-69035
17	LOCKWASHER	13-26992
18	NUT	11-64015

FUEL PUMP (55/60 SEAPRO/MARATHON)

Below is the parts list for Mercury 50 (3 CYL.) FUEL PUMP (55/60 SEAPRO/MARATHON):

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	RUBBER CHECK VALVE	NSS
4	CHECK VALVE	NSS
5	RETAINER	NSS
6	SPRING	NSS
7	CAP	NSS
8	SPRING	NSS
9	CAP	NSS
10	DIAPHRAGM	NSS
11	GASKET	27-8M0204705
12	GASKET, BOOST	NSS
13	GASKET, PULSE	NSS
14	PLATE	987752
15	FITTING	22-433351
17	SCREW, FUEL PUMP	10-82104540
17	SCREW, FUEL PUMP TO CRANKCASE	10-81754150
18	BASE	144303
19	HOSE	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
20	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
21	HOSE	32-830768	32-818984
22	HOSE (4-1/4")	32-9912878
23	FUEL FILTER	35-891642T03	35-87946T14, 35-87946T16
24	BRACKET	8170281
25	NUT	11-401196
26	TEE FITTING	22-59169003
27	HOSE	32-892024122	32-99130122
28	PRIMER BULB	858763	816877 3
29	FUEL CONNECTOR	22-816856T01	22-816856A 1
30	SCREW	10-4000332
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	DIAPHRAGM KIT	21-857005A1

FUEL PUMP (BLACK 50/60)

Below is the parts list for Mercury 50 (3 CYL.) FUEL PUMP (BLACK 50/60):

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	RUBBER CHECK VALVE	NSS
4	CHECK VALVE	NSS
5	RETAINER	NSS
6	SPRING	NSS
7	CAP	NSS
8	SPRING	NSS
9	CAP	NSS
10	DIAPHRAGM	NSS
11	GASKET	27-8M0204705
12	GASKET, BOOST	NSS
13	GASKET, PULSE	NSS
14	PLATE	987752
15	FITTING	22-433351
17	SCREW, FUEL PUMP	10-82104540
17	SCREW, FUEL PUMP TO CRANKCASE	10-82130050
18	BASE	144303
19	HOSE	32-830767	32-816865
20	FUEL FILTER	35-816296Q2
21	FUEL LINE	32-830761	32-19723
22	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
23	HOSE	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
24	TEE	22-818993
25	CHECK VALVE	22-8189941
26	FUEL CONNECTOR	22-816856T01	22-816856A 1
27	SCREW	10-4000332
28	HOSE (4-1/4")	32-9912878
29	SOLENOID VALVE	89-819503A5
30	HOSE	32-9912688
31	TEE FITTING	22-59169003
32	HOSE	32-892024122	32-99130122
33	CLAMP	54-633001
34	SCREW	10-4006731
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	DIAPHRAGM KIT	21-857005A1

FUEL PUMP (WHITE OR RED)

Below is the parts list for Mercury 50 (3 CYL.) FUEL PUMP (WHITE OR RED):

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	RUBBER CHECK VALVE	NSS
4	CHECK VALVE	NSS
5	RETAINER	NSS
6	SPRING	NSS
7	CAP	NSS
8	SPRING	NSS
9	CAP	NSS
10	DIAPHRAGM	NSS
11	GASKET	27-8M0204705
12	PLATE	98775A7
13	PIPE PLUG	22-56800
14	FITTING	22-19688A1
15	SCREW (40MM)	10-82104540
15	SCREW (50MM)	10-40057134
16	BASE	144303
17	HOSE	32-830767	32-816865
18	FUEL FILTER	35-816296Q2
19	FUEL LINE	32-830761	32-19723
20	HOSE	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
21	TEE	22-13773
22	STA-STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
23	FUEL CONNECTOR	22-816856T01	22-816856A 1
24	SCREW	10-4000332
25	HOSE (4-3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
26	FITTING (90_)	22-19688
27	SOLENOID VALVE	89-819503A5
28	CLAMP	54-633001
29	SCREW	10-4006731
30	HOSE	32-1430165
31	TEE FITTING	22-59169003
32	HOSE	32-892024122	32-99130122
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	DIAPHRAGM KIT	21-857005A1

GEAR HOUSING (DRIVE SHAFT)

Below is the parts list for Mercury 50 (3 CYL.) GEAR HOUSING (DRIVE SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING (SHORT) (BLACK)	1671-9760T23
-	GEAR HOUSING (SHORT) (GRAY)	1671-9760A24
-	GEAR HOUSING (LONG) (TRACKER)	1671-9760T27
-	GEAR HOUSING (LONG) (BLACK)	1671-9760T25
-	GEAR HOUSING (LONG) (GRAY)	1671-9760T26
-	GEAR HOUSING (X-LONG) (BLACK)	1671-9760T28
-	GEAR HOUSING (X-LONG) (GRAY)	1671-9760T29
1	GEAR HOUSING (BLACK)	1671-9760T42
1	GEAR HOUSING (GRAY)	1671-9760T31
1	GEAR HOUSING (TRACKER)	1671-9760T32
2	DRAIN SCREW	22-8M0058389	22-67892A06
3	SCREW	10-79953Q04
4	WASHER-SEALING	12-191833
5	DOWEL PIN	17-8M0084244	17-43043
6	DOWEL PIN	17-43044
7	PIPE PLUG	22-56800
8	ROLLER BEARING	31-812768
8A	SEAL KIT	818226A1
9	PINION GEAR	43-813694T	43-813694
10	NUT	11-55910
11	SHIFT SHAFT ASSEMBLY (SHORT/LONG)	812732A1
11	SHIFT SHAFT (X-LONG)	815420
12	RETAINING RING	53-29641
13	BUSHING ASSEMBLY	23-813696A2
14	O-RING	25-45258
15	OIL SEAL	26-8M0204708
16	DRIVE SHAFT (SHORT)	45-815422
16	DRIVE SHAFT (LONG)	45-812731	45-813083
16	DRIVE SHAFT (X-LONG)	45-815421	45-815424
17	SHIM SET	15-812770A1
18	TAPERED ROLLER BEARING	31-8M0166756
19	NUT	11-8128201
20	WATER PUMP BASE	46-812966A7
21	O-RING	25-8M0204651
22	OIL SEAL	26-814669
23	OIL SEAL	26-814670
24	FACE PLATE	19700A2
25	IMPELLER	47-19453T
26	KEY	28-8M0032831	28-19699
27	WATER PUMP	46-812966A12
28	GASKET (LOWER)	27-8M0224241
29	GASKET (UPPER)	27-194541
30	SEAL (SHORT/LONG)	8M0204658
31	SCREW	10-8248324
33	INSULATOR	23-8M0204659
34	INSULATOR	19452
35	SHIFT CAM	760394
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	W/P REPAIR KIT	46-812966A12
-	W/P SEAL KIT Comment: CONTENTS INDICATED BY FOOTNOTE #6	26-814669A2

GEAR HOUSING (PROPELLER SHAFT)

Below is the parts list for Mercury 50 (3 CYL.) GEAR HOUSING (PROPELLER SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING (SHORT) (BLACK)	1671-9760T23
-	GEAR HOUSING (SHORT) (GRAY)	1671-9760A24
-	GEAR HOUSING (LONG) (TRACKER)	1671-9760T27
-	GEAR HOUSING (LONG) (BLACK)	1671-9760T25
-	GEAR HOUSING (LONG) (GRAY)	1671-9760T26
-	GEAR HOUSING (X-LONG) (BLACK)	1671-9760T28
-	GEAR HOUSING (X-LONG) (GRAY)	1671-9760T29
1	GEAR HOUSING (BLACK)	1671-9760T42
1	GEAR HOUSING (GRAY)	1671-9760T31
1	GEAR HOUSING (TRACKER)	1671-9760T32
36	SHIM SET	15-812769A1
37	TAPERED ROLLER BEARING	31-8M0103476	31-812767A 1
38	FORWARD GEAR	43-813693T1
39	ROLLER BEARING	31-21739
40	CAM FOLLOWER	8129291
41	SLIDE	20843
42	SPRING	24-38114
43	CLUTCH	52-813697T	52-813697
44	CROSS PIN	17-8M0020942	17-38113
45	SPRING	24-815418
46	PROPELLER SHAFT	44-14493
47	REVERSE GEAR	43-813695T	43-813695
48	BALL BEARING	30-20839T
49	BEARING CARRIER ASSEMBLY	8M0168900
50	O-RING	25-815460
51	ROLLER BEARING	31-21700
52	OIL SEAL	26-8M0205511
53	OIL SEAL	26-8M0203757
54	SCREW Comment: (DESIGN II)	10-4000353
54A	TAB WASHER Comment: (DESIGN II)	14-826613
54	SCREW Comment: (DESIGN I)	10-8136911
55	TRIM TAB	17264T2
56	SCREW	10-4000377
57	WASHER	12-8M0214963
58	THRUST HUB	73345A1
59	TAB WASHER	14-8M0214942
60	PROPELLER NUT	11-69578Q1
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	W/P SEAL KIT	26-814669A2

GEAR HSG (DR/ SHAFT)(BIGFOOT)(SEAPRO/MARATHON/PONTOON)

Below is the parts list for Mercury 50 (3 CYL.) GEAR HSG (DR/ SHAFT)(BIGFOOT)(SEAPRO/MARATHON/PONTOON):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING (LONG) (BLACK)	1667-9011G92
-	GEAR HOUSING (LL) (BLACK)	1667-9011G94
-	GEAR HOUSING (LONG) (GRAY)	1667-9011G96
-	GEAR HOUSING (LL) (GRAY)	1667-9011G48
1	GEAR HOUSING ASSEMBLY (BLACK)	1667-9011T73
1	GEAR HOUSING ASSEMBLY (GRAY)	1667-9011T74
2	DOWEL PIN (FRONT)	17-8M0084244	17-43043
3	OILER TUBE	43046
5	DRAIN SCREW	10-79953Q04
6	SCREW (MAGNETIC)	22-8M0058389	22-67892A06
7	WASHER-SEALING	12-191833
8	DOWEL PIN (REAR)	17-43044
9	TRIM TAB	97-31640Q4
10	SCREW	10-825427	10-15942
11	WASHER	12-45176
12	CARRIER	43040T1
12A	ANODE	97-826134Q	826134, 826134A 1
12B	NUT	11-401386
12C	SCREW	10-4000333
13	PINION GEAR	43-44484T
14	NUT	11-35921
15	SHIFT CAM	760394
16	TAPERED ROLLER BEARING	31-42677A1
17	SHIM ASSEMBLY	15-44492A1
18	DRIVE SHAFT ASSEMBLY (LONG)	45-826736A1
18	DRIVE SHAFT ASSEMBLY (X-LONG)	45-826737A1
19	WEAR SLEEVE ASSEMBLY	42461A1
20	COVER ASSEMBLY	43055A4
21	GASKET	27-430331
22	GASKET	27-8M0214931
23	OIL SEAL (LOWER)	26-43036
24	OIL SEAL (UPPER)	26-43035
25	GASKET	27-8172771
26	WATER PUMP ASSEMBLY	817275A2
27	FACE PLATE	8M0204709
28	SCREW (M6 X 1 X 30)	10-8M0214957
29	COUPLING (LONG)	826763A1
29	COUPLING (LL)	826762A1
32	KEY	28-8M0204723
33	IMPELLER	47-43026T2
34	SCREW	10-8248326
36	SHIFT SHAFT ASSEMBLY (LONG)	43048A1
36	SHIFT SHAFT ASSEMBLY (LL)	430482
37	E-RING	53-29641
38	BUSHING ASSEMBLY	23-43052A4
39	O-RING	25-8M0204681
40	OIL SEAL	26-8M0204708
41	SCREW (M6 X 1)	10-8248326
-	WATER PUMP REPAIR KIT	46-8M0113799
-	G/H SEAL KIT	26-43035A4

GEAR HSG (PROP SHAFT)(BIGFOOT)(SEAPRO/MARATHON/PONTOON)

Below is the parts list for Mercury 50 (3 CYL.) GEAR HSG (PROP SHAFT)(BIGFOOT)(SEAPRO/MARATHON/PONTOON):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING (LONG) (BLACK)	1667-9011G92
-	GEAR HOUSING (X-LONG) (BLACK)	1667-9011G94
-	GEAR HOUSING (LONG) (GRAY)	1667-9011G96
-	GEAR HOUSING (X-LONG) (GRAY)	1667-9011G48
1	GEAR HOUSING ASSEMBLY (BLACK)	1667-9011T73
1	GEAR HOUSING ASSEMBLY (GRAY)	1667-9011T74
42	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
43	FORWARD GEAR	43-12634T02
44	ROLLER BEARING	31-30895T
45	CAM FOLLOWER ASSEMBLY	850315A1
45A	BALL	30-44530
46	SPRING	24-30622
47	CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
48	CROSS PIN	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
49	SPRING	24-30893
50	PROPELLER SHAFT	44-12238T
51	REVERSE GEAR	43-12635T
52	BEARING CARRIER ASSEMBLY	8M0168901
53	O-RING	25-8M0214974
54	ROLLER BEARING	31-30956T
55	OIL SEAL (INNER)	26-8M0204670
56	OIL SEAL (OUTER)	26-8M0205729
57	ROLLER BEARING	31-12578T
58	THRUST WASHER	12-12577
59	THRUST BEARING	31-12576
60	SCREW	10-4000354
61	WASHER	12-4002317
62	SHIM ASSEMBLY	15-44491A1
63	THRUST HUB ASSEMBLY	13191Q01
64	TAB WASHER	14-816629Q	14-816629, 14-31210, 14-816629B
65	PROPELLER NUT ASSEMBLY	11-52707Q1
-	G/H SEAL KIT	26-43035A4

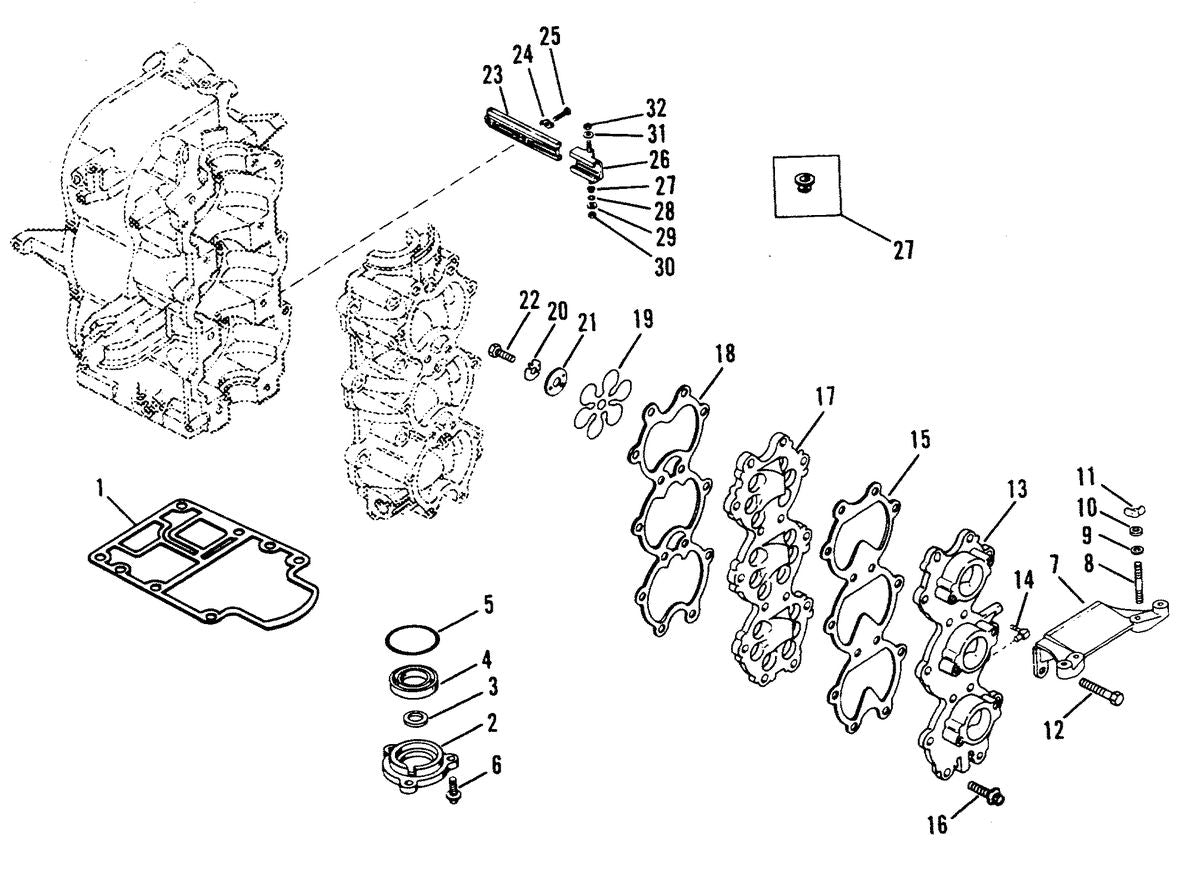

INDUCTION MANIFOLD AND REED BLOCK

Below is the parts list for Mercury 50 (3 CYL.) INDUCTION MANIFOLD AND REED BLOCK:

Position No.	Part Name	OEM Number	Supersedes
1	GASKET	27-8M0000822	27-828553, 27-812865, 27-822420
2	LOWER END CAP ASSEMBLY	1171-9812T9
3	OIL SEAL	26-66301
4	OIL SEAL	26-41953
5	O-RING	25-8M0142854
6	SCREW	10-81742720
7	BRACKET ASSEMBLY	19077A3
8	STUD	16-8161949
9	WASHER Comment: 50/60	12-8M0204663
10	WASHER Comment: 50/60	12-69056
11	WING NUT Comment: 50/60	11-816872
12	SCREW	10-82127335
13	INDUCTION MANIFOLD	19076A3
14	ELBOW (QTY. OF 2 ON 55)	22-19725
15	GASKET	27-812869
16	SCREW	10-81742730
17	REED BLOCK ASSEMBLY	8M0219197
18	GASKET	27-812868
19	REED SET (0.008 THICK)	34-812880A03	34-812880A 1, 34-812880A 2
19	REED SET (0.010 THICK)	34-812880A03	34-812880A 1, 34-812880A 2
20	TAB WASHER	14-429821
21	RETAINER	812879002	812879 1
22	SCREW	10-4000171
23	SHIFT RAIL	42881A1
24	TAB WASHER	14-42981
25	SCREW	10-40001134
26	SLIDE	988851
27	NYLINER (DESIGN II)	23-48475
27	BUSHING Comment: DESIGN I	23-42994
28	WAVE WASHER Comment: DESIGN I	13-29720
29	WASHER Comment: DESIGN I	12-24664
30	NUT	11-401386
31	WASHER	12-35459
32	NUT	11-401386
-	PLUG (FOR USE ON INDUCTION MANIFOLD)	22-15026
-	ENGINE GASKET SET	27-812867A97	27-812867A96, 27-812867A91
-	POWERHEAD ASSEMBLY COMPLETE (50) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811208T91	811208A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (55) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	821744T92	821744A92 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (60) Comment: (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)	811209T91	811209A91 (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
-	POWERHEAD ASSEMBLY COMPLETE (ALL) Comment: (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)	811209T93	811209A93 (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)

JET COMPONENTS

Below is the parts list for Mercury 50 (3 CYL.) JET COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	REV LIMITER	821889T24	821889A24, 821889A18
2	HARNESS-ADAPTOR-REV LIMITER	84-823147A4
3	BRACKET	826579
4	SCREW (M6 X 16)	10-4006731
5	SCREW (M5 X 25)	10-40011109
6	GREASE KIT	91-30500A2
24	FACE PLATE	19700A2
25	IMPELLER	47-19453T
26	KEY	28-8M0032831	28-19699
27	WATER PUMP	46-812966A12
29	GASKET (UPPER)	27-194541
30	SEAL	8M0204658
31	SCREW	10-8248324
33	INSULATOR	23-8M0204659
34	INSULATOR	19452
-	WATER PUMP REPAIR KIT	46-812966A12
-	WATER PUMP SEAL KIT	26-814669A2

JET PUMP ASSEMBLY

Below is the parts list for Mercury 50 (3 CYL.) JET PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	JET PUMP ASSEMBLY (BLACK)	8M0230714
-	JET PUMP ASSEMBLY(GRAY)	8M0230714
1	HOUSING-PUMP	801411T60	801411 60
1A	HOSE-LUBE	32-827490
2	IMPELLER	47-8M0230713
3	HOUSING-INTAKE	80141260
3A	LINER	8271882
4	DRIVESHAFT	45-80141360
4A	SLEEVE	23-8271891
4B	NUT	11-8271901
5	KEY	28-801405875
6	SHIM	15-801404875
7	TAB WASHER	14-801403875
8	SCREW (.312-18 X .88)	10-818146
9	SCREW (1/4-20 X .875)	10-19923088
10	SCREW (1/4-20 X .625)	10-19923062
11	SCREW (.312-18 X 1.25)	10-60411
12	BRACKET	801410
13	NUT	11-82670910
14	PIN-DOWEL	17-801407
15	SCREW (M10 X 60)	10-4010860
16	SCREW (M10 X 90)	10-4010890
17	SCREW (M10 X 70)	10-4010870
18	SCREW (.375-16 X .75)	10-95802
19	WASHER	12-8M0214963

MANUAL TILT COMPONENTS

Below is the parts list for Mercury 50 (3 CYL.) MANUAL TILT COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	SHOCK ROD ASSEMBLY KIT	8M0118572
2	CYLINDER END CAP	813428
3	SHOCK PISTON	8134291
4	CYLINDER REBUILD KIT	813432A2
5	MEMORY PISTON KIT	810776
6	CYLINDER KIT Comment: (DESIGN I)	810777	813431 (DESIGN I)
6	CYLINDER KIT Comment: (DESIGN II/III)	893918A01	811224A 1 (DESIGN II/III)
7	SCREW AND SEAL KIT, CYLINDER	893919A01	813433A 2
8	ACCUMULATOR	893920A01	813454A 2
9	VALVE BLOCK ASSEMBLY	893921A01	813455T 4
10	REPAIR KIT Comment: (DESIGN I/II)	813456A4
11	PLUG KIT Comment: (DESIGN I/II)	22-813458
10	REPAIR KIT Comment: (DESIGN III)	813456A4
11	PLUG KIT Comment: (DESIGN III)	22-813458A2
12	CAM KIT	813457A1
13	PLUG KIT	22-813459
14	PIN	17-19607
15	GROOVE PIN	17-821539	17-13794, 17-19603
-	TRIM PUMP - COMPLETE Comment: (INCLUDES ALL PARTS ON THIS PAGE)	8M0118570

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 50 (3 CYL.) MISCELLANEOUS PARTS/ACCESSORIES:

Part Name	OEM Number	Supersedes
PARTS LIST	90-81735291
TOOL KIT (55)	56-817383A1
DECAL SET (50) (BLACK)	37-816939A96	37-816939A94, 37-816939A91
DECAL SET (60) (BLACK)	37-811212A00	37-811212A96, 37-811212A94, 37-811212A91
DECAL SET (60) (BLACK) (SEAPRO) Comment: DESIGN II	37-826313A01	37-826313A95 DESIGN II
DECAL SET (BLACK 60 PONTOON/BIG FOOT)	37-804704A00	37-830163A96
DECAL SET (60) (BLACK) (FORMULA) Comment: DESIGN II	37-824097A95
DECAL SET (50) (GRAY)	37-816940A97	37-816940A94, 37-816940A91
DECAL SET (60) (GRAY)	37-811211A03	37-811211A01, 37-811211A97, 37-811211A94, 37-811211A91
DECAL SET (60 MAGNUM III) (GRAY) Comment: DESIGN II	37-824098A95
DECAL SET (55) (BLACK)	37-821573A01	37-821573A95, 37-821573A92
DECAL SET (55) (GRAY)	37-8588371
DECAL SET (TRACKER) Comment: DESIGN II	37-824733A94
DECAL SET (MARATHON 60) Comment: DESIGN II	37-8588372
DECAL SET (JET 45) (BLACK) Comment: DESIGN II	37-826325A00	37-826325A96, 37-826325A95 DESIGN II
DECAL SET (JET 45) (GRAY) Comment: DESIGN II	37-826326A01	37-826326A97, 37-826326A95 DESIGN II
OWNERS GUIDE (50/60) (BLACK) Comment: DESIGN II	90-814319950
OWNERS GUIDE (55) (BLACK) Comment: DESIGN II	90-821732950
OWNERS GUIDE (50/60) (GRAY) Comment: DESIGN II	90-816763950
OWNERS GUIDE (55) (GRAY) Comment: DESIGN II	90-821733950
OWNERS GUIDE (JET 45) Comment: DESIGN II	90-826596950

OIL INJECTION COMPONENTS

Below is the parts list for Mercury 50 (3 CYL.) OIL INJECTION COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	OIL TANK Comment: (DESIGN I USE WITH REF. #3)	1263-812718T1
2	CAP ASSEMBLY Comment: (DESIGN I USE WITH REF. #3)	36-19070A2
3	O-RING Comment: (DESIGN I USE WITH REF. #3)	25-90186
4	SEAL Comment: (DESIGN I USE WITH REF. #3)	8160661
1	OIL TANK KIT Comment: (DESIGN II USE WITHOUT REF. #3)	1263-812718T1
2	CAP ASSY. Comment: (DESIGN II USE WITHOUT REF. #3)	36-828765A2
4	SEAL Comment: (DESIGN II USE WITHOUT REF. #3)	8M0039080	816066 2 (DESIGN II USE WITHOUT REF. #3)
5	VENT	19299A1
6	VALVE	21-64871
7	GROMMET	25-813644
8	BOOT	813649
9	BOOT	8M0039085	812890
10	SWITCH	87-12886A6
11	SCREW	10-58376
12	OIL INJECTION PUMP Comment: SERIAL (#0D181999 & BELOW)	812690A1
12	OIL INJECTION PUMP Comment: SERIAL (#0D182000 & UP)	818902A1
13	O-RING	25-8M0204667
14	O-RING	25-36390
15	SCREW	10-40011108
16	DRIVEN GEAR	43-19277
17	BEARING ASSEMBLY	23-19278A2
18	HOSE	32-82381335
19	WASHER	12-72761
20	LINK Comment: SERIAL (#0D182000 & UP)	821287

POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)

Below is the parts list for Mercury 50 (3 CYL.) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	SHOCK ROD ASSEMBLY KIT	813427
2	CYLINDER END CAP ASSEMBLY	813428
3	SHOCK PISTON ASSEMBLY	813429
4	CYLINDER REBUILD KIT	813432A3
5	MEMORY PISTON KIT	810776
6	CYLINDER KIT Comment: (DESIGN I)	810777	813431 (DESIGN I)
7	SCREW AND SEAL KIT Comment: (DESIGN I)	893919A01	813433A 2 (DESIGN I)
8	PUMP Comment: (DESIGN I)	811227	813440 (DESIGN I)
9	MANIFOLD ASSEMBLY Comment: (DESIGN I)	813441
6	CYLINDER KIT Comment: (DESIGN II)	893904T01	811228A 1 (DESIGN II)
7	SCREW AND SEAL KIT Comment: (DESIGN II)	811678A6
8	PUMP Comment: (DESIGN II)	811227	813440 (DESIGN II)
9	MANIFOLD ASSEMBLY Comment: (DESIGN II)	811225
10	SCREW KIT	10-813436
11	DRIVE SHAFT	813437
12	SCREW /DOWEL PIN KIT	813438
13	SEAL KIT	25-813439A3
14	RESERVOIR	813434A1
15	PLUG KIT	22-8134351
16	RELIEF VALVE KIT	893929A01	813442A 2
17	WIRING HARNESS	84-811698	84-813443 1
19	RESERVOIR CAP KIT	813445
20	SCREW	10-813446
21	MOTOR KIT	813447	811699
22	END CAP	813448
23	ARMATURE	813449A1
24	THRUST WASHER KIT	12-813450
25	SHELL AND MAGNET KIT	813451
26	END FRAME KIT	813452
27	BOLT AN D NUT KIT	10-813453
28	PIN	17-19607
29	GROOVE PIN	17-821539	17-13794, 17-19603
-	TRIM PUMP - COMPLETE Comment: (INCLUDES ALL PARTS ON THIS PAGE)	854472A3

POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)

Below is the parts list for Mercury 50 (3 CYL.) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP):

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM PUMP	830150T2
1	SHOCK ROD KIT	893943A01	855833A 1
2	CYLINDER END CAP	813428
3	SHOCK PISTON	813429
4	CYLINDER REBUILD KIT	813432A3
5	MEMORY PISTON KIT	810776
6	CYLINDER KIT	893904T01	811228A 1
7	SCREW AND SEAL KIT	811678A6
8	PUMP/MANIFOLD	8116706
8A	ROCKER ARM	823180A1
9	SCREW KIT	10-813436
10	DRIVE SHAFT	811671
11	SEAL KIT	25-811672A4
12	RESERVOIR	811673
13	PLUG KIT	22-8134351
14	RELIEF VALVE KIT	893929A01	813442A 2
15	RESERVOIR CAP KIT	811677
16	SCREW	10-813446
17	RESERVOIR/MOTOR	811674
18	ARMATURE	811675
19	THRUST WASHER KIT	12-811676
20	ANCHOR PIN	17-19607
21	GROOVE PIN	17-821539	17-13794, 17-19603
22	PIN	17-822869001	17-822869

STARTER ASSEMBLY (MANUAL)(55)

Below is the parts list for Mercury 50 (3 CYL.) STARTER ASSEMBLY (MANUAL)(55):

Position No.	Part Name	OEM Number	Supersedes
1	STARTER HOUSING	816728T05	816728 5
2	REST	8167652
3	SEAL	8M0043161	813607 2
4	SCREW	10-82170475
5	SPACER	23-821702
6	BUSHING	23-816086
7	GROMMET	25-815795
8	WASHER	12-69057
9	NUT	11-401196
10	INTERLOCK CABLE	8567541
11	SCREW	10-8214281
12	WASHER	12-73288
13	COTTER PIN	18-26811
14	SCREW	10-878608	10-812832
15	PUSH NUT (DESIGN I)	11-821027	F2133
15A	COTTER PIN (DESIGN II)	18-26811
15B	WASHER (DESIGN II)	12-35462
-	RECOIL STARTER (S/N 0G239163 & BELOW)	816728T14	816728A14, 816728A12, 816728A11, 816728A10, 816728A 9
-	RECOIL STARTER (S/N 0G239164 & ABOVE)	816728T14	816728A14, 816728A12, 816728A11, 816728A10, 816728A 9
16	SPRING	24-826791	24-816718 1
17	INTERLOCK LEVER	8166902
18	CAM	816712T01	816712 1
19	RETAINER	816711
20	SCREW	10-8182491
21	FELT PAD (DESIGN I)	833161T	833161, 90478
21A	WASHER - SPRING (DESIGN II)	13-826229
22	SPRING	24-86857T01
23	STARTER SHEAVE	50-825269T01	50-825269A 1
24	SPRING	24-86851T02
25	CAM	868501
26	RETAINING RING	53-86849T01
27	STARTER ROPE	50-12066Q10
28	HANDLE ASSEMBLY	85174A1
29	SPRING	24-868523
30	CAM	86853T01
31	SCREW	10-826253	10-97516, 10-818838
32	BUSHING	8M0183792
33	RETAINING RING	53-818853	53-42689

STARTER MOTOR ASSEMBLY

Below is the parts list for Mercury 50 (3 CYL.) STARTER MOTOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR	50-44369A1
1	DRIVE KIT	90643
2	DRIVE ASSEMBLY	685753
3	DRIVE END PLATE	75660
4	THRU BOLT	10-95686
5	END CAP	75383
6	ARMATURE	11957
7	BRUSH SET	898265016	75384, 75384 1
8	BUSHING	23-57387
9	WASHER (AMER. BOSCH #WA-1728)	NSS
10	LOCKWASHER	13-26992
11	NUT	11-20890
12	BRUSH HOLDER	898265014	61787
13	SCREW (AMER. BOSCH #02441-22-SC-30SM)	NSS

STEERING HANDLE KIT

Below is the parts list for Mercury 50 (3 CYL.) STEERING HANDLE KIT:

Position No.	Part Name	OEM Number	Supersedes
1	STEERING ARM (BLACK) Comment: (DESIGN I)	12020A3
1	STEERING ARM (GRAY) Comment: (DESIGN I)	12020A4
2	BUSHING Comment: (DESIGN I)	23-812930A1
1A	STEERING ARM (BLACK) Comment: (DESIGN II W/CONE PIVOT BUSHING)	12020A3
1A	STEERING ARM (GRAY) Comment: (DESIGN II W/CONE PIVOT BUSHING)	12020A4
2A	BUSHING Comment: (DESIGN II W/CONE PIVOT BUSHING)	23-42992T02
3	HOUSING	48414
4	PLATE	48519
5	GASKET	27-48518
6	SCREW (1/2")	10-878608	10-812832
6	SCREW (3/5")	10-878609	10-812832 1
7	CLAMP	54-889729	54-12013
8	SCREW	10-40007112
9	WING NUT	11-816874	11-73651, 11-816873, 11-90052
10	THROTTLE HANDLE/STOP SWITCH KIT	87-823609A15	87-15823A 6, 96495A 3, 87-15823A 5
11	STOP SWITCH (DESIGN II - W/METAL LOCK RING)	87-8M0104612	87-823609A 5
12	STOP SWITCH (DESIGN I - ORDER KIT 87-823609A15)	NLA
13	SCREW	10-62568
14	GRIP	8M0221732
15	J-CLAMP	54-648551
16	J-CLAMP	54-648551
17	CONDUIT	8885242
18	GUIDE TUBE	8M0026078	89566 1
19	BARREL	89578
20	SET SCREW	10-824081	10-89601
21	CABLE	12019
22	GUIDE	8M0204660
23	ANCHOR	20007
24	SET SCREW	10-8M0204644
25	SCREW	10-823567105	10-817430105
26	CAP	48416
27	WASHER	12-4002319
28	WASHER	12-12024
29	SPACER	23-146011
30	THROTTLE TUBE	12018A4
31	NUT	11-40140
32	BRACKET (CASTING #816366C2) (BLACK)	816366T
32	BRACKET (CASTING #816366C2) (GRAY)	816366T6
32	BRACKET (CASTING #816366C3) (BLACK)	816366T3
32	BRACKET (CASTING #816366C3) (GRAY)	816366F4
33	STUD	16-815802
34	TAB WASHER	14-815806
35	NUT	11-400214
36	STOP HARNESS	84-815851A2
37	CABLE (2-MALE/2-FEMALE CONNECTORS)	84-821028A1
37	CABLE (3-MALE/1-FEMALE CONNECTOR)	84-821028A2
38	PLUG	815803
39	GROMMET	121051
40	COVER	8158041
41	SCREW	10-878608	10-812832
42	HORN	816051A2
43	PLUG	19-889730	19-12014
44	STOP SWITCH	87-11083A4
45	LANYARD	15920Q54
46	RETAINER	8M0032846	12044 1
47	CABLE	84-11149A3
48	STUD	16-8M0034440	16-816560
49	NUT	11-400636
50	SHIFT LEVER (BLACK) Comment: (USE W/SHIFT LEVER CASTING #816367C2)	816367F1
50	SHIFT LEVER (GRAY) Comment: (USE W/SHIFT LEVER CASTING #816367C2)	816367F2
51	SCREW Comment: (USE W/SHIFT LEVER CASTING #816367C2)	10-4000355
52	TAB WASHER Comment: (USE W/SHIFT LEVER CASTING #816367C2)	14-8158051
53	BUSHING Comment: (USE W/SHIFT LEVER CASTING #816367C2)	23-815983
54	WAVE WASHER Comment: (USE W/SHIFT LEVER CASTING #816367C2)	13-86498
50	SHIFT LEVER (BLACK) Comment: (USE W/SHIFT LEVER CASTING #816367C3)	816367F5
50	SHIFT LEVER (GRAY) Comment: (USE W/SHIFT LEVER CASTING #816367C3)	816367F6
51	SCREW Comment: (USE W/SHIFT LEVER CASTING #816367C3)	10-4000357
52	TAB WASHER Comment: (USE W/SHIFT LEVER CASTING #816367C3)	14-8158051
53	BUSHING Comment: (USE W/SHIFT LEVER CASTING #816367C3)	23-8159831
54	WASHER, BELLEVILLE Comment: (USE W/SHIFT LEVER CASTING #816367C3)	12-823970
54	WASHER, PLASTIC Comment: (USE W/SHIFT LEVER CASTING #816367C3)	12-824610
55	WASHER	12-814803	12-93853
56	SHIFT ROD	495636
57	ROD END	48419T
58	BUSHING	23-26856
59	WASHER	12-35950
60	COTTER PIN	18-25191
61	DETENT ASSEMBLY	12016A2
62	STUD	16-8M0034452	16-58152
63	KNOB	98530
64	CO-PILOT LEVER	816416A3
65	CO-PILOT DRIVER	816564
66	WASHER	12-816576
67	BRAKE (REPLACED BY REF. #64)	NLA
68	BRAKE DISC	8165621
69	ARM (TOP)	816413
70	ARM (BOTTOM)	816414
71	KNOB (ORDER REF. #64)	NLA
72	SCREW	10-4000350
73	HARNESS ASSEMBLY	84-12649A4
74	KEY SWITCH (SEE BELOW FOR KEYS)	87-88107A5
75	NUT	11-879755	11-93543
76	TRIM SWITCH	87-14645A4
77	NUT	49440
78	SWITCH ASSEMBLY	87-8M0052927	87-813960A 3
79	SCREW	10-12110
80	WASHER	12-823933
81	CLAMP	54-648552
82	SCREW	10-878608	10-812832
-	KEY 1A	894911
-	KEY 1B	894912
-	KEY 1C	894913
-	KEY 1D	894914
-	KEY 1E	894915
-	KEY 1F	894916
-	KEY 2A	894917
-	KEY 2B	894918
-	KEY 2C	894919
-	KEY 2D	8949110
-	KEY 2E	8949111
-	KEY 2F	8949112

SWIVEL BRACKET (S/N: 0D181999 AND BELOW)

Below is the parts list for Mercury 50 (3 CYL.) SWIVEL BRACKET (S/N: 0D181999 AND BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET (SHORT) (BLACK)	3511-814690A1
1	SWIVEL BRACKET(SHORT) (GRAY)	3511-814690A2
1	SWIVEL BRACKET (LONG) (BLACK)	3511-815556A1
1	SWIVEL BRACKET (LONG) (GRAY)	3511-815556A2
2	BEARING	23-821124	23-19622
3	OIL SEAL	26-32911
4	BEARING	23-19606
5	GREASE FITTING	22-8M0169589
6	WASHER	12-52865
7	BOTTOM YOKE (BLACK)	19654T1
7	BOTTOM YOKE (GRAY)	19654T7
8	RETAINING RING	53-77415
9	SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10) Comment: 1 PIECE	NLA
9	SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10) Comment: 1 PIECE	NLA
10	SWIVEL PIN (SHORT) (BLACK)	17-812897A19	17-812897A 7
10	SWIVEL PIN (SHORT) (GRAY)	17-812897A20	17-812897A 8
10	SWIVEL PIN (BLACK) Comment: (2 PIECE - LONG)	17-812896A22	17-812896A14, 17-812896A 7 (2 PIECE - LONG)
10	SWIVEL PIN (GRAY) Comment: (2 PIECE - LONG)	17-812896A23	17-812896A15, 17-812896A 8 (2 PIECE - LONG)
11	BRACKET (BLACK) Comment: (50/60)	8M0184092
11	BRACKET (GRAY) Comment: (50/60)	8M0184092
12	STRAP Comment: (50/60)	14-8M0009820	14-816669F 1 (50/60)
13	SCREW Comment: (50/60)	10-4000377
14	LINK ROD (STARBOARD) Comment: (50/60)	19608A14
14	LINK ROD (PORT) Comment: (50/60)	19609A6
15	SCREW Comment: (50/60)	10-856680	10-90041 (50/60)
16	WASHER Comment: (50/60)	12-8M0109680
17	NUT Comment: (50/60)	11-8M0204726
18	WASHER Comment: (50/60)	12-34931
19	WASHER	12-52865
20	ROLL PIN Comment: (55)	17-823876	17-88192 (55)

SWIVEL BRACKET (S/N: 0D182000 AND UP)

Below is the parts list for Mercury 50 (3 CYL.) SWIVEL BRACKET (S/N: 0D182000 AND UP):

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET(SHORT) (BLACK)	3400-8M0084208	3417-822864A 1
1	SWIVEL BRACKET(SHORT) (GRAY)	3417-822864A2
1	SWIVEL BRACKET(LONG) (BLACK)	3417-822863A1
1	SWIVEL BRACKET (LONG) (GRAY)	3417-822863A2
1	SWIVEL BRACKET(LONG) (TRACKER)	3417-822863A3
2	BEARING	23-821124	23-19622
3	OIL SEAL	26-32911
4	BEARING	23-19606
5	GREASE FITTING	22-8M0169589
6	WASHER	12-25176
7	BOTTOM YOKE (BLACK)	19654T1
7	BOTTOM YOKE (GRAY)	19654T7
7	BOTTOM YOKE (TRACKER)	19654F1
8	RETAINING RING	53-77415
10	SWIVEL PIN (SHORT) (BLACK)	17-812897A19	17-812897A 7
10	SWIVEL PIN (SHORT) (GRAY)	17-812897A20	17-812897A 8
10	SWIVEL PIN (LONG) (BLACK)	17-812896A22	17-812896A14, 17-812896A 7
10	SWIVEL PIN (LONG) (GRAY)	17-812896A23	17-812896A15, 17-812896A 8
10	SWIVEL PIN (LONG) (TRACKER)	17-812896A16
11	BRACKET (BLACK) Comment: (50/60)	8M0184092
11	BRACKET (GRAY) Comment: (50/60)	8M0184092
11	BRACKET (TRACKER) Comment: (50/60)	8M0184092
12	STRAP Comment: (50/60)	14-8M0009820	14-816669F 1 (50/60)
13	SCREW Comment: (50/60)	10-4000377
14	LINK ROD (STARBOARD) Comment: (50/60)	19608A14
14	LINK ROD (PORT) Comment: (50/60)	19609A6
15	SCREW Comment: (50/60)	10-856680	10-90041 (50/60)
16	WASHER Comment: (50/60)	12-8M0109680
17	NUT	11-8M0204726
18	WASHER	12-37828
19	WASHER	12-52865
20	ROLL PIN (HANDLE)	17-823876	17-88192
21	CABLE	88238A10
22	SCREW (1/4-20X .50)	10-41508

THROTTLE LEVER AND LINKAGE

Below is the parts list for Mercury 50 (3 CYL.) THROTTLE LEVER AND LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	THROTTLE LEVER	42946T1
2	ADJUSTING SCREW	10-817582	10-814775, 10-42977
3	JAM NUT	11-400211
4	SPARK ADVANCE LEVER	19663T02
5	ADJUSTING SCREW	10-814776	10-42978
6	JAM NUT	11-400212
7	CAP	42942
8	STUD Comment: (DESIGN I)	16-42986
9	NUT Comment: (DESIGN I)	11-90517
10	BUSHING	23-812930A1
11	WASHER	12-42980
12	SPRING	24-55162
13	PIN	42927
14	WASHER	12-35459
15	NUT	11-401386
16	SPARK ADVANCE ROD	878172	42918
17	SWIVEL BASE	93254
18	SWIVEL BALL	93421
19	THROTTLE ROD	812871
20	SWIVEL BUSHING	23-8M0215006
21	STUD	16-8161949
22	THROTTLE CAM	8128852
23	WASHER	12-65567
24	NUT	11-401386
25	SPRING	24-817702
26	SCREW Comment: DESIGN II	10-4007180

TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)

Below is the parts list for Mercury 50 (3 CYL.) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET (BLACK) Comment: (PORT)	3508-9751A1
1	TRANSOM BRACKET (GRAY) Comment: (PORT)	3508-9751A2
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	TRANSOM BRACKET (BLACK) Comment: (STARBOARD)	3507-9750T
4	TRANSOM BRACKET (GRAY) Comment: (STARBOARD)	3507-9750T6
5	TILT LOCK LEVER (BLACK)	893704T01	19618A 2
5	TILT LOCK LEVER (GRAY)	19618A3
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB BLACK	812709	812709T, 812709F 1
9	KNOB GRAY	812709T6
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET (BLACK)	18486F5
12	ANCHOR BRACKET (GRAY)	18486F6
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY Comment: (DESIGN I)	19613A1
19A	TILT PIN ASSEMBLY Comment: (DESIGN II)	17-8M0026068	17-49930A 1 (DESIGN II)
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT	11-858869	11-30499
22	SEAL KIT	19624A1
23	CLIP Comment: (POWER TRIM)	54-22740
24	C-WASHER Comment: (POWER TRIM)	8M0084613	69205 (POWER TRIM)
25	SCREW Comment: (POWER TRIM)	10-878607	10-817626 (POWER TRIM)
26	SCREW	10-814259
27	WASHER	12-8M0204648
28	NUT	11-91962
29	LINK Comment: (NON POWER TRIM)	8M0084737
30	TILT LEVER Comment: (NON POWER TRIM)	19615A05
31	BUSHING Comment: (NON POWER TRIM)	23-812707	23-71984, 23-F286818, 23-F286828, F480818 (NON POWER TRIM)
32	WASHER Comment: (NON POWER TRIM)	12-815796
33	WAVE WASHER Comment: (NON POWER TRIM)	13-99611
34	TILT KNOB Comment: (NON POWER TRIM)	8M0007469	19621 (NON POWER TRIM)
35	SCREW Comment: (NON POWER TRIM)	10-19611

TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)

Below is the parts list for Mercury 50 (3 CYL.) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET (BLACK) Comment: (PORT)	3418-822866T04	3418-822866A 1 (PORT)
1	TRANSOM BRACKET (GRAY) Comment: (PORT)	3418-822866A2
1	TRANSOM BRACKET (TRACKER) Comment: (PORT)	3418-822866A3
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	TRANSOM BRACKET (BLACK) Comment: (STARBOARD)	3418-822865T05	3418-822865F 2 (STARBOARD)
4	TRANSOM BRACKET (GRAY) Comment: (STARBOARD)	3418-822865F3
4	TRANSOM BRACKET (TRACKER) Comment: (STARBOARD)	3418-822865F4
5	TILT LOCK LEVER (BLACK)	893704T01	19618A 2
5	TILT LOCK LEVER (GRAY)	19618A3
5	TILT LOCK LEVER (TRACKER)	19618A5
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB (BLACK)	812709	812709T, 812709F 1
9	KNOB (GRAY)	812709T6
9	KNOB (TRACKER)	812709	812709T, 812709F 1
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET (BLACK)	18486F5
12	ANCHOR BRACKET (GRAY)	18486F6
12	ANCHOR BRACKET (TRACKER)	18486F7
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY Comment: (USE WHERE APPLICABLE)	17-8M0026068	17-49930A 1 (USE WHERE APPLICABLE)
19A	SPRING Comment: (USE WHERE APPLICABLE)	24-821461
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT	11-858869	11-30499
22	SEAL KIT	19624A1
23	CLIP Comment: (POWER TRIM)	54-26550
24	C-WASHER Comment: (POWER TRIM)	8M0084613	69205 (POWER TRIM)
25	SCREW Comment: (POWER TRIM)	10-878607	10-817626 (POWER TRIM)
26	SCREW	10-814259
27	WASHER	12-8M0204648
28	NUT	11-91962
29	LINK Comment: (NON POWER TRIM)	8M0084737
30	TILT LEVER Comment: (NON POWER TRIM)	19615A05
31	BUSHING Comment: (NON POWER TRIM)	23-812707	23-71984, 23-F286818, 23-F286828, F480818 (NON POWER TRIM)
32	WASHER Comment: (NON POWER TRIM)	12-8M0042643	12-19605 (NON POWER TRIM)
33	WAVE WASHER Comment: (NON POWER TRIM)	13-99611
34	TILT KNOB Comment: (NON POWER TRIM)	8M0007469	19621 (NON POWER TRIM)
35	SCREW Comment: (NON POWER TRIM)	10-19611

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
