Mercury 40 (4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

ACCESSORIES

Below is the parts list for Mercury 40 (4 CYL.) ACCESSORIES:

Part Name	OEM Number	Supersedes
FUEL LINE (8 FT.) Comment: WITH QUICK DISCONNECT	32-877680Q8
FUEL LINE (12 FT.) Comment: WITH QUICK DISCONNECT	32-877680Q12	32-858620Q12, 32-858620A12, 32-827927A12 WITH QUICK DISCONNECT
FUEL LINE (8 FT.) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q8
FUEL LINE (12 FT.) Comment: WITH QUICK DISCONNECT ENGINE END ONLY	32-877681Q12	32-804792Q12, 32-804792Q, 32-858621Q12, 32-858621A12, 32-17146A12 WITH QUICK DISCONNECT ENGINE END ONLY
FUEL LINE Comment: NO FIITINGS	32-877683Q12	32-858623Q12, 32-858623A12, 32-822379A12, 32-819380A12, FA599752, FS409752, 32-819380A 3, F216752, FA409752, F289752, FA178752, FA216752, FA284752, FA289752, FS409952 NO FIITINGS
TILLER HANDLE KIT Comment: (BLACK)	78551A46
TILLER HANDLE KIT Comment: (GRAY)	78551A47
SHIFT ATTACHING KIT Comment: (30 JET )	850000A1

ADAPTOR PLATE/SHIFT SHAFT

Below is the parts list for Mercury 40 (4 CYL.) ADAPTOR PLATE/SHIFT SHAFT:

Position No.	Part Name	OEM Number	Supersedes
1	EXHAUST ADAPTOR PLATE	18868A1
2	SEAL-ADAPTOR PLATE	158663
3	BUSHING-ADAPTOR PLATE	23-27132
4	WASHER-NYLON	12-38453
5	SEAL-RUBBER	26-38452
6	HOUSING-WATER INLET TUBE SEAL	79799
7	GASKET-HOUSING	27-797971
8	SCREW-HOUSING TO EXHAUST PLATE	10-79798
9	GASKET-POWERHEAD	27-796501
10	GASKET-EXHAUST ADAPTOR PLATE	27-385011
11	GUIDE-SHIFT SHAFT (AN ASSEMBLY AIDE)	933361
12	SHIFT SHAFT LEVER Comment: (SHORT)	19462A3
12	SHIFT SHAFT LEVER Comment: (LONG)	19462A2
13	BUSHING	23-42994
14	SHIFT LINK	812613
15	WAVE WASHER	13-29720
16	NUT	11-826709109	11-33825, 11-35045
17	WASHER	12-35462
18	SLIDER	812616
19	RETAINER-SHIFT CABLE	812615
20	STUD	16-812612
21	RETAINING RING	53-812607
22	RETAINER-SLIDER	8126141
23	SCREW-RETAINER	10-878608	10-812832
-	ENGINE GASKET SET	27-85491A90
-	POWERHEAD, COMPLETE	814278T93	814278A93, 814278A92, 814278A90

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR (UPPER) Comment: (WMA-10)	3330-830281A3
1	CARBURETOR (LOWER) Comment: (WMA-10)	3330-830281A4
1	CARBURETOR (UPPER) Comment: (WMA-13)	3330-830281A3
1	CARBURETOR (LOWER) Comment: (WMA-13)	3330-830281A4
2	WELCH PLUG-BODY CHANNEL (LARGE) (#)
3	PLUG-BODY CHANNEL (#)
4	THROTTLE VALVE	1395-9649
5	SPRING-RETURN-THROTTLE SHAFT (#)
6	BAFFLE-FUEL BOWL	814483	1399-7211A 1
7	FLOAT Comment: (WMA-7B)	1395-9293
7	FLOAT Comment: (WMA-9/10/13)	1395-823620
8	PIN-FLOAT RETAINING (#)
9	FUEL BOWL Comment: (WMA-7B)	1399-5127
9	FUEL BOWL Comment: (WMA-9/10/13)	1395-823619
10	GASKET-FUEL BOWI (#)
11	SCREW (LOWER CARBURETOR) Comment: (WMA-7B)	1395-9652
11	JET ASSEMBLY Comment: (LOWER-WMA-9/10/13)	1395-823622
12	GASKET-FUEL BOWL SCREW (#)
13	INLET NEEDLE AND SPRING	1395-879194011	1395-9595
14	JET-MAIN FUEL (.057) Comment: (WMA-7B)	1399-1457
15	JET-ECONOMIZER (.098)	1395-7335
16	VENTURI	64677
17	SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT (#)
18	GASKET-CARBURETOR FLANGE	27-757911
19	SCREW-IDLE MIXTURE (#)
20	SPRING-IDLE MIXTURE SCREW (#)
21	GASKET-FUEL PUMP (#) Comment: (WMA-7B/9/10)
22	COVER-PLATE (UPPER CARBURETOR)	814482
23	COVER-PLATE (LOWER CARBURETOR)	1395-9654
24	SCREW-STRAINER BODY TO CARBURETOR	1395-808612	1399-5132
25	THROTTLE SHAFT Comment: (UPPER CARBURETOR)	1395-9020
25	THROTTLE SHAFT Comment: (LOWER CARBURETOR)	1395-9656
26	THROTTLE LEVER (UPPER CARBURETOR)	92880
27	SCREW-THROTTLE LEVER (UPPER CARBURETOR)	1395-6027
28	THROTTLE LEVER (LOWER CARBURETOR) Comment: (WMA13)	8146791
29	SCREW-THROTTLE LEVER (LOWER CARB)	1395-6027
30	FITTING-FUEL BOWL (UPPER CARB) Comment: (WMA-7-1)	22-8148651
30	FITTING-FUEL BOWL (UPPER CARB) Comment: (WMA-7-1B)	22-810769
30	JET ASSEMBLY Comment: (UPPER-WMA-9/10/13)	1395-823621
31	NUT-CARBURETOR MOUNTING STUD	11-64809
-	RESTRICTOR PLATE Comment: (RESTRICTED 40)	422501
-	GASKET Comment: (RESTRICTED 40)	27-757911
-	CARB REPAIR PARTS KIT	1395-9650
-	CARB GASKET SET	1395-9651
-	GASKET SET	27-85491A90
-	POWERHEAD	814278T93	814278A93, 814278A92, 814278A90

CLAMP BRACKET (THUMB SCREW DESIGN) (S/N D181999 & BELOW)

Below is the parts list for Mercury 40 (4 CYL.) CLAMP BRACKET (THUMB SCREW DESIGN) (S/N D181999 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET Comment: (BLACK) PORT	3508-818881A2
1	TRANSOM BRACKET Comment: (GRAY) PORT	3508-818881A3
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	TRANSOM BRACKET Comment: (BLACK) STARBOARD	3507-818880F1
4	TRANSOM BRACKET Comment: (GRAY) STARBOARD	3507-818880F2
5	TILT LOCK LEVER Comment: (BLACK)	893704T01	19618A 2 (BLACK)
5	TILT LOCK LEVER Comment: (GRAY)	19618A3
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB Comment: (BLACK)	812709	812709T, 812709F 1 (BLACK)
9	KNOB Comment: (GRAY)	812709T6
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET Comment: (BLACK)	18486F5
12	ANCHOR BRACKET Comment: (GRAY)	18486F6
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY	17-8M0026068	17-49930A 1
20	TILT TUBE	8M0041938	8M0035070, 19614 1
21	NUT	11-826164
22	THUMB SCREW ASSEMBLY	10-818883A1
23	WASHER	12-818884
24	SCREW	10-768042
25	SCREW	10-814259
26	WASHER	12-8M0204648
27	NUT	11-91962
28	LINK	8M0084737
29	TILT LEVER	19615A05
30	BUSHING	23-812707	23-71984, 23-F286818, 23-F286828, F480818
31	WASHER	12-815796
32	WAVE WASHER	13-99611
33	TILT KNOB	8M0007469	19621
34	SCREW	10-19611
35	MOUNTING BRACKET Comment: (STARBOARD)	812432F5
35	MOUNTING BRACKET Comment: (PORT)	812433F5
36	SCREW	10-88432
37	WASHER	12-8M0042641	12-29395
38	NUT	11-862903	11-13437 1
39	SHIM	15-821722

COWLING

Below is the parts list for Mercury 40 (4 CYL.) COWLING:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL (BLACK) Comment: MANUAL (WITHOUT DECALS)	2198-9868T9
1	TOP COWL (GRAY) Comment: MANUAL (WITHOUT DECALS)	2198-9868T13
1	TOP COWL (SILVER) Comment: MANUAL (WITHOUT DECALS)	2198-9868T13
2	TOP COWL (BLACK) Comment: ELECTRIC (WITHOUT DECALS)	2198-9868T10
2	TOP COWL (GRAY) Comment: ELECTRIC (WITHOUT DECALS)	2198-9868T14
2	TOP COWL (SILVER) Comment: ELECTRIC (WITHOUT DECALS)	2198-9868T14
2	TOP COWL (GRAPHITE GRAY) Comment: ELECTRIC (WITHOUT DECALS)	2198-9868T12
3	SOUND BLANKET KIT	812991A1
4	SEAL	444621
5	OIL LEVEL GAUGE Comment: ELECTRIC DESIGN I	812807
6	GROMMET-OIL GAUGE Comment: ELECTRIC DESIGN I	812808
5	OIL LEVEL GAUGE ASSEMBLY Comment: ELECTRIC DESIGN II	813504A1
6	GROMMET Comment: ELECTRIC DESIGN II	813505
7	RETAINER Comment: ELECTRIC DESIGN II	113171
8	SPEEDNUT Comment: ELECTRIC DESIGN II	11-65110
9	HOOK/LATCH KIT	812463A2
10	SCREW	10-8231871
11	LOCKWASHER	13-26995
12	NUT	11-8237515
13	CARRIER	812465
14	ROLLER	812464
15	BRACKET	812462
16	LEVER	19430
17	SCREW-LEVER	10-814127
18	WASHER-LEVER SCREW	12-35280
19	BUSHING	23-19428
20	WAVE WASHER	13-37642
21	BUSHING	194291
22	NUT	11-813716
23	GROMMET-CONTROL CABLES	812833
24	GROMMET-FUEL CONNECTOR	812986
25	CUP	39519
26	LATCH	98889
27	DRIVE SCREW	10-42975
28	TRIM COVER (BLACK) Comment: -	18871T
28	TRIM COVER (GRAY) Comment: -	18871T6
28	TRIM COVER (TRACKER GRAPHITE GRAY) Comment: -	18871F3
29	SCREW-TRIM COVER	10-455611
30	NUT-TRIM COVER SCREW	11-8267118
31	ELBOW-TELLTALE HOSE Comment: COMPONENT OF POWERHEAD (814278A93)	22-782792
32	HOSE-TELLTALE (15 IN.)	32-7568058
33	FITTING-TELLTALE	22-94848
34	PLUG Comment: NON-POWER TRIM	812830T01	812830 1 NON-POWER TRIM
35	RETAINER	8M0032848	812443 1
36	BEZEL Comment: POWER TRIM	824896	814307, 814296 POWER TRIM
37	SWITCH ASSEMBLY Comment: POWER TRIM	87-8M0042301	87-896620, 87-856990, 87-850691, 87-18286A40 POWER TRIM
38	BOTTOM COWL (BLACK) Comment: -	2197-9772T1
38	BOTTOM COWL (GRAY) Comment: -	2197-9772T2
38	BOTTOM COWL (TRACKER GRAPHITE GRAY) Comment: -	2197-9772T3
39	SPRING	24-812480
-	POWERHEAD	814278T93	814278A93, 814278A92, 814278A90

CRANKSHAFT, PISTONS, AND CONNECTING RODS

Below is the parts list for Mercury 40 (4 CYL.) CRANKSHAFT, PISTONS, AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT	459-9758A2
2	O-RING	25-35276
3	KEY-CRANKSHAFT	28-20094
4	MAIN BEARING ASSEMBLY (VALVE TYPE)	534-3267T25
5	DOWEL PIN-MAIN BEARING	17-20032
6	DOWEL PIN-REED LOCATING	17-65855
7	SCREW-MAIN BEARING	10-25764
8	NUT-MAIN BEARING SCREW	11-20110
9	REED SET-MATCHED	34-88498A1
10	REED STOP	34-822839	34-79014
11	SCREW-REED STOP (9/16 IN.)	10-77280
12	NUT-REED STOP SCREW	11-20110
13	PISTON/PISTON PIN Comment: (STANDARD) DESIGN II	780-9229A7
13	PISTON/PISTON PIN Comment: (.015 O.S) DESIGN II	780-9229A10
13	PISTON/PISTON PIN Comment: (.030 O.S.) DESIGN II	780-9229A11
13	PISTON/PISTON PIN Comment: (STANDARD) DESIGN I	780-9229A7
13	PISTON/PISTON PIN Comment: (.015 O.S.) DESIGN I	780-9229A10
13	PISTON/PISTON PIN Comment: (.030 O.S.) DESIGN I	780-9229A11
14	LOCK RING-PISTON PIN	40-828119	40-47276
15	PISTON RING Comment: (STANDARD) DESIGN II	39-18653A12
15	PISTON RING Comment: (.015 O.S.) DESIGN II	39-18653A1
15	PISTON RING Comment: (.030 O.S.) DESIGN II	39-18653A2
15	PISTON RING Comment: (STANDARD) DESIGN I	39-27841A12
15	PISTON RING Comment: (.015 O.S.) DESIGN I	39-28616A12
15	PISTON RING Comment: (.030 O.S.) DESIGN I	39-89822A12
16	CONNECTING ROD AND CAP ASSEMBLY	632-7621A3
17	SCREW-CAP TO ROD	10-91012
18	NEEDLE BEARING-PISTON PIN	29-20063
19	WASHER-NEEDLE LOCATING	12-47275
20	NEEDLE BEARING-CRANK PIN	29-20046T
21	CENTER MAIN BEARING ASSEMBLY	547-7060A2
22	DOWEL PIN-CENTER MAIN BEARING	17-20032
23	NEEDLE BEARING	29-714221
24	RACE-OUTER	26113T
25	SNAP RING-OUTER RACE	53-26933
26	SCREW-CENTER MAIN BEARING (1 IN.)	10-8M0214943
27	DRIVER GEAR	43-43019
28	KEY-DRIVER GEAR	28-91800
29	CARRIER ASSEMBLY Comment: DESIGN I/II	60834A3
30	SEAL Comment: DESIGN I/II	64254001
-	POWERHEAD, COMPLETE	814278T93	814278A93, 814278A92, 814278A90

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK/CRANKCASE ASSEMBLY	863-8981T18
2	BRACKET-STARTER MOTOR (UPPER)	72038
3	SCREW-BRACKET TO CRANKCASE (1-7/8 IN.)	10-73279
4	LOCKWASHER-BRACKET SCREW	13-8M0204647
5	COVER-STARTER MOTOR (LOWER)	76867
6	SCREW-COVER TO CRANKCASE (1-7/8 IN.)	10-73279
7	PLUG	22-390721
8	DOWEL PIN	17-20032
9	STUD-CARBURETOR (1-1/4 IN.)	16-64936
10	STUD-CRANKCASE TO DRIVE SHAFT HOUSING (1-5/8 IN.)	16-68165
11	DOWEL PIN-CRANKCASE TO CYLINDER BLOCK	17-43044
12	STUD (4 IN.)	16-87901
13	STUD (2-1/8 IN.)	16-68166
14	STUD (2-1/2 IN.)	16-68167
15	SCREW (1-1/2 IN.)	10-73657
15	SCREW (1-3/8 IN.)	10-31984
15	SCREW (2-7/8 IN.)	10-73275
16	WASHER-CRANKCASE SCREW	12-26020
17	SCREW-CENTER MAIN BEARING LOCKING (1 IN.)	10-20359
18	SCREW (3/4 IN.) Comment: DESIGN II W/LOCKWASHER	10-19922075
19	LOCKWASHER Comment: DESIGN II W/LOCKWASHER	12-830135
18	SCREW (5/8 IN.) Comment: DESIGN I W/TAB WASHER	10-98260
19	TAB WASHER Comment: DESIGN I W/TAB WASHER	14-20091
20	TUBE-BALANCE-MAIN BEARING	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
21	ELBOW-BALANCE TUBE TO CYLINDER BLOCK	22-996642
22	CONNECTOR-BLEED HOSE (UPPER)	22-56759
23	HOSE-CYLINDER BLEED (11 IN.)	32-892024122	32-99130122
24	CHECK VALVE-BLEED HOSE (LOWER)	21-428671
25	PRIMER TEE (OLD DESIGN)	22-812831
26	COVER Comment: NON OIL	8129961
27	O-RING Comment: NON OIL	25-48462
28	SCREW Comment: NON OIL	10-55515
29	WASHER Comment: NON OIL	12-89302
30	TEMPERATURE SENDER Comment: POWERBOAT	12415
31	CABLE ASSEMBLY Comment: POWERBOAT	84-88824A6
-	GASKET SET	27-85491A90
-	POWERHEAD ASSEMBLY, COMPLETE	814278T93	814278A93, 814278A92, 814278A90

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING Comment: (BLACK) (SHORT)	1592-8188A8
1	DRIVE SHAFT HOUSING Comment: (GRAY) (SHORT)	1592-8188A9
1	DRIVE SHAFT HOUSING Comment: (BLACK) (LONG)	1593-8189A12
1	DRIVE SHAFT HOUSING Comment: (GRAY) (LONG)	1593-8189A13
1	DRIVE SHAFT HOUSING Comment: (TRACKER GRAPHITE GRAY) (LONG)	1593-8189A14
1	DRIVE SHAFT HOUSING Comment: (BLACK-JET 30)	1592-8188A11
1	DRIVE SHAFT HOUSING Comment: (GRAY-JET 30)	1592-8188A12
2	STUD (3 IN.) (NOT USED WITH JET)	16-57935
3	PLUG-PLASTIC-TRIM TAB SCREW HOLE	19-64649
4	STUD (1-3/4 IN.) (NOT USED WITH JET)	16-8M0022145	16-57932
5	NUT (5/16 IN.)	11-64809
6	WASHER (7/16 IN.)	12-65791
7	NUT (7/16 IN.)	11-8M0204653
8	MOUNT	923373
9	SEAL	96401
10	WASHER (37/64 I.D.)	12-27727
11	RUBBER WASHER	12-66966
12	WASHER	12-30514
13	NUT	11-8M0204653
14	COVER	87883
15	SCREW	10-8M0214943
16	WASHER	12-8M0204649
17	EXHAUST TUBE Comment: (SHORT)	695431
18	WATER TUBE Comment: (SHORT)	32-37727
17	EXHAUST TUBE Comment: (LONG)	695441
18	WATER TUBE Comment: (LONG)	32-45679
19	COVER Comment: (BLACK)	35474T
19	COVER Comment: (GRAY)	35474F2
19	COVER Comment: (TRACKER GRAPHITE GRAY)	35474F3
20	SCREW	10-87884
21	CLAMP	69592F1
22	SCREW	10-29256
23	SPRING	24-35522
24	NUT	11-35521
25	SCREW	10-75284
26	GROUND WIRE	88238A10
27	WASHER USE WHERE APPLICABLE	12-28051
28	RUBBER WASHER	12-28053
29	LOWER MOUNT	75304T1
30	WASHER	12-30119
31	NUT	11-25096

ELECTRICAL BOX COMPONENTS

Below is the parts list for Mercury 40 (4 CYL.) ELECTRICAL BOX COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	COVER-ELECTRICAL BOX	19106
2	SCREW-MERCURY SWITCH AND COVER	10-418051
3	SCREW-COVER AND BOX TO ENGINE	10-19639
4	FUSE Comment: ELECTRIC	88-812619	88-860608 ELECTRIC
5	RECTIFIER Comment: ELECTRIC	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3 ELECTRIC
6	SCREW-RECTIFIER Comment: ELECTRIC	10-418051
7	NUT-RECTIFIER TERMINAL Comment: ELECTRIC	11-45076
8	STARTER SOLENOID Comment: ELECTRIC	89-8M0185149
9	SCREW-SOLENOID Comment: ELECTRIC	10-41508
10	WASHER-STARTER SOLENOID SCREW Comment: ELECTRIC	13-26992
11	NUT-SOLENOID TERMINAL Comment: ELECTRIC	8-32,11-26419
12	LOCKWASHER-SOLENOID TERMINAL Comment: ELECTRIC	13-26992
13	NUT-SOLENOID TERMINAL (1/4-20) Comment: ELECTRIC	11-64015
14	WIRING HARNESS (USE WITH REF. #18) Comment: ELECTRIC	84-18672A2
14	HARNESS (GRAY LEAD HAS RING TERMINAL) Comment: ELECTRIC	84-18672A6
14	HARNESS (GRAY LEAD HAS BULLET CONNECTOR) Comment: ELECTRIC	84-18672A8
-	CABLE (RING/MALE CONNECTOR) Comment: ELECTRIC	84-88807A14
-	CABLE (RING/FEMALE CONNECTOR) Comment: ELECTRIC	84-88807A15
15	SCREW-WIRING HARNESS LEAD Comment: ELECTRIC	10-878608	10-812832 ELECTRIC
16	TERMINAL BLOCK Comment: MANUAL	86-638131
17	SCREW-TERMINAL BLOCK (5/8 IN.) Comment: MANUAL	10-418051
17	SCREW-TERMINAL BLOCK (3/8 IN.) Comment: MANUAL	10-62568
18	MERCURY SWITCH	16731T01
19	IGNITION COIL ASSEMBLY	339-832757A4
20	GROUND WIRE-COIL TO SWITCH BOX	84-60466A19
21	NUT-IGNITION COIL TERMINALS	11-45076
22	LEAD ASSEMBLY-SPARK PLUG	84-813715A12
23	PROTECTOR ASSEMBLY	85-63709A1
24	SPARK PLUG	33-896329833	33-833C
24	SPARK PLUG Comment: (BELGIUM AND CANADA)	33-14103550
25	SWITCH BOX ASSEMBLY	332-5772A7
26	SCREW-SWITCH BOX	10-812987
27	NUT-SWITCH BOX TERMINALS	11-45076
28	CABLE (GREEN)	84-88818A1
28	CABLE (GREEN/WHITE)	84-88819A1
28	CABLE (GREEN/BLACK)	84-88820A1
28	CABLE (GREEN/RED)	84-88821A1
29	CABLE (BLACK) Comment: MANUAL	84-88807A30
30	SCREW Comment: MANUAL	10-878608	10-812832 MANUAL
31	CABLE Comment: MANUAL	84-813060A1
32	OIL WARNING MODULE Comment: ELECTRIC	14857A16
33	SCREW-OIL WARNING MODULE Comment: ELECTRIC	10-812987
34	SOCKET-FUSE Comment: ELECTRIC	88-19637
35	ELECTRICAL BOX	18758T1
36	TRIM HARNESS Comment: POWER TRIM	84-18895A1
37	RELAY SWITCH Comment: POWER TRIM	87-19761
38	SUPPORT-RELAY Comment: POWER TRIM	812850
39	SWITCH ASSEMBLY Comment: ELECTRIC HANDLE W/ PT	87-88890A2
40	SWITCH ASSEMBLY Comment: ELECTRIC HANDLE W/ PT	87-74605A8
41	SCREW Comment: ELECTRIC HANDLE W/ PT	10-90342
42	NUT Comment: ELECTRIC HANDLE W/ PT	11-24832
43	CABLE Comment: ELECTRIC HANDLE W/ PT	84-11149A1
44	SOLENOID Comment: DESIGN II	89-818999A2
45	BUSHING Comment: DESIGN II	23-8M0214955
46	GROMMET Comment: DESIGN II	25-818967
47	SCREW (1 IN.) Comment: DESIGN II	10-28667
48	CABLE (BLACK) Comment: DESIGN II	84-88439A11
49	VOLTAGE REGULATOR Comment: DESIGN II	8M0084173	883072T, 854515T 1 DESIGN II
50	SCREW Comment: DESIGN II	10-822970	10-F1768 DESIGN II
51	CABLE Comment: DESIGN II	84-813524A2

END CAPS AND EXHAUST COVER

Below is the parts list for Mercury 40 (4 CYL.) END CAPS AND EXHAUST COVER:

Position No.	Part Name	OEM Number	Supersedes
1	TEMPERATURE SWITCH (ELECTRIC)	87-16775A3
2	END CAP ASSEMBLY-UPPER	1160-5826A2
3	OIL SEAL-UPPER END CAP	26-41953
4	O-RING-UPPER END CAP	25-20081
5	BALL BEARING-UPPER END CAP	30-63742T
6	SHIM-UPPER END CAP (.005-10)	15-72538A1
7	SCREW-UPPER END CAP (3/4 IN.)	10-824941	10-59645, 10-73274
8	COVER ASSEMBLY-CYLINDER BLOCK	1017-8360A1
9	PIPE PLUG-CYLINDER BLOCK COVER	22-328022
10	GASKET-CYLINDER BLOCK COVER	27-437772
11	SCREW-CYLINDER BLOCK COVER (1 IN.)	10-8M0214943
12	COVER ASSEMBLY-TRANSFER PORT	18827T4
13	GASKET-TRANSFER PORT COVER	27-279361
14	SCREW-TRANSFER PORT COVER (5/8 IN.)	10-20540
15	GASKET-CYLINDER BLOCK TO BAFFLE PLATE	27-854913
16	PLATE-BAFFLE-EXHAUST MANIFOLD	90421T01
17	GASKET-BAFFLE PLATE TO EXHAUST COVER	27-854924
18	COVER-EXHAUST MANIFOLD	77381
19	END CAP ASSEMBLY-LOWER Comment: (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	1158-9843T2
20	O-RING-LOWER END CAP Comment: (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	25-32546
21	OIL SEAL Comment: (DESIGN I END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	26-41953
21	OIL SEAL Comment: (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	26-66301
21	OIL SEAL Comment: (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	26-41953
22	BALL BEARING-LOWER END CAP Comment: (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW	30-63742T
19	END CAP ASSEMBLY-LOWER Comment: (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP	1158-9843T3
20	O-RING-LOWER END CAP Comment: (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP	25-32546
21	OIL SEAL Comment: (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP	26-41953
22	BALL BEARING-LOWER END CAP Comment: (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP	30-63742T
23	SHIM-LOWER END CAP (.005-10)	15-20085A1
24	SCREW-LOWER END CAP	10-28782
25	SCREW-MANIFOLD COVER TO CYLINDER BLOCK (1 IN.) 200	10-37562
-	ENGINE GASKET SET	27-85491A90
-	POWERHEAD, COMPLETE	814278T93	814278A93, 814278A92, 814278A90

FLYWHEEL, STATOR AND STARTER MOTOR

Below is the parts list for Mercury 40 (4 CYL.) FLYWHEEL, STATOR AND STARTER MOTOR:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG-FLYWHEEL	19-45907
2	NUT	11-8M0214915
3	WASHER	12-33001
4	STATOR Comment: (MANUAL) USA-S/N-0D055047 & BELOW BEL-S/N-9665164 & BELOW	398-832074A6
4	STATOR Comment: (ELECTRIC) USA-S/N-0D055047 & BELOW BEL-S/N-9665164 & BELOW	398-832075A20	398-832075A14, 398-5454A25, 398-5454A63, 398-818535A15 (ELECTRIC) USA-S/N-0D055047 & BELOW BEL-S/N-9665164 & BELOW
5	FLYWHEEL Comment: (MANUAL) USA-S/N-0D055047 & BELOW BEL-S/N-9665164 & BELOW	248-8722A16
5	FLYWHEEL Comment: (ELECTRIC) USA-S/N-0D055047 & BELOW BEL-S/N-9665164 & BELOW	248-8722A17
4	STATOR Comment: (MANUAL) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP	398-832074A6
4	STATOR Comment: (ELECTRIC-STAMPED 398-818535A3 OR A13) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP	398-832075A20	398-832075A14, 398-5454A25, 398-5454A63, 398-818535A15 (ELECTRIC-STAMPED 398-818535A3 OR A13) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP
4	STATOR Comment: (ELECTRIC) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP	398-9710A45
5	FLYWHEEL Comment: (MANUAL) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP	248-8722A13
5	FLYWHEEL Comment: (ELECTRIC) BEL-S/N-9665165 & UP USA -S/N-0D055048 & UP	248-8722A15
6	SCREW	10-32417
7	RATCHET Comment: (MANUAL)	50-88755
8	SCREW	10-68997
9	SCREW (7/8 IN.)	10-75840
10	TRIGGER ASSEMBLY Comment: (ELECTRIC)	96452A5
11	STARTER MOTOR Comment: (ELECTRIC)	50-898265005	50-73521T (ELECTRIC)
12	STOP-RUBBER-STARTER MOTOR Comment: (ELECTRIC)	8M0043376	68042 (ELECTRIC)
13	COLLAR-RUBBER-STARTER MOTOR MOUNT Comment: (ELECTRIC)	23-8M0034918	23-8M0001391, 56703 (ELECTRIC)
14	WIRE-STARTER MOTOR/SOIENOID Comment: (ELECTRIC)	84-88439A20
15	NUT-WIRE TO STARTER MOTOR (1/4-20) Comment: (ELECTRIC)	11-64015
16	WIRE-STARTER MOTOR/BRACKET (BLACK) Comment: (ELECTRIC)	84-93388A14
17	SCREW-WIRE TO STARTER MOTOR (5/8 IN.) Comment: (ELECTRIC)	10-69035
18	BATTERY CABLE Comment: (BLACK-NEGATIVE) (ELECTRIC)	84-88439A4
18	BATTERY CABLE Comment: (RED-POSITIVE) (ELECTRIC)	84-88439A3
19	SPACER Comment: (ELECTRIC)	23-56774

FUEL PUMP

Below is the parts list for Mercury 40 (4 CYL.) FUEL PUMP:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	14360A78
2	DIAPHRAGM KIT	21-857005A1
3	CHECK VALVE-RUBBER (#)
4	GASKET-BOOST (#)
5	DIAPHRAGM (#)
6	GASKET-PULSE (#)
7	SPRING (#)
8	CAP (#)
9	DISC-RUBBER (#)
10	RETAINER (#)
11	GASKET-BASE	27-8M0204705
12	BASE-FUEL PUMP	144303
13	PLATE Comment: (FUEL PUMP BODY IS WHITE OR RED)	98775A4
13	PLATE Comment: (FUEL PUMP BODY IS BLACK)	987752
14	SCREW-FUEL PUMP TO CRANKCASE	10-16452
15	SCREW-FUEL PUMP	10-82104540
16	PIPE PLUG (1/8 IN.)	22-390721
17	PIPE PLUG (1/16 IN.)	22-56800
18	TUBING (MANUAL)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
19	FUEL CONNECTOR	22-816856Q3
20	SCREW-FUEL CONNECTOR	10-86885
21	NUT-FUEL CONNECTOR SCREW	11-8267118
22	TUBING Comment: ELECTRIC - USE WITH WHITE OR RED FUEL PUMP BODY	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 ELECTRIC - USE WITH WHITE OR RED FUEL PUMP BODY
23	TUBING Comment: ELECTRIC - USE WITH WHITE OR RED FUEL PUMP BODY	32-82381335
24	TEE Comment: ELECTRIC - USE WITH WHITE OR RED FUEL PUMP BODY	22-424253
22	TUBING Comment: ELECTRIC - USE WITH BLACK FUEL PUMP BODY	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80 ELECTRIC - USE WITH BLACK FUEL PUMP BODY
23	TUBING Comment: ELECTRIC - USE WITH BLACK FUEL PUMP BODY	32-82381335
24	TEE Comment: ELECTRIC - USE WITH BLACK FUEL PUMP BODY	22-818993
25	CHECK VALVE Comment: ELECTRIC - USE WITH BLACK FUEL PUMP BODY	22-8189941
26	HOSE (1-3/4 IN.)(8-1/2 IN.)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
27	STA-STRAP-FUEL TUBING	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
28	FUEL FILTER	35-816296Q2
29	TUBING (5-1/2 IN.)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
30	THROTTLE COUPLING ASSEMBLY	53719A2
31	SCREW-THROTTLE COUPLING	10-66104
32	KEY	28-89694
33	SOLENOID VALVE Comment: ELECTRIC	89-819503A4
34	TUBING Comment: ELECTRIC	32-9912688
35	CLAMP Comment: ELECTRIC	54-15279
36	TEE FITTING Comment: USE WITH WMA-7B-9 CARBURETORS	22-59169003
37	HOSE Comment: USE WITH WMA-7B-9 CARBURETORS	32-892024122	32-99130122 USE WITH WMA-7B-9 CARBURETORS
-	DIAPHRAGM KIT	21-857005A1
-	ENGINE GASKET SET	27-85491A90
-	POWERHEAD	814278T93	814278A93, 814278A92, 814278A90

GEAR HOUSING (DRIVE SHAFT)

Below is the parts list for Mercury 40 (4 CYL.) GEAR HOUSING (DRIVE SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW	1643-9539A4
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279349 & / BELOW BEL- 9793444 & BELOW	1643-9539A6
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW	1643-9539A5
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW	1643-9539A7
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T15
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539A16
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (TRACKER GRAPHITE GRAY)	1643-9539T12
1	GEAR HOUSING ASSEMBLY Comment: (BLACK)	1643-9539T1
1	GEAR HOUSING ASSEMBLY Comment: (GRAY)	1643-9539T8
1	GEAR HOUSING ASSEMBLY Comment: (TRACKER GRAHITE GRAY)	1643-9539T13
25	WATER PUMP BODY	46-77822A1
26	INSERT	48753
27	SEAL	26-38452
28	WASHER	12-38453
29	WASHER	12-8M0204649
30	NUT	11-8267119
31	RING-RUBBER (DRIVE SHAFT)	25-20273
32	CARRIER (USE 60834A3) (#N.L.A.) Comment: REFER TO SERVICE BULLETIN #90-15
33	SCREW	10-79953Q04
34	DRAIN SCREW Comment: SUPERSEDES TO ANOTHER PART NUMBER	22-8M0058389	22-67892A06 SUPERSEDES TO ANOTHER PART NUMBER
35	WASHER-SEALING	12-191833
36	SLEEVE	88181
37	SHIM (.002-3-5-10-20)	15-92881A1
38	ROLLER BEARING ASSEMBLY	31-8M0166756
39	DRIVE SHAFT Comment: (SHORT) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	45-98179
39	DRIVE SHAFT Comment: (LONG) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	45-98180
39	DRIVE SHAFT Comment: (SHORT) S/N USA-0D279350 & UP BEL 9793445 & UP	45-981791
39	DRIVE SHAFT Comment: (LONG) S/N USA-0D279350 & UP BEL 9793445 & UP	45-981801
40	SPRING	24-20254
41	PIN	17-30545
42	SHIFT SHAFT ASSEMBLY	76063A1
43	RETAINING RING	53-29641
44	O-RING	25-25439
45	BUSHLNG ASSEMBLY	23-77631A2
46	OIL SEAL	26-8M0204708
47	WASHER	12-77674
-	ENGINE GASKET SET	27-85491A90
-	SEAL KIT	26-79831A1
-	WATER PUMP REPAIR KIT	46-77177A3
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW	1643-9539A4
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW	1643-9539A6
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW	1643-9539A5
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW	1643-9539A7
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T15
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539A16
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (TRACKER GRAPHITE GRAY)	1643-9539T12
1	GEAR HOUSING ASSEMBLY Comment: (BLACK)	1643-9539T1
1	GEAR HOUSING ASSEMBLY Comment: (GRAY)	1643-9539T8
1	GEAR HOUSING ASSEMBLY Comment: (TRACKER GRAHITE GRAY)	1643-9539T13
2	CONNECTOR ASSEMBLY-SPEEDOMETER	22-85822A10
3	DOWEL PIN	17-8M0084726	17-85500
4	STUD (2-5/8 IN.)	16-33778
5	STUD	16-8M0034453	16-57933
6	ROLLER BEARING	31-62091T
7	SCREEN ASSEMBLY	72849A1
8	SCREW	10-36070
9	NUT	11-859124	11-45812
10	PLATE	92815
11	SEAL	37721001
12	PINION GEAR	43-98097T
13	NUT	11-55910
14	GASKET	27-19552
15	O-RING	25-26722
16	WATER PUMP BASE	46-77177A1
17	OIL SEAL	26-79831
18	OIL SEAL	26-90562
19	DOWEL PIN	17-35973
20	GASKET	27-19553
21	FACE PLATE	32768
22	GASKET	27-19551
23	IMPELLER	47-89983T
24	KEY	28-8M0032837	28-56662
-	ENGINE GASKET SET	27-85491A90
-	SEAL KIT	26-79831A1
-	WATER PUMP REPAIR KIT	46-77177A3

GEAR HOUSING (PROP SHAFT)

Below is the parts list for Mercury 40 (4 CYL.) GEAR HOUSING (PROP SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	1643-9539A4
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	1643-9539A6
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	1643-9539A5
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW	1643-9539A7
-	GEAR HOUSING Comment: (SHORT BLACK) S/N USA-0D279350 & UP BEL 9793445 & UP	1643-9539T15
-	GEAR HOUSING Comment: (SHORT GRAY) S/N USA-0D279350 & UP BEL 9793445 & UP	1643-9539A16
-	GEAR HOUSING Comment: (LONG BLACK) S/N USA-0D279350 & UP BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (LONG GRAY) S/N USA-0D279350 & UP BEL 9793445 & UP	1643-9539T18
-	GEAR HOUSING Comment: (TRACKER GRAPHITE GRAY)	1643-9539T12
1	GEAR HOUSING ASSEMBLY Comment: (BLACK)	1643-9539T1
1	GEAR HOUSING ASSEMBLY Comment: (GRAY)	1643-9539T8
1	GEAR HOUSING ASSEMBLY Comment: (TRACKER GRAHITE GRAY)	1643-9539T13
48	SHIFT CAM	760394
49	SHIM (.002-3-5-10)	15-38374A1
50	TAPERED ROLLER BEARING	31-38356A1
51	FORWARD GEAR	43-55608T4
52	ROLLER BEARING	31-21739
53	CAM FOLLOWER	38441
54	SLIDE	20843
55	SPRING	24-38114
56	RATCHET	52-92911T
57	CROSS PIN	17-8M0020942	17-38113
58	SPRING Comment: (PROP SHAFT I.D. IS .310 IN.)	24-39845
58	SPRING Comment: (PROP SHAFT I.D. IS .373 IN.)	24-815418
59	PROPELLER SHAFT	44-75365
60	REVERSE GEAR	43-79158T
61	THRUST WASHER	12-32004
62	BALL BEARING	30-20839T
63	O-RING	25-31986
64	BEARING CARRIER	69386T1
65	ROLLER BEARING	31-21700
66	OIL SEAL	26-8M0205511
67	OIL SEAL	26-8M0203757
68	KEY	28-30281
69	TAB WASHER	14-53012
70	NUT	11-87763
71	TRIM TAB ASSEMBLY	97-31640Q4
72	SCREW	10-66024
73	WASHER (3/8 IN.)	12-8M0214963
74	NUT (3/8 IN.)	11-8M0204726
75	WASHER (7/16 IN.)	12-65791
76	NUT (7/16 IN.)	11-8M0204653
77	THRUST HUB	73345A1
78	TAB WASHER	14-8M0214942
79	PROPELLER NUT	11-69578Q1
-	ENGINE GASKET SET	27-85491A90
-	G/H SEAL KIT	26-79831A1

JET COMPONENTS

Below is the parts list for Mercury 40 (4 CYL.) JET COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	REV LIMITER	821889A31	821889A12, 816392A 2, 821889A 8
2	HARNESS-ADAPTOR-REV LIMITER	84-823147A3
3	BRACKET	826580
4	SCREW (1/4-20 X 1.12)	10-76213
5	SCREW (M5X25)	10-40011109
6	SCREW (#10-16 X 3/8)	10-62568
7	GREASE KIT	91-30500A2
8	SEAL	37721001
9	WATER PUMP BASE	46-77177A1
10	OIL SEAL	26-79831
11	OIL SEAL	26-90562
12	DOWEL PIN	17-35973
13	GASKET	27-19553
14	FACE PLATE	32768
15	GASKET	27-19551
16	IMPELLER	47-89983T
17	KEY	28-8M0032837	28-56662
18	WATER PUMP BODY	46-77822A1
19	INSERT	48753
20	SEAL	26-38452
21	WASHER	12-38453
22	WASHER	12-8M0204649
23	NUT	11-8267119
24	RING-RUBBER (DRIVE SHAFT)	25-20273
-	ENGINE GASKET SET	27-85491A90
-	G/H SEAL KIT	26-79831A1
-	WATER PUMP REPAIR KIT	46-77177A3

JET PUMP ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) JET PUMP ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	JET PUMP ASSEMBLY Comment: (BLACK)	80140040
-	JET PUMP ASSEMBLY Comment: (GRAY)	80140140
1	HOUSING-PUMP	80141140
2	HOSE-LUBE	32-827490
3	IMPELLER	47-855708T40	47-801414 40
4	HOUSING-INTAKE	80141240
5	LINER	827188T1
6	SHAFT-DRIVE	45-80141340
7	NUT	11-827190
8	SLEEVE-SHAFT	23-827189
9	KEY	28-801405625
10	SHIM	15-801404625
11	TAB WASHER	14-801403625
12	SCREW (1/4-20 X .75)	10-90192
13	SCREW (1/4-20 X .875)	10-19923088
14	SCREW (1/4-20 X .625)	10-19923062
15	SCREW (.312-18 X 1.25)	10-60411
16	BRACKET	801410
17	NUT	11-82670910
18	STUD	16-808718
19	PIN-DOWEL	17-801406
20	RING SUPPORT-WATER PUMP	801418
21	GASKET-WATER PUMP BASE	27-801408
22	STUD (1/4 X 2-5/8 IN.)	16-33778
23	SCREW (3/8-16 X 3 IN.)	10-68299
24	WASHER	12-8M0214963
25	WASHER	12-65791
26	NUT	11-8M0204653

KEY, CHOKE AND HORN KIT

Below is the parts list for Mercury 40 (4 CYL.) KEY, CHOKE AND HORN KIT:

Position No.	Part Name	OEM Number	Supersedes
1	KEY-CHOKE AND HORN KIT	15000A7
2	HOUSING	15000
3	KEY SWITCH (SEE BELOW FOR KEY)	87-88107A5
4	NUT-KEY SWITCH	11-879755	11-93543
5	WARNING HORN	16564A1
6	SCREW-TOP	10-47994
7	SCREW-HOUSING	10-62568
8	STAY STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
-	KEY 1A	894911
-	KEY 1B	894912
-	KEY 1C	894913
-	KEY 1D	894914
-	KEY 1E	894915
-	KEY 1F	894916
-	KEY 2A	894917
-	KEY 2B	894918
-	KEY 2C	894919
-	KEY 2D	8949110
-	KEY 2E	8949111
-	KEY 2F	8949112

MAN. TILT COMPONENTS (DESIGN I) -L. SHAFT (S/N-C159200 & UP)

Below is the parts list for Mercury 40 (4 CYL.) MAN. TILT COMPONENTS (DESIGN I) -L. SHAFT (S/N-C159200 & UP):

Position No.	Part Name	OEM Number	Supersedes
-	TRIM PUMP Comment: (S/N-0D279349 & BELOW) INCLUDES ALL PARTS ON THIS PAGE	8M0118570
-	TRIM PUMP Comment: (S/N-0D279350 & UP) INCLUDES ALL PARTS ON THIS PAGE	8M0118570
1	SHOCK ROD ASSEMBLY KIT	8M0118572
2	CYLINDER END CAP	813428
3	SHOCK PISTON	8134291
4	CYLINDER REBUILD KIT	813432A2
5	MEMORY PISTON KIT Comment: SEE FOOTNOTE AND ILLUSTRATION	810776
5	MEMORY PISTON KIT Comment: SEE FOOTNOTE AND ILLUSTRATION SUPERSEDES TO ANOTHER PART NUMBER	893903A01
6	CYLINDER KIT Comment: (DESIGN I) SEE ILLUSTRATION	810777	813431 (DESIGN I) SEE ILLUSTRATION
6	CYLINDER KIT Comment: (DESIGN II/III) SEE ILLUSTRATION	893918A01	811224A 1 (DESIGN II/III) SEE ILLUSTRATION
7	SCREW AND SEAL KIT-CYLINDER	893919A01	813433A 2
8	ACCUMULATOR	893920A01	813454A 2
9	VALVE BLOCK ASSEMBLY	893921A01	813455T 4
10	REPAIR KIT Comment: (DESIGN I/II)	813456A4
11	PLUG KIT Comment: (DESIGN I/II)	22-813458
10	REPAIR KIT Comment: (DESIGN III)	813456A4
11	PLUG KIT Comment: (DESIGN III)	22-813458A2
12	CAM KIT Comment: (S/N 0G236678 & BELOW)	813457A1
12	CAM KIT Comment: (S/N 0G236679 & UP)	813457A2
13	PLUG KIT	22-813459
14	PIN	17-19607
15	GROOVE PIN	17-821539	17-13794, 17-19603

MAN. TILT COMPONENTS (DESIGN II)

Below is the parts list for Mercury 40 (4 CYL.) MAN. TILT COMPONENTS (DESIGN II):

Position No.	Part Name	OEM Number	Supersedes
-	TRIM PUMP ASSEMBLY Comment: SUPERSEDES TO ANOTHER PART NUMBER	8M0118570
1	SHOCK ROD ASSEMBLY	8M0118572
2	MEMORY PISTON ASSEMBLY	893903A01
3	O RING REBUILD KIT-CYLINDER	25-893917A01	25-809872A 1
4	O RING	NSS
5	CYLINDER ASSEMBLY	893918A01	811224A 1
6	SCREW AND SEAL KIT	893919A01	813433A 2
7	ACCUMULATOR ASSEMBLY	893920A01	813454A 2
8	VALVE BODY ASSEMBLY	893921A01	813455T 4
9	CAM KIT	893923A01	813457A 3
10	VELOCITY VALVE KIT	893924A01	809881A 1
11	CHECK SYSTEM REPAIR KIT	893925A01	809882A 1
-	O RING KIT	25-893922A01	25-809880A 2
12	PIN	17-19607
13	GROOVE PIN	17-821539	17-13794, 17-19603

MISCELLANEOUS INFORMATION

Below is the parts list for Mercury 40 (4 CYL.) MISCELLANEOUS INFORMATION:

Part Name	OEM Number	Supersedes
40 PARTS LIST	90-814698
DECAL SET (DESIGN I) (BLACK) Comment: -	37-814323A90
DECAL SET (DESIGN II) (BLACK) Comment: -	37-814323A96	37-814323A94 -
DECAL SET (DESIGN III) (BLACK Comment: -	37-814323A96	37-814323A94 -
DECAL SET (SUPER AMERICA) (BLACK) Comment: -	37-822166A92
DECAL SET (GRAY) (DOMESTIC ENGINES) Comment: (USA-S/N-0G437999 & BELOW BEL-S/N-9926999 & BELOW	37-810462A97	37-810462A94, 37-810462A90, 37-814342A90 (USA-S/N-0G437999 & BELOW BEL-S/N-9926999 & BELOW
DECAL SET (GRAY-JET 30) Comment: (USA-S/N-0G437999 & BELOW BEL-S/N-9926999 & BELOW	37-826324A97	37-826324A95 (USA-S/N-0G437999 & BELOW BEL-S/N-9926999 & BELOW
DECAL SET (GRAY) (DOMESTIC ENGINES) Comment: (USA-S/N-0G438000 & UP BEL-S/N-9927000 & UP	37-810462A97	37-810462A94, 37-810462A90, 37-814342A90 (USA-S/N-0G438000 & UP BEL-S/N-9927000 & UP
DECAL SET (GRAY-JET 30) Comment: (USA-S/N-0G438000 & UP BEL-S/N-9927000 & UP	37-826324A97	37-826324A95 (USA-S/N-0G438000 & UP BEL-S/N-9927000 & UP
DECAL SET (GRAY-EXPORT ENGINES) Comment: -	37-815626A93
DECAL SET (TRACKER) Comment: (S/N 0G290584 & BELOW)	37-824732A94
DECAL SET (TRACKER) Comment: (S/N 0G290585 & UP)	37-824732A96
DECAL SET (BLACK-JET 30) (DESIGN II) Comment: -	37-826323A96	37-826323A95 -
DECAL SET (BLACK-JET 30) (DESIGN III) Comment: -	37-826323A96	37-826323A95 -
OWNERS GUIDE (40) Comment: -	90-10118970
OWNERS GUIDE (JET 30) Comment: -	90-10134970
OWNERS GUIDE (TRACKER) Comment: -	90-10160970

OIL INJECTION COMPONENTS

Below is the parts list for Mercury 40 (4 CYL.) OIL INJECTION COMPONENTS:

Position No.	Part Name	OEM Number
1	OIL TANK ASSEMBLY	1264-8M0219214
2	VENT	19299A1
3	VALVE	21-64871
4	O-RING	25-11332
-	SIGHT TUBE	32-9004934
-	CLAMP	54-814200
5	INSERT-OIL CAP	812988A1
6	SEAL	813641
7	CAP ASSEMBLY	36-19070A2
8	O-RING	25-90186
9	BOOT-OIL TANK	99161
10	SWITCH	87-12886A6
11	SCREW	10-12896
12	OIL INJECTION PUMP	812690T1
13	SCREW-OIL PUMP	10-55515
14	DRIVEN GEAR	43-19277
15	TUBING	32-82381335
16	O-RING	25-8M0204667
17	O-RING	25-48462
18	BEARING ASSEMBLY-DRIVEN GEAR	23-19278A2

POWER TRIM COMPT'S (S/N-0D182000 THRU 0G357070) (BLACK PLUG)

Below is the parts list for Mercury 40 (4 CYL.) POWER TRIM COMPT'S (S/N-0D182000 THRU 0G357070) (BLACK PLUG):

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM PUMP	830150T2
01	SHOCK ROD KIT	893943A01	855833A 1
02	CYLILNDER END CAP	813428
03	SHOCK PISTON	813429
04	CYLINDER REBUILD KIT	813432A3
05	MEMORY PISTON KIT	810776
06	CYLINDER KIT	893904T01	811228A 1
07	SCREW AND SEAL KIT	811678A6
08	PUMP/MANIFOLD	8116706
09	ROCKER ARM	823180A1
10	SCREW KIT	10-813436
11	DRIVE SHAFT	811671
12	SEAL KIT	25-811672A4
13	RESERVOIR	811673
14	PLUG KIT	22-8134351
15	RELIEF VALVE KIT	893929A01	813442A 2
16	RESERVOIR CAP KIT	811677
17	SCREW	10-813446
18	RESERVOIR/MOTOR	811674
19	ARMATURE	811675
20	THRUST WASHER KIT	12-811676
21	ANCHOR PIN	17-19607
22	GROOVE PIN	17-821539	17-13794, 17-19603
23	PIN	17-822869001	17-822869

POWER TRIM COMPT'S (S/N-0G357070 & UP) (YELLOW FILL PLUG)

Below is the parts list for Mercury 40 (4 CYL.) POWER TRIM COMPT'S (S/N-0G357070 & UP) (YELLOW FILL PLUG):

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM PUMP	830150T2
1	SHOCK ROD KIT	893943A01	855833A 1
2	O RING REBUILD KIT	25-8M0171819
3	O RING	NSS
4	MEMORY PISTON ASSEMBLY	8M0171822
5	CYLINDER ASSEMBLY	893904T01	811228A 1
6	TRIM LIMIT VALVE KIT	893905A02	809873A 1
7	PUMP ASSEMBLY	893906A02	809874A 1
8	MOTOR KIT	893907A02	809885A 2
9	RESERVOIR PLUG	22-8134351
10	MANUAL RELEASE ASSEMBLY	893929A01	813442A 2
11	MANIFOLD KIT	893909A02	809875A 1
12	SCREW KIT (MOTOR)	10-809876A1
13	DRIVE SHAFT	809877A1
14	FILTER KIT	35-893912A02	809878A 1
15	P.O. CHECK ASSEMBLY KIT	893913A02	809879A 1
-	O RING KIT (COMPLETE TRIM)	25-893914A02	25-809880A 1
16	GROOVE PIN	17-821539	17-13794, 17-19603
17	ANCHOR PIN	17-19607
18	PIN	17-822869001	17-822869

POWER TRIM COMPT'S -L. SHAFT (S/N-0C159200 THRU 0D181999)

Below is the parts list for Mercury 40 (4 CYL.) POWER TRIM COMPT'S -L. SHAFT (S/N-0C159200 THRU 0D181999):

Position No.	Part Name	OEM Number	Supersedes
1	SHOCK ROD ASSEMBLY KIT	893943A01	855833A 1
2	CYLINDER END CAP	813428
3	SHOCK PISTON ASSEMBLY	813429
4	CYLINDER REBUILD KIT	813432A3
5	MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION) Comment: SUPERSEDES TO ANOTHER PART NUMBER	893903A01
5	MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)	810776
6	CYLINDER KIT Comment: DESIGN I SEE ILLUSTRATION	810777	813431 DESIGN I SEE ILLUSTRATION
7	SCREW AND SEAL KIT Comment: DESIGN I SEE ILLUSTRATION	893919A01	813433A 2 DESIGN I SEE ILLUSTRATION
8	PUMP Comment: DESIGN I SEE ILLUSTRATION	811227	813440 DESIGN I SEE ILLUSTRATION
9	MANIFOLD ASSEMBLY Comment: DESIGN I SEE ILLUSTRATION	813441
6	CYLINDER KIT Comment: DESIGN II SEE ILLUSTRATION	893904T01	811228A 1 DESIGN II SEE ILLUSTRATION
7	SCREW AND SEAL KIT Comment: DESIGN II SEE ILLUSTRATION	811678A6
8	PUMP Comment: DESIGN II SEE ILLUSTRATION	811227	813440 DESIGN II SEE ILLUSTRATION
9	MANIFOLD ASSEMBLY Comment: DESIGN II SEE ILLUSTRATION	811225
10	SCREW KIT	10-813436
11	DRIVE SHAFT	813437
12	SCREW AND DOWEL PIN KIT	813438
13	SEAL KIT	25-813439A3
14	RESERVOIR	813434A1
15	PLUG KIT	22-8134351
16	RELIEF VALVE KIT	893929A01	813442A 2
17	WIRING HARNESS	84-811698	84-813443 1
18	RESERVOIR CAP KIT	813445
19	SCREW-CAP	10-813446
20	MOTOR KIT	813447	811699
21	END CAP	813448
22	ARMATURE	813449A1
23	THRUST WASHER KIT	12-813450
24	SHELL AND MAGNET KIT	813451
25	END FRAME KIT	813452
26	BOLT AND NUT KIT	10-813453
27	PIN	17-19607
28	GROOVE PIN	17-821539	17-13794, 17-19603
-	TRIM PUMP, COMPLETE Comment: (INCLUDES ALL PARTS ON THIS PAGE)	854472A3

STARTER MOTOR ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) STARTER MOTOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
-	STARTER MOTOR ASSEMBLY	50-898265005	50-73521T
1	DRIVE KIT	90643
2	DRIVE ASSEMBLY	685753
3	PLATE-DRIVE END	75660
4	BOLT-THRU	10-75379
5	ARMATURE	75382
6	BRUSH SET	898265016	75384, 75384 1
7	BUSHING-INSULATING	23-57387
8	WASHER-INPUT STUD	12-38013
9	LOCKWASHER-INPUT STUD	13-26992
10	NUT-INPUT STUD	11-20890
11	HOLDER-BRUSH	898265014	61787
12	SCREW (AMER. BOSCH #02441-22-SC-30SM)	NSS
13	END CAP-COMMUTATOR	75383

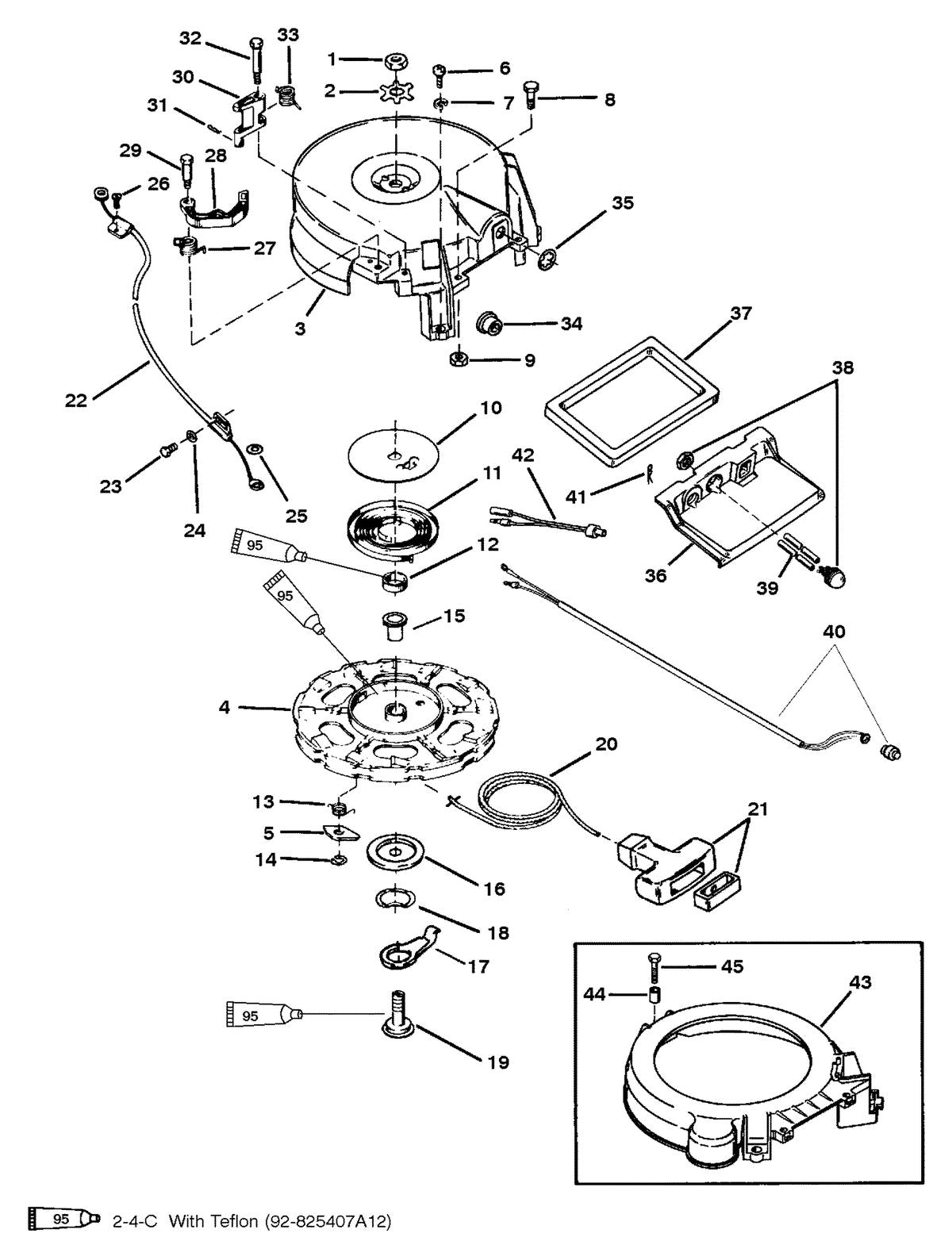

STARTER REWIND

Below is the parts list for Mercury 40 (4 CYL.) STARTER REWIND:

Position No.	Part Name	OEM Number	Supersedes
1	NUT-SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
2	TAB WASHER-SHEAVE SHAFT NUT	14-61004
3	STARTER HOUSING	186471
4	STARTER SHEAVE	50-44255A1
5	STARTER PAWL	44508
6	SCREW-STARTER HOUSING	10-54523
7	LOCKWASHER-STARTER HOUSING SCREW	13-8M0204647
8	SCREW-STARTER HOUSING	10-45210
9	NUT-STARTER HOUSING SCREW	11-8267086
10	PLATE-STARTER REWIND	61002
11	SPRING-STARTER REWIND	24-39502T02
12	BUSHING-SPRING GUIDE	23-87649
13	SPRING-STARTER PAWL	24-87651
14	E-RING-STARTER PAWL	53-87706
15	SPACER-SHEAVE SHAFT	23-63061
16	WASHER-STARTER REWIND	12-35559
17	LEVER	94962
18	WAVE WASHER	13-20160
19	SHEAVE SHAFT	87656
20	STARTER ROPE ASSEMBLY	50-12066Q10
20	STARTER ROPE (FOR MANUAL STARTING)	47341A11
21	HANDLE AND RETAINER ASSEMBLY	85174A1
22	CABLE-INTERLOCK Comment: SUPERSEDES TO ANOTHER PART NUMBER	188881
23	SCREW-INTERLOCK CABLE ATTACHING (1/2 IN.)	10-69022
24	WASHER-INTERLOCK CABLE SCREW	12-73288
25	WASHER	12-37998
26	SCREW	10-878608	10-812832
27	SPRING-INTERLOCK CAM SCREW	24-761401
28	CAM-INTERLOCK	428201
29	SCREW-INTERLOCK CAM (1-1/8 IN.)	10-76138
30	ACTUATOR-INTERLOCK	79371
31	COTTER PIN-INTERLOCK CABLE TO ACTUATOR	18-26811
32	SCREW-INTERLOCK ACTUATOR (1-5/8 IN.)	10-76137
33	SPRING-INTERLOCK ACTUATOR SCREW	24-76139
34	BUSHING	8M0183792
35	RETAINING RING	53-818853	53-42689
36	REST ASSEMBLY	813544A1
37	SEAL	813641
38	PRIMER BULB	858763	816877 3
39	TUBING	32-892024122	32-99130122
40	STOP SWITCH ASSEMBLY	84-89591A5
41	COTTER PIN	18-36002
42	CABLE ASSEMBLY (NON-HANDLE)	84-11149A2
43	COVER-FLYWHEEL Comment: ELECTRIC	812617
44	SPACER-COVER SCREW Comment: ELECTRIC	23-812611
45	SCREW-FLYWHEEL COVER Comment: ELECTRIC	10-812618	10-73169, 10-847568 ELECTRIC

STEERING HANDLE ASSEMBLY

Below is the parts list for Mercury 40 (4 CYL.) STEERING HANDLE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
31	BRACKET-STEERING HANDLE Comment: (BLACK)	48404T8
31	BRACKET-STEERING HANDLE Comment: (GRAY)	48404T8
31	BRACKET-STEERING HANDLE Comment: (TRACKER GRAPHITE GRAY)	48404T8
32	WASHER (ELECTRIC HANDLE)	12-29629
33	SCREW-BRACKET	10-823597	10-48476
34	WASHER-BRACKET (.505 I.D.)	12-48477
35	WASHER-NYLON (.630 I.D.)	12-48526
36	BUSHING-NYLON (5/8 IN. I.D.)	23-28919
37	SPACER-BRACKET	23-48525
38	WASHER-NYLON (1-35/64 IN. O.D.)	12-38000
39	WAVE WASHER-HANDLE BRACKET	13-48478
40	WASHER-NYLON (1-3/4 IN. O.D.)	12-49636
41	NUT-HANDLE BRACKET SCREW	11-826709117	11-35778
42	SWITCH ASSEMBLY Comment: ELECTRIC HANDLE	87-8M0052926	87-813960A 2 ELECTRIC HANDLE
43	SCREW-SWITCH Comment: ELECTRIC HANDLE	10-12110
44	SPACER-STEERING ARM Comment: DESIGN I	41130
45	STUD	16-14651
46	TAB WASHER Comment: DESIGN I	14-43589
47	NUT-STUD Comment: DESIGN I	11-8M0204726
48	STOP SWITCH	87-11083A25
49	LANYARD	15920Q54
50	RETAINER	8M0032846	12044 1
51	CLAMP-STOP SWITCH	54-26550
52	C-WASHER	8M0084613	69205
53	PILOT ROD	52148
54	LINK ROD	52150
55	NUT ASSEMBLY	11-52155A1
56	BUSHING	23-521512
57	WASHER	12-8M0042642	12-70132
58	NUT	11-826709111	11-45592
59	NUT	11-33826
60	WASHER	12-34931
61	ADAPTOR Comment: DESIGN II	8216782
62	SCREW Comment: DESIGN II	10-90072
63	NUT Comment: DESIGN II	11-862903	11-13437 1 DESIGN II
64	WASHER Comment: DESIGN II	12-37828
1	STEERING HANDLE ARM Comment: (BLACK)	48405A2
1	STEERING HANDLE ARM Comment: (GRAY)	48405A3
1	STEERING HANDLE ARM Comment: (TRACKER GRAPHITE GRAY)	48405A4
2	WASHER-STEERING HANDLE ARM	12-69056
3	NUT-STEERING HANDLE ARM	11-826709109	11-33825, 11-35045
4	GRIP-STEERING HANDLE ARM	58192A1
5	CAP-STEERING HANDLE	48416
6	PLATE-COVER-DRIVE WHEEL	48519
7	GASKET-COVER PLATE	27-48518
8	SCREW-COVER PLATE (1/2 IN.)	10-878608	10-812832
8	SCREW-COVER PLATE (3/8 IN.)	10-878609	10-812832 1
9	HOUSING-DRIVE WHEEL	48414
10	DRIVE WHEEL AND ROD	48516A1
11	THROTTLE CABLE	41105
12	CONDUIT-CABLE	8885242
13	CONNECTOR-CONTROL LINKAGE	89578
14	TUBE-THROTTLE CABLE GUIDE	8M0026078	89566 1
15	SCREW-SET	10-824081	10-89601
16	GUIDE-THROTTLE CABLE	8M0204660
17	ANCHOR-THROTTLE CABLE	20007
18	SCREW-THROTTLE CABLE ANCHOR	10-8M0204644
19	SHIFT LEVER Comment: (ELECTRIC HANDLE) (USE W/REF. #44)	14690
19	SHIFT LEVER Comment: (MANUAL HANDLE) (USE W/REF. #44)	485681
19	SHIFT LEVER Comment: (USE W/REF. #61)	485684
20	KNOB-SHIFT LEVER	98530
21	BUSHLNG-NYLON (1/4 IN. I.D.)	23-48475
22	WASHER-SHIFT ROD	12-35950
23	COTTER PIN-SHIFT ROD	18-25191
24	SHIFT ROD Comment: (USE W/REF. #44)	8128062
24	SHIFT ROD Comment: (USE W/REF. #61)	8128064
25	ROD END-SHIFT ROD	813565
26	DETENT-SHIFT LEVER	78812A1
27	SCREW-SHIFT LEVER DETENT	10-878609	10-812832 1
28	BUSHING-NYLON (3/8 IN. I.D.)	23-48237
29	ACTUATOR ASSEMBLY Comment: ELECTRIC HANDLE	17459A2
30	SET SCREW Comment: ELECTRIC HANDLE	10-824081	10-89601 ELECTRIC HANDLE

SWIVEL BRACKET

Below is the parts list for Mercury 40 (4 CYL.) SWIVEL BRACKET:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET Comment: (BLACK) S/N D181999 & BELOW	3506-9749A1
1	SWIVEL BRACKET Comment: (GRAY) S/N D181999 & BELOW	3506-9749A2
1	SWIVEL BRACKET Comment: (BLACK) S/N D182000 & ABOVE	3416-822862A1
1	SWIVEL BRACKET Comment: (GRAY) S/N D182000 & ABOVE	3416-822862A2
1	SWIVEL BRACKET Comment: (TRACKER GRAPHITE GRAY) S/N D182000 & ABOVE	3416-822862T3
2	BEARING	23-821124	23-19622
3	OIL SEAL	26-32911
4	BEARING	23-19606
5	GREASE FITTING	22-8M0169589
6	WASHER	12-25176
7	BOTTOM YOKE Comment: (BLACK) SHORT	818536F2
7	BOTTOM YOKE Comment: (GRAY) SHORT	818536F1
7	BOTTOM YOKE Comment: (BLACK) LONG	77416T1
7	BOTTOM YOKE Comment: (GRAY) LONG	77416T6
7	BOTTOM YOKE Comment: (TRACKER GRAPHITE GRAY) LONG	77416F5
8	RETAINING RING	53-77415
9	STEERING ARM ASSEMBLY Comment: (BLACK)	19459T3
9	STEERING ARM ASSEMBLY Comment: (GRAY)	19459A4
9	STEERING ARM ASSEMBLY Comment: (TRACKER GRAPHITE GRAY)	19459A7
10	BUMPER	30711
11	BRACKET Comment: (BLACK) NON-HANDLE	19616A1
11	BRACKET Comment: (GRAY) NON-HANDLE	19616T6
11	BRACKET Comment: (TRACKER GRAPHITE GRAY) NON-HANDLE	19616F2
12	STRAP Comment: NON-HANDLE	76533
13	SCREW Comment: NON-HANDLE	10-34352
-	RIDE GUIDE STEERING KIT Comment: NON-HANDLE	19608A14
14	LINK ROD Comment: (STARBOARD) NON-HANDLE	19608A14
14	LINK ROD Comment: (PORT) NON-HANDLE	19609A6
15	SCREW Comment: NON-HANDLE	10-849838	10-14000 NON-HANDLE
16	NUT Comment: NON-HANDLE	11-8M0204726
17	WASHER Comment: NON-HANDLE	12-37828
18	WASHER	12-52865
19	SCREW	10-66897
20	BRACKET-RIDE GUIDE	19617
21	WASHER	12-8M0109680
22	CABLE-GROUND	88238A10
23	SCREW (1/4-20 X .50)	10-41508

THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)

Below is the parts list for Mercury 40 (4 CYL.) THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS):

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET-THROTTLE ACTUATOR	72040T
2	SCREW-THROTTLE ACTUATOR BRACKET (1-1/8 IN.)	10-53576
3	LOCKWASHER-THROTTLE ACTUATOR BRACKET SCREW	13-8M0204647
4	ACTUATOR-THROTTLE	815603A1
5	SCREW-BRACKET TO THROTTLE ACTUATOR (2 IN.)	10-21449
6	WASHER-BRACKET SCREW	12-25893
7	WAVE WASHER-BRACKET SCREW	13-62172
8	NUT-BRACKET SCREW	11-29250
9	SWIVEL-LINK ROD TO THROTTLE ACTUATOR	57440
10	LINK ROD	72043
11	SWIVEL-LINK ROD TO THROTTLE ARM	57440
12	THROTTLE ARM (ORDER 815603A1)	NLA
13	SCREW-ADJUSTING - THROTTLE ARM (2-1/4 IN.)	10-89778
13	SCREW-ADJUSTING - THROTTLE ARM (1-3/4 IN.)	10-25158
14	NUT-ADJUSTING SCREW	11-68219
15	CAP-ADJUSTING SCREW	48039
16	LATCH-THROTTLE ARM	39483
17	SCREW-LATCH TO THROTTLE ARM (7/8 IN.)	10-69026
18	SPRING-COMPRESSION-LATCH SCREW	24-20099
19	NUT-LATCH SCREW	11-826709109	11-33825, 11-35045
20	LEVER-SPARK ADVANCE	815607A1
21	SCREW-LEVER AND ARM TO CYLINDER BLOCK (1-3/4 IN.)	10-818165	10-55337
22	BUSHING-LEVER AND ARM SCREW	23-55164
23	BUSHING-LEVER AND ARM SCREW	23-55171
24	SPRING-RETURN-SPARK ADVANCE LEVER	24-55162
25	WASHER-LEVER AND ARM SCREW	12-68410
26	SCREW-ADJUSTING-SPARK ADVANCE LEVER (1-3/4 IN.)	10-25158
27	NUT-ADJUSTING SCREW	11-68219
28	CAP-ADJUSTING SCREW	48039
29	LINK ROD-SPARK ADVANCE (2-1/2 IN. LONG)	76056
30	PIVOT-THREADED-LINK ROD TO TRIGGER	74897T
31	SWIVEL-LINK ROD TO SPARK ADVANCE LEVER	77013A1
32	WAVE WASHER-SWIVEL	13-29402
33	BUSHLNG-LINK ROD SWIVEL	23-26856
34	WASHER-LINK ROD SWIVEL	12-73288
35	NUT-LINK ROD SWIVEL	11-45774
36	PLATE-THROTTLE ACTUATOR	66778T
37	SCREW-PLATE TO THROTTLE ACTUATOR (1/2 IN.)	10-46420
38	SCREW-ADJUSTING-PLATE (1 IN.)	10-23015
39	NUT-ADJUSTING SCREW	11-68219
40	CAP-ADJUSTING SCREW	48039

THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)

Below is the parts list for Mercury 40 (4 CYL.) THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS):

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET	72040T
2	SCREW (1-1/8 IN.)	10-53576
3	LOCKWASHER	13-8M0204647
4	THROTTLE ACTUATOR	815603A1
5	LINK ROD	878171	815605
6	SWIVEL BALL	93421
7	SWIVEL BASE	93254
8	NUT	11-29250
9	SCREW (2 IN.)	10-21449
10	WASHER	12-25893
11	WAVE WASHER	13-62172
12	PLATE	66778T
13	SCREW (1/2 IN.)	10-46420
14	SCREW (1 IN.)	10-23015
15	NUT	11-68219
16	CAP	48039
17	SCREW (7/8 IN.)	10-69026
18	SPRING	24-20099
19	NUT	11-826709109	11-33825, 11-35045
20	SPARK ADVANCE LEVER	815607A1
21	SCREW (1-3/4 IN.)	10-818165	10-55337
22	BUSHING	23-55164
23	BUSHING	23-55171
24	SPRING	24-55162
25	WASHER	12-68410
26	SCREW (1-3/4 IN.)	10-25158
27	NUT	11-68219
28	CAP	48039
29	LINK ROD	815604
30	PIVOT	74897T
31	SWIVEL BALL	93421
32	SWIVEL BASE	93254
33	SCREW (2-1/4 IN.)	10-89778
33	SCREW (1-3/4 IN.)	10-25158
34	NUT	11-68219
35	CAP	48039
36	LATCH	39483

TILLER HANDLE ADAPTOR KIT (JET 30)

Below is the parts list for Mercury 40 (4 CYL.) TILLER HANDLE ADAPTOR KIT (JET 30):

Position No.	Part Name	OEM Number	Supersedes
-	TILLER HANDLE ADAPTOR KIT	850000A1
1	CABLE ASSEMBLY-Throttle/Shift	832001A5
2	CABLE BOOT	85552001
3	RETAINER-ROD END	812615
4	STUD	16-812612
5	SHIFT SLIDER	812616
6	BUSHING	23-832055
7	RETAINING RING	53-812607
8	NUT	11-826709109	11-33825, 11-35045
9	J CLIP	54-54457
10	SCREW (10-16 X 1/2)	10-878608	10-812832
11	ANCHOR PLATE	828093
12	SCREW (.312-18 X 1-3/4)	10-69267
13	SPACER	23-17406
14	SPACER	23-816086
15	SCREW (1/4-28 X 1-1/4)	10-805543
16	LOCKWASHER	13-26992
17	RETAINER	828094
18	SET SCREW	10-72734
19	NUT	11-35888

TRANSOM BRACKET (S/N D181999 & BELOW)

Below is the parts list for Mercury 40 (4 CYL.) TRANSOM BRACKET (S/N D181999 & BELOW):

Position No.	Part Name	OEM Number	Supersedes
1	TRANSOM BRACKET Comment: (BLACK)	3508-9751A1
1	TRANSOM BRACKET Comment: (GRAY)	3508-9751A2
2	GREASE FITTING	22-8M0169588
3	GROOVE PIN	17-99604
4	TRANSOM BRACKET Comment: (BLACK)	3507-9750T
4	TRANSOM BRACKET Comment: (GRAY)	3507-9750T6
5	TILT LOCK LEVER Comment: (BLACK)	893704T01	19618A 2 (BLACK)
5	TILT LOCK LEVER Comment: (GRAY)	19618A3
6	SPRING	24-99622
7	NYLINER	23-65830
8	SPRING	24-812708
9	KNOB Comment: (BLACK)	812709	812709T, 812709F 1 (BLACK)
9	KNOB Comment: (GRAY)	812709T6
10	GROOVE PIN	17-99615
11	WASHER	12-19619
12	ANCHOR BRACKET Comment: (BLACK)	18486F5
12	ANCHOR BRACKET Comment: (GRAY)	18486F6
13	ANODE ASSEMBLY	97-818298Q1
14	SCREW	10-8M0204707
15	WASHER	12-8M0204649
16	SCREW (30 MM)	10-4000354
16	SCREW (35 MM)	10-4000355
17	LOCKWASHER	13-400257
18	NUT	11-401388
19	TILT PIN ASSEMBLY Comment: (DESIGN I)	19613A1
20	TILT PIN ASSEMBLY Comment: (DESIGN II)	17-8M0026068	17-49930A 1 (DESIGN II)
21	TILT TUBE	8M0041938	8M0035070, 19614 1
22	NUT	11-826164
23	SEAL KIT	19624A1
24	CLIP Comment: POWER TRIM	54-22740
25	C WASHER Comment: POWER TRIM	8M0084613	69205 POWER TRIM
26	SCREW Comment: POWER TRIM	10-878608	10-812832 POWER TRIM
27	SCREW	10-814259
28	WASHER	12-8M0204648
29	NUT	11-91962
30	LINK Comment: NON-POWER TRIM	8M0084737
31	TILT LEVER Comment: NON-POWER TRIM	19615A05
32	BUSHING Comment: NON-POWER TRIM	23-812707	23-71984, 23-F286818, 23-F286828, F480818 NON-POWER TRIM
33	WASHER (.060 IN.) Comment: NON-POWER TRIM	12-8M0042643	12-19605 NON-POWER TRIM
33	WASHER (.030 IN.) Comment: NON-POWER TRIM	12-815796
34	WAVE WASHER Comment: NON-POWER TRIM	13-99611
35	TILT KNOB Comment: NON-POWER TRIM	8M0007469	19621 NON-POWER TRIM
36	SCREW Comment: NON-POWER TRIM	10-19611
37	SCREW	10-76841
38	MOUNTING BRACKET Comment: (STARBOARD)	812432F5
38	MOUNTING BRACKET Comment: (PORT)	812433F5
39	SCREW	10-88432
40	WASHER	12-8M0042641	12-29395
41	NUT	11-862903	11-13437 1
42	T-NUT HANDLE ASSEMBLY	812434A2

TRANSOM/CLAMP BRACKET (S/N D182000 & ABOVE)

Below is the parts list for Mercury 40 (4 CYL.) TRANSOM/CLAMP BRACKET (S/N D182000 & ABOVE):

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET Comment: (BLACK) MANUAL PORT	3420-8M0084195	3420-822868A 1 (BLACK) MANUAL PORT
1	CLAMP BRACKET Comment: (GRAY) MANUAL PORT	3420-822868A2
2	TRANSOM BRACKET Comment: (BLACK) PORT ELECTRIC	3418-822866T04	3418-822866A 1 (BLACK) PORT ELECTRIC
2	TRANSOM BRACKET Comment: (GRAY) PORT ELECTRIC	3418-822866A2
2	TRANSOM BRACKET Comment: (TRACKER GRAPHITE GRAY) PORT ELECTRIC	3418-822866A3
3	GREASE FITTING	22-8M0169588
4	GROOVE PIN	17-99604
5	CLAMP BRACKET Comment: (BLACK) MANUAL STBD.	3419-822867F1
5	CLAMP BRACKET Comment: (GRAY) MANUAL STBD.	3419-822867F2
6	TRANSOM BRACKET Comment: (BLACK) STARBOARD ELECTRIC	3418-822865T05	3418-822865F 2 (BLACK) STARBOARD ELECTRIC
6	TRANSOM BRACKET Comment: (GRAY) STARBOARD ELECTRIC	3418-822865F3
6	TRANSOM BRACKET Comment: (TRACKER GRPAHITE GRAY) STARBOARD ELECTRIC	3418-822865F4
7	TILT LOCK LEVER Comment: (BLACK)	893704T01	19618A 2 (BLACK)
7	TILT LOCK LEVER Comment: (GRAY)	19618A3
7	TILT LOCK LEVER Comment: (TRACKER GRAPHITE GRAY)	19618A5
8	SPRING	24-99622
9	NYLINER	23-65830
10	SPRING	24-812708
11	KNOB Comment: (BLACK)	812709	812709T, 812709F 1 (BLACK)
11	KNOB Comment: (GRAY)	812709T6
11	KNOB Comment: (TRACKER GRAPHITE GRAY)	812709	812709T, 812709F 1 (TRACKER GRAPHITE GRAY)
12	GROOVE PIN	17-99615
13	WASHER	12-19619
14	ANCHOR BRACKET Comment: (BLACK)	18486F5
14	ANCHOR BRACKET Comment: (GRAY)	18486F6
14	ANCHOR BRACKET Comment: (TRACKER GRAPHITE GRAY)	18486F7
15	ANODE ASSEMBLY	97-818298Q1
16	SCREW	10-8M0204707
17	WASHER	12-8M0204649
18	SCREW (30 MM)	10-4000354
18	SCREW (35 MM)	10-4000355
19	LOCKWASHER	13-400257
20	NUT	11-401388
21	TILT PIN ASSEMBLY	17-8M0026068	17-49930A 1
22	SPRING	24-821461
23	TILT TUBE	8M0041938	8M0035070, 19614 1
24	NUT	11-826164
25	THUMB SCREW ASSEMBLY Comment: MANUAL	10-818883A1
26	WASHER Comment: MANUAL	12-818884
27	SCREW Comment: MANUAL	10-768042
28	SCREW	10-814259
29	WASHER	12-8M0204648
30	NUT	11-91962
31	LINK Comment: MANUAL TILT	8M0084737
32	TILT LEVER Comment: MANUAL TILT	19615A05
33	BUSHING Comment: MANUAL TILT	23-812707	23-71984, 23-F286818, 23-F286828, F480818 MANUAL TILT
34	WASHER Comment: MANUAL TILT	12-8M0042643	12-19605 MANUAL TILT
35	WAVE WASHER Comment: MANUAL TILT	13-99611
36	TILT KNOB Comment: MANUAL TILT	8M0007469	19621 MANUAL TILT
37	SCREW Comment: MANUAL TILT	10-19611
38	MOUNTING BRACKET Comment: (STARBOARD)	812432F5
38	MOUNTING BRACKET Comment: (PORT)	812433F5
39	SCREW	10-88432
40	WASHER	12-8M0042641	12-29395
41	NUT	11-862903	11-13437 1
42	SHIM	15-821722
43	T-NUT HANDLE ASSEMBLY (POWER TRIM)	812434A2
44	SEAL KIT (ELECTRIC/MANUAL W/RC)	19624A1
45	CLIP Comment: (S# 0G357070 & BELOW) POWER TRIM	54-26550
45	CLIP Comment: (S# 0G357070& UP) POWER TRIM	54-22740
46	C-WASHER Comment: POWER TRIM	8M0084613	69205 POWER TRIM
47	SCREW Comment: POWER TRIM	10-878608	10-812832 POWER TRIM

TRIM SWITCH KIT

Below is the parts list for Mercury 40 (4 CYL.) TRIM SWITCH KIT:

Position No.	Part Name	OEM Number	Supersedes
-	TRIM SWITCH KIT	87-18286A18
1	RETAINER-TRIM SWITCH	18861
2	ADAPTOR-SURFACE MOUNTING	814820	812978
3	SWITCH ASSEMBLY	NSS
4	FUSE	88-8M0207796
5	CABLE-FUSE	84-95084A2
6	CABLE ASSEMBLY	84-11149A2
7	SCREW (10-32)	10-19209
7	SCREW (10-16)	10-813523

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
