Mercury 40 (1 CYL.) (2498136 THRU 3296136) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
BOTTOM COWL ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) BOTTOM COWL ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BOTTOM COWL | NLA | |
| 2 | PLUG 39 | 19-35827 | |
| 3 | FASTENER 39 | 53-55891 | |
| 4 | LEVER (PORT) | 36187A1 | |
| 5 | LEVER (STARBOARD) | 36188A1 | |
| 6 | BUSHING (NYLON) | 23-26819 | |
| 7 | BUSHING (RUBBER) | 23-31293 | |
| 8 | WASHER (39) Comment: SERIAL 01738941-01865632 | NLA | |
| 9 | FASTENER | 53-55891 | |
| 10 | ROLL PIN (39)(40) Comment: SERIAL 00000000-03028360 | 17-29077 | |
| 10 | ROLL PIN (40) Comment: SERIAL 03028361-09999999 | 17-58997 | |
| 11 | SCREW | 10-79953Q04 | |
| 12 | WASHER | 12-191833 | |
| 13 | GASKET (39) Comment: SERIAL 00000000-02098036 | 27-89937 | |
| 13 | GASKET (39)(40) Comment: SERIAL 02098037-09999999 | 27-89937 | |
| 14 | GASKET (39)(40) Comment: SERIAL 00000000-03028360 | 27-30801 | |
| 14 | GASKET (40) Comment: SERIAL 03028361-09999999 | 27-55847 | |
| 15 | COVER | 55936 | |
| 16 | SCREW | 10-69079 | |
| 17 | TELL TALE NOZZLE 40 Comment: SERIAL 03028361-09999999 | 56712 | |
| 18 | SCREW Comment: SERIAL 03028361-09999999 | 10-35519 | |
| 19 | HOSE Comment: SERIAL 03028361-09999999 | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 SERIAL 03028361-09999999 |
CARBURETOR ASSEMBLY (39)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CARBURETOR ASSEMBLY (39):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR(39) | NLA | |
| 1 | CARBURETOR(40) | 1341-8740A1 | |
| 2 | FLOAT | 1395-8673 | |
| 3 | PIN (#) | ||
| 4 | FLOAT LEVER(LOWER) (#) | ||
| 5 | FLOAT LEVER(UPPER) (#) | ||
| 6 | INLET NEEDLE & SEAT | 1395-92581 | |
| 7 | GASKET (#) | ||
| 8 | GASKET (#) | ||
| 9 | COVER | 1399-1133 | |
| 10 | SCREW(SHORT) | 10-52195 | |
| 11 | SCREW(LONG) | 10-52196 | |
| 12 | LOCKWASHER | 13-26995 | |
| 13 | GASKET(LARGE) (#) | ||
| 14 | SCREEN | 1399-3938 | |
| 15 | GASKET(SMALL) | 27-25849 | |
| 16 | COVER | 1399-1135 | |
| 17 | GASKET | 27-25848 | |
| 18 | SCREW | 10-25822 | |
| 19 | SCREW | 1395-6027 | |
| 20 | LEVER,THROTTLE STOP | 8146791 | |
| 21 | THROTTLE SHAFT | 1399-1716 | |
| 22 | IDLE TUBE(39) | NLA | |
| 22 | IDLE TUBE(40) | NLA | |
| 23 | GASKET (#) | ||
| 24 | SCREW AND LOCKWASHER (#) | ||
| 25 | THROTTLE SHUTTER(39) | NLA | |
| 25 | THROTTLE SHUTTER(40) | 1399-3739 | |
| 26 | WELCH PLUG | 19-20011 | |
| 27 | SPRING (#) | ||
| 28 | SCREW | 10-28845 | |
| 29 | MAIN NOZZLE(39) | NLA | |
| 29 | MAIN NOZZLE(40) | NLA | |
| 30 | SCREW | NLA | |
| 31 | JET,MAIN FUEL(.045) | 1399-1765 | |
| 31 | JET,MAIN FUEL(.043) | NLA | |
| 31 | JET,MAIN FUEL(.041) | 1399-1896 | |
| 31 | JET,MAIN FUEL(.039) | 1399-2407 | |
| 31 | JET,MAIN FUEL(.036) | 1399-3026 | |
| 31 | JET,MAIN FUEL(.034) | 1399-3251 | |
| 31 | JET,MAIN FUEL(.032) | 1399-3252 | |
| 32 | GASKET (#) | ||
| 33 | GASKET (#) | ||
| 34 | SCREW | NLA | |
| 35 | SCREW(39) | 1399-2038 | |
| 35 | SCREW(39) | 1399-2038 | |
| 35 | SCREW(40) | 1399-3740 | |
| 36 | SPRING | 24-27160 | |
| 37 | GASKET | 27-63309 | |
| 38 | WASHER | 12-20583 | |
| 39 | NUT | 11-8M0207775 | |
| - | GASKET SET | 1399-1717 | |
| - | REPAIR KIT(39) Comment: SERIAL 00000000-02098036 | 1395-92621 | |
| - | REAPIR KIT(39) Comment: SERIAL 02098037-09999999 | NLA | |
| - | REPAIR KIT (40) | 1395-92621 |
CARBURETOR CHOKE LINKAGE (39)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CARBURETOR CHOKE LINKAGE (39):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | THROTTLE LEVER ASSEMBLY | 59000 | |
| 2 | SCREW, THROTTLE LEVER TO CARBURETOR | 10-20597 | |
| 3 | SHUTTER, CHOKE - CARBURETOR | NLA | |
| 4 | SPRING, CHOKE SHUTTER TO LEVER | 24-20579 | |
| 5 | SCREW, CHOKE SHUTTER TO CARBURETOR | NLA | |
| 6 | LEVER ASSEMBLY, CHOKE SHUTTER | NLA | |
| 7 | SHAFT, CHOKE LEVER TO CHOKE KNOB | NLA | |
| 8 | SPRING, TENSION - CHOKE KNOB | 24-30947 | |
| 9 | CHOKE KNOB | NLA | |
| 10 | ROLL PIN, CHOKE KNOB TO SHAFT | 17-22896 |
CARBURETOR CHOKE LINKAGE (40)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CARBURETOR CHOKE LINKAGE (40):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | THROTTLE LEVER ASSEMBLY | 59000 | |
| 2 | SCREW, THROTTLE LEVER TO CARBURETOR | 10-20597 | |
| 3 | SHUTTER AND SCREEN | 79092 | |
| 4 | SPRING, CHOKE SHUTTER TO LEVER | 24-53193 | |
| 5 | SCREW Comment: SERIAL 00000000-02687542 | 10-55298 | |
| 6 | SPRING ASSEMBLY Comment: SERIAL 02687543-09999999 | 24-55299A1 | |
| 7 | SCREW | 10-55298 | |
| 8 | CHOKE LEVER | 53187 | |
| 9 | SPRING | 24-53190 | |
| 10 | CHOKE KNOB | 53189 |
CLAMP & SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CLAMP & SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1/2 | CL/BRKT.(PORT/STBD)(39)(40) Comment: SERIAL 00000000-03028360 | 1467-5406A2 | |
| 1 | CLAMP BRACKET (PORT)(40) Comment: SERIAL 03028361-09999999 | 1468-5570A3 | |
| 2 | CLAMP BRACKET (STBD.)(40) Comment: SERIAL 03028361-09999999 | 1467-5571A3 | |
| 3 | THUMB SCREW | 59170A3 | |
| 4 | WASHER | 12-26227 | |
| 5 | WASHER | 12-52864 | |
| 6 | TILT TUBE | 45757 | |
| 7 | CLIP | 54-8M0085928 | 54-30954 |
| 8 | NUT | 11-858869 | 11-30499 |
| 9 | STUD | 16-59622 | |
| 10 | NUT (39)(40) Comment: SERIAL 00000000-03028360 | 11-8M0207775 | |
| 10 | NUT (40) Comment: SERIAL 03028361-09999999 | 11-29598 | |
| 11 | TILT LOCK PIN | 17-55952A1 | |
| 12 | SPACER | 23-30813 | |
| 13 | BUSHING (NYLON) | 23-26856 | |
| 14 | ROD | 56663 | |
| 15 | COTTER PIN | 18-56206 | |
| 16 | LINK | 30815 | |
| 17 | REVERSE LOCK LEVER (39) | NLA | |
| 17 | REVERSE LOCK LEVER (40) | 53267A1 | |
| 18 | BRACKET (40) | 53435 | |
| 19 | SPRING (40) | 24-53456 | |
| 20 | SPRING | NLA | |
| 21 | LINK ROD (39)(40) Comment: SERIAL 00000000-03028360 | 38318 | |
| 21 | LINK ROD (40 Comment: SERIAL 03028361-09999999 | 62257A2 | |
| 22 | CONTROL LEVER 39 40 Comment: SERIAL 00000000-02771621 | 32351T | |
| 23 | ROLL PIN 39 40 Comment: SERIAL 00000000-02771621 | 17-25905 | |
| 24 | SCREW (39) Comment: SERIAL 00000000-01738940 | 10-31308 | |
| 24 | SCREW (39)(40) Comment: SERIAL 01738941-09999999 | 10-28789 | |
| 25 | WASHER (39) Comment: SERIAL 01738941-09999999 | 12-8M0204666 | |
| 26 | SPACER 39 40 Comment: SERIAL 00000000-02771621 | 23-31309 | |
| 27 | WAVE WASHER 39 40 Comment: SERIAL 00000000-02771621 | 13-34632 | |
| 28 | WASHER 39 40 Comment: SERIAL 00000000-02771621 | 12-24812 | |
| 29 | REVERSE LOCK LEVER 40 Comment: SERIAL 02771622-03028360 | 56637T | |
| 30 | LINK ASSEMBLY 40 Comment: SERIAL 02771622-03028360 | 56636A1 | |
| 31 | ROLL PIN 40 Comment: SERIAL 02771622-03028360 | 17-25905 | |
| 32 | SPACER 40 Comment: SERIAL 02771622-03028360 | 23-56639 | |
| 29 | CONTROL LEVER 40 Comment: SERIAL 03028361-09999999 | 62024T | |
| 30 | LINK ASSEMBLY 40 Comment: SERIAL 03028361-09999999 | 62257A2 | |
| 31 | ROLL PIN 40 Comment: SERIAL 03028361-09999999 | 17-25905 | |
| 32 | SPACER 40 Comment: SERIAL 03028361-09999999 | 23-31309 | |
| 33 | SCREW 40 Comment: SERIAL 02771622-09999999 | 10-852368 | 10-56682 SERIAL 02771622-09999999 |
| 34 | WASHER 40 Comment: SERIAL 02771622-09999999 | 12-8M0204666 | |
| 35 | WAVE WASHER 40 Comment: SERIAL 02771622-09999999 | 13-34632 | |
| 36 | WASHER 40 Comment: SERIAL 02771622-09999999 | 12-24812 | |
| 37 | DISC | 20203 | |
| 38 | PLATE | NLA | |
| 39 | SCREW | NLA | |
| 40 | SPACER 40 Comment: SERIAL 03028361-09999999 | NLA | |
| 41 | WAVE WASHER 40 Comment: SERIAL 03028361-09999999 | NLA | |
| 42 | CAPLUG | 19-77633Q | |
| 43 | GREASE FITTING | 22-8M0169589 | |
| 44 | SWIVEL BRACKET | 1451-1788 | |
| 45 | O-RING | 25-25439 | |
| 46 | SERIAL PLATE | NLA | |
| 47 | DRIVE SCREW | 10-28642 | |
| 48 | TILT STOP LEVER | 63310A1 | |
| 49 | SCREW | 10-29237 | |
| 50 | NUT | 11-8M0207775 | |
| 51 | SCREW | 10-27791 | |
| 52 | WAVE WASHER | 13-20846 | |
| 53 | NUT | 11-8M0207775 | |
| 54 | SWIVEL PIN | 17-30688 | |
| 55 | CO-PILOT DISC | 77334 | |
| 56 | SCREW | 10-30679 | |
| 57 | NUT | 11-8M0207775 | |
| 58 | BOLT 40 | 10-67982 | |
| 59 | WASHER 40 | 12-67983 | |
| 60 | NUT 40 | 11-8267098 |
CRANKSHAFT, PISTON AND CONNECTING ROD
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CRANKSHAFT, PISTON AND CONNECTING ROD:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT (39-SEE BLOCK COMMENTS) | NLA | |
| 1 | CRANKSHAFT (39-SEE BLOCK COMMENTS)(40) | 427-3513 | |
| 2 | CONNECTING ROD (39) Comment: SERIAL 00000000-02098036 | 608-2021A2 | |
| 2 | CONNECTING ROD (39)(40) Comment: SERIAL 02098037-09999999 | 608-7395A2 | |
| 3 | SCREW (39) Comment: SERIAL 00000000-02098036 | NLA | |
| 3 | SCREW (39)(40) Comment: SERIAL 02098037-09999999 | 10-87374 | |
| 4 | NEEDLE BEARING | 29-26815 | |
| 5 | NUT | 11-20061 | |
| 6 | WASHER | 12-31433 | |
| 7 | NEEDLE BEARING | 29-31505 | |
| 8 | PISTON AND PISTON PIN ASSEMBLY | 719-7391T3 | |
| 9 | LOCK RING | 40-21666 | |
| 10 | PISTON RING | 39-21665A12 |

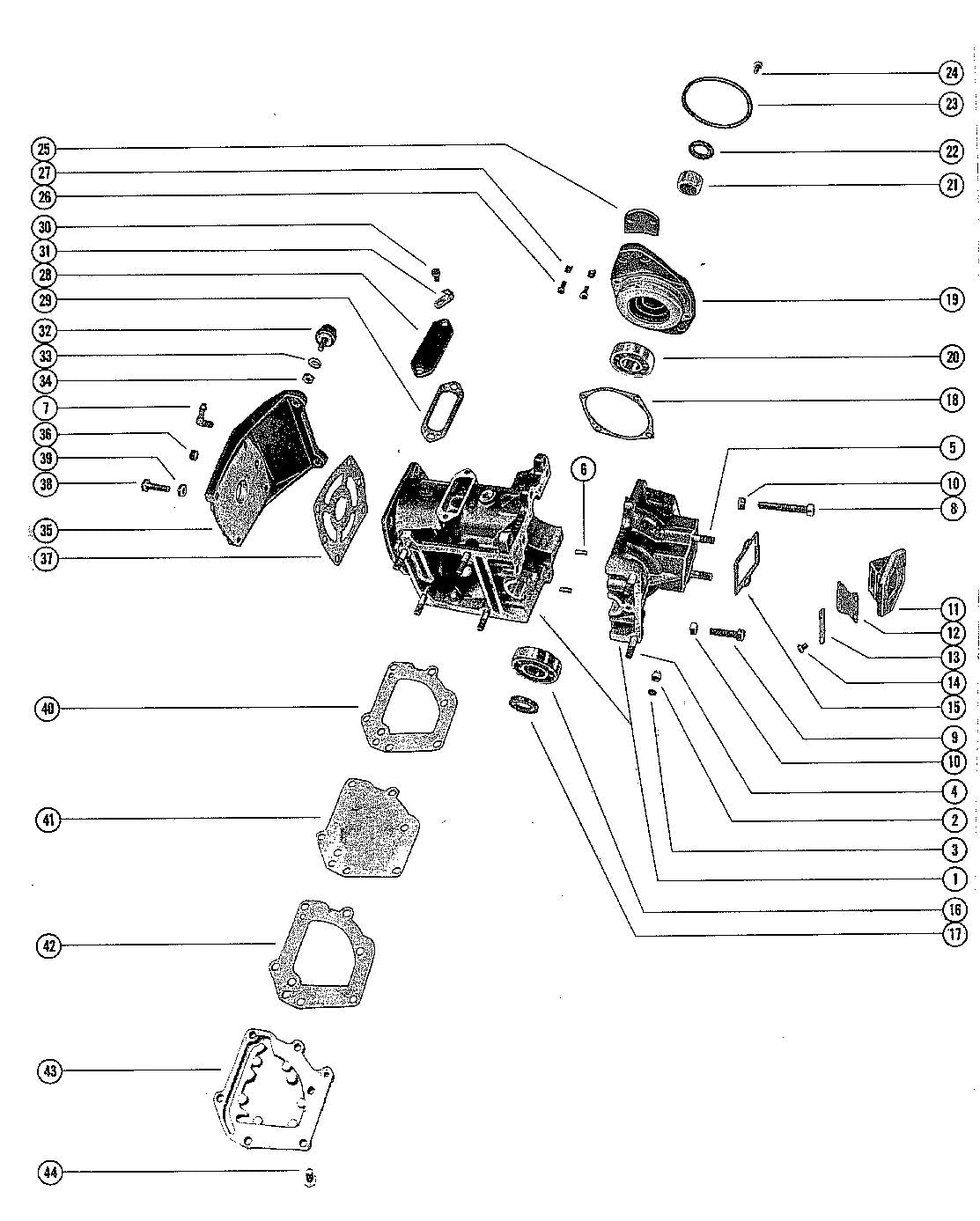

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK (39) Comment: SERIAL 00000000-02098036 | NLA | |
| 1 | CYLINDER BLOCK (39)(40) Comment: SERIAL 02098037-09999999 | 843-8694A3 | |
| 2 | CHECK VALVE (39)(40) Comment: SERIAL 00000000-02771621 | 21-30819A1 | |
| 2 | CHECK VALVE 40 Comment: SERIAL 02771622-09999999 | 21-28481A1 | |
| 3 | WELCH PLUG Comment: SERIAL 02771622-09999999 | NLA | |
| 4 | STUD | 16-66021 | |
| 5 | STUD | 16-46431 | |
| 6 | DOWEL PIN | 17-8M0084726 | 17-85500 |
| 7 | ELBOW (90 )(40-SER.33028361 & UP) | 22-996642 | |
| 8 | SCREW (1-3/4") | NLA | |
| 9 | SCREW (1") | 10-64278 | |
| 10 | NUT | 11-8M0207775 | |
| 11 | REED BLOCK | 70726 | |
| 12 | REED, INLET VALVE | 34-35836 | |
| 13 | RETAINER | 34-22215 | |
| 14 | SCREW | 10-28430 | |
| 15 | GASKET | 27-357391 | |
| 16 | BALL BEARING | 30-72961 | |
| 17 | OIL SEAL (39)(40) Comment: SERIAL 00000000-02771621 | 26-31411 | |
| 17 | OIL SEAL (40) Comment: SERIAL 32771622-09999999 | 26-56397 | |
| 18 | SHIM ASSEMBLY | 15-31412A1 | |
| 19 | BEARING HOUSING ASSEMBLY | NLA | |
| 20 | BALL BEARING | 30-72961 | |
| 21 | ROLLER BEARING | 31-31410 | |
| 22 | OIL SEAL | 26-31411 | |
| 23 | O-RING | 25-20863 | |
| 24 | SCREW (39)(#10-24 X 1/2") | NLA | |
| 24 | SCREW (39)(40)(#12-24 X 1/2") | 10-39002 | |
| 25 | CLAMP 39 40 Comment: SERIAL 00000000-02693114 | 54-34598 | |
| 26 | SCREW Comment: SERIAL 00000000-02693114 | 10-36205 | |
| 27 | SPRING Comment: SERIAL 00000000-02693114 | 24-34731 | |
| 28 | TRANSFER PORT COVER | 35658 | |
| 29 | GASKET | 27-35657 | |
| 30 | SCREW (39)(40) Comment: SERIAL 00000000-02923726 | 10-20665 | |
| 30 | SCREW 40 Comment: SERIAL 02923727-09999999 | 10-20720 | |
| 31 | CLAMP Comment: SERIAL 02923727-09999999 | NLA | |
| 32 | MOUNT | 31014 | |
| 33 | LOCKWASHER) | 13-26992 | |
| 34 | NUT | 11-20088 | |
| 35 | COVER, CYLINDER BLOCK (39)(40) Comment: SERIAL 00000000-03028360 | NLA | |
| 35 | COVER, CYLINDER BLOCK (40) Comment: SERIAL 03028361-09999999 | 1016-7070A1 | |
| 36 | PIPE PLUG (39) | 22-390721 | |
| 36 | PIPE PLUG (40) | 22-328022 | |
| 37 | GASKET | 27-416151 | |
| 38 | SCREW (39) Comment: SERIAL 00000000-02098036 | 10-20653 | |
| 38 | SCREW (39)(40) Comment: SERIAL 02098037-09999999 | 10-21091 | |
| 39 | NUT | 11-8M0207775 | |
| 40 | GASKET | 27-416141 | |
| 41 | BAFFLE PLATE | 46234 | |
| 42 | GASKET | 27-416141 | |
| 43 | COVER, EXHAUST MANIFOLD | 46171 | |
| 44 | SCREW | 10-28636 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING (SHORT SHAFT) | NLA | |
| 1 | DRIVE SHAFT HOUSING (LONG SHAFT) | NLA | |
| 2 | STUD (39) | 16-34378 | |
| 2 | STUD (40) | 16-66373 | |
| 3 | NUT | 11-82670911 | |
| 4 | NUT | 11-8M0204726 | |
| 5 | SADDLE | 1539-8450A1 | |
| 6 | MOUNT ASSEMBLY (LOWER) | 79896A1 | |
| 7 | MOUNT ASSEMBLY (UPPER)(SEE BLOCK COMMENTS) | 79985A1 | |
| 8 | RETAINING RING | 53-26406 | |
| 9 | COVER | 71490 | |
| 10 | SCREW (39-) Comment: SERIAL 00000000-02278850 | 10-30675 | |
| 10 | SCREW (39)(40) Comment: SERIAL 02278851-09999999 | 10-45817 | |
| 11 | BLOCK (LONG SHAFT)(39)(40) Comment: SERIAL 00000000-02771621 | NLA | |
| 11 | BLOCK (LONG SHAFT)(40) Comment: SERIAL 02771622-09999999 | 55435 | |
| 12 | GASKET (39)(40) Comment: SERIAL 00000000-03028360 | 27-30804 | |
| 12 | GASKET (40) Comment: SERIAL 03028361-09999999 | 27-59079 | |
| 13 | NUT(QTY. OF 6 REQUIRED ON 39) Comment: SERIAL 00000000-02278850 | 11-8M0207775 | |
| 13 | NUT(39)(40) Comment: SERIAL 02278851-09999999 | 11-24652 | |
| 14 | WATER TUBE (SHORT SHAFT) | 32-31940 | |
| 14 | WATER TUBE (LONG SHAFT) | 32-32077 | |
| 15 | SEAL ((39) Comment: SERIAL 00000000-01697722 | 26-30811 | |
| 15 | SEAL (39-)(40) Comment: SERIAL 01697723-09999999 | 26-36556 | |
| 16 | SPACER | 23-13127 |
FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | NUT 39 40 Comment: SERIAL 00000000-02771621 | 11-20696 | |
| 2 | WASHER Comment: SERIAL 00000000-02771621 | 12-36245 | |
| 3 | O-RING(39) Comment: SERIAL 00000000-02771621 | 25-62701 | |
| 4 | KEY Comment: SERIAL 00000000-02771621 | 28-20094 | |
| 5 | PLUG (39) Comment: SERIAL 00000000-02098036 | NLA | |
| 6 | FLYWHEEL ASSEMBLY 39 40 Comment: SERIAL 00000000-02771621 | NLA | |
| 7 | WAVE WASHER Comment: SERIAL 00000000-02771621 | 13-35629 | |
| 8 | STATOR PLATE (SEE BREAKDOWN BELOW) Comment: SERIAL 00000000-02771621 | NLA | |
| 9 | CAM,BREAKER Comment: SERIAL 00000000-02771621 | NLA | |
| 10 | THROTTLE CAM (NOT AS SHOWN) Comment: SERIAL 00000000-02771621 | 56520 | |
| 11 | SCREW Comment: SERIAL 00000000-02771621 | 10-69054 | |
| 12 | RING Comment: SERIAL 00000000-02771621 | NLA | |
| 13 | SCREW Comment: SERIAL 00000000-02771621 | 10-35400 | |
| 14 | SHIM(.015) Comment: SERIAL 00000000-02771621 | 15-33910015 | |
| 15 | LINK Comment: SERIAL 00000000-02771621 | NLA | |
| 16 | PIVOT PIN Comment: SERIAL 00000000-02771621 | NLA | |
| 17 | WAVE WASHER Comment: SERIAL 00000000-02771621 | 13-29720 | |
| 18 | SCREW Comment: SERIAL 00000000-02771621 | 10-34696 | |
| 19 | WASHER Comment: SERIAL 00000000-02771621 | 12-34392 | |
| 20 | WAVE WASHER Comment: SERIAL 00000000-02771621 | 13-29720 | |
| 21 | NUT Comment: SERIAL 00000000-02771621 | 11-28656 |

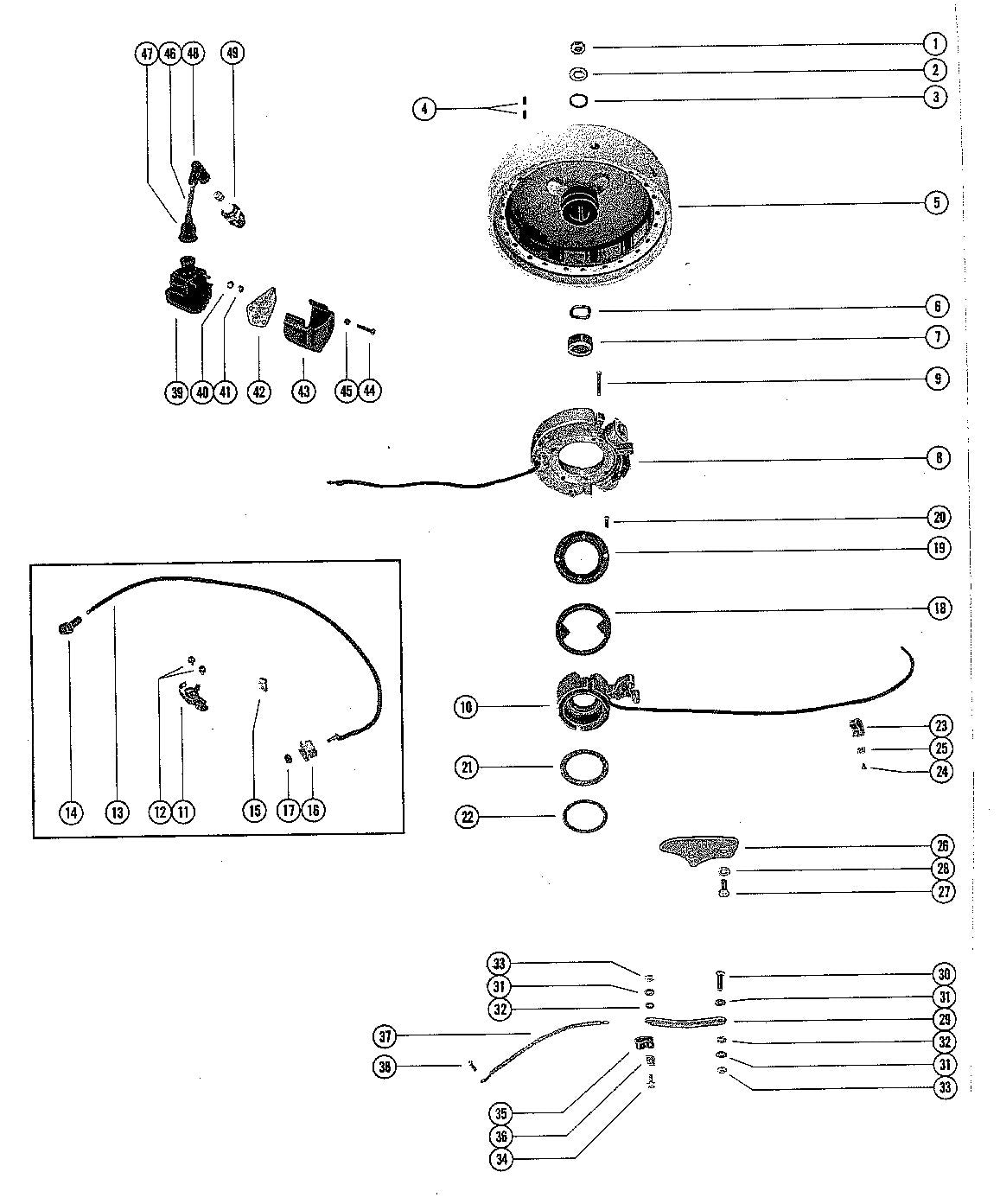

FLYWHEEL,STATOR AND IGNITION COIL (40)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FLYWHEEL,STATOR AND IGNITION COIL (40):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | NUT,FLYWHEEL | 11-20696 | |
| 2 | WASHER,FLYWHEEL NUT | 12-36245 | |
| 3 | "O"RING,FLYWHEEL NUT | 25-62701 | |
| 4 | KEY | 28-20094 | |
| 5 | FLYWHEEL ASSEMBLY | NLA | |
| 6 | WAVE WASHER | 13-35629 | |
| 7 | CAM,BREAKER | NLA | |
| 8 | STATOR ASSEMBLY | 336-3962A4 | |
| 9 | SCREW,STATOR TO END CAP | 10-69560 | |
| 10 | HOUSING ASSEMBLY,CONTACT | 336-3980A1 | |
| 11 | BREAKER ASSEMBLY | 336-4318A2 | |
| 12 | SCREW | 10-56266 | |
| 13 | CABLE ASSEMBLY | 56316A1 | |
| 14 | BOOT | 38938 | |
| 15 | WICK | 336-3989 | |
| 16 | INSULATOR | 336-3981 | |
| 17 | NUT | 11-56325 | |
| 18 | HOLDER,CONTACT HOUSING | 336-4429 | |
| 19 | COVER ASSEMBLY | NLA | |
| 20 | SCREW,COVER | NLA | |
| 21 | WASHER | 12-56077 | |
| 22 | WAVE WASHER | NLA | |
| 23 | CLIP | 54-26550 | |
| 24 | SCREW,CLIP | 10-62568 | |
| 25 | "C" WASHER,LIP SCREW | 8M0084613 | 69205 |
| 26 | THROTTLE CAM | 56520 | |
| 27 | SCREW,THROTTLE CAM | 10-69054 | |
| 28 | WASHER,THROTTLE CAM SCREW | 12-37998 | |
| 29 | THROTTLE LINK | NLA | |
| 30 | SCREW,THROTTLE LINK | 10-34696 | |
| 31 | WASHER,THROTTLE LINK SCREW | 12-34392 | |
| 32 | WAVE WASHER, THROTTLE LINK SCREW | 13-29720 | |
| 33 | NUT,THROTTLE LINK SCREW | 11-28656 | |
| 34 | SCREW,THROTTLE LINK | NLA | |
| 35 | CLIP | 54-24836 | |
| 36 | "C" WASHER | 8M0084613 | 69205 |
| 37 | JUMPER WIRE ASSEMBLY | 56757A1 | |
| 38 | SCREW,JUMPER WIRE | 10-8M0113176 | |
| 39 | IGNITION COIL ASSEMBLY | 336-4409A4 | |
| 40 | LOCKWASHER | 13-26996 | |
| 41 | NUT | 11-45076 | |
| 42 | SHIELD Comment: SERIAL 02923122-09999999 | NLA | |
| 43 | COVER | 56188 | |
| 44 | SCREW,COVER | 10-56543 | |
| 45 | NUT,COVER SCREW | 11-27164 | |
| 46 | LEAD WIRE | 84-813715A1 | |
| 47 | NIPPLE | 332-2854T01 | |
| 48 | PROTECTOR | 85-63709A1 | |
| 49 | SPARK PLUG | 33-896329833 | 33-833C |
FUEL PUMP ASSEMBLY (39)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FUEL PUMP ASSEMBLY (39):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 39082A4 | |
| 2 | CHECK VALVE ASSEMBLY | 21-22974A3 | |
| 3 | DIAPHRAGM KIT | 31503A1 | |
| 4 | GASKET (#) | ||
| 5 | SPACER Comment: SERIAL 00000000-01865632 | NLA | |
| 6 | SCREW (7/8") Comment: SERIAL 00000000-01865632 | 10-23702 | |
| 7 | NUT Comment: SERIAL 00000000-01865632 | 11-68219 | |
| 5 | SPACER Comment: SERIAL 01865633-09999999 | NLA | |
| 6 | SCREW (1") Comment: SERIAL 01865633-09999999 | 10-68918 | |
| 8 | ELBOW (90 ) | NLA | |
| 9 | ELBOW (45 ) | NLA | |
| 10 | HOSE | 32-9912688 | |
| 11 | ELBOW (90 ) | 22-33373001 | |
| 12 | CLAMP | 54-20387 | |
| 13 | FUELINE | 32-53800 | |
| 14 | ADAPTOR | 32454 | |
| 15 | SCREW | NLA | |
| 16 | SPRING | 24-28357 | |
| 17 | NUT | 11-20110 |

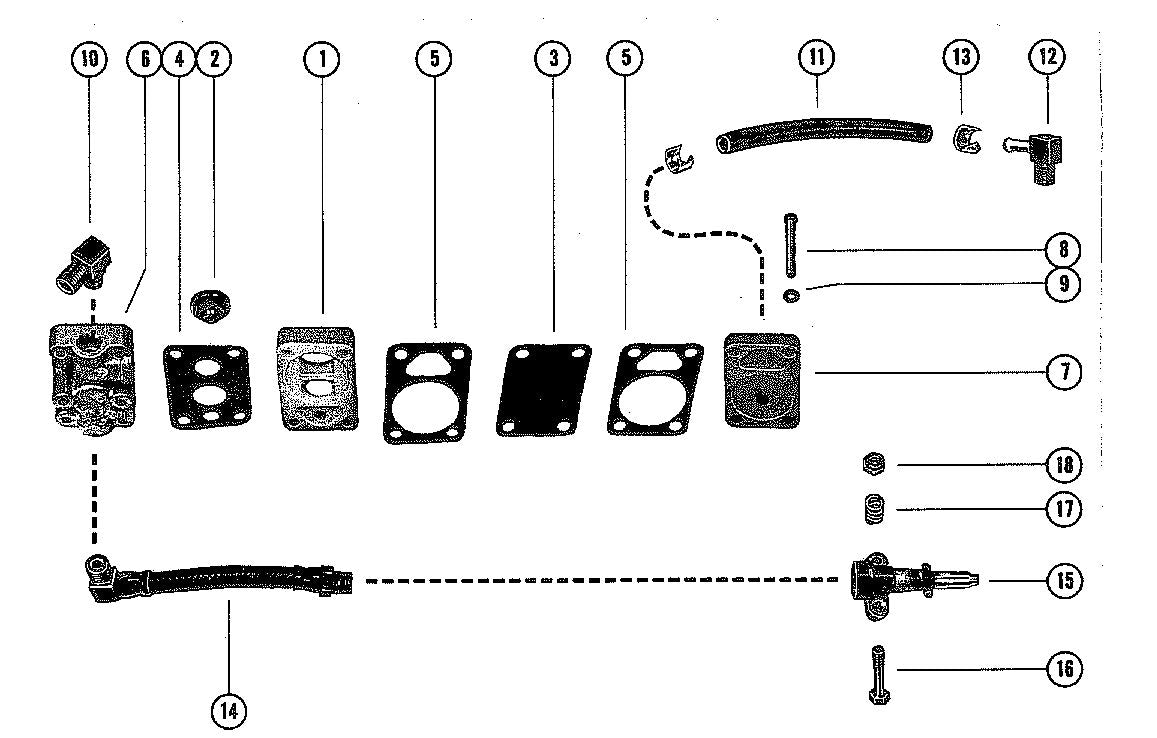

FUEL PUMP ASSEMBLY (40)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) FUEL PUMP ASSEMBLY (40):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 89977A1 | |
| 2 | CHECK VALVE ASSEMBLY | 21-30430A2 | |
| 3 | DIAPHRAGM KIT | 53245A1 | |
| 4 | GASKET (#) | ||
| 5 | GASKET (#) | ||
| 6 | BASE | 53241 | |
| 7 | COVER | 53239 | |
| 8 | SCREW (1-1/2") | 10-32627 | |
| 9 | WASHER | 12-847883 | 12-20128 |
| 10 | ELBOW (90 ) | NLA | |
| 11 | HOSE | 32-9912688 | |
| 12 | ELBOW (90 ) | 22-33373001 | |
| 13 | CLAMP | 54-20387 | |
| 14 | FUEL LINE (SERIAL# & BELOW) Comment: SERIAL 00000000-03028360 | 32-53800 | |
| 14 | FUEL LINE (SERIAL#& UP) Comment: SERIAL 03028361-09999999 | NLA | |
| 15 | ADAPTOR | 32454 | |
| 16 | SCREW (1-1/2") Comment: SERIAL 00000000-02923268 | NLA | |
| 16 | SCREW (1-3/8") Comment: SERIAL 02923269-03028360 | 10-73656 | |
| 16 | SCREW (1-1/8") Comment: SERIAL 03028361-09999999 | 10-23702 | |
| 17 | SPRING | 24-28357 | |
| 18 | NUT Comment: SERIAL 00000000-02927900 | 11-20110 |
GEAR HOUSING (DRIVE SHAFT) (PAGE 1)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) GEAR HOUSING (DRIVE SHAFT) (PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | G/HSG.COMP.(SHORT)(39)(40) Comment: SERIAL 00000000-03028360 | NLA | |
| - | HSG.COMP.(SHORT)(40) Comment: SERIAL 03028361-09999999 | 1622-4408A4 | |
| - | HSG.COMP.(LONG)(39/40) | NLA | |
| 1 | G/HSG. (39)(40) Comment: SERIAL 00000000-03028360 | 1622-2244A18 | |
| 1 | G/HSG.(40) Comment: SERIAL 03028361-09999999 | 1622-4408A1 | |
| 2 | STUD (3-7/16") | 16-58138 | |
| 3 | STUD (2-7/16") | NLA | |
| 3 | STUD (2-5/8") | NLA | |
| 3 | STUD (2-7/8") | 16-29592 | |
| 3 | STUD (2-3/4") | 16-58136 | |
| 4 | ROLLER BEARING | 31-22756 | |
| 5 | DOWEL PIN | 17-20032 | |
| 6 | SEAL (RUBBER)(39) Comment: SERIAL 00000000-01697722 | 26-26865 | |
| 6 | SEAL (RUBBER)(39)(40) Comment: SERIAL 01697723-09999999 | 26-33613 | |
| - | SPACER (NYLON)(39)(40) Comment: SERIAL 01697723-09999999 | 23-86215 | |
| 7 | SCREEN | 35-33425 | |
| 8 | SCREW | 10-28642 | |
| 9 | WASHER | 12-191833 | |
| 10 | SCREW | 10-79953Q04 | |
| 11 | WASHER | 19643 | |
| 12 | SCREW | 10-28653 | |
| 13 | SHIFT SHAFT (SHORT) | 54640A1 | |
| 13 | SHIFT SHAFT (LONG) | 54641A1 | |
| 14 | RETAINING RING | 53-22899 | |
| 15 | BUSHING ASSEMBLY | 23-30676A1 | |
| 16 | O-RING | 25-26802 | |
| 17 | OIL SEAL | 26-30696 | |
| 18 | SCREW | 10-39149 | |
| 19 | PINION GEAR (39-2 RAMP RATCHET) Comment: SEE NOTE #2 IN BLOCK COMMENTS. | 43-48577A2 | |
| 19 | PINION GEAR (39-3 RAMP RATCHET)(40) | 43-98696 | |
| 20 | TAB WASHER | 14-30377 | |
| 21 | SCREW | 10-30376 | |
| 22 | DRIVE SHAFT (SHORT/LONG)(39-SEE NOTE IN BLOCK COMMENTS) | NLA | |
| 22 | DRIVE SHAFT (SHORT)(39-SEE NOTE IN BLOCK COMMENTS)(40) | 45-39078 | |
| 22 | DRIVE SHAFT (LONG)(39-SEE NOTE IN BLOCK COMMENTS)(40) | 45-39077 | |
| 23 | SHIM ASSEMBLY | 15-30527A1 |
GEAR HOUSING (DRIVE SHAFT) (PAGE 2)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) GEAR HOUSING (DRIVE SHAFT) (PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | G/HSG. COMP.(SHORT)(39)(40 Comment: SERIAL 00000000-03028360 | NLA | |
| - | HSG.COMP. (SHORT)(40) Comment: SERIAL 03028361-09999999 | 1622-4408A4 | |
| - | HSG.COMP. (LONG)(39/40) | NLA | |
| 1 | G/HSG. (39)(40) Comment: SERIAL 00000000-03028360 | 1622-2244A18 | |
| 1 | G/HSG. (40) Comment: SERIAL 03028361-09999999 | 1622-4408A4 | |
| 24 | BALL BEARING | 30-33076 | |
| 25 | RETAINING RING | 53-30523 | |
| 26 | SHIM ASSEMBLY | 15-30527A1 | |
| 27 | WATER PUMP HOUSING (39) | 46-46893A6 | |
| 27 | WATER PUMP HOUSING (40) | 46-46893A3 | |
| 28 | O-RING | 25-29439 | |
| 29 | OIL SEAL | 26-30900T | |
| 30 | SEAL | 26-33613 | |
| 31 | WATER TUBE | 32-34293 | |
| 32 | INSERT (39) Comment: SERIAL 00000000-02200317 | 31707 | |
| 32 | INSERT (39)(40) Comment: SERIAL 02200318-09999999 | 70977T | |
| 33 | PIN(39) Comment: SERIAL 00000000-02278850 | 17-22060 | |
| 33 | KEY(39-)(40) Comment: SERIAL 02278851-09999999 | 28-8M0032835 | 28-56655 SERIAL 02278851-09999999 |
| 34 | IMPELLER(39) Comment: SERIAL 00000000-02278850 | 47-22748 | |
| 34 | IMPELLER (39)(40) Comment: SERIAL 02278851-09999999 | 47-89981 | |
| 35 | FACE PLATE (39) Comment: SERIAL 00000000-02200317 | 30674 | |
| 35 | FACE PLATE (39)(40) Comment: SERIAL 02200318-09999999 | 46895 | |
| 36 | WATER PUMP COVER (39) Comment: SERIAL 00000000-02200317 | 30593A1 | |
| 36 | WATER PUMP COVER (39-ALUMINUM) | NLA | |
| 36 | WATER PUMP COVER (39-PLASTIC)(40) | 93224A1 | |
| 37 | SEAL (39) Comment: SERIAL 00000000-01697722 | 26-30811 | |
| 37 | SEAL (39)(40) Comment: SERIAL 01697723-09999999 | 26-36558 | |
| - | SPACER(39)(40) Comment: SERIAL 01697723-09999999 | 23-13127 | |
| 38 | OIL SEAL | 26-30913 | |
| 39 | WASHER(39 Comment: SERIAL 02200318-09999999 | 12-46897 | |
| 39 | WASHER (40) | 12-20533 | |
| 40 | NUT(39) | 11-8M0207775 | |
| 40 | NUT (40) | 11-826709109 | 11-33825, 11-35045 |
| 41 | RUBBER RING | 25-30526 | |
| 42 | O-RING | 25-48171 | |
| 43 | SLEEVE | 23-31792T |
GEAR HOUSING (PROPELLER SHAFT)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) GEAR HOUSING (PROPELLER SHAFT):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 70 | G/HSG. COMP.(SHORT)(39)(40) Comment: SERIAL 00000000-03028360 | NLA | |
| - | G/HSG. COMP. (SHORT)(40) Comment: SERIAL 03028361-09999999 | NLA | |
| - | HSG. COMP.(LONG)(39/40) | NLA | |
| 1 | G/HSG.(39)(40) Comment: SERIAL 00000000-03028360 | 1622-2244A18 | |
| 1 | G/HSG.(40) Comment: SERIAL 03028361-09999999 | 1622-4408A1 | |
| 44 | SHIFT CAM ((39)(40) Comment: SERIAL 00000000-03028360 | 30599 | |
| 44 | SHIFT CAM (40) Comment: SERIAL 03028361-09999999 | 44434 | |
| 45 | CAM FOLLOWER | 31334 | |
| 46 | SPRING | 24-31333 | |
| 47 | SHIM ASSEMBLY | 15-30522A1 | |
| 48 | BALL BEARING | 30-21889 | |
| 49 | FORWARD GEAR (39-2 RAMP RATCHET) Comment: 43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN. | 43-48577A2 | |
| 49 | FORWARD GEAR (39-3 RAMP RATCHET)(40) | 43-48577A3 | |
| 50 | ROLLER BEARING | 31-22458 | |
| 51 | RATCHET (39-2 RAMP RATCHET) Comment: 43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN. | 43-48577A2 | |
| 52 | RETAINING RING | 53-32449 | |
| 53 | CROSS PIN | 17-30535 | |
| 54 | PROPELLER SHAFT (39) Comment: SERIAL 00000000-02278850 | 44-33581 | |
| 54 | PROPELLER SHAFT (39)(40) Comment: SERIAL 02278851-09999999 | 44-47935 | |
| 55 | REVERSE GEAR (39-2 RAMP RATCHET) Comment: 43-48577A2 INCLUDES A FORWARD GEAR, REVERSE GEAR, PINION GEAR, RATCHET AND CROSS PIN. | 43-48577A2 | |
| 55 | REVERSE GEAR (39-3 RAMP RATCHET)(40) | 43-48578 | |
| 56 | THRUST WASHER | 12-30531 | |
| 57 | BALL BEARING | 30-21889 | |
| 58 | SHIM ASSEMBLY | 15-30532A1 | |
| 59 | O-RING | 25-30529 | |
| 60 | BEARING CARRIER ASSEMBLY | 30541T1 | |
| 61 | ROLLER BEARING | 31-22458 | |
| 62 | OIL SEAL | 26-30530 | |
| 63 | WASHER | 12-30528 | |
| 64 | COVER | 30537 | |
| 65 | COLLAR (39) Comment: SERIAL 00000000-02278850 | 23-33582 | |
| 65 | THRUST HUB (39-)(40) Comment: SERIAL 02278851-09999999 | 86665A1 | |
| 67 | PROPELLER (39) Comment: SERIAL 00000000-02278850 | 48-45890A1 | |
| 67 | PROPELLER (39)(40) Comment: SERIAL 02278851-09999999 | 48-47944A1 | |
| 68 | SPLINED WASHER (39) Comment: SERIAL 00000000-02278850 | 12-30524 | |
| 68 | SPACER (39)(40) Comment: SERIAL 02278851-09999999 | 11-64075A1 | |
| 69 | WASHER (39) Comment: SERIAL 00000000-02278850 | 12-20084 | |
| 69 | WASHER (39-/40) Comment: SERIAL 02278851-02927900 | 12-27025 | |
| 70 | NUT (39-) Comment: SERIAL 00000000-02278850 | 11-8M0204653 | |
| 70 | NUT (39)(40) Comment: SERIAL 02278851-09999999 | 11-8M0204653 |
MISCELLANEOUS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) MISCELLANEOUS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | 39/40 PARTS LIST | 90-815749 | 90-36378, 90-52314 |
| - | GASKET SET (39) Comment: SERIAL 00000000-02098036 | 27-35735A1 | |
| - | GASKET SET (39) (40) Comment: SERIAL 02098037-09999999 | 27-78139A80 | |
| - | DECAL SET (39) | NLA | |
| DECAL SET (40) | NLA |

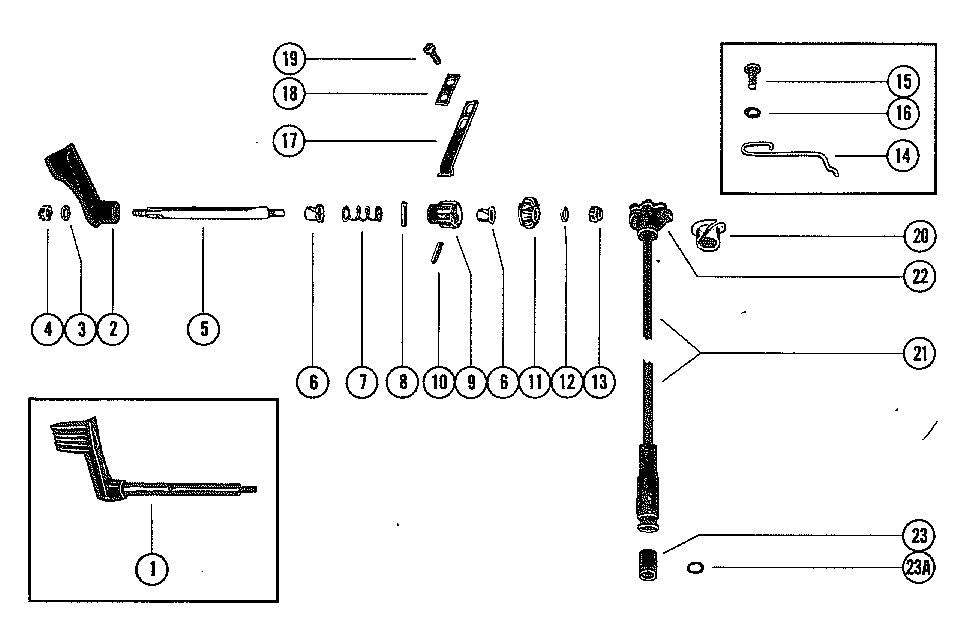

SHIFT CONTROL LINKAGE (39)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) SHIFT CONTROL LINKAGE (39):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SHIFT CONTROL HANDLE Comment: SERIAL 00000000-01919629 | 30747 | |
| 2 | SHIFT CONTROL HANDLE Comment: SERIAL 01919630-09999999 | 59107 | |
| 3 | WASHER Comment: SERIAL 01919630-09999999 | 12-8M0204649 | |
| 4 | NUT Comment: SERIAL 01919630-09999999 | 11-826709109 | 11-33825, 11-35045 SERIAL 01919630-09999999 |
| 5 | SHIFT SHAFT Comment: SERIAL 01919630-09999999 | NLA | |
| 6 | BUSHING | 23-30678 | |
| 7 | SPRING | NLA | |
| 8 | DOWEL PIN | NLA | |
| 9 | CAM Comment: SERIAL 02278851-09999999 | 39588 | |
| 10 | PIN Comment: SERIAL 02278851-09999999 | 17-25905 | |
| 11 | GEAR | 43-30802 | |
| 12 | WASHER | 12-8M0204649 | |
| 13 | NUT | 11-8267089 | |
| 14 | SPRING Comment: SERIAL 00000000-02278850 | 24-30816 | |
| 15 | SCREW Comment: SERIAL 00000000-02278850 | NLA | |
| 16 | LOCKWASHER Comment: SERIAL 00000000-02278850 | 13-21272 | |
| 17 | SPRING Comment: SERIAL 02278851-09999999 | 24-39627 | |
| 18 | PLATE Comment: SERIAL 02278851-09999999 | 39601 | |
| 19 | SCREW Comment: SERIAL 02278851-09999999 | 10-25764 | |
| 20 | BUSHING | 23-30677 | |
| 21 | SHIFT CONTROL SHAFT ASSEMBLY | NLA | |
| 22 | GEAR | NLA | |
| 23 | RING Comment: SERIAL 00000000-01794250 | 25-26630 | |
| 23A | O-RING Comment: SERIAL 01794251-09999999 | 25-38933 |
SHIFT CONTROL LINKAGE (40)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) SHIFT CONTROL LINKAGE (40):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SHIFT CONTROL HANDLE | 59107 | |
| 2 | WASHER | 12-8M0204649 | |
| 3 | NUT | 11-826709109 | 11-33825, 11-35045 |
| 4 | SHIFT SHAFT | NLA | |
| 5 | BUSHING | 23-30678 | |
| 6 | SPRING | NLA | |
| 7 | DOWEL PIN | NLA | |
| 8 | CAM | 39588 | |
| 9 | PIN | 17-25905 | |
| 10 | GEAR | 43-30802 | |
| 11 | WASHER | 12-8M0204649 | |
| 12 | NUT | 11-8267089 | |
| 13 | SPRING | 24-39627 | |
| 14 | PLATE | 39601 | |
| 15 | SCREW | 10-25764 | |
| 16 | BUSHING | 23-30677 | |
| 17 | SECTOR GEAR Comment: SECTOR GEARS ARE INCLUDED WITH GEAR HOUSING ASSEMBLIES, COMPLETE. | 43-86686A1 |
STATOR PLATE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) STATOR PLATE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STATOR PLATE ASSEMBLY,COMPLETE 39 40-SER.#& BELOW Comment: SERIAL 00000000-02771621 | NLA | |
| 1 | STATOR PLATE AND CORE Comment: SERIAL 00000000-02771621 | NLA | |
| 2 | COIL ASSEMBLY Comment: SERIAL 00000000-02771621 | 398-2568T1 | |
| 3 | CLIP(TOP) Comment: SERIAL 00000000-02771621 | 398-2321 | |
| 3 | CLIP(SIDE) Comment: SERIAL 00000000-02771621 | NLA | |
| 4 | CLIP Comment: SERIAL 00000000-02771621 | NLA | |
| 5 | SCREW Comment: SERIAL 00000000-02771621 | NLA | |
| 6 | FELT Comment: SERIAL 00000000-02771621 | 398-2207 | |
| 7 | CONDENSER Comment: SERIAL 00000000-02771621 | 398-2203 | |
| 8 | SCREW Comment: SERIAL 00000000-02771621 | NLA | |
| 9 | LOCKWASHER Comment: SERIAL 00000000-02771621 | NLA | |
| 10 | WASHER Comment: SERIAL 00000000-02771621 | NLA | |
| 11 | CLAMP Comment: SERIAL 00000000-02771621 | 54-24836 | |
| 12 | 'C" WASHER Comment: SERIAL 00000000-02771621 | 8M0084613 | 69205 SERIAL 00000000-02771621 |
| 13 | LOCKWASHER Comment: SERIAL 00000000-02771621 | NLA | |
| 14 | NUT Comment: SERIAL 00000000-02771621 | 11-21923T | |
| 15 | BREAKER ASSEMBLY Comment: SERIAL 00000000-02771621 | 398-2202 | |
| 16 | SCREW Comment: SERIAL 00000000-02771621 | NLA | |
| 17 | WASHER Comment: SERIAL 00000000-02771621 | NLA | |
| 18 | LOCKWASHER Comment: SERIAL 00000000-02771621 | NLA | |
| 19 | NUT Comment: SERIAL 00000000-02771621 | 11-21923T | |
| 20 | LEAD WIRE Comment: SERIAL 00000000-02771621 | 84-813715A1 | |
| 21 | PROTECTOR Comment: SERIAL 00000000-02771621 | 85-63709A1 | |
| 22 | SPARK PLUG (39) Comment: SERIAL 00000000-02098036 | NLA | |
| 22 | SPARK PLUG (39)(40) Comment: SERIAL 02098037-09999999 | 33-8M0114737 | |
| 23 | DUST COVER Comment: SERIAL 00000000-02771621 | NLA | |
| 24 | SCREW Comment: SERIAL 00000000-02771621 | NLA |
STEERING HANDLE ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) STEERING HANDLE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STEERING HANDLE (39) Comment: SERIAL 00000000-02278850 | NLA | |
| - | STEERING HANDLE (39)(40) Comment: SERIAL 02278851-09999999 | 60850A6 | |
| 1 | GRIP | 27763 | |
| 2 | BODY AND SHAFT | NLA | |
| 3 | INDICATOR | NLA | |
| 4 | SET SCREW | NLA | |
| 5 | DRIVE SCREW | NLA | |
| 6 | BUSHING | 23-30677 | |
| 7 | STEERING HANDLE(39) Comment: SERIAL 00000000-02440975 | NLA | |
| 7A | STEERING HANDLE 39- 40 Comment: SERIAL 02440976-09999999 | NLA | |
| 7B | KNUCKLE Comment: SERIAL 02440976-09999999 | NLA | |
| 7C | BUSHING Comment: SERIAL 02440976-09999999 | NLA | |
| 8 | BUSHING | 23-28100 | |
| 9 | WASHER (39-) Comment: SERIAL 00000000-01865632 | 12-20084 | |
| 10 | SPRING (39) Comment: SERIAL 00000000-02278850 | NLA | |
| 11 | TAB WASHER (39) Comment: SERIAL 00000000-01865632 | 14-26706 | |
| 11A | RETAINER (39--) Comment: SERIAL 01865633-02278850 | NLA | |
| 12 | YOKE (39) Comment: SERIAL 00000000-01865632 | 30235 | |
| 12 | YOKE (39) Comment: SERIAL 01865633-02278850 | NLA | |
| 13 | PIN (39) Comment: SERIAL 00000000-02278850 | 17-26862 | |
| 14 | BALL GEAR (39) Comment: SERIAL 02278851-09999999 | NLA | |
| 14 | BALL GEAR (40) | 43-53205 | |
| 15 | PIN (39)(40) Comment: SERIAL 02278851-09999999 | 17-26862 | |
| 16 | RING (39)(40) Comment: SERIAL 02278851-09999999 | NLA | |
| 17 | PIVOT (39) Comment: SERIAL 00000000-01865632 | 26711 | |
| 17 | PIVOT (39) Comment: SERIAL 01865633-02278850 | 39218 | |
| 17 | PIVOT (39)(40) Comment: SERIAL 02278851-09999999 | 48003 | |
| 18 | SHIM (39) Comment: SERIAL 00000000-02278850 | 15-26707 | |
| 18 | SHIM (39-(40) Comment: SERIAL 02278851-09999999 | 15-48002015 | |
| 19 | SHIM (39) Comment: SERIAL 00000000-01865632 | NLA | |
| 19 | WAVE WASHER (39) Comment: SERIAL 01865633-02278850 | 13-39227 | |
| 20 | LOCKWASHER (39) Comment: SERIAL 01865633-02278850 | NLA | |
| 21 | SCREW (39) Comment: SERIAL 00000000-01865632 | NLA | |
| 21 | SCREW (39 Comment: SERIAL 01865633-02278850 | 10-96138 | |
| 21 | SCREW (39)(40) Comment: SERIAL 02278851-09999999 | 10-64074 | |
| 22 | CONTROL SHAFT (39) Comment: SERIAL 00000000-02278850 | NLA | |
| 22A | UNIVERSAL JOINT (39)(40) Comment: SERIAL 02278851-09999999 | NLA | |
| 23 | SLEEVE (39)(40) Comment: SERIAL 02278851-09999999 | 23-48005 | |
| 24 | BALL GEAR (39) Comment: SERIAL 02278851-09999999 | NLA | |
| 24 | BALL GEAR (40) | 43-53205 | |
| 25 | PIN (39)(40) Comment: SERIAL 02278851-09999999 | 17-26862 | |
| 26 | RING (39-)(40) Comment: SERIAL 02278851-09999999 | NLA | |
| 27 | SCREW (39) Comment: SERIAL 00000000-02278850 | 10-96138 | |
| 28 | PLATE (39) Comment: SERIAL 01865633-02278850 | 39210 | |
| 29 | SHIELD (39) Comment: SERIAL 01865633-02278850 | 39185 | |
| 30 | BRACKET (39) Comment: SERIAL 00000000-02278850 | NLA | |
| 30 | BRACKET (39)(40) Comment: SERIAL 02278851-09999999 | 47680T | |
| 31 | BOOT (39)(40) Comment: SERIAL 02278851-09999999 | NLA | |
| 32 | BUSHING, (39)(40) Comment: SERIAL 02278851-09999999 | 23-47818 | |
| 33 | SPRING (39)(40) Comment: SERIAL 02278851-09999999 | 24-72847 | |
| 34 | SCREW (39)(40) Comment: SERIAL 02278851-09999999 | 10-37655 | |
| 35 | BOOT | NLA | |
| 36 | SCREW | 10-30679 | |
| 37 | NUT | 11-8M0207775 |
THROTTLE CONTROL LINKAGE (39)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) THROTTLE CONTROL LINKAGE (39):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SOCKET | NLA | |
| 2 | BUSHING | 23-31011 | |
| 3 | GEAR | NLA | |
| 4 | ROLL PIN | 17-22896 | |
| 5 | BUSHING | NLA | |
| 6 | WASHER Comment: SERIAL 00000000-01738940 | NLA | |
| 6 | WASHER Comment: SERIAL 01738941-09999999 | 12-26702 | |
| 7 | WAVE WASHER Comment: SERIAL 01738941-09999999 | 13-34632 | |
| 8 | GEAR AND SHAFT | NLA | |
| 9 | BUSHING | NLA | |
| 10 | BRACKET | NLA | |
| 11 | SCREW | NLA | |
| 12 | LEVER ASSEMBLY | NLA | |
| 13 | ROLL PIN | 17-22896 | |
| 14 | SCREW | NLA | |
| 15 | NUT | 11-30968 |
THROTTLE CONTROL LINKAGE (40)
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) THROTTLE CONTROL LINKAGE (40):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SOCKET | NLA | |
| 2 | BUSHING | 23-31011 | |
| 3 | GEAR | NLA | |
| 4 | ROLL PIN | 17-22896 | |
| 5 | BUSHING | NLA | |
| 6 | WASHER | 12-26702 | |
| 7 | WAVE WASHER | 13-34632 | |
| 8 | GEAR AND SHAFT | NLA | |
| 9 | BUSHING | NLA | |
| 10 | BRACKET | NLA | |
| 11 | SCREW | NLA | |
| 12 | LEVER ASSEMBLY | NLA | |
| 13 | ROLL PIN | 17-22896 | |
| 14 | SCREW | NLA | |
| 15 | NUT | 11-30968 |
TOP COWL AND STARTER ASSEMBLY
Back to TopBelow is the parts list for Mercury 40 (1 CYL.) TOP COWL AND STARTER ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TOP COWL (39) Comment: SERIAL 00000000-01865632 | NLA | |
| 1 | TOP COWL (39)(40) Comment: SERIAL 01865633-09999999 | 191-7668A2 | |
| 2 | STRIP, REAR (39) Comment: SERIAL 00000000-01865632 | NLA | |
| 2 | STRIP, REAR(39)(40) Comment: SERIAL 01865633-09999999 | 39538 | |
| 3 | STRIP, FORWARD(39) Comment: SERIAL 00000000-01865632 | NLA | |
| 3 | STRIP,FORWARD(39)(40) Comment: SERIAL 01865633-09999999 | 39537 | |
| 4 | SOUND BLANKET (STARBOARD) | NLA | |
| 5 | SOUND BLANKET (PORT) | NLA | |
| 6 | SOUND BLANKET (REAR) | NLA | |
| 7 | TRIM COVER | 89096 | |
| 8 | SCREW | 10-23618 | |
| 9 | TAB WASHER | 14-20165 | |
| 10 | NUT | 11-20166 | |
| 11 | SCREEN | NLA | |
| 12 | SCREW | 10-62568 | |
| 13 | BRACKET (PORT) 39 Comment: SERIAL 00000000-01865632 | 30833 | |
| 13 | BRACKET (STARBOARD) 39 Comment: SERIAL 00000000-01865632 | 30834 | |
| 14 | SCREW 39 Comment: SERIAL 00000000-01865632 | 10-37655 | |
| 15 | NUT 39 Comment: SERIAL 00000000-01865632 | 11-27164 | |
| 16 | BRACKET (PORT) 39- 40 Comment: SERIAL 01865633-09999999 | 39257 | |
| 16 | BRACKET (STARBOARD) 39- 40 Comment: SERIAL 01865633-09999999 | 39258 | |
| 17 | SCREW 39- 40 Comment: SERIAL 01865633-09999999 | 10-39514 | |
| 18 | WASHER 39- 40 Comment: SERIAL 01865633-09999999 | 12-37998 | |
| 19/20 | WASHER 39- 40 Comment: SERIAL 01865633-09999999 | 12-8M0204649 | |
| 21 | WASHER (39) Comment: SERIAL 00000000-01738940 | 12-21273 | |
| 22 | RETAINER | 20155 | |
| 23 | SPRING ASSEMBLY | 24-29340T02 | |
| 24 | BUSHING | 23-28912 | |
| 25 | STARTER SHEEVE | 50-93696A2 | |
| 26 | PIN | 17-22896 | |
| 27 | STARTER PAWL | 30596 | |
| 28 | WAVE WASHER | 13-36206 | |
| 29 | BUSHING | 23-28919 | |
| 30 | SHAFT ASSEMBLY (39) Comment: SERIAL 00000000-01697722 | 45477A1 | |
| 30 | SPACER (39)(40) Comment: SERIAL 01697723-09999999 | 23-61005 | |
| 31 | RETAINER | 26179 | |
| 32 | WASHER (39) Comment: SERIAL 00000000-01697722 | 12-26180 | |
| 32 | WASHER (39)(40) Comment: SERIAL 01697723-09999999 | 12-35559 | |
| 33 | WAVE WASHER | 13-20160 | |
| 34 | PLATE | 30595 | |
| 35 | SHAFT (39) Comment: SERIAL 00000000-01697722 | NLA | |
| 35 | SHAFT (39)(40) Comment: SERIAL 01697723-09999999 | 35558 | |
| 36 | MOUNT | 53472 | |
| 37 | WASHER (39) Comment: SERIAL 00000000-01738940 | 12-26907 | |
| 38 | PULLEY | 55860 | |
| 39 | SPACER | 23-309772 | |
| 40 | WASHER | 12-22887 | |
| 41 | SCREW | 10-28789 | |
| 42 | STARTER ROPE | 50-12066Q10 | |
| 43 | HANDLE | 30782 | |
| 44 | RETAINER ASSEMBLY | 79470A1 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
