Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Accessories:

Position No.	Part Name	OEM Number	Supersedes
-	TANK ASSEMBLY, Fuel Comment: Bodensee	1265-859651A1
-	HARDWARE KIT, Prop	13914Q03
-	BRACKET, Stick Steer	899659A01
-	DIAGRAM SET, Colored	90-899696A01
-	STARTER MOTOR KIT, Electric	50-899783A01
-	CHARGING KIT, Battery	898103A90
-	CONVERSION KIT, Remote Control-Electric	889246A33
-	CONVERSION KIT, Remote Control-Manual	889246A34
-	CONVERSION KIT, Tiller Handle-Remote Control to Handle Model	8M0051061	889246A71
1	HARNESS ASSEMBLY, ECU Comment: Electric	84-898101T52
2	LINK ROD, Throttle	898101114
3	CAP	853745
4	BRACKET, Arm	898101004
5	SCREW, (M6 x 16)	10-8248324
6	ARM, Throttle	898101196
7	WASHER, Plastic	12-898101218
8	COTTER PIN, Stainless Steel	18-898101174
9	WASHER	12-953921
10	COLLAR, (9.3 mm)	23-8M0021168	23-95286 24
11	BOLT, Stainless Steel	10-16705	10-95302
12	LINK ROD , Shift	898101113
13	JOINT, Cable	892775
14	SHIFT ARM	898101170
15	GROMMET	25-898101356	25-898101087
16	ATTACHING KIT, Steering	898101A45
17	DRAG LINK	898101045
18	NUT, Nylon	11-161473
19	WASHER	12-9539210
20	SPACER	23-853826001
21	SCREW	10-898101018
22	CAP	853825
23	PLATE	898101189
24	SCREW	10-879194258	10-898101012
25	WASHER, Stainless Steel	12-879194340	12-895141
26	CLAMP	54-898101231
27	SCREW, (M6 x 16)	10-8248324
28	BRACKET, Shift Rod Lever	898103018
29	BOLT, Stainless Steel	10-823042
30	SHIFT SHAFT	898103T17
31	SHIFT ARM	898101169
32	BOLT	10-879194248	10-823042038
33	WASHER	12-161404
34	BRACKET, Starter Lock Cable	898101184

Bottom Cowl

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Bottom Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	PAN, Bottom	896113T01	896113T
1	PAN, Bottom - Camouflage	896113T03
2	COVER	896114001	896114
2	COVER, Camouflage	896114002
2	COVER Comment: Jet 25	896114001	896114 Jet 25
3	SCREW	10-879194271	10-898101017
4	BOLT, Stainless Steel	10-8M0102279	10-823042 22
5	LATCH ASSEMBLY, Cowl Comment: Use without Reference #9	896117A01	896117 Use without Reference #9
5	LATCH ASSEMBLY, Cowl Comment: Use with Reference #9	896117A01	896117 Use with Reference #9
6	SPRING	24-898101178
7	HOOK LEVER	898101095
8	SHAFT	8M0005993	898101168
9	SPRING	24-8M0005561
10	BOLT, (M6 x 20)	10-167051
11	BOLT	10-16830
12	WASHER	12-161404
13	SPACER	23-853715007
14	MOUNT, Rubber	23-8537437
15	GROMMET, One for Remote Control and One for Power Trim/Tilt	25-16226
15	GROMMET, Cam Rod Hole Comment: Jet 25	25-16226
16	GROMMET Comment: Power Trim/Tilt	25-953871
16	GROMMET, PPT Cord Hole Comment: Jet 25	25-16226
17	DECAL, Throttle Only Comment: Handle	37-859278003	37-804020002, 37-824200006 Handle
18	RETAINER, Stainless Steel Comment: Handle	898101149
19	GROMMET, Control Cable Comment: Electric	25-896115
19	GROMMET, Control Cable Comment: Handle	25-898101034
20	NOT SOLD SEPARATE, Decal-Storage	NSS
21	PLUG Comment: Handle	19-898101625	19-898101353, 19-898101140 Handle
21	PLUG, Plastic Comment: Handle/Jet	19-898101625	19-898101353, 19-898101140 Handle/Jet
22	SCREW	10-879194270	10-898101016
23	GROMMET, Battery Cable	25-853709008
24	DECAL, Oil Pressure Comment: Handle SN# 0R551808 & Below	37-892904005
24	DECAL, Oil Pressure Comment: SN# 0R551809 & Up	37-896854007
25	DECAL, Start	37-859278004	37-855262001, 37-892904012
26	GROMMET	25-898101088	25-8M0085706
27	CONNECTOR, Fuel - Brass	22-8M0182334
28	CAP	878311
29	BOLT	10-879194264	10-823042 24
30	CLIP, Stainless Steel	54-95395
31	HOSE, Rubber	32-898101277
32	GASKET	27-896629
33	DECAL, Shift Comment: Jet 25	37-8M0012079
-	DECAL SET, Mercury, Lower Cowl Comment: SN# 0R551809 & Up	37-8M0081456

Camshaft/Oil Pump

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Camshaft/Oil Pump:

Position No.	Part Name	OEM Number	Supersedes
1	CAMSHAFT Comment: 30 Horsepower SN# 0R122288 & Below	400-8M0170570
1	CAMSHAFT Comment: 30 Horsepower SN# 0R1222289 & Up	400-8M0170570
2	CAMSHAFT Comment: 25 Horsepower SN# 0R122288 & Below	400-8M0170568
2	CAMSHAFT Comment: 25 Horsepower SN# 0R122289 & Up	400-8M0170568
3	PUMP ASSEMBLY, Oil	8M0117630
4	GASKET	27-853523002
5	BOLT	10-168308
6	WASHER, Stainless Steel	12-16826
7	KEY	28-95229
8	SEAL, Oil	26-825455001
9	GEAR, Driven	43-834973001
10	BOLT	10-803858001
11	WASHER	12-895118
12	TIMING BELT Comment: SN# OR406653 & Below	57-895120001
12	TIMING BELT Comment: SN# OR406654 & Up	57-8M0072670
13	TENSIONER, Belt Comment: SN# OR406653 & Below	895265
14	COVER, TENSIONER Comment: SN# OR406653 & Below	895266
15	SCREW Comment: SN# OR406653 & Below	10-879194259	10-898101011 SN# OR406653 & Below
16	WASHER, Stainless Steel Comment: SN# OR406653 & Below	12-879194340	12-895141 SN# OR406653 & Below
17	SPRING, Tensioner Comment: SN# OR406653 & Below	24-815093002
18	HOOK Comment: SN# OR406653 & Below	851845001
19	NUT	11-855679002
20	LOCKWASHER	13-823032001
21	PLATE	895119001
22	PULLEY, Drive	834955T02	43-834955002
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122288 & Below	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122288 & Below
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122289 & Up	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122289 & Up
-	SHORT BLOCK Comment: 25 Horsepower	898103T34	898103A88 25 Horsepower
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Clamp Brackets, Manual

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Clamp Brackets, Manual:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET, Starboard, 14MM Thread	3418-898101T26
2	CLAMP BRACKET, Port, 14MM Thread	3418-898101T25
3	TILT TUBE ASSEMBLY	898101191	853769
4	CAP NUT	11-85372214
5	BUSHING	23-8537435
6	PAD	12-95379
7	NUT, Nylon	11-853722029	11-853722 13
8	DISTANCE PIECE	898101044
9	WASHER, Stainless Steel	12-16826
10	NUT	11-400212
11	CLAMP SCREW	10-162635
12	THRUST ROD	898101207	16198 1
13	SPRING	24-8126455
14	DECAL, Co-Pilot Comment: Handle	37-823701004
15	WIRE, Ground, To Swivel Bracket	84-898101089	84-803779, 84-853740 1
16	BOLT, (M6 x 12)	10-8230427
17	STOPPER, Tilt - Port	898101209
18	SCREW	10-898101014
19	WAVE WASHER	13-8537232
20	WASHER, To Swivel Bracket	12-8M0135942
21	WASHER	12-16192
22	NUT, Nylon	11-95374
23	SPRING	24-898101263
24	ANODE	97-804043
25	BOLT	10-879194264	10-823042 24
26	BOLT	10-879194310	10-16126 3, 10-823042056
27	LOCK, Reverse	898103T28
28	SHAFT, Reverse Lock	898101262
29	WASHER	12-953921
30	COTTER PIN	18-81502610
31	SNAP, Link Rod	853748
32	LINK	898101151
33	STOPPER, Tilt	8M0157131
34	SCREW	10-898101013
35	PLATE, Tilt Stopper Setting	898101210
36	PIN, Spring	17-95218016
37	BRACKET	8251131
38	STOP	853774
39	SPRING	24-953832
40	LEVER, Reverse Lock	898103T39
41	GRIP, Reverse Lock Lever	898101234
42	BUTTON	8M0051399	853776
43	BOLT, Shoulder	10-803790001	804049
44	WAVE WASHER	13-17641
45	WASHER	12-953921
46	SPRING	24-898101379	24-898101179
47	PIN, To Swivel Bracket	17-8M0188869

Clamp Brackets, Power Trim and Gas Assist

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Clamp Brackets, Power Trim and Gas Assist:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET, Starboard Comment: Power Trim	1400-8M0163145
1	CLAMP BRACKET, Starboard Comment: Gas Assist	3406-804038T02
2	CLAMP BRACKET, Port Comment: Power Trim SN# 0R247056 & Below	1400-8M0163147
2	CLAMP BRACKET, Port Comment: Power Trim SN# 0R247057 & Up	1400-8M0163147
2	CLAMP BRACKET, Port Comment: Gas Assist SN# 0R247237 & Below	3406-804039T02
2	CLAMP BRACKET, Port Comment: Gas Assist SN# 0R247238 & Up	1400-8M0163151
3	TILT TUBE	853769001	10-851866011
4	BUSHING	23-161764
5	THRUST ROD	16198003
6	COTTER PIN	18-8150266
7	SWIVEL BRACKET Comment: Power Trim SN# 0R247056 & Below	3407-813029T22
7	SWIVEL BRACKET Comment: Power Trim SN# 0R247057 & Up	1400-8M0229505
7	SWIVEL BRACKET Comment: Gas Assist SN# 0R247237 & Below	3407-813029T22
7	SWIVEL BRACKET Comment: Gas Assist SN# 0R247238 & Up	1400-8M0229505
8	WIRE, Ground	84-898101089	84-803779, 84-853740 1
9	BOLT, (M6 x 12)	10-8230427
10	CLAMP	54-953951
11	CLAMP	54-898101244
12	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
13	CLAMP SCREW	10-162635
14	PAD	12-95379
15	WASHER	12-879194341	12-898101216
16	NUT	11-95374002
17	BOLT	10-802619
18	WASHER	12-953928
19	NOT SOLD SEPARATE, Decal-Secure Engine Warning	NSS
20	PIN, Lower	17-8M0091499
21	BUSHING	23-161765
22	WASHER	12-853822002
23	C RING	53-804027003
24	ANODE	97-823912002
25	BOLT	10-879194264	10-823042 24
26	STOPPER, Tilt Comment: Power Trim	8M0075222	898101243 Power Trim
26	STOPPER Comment: Gas Assist	8M0075225	8M0075223, 815094006 Gas Assist
27	PIN, Spring	17-95218017
28	GRIP	16208
29	SPRING	24-95383010
30	COLLAR	23-95286027
31	PIN, Cylinder, Upper	17-8M0091498	17-851874004, 17-851874002
32	BOLT	10-879194248	10-823042038
33	WASHER	12-898101937	12-16238
34	POWER TRIM/TILT ASSEMBLY	851873T03
35	BUSHING	23-16176009
36	BUSHING	23-16176010
37	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
38	SHOCK ABSORBER, Gas	898103T32
39	LEVER	898101233
40	GRIP	898101234
41	BUTTON	8M0051399	853776
42	BOLT	10-16105
43	WASHER, Stainless Steel	12-16826
44	NUT	11-400212
45	COLLAR	23-898101235

Conversion Kit-Electric Start, 889246A33

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Conversion Kit-Electric Start, 889246A33:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Remote Control-Electric	889246A33
1	BOLT	10-879194248	10-823042038
2	SCREW, (M6 x 16)	10-8248324
3	BOLT, Stainless Steel	10-16705	10-95302
4	BOLT, Stainless Steel	10-823042
5	WASHER	12-161404
6	WASHER, Plastic	12-898101218
7	WASHER	12-953921
8	GROMMET, Control Cable	25-896115
9	GROMMET	25-898101356	25-898101087
10	LINK ROD , Shift	898101113
11	NUT, Stainless Steel	11-16081
12	JOINT, Cable	892775
13	SHIFT ARM	898101169
14	SHIFT SHAFT	898103T17
15	BRACKET, Shift Rod Lever	898103018
16	BRACKET, Arm	898101004
17	COLLAR, (9.3 mm)	23-8M0021168	23-95286 24
18	ARM, Throttle	898101196
19	LINK ROD, Throttle	898101114
20	CAP	853745
21	COTTER PIN, Stainless Steel	18-898101174
22	SHIFT ARM	898101170
23	CLAMP	54-898101231
24	BRACKET	898101T19
25	HARNESS ASSEMBLY, ECU	84-898101T52
26	TIE STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
27	CLAMP	54-898101256
28	BRACKET, Starter Lock Cable	898101184

Conversion Kit-Manual Start, 889246A34

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Conversion Kit-Manual Start, 889246A34:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Remote Control-Manual	889246A34
1	BOLT	10-879194248	10-823042038
2	SCREW, (M6 x 16)	10-8248324
3	BOLT, Stainless Steel	10-16705	10-95302
4	BOLT, Stainless Steel	10-823042
5	WASHER	12-161404
6	WASHER, Plastic	12-898101218
7	WASHER	12-953921
8	GROMMET, Control Cable	25-896115
9	GROMMET	25-898101356	25-898101087
10	LINK ROD , Shift	898101113
11	NUT, Stainless Steel	11-16081
12	JOINT, Cable	892775
13	SHIFT ARM	898101169
14	SHIFT SHAFT	898103T17
15	BRACKET, Shift Rod Lever	898103018
16	BRACKET, Arm	898101004
17	COLLAR, (9.3 mm)	23-8M0021168	23-95286 24
18	ARM, Throttle	898101196
19	LINK ROD, Throttle	898101114
20	CAP	853745
21	COTTER PIN, Stainless Steel	18-898101174
22	SHIFT ARM	898101170
23	CLAMP	54-898101231
24	BRACKET	898101T19

Conversion Kit-Tiller Handle, Electric - 879147A09

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Conversion Kit-Tiller Handle, Electric - 879147A09:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle)	8M0051062	879147A09
1	NOT SOLD SEPARATE, Tiller Handle Assembly	NSS
2	WASHER, Stainless Steel	12-879194340	12-895141
3	BOLT, Steel	10-8M0058362	10-895140
4	NOT SOLD SEPARATE, Gear Assembly	NSS
5	KNOB	898101110
6	GROMMET, Rubber	25-898101166
7	PLUG, Plastic	19-898101625	19-898101353, 19-898101140
8	RETAINER, Stainless Steel	898101149
9	BOLT	10-879194248	10-823042038
10	BRACKET, Starter Lock Cable - Stainless Steel	898101265
11	LANYARD ASSEMBLY	15920Q54
12	BOLT, Stainless Steel	10-823042
13	BOLT, Stainless Steel	10-16705	10-95302
14	WASHER, Stainless Steel	12-953921
15	COLLAR, (9.5 mm) Stainless Steel	23-95286029
16	ARM, Throttle	898101195
17	ROD, Throttle	898101204
18	ROD, Throttle - Stainless Steel	898101205
19	SHIFT SHAFT	898103T16
20	LEVER	898101112
21	STOPPER, Shift Lever - Stainless Steel	24-8M0138740
22	BOLT	10-8230427
23	WASHER, Plastic	12-898101218
24	COTTER PIN, Stainless Steel	18-898101174
25	DECAL, Throttle Only	37-859278003	37-804020002, 37-824200006
26	JOINT, Cable	892775
27	NUT, Stainless Steel	11-16081
28	SWITCH ASSEMBLY, Start	87-853820A02
29	SWITCH ASSEMBLY, Neutral	87-8M0127937
30	ACTUATOR	803841
31	ALARM, Over-Heat	898101134
32	HARNESS ASSEMBLY, ECU	84-898101T51
33	CAP NUT	11-85372214
34	DECAL, Start	37-859278004	37-855262001, 37-892904012
-	CO-PILOT KIT	898103A92
35	BOLT	10-895140002
36	DISC	8M0145395
37	WASHER	12-895146002
38	WASHER	12-895146001
39	HANDLE, Co-Pilot	898101035
40	GRIP	898101083
41	BUTTON	8M0051399	853776
42	WASHER	12-16192
43	NUT, Nylon	11-95374
44	PLATE, Co-Pilot	898101036
45	SCREW, (M6 x 16)	10-8248324
46	COLLAR	23-898101031

Conversion Kit-Tiller Handle, Manual - 889246A71

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Conversion Kit-Tiller Handle, Manual - 889246A71:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Tiller Handle-Remote Control to Handle Model	8M0051061	889246A71
1	NOT SOLD SEPARATE, Tiller Handle Assembly	NSS
2	WASHER, Stainless Steel	12-879194340	12-895141
3	BOLT, Steel	10-8M0058362	10-895140
4	NOT SOLD SEPARATE, Gear Assembly	NSS
5	KNOB	898101110
6	GROMMET, Rubber	25-898101166
7	PLUG, Plastic	19-898101625	19-898101353, 19-898101140
8	RETAINER, Stainless Steel	898101149
9	BOLT	10-879194248	10-823042038
10	BRACKET, Starter Lock Cable - Stainless Steel	898101265
11	LANYARD ASSEMBLY	15920Q54
12	BOLT, Stainless Steel	10-823042
13	BOLT, Stainless Steel	10-16705	10-95302
14	WASHER, Stainless Steel	12-953921
15	COLLAR, (9.5 mm) Stainless Steel	23-95286029
16	ARM, Throttle	898101195
17	ROD, Throttle	898101204
18	ROD, Throttle - Stainless Steel	898101205
19	SHIFT SHAFT	898103T16
20	LEVER	898101112
21	STOPPER, Shift Lever - Stainless Steel	24-8M0138740
22	BOLT	10-8230427
23	WASHER, Plastic	12-898101218
24	COTTER PIN, Stainless Steel	18-898101174
25	DECAL, Throttle Only	37-859278003	37-804020002, 37-824200006
26	JOINT, Cable	892775
27	NUT, Stainless Steel	11-16081

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY Comment: SN# 0R130205 & Below	401-889246T32	401-898101T38 SN# 0R130205 & Below
1	CRANKSHAFT ASSEMBLY Comment: SN# 0R130206 & Up	401-889246T32	401-898101T38 SN# 0R130206 & Up
2	BEARING, Thrust - Red	23-898101T08
2	BEARING, Thrust - Blue	23-898101T07
3	SEAL, Oil, Upper	26-855681002
4	SEAL, Oil, Lower	26-898101123	26-855681003
5	KEY	28-160531
6	KEY, Timing Pulley	28-825666001	28-825666002
7	CONNECTING ROD ASSEMBLY	600-8M0124940
8	BOLT	10-8035092
9	PISTON ASSEMBLY	713-898103A08	713-879147A81
10	RING SET, Piston Comment: Services one piston	39-898103T35	39-879147A95, 39-8M0055809 Services one piston
11	PIN, Piston	41-898103113	41-803521
12	E RING	53-160573
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122288 & Below	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122288 & Below
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122289 & Up	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122289 & Up
-	SHORT BLOCK Comment: 25 Horsepower	898103T34	898103A88 25 Horsepower
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Cylinder Block

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Cylinder Block:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	803-898101T42
2	PIN, Dowel	17-16119
3	BOLT	10-855677006	10-855677003
4	SCREW	10-898101009
5	WASHER, Stainless Steel	12-16826
6	BOLT	10-855677004
7	BRACKET, Starter Lock Cable Comment: Remote Control	898101184
7	BRACKET, Starter Lock Cable - Stainless Steel Comment: Tiller Handle	898101265
8	BOLT	10-879194248	10-823042038
9	PIN, Dowel	17-16119
10	LIFTING EYE	855550003	855550002
11	BOLT	10-16830009
12	THERMOSTAT, 60 Degrees	8M0119207
13	GASKET	27-8M0214960
14	CAP	8537052
15	BOLT	10-879194264	10-823042 24
16	BOLT, (M6 x 16)	10-16832
17	ANODE	97-823912	16127
18	GASKET	27-895150001	27-895150
19	PLUG, Anode	97-895151001	895151
20	BOLT, (M6 x 20)	10-167051
21	FILTER ASSEMBLY, Oil	35-8M0162831
22	GASKET	27-835427T04	27-835427004
23	PLUNGER	898101142	803535003, 803535002, 803535001
24	TIE STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
25	HOSE, Rubber (220 mm)	32-8M0057119	32-895153001
26	STRAINER, Oil	35-895152003	35-895152001
27	DIPSTICK	898101122
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122288 & Below	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122288 & Below
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122289 & Up	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122289 & Up
-	SHORT BLOCK Comment: 25 Horsepower	898103T34	898103A88 25 Horsepower
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Cylinder Head

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Cylinder Head:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER HEAD	898101T39
2	GASKET, Cylinder Head	27-898101T41
3	PIN, Dowel	17-16119
4	STUD	16-898101190
5	HOSE, Breather, To Intake Silencer	32-898101020
6	CLIP	54-803525003	54-803525001
7	BOLT	10-855677002
8	PLATE	853756001
9	BOLT	10-879194248	10-823042038
10	COVER, Cylinder Head	898101T40
11	CAP ASSEMBLY, Oil Filler	36-8M0135589
12	O-RING	25-803513007
13	SCREW KIT	10-16830A1
14	NOT SOLD SEPARATE, Decal-Engine Oil	NSS
15	CLAMP	54-803563005	54-803563 1
16	GASKET	27-803508T18	27-803508018
17	SPARK PLUG, NGK#DCPR6E	33-8M0204682
18	PLUG	22-8M0229353
19	GASKET	27-95220
20	BOLT	10-853531001	10-810755016, 10-853531003
21	WASHER, Stainless Steel	12-16826
22	PLATE, Breather	834974001
23	SCREW	10-898101162
24	HOSE, Rubber (290 mm), To Adaptor Plate	32-8M0057121	32-812940007
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122288 & Below	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122288 & Below
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122289 & Up	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122289 & Up
-	SHORT BLOCK Comment: 25 Horsepower	898103T34	898103A88 25 Horsepower
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Driveshaft Housing

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Driveshaft Comment: Short	1599-803724T02	1599-803724002 Short
1	HOUSING, Driveshaft Comment: Long	1500-8M0192164
2	BOLT	10-8M0224584
3	WASHER	12-16192
4	PLUG Comment: As needed	19-803593
5	BOLT	8M0111615
6	WASHER	12-895146
7	BOLT	10-898103227	10-823042047
8	GASKET	27-854617001
9	COVER, Drain	853577001
10	BOLT	10-898101953
11	PIN, Dowel	17-16119
12	SKIRT	896116T
12	SKIRT, Camouflage	896116T01
13	SCREW, Tapping	10-898101192
14	WASHER, Stainless Steel	12-16826
15	SEAL, Skirt	898101003
16	SEAL, Skirt	898101002
17	GROMMET	25-896631
18	COVER, Idle Exhaust	898101105
19	BOLT, (M6 x 20)	10-167051
20	GASKET, Idle Exhaust Port Cover	27-8M0099564	27-898101106
21	PLATE	898101137
22	GASKET	27-895148001
23	GROMMET	25-898101086
24	PLATE	95275002
25	GASKET	27-803663T15	27-803663015
26	SEAL, Rubber	852432001
27	ADAPTOR PLATE	8M0097392
28	SEAL, Oil	26-8537072
29	GASKET	27-835427T04	27-835427004
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Electrical Bracket and Cover

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Electrical Bracket and Cover:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET, Electrical	898101T59
2	BOLT	10-823042
3	SOLENOID, Starter	89-853809001
4	RELAY ASSEMBLY, Solenoid Switch, Up	89-898103T09
5	SWITCH ASSEMBLY, PTT Solenoid, Down	87-898103T10
6	BOOT, Red	85-853816004
7	HARNESS ASSEMBLY, Solenoid Switch - Red	84-898101175
8	CABLE, Black	84-8537408
9	BOLT, (M6 x 12)	10-8230427
10	COVER, Electrical Bracket	898101T60
11	BUSHING	23-95361
12	BOLT, (M6 x 20)	10-167051
13	HOLDER, Cord	898101T37
14	HOLDER	898101094
15	BOLT	10-823042
16	ALARM, Over-Heat Comment: Handle	898101134
17	SENSOR, MAT	898101118
18	GROMMET, Mat Sensor	25-898101119
19	HOSE, To Intake Manifold	32-898101072
20	HOSE, To Intake Silencer	32-898101073
21	VALVE ASSEMBLY	898103005
22	BOLT	10-16705	10-95302
23	WASHER	12-953921
24	COLLAR	23-952868
25	MOUNT, Rubber	898101158
26	PLATE	898101136
27	WASHER, Stainless Steel	12-16826
28	NUT, (M6) Stainless Steel	11-400212
29	BOLT	10-879194260	10-823042041
30	DECAL, Wiring Diagram	37-898101404
31	DECAL, Warning System	37-898101405
32	DECAL, Start in Gear	37-892904011	37-802987003
-	STARTER MOTOR KIT, Electric	50-899783A01

Flywheel, ECU and Wiring Harness

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Flywheel, ECU and Wiring Harness:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL	200-898101T64
2	NUT	11-851832
3	WASHER	12-8539911
4	ALTERNATOR ASSEMBLY	898101T01
5	BOLT	10-823042
6	CLAMP	54-8M0130961
7	PLUG	19-898101138
8	BRACKET, Coil Comment: Design I - Use Without Reference 30	879147T10	898101T30 Design I - Use Without Reference 30
8	BRACKET Comment: Design II - Use With Reference 30	879147T10	898101T30 Design II - Use With Reference 30
9	BOLT	10-879194264	10-823042 24
10	COIL, Pulser	898101146
11	SCREW	10-823042067
12	COIL, Pulser	898101147
13	COIL, Ignition	339-898103T
14	BOOT	85-898101141
15	BOLT, (M6 x 20)	10-167051
16	CLAMP	54-8M0130961
17	ECU, Engine Control Unit Comment: 30 Horsepower SN# 0R252045 & Below	77-8M0165352
17	ECU, Engine Control Unit Comment: 30 Horsepower SN# 0R252046 & Up	77-8M0165352
17	ECU, Engine Control Unit Comment: 30 Horsepower EU SN# 0R252067 & Below	8M0108792
17	ECU, Engine Control Unit Comment: 30 Horsepower EU SN# 0R252068 & Up	8M0108792
17	ECU, Engine Control Unit Comment: 25 Horsepower SN# 0R252108 & Below	77-8M0165350
17	ECU, Engine Control Unit Comment: 25 Horsepower SN# 0R252109 & Up	77-8M0165350
17	ECU, Engine Control Unit Comment: 25 Horsepower EU	8M0108793
17	ECU, Engine Control Unit Comment: 25 Horsepower Bodensee SN# 0R241219 & Below	8M0108793
17	ECU, Engine Control Unit Comment: 25 Horsepower Bodensee SN# 0R241220 & Up	8M0108793
18	PLUG	19-898101139
19	BRACKET, ECU	898101050
20	BOLT, (M6 x 16)	10-16832
21	WASHER	12-953921
22	WASHER	12-953921
23	BOLT, Stainless Steel	10-16705	10-95302
24	COLLAR	23-952868
25	MOUNT, Rubber	898101158
26	PLUG	19-853994	19-853994001
27	HARNESS ASSEMBLY, ECU Comment: Tiller Handle Models	84-898101T51
27	HARNESS ASSEMBLY, ECU Comment: Remote Control Models	84-898101T52
28	TIE STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
29	CLAMP	54-803563005	54-803563 1
30	BOLT, (M6 x 12)	10-8230427

Fuel Pump

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Fuel Pump:

Position No.	Part Name	OEM Number	Supersedes
1	PUMP ASSEMBLY, Fuel	803529T04	803529A04
2	BOLT, Stainless Steel	10-823042
3	HOSE, Fuel (600 mm), To Vapor Seperator	32-804821004
4	CLIP, Stainless Steel	54-95395
5	O-RING	25-16109003
6	BRACKET	898101222
7	MOUNT, Rubber	898101223
8	PLATE	898101033
9	SCREW, (M6 x 16)	10-8248324
10	NUT, Nylon	11-8537227
11	WASHER	12-953921
12	GASKET, Fuel Cooler	27-898101066
13	FILTER, Fuel	35-8M0088825	35-853733T03, 35-853733T02, 35-853733A 2, 35-898101T68
14	HOSE, Fuel Filter to Fuel Pump	32-898101266
15	COOLER, Fuel	898101T65
16	BOLT	10-8M0147119
17	HOSE, Rubber (700 mm), Fuel Cooler to Water Connector	32-8M0105119
18	CONNECTOR	22-898101219
19	CLAMP, (16.8)	54-898101237
20	HOSE, Rubber, Fuel Cooler to High Pressure Fuel Filter	32-8M0120630
21	CLIP	54-803525004	54-898101027
22	MOUNT, Rubber-Fuel Filter	898101070
23	BRACKET, Fuel Filter	898101069
24	FILTER, Fuel-High Pressure	35-898101093
25	HOSE	32-8M0233394
26	CLAMP	54-856880002
27	FITTING	22-898101211
28	HOSE, Rubber, To Fuel Rail	32-898101269
29	SLEEVE	898101104
30	HOSE, Rubber, To Vapor Seperator	32-898101270
31	HOSE, (600 mm), To Cylinder Block	32-898101100
32	COLLAR	23-898101274
33	TIE STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
34	PLUG	19-898101925

Fuel Rail and Vapor Separator Components

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Fuel Rail and Vapor Separator Components:

Position No.	Part Name	OEM Number	Supersedes
1	VAPOR SEPARATOR ASSEMBLY	898103T25
2	SCREW	10-898101164
3	REGULATOR, Fuel	898101T76
4	GROMMET	25-898101085
5	O-RING	25-898101127
6	O-RING, Drain Screw	25-898101049
7	SCREW	10-898101163
8	HOLDER	898101238
9	GROMMET	25-8M0184170
10	PUMP ASSEMBLY, Fuel	898101T67
11	FILTER	35-898101239
12	FLOAT VALVE	898101063	16254 4
13	CLIP	54-16255
14	FLOAT, Arm Pin	17-16256004
15	FLOAT	855430002
16	SCREW	10-855544013
17	O-RING	25-898101126
18	SCREW, Drain	10-898101046
19	O-RING, Drain Screw	25-898101048
20	HOSE, (300 mm)	32-898101102
21	COOLER, Fuel	898101T65
22	SCREW	10-16245
23	O-RING	25-898101133
24	O-RING	25-898101132

Fuel Rail and Vapor Seperator

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Fuel Rail and Vapor Seperator:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL RAIL	898101T75
2	O-RING	25-898101131
3	CONNECTOR	22-898101108
4	VALVE ASSEMBLY	898101212
5	CAP	898101023
6	PLATE	898101079
7	SCREW	10-855544018
8	BOLT, Stainless Steel	10-823042
9	INJECTOR, Fuel	8M0091784	898101T74
10	O-RING	25-8M0095062	25-898101124
11	O-RING	25-8M0095063
12	CLAMP	54-804830002
13	SCREW, (M6 x 16)	10-8248324
14	NIPPLE	898101120
15	O-RING	25-804840007
16	CLIP	54-803525004	54-898101027
17	CLIP	54-95224
18	HOSE, Rubber with Arrow (730mm), Air Vent-Bottom Cowl	32-898101272
19	FITTING, Vent Comment: SN# 0R232961 & Below	22-898261001	22-898261 SN# 0R232961 & Below
19	FITTING, Vent Comment: SN# 0R232962 & Up	22-898261001	22-898261 SN# 0R232962 & Up
20	TIE STRAP	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
21	TIE STRAP, (4.00 Inches)	56762
22	ORIFICE	898101273
23	VENT ASSEMBLY, Air	898101224
24	CLIP, Stainless Steel	54-95395
25	HOSE, Rubber, To Fuel Cooler	32-8M0120629
26	HOSE, Rubber	32-8M0073739	32-898101221
26	HOSE, Rubber	32-8M0073739	32-898101221
27	CLAMP, (16.8)	54-898101237
28	HOSE, Rubber (540 mm), To Bottom Cowl (540mm)	32-898101229
29	VAPOR SEPARATOR ASSEMBLY	898103T25
30	BOLT	10-16830
31	CLAMP	54-803563005	54-803563 1
32	WASHER	12-161404
33	MOUNT, Rubber	23-8537437
34	SPACER	23-853715007
35	GROMMET	25-8518153
36	SLEEVE, Protective	898101260

Gear Housing, Driveshaft-1.92:1 Gear Ratio

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Gear Housing, Driveshaft-1.92:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete Comment: Short	1668-8M0070899	1668-8M0057248, 1668-825132T35, 1668-825132T22 Short
-	GEAR HOUSING ASSEMBLY, Complete Comment: Long	1668-8M0070900	1668-825132T36, 1668-825132T23 Long
1	GEAR HOUSING ASSEMBLY, Basic	1668-8M0057242	1668-825132T34, 1668-825132T29, 1668-825132T04, 1668-825132A 4
2	BEARING, Needle	31-813048006	31-813048 4
3	PLUG	22-8M0229353
4	GASKET	27-95220
5	STRAINER SET, Water	853763
6	SCREW	10-879194326	10-898101165
7	NUT	11-85372210
8	STRAINER, Water	16133
9	SCREW	10-898101959	10-879194324, 10-823042051
10	TRIM TAB	853762	853762 1
11	BOLT, (M6 x 20)	10-167051
12	NUT	11-85372211
13	GEAR, Pinion (12 Teeth)	43-16138T01
14	SPRING	24-8126454
15	GUIDE	853765T	853765
16	DRIVESHAFT Comment: Short	45-803738T06	45-803738006 Short
16	DRIVESHAFT Comment: Long	45-16136T02
17	KEY	28-161551
18	BEARING ASSEMBLY	30-16128T02
19	SHIM, (0.1)	15-813276001
19	SHIM, (0.15)	15-813276015
19	SHIM, (0.3)	15-813276003
19	SHIM, (0.5)	15-813276005
20	SEAL, Oil	26-161622
21	O-RING	25-8537096
22	HOUSING, Water Pump, Lower	46-8260531
23	PIN, Dowel	17-952188
24	GASKET	27-161602
25	PLATE, Water Pump Guide	803753002
26	GASKET	27-16158010
27	IMPELLER	47-8M0214912
28	HOUSING, Water Pump	46-803750T05	46-803750005
29	PUMP, Liner Housing	803751002
30	SEAL, Lower	26-161681
31	BOLT	10-823042046	10-823042 5
32	GROMMET, Upper	25-804903001
33	TUBE, Water Comment: Short	32-803755006
33	TUBE, Water Comment: Long	32-803755007
34	HOSE, Rubber (15 mm) Comment: Long	32-8M0057120	32-851848008 Long
35	BOLT Comment: Long	10-879194308
36	WASHER	12-16192
37	BOLT, Stud Comment: Short	10-879194302	10-823042049 Short
38	NUT Comment: Short	11-879194337	11-853722023 Short
39	BOLT	10-879194307	10-16695006
-	GASKET SET, Gearcase	27-8M0089636
-	REPAIR KIT, Water Pump	8M0208905

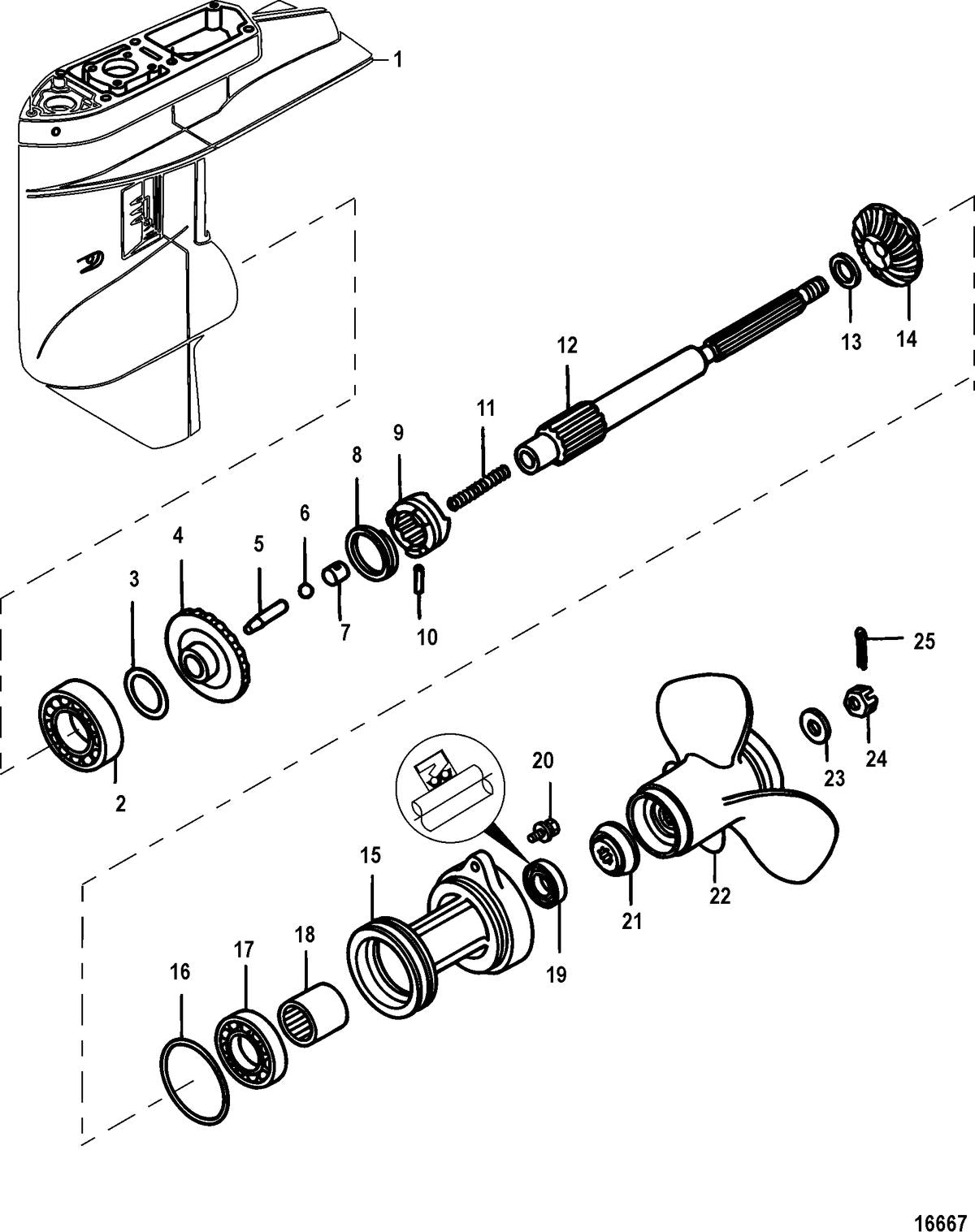

Gear Housing, Propeller Shaft -1.92:1 Gear Ratio

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Gear Housing, Propeller Shaft -1.92:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete Comment: Short	1668-8M0070899	1668-8M0057248, 1668-825132T35, 1668-825132T22 Short
-	GEAR HOUSING ASSEMBLY, Complete Comment: Long	1668-8M0070900	1668-825132T36, 1668-825132T23 Long
1	GEAR HOUSING ASSEMBLY, Basic	1668-8M0057242	1668-825132T34, 1668-825132T29, 1668-825132T04, 1668-825132A 4
2	BEARING ASSEMBLY	30-16128T01
3	SHIM, (0.1)	15-161631
3	SHIM, (0.15)	15-8132761
4	GEAR, Forward - 23 Teeth	43-8M0183179
5	FOLLOWER, Cam	161521
6	BALL, Steel	30-161322
7	HOLDER	853764003	853764
8	SPRING	24-8126453
9	CLUTCH	52-898103T30
10	PIN	17-161501
11	SPRING	24-176672
12	PROPELLER SHAFT	44-19513T01
13	WASHER	12-161401
14	GEAR, Reverse - 23 Teeth	43-898103T29
15	CARRIER ASSEMBLY, Bearing Comment: SN# 0R515496 & Below	8M0070880	825119T01, 825119A 1 SN# 0R515496 & Below
15	CARRIER ASSEMBLY, Bearing Comment: SN# 0R515497 & Up	8M0070880	825119T01, 825119A 1 SN# 0R515497 & Up
16	O-RING	25-161311
17	BEARING, Ball	30-16132T01
18	BEARING, Needle	31-813048T05	31-813048 5
19	SEAL, Oil Comment: SN# 0R515496 & Below	26-161301
19	SEAL, Oil Comment: SN# 0R515497 & Up	26-8M0079092
20	BOLT	10-879194273	10-823042050
21	THRUST HUB	161452
22	BLACK MAX PROPELLER, 8 Pitch Aluminum	48-896890A10
22	BLACK MAX PROPELLER, 9.5 Pitch Aluminum	48-896892A40
22	BLACK MAX PROPELLER, 11 Pitch- Aluminum	48-896896A40
22	BLACK MAX PROPELLER, 12.5 Pitch Aluminum	48-896900A40	48-853790008
23	WASHER	12-161402
24	PROP NUT	11-161471
25	COTTER PIN	18-8150264
-	GASKET SET, Gearcase Comment: SN# 0R515496 & Below	27-8M0089636
-	GASKET SET, Gearcase Comment: SN# 0R515497 & Up	27-8M0089636

Intake Manifold

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Intake Manifold:

Position No.	Part Name	OEM Number	Supersedes
1	MANIFOLD, Intake	898103T01
2	BOLT	10-853531004
3	WASHER	12-895106002
4	PIN, Dowel	17-16119
5	BOLT	10-823042
6	BOLT	10-853531001	10-810755016, 10-853531003
7	WASHER, Stainless Steel	12-16826
8	NUT	11-400212
9	O-RING	25-898101128
10	INSULATOR	898103T27
11	THROTTLE BODY ASSEMBLY Comment: 30 - Use with References 30 and 31	898103T40	898103T22 30 - Use with References 30 and 31
11	THROTTLE BODY ASSEMBLY Comment: 30- Use without References 30 and 31	898103T40	898103T22 30- Use without References 30 and 31
11	THROTTLE BODY ASSEMBLY Comment: 25 - Use with References 30 and 31	898103T41	898103T23 25 - Use with References 30 and 31
11	THROTTLE BODY ASSEMBLY Comment: 25 - Use without References 30 and 31	898103T41	898103T23 25 - Use without References 30 and 31
12	GASKET, Throttle Body	27-898101197
13	BOLT, Stainless Steel	10-823042
14	GASKET	27-898101078
15	SILENCER ASSEMBLY, Intake	898103T02
16	BOLT, (M6 x 20)	10-167051
17	SPRING	24-898103196	24-898101177
18	WASHER	12-161404
19	COLLAR, (9.3 mm)	23-8M0021168	23-95286 24
20	CAM, Throttle - Black Comment: 30 Horsepower	898101199
20	CAM, Throttle - White Comment: 25 Horsepower	8M0109579	898101200 25 Horsepower
21	BOLT	10-8M0204707
22	BRACKET	898101188
23	BOLT, (M6 x 12)	10-8230427
24	GROMMET	25-898101084
25	SILENCER ASSEMBLY, Intake	898103003
26	COVER, Intake Silencer	898103004
27	GASKET	27-898101159
28	FILTER, Air	35-898101
29	SCREW, Tapping	10-898101236
30	PLUG, Use where Applicable	815037001
31	BAND, Use where Applicable	56762
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06

Intake/Exhaust Valves

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Intake/Exhaust Valves:

Position No.	Part Name	OEM Number	Supersedes
1	VALVE, Intake Comment: SN# 0R557617 & Below	850838T02	850838002 SN# 0R557617 & Below
1	KIT, Intake Valve Comment: Includes retainer and keeper SN# 0R557618 & Up	8M0079161
2	VALVE, Exhaust Comment: SN# 0R557617 & Below	850839T02	850839002 SN# 0R557617 & Below
2	KIT, Exhaust Valve Comment: Includes retainer and keeper SN# 0R557618 & Up	8M0079162
3	SEAL, Intake - Black, Valve Stem	26-822647001
4	SEAL, Exhaust - Green, Valve Stem	26-822647002
5	SEAT	8M0158660
6	SPRING, Valve	24-898101214	24-803554 4
7	RETAINER Comment: SN# 0R557617 & Below	803555
8	KEEPER, Valve Comment: SN# 0R557617 & Below	28-803556
9	ROCKER ARM	8M0123419
10	SCREW, Adjusting	10-825046001
11	NUT, Adjusting	11-826150001
12	SHAFT, Rocker Arm- Intake	898101155
13	SHAFT , Rocker Arm - Exhaust	898101154
14	BOLT	10-850879001	10-810755010
15	SPRING	24-825453001
16	WASHER	12-895118001
17	SPRING, Tensioner	24-815093002
18	SPRING	24-825452002
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122288 & Below	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122288 & Below
-	SHORT BLOCK Comment: 30 Horsepower SN# 0R122289 & Up	889246T30	898103A87, 898103T33 30 Horsepower SN# 0R122289 & Up
-	SHORT BLOCK Comment: 25 Horsepower	898103T34	898103A88 25 Horsepower

Jet Unit

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Jet Unit:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Jet Unit-Complete	NSS
1	HOUSING, Volute	889246T26
2	HOSE, Lube	32-827490
3	GATE, Reverse - With Bumper	878378
4	SHIFT LINKAGE KIT	878376
5	SHIFT CAM	898101657
6	ADAPTOR PLATE	889246024
7	BOLT	10-898101795
8	WASHER, Stainless Steel	12-879194340	12-895141
9	BOLT, Stud	10-879194302	10-823042049
10	WASHER	12-879194342	12-898101654
11	NUT	11-879194337	11-853722023
12	BOLT	10-879194254	10-823042045
13	WASHER	12-879194342	12-898101654
14	BOLT, (M6 x 16)	10-16832
15	WASHER, Stainless Steel	12-16826
16	NOT SOLD SEPARATE, Screw	NSS
17	DRIVESHAFT	889246T27
18	SLEEVE	23-827189
19	NUT	11-827190
20	SCREW	10-878388001
21	BOLT	10-879194256	10-823042076
22	WASHER	12-879194342	12-898101654
23	IMPELLER	47-855708T25	47-801414T25, 47-801414 25
24	KEY, Impeller	28-801405625
25	SHIM, Impeller	15-801404625
26	TAB WASHER	14-801403625
27	HOUSING ASSEMBLY, Intake	801412T01
28	LINER	827188T04
29	ANODE KIT	97-889246A72
30	BOLT, (M6 x 25)	10-801432001
31	WASHER	12-879652003
32	BOLT, (M6 x 16)	10-16832
33	BOLT, (M6 x 20)	10-167051

Jet Water Pump Components

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Jet Water Pump Components:

Position No.	Part Name	OEM Number	Supersedes
1	GROMMET	25-804903001
2	TUBE, Water	32-803755006
3	SEAL	26-161681
4	BOLT	10-879194252	10-898101656
5	WASHER, Stainless Steel	12-16826
6	HOUSING, Water Pump	46-803750T05	46-803750005
7	PUMP, Liner Housing	803751002
8	IMPELLER	47-8M0214912
9	KEY	28-161551
10	GASKET	27-16158010
11	PLATE, Guide	898101655
12	GASKET	27-898101381
13	HOUSING, Water Pump	889246025
14	PIN, Dowel	17-952188

Power Trim/Tilt Components

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Power Trim/Tilt Components:

Position No.	Part Name	OEM Number	Supersedes
1	POWER TRIM/TILT ASSEMBLY	851873T03
2	JOINT	898101246
3	NUT	11-898101247
4	SEAL	26-898101248
5	O-RING	25-898101249
6	CYLINDER	898103T36
7	O-RING	25-898101254
8	TUBE, Inner	898103T37
9	O-RING	25-898101255
10	ROD ASSEMBLY, Piston	898103T38
11	O-RING	25-898101250
12	PISTON	898101251
13	RING	898101252
14	O-RING	25-898101253
15	MANUAL VALVE ASSEMBLY	898101115
16	SEAL SET	898101167
17	O-RING	25-812641003
18	SEAL	26-898101245
19	C RING	53-804027002
20	O-RING	25-803513009
21	SEAT, Valve	898101213
22	BALL	898101005
23	SEAT, Spring	898101180
24	SPRING	24-898101176
25	O-RING	25-161314
26	PUMP	898103T12
27	COUPLING	851877001
28	BOLT	10-8518663
29	O-RING	25-16131011
30	MOTOR ASSEMBLY	898103T31
31	O-RING	25-898101130
32	TANK, Reservoir	898103T15
33	CAP ASSEMBLY	898101024
34	O-RING	25-898101129
35	SCREW	10-898101015
36	SWITCH, PTT	87-898103011
37	O-RING	25-898101145	27-8M0085707
38	BRACKET, Switch	896630
39	SCREW, (M6 x 16)	10-8248324

Powerhead Gasket Set Components

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Powerhead Gasket Set Components:

Position No.	Part Name	OEM Number	Supersedes
-	GASKET SET, Powerhead	27-8M0079064	27-898101A06
-	GASKET, Cylinder Head	27-898101T41
-	GASKET, Cylinder Head Cover	27-803508T18	27-803508018
-	O-RING, Oil Filler Cap	25-803513007
-	GASKET, Thermostat Cap	27-8M0214960
-	GASKET, Anode Cap	27-895150001	27-895150
-	SEAL, Oil, Crankshaft-Upper	26-855681002
-	SEAL, Oil, Crankshaft-Lower	26-898101123	26-855681003
-	O-RING, Intake Manifold	25-898101128
-	GASKET, Throttle Body	27-898101197
-	GASKET, Oil Pump - Outer	27-853523002
-	SEAL, Oil, Camshaft	26-825455001
-	GASKET, Cylinder Block	27-835427T04	27-835427004
-	SEAL, Oil, Adaptor Plate	26-8537072
-	GASKET, Driveshaft Housing	27-803663T15	27-803663015

Recoil Starter

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Recoil Starter:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER ASSEMBLY, Recoil	8M0230663
2	HOUSING, Starter	8M0138746
3	SPRING	24-812645008
4	HANDLE, Starter	898101182
5	ANCHOR, Rope	898101325
6	LOCK, Starter	804031002
7	ROPE, Starter	50-8M0110715	50-850057Q03, 50-850057003
8	SPRING, Starter	24-804024008
9	E RING	53-852784001
10	REEL	803717002
11	SPRING, Friction	24-8M0126988
12	PLATE, Friction	812638002
13	BOLT	10-8M0126987
14	RATCHET	812635T03	812635003
15	GUIDE, Ratchet	898101148	803718002
16	SPRING, Return	24-812634004
17	PULLEY, Starter	804035001
18	SCREW, (M6 x 16)	10-8248324
19	BRACKET, Starter	898101187
20	BOLT, Stainless Steel	10-16705	10-95302
21	WASHER	12-953921
22	NUT	11-856949002	11-856949001
23	SPRING	24-898101185
23	SPRING Comment: Jet Remote Control	24-812645009
24	CABLE, Lock	898101183
24	WIRE, Lock Comment: Jet Remote Control	898101634
25	COVER, Belt	895133T01	895133001
26	COLLAR	23-855545004
27	BRACKET	898101T19
28	SCREW, (M6 x 16)	10-8248324
29	BOLT, Stainless Steel	10-16705	10-95302
30	WASHER	12-953921
31	COLLAR	23-952868
32	BOLT	10-8M0204707
33	NOT SOLD SEPARATE, Decal-Spark Plug - With Resistance	NSS
34	NOT SOLD SEPARATE, Decal-Caution	NSS
35	DECAL, Starting Procedure Comment: Jet 25	37-8M0012081
-	DECAL, Interferance	37-898103193

Service/Support Material

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Service/Support Material:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 25/30/Jet 25 EFI/3 Cylinder 4-Stroke	90-898126006
-	OPERATION MANUAL Comment: SN# 0R270499 & Below	90-10244080
-	OPERATION MANUAL Comment: SN# 0R270500 & Up	90-8M0098454	90-8M0087058, 90-8M0079566, 90-8M0055690, 90-10244091 SN# 0R270500 & Up
-	OPERATION MANUAL Comment: EPA Regulated (USA Only)	90-8M0098454	90-8M0087058, 90-8M0079566, 90-8M0055690, 90-10244091 EPA Regulated (USA Only)
-	OWNERS MANUAL, Spanish Comment: SN# 0R270499 & Below	90-10244J60
-	OWNERS MANUAL, French Comment: SN# 0R270499 & Below	90-10244D60
-	OWNERS MANUAL Comment: Jet SN# 0R270499 & Below	90-10256070
-	OPERATION MANUAL Comment: Jet SN# 0R270500 & Up	90-8M0098455	90-8M0087059, 90-8M0079567, 90-8M0055691, 90-10256091 Jet SN# 0R270500 & Up
-	INSTALLATION MANUAL	90-10245060
-	LITERATURE ASSEMBLY	90-898126A01
-	OIL-10W30	92-8M0078625	92-858045K01, 92-802833A 1
-	HOSE ASSEMBLY, Fuel (8 Feet)	32-877680Q8
-	DECAL, EPA Label Information Comment: (2006)	37-898224A06
-	DECAL, EPA Label Information Comment: (2007)	37-898224A07
-	DECAL, EPA Label Information Comment: (2008)	37-898224A08
-	NOT SOLD SEPARATE, DECAL, EPA (2009 & Up) Comment: Contact Mercury Marine Warranty Administration for Replacement (Service Bulletin 2009-18)	NSS
-	DECAL, Unleaded Fuel - Bodensee	37-827887

Shift Linkage, Jet-Remote Control

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Shift Linkage, Jet-Remote Control:

Position No.	Part Name	OEM Number	Supersedes
1	SCREW, Tapping	10-898101192
2	WASHER, Stainless Steel	12-16826
3	CLAMP	54-953951
4	BRACKET	8M0093149
5	BOLT, (M6 x 16)	10-16832
6	WASHER, Stainless Steel	12-16826
7	BOLT	10-4000354
8	NUT, Nylon	11-95374
9	BRACKET	898101647
10	SCREW, (M6 x 16)	10-8248324
11	LOCKWASHER, (M6)	13-400256
12	NUT, (M6) Stainless Steel	11-400212
13	BOLT, Pivot	10-898101648
14	NUT	11-853722026
15	NUT, Nylon	11-8537227
16	WASHER, Plastic	12-898101218
17	CLIP, Bow-Tie	54-8M0021224	18-898101920, 18-8M0012495

Shift Linkage, Jet-Tiller Handle

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Shift Linkage, Jet-Tiller Handle:

Position No.	Part Name	OEM Number	Supersedes
1	RETAINER	898101797
2	WASHER	12-9539210
3	SPRING	24-898101640
4	RETAINER, Stainless Steel	898101149
5	BUSHING, Plastic	23-898101646
6	SEAL	26-16219004
7	WASHER	12-953922
8	BOLT	10-8M0063198	10-16125 1
9	PLATE	898101639
10	LEVER, Shift	898101638
11	PIN	17-16085003
12	CLIP, Bow-Tie	54-8M0021224	18-898101920, 18-8M0012495
13	LOCKWASHER	13-400256
14	SPRING	24-898101645
15	NUT, (M6) Stainless Steel	11-400212
16	SHIFT ROD	898101641
17	NUT	11-898101644
18	LINK ROD	898101643
19	LINK ROD	898101642

Shift and Cam Rod, 0R505052 and Below

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Shift and Cam Rod, 0R505052 and Below:

Position No.	Part Name	OEM Number	Supersedes
1	CAM, Component of Complete Gear Housing	8M0172382
2	ROD KIT, Cam - Short, Component of Complete Gear Housing Comment: Design II	803760A16
2	ROD KIT, Cam - Long, Component of Complete Gear Housing Comment: Design II	803760A17
3	BUSHING, Component of Complete Gear Housing	23-16176007
4	JOINT, Shift Rod Comment: Design II	898101377
5	PIN, Dowel	17-952189
6	PIN, Component of Complete Gear Housing	17-16179
7	O-RING, Component of Complete Gear Housing	25-161772
8	O-RING, Component of Complete Gear Housing	25-161782
9	BOLT, Component of Complete Gear Housing	10-8230427
10	WASHER, Component of Complete Gear Housing	12-953921
11	SHIFT ROD	898101172
12	GROMMET Comment: Handle	25-16823
13	BRACKET	898103026
14	BOLT Comment: Handle	10-8248324
15	STOPPER, Shift Lever - Stainless Steel Comment: Handle	24-8M0138740
16	LEVER Comment: Handle	898101112
17	BOLT, Stainless Steel	10-823042
18	GEAR PLATE Comment: Handle	898101082
19	BOLT, Stainless Steel Comment: Handle	10-823042
20	SPRING Comment: Handle	24-813028003
21	SHIFT SHAFT Comment: Handle	898103T16
22	PIN Comment: Handle	17-16085003
23	NUT, Nylon Comment: Handle	11-8537227
24	WASHER, Stainless Steel Comment: Handle	12-16826
25	COLLAR, Steel Comment: Handle	23-895162001
26	GEAR, Drive Comment: Handle	895101400	895160001, 895160 Handle
27	GEAR, Driven Comment: Handle	895161
28	GEAR PLATE Comment: Starboard - Handle	898101081
29	DRUM, Throttle Comment: Handle	895101401	804892002 Handle
30	WASHER Comment: Use with 6mm Collar - Handle SN# 0R148895 & Below	12-953921
30	WASHER, Stainless Steel Comment: Use with 6.3mm Collar - Handle SN# 0R148896 & Up	12-953921
31	OPENER, Throttle Comment: Handle	898101203
32	COLLAR, (6 mm) Comment: Handle SN# 0R148895 & Below	23-895126
32	COLLAR, Stainless Steel (6.3 mm) Comment: Handle SN# 0R148896 & Up	23-895126004
33	BOLT, Stainless Steel Comment: Handle	10-8M0102279	10-823042 22 Handle
34	GROMMET, Rubber Comment: Handle	25-898101166
35	KNOB Comment: Handle	898101110
36	JOINT Comment: Handle	898101109
37	BRACKET, Shift Rod Lever Comment: Starboard - Remote Control	898103018
38	BOLT, Stainless Steel Comment: Remote Control	10-823042
39	SHIFT SHAFT Comment: Remote Control	898103T17
40	SHIFT ARM Comment: Remote Control	898101169
41	BOLT Comment: Remote Control	10-879194248	10-823042038 Remote Control
42	WASHER Comment: Remote Control	12-161404
43	ROD, Cam, Component of Complete Gear Housing Comment: Short - Design I	803760006
43	ROD, Cam, Component of Complete Gear Housing Comment: Long - Design I	803760007
44	JOINT, Shift Rod Comment: Design I	898101173
-	GASKET SET, Gearcase	27-8M0089636

Shift and Cam Rod, 0R505053 and Up

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Shift and Cam Rod, 0R505053 and Up:

Position No.	Part Name	OEM Number	Supersedes
1	CAM, Component of Complete Gear Housing	8M0172382
2	ROD KIT, Cam - Short	8M0078869
2	ROD KIT, Cam - Long	8M0078865
3	BUSHING, Component of Complete Gear Housing	23-16176007
4	JOINT, Shift Rod	898101377
5	PIN, Dowel	17-952189
6	PIN, Component of Complete Gear Housing	17-16179
7	O-RING, Component of Complete Gear Housing	25-161772
8	O-RING, Component of Complete Gear Housing	25-161782
9	BOLT, Component of Complete Gear Housing	10-8230427
10	WASHER, Component of Complete Gear Housing	12-953921
11	SHIFT ROD	898101172
12	GROMMET Comment: Handle	25-16823
13	BRACKET	898103026
14	BOLT Comment: Handle	10-8248324
15	STOPPER, Shift Lever - Stainless Steel Comment: Handle	24-8M0138740
16	LEVER Comment: Handle	898101112
17	BOLT, Stainless Steel	10-823042
18	GEAR PLATE Comment: Handle	898101082
19	BOLT, Stainless Steel Comment: Handle	10-823042
20	SPRING Comment: Handle	24-813028003
21	SHIFT SHAFT Comment: Handle	898103T16
22	PIN Comment: Handle	17-16085003
23	NUT, Nylon Comment: Handle	11-8537227
24	WASHER, Stainless Steel Comment: Handle	12-16826
25	COLLAR, Steel Comment: Handle	23-895162001
26	GEAR, Drive Comment: Handle	895101400	895160001, 895160 Handle
27	GEAR, Driven Comment: Handle	895161
28	GEAR PLATE Comment: Starboard - Handle	898101081
29	DRUM, Throttle Comment: Handle	895101401	804892002 Handle
30	WASHER, Stainless Steel Comment: Use with 6.3mm Collar - Handle	12-953921
31	OPENER, Throttle Comment: Handle	898101203
32	COLLAR, Stainless Steel (6.3 mm) Comment: Handle	23-895126004
33	BOLT, Stainless Steel Comment: Handle	10-8M0102279	10-823042 22 Handle
34	GROMMET, Rubber Comment: Handle	25-898101166
35	KNOB Comment: Handle	898101110
36	JOINT Comment: Handle	898101109
37	BRACKET, Shift Rod Lever Comment: Starboard - Remote Control	898103018
38	BOLT, Stainless Steel Comment: Remote Control	10-823042
39	SHIFT SHAFT Comment: Remote Control	898103T17
40	SHIFT ARM Comment: Remote Control	898101169
41	BOLT Comment: Remote Control	10-879194248	10-823042038 Remote Control
42	WASHER Comment: Remote Control	12-161404
43	PIN	17-16175
44	RETAINER, Upper	8M0070770
45	SPRING	24-898103158
46	RETAINER, Lower	8M0070771
-	GASKET SET, Gearcase	27-8M0089636

Shift and Cam Rod, Jet

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Shift and Cam Rod, Jet:

Position No.	Part Name	OEM Number	Supersedes
1	CAM	8M0172382
2	ROD KIT, Cam - Long	803760A17
3	BUSHING	23-16176007
4	JOINT, Shift Rod	898101377
5	PIN, Dowel	17-952189
6	PIN	17-16179
7	O-RING	25-161772
8	O-RING	25-161782
9	BOLT	10-8230427
10	WASHER	12-953921
11	SHIFT ROD	898101172
12	GROMMET Comment: Handle	25-16823
13	BRACKET Comment: Port	898103026
14	BOLT Comment: Handle	10-8248324
15	STOPPER, Shift Lever - Stainless Steel Comment: Handle	24-8M0138740
16	LEVER Comment: Handle	898101112
17	BOLT, Stainless Steel	10-823042
18	GEAR PLATE Comment: Handle	898101082
19	BOLT, Stainless Steel Comment: Handle	10-823042
20	SPRING Comment: Handle	24-813028003
21	SHIFT SHAFT Comment: Handle	898103T16
22	PIN Comment: Handle	17-16085003
23	NUT, Nylon Comment: Handle	11-8537227
24	WASHER, Stainless Steel Comment: Handle	12-16826
25	COLLAR, Steel Comment: Handle	23-895162001
26	GEAR, Drive Comment: Handle	895101400	895160001, 895160 Handle
27	BUSHING Comment: Handle	23-898101637
28	GEAR PLATE Comment: Starboard - Handle	898101796
29	DRUM, Throttle Comment: Handle	895101401	804892002 Handle
30	WASHER, Stainless Steel Comment: Handle	12-953921
31	OPENER, Throttle Comment: Handle	898101203
32	COLLAR, Stainless Steel (6.3 mm) Comment: Handle	23-895126004
33	BOLT, Stainless Steel Comment: Handle	10-8M0102279	10-823042 22 Handle
34	GROMMET, Rubber Comment: Handle	25-898101166
35	KNOB Comment: Handle	898101110
36	JOINT Comment: Handle	898101109
37	BRACKET, Shift Rod Lever Comment: Starboard - Remote Control	898103018
38	BOLT, Stainless Steel Comment: Remote Control	10-823042
39	SHIFT SHAFT Comment: Remote Control	898103T17
40	SHIFT ARM Comment: Remote Control	898101169
41	BOLT Comment: Remote Control	10-879194248	10-823042038 Remote Control
42	WASHER Comment: Remote Control	12-161404
43	SPRING, Detent	898101636
-	GASKET SET, Gearcase	27-8M0089636

Starter Motor Components

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Starter Motor Components:

Position No.	Part Name	OEM Number
1	STARTER MOTOR ASSEMBLY	50-8M0188334
2	PINION	8M0188338
3	WASHER	12-953926
4	HOLDER, Brush	8M0135544
5	SCREW	10-16821
6	BUSHING	23-8M0135546
7	O-RING	25-161784
8	BUSHING	23-8M0135545
9	WASHER, Stainless Steel	12-16826
10	LOCKWASHER, (M6)	13-400256
11	NUT	11-853722026
12	BOLT	10-162632
13	LOCKWASHER	13-898101181
14	WASHER	12-898101215
-	STARTER MOTOR KIT, Electric	50-899783A01

Starter Motor and Rectifier

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Starter Motor and Rectifier:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-8M0188334
2	MOUNT, Rubber	851837
3	BRACKET	898101186
4	BOLT	10-8M0098607
5	CABLE ASSEMBLY, Battery	84-898101T06	84-853815A03, 84-853815A02
6	BOLT	10-8230427
7	SWITCH ASSEMBLY, Neutral Comment: Electric Handle	87-8M0127937
8	ACTUATOR Comment: Electric Handle	803841
9	PILOT LAMP	804057001
10	BOOT	85-853816002
11	BOOT, Red, Starter Solenoid	85-853816004
12	CABLE, Starter	84-853740016
13	BOOT, Red, Starter Motor	85-853816003
14	SWITCH	87-8M0163139
15	CABLE ASSEMBLY, With Grommet	8M0156915
16	HARNESS ASSEMBLY, Extension-PTT	84-898101144
17	RECTIFIER	853811T10	898103T14
18	BOLT	10-823042
19	PLATE, Map Sensor	898101117
20	BOLT, Stainless Steel	10-16705	10-95302
21	WASHER	12-953921
22	COLLAR	23-952868
23	MOUNT, Rubber	898101158
24	SENSOR, MAP	898101116
25	SCREW, (M6 x 16)	10-8248324
26	CLIP	54-95224
27	HOSE, (110 mm)	32-898101103
28	SENSOR, Water Temperature	851846001
29	O-RING	25-161811
30	CABLE ASSEMBLY, Fuse	84-898101077
31	FUSE, 20 Ampere	88-853814002
32	PLUG	19-853994	19-853994001
33	BOLT	10-82304211
34	SWITCH ASSEMBLY, Start	87-853820A02
35	CABLE ASSEMBLY	84-88807A19
-	STARTER MOTOR KIT, Electric	50-899783A01
-	TRIM SWITCH KIT	87-898101A01

Swivel Bracket, Manual

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Swivel Bracket, Manual:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET	1400-8M0157129
2	BUSHING	23-16336007
3	THRUST PLATE	803774004
4	O-RING	25-16109002
5	C-RING	53-804027001
6	YOKE, Bottom	8M0192168
7	WIRE, Ground	84-898101091	84-878357
8	BOLT, (M6 x 12)	10-8230427
9	BOLT, Lower	10-851866009
10	WASHER	12-879194343	12-95392014
11	RUBBER DAMPER, Lower	8537732
12	MOUNT, Lower	8M0075315	853771 2
13	WASHER	12-851867
14	WASHER	12-953928
15	NUT	11-95374002
16	COVER, Lower	851869002
17	BOLT, (M6 x 20)	10-167051
18	NOT SOLD SEPARATE, Decal-Secure Engine Warning	NSS
19	WIRE, Ground	84-898101090
20	WASHER, Stainless Steel	12-16826
21	FITTING, Grease	22-824969
-	CO-PILOT KIT	898103A92
22	BOLT Comment: Handle	10-895140002
23	DISC Comment: Handle	8M0145395
24	WASHER Comment: Handle	12-895146002
25	WASHER Comment: Handle	12-895146001
26	HANDLE, Co-Pilot Comment: Handle	898101035
27	GRIP Comment: Handle	898101083
28	BUTTON Comment: Handle	8M0051399	853776 Handle
29	WASHER Comment: Handle	12-16192
30	NUT, Nylon Comment: Handle	11-95374
31	PLATE, Co-Pilot Comment: Handle	898101036
32	SCREW, (M6 x 16) Comment: Handle	10-8248324
33	COLLAR Comment: Handle	23-898101031
34	SHAFT ASSEMBLY, Steering	8M0163141
35	WASHER	12-162382
36	PLATE, Lock	853772002
37	NUT	11-85372215
38	RETAINER, Mount	898101161
39	BOLT, Stainless Steel	10-16705	10-95302
40	MOUNT, Rubber, Upper	898101242
41	PLATE, Upper Lock, Upper	853772003
42	DAMPER, Rubber, Upper	898101043
43	SCREW, Upper Mount	10-898101160
44	DAMPER, Upper	853773003

Throttle and Steering Linkage

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Throttle and Steering Linkage:

Position No.	Part Name	OEM Number	Supersedes
1	ARM, Throttle Comment: Handle	898101195
2	BOLT, Stainless Steel Comment: Handle	10-16705	10-95302 Handle
3	WASHER, Stainless Steel Comment: Handle	12-953921
4	COLLAR, (9.5 mm) Stainless Steel Comment: Handle	23-95286029
5	WASHER, Plastic Comment: Handle	12-898101218
6	COTTER PIN, Stainless Steel Comment: Handle	18-898101174
7	JOINT, Cable Comment: Handle	892775
8	NUT, Stainless Steel Comment: Handle	11-16081
9	ROD, Throttle Comment: Handle	898101204
10	ROD, Throttle - Stainless Steel Comment: Handle	898101205
11	LINK ROD, Throttle Comment: Remote Control	898101114
12	NUT, Stainless Steel Comment: Remote Control	11-16081
13	CAP Comment: Remote Control	853745
14	BRACKET, Arm, Shift and Throttle Comment: Remote Control	898101004
15	SCREW, (M6 x 16), Arm Bracket Comment: Remote Control	10-8248324
16	ARM, Throttle Comment: Remote Control	898101196
17	WASHER, Plastic Comment: Remote Control	12-898101218
18	COTTER PIN, Stainless Steel Comment: Remote Control	18-898101174
19	WASHER Comment: Remote Control	12-953921
20	COLLAR, (9.3 mm) Comment: Remote Control	23-8M0021168	23-95286 24 Remote Control
21	BOLT, Stainless Steel, Throttle Arm and Shift Arm Comment: Remote Control	10-16705	10-95302 Remote Control
22	LINK ROD , Shift Comment: Non-Jet/Remote Control	898101113
23	JOINT, Cable Comment: Non-Jet/Remote Control	892775
24	SHIFT ARM Comment: Non-Jet/Remote Control	898101170
25	GROMMET Comment: Remote Control	25-898101356	25-898101087 Remote Control
26	PLATE Comment: Remote Control	898101189
27	SCREW Comment: Remote Control	10-879194258	10-898101012 Remote Control
28	WASHER, Stainless Steel Comment: Remote Control	12-879194340	12-895141 Remote Control
29	CLAMP Comment: Remote Control	54-898101231
30	SCREW, (M6 x 16) Comment: Remote Control	10-8248324
31	DRAG LINK Comment: Remote Control	898101045
32	NUT, Nylon Comment: Remote Control	11-161473
33	WASHER Comment: Remote Control	12-9539210
34	SPACER Comment: Remote Control	23-853826001
35	SCREW Comment: Remote Control	10-898101018
36	CAP Comment: Remote Control	853825
37	CLAMP	54-898101256
-	ATTACHING KIT, Steering	898101A45

Tiller Handle

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Tiller Handle:

Position No.	Part Name	OEM Number	Supersedes
1	TILLER HANDLE ASSEMBLY Comment: Non Jet	898103T24
2	TILLER HANDLE	8M0051374	803996T01
3	PLUG, Cap	8M0051375	895134
4	GRIP	8M0051377	853775002
4	GRIP Comment: Jet	8M0051378	898101649 Jet
5	SWITCH ASSEMBLY, Stop	8M0051405	87-823037A07
6	GRIP, Rubber	8M0221732
7	DECAL, Tiller Handle Shift-Rabbit	37-896853008	37-898101201
7	DECAL, Tiller Handle Shift Comment: Jet	37-8M0012082
8	SHAFT, Throttle	8M0051379	803998004, 803998003, 803998001, 898101206
9	SCREW, Tapping - Stainless Steel	10-16257003
10	WASHER, Stainless Steel	12-8M0108373
11	COVER	8M0051388	895139
12	PULLEY	8M0051386	895137
13	HOUSING	8M0051387	895138
14	CABLE, Throttle	8M0051389	898101198
15	CLAMP	54-17169
16	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
17	BRACKET, Aluminum	8M0051380	853752001
18	SCREW, Stainless Steel	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
19	BOLT	10-8M0204707
20	CLAMP, Friction - Throttle	8M0051382	813026001
21	SPRING, Stainless Steel	24-8M0051384	24-892777
22	NUT	8M0051383	11-892776
23	HOUSING, Switch	8M0151038
24	SWITCH, Power Tilt	8M0162936
25	HANDLE, Carrying	8M0051392	804019T01
26	BOLT, Steel	10-8M0058362	10-895140
27	WASHER, Stainless Steel	12-879194340	12-895141
28	SWITCH ASSEMBLY, Stop	87-892395T02
29	RETAINER, Brass	8M0032846	12044 1
30	LANYARD ASSEMBLY	15920Q54
31	COVER	8M0051393	895142001
32	SCREW, Stainless Steel (M4 x 25)	10-8M0051395	10-898101241
33	SCREW, Stainless Steel (M4 x 16)	10-8M0136037
34	LEVER, Tiller Lock - Stainless Steel	8M0051396	895144
35	BUTTON	8M0051399	853776
36	COLLAR, Stainless Steel	8M0051397	23-95286025
37	SPRING, Stainless Steel	24-8M0051398	24-892777001
38	WASHER, Rubber	12-8M0051404	12-898101217, 12-804508001
39	BUSHING, Plastic	23-8M0051403	23-851858006
40	COVER	8M0051400	895145, 895145001
41	BOLT, Stainless Steel	10-823042
42	BOLT, Stainless Steel	10-8M0051402	10-879194267, 10-823042042
43	DECAL, Throttle-Lock	37-892904006	37-898101202
-	TRIM SWITCH KIT	87-898101A01

Tiller Handle Conversion Kit, Electric - 8M0051062

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Tiller Handle Conversion Kit, Electric - 8M0051062:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle)	8M0051062	879147A09
1	NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY	NSS
2	TILLER HANDLE	8M0051374	803996T01
3	PLUG, Cap	8M0051375	895134
4	GRIP	8M0051377	853775002
5	SWITCH ASSEMBLY, Stop	8M0051405	87-823037A07
6	GRIP, Rubber	8M0221732
7	DECAL, Tiller Handle Shift-Rabbit	37-896853008	37-898101201
8	SHAFT, Throttle	8M0051379	803998004, 803998003, 803998001, 898101206
9	SCREW, (#10-16 x .500)	10-878608	10-812832
10	WASHER, Stainless Steel	12-8M0108373
11	COVER	8M0051388	895139
12	PULLEY	8M0051386	895137
13	HOUSING	8M0051387	895138
14	CABLE, Throttle	8M0051389	898101198
15	CLIP	54-22740
16	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
17	BRACKET, Aluminum	8M0051380	853752001
18	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
19	BOLT	10-8M0204707
20	CLAMP, Friction - Throttle	8M0051382	813026001
21	SPRING, Stainless Steel	24-8M0051384	24-892777
22	NUT	8M0051383	11-892776
23	HANDLE, Carrying	8M0051392	804019T01
24	COVER	8M0051400	895145, 895145001
25	BOLT, Stainless Steel	10-823042
26	BOLT, Stainless Steel	10-8M0051402	10-879194267, 10-823042042
27	DECAL, Tiller Lock Release	37-892904006	37-898101202
28	SWITCH ASSEMBLY, Stop	87-892395A01	87-823037A08, 8M0051406
29	RETAINER, Brass	8M0032846	12044 1
30	BUSHING, Plastic	23-8M0051403	23-851858006
31	COVER	8M0051393	895142001
32	BOLT	10-8M0204707
33	SCREW, Stainless Steel (M4 x 16)	10-8M0136037
34	LEVER, Tiller Lock - Stainless Steel	8M0051396	895144
35	NUT	8M0051383	11-892776
36	COLLAR, Stainless Steel	8M0051397	23-95286025
37	SPRING, Stainless Steel	24-8M0051398	24-892777001
38	WASHER, Rubber	12-8M0051404	12-898101217, 12-804508001
39	BOLT, Steel	10-8M0058362	10-895140
40	WASHER, Stainless Steel	12-879194340	12-895141
41	LANYARD ASSEMBLY	15920Q54
42	NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only	NSS
43	GEAR PLATE	898101082
44	BOLT	10-8M0102279	10-823042 22
45	COLLAR, Stainless Steel (6.3 mm)	23-895126004
46	OPENER, Throttle	898101203
47	WASHER, Stainless Steel	12-953921
48	DRUM, Throttle	895101401	804892002
49	GEAR PLATE	898101081
50	GEAR, Drive	895101400	895160001, 895160
51	COLLAR, Steel	23-895162001
52	WASHER, Stainless Steel	12-16826
53	NUT, Nylon	11-8537227
54	GEAR, Driven	895161
55	BOLT, Stainless Steel	10-823042
56	BOLT, Stainless Steel	10-823042
57	SHIFT SHAFT	898103T16
58	LEVER	898101112
59	STOPPER, Shift Lever - Stainless Steel	24-8M0138740
60	BOLT	10-8230427
61	RETAINER, Stainless Steel	898101149
62	PLUG, Plastic	19-898101625	19-898101353, 19-898101140
63	GROMMET, Rubber	25-898101166
64	KNOB	898101110
65	DECAL, Throttle Only	37-859278003	37-804020002, 37-824200006
66	CAP NUT	11-85372214
67	SWITCH ASSEMBLY, Start	87-853820A02
68	DECAL, Start	37-859278004	37-855262001, 37-892904012
69	HARNESS ASSEMBLY, ECU	84-898101T51
70	ALARM, Over-Heat	898101134
71	SWITCH ASSEMBLY, Neutral	87-8M0127937
72	ACTUATOR	803841
73	BRACKET, Starter Lock Cable - Stainless Steel	898101265
74	BOLT	10-879194248	10-823042038
-	CO-PILOT KIT	898103A92
75	BUTTON	8M0051399	853776
76	GRIP	898101083
77	BOLT	10-895140002
78	DISC	8M0145395
79	WASHER	12-895146002
80	WASHER	12-895146001
81	HANDLE, Co-Pilot	898101035
82	WASHER	12-16192
83	NUT, Nylon	11-95374
84	SCREW, (M6 x 16)	10-8248324
85	COLLAR	23-898101031
86	PLATE, Co-Pilot	898101036
87	ROD, Throttle	898101204
88	ROD, Throttle - Stainless Steel	898101205
89	NUT, Stainless Steel	11-16081
90	COLLAR, (9.5 mm) Stainless Steel	23-95286029
91	WASHER, Stainless Steel	12-953921
92	BOLT, Stainless Steel	10-16705	10-95302
93	JOINT, Cable	892775
94	WASHER, Plastic	12-898101218
95	COTTER PIN, Stainless Steel	18-898101174
96	ARM, Throttle	898101195

Tiller Handle Conversion Kit, Manual - 8M0051061

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Tiller Handle Conversion Kit, Manual - 8M0051061:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Tiller Handle (Manual Remote Control to Manual Handle)	8M0051061	889246A71
1	NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY	NSS
2	TILLER HANDLE	8M0051374	803996T01
3	PLUG, Cap	8M0051375	895134
4	GRIP	8M0051377	853775002
5	SWITCH ASSEMBLY, Stop	8M0051405	87-823037A07
6	GRIP, Rubber	8M0221732
7	DECAL, Tiller Handle Shift-Rabbit	37-896853008	37-898101201
8	SHAFT, Throttle	8M0051379	803998004, 803998003, 803998001, 898101206
9	SCREW, (#10-16 x .500)	10-878608	10-812832
10	WASHER, Stainless Steel	12-8M0108373
11	COVER	8M0051388	895139
12	PULLEY	8M0051386	895137
13	HOUSING	8M0051387	895138
14	CABLE, Throttle	8M0051389	898101198
15	CLIP	54-22740
16	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
17	BRACKET, Aluminum	8M0051380	853752001
18	SCREW	10-8M0051381	10-878388, 10-8M4502054, 10-879194331, 10-855544020
19	BOLT	10-8M0204707
20	CLAMP, Friction - Throttle	8M0051382	813026001
21	SPRING, Stainless Steel	24-8M0051384	24-892777
22	NUT	8M0051383	11-892776
23	HANDLE, Carrying	8M0051392	804019T01
24	COVER	8M0051400	895145, 895145001
25	BOLT, Stainless Steel	10-823042
26	BOLT, Stainless Steel	10-8M0051402	10-879194267, 10-823042042
27	DECAL, Tiller Lock Release	37-892904006	37-898101202
28	SWITCH ASSEMBLY, Stop	87-892395A01	87-823037A08, 8M0051406
29	RETAINER, Brass	8M0032846	12044 1
30	BUSHING, Plastic	23-8M0051403	23-851858006
31	COVER	8M0051393	895142001
32	BOLT	10-8M0204707
33	SCREW, Stainless Steel (M4 x 16)	10-8M0136037
34	LEVER, Tiller Lock - Stainless Steel	8M0051396	895144
35	NUT	8M0051383	11-892776
36	COLLAR, Stainless Steel	8M0051397	23-95286025
37	SPRING, Stainless Steel	24-8M0051398	24-892777001
38	WASHER, Rubber	12-8M0051404	12-898101217, 12-804508001
39	BOLT, Steel	10-8M0058362	10-895140
40	WASHER, Stainless Steel	12-879194340	12-895141
41	LANYARD ASSEMBLY	15920Q54
42	NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only	NSS
43	GEAR PLATE	898101082
44	BOLT	10-8M0102279	10-823042 22
45	COLLAR, Stainless Steel (6.3 mm)	23-895126004
46	OPENER, Throttle	898101203
47	WASHER, Stainless Steel	12-953921
48	DRUM, Throttle	895101401	804892002
49	GEAR PLATE	898101081
50	GEAR, Drive	895101400	895160001, 895160
51	COLLAR, Steel	23-895162001
52	WASHER, Stainless Steel	12-16826
53	NUT, Nylon	11-8537227
54	GEAR, Driven	895161
55	BOLT, Stainless Steel	10-823042
56	BOLT, Stainless Steel	10-823042
57	SHIFT SHAFT	898103T16
58	LEVER	898101112
59	STOPPER, Shift Lever - Stainless Steel	24-8M0138740
60	BOLT	10-8230427
61	RETAINER, Stainless Steel	898101149
62	PLUG, Plastic	19-898101625	19-898101353, 19-898101140
63	GROMMET, Rubber	25-898101166
64	KNOB	898101110
65	DECAL, Throttle Only	37-859278003	37-804020002, 37-824200006
66	BRACKET, Starter Lock Cable - Stainless Steel	898101265
67	BOLT	10-879194248	10-823042038
68	ROD, Throttle	898101204
69	ROD, Throttle - Stainless Steel	898101205
70	NUT, Stainless Steel	11-16081
71	COLLAR, (9.5 mm) Stainless Steel	23-95286029
72	WASHER, Stainless Steel	12-953921
73	BOLT, Stainless Steel	10-16705	10-95302
74	JOINT, Cable	892775
75	WASHER, Plastic	12-898101218
76	COTTER PIN, Stainless Steel	18-898101174
77	ARM, Throttle	898101195

Tools

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Tools:

Position No.	Part Name	OEM Number
-	SOCKET TOOL, Bevel Gear B Nut	91-85399614
-	INSTALL TOOL, Clutch Pin	91-85399610
-	TOOL, Crankshaft Holder	91-898101360
-	GUN AND LUBE Comment: Jet	91-30500K2
-	TOOL KIT	91-803581

Top Cowl

Below is the parts list for Mercury 25 Jet EFI (3 CYL.)(4-STROKE) Top Cowl:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY, Black, With Decals	100-896109T02
1	TOP COWL ASSEMBLY, Black, Without Decals	100-8M0158648
1	TOP COWL ASSEMBLY, Silver, With Decals	100-896695T02
1	TOP COWL ASSEMBLY, Silver, Without Decals	100-8M0158650
1	TOP COWL ASSEMBLY, Camouflage - With Decals	100-896109T03
2	INTAKE, Air Comment: Black	8M0158642
2	INTAKE, Air Comment: Silver	896696T
2	INTAKE, Air - Camouflage	896111T02
3	INSERT, Port	896112
4	INSERT, Starboard	896154
5	WASHER	12-953921
6	NUT	11-400212
7	SEAL, Top Cowl	896697
-	DECAL SET Comment: Mercury 30/Jet 25 SN# 0R551808 & Below	37-896853A06
-	DECAL SET Comment: Mercury 25 SN# 0R551808 & Below	37-896854A06
-	DECAL SET Comment: Mariner 30	37-896855A06
-	DECAL SET Comment: Mariner 25	37-896652A06
-	DECAL SET, Mercury, Top Cowl Comment: SN# 0R551809 & Up	37-8M0081488
-	DECAL, Horsepower 25 Comment: SN# 0R551809 & Up	37-8M0073697
-	DECAL, Horsepower 30 Comment: SN# 0R551809 & Up	37-8M0073698
-	DECAL, Jet Drive Comment: SN# 0R551808 & Below	37-8M0010525
-	DECAL, Jet Power Comment: SN# 0R551809 & Up	37-8M0073701
-	DECAL SET, Camouflage	37-896854A01

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
