Mercury 20XD (2 CYL.) (6443973 THRU 0B238463) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 20XD (2 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

BLOCK(US-0B114230/Can-0A719660/Bel-9467987 and Below)

Below is the parts list for Mercury 20XD (2 CYL.) BLOCK(US-0B114230/Can-0A719660/Bel-9467987 and Below):

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	872-9533T38
2	PIN, Dowel, CYLINDER BLOCK	17-85171
3	ELBOW, BLEED HOSE (45 DEG.)	22-15133
4	TUBING, (20.00 Feet Bulk), BLEED (12-1/4")	32-892024122	32-99130122
5	STUD, CARBURETOR	16-429173
6	SCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCK	10-40001209
7	GASKET, EXHAUST MANIFOLD	27-892158	27-41475 8
8	MANIFOLD, Exhaust	92329
9	GASKET, SCHAUST COVER	27-414991
10	COVER, ECHAUST	92330T
11	SCREW, (M6 x 40)	10-4000333
12	COVER, TRANSFER PORT	144071
13	O-RING, TRANSFER PORT COVER	25-822370	25-30503, 25-F522555
14	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
15	COVER ASEMBLY, CYLINDER BLOCK	1028-8283A1
16	SCREW, (M6 x 30), COVER ATTACHING	10-4000331
17	GASKET, CYLINDER BLOCK COVER	27-86389
18	ELBOW, TELL TALE HOSE	22-996642
19	HOSE, TELL TALE (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	FITTING, TELL TALE HOSE - BOTTOM COWL	22-94848
21	COVER, TRANSFER PORT	14406
22	O-RING, TRANSFER PORT COVER	25-86391
23	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
24	COVER, TRANSFER PORT	92350
25	O-RING, TRANSFER PORT COVER	25-8M0214925
26	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
27	REED BLOCK	14112T
28	SEAL, Rubber, REED BLOCK	85977002
29	GASKET, REED BLOCK	27-414172
30	REED	34-816806	34-99319
31	STOP, Reed	34-897931
32	SCREW, (M4 x 10), REED ATTACHING	10-4005785
33	GASKET, ADAPTOR PLATE	27-414181
34	PLATE, ADAPTOR - CARBURETOR	41420A3
35	FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE	22-56759
36	SCREW, (M5 x 20), PLATE TO REED BLOCK	10-40019108
37	NUT, (M8) Stainless Steel, CARBURETOR STUD	11-400213
38	SEAL, TRANSFER PORT COVER	10-85577
-	GASKET SET	27-41499A88

BLOCK(US-0B114231/Can-0A719661/Bel-9467988 and Up)

Below is the parts list for Mercury 20XD (2 CYL.) BLOCK(US-0B114231/Can-0A719661/Bel-9467988 and Up):

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	872-9533T39
2	PIN, Dowel, CYLINDER BLOCK	17-85171
3	FITTING, BLEED HOSE (45 DEG.)	22-15133
4	TUBING, (20.00 Feet Bulk), BLEED (12-1/4")	32-892024122	32-99130122
5	STUD, CARBURETOR	16-429173
6	SCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCK	10-40001209
7	GASKET, EXJAUST MANIFOLD	27-892158	27-41475 8
8	MANIFOLD, Exhaust	92329F03
9	GASKET, EXHAUST COVER	27-892157	27-41499 5
10	COVER, EXHAUST	923301
11	SCREW, (M6 x 40)	10-4000333
12	COVER, TRANSFER PORT	144071
13	O-RING, TRANSFER PORT COVER	25-822370	25-30503, 25-F522555
14	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
15	COVER ASEMBLY, CYLINDER BLOCK	1028-8282A1
16	SCREW, (M6 x 30), COVER ATTACHING	10-4000331
17	GASKET, CYLINDER BLOCK COVER	27-863895	27-86389 3
18	ELBOW, TELL TALE HOSE	22-996642
19	HOSE, TELL TALE (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
20	FITTING, TELL TALE HOSE - BOTTOM COWL	22-94848
21	COVER, TRANSFER PORT	14406
22	O-RING, TRANSFER PORT COVER	25-86391
23	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
24	COVER, TRANSFER PORT	14408
25	O-RING, TRANSFER PORT COVER	25-26722
26	SCREW, (M5 x 16), COVER TO CYLINDER BLOCK	10-40057107
27	REED BLOCK	14112T
28	SEAL, Rubber, REED BLOCK	85977002
29	GASKET	27-414172
30	REED	34-816806	34-99319
31	STOP, Reed	34-897931
32	SCREW, (M4 x 10), REED ATTACHING	10-4005785
33	GASKET, ADAPTOR PLATE	27-414181
34	PLATE, CARBURETOR	41420A3
35	FITTING, Barbed, ADAPTOR PLATE - BLEED HOSE	22-56759
36	SCREW, (M5 x 20), PLATE TO REED BLOCK	10-40019108
37	NUT, (M8) Stainless Steel, CARBURETOR STUD	11-400213
38	COVER, THERMOSTAT	143171
39	GASKET, THERMOSTAT COVER	27-14318005
40	SCREW, (M6 x 40)	10-4000333
41	THERMOSTAT	14586
42	STRAP	54-12627
43	GASKET, THERMOSTAT	27-8M0204714
-	GASKET SET	27-41499A88

CARBURETOR(WMC-13/13A/14/14A/15/15A/16/16A)

Below is the parts list for Mercury 20XD (2 CYL.) CARBURETOR(WMC-13/13A/14/14A/15/15A/16/16A):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (20-MANUAL-WMC13A)	1390-8888A16
1	CARBURETOR Comment: (20-ELECTRIC-WMC14A)	1390-8888A16
1	CARBURETOR Comment: (25-MANUAL-WMC15A)	1390-8889A20
1	PISTON ASSEMBLY Comment: (25-ELECTRIC-WMC16A)	766-848389A4
2	VALVE, Throttle Comment: (20)	1395-9640
2	VALVE, Throttle Comment: (25)	1395-9646
3	SHAFT, Throttle Comment: (WMC-13/14/15/16)	1395-9695
3	SHAFT, Throttle Comment: (WMC-13A/14A15A/16A)	1395-9695
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE, INLET NEEDLE	1395-803861	1395-879194048, 1395-9855
7	JET, (.046), MAIN FUEL Comment: (20)	1399-5317
7	JET, (.080) Comment: (25)	1395-6201
8	PLUG, JET RETAINER	1395-9171
9	COVER, DIAPHRAGM	813618	1395-9165
10	SCREW, DIAPHRAGM COVER Comment: (WMC-13/14/15/16)	1395-9697
10	SCREW, DIAPHRAGM COVER Comment: (WMC-13A/14A/15A/16A)	1395-9697
11	BODY, FUEL PUMP	15827A1
12	SCREW, FUEL PUMP COVER	1395-9643
13	COVER, FUEL PUMP	1395-9637
14	PLUG	1395-879194017	1395-9535
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR PARTS KIT	1395-8237072
17	PLATE, COVER Comment: (20-MANUAL/25-MANUAL-WMC15A)	1395-9699
17	PLATE Comment: 25-MANUAL-WMC-15)	1395-9177
18	CHOKE, Electric Comment: (WMC-14/WMC-16)	1395-823433	1395-9701 (WMC-14/WMC-16)
18	CHOKE, Electric Comment: (WMC-14A/WMC-16A)	1395-823433	1395-9701 (WMC-14A/WMC-16A)
19	SCREW, COVER PLATE Comment: (WMC-13/14/15/16)	1395-9696
19	SCREW Comment: (WMC-13A/14A/15A/16A)	1395-9696
20	GASKET, CARBURETOR	27-192061
21	BRACKET, PRIMER	41717T
22	SCREW, (M5 x 12), BRACKET TO CARBURETOR	10-400018
23	LEVER ASSEMBLY, FAST IDLE	42515A1
24	LEVER, PRIMER	41703
25	IDLE WIRE	12733
26	ACTUATOR, PRIMER	110242
27	INSTRUCTION PLATE Comment: (MERCURY)	12654
28	INSTRUCTION PLATE Comment: (MARINER)	12653

CARBURETOR(WMC-9/10/11/12/24/25/26/27)

Below is the parts list for Mercury 20XD (2 CYL.) CARBURETOR(WMC-9/10/11/12/24/25/26/27):

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR Comment: (18/20-MANUAL-WMC-24)	1390-8888A16
1	CARBURETOR Comment: (18/20-ELECTRIC-WMC-10)	1390-8888A16
1	CARBURETOR Comment: (25-MANUAL-WMC-11)	1390-8889A20
1	CARBURETOR Comment: (25-MANUAL-WMC-26)	1390-8889A20
1	CARBURETOR Comment: (25-ELECTRIC-WMC-12)	1390-8677A11
1	CARBURETOR Comment: (25-ELECTRIC-WMC-27)	1390-8677A11
2	VALVE, Throttle Comment: (18/20-WMC-9/10)	1395-9168
2	VALVE, Throttle Comment: (18/20-WMC-24/25)	1395-9640
2	VALVE, Throttle Comment: (25-WMC-11/12)	1395-9180
2	VALVE, Throttle Comment: (25-WMC-26/27)	1395-9646
3	SHAFT, Throttle	1395-9695
4	BOWL, Fuel	1395-9164
5	FLOAT	1395-91691
6	VALVE, INLET NEEDLE	1395-803861	1395-879194048, 1395-9855
7	JET, (.046), MAIN FUEL Comment: (18/20)	1399-5317
7	JET, (.080) Comment: (25)	1395-6201
8	PLUG, JET RETAINER	1395-9171
9	COVER, DIPHRAGM	813618	1395-9165
10	SCREW, DIAPRAGM COVER	1395-9697
11	COVER, FUEL PUMP	1395-9702
12	SCREW, FUEL PUMP COVER	1395-9173
13	PLATE, COVER (MANUAL)	1395-9177
13A	CHOKE, Electric	1395-823433	1395-9701
14	SCREW, COVER PLATE	1395-9696
15	GASKET/DIAPHRAGM KIT	1395-97611
16	REPAIR KIT Comment: (WMC-9/10/11/12)	1395-96481
16	REPAIR PARTS KIT Comment: (WMC-24/25/26/27)	1395-8237072
16A	PLUG	1395-879194017	1395-9535
17	GASKET, CARBURETOR	27-192061
18	BRACKET, PRIMER	41717T
19	SCREW, (M5 x 12), BRACKET TO CARBURETOR	10-400018
20	LEVER ASSEMBLY, FAST IDLE	42515A1
21	LEVER, PRIMER	41703
22	IDLE WIRE	12733
23	ACTUATOR, PRIMER	110241
24	KNOB, FAST IDLE - EARLY MARINER MODELS	11043
25	O-RING, (.301 x .070) Comment: EARLY MARINIER MODELS	25-627021
26	INSTRUCTION PLATE Comment: (MERCURY)	12654
27	INSTRUCTION PLATE Comment: (MARINER)	12653
-	GASKET SET	27-41499A88

CLAMP BRACKET ASSEMBLY

Below is the parts list for Mercury 20XD (2 CYL.) CLAMP BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET Comment: (PORT)(MERCURY)	1497-8794A1
1	CLAMP BRACKET Comment: (PORT)(MARINER)	1497-8794A2
2	CLAMP BRACKET Comment: (STARBOARD)(MERCURY)	1497-8794A5
2	CLAMP BRACKET Comment: (STARBOARD)(MARINER)	1497-8794A6
3	THUMB SCREW ASSEMBLY, (14 mm)	10-92767A1
4	WASHER, THUMB SCREW	12-73719
5	SCREW, WASHER ATTACHING	10-768042
6	HANDLE, CARRYING	41042
7	PIN ASSEMBLY, Tilt	17-99929A1
8	STUD, CLAMP BRACKET	16-99928
9	SPACER, CLAMP BRACKET STUD	23-41041
10	NUT, (M8) Stainless Steel, CLAMP BRACKET STUD	11-400213
11	TILT TUBE	8M0035075	883068, 41171
12	CLIP, SAFETY	54-8M0085928	54-30954
13	NUT, (.875), TILT TUBE	11-93164
14	BOLT, (.312-18 x 2.750), CLAMP BRACKET TO TRANSOM	10-69064
15	WASHER, CLAMP BRACKET BOLT	12-67981
16	NUT, (.312-18), CLAMP BRACKET BOLT	11-82670910
17	LEVER, TILT STOP - STARBOARD SIDE	96965
18	SCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKET	10-41523
19	NUT, TILT STOP LEVER SCREW	11-36069
20	SCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKET	10-41524
21	SPRING, TILT STOP LEVER SCREW	24-44581
22	STRAP, TILT STOP - PORT SIDE	90901
23	SCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKET	10-41523
24	NUT, TILT STOP STRAP SCREW	11-36069
25	SCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKET	10-41524
26	WAVE WASHER, TILT STOP STRAP SCREW	13-31030
27	WASHER, Nylon, TILT TUBE	12-71421

COWLS(MARINER)

Below is the parts list for Mercury 20XD (2 CYL.) COWLS(MARINER):

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY	2190-9163A8
2	HINGE, COWL LATCH	43515
3	BRACKET, TOP COWL	43555
4	SCREW, (M5 x 12), HINGE TO TOP COWL	10-400018
5	SHIELD, TOP COWL	44311F2
6	WASHER, SHIELD SCREW	12-73288
7	BOTTOM COWL, PORT Comment: (DARK GRAY)	2176-9107A4
7	BOTTOM COWL, PORT Comment: (LIGHT GRAY)	2176-9107A4
8	BOTTOM COWL, STARBOARD	2176-9108A3
9	PLATE, BOTTOM COWL	15865
10	SCREW, (#10-16 x .500), PLATE TO BOTTOM COWL	10-95700
11	SEAL, BOTTOM COWL	15067A1
12	LATCH, BOTTOM COWL	43514
13	SCREW, (M5 x 12), LATCH TO BOTTOM COWL	10-400018
14	LATCH, COWL-REAR	43554A4
15	SCREW, (M5 x 12), BRACKET TO BOTTOM COWL	10-400018
16	COVER, FUEL INLET	11281
17	PLATE, BOTTOM COWL Comment: (WITHOUT STOP SWITCH)	25-416052
17	PLATE, BOTTOM COWL Comment: (WITH STOP SWITCH)(LIGHT GRAY)	25-416051
18	SWITCH ASSEMBLY, Stop	87-11083A6
19	RETANER, STOP SWITCH	8M0032846	12044 1
20	LANYARD ASSEMBLY	15920Q54

COWLS(MERCURY)

Below is the parts list for Mercury 20XD (2 CYL.) COWLS(MERCURY):

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY	2190-9163A22
2	HINGE, COWL LATCH	43515
3	BRACKET, TOP COWL	43555
4	SCREW, (M5 x 12), HINGE TO TOP COWL	10-400018
5	BOTTOM COWL ASSEMBLY, PORT	2176-9107A2
6	BOTTOM COWL ASSEMBLY, STARBOARD	2176-9108A1
7	PLATE, BOTTOM COWL	15865
8	SCREW, (#10-16 x .500), PLATE TO BOTTOM COWL	10-95700
9	SEAL, BOTTOM COWL	15067A1
10	LATCH, BOTTOM COWL	43514
11	SCREW, (M5 x 12), LATCH TO BOTTOM COWL	10-400018
12	LATCH, COWL-REAR	43554A5
13	SCREW, (M5 x 12), BRACKET TO BOTTOM COWL	10-400018
14	COVER, FUEL INLET	11281
15	PLATE, BOTTOM COWL Comment: (WITHOUT STOP SWITCH)	25-41604
15	PLATE, BOTTOM COWL Comment: (WITH STOP SWITCH)	25-416041
16	SWITCH ASSEMBLY, Stop	87-11083A6
17	RETANER, STOP SWITCH	8M0032846	12044 1
18	LANYARD ASSEMBLY	15920Q54

CRANKSHAFT, PISTONS AND FLYWHEEL

Below is the parts list for Mercury 20XD (2 CYL.) CRANKSHAFT, PISTONS AND FLYWHEEL:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL ASSEMBLY	258-859232T15	258-859232T 6
2	SCREW ASSEMBLY	10-97359A1
3	WASHER, FLYWHEEL SCREW	12-86496
4	RING GEAR, FLYWHEEL Comment: (ELECTRIC)	43-99301
5	SCREW, (M5 x 13), RING GEAR TO FLYWHEEL Comment: (ELECTRIC)	10-88190313
6	CRANKSHAFT ASSEMBLY	464-8978T2
7	SEAL, CRANKSHAFT	822445A1
8	SEAL, Oil, CRANKSHAFR-LOWER	26-85107
9	BEARING, Roller, CRANKSHAFT - LOWER	31-85113T
10	BEARING, Roller - Upper, CRANKSHAFT	31-85114T
11	SEAL, Oil, CRANKSHAFT - UPPER	26-859741
12	BEARING ASSEMBLY, CENTER MAIN	86992A5
13	KEY, Woodruff, FLYWHEEL DRIVE	28-20094
14	PISTON ASSEMBLY Comment: SN# US-0B114230/Can-0A719660/Bel-9467987 & Below	767-9104A3
14	PISTON ASSEMBLY Comment: SN# US-0B114231/Can-0A719661/Bel-9467988 & Up	767-9104T19
15	LOCK RING, PISTON PIN	40-828119	40-47276
16	RING SET, Piston	39-8M0083677	39-12810A12
17	CONNECTING ROD ASSEMBLY	630-8835A4
18	BEARING, Needle, PISTON END	29-98295
19	BEARING, LOCATING - NEEDLE BEARING	12-8M0012294	42025
20	BEARING ASSEMBLY, Roller	31-879877A1
21	SCREW, (M6 x 25), CONNECTING ROD	10-4008225
-	GASKET SET	27-41499A88
-	POWERHEAD ASSEMBLY	879732T89	90885T89

DRIVESHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 20XD (2 CYL.) DRIVESHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	ADAPTOR PLATE ASSEMBLY Comment: (18)	99702A3
1	ADAPTOR PLATE ASSEMBLY Comment: (20/25)	99702A7
2	HOUSING ASSEMBLY, WATER TUBE	96248A1
3	SEAL, WATER TUBE	26-25329
4	SPACER, WATER TUBE	23-889715	23-96247
5	SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE	10-400035
6	GASKET, ADAPTOR PLATE	27-41670006
7	SEAL, Adaptor Plate	158662
8	BRACKET, UPPER MOUNT	41211
9	SCREW, (M6 x 20), UPPER MOUNT BRACKET	10-40007128
10	WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT BRACKET	12-8M0204649
11	TUBE, Water Comment: (SHORT SHAFT)	32-85116
11	TUBE, Water Comment: (LONG SHAFT)	32-86292
12	HOUSING ASSEMBLY, Driveshaft Comment: (SHORT SHAFT)(MERCURY)	1588-9097T5
12	HOUSING ASSEMBLY, Driveshaft Comment: (LONG SHAFT)(MERCURY)	1588-9098T5
12	HOUSING ASSEMBLY, Driveshaft Comment: (SHORT SHAFT)(MARINER)	1588-9097T6
12	HOUSING ASSEMBLY, Driveshaft Comment: (LONG SHAFT)(MARINER)	1588-9098A6
13	GASKET, DRIVERSHAFT HOUSING	27-433374
14	COVER, IDLE RELIEF	14534
15	GASKET, COVER	27-14621
16	SCREW, (.250-20 x 1.25), COVER	10-14742
17	SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)	10-1993870
18	WASHER, DRIVE SHAFT HOUSING SCREW	12-4002317
-	GASKET SET	27-41499A88

ELECTRIC COMPONENTS

Below is the parts list for Mercury 20XD (2 CYL.) ELECTRIC COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
2	SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK	10-48409
3	NUT, Brass, RECTIFIER TERMINALS	10-32,11-45076
4	SOLENOID ASSEMBLY, Starter	89-8M0185149
5	SCREW, (M6 x 14)	10-4000327
6	NUT, Brass, STARTER SOLENOID TERMINAL	8-32,11-26419
7	NUT, (.250-20), STARTER SOLENOID TERMINAL	11-64015
8	WIRE ASSEMBLY, YELLOW	84-88809A5
9	CABLE ASSEMBLY, Battery, RED	84-88439A27
9	CABLE ASSEMBLY, Battery, BLACK	84-88439A28
10	HARNESS ASSEMBLY, ENGINE	84-92436A5
11	FUSE	88-95085
12	BRACKET, WIRING HARNESS	92439
13	SCREW, (M6 x 14), BRACKET	10-4000327
14	NUT, (M6), BRACKET SCREW	11-401386
15	CLAMP, WIRING HARNESS	54-815504310	54-18076 2, 54-32523, F700551, FI5537158, FI5537122, FI5538482
16	J CLIP, WIRING HARNESS	54-8M0024808
17	STATOR ASSEMBLY, AUXILIARY	86704A10
18	SCREW, (M5 x 30), STATOR ATTACHING	10-4000123
19	STARTER MOTOR ASSEMBLY	50-8M0033984	50-893889T, 50-90983T 1
20	DRIVE KIT	96561
21	DRIVE	96562
22	END CAP	96563T
23	ARMATURE	96565
24	END CAP, CUMMUTATOR W/SPRINGS AND BRUSHES	96564T
25	THRU BOLT	10-96566
26	SCREW, (M8 x 55), STARTER MOTOR ATTACHING	10-421251
27	PLATE, BOTTOM COWL Comment: (MERCURY)	25-416042
27	PLATE, BOTTOM COWL Comment: (MARINER)	25-416042
28	GROMMET, BOTTOM COWL (RUBBER)	25-93527002

ELECTRICAL - BELGIUM ENGINES

Below is the parts list for Mercury 20XD (2 CYL.) ELECTRICAL - BELGIUM ENGINES:

Position No.	Part Name	OEM Number
1	REGULATOR, Voltage	95845T
2	SCREW, (#10-16 x 1.12)	10-92799
3	NUT, Brass, VOLTAGE REGULATOR TERMINAL	10-32,11-45076
4	HARNESS ASSEMBLY Comment: VOLTAGE REGULATOR (BLACK/RED)	84-74725A2
5	PLUG, HARNESS	71663
6	HARNESS ASSEMBLY, LIGHTING (EXTERNAL)	84-65017A2
7	STATOR ASSEMBLY	86704A10
8	SCREW, (M5 x 30), STATOR ATTACHING	10-4000123
9	TERMINAL BLOCK	86-638131
10	SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK	10-48409

FUEL FILTER ASSEMBLY

Below is the parts list for Mercury 20XD (2 CYL.) FUEL FILTER ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FILTER ASSEMBLY, Fuel	35-889527A07	35-8M0111436, 35-87946A15
2	FILTER ASSEMBLY	35-87946Q04
3	SEAL, FUEL FILTER	25-897536	25-98277
4	BALL	858731	91935
5	LINE, (57.00 Inches Bulk), FILTER TO CARBURETOR (7-1/2")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	LINE, (57.00 Inches Bulk), FILTER TO ADAPTOR (5-1/4)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
7	CLAMP, FUEL LINE	54-68424
8	FITTING, FUEL LINE	22-98750
9	WASHER, ADAPTOR	30188
10	SPRING, ADAPTOR STEM	24-23067T
11	O-RING, ADAPTOR STEM	25-16524
12	STEM, ADAPTOR	23069
13	ADAPTOR, CHECK UNIT	22833
14	SCREW, (M6 x 35), ADAPTOR TO BOTTOM COWL	10-4000332
15	NUT, (M6), ADAPTOR SCREW	11-401386
-	GASKET SET	27-41499A88

GEAR HOUSING(DRIVESHAFT)

Below is the parts list for Mercury 20XD (2 CYL.) GEAR HOUSING(DRIVESHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT)(MERCURY)	1665-8669T13
-	GEAR HOUSNIG, COMPLETE Comment: (LONG)(MERCURY)	1665-8669T14
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT)(MARINER)	1665-8669T13
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG(MARINER)	1665-8669T16
1	GEAR HOUSING ASSEMBLY, Mercury, BASIC	1600-8M0083538	1665-8669A21
1	GEAR HOUSING ASSEMBLY, Mariner, BASIC	1665-8669A22
2	SCREEN, WATER INLET Comment: (STARBOARD)	35-41134
2	SCREEN, Water Inlet Port, WATER INLET Comment: (PORT)	35-41133
3	SCREW, (M5 x 40), SCREEN TO GEAR HOUSING	10-40031112
4	NUT, (M5), SCREEEN SCREW	11-400263
5	BEARING, Roller, UPPER	31-41326
6	SEAL, GEAR HOUSING	26-99325
7	PIN, Dowel (.187 x .530), GEAR HOUSING	17-8M0084726	17-85500
8	BEARING ASSEMBLY, Roller	31-98294A1
9	GEAR, Pinion	43-98302
10	SCREW, (.250-28 x .750), PINION GEAR	10-49908
11	DRIVESHAFT Comment: (SHORT SHAFT)	45-99199
11	DRIVESHAFT Comment: (LONG SHAFT)	45-99198
13	SCREW, Magnetic, DRAIN	22-8M0058389	22-67892A06
14	SCREW, (.375-16 x .250), GREASE FILLER	10-79953Q04
15	WASHER, DRAIN AND FILLER SCREW	12-191833
16	CAM ASSEMBLY, SHIFT	85562A1
17	PIN, Drive, SHIFT CAM	17-85096
18	PIN, (.078 x .437), SHIFT SHAFT	17-85593
19	WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT	12-8M0204649
20	SPRING, SHIFT SHAFT	24-93007
21	WASHER, SHIFT SHAFT	12-85091
22	O-RING, (.239 x .174), SHIRT SHAFT	25-85594
23	O-RING, (.734 x .139), SHIFT SHAFT RETAINER	25-35276
24	RETAINER, SHIFT SHAFT	93878
25	BOOT, SHIFT SHAFT	85552001
26	SHIFT SHAFT Comment: (SHORT SHAFT)	85126
26	SHIFT SHAFT Comment: (LONG SHAFT)	86293
27	GASKET, WATER PUMP	27-993261
28	FACE PLATE	85083
29	WASHER, IMPELLER	12-8M0204722
30	KEY, IMPELLER DRIVE	28-8M0214993
31	IMPELLER	47-8M0204712
31	IMPELLER (COLD WATER)	47-8M0204712
32	O-RING, WATER PUMP	25-69202
33	PUMP ASSEMBLY, Water	46-99157A02
34	SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING	10-400035
35	WASHER, (.203 x .406 x .040), WATER PUMP SCEW	12-89302
36	BUSHING, WATER PUMP SCREW	23-8M0214959
37	SEAL, WATER TUBE	26-85090001
38	O-RING, DRIVESHAFT - RUBBER	25-86203
38A	O-RING	25-99691
-	REPAIR KIT, Water Pump	46-99157T2
-	SEAL KIT	26-85090A2
-	GASKET SET	27-41499A88

GEAR HOUSING(PROPELLER SHAFT)

Below is the parts list for Mercury 20XD (2 CYL.) GEAR HOUSING(PROPELLER SHAFT):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT)(MERCURY)	1665-8669T13
-	GEAR HOUSNIG, COMPLETE Comment: (LONG)(MERCURY)	1665-8669T14
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT)(MARINER)	1665-8669T13
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG)(MARINER)	1665-8669T16
1	GEAR HOUSING ASSEMBLY, Mercury, BASIC	1600-8M0083538	1665-8669A21
1	GEAR HOUSING ASSEMBLY, Mariner, BASIC	1665-8669A22
39	TRIM TAB	97-98432Q6
40	SCREW, (M8 x 35), TRIM TAB	10-4000355
41	WASHER, (.323 x .563 x .063) Stainless Steel, TRIM TAB SCREW	12-8M0042642	12-70132
42	BEARING ASSEMBLY, Roller, TAPERED	31-8M0103470	31-99328A 1
43	GEAR ASSEMBLY, Forward	43-44213T1
44	BUSHING, FORWARD GEAR	23-85557
45	FOLLOWER, Cam	85094
46	SPRING, RETAINING - CROSS PIN	24-38114
47	CLUTCH, SLIDING	52-41040T
48	PIN, CLUTCH TO PROPELLER SHAFT	17-8M0020999	17-85093
49	SPRING, COMPRESSION - PROPELLER SHAFT	24-88680
50	PROPELLER SHAFT	44-8166231
51	GEAR, Reverse	43-99542T
52	CARRIER ASSEMBLY, Bearing	99906T1
53	BEARING, Roller	31-21739
54	SEAL, Oil, BEARING CARRIER (INNER)	26-41132
55	SEAL, Oil, BEARING CARRIER (OUTER)	26-41131
56	O-RING, BEARING CARRIER	25-85549
57	PLATE, GEAR HOUSING	87293
58	SCREW, COVER TO GEAR HOUSING (16MM)	10-90883
59	THRUST HUB ASSEMBLY, PROPELLER	858498	8M0027793, 85128A 1
60	PROPELLER ASSEMBLY	48-19640A40
61	PROP NUT	11-88228
62	SCREW, GEAR HOUSING (25MM)	10-87810178
63	WASHER, GEAR HOUSING SCREW	12-43328
64	SPACER, GEAR HOUSING SCREW	23-41589
-	SEAL KIT	26-85090A2
-	GASKET SET	27-41499A88

HARNESS AND START COMPONENTS

Below is the parts list for Mercury 20XD (2 CYL.) HARNESS AND START COMPONENTS:

Position No.	Part Name	OEM Number
1	COVER, START SWITCH (TOP)	95815
2	COVER, START SWITCH (BOTTOM)	95828
3	SWITCH ASSEMBLY, Start	87-95810A1
4	BOOT ASSEMBLY, START SWITCH	11099A1
5	SWITCH ASSEMBLY Comment: (MERCURY)	87-88890A2
5	SWITCH ASSEMBLY Comment: (MARINER SHIFT SIDE)	87-93479A4
6	CABLE ASSEMBLY, FUSE - EARLY MODELS	84-95084A2
7	CABLE ASSEMBLY, FUSE - EARLY MODELS	84-95084A3
8	FUSE, 20 Ampere, EARLY MODELS	88-8M0207796
9	J CLIP, WIRE ASSEMBLY - EARLY MODELS	54-8M0024808
10	STRAP, CLAMP	95814
11	FASTENER, CLAMP STRAP	95813
12	SCREW, (M5 x 20)	10-40019108
13	SCREW	10-4005727
14	WASHER	12-45771
15	SCREW, (#10-16 x .375), SWITCH WIRE	10-62568
16	SCREW, (#10-16 x .750), COVER	10-69570
17	CABLE ASSEMBLY (RED) - LATER MODELS	84-79139A20

IGNITION COMPONENTS

Below is the parts list for Mercury 20XD (2 CYL.) IGNITION COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	HARNESS ASSEMBLY, PRIMARY Comment: (W/NUT CONNECTIONS)	84-88891A1
2	STATOR ASSEMBLY	86617A20
3	SCREW, (M5 x 25), STATOR ATTACHING	10-4000120
3	SCREW, (M5 x 10), STATOR ATTACHING Comment: MANUAL	10-400015
6	TRIGGER ASSEMBLY	98450A10
7	CLIP, TRIGGER LEADS	54-24836
8	SCREW, (.190-16 x .620)	10-77137
9	C WASHER, CLIP SCREW	8M0084613	69205
10	COIL ASSEMBLY, Ignition	339-832757A4
11	COVER, IGNITION COIL	997621
12	SCREW, (M5 x 55), IGNITION COIL COVER	10-40007115
13	NUT, Brass, COIL TERMINAL	10-32,11-45076
14	LEAD ASSEMBLY, HIGH TENSION	84-813715A1
15	BOOT/TERMINAL KIT, SPARK PLUG	85-63709A1
16	SPARK PLUG	33-896329827	33-827C
16	SPARK PLUG (CANADA AND BELGUIM)	33-14103Q
17	SWITCHBOX ASSEMBLY (WITH NUT CONNECTIONS)	339-7452A3
18	SWITCHBOX ASSEMBLY (WITH BULLET CONNECTIONS)	339-7452A19
19	SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK	10-40019108
20	NUT, Brass, SWITCH BOX TERMINALS	10-32,11-45076
21	CABLE ASSEMBLY, GROUND	84-88807A10
22	SCREW, (#10-24 x .500), GROUND WIRE	10-43394
23	STATOR ASSEMBLY, AUXILIARY Comment: (MARINER)	86704A10
24	SCREW, (M5 x 30), STATOR ATTACHING Comment: (MARINER)	10-4000123
25	TERMINAL BLOCK Comment: (MARINER)	86-638131
26	SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK Comment: (MARINER)	10-48409

SERVICE/SUPPORT MATERIAL

Below is the parts list for Mercury 20XD (2 CYL.) SERVICE/SUPPORT MATERIAL:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 18/20/25 H.P. (XD)	90-13286
-	GASKET SET	27-41499A88
-	DECAL SET Comment: (MERC 18) (BROWN)	37-43170A84
-	DECAL SET Comment: (MERC 20)(BROWN)	37-13480A86
-	DECAL SET Comment: (MERC 25)(BROWN)	37-13239A86
-	DECAL SET Comment: (MERC 20)(SILVER)	37-13480A86
-	DECAL SET Comment: (MERC 25)(SILVER)	37-13239A86
-	DECAL SET Comment: (MARINER 20)	37-810461A92	37-810461A91, 37-810460A90, 37-11181A85, 37-810461A90, 37-11627A85 (MARINER 20)
-	DECAL SET Comment: (MARINER 25)	37-810461A92	37-810461A91, 37-810460A90, 37-11181A85, 37-810461A90, 37-11627A85 (MARINER 25)
-	OWNERS GUIDE Comment: (MERCURY)	90-11044870
-	OWNERS GUIDE Comment: (MARINER)	90-11046871

STARTER ASSEMBLY, MANUAL

Below is the parts list for Mercury 20XD (2 CYL.) STARTER ASSEMBLY, MANUAL:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, Starter	86689A5
2	COVER, STARTER HOUSING	86971
3	LEVER, LOCK (UPPER)	858925	94019
4	SPRING, UPPER LOCK LEVER	24-12734
5	LEVER, LOCK (LOWER)	93876T02
6	SCREW, (#10-16 x 1.12), LOWER LOCK LEVER	10-92799
7	PIN, Roll, LOCK LEVER	17-38489
8	SCREW, (M6 x 20), STARTER HOUSING	56-8M0206596
8	SCREW, (M6 x 35), STARTER HOUSING	10-4000183
9	PAD, FELT	833161T	833161, 90478
10	SPRING, STARTER	24-86857T01
11	SHEAVE, STARTER	50-825269T01	50-825269A 1
12	SPRING, CAM	24-86851T02
13	CAM	868501
14	RING, Retaining, CAM	53-86849T01
15	ROPE, STARTER	50-12066Q10
16	HANDLE ASSEMBLY, STARTER ROPE	85174A1
17	SPRING, CAM	24-868523
18	CAM	86853T01
19	SCREW, CAM TO STARTER SHEAVE	10-826253	10-97516, 10-818838
20	SUPPORT, STARTER HANDLE	426264
21	SCREW, SUPPORT TO STARTER HOUSING (35MM)	10-40019111
22	WASHER, SUPPORT SCREW	12-4002313
23	SPACER, SUPPORT SCREW	23-309772
24	NUT, (M5), SUPPORT SCREW	11-401385

STEERING HANDLE ASSEMBLY(MARINER)(MANUAL)

Below is the parts list for Mercury 20XD (2 CYL.) STEERING HANDLE ASSEMBLY(MARINER)(MANUAL):

Position No.	Part Name	OEM Number	Supersedes
1	GRIP, RUBBER	8M0221732
2	HARNESS ASSEMBLY, STOP SWITCH	84-89591A5
3	BOOT ASSEMBLY, STOP SWITCH	11099A1
4	HANDLE ASSEMBLY, THROTTLE	87-823609A10	14025A 4, 14170A 5
5	RING, STEERING HANDLE	23-11193
6	SCREW, (#10-16 x .375), THROTTLE HANDLE	10-62568
7	TUBE ASSEMBLY, STEERING	99333A2
8	TUBE ASSEMBLY	975501
9	BRACKET ASSEMBLY	44397A7
10	SCREW, (M4 x 20), BRACKET CLAMPING	10-4005688
11	WASHER, NYLON - BRACKET	12-57860
12	NUT, (1.00-14), BRACKET	11-859133	11-34862, 11-90068F 3, 11-90068F 4
13	BUSHING, BRACKET	23-85973
14	CABLE ASSEMBLY, THROTTLE	43242
15	NUT, (M6) Stainless Steel, THROTTLE CABLE	11-400212
16	BRACKET ASSEMBLY, STEERING	43447A4
17	SCREW, (M10 x 80), BRACKET TO SWIVEL TUBE	10-4000384

STEERING HANDLE ASSEMBLY(MERCURY) (MANUAL)

Below is the parts list for Mercury 20XD (2 CYL.) STEERING HANDLE ASSEMBLY(MERCURY) (MANUAL):

Position No.	Part Name	OEM Number	Supersedes
-	HANDLE ASSEMBLY, Steering	94185A16
1	GRIP, RUBBER	8M0221732
2	HARNESS ASSEMBLY, STOP SWITCH	84-89591A5
3	BOOT ASSEMBLY, STOP SWITCH	11099A1
4	HANDLE ASSEMBLY, THROTTLE	87-823609A10	14025A 4, 14170A 5
5	DECAL, THROTTLE Comment: (APPLY ON HANDLE)	37-13239
5	DECAL, THROTTLE Comment: (APPLY ON TUBE)	37-140121
6	SCREW, (#10-16 x .375), THROTTLE HANDLE	10-62568
7	TUBE ASSEMBLY, STEERING	99333A2
8	TUBE ASSEMBLY	975501
9	BRACKEY ASSEMBLY	44397A6
10	SCREW, (M4 x 20), BRACKET CLAMPING	10-4005688
11	WASHER, NYLON - BRACKET	12-57860
12	NUT, (1.00-14), BRACKET	11-859133	11-34862, 11-90068F 3, 11-90068F 4
13	BUSHING, BRACKET	23-85973
14	CABLE ASSEMBLY, THROTTLE	43242
15	NUT, (M6) Stainless Steel, THROTTLE CABLE	11-400212
16	BRACKET ASSEMBLY, STEERING	43447A3
17	SCREW, (M10 x 80), BRACKET TOSWIVEL TUBE	10-4000384

SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 20XD (2 CYL.) SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL TUBE ASSEMBLY, Mercury	97544A5
1	SWIVEL TUBE ASSEMBLY, Mariner	97544A2
2	SCREW, (M8 x 133.35), UPPER MOUNT	10-125161
3	MOUNT, UPPER	14894
4	WASHER, RUBBER - UPPER MOUNT SCREW	12-85172
5	WASHER, UPPER MOUNT SCREW	12-43430
6	NUT, UPPER MOUNT SCREW	11-400213
7	ROD, REVERSE HOOK	85157
8	PLATE, PILOT CONTROL Comment: (DESIGN I)	85173
9	WASHER Comment: (DESIGN I)	12-85104
10	SWIVEL BRACKET Comment: (MERCURY)(DESIGN I)	3415-822237A1
10	SWIVEL BRACKET Comment: (MARINER)(DESIGN I)	3415-822237A2
11	FITTING, Grease Comment: (DESIGN I)	22-8M0169589
12	BUSHING, SWIVEL BRACKET Comment: (DESIGN I)	23-95949
13	SCREW, PILOR CONTROL Comment: (DESIGN I)	10-91807
14	SPRING, PILOT CONTROL SCREW Comment: (DESIGN I)	24-96203
15	O-RING, SWIVEL TUBE Comment: (DESIGN I)	25-86993
16	BUSHING, SWIVEL TUBE (LOWER) Comment: (DESIGN I)	23-85154
17	SWIVEL BRACKET Comment: (MERCURY)(DESIGN II)	3415-822237A1
17	SWIVEL BRACKET Comment: (MARINER)(DESIGN II)	3415-822237A2
18	FITTING, Grease Comment: (DESIGN II)	22-8M0169589
19	CLAMP ASSEMBLY, CO-PILOT Comment: (DESIGN II)	54-11139A2
20	O-RING, SWIVEL TUBE Comment: (DESIGN II)	25-86993
21	HOOK ASSEMBLY, REVERSE LOCK	98830A2
22	SPRING, REVERSE HOOK - PORT	24-96018
23	SPRING, REVERSE HOOK - STARBOARD	24-97427
23	SPRING, REVERSE HOOK -STARBOARD	24-879894	24-12755
24	MOUNT, LOWER	85122001
25	BUMPER, Front	85123001
26	COVER, LOWER MOUNT Comment: MERCURY	95068A1
26	COVER, LOWER MOUNT Comment: MARINER	95068A2
27	SCREW, LOWER MOUNT COVER (60MM)	10-1994360
28	SCREW, LOWER MOUNT COVER (100MM)	10-19943100
29	NUT, (M8) Stainless Steel, LOWER MOUNT COVER SCREW	11-400213
30	WASHER, LOWER MOUNT COVER SCREW	12-36001
31	BRACKET, TROLL	12756
32	LEVER, CONTROL	12758
33	SPRING	24-12754
34	PIN, TROLL BRACKET	17-13195
35	RING, Retaining	53-13194
-	GASKET SET	27-41499A88

THROTTLE AND SHIFT LINKAGE(ELECTRIC)

Below is the parts list for Mercury 20XD (2 CYL.) THROTTLE AND SHIFT LINKAGE(ELECTRIC):

Position No.	Part Name	OEM Number	Supersedes
1	CAM, Throttle Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	17764A2
1	CAM, Throttle Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	17764A2
2	SCREW, (M5 x 16) Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	10-400035
2	SCREW, (M5 x 20) Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	10-4000117
3	WASHER, THROTTLE CAM SCREW	12-87791
4	WAVE WASHER, THROTTLE CAM SCREW	13-69150
5	BUSHING, THROTTLE CAM SCREW	17764A2
6	DASHPOT	92425
7	BRACKET, DASHPOT	93001
8	NUT, (.312-24), DASHPOT TERMINAL	11-22053
9	ROD ASSEMBLY, Throttle	98463A2
10	NUT, Stainless Steel, LOCK-THROTTLE ROD	10-32,11-68219
11	SOCKET, THROTTLE ROD	8M0084742
12	LEVER, CONTROL	433601
13	TIMING ROD	817429	98464A 5
15	SOCKET, TIMING ROD	8M0084742
16	PLATFORM, CONTROL	42026A2
17	SPRING, SPARK ADVANCE	24-89540
18	LEVER, ACTUATING	42343
19	RING, Retaining, ACTUATING AND CONTROL LEVER	53-46250
20	SCREW, (M6 x 16), CONTROL PLATFORM	10-4000171
20	SCREW, (M6 x 20), CONTROL PLATFORM	56-8M0206596
21	SCREW, SHIFT LEVER TO PLATFORM (16MM)	10-40007127
22	WASHER, SHIFT LEVER TO PLATFORM	12-95093
23	LEVER, SHIFT	43424
24	SLEEVE, SHIFT LEVER TO PLATFORM	23-95091
25	WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER TO SCREW	12-35280
26	NUT, (M6), SHIFT LEVER SCREW	11-401386
27	COVER ASSEMBLY	42846A2
28	CUP, RETAINER	39519
29	SCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVER	10-118591
30	SHIFT LINK	17724A1
31	BUSHING, NYLON - SHIFT LINK	23-96202
32	WASHER, (.203 x .406 x .040), SHIFT LINK	12-89302
33	COTTER PIN, SHIFT LINK	18-210711
34	SHIFT SHAFT ASSEMBLY, HORIZONTAL	95027A6
35	LEVER, SHIFT SHAFT	95023
36	RING, Retaining, LEVER TO SHIFT SHAFT	53-95019
37	BUSHING, SHIFT SHAFT	23-60762
38	LEVER, SHIFT SHAFT	17724A1
39	NUT, (M5), SHIFT SHAFT	11-401385
40	RETAINER, CABLE	424291
41	BRACKET ASSEMBLY, ATTACHING	96186A2
42	STRAP, Key	96201
43	SCREW, (M10 x 25), BRACKET	10-1993325
44	LINK ROD ASSEMBLY, STEERING	41323A03
45	SCREW, (.375-24 x 1.25), LINK ROD	10-849838	10-14000
46	WASHER, (.406 x .734 x .063) Stainless Steel, SCREW AND LINK ROD	12-34931
47	NUT, (.375-24), SCREW AND LINK ROD	11-8M0204726

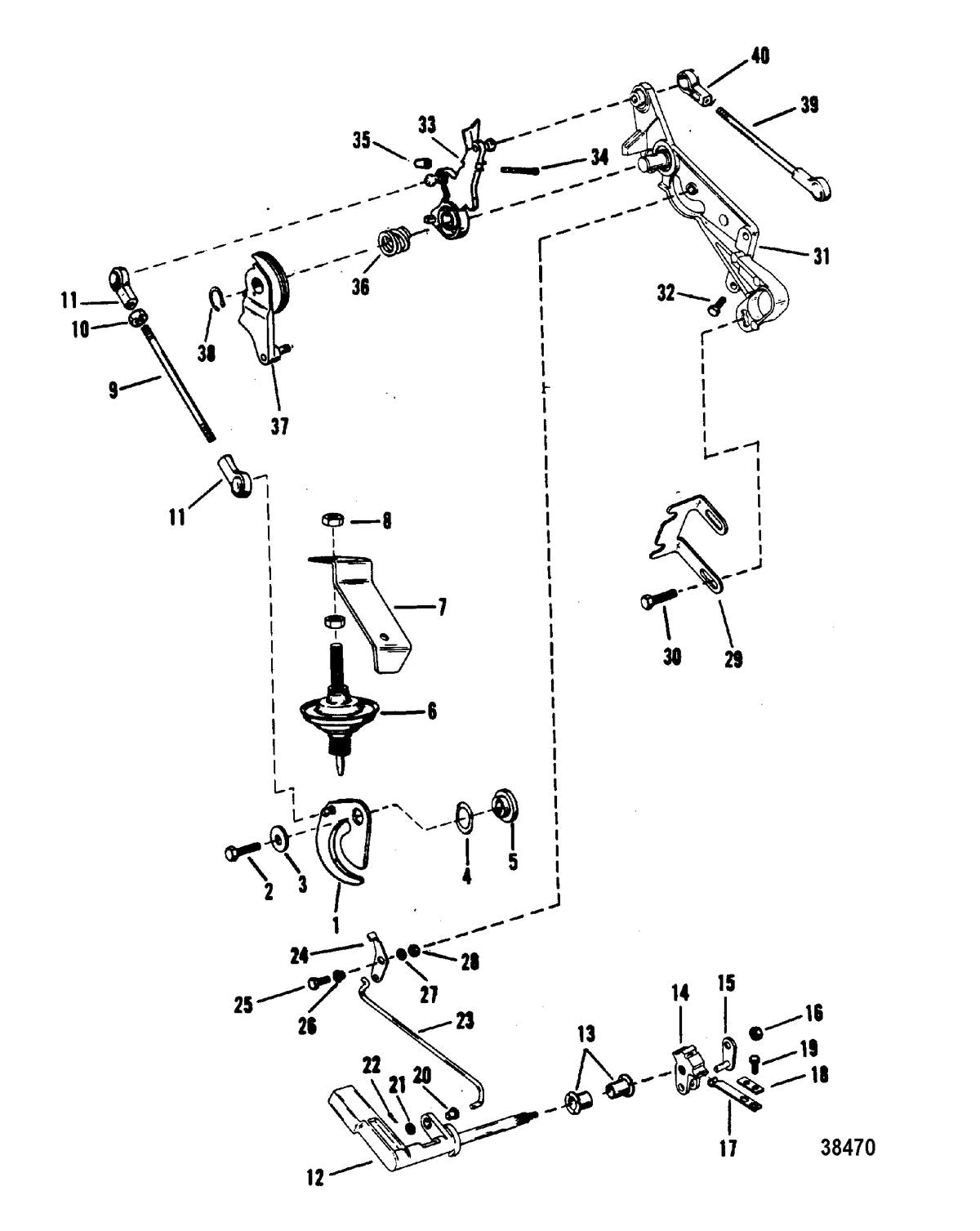

THROTTLE AND SHIFT LINKAGE(MARINER)(MANUAL)

Below is the parts list for Mercury 20XD (2 CYL.) THROTTLE AND SHIFT LINKAGE(MARINER)(MANUAL):

Position No.	Part Name	OEM Number	Supersedes
1	CAM, Throttle Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	17764A2
1	CAM, Throttle Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	17764A2
2	SCREW, (M5 x 16) Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	10-400035
2	SCREW, (M5 x 20) Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	10-4000117
3	WASHER, THROTTLE CAM SCREW	12-87791
4	WAVE WASHER, THROTTLE CAM SCREW	13-69150
5	BUSHING, THROTTLE CAM SCREW	17764A2
6	DASHPOT	92425
7	BRACKET, DASHPOT	93001
8	NUT, (.312-24), DASHPOT TERMINAL	11-22053
9	ROD ASSEMBLY, Throttle	98463A2
10	NUT, Stainless Steel, LOCK - THROTTLE ROD	10-32,11-68219
11	SOCKET, THROTTLE ROD	8M0084742
12	HANDLE, SHIFT	423301
13	BUSHING, SHIFT HANDLE	23-60762
14	LEVER, SHIFT	423291
15	BACKPLATE, SHIFT LEVER	42358
16	NUT, (M5), SHIFT LEVER	11-401385
17	SPRING, DETENT	24-39627
18	PLATE, DETENT SPRING	39601
19	SCREW, (M5 x 8), DETENT SPRING AND PLATE	10-400011
20	BUSHING, SHIFT LINK	23-96202
21	WASHER, (.203 x .406 x .040), SHIFT LINK	12-89302
22	COTTER PIN, SHIFT LINK	18-210711
23	LINK, SHIFT	11042
24	LEVER, THROTTLE LIMIT	110501
25	SCREW, (M5 x 20), THROTTLE LIMIT LEVER	10-4000117
26	BUSHING, THROTTLE LIMIT LEVER	23-8M0214959
27	WASHER, (.203 x .406 x .040), THROTTLE LIMIT SCREW	12-89302
28	NUT, (M5)	11-401385
29	BRACKET, CABLE	11039
30	SCREW, (M6 x 25), CABLE BRACKET	10-4000177
31	PLATFORM, CONTROL	42026A2
32	SCREW, (M6 x 16), PLATFORM TO BLOCK	10-4000171
33	LEVER, CONTROL	110383
34	SCREW, (.190-32 x 1.75), CONTROL LEVER	10-118591
35	CAP, CONTROL LEVER SCREW	48039
36	SPRING, SPARK ADVANCE	24-89540
37	LEVER, ACTUATING	42343
38	RING, Retaining, ACTUATING LEVER	53-46250
39	TIMING ROD	817429	98464A 5
40	SOCKET, TIMING LINK	8M0084742

THROTTLE AND SHIFT LINKAGE(MERCURY)(MANUAL)

Below is the parts list for Mercury 20XD (2 CYL.) THROTTLE AND SHIFT LINKAGE(MERCURY)(MANUAL):

Position No.	Part Name	OEM Number	Supersedes
1	CAM, Throttle Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	17764A2
1	CAM, Throttle Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	17764A2
2	SCREW, (M5 x 16) Comment: SN# US-0B114230/Aus-9467987/Can-0A719660 & Below	10-400035
2	SCREW, (M5 x 20) Comment: SN# US-0B114231/Aus-9467988/Can-0A719661 & Up	10-4000117
3	WASHER, THROTTLE CAM SCREW	12-87791
4	WAVE WASHER, THROTTLE CAM SCREW	13-69150
5	BUSHING, THROTTLE CAM SCREW	17764A2
6	DASHPOT	92425
7	BRACKET, DASHPOT	93001
8	NUT, (.312-24), SADHPOT TERMINAL	11-22053
9	ROD ASSEMBLY, Throttle	98463A2
10	NUT, Stainless Steel, LOCK-THROTTLE ROD	10-32,11-68219
11	SOCKET, THROTTLE ROD	8M0084742
12	LEVER, CONTROL	433601
13	TIMING ROD	817429	98464A 5
15	SOCKET, TIMING ROD	8M0084742
16	PLATFORM, CONTROL	12863A1
17	SPRING, SPARK ADVANCE	24-89540
18	LEVER, ACTUATIN	92362A1
19	RING, Retaining, ACTUATING AND CONTROL LEVER	53-46250
20	LINK, THROTTLE/ADVANCE	92362A1
21	RETANINING RING, THROTTLE/ADVANCE LINK	53-86731
22	GEAR	94152
23	LEVER, PRIMARY	92362A1
24	RING, Retaining, PRIMARY LEVER AND GEAR	53-46250
24	SPRING, DETENT BALL	24-8M0215005
26	BALL, DETENT	30-93008
27	GEAR, SHIRT	94085A1
28	WASHER, (.8125), SHIFT GEAR	12-49339
29	RING, Retaining, SHIFT GEAR	53-46250
30	SHIFT ROD	193852
31	LEVER, SHIFT ROD	94084
32	LEVER, Shift Rod	10-4001589
33	BUSHING, SHIFT SHAFT	23-60762
34	SHIFT SHAFT, HORIZONITAL	87794
35	LEVER, SHIFT SHAFT	93744
36	LEVER, ROD END	93928
37	SCREW, (M4 x 20), ROD END LEVER	10-4001588
38	BRACKET, THROTTLE CABLE (EARLY MODELS)	94186
39	SCREW, (M6 x 16), BRACKET TO CYLINDER BLOCK	10-4000171
40	SCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVER	10-118591
41	CAP, CONTROL LEVER SCREW	48039

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
