Mercury 200, 20 (9157230 & Up) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 200, 20 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL ASSEMBLY

Below is the parts list for Mercury 200, 20 BOTTOM COWL ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE ASSEMBLY, MOUNTING Comment: SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	88381A3
1	PLATE ASSEMBLY, MOUNTING Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	88381A3
2	BEARING, NYLON - WATER INLET TUBE	23-86215
3	SEAL, RUBBER - WATER INLET TUBE	26-25329
4	RETAINER, WATER INLET TUBE SEAL	33513
5	SCREW, (.250-20 x .62)	10-20540
6	GASKET, POWERHEAD TO MOUNTING PLATE	27-39401
7	SEAL, MOUNTING PLATE TO BOTTOM COWL	39622
8	GASKET	27-39402
9	BOTTOM COWL ASSEMBLY Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	2129-7065A2
9	BOTTOM COWL ASSEMBLY Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	2129-7065A2
10	COVER, HARNESS HOLE Comment: MANUAL	48472
11	SCREW, (7/8") Comment: MANUAL	10-61802
12	PLUG, BOTTOM COWL Comment: ELECTRIC	19-824928001	19-824928, 19-32297 ELECTRIC
13	LEVER, FRONT COVER	76176
14	SPRING, FRONT COVER LEVER	24-76177
15	PIN, Roll, LEVER TO BOTTOM COWL	17-26541
16	COVER PLATE ASSEMBLY, BOTTOM COWL	46266A2
17	PAD, SOUND - COVER PLATE	39591
18	SCREW, (#10-16 x .375)	10-62568
20	BOOT, THROTTLE CABLE - BOTTOM COWL	78497
21	GROMMET, FUEL ADAPTOR - BOTTOM COWL	39778
22	BOOT, SHIFT CABLE - BOTTOM COWL	39780
23	SEAL, SHIFT HANDLE - BOTTOM COWL	39058
24	HOSE (11 INCHES)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
25	ELBOW, Component of Cylinder Block and Crankcase Assembly	22-996642
26	NOZZLE, Component of Bottom Cowl Assembly	52889
27	SCREW, (#10-16 x .625) Stainless Steel, Component of Bottom Cowl Assembly	10-48409
28	SWITCH ASSEMBLY, Stop Comment: MANUAL	87-69508A31
29	COVER ASSEMBLY, STOP SWITCH Comment: MANUAL	87-99525A1
30	LOCKWASHER, STOP SWITCH Comment: MANUAL	13-69845
31	NUT, STOP SWITCH Comment: MANUAL	11-69844

CARBURETOR AND CHOKE ASSEMBLY

Below is the parts list for Mercury 200, 20 CARBURETOR AND CHOKE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	1367-6650A3
1	CARBURETOR ASSEMBLY, COMPLETE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	1367-6650A3
2	LINE, Fuel, ADAPTOR TO CARGURETOR (9-3/4")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
3	CLAMP, FUEL HOSE ATTACHING	54-68424
4	FITTING, FUEL LINE TO ADAPTOR	22-63981
5	ADAPTOR, CHECK UNIT (FUEL LINE)	22833
6	STEM, CHECK UNIT ADAPTOR	23069
7	O-RING, ADAPTOR STEM	25-16524
8	SPRING, ADAPTOR STEM	24-23067T
9	WASHER, ADAPTOR	30188
10	SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL	10-37923
11	SCREEN, CARBURETOR	65552
12	SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR	10-69022
13	KNOB, CHOKE	86381
13	BUTTON, CHOKE Comment: (BELGIUM ONLY)	86874
14	NUT, CHOKE CABLE TO BOTTOM COWL	11-73710
15	CABLE, Choke	72465
16	SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR	10-690201
17	WASHER, (.203 x .500 x .032), CHOKE CABLE SCREW	12-8M0204666
18	NUT, (5/16-24), CARBURETOR ATTACHING	11-22053

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 200, 20 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523/ THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	1367-6650A3
1	CARBURETOR ASSEMBLY, COMPLETE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	1367-6650A3
2	NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)	NSS
3	SCREW, IDLE MIXTURES	1399-1713
4	SPRING, IDLE MIXTURE SCREW	24-27160
5	NOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFT	NSS
6	NOT SOLD SEPARATE, MAIN NOZZLE	NSS
7	FLOAT	1395-9293
8	NOT SOLD SEPARATE, PIN, FLOAT RETAINING	NSS
9	BOWL, Fuel	1399-5127
10	NOT SOLD SEPARATE, GASKET, FUEL BOWL	NSS
11	SCREW, FUEL BOWL TO CARBURETOR	1399-5415
12	NOT SOLD SEPARATE, GASKET, FUEL BOWL SCREW	NSS
13	NEEDLE AND SEAT, Inlet	1395-9022
14	NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (SMALL)	NSS
15	JET, MAIN FUEL (.057)	1399-1457
16	NOT SOLD SEPARATE, PLUG, BODY CHANNEL	NSS
17	SHUTTER, Choke	1399-2577
18	SCREW AND LOCKWASHER, CHOKE SHUTTER TO CHOKE SHAFT	10-23035
19	VENTURI Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	69692
19	VENTURI Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	64677
20	NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM	NSS
21	NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP	NSS
22	BODY, FUEL PUMP	1399-5129
23	NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM	NSS
24	NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP	NSS
25	BODY STRAINER, STRAINER	1364-5585
26	SCREW, STRAINER BODY TO CARBURETOR	1395-808612	1399-5132
27	FILTER, PUMP	35-70349
28	COVER, INLET	35-91078A1
29	GASKET, STRAINER COVER	1399-5207
30	SCREW, STRAINER COVER TO BODY	10-25822
31	SHAFT, Choke	1399-5809
32	NOT SOLD SEPARATE, SPRING, RETURN - CHOKE SHAFT	NSS
33	NOT SOLD SEPARATE, SCREW, CHOKE ADJUSTMENT	NSS
34	NOT SOLD SEPARATE, SPRING, CHOKE ADJUSTMENT	NSS
35	SHAFT, Throttle	1399-2012
36	CLUSTER, THROTTLE	46387
37	SCREW, THROTTLE LEVER ATTACHING	1395-6027
38	NOT SOLD SEPARATE, IDLE TUBE	NSS
39	NOT SOLD SEPARATE, GASKET, IDLE TUBE	NSS
40	SHUTTER, Throttle	1399-6225
41	NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT	NSS
42	GASKET, CARBURETOR FLANGE	27-757911
--	GASKET SET	1399-5198
--	REPAIR PARTS KIT	1399-51991
--	DIAPHRAGM/GASKET KIT	1399-5137

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 200, 20 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY Comment: WASHER ATTACHER WITH A RETAINING RING	1427-5632A3
2	THUMB SCREW ASSEMBLY Comment: WASHER ATTACHER WITH A RETAINING RING	10-77190A3
1	CLAMP BRACKET ASSEMBLY Comment: WASHER ATTACHED WITH A SCREW	1427-5632A3
2	THUMB SCREW ASSEMBLY Comment: WASHER ATTACHED WITH A SCREW	10-77190A3
2A	WASHER Comment: WASHER ATTACHED WITH A SCREW	12-73719
2B	SCREW Comment: WASHER ATTACHED WITH A SCREW	10-768042
3	TILT TUBE, CLAMP BRACKET	74249
4	WASHER, Nylon, CLAMP BRACKET TILT TUBE	12-71421
5	NUT, (.875-14), TILT TUBE FASTENING	11-858869	11-30499
6	BOLT, CLAMP BRACKET TO TRANSOM(2 3/4")	10-67979
7	WASHER, CLAMP BRACKET SCREW	12-67981
8	NUT, (.312-18), CLAMP BRACKET SCREW	11-82670910
9	PIN ASSEMBLY, Tilt Lock	17-56373A2
10	STUD, CLAMP BRACKET (8")	16-59620
11	SPACER, CLAMP BRACKET STUD	23-59621T
12	LOCKWASHER, (.312), CLAMP BRACKET STUD	13-8M0204647
13	NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD	11-28770
14	SWIVEL PIN	66557
15	DISC, Co-Pilot	33423
16	SCREW (2 1/2") Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	10-26132
16	SCREW, (.312-18 x 1-3/4) Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	10-35385
17	NUT, (5/16-24) Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	11-29250
18	SWIVEL BRACKET ASSEMBLY Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	1461-6667A1
18	SWIVEL BRACKET ASSEMBLY Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	1461-6667A1
19	FITTING, Grease	22-8M0169589
20	BUSHING, SWIVEL BRACKET	23-64651
22	PLATE ASSEMBLY, CO-PILOT	73014A1
23	SCREW, (.312-24 x 1.500)	10-78841
24	WASHER, (.330 x .750 x .060) Stainless Steel	12-56720
25	DISC	20203
26	LEVER ASSEMBLY, TILT STOP	63310A1
27	SCREW, RETAINING - LEVER TO SWIVEL BRACKET	10-41433
28	WAVE WASHER	13-31030
29	NUT, TILT STOP LEVER SCREW	11-36069
30	LEVER, REVERSE LOCK	61012
31	ROD, REVERSE LOCK LEVER	26092
32	BUSHING, NYLON - REVERSE LOCK LEVER ROD	23-26841
33	COTTER PIN, REVERSE LOCK LEVER ROD	18-45882
34	RETAINER, ROD - REVERSE LOCK	61007
35	STOP, REVERSE LOCK	70241
36	SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET	10-71056
37	LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW	13-26992
38	WASHER, REVERSE STOP SCREW	12-71055
39	PLUG, TILT TUBE	19-39333

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY

Below is the parts list for Mercury 200, 20 CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY:

Position No.	Part Name	OEM Number
1	CRANKSHAFT Comment: SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	415-6099
2	SEAL, CRANKSHAFT Comment: SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	26-73315
1	CRANKSHAFT ASSEMBLY Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	415-7631A1
3	CARRIER ASSEMBLY Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	88224A1
4	WASHER, FELT - CARRIER Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	12-88740
5	BEARING ASSEMBLY, Main	534-3267T25
6	PIN, Dowel, CENTER MAIN BEARING	17-20032
7	PIN, Dowel, REED STOP	17-65855
8	SCREW, (#12-28 x .560)	10-45775
9	NUT, CENTER MAIN BEARING CLAMPING SCREW	11-45774
10	REED SET, CENTER MAIN BEARING (MATCHED)	34-88498A1
11	STOP, Reed, MAIN BEARING REED VALVE	34-64632
12	SCREW, (.190-32 x .560), REED STOP MOUNTING	10-77280
13	NUT, , REED STOP MOUNTING SCREW	10-32,11-20110
14	PIN, Dowel, MAIN BEARING TO CYLINDER BLOCK	17-20032

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 200, 20 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKCASE TOP ASSEMBLY	1163-6437A1
2	O-RING, CRANKCASE TOP	20071
3	BEARING, BALL - CRANKCASE TOP (UPPER)	30-63326T
4	BEARING, ROLLER - CRANKCASE TOP (UPPER)	31-20594
5	SEAL, Oil, CRANKCASE TOP (UPPER)	26-66300
6	SHIM	15-56191A1
7	SCREW, CRANKCASE TOP TO CYLINDR BLOCK (5/8")	10-86750
8	TAB WASHER, CRANKCSAE TOP SCREW	14-75670
9	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	848-6430A3
10	PIN, Dowel, CRANKCASE TO CYLINDER BLOCK	17-23784
11	STUD (2 1/8")	16-72743
12	STUD, (.312-18/.312-24 x 1.750)	16-8M0034434	16-78986
13	STUD, (.312-18/.312-24 x 1.750)	16-8M0034434	16-78986
14	STUD, (.312-18/.324-24 x 1.090)	16-72742
15	SCREW, (.312-18 x 1.250)	10-74824
16	SCREW, (.312-18 x 1-3/4)	10-35385
17	SCREW, (.312-18 x 2.250)	10-67450
18	SCREW, (.375-16 x .62), Use where Applicable	10-98260
19	TAB WASHER, Use where Applicable	14-20091
20	FITTING, BLEED DRAIN Comment: - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY	21-42863
21	HOSE, BLEED DRAIN Comment: - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY	32-9938779
22	CLAMP, BLEED HOSE ATTACHING Comment: - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY	54-56223
23	TEE, INJECTION Comment: - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY	22-78917
24	ELBOW, BLEED DRIAN Comment: - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY	22-78915
25	COVER, TRANSFER PORT	76347
26	GASKET, TRANSFER PORT COVER	27-279361
27	SCREW, (.250-20 x .750)	10-49668
27	SCREW (5/8 Inch)	10-24646
28	COVER, CYLINDER BLOCK	1022-3567
29	GASKET, CYLINDER BLOCK COVER	27-78410
30	SCREW, (.250-20 x 1.250)	10-76596
31	SCREW, (.250-20 x 1.00)	10-8M0214943
32	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-78411
33	PLATE, BAFFLE - EXHAUST MANIFOLD	39308
34	GASKET, BAFFLE PLATE TO MANIFOLD COVER	27-78409
35	COVER, EXHAUST MANIFOLD Comment: SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	88797
35	COVER, EXHAUST MANIFOLD Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	88797
36	SCREW, (.312-18 x .880) Stainless Steel	10-28782
37	BEARING, BALL - CRANKCASE (LOWER)	30-63326T
38	SEAL, Oil, CRANKCASE (LOWER)	26-8M0214939
39	INDICATOR, TIMING Comment: Electric	76255
40	SCREW, INDICATOR TO CRANKCASE Comment: Electric	10-20784
41	WASHER, (.281 x .500 x .060) Stainless Steel, INDICATOR SCREW Comment: Electric	12-8M0204649
42	NUT, (.250-28) Stainless Steel, INDICATOR SCREW Comment: Electric	11-35888
-	POWERHEAD ASSEMBLY Comment: SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	75392A77
-	POWERHEAD ASSEMBLY Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	75392A80

DRIVESHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 200, 20 DRIVESHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, Driveshaft Comment: (SHORT SHAFT)	1561-6007A2
1	HOUSING ASSEMBLY, Driveshaft Comment: (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	1560-7679A3
1	HOUSING ASSEMBLY, Driveshaft Comment: (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	1560-7679A3
2	STUD, DRIVESHAFT HSG. TO GEAR HSG. (2 5/16")	16-66373
3	STUD, DRIVESHAFT HSG. TO GEAR HSG. (3 15/16")	16-58134
4	PLUG, DRIVESHAFT HOUSING STUD	19-32298
5	NUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUD	11-82670911
6	NUT, (.375-24)	11-8M0204726
7	TUBE, WATER OUTLET Comment: (SHORT SHAFT)	32-39586
7	TUBE, WATER OUTLET Comment: (LONG SHAFT)	32-39587
8	COVER, TRIM	39301
9	SCREW, (#10-16 x .880)	10-69013
10	GROMMET, TRIM COVER SCREW	25-92012
11	SEAL, RUBBER-TRIM COVER	39353
12	GASKET	27-39402
13	PLATE, IDLE RELIEF	39492
14	SCREW, (#10-16 x .500)	10-35519
15	TUBE, NYLON-IDLE RELIEF TUBE	32-45054
16	O-RING, IDLE RELIEF TUBE	25-201951
17	NUT, (.312-24), POWERHEAD STUDS	11-29250
18	BUMPER, RUBBER-SADDLE	64076
19	SADDLE ASSEMBLY Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	1562-7098A1
19	SADDLE ASSEMBLY Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	1562-7098A1
20	MOUNT, RUBBER Comment: (SHORT SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	85003
20	MOUNT, RUBBER Comment: (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	85002
20	MOUNT, RUBBER Comment: (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	85003
20	MOUNT, RUBBER Comment: (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	85002
21	RING, Retaining	53-23720
22	MOUNT, RUBBER-LOWER Comment: (SHORT SHAFT SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	79948A1
22	MOUNT, RUBBER-LOWER Comment: (LONG SHAFT) SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	79947A1
22	MOUNT, RUBBER-LOWER Comment: (SHORT SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	79948A1
22	MOUNT, RUBBER-LOWER Comment: (LONG SHAFT) SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	79947A1
23	RING, Retaining	53-8M0051043	53-23721
24	COVER, LOWER MOUNT Comment: SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	70317
24	COVER, LOWER MOUNT Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	79908
25	SCREW, (.250-20 x .750)	10-28638
26	LINK ROD, REVERSE LOCK	76536
27	SCREW, CAM RETAINER TO DRIVESHAFT HOUSING (3/4")	10-65414
28	CAM, REVERSE LOCK	65216
29	RETAINER, REVERSE LOCK CAM	72007

ELECTRIC COMPONENTS

Below is the parts list for Mercury 200, 20 ELECTRIC COMPONENTS:

Position No.	Part Name	OEM Number	Supersedes
1	LIGHTING STATOR ASSEMBLY	74367A9
2	SCREW, LIGHTING STATOR ATTACHING (1 5/8")	10-88447
2	SCREW, LIGHTING STATOR ATTACHING (7/8")	10-66707
3	RECTIFIER ASSEMBLY	8M0058226	816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3
4	SCREW, (#10-16 x .500), RECTIFIER TO REAR BRACKET	10-48408
5	SPACER, RECTIFIER SCREW	23-62769
6	NUT, Brass, RECTIFIER TERMINALS	10-32,11-45076
7	WIRE ASSEMBLY	84-73539A2
8	SCREW, (#10-16 x .375), WIRE TO SWITCH BOX PLATE	10-62568
9	SOLENOID, Starter	89-853654A1
10	LOCKWASHER, Stainless Steel	10,13-26996
11	NUT, Stainless Steel	10-32,11-68219
12	LOCKWASHER, (.312)	13-8M0204647
13	NUT, (.312-18) Cad Plated	11-21908
14	SCREW, STARTER SOLENOID TO CYLINDER BLOCK	10-98256
15	STRAP ASSEMBLY, Ground	84-65773A2
16	STARTER MOTOR ASSEMBLY	50-76275T
17	SCREW, STARTER MOTOR TO CYLINDER BLOCK	10-815549	10-25503, 10-77065
18	LOCKWASHER, (.312), STARTER MOTOR SCREW	13-8M0204647
19	HARNESS ASSEMBLY, INTERNAL	84-76295A1
20	SPRING	24-28975
21	CLAMP	54-76368
22	SCREW	10-61802
23	CLIP	54-33361
24	CLIP	54-23567
25	SCREW, (#10-16 x .440)	10-69079
26	C WASHER, WIRING HARNESS CLAMP	8M0084613	69205
27	BRACKET, SUPPORT-EXTERNAL WIRING HARNESS	47951
28	SCREW, (.250-28 x 1.00)	10-36137
29	WASHER, (M4 x 20), WIRING HARNESS SUPORT SCREW	12-24664
30	NUT, (1/4-28), WIRING HARNESS SUPPORT SCREW	11-8M0207775
31	SOLENOID ASSEMBLY, Choke	54293A10
32	SCREW, (1/4-28 x 5/8)	10-96138
33	WIRE ASSEMBLY	84-60871A14
34	LOCKWASHER, Stainless Steel, CHOKE SOLENOID TERMINAL	10,13-26996
35	NUT, Stainless Steel, CHOKE SELENOID TERMINAL	10-32,11-68219
36	PLUNGER ASSEMBLY, CHOKE SOLENOID	56074A10
37	LEVER, CHOKE	65108
38	SCREW, CHOKE LEVER TO CARBURETOR	10-65109
39	LINK, CHOKE	65107
40	NUT, LINK TO CHOKE LEVER	11-65110
41	BUMPER, STARTER MOTOR Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	76534
42	INSULATOR Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	85-78866
43	NUT Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	11-8M0204718
44	ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL START)	47341A11

FLYWHEEL, IGNITION COIL AND SWITCH BOX

Below is the parts list for Mercury 200, 20 FLYWHEEL, IGNITION COIL AND SWITCH BOX:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL ASSEMBLY Comment: (MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	244-6601A2
1	FLYWHEEL ASSEMBLY Comment: (ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	244-6598A2
1	FLYWHEEL ASSEMBLY Comment: (BELGIUM) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	244-6601A2
1	FLYWHEEL ASSEMBLY Comment: (MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	244-6601A2
1	FLYWHEEL ASSEMBLY Comment: (ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	244-6598A2
1	FLYWHEEL ASSEMBLY Comment: (BELGIUM) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	244-6601A2
2	RATCHET ASSEMBLY, FLYWHEEL Comment: (MANUAL)	50-65721
3	KEY, Woodruff, FLYWHEEL DRIVE	28-20094
4	WASHER, FLYWHEEL NUT	12-65891
5	NUT, (.625-18), FLYWHEEL	11-8M0214915
6	STATOR ASSEMBLY	339-5209A9
7	SCREW, STATOR TO END CAP (7/8")	10-66707
7	SCREW, STATOR TO END CAP (3/8")	10-35400
8	COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)	339-6119A1
8	COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)	339-6120A1
9	CLIP, COIL RETAINING	54-59538
10	CLIP, COIL RETAINING	56927
11	TERMINAL BLOCK, STATOR	86-85365
12	SCREW, (.190-32 x .62), TERMINAL BLOCK TO STATOR	10-38055
13	NUT, , TERMINAL BLOCK SCREW	10-32,11-46438
14	SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK	10-22654
15	TRIGGER ASSEMBLY Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	89312A3
15	TRIGGER ASSEMBLY Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	89312A3
16	SWIVEL, LINK TO TRIGGER Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	74454
17	WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LINK Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	12-30164
18	SWIVEL, THROTTLE LINK Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	33973
19	NUT, Stainless Steel, THROTTLE LINK Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	10-32,11-859124	11-45812 SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
20	SWIVEL, LINK TO TRIGGER Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	79364
21	LINK, SPARK ADVANCE Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	79365
22	RING, Retaining, SWIVEL TO LINK Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	53-79366
23	SWIVEL, SPARK ADVANCE LINK Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	79363
24	NUT, Stainless Steel, SPARK ADVANCE LINK Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	10-32,11-68219
25	COIL ASSEMBLY, IGNITION	300-8M0166172
26	NUT, Brass, IGNITION COIL TERMINAL	10-32,11-45076
27	COVER, IGNITION COIL	76254
28	SCREW (2")	10-60464
29	LEAD ASSEMBLY, HIGH TENSION	84-813715A1
30	PROTECTOR, SPARK PLUG	85-63709A1
31	BOOT, IGNITION COIL	332-2854T01
32	SPARK PLUG (ACV#70FFK)	33-896329833	33-833C
32	SPARK PLUG Comment: BELGIUM AND CANADA	33-14103Q
33	SWITCHBOX ASSEMBLY	339-6222A10
34	SCREW, (#10-16 x .625) Stainless Steel, SWITCH BOX TO PLATE	10-48409
35	WASHER, (.203 x .500 x .032), SWITCH BOX SCREW	12-8M0204666
36	PLATE, SWITCH BOX	75899
37	SCREW, SWITCH BOX PLATE ATTACHING (1/2")	10-98256
38	TIE STRAP, (14.00 Inches)	61990
39	SCREW, (#10-32 x .380), SWITCH BOX LEADS	10-45218
40	SLEEVE, SWITCH BOX LEADS	5790811
41	CLIP, SWITCH BOX WIRES	54-23567
42	SCREW, (#10-16 x .375), CLIP ATTACHING	10-62568
43	C WASHER, CLIP ATTACHING SCREW	8M0084613	69205

GEAR HOUSING ASSEMBLY, DRIVESHAFT

Below is the parts list for Mercury 200, 20 GEAR HOUSING ASSEMBLY, DRIVESHAFT:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	1627-6006A3
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	1627-6006A4
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	1627-6006A15
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	1627-6006A16
1	GEAR HOUSING ASSEMBLY	1627-6006A5
2	PIN	17-20201
3	STUD (3-1/8 INCHES)	16-58137
4	STUD (4-13/16 INCHES)	16-58135
5	BEARING, ROLLER-DRIVESHAFT	31-28157
6	DRIVESHAFT ASSEMBLY Comment: (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	45-93300A1
6	DRIVESHAFT ASSEMBLY Comment: (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	45-93301A1
6	DRIVESHAFT ASSEMBLY Comment: (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	45-88094A1
6	DRIVESHAFT ASSEMBLY Comment: (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	45-88093A1
7	TAB WASHER, PINION GEAR SCREW	14-49911
8	SCREW, (.250-28 x .750)	10-49908
9	GEAR, PINION	43-45189
10	SCREW, (.375-16)	10-79953Q04
11	WASHER, GREASE FILLER SCREW	12-191833
12	PLUG, GEAR HOUSING FLUSHING	19-48750
13	WASHER, (.187 x .500 x .062) Neoprene	12-8M0204663
14	SCREW, (#10-32 x 0.25)	10-28653
15	WASHER, GREASE VENT SCREW	19643
16	SHAFT ASSEMBLY, SHIFT-LOWER Comment: (SHORT SHAFT)	56829A1
16	SHAFT ASSEMBLY, SHIFT-LOWER Comment: (LONG SHAFT)	56830A1
17	O-RING, LOWER SHIFT SHAFT	25-38933
18	RING, Retaining	53-22899
19	BUSHING ASSEMBLY, SHIFT SHAFT	23-30676A1
20	O-RING, (.424 x .103), SHIFT SHAFT BUSHING	25-26802
21	SEAL, Oil, SHIFT SHAFT BUSHING	26-30696
22	SCREW, (#10-24 x .500)	10-39149
23	SHIM SET, BALL BEARING TO GEAR HOUSIN (.002-3-5-10)	15-20804A1
24	BEARING, BALL-DRIVESHAFT	30-69389
25	RING, RETAINING-BALL BEARING	53-33463
26	SHIM SET	15-20804A1
27	GASKET	27-39626
28	O-RING, WATER PUMP BASE	25-33466
29	BASE ASSEMBLY, Water Pump	46-48744A1
30	SEAL, Oil, WATER PUMP BASE	26-20070
31	SEAL, Oil, WATER PUMP BASE (SPRING LOADED)	26-897154	26-33467
32	PIN, Dowel	17-35973
33	GASKET	27-39625
34	PLATE	39624
35	GASKET	27-396231
36	IMPELLER, Component of Driveshaft Assembly	47-89982
37	KEY, Component of Driveshaft Assembly	28-56661
38	BODY ASSEMBLY, Water Pump Comment: SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	46-87458A2
38	BODY ASSEMBLY, Water Pump Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	46-87458A2
39	INSERT, WATER PUMP BODY	48754
40	SEAL, Oil, WATER PUMP BODY	26-20070
41	SEAL, WATER PUMP BODY	26-33613
41	BEARING, WATER TUBE SEAL Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	23-86215
42	SLEEVE, GUIDE-WATER INLET TUBE	23-45170
43	WASHER, WATER PUMP STUDS	12-36001
44	NUT, (.312-24) Stainless Steel, WATER PUMP STUDS	11-82670911
45	RING	12-20684
45A	O-RING, DRIVESHAFT Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	25-88198
-	WATER PUMP ASSEMBLY, Complete	46-48744A3
-	SEAL KIT	26-66303A1

GEAR HOUSING ASSEMBLY, PROPELLER SHAFT

Below is the parts list for Mercury 200, 20 GEAR HOUSING ASSEMBLY, PROPELLER SHAFT:

Position No.	Part Name	OEM Number
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	1627-6006A3
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below	1627-6006A4
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	1627-6006A15
-	GEAR HOUSING ASSEMBLY, COMPLETE Comment: (LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	1627-6006A16
1	GEAR HOUSING ASSEMBLY	1627-6006A5
46	CAM, SHAFT	58975
47	FOLLOWER, CAM	33438
48	SPRING, CAM FOLLOWER	24-88435
49	PLATE ASSEMBLY, ANODIC-GEAR HOUSING	97-47820A1
50	SCREW, (.312-18 x 1.250) Stainless Steel	10-79436
51	SHIM SET	15-20788A1
52	BEARING, BALL-FORWARD GEAR	30-25398
53	GEAR, Forward	43-45227A5
54	BEARING, ROLLER-FORWARD GEAR	31-28157
55	RATCHET ASSEMBLY, SLIDING CLUTCH	52-53518A1
56	PIN, CROSS-RATCHET TO PROPELLER SHAFT	17-53372
57	SPRING, RETAINING-CROSS PIN	24-53373
58	PROPELLER SHAFT ASSEMBLY	44-75366A2
59	GEAR, Reverse	43-45229
60	BEARING, BALL-REVERSE GEAR	30-25398
61	SLEEVE, THRUST-REVERSE GEAR	71525
62	SHIM	15-33431A1
63	O-RING, BEARING CARRIER	25-8M0214925
64	CARRIER ASSEMBLY, Bearing	72694T1
65	BEARING, ROLLER-BEARING CARRIER	31-28157
66	SEAL, Oil, BEARING CAARRIER	26-26805
67	SEAL, Oil, BEARING CARRIER (SPRING LOADED)	26-66303
68	COVER, GEAR HOUSING	72710
69	COLLAR GUIDE, Component of Propeller Shaft Assembly	23-85964A1
70	PROPELLER ASSEMBLY (2 BLD-11" PITCH) Comment: SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below	48-33480A1
70	PROPELLER ASSEMBLY (2BLD-BRONZE-11" PITCH	48-34402A1
70	PROPELLER ASSEMBLY (3BLD-ALUM.-9" PITCH)	48-86962A4
70	PROPELLER ASSEMBLY (3 BLD-ALUM.-9" PITCH) Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	48-86962A4
70	PROPELLER ASSEMBLY (3 BLD.-ALUM.-7" PITCH)	48-37316A1
70	PROPELLER ASSEMBLY (2 BLD-11" PITCH)-NYLON	48-65002A1
--	HUB, THRUST (USE WITH NYLON PROP ONLY)	66607
71	SPACER, SPLINE-PROPELLER SHAFT	11-64075A1
72	NUT, PROPELLER	11-64075A1

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 200, 20 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	PARTS MANUAL, Merc 20	90-75538
-	GASKET SET	27-78411A80
-	DECAL SET (ENGINE) Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	37-89323A80
-	DECAL SET (ENGINE) Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212	37-89323A80
-	DECAL SET (ENGINE) Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 THRU USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237	37-89323A80
-	DECAL SET (ENGINE) Comment: SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up	37-89323A80

PISTON AND CONNECTING ROD ASSEMBLY

Below is the parts list for Mercury 200, 20 PISTON AND CONNECTING ROD ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CONNECTING ROD ASSEMBLY	632-7621A3
2	SCREW, CONNECTING ROD	10-45379
3	BEARING, Needle, CRANKPIN	29-20046T
4	NUT, CONNECTING ROD SCREW	11-20061
5	WASHER, NEEDLE BEARING RETAINING	12-47275
6	BEARING, Needle, PISTON PIN	29-20063
7	PISTON ASSEMBLY Comment: STANDARD	780-9229A7
7	PISTON ASSEMBLY Comment: (.015 OVERSIZE)	780-9229A10
8	LOCK RING, PISTON PIN	40-828119	40-47276
9	RING SET, Piston - Standard	39-27841A12
9	RING SET, Piston Comment: (.015 OVERSIZE)	39-28616A12

REMOTE CONTROL ATTACHMENT PARTS(ELECTRIC)

Below is the parts list for Mercury 200, 20 REMOTE CONTROL ATTACHMENT PARTS(ELECTRIC):

Position No.	Part Name	OEM Number	Supersedes
1	SOCKET, ANCHOR-THROTTLE CABLE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	46415
2	LINER, NYLON-ANCHOR SOCKET Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	39646
3	SCREW Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	10-32228
5	LEVER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	39456
6	SPRING, COMPRESSION-LOCKING LEVER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	24-39455
7	PIN, ROLL-LOCKING LEVER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	17-239281
8	LEVER, THROTTLE CONTROL Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	46411
9	SCREW Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	10-98256
10	WASHER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	12-21900
11	SLEEVE, THROTTLE CONTROL LEVER SCREW Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	23-39648
12	WASHER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	12-65567
14	LATCH, THROTTLE CABLE FASTENING Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	39483
15	SCREW, (.250-28 x .880) Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	10-69026
16	SPRING, LATCH SCREW Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	24-20099
17	NUT, (.250-28), LATCH SCREW Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	11-826709109	11-33825, 11-35045 SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
18	SWIVEL, THROTTLE CONTROL LEVER TO LINK ROD Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	27947
19	LINK ROD, THROTTLE CONTROL LEVER SWIVEL Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	79013
20	SWIVEL, SLEEVE AND LINK TO THROTTLE CAM Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	27948
21	WAVE WASHER, SLEEVE AND LINK SWIVEL Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	13-25806
22	WASHER, (.281 x .500 x .060) Stainless Steel Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	12-8M0204649
23	NUT, (.250-28) Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	11-8267089
24	SPRING, SHIFT CABLE RETAINER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	24-49012
25	CLEVIS, SHIFT CONTROL Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	79095
26	LEVER Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	39456
27	SPRING Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	24-39455
28	PIN, ROLL Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	17-239281
29	COTTER PIN Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	18-63480
30	TUBE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	8M0041936	8M0035074, 883067, 30664 2, 74528 SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up
31	SPACER, TILT TUBE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	23-33468
32	COVER, STEERING ARM Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	79886
33	SCREW, (.250-20 x .750) Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	10-28638

SHIFT CONTROL LINKAGE

Below is the parts list for Mercury 200, 20 SHIFT CONTROL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HANDLE, NYLON - SHIFT CONTROL	72946
2	BRACKET, MOUNTING - SHIFT SHAFT	66412
3	BUSHING, NYLON - SHIFT SHAFT	23-66375
4	LEVER, SHIFT CONTROL	76994
5	SHAFT, SHIFT (HORIZONTAL)	66379
6	SECTOR GEAR, SHIFT SHAFT	43-66377
7	WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL HANDLE	12-8M0204649
8	NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT	11-826709109	11-33825, 11-35045
9	SCREW, (.250-28 x 1.250)	10-56500
10	NUT, (1/4-28), MOUNTING BRACKET SCREW	11-8M0207775
11	SPRING, DETENT - MOUNTING BRACKET	24-39627
12	PLATE, DETENT SPRING	39601
13	SCREW, (#10-32 x .500) Stainless Steel	10-69022
14	PIN	17-25905
15	WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT	12-8M0204649
16	NUT, (.250-28) Stainless Steel, SECTOR GEAR TO SHIFT SHAFT	11-35888
17	SHAFT ASSEMBLY, Shift Control, VERTICAL	61009A1
18	GEAR, SECTOR - SHIFT CONTROL SHAFT	43-58972
19	BUSHING, NYLON - SHIFT CONTROL SHAFT	23-30677
20	FOLLOWER, NEUTRAL SPEED LIMITER	58979
21	SCREW, (.250-28 x 1.38)	10-24644
22	SHIM, LIMITER FOLLOWER SCREW	15-28212
23	NUT, (1/4-28), LIMITER FOLLOWER SCREW	11-8M0207775
24	SPRING, NEUTRAL SPEED LIMITER FOLLOWER	29675A1
25	SCREW, SPRING TO LIMITER FOLLOWER (3/8")	22-390721
26	STOP, OVER-SPEED LIMITER	72857
27	WASHER, (.200 x .440 x .032), LIMITER STOP SCREW	12-24676
28	SCREW, LIMITER STOP TO FOLLOWER (7/16")	10-35400

STARTER ASSEMBLY

Below is the parts list for Mercury 200, 20 STARTER ASSEMBLY:

Position No.	Part Name	OEM Number
1	HOUSING ASSEMBLY, STARTER (MANUAL)	75349A2
2	SCREW, (.312-18 x 1.00) Stainless Steel	10-37562
3	LOCKWASHER, (.312)	13-8M0204647
4	SCREW, (.250-28 x 1.250)	10-56500
4	SCREW, (.250-28 x 1.750)	10-69029
5	NUT, (.250-28) Stainless Steel	11-35888
6	PULLEY, STARTER CABLE	55860
7	SCREW, (.190-32 x 1.00), PULLEY TO STARTER	10-37892
8	RETAINER, PULLEY SCREW	94121
9	SPACER, PULLEY SCRW	23-309772
10	NUT, , PULLEY SCREW	10-32,11-20110
11	NUT, SHEAVE SHAFT (LEFT HAND THREAD)	11-20166
12	TAB WASHER, SHEAVE SHAFT NUT	14-61004
13	RETAINER, STARTER SPRING	65890
14	BUSHING, SHEAVE SHAFT	23-28912
15	SPRING, STARTER REWIND	24-29340T02
16	SHEAVE ASSEMBLY, Starter	76321A1
17	WAVE WASHER, WAVE - STARTER PAWL	13-36206
18	PAWL, STARTER	30596
19	BUSHING, NYLON - SHEAVE SHAFT SPACER	23-28919
20	SPACER, SHEAVE SHAFT	23-61005
21	RETAINER	26179
22	WASHER	12-35559
23	WAVE WASHER	13-20160
24	PLATE	30595
25	WASHER	12-57860
27	SHAFT, SHEAVE	61003
28	BRACKET, MOUNTING - TOP COWL (REAR)	76300
29	SCREW, (.312-18 x 1.00) Stainless Steel	10-37562
30	MOUNT, RUBBER - SUPPORT BRACKET	57927
31	NUT, (.250-28)	11-8267089
32	WIRE ASSEMBLY, Ground, REAR BRACKET	46934A1
32	WIRE ASSEMBLY, Ground, REAR BRACKET	84-76181
33	SCREW, (#10-16 x .375)	10-62568
34	SCREW	10-98256
35	RETAINER, HIGH TENSION WIRES	60299
36	SCREW, (#10-16 x .440)	10-69079
37	BRACKET, MOUNTING - TOP COWL (FRONT)	76097
38	SCREW, (.312-18 x 1.00) Stainless Steel	10-37562
39	MOUNT, RUBBER - SUPPORT BRACKET	60577
40	WASHER, (.255 x .625 x .0312), RUBBER MOUNT	12-69056
41	LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT	13-26992
42	NUT, (.250-28) Stainless Steel	11-29598
43	CABLE ASSEMBLY, Starter (MANUAL)	50-12066Q10
44	HANDLE, STARTER CABLE (MANUAL) Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	30782
44	HANDLE, START CABLE (MANUAL) Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212	77998
45	RETAINER (MANUAL) Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	79470A1
45	RETAINER ASSEMBLY Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 THRU USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212	79470A1
44/45	RETAINER KIT, Rope (MANUAL) Comment: SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up	79470A1
46	SHIM, SHEAVE SHAFT - MANUAL	15-20219

STEERING HANDLE ASSEMBLY

Below is the parts list for Mercury 200, 20 STEERING HANDLE ASSEMBLY:

Position No.	Part Name	OEM Number
-	HANDLE ASSEMBLY, Steering, COMPLETE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	60850A6
-	HANDLE ASSEMBLY, Steering, COMPLETE Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	60850A6
1	GRIP, HANDLE - THROTTLE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	60854
1	GRIP, HANDLE - THROTTLE Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	60854
2	CAP Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	62251
2	CAP Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	62251
3	SHAFT, THROTTLE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	66393
3	SHAFT, THROTTLE Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	66393
4	HANDLE ASSEMBLY Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	66394A1
4	HANDLE ASSEMBLY Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	66394A1
5	PIN Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	17-46152
5	PIN Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	17-46152
6	WASHER Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	12-62252
6	WASHER Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	12-62252
7	ARM Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	60850
7	ARM Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	60850
8	GEAR Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	43-60852
8	GEAR Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	43-60852
9	PIN Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	17-27088
9	PIN Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	17-27088
10	PIVOT Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	48003
10	PIVOT Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	48003
11	SHIM (.015) Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	15-48002015
11	SHIM (.015) Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	15-48002015
12	SCREW, (.250-28 x .620) Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	10-64074
12	SCREW, (.250-28 x .620) Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	10-64074
13	UNIVERSAL JOINT ASSEMBLY Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	60857A2
13	UNIVERSAL JOINT ASSEMBLY Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	60857A2
14	GEAR Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	43-60852
14	GEAR Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	43-60852
15	PIN Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	17-77564
15	PIN Comment: MANUAL SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	17-77564
16	BRACKET, STEERING ARM	68766A2
17	SCREW, (#10-16 x .625)	10-62233
18	SPRING, DETENT - STEERING HANDLE	24-72847
19	SCREW, BRACKET TO SADDLE (2 1/2") Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	10-26132
19	SCREW, (.312-18 x 1-3/4) Comment: SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up	10-35385
20	NUT, (5/16-24), BRACKET SCREW Comment: SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below	11-29250
21	WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING SCREW	12-30164

THROTTLE CONTROL LINKAGE

Below is the parts list for Mercury 200, 20 THROTTLE CONTROL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	GEAR, PINON - THROTTLE CONTROL	43-60856
2	HOUSING, THROTTLE CONTROL	76357
3	SHAFT AND GEAR, THROTTLE	43-60863
4 & 5	SCREW, (.250-20 x 1.120)	10-76213
6	BUSHING	23-33462
7	WASHER, THROTTLE SHAFT AND GEAR	12-20086
8	PIN, THROTTLE SHAFT AND GEAR	17-36325
9	LEVER, Throttle, VERTICAL SHAFT	46413
10	SCREW	10-72755
11	NUT, VERTICAL SHAFT THROTTLE LEVER SCREW	11-29598
12	PIN	17-24865
13	LEVER, STATOR PLATE - VERTICAL SHAFT	60864
14	LEVER, STATOR PLATE CONTROL	64631
15	SCREW, (.250-28 x 1.750)	10-69029
16	WASHER, STARTER HOUSING SCREW	12-71055
17	BUSHING, STATOR PLATE CONTROL LEVER	23-46406
18	NUT, (.250-28) Stainless Steel, STARTER HOUSING TO CRANKCASE SCREW	11-35888
19	WASHER, (M4 x 20), SHAFT AND GEAR	12-24664
20	NUT, (.250-28), SHAFT AND GEAR	11-826709109	11-33825, 11-35045
21	LINK, THROTTLE CLUSTER	46405
22	SCREW, THROTTLE CLUSTER LINK (7/8")	10-69011
23	NUT, Stainless Steel, JAM - THROTTLE CLUSTER LINK SCREW	10-32,11-68219

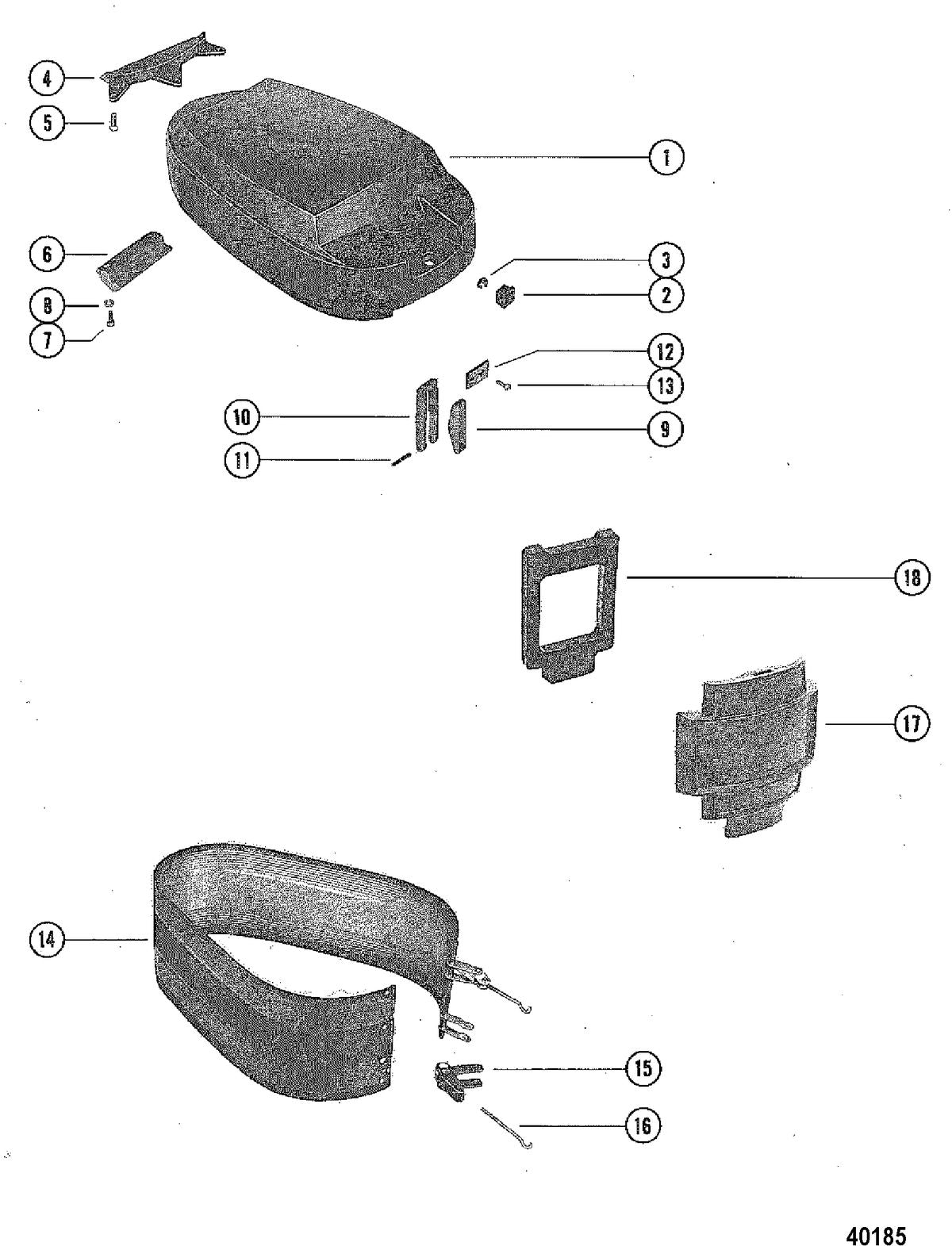

TOP COWL, WRAP AROUND COWL AND FRONT COVER

Below is the parts list for Mercury 200, 20 TOP COWL, WRAP AROUND COWL AND FRONT COVER:

Position No.	Part Name	OEM Number
1	TOP COWL ASSEMBLY Comment: (ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	2130-6603
1	TOP COWL ASSEMBLY Comment: (MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	2130-6602A2
1	TOP COWL ASSEMBLY Comment: (ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	2130-6603
1	TOP COWL ASSEMBLY Comment: (MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	2130-6602A2
2	INSERT, ROPE GUIDE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	77859A1
2	INSERT, ROPE GUIDE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	77859A1
3	RING, RETAINING Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	53-72168
3	RING, RETAINING Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	53-72168
4	SHIELD, REAR - TOP COWL	39400
5	SCREW, (#10-32 x .580), REAR SHIELD TO TOP COWL	10-37370
6	HOOK, TOP COWL LATCH - REAR	55455
7	SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL	10-22956
8	LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW	13-26992
9	LEVER, COWL LATCH	94918F1
10	HINGE, COWL LATCH LEVER	52739
11	PIN, HINGE TO LEVER	17-58998
12	PLATE, HINGE	75973
13	SCREW, (.190-32 x .620), HINGE PLATE	10-38055
14	WRAP AROUND COWL ASSEMBLY, COMPLETE	2133-2706A5
15	LATCH ASSEMBLY, Cowl	46785A1
16	HOOK	30413
17	FRONT COVER ASSEMBLY, COMPLETE Comment: SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947	2165-6604A3
17	FRONT COVER ASSEMBLY, COMPLETE Comment: SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up	2165-6604A3
18	BLANKET, SOUND ABSORBING	76995

VOLTAGE REGULATOR(BELGUIM ONLY)

Below is the parts list for Mercury 200, 20 VOLTAGE REGULATOR(BELGUIM ONLY):

Position No.	Part Name	OEM Number
1	REGULATOR, Voltage	95845T
2	SCREW, (#10-32 x 1.00)	10-58185
3	SPACER, VOLTAGE REGULATOR SCREW	23-62769
4	NUT AND LOCKWASHER, , VOLTAGE REGULATOR SCREW	10-32,11-27164
5	NUT, Brass, VOLTAGE REGULATOR TERMINALS	10-32,11-45076
6	HARNESS ASSEMBLY, VOLTAGE REGULATOR (YELLOW/RED)	84-74899
7	PLUG, HARNESS	71663
8	HARNESS ASSEMBLY, LIGHTING (EXTERNAL)	84-65017A2
9	LIGHTING STATOR ASSEMBLY	74367A9
10	SCREW, LIGHTING STATOR ATTACHING (1 5/8")	10-88447
10	SCREW, LIGHTING STATOR ATTACHING (7/8")	10-66707

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
