Mercury 1500 (8005615 THRU 8052649) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
BOTTOM COWL AND SHIFT LINKAGE
Back to TopBelow is the parts list for Mercury 1500 BOTTOM COWL AND SHIFT LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL, BOTTOM Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 2115-3919 | |
| 1 | COWL, BOTTOM Comment: UNITED STATES 3751850 THRU 4602011 AUSTRALIA 8013390 THRU 8034895 CANADA 7024373 THRU 7093097 | 2115-8963A1 | |
| 1 | COWL, BOTTOM Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 2115-8963A1 | |
| 2 | DRIP TRAY ASSEMBLY, BOTTOM COWL | 52862A2 | |
| 3 | PAD, SOUND - DRIP TRAY | 37940 | |
| 4 | SCREW, DRIP TRAY TO BOTTOM COWL (1/2") | 10-48408 | |
| 5 | HOSE, DRIP TRAY TO BOTTOM COWL (8") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 6 | BOOT, CONTROL CABLES - BOTTOM COLW | 39616 | |
| 7 | SPACER, BOTTOM COWL (COWL FRONT COVER) | 76369 | |
| 8 | SCREW, SPACER TO BOTTOM COWL (1/2") | 10-48591 | |
| 9 | BOOT, FUEL CONNECTOR - BOTTOM COWL | 37637 | |
| 10 | SUPPORT, WIRING HARNESS - BOTTOM COWL | 37445 | |
| 11 | SCREW, SUPPORT TO BOTTOM COWL (1 3/4") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-69029 | |
| 11 | SCREW, SUPPORT TO BOTTOM COWL (3 1/4") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-88488 | |
| 12 | NUT, SUPPORT SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-8M0207775 | |
| 11 | SCREW, SUPPORT TO BOTTOM COWL (1 3/4") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-69029 | |
| 13 | HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 14 | NOZZLE, TELL TALE HOSE TO BOTTOM COWL | 52889 | |
| 15 | SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2") | 10-48408 | |
| 16 | ELBOW, TELL TALE HOSE TO EXHAUST COVER | 22-996642 | |
| 17 | SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) Comment: UNITED STATES 4403387 THRU 4602011 | 60304A55 | |
| 17 | SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: UNITED STATES 4403387 THRU 4602011 | 60304A54 | |
| 18 | BUSHING, SHIFT SHAFT Comment: UNITED STATES 4403387 THRU 4602011 | 23-26600 | |
| 19 | COUPLING, SHIFT SHAFT Comment: UNITED STATES 4403387 THRU 4602011 | 93960A1 | |
| 17 | SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 60304A55 | |
| 17 | SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 60304A54 | |
| 20 | LINK ROD ASSEMBLY | 73402 | |
| 21 | WASHER, LINK ROD | 12-35462 | |
| 22 | NUT, LINK ROD | 11-826709109 | 11-33825, 11-35045 |
| 23 | WASHER, WAVE - LINK ROD | 13-29720 | |
| 24 | BRACKET, ANCHOR - CONTROL CABLES | 52732A6 | |
| 25 | CAP, BARREL RETAINER - ANCHOR BRACKET | 39519 | |
| 26 | LEVER, NYLON - SHIFT CABLE LOCKING | 87609A1 | |
| 27 | PIN, LOCKING LEVER AND COVER FASTENING | 17-47175 | |
| 28 | COVER, NYLON - SHIFT CABLE | 39667 | |
| 29 | LINK, LOCKING LEVER TO COVER | 87609A1 | |
| 30 | SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1") | 10-35386 | |
| 31 | SPRING, LINK ROD TO GUIDE BLOCK | 24-20099 | |
| 32 | GUIDE BLOCK, LINK ROD | 37896 | |
| 33 | WEAR PLATE, LINK ROD | 52100 | |
| 34 | LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET | 8M0036768 | 38279 |
CARBURETOR ASSEMBLY
Back to TopBelow is the parts list for Mercury 1500 CARBURETOR ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY(SHORT SHAFT) | 1368-5259A16 | |
| 1 | CARBURETOR ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1368-5259A11 | |
| 1 | CARBURETOR ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 4121435 THRU 4602011 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7093097 | 1368-5701A5 | |
| 1 | CARBURETOR ASSEMBLY(LONG SHAFT) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1368-5701A13 | |
| 2 | FLOAT ASSEMBLY | 1395-8673 | |
| 3 | PIN, FLOAT LEVER PINION (#) | ||
| 4 | LEVER, FLOAT (LOWER) (#) | ||
| 5 | LEVER, FLOAT (UPPER) (#) | ||
| 6 | INLET NEEDLE, SEAT AND GASKET | 1395-83181 | |
| 7 | GASKET, INLET SEAT (#) | ||
| 8 | GASKET, FLOAT BOWL COVER (#) | ||
| 9 | COVER, FLOAT BOWL (SHORT SHAFT AND ) Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1395-5261 | |
| 10 | COVER, FLOAT BOWL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 1395-5680 | |
| 11 | JET, BOWL VENT Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 1395-5733 | |
| 12 | HOSE, ECONOMIZER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 1395-5734 | |
| 13 | SCREW, FLOAT BOWL COVER Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 10-52195 | |
| 13 | SCREW, FLOAT BOWL COVER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-52195 | |
| 13 | SCREW, FLOAT BOWL COVER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 1395-4804 | |
| 14 | LOCKWASHER, FLOAT BOWL COVER SCREW | 13-26995 | |
| 15 | SCREEN, FILTER | 1395-4805 | |
| 16 | LEVER, THROTTLE STOP Comment: USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR. | 8146791 | |
| 17 | SCREW, THROTTLE STOP LEVER | 1395-6027 | |
| 18 | SHAFT, THROTTLE | 1395-7942 | |
| 19 | TUBE, IDLE (#) | ||
| 20 | SCREW, BODY (IDLE TUBE) | 1395-4540 | |
| 21 | SHUTTER, THROTTLE | 1395-5666 | |
| 22 | SCREW AND LOCKWASHER, THROTTLE SHUTTER (#) | ||
| 23 | SPRING, IDLE ADJUSTMENT SCREW (#) | ||
| 24 | SCREW, IDLE ADJUSTMENT | 1399-3515 | |
| 25 | NOZZLE, MAIN (#) | ||
| 26 | SCREW, PLUG - MAIN NOZZLE | 1395-4542 | |
| 27 | JET, MAIN FUEL (.082) - STANDARD (SHORT RAFT) | 1399-3518 | |
| 27 | JET, MAIN FUEL (.080) - STANDARD (LONG SHAFT) | 1395-6201 | |
| 27 | JET, MAIN FUEL (.0785) | 1399-3520 | |
| 27 | JET, MAIN FUEL (.076) | 1399-3796 | |
| 28 | SCREW, PLUG - MAIN FUEL JET CHANNEL | 1395-4541 | |
| 29 | GASKET, JET CHANNEL PLUG SCREW (#) | ||
| 30 | SPRING, THROTTLE SHAFT RETURN (#) | ||
| 31 | SCREW, BODY CHANNEL | 1395-4543 | |
| 31 | SCREW, BODY CHANNEL | 1395-4543 | |
| 32 | WELCH PLUG, BODY CHANNEL (#) | ||
| -- | GASKET AND PAKCING SET (1 PER CARBURETOR) | 1395-879194024 | 1399-3523, 1395-4808, 1395-4808B 1 |
| -- | REPAIR PARTS KIT (1 PER CARBURETOR)-SHORT SHAFT | 1395-51091 | |
| -- | REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 1395-51091 | |
| -- | REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1395-51091 | |
| 33 | GASKET, CARBURETOR FLANGE | 27-481641 | |
| 34 | NUT, CARBURETOR MOUNTING STUD | 11-64809 | |
| 1 | CARURETOR ASSEMBLY (WMK-11) | 1368-5038A1 | |
| 2 | FLOAT ASSEMBLY | 1395-8673 | |
| 3 | PIN, FLOAT LEVER PINION (#) | ||
| 4 | LEVER, FLOAT (LOWER) (#) | ||
| 5 | LEVER, FLOAT (UPPER) (#) | ||
| 6 | INLET NEEDLE, SEAT AND GASKET | 1395-83181 | |
| 7 | GASKET, INLET SEAT (#) | ||
| 8 | GASKET, FLOAT BOWL COVER (#) | ||
| 9 | COVER, FLOAT BOWL | 1399-4559 | |
| 10 | SCREW, FLOAT BOWL COVER (SHORT) | 10-52195 | |
| 11 | SCREW, FLOAT BOWL COVER (LONG) | 10-52196 | |
| 12 | LOCKWASHER, FLOAT BOWL COVER SCREW | 13-26995 | |
| 13 | GASKET, STRAINER COVER (LARGE) (#) | ||
| 14 | SCREEN, FILTER | 1399-3938 | |
| 15 | GASKET, STRAINER COVER (SMALL) (#) | ||
| 16 | COVER, STRAINER | 1399-4791A1 | |
| 17 | GASKET, STRAINER COVER SCREW (#) | ||
| 18 | SCREW, STRAINER COVER FASTENING | 10-25822 | |
| 19 | SCREW, THROTTLE STOP LEVER | 1395-6027 | |
| 20 | LEVER, THROTTLE STOP Comment: USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR | 8146791 | |
| 21 | SHAFT, THROTTLE | 1395-7942 | |
| 22 | TUBE, IDLE (#) | ||
| 23 | SCREW, BODY (IDLE TUBE) | 1395-4540 | |
| 24 | SCREW AND LOCKWASHER, THROTTLE SHUTTER (#) | ||
| 25 | SHUTTER, THROTTLE | 1395-5108 | |
| 26 | SPRING, IDLE ADJUSTMENT SCREW (#) | ||
| 27 | SCREW, IDLE ADJUSTMENT | 1399-3515 | |
| 28 | SCREW, PLUG - MAIN FUEL JET CHANNEL | 1395-4541 | |
| 29 | GASKET, JET CHANNEL PLUG SCREW (#) | ||
| 30 | JET, MAIN FUEL (.082) | 1399-3518 | |
| 30 | JET, MAIN FUEL (.080) - STANDARD | 1395-6201 | |
| 30 | JET, MAIN FUEL (.0785) | 1399-3520 | |
| 30 | JET, MAIN FUEL (.076) | 1399-3796 | |
| 31 | NOZZLE, MAIN (#) | ||
| 32 | SCREW, PLUG - MAIN NOZZLE | 1395-4542 | |
| 33 | SPRING, THROTTLE SHAFT RETURN (#) | ||
| 34 | WELCH PLUG, BODY CHANNEL (#) | ||
| 35 | SCREW, BODY CHANNEL | 1395-4543 | |
| -- | GASKET AND PACKAGING SET (1 PER CARBURETOR) | 1395-879194024 | 1399-3523, 1395-4808, 1395-4808B 1 |
| -- | REPAIR PARTS KIT (1 PER CARBURETOR) | 1395-51091 | |
| 36 | GASKET, CARBURETOR FLANGE | 27-481641 | |
| 37 | NUT, CARBURETOR MOUNTING STUD | 11-29250 |
CARBURETOR LINKAGE AND CHOKE SOLENOID
Back to TopBelow is the parts list for Mercury 1500 CARBURETOR LINKAGE AND CHOKE SOLENOID:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CHOKE SOLENOID | 54293A10 | |
| 2 | LOCKWASHER, SOLENOID TERMINAL | 13-26996 | |
| 3 | NUT, WOLENOID TERMINAL | 11-68219 | |
| 4 | SCREW, CHOKE SOLENOID (3/4") | 10-25299 | |
| 5 | LOCKWASHER, CHOKE SOLENOID SCREW | 13-8M0204647 | |
| 6 | PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID | 90548A1 | |
| 7 | CLUSTER, THROTTLE LEVER (UPPER CARBUREOTR) | 52518 | |
| 8 | SCREW, CLUSTER TO THROTTLE LEVER | 1395-6027 | |
| 9 | CARBURETOR ASSEMBLY, COMPLETE(MERC 1500XS) | 1368-5259A16 | |
| 9 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1368-5038A1 | |
| 9 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1368-5259A11 | |
| 9 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4121435 THRU 4602011 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7093097 | 1368-5701A5 | |
| 9 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1368-5701A13 | |
| 10 | THROTTLE PICK-UP BRACKET ASSEMBLY | 53720A2 | |
| 11 | SCREW, THROTTLE BRACKET MOUNTING (3/4") | 10-66104 | |
| 12 | INSERT, THROTTLE COUPLING | 28-89694 | |
| 13 | BRACKET, COIL LEAD RETAINER Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 59757 | |
| 14 | SCREW, COIL BRACKET (1") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-64278 | |
| 15 | WASHER, COIL BRACKET SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 12-8M0204649 | |
| 16 | NUT, COIL BRACKET SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-8M0207775 | |
| 17 | KNOB, CHOKE ROD | 90242A1 | |
| 18 | GROMMET, CHOKE ROD | 25-20116 | |
| 19 | STRAP, CHOKE KNOB TO CHOKE ROD | 49589 | |
| 20 | SCREW, STRAP TO CHOKE KNOB (1/2") Comment: USE WITH METAL CHOKE KNOB | 10-48591 | |
| 21 | LOCKWASHER, STRAP SCRW Comment: USE WITH METAL CHOKE KNOB | 13-26996 | |
| 20 | SCREW, STRAP TO CHOKE KNOB (USE WITH NYLON CHOKE KNOB) | 10-77137 | |
| 22 | ROD, CHOKE | 48203 | |
| 23 | SCREW, STRAP TO CHOKE ROD (1/2") | 10-48591 | |
| 24 | NUT, STRAP TO CHOKE ROD SCREW | 11-46438 | |
| 25 | SHUTTER, CHOKE - CARBURETOR | 48152 | |
| 26 | STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 1/8") | 16-69037 | |
| 27 | NUT, CHOKE SHUTTER TO CARBURETOR STUD | 11-20110 | |
| 28 | SCREEN ASEEMBLY, FILTER - CARBURETOR | 35-57819 | |
| 29 | SCREW, LOWER CARB. FITLER SCREEN TO CARB (3/4") | 10-22523 | |
| 29 | SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1") | 10-23015 | |
| 29 | SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1") | 10-23015 | |
| 30 | SPRING, UPPER FILTER SCREEN SCREW | 24-57818 | |
| 31 | NUT, CARBURETOR FILTER SCREEN FASTENING SCREW | 11-20110 | |
| 32 | SPRING, CHOKE ROD TENSION | 24-48230 | |
| 33 | STUD, CHOKE ROD SPRING TO CARBURETOR (7/8") | 10-657461 | |
| 34 | SPACER, CHOKE ROD SPRING STUD | 23-32427 | |
| 35 | NUT, CHOKE ROD SPRING TO CARBURETOR STUD | 11-8M0207775 |
CLAMP BRACKET AND REVERSE LOCK
Back to TopBelow is the parts list for Mercury 1500 CLAMP BRACKET AND REVERSE LOCK:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 1440-8394A1 | |
| 2 | THUM SCREW ASSEMBLY Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 28403A3 | |
| 3 | WASHER, THUMB SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 12-28404 | |
| 1 | CLAMP BRACKET ASSEMBLY Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 1440-8394A1 | |
| 2 | THUMB SCREW ASSEMBLY Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 10-78492A1 | |
| 3 | WASHER, THUMB SCREW Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 12-70988 | |
| 1 | CLAMP BRACKET ASSEMBLY Comment: UNITED STATES 4319880 AND UP CANADA 7067248 AND UP | 1440-8394A1 | |
| 2 | THUM SCREW ASSEMBLY Comment: UNITED STATES 4319880 AND UP CANADA 7067248 AND UP | 10-78492A1 | |
| 3 | CAP, THUMB SCREW Comment: UNITED STATES 4319880 AND UP CANADA 7067248 AND UP | 75043 | |
| 4 | TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET | 8M0041936 | 8M0035074, 883067, 30664 2, 74528 |
| 5 | WASHER, CLAMP BRACKET TILT TUBE | 12-52864 | |
| 6 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 7 | CAP, PLASTIC - TILT TUBE | 53078 | |
| 8 | SPACER, CLAMP BRACKET STUD | 23-59624 | |
| 8A | WASHER, CLAMP BRACKET STUD | 12-36001 | |
| 9 | STUD, CLAMP BRACKET (NOT USED WITH FULL POWER TRIM) | 16-59625 | |
| 10 | LOCKWASHER, CLAMP BRACKET STUD | 13-8M0204647 | |
| 11 | NUT, CLAMP BRACKET STUD | 11-28770 | |
| 12 | TILT LOCK PIN ASSEMBLY (NOT USED WIHT FULL POWER TRIM) | 17-8M0026068 | 17-49930A 1 |
| 13 | BOLT, CLAMP BRACKET TO BOAT TRANSON (LOWER) | 10-68298 | |
| 13 | BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER) | 10-68299 | |
| 14 | WASHER, CLAMP BRACKET BOLT (LOWER) | 12-68410 | |
| 14 | WASHER, CLMAP BRACKET BOLT (UPPER) | 12-68300 | |
| 15 | NUT, CLAMP BRACKET BOLT | 11-82670912 | |
| 16 | PIN, UPPER SHOCK MOUNTING | 55-28416 | |
| 17 | SPRING, COIL - SWIVEL BRACKET Comment: NOT USED WITH FULL POWER TRIM | 24-94891 | |
| 18 | PIN, COIL SPRING MOUNTING Comment: NOT USED WITH FULL POWER TRIM | 17-38311 | |
| 19 | SPACER, RUBBER - COIL SPRING POSITIONING Comment: NOT USED WITH FULL POWER TRIM | 23-28688 | |
| 20 | TUBE, CUSHION - SHOCK PIN (USED WITH FULL POWER TRIM) Comment: LONG SHAFT | 63473 | |
| 21 | TILT LOCK ASSEMBLY, STARBOARD Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 76386 | |
| 22 | TILT LOCK ASSEMBLY, PORT Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 76385T | |
| 23 | TUBE, TILT LOCK Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 47802 | |
| 24 | BUSHING, TILT LOCK Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 23-47803 | |
| 25 | WASHER, WAVE - TILT LOCK Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 13-69150 | |
| 21 | TILT LOCK ASSEMBLY, STARBOARD Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 76386 | |
| 22 | TILT LOCK ASSEMBLY, PORT Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 76385T | |
| 23 | TUBE, TILT LOCK Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 79659 | |
| 25 | WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY) SER GROUP #19 | 13-69150 | |
| 25A | OIL SEAL, SWIVEL BRACKET (TILT LOCK) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 26-22734 | |
| 25B | WASHER, TILT LOCK (STARBOAR SIDE ONLY) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 12-76388 | |
| 25C | "O" RING, TILT LOCK Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 25-627021 | |
| 26 | COTTER PIN, TILT LOCK | 18-47959 | |
| 27 | REVERSE LOCK ASSEMBLY Comment: NOT USED WITH FULL POWER TRIM | 87431 | |
| 28 | SPRING, REVERSE LOCK TENSION Comment: NOT USED WITH FULL POWER TRIM | 24-29821 | |
| 29 | SHAFT, REVERSE LCOK PIVOT Comment: NOT USED WITH FULL POWER TRIM | 56349 | |
| 30 | COTTER PIN, REVERSE LOCK TO SHAFT Comment: NOT USED WITH FULL POWER TRIM | 18-45882 | |
| 31 | PIN, LOWER SHOCK MOUNTING (SHORT SHAFT) | 55-696531 | |
| 31 | PIN, LOWER SHOCK MOUNTING - LONG SHAFT | 55-28414 | |
| 32 | SCREW, LOWER SHOCK PIN - LONG SHAFT | 10-21937 | |
| 33 | NUT, LOWER SHOCK PN SCREW - LONG SHAFT | 11-8M0207775 | |
| 34 | SHOCK ABSORBER Comment: NOT USED WITH FULL POWER TRIM | 55-58780A7 | |
| 35 | BUSHIG, RUBBER - SHOCK ABSORBER (UPPER) Comment: NOT USED WITH FULL POWER TRIM | 23-32171 | |
| 36 | BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: NOT USED WITH FULL POWER TRIM | 23-28198 | |
| 37 | SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET-SERIAL. GROUP #18 | 23-28199 | |
| 37 | SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET Comment: UNITED STATES 4319880 AND UP CANADA 7067248 AND UP | 23-73203 | |
| 38 | WASHER, UPPER BUSHING RETAINER (INNER) | 12-28196 | |
| 39 | WASHER, LOWER BUSHING RETAINER (INNER) | 12-59378 | |
| 40 | WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER) Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 12-8M0204648 | |
| 41 | SCREW, UPPER NAD LOWER SHOCK MOUNTING PIN Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 10-69375A1 | |
| 40 | WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 12-69374 | |
| 41 | SCREW, UPPER AND LOWER SHOCK MOUNTINGH PIN Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 10-69375 | |
| 42 | COVER, UPER AND LOWER SHOCK MOUNTING PIN Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 70679 | |
| 43 | SCREW, COVER TO SHOCK MOUNTING SCREW Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 10-37655 |
COWLING AND FRONT COVER
Back to TopBelow is the parts list for Mercury 1500 COWLING AND FRONT COVER:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL, FRONT COVER ASSEMBLY Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 2183-7928A3 | |
| 1 | COWL FRONT COVER ASSEMBLY Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 2183-7928A3 | |
| 2 | KNOB, COWL FRONT COVER FASTENING | 56849 | |
| 3 | WASHER, COVER FASTENING KNOB (RUBBER) | 12-30771 | |
| 4 | WASHER, COVER FASTENING KNOB (PLASTIC) | 12-59572 | |
| 5 | SPRING, TENSION - FASTENING KNOB | 24-30772 | |
| 6 | ROLL PIN, TENSION SPRING TO KNOB | 17-29077 | |
| 7 | STRIP, SOUND ABSORBING | 31089 | |
| 8 | BLANKET, SOUND ABSORBING | 38675 | |
| 9 | SEAL, SOUND ABSORBING - UPPER | 35769 | |
| 10 | SEAL, SOUND ABSORBING - TOP | 53334 | |
| 11 | WRAP AROUND COWL ASSEMBLY - NON LOUVERED | 2136-4660A4 | |
| 12 | COWL LATCH ASSEBMLY - NON LOUVERED | 46785A1 | |
| 13 | HOOK, COWL LATCH FASTENING - NON LOUVERED | 30413 | |
| 14 | BLANKET, SOUND ABSORBING - NON LOUVERED | 30021 | |
| 15 | WRAP AROUND COWL ASSEMBLY - LOUVERED | 2136-4660A17 | |
| 16 | SCREEN, COWL - UPPER - LOUVERED | 54943 | |
| 17 | SCREW, COWL - LOWER - LOUVERED | 54942 | |
| 18 | RIVET, SCREEEN ATTACHING - LOUVERED | 17-54944 | |
| 19 | COWL LATCH ASSEMBLY - LOUVERED | 46785A1 | |
| 20 | HOOK, COWL LATCH FASTENING - LOUVERED | 30413 | |
| -- | GLUE, ADHESIVE - BLANKET FASTENING | 92-86166Q1 |
CRANKSHAFT, PISTONS AND CONNECTING RODS
Back to TopBelow is the parts list for Mercury 1500 CRANKSHAFT, PISTONS AND CONNECTING RODS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT ASSEMBLY | 436-9072A1 | |
| 2 | NUT, FLYWHEEL TO CRANKSHAFT | 11-52901 | |
| 3 | BEARING, BALL - UPPER | 30-62567T | |
| 4 | BEARING, BALL - LOWER | 30-63742T | |
| 5 | CARRIER ASSEMBLY, "O" RING | 54196A6 | |
| 6 | PACKING, CARRIER | 65800 | |
| 7 | CENTER MAIN BEARING ASSEMBLY Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 535-3190A2 | |
| 7 | CENTER MAIN BEARING ASSEMBLY Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 535-5397A4 | |
| 8 | DOWEL PIN, CENTER MAIN BEARING | 17-20032 | |
| 9 | BEARNG, NEEDLE - OUTER RACE | 29-714221 | |
| 10 | RACE, OUTER (PAIR) | 26113T | |
| 11 | RING, SNAP - OUTER RACE | 53-26933 | |
| 12 | DOWEL PIN, STEPPED | 17-47246 | |
| 13 | SCREW, CENTER MAIN BEARING CLAMPING (1 1/4") | 10-22968 | |
| 14 | NUT, BEARING CLAMPING SCREW | 11-8M0207775 | |
| 15 | MAIN BEARING ASSEMBLY, VALVE TYPE Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 540-5266A4 | |
| 15 | MAIN BEARING ASSEMBLY, VALVE TYPE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 540-5266A4 | |
| 16 | DOWEL PIN, MAIN BEARING | 17-20032 | |
| 17 | SCREW, MAIN BEARING CLAMPING (9/16") | 10-45775 | |
| 18 | NUT, MAIN BEARING CLAMPING SCREW | 11-45774 | |
| 19 | REED SET, MATCHED - MAIN BEARING | 34-65312A1 | |
| 20 | REED STOP, MAIN BEARING REED VALVES | 34-65319 | |
| 21 | SCREW, REED STOP MOUNTING (1 3/8") | 10-62204 | |
| 22 | NUT, REED STOP SCREW | 11-53153 | |
| 23 | PISTON AND PISTON PIN ASSEMBLY | 774-9137A9 | |
| 24 | LOCK RING, PISTON PIN | 53-857196 | 40-52035 |
| 25 | RING, PISTON (1/16" THICK) Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 39-64715A12 | |
| 25 | RING, PISTON (1/16" THICK) Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 39-78816A12 | |
| 26 | CONNECTING ROD AND CAP ASSEMBLY | 624-8101A3 | |
| 27 | BEARING ASSEMBLY, CRANKPIN | 31-62596A1 | |
| 28 | SCREW, CONNECTING ROD | 10-54803 | |
| 29 | NUT, CONNECTING ROD SCREW | 11-49091 | |
| 30 | BEARING, NEEDLE - PISTON PIN | 29-8M0214934 | |
| 31 | WASHER, NEEDLE LOCATING | 12-8M0032839 | 12-47247 |
| -- | PISTON AND PISTON PIN ASSSEMBLY Comment: .015 OVERSIZE PISTONS AND RINGS | 774-9137A13 | |
| -- | RING, PISTON (1/16" THICK) Comment: .015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 39-49839A12 | |
| -- | RING, PISTON (1/16" THICK) Comment: .015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 39-78811A12 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 1500 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3628317 AND BELOW AUSTRALIA 8008489 AND BELOW CANADA 7018152 AND BELOW | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3628318 THRU 3751849 AUSTRALIA 8008490 THRU 8013389 CANADA 7018153 THRU 7024372 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4403387 THRU 4602011 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 THRU 4602011 | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MAERC 1500XS) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 852-7352A2 | |
| 2 | GASKET, CRANKCASE TO CYLINDER BLOCK | 27-53862 | |
| 3 | RESTSRICTION, CRANKCASE BLEED | 66517 | |
| 4 | STUD, CARBURATOR MOUNTING (1 3/16") | 16-64936 | |
| 5 | STUD, CRANKCASE TO EXHA8UST EXTENSION PLATE (1 7/8") | 16-64281 | |
| 6 | PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK | 17-63779 | |
| 7 | PIN, DOWWEL-DYLINDER BLOCK TO MAIN BEARING | 17-63779 | |
| 8 | STUD, CYLINDER BLOCK TO DRIVE SHAFT HSG. (4 3/16") Comment: SHORT SHAFT | F66193 | |
| 8 | STUD, CYLINDER BLOCK TO DRIVE SHAFT HSG. (4") - LONG SHAFT | 16-64282 | |
| 9 | COVER, STARTER MOTOR BRACKET-TOP | 56029T | |
| 10 | SCREW, TOP COVER ATTACHING (2 1/2") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-26132 | |
| 10 | SCREW, TOP COVER ATTACHING (2") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-21449 | |
| 11 | WASHER, TOP COVER ATTACHING SCREWS Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 12-22753 | |
| 12 | NUT, COVER SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-29250 | |
| 10 | SCREW, TOP COVER ATTACHING (1 3/8") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-31984 | |
| 10 | SCREW, TOP COVER ATTACHING (1 3/4") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-69267 | |
| 11 | WASHER, BOTTOM COVER ATTACHING SCREWS Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 13-26992 | |
| 13 | COVER, STARTER MOTOR BRACKET-BOTTOM Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 76867 | |
| 14 | SCREW, BOTTOM COVER ATTACHING (2 5/8") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-53460 | |
| 14 | SCREW, BOTTOM COVER ATTCHING (1 7/8") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-73279 | |
| 15 | WASHER, BOTTOM COVER ATTACHING SCREWS Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 12-22753 | |
| 16 | NUT, COVER SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-29250 | |
| 14 | SCREW, BOTTOM COVER ATTACHING (1 7/8") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-73279 | |
| 15 | WASHER, BOTTOM COVER ATTACHING SCREWS Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 13-8M0204647 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8") Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 10-53460 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4") Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 10-32293 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8") Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 10-69091 | |
| 18 | WASHER, CRANKCASE SCREWS Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 1397-2253 | |
| 19 | NUT, CRANKCASE FASTENING SCREWS Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 11-29250 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4") Comment: UNITED STATES 4403387 AND UP | 10-57841 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4") Comment: UNITED STATES 4403387 AND UP | 10-32293 | |
| 17 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2") Comment: UNITED STATES 4403387 AND UP | 10-73657 | |
| 18 | WASHER, CRANKCASE SCREWS Comment: UNITED STATES 4403387 AND UP | 12-22753 | |
| 19 | NUT, CRANKCASE SCREWS (LOWER) Comment: UNITED STATES 4403387 AND UP | 11-29250 | |
| 20 | SCREW, CENTER MAIN BEARING LOCKING (1") | 10-20359 | |
| 21 | TAB WASHER, BEARING LOCKING SCREW | 14-20091 | |
| 22 | SWITCH, MERCURY | 58124A4 | |
| 23 | SCREW, SWITCH TO FRONT MOUNTING BRACKET (1/2") | 10-69235 | |
| 24 | SCREW, MERCURY SWITCH LEAD | 10-62568 | |
| 25 | CLAMP, BLEED HOSE TO CONNECTOR | 54-20387 | |
| 26 | CLAMP, BALANCE TUBE TO ELBOW AND TEE | 54-20386 | |
| 27 | HOSE, BLEED (7 1/2", 6 1/2" AND 10") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 32-9938779 | |
| 28 | FITTING, UPPER CYLINDER BLEED Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 22-656701 | |
| 29 | CHECK VALVE ASSEMBLY, BLEED HOSE Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 21-64871A2 | |
| 30 | CHECK VALVE ASSEMBLY Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 21-42657A3 | |
| 31 | TUBE, BALANCE - MAIN BEARINGS (6 1/4") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW |
| 32 | ELBOW, BALANCE TUBE TO MAIN BEARING SCRW Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 22-20781 | |
| 33 | TEE, BLEED HOSE TO CYLINDER BLOCK - CENTER Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 22-65349 | |
| 34 | TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 22-130342 | |
| 35 | CONNECTOR ASSEMBLY, BLEED HOSE - UPPER Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 21-42866 | |
| 36 | CHECK VALVE ASSEMBLY Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 21-42657A3 | |
| 37 | HOSE, BLEED (22") Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 32-9938779 | |
| 38 | CONNECTOR ASSEMBLY, BLEED HOSE - LOWER Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 21-428671 | |
| 39 | ELBOW, BALANCE HOSE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 22-20781 | |
| 40 | HOSE, BALANCE - MAIN BEARING (6 1/4") Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP |
| 41 | TEE, BALANCE HOSE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 22-8585531 |
DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
Back to TopBelow is the parts list for Mercury 1500 DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HOUSING ASSEMBLY, DISTRIBUTOR | 393-3736A79 | |
| 2 | STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING | 32197 | |
| 3 | PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING | 17-27962 | |
| 4 | SPRING, HORSESHOE - DISTRIBUTOR HOUSING | 24-27944 | |
| 5 | WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING | 12-53540 | |
| 6 | ECONOMIZER COLLAR ASSEMBLY | 55804A1 | |
| 7 | PIN, ECONOMIZER COLLAR - SPRING RETAINER | 17-27961 | |
| 8 | FITTING, GREASE - ECONOMIZER COLLAR | 22-25094 | |
| 9 | SWIVEL, LINKAGE - ECONOMIZER COLLAR | 27947 | |
| 10 | SWIVEL ADN LINK ROD ASSEMBLY - 3 PIECE (SEE PHOTO) | 25996A1 | |
| 11 | NUT, UPPER LINK ROD ADJUSTING - 3 PIECE (SEE PHOTO) | 11-29598 | |
| 12 | ROD, LINK - UPPER - 3 PIECE (SEE PHOTO) | 37700 | |
| 12A | ROD LINK - UPPER(1 PIECE)-SEE PHOTO | 67469 | |
| 13 | SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER | 27948 | |
| 14 | LEVER, THROTTLE CONTROL | 78992 | |
| 15 | WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL | 13-39954 | |
| 16 | WASHER, THROTTLE CONTROL LEVER SWIVEL | 12-8M0204649 | |
| 17 | NUT, UPPER LOINK ROD TO THROTTLE CONTROL LEVER | 11-35888 | |
| 18 | SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4"0 | 10-31830 | |
| 19 | WASHER, THROTTLE CONTROL LEVER SCREW | 12-8M0042641 | 12-29395 |
| 20 | BUSHING, THROTTLE CONTROL LEVER SCREW | 23-45818 | |
| 21 | NUT, THROTTLE CONTROL LEVER SCREW | 11-8M0204726 | |
| 22 | SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE | 37587 | |
| 23 | NUT, THROTTLE CABLE TO LOWER SWIVEL | 11-35888 | |
| 24 | COLLAR, THROTTLE ACTUATOR | 48692 | |
| 25 | SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2") | 10-48675 | |
| 26 | NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW | 11-64015 | |
| 27 | CAP, NYLON - ACTUATOR COLLAR ADJUSING SCRW | 52023 | |
| 28 | PLATE, THROTTLE ACTUATOR | 48671 | |
| 29 | SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1") | 10-37892 | |
| 30 | WASHER, THROTTLE ACTUALTOR PLATE FASTENING SCREW | 12-30164 | |
| 31 | LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW | 13-26996 | |
| 32 | SPACER, THROTTLE ACTUATOR PLATE SCREW | 23-48674 | |
| 33 | CAM, THROTTLE ACTUATOR PLATE | 58454 | |
| 34 | WASHER, ADAPTOR - DISTRIBUTOR HOUSING | 12-46246 | |
| 35 | ADAPTOR ASSEMBLY, DISTRIBUTOR Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 66165A2 | |
| 35 | ADAPTOR ASSEMBLY, DISTRIBUTOR Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 66165A2 | |
| 36 | FITTING, GREASE - DISTRIBUTOR ADAPTOR | 22-25094 | |
| 37 | SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 10-78841 | |
| 37 | SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2") Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 10-73657 | |
| 38 | WASHER, DISTRIBUTOR HOUSING SCREW | 12-20084 | |
| 39 | NUT, DISTRIBUTOR HOUSING SCREW Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 11-22053 | |
| 40 | WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 84-93388A1 | |
| 40 | WIRE, GROUND - DIST. ADAPTOR TO FRONT BRACKET Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 84-93388A1 | |
| 41 | BRACKET, STOP | 55805 | |
| 42 | SCREW, DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4") | 10-28636 | |
| 43 | WASHER, STOP BRACKET FASTENING SCREW | 12-35462 | |
| 44 | SCREW, STOP BRACKET ADJUSTING (2 1/8") | 10-64022 | |
| 44A | WASHER, STOP BRACKET ADJUSTING SCREW Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 12-24391 | |
| 44B | INSULATOR, STOP BRACKET ADJUSTING SCREW Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 85-76199 | |
| 45 | NUT, STOP BRACKET ADJUSTING SCREW | 11-64015 | |
| 46 | NYLON - STOP BRACKET ADJUSTING SCREW | 52023 | |
| 47 | WASHER, DISTRIBUTOR HOUSING | 12-27939 | |
| 48 | TAB WASHER, ADAPTOR CAP FASENING | 14-27960 | |
| 49 | WASHER, WAVE - DISTRIBUTOR BALL BEARING BEARING TENSION | 13-27959 | |
| 50 | DISTRIBUTOR HOUSING | 54567 | |
| 51 | SPACER, DRIVE PULLEY | 23-47250 | |
| 52 | DRIVEN PULLEY ASSEMBLY | 29906A1 | |
| 53 | PIN, ROLL - FLANGE LOCATING | 17-29908 | |
| 54 | FLANGE, DRIVEN PULLEY | 29907 | |
| 55 | KEY, DISTRIBUTOR DRIVER | 28-29910 | |
| 56 | SCREW, PULLEY CLAMPING (1/2") | 10-68554 | |
| 57 | BELT, TIMING | 20140 |
DISTRIBUTOR HOUSING AND ROTOR
Back to TopBelow is the parts list for Mercury 1500 DISTRIBUTOR HOUSING AND ROTOR:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | BALL BEARING, DISTRIBUTOR HOUSING (UPPER) | 30-20066 | |
| 2 | NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING | 11-54209 | |
| 3 | SLEEVE, ROTOR SHAFT | 23-53539 | |
| 4 | HOUSING ASSEMBLY, DISTRIBUTOR | 393-3736A79 | |
| 5 | GROUND STRAP ASSEMBLY, DISTRIBURTOR TO CRANKCASE | 53417 | |
| 6 | SCREW, GROUND STRAP ATTACHING (3/8") | 10-62568 | |
| 7 | FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING | 58807A1 | |
| 8 | SHIM BALL BEARING TO DISTRIBUTOR HOUSING | 15-55853 | |
| 9 | BALL BEARING, DISTRIBUTOR HOUSING (LOWER) | 30-26379 | |
| 10 | SHIM, BALL BEARING TO SPACER | 15-21148A1 | |
| 11 | SPACER, ROTOR SHAFT | 23-53538 | |
| 12 | RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING | 53-26406 | |
| 13 | DISC, ROTOR | 393-4313 | |
| 14 | ROTOR, DISTRIBUTOR | 393-4312 | |
| 15 | CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG Comment: PART OF DISTRIBUTOR CAP ASSEMBLY | 54-60768 | |
| 16 | SCREW, DISTRIBUTOR CAP CLAMP (1 1/8") Comment: PART OF DISTRIBUTOR CAP ASSEMBLY | 10-65774 | |
| 17 | NUT, DISTRIBUTOR CAP CLAMP SCREW Comment: PART OF DISTRIBUTOR CAP ASSEMBLY | 11-26768 | |
| 18 | CABLE ASSEMBLY, CAP TO COIL Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 84-821945A5 | |
| 18 | CABLE ASSEMBLY, CAP TO COIL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 84-821945A2 | |
| 19 | GROMMETT, HIGH TENSION CABLE | 25-26547 | |
| 20 | BOOT, HIGH TENSION CABLE TO COIL | 332-2854T01 | |
| 21 | BOOT, HIGH TENSION CABLE | 85-94589 | |
| 22 | DISTRIIBUTOR CAP ASSEMBLY | 393-4841A2 | |
| -- | BRUSH AND SPRING ASSEMBLY | 393-1293A1 | |
| 23 | FLAME ARRESTOR, VENT - DISTRIBUTOR CAP | 58807A1 | |
| 24 | GASKET, DISTRIBUTOR CAP | 27-55896 | |
| 25 | SPARK PLUG (CHAMPION L-77V) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 33-896329827 | 33-827C UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW |
| 25 | SPARK PLUG (CHAMPION L-76V) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 33-896329827 | 33-827C UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP |
| 26 | SPARK PLUG LEAD ASEMBLY #1, #2, #3, #4, #5 AND #6 Comment: ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS | 84-813715A1 | |
| -- | CONNECTOR, SPARK PLUG LEAD | 8M0084600 | 20121 |
| 27 | PROTECTOR, SPARK PLUG LEAD | 85-63709A1 | |
| 28 | BOOT, SPARK PLUG LEAD TO DISTRIBUTOR | 85-94589 | |
| 28A | SLEEVE, SPARK PLUG LEAD (7") | 23-622381 | |
| 29 | GROMMET, SPARK PLUG LEADS | 25-26547 | |
| 30 | WIRE RETAINER, HGIH TENSION LEADS | 45409 | |
| 31 | BRACKET, FRONT - WIRE REAINER | 45392 | |
| 31 | BRACKET, FRONT - WIRE RETAINER | 45392 | |
| 32 | BRACKET, REAR - WIRE RETAINER | 47398 | |
| 33 | SCREW, FRONT AND REAR BRACKET ATTACHING (3/8") | 10-62568 | |
| 34 | SPACER, RUBBER - HIGH TENSION LEADS | 45391 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 1500 DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1575-5240A4 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1573-5239A4 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 1575-5240A4 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 1573-5239A4 | |
| 2 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16") | 16-56295 | |
| 3 | PLUG, PLASTIC - TRIM TAB SCREW HOLE | 19-64649 | |
| 4 | STUD, DIRVE SHAFT HOUSING PLATE (2 5/16") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 16-34378 | |
| 5 | COVER, TRIM - DRIVE SHAFT HOUSING | 37417 | |
| 6 | SCREW, TRIM COVER TO BOTTOM COWL | 10-57807 | |
| 6A | GROMMET, PLASTIC - TRIM COVER SCREW | 25-92012 | |
| 6B | GROUND STRAP ASSEMBLY, TRIM COVER SCREW | 46933A2 | |
| 6C | SCREW, GROUND STRAP ATTACHING | 10-62568 | |
| 7 | TUBE, WATER INLET - SHORT SHAFT | 32-62864 | |
| 8 | TUBE, EXHAUST - - SHORT SHAFT Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 66345A1 | |
| 8 | TUBE, EXHAUST - - SHORT SHAFT Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 65370 | |
| 7 | TUBE, WATER INLET - LONG SHAFT | 32-60897 | |
| 8 | TUBE, EXHAUST - - LONG SHAFT Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 66344A1 | |
| 8 | TUBE, EXHAUST - - LONG SHAFT Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 78184T | |
| 8A | BOOT, EXHASUT TUBE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 65638 | |
| 9 | SCREW, EXHAUST TUBE ATTACHING (3/4") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 10-28636 | |
| 10 | LOCKWASHER, EXHAUST TUBE SCREW Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 13-26992 | |
| 11 | NUT, POWERHEAD STUDS (3/8-24) | 11-69254 | |
| 12 | WASHER, POWERHEAD STUDS | 12-20553 | |
| 13 | GASKET, PLATE TO DRIVE SHAFT HOUSING Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 27-66335 | |
| 13 | GASKET, PLATE TO DRIVE SHAT HOUSING Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 27-66335 | |
| 14 | GUIDE, PUSH ROD - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM | 52887 | |
| 15 | ROD, PUSH - REVERSE LOCK (SHORT SHAFT) Comment: NOT USED WITH FULL POWER TRIM | 47591 | |
| 15 | ROD,PUSH - REVERSE LOCK (LONG SHAFT) Comment: NOT USED WITH FULL POWER TRIM | 47558 | |
| 16 | NUT, JAM - PUSH ROD Comment: NOT USED WITH FULL POWER TRIM | 11-69254 | |
| 17 | YOKE, PUSH ROD Comment: NOT USED WITH FULL POWER TRIM | 47559 | |
| 18 | PIN, PUSH ROD TO REVERSE LOCK Comment: NOT USED WITH FULL POWER TRIM | 24-78203A2 | |
| 19 | COTTER PIN, PUSH ROD PIN Comment: NOT USED WITH FULL POWER TRIM | 18-25191 | |
| 20 | MOUNT, RUBBER - UPPER (SHORT SHAFT) | 75297 | |
| 20 | MOUNT, RUBBER - UPPER (LONG SHAFT) | 75296 | |
| 21 | WASHER, UPPER MOUNT BOLT | 12-31263 | |
| 22 | WASHER, RUBBER - UPPER MOUNT BOLT | 12-47840 | |
| 23 | NUT, UPPER MOUNT BOLT | 11-8M0204653 | |
| 24 | MOUNT, RUBBER -LOWER (SHORT SHAFT0 | 75300 | |
| 24 | MOUNT, RUBBER - LOWER (LONG SHAFT) | 75299 | |
| 25 | SCREW, LOWER MOUNT (5 1/2"0 | 10-75284 | |
| 26 | WASHER, LOWER MOUNT SCREW | 12-49339 | |
| 27 | NUT, LOWER MOUNT SCREW | 11-25096 | |
| 28 | BUMPER, RUBBER - LOWER MOUNTING SCREW | 25067 | |
| 29 | BUMPER, RUBBER - DRIVE SHAFT HOUSING (SHORT SHAFT) | 66336 | |
| 30 | NUT, GEAR HOSUING AND DRIVE SAHFT HOUSING STUDS | 11-8M0204653 | |
| 31 | WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 12-45176 | |
| 32 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS | 11-29489 | |
| 33 | WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 12-45176 | |
| 34 | CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING | 35608 | |
| 35 | SPRING, TENSION - LOWER MOUNT CLAMP | 24-35522 | |
| 36 | SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8") | 10-29256 | |
| 37 | COVER, LOWER MOUNT CLAMP | 35474T | |
| 38 | NUT, LOWER MOUNT CLAMP COVER | 11-35521 | |
| 39 | SCREW, COVER TO LOWER CLAMP MOUNT (5/8") | 10-29722 | |
| 40 | BRACKET, SUPPORT - DRIVE SHAFT -LONG SHAFT | 62497 | |
| 41 | SCREW, SUPPORT BRACKET ATTACHING (5/8") -LONG SHAFT | 10-48409 |
END CAPS, MANIFOLD AND EXHAUST COVERS (CONT)
Back to TopBelow is the parts list for Mercury 1500 END CAPS, MANIFOLD AND EXHAUST COVERS (CONT):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANCASE ASS'Y Comment: UNITED STATES 3628317 AND BELOW AUSTRALIA 8008489 AND BELOW CANADA 7018152 AND BELOW | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3628318 THRU 3751849 AUSTRALIA 8008490 THRU 8013389 CANADA 7018153 THRU 7024372 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4403387 THRU 4602011 | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 852-7408A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 THRU 4602011 | 852-7352A2 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y (MERC 1500 XS) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 852-7352A2 | |
| 2 | END CAP ASSEMBLY, UPPER | 1134-3197A1 | |
| 3 | OIL SEAL, END CAP | 26-41953 | |
| 4 | "O" RING | 25-47254 | |
| 5 | SHIM, END CAP TO CRANKCASE (.002-3-5-10) | 15-47248A1 | |
| 6 | SCREW, END CAP MOUNTING (1") | 10-30225 | |
| 7 | END CAP ASSEMBLY, LOWER Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1148-5410T1 | |
| 7 | END CAP ASSEMBLY, LOWER Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 1148-5410T1 | |
| 8 | CHECK VALVE ASSEMBLY, END CAP Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 21-42657A3 | |
| 9 | OIL SEAL, END CAP | 26-41953 | |
| 10 | "O" RING, END CAP | 25-32546 | |
| 11 | SHIM, END CAP TO CRANKCASE (.002-3-5-10) | 15-20085A1 | |
| 12 | SCREW, END CAP MOUNTING (1") | 10-30225 | |
| 13 | COVER, WATER JACKET - CYLINDER BLOCK Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 71808 | |
| 14 | GASKET, WATER JACKET COVER Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 27-721421 | |
| 13 | COVER, WATER JACKET - CYLINDER BLOCK Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 71808 | |
| 14 | GASKET, WATER JACKET COVER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 27-721421 | |
| 15 | SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8") | 10-53167T | |
| 16 | WASHER, WATER JACKET COVER FASTENING SCREW | 12-8M0042642 | 12-70132 |
| 17 | GASKET, CYLINDER BLOCK TO BAFFLE PLATE | 27-854952 | |
| 18 | PLATE, BAFFLE - EXHAUST MANIFOLD | 757781 | |
| 19 | GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER | 27-854972 | |
| 20 | COVER, EXHAUST MANIFOLD | 99896A1 | |
| 21 | SCREW, MANIFOLD COVER MOUNTING (1 1/8") | 10-53576 | |
| 22 | PLUG, PIPE - EXHUAST MANIFOLD COVER Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 22-328022 | |
| 23 | COVER, CYLINDER BLOCK | 1023-8368A1 | |
| 24 | GASKET, CYLINDER BLOCK COVER | 27-981853 | |
| 25 | SCREW, CYLINDER BLOCK COVER (1 1/8") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-21091 | |
| 26 | NUT, COVER MOUNTING SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-8M0207775 | |
| 25 | SCREW, CYLINDER BLOCK COVER (1") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-8M0214943 | |
| 27 | PLUG, PIPE - CYLINDER BLOCK COVER Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 22-328022 | |
| 28 | BRACKET, MOUNT SUPPORT - CYLINDER BLOCK | 37440 | |
| 29 | SCREW, BRACKET TO CYLINDER BLOCK (1") | 10-35386 | |
| 30 | COVER, TRANSFER (TOP AND MIDDLE) | 62301 | |
| 30 | COVER, TRANSFER (BOTTOM) Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 62978 | |
| 30 | COVER, TRANSFER (BOTTOM) Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 66094 | |
| 31 | GASKET, TRANSFER COVER | 27-64941 | |
| 32 | SCREW, TRANSFER COVER MOUNTING (1") | 10-8M0214943 | |
| 32 | SCREW, TRANSFER COVER MOUNTING (3/4") | 10-28636 | |
| 33 | POINTER, TIMING Comment: UNITED STATES 3628318 AND UP AUSTRALIA 8008490 AND UP CANADA 7018153 AND UP | 43352 | |
| 34 | SCREW, TIMING POINTER ATTACHING (3/4") Comment: UNITED STATES 3628318 AND UP AUSTRALIA 8008490 AND UP CANADA 7018153 AND UP | 10-28636 | |
| 35 | WASHER, TIMING POINTER SCREW Comment: UNITED STATES 3628318 AND UP AUSTRALIA 8008490 AND UP CANADA 7018153 AND UP | 12-35462 | |
| 36 | GROUND STRAP ASSEMBLY, EXHAUS COVER | 46933A3 | |
| 37 | SCREW, GROUND STRAP ATTACHING (3/8") | 10-62568 |
EXHAUST EXTENSION PLATE
Back to TopBelow is the parts list for Mercury 1500 EXHAUST EXTENSION PLATE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | PLATE ASSEMBLY, EXHAUT EXTESNION Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 43289A2 | |
| 1 | PLATE ASSEMBLY, EXHASUT EXTENSION Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 43289A2 | |
| 2 | BUSHING, NYLON - EXHAUST EXTENSION PLATE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 23-27132 | |
| 3 | SEAL, EXHAUST EXTENSION PLATE | 37918 | |
| 4 | STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL | 99358 | |
| 5 | SCREW, SEAL AND RETAINING STRIP TO EXT. PLATE (1/2") | 10-37571 | |
| 6 | DOWEL PIN, EXHAUST EXTENSION PLATE | 17-23784 | |
| 7 | GASKET, POWERHEAD TO EXTENSION PLATE Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 27-692381 | |
| 7 | GASKET, POWERHEAD TO EXTENSION PLATE Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 27-692381 | |
| 7 | GASKET, POWERHEAD TO EXTENSION PLATE Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 27-692381 | |
| 8 | SCREW, ADAPTOR PALTE ATTACHING (5/16") Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 10-62644 | |
| 9 | LOCKWASHER, ADAPTOR PLATE SCREW Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 13-8M0204647 | |
| 8 | SCREW, ADAPTOR PLATE TO HOUSING PLATE (2") Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 10-66023 | |
| 10 | SCREW, HOUSING PLATE TO DRIVE SHAFT HSG. (2") Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 10-66023 | |
| 11 | GASKET, PLATE TODRIVE SHAFT HSG. PLATE Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 27-661021 | |
| 11 | GASKET, PLATE TO DRIVE SHAFT HSG. PLATE Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 27-661021 | |
| 12 | WASHER, DRIVES SHAFT HOUSING STUD Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 12-34437 | |
| 13 | NUT, DRIVE SHAFT HOUSING STUD Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 11-64809 | |
| 14 | SEAL, DRIVE SHAFT HOUSING PLATE | 26-60898 | |
| 15 | PLATE ASSEMBLY, DRIVE SHAFT HOUSING Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 43543A1 | |
| 15 | PLATE ASSEMBLY, DRIVE SHAFT HOUSING Comment: UNITED STATES 3751850 THRU 4403386 AUSTRALIA 8013390 THRU 8034895 CANADA 7024373 THRU 7067847 | 43290A4 | |
| 15 | PLATE ASSEMBLY, DRIVE SHAFT HOUSING Comment: UNITED STATES 4403387 AND UP | 43290A4 | |
| 16 | SEAL, RUBBER - WATER INTAKE TUBE (DRIVE SHAFT HSG.) | 26-38970 | |
| 17 | DOWEL PIN, DRIVE SHAFT HOUSING PLATE | 17-23784 | |
| 18 | GASKET, MEGAPHONE TO DRIVE SHAFT HOUSING PLATE | 27-62362 | |
| 19 | MEGAPHONE, EXHAUST | 99699 | |
| 20 | SCREW, MEGAPHONE TO DRIVE SHAFT HOUSING PALTE (1 1/8") | 10-60480 | |
| 21 | WASHER, MEGAPHONE SCREW | 12-8M0204649 | |
| 22 | WASHER, POWERHEAD STUD | 12-20553 | |
| 23 | NUT, POWERHEAD STUD | 11-82671013 |
FLYWHEEL ASSEMBLY AND STATOR
Back to TopBelow is the parts list for Mercury 1500 FLYWHEEL ASSEMBLY AND STATOR:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | PLUG, FLYWHEEL PULLER THREADS | 19-45907 | |
| 2 | NUT, FLYWHEEL(PART OF 1-436-4842A3 CRANKSHAFT ASSEMBLY) | 11-52901 | |
| 3 | WASHER, FLYWHEEL NUT | 12-33001 | |
| 4 | FLYWHEEL ASSEMBLY, COMPLETE Comment: UNITED STATES 3628317 AND BELOW AUSTRALIA 8008489 AND BELOW CANADA 7018152 AND BELOW | 225-2494A37 | |
| 4 | FLYWHEEL ASSEMBLY, COMPLETE Comment: UNITED STATES 3628318 AND UP AUSTRALIA 8008490 AND UP CANADA 7018153 AND UP | 225-2494A37 | |
| 5 | SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8") | 10-32417 | |
| 6 | SCREW, PLATE AND HUB TO FLEXIBLE PLATE (7/8") | 10-69088 | |
| 7 | PIN, DOWEL - PULLEY TO FLYWHEEL | 17-26618 | |
| 8 | FLANGE, FLYWHEEL PULLEY | 29788 | |
| 9 | PULLEY, FLYWHEEL | 30306 | |
| 10 | HUB, FLYWHEEL PULLEY | 29787 | |
| 11 | STATOR, ALTERNATOR | 398-4793 | |
| 13 | SCREW, STATOR TO UPPER END CAP (7/8") | 10-63136 | |
| 14 | CLIP, STATOR LEAD FASTENING (5/8") | 54-24871 | |
| 14 | CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2") | 54-22627 | |
| 15 | SCREW, STATOR LEAD CLIP FASTENING (3/8") | 10-62568 | |
| 16 | "D" WASHER, CLIP FASTENING SCREW | 8M0084613 | 69205 |
FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #1)
Back to TopBelow is the parts list for Mercury 1500 FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 55156A5 | |
| 2 | CHECK VALVE ASSEMBLY | 21-30430A3 | |
| 3 | DIAPHRAGM KIT | 55278A1 | |
| 4 | GASKET, FUEL PUMP (#) | ||
| 5 | GASKET, CHECK VALVE TO HOUSING (#) | ||
| 6 | RETAINER, CHECK VALVE | 23004 | |
| 7 | SCREW, RETAINER TO HOUSING | 10-43725 | |
| 8 | SCREW, FUEL PUMP MOUNTING (1 3 | 10-69067 | |
| 8 | SCREW, FUEL PUMP MOUNTING (1 3/8") | 10-69067 | |
| 9 | PLUG, PIPE - BOTTOM PUMP | 22-328022 | |
| 10 | FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8") | 32-33154A1 | |
| 11 | ELBOW, UPPER CARBURETOR STRAINER COVER (90) | 22-30174 | |
| 12 | SLEEVE, CARBURETOR STRAINER COVER ELBOW | 22-30175 | |
| 12 | SLEEVE, CARBURETOR STRAINER COVER ELBOW | 22-30175 | |
| 13 | NUT, UPPER CARBURETOR STRAINER COVER ELBOW | 22-30177 | |
| 14 | CLIP, FUEL LINE TO CYLINDER BLOCK | 54-22627 | |
| 15 | SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8") | 10-62568 | |
| 16 | "D" WASHER, FUEL LINE CLIP SCREW | 8M0084613 | 69205 |
| 17 | ELBOW, FUEL LINE TO CARBURETOR (45) | 22-8M0123050 | |
| 18 | FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR (6 9/16") | 32-31584A1 | |
| 19 | FUEL LINE ASS'Y, PUMP TO CARB. (9 1/2") | 32-55827A1 | |
| 20 | FUEL LINE ASS'Y, PUMP TO PUMP (13 3/4") | 32-55828A1 | |
| 21 | FITTING, TOP AND BOTTOM PUMP | 22-30468 | |
| 23 | NUT, TOP AND BOTTOM PUMP FITTING | 22-30177 | |
| 24 | FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (15") | 32-55829 | |
| 25 | ADAPTOR, CHECK UNIT (FUEL LINE) | 30186 | |
| 26 | STEM, CHECK UNIT ADAPTOR | 30187 | |
| 27 | SPRING, ADAPTOR STEM | 24-30189 | |
| 28 | "O" RING, ADAPTOR STEM | 25-16524 | |
| 29 | CUP WASHER, ADAPTOR | 30188 | |
| 30 | SCREW, ADAPTOR TO BOTTOM COWL (1 3/4") | 10-69029 | |
| 30 | SCREW, ADAPTOR TO BOTTOM COWL (3 1/4") | 10-88488 | |
| 31 | NUT, ADAPTOR FASTENING SCREW | 11-8M0207775 |
FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #2)
Back to TopBelow is the parts list for Mercury 1500 FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FUEL PUMP ASSEMBLY | 66530A2 | |
| 2 | CHECK VALVE ASSEMBLY | 21-30430A7 | |
| 3 | DIAPHRAGM ASSEMBLY | 89031A1 | |
| 4 | GASEKT, DIAPHRAGM (#) | ||
| 5 | GASKET, CHECK VALVE (#) | ||
| 6 | "O" RING, COVER TO HOUSING (#) | ||
| 7 | GASKET, NYLON - FILTER COVER SCREW (#) | ||
| 8 | SCREEN, FILTER - INLET | 35-59072 | |
| 9 | RETAINER, CHECK VALVE | 23004 | |
| 10 | SCREW, RETAINER TO FUEL PUMP (1/4") | 10-43725 | |
| 11 | LOCKWASHER, RETAINER SCREW | 13-26994 | |
| 12 | COVER, FUEL INLET | 35-91078A1 | |
| 13 | SCREW, COVER TO FUEL PUMP (5/8") | 10-37370 | |
| 14 | FITTING, FUEL OUTLET | 22-19688 | |
| 15 | SCREW, FUEL PUMP TO BASE (1") | 10-66686 | |
| 16 | BASE, FUEL PUMP | 66575 | |
| 17 | SCREW, FUEL PUMP TO BOTTOM COWL (1 1/5") | 10-66687 | |
| 18 | FITTING, PULSE LINE (90) | 22-19688 | |
| 19 | SPRING, PULSE LINE | 24-68434 | |
| 20 | PULSE LINE (3 1/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 21 | CLAMP, FUEL LINE ATTACHING | 54-68424 | |
| 22 | FITTING, PULSE LINE TO TRANSFER COVER (90) | 22-19688 | |
| 23 | FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 24 | ELBOW, FUEL LINE TO ADAPTOR | 22-63981 | |
| 25 | FUEL LINE, FULE PUMP TO UPPER CARBURETOR (15 3/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 26 | CLIP, FUEL LINE ATTACHING | 54-22627 | |
| 27 | SCREW, FUEL LINE CLIP (3/8") | 10-62568 | |
| 28 | "D" WASHER, FUEL LINE CLIP SCREW | 8M0084613 | 69205 |
| 29 | FITTING, TEE - UPPER CARBURETOR | 22-66328 | |
| 30 | FITTING, TEE - CENTER CARBURETOR | 22-64706001 | |
| 31 | FITTING, ELBOW - LOWER CARBURETOR | 22-19688 | |
| 32 | FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 33 | ADAPTOR, CHECK UNIT (FUEL LINE) Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 30186 | |
| 34 | STEM, CHECK UNIT ADAPTOR Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 30187 | |
| 35 | SPRING, ADAPTOR STEM Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 24-30189 | |
| 33 | ADAPTOR, CHECK UNIT (FUEL LINE) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 22833 | |
| 34 | STEM, CHECK UNIT Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 23069 | |
| 35 | SPRING, ADAPTOR STEM Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 24-23067T | |
| 36 | "O" RING, ADAPTOR STEM | 25-16524 | |
| 37 | CUP WASHER, ADAPTOR | 30188 | |
| 38 | SCREW, ADAPTOR TO BOTTOM COWL (1 3/4") Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 10-69029 | |
| 38 | SCREW, ADAPTOR TO BOTTOM COWL (3 1/4") Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 10-88488 | |
| 39 | NUT, ADAPTOR FASTENING SCREW Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 11-8M0207775 | |
| 38 | SCREW, ADAPTOR TO BOTTOM COWL (1 3/4") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-69029 |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
Back to TopBelow is the parts list for Mercury 1500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-7339A3 | |
| - | GEAR HOSUING ASS'Y COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1655-7333T24 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T23 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 AND UP | 1623-7339A1 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500 LONG) Comment: UNITED STATES 4403387 AND UP | 1655-7333T23 | |
| 2 | DOWEL PIN, GEAR HOUSING LOCATING | 17-8M0084726 | 17-85500 |
| 3 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4") | 16-57921 | |
| 4 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16") | 16-8M0133358 | |
| 5 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8") | 16-8M0034463 | 16-56297 2 |
| 6 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8") | 16-306671 | |
| 7 | BEARING, ROLLER - DRIVE SHAFT | 31-32898T | |
| 8 | DRIVE SHAFT (SHORT SHAFT) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 45-64388 | |
| 8 | DRIVE SHAFT (LONG SHAFT) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 45-64389 | |
| 8 | DRIVE SHAFT (SHORT SHAFT) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 45-69250 | |
| 8 | DRIVE SHAFT (LONG SHAFT) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 45-42646 | |
| 9 | GEAR, PINION - DRIVE SHAFT | 43-68548T3 | |
| 10 | NUT, PINION GEAR TO DRIVE SHAFT | 11-35921 | |
| 11 | SHIM, DRIVE SHAFT BALL BRG. TO GEAR HSG. (.002-3-5-10) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 15-30278A1 | |
| 11 | SHIM, WATER PUMP BASE TO GEAR HSG. (.002-3-5-10) Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 15-30278A1 | |
| 12 | BEARING, BALL - DRIVE SHAFT Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 30-63326T | |
| 13 | RING, RETAINING - BALL BEARING Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 53-30726 | |
| 11 | SPACER, ROLLER BEARING TO WATER PUMP BASE Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 23-70412 | |
| 11 | SHIM, ROLLER BEARING TO WATER PUMP BASE Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 15-57007A1 | |
| 12 | ROLLER BEARING, DRIVE SHAFT Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 31-69220T | |
| 14 | GASKET, WATER PUMP BASE TO GEAR HOUSING Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 27-32438 | |
| 15 | "O" RING, WATER PUMP BASE Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 25-8M0204651 | |
| 14 | GASKET, WATER PUMP BASE TO GEAR HOUSING Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 27-8M0214962 | |
| 15 | "O" RING, WATER PUMP BASE Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 25-8M0214923 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1655-7333T24 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T23 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 AND UP | 1623-7339A1 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500 LONG) | 1655-7333T23 | |
| 16 | WATER PUMP BASE ASSEMBLY Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 46-48747A1 | |
| 16 | WATER PUMP BASE ASSEMBLY (WITH FLUSH HOLE) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 46-69222A1 | |
| 16 | WATER PUMP BASE ASSEMBLY (WITHOUT FLUSH HOLE) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 46-96146A5 | |
| 17 | OIL SEAL, WATER PUMP BASE | 26-94038 | |
| 18 | OIL SEAL, WATER PUMP BASE | 26-16977 | |
| 19 | DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY | 17-35973 | |
| 20 | GASKET, LOWER - WATER PUMP BASE TO FACE PLATE | 27-8M0090319 | 27-85608 1 |
| 21 | PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY | 8M0204677 | |
| 22 | GASKET, UPPER - FACE PALTE TO WATER PUMP BODY | 27-858524 | 27-85609 1, 27-85609B 1 |
| 23 | WATER PUMP BODY ASSEMBLY | 46-96148T1 | |
| 24 | INSERT, WATER PUMP BODY | 48752T | |
| 26 | SEAL, RUBBER - WATER INLET TUBE | 26-38970 | |
| 27 | IMPELLER, WATER PUMP | 47-89984T4 | |
| 28 | KEY, IMPELLER DRIVE | 28-8M0214992 | |
| 29 | SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4") | 10-30720 | |
| 30 | LOCKWASHER, WATER PUMP BODY SCREW | 13-26992 | |
| 31 | WASHER, WATER PUMP BODY FASTENING SCREW AND STUD | 12-8M0204649 | |
| 32 | NUT, WATER PUMP FASTENING SCREW | 11-826709109 | 11-33825, 11-35045 |
| 33 | WASHER, WATER PUMP BODY FASTENING STUD | 12-36001 | |
| 34 | NUT, WATER PUMP BODY FASTENING STUD | 11-826709111 | 11-45592 |
| 35 | RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT) | 25-8M0214918 | |
| 36 | SLEEVE, GUIDE - WATER INLET TUBE | 23-29804T | |
| 37 | SEAL, EXHUAST TUBE Comment: NOT PART OF GEAR HOUSING ASSEMBLY, COMPLETE UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 60909 | |
| 38 | PLATE, SUPPORT - EXHAUST TUBE SEAL Comment: NOT PART OF GEAR HOUSING ASSEMBLY, COMPLETE UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 60910 | |
| 37 | SEAL, EXHAUST TUBE Comment: NOT PART OF GEAR HOUSING ASSEMBLY, COMPLETE UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 37641001 | |
| 38 | PLATE, SUPPORT - EXHAUST TUBE SEAL Comment: NOT PART OF GEAR HOUSING ASSEMBLY, COMPLETE UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 38051 | |
| 39 | SHAFT ASSEMBLY, SHIF - LOWER | 76062A1 | |
| 40 | "E" RING, RETAINING - SHIFT SHAFT | 53-29641 | |
| 41 | "O" RING, SHIFT SHAFT BUSHING | 25-25439 | |
| 42 | BUSHING ASSEMBLY, SHIFT SHAFT | 23-77631A2 | |
| 43 | OIL SEAL, SHIFT SHAFT HOUSING (LOWER) | 26-24590 | |
| 43 | OIL SEAL, SHIFT SHAFT HOUSING (UPPER) | 26-892361 | |
| 44 | WASHER, RUBBER - SHIFT SHAFT BUSHING | 12-31266 | |
| 45 | SPACER, LOWER - REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM | 78036 | |
| 46 | CAM, REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM | 43308T1 | |
| 47 | SCREW, GREASE FILLER AND VENT HOLE Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-79953Q04 | |
| 47 | SCREW, DRAIN (MAGNETIC) - - QUANTITY IS 1 Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 22-8M0058389 | 22-67892A06 UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP |
| 48 | WASHER, GREASE FILLER AND VENT HOLE SCREW | 12-191833 | |
| 49 | PLUG, GEAR HOUSING FLUSHING HOLE Comment: USE WHEN APPLICABLE | 19-48750 | |
| 50 | WASHER, GEAR HOUSING FLUSHING HOLE PLUG Comment: USE WHEN APPLICABLE | 12-8M0204663 |
GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
Back to TopBelow is the parts list for Mercury 1500 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 19-60484 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1655-7333T24 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T23 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 AND UP | 1623-7339A1 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500 LONG) Comment: UNITED STATES 4403387 AND UP | 1655-7333T23 | |
| 51 | CAM, SHIFT | 760394 | |
| 52 | FOLLOWER, CAM | 30625 | |
| 53 | SLIDE, CROSS PIN | 30624 | |
| 54 | SPRING,COMPRESS - CAM FOLLOWER | 24-30622 | |
| 55 | SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10) | 15-30923A1 | |
| 56 | TAPERED ROLLER BEARING ASSEMBLY | 31-30894A1 | |
| 57 | BEARING ROLLER - FORWARD GEAR | 31-30895T | |
| 58 | FORWARD GEAR ASSEMBLY Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 43-68447T1 | |
| 58 | FORWARD GEAR ASSEMBLY Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 43-68447T1 | |
| 59 | RATCHET, SLIDING CLUTCH | 52-822539T | 52-822539, 52-814756, 52-12777 |
| 60 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-8M0100263 | 17-8M0084681, 17-8M0020941, 17-30632 |
| 61 | SRPING, RETAINING - CROSS PIN | 24-30893 | |
| 62 | SHAFT, PROPELLER | 44-93003 | |
| 63 | REVERSE GEAR ASSEMBLY Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 43-68347T | |
| 63 | REVERSE GEAR ASSEMBLY Comment: UNITED STATES 4403387 AND UP | 43-68347T | |
| 64 | SHIM, THRUST WASHER TO GEAR HSG. (.002-3-5-10-20) Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 15-29955A1 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (LONG SHAFT) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4403387 THRU 4602011 | 1655-7333T24 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500XS) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1623-7339A3 | |
| - | GEAR HOUSING ASS'Y, COMP. (MERC 1500 LONG) Comment: THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON D10-D12-D14-E2 UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1655-7333T24 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 1623-5244A6 | |
| 1 | GEAR HOUSING ASS'Y Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 1655-7333T23 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500XS) Comment: UNITED STATES 4403387 AND UP | 1623-7339A1 | |
| 1 | GEAR HOUSING ASS'Y (MERC 1500 LONG) | 1655-7333T23 | |
| 65 | WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING | 12-71143A1 | |
| 66 | BEARING, BALL - REVERSE GEAR | 30-31265 | |
| 67 | "O" RING, BEARING CARRIER | 25-29976 | |
| 68 | BEARING CARRIER ASSEMBLY (IDENTIFIED BY CASTING #73800) | 73800A1 | |
| 68 | BEARING CARRIER ASSEMBLY (IDENTIFIED BY CASTING 352132) | 52132T1 | |
| 69 | BEARING, ROLLER - BEARING CARRIER | 31-30956T | |
| 70 | OIL SEAL, BEARING CARRIER | 26-8M0204670 | |
| -- | "O" RING, BEARING CARRIER (USE WITH A73800A1 ONLY) | 25-32546 | |
| 71 | KEY, LOCATING - BEARING CARRIER | 28-30281 | |
| 72 | TAB WASHER, GEAR HOUSING COVER | 14-52700 | |
| 73 | COVER, GEAR HOUSING | 52699 | |
| 74 | TRIM TAB, GEAR HOUSING | 97-31640Q4 | |
| 75 | SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") | 10-66024 | |
| 76 | WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 12-45176 | |
| 77 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 11-8M0204653 | |
| 78 | SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") | 10-65210 | |
| 79 | THRUST HUB AND WASHER ASSEMBLY Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 65091Q01 | |
| 80 | WASHER, CUPPED - THRUST HUB Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 12-29590 | |
| 79 | THRUST HUB Comment: UNITED STATES 3751850 AND UP AUSTRALIA 8013390 AND UP CANADA 7024373 AND UP | 65091Q01 | |
| 81 | WASHER, SPLINED - PROPELLER NUT | 12-31211Q03 | |
| 82 | TAB WASHER, PROPELLER NUT | 14-816629Q | 14-816629, 14-31210, 14-816629B |
| 83 | NUT, PROPELLER Comment: INCLUDED ON ALL GEAR HOUSING ASSEMBLIES, COMPLETE | 11-52707Q1 |

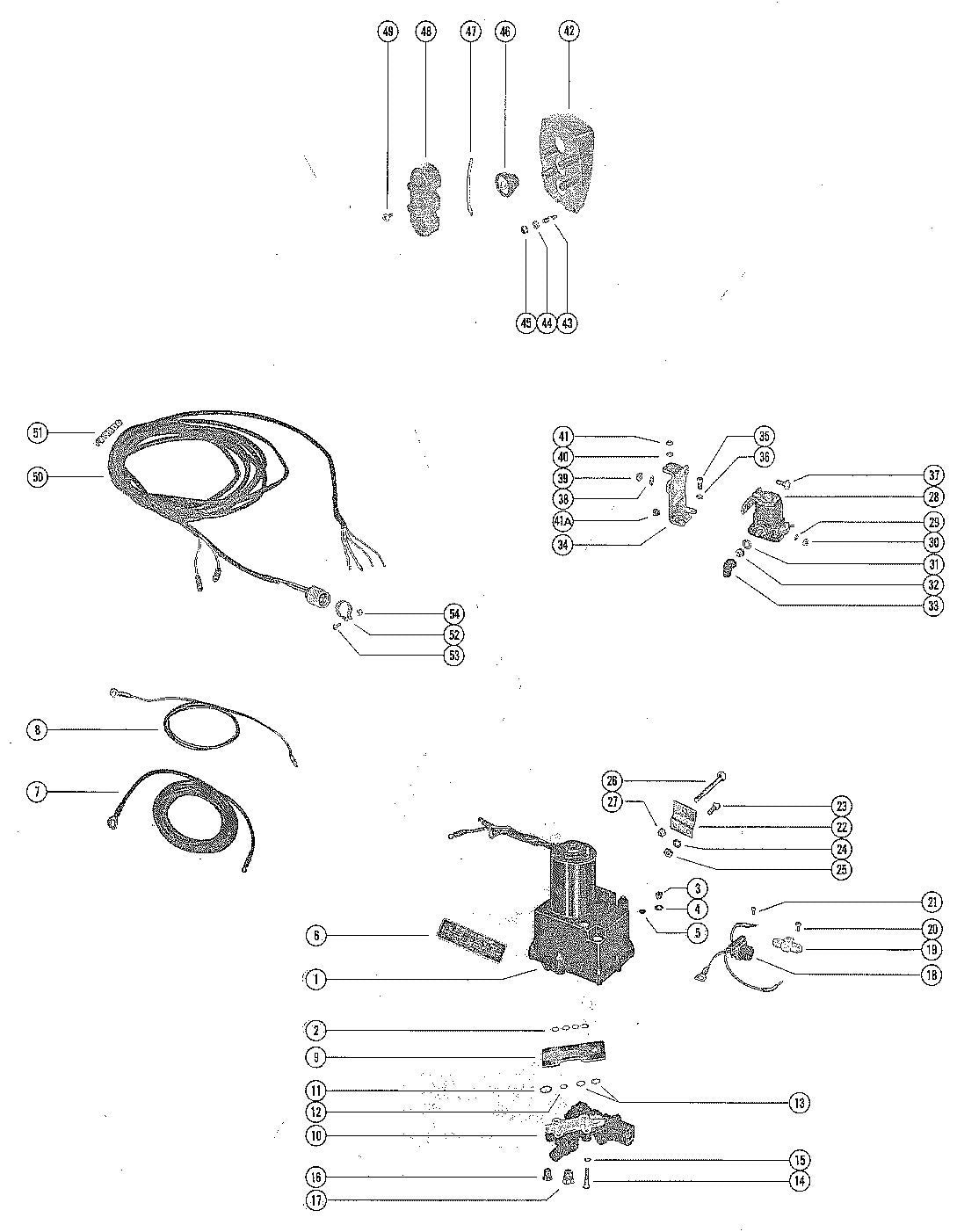

HYDRAULIC PUMP AND CONTROL PANEL
Back to TopBelow is the parts list for Mercury 1500 HYDRAULIC PUMP AND CONTROL PANEL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HYDRAULIC PUMP ASSEMBLY | 92975A32 | |
| 2 | "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE | 25-48171 | |
| 3 | SCREW, FILLER - HYDRAULIC PUMP | 10-79953Q04 | |
| 4 | WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW | 12-191833 | |
| 5 | SCREW, VENT - HYDRAULIC PUMP | 10-62269 | |
| 6 | DECAL, INSTRUCTION - HYDRAULIC PUMP | 37-55901 | |
| 7 | BATTERY LEAD (POSITIVE) | 32979 | |
| 8 | BATTERY LEAD (NEGATIVE) | 32988 | |
| 9 | PLATE, MANIFOLD | 45336 | |
| 10 | CONTROL VALVE ASSEMBLY | 45197A2 | |
| -- | "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE | 25-48171 | |
| 11 | "O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4"O.D.) | 25-45254 | |
| 12 | "O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.) | 25-48171 | |
| 13 | "O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8"O.D.) | 25-45253 | |
| 14 | SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP Comment: (1 1/4") | 10-56500 | |
| 15 | LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW | 13-26992 | |
| 16 | PLUG, CONTROL VALVE (3/8-24") | 22-38609 | |
| 17 | PLUG, CONTROL VALVE (1/2-20") | 22-46008 | |
| 18 | CONNECTOR AND HARNESS | 45325A1 | |
| 19 | TERMINAL BLOCK, HYDRAULIC PUMP | 45559 | |
| 20 | SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2") | 10-35519 | |
| 21 | SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8") | 10-62568 | |
| 22 | BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT | 45377T | |
| 23 | SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1") | 10-35386 | |
| 24 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-39107 | |
| 25 | NUT, MOUNTING BRACKET SCREW | 11-21908 | |
| 26 | BOLT, HYDRAULIC PUMP TO BOAT (3 1/4") | 10-68298 | |
| 27 | NUT, HYDRAULIC PUMP BOLT | 11-35304 | |
| 28 | STARTER SOLENOID | 25661T1 | |
| 29 | LOCKWASHER, STARTER SOLENOID TERMINAL | 10,13-26996 | |
| 30 | NUT, STARTER SOLENOID TERMINAL | 10,11-68219 | |
| 31 | LOCKWASHER, STARTER SOLENOID TERMINAL (5/16") | 13-8M0204647 | |
| 32 | NUT, STARTER SOLENOID TERMINAL (5/16") | 11-22053 | |
| 33 | BOOT, RUBBER - STARTER SOLENOID TERMINAL | 46265 | |
| 34 | BRACKET, MOUNTING - STARTER SOLENOID | 74407T | |
| 35 | SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") | 10-21140 | |
| 36 | LOCKWASHER, MOUNTING BRACKET SCREW | 13-26992 | |
| 37 | SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8") | 10-34290 | |
| 38 | LOCKWASHER, STARTER SOLENOID SCREW | 13-26992 | |
| 39 | NUT, STARTER SOLENOID SCREW | 11-21825 | |
| 40 | LOCKWASHER, HYDRAULIC PUMP THRU BOLT | 13-27660 | |
| 41 | NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT | 11-68219 | |
| 41A | BUMPER, RUBBER - SOLENOID BRACKET | 49342 | |
| -- | CONTROL PANEL ASSEMBLY, COMPLETE | 55642A13 | |
| 42 | PANEL, CONTROL | 55642A17 | |
| 43 | STUD, CONTROL PANEL TO BAOT (2") | 16-55422 | |
| 44 | WASHER, CONTROL PANEL STUD | 12-24676 | |
| 45 | NUT, CONTROL PANEL STUD | 11-27164 | |
| 46 | SWITCH, PUSH BUTTON - CONTROL PANEL | 55738A1 | |
| 47 | JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4") | 48078 | |
| 47 | JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3") | 53107 | |
| 48 | RETAINER, PUSH BUTTON SWITCH | 55641 | |
| 49 | SCREW, SWITCH RETAINER TO CONTROL PANEL (3/8") | 10-62568 | |
| 50 | HARNESS, CONTROL PANEL (20 FEET) | 84-87394A20 | |
| 51 | BINDER, NYLON - CONTROL PANEL HARNESS | 33865 | |
| 52 | CLAMP, HARNESS FASTENING | 95814 | |
| 53 | SCREW, HARNESS FASTENING CLAMP (1/2") | 10-29227 | |
| 54 | NUT, HARNESS FASTENING SCREW | 11-34388 |
HYDRAULIC PUMP ASSEMBLY
Back to TopBelow is the parts list for Mercury 1500 HYDRAULIC PUMP ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | HYDRAULIC PUMP ASSEMBLY, COMPLETE | 92975A32 | |
| 1 | "O" RING, HYDRAULIC PUMP | 25-48171 | |
| 2 | VALVE BODY AND GEAR ASSEMBLY | 392-7734 | |
| 3 | CAN, VALVE BODY | 392-2618 | |
| 4 | SCREW, VALVE BODY TO RESERVIOR (5/8") | 10-20411 | |
| 5 | SEAL, RESERVIOR TO VALVE BODY AND GEAR | 392-7735 | |
| 6 | RESERVIOR ASSEMBLY | 392-2939 | |
| 7 | SCREW, VENT - HYDRAULIC PUMP | 10-62269 | |
| 8 | SCREW, FILLE - HYDRAULIC PUMP | 10-79953Q04 | |
| 9 | WASHER, SEALING - FILLER SCREW | 12-191833 | |
| 10 | WASHER, THRUST - ARMATURE | 392-2623 | |
| 11 | ARMATURE, FIELD AND FRAME | 392-2943 | |
| 12 | FIELD AND FRAME ASSEMBLY | 392-2942 | |
| 13 | BALL, COMMUTATOR END PLATE | 392-2944 | |
| 14 | PLATE ASSEMBLY, COMMUTATOR END | 392-2940 | |
| 15 | BRUSH SET, COMMUTATOR END PLATE | 392-8989 | |
| 16 | SPRING SET, BRUSH TENSION | 392-2529 | |
| 17 | BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR | 392-2938 | |
| 18 | LOCKWASHER, THRU BOLT | 13-26996 |
IGNITION COIL
Back to TopBelow is the parts list for Mercury 1500 IGNITION COIL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | IGNITION COIL ASSEMBLY, COMPLETE Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 332-4895A5 | |
| 2 | SCREW, COIL MOUNTING BRACKET (1 3/4") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-37941 | |
| 3 | LOCKWAHSER, COIL MOUNTING BRACKET Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 13-26992 | |
| 4 | SCREW, COIL MOUNTING BRACKET (3 1/4") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-88488 | |
| 5 | SPACER, COIL BRACKET TO BOTTOM COWL Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 23-52933 | |
| 6 | NUT, COIL MOUNTING BRACKET SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-8M0207775 | |
| 7 | IGNITION COIL ASSEMBLY Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 332-4895T2 | |
| 8 | PAD, RUBBER - IGNITION COIL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 72015 | |
| 9 | COVER, IGNITION COIL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 63195 | |
| 10 | SCREW, COIL TO CYLINDER BLOCK (2") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-88856 | |
| 11 | WASHER, COIL SCREW Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 12-30164 | |
| 12 | CABLE ASSEMBLY Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 84-60466A1 | |
| 13 | LOCKWASHER, IGNITION COIL TERMINAL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10,13-26996 | |
| 14 | NUT, IGNITION COIL TERMINAL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10,11-45076 | |
| 15 | CABLE ASSEMBLY, COIL TO SWITCH BOX Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 84-66054A2 | |
| 16 | SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-62568 | |
| 17 | PLATE, COIL MOUNTING Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 69190 |
MISCELLANEOUS PARTS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 1500 MISCELLANEOUS PARTS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | MERC 1500 PARTS LIST | 90-63293 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW | 27-85653A87 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: UNITED STATES 3751850 THRU 4121434 AUSTRALIA 8013390 THRU 8028039 CANADA 7024373 THRU 7048782 | 27-85653A87 | |
| - | GASKET SET (MOTOR OVERHAUL) Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 27-85653A87 | |
| - | DECAL SET Comment: UNITED STATES 3752619 AND BELOW AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW | 37-73891A77 | |
| - | DECAL SET Comment: UNITED STATES 3752620 THRU 4121434 AUSTRALIA 8013420 THRU 8028039 CANADA 7024373 THRU 7048782 | 37-73891A77 | |
| - | DECAL SET Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 37-73891A77 | |
| - | DECAL SET(MERC 1500 XS) Comment: UNITED STATES 4319880 THRU 4602011 CANADA 7067248 THRU 7093097 | 37-74301A78 | |
| - | DECAL SET(MERC 1500 LONG) Comment: UNITED STATES 4319880 THRU 4602011 CANADA 7067248 THRU 7093097 | 37-73891A77 | |
| - | DECAL SET(MERC 1500XS) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 37-74301A78 | |
| - | DECAL SET(MERC 1500 LONG) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 37-74301A78 |
POWER TRIM CYLINDER REPAIR KITS
Back to TopBelow is the parts list for Mercury 1500 POWER TRIM CYLINDER REPAIR KITS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | "O" RING (1 1/2" X 1 5/8" X 1/16") (#N.S.S.) | ||
| 2 | "O" RING (1" X 1 3/16" X 3/32") (#N.S.S.) | ||
| 3 | "O" RING (7/8" X 1" X 1/16") (#N.S.S.) | ||
| 4 | "O" RING (1 1/4" X 1 7/16" X 1/16") (#N.S.S.) | ||
| 5 | "O" RING (7/32" X 11/32" X 1/16") (#N.S.S.) | ||
| 6 | "O" RIG (1 5/8" X 1 13/16" X 1/8") (#N.S.S.) | ||
| 7 | "O" RING (1 5/16" X 1 1/2" X 1/8") (#N.S.S.) | ||
| 8 | "O" RING (1 7/8" X 2" X 1/8") (#N.S.S.) | ||
| 9 | "O" RING (1 3/4" X 1 5/16" X 1/8") (#N.S.S.) | ||
| 10 | SEAL, SLIPPER - PISTON (#N.S.S.) | ||
| 11 | PISTON, ROD - STANDARD (#N.S.S.) | ||
| - | REPAIR KIT (SEE NOTE B ABOVE) | 64507A1 | |
| 1 | "O" RING (1 1/2" X 1 5/8" X 1/16") (#N.S.S.) | ||
| 2 | "O" RING (3/4" X 15/16" X 1/8") (#N.S.S.) | ||
| 3 | "O" RING (5/8" X 3/4" X 1/16") (#N.S.S.) | ||
| 4 | "O" RING (1 1/4" X 1 7/16" X 1/16") (#N.S.S.) | ||
| 5 | "O" RING (7/32" X 11/32" X 1/16") (#N.S.S.) | ||
| 6 | "O" RING (1 5/8" X 1 13/16" X 1/8") (#N.S.S.) | ||
| 7 | "O" RING (1 5/16" X 1 1/2" X 1/8") (#N.S.S.) | ||
| 8 | "O" RING (1 7/8" X 2" X 1/8") (#N.S.S.) | ||
| 9 | "O" RING (1 3/4" X 1 15/16" X 1/8") (#N.S.S.) | ||
| 10 | SEAL, SLIPPER - PISTON (#N.S.S.) | ||
| 11 | PISTON, ROD - HEAVY DUTY (#N.S.S.) |
STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES
Back to TopBelow is the parts list for Mercury 1500 STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | WIRING HARNESS, INTERNAL Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 84-69236A1 | |
| 1 | WIRING HARNESS, INTERNAL Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 84-69236A1 | |
| 3 | CLAMP, WIRING HARNESS TO BOTTOM COWL | 54-76368 | |
| 4 | SCRW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") | 10-690201 | |
| 5 | LOCKWAHSER, WIRING HARNESS CLAMP SCREW | 13-26996 | |
| 6 | WASHER, WIRING HARNESS CLAMP SCREW | 12-30164 | |
| 7 | SPRING, GARTER - INTERNAL WIRING HARNESS | 24-28975 | |
| 8 | SCREW, GROUND WIRE TO BOTTOM COWL (1/2") | 10-98256 | |
| 9 | LOCKWASHER, GROUND WIRE SCREW | 13-26992 | |
| 10 | CLIP, WIRING HARNESS TO FRONT BRACKET (5/8") | 54-22875 | |
| 11 | SCREW, WIRING HARNESS TO FRONT BRACKET (3/8") | 10-62568 | |
| 12 | "D" WASHER, WIRING HARNESS CLIP SCREW | 8M0084613 | 69205 |
| 13 | TERMINAL BLOCK, STATOR LEADS | 45559 | |
| 14 | SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8") | 10-62568 | |
| 15 | SWITCH BOX ASSEMBLY(MERC1500XS) | 332-2986A25 | |
| 15 | SWITCH BOX ASSEMBLY(MERC 1500 LONG) | 332-2986A21 | |
| 16 | NUT, SWITCH BOX TERMINAL | 11-45076 | |
| 17 | SCRWE, SWITCH BOX (3/8") | 10-29794 | |
| 18 | SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1") | 10-64279 | |
| 19 | NUT, SWITCH BOX SCREW | 11-8M0207775 | |
| 20 | CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET | 84-93389A12 | |
| 21 | SCRW, WIRE CABLE TO STARTER MOTOR (5/8") | 10-69035 | |
| 22 | STOP, RUBBER - STARTER MOTOR | 8M0043376 | 68042 |
| 23 | SPACER, COLLAR TO TOP MOUNTING CAP | 23-56774 | |
| 24 | COLLAR, RUBBER - STARTER MOTOR MOUNT | 23-8M0034918 | 23-8M0001391, 56703 |
| 25 | STARTER MOTOR ASSEMBLY Comment: UNITED STATES 3752619 AND BELOW AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW | 50-898265010 | 50-72467 UNITED STATES 3752619 AND BELOW AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW |
| 25 | STARTER MOTOR ASSEMBLY(PRESTOLITE) | 50-898265010 | 50-72467 |
| 25 | ATARTER MOTOR ASSEMBLY(BOSCH) | 50-898265010 | 50-72467 |
| 26 | LOCKWASHER, STARTER MOTOR TERMINAL | 13-26992 | |
| 27 | NUT, STARTER MOTOR TERMINAL | 11-20890 | |
| 28 | SOLENOID, STARTER Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 25661T1 | |
| 29 | SCREW, SOLENOID TO COIL BRACKET (3/4") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-69028 | |
| 28 | SOLENOID, STARTER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 89-853654A1 | |
| 29 | SCREW, SOLENOID TO COIL BRACKET (3/4") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-38601 | |
| 30 | LOCKWASHER, STARTER SOLENOID FASTENING SCREW | 13-26992 | |
| 31 | BUMPER, RUBBER - STARTER SOLENOID | 269011 | |
| 32 | LOCKWASHER, SOLENOID TERMINAL | 10,13-26996 | |
| 33 | NUT, SOLENOID TERMINAL | 10,11-68219 | |
| 34 | CABLE, WIRE - STARTER MOTOR TO SOLENOID Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 48396 | |
| 34 | CABLE, WERIE - STARTER MOTOR TO SOLENOID Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 84-93388A8 | |
| 35 | LOCKWASHER, SOLENOID TERMINAL (5/16") | 13-8M0204647 | |
| 36 | NUT, WOLENOID TERMINAL (5/16") | 11-8M0204668 | |
| 37 | BOOT, SOLENOID TERMINAL | 46265 | |
| 38 | RECTIFIER ASSEMBLY Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 78614A1 | |
| 39 | SCREW, RECTIFIER TO MOUNTING BRACKET (1") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-64278 | |
| 39 | SCRW, RECTIFIER TO MOUNTING BRACKET (1") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-64278 | |
| 40 | NUT, RECTIFIER MOUNTING SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-8M0207775 | |
| 42 | NUT, FASTENING - RECTIFIER STATOR LEADS Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-45076 | |
| 38 | RECTIFIER ASSEMBLY Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 8M0058226 | 816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3 UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP |
| 39 | SCREW, RECTIFIER TO FRONT BRACKET (5/8") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-37656 | |
| 41 | WASHER, RECTIFIER SCREW Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 12-30164 | |
| 42 | NUT, STATOR LEADS TO RECTIFIER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 11-45076 |
SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 1500 SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SWIVEL BRACKKET ASSEMBLY (SHOR SHAFT) Comment: UNITED STATES 4319879 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067247 AND BELOW | 1490-7256A2 | |
| 1 | SWIVEL BRACKET ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 4319879 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067247 AND BELOW | 1482-6386A4 | |
| 1 | SWIVEL BRACKET ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 4319880 THRU 4602011 CANADA 7067248 THRU 7093097 | 1490-7256A2 | |
| 1 | SWIVEL BRACKET ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 4319880 THRU 4602011 CANADA 7067248 THRU 7093097 | 1482-6386A4 | |
| 1 | SWIVEL BRACKET ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 1482-6386A4 | |
| 2 | BUSHING, REVERSE LOCK PIVOT SHAFT Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 23-69132 | |
| 3 | BUSHING, SWIVEL BRACKET Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 23-69341 | |
| 4 | WASHER, SWIVEL PIN - UPPER Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 12-69342 | |
| 5 | OIL SEAL, SWIVEL BRACKET | 26-37448 | |
| 6 | SCREW, DRIVE - SWIVEL BRACKET | 10-47828 | |
| 7 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 4319879 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067247 AND BELOW | 22-69059 | |
| 8 | LUBRICAP, SWIVEL BRACKET GREASE FITTING Comment: UNITED STATES 4319879 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067247 AND BELOW | 19-77633Q | |
| 7 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 4319880 THRU 4602011 CANADA 7067248 THRU 7093097 | 22-8M0169589 | |
| 7 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 22-8M0169589 | |
| 9 | PIN, RAVERSE LOCK SPRING (NOT USED WITH FULL POWER TRIM) | 17-25598 | |
| 10 | WASHER, SWIVEL PIN - LOWER | 12-37429 | |
| 11 | STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET | 28205T | |
| 12 | SCREW, STOP TO DRIVE SHAFT HSG. (3 1/8") - SHORT SHAFT | 10-56743 | |
| 12 | SCREW, STOP TO DRIVE SHAFT HSG. (2 7/8") - LONG SHAFT | 10-28200 | |
| 13 | NUT, STOP FASTENING SCREW | 11-25269 | |
| 14 | SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT) - YOKE IS ATTACHED Comment: YOKE IS ATTACHED WITH A NUT | 17-49841A1 | |
| 14 | SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT) Comment: YOKE IS ATTACHED WITH A NUT | 17-49840A1 | |
| 15 | YOKE, BOTOM Comment: YOKE IS ATTACHED WITH A NUT | 73984T | |
| 16 | NUT, BOTTOM YOKE ATTACHING Comment: YOKE IS ATTACHED WITH A NUT | 11-37424 | |
| 14 | SWIVEL PIN AND ARM ASSEMBLY (SHORT SHAFT) Comment: YOKE IS ATTACHED WITH A RETAINING RING | 17-73594A2 | |
| 14 | SWIVEL PIN AND ARM ASSEMBLY (LONG SHAFT) Comment: YOKE IS ATTACHED WITH A RETAINING RING | 17-73593A2 | |
| 15 | YOKE, BOTTOM Comment: YOKE IS ATTACHED WITH A RETAINING RING | 73984T | |
| 16A | RETAINING RING, BOTTOM YOKE ATTACHING Comment: YOKE IS ATTACHED WITH A RETAINING RING | 53-73591 | |
| 17 | BUMPER, STEERING ARM | 28203 | |
| 18 | BOLT, STEERING ARM TO UPPER MOUNT (5 7/8") | 10-49554 | |
| 19 | NUT, STEERTING ARM BOLT FASTENING | 11-8M0204653 |
TOP COWL AND SUPPORT BRACKETS
Back to TopBelow is the parts list for Mercury 1500 TOP COWL AND SUPPORT BRACKETS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL, TOP Comment: UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW | 2114-3806 | |
| 1 | COWL, TOP Comment: UNITED STATES 4403387 AND UP | 2114-7934T | |
| 2 | RETAINER ASSEBMLY, TOP COWL | 52733A9 | |
| 3 | PAD, BUMPER - TOP COWL RETAINER | 35496 | |
| 4 | SCREW, RETAINER TO TOP COWL (1 1/4") | 10-74824 | |
| 5 | LOCKWASHER, RETAINER TO TOP COWL SCREW | 13-39107 | |
| 6 | SHIELD,TOP COWL - REAR | 76370 | |
| 7 | SCREW, SHIELD TO TOP COWL (5/8") | 10-37370 | |
| 8 | LOCKWASHER, SHIELD SCREW | 13-37371 | |
| 9 | ROPE, STARTER (FOR MANUAL STARTING ONLY) | 47341A11 | |
| 10 | HINGE, COWL LATCH - TOP COWL | 52739 | |
| 11 | LEVER, COWL LATCH HINGE | 94918F1 | |
| 12 | PIN, TOLL - COWL LATCH LEVER TO HINGE | 17-58998 | |
| 13 | HOOK, TOP COWL LATCH - REAR | 55455 | |
| 14 | SCREW, REAR HOOK TO TOP COWL (7/8") | 10-22956 | |
| 15 | LOCKWASHER, REAR HOOK MOUNTING SCREW | 13-26992 | |
| 16 | FRAME ASSEMBLY, TOP COWL SUPPORT Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 79897A4 | |
| 16 | FRAME ASSEMBLY, TOP COWL SUPPORT Comment: UNITED STATES 4121435 THRU 4403386 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067847 | 79897A4 | |
| 16 | FRAME ASSEMBLY, TOP COWL SUPPORT Comment: UNITED STATES 4403387 AND UP | 79897A4 | |
| 17 | DECAL, TIMING Comment: UNITED STATES 3628317 AND BELOW AUSTRALIA 8008489 AND BELOW CANADA 7018152 AND BELOW | 37-60204 | |
| 17 | DECAL, TIMING - FLYWHEEL Comment: UNITED STATES 3628318 THRU 4319879 AUSTRALIA 8008490 THRU 8034895 CANADA 7018153 THRU 7067247 | 37-65601 | |
| 17 | DECAL, TIMING - FLYWHEEL Comment: UNITED STATES 4319880 AND UP CANADA 7067248 AND UP | 37-73291 | |
| 18 | MOUNT, RUBBER - TOP COWL FRAME | 90435 | |
| 18 | MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY) | 46096 | |
| 19 | NUT, RUBBER MOUNT TO TOP COWL FRAME | 11-35888 | |
| 20 | BRACKET, TOP COWL SUPPORT - REAR | 86472 | |
| 21 | MOUNT, RUBBER - REAR SUPPORT BRACKET | 31014 | |
| 22 | LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET | 13-26992 | |
| 23 | NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET | 11-29598 | |
| 24 | SCREW, REAR BRACKET TO FRAME (1") Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 10-65263 | |
| 25 | NUT, REAR BRACKET SCREW Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 11-60049 | |
| 24 | SCREW, REAR BRACKET TO FRAME Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-37562 | |
| 26 | LOCKWASHER, REAR BRACKET SCREW Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 13-8M0204647 | |
| 27 | SCREW, REAR BRACKET TO BOTTOM COWL (1") Comment: UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP | 10-37562 | |
| 28 | LOCKWASHER, REAR SUPPORT BRACKET SCREW | 13-8M0204647 | |
| 29 | BRACKET ASSEBMLY, TOP COWL - FRONT Comment: UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW | 77116A1 | |
| 29 | BRACKET ASSEMBLY, TOP COWL - FRONT Comment: UNITED STATES 4121435 THRU 4602011 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7093097 | 77116A1 | |
| 29 | BRACKET ASSEMBLY, TOP COWL - FRONT Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 42706A1 | |
| 30 | SCREW. BRACKET TO BOTTOM COWL (1 1/2") Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 10-71908 | |
| 31 | NUT, SUPPORT BRACKET SCREW Comment: UNITED STATES 4602011 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7093097 AND BELOW | 11-60049 | |
| 30 | SCREW, BRACKET TO BOTTOM COWL (1 1/4") Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 10-60411 | |
| 31 | LOCKWASHER, BRACKET SCREW Comment: UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 13-8M0204647 | |
| 32 | SCRW, BRACKET TO TOP COWL FRAME (1 1/2") | 10-55511 | |
| 33 | LOCKWASHER, SUPPORT BRACKET SCREW | 13-8M0204647 | |
| 34 | MOUNT, RUBBER - SUPPORT BRACKET | 37640 | |
| 35 | LOCKWASHER, RUBBER MOUNT | 13-8M0204647 | |
| 36 | NUT, RUBBER MOUNT | 11-28770 |
TRIM CYLINDERS AND HYDRAULIC HOSES
Back to TopBelow is the parts list for Mercury 1500 TRIM CYLINDERS AND HYDRAULIC HOSES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TRIM CYLINDER ASSEMBLY Comment: SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4403387 THRU 4602011 | 92194A14 | |
| 1 | TRIM CYLINDER ASSEMBLY Comment: SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 92194A14 | |
| 1A | FITTING, GREASE Comment: SEE PAGE 49 FOR REPAIR KIT BREAKDOWN UNITED STATES 4602012 AND UP CANADA 7093038 AND UP | 22-8M0169589 | |
| 2 | SCREW, BLEED - SHOCK CYLINDER | 10-45265 | |
| 3 | "O" RING, SHOCK CYLINDER BLEED SCREW | 25-45016 | |
| 4 | SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16") | 10-45264 | |
| 5 | SPACER, SHOCK CYLINDER - LOWER | 23-45280 | |
| 6 | BUSHING, RUBBER - SHOCK CYLINDER | 23-94907A1 | |
| 7 | BRACKET, MOUNTING - SHOCK CYLINDER (PORT) | 89108A3 | |
| 8 | SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4") | 10-45263 | |
| 9 | BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4") | 10-68298 | |
| 10 | WASHER, MOUNTING BRACKET BOLT | 12-68410 | |
| 11 | NUT, MOUNTING BRACKET BOLT | 11-82670912 | |
| 12 | BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD) | 89807A1 | |
| 13 | OIL SEAL, STARBOARD MOUNTING BRACKET | 26-70608 | |
| 14 | PLUNGER, LIMIT SWITCH ACTUATING | 89290 | |
| 15 | SPRING, TENSION - LIMIT SWITCH PLUNGER | 24-95881 | |
| 16 | STUD, MOUNTING BRACKET AND CLAMP BRACKET | 16-45282 | |
| 17 | LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD | 13-8M0204647 | |
| 18 | NUT, MOUNTING BRACKET TO CLAMP BRACKET STUD | 11-28770 | |
| 19 | SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16") | 10-45328 | |
| 20 | WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY) | 12-37807 | |
| 21 | NUT, SHOCK CYLINDER SCREW | 11-20696 | |
| 22 | SPRING, TENSION - ADJUSTING STUD | 24-24390 | |
| 23 | STUD, ADJUSTING - CUT-OUT LIMIT SWITCH (15/16") | 16-8M0034461 | 16-21085 |
| 24 | NUT, JAM - LIMIT SWITCH ADJUSTING STUD | 11-859124 | 11-45812 |
| 25 | CAM, LIMIT SWITCH ADJUSTING STUD | 99897 | |
| 26 | PLATE, RETAINING - LIMIT SWITCH CAM | 86967 | |
| 27 | SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER (3/8") | 10-68513 | |
| 28 | LOCKWASHER, RETAINING PLATE AND CAM SCREW | 13-26996 | |
| 29 | SWITCH ASSEMBLY, CUT-OUT LIMIT | 45326A2 | |
| 30 | BUSHING, RUBBER - CUT-OUT LIMIT SWITCH | 23-45354 | |
| 31 | SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16") | 10-47255 | |
| 32 | COVER, LIMIT SWITCH | 45287 | |
| 33 | GASKET, LIMIT SWITCH COVER | 27-45275 | |
| 34 | SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16") | 10-24942 | |
| 35 | COVER, INLET - TRANSOM | 87774A1 | |
| 36 | GASKET, INLET COVER | 27-45274 | |
| 37 | GROMMET, RUBBER - INLET COVER | 25-45507 | |
| 38 | SCREW, INLET COVER TO BOAT (2") | 10-32866 | |
| 39 | WASHER, INLET COVER SCREW | 12-20878 | |
| 40 | NUT, INLET COVER SCREW | 11-8M0204718 | |
| 41 | HOSE, TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. | 32-88005 | |
| 42 | HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. | 32-88006 | |
| 43 | GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE | 23-35977 | |
| 44 | TILT STOP | 73519A1 | |
| 45 | TUBE, MOUNTING-TILT STOP Comment: UNITED STATES 3752619 AND BELOW AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW | 63441 | |
| 46 | PIN, MOUNTING TUBE Comment: UNITED STATES 3752619 AND BELOW AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW | 17-63442 | |
| 45 | TUBE, MOUNTING - TILT STOP Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 69259 | |
| 46 | PIN, MOUNTING TUBE Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 69258 | |
| 47 | COTTER PIN, MOUNTING TUBE PIN Comment: UNITED STATES 4121435 THRU 4319879 AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284 | 18-36002 | |
| - | REPAIR KIT (SEE NOTE A ABOVE) | 48664A1 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
