Mercury 150 VERADO (4-STROKE)(4 CYL.) (1B227000 THRU 1B381711) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 150 VERADO (4-STROKE)(4 CYL.) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Accessories:

Position No.	Part Name	OEM Number	Supersedes
-	CONVERSION KIT, Analog	892486K08	892486K01
-	HARNESS KIT, Accessory Power (30 Feet)	84-899785K04	84-889611K02
-	MERCATHODE KIT	88334A2
-	HOSE KIT, Rigging	32-825191A03	32-825191A 4
-	SCREW/SEAL KIT, Gearcase	10-880717A01
-	CABLE SET, Battery	84-8M0210761
-	FLUSHING ATTACHMENT Comment: (Quicksilver)	44357Q2
-	FLUSHING ATTACHMENT Comment: (Mercury Precision Parts)	44357T2
-	FLUSH KIT, Dual Water Pick Up Comment: (Quicksilver)	881150Q1
-	SEAL KIT, Flush - Dual Water Pickup Comment: (Mercury Precision Parts)	881150K1

Adaptor Plate Hose Routings

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Adaptor Plate Hose Routings:

Position No.	Part Name	OEM Number	Supersedes
1	HOSE, Fuel	32-8M0087072	32-8M0072523, 32-8M0043795, 32-8M0012217, 32-896222
2	GROMMET	25-884546
3	HOSE	32-8M0087082	32-8M0072526, 32-8M0012208, 32-896227
4	GROMMET	25-884546
5	HOSE, Fuel	32-8M0087074	32-8M0072525, 32-8M0012210, 32-896647
6	GROMMET	25-884546
7	CLIP	888523001
8	HOSE, Fuel	32-8M0087084	32-8M0072527, 32-8M0043797, 32-8M0012219, 32-896240
9	GROMMET	25-884546
10	HOSE, Water	32-8M0087071	32-8M0072522, 32-8M0012206, 32-896225
11	HOSE, To CAC	32-8M0087088
12	HOSE, Fuel	32-8M0087068	32-8M0072521, 32-8M0043791, 32-8M0012204, 32-896223
13	FILTER, Fuel	35-879885Q	35-879885T
14	HOSE, Fuel, To Fuel Rail	32-8M0087089	32-8M0072529, 32-8M0043792, 32-8M0012205, 32-896224
15	HOSE	32-8M0087073	32-8M0072524, 32-8M0012209, 32-896646
16	CANISTER ASSEMBLY	8M0175814
17	GROMMET	25-897434
18	VENT ASSEMBLY, Purge	8M0126939
19	GROMMET	25-897452
20	CLAMP, Worm Gear	54-815504104	54-54428, 54-809952104, 54-8M2001484, 54-F9005, F24772, F24788, F901788

Adaptor Plate-Lower

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Adaptor Plate-Lower:

Position No.	Part Name	OEM Number	Supersedes
1	TUBE, Oil Pickup	896241
2	O-RING	25-38780
3	SCREW, (M6 x 25) Stainless Steel	10-8M0103807
4	GASKET, Oil Sump	27-895822
5	TUBE ASSEMBLY, Exhaust	895825T01
6	POPPET ASSEMBLY	8M0114707
7	SPRING, (Black)	24-64878
8	RETAINER	893385001
9	DIAPHRAGM	648771
10	WASHER	889706
11	SCREW, (#10-16 x .750)	10-69570
12	COVER, Poppet	893384001
13	GASKET, Poppet	27-889561
14	SCREW, (M6 x 35) Stainless Steel	10-88552535
15	SCREW, (M8 x 35)	10-8M0103814
16	SEAL, Exhaust Tube	26-880629
17	SUMP ASSEMBLY, Oil	895821T
18	SCREW, (M6 x 20) Stainless Steel	10-8M0103808
19	PLUG ASSEMBLY, Oil Drain	888592005	888592004
20	SEAL	26-888593
21	SEAL	896242
22	TUBE ASSEMBLY, Water Comment: (Long)	32-896107A01
22	TUBE ASSEMBLY, Water Comment: (X-Long)	32-896107A02
23	O-RING	25-892445
24	COUPLING	22-8M0214983
25	O-RING, (.921 x .139)	25-8M0204673
26	O-RING, (.796 x .139)	25-8M0204645
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Alternator/Belt Tensioner Mounting

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Alternator/Belt Tensioner Mounting:

Position No.	Part Name	OEM Number	Supersedes
1	ALTERNATOR, 70 Ampere	892940T02	892940T01, 892940T
2	BELT TENSIONER	8M0101707	885349T05
3	PULLEY	8M6003035	8M0062859, 885349500
4	SCREW	10-885349501
5	MOUNT	23-855729
6	WASHER, (.406 x 1.250 x .089)	12-845998
7	SCREW, (M10 x 45)	10-8M0103823
8	BRACKET, Alternator	8M0219204
9	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
10	BELT, Drive	57-8M0232583
11	SCREW, (M10 x 85)	10-8M0103824
12	WASHER	12-4002319
13	NUT, (M6) Stainless Steel	11-401386
14	CABLE ASSEMBLY	84-856583A12	84-856583A09
15	CABLE ASSEMBLY, Brass, Braided	84-858414A04
16	SCREW, (M6 x 16) Stainless Steel	10-8M0103805	10-885525 16

Charge Cooler/Intake Manifold

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Charge Cooler/Intake Manifold:

Position No.	Part Name	OEM Number	Supersedes
-	IAFM ASSEMBLY Comment: SN# 1B279512 & Below	8M0185612
-	IAFM ASSEMBLY Comment: SN# 1B279513 & Up	8M0185612
1	CAC ASSEMBLY	8M0132387
2	NOT SOLD SEPARATE, Fitting	NSS
3	NOT SOLD SEPARATE, O-Ring	NSS
4	NOT SOLD SEPARATE, Stack Assembly	NSS
5	NOT SOLD SEPARATE, Seal Kit	NSS
6	NOT SOLD SEPARATE, Seal	NSS
7	NOT SOLD SEPARATE, Screw	NSS
8	NOT SOLD SEPARATE, Washer	NSS
9	FITTING	19-8M0048079	19-8M0039519, 22-895034
10	NOT SOLD SEPARATE, O-Ring	NSS
11	SCREW, (M6 x 15)	10-895053
12	SENSOR ASSEMBLY, Temperature	891663001	891663
13	O-RING	25-892317001	25-892317
14	SCREW, (M4 x 16)	10-895054	10-8M0041480
15	MANIFOLD ASSEMBLY, Intake	892954A01
16	SEAL	26-896663
17	SEAL	895020
18	SENSOR	8M6000639	8M0010248, 885548002, 885548001
19	CLAMP, (15.7 mm), Map Sensor to Boot	54-8M0214911
20	BOOT	892952500	895021
21	CLAMP, (36.1 mm)	54-8M0204719
22	SCREW, (M6 x 25)	10-8M0103807
23	FUEL RAIL KIT	896503A01
24	VALVE, Schrader	895028A01
25	O-RING	25-895056
26	BRACKET	895026
27	SCREW, (M5 x 10)	10-895051
28	BRACKET	895024
29	SCREW, (M5 x 10)	10-895051
30	DAMPER	895025
31	O-RING	25-851889	25-804783
32	TUBE KIT, Fuel Inlet	32-895029A01
33	WASHER	12-895055
34	O-RING	25-895057
35	BRACKET	895027
36	SCREW, (M5 x 10)	10-895051
37	INJECTOR, Fuel Comment: SN# 1B279512 & Below	8M0041571	8M0006027, 892811T02 SN# 1B279512 & Below
37	INJECTOR, Fuel Comment: SN# 1B279513 & Up	8M0041571	8M0006027, 892811T02 SN# 1B279513 & Up
38	O-RING	25-851889	25-804783
39	GASKET	27-8M0006599

Charge Cooler/Intake Manifold Hose Routings

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Charge Cooler/Intake Manifold Hose Routings:

Position No.	Part Name	OEM Number	Supersedes
1	NUT, (M10) Brass/Nickel Plated	11-826292
2	SCREW	10-8M0048051	10-8M0005430, 10-892487001
-	NOT SOLD SEPARATE, Hose Assembly-Complete	NSS
3	HOSE	32-896255
4	FITTING ASSEMBLY, Flushing	22-8M6003382	22-889633A04, 22-889633A03, 22-889633A02
5	HOSE	32-889592001
6	CLAMP, (34.6 mm)	54-8M0187145
7	HOSE	32-896257
8	TIE STRAP, (11.750 Inches)	54-850181
9	CLAMP, (34.6 mm)	54-8M0187145
10	HOSE, Manifold Reference-Upper	32-8M0087088
11	SCREW, (M10 x 30)	10-8M0103821
12	SCREW, (M10 x 65)	10-88552765

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	400-880514A02
2	KEY, Woodruff	28-91800
3	BEARING, Thrust - Green, Crankshaft-Lower Comment: (Green)	23-8M0117003
3	BEARING, Thrust - Navy Blue, Crankshaft-Lower Comment: (Navy Blue)	23-892309T02	23-895716T02 (Navy Blue)
3	BEARING, Thrust - White, Crankshaft-Lower Comment: (White)	23-892309T03	23-895716T03 (White)
3	BEARING, Thrust - Orange, Crankshaft-Lower Comment: (Orange)	23-8M0117004	23-892309T04 (Orange)
4	SEAL, Top Main Bearing	26-8M0032912	26-880525 1
5	BEARING, Main - Green, Crankshaft-Upper Comment: (Green)	23-897498T01	23-895715T01 (Green)
5	BEARING, Main - Navy Blue, Crankshaft-Upper Comment: (Navy Blue)	23-897498T02	23-895715T02 (Navy Blue)
5	BEARING, Main - White, Crankshaft-Upper Comment: (White)	23-897498T03	23-895715T03 (White)
5	BEARING, Main - Orange, Crankshaft-Upper Comment: (Orange)	23-897498T04	23-895715T04 (Orange)
6	CAP, Flywheel Bolt	19-885348
7	CHAIN, Roller Cam Drive	8M0103398	897796
8	CONNECTING ROD ASSEMBLY	662-8M0103285
9	BOLT	10-884441
10	BEARING, Connecting Rod - Blue Comment: (Blue)	23-892005A01
10	BEARING, Connecting Rod - White Comment: (White)	23-892005A02
10	BEARING, Connecting Rod - Orange Comment: (Orange)	23-892005A03
11	PISTON ASSEMBLY	700-897737T01	700-896922T01, 700-896528T01, 700-896092T01, 700-895086T01
12	RING SET, Piston	39-881180A02	39-881180A01, 39-881180A03
13	NOT SOLD SEPARATE, Oil Ring	NSS
14	NOT SOLD SEPARATE, Piston Ring-Second	NSS
15	NOT SOLD SEPARATE, Piston Pin	NSS
16	CIRCLIP	40-881184
17	FLYWHEEL ASSEMBLY	200-892920T03
18	BOLT, (M20 x 68)	10-8M0147042
19	WASHER	12-8M0090010	12-8M0071546, 12-8M0071547, 12-8M0062178
20	SPACER	23-896883
21	RING, Retaining	53-896882
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Cylinder Block

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Cylinder Block:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY	800-880504A09
2	BRACKET, Mounting-Starter Motor	8M0111325
3	SCREW, (M8 x 40)	10-8M0103815
4	PLUG, (12 mm)	19-889767
5	PIN, Dowel - Without Hole (.375 x .625)	17-43044
6	DAMPER	23-893392001
7	PLUG, (24 mm)	19-896951
8	PIN, Dowel (14 mm)	17-880524
9	O-RING	25-884409
10	PIN, Dowel (11 mm)	17-884424
11	O-RING	25-884423
12	SCREW, (M10 x 342)	10-8M4501000	10-8M0021876, 10-896923, 10-888990
13	WASHER	12-892573001	12-892573
14	NUT, (M8) Stainless Steel	11-401388
15	SENSOR	8M0082988	8M0030022, 828358 2
16	SCREW, (M5 x 16) Stainless Steel	10-40011107
17	SENSOR ASSEMBLY	8M0148668
18	O-RING, (.351 x .072)	25-896699	25-888814
19	NUT, (M8) Stainless Steel	11-400213
20	GASKET, Head	27-8M0024565	27-896277006, 27-896277002, 27-896277
21	WASHER	12-36001
22	SCREW, (M8 x 115)	10-8M0193831
23	SCREW, (M8 x 50)	10-8M0193659
24	GASKET, Block to Adaptor	27-896142
25	GUIDE, Fixed	880559
26	GUIDE, Moveable	880557
27	SCREW	10-892456045
28	SCREW, (M10 x 120)	10-8M0103829
29	SCREW, (M8 x 35)	10-8M0103814
30	SCREW, (M8 x 75)	10-8M0103818
31	STUD, (M8 x 1.5)	16-8M0022161	16-888849003
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Cylinder Head and Camshaft

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Cylinder Head and Camshaft:

Position No.	Part Name	OEM Number	Supersedes
-	CYLINDER HEAD ASSEMBLY, Complete	900-880534A08
1	CYLINDER HEAD ASSEMBLY	900-8M0110154	900-880534A06
2	PLUG, (12 mm)	19-889767
3	PLUG, (18 mm)	19-891953
4	PLUG, (24 mm)	19-896951
5	PLUG, (10 mm)	19-8M0087446	19-8M0047992, 19-896576
6	PIN, Dowel (14 mm)	17-880524
7	BOLT, (M6 x 36)	10-8M0163131
8	SEAT, Intake Valve	880533
9	SEAT, Exhaust Valve	8M0089477
10	GUIDE, Intake and Exhaust Valves	880537
11	VALVE, Intake	20-898907	20-897629, 20-880539T
12	VALVE, Exhaust	20-898908	20-897630, 20-880540T
13	SEAL, Valve	26-8M0214986
14	SPRING, Intake and Exhaust Valve	24-8M0011503	24-895815
15	RETAINER ASSEMBLY, Valves	8M0908500	880542A 1
16	KEY	28-880543
17	NOT SOLD SEPARATE, CAP	NSS
18	CAMSHAFT ASSEMBLY, Intake	400-898397A04	400-898397A03
19	CAMSHAFT ASSEMBLY, Exhaust	400-892862T03	400-892862T02
20	TAPPET Comment: (2.996)	899912001	880548 1 (2.996)
20	TAPPET Comment: (3.021)	899912002	880548 2 (3.021)
20	TAPPET Comment: (3.046)	899912003	880548 3 (3.046)
20	TAPPET Comment: (3.071)	899912004	880548 4 (3.071)
20	TAPPET Comment: (3.096)	899912005	880548 5 (3.096)
20	TAPPET Comment: (3.118)	899912006	880548 6 (3.118)
20	TAPPET Comment: (3.138)	899912007	880548 7 (3.138)
20	TAPPET Comment: (3.158)	899912008	880548 8 (3.158)
20	TAPPET Comment: (3.178)	899912009	880548 9 (3.178)
20	TAPPET Comment: (3.198)	899912010	880548 10 (3.198)
20	TAPPET Comment: (3.218)	899912011	880548 11 (3.218)
20	TAPPET Comment: (3.238)	899912012	880548 12 (3.238)
20	TAPPET Comment: (3.258)	899912013	880548 13 (3.258)
20	TAPPET Comment: (3.278)	899912014	880548 14 (3.278)
20	TAPPET Comment: (3.298)	899912015	880548 15 (3.298)
20	TAPPET Comment: (3.318)	899912016	880548 16 (3.318)
20	TAPPET Comment: (3.338)	899912017	880548 17 (3.338)
20	TAPPET Comment: (3.358)	899912018	880548 18 (3.358)
20	TAPPET Comment: (3.378)	899912019	880548 19 (3.378)
20	TAPPET Comment: (3.398)	899912020	880548 20 (3.398)
20	TAPPET Comment: (3.418)	899912021	880548 21 (3.418)
20	TAPPET Comment: (3.438)	899912022	880548 22 (3.438)
20	TAPPET Comment: (3.458)	899912023
20	TAPPET Comment: (3.478)	899912024
20	TAPPET Comment: (3.498)	88054825
20	TAPPET Comment: (3.518)	88054826
20	TAPPET Comment: (3.538)	899912027
20	TAPPET Comment: (3.558)	899912028
20	TAPPET Comment: (3.578)	899912029
20	TAPPET Comment: (3.598)	88054830
20	TAPPET Comment: (3.621)	899912031
20	TAPPET Comment: (3.646)	88054832
20	TAPPET Comment: (3.671)	899912033
20	TAPPET Comment: (3.696)	899912034
20	TAPPET Comment: (3.721)	88054835
21	SCREW, (M6 x 30)	10-892454030
22	COVER ASSEMBLY, Cam	880553T02
23	SEAL	892584
24	SEAL	892893
25	PLATE, Coil	8M0010625
26	PLUG ASSEMBLY, Oil	859578A1
27	O-RING, (.921 x .139)	25-8M0204673
28	GUIDE, Short	880558
29	TIE STRAP, (11.750 Inches)	54-850181
30	TIE STRAP, (11.750 Inches)	54-850181
31	SCREW, (M8 x 60)	10-8M0103817
32	TENSIONER ASSEMBLY	898463A01	897797A01
33	O-RING, Orange (Also part of Complete Cylinder Head)	25-898836	25-880631001
34	END CAP, Tensioner	1100-8M0064752	893338, 1100-8M0047712
35	SCREW, (M6 x 25) Stainless Steel	10-8M0103807
36	SCREW, (M6 x 40) Stainless Steel	10-8M0103809
37	CLIP	54-892833
38	HOSE ASSEMBLY, Breather	32-892812A03	32-892812A02
39	COIL ASSEMBLY	339-880615T01
40	SCREW, (M6 x 25) Stainless Steel	10-8M0103807
41	SPARK PLUG, NGK-ILFR6G	33-889246Q39	33-8M0006614, 33-889680001
42	CLIP, (.625)	54-858954
43	SCREW, (M6 x 25) Stainless Steel	10-8M0103807
44	SPROCKET, Cam Drive	43-880550
45	SCREW, (M12 x 40) (Left Hand)	10-8M0021532	10-884403
46	SCREW, (M6 x 12) Stainless Steel	10-8M0103804
47	CLIP	54-889746001	54-889746
48	CLAMP, (22.6 mm)	54-888988019
49	SCREW, (M6 x 12) Stainless Steel	10-8M0103804
50	SENSOR ASSEMBLY	8M0011987	880609
51	SCREW, (M6 x 16) Stainless Steel	10-8M0103805	10-885525 16
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Driveshaft Housing

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING, Driveshaft	1500-895305T01
2	NOT SOLD SEPARATE, Decal-Oil Drain	NSS
3	GROMMET	25-889568001
4	SHROUD	889656T01	889656T
5	SCREW, (M8 x 75)	10-8M0103818
6	SCREW, (M8 x 120)	10-8M0103812
7	SCREW, (M8 x 50)	10-8M0103816
8	SCREW, (M8 x 40)	10-8M0103815
9	SCREW, (M8 x 35)	10-8M0103814
10	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
11	BRACKET	896210T	896210004
12	SCREW, (M10 x 40)	10-8M0103822
13	SCREW, (M8 x 50)	10-8M0103816
14	CLAMP, Lower Mount	896095C01
15	SCREW, (M8 x 35)	10-8M0103814
16	GASKET	27-895827
17	STUD, (M12 x 52) Comment: Long	16-8M0008031	16-856983, 16-822257 Long
18	WASHER, (.500 x .810 x .090) Stainless Steel	12-856982
19	NUT, (M12)	11-896895	11-857008
20	SCREW, (M12 x 35) Comment: Long	10-8M0102995	10-8M0071178, 10-885528 35 Long
21	PLUG, Rubber, Use where Applicable	19-824928001	19-824928, 19-32297
22	SPACER Comment: X-Long - No Engraving	8M0105088	8M0071622, 880647T04, 823979T 1, 880647T02, 880647T X-Long - No Engraving
22	SPACER Comment: X-Long - Engraved - Do not Remove Spacer	880647T03
23	SCREW, (M12 x 160) Comment: X-Long	10-857137
24	STUD, (M12 x 179) Comment: X-Long	16-8M0008047	16-857009, 16-824117 X-Long
25	PIN, Dowel - Without Hole (.375 x .625) Comment: X-Long	17-43044
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Electrical Box Components

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Electrical Box Components:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Electrical Box Assembly-Complete	NSS
-	NOT SOLD SEPARATE, Electrical Box Assembly	NSS
1	BOX ASSEMBLY, Electrical	896230T02	896230T01
2	NOT SOLD SEPARATE, Cover	NSS
3	COVER	88-8M0167280
4	SEAL	25-885583
5	STRAP	889531
6	EXTRACTOR, Fuse	895099
7	GROMMET	25-833155
8	BUSHING	23-8502341
9	FUSE, Mini - Yellow - 20 Ampere	88-832969T20	88-832969 20
10	STRAP, Cover	892244
11	CLIP	54-892448
12	TIE STRAP, (11.750 Inches)	54-850181
13	SCREW, (M8 x 10) Stainless Steel	10-40011145
14	WASHER, (.330 x .560 x .060) Stainless Steel	12-843108
15	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
16	NUT, (M8) Stainless Steel	11-400213
17	PCM, Propulsion Control Module Comment: (135) SN# 1B232377 & Below	89790729T	88924656T, 88555858T, 88555824T (135) SN# 1B232377 & Below
17	PCM, Propulsion Control Module Comment: (135) SN# 1B232378 & Up	89790729T	88924656T, 88555858T, 88555824T (135) SN# 1B232378 & Up
17	PCM, Propulsion Control Module Comment: (135 EU)	89790730T	88924657T, 88555827T (135 EU)
17	PCM, Propulsion Control Module Comment: (150) SN# 1B232377 & Below	89790731T	88924658T, 88555859T, 88555837T, 88555825T (150) SN# 1B232377 & Below
17	PCM, Propulsion Control Module Comment: (150) SN# 1B232378 & Up	89790731T	88924658T, 88555859T, 88555837T, 88555825T (150) SN# 1B232378 & Up
17	PCM, Propulsion Control Module Comment: (150 EU)	89790732T	88924659T, 88555828T (150 EU)
17	PCM, Propulsion Control Module Comment: (175) SN# 1B232377 & Below	89790733T	88924660T, 88555860T, 88555838T, 88555826T (175) SN# 1B232377 & Below
17	PCM, Propulsion Control Module Comment: (175) SN# 1B232378 & Up	89790733T	88924660T, 88555860T, 88555838T, 88555826T (175) SN# 1B232378 & Up
18	CLIP	54-891520001
19	SCREW, (M6 x 14)	10-82129114
-	NOT SOLD SEPARATE, Relay Bracket Assembly-Complete	NSS
20	RELAY ASSEMBLY	882751A04
21	NOT SOLD SEPARATE, Decal-Trim Relay	NSS
22	BRACKET	889532
23	SCREW, (M5 x 6)	10-40007103
24	HARNESS ASSEMBLY, Trim	84-819514A23
25	HARNESS ASSEMBLY, Fuse	84-892137T03
26	CABLE ASSEMBLY	84-93388A19
27	HARNESS ASSEMBLY, Engine	84-8M0132704
28	HARNESS ASSEMBLY	84-8M0113732	84-888416T04, 84-888416T03, 84-888416A 1
29	FUSE, Tan - 5 Ampere	862646
30	CONNECTOR ASSEMBLY, Weather Cap 6 Pin	877613A02
31	CLIP	54-879962
32	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
33	SCREW, (M8 x 35)	10-8M0103814
34	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
35	CABLE ASSEMBLY, Battery - Positive	84-88439A25
36	NUT, (M8) Stainless Steel	11-401388
37	NUT, (.375-16), Battery Cable-Positive	11-8M0204671
38	CABLE ASSEMBLY, Battery - Negative	84-88439A26
39	NUT, (.312-18), Battery Cable-Negative	11-8M0204668
40	BUSHING	23-8502341
41	GROMMET	25-833155
42	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
43	SCREW, (M8 x 35)	10-8M0103814
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Fuel Supply Module

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Fuel Supply Module:

Position No.	Part Name	OEM Number	Supersedes
1	MODULE, Fuel Supply	8M0130901
1	HARNESS ASSEMBLY	84-880596521
2	CLIP	53-880596515
3	GROMMET	25-855362001	25-855362
4	BUSHING	23-855364
5	COVER KIT	880596T50
6	SCREW	10-880596513
7	REGULATOR, With O-Rings	880596503
8	CLAMP	54-880596512
9	HOSE	32-880596A05	32-880596511
10	FLOAT	8M6000359	8M0007943, 880596524, 880596522, 880596504
11	PUMP ASSEMBLY, Fuel - High Pressure	880596T55
12	SEAL	880596506
13	SEAL	26-880596507
14	SEAL	26-880596510
15	PUMP KIT, Fuel - Lift	880596T58
16	ISOLATOR	880596509
17	SEAL	26-880596502
18	HOUSING ASSEMBLY	880596501	880596T51
19	PLUG	19-880596516
20	O-RING	25-880596517
-	REPAIR KIT, Seal	26-880596A01
-	TOOL KIT, Fuel Priming	889283A01

Gear Housing(Driveshaft)(Standard/Counter Rotation)

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Gear Housing(Driveshaft)(Standard/Counter Rotation):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete Comment: (Long-Standard)	1600-880686T23
-	GEAR HOUSING ASSEMBLY, Complete Comment: (X-Long-Standard)	1600-880686T24
-	GEAR HOUSING ASSEMBLY, Complete Comment: (Long-Counter Rotation)	1600-880686T28
-	GEAR HOUSING ASSEMBLY, Complete Comment: (X-Long-Counter Rotation)	1600-880686T25
1	GEAR HOUSING ASSEMBLY, Basic	1600-880687T01
2	FILLER BLOCK	821526001	821526
3	PIN, Dowel - Without Hole (.375 x .625)	17-43044
4	ANODE	97-826134Q	826134, 826134A 1
5	SCREW, (M6 x 40)	10-4000333
6	NUT, (M6) Stainless Steel	11-401386
7	PLUG ASSEMBLY, (.375-16 x .250) Drain	10-79953A04
8	SEAL	26-8M0204693
9	ANODE KIT Comment: (Mercury)	97-76214T5
9	ANODE KIT Comment: (Quicksilver)	97-76214Q5
10	SCREW, (.437-14 x 1.750)	10-8M0204686
11	FITTING	22-881866	22-859432
12	COVER ASSEMBLY	8M0047129	880703A 1
13	SEAL, Oil	26-8M0204708
14	O-RING, (799 x .103)	25-896522
15	RETAINING RING	53-8M0046563
16	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
17	WASHER	12-77674
18	GASKET	27-880729
19	SHIFT SHAFT	824145
20	NOT SOLD SEPARATE, Pinion Gear Comment: (Part of 43-880709A02)	NSS
21	NUT, (.625-18)	11-35921
22	WASHER	12-92721
23	BEARING ASSEMBLY, Roller	31-42647A1
24	DRIVESHAFT Comment: (Long)	45-895835
24	DRIVESHAFT Comment: (X-Long)	45-895836
25	SHIM/BEARING ASSEMBLY	15-884327A02
26	SHIM ASSEMBLY	15-8M0063268
27	NOT SOLD SEPARATE, Roller Bearing Assembly	NSS
28	NOT SOLD SEPARATE, Cup	NSS
29	NOT SOLD SEPARATE, Roller Bearing Assembly	NSS
30	NOT SOLD SEPARATE, Cup	NSS
31	RETAINER	8245191
32	HOUSING, Water Pump-Complete	817275A09
33	SEAL KIT	26-861415A1
34	SCREW, (M6 x 20) Stainless Steel	10-8M0204741
35	IMPELLER	47-43026T2
36	FACEPLATE	8M0204709
37	RING, Retaining	53-880719
38	CARRIER ASSEMBLY, Oil Seal	8M0007131	888909A 1
39	O-RING, (2.175 x .103)	25-8M0142854
40	NOT SOLD SEPARATE, Oil Seal	NSS
41	NOT SOLD SEPARATE, Oil Seal	NSS
42	KEY	28-8M0204723
43	GASKET	27-8172771
44	GASKET	27-430331
45	TUBING, (72.00 Inches Bulk) (Cut to 7 Inches) Comment: (Long)	32-85944975
45	TUBING, (72.00 Inches Bulk) (Cut to 12 Inches) Comment: (X-Long)	32-85944975
-	SEAL KIT, Gear Housing	26-830749A01
-	REPAIR KIT, Water Pump Impeller	47-8M0100526	47-43026Q06
-	REPAIR KIT, Water Pump-Upper	817275A08

Gear Housing, Propeller Shaft - Counter Rotation

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Gear Housing, Propeller Shaft - Counter Rotation:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete Comment: (Long)	1600-880686T28
-	GEAR HOUSING ASSEMBLY, Complete Comment: (X-Long)	1600-880686T25
1	GEAR HOUSING ASSEMBLY, Basic	1600-880687T01
2	NOT SOLD SEPARATE, Plug	NSS
3	CRANK, Shifter	896847A01	892075
4	SPOOL ASSEMBLY	8M0235940
5	NOT SOLD SEPARATE, Spool	NSS
6	COTTER PIN	18-469501
7	NOT SOLD SEPARATE, Sleeve Adjusting	NSS
8	GEAR ASSEMBLY, Reverse	43-884337A02
9	BEARING ASSEMBLY, Roller	31-8M0142836
10	NOT SOLD SEPARATE, Cup	NSS
11	RING, Retaining	53-8M0051043	53-23721
12	THRUST WASHER	12-8M0053823	12-892805
13	BEARING ASSEMBLY, Roller-Tappered	31-8M0142835
14	NOT SOLD SEPARATE, Cup	NSS
15	SHIM SET	15-884328A01
16	SPRING	24-30893
17	CLUTCH	52-880714T
18	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
19	PIN, Detent	17-828356
20	PROPELLER SHAFT	44-888530
21	GEAR ASSEMBLY, Forward	43-884335A02	43-884335A01
22	THRUST RING	880699
23	BEARING, Thrust	31-815480
24	CARRIER ASSEMBLY, Bearing	880696A10
25	O-RING, (3.850 x .210)	25-8M0142840
26	BEARING ASSEMBLY, Needle Rollers	31-814653T	31-814653, 31-814653001
27	ADAPTOR, Bearing	8M0148384
28	SHIM SET	15-47397A1
29	SHIM SET	15-891936A01
30	BEARING ASSEMBLY, Tapered	31-8M0148319
31	NOT SOLD SEPARATE, Cup	NSS
32	SEAL, Oil	26-8M0204700
33	SEAL, Oil	26-8M0204700
34	SCREW/SEAL KIT	10-880717A01
35	SEAL	26-8M0204693
36	ADAPTOR	8M0053183	892818
37	SPACER, Thrust	23-891919001
38	KEYED WASHER	14-880697
39	RETAINER	8M2011027	79448
40	NOT SOLD SEPARATE, Decal-Counter Rotation	NSS
41	DRIVE SLEEVE ASSEMBLY	896233A01
42	ADAPTOR	8M0061986	878584Q 1
43	PROP NUT KIT, (.750-16) Comment: (Mercury Branded)	11-52707T1
43	PROP NUT KIT, (.750-16) Comment: (Quicksilver Branded)	11-52707Q1
-	SEAL KIT, Gear Housing	26-830749A01

Gear Housing, Propeller Shaft - Standard Rotation

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Gear Housing, Propeller Shaft - Standard Rotation:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete Comment: (Long)	1600-880686T23
-	GEAR HOUSING ASSEMBLY, Complete Comment: (X-Long)	1600-880686T24
1	GEAR HOUSING ASSEMBLY, Basic	1600-880687T01
2	NOT SOLD SEPARATE, Plug	NSS
3	CRANK, Shifter	896847A01	892075
4	SPOOL ASSEMBLY	8M0235940
5	NOT SOLD SEPARATE, Spool	NSS
6	COTTER PIN	18-469501
7	NOT SOLD SEPARATE, Sleeve Adjusting	NSS
8	GEAR ASSEMBLY, Forward	43-880709A03	43-880709A02
9	SHIM SET	15-884328A01
10	BEARING ASSEMBLY, Roller	31-8M0142836
11	NOT SOLD SEPARATE, Cup	NSS
12	RING, Retaining	53-8M0051043	53-23721
13	THRUST WASHER	12-8M0053823	12-892805
14	BEARING ASSEMBLY, Roller-Tappered	31-8M0142835
15	NOT SOLD SEPARATE, Cup	NSS
16	CLUTCH	52-880714T
17	SPRING	24-30893
18	PIN, Detent	17-828356
19	PROPELLER SHAFT	44-888530
20	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
21	GEAR ASSEMBLY, Reverse	43-8M0119541
22	THRUST RING	880699
23	SPACER, Thrust	23-891919001
24	CARRIER ASSEMBLY, Bearing	880696A08
25	SHIM SET	15-891936A01
26	BEARING, Ball	30-8M0142873
27	SEAL, Oil	26-8M0204700
28	BEARING ASSEMBLY, Tapered	31-8M0148319
29	NOT SOLD SEPARATE, Cup	NSS
30	SEAL, Oil	26-8M0204700
31	O-RING, (3.850 x .210)	25-8M0142840
32	SCREW/SEAL KIT	10-880717A01
33	SEAL	26-8M0204693
34	KEYED WASHER	14-880697
35	RETAINER	8M2011027	79448
36	DRIVE SLEEVE ASSEMBLY	896233A01
37	ADAPTOR	8M0061986	878584Q 1
38	PROP NUT KIT, (.750-16) Comment: (Merucry Branded)	11-52707T1
38	PROP NUT KIT, (.750-16) Comment: (Quicksilver Branded)	11-52707Q1
-	SEAL KIT, Gear Housing	26-830749A01

Induction Components

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Induction Components:

Position No.	Part Name	OEM Number	Supersedes
1	INTAKE ASSEMBLY, Upper	896246A04	896246T02
2	GROMMET	25-8349851
3	FILTER	35-896247
4	GROMMET, Fuel Vent Hose	25-20116
5	SCREW	10-897703
6	BUSHING	23-826618
7	SCREW, (M6 x 25) Stainless Steel	10-40011129
8	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
9	TUBE OUTLET ASSEMBLY	8M0035481	893307A01, 8M0030230, 32-8M0005899
10	HOSE, (65 Inside Diameter)	32-893389
11	HOSE, (60 Inside Diameter)	32-893390
12	CLAMP	54-893342
13	HOSE SLEEVE	893391
14	CLAMP	54-893342
15	COVER, Hose Clamp End	19-8M0074364	19-8M6500037, 19-807992 3
16	DIPSTICK, Oil	898022	893382
17	SCREW, (M6 x 20) Stainless Steel	10-8M0103808
18	GROMMET	25-813644002	25-813644 1
19	BUSHING	23-898445
20	CONTROL ASSEMBLY, Throttle - Electronic	892949T02
21	ISOLATOR	892950T02
22	CLAMP, Worm Gear	54-815504244	54-8M2001492
23	SCREW, (M6 x 50) Stainless Steel	10-88552550
24	BRACKET	884353
25	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
26	INTAKE ASSEMBLY, Lower	892383T51
27	GROMMET	25-8349851
28	BUSHING	23-856954
29	CLAMP	54-888988026
30	CLAMP	54-888988027
31	DUCT, Inlet	896245001
32	COUPLER	896244
33	NOT SOLD SEPARATE, Resonator	NSS
34	SPRING	24-896532
35	CLAMP, Oetiker	54-889691
36	VALVE KIT, Control - Electric Boost	884408A08	884408A07, 884408T05, 884408T06
37	PLATE, Boost Valve Mounting	887939007	887939006
38	O-RING	25-892079
39	SCREW, (M6 x 20) Stainless Steel	10-8M0103806	10-885525 20
40	BUSHING	23-8502341
41	GROMMET	25-833155
42	CLIP	54-859376
43	SCREW, (M8 x 35)	10-8M0103814
44	WASHER, (.344 x 1.00 x .063) Stainless Steel	12-817274	12-817274 1
45	HOSE	32-892947001	32-892947
46	CLAMP, (57.5 mm), Front Electronic Boost Control	54-888988002
47	TUBE, Rear	32-887938003	32-887938002
48	CLAMP, (62.0 mm), Rear Electronic Boost Control	54-888988004
49	SENSOR ASSEMBLY, Pitot	881879T25	881879A16
50	FITTING	22-8M0207782
51	CLIP, (.865)	54-883066
52	SCREW, (M6 x 25) Stainless Steel	10-8M0103807
53	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567

Lube Chart

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Lube Chart:

Position No.	Part Name	OEM Number	Supersedes
-	NO PARTS LIST	NOPART

Oil Pump/Adaptor Plate-Upper

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Oil Pump/Adaptor Plate-Upper:

Position No.	Part Name	OEM Number	Supersedes
1	ADAPTOR PLATE ASSEMBLY	896689A02	896689A01
2	PIN, Dowel	17-892228
3	PLUG, (24 mm)	19-896951
4	O-RING, (1.051 x 1.070) (Inlet)	25-897134
5	O-RING, (.864 x .070) (Outlet)	25-897135
6	SEAL, Oil	26-8M0033928	26-884461
7	SEAL, Water	26-884462
8	SCREW, (M6)	10-897964
9	PUMP ASSEMBLY, Oil	892894T04
10	SCREW, (M6 x 45) Stainless Steel	10-8M0103810
11	DEFLECTOR, Oil Comment: (Not Required)	892335001	892335 (Not Required)
12	SCREW, (M6 x 16) Stainless Steel Comment: (Not Required)	10-8M0103805	10-885525 16 (Not Required)
13	CHECK VALVE ASSEMBLY	21-884477A01
14	DRAIN, Cowl	888819002
15	FITTING ASSEMBLY, Dump	22-896934A02
16	O-RING	25-26317
17	SCREW, (M6 x 16) Stainless Steel	10-8M0103805	10-885525 16
18	WASHER	12-8M0214930
19	FITTING	22-896547001
20	SCREW, (M6 x 12) Stainless Steel	10-8M0103804
21	GROMMET	25-896671
22	BUSHING	23-8M8023048	23-896670001, 23-896670
23	TUBING, (.312) (70.00 Inches Bulk) (Cut to 21 Inches)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
24	CLAMP, Worm Gear	54-815504104	54-54428, 54-809952104, 54-8M2001484, 54-F9005, F24772, F24788, F901788
25	HOUSING, Manifold	892562T01
26	SEAL	892117
27	SCREW, (M6 x 16) Stainless Steel	10-8M0103805	10-885525 16
28	GROMMET	25-897433001	25-897433
29	SEAL, Adaptor Plate	896864001
30	O-RING	25-892446
31	SCREW, (M6 x 35) Stainless Steel	10-88552535
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

Port Cylinder Block Components

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Port Cylinder Block Components:

Position No.	Part Name	OEM Number	Supersedes
1	STUD, (M10 x 175)	16-8M0022165	16-896148
2	STUD	16-8M0022162	16-888997001
3	SENSOR ASSEMBLY, Knock	8M6003194	878187
4	SCREW, (M10 x 35)	10-892086035
5	WASHER	12-4002319
6	JET ASSEMBLY, Oil	884268A1
7	CLAMP, (34.6 mm)	54-8M0187145
8	HOSE	32-885544002
9	FITTING ASSEMBLY	22-896094A01
10	O-RING, (.351 x .072)	25-896699	25-888814
11	TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 23.5 Inches)	32-85978571
12	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
13	SENSOR ASSEMBLY, Pressure, Water	881879T26	881879A20, 881879A19
14	FITTING	22-8M0207782
15	CLIP, (.865)	54-883066
16	STUD, (M8 x 49)	16-8M0000274	16-888849001, 16-897598
17	NUT, (M8)	11-826365
18	FITTING ASSEMBLY	22-885517A05	22-885517A04
19	O-RING	25-892077
20	STUD, (M10 x 54)	16-8M0022166	16-896268
21	STUD, (M8 x 55)	16-8M0000275	16-897599
22	NUT, (M10) Brass/Nickel Plated	11-826292
23	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
24	NUT	11-884412
25	CLIP	54-828991T	54-828991
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	POWERHEAD ASSEMBLY	61-896499A07	61-896499A06

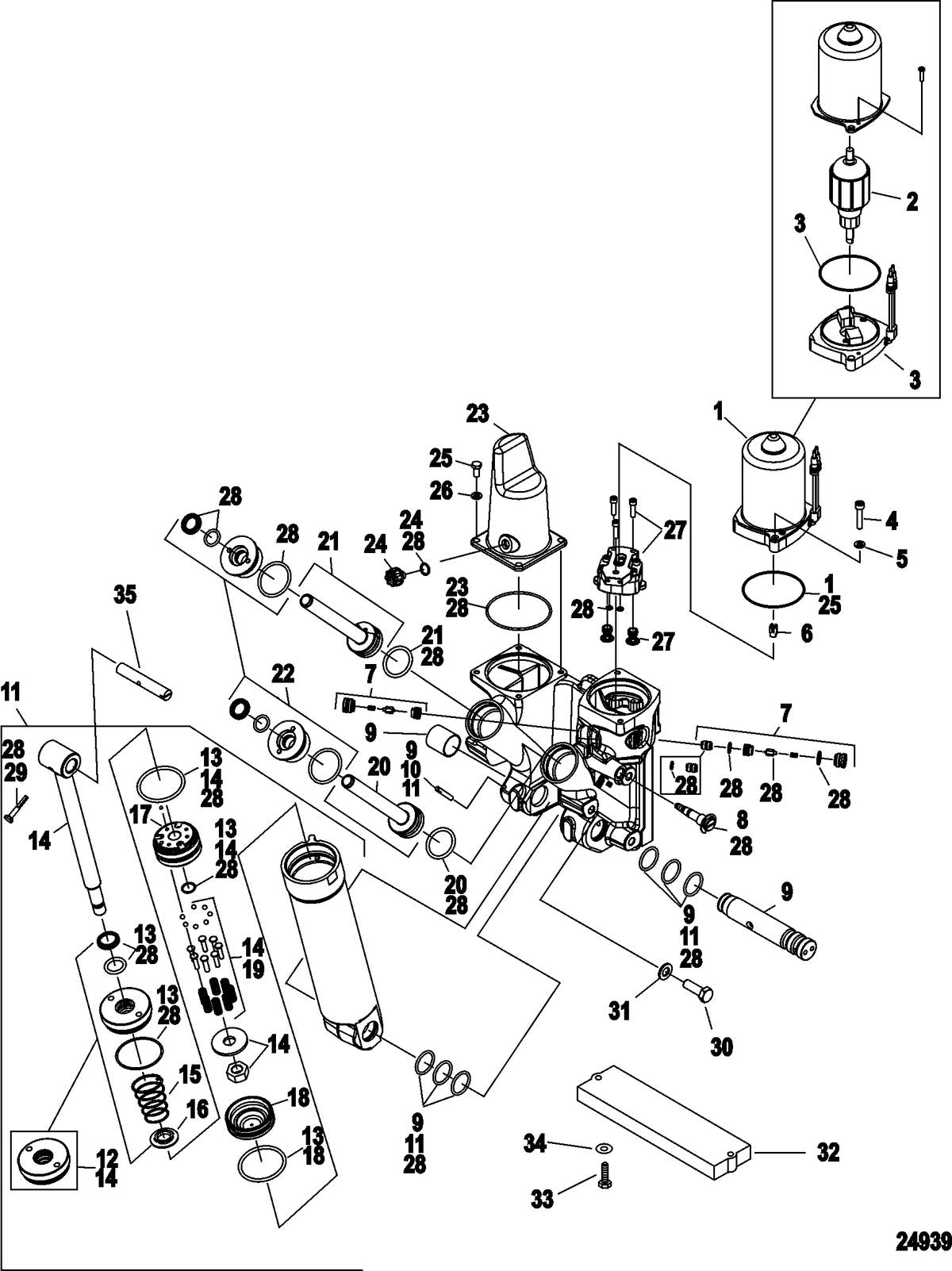

Power Trim Components

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Power Trim Components:

Position No.	Part Name	OEM Number	Supersedes
-	POWER TRIM ASSEMBLY, Complete	855998A11	855998A08, 855998A07, 855998A10, 855998A09, 855998A05, 855998A 3
1	TRIM MOTOR	878265A4
2	NOT SOLD SEPARATE, Armature	NSS
3	NOT SOLD SEPARATE, End Frame	NSS
4	SCREW, (M6 x 30)	10-82494830
5	LOCKWASHER, (M6)	13-400256
6	DRIVESHAFT	8782451
7	PO CHECK KIT	878410A1
8	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	893929A01	813442A 2
9	SHAFT KIT	8M0142997
10	PIN	17-878267	17-44431
11	CYLINDER ASSEMBLY, Tilt	8M0168220
12	GUIDE KIT (Includes Reference #26)	878239A02	878239A 1
13	O-RING KIT (Includes Reference #26)	8M0142999
14	NOT SOLD SEPARATE, Shock Rod Kit	NSS
15	NOT SOLD SEPARATE, Spring-Damper	NSS
16	NOT SOLD SEPARATE, Plate-Damper	NSS
17	NOT SOLD SEPARATE, Shock Piston	NSS
18	PISTON ASSEMBLY, Memory	8M0143000
19	REPAIR KIT, Check Valve (Includes Reference #26)	878406A02	878406A 1
20	PISTON ASSEMBLY (Starboard)	878414T01	878414A 1
21	PISTON ASSEMBLY (Port)	878413A1
22	GUIDE ASSEMBLY	1100-8M0021648	878243A 1
23	RESERVOIR KIT	878264A1
24	PLUG ASSEMBLY	19-811613
25	SCREW, (M6 x 14)	10-4000327
26	WASHER	12-4002315
27	PUMP KIT	892251A01	878411A 1
28	REPAIR KIT, Power Trim	878408A1
29	PIN, Trilobe	17-821539	17-13794, 17-19603
30	SCREW, (M10 x 30)	10-858771
31	WASHER	12-4002319
32	ANODE KIT	97-818298Q1
33	SCREW, (M6 x 25)	10-8M0204707
34	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
35	SHAFT, Upper Tilt	99625003

Powerhead Gasket Set Components

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Powerhead Gasket Set Components:

Position No.	Part Name	OEM Number	Supersedes
-	GASKET SET, Powerhead	27-896142A07	27-896142A06
-	O-RING, Fitting Assembly	25-892077
-	O-RING, Fitting Assembly	25-62701
-	O-RING, Cylinder Block Dowl Pin	25-884409
-	O-RING, Cylinder Block Dowl Pin	25-884423
-	GASKET, Head, Cylinder Head to Block	27-8M0024565	27-896277006, 27-896277002, 27-896277
-	GASKET, Block to Adaptor	27-896142
-	O-RING, (.921 x .139), Oil Plug Assembly	25-8M0204673
-	O-RING, Orange, Tensioner End Cap	25-898836	25-880631001
-	SEAL, Top Main Bearing	26-8M0032912	26-880525 1
-	O-RING, (1.051 x 1.070), Adaptor Plate-Oultet	25-897134
-	O-RING, (.864 x .070), Adaptor Plate-Inlet	25-897135
-	SEAL, Oil, Adaptor Plate	26-8M0033928	26-884461
-	SEAL, Water, Water-Adaptor Plate	26-884462
-	O-RING, Dump Fitting	25-26317
-	O-RING, Oil Pick-Up Tube	25-38780
-	GASKET, Oil Sump	27-895822
-	GASKET, Poppet	27-889561
-	SEAL, Exhaust Tube	26-880629
-	SEAL, Oil Sump Plug	26-888593
-	O-RING, Water Tube	25-892445
-	O-RING, (.921 x .139), Water Tube Coupling	25-8M0204673
-	O-RING, (.796 x .139), Water Tube Coupling	25-8M0204645

Rear Cowl

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Rear Cowl:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Pan Assembly-Complete	NSS
1	PAN ASSEMBLY, Port	895846A04	895846T02
2	GROMMET	25-896671
3	SEAL, Front	8M0043277
4	SCREW, (M4 x 20 mm)	10-888950020
5	SPACER	23-898408
6	PAWL	898354
7	SPRING	24-898353
8	DRAIN, Cowl	888819002
9	PAN ASSEMBLY, Starboard	895847A05	895847T02
10	GROMMET	25-896671
11	SEAL, Back	8M0043278
12	DRAIN, Cowl	888819002
13	PLUG	19-897203
14	NOT SOLD SEPARATE, Latch Assembly-Complete	NSS
15	PANEL ASSEMBLY, Access	888448A02	888448A01
16	SEAL	896927
17	LEVER ASSEMBLY, Rail Latch	896928A01
18	SPRING, Leaf	24-896933
19	SCREW, (M6 x 14) Stainless Steel	10-88552514
20	PIN, Lever	17-896932
21	BUTTON, Latch	898476
22	FITTING	22-895797001	22-895797
23	HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
24	CLAMP, (8.00 Inches)	54-895851
25	SWITCH, Trim	87-8M0235191
26	SCREW, (M6)	10-897964
27	BUSHING	23-8M8023048	23-896670001, 23-896670
28	SHOULDER SCREW, (M6)	10-892073002	10-892073001, 10-892073
29	NUT, (M6) Stainless Steel	11-401386
30	SCREW, (M6 x 55)	10-897657055
31	SCREW, (M6 x 25)	10-897657025
32	SPACER	23-892427
33	FITTING ASSEMBLY, Flush	22-885361A01
34	PLUG	8M0215105
35	O-RING	25-888957
36	TETHER	8M0224266
37	PLENUM, Exhaust Comment: (Mounting tabs have 15mm outside diameter)	896925A01	896925 (Mounting tabs have 15mm outside diameter)
37	PLENUM KIT, Exhaust Comment: (Mounting tabs have 18mm outside diameter)	896925A01	896925 (Mounting tabs have 18mm outside diameter)
38	SHOULDER SCREW, (M6) Comment: (Use with exhaust plenum that has mounting tabs of 18mm outside diameter)	10-892073002	10-892073001, 10-892073 (Use with exhaust plenum that has mounting tabs of 18mm outside diameter)
38	SCREW, (M6 x 20) Stainless Steel Comment: (Use with exhaust plenum that has mounting tabs of 15mm outside diameter)	10-4010620
39	O-RING, (.924 x .103)	25-889828
40	COVER ASSEMBLY, Rear	896618A02	896618A01
41	BOOT, Idle Exhaust	896924
-	NOT SOLD SEPARATE, Chap Assembly (Starboard and Port)	NSS
42	CHAP ASSEMBLY, Port	896054T01
43	SOUND BLANKET, Starboard	897204
44	CHAP ASSEMBLY, Starboard	896055T01
45	SOUND BLANKET, Port	897205
46	SHOULDER SCREW, (M6)	10-892073002	10-892073001, 10-892073
47	SCREW, (M6)	8M0005773
48	GROMMET	25-8M0214987
49	ADAPTOR	8M0214997

Service/Support Material

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Service/Support Material:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 135/150/175 4-Stroke	90-898164006
-	OWNERS MANUAL	90-10249061
-	OWNERS MANUAL, Spanish	90-10249J60
-	OWNERS MANUAL, French	90-10249D60
-	INSTALLATION MANUAL	90-10250061
-	SERVICE MANUAL SET	90-897928T01	90-897928T00
-	PRODUCT GUIDE	90-895269002	90-895269001
-	DECAL, EPA Label Information	37-898165A06

Shift Components(Serial Number 1B290522 and Below)

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Shift Components(Serial Number 1B290522 and Below):

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Acurator Plate Assembly-Complete	NSS
1	BRACKET, Shift	895739T
2	GROMMET	25-855362001	25-855362
3	BUSHING	23-855364
4	SHIFT ACTUATOR	8M0124413
5	BUSHING	23-884532001	23-884532
6	SCREW, (M8 x 35)	10-81893435
7	WASHER	12-898097
8	WASHER, Rubber	12-889661
9	WEAR SLEEVE	23-888589
10	SCREW, (M8 x 60)	10-8M0103817
11	WASHER	12-898097
12	BUSHING	23-884554
13	BELL CRANK	895737
14	PIN	17-895736
15	SPLIT RING	885569
16	NOT SOLD SEPARATE, Cotter Pin (See Service Bulletin 2003-10)	NSS
17	SPACER	884599
18	CABLE ASSEMBLY, (3.50 Inches) Black	84-88807A6
19	RAIL SHIFT SLIDE	896212
20	SCREW, (M8 x 25) Stainless Steel	10-82155025
21	SHIFT SLIDER	895738
22	BUSHING	23-884555
23	SCREW, (M5 x 10)	10-82104510
24	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
25	BUSHING	887901
26	CLIP	54-828991T	54-828991
27	STUD	16-896544
28	BUSHING	23-896551
29	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
30	NUT, (M6) Stainless Steel	11-401386
31	SHIFT LINK	895742
32	LEVER, Shift Shaft Comment: (Long)	8M0091613
32	LEVER, Shift Shaft Comment: (X-Long)	8M0091614	899167001, 897563001 (X-Long)
33	NYLINER	23-74647
34	BUSHING	23-896551
35	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
36	NUT, (M6) Stainless Steel	11-401386
37	SWITCH	87-8M0207794
38	SCREW, (M3 x 20)	10-88075020
39	STUD, (M8 x 50)	16-8M0022167	16-896550
40	WASHER	12-4002318
41	NUT, (M8) Stainless Steel	11-401388

Shift Components(Serial Number 1B290523 and Up)

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Shift Components(Serial Number 1B290523 and Up):

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Acurator Plate Assembly-Complete	NSS
1	BRACKET, Shift	895739T
2	GROMMET	25-855362001	25-855362
3	BUSHING	23-855364
4	SHIFT ACTUATOR	8M0124413
5	BUSHING	23-884532001	23-884532
6	SCREW, (M8 x 35)	10-81893435
7	WASHER	12-898097
8	WASHER, Rubber	12-889661
9	WEAR SLEEVE	23-888589
10	SCREW, (M8 x 60)	10-8M0103817
11	WASHER	12-898097
12	BUSHING	23-884554
13	BELL CRANK	895737
14	PIN	17-895736
15	SPLIT RING	885569
16	NOT SOLD SEPARATE, Cotter Pin (Service Bulletin 2003-10)	NSS
17	SPACER	884599
18	CABLE ASSEMBLY, (3.50 Inches) Black	84-88807A6
19	RAIL SHIFT SLIDE	896212
20	SCREW, (M8 x 25) Stainless Steel	10-82155025
21	SHIFT SLIDER KIT	898053A01
22	BUSHING	23-884555
23	SCREW, (M5 x 10)	10-82104510
24	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
25	BUSHING	887901
26	CLIP	54-828991T	54-828991
27	STUD (Included with Reference 21)	16-898052
28	BUSHING	23-896551
29	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
30	NUT, (M6) Stainless Steel	11-401386
31	SHIFT LINK	895742
32	LEVER, Shift Shaft Comment: (Long)	8M0091613
32	LEVER, Shift Shaft Comment: (X-Long)	8M0091614	899167001, 897563001 (X-Long)
33	NYLINER	23-74647
34	BUSHING	23-896551
35	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
36	NUT, (M6) Stainless Steel	11-401386
37	SWITCH	87-8M0207794
38	SCREW, (M3 x 20)	10-88075020
39	STUD, (M8 x 50)	16-8M0022167	16-896550
40	WASHER	12-4002318
41	NUT, (M8) Stainless Steel	11-401388
42	WASHER, (.344 x .688 x .065) Stainless Steel	12-8M0204690

Starboard Cylinder Block/Oil Cooler

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Starboard Cylinder Block/Oil Cooler:

Position No.	Part Name	OEM Number	Supersedes
1	DEFLECTOR ASSEMBLY, Water	892404A05
2	FITTING ASSEMBLY	22-885518A02	22-885518A01
3	O-RING	25-62701
4	SCREW, (M6 x 16) Stainless Steel	10-8M0103805	10-885525 16
5	CLAMP, (38.1 mm)	54-888988011
6	HOSE	32-888930003
7	CLAMP, (34.6 mm)	54-8M0187145
8	THERMOSTAT ASSEMBLY	8M0174561
9	O-RING	25-8M0005958	25-892864500
10	CLAMP, (36.1 mm)	54-8M0204719
11	HOSE, Thermostat	32-896059001
12	CLAMP, (42.5 mm)	54-888988007
13	FILTER, Fuel	35-8M0062950	35-892242T
14	FILTER, Fuel	35-8M0122423
15	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
16	CONNECTOR	22-892356
17	GRAB TAB	19-863156
18	HOSE, Fuel to Lift Pump	32-8M0087061	32-8M0072520, 32-8M0043796, 32-8M0012218, 32-896239
19	BRACKET ASSEMBLY	892147A01
20	BRACKET	897126
21	BUSHING	23-822003
22	GROMMET	25-8M0190980
23	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
24	SCREW, (M6 x 25)	10-82129125
25	SCREW, (M10 x 85)	10-8M0103824
26	SCREW, (M10 x 105)	10-8M0103820
27	HOSE ASSEMBLY, Fuel Inlet	32-8M0045343	32-880597A01
28	COOLER ASSEMBLY, Oil	8M0132389
29	FILTER, Oil	35-877767K01	35-896546T
30	HOUSING ASSEMBLY, Intergrated Oil Module	892801A50
31	SCREW, (M6 x 18)	10-8M0041014	10-895336
32	GASKET	27-8M0034568	27-880640500
33	THERMOSTAT/GUIDE KIT	880640A06
34	THERMOSTAT	880640508
35	OVERHAUL KIT	892801T51
36	GASKET	27-8M0034568	27-880640500
37	O-RING KIT Comment: (Includes 5 O-Rings)	25-8M0071635	880640A09 (Includes 5 O-Rings)
38	STRAP	895032
39	SCREW, (M6 x 18)	10-8M0041014	10-895336
40	CLIP	54-897559
41	SCREW, (M6 x 25) Stainless Steel	10-8M0103807

Starter Motor

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Starter Motor:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Starter Assembly-Complete	NSS
1	STARTER MOTOR ASSEMBLY	50-892339T01	50-892339T, 50-853329T
2	NOT SOLD SEPARATE, Thru Bolt	NSS
3	GEAR KIT	43-880805A1
4	SOLENOID KIT	809463A1
5	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel	10-69035
6	CABLE ASSEMBLY, (6.00 Inches) Black	84-93388A1
7	NOT SOLD SEPARATE, Decal-Warning-High Voltage	NSS
8	LOCKWASHER, (M5)	13-400255
9	NUT, (M5) Stainless Steel	11-400211
10	LOCKWASHER, (.312)	13-8M0204647
11	NUT, (M8) Stainless Steel	11-400213
12	COLLAR	23-8M0034918	23-8M0001391, 56703
13	STOP	8M0043276	879845

Steering Cylinder Assembly

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Steering Cylinder Assembly:

Position No.	Part Name	OEM Number
-	ACTUATOR ASSEMBLY, Steering - Universal	8M0184531
1	ACTUATOR ASSEMBLY, Steering	8M0184531
2	TIE ROD ASSEMBLY	898081A01
3	PLATE, Lifting Eye	898007001
4	WASHER, Flat	12-898089
5	NUT, Nylon Insert	11-898087
6	NUT, (.375-24) Stainless Steel	11-8M0204726
7	COLLAR	898086001
8	WASHER	12-898090
9	SET SCREW	10-898088
10	SPACER	23-898067
11	LINK ASSEMBLY, Steering - Straight Arm	898082A01
12	SCREW, (.375-24 x 1.38)	10-8M0214980

SuperCharger

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) SuperCharger:

Position No.	Part Name	OEM Number	Supersedes
1	SUPERCHARGER Comment: (135)	8M0104460	8M0060304, 892807T05, 892807T04, 892807T03, 898094T01 (135)
1	SUPERCHARGER Comment: (150)	8M0104460	8M0060304, 892807T05, 892807T04, 892807T03, 898094T01 (150)
1	SUPER CHARGER Comment: (175)	8M0104460	8M0060304, 892807T05, 892807T04, 892807T03, 898094T01 (175)
2	SENSOR, Oil Pressure	71-8M0142688
3	OUTLET DUCT KIT	888947A04
4	GASKET	27-888947504
5	BOLT	10-888947502
6	SENSOR ASSEMBLY	8M0148668
7	O-RING, (.351 x .072)	25-896699	25-888814
8	DUCT KIT, Inlet	888947A05	888947T
9	SEAL	27-888947501
10	BUSHING/GASKET KIT	23-847803A02
-	END CAP KIT, Supercharger	8M0045222	888947A10
11	SCREW, (M10 x 105)	10-8M0103820

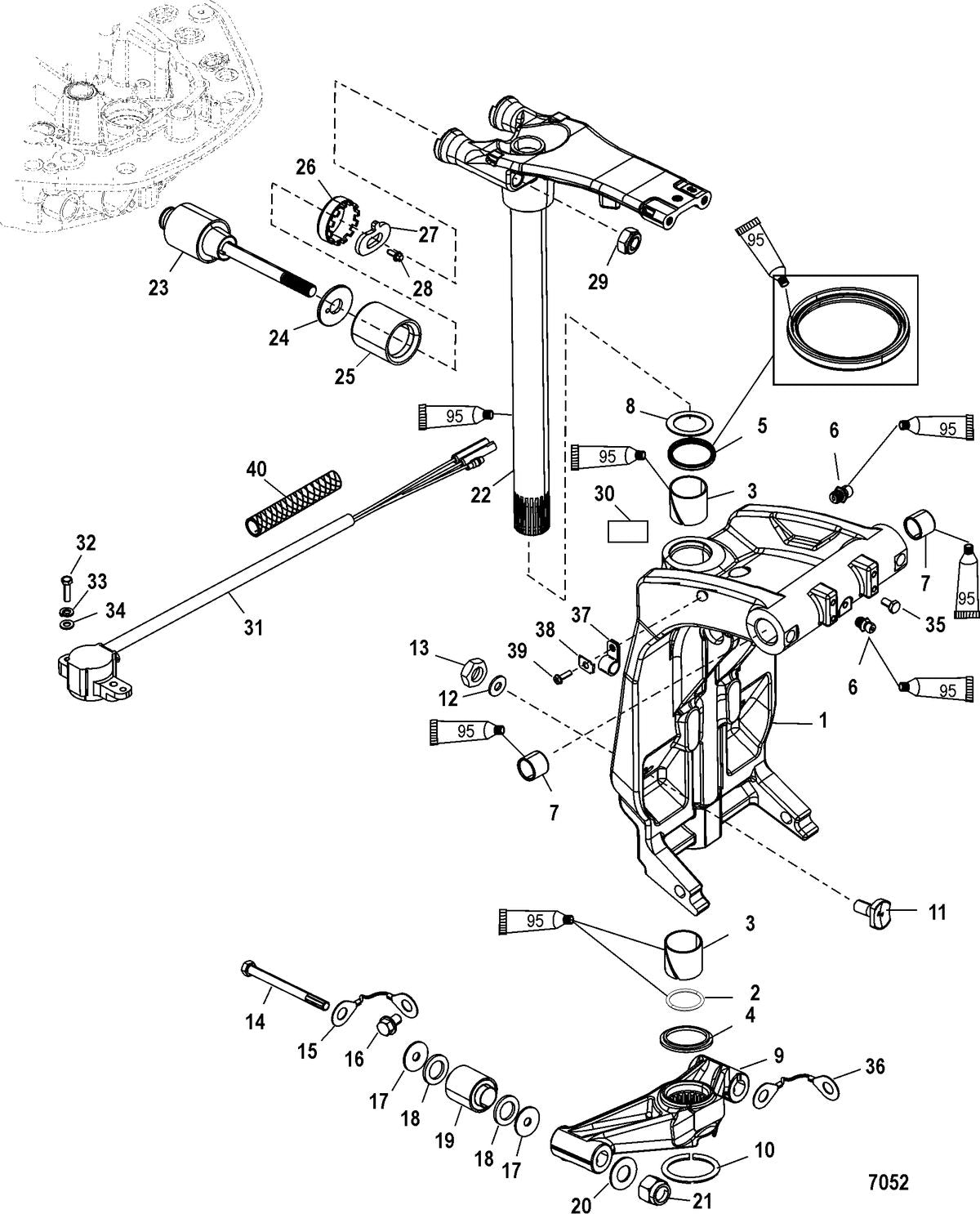

Swivel Bracket and Steering Arm

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Swivel Bracket and Steering Arm:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET	1499-8M0102865	1499-8710T20
2	O-RING	25-8M0214926
3	BUSHING	23-818764	23-67669
4	SPACER	23-816039
5	SEAL, Oil (Lower)	26-87735
6	FITTING, Grease	22-8M0169589
7	BUSHING	23-821207	23-99608
8	THRUST WASHER	12-816432
9	YOKE, Bottom	896888T
10	RING, Retaining	53-67684
11	STRIKER PLATE	8M0045383	99630 1
12	LOCKWASHER, (.375)	13-58643
13	NUT, (.375-24)	11-46335
14	BOLT, (M14 x 175)	10-896217
15	CABLE ASSEMBLY, Ground	88238A10
16	SCREW, (.250-20 x .500) Stainless Steel	10-41508
17	WASHER, (.562 x 2.00 x .125)	12-815432
18	WASHER, (1.25 x 2.00 x .19)	12-8154331
19	MOUNT, Lower	813771003
20	WASHER	12-825190
21	NUT, (M14)	11-896602	11-815434, 11-815434002
22	SWIVEL PIN ASSEMBLY	17-8M0133581
23	MOUNT ASSEMBLY, Upper Comment: SN# 1B245914 & Below	816385A03
23	MOUNT ASSEMBLY Comment: SN# 1B245915 & Up	897991A01
24	WASHER, Retainer	12-898443
25	SLEEVE, Mount Retainer Comment: SN# 1B245914 & Below	898444	896104002 SN# 1B245914 & Below
25	SLEEVE Comment: SN# 1B245915 & Up	898444001
26	NUT, Spanner	11-897731001	11-897731
27	RETAINER	897728
28	SCREW, (M6 x 20) Stainless Steel	10-8M0103806	10-885525 20
29	NUT, (M14)	11-896602	11-815434, 11-815434002
30	NOT SOLD SEPARATE, Decal-Serial Overlaminate	NSS
31	SENDER ASSEMBLY, Trim	896688001
32	SCREW, (#10-24 x .750)	10-852368	10-56682
33	LOCKWASHER, Stainless Steel	10,13-26996
34	WASHER, (.203 x .406 x .040)	12-89302
35	SCREW, (.250-28 x .500)	10-64014
36	CABLE ASSEMBLY	88238T22
37	CLIP	54-22740
38	C WASHER	8M0084613	69205
39	SCREW, (#10-16 x .600)	10-878609	10-812832 1
40	CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)	32-828547353

Tools

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Tools:

Position No.	Part Name	OEM Number	Supersedes
1	FILLER KIT, Steering Helm	64-826525A1
2	DIGITAL DIAGNOSTIC TESTER	91-823686A2
3	HOLDER TOOL	91-52344
4	TOOL, Flywheel Puller	91-895343T02	91-895343T01, 91-895343A02
-	BOLT	10-895346
5	MULTI-METER KIT, DMT 2004	91-892647A01
6	MULTI-METER KIT, DMT 2004	91-892647A01
7	DDT CARTRIDGE	91-880118A04	91-880118A03, 91-880118A 2
8	TECHNICAL MANUAL, Digital Terminal Reference	90-881204003	90-881204 2
9	HARNESS ASSEMBLY, Diagnostic Tester	84-822560A13
10	CABLE ASSEMBLY, DDT	84-825003A1
11	CLAMP TOOL KIT	91-803146A04	91-803146A 2
12	GAUGE	91-881834A1
13	PRESSURE METER, Digital	91-892651A01
14	PUMP ASSEMBLY, Crankcase Oil	90265A5
15	NOT AVAILABLE, Not Sold With This Model
16	DRILL FIXTURE KIT, Transom	91-98234A2
17	PULLER ASSEMBLY, Cable	888462A1
18	COMPRESSOR TOOL, Valve Spring	91-809494A1
19	UP PRESSURE KIT	91-822778A2
19	DOWN PRESSURE KIT	91-822778A3
20	TEST GAUGE KIT	91-52915A6
21	REMOVER TOOL, Trim Rod Guide	91-44487T1
22	SPANNER WRENCH	91-74951
23	REMOVAL TOOL, Trim Rod	91-44486A1
-	GAUGE KIT, Air/Fuel Pressure	91-881833A03	91-881833A 2
1	DIAL INDICATOR TOOL	91-58222A1
2	ADAPTER KIT, Dial Indicator	91-83155
3	PULLER JAW ASSEMBLY	91-46086A1
4	PULLER TOOL	91-85716
5	INDICATOR TOOL, Backlash	91-8M0053505	91-78473
6	PRESSURE METER, Digital	91-892651A01
7	HOLDER TOOL	91-52344
8	WRENCH, Torque Adaptor	91-809905001
9	PRIMER KIT, Power Steering Module	91-895040K01
10	TOOL, Fuel Filter	91-896661
11	TOOL KIT, Upper Mount Alignment	91-899015A01
-	HOLDING TOOL, Dial Indicator	91-89897
-	TESTER KIT	FT8950
-	DRAIN/FILL TOOL, Gearlube	91-804998T
-	TOOL KIT, Fuel Priming	889283A01

Top Cowl

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Top Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY Comment: (Mercury)	100-8M0050003	100-895844T09, 100-895844T07, 100-895844T01 (Mercury)
1	TOP COWL ASSEMBLY Comment: (Mariner)	100-8M0113901	100-8M0050002, 100-895844T10, 100-895844T08, 100-895844T02 (Mariner)
2	CAP, Air Dam Comment: (Mercury)	895845T
2	CAP, Air Dam Comment: (Mariner)	895845T01
3	SCREW, (M4 x 20 mm)	10-888950020
4	HOOK	896959
5	BRACKET, Support	897444002	897444001, 897444
6	SCREW, (M6 x 14)	10-82130014
7	LATCH ASSEMBLY, Front	897437T02	897437T01
8	SPRING	24-8M0109644	24-897440
9	PIN, Clevis	17-897441
10	RING, Retaining	53-27290
11	SCREW, (M6 x 14)	10-82130014
12	SEAL	896997001	896997
13	SOUND BLANKET KIT	8M4501659	897431A01
-	DECAL SET, (Generic) Comment: (Mercury)	37-892565A06
-	DECAL SET, (Generic) Comment: (Mariner)	37-892870A06
-	DECAL SET, Port And Starboard Comment: (Mercury)	37-892565A02
-	DECAL SET, Port And Starboard Comment: (Mariner)	37-892870A01
-	DECAL, Horsepower (135), Rear Comment: (Mercury 135)	37-8M0061182	37-892565002 (Mercury 135)
-	DECAL, Rear Comment: (Mariner 135)	37-892870003
-	DECAL, Horsepower (150), Rear Comment: (Mercury 150)	37-8M0061183	37-892565003 (Mercury 150)
-	DECAL, Rear Comment: (Mariner 150)	37-892870004
-	DECAL, Horsepower (175), Rear Comment: (Mercury 175)	37-8M0061184	37-892565004 (Mercury 175)
-	DECAL, Rear Comment: (Mariner 175)	37-892870005

Transom Brackets

Below is the parts list for Mercury 150 VERADO (4-STROKE)(4 CYL.) Transom Brackets:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET ASSEMBLY, Transom-Starboard	3426-828334T03
2	BRACKET ASSEMBLY, Transom-Port	3425-828333T08
3	FITTING, Grease (PORT)	22-8M0169588
4	TILT TUBE	826125A1
5	NUT, (1.00-14) Brass/Nickel Plate	11-826135
6	O-RING, (.612 x .103)	25-45711
7	WASHER	13-88750
8	NUT, (.875-14)	11-826164
9	SCREW, (.500-20 x 4.500)	10-8M0149747
10	WASHER, (.530 x .870 x .105) Stainless Steel	12-8M0204665
11	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel	12-8M0204648
12	NUT, (.500-20)	11-82671117
13	LEVER ASSEMBLY, Tilt Lock	8M0115104	8M0115103, 99629T 2
14	SPRING, Tension	24-830899
15	NYLINER	23-65830
16	SPRING, Compression	24-830900
17	KNOB	99633
18	PIN, Groove	17-99615
19	PIN	17-893709	17-99617

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
