Mercury 1250 (2314956 THRU 2839368) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 1250 Outboard Motor Parts Diagram & Catalog – Free PDF Download

BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 1250 BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM	2115-3807
1	COWL, BOTTOM	2115-3807
2	CRIP TRAY ASSEMBLY, BOTTOM COWL	52862A2
2	CRIP TRAY ASSEMBLY, BOTTOM COWL	52862A2
3	PAD, SOUND - DRIP TRAY	37940
4	SCREW, DRIP TRAY TO BOTTOM COWL (1/2")	10-41228
5	HOSE, DRIP TRAY TO BOTTOM COWL (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	BOOT, CONTROL CABLES - BOTTOM COWL	37638
7	SPACER, BOTTOM COWL (COWL FRONT COVER)	76369
8	SCREW, SPACER TO BOTTOM COWL (1/2")	10-48591
9	BOOT, FUEL CONNECTOR - BOTTOM COWL	37637
10	BAFFLE, BOTTOM COWL	23760
11	SCREW, BAFFLE TO BOTTOM COWL	10-21106
11	SCREW, BAFFLE TO BOTTOM COWL	10-52867
12	SUPPORT, WIRING HARNESS - BOTTOM COWL	37445
13	SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")	10-69029
13	SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2 1/2")	10-37561
14	NUT, WIRING HARNESS SUPPORT SCREW	11-8M0207775
15	HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
16	CONNECTOR, TELL TALE HOSE TO BOTTOM COWL	22-291112
16A	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
17	SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")	10-41228
18	ELBOW, TELL TALE HOSE TO EXHAUST COVER	22-996642
19	CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW	54-48123
20	GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE	27-56304
21	PLATE ASSEMBLY, EXHAUST EXTENSION	48712A2
21	PLATE ASSEMBLY, EXHAUST EXTENSION	56306A2
22	SEAL, RUBBER - WATER INLET TUBE	26-38970
23	RETAINER, WATER TUBE SEAL	38448
24	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")	10-69069
25	SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	10-24226
26	NUT, EXHAUST EXTENSION PLATE SCREW	11-8M0207775
27	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-48801
28	SEAL, EXHAUST EXTENSION PLATE	37918
29	STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL	99358
30	SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")	10-37571
31	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653879 AN Comment: SERIAL 00000000-02653879	49904A2
31	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: SERIAL 00000000-02653879	49905A2
31	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653880 AN Comment: SERIAL 02653880-09999999	60304A55
31	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) Comment: SERIAL 02653880-09999999	60304A54
32	BUSHING, SHIFT SHAFT Comment: SERIAL 02653880-09999999	23-26600
33	COUPLING, SHIFT SHAFT Comment: SERIAL 02653880-09999999	93960A1
34	LINK ROD ASSEMBLY	73402
35	WASHER, LINK ROD	12-24664
36	WASHER, WAVE - LINK ROD	13-29720
37	BRACKET ASSEMBLY, ANCHOR CONTROL CABLES	52732A6
38	CAP, BRASS BARREL TO THROTTLE CABLE	38802
38	CAP, BRASS BARREL TO THROTTLE CABLE	49935
39	SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")	10-35386
40	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
41	GUIDE BLOCK, LINK ROD	37896
42	WASHER, NYLON - LINK ROD	12-37905
42	WEAR PLATE, LINK ROD (NOT AS SHOWN)	52100
43	LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET	8M0036768	38279
44	WASHER, PLAIN - LINK ROD	12-69056
45	NUT, LINK ROD	11-826709109	11-33825, 11-35045
46	LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET	49932A1
46	LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET	49932A1
47	SPRING, CONTROL CABLE LOCKING LEVER	24-37911
48	PIN, ROLL - CONTROL CABLE LOCKING LEVER	17-239281
49	SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET	24-38472
50	GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")	46933A1
51	GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")	46933A2
52	SCREW, GROUND STRAP FASTENING	10-62568
53	LOCKWASHER, GROUND STRAP SCREW	13-69432

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 1250 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOTE ON PAGE 14	1348-3547
1	CARBURETOR ASSEMBLY, COMPLETE (KD-1B)	1348-3547
1	CARBURETOR ASSEMBLY, COMPLETE (KD-2A) SEE NOTE ON PG 14	1348-3718
2	FLOAT ASSEMBLY SEE NOTE ON PG 14	1395-8673
3	PIN, FLOAT LEVER PINION SEE NOTE ON PG 14 (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET	1395-92581
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
9	COVER, FLOAT BOWL	1399-1133
10	SCREW, FLOAT BOWL COVER (SHORT)	10-22625
11	SCREW, FLOAT BOWL COVER (LONG)	10-25850
10	SCREW, FLOAT BOWL COVER (SHORT)	10-52195
11	SCREW, FLOAT BOWL COVER (LONG)	10-52196
12	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
13	GASKET, STRAINER COVER (LARGE) (#)
14	SCREEN, FILTER	1399-3938
15	GASKET, STRAINER COVER (SMALL) (#)
16	COVER, STRAINER	1399-4791A1
17	GASKET, STRAINER COVER SCREW (#)
18	SCREW, STRAINER COVER FASTENING	10-25822
19	SCREW, THROTTLE STOP LEVER	1395-6027
20	LEVER, THROTTLE STOP (SEE NOTE BELOW)	8146791
21	SHAFT, THROTTLE	1395-7942
22	TUBE, IDLE (#)
22	TUBE, IDLE (#)
23	SCREW, BODY (IDLE TUBE)	10-23178
24	GASKET, IDLE TUBE (#)
25	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
26	SHUTTER, THROTTLE	1395-9017
27	SPRING, IDLE ADJUSTMENT SCREW (#)
28	SCREW, IDLE ADJUSTMENT	1399-3515
29	SCREW, PLUG - MAIN FUEL JET CHANNEL	10-28405
30	GASKET, JET CHANNEL PLUG SCREW (#)
31	JET, MAIN FUEL (.084)	1399-3517
31	JET, MAIN FUEL (.082) - STANDARD	1399-3518
31	JET, MAIN FUEL (.080)	1395-6201
31	JET, MAIN FUEL (.0785)	1399-3520
31	JET, MAIN FUEL (.076) - STANDARD	1399-3796
31	JET, MAIN FUEL (.074)	1399-3794
31	JET, MAIN FUEL (.072)	1395-6207
32	NOZZLE, MAIN (FOR KD-1A CARBURETOR) (#)
32	NOZZLE, MAIN (FOR KD1B CARBURETOR) (#)
32	NOZZLE, MAIN (#)
33	SCREW, PLUG - MAIN NOZZLE	1399-3522
34	SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR) (#)
34	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (#)
35	WELCH PLUG, BODY CHANNEL (#)
36	SCREW, BODY CHANNEL	10-23030
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1A CARBURETOR	1399-3524
--	REPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1B CARBURETOR	1395-92621
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KIT (1 PER CARBURETOR)	1395-92621
37	GASKET, CARBURETOR FLANGE	27-481641
38	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 1250 CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	48187
2	LOCKWASHER, SOLENOID TERMINAL	13-26996
3	NUT, SOLENOID TERMINAL	11-68219
4	SCREW, CHOKE SOLENOID (3/4")	10-25299
5	LOCKWASHER, CHOKE SOLENOID SCREW	13-8M0204647
6	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID	48315A2
7	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)	48693
7	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)	52518
8	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
9	CARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOT BELOW	1348-3547
9	CARBURETOR ASSEMBLY, COMPLETE (KD-1B) SEE NOT BELOW	1348-3547
9	CARBURETOR ASSEMBLY, COMPLETE (KD-2)	1348-3718
10	THROTTLE PICK-UP BRACKET ASSEMBLY Comment: SERIAL 00000000-02654512	53720A2
11	SCREW, THROTTLE BRACKET MOUNTING (1/2") Comment: SERIAL 00000000-02654512	10-29239
10	THROTTLE PICK-UP BRACKET ASSEMBLY Comment: SERIAL 02654513-09999999	53720A2
11	SCREW, THROTTLE BRACKET MOUNTING Comment: SERIAL 02654513-09999999	10-53651
--	INSERT, THROTTLE COUPLING Comment: SERIAL 02654513-09999999	28-89694
12	BRACKET, COIL LEAD RETAINER	59757
13	SCREW, COIL BRACKET (1")	10-64278
14	WASHER, COIL BRACKET SCREW	12-8M0204649
15	NUT, COIL BRACKET SCREW	11-8M0207775
16	KNOB, CHOKE ROD	90242A1
17	GROMMET, CHOKE ROD	25-20116
18	STRAP, CHOKE KNOB TO CHOKE ROD	49589
19	SCREW, STRAP TO CHOKE KNOB (1/2")	10-48591
20	LOCKWASHER, STRAP SCREW	13-26996
21	ROD, CHOKE	48203
22	SCREW, STRAP TO CHOKE ROD (1/2")	10-48591
23	NUT, STRAP TO CHOKE ROD SCREW	11-46438
24	SHUTTER, CHOKE - CARBURETOR	48152
25	STUD, CARBURETOR - CHOKE SHUTTER PIVOT	16-48790
25	STUD, CARBURETOR - CHOKE SHUTTER PIVOT	16-69037
26	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
27	SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP)	35-57819A1
28	SCREW, CARBURETOR FILTER SCREEN STO CARBURETOR (5/8")	10-22523
29	NUT, CARBURETOR FILTER SCREEN FASTENING SCREW	11-20110
30	SCREEN, FILTER - CARBURETOR (LOWER)	35-48406
31	SPRING, CHOKE ROD TENSION	24-48230
32	STUD, CHOKE ROD SPRING TO CARBURETOR	10-657461
33	SPACER, CHOKE ROD SPRING STUD	23-32427
34	NUT, CHOKE ROD SPRING TO CARBURETOR STUD	11-8M0207775

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 1250 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WAHSER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	SHIM, CLAMP BRACKET TILT TUBE (.010-.020)	12-52864
5	WASHER, CLAMP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-22053
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
13	SLEEVE, RUBBER - TILT PIN BUMPER	32-28052
14	SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)	1490-7256A2
14	SWIVEL BRACKET ASSEMBLY (LONG SHAFT)	1482-6386A4
15	OIL SEAL, SWIVEL BRACKET	26-37448
16	SCREW, DRIVE - SWIVEL BRACKET	10-47828
17	FITTING, GREASE - SWIVEL BRACKET	22-69059
18	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
19	SPRING, COIL - SWIVEL BRACKET	24-94891
20	PIN, COIL SPRING MOUNTING	17-38311
21	TILT LOCK ASEMBLY, STARBOARD	76386
22	TILT LOCK ASSEMBLY, PORT	76385T
23	TUBE, TILT LOCK	47802
24	COTTER PIN, TILT LOCK TUBE	18-47959
25	BUSHING, TILT LOCK TUBE	23-47803
26	WASHER, WAVE - TILT LOCK TUBE	13-69150
27	SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)	17-49841A1
27	SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)	17-49840A1
28	BUMPER, STEERING ARM	28203
29	BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")	10-49554
30	NUT, STEERING ARM BOLT FASTENING	11-8M0204653
31	SCREW, RIDE-GUIDE ATTACHING	10-31830
32	NUT, RIDE-GUIDE ATTACHING SCREW	11-8M0204726
33	WASHER, SWIVEL PIN - LOWER	12-37429
34	YOKE, BOTTOM	73984T
35	NUT, SWIVEL PIN RETAINING	11-37424
36	STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
37	SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")	10-28200
38	NUT, STRAP STOP FASTENING SCREW	11-25269
39	SPACER, RUBBER - COIL SPRING POSITIONING	23-28688
40	PIN, UPPER SHOCK MOUNTING	55-28416
41	BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)	10-68298
41	BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)	10-68299
42	WASHER, CLAMP BRACKET BOLT (LOWER)	12-68410
42	WASHER, CLAMP BRACKET BOLT (UPPER)	12-68300
42	WASHER, CLAMP BRACKET BOLT (UPPER)	12-68300
43	NUT, CLAMP BRACKET BOLT	11-82670912
44	SERIAL PLATE	38-56267
45	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
46	PIN, REVERSE LOCK SPRING ATTACHING	17-25598
47	SPRING, REVERSE LOCK TENSION	24-29821
48	REVERSE LOCK ASSEMBLY	87431
49	SHAFT, REVERSE LOCK PIVOT	56349
50	COTTER PIN, REVERSE LOCK TO SHAFT	18-45882
51	PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)	55-696531
51	PIN, LOWER SHOCK MOUNTING (LONG SHAFT	55-28414
--	SCREW, LOWER SHOCK PIN (LONG SHAFT	10-28424
--	NUT, LOWER SHOCK PIN SCREW (LONG SHAFT	11-8M0207775
52	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
53	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
54	WASHER, LOWER BUSHING RETAINER (INNER)	12-8M0204695
55	SHOCK ABSORBER	55-58780A7
56	BUSHING, RUBBER - SHOCK ABSORBER (UPPER)	23-32171
57	BUSHING, RUBBER - SHOCK ABSORBER (LOWER)	23-28198
58	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
59	SCREW, NYLOK - UPPER AND LOWER SHOCK MOUNTING PIN	10-28450
59	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN	10-69375A1
60	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
61	SCREW, COVER TO SHOCK MOUNTING SCREW	10-37655

COWLING AND FRONT COVER

Below is the parts list for Mercury 1250 COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY	2183-7928A3
1	COWL FRONT COVER ASSEMBLY	2183-7928A3
2	EMBLEM, FRONT COVER	37-64413
3	KNOB, COWL FRONT COVER FASTENING	56849
4	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
5	WASHER, COVER FASTENING KNOB (STEEL)	12-26825
6	SPRING, TENSION - FASTENING KNOB	24-30772
7	ROLL PIN, TENSION SPRING TO KNOB	17-29077
8	STRIP, SOUND ABSORBING	31089
9	BLANKET, SOUND ABSORBING	38675
10	SEAL, SOUND ABSORBING - UPPER	35769
11	SEAL, SOUND ABSORBING - TOP	53334
12	WRAP AROUND COWL ASSEMBLY	2136-4660A4
12	WRAP AROUND COWL ASSEMBLY	2136-4660A4
13	COWL LATCH ASSEMBLY	46785A1
14	HOOK, COWL LATCH FASTENING	30413
15	BLANKET, SOUND ABSORBING	30021
--	CLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1
--	ADHESIVE COMPOUND, EMBLEM FASTENING	92-271091

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 1250 CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY (NOT AS SHOWN)	436-9072A1
1	CRANKSHAFT ASSEMBLY (NOT AS SHOWN)	436-9072A1
2	NUT, FLYWHEEL TO CRANKSHAFT	11-52901
3	BEARING, BALL - UPPER	30-62567T
4	BEARING, BALL - LOWER Comment: SERIAL 00000000-02709827	30-63742T
4	BEARING, BALL - LOWER Comment: SERIAL 02709828-09999999	30-63742T
5	CENTER MAIN BEARING ASSEMBLY	535-3190A2
6	DOWEL PIN, CENTER MAIN BEARING	17-20032
7	BEARING, NEEDLE - OUTER RACE	29-714221
8	RACE, OUTER (PAIR)	26113T
9	RING, SMAP - OUTER RACE	53-26933
10	DOWEL PIN, STEPPED	17-47246
11	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
12	NUT, BEARING CLAMPING SCREW	11-8M0207775
13	MAIN BEARING ASSEMBLY, VALVE TYPE	540-7238A2
14	DOWEL PIN, MAIN BEARING	17-20032
15	SCREW, MAIN BEARING CLAMPING	10-45775
16	NUT, MAIN BEARING CLAMPING SCREW	11-45774
17	REED SET, MATCHED - MAIN BEARING	34-56007A1
18	REED STOP, MAIN BEARING REED VALVES	34-48081
19	SCREW, REED STOP MOUNTING	10-20597
20	PISTON AND PISTON PIN ASSEMBLY "G" TYPE LOCK RING Comment: SEE DRAWING BELOW	742-3512A2
21	LOCK RING, PISTON PIN G" TYPE LOCK RING Comment: SEE DRAWING BELOW	40-45740
22	RING, PISTON (1/16") G" TYPE LOCK RING Comment: SEE DRAWING BELOW	39-78816A12
20	PISTON AND PISTON PIN ASSEMBLY "C" TYPE LOCK RING Comment: SEE DRAWING BELOW	742-3512A2
21	LOCK RING, PISTON PIN "C" TYPE LOCK RING Comment: SEE DRAWING BELOW	53-857196	40-52035 SEE DRAWING BELOW
22	RING, PISTON (1/16" THICK) "C" TYPE LOCK RING Comment: SEE DRAWING BELOW	39-78816A12
23	CONNECKTING ROD AND CAP ASSEMBLY	624-8101A3
23	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
24	BEARING ASSEMBLY, CRANKPIN	31-62596A1
25	SCREW, CONNECTING ROD	10-54803
26	NUT, CONNECTING ROD SCREW	11-49091
27	BEARING NEEDLE - PISTON PIN	29-8M0214934
28	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 1250 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	END CAP ASSEMBLY, UPPER	1134-3197A1
2	OIL SEAL	26-41953
3	"O" RING	25-47254
4	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-47248A1
5	SCREW, END CAP MOUNTING (A")	10-30225
6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (NOT AS SHOWN)	846-3181A7
6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (NOT AS SHOWN)	846-3181A7
7	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53862
8	PLUG, PIPE - WATER PRESSURE HOSE	22-328022
9	STUD, CARBURETOR MOUNTING (1 3/16")	16-64936
10	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")	16-64281
11	PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK	17-43044
12	PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING	17-20323
13	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")	16-26134
14	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 9/16")	16-48770
14	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 9/16")	16-48770
15	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")	16-26135
15	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")	16-68166
15	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/8")	16-26324
16	SCREW, CRANKCASE TO CYLINDER BLCOK (3 1/2")	10-33008
16	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2") Comment: SERIAL 00000000-00270982	10-26132
16	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2") Comment: SERIAL 00270982-09999999	10-53460
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")	10-32293
--	WASHER, CRANKCASE TO CYLINDER BLOCK SCREW	12-26825
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")	10-78841
17	SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
--	WASHER CRANKCASE TO CYLINDER BLOCK SCREW	12-22753
18	NUT, CRANKCASE FASTENING SCREW	11-29250
19	SCREW, CENTER MAIN BEARING LOCKING	10-20359
20	TAB WASHER, BEARING LOCKING SCREW	14-20091
21	END CAP ASSEMBLY, LOWER	1126-3196A1
21	END CAP ASSEMBLY, LOWER	1126-3196A3
22	CHECK VALVE ASSEMBLY, END CAP	21-28481A1
23	OIL SEAL, LOWER	26-29478
24	OIL SEAL, UPPER	26-41953
24	OIL SEAL, UPPER	26-41953
25	"O" RING	25-20081
26	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
27	SCREW, END CAP MOUNTING (1")	10-30225
28	COVER, WATER JACKET - CYLINDER BLOCK Comment: PART OF A-846-3181A7 CYLINDER BLOCK AND CRANKCASE ASSEMBLY	66696A1
29	GASKET, WATER JACKET COVER Comment: PART OF A-846-3181A7 CYLINDER BLOCK AND CRANKCASE ASSEMBLY	27-47228
30	SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8") Comment: PART OF A-846-3181A7 CYLINDER BLOCK AND CRANKCASE ASSEMBLY	10-53167T
31	LOCKWASHER, WATER JACKET COVER FASTENING SCREW Comment: PART OF A-846-3181A7 CYLINDER BLOCK AND CRANKCASE ASSEMBLY	13-53166
32	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-47229
33	PLATE, BAFFLE - EXHAUST MANIFOLD	62277A1
34	GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-47227
35	COVER, EXHAUST MANIFOLD	47253
36	SCREW, MANIFOLD COVER MOUNTING (1 1/8")	10-38837
37	SWITCH, MERCURY	58124A4
38	SCREW, MERCURY SWITCH TO FRONT MOUNTING BRACKET (1/2")	10-28708
39	PIN, ROLL - MERCURY SWITCH	17-30496
40	SCREW, MERCURY SWITCH LEAD	10-8M0113176
40	SCREW, MERCURY SWITCH LEAD	10-62568
41	COVER, CYLINDER BLOCK	1011-3208
42	GASKET, CYLINDER BLOCK COVER	27-47226
43	SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")	10-21091
44	NUT, COVER MOUNTING SCREW	11-8M0207775
45	PLUG, PIPE - CYLINDER BLOCK COVER	22-328022
46	BRACKET, MOUNT SUPPORT - CYLINDER BLOCK	37440
47	SCREW, BRACKET TO CYLINDER BLOCK (1")	10-35386
48	COVER, TRANSFER PORT	47236
49	GASKET, TRANSFER PORT COVER	27-472511
50	SCREW, TRANSFER PORT COVER MOUNTING (5/8")	10-28635
51	CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER	22-67902
51	CONNECTOR, CYLINDER BLEED HOSE - LOWER AND UPPER	22-67902
52	HOSE, UPPER AND LOWER CYLINDER BLEED (9 1/2")	32-9912688
52	HOSE, UPPER AND LOWER CYLINDER BLEED (9 1/2")	32-9912688
53	CHECK VALVE ASSEMBLY, BLEED HOSE	22-62365A1
53	CHECK VALVE ASSEMBLY, BLEED HOSE	22-62365A1
54	CHECK VALVE ASSEMBLY	21-28481A1
54	CHECK VALVE ASSEMBLY	21-28481A1
55	CLAMP, BLEED HOSE TO CONNECTOR	54-20387
55	CLAMP, BLEED HOSE TO CONNECTOR	54-20387
56	TEE, BLEED HOSE TO CYLINDER BLOCK - CENTER	22-432881
57	HOSE, CENTER CYLINDER BLEED (9 1/2")	32-9912688
58	TUBE, BALANCE - MAIN BEARING	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
59	TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER	22-53491
60	HOSE, CYLINDER BLEED - LOWER (8 1/2")	32-9912688
61	ELBOW, BALANCE TUBE TO MAIN BEARING SCREW	22-20781
61	ELBOW, BALANCE TUBE TO MAIN BEARING SCREW	22-20781
62	TEE, BALANCE TUBE TO MAIN BEARING SCREW	22-8585531
63	CLAMP, BALANCE TUBE TO ELBOW AND TEE	54-20386

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY

Below is the parts list for Mercury 1250 DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT, DISTRIBUTOR	45-47982
2	PILOT, DISTRIBUTOR MOUNTING	48667
3	SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (2 3/4") Comment: WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.	24-33453
3	SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (3 17/32") Comment: WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.	24-54639
4	GROUND STRAP, DISTRIBUTOR ADAPTOR CRANKCASE	30109
5	SCREW, GROUND STRAP TO CRANKCASE (3/8")	10-62568
6	SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8") - USE WITH Comment: USE WITH 2 3\4 SPRING -SEE REF. #3	10-28667
6	SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8") Comment: USE WITH 3 17\32" SPRING SEE REF. #3	10-28667
6	SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 3/8") USE WITH 3 Comment: USE WITH 3 17\32" SPRING SEE REF. #3	10-69067
7	WASHER, DISTRIBUTOR PILOT SCREW Comment: USE WITH 3 17\32" SPRING SEE REF. #3	12-20533
7	LOCKWASHER, DISTRIBUTOR PILOT SCREW	13-26992
8	LINK, DISTRIBUTOR PILOT TO DISTRIBUTOR ADVANCE ARM	48676
9	BUSHING, NYLON - DISTRIBUTOR PILOT	23-26856
10	WASHER, DISTRIBUTOR PILOT LINK	12-20583
11	COTTER PIN, LINK TO DISTRIBUTOR PILOT	18-210711
12	SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM	53635
12	SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM	53635
13	NUT, JAM - LINK TO SWIVEL	11-25168
13	NUT, JAM - LINK TO SWIVEL	11-25168
13	NUT, JAM - LINK TO SWIVEL	11-30506
14	WASHER, DISTRIBUTOR TO PILOT	12-46246
15	BEARING, BALL - DISTRIBUTOR PILOT	30-20066
16	CAM, DISTRIBUTOR	48691
17	SCREW, CAM FOLLOWER TO DISTRIBUTOR ADVANCE ARM	10-48673
18	CAM FOLLOWER, DISTRIBUTOR ADVANCE ARM	48678
19	COLLAR, ECONOMIZER	48690
20	SCREW, DISTRIBUTOR CAM TO ECONOMIZER COLLAR (1")	10-49990
21	WASHER, DISTRIBUTOR CAM SCREW	12-847883	12-20128
22	FITTING, GREASE - ECONOMIZER COLLAR	22-25094
23	COLLAR, THROTTLE ACTUATOR	48692
24	SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")	10-48675
25	NUT, ADJUSTING SCREW	11-20890
26	CAP, NYLON - ADJUSTING SCREW	52023
27	PLATE, THROTTLE ACTUATOR	48671
28	CAM, THROTTLE ACTUATOR PLATE	54239
29	SCREW, ACTUATOR PLATE TO ECONOMIZER COLLAR (1")	10-37892
30	LOCKWASHER, ACTUATOR PLATE SCREW	13-26996
31	WASHER, ACTUATOR PLATE SCREW	12-847883	12-20128
32	SPACER, ACTUATOR PLATE SCREW	23-48674
33	ADAPTOR ASSEMBLY, DISTRIBUTOR	66165A2
34	FITTING, GREASE - DISTRIBUTOR ADAPTOR	22-25094
35	SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE FLANGE (1 1/2")	10-78841
36	WASHER, DISTRIBUTOR ADAPTOR SCREW	12-20084
37	NUT, DISTRIBUTOR ADAPTOR SCREW	11-22053
38	WASHER, THRUST - DISTRIBUTOR ADAPTOR	12-27939
39	TAB WASHER, CAP LOCKING	14-27960
40	WASHER, WAVE - TAB WASHER TENSION	13-27959
41	CAP, DISTRIBUTOR ADAPTOR AND PILOT	27955
42	SPACER, DRIVEN PULLEY	23-47250
43	DRIVEN PULLEY ASSEMBLY	29906A1
44	PIN, DRIVEN PULLEY	17-29908
45	FLANGE, DRIVEN PULLEY	29907
46	SCREW, PULLEY CLAMPING (5/8")	10-64652
47	KEY, DISTRIBUTOR DRIVING	28-29910
48	BELT, TIMING	20140
49	BRACKET, STOP	48670
50	SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")	10-31983
51	WASHER, STOP BRACKET SCREW	12-20533
52	SCREW, STOP BRACKET ADJUSTING (1 7/8")	10-24228
53	NUT, STOP BRACKET ADJUSTING SCREW	11-20890
54	CAP, NYLON - ADJUSTING SCREW	26852
55	ARM ASSEMBLY, DISTRIBUTOR ADVANCE	48668A1
56	BUSHING, DISTRIBUTOR ADVANCE ARM	23-49537
57	BOLT, DISTRIBUTOR ADVANCE ARM TO STOP BRACKET	10-49285
58	WASHER, DISTRIBUTOR ADVANCE ARM BOLT	12-26825

DISTRIBUTOR ASSEMBLY, COMPLETE

Below is the parts list for Mercury 1250 DISTRIBUTOR ASSEMBLY, COMPLETE:

Position No.	Part Name	OEM Number	Supersedes
-	DISTRIBUTOR ASSEMBLY, COMPLETE	393-2799A11
1	HOUSING ASSEMBLY, PRIMARY	393-2799A21
2	SCREW, TRIGGER HOUSING TO PRIMARY HOUSING	10-45218
3	WASHER, WAVE - PRIMARY HOUSING	13-26917
4	BEARING, BALL - ROTOR SHAFT	30-26379
5	RING, RETAINER - ROTOR SHAFT BALL BEARING	53-45906
6	ROTOR SHAFT ASSEMBLY	393-3269A6
7	SHIM, TRIGGER HOUSING TO PRIMARY HOUSING	393-2795
8	TRIGGER HOUSING ASSEMBLY	393-2918A6
9	ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP	393-3014A2
10	GASKET, ADAPTOR TO PRIMARY HOUSING	27-46351
11	DOWEL PIN, ADAPTOR TO PRIMARY HOUSING	17-20032
12	SCREW, ADAPTOR TO HOUSING (1 1/2")	10-32627
13	NUT, ADAPTOR TO HOUSING SCREW	11-46438
14	ELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSING	22-31521A1
15	GASKET, DISTRIBUTOR TO ADAPTOR	27-36268
16	DISTRIBUTOR CAP ASSEMBLY	393-1927A9
17	BRUSH AND SPRING ASSEMBLY	393-1293A1
18	ELBOW, VENT HOSE - DISTRIBUTOR CAP	22-31521
19	SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")	10-60464
20	WASHER, DISTRIBUTOR CAP FASTENING SCREW	12-89302
21	NUT, DISTRIBUTOR CAP FASTENING SCREW	11-46438
22	COVER, SIDE INLET - DISTRIBUTOR	393-2725
23	GASKET, SIDE INLET COVER TO DISTRIBUTOR CAP	27-26447
24	SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP (7/16")	10-35400
25	HIGH TENSION CABLE ASSEMBLY - DISTRIBUTOR TO COIL	84-821945A8
--	CONNECTOR, HIGH TENSION CABLE (CAP END)	8M0084600	20121
26	SLEEVE, TERMINAL COVER	85-94589
27	GROMMET, HIGH TENSION CABLE	25-26547
28	BOOT, HIGH TENSION CABLE TO COIL	332-2854T01
26	SLEEVE, TERMINAL END COVER	85-94589
27	GROMMET, SPARK PLUG LEAD	25-26547
29	SPARK PLUG LEAD ASSEMBLY	84-813715A1
--	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
30	PROTECTOR, SPARK PLUG LEAD	85-63709A1

DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS

Below is the parts list for Mercury 1250 DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL, LINKAGE - ECONOMIZER COLLAR	27947
2	SWIVEL AND LINK ROD ASSEMBLY	25996A1
3	NUT, UPPER LINK ROD ADJUSTING	11-25168
4	ROD, LINK - UPPER	37700
5	SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER	27948
6	LEVER, THROTTLE CONTROL	48856
7	WASHER, THROTTLE CONTROL LEVER SWIVEL	12-8M0204649
8	WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL	13-25806
9	NUT, UPPER LINK ROD SWIVEL TO THROTTLE CONTROL	11-8267089
10	SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")	10-31830
11	WASHER, THROTTLE CONTROL LEVER SCREW	12-8M0042641	12-29395
12	BUSHING, THROTTLE CONTROL LEVER	23-45818
13	NUT, THROTTLE CONTROL LEVER SCREW	11-8M0204726
14	SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE	37587
15	NUT, THROTTLE CABLE TO LOWER SWIVEL	11-8267089
16	DISTRIBUTOR ASSEMBLY, COMPLETE	393-2799A11
17	WIRE RETAINER, HIGH TENSION LEADS	45409
18	BRACKET, FRONT - WIRE RETAINER	45392
19	BRACKET, REAR - WIRE RETAINER	47398
20	SCREW, FRONT AND REAR BRACKET ATTACHING	10-62568
21	SPACER, RUBBER - HIGH TENSION LEADS	45391
22	SPARK PLUG (CHAMPION - L19V)	33-896329827	33-827C
23	HOSE, VENT - DISTRIBUTOR TO ELBOW (13")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
24	HOSE, VENT - DISTRIBUTOR TO ELBOW (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
25	ELBOW, VENT HOSE TO BOTTOM COWL	22-31521
26	CLAMP, VENT HOSE TO BOTTOM COWL	54-22875
27	SCREW, VENT HOSE CLAMP TO BOTTOM COWL (1/2")	10-48591
28	"D" WASHER, VENT HOSE CLAMP SCREW	8M0084613	69205
29	NUT, VENT HOSE CLAMP SCREW	11-24656
30	IGNITION COIL ASSEMBLY, COMPLETE	332-4895A5
31	SCREW, IGNITION COIL CLAMPING (2 1/4")	10-46368
31	SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")	10-46367
32	NUT, IGNITION COIL CLAMPING SCREW	11-68219
33	WASHER, IGNITION COIL CLAMPING SCREW	12-8M0204666
34	CLIP, LEAD WIRE TO IGNITION COIL	54-22740
35	"D" WASHER, IGNITION COIL CLAMPING SCREW	8M0084613	69205
36	NUT, IGNITION COIL CLAMPING SCREW	11-8267086
37	SCREW, COIL MOUNTING BRACKET (7/8")	10-69026
38	LOCKWASHER, COIL MOUNTING BRACKET	13-26992
39	SCREW, COIL MOUNTING BRACKET (2 1/2")	10-37561
40	NUT, COIL MOUNTING BRACKET SCREW	11-8M0207775

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 1250 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1552-3911A3
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1551-3918A3
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1552-3911A3
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1551-3918A3
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-47165
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE Comment: PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES	19-47579
4	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8") Comment: PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES	10-48409
5	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2") Comment: PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES	10-48408
6	COVER, TRIM - DRIVE SHAFT HOUSING	37417
7	SCREW, TRIM COVER TO BOTTOM COWL	10-37571
8	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	37919
9	STRIP, RETAINING - COVER SEAL (SIDE)	37665
10	STRIP, RETAINING - TRIM COVER SEAL (REAR)	38052
11	TUBE, WATER INLET (SHORT SHAFT)	32-37446
11	TUBE, WATER INLET (LONG SHAFT)	32-37438
12	SLEEVE, RUBBER - WATER INLET TUBE	23-29591
13	TUBE, EXHAUST (SHORT SHAFT)	38469
13	TUBE, EXHAUST (LONG SHAFT)	38470
14	SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")	10-38601
15	NUT, EXHAUST TUBE SCREW	11-35888
16	NUT, POWERHEAD STUDS (5/16-24)	11-82670911
17	NUT, POWERHEAD STUDS (3/8-24)	11-8M0204726
17	NUT, POWERHEAD STUDS (3/8-24)	11-23161
18	WASHER, POWERHEAD STUDS	12-20086
19	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-48801
20	GUIDE, PUSH ROD - REVERSE LOCKING	52887
20	GUIDE, PUSH ROD - REVERSE LOCKING	52887
21	ROD, PUSH - REVERSE LOCK (SHORT SHAFT)	47591
21	ROD, PUSH - REVERSE LOCK (LONG SHAFT)	47558
22	NUT, JAM - PUSH ROD	11-69254
23	YOKE, PUSH ROD	47559
24	PIN, PUSH ROD TO REVERSE LOCK	24-78203A2
25	COTTER PIN, PUSH ROD PIN	18-25191
26	MOUNT, RUBBER - UPPER	75296
26	MOUNT, RUBBER - UPPER (HEAVY DUTY)	75297
27	COVER, UPPER MOUNT - OUTSIDE HALF	49239
28	COVER, UPPER MOUNT - INSIDE HALF	53141
28	COVER, UPPER MOUNT - INSIDE HALF	53141
29	PACKING, "U" CUP	24929
30	SCREW, UPPER MOUNT COVER (1 5/8")	10-20012
31	SCREW, UPPER MOUNT COVER (2 1/8")	10-28775
32	WASHER, UPPER MOUNT COVER SCREW	12-8M0204649
33	NUT, UPPER MOUNT COVER SCREW	11-35888
34	WASHER, UPPER MOUNT BOLT	12-31262
35	WASHER, RUBBER - UPPER MOUNT BOLT	12-47840
36	WASHER, UPPER MOUNT BOLT	12-31263
37	NUT, UPPER MOUNT BOLT	11-8M0204653
38	CAP, RUBBER - UPPER MOUNT BOLT	31264
39	MOUNT, RUBBER - LOWER	49455
39	MOUNT, RUBBER - LOWER	75299
39	MOUNT, RUBBER - LOWER (HEAVY DUTY)	75300
40	SCREW, LOWER MOUNT (5 1/2")	10-75284
41	WASHER, LOWER MOUNT SCREW	12-49339
42	NUT, LOWER MOUNT SCREW	11-25096
43	BUMPER, RUBBER - LOWER MOUNTING SCREW	25067
44	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
45	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
46	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
47	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
48	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	35608
49	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
50	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING	10-29256
51	COVER, LOWER MOUNT CLAMP	35474T
52	NUT, LOWER MOUNT CLAMP COVER	11-35521
53	SCREW, COVER TO LOWER CLAMP MOUNT	10-29722

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 1250 FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG8 FLYWHEEL PULLER THREADS	19-45907
2	NUT8 FLYWHEEL	11-8M0214915
2	NUT, FLYWHEEL (PART OF A436-31874A4 CRANKSHAFT ASSEMBLY)	11-52901
3	WASHER, FLYWHEEL NUT	12-33001
4	FLYWHEEL ASSEMBLY, COMPLETE	225-2494A37
4	FLYWHEEL ASSEMBLY, COMPLETE	225-2494A37
5	SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")	10-32417
6	SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")	10-68997
7	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
8	FLANGE, FLYWHEEL PULLEY	29788
9	PULLEY, FLYWHEEL	30306
10	HUB, FLYWHEEL PULLEY	29787
11	STATOR, ALTERNATOR	398-3301
11	STATOR, ALTERNATOR	398-4793
12	TERMINAL, STATOR LEAD WIRE	30050
13	SCREW, STATOR TO UPPER END CAP (7/8")	10-57021
14	CLIP, STATOR LEAD FASTENING (7/16")	54-22875
15	SCREW, STATOR LEAD CLIP (#10 SHEET METAL)	10-62568
15	SCREW, STATOR LEAD CLIP (7/16")	10-69079
14	CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")	54-26550
15	SCREW, STATOR LEAD CLIP FASTENING (10-32 X 1/2")	10-37655
16	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205

FUEL PUMP AND FUEL LINE ASSEMBLY

Below is the parts list for Mercury 1250 FUEL PUMP AND FUEL LINE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY - UPPER	30269A2
1	FUEL PUMP ASSEMBLY - UPPER	56677A6
2	CHECK VALVE ASSEMBLY	21-30430A1
3	DIAPHRAGM KIT	23014A1
4	GASKET, CHECK VALVE TO HOUSING (#)
5	GASKET, FUEL PUMP (#)
6	GASKET, FUEL PUMP COVER (#)
7	RETAIER, CHECK VALVE	23004
8	SCREW, RETAINER TO HOUSING	10-43725
9	FUEL PUMP ASSEMBLY - LOWER	30461A2
2	CHECK VALVE ASSEMBLY	21-30430A1
3	DIAPHRAGM KIT	23014A1
4	GASKET, CHECK VALVE TO HOUSING (#)
5	GASKET, FUEL PUMP (#)
6	GASKET, FUEL PUMP COVER (#)
7	RETAINER, CHECK VALVE	23004
8	SCREW, RETAINER TO HOUSING	10-43725
10	COVER, FUEL PUMP	30275
11	SCREW, FUEL PUMP MOUNTING (1 1/2") - UPPER PUMP	10-29878
12	SCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMP	10-30274
11	SCREW, FUEL PUMP MOUNTING (1 1/2") - UPPER PUMP	10-73013
12	SCREW, FUEL PUMP MOUNTING (1 7/8") - UPPER PUMP	10-30273
13	SCREW, FUEL PUMP MOUNTING (1 1/2") - LOWER PUMP	10-73013
14	SCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMP	10-30273
15	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8")	32-32256A1
16	ELBOW, UPPER CARBURETOR STRAINER COVER (90)	22-30174
17	SLEEVE, CARBURETOR STRAINER COVER ELBOW	22-30175
18	NUT, UPPER CARBURETOR STRAINER COVER ELBOW	22-30177
19	CLIP, FUEL LINE TO CYLINDER BLOCK	54-22627
20	SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")	10-62568
21	"D" WASHER, FUEL LINE CLIP SCREW	8M0084613	69205
22	FUEL LINE ASSEMBLY, PUMP TO PUMP (12 3/8")	32-31552A1
23	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (19 3/4")	32-31553A1
24	ELBOW, LOWER FUEL PUMP INLET (90)	22-30174
25	SLEEVE, FUEL PUMP INLET ELBOW	22-30175
26	NUT, FUEL PUMP INLET ELBOW	22-30177
27	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP (18")	32-30176
28	ELBOW, FUEL LINE TO ADAPTOR	22-37682
29	ADAPTOR, CHECK UNIT (FUEL LINE)	30186
30	STEM, CHECK UNIT ADAPTOR	30187
31	"O" RING, ADAPTOR STEM	25-16524
32	SPRING, ADAPTOR STEM	24-30189
33	CUP WASHER, ADAPTOR	30188
34	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")	10-69029
35	SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")	10-37561
36	NUT, ADAPTOR FASTENING SCREW	11-8M0207775
37	FUEL LINE ASSEMBLY, MIDDLE CARB, TO BOTTOM CARB.	32-31584A1
38	ELBOW, FUEL LINE TO CARBURETOR (45)	22-8M0123050
39	FUEL LINE ASSEMBLY, TOP CARB. TO MIDDLE CARB.	32-49454A1

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 1250 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW	1623-3912A8
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW	1623-3912A9
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)SEE NOT BELOW	1623-3912A8
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW	1623-3912A9
1	GEAR HOUSING ASSEMBLY	1623-5244A14
1	GEAR HOUSING ASSEMBLY	1623-5244A14
2	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")	16-57921
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")	16-8M0133358
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")	16-8M0133358
4	STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")	16-8M0034463	16-56297 2
5	STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")	16-57919
6	BEARING, ROLLER - DRIVE SHAFT	31-32898T
7	DRIVE SHAFT (SHORT SHAFT)	45-47433
7	DRIVE SHAFT (LONG SHAFT)	45-47434
8	DEAR, PINION - DRIVE SHAFT	43-49751
9	NUT, PINION GEAR TO DRIVE SHAFT	11-35921
10	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-30278A1
11	BEARING, BALL - DRIVE SHAFT (SERIAL #2653879 AND BELOW) Comment: SERIAL 00000000-02653879	30-63326T
11	BEARING, BALL - DRIVE SHAFT (SERIAL #2653880 AND UP) Comment: SERIAL 02653880-09999999	30-63326T
12	RING, RETAINING - BALL BEARING	53-30726
10	SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)	15-30278A1
13	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32438
14	"O" RING, WATER PUMP BASE	25-8M0204651
15	WATER PUMP BASE ASSEMBLY (ALUMINUM)	46-48758A1
15	WATER PUMP BASE ASSEMBLY (PLASTIC)	46-48747A1
16	OIL SEAL, WATER PUMP BASE	26-94038
17	OIL SEAL, WATER PUMP BASE	26-16977
18	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
19	GASKET, LOWER - WATER PUMP BASE TO FACE PLATE	27-8M0090319	27-85608 1
20	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	8M0204677
21	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-858524	27-85609 1, 27-85609B 1
22	WATER PUMP BODY ASSEMBLY (ALUMINUM)	46-96148A8
22	WATER PUMP BODY ASSEMBLY (PLASTIC)	46-96148T1
23	INSERT, WATER PUMP BODY (ALUMINUM)	30915
23	INSERT, WATER PUMP BODY (PLASTIC)	48752T
24	OIL SEAL, WATER PUMP BODY	26-16977
25	SEAL, RUBBER - WATER INLET TUBE	26-38970
26	IMPELLER - WATER PUMP	47-89984T4
27	PIN, IMPELLER DRIVE	17-8M0214994
28	SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")	10-30720
30	LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4"	13-26992
31	NUT, WATER PUMP BODY FASTENING STUDS (1/4")	11-29598
32	LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")	13-8M0204647
33	NUT, WATER PUMP BODY FASTENING STUD (5/16")	11-28770
29	LOCKWASHER, WATER PUMP BODY SCREW	13-26992
30	WASHER, WATER PUMP BODY FASTENING SCREW AND STUD	12-8M0204649
31	NUT, WATER PUMP FASTENING SCREW	11-826709109	11-33825, 11-35045
32	WASHER, WATER PUMP BODY FASTENING STUD	12-36001
33	NUT, WATER PUMP BODY FASTENING STUD	11-826709111	11-45592
34	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
35	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
36	"O" RING, UPPER - DRIVE SHAFT	25-8M0214919
37	SEAL, EXHAUST TUBE	37641001
38	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
39	SHAFT, SHIFT - LOWER	76062A1
40	CLIP, RETAING - SHIFT SHAFT	53-29641
41	"O" RING, SHIFT SHAFT BUSING	25-25439
42	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
43	OIL SEAL, SHIFT SHAFT HOUSING (LOWER)	26-24590
43	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
44	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-31266
45	SPACER, LOWER - REVERSE LOCKING	78036
46	CAM, REVERSE LOCKING	43308T1
47	PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE	22-390721
48	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
49	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
50	SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM	10-29608
51	GASKET, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM	27-8M0214916
52	SEAL, GEAR HOUSING FLUSHING HOLE ALUMINUM	26-8M0214917
53	PLUG, GEAR HOUSING FLUSHING HOLE PLASTIC	19-48750
54	WASHER, GEAR HOUSING FLUSHING HOLE PLUG PLASTIC	12-8M0204663

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 1250 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW	1623-3912A8
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW	1623-3912A9
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOT BELOW	1623-3912A8
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW	1623-3912A9
1	GEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWN	1623-5244A14
1	GEAR HOUSING ASSEMBLY SEE PAGE 30 FOR PARTS BREAKDOWN	1623-5244A14
55	CAM, SHIFT Comment: SERIAL 00000000-02709827	760394
55	CAM, SHIFT Comment: SERIAL 02709828-09999999	760394
56	FOLLOWER, CAM	30625
57	SLIDE, CROSS PIN	30624
58	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
59	SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)	15-30923A1
60	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
61	BEARING, ROLLER - FORWARD GEAR	31-30895T
62	FORWARD GERA ASSEMBLY	43-53100A3
62	FORWARD GEAR ASSEMBLY	43-53100A3
63	RATCHET, SLIDING CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
64	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
65	SPRING, RETAINING - CROSS PIN	24-30893
66	SHAFT, PROPELLER (COARSE THREAD)	44-47900A2
66	SHAFT, PROPELLER (FINE THREAD)	44-93003
67	REVERSE GEAR ASSEMBLY	43-31887
68	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-29955A1
69	WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING	12-71143A1
70	BEARING, BALL - REVERSE GEAR	30-31265
71	"O" RING, BEARING CARRIER	25-29976
72	BEARING CARRIER ASSEMBLY	31284T1
72	BEARING CARRIER ASSEMBLY	52132T1
73	BEARING, ROLLER - BEARING CARRIER	31-30956T
74	OIL SEAL, BEARING CARRIER	26-8M0204670
75	KEY, LOCATING - BEARING CARRIER	28-30281
76	WASHER, GEAR HOUSING COVER	12-29957
77	COVER, GEAR HOUSING	52699
76	TAB WASHER, GEAR HOUSING COVER	14-52700
77	COVER, GEAR HOUSING	52699
78	TRIM TAB, GEAR HOUSING	97-31640Q4
79	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-32470
80	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
81	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	11-8M0204653
82	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")	10-34353
83	THRUST HUB AND WASHER ASSEMBLY PART OF A-1623-3486A8 AND A9 Comment: PART OF A-1623-3486A8 AND A9 GEAR HSG ASS'Y COMPLETE	65091Q01
84	WASHER, CUPPED - THRUST HUB Comment: PART OF A-1623-3486A8 AND A9 GEAR HSG ASS'Y COMPLETE	12-29590
85	WASHER, SPLINED - PROPELLER NUT	12-31211Q03
86	TAB WASHER, PROPELLER NUT	14-816629Q	14-816629, 14-31210, 14-816629B
87	NUT, PROPELLER (COARSE THREAD)	11-29594
87	NUT, PROPELLER (FINE THREAD) ---- PART OF A1623-3486A8 AND A	11-52707Q1

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 1250 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC 1250E-SS PARTS LIST, COMPLETE	90-49047
-	GASKET SET (MOTOR OVERHAUL) - 1250E-SS	27-47227A1
-	SHIPPING CARTON (MERC 1250EL-SS)	94-48851
-	EXTRA HEAVY DUTY WATER PUMP KIT	53168A1
-	DECAL SET (MERC 1250E-SS)	37-56697A2
-	DECAL SET (MERC 1250E-1-SS)	37-56697A2
-	TACHOMETER ASSEMBLY	79-73370A3

OVERSIZE PISTONS AND RINGS

Below is the parts list for Mercury 1250 OVERSIZE PISTONS AND RINGS:

Position No.	Part Name	OEM Number	Supersedes
--	PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)	742-3543A2
--	RING, PISTON (.015 OVERSIZE) - 1/16" THICK	39-78811A12

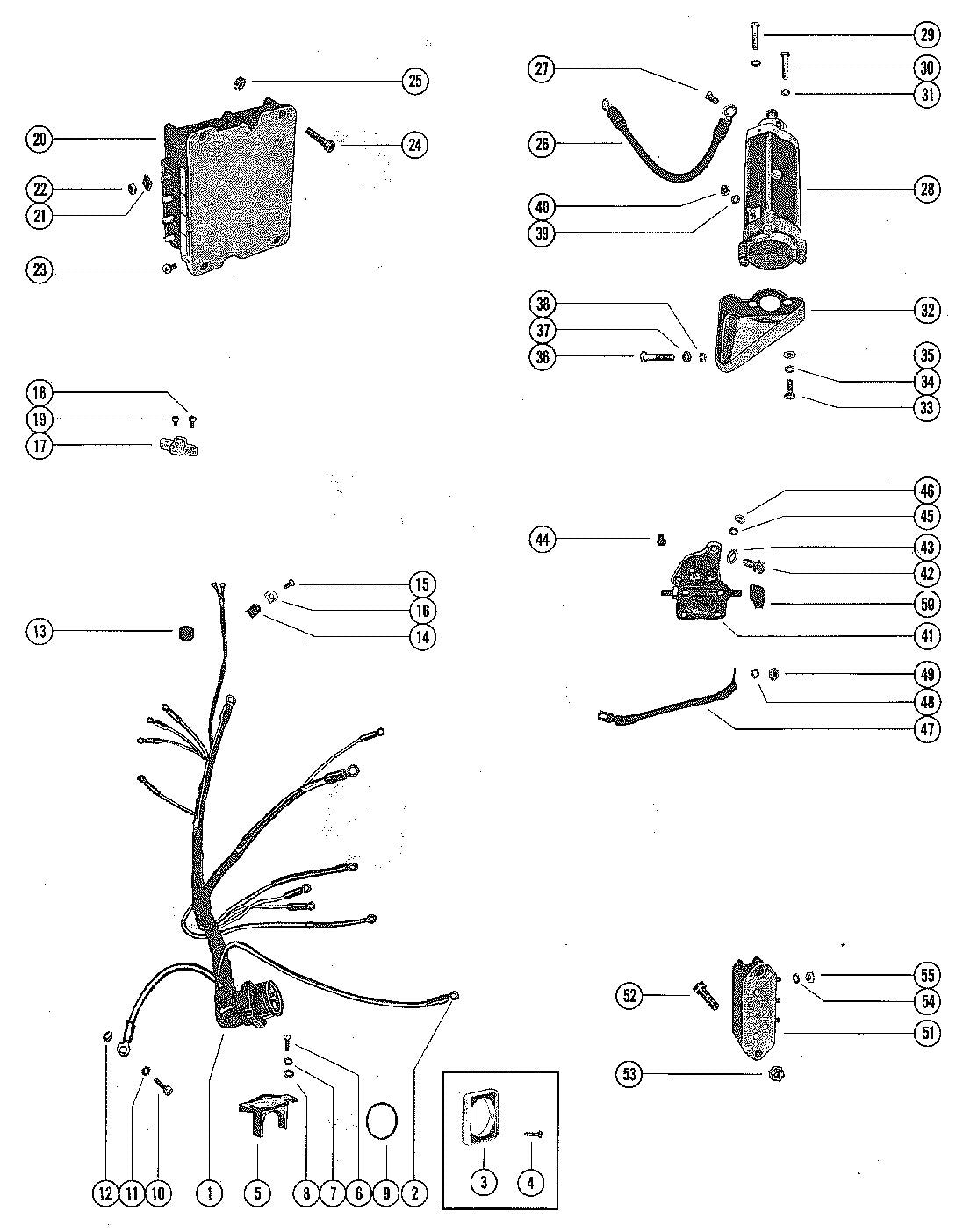

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES

Below is the parts list for Mercury 1250 STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNESS, INTERNAL	48150
1	WIRING HARNESS, INTERNAL	84-69236A1
2	TERMINAL, HARNESS AND MERCURY SWITCH LEADS	30050
3	PLATE, WIRING HARNESS TO BOTTOM COWL	26079A2
4	SCREW, HARNESS PLATE FASTENING	10-45893
5	CLAMP, WIRING HARNESS TO BOTTOM COWL	54-76368
6	SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")	10-45862
7	LOCKWASHER, WIRING HARNESS CLAMP SCREW	13-26996
8	WASHER, WIRING HARNESS CLAMP SCREW	12-847883	12-20128
9	SPRING, GARTER - INTERNAL WIRING HARNESS	24-28975
10	SCREW, GROUND WIRE TO BOTTOM COWL	10-98256
11	LOCKWASHER, GROUND WIRE SCREW	13-25244
12	LOCKWASHER, GROUND WIRE SCREW	13-24669
13	GROMMET, RECTIFIER TO SWITCH BOX WIRE	25-26547
14	CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")	54-648552
15	SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")	10-8M0113176
16	"D" WASHER, WIRING HARNESS CLIP SCREW	8M0084613	69205
17	TERMINAL BLOCK, STATOR LEADS	45559
18	SCREW, TERMINAL BLOCK FASTENING (1/2")	10-72169
18	SCREW, TERMINAL BLOCK FASTENING (5/8")	10-48409
19	SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")	10-62568
20	SWITCH BOX ASSEMBLY	332-2986A21
21	WASHER, SWITCH BOX TERMINAL	12-45075
22	NUT, SWITCH BOX TERMINAL	11-45076
23	SCREW, SWITCH BOX (3/8")	10-45218
24	SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")	10-64279
25	NUT, SWITCH BOX SCREW	11-8M0207775
26	CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET	84-93389A12
27	SCREW, WIRE CABLE TO STARTER MOTOR	10-69035
28	STARTER MOTOR ASSEMBLY	50-48643A1
29	SCREW, STARTER MOTOR CRANKCASE FLANGE (1 1/2")	10-73657
30	SCREW, STARTER MOTOR CRANKCASE FLANGE (1 3/8")	10-31984
31	LOCKWASHER, STARTER MOTOR SCREW	13-8M0204647
32	BRACKET, STARTER MOTOR SUPPORT	53507
32	BRACKET, STARTER MOTOR SUPPORT	53507
33	SCREW, STARTER MOTOR TO SUPPORT BRACKET (3/4")	10-25299
34	LOCKWASHER, STARTER MOTOR SCREW	13-8M0204647
35	WASHER, STARTER MOTOR SCREW	12-26825
36	SCREW, SUPPORT BRACKET TO CYLINDER BLOCK (1 3/4")	10-32293
37	WASHER, SUPPORT BRACKET SCREW	12-26825
38	NUT, SUPPORT BRACKET SCREW	11-29250
39	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
40	NUT, STARTER MOTOR TERMINAL	11-20890
41	SOLENOID, STARTER (NOT AS SHOWN)	25661T1
42	SCREW, SOLENOID TO COIL BRACKET (3/4")	10-69028
43	LOCKWASHER, STARTER SOLENOID FASTENING SCREW	13-26992
44	BUMPER, RUBBER - STARTER SOLENOID	269011
45	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
46	NUT, SOLENOID TERMINAL	10,11-68219
47	CABLE, WIRE - STARTER MOTOR TO SOLENOID	48396
48	LOCKWASHER, SOLENOID TERMINAL (5/16")	13-8M0204647
49	NUT, SOLENOID TERMINAL (5/16")	11-22053
50	BOOT, SOLENOID TERMINAL	46265
51	RECTIFIER ASSEMBLY	78614A1
52	SCREW, RECTIFIER TO MOUNTING BRACKET (1")	10-64278
53	NUT, RECTIFIER MOUNTING SCREW	11-8M0207775
54	WASHER, RECTIFIER STATOR LEAD TERMINAL	12-45075
55	NUT, FASTENING - RECTIFIER STATOR LEADS	11-45076

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 1250 TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	COWL, TOP	2114-3806
1	COWL, TOP	2114-3806
2	RETAINER ASSEMBLY, TOP COWL	47555A1
2	RETAINER ASSEMBLY, TOP COWL	52733A9
3	PAD, BUMPER _ TOP COWL RETAINER	35496
4	EMBLEM, TOP COWL RETAINER	37-61018A1
5	SCREW, RETAINER TO TOP COWL (1 1/4")	10-74824
6	LOCKWASHER, RETAINER TO TOP COWL SCREW	13-39107
7	SHIELD, SHIELD TO TOP COWL (5/8")	76370
8	LOCKWASHER, SHIELD SCREW	13-37371
10	ROPE, STARTER (FOR MANUAL STARTING ONLY)	47341A11
11	BRACKET, COWL LATCH TOP COWL FASTENING	46144
12	SCREW, COWL LATCH BRACKET TO TOP COWL (1 1/8")	10-21091
13	WASHER, LATCH BRACKET SCREW (1/16" THICK)	12-37998
14	WASHER, LATCH BRACKET SCREW (1/32" THICK)	12-37998
15	LEVER, CLAMPING - TO COWL MOUNTING	37412
16	BUSHING, NYLON - CLAMPING LEVER	23-26819
17	WASHER, CLAMPING LEVER	12-38006
18	BUSHING, RUBBER - CLAMPING LEVER	23-31293
19	FASTNER, CLAMPING LEVER	11-30428
20	PIN, ROLL - CLAMPING LEVER	17-29077
21	HINGE, COWL LATCH - TOP COWL	52739
22	LEVER, COWL LATCH HINGE	94918F1
23	PIN, ROLL - COWL LATCH LEVER TO HINGE	17-58998
24	SPRING, COWL LATCH HINGE	24-53019
25	HOOK, TOP COWL LATCH - REAR	55455
26	SCREW, REAR HOOK TO TOP COWL (7/8")	10-22956
27	LOCKWASHER, REAR HOOK MOUNTING SCREW	13-26992
28	FRAME, TOP COWL SUPPORT	79897A4
29	DECAL, TIMING	37-45201
30	MOUNT, RUBBER - TOP COWL FRAME	90435
30	MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)	46096
31	NUT, RUBBER MOUNT TO TOP COWL FRAME	11-8267089
32	BRACKET, TOP COWL SUPPORT - REAR	47272
32	BRACKET, TOP COWL SUPPORT - REAR	54685
33	MOUNT, RUBBER - REAR SUPPORT BRACKET	31014
34	LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET	13-26992
35	WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET	12-69057
36	NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET	11-20088
37	SCREW, REAR BRACKET TO TOP COWL FRAME (1")	10-26065
38	NUT, REAR BRACKET SCREW	11-29250
39	SCREW, REAR BRACKET TO BOTTOM COWL (1")	10-35386
40	LOCKWASHER, REAR SUPPORT BRACKET SCREW	13-8M0204647
41	BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT	47210A2
41	BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT	77116A1
42	SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")	10-78841
43	NUT, FRONT SUPPORT BRACKET SCREW	11-29250
44	SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")	10-73657
45	LOCKWASHER, FRONT SUPPORT BRACKET SCREW	13-8M0204647
46	MOUNT, RUBBER - FRONT SUPPORT BRACKET	37640
47	LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET	13-8M0204647
48	NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET	11-22053

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
