BOTTOM COWL AND SHIFT LINKAGE

Below is the parts list for Mercury 1150 BOTTOM COWL AND SHIFT LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	COWL, BOTTOM Comment: SERIAL 00000000-03274150	2115-3807
1	COWL, BOTTOM Comment: SERIAL 02928721-09999999	2115-3919
2	DRIP TRAY ASSEMBLY, BOTTOM COWL	52862A2
3	PAD, SOUND - DRIP TRAY	37940
4	SCREW, DRIP TRAY TO BOTTOM COWL (1/2")	10-35519
5	HOSE, DRIP TRAY TO BOTTOM COWL (8")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
6	BOOT, CONTROL CABLES - BOTTOM COWL Comment: SERIAL 00000000-00298720	37638
6	BOOT, CONTROL CABLES - BOTTOM COWL Comment: SERIAL 02928721-09999999	39616
7	SPACER, BOTTOM COWL (COWL FRONT COVER)	76369
8	SCREW, SPACER TO BOTTOM COWL (1/2")	10-48591
9	BOOT, FUEL CONNECTOR - BOTTOM COWL	37637
10	BAFFLE, BOTTOM COWL Comment: SERIAL 00000000-03114543	23760
11	SCREW, BAFFLE TO BOTTOM COWL Comment: SERIAL 00000000-03114543	10-52867
12	SUPPORT, WIRING HARNESS - BOTTOM COWL	37445
13	SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")	10-69029
13	SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")	10-88488
14	NUT, WIRING HARNESS SUPPORT SCREW	11-8M0207775
15	HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821
16	NOZZLE, TELL TALE HOSE TO BOTTOM COWL	52889
17	SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")	10-35519
18	ELBOW, TELL TALE HOSE TO EXHAUST COVER	22-996642
19	CLAP, TELL TALE HOSE TO CONNECTOR AND ELBOW	54-48123
20	GAKSET, POWERHEAD TO EXHAUST EXTENSION PLATE	27-56028
21	PLATE ASSEMBLY, EXHAUST EXTENSION	56306A2
22	SEAL, RUBBER - WATER INLET TUBE	26-38970
23	RETAINER, WATER TUBE SEAL	38448
24	SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")	10-69069
25	SCREW, EXHUAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	10-24226
26	NUT, EXHAUST EXTENSION PLATE SCREW	11-8M0207775
27	DIVIDER ASSEMBLY, EXHAUST (SEE NOTE BELOW)	58478A1
28	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-48801
29	SEAL, EXHAUST EXTENSION PLATE	37918
30	STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL	99358
31	SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")	10-37571
32	SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)	60304A55
32	SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)	60304A54
33	BUSHING, SHIFT SHAFT	23-26600
34	COUPLING, SHIFT SHAFT	93960A1
35	LINK ROD ASSEMBLY	73402
36	WASHER, LINK ROD	12-24664
37	WASHER, WAVE - LINK ROD	13-29720
38	BRACKET ASSEMBLY, ANCHOR CONTROL CABLES Comment: SERIAL 00000000-02928720	52732A6
39	CAP, BRASS BARREL TO THROTTLE CABLE Comment: SERIAL 00000000-02928720	38802
39	CAP, BRASS BARREL TO THROTTLE CABLE Comment: SERIAL 00000000-02928720	49935
40	LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET Comment: SERIAL 00000000-02928720	49932A1
41	SPRING, CONTROL CABLE LOCKING LEVER Comment: SERIAL 00000000-02928720	24-37911
42	PIN, ROLL - CONTROL CABLE LOCKING LEVER Comment: SERIAL 00000000-02928720	17-239281
43	SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET Comment: SERIAL 00000000-02928720	24-38472
44	BRACKET, ANCHOR - CONTROL CABLES SERIAL #2928721 AND UP Comment: SERIAL 02928721-09999999	52732A6
45	CAP, BARREL RETAINER - ANCHOR BRACKET Comment: SERIAL 02928721-09999999	39519
46	LEVER NYLON - SHIFT CABLE LOCKING Comment: SERIAL 02928721-09999999	87609A1
47	PIN, LOCKING LEVER AND COVER FASTENING Comment: SERIAL 02928721-09999999	17-47175
48	COVER, NYLON - SHIFT CABLE Comment: SERIAL 02928721-09999999	39667
49	LINK, LOCKING LEVER TO COVER Comment: SERIAL 02928721-09999999	39536
50	SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")	10-35386
51	SPRING, LINK ROD TO GUIDE BLOCK	24-20099
52	GUIDE BLOCK, LINK ROD	37896
53	WEAR PLATE, LINK ROD	52100
54	LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET	8M0036768	38279
55	WASHER, PLAIN - LINK ROD	12-69056
56	NUT, LINK ROD	11-826709109	11-33825, 11-35045
57	GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")	46933A1
58	GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")	46933A2
59	SCREW, GROUND STRAP FASTENING	10-62568

CARBURETOR ASSEMBLY

Below is the parts list for Mercury 1150 CARBURETOR ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CARBURETOR ASSEMBLY, COMPLETE (KD-6A) Comment: SERIAL 00000000-02928767	1352-4510A1
1	CARBURETOR ASSEMBLY, COMPLETE (KD-6B) - Comment: SERIAL 02928768-02933900	1352-4509A1
1	CARBURETOR ASSEMBLY, COMPLETE (WMK-3) - Comment: SERIAL 02928768-09999999	1352-4509A1
2	FLOAT ASSEMBLY	1395-8673
3	PIN, FLOAT LEVER PINION (#)
4	LEVER, FLOAT (LOWER) (#)
5	LEVER, FLOAT (UPPER) (#)
6	INLET NEEDLE, SEAT AND GASKET Comment: SERIAL 00000000-02933900	1395-92581
6	INLET NEEDLE, SEAT AND GASKET Comment: SERIAL 00302308-09999999	1395-83181
7	GASKET, INLET SEAT (#)
8	GASKET, FLOAT BOWL COVER (#)
9	COVER, FLOAT BOWL Comment: SERIAL 00000000-02933900	1399-1133
9	COVER, FLOAT BOWL Comment: SERIAL 03023086-09999999	1399-4559
10	SCREW, FLOAT BOWL COVER (SHORT)	10-52195
11	SCREW, FLOAT BOWL COVER (LONG)	10-52196
12	LOCKWASHER, FLOAT BOWL COVER SCREW	13-26995
13	GASKET, STRAINER COVER (LARGE)	27-25851
14	SCREEN, FILTER	1399-3938
15	GASKET, STRAINER COVER (SMALL)	27-25849
16	COVER, STRAINER	1399-4791A1
17	GASKET, STRAINER COVER SCREW (#)
18	SCREW, STAINER COVER FASTENING	10-25822
19	SCREW, THROTTLE STOP LEVER	1395-6027
20	LEVER, THROTTLE STOP (SEE NOTE BELOW)	8146791
21	SHAFT, THROTTLE	1395-7942
22	TUBE, IDLE (#)
23	SCREW, BODY (IDLE TUBE) Comment: SERIAL 00000000-02933900	10-23178
23	SCREW, BODY (IDLE TUBE) Comment: SERIAL 03023086-09999999	1395-4540
24	GASKET, IDLE TUBE (#)
25	SCREW AND LOCKWASHER, THROTTLE SHUTTER (#)
26	SHUTTER, THROTTLE Comment: SERIAL 00000000-02928767	1395-9017
26	SHUTTER, THROTTLE Comment: SERIAL 02928768-09999999	1399-4412
27	SPRING, IDLE ADJUSTMENT SCREW (#)
28	SCREW, IDLE ADJUSTMENT	1399-3515
29	SCREW, PLUG - MAIN FUEL JET CHANNEL Comment: SERIAL 00000000-02933900	10-28405
29	SCREW, PLUG - MAIN FUEL JET CHANNEL Comment: SERIAL 03023086-09999999	1395-4541
30	GASKET, JET CHANNEL PLUG SCREW (#)
31	JET, MAIN FUEL (.068)	1395-6029
31	JET, MAIN FUEL (.066) - STANDARD	1399-4215
31	JET, MAIN FUEL (.064)	1399-4216
31	JET, MAIN FUEL (.062)	1399-4217
32	NOZZLE, MAIN (#)
33	SCREW, PLUG - MAIN NOZZLE Comment: SERIAL 00000000-03023086	1399-3522
33	SCREW, PLUG - MAIN NOZLE Comment: SERIAL 03023086-09999999	1395-4542
34	SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR) (#)
34	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (#)
35	WELCH PLUG, BODY CHANNEL (#)
36	SCREW, BODY CHANNEL Comment: SERIAL 00000000-02933900	10-23030
36	SCREW, BODY CHANNEL Comment: SERIAL 03023086-09999999	1395-4543
--	GASKET AND PACKING SET (1 PER CARBURETOR)	1395-879194024	1399-3523, 1395-4808, 1395-4808B 1
--	REPAIR PARTS KIT (1 PER CARBURETOR) Comment: SERIAL 00000000-02942990	1395-92621
--	REPAIR PARTS KIT (1 PER CARBURETOR) Comment: SERIAL 00000000-03023086	1395-51091
37	GAKSET, CARBURETOR FLANGE	27-481641
38	NUT, CARBURETOR MOUNTING STUD	11-29250

CARBURETOR LINKAGE AND CHOKE SOLENOID

Below is the parts list for Mercury 1150 CARBURETOR LINKAGE AND CHOKE SOLENOID:

Position No.	Part Name	OEM Number
1	CHOKE SOLENOID	54293A10
2	LOCKWASHER, SOLENOID TERMINAL	13-26996
3	NUT, SOLENOID TERMINAL	11-68219
4	SCREW, CHOKE SOLENOID (3/4")	10-25299
5	LOCKWASHER, CHOKE SOLENOID SCREW	13-8M0204647
6	PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID	90548A1
7	CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)	52518
8	SCREW, CLUSTER TO THROTTLE LEVER	1395-6027
9	CARBURETOR ASSEMBLY, COMPLETE (KD-6A) Comment: SERIAL 00000000-02928767	1352-4510A1
9	CARBURETOR ASSEMBLY, COMPLETE (KD-6B) Comment: SERIAL 02928768-02933900	1352-4509A1
9	CARBURETOR ASSEMBLY, COMPLETE (WMK-3) Comment: SERIAL 03023086-09999999	1352-4509A1
10	THROTTLE PICK-UP BRACKET ASSEMBLY	53720A2
11	SCREW, THROTTLE BRACKET MOUNTING	10-53651
12	INSERT, THROTTLE COUPLING	28-89694
13	BRACKET, COIL LEAD RETAINER	59757
14	SCREW, COIL BRACKET (1")	10-64278
15	WASHER, COIL BRACKET SCREW	12-8M0204649
16	NUT, COIL BRACKET SCREW	11-8M0207775
17	KNOB, CHOKE ROD	90242A1
18	GROMMET, CHOKE ROD	25-20116
19	STRAP, CHOKE KNOB TO CHOKE ROD	49589
20	SCREW, STRAP TO CHOKE KNOB (1/2")	10-48591
21	LOCKWASHER, STRAP SCREW	13-26996
22	ROD, CHOKE	48203
23	SCREW, STRAP TO CHOKE ROD (1/2")	10-48591
24	NUT, STRAP TO CHOKE ROD SCREW	11-46438
25	SHUTTER, CHOKE - CARBURETOR	48152
26	STUD, CARBURETOR - CHOKE SHUTTER PIVOT	16-69037
27	NUT, CHOKE SHUTTER TO CARBURETOR STUD	11-20110
28	SCREEN ASSEMBLY, FILTER - CARBURETOR	35-57819
29	SCREW, LOWER CARBURETOR FILTER SCREEN TO CARBURETOR (5/8")	10-22523
29	SCREW, UPPER CARBURETOR FILTER SCREEN TO CARBURETOR (1")	10-23015
30	SPRING, UPPER FILTER SCREEN SCREW	24-57818
31	NUT, CARBURETOR FILTER SCREEN FASTENING SREW	11-20110
32	SPRING, CHOKE ROD TENSION	24-48230
33	STUD, CHOKE ROD SPRING TO CARBURETOR	10-657461
34	SPACER, CHOKE ROD SPRING STUD	23-32427
35	NUT, CHOKE ROD SPRING TO CARBURETOR STUD	11-8M0207775

CLAMP AND SWIVEL BRACKET ASSEMBLY

Below is the parts list for Mercury 1150 CLAMP AND SWIVEL BRACKET ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	CLAMP BRACKET ASSEMBLY	1440-8394A1
2	THUMB SCREW ASSEMBLY	28403A3
3	WASHER, THUMB SCREW	12-28404
4	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET	8M0041936	8M0035074, 883067, 30664 2, 74528
5	WASHER, CLMAP BRACKET TILT TUBE	12-52864
6	NUT, TILT TUBE FASTENING	11-858869	11-30499
7	CAP, PLASTIC - TILT TUBE	53078
8	SPACER, CLAMP BRACKET STUD	23-59624
9	STUD, CLAMP BRACKET Comment: (NOT USED WITH FULL POWER TRIM)	16-59625
10	LOCKWASHER, CLAMP BRACKET STUD	13-8M0204647
11	NUT, CLAMP BRACKET STUD	11-28770
12	TILT LOCK PIN ASSEMBLY	17-8M0026068	17-49930A 1
14	SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)	1490-7256A2
14	SWIVEL BRACKET ASSEMBLY (LONG SHAFT)	1482-6386A4
15	OIL SEAL, SWIVEL BRACKET	26-37448
16	SCREW, DRIVE - SWIVEL BRACKET	10-47828
17	FITTING, GREASE - SWIVEL BRACKET	22-69059
18	LUBRICAP, SWIVEL BRACKET GREASE FITTING	19-77633Q
19	TILT LOCK ASSEMBLY, STARBOARD	76386
20	TILT LOCK ASSEMBLY, PORT	76385T
21	TUBE, TILT LOCK	47802
22	COTTER PIN, TILT LOCK TUBE	18-47959
23	BUSHING, TILT LOCK TUBE	23-47803
24	WASHER, WAVE - TILT LOCK TUBE	13-69150
25	SPRING, COIL - SWIVEL BRACKET Comment: (NOT USED WITH FULL POWER TRIM)	24-94891
26	PIN, COIL SPRING MOUNTING Comment: (NOT USED WITH FULL POWER TRIM)	17-38311
27	SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)	17-49841A1
27	SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)	17-49840A1
28	BUMPER, STEERING ARM	28203
29	BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")	10-49554
30	NUT, STEERING ARM BOLT FASTENING	11-8M0204653
31	SCREW, RIDE-GUIDE ATTACHING	10-31830
32	NUT, RIDE-GUIDE ATTACHING SCREW	11-8M0204726
33	WASHER, SWIVEL PIN - LOWER	12-37429
34	YOKE, BOTTOM	73984T
35	NUT, SWIVEL PIN RETAINING	11-37424
36	STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET	28205T
37	SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")	10-28200
38	NUT, STRAP STOP FASTENING SCREW	11-25269
39	SPACER, RUBBER - COIL SPRING POSITIONING	23-28688
40	PIN, UPPER SHOCK MOUNTING	55-28416
41	TUBE, CUSHION - SHOCK PIN	63473
42	BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)	10-68298
42	BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)	10-68299
43	WASHER, CLAMP BRACKET BOLT (LOWER)	12-68410
43	WASHER, CLAMP BRACKET BOLT (UPPER)	12-68300
44	NUT, CLAMP BRACKET BOLT	11-82670912
45	SERIAL PLATE	38-56267
46	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET	10-25612
47	PIN, REVERSE LOCK SPRING ATTACHING Comment: (NOT USED WITH FULL POWER TRIM)	17-25598
48	SPRING, REVERSE LOCK TENSION Comment: (NOT USED WITH FULL POWER TRIM)	24-29821
49	REVERSE LOCK ASSEMBLY Comment: (NOT USED WITH FULL POWER TRIM)	87431
50	SHAFT, REVERSE LOCK PIVOT Comment: (NOT USED WITH FULL POWER TRIM)	56349
51	COTTER PIN, REVERSE LOCK TO SHAFT Comment: (NOT USED WITH FULL POWER TRIM)	18-45882
52	PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)	55-696531
52	PIN, LOWER SHOCK MOUNTING LONG SHAFT	55-28414
--	SCREW, LOWER SHOCK PIN LONG SHAFT	10-28424
--	NUT, LOWER SHOCK PIN SCREW LONG SHAFT	11-8M0207775
53	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET	23-28199
54	WASHER, UPPER BUSHING RETAINER (INNER)	12-28196
55	WASHER, LOWER BUSHING RETAINER (INNER) Comment: (NOT USED WITH FULL POWER TRIM)	12-59378
56	SHOCK ABSORBER Comment: (NOT USED WITH FULL POWER TRIM)	55-58780A7
57	BUSHING, RUBBER - SHOCK ABSORBER (UPPER) Comment: (NOT USED WITH FULL POWER TRIM)	23-32171
58	BUSHING, RUBBER - SHOCK ABSORBER (LOWER) Comment: (NOT USED WITH FULL POWER TRIM)	23-28198
59	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)	12-8M0204648
60	SCREW, UPPER AND LOWER SHOCK MOUNTING PIN Comment: (NOT USED WITH FULL POWER TRIM)	10-69375A1
61	COVER, UPPER AND LOWER SHOCK MOUNTING PIN	70679
62	SCREW, COVER TO SHOCK MOUNTING SCREW	10-37655

COWLING AND FRONT COVER

Below is the parts list for Mercury 1150 COWLING AND FRONT COVER:

Position No.	Part Name	OEM Number
1	COWL FRONT COVER ASSEMBLY Comment: SERIAL 00000000-02933900	2183-7928A3
1	COWL FRONT COVER ASSEMBLY Comment: SERIAL 03023086-03114543	2183-7928A3
1	COWL FRONT COVER ASSEMBLY Comment: SERIAL 03270480-09999999	2183-7928A3
2	EMBLEM< FRONT COVER Comment: SERIAL 00000000-03114543	37-64413
3	KNOB, COWL FRONT COVER FASTENING	56849
4	WASHER, COVER FASTENING KNOB (RUBBER)	12-30771
5	WASHER, COVER FASTENING KNOB (PLASTIC)	12-59572
6	SPRING, TENSION - FASTENING KNOB	24-30772
7	ROLL PIN, TENSION SPRING TO KNOB	17-29077
8	STRIP, SOUND ABSORBING	31089
9	BLANKET, SOUND ABSORBING	38675
10	SEAL, SOUND ABSORBING - UPPER	35769
11	SEAL, SOUND ABSORBING - TOP	53334
12	WRAP AROUND COWL ASSEMBLY Comment: SERIAL 00000000-03114543	2136-4660A4
12	WRAP AROUNG COWL ASSEMBLY Comment: SERIAL 03270480-09999999	2136-4660A4
13	COWL LATCH ASSEMBLY	46785A1
14	HOOK, COWL LATCH FASTENING	30413
15	BLANKET, SOUND ABSORBING	30021
--	GLUE, ADHESIVE - BLANKET FASTENING	92-86166Q1
--	ADHESIVE COMPOUND, EMBLEM FASTENING	92-271091

CRANKSHAFT, PISTONS AND CONNECTING RODS

Below is the parts list for Mercury 1150 CRANKSHAFT, PISTONS AND CONNECTING RODS:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	436-9072A1
2	NUT, FLYWHEEL TO CRANKSHAFT	11-52901
3	BEARING, BALL - UPPER	30-62567T
4	BEARING, BALL - LOWER	30-63742T
5	CARRIER ASSEMBLY, "O" RING Comment: SERIAL 02933580-09999999	54196A6
6	"O" RING, CARRIER Comment: SERIAL 02933580-09999999	25-35126
7	CENTER MAIN BEARING ASSEMBLY	535-3190A2
8	DOWEL PIN, CENTER MAIN BEARING	17-20032
9	BEARING, NEEDLE - OUTER RACE	29-714221
10	RACE, OUTER (PAIR)	26113T
11	RING, SNAP - OUTER RACE	53-26933
12	DOWEL PIN, STEPPED	17-47246
13	SCREW, CENTER MAIN BEARING CLAMPING	10-22968
14	NUT, BEARING CLAMPING SCREW	11-8M0207775
15	MAIN BEARING ASSEMBLY, VALVE TYPE Comment: SERIAL 00000000-03274149	540-5266A9
15	MAIN BEARING ASSEMBLY, VALVE TYPE Comment: SERIAL 03274150-09999999	540-5266A9
16	DOWEL PIN, MAIN BEARING	17-20032
17	SCREW, MAIN BEARING CLAMPING	10-45775
18	NUT, MAIN BEARING CLAMPING SCREW	11-45774
19	REED SET, MATCHED - MAIN BEARING	34-56007A1
20	REED STOP, MAIN BEARING REED VALVES	34-57422
21	SCREW, REED STOP MOUNTING ( Comment: SERIAL 00000000-03274149	10-20055
21A	SCREW, REED STOP MOUNTING Comment: SERIAL 03274150-09999999	10-62204
22	NUT, REED STOP MOUNTING SCREW Comment: SERIAL 03274150-09999999	11-53153
23	PISTON AND PISTON PIN ASSEMBLY	774-9137A12
24	LOCK RING, PISTON PIN	53-857196	40-52035
25	RING, PISTON (1/16" THICK)	39-78816A12
26	CONNECTING ROD AND CAP ASSEMBLY	624-8101A3
27	BEARING ASSEMBLY, CRANKPIN	31-62596A1
28	SCREW, CONNECTING ROD	10-54803
29	NUT, CONNECTING ROD SCREW	11-49091
30	BEARING, NEEDLE - PISTON PIN	29-8M0214934
31	WASHER, NEEDLE LOCATING	12-8M0032839	12-47247

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

Below is the parts list for Mercury 1150 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	END CAP ASSEMBLY, UPPER	1134-3197A1
2	OIL SEAL, END CAP	26-41953
3	"O" RING	25-47254
4	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-47248A1
5	SCREW, END CAP MOUNTING	10-30225
6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: SERIAL 00000000-03023086	852-4843A5
6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: SERIAL 03270480-03274148	852-4843A5
6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY Comment: SERIAL 03274149-09999999	852-4843A5
7	GASKET, CRANKCASE TO CYLINDER BLOCK	27-53862
8	RESTRICTION, CRANKCASE BLEED	66517
9	STUD, CARBURETOR MOUNTING (1 3/16")	16-64936
10	STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")	16-64281
11	PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK	17-43044
12	PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING	17-20323
13	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")	16-26134
14	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 9/16")	16-48770
15	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 7/8")	16-26324
16	COVER, STARTER MOTOR BRACKET - TOP	56029T
17	SCREW, TOP COVER ATTACHING (2 1/2")	10-26132
17	SCREW, TOP COVER ATTACHING (2")	10-21449
18	NUT, COVER SCREW	11-29250
19	COVER, STARTER MOTOR BRACKET - BOTTOM	76867
20	SCREW, BOTTOM COVER ATTACHING (2 5/8")	10-53460
20	SCREW, BOTTOM COVER ATTACHING (1 7/8")	10-73279
21	NUT, COVER SCREW	11-29250
22	SCREW, CRANKCASE TO CYLINDER BLOCK (2 5/8")	10-53460
22	SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")	10-32293
22	SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")	10-69091
23	WASHER, CRANKCASE TO CYLINDER BLOCK SCREWS	12-22753
24	NUT, CRANKCASE FASTENING SCREWS	11-29250
25	SCREW, CENTER MAIN BEARING LOCKING	10-20359
26	TAB WASHER, BEARING LOCKING SCREW	14-20091
27	END CAP ASSEMBLY, LOWER	1126-3196A3
28	CHECK VALVE ASSEMBLY, END CAP	21-42657A3
29	OIL SEAL, END CAP	26-41953
30	"O" RING< END CAP	25-20081
31	SHIM, END CAP TO CRANKCASE (.002-3-5-10)	15-20085A1
32	SCREW, END CAP MOUNTING (1")	10-30225
33	COVER, WATER JACKET - CYLINDER BLOCK Comment: SERIAL 00000000-03114543	62277A1
33	COVER, WATER JACKET - CYLINDER BLOCK Comment: SERIAL 03270480-09999999	62278
34	GASKET, WATER JACKET COVER	27-47228
35	SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")	10-53167T
36	LOCKWASHER, WATER JACKET COVER FASTENING SCREW	13-53166
37	GASKET, CYLINDER BLOCK TO BAFFLE PLATE	27-55283
38	PLATE, BAFFLE - EXHAUST MANIFOLD Comment: SERIAL 00000000-03114543	62277A1
38	PLATE, BAFFLE - EXHAUST MANIFOLD Comment: SERIAL 03270480-09999999	62277
39	GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER	27-55284
40	COVER, EXHAUST MANIFOLD	55281T
41	SCREW, MANIFOLD COVER MOUNTING	10-38837
42	SWITCH, MERCURY	58124A4
43	SCREW, SWITCH TO FRONT MOUNTING BRACKET (1/2")	10-28708
45	SCREW, MERCURY SWITCH LEAD	10-62568
46	COVER, CYLINDER BLOCK	1023-3755A1
47	GASKET, CYLINDER BLOCK COVER	27-981853
48	SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")	10-21091
49	NUT, COVER MOUNTING SCREW	11-8M0207775
50	PLUG, PIPE - CYLINDER BLOCK COVER	22-328022
51	BRAACKET, MOUNT SUPPORT - CYLINDER BLOCK	37440
52	SCREW, BRACKET TO CYLINDER BLOCK (1")	10-35386
53	COVER, TRANSFER PORT - TOP	62301
53	COVER, TRANSFER PORT - BOTTOM Comment: SERIAL 00000000-03367060	62978
53	COVER, TRANSFER PORT - BOTTOM Comment: SERIAL 03367061-09999999	62978
54	GASKET, TRANSFER PORT COVER Comment: SERIAL 00000000-02933900	27-552791
54	GASKET, TRANSFER PORT COVER Comment: SERIAL 03023086-09999999	27-64941
55	SCREW, TRANSFER PORT COVER MOUNTING (1")	10-8M0214943
55	SCREW, TRANSFER PORT COVER MOUNTING (3/4")	10-28636
56	CLAMP, CYLINDER BLEED HOSE TO TOP COVER	54-37282
57	"D" WASHER, BLEED HOSE CLAMP	37281
58	FITTING, UPPER CYLINDER BLEED	22-67902
59	CLAMP, BLEED HOSE TO CONNECTOR	54-20387
60	HOSE, CYLINDER BLEED - UPPER (13 1/2")	32-9912688
61	CHECK VALVE ASSEMBLY, BLEED HOSE	22-62365A1
62	CHECK VALVE ASSEMBLY	21-28481A1
63	ELBOW, BALANCE TUBE TO MAIN BEARING SCREW	22-20781
64	CLAMP, BALANCE TUBE TO ELBOW AND TEE	54-20386
65	HOSE, CENTER CYLINDER BLEED (7 1/2")	32-9912688
66	TEE, BLEED HOSE TO CYLINDER BLOCK - CENTER	22-432881
67	HOSE, CYLINDER BLEED - LOWER (8 1/2")	32-9912688
68	TEE, BLEED HOSE TO CYLINDER BLOCK - LOWER	22-53491
69	TUBE, BALANCE - MAIN BEARING	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE

Below is the parts list for Mercury 1150 DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, DISTRIBUTOR Comment: SERIAL 00000000-02933900	393-3736A79
1	HOUSING ASSEMBLY, DISTRIBUTOR Comment: SERIAL 03023086-09999999	393-3736A79
2	STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING	32197
3	PIN, ANCHO SPRING - DISTRIBUTOR HOUSING	17-27962
4	SPRING, HORSESHOE - DISTRIBUTOR HOUSING	24-27944
5	WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING	12-53540
6	ECONOMIZER COLLAR ASSEMBLY	55804A1
7	PIN, ECONOMIZER COLLAR - SPRING RETAINER	17-27961
8	FITTING, GREASE - ECONOMIZER COLLAR	22-25094
9	SWIVER, LINKAGE - ECONOMIZER COLLAR	27947
10	SWIVERL AND LINK ROD ASSEMBLY	25996A1
11	NUT, UPPER LINK ROD ADJUSTING	11-25168
12	ROD, LINK - UPPER	37700
13	SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER	27948
14	LEVER, THROTTLE CONTROL	48856
15	WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL	13-25806
16	WASHER, THROTTLE CONTROL LEVER SWIVEL	12-8M0204649
17	NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER	11-8267089
18	SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")	10-31830
19	WASHER, THROTTLE CONTROL LEVER SCREW	12-8M0042641	12-29395
20	BUSHING, THROTTLE CONTROL LEVER SCREW	23-45818
21	NUT, THROTTLE CONTROL LEVER SCREW	11-8M0204726
22	SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE	37587
23	NUT, THROTTLE CABLE TO LOWER SWIVEL	11-8267089
24	COLLAR, THROTTLE ACTUATOR	48692
25	SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")	10-48675
26	NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW	11-20890
27	CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW	52023
28	PLATE, THROTTLE ACTUATOR	48671
29	SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")	10-37892
30	WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW	12-847883	12-20128
31	LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW	13-26996
32	SPACER, THROTTLE ACTUATOR PLATE SCREW	23-48674
33	CAM, THROTTLE ACTUATOR PLATE (SERIAL #2928767 AND BELOW) Comment: SERIAL 00000000-02928767	54239
33	CAM, THROTTLE ACTUATOR PLATE (SERIAL #2928768 AND UP) Comment: SERIAL 02928768-09999999	58454
34	WASHER, ADAPTOR - DISTRIBUTOR HOUSING	12-46246
35	ADAPTOR ASSEMBLY, DISTRIBUTOR	66165A2
36	FITTING, GREASE - DISTRIBUTOR ADAPTOR	22-25094
37	SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")	10-78841
38	WASHER, DISTRIBUTOR HOUSING SCREW	12-20084
39	NUT, DISTRIBUTOR HOUSING SCREW	11-22053
40	WIRE, GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET	84-93388A1
41	BRACKET, STOP	55805
42	SCREW, DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")	10-28636
43	WASHER, STOP BRACKET FASTENING SCREW	12-20533
44	SCREW, STOP BRACKET ADJUSTING (2 1/8")	10-64022
45	NUT, STOP BRACKET ADJUSTING SCREW	11-20890
46	CAP, NYLON - STOP BRACKET ADJUSTING SCREW	52023
47	WASHER, DISTRIBUTOR HOUSING	12-27939
48	TAB WASHER, ADAPTOR CAP FASTENING	14-27960
49	WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION	13-27959
50	CAP, DISTRIBUTOR HOUSING	54567
51	SPACER, DRIVER PULLEY	23-47250
52	DRIVEN PULLEY ASSEMBLY	29906A1
53	PIN, ROLL - FLANGE LOCATING	17-29908
54	FLANGE, DRIVEN PULLEY	29907
55	KEY, DISTRIBUTOR DRIVER	28-29910
56	SCREW, PULLEY CLAMPING	10-68554
57	BELT, TIMING	20140

DISTRIBUTOR HOUSING AND ROTOR

Below is the parts list for Mercury 1150 DISTRIBUTOR HOUSING AND ROTOR:

Position No.	Part Name	OEM Number	Supersedes
1	BALL BEARING, DISTRIBUTOR HOUSING (UPPER)	30-20066
2	NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING	11-54209
3	SLEEVE, ROTOR SHAFT	23-53539
4	HOUSING ASSEMBLY, DISTRIBUTOR Comment: SERIAL 00000000-02933900	393-3736A79
4	HOUSING ASSEMBLY, DISTRIBUTOR Comment: SERIAL 03023086-09999999	393-3736A79
5	GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE	53417
6	SCREW, GROUND STRAP ATTACHING (3/8")	10-62568
7	ELBOW, VENT - DISTRIBUTOR HOUSING Comment: SERIAL 00000000-03114543	22-55262
7	FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING Comment: SERIAL 03270480-09999999	58807A1
8	SHIM, BALL BEARING TO DISTRIBUTOR HOUSING	15-55853
9	BALL BEARING, DISTRIBURTOR HOUSING (LOWER)	30-26379
10	SHIM, BALL BEARING TO SPACER	15-21148A1
11	SPACER, ROTOR SHAFT	23-53538
12	RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING	53-26406
13	DISC, ROTOR SERIAL Comment: SERIAL 00000000-02928720	393-4248
14	ROTOR, DISTRIBUTOR Comment: SERIAL 00000000-02928720	393-4371
13	DISC, ROTOR SERIAL Comment: SERIAL 02928721-09999999	393-4313
14	ROTOR, DISTRIBUTOR Comment: SERIAL 02928721-09999999	393-4312
15	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING Comment: SERIAL 00000000-02933900	54-59588
15	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING Comment: PART OF DIST. CAP ASS'Y SERIAL 03023086-09999999	54-60768
16	SCREW, DISTRIBUTOR CAP CLAMP (1 1/4") Comment: PART OF DIST. CAP ASS'Y	10-62802
17	NUT, DISTRIBUTOR CAP CLAMP SCREW Comment: PART OF DIST. CAP ASS'Y	11-26768
18	HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2") Comment: SERIAL 00000000-03114543	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 SERIAL 00000000-03114543
18	HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2") Comment: SERIAL 00000000-03114543	32-8M0108355	32-8M0047428, 32-830756109, 32-99127109, 32-877821 SERIAL 00000000-03114543
19	ELBOW, VENT HOSE TO BOTTOM COWL Comment: SERIAL 00000000-03114543	22-31521
20	HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL	84-821945A5
21	GROMMET, HIGH TENSION CABLE	25-26547
22	BOOT, HIGH TENSION CABLE TO COIL	332-2854T01
23	SLEEVE, HIGH TENSION CABLE	85-94589
24	GASKET, DISTRIBUTOR CAP	27-55896
25	DISTRIBUTOR CAP ASSEMBLY Comment: SERIAL 00000000-03114543	393-4841A2
25	DISTRIBUTOR CAP ASSEMBLY Comment: SERIAL 03270480-03366101	393-4841A2
25	DISTRIBUTOR CAP ASSEMBLY Comment: SERIAL 03366102-09999999	393-4841A2
--	BRUSH AND SPRING ASSEMBLY	393-1293A1
26	ELBOW, VENT - DISTRIBUTOR CAP Comment: SERIAL 00000000-03114543	22-31521
26	FLAME ARRESTOR, VENT - DISTRIBUTOR CAP Comment: SERIAL 03270480-09999999	58807A1
27	SPARK PLUG (AC-V40FFM)	33-896329827	33-827C
28	SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5 AND #6 Comment: ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS	84-813715A1
--	CONNECTOR, SPARK PLUG LEAD	8M0084600	20121
29	PROTECTOR, SPARK PLUG LEAD	85-63709A1
30	SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR	85-94589
31	GROMMET, SPARK PLUG LEADS	25-26547
32	WIRE RETAINER, HIGH TENSION LEADS	45409
33	BRACKET, FRONT - WIRE RETAINER	45392
34	BRACKET, REAR - WIRE RETAINER	47398
35	SCREW, FRONT AND REAR BRACKET ATTACHING	10-62568
36	SPACER, RUBBER - HIGH TENSION LEADS	45391
37	IGNITION COIL ASSEMBLY, COMPLETE	332-4895A5
38	SCREW, COIL MOUNTING BRACKET ( 1 3/4")	10-24624
39	LOCKWASHER, COIL MOUNTING BRACKET	13-26992
40	SCREW, COIL MOUNTING BRACKER (3 1/4")	10-88488
41	SPACER, COIL BRACKET TO BOTTOM COWL	23-52933
42	NUT, COIL MOUNTING BRACKET SCREW	11-8M0207775

DRIVE SHAFT HOUSING ASSEMBLY

Below is the parts list for Mercury 1150 DRIVE SHAFT HOUSING ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)	1552-3911A3
1	DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)	1551-3918A3
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING	16-56295
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE	19-824928001	19-824928, 19-32297
4	SCREW RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")	10-48409
5	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")	10-48408
6	COVER, TRIM - DRIVE SHAFT HOUSING	37417
7	SCREW, TRIM COVER TO BOTTOM COWL Comment: SERIAL 00000000-02928720	10-37571
7	SCREW, TRIM COVER TO BOTTOM COWL Comment: SERIAL 02928721-09999999	10-57807
-	GROMMET, PLASTIC - TRIM COVER SCREW Comment: SERIAL 02928721-09999999	25-92012
8	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING	37919
9	STRIP, RETAINING - TRIM COVER SEAL (SIDE)	37665
10	STRIP, RETAINING - TRIM COVER SEAL (REAR)	38052
11	TUBE, WATER INLET (SHORT SHAFT)	32-37446
11	TUBE, WATER INLET (LONG SHAFT)	32-37438
12	TUBE, EXHAUST (SHORT SHAFT)	38469
12	TUBE, EXHAUST (LONG SHAFT)	38470
13	SCREW, TUBE TO EXTENSION PLATE (7/8") Comment: SERIAL 00000000-02933900	10-28668
13	SCREW, TUBE TO EXTENSION PLATE (1") Comment: SERIAL 03023086-09999999	10-36137
14	NUT, EXHAUST TUBE SCREW Comment: SERIAL 00000000-02933900	11-35888
14	NUT, EXHAUST TUBE SCREW Comment: SERIAL 03023086-09999999	11-63149
15	NUT, POWERHEAD STUDS (5/16-24)	11-82670911
16	NUT, POWERHEAD STUBS (3/8-24)	11-8M0204726
16	NUT, POWERHEAD STUDS (3/8-24)	11-23161
17	WASHER, POWERHEAD STUDS	12-20086
18	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING	27-48801
19	GUIDE, PUSH ROD - REVERSE LOCKING Comment: NOT TO BE USED WITH FULL POWER TRIM	52887
20	ROD, PUSH - REVERSE LOCK (SHORT SHAFT) Comment: NOT TO BE USED WITH FULL POWER TRIM	47591
20	ROD, PUSH - REVERSE LOCK (LONG SHAFT) Comment: NOT TO BE USED WITH FULL POWER TRIM	47558
21	NUT, JAM - RUSH ROD Comment: NOT TO BE USED WITH FULL POWER TRIM	11-69254
22	YOKE, PUSH ROD Comment: NOT TO BE USED WITH FULL POWER TRIM	47559
23	PIN, PUSH ROD TO REVERSE LOCK Comment: NOT TO BE USED WITH FULL POWER TRIM	24-78203A2
24	COTTER PIN, PUSH ROD PIN Comment: NOT TO BE USED WITH FULL POWER TRIM	18-25191
25	MOUNT, RUBBER - UPPER	75296
25	MOUNT, RUBBER - UPPER (HEAVY DUTY)	75297
26	COVER, UPPER MOUNT - OUTSIDE HALF	49239
27	COVER, UPPERMOUNT - INSIDE HALF	53141
28	PACKING, "U" CUP	24929
29	SCREW, UPPER MOUNT COVER (1 5/8")	10-20012
30	SCREW, UPPER MOUNT COVER (2 1/8")	10-28775
31	WASHER, UPPER MOUNT COVER SCREW	12-8M0204649
32	NUT, UPPER MOUNT COVER SCREW	11-35888
33	WASHER, UPPERMOUNT BOLT	12-31262
34	WASHER, RUBBER - UPPER MOUNT BOLT	12-47840
35	WAASHER, UPPER MOUNT BOLT	12-31263
36	NUT, UPPER MOUNT BOLT	11-8M0204653
37	MOUNT, RUBBER - LOWER (SHORT SHAFT)	49455
37	MOUNT, RUBBER - LOWER (LONG SHAFT)	75299
37	MOUNT, RUBBER - LOWER (HEAVY DUTY)	75300
38	SCREW, LOWER MOUJNT (5 1/2")	10-75284
39	WASHER, LOWER MOUNT SCREW	12-49339
40	NUT, LOWER MOUNT SCREW	11-25096
41	BUMPER, RUBBER - LOWER MOUNTING SCREW	25067
42	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-8M0204653
43	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
44	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS	11-29489
45	WASHER, GEAR HOUSING TO DRIVWE SHAFT HOUSING STUDS	12-45176
46	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING	35608
47	SPRING, TENSION - LOWER MOUNT CLAMP	24-35522
48	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING	10-29256
49	COVER, LOWER MOUNT CLAMP	35474T
50	NUT, LWOER MOUNT CLAMP COVER	11-35521
51	SCREW, COVER TO LOWER CLAMP MOUNT	10-29722

FLYWHEEL ASSEMBLY AND STATOR

Below is the parts list for Mercury 1150 FLYWHEEL ASSEMBLY AND STATOR:

Position No.	Part Name	OEM Number	Supersedes
1	PLUG, FLYWHEEL PULLER THREADS	19-45907
2	NUT, FLYWHEEL Comment: (PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)	11-52901
3	WASHER, FLYWHEEL NUT	12-33001
4	FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3114543 AND BELOW) Comment: SERIAL 00000000-03114543	225-2494A37
4	FLYWHEEL ASSEMBLY, COMPLETE (SERIAL #3270480 AND UP) Comment: SERIAL 03270480-09999999	225-2494A37
5	SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")	10-32417
6	SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")	10-68997
7	PIN, DOWEL - PULLEY TO FLYWHEEL	17-26618
8	FLANGE, FLYWHEEL PULLEY	29788
9	PULLEY, FLYWHEEL	30306
10	HUB, FLYWHEEL PULLEY	29787
11	STATOR, ALTERNATOR	398-4793
12	TERMINAL, STATOR LEAD WIRE	30050
13	SCREW, STATOR TO UPPER END CAP (7/8")	10-63136
14	CLIP, STATOR LEAD FASTENING (7/16")	54-22875
14	CLIP STATOR/WIRING HARNESS LEADS FASTENING (5/16")	54-26550
15	SCREW, STATOR LEAD CLIP FASTENING (3/8")	10-62568
16	"D" WASHER, CLIP FASTENING SCREW	8M0084613	69205

FUEL PUMP AND FUEL LINE ASSEMBLY

Below is the parts list for Mercury 1150 FUEL PUMP AND FUEL LINE ASSEMBLY:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL PUMP ASSEMBLY	55156A5
2	CHECK VALVE ASSEMBLY	21-30430A3
3	DIAPHRAGM KIT	55278A1
4	GASKET, FUEL PUMP (#)
5	GAKSET, CHECK VALVE TO HOUSING (#)
6	RETAINER, CHECK VALVE	23004
7	SCREW, RETAINER TO HOUSING	10-43725
8	SCREW, FUEL PUMP MOUNTING (1 3/8")	10-69067
9	PLUG, PIPE - BOTTOM PUMP	22-328022
10	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8")	32-33154A1
11	ELBOW, UPPER CARBURETOR STRAINER COVER (90)	22-30174
12	SLEEVE, CARBURETOR STRAINER COVER ELBOW	22-30175
13	NUT, UPPER CARBURETOR STRAINER COVER ELBOW	22-30177
14	CLIP, FUEL LINE TO CYLINDER BLOCK	54-22627
15	SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")	10-62568
16	:D: WASHER, FUEL LINE CLIP SCREW	8M0084613	69205
17	ELBOW, FUEL LINE TO CARBURETOR (45)	22-8M0123050
18	FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR	32-31584A1
19	FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")	32-55827A1
20	FUEL LINE ASSEMBLY, PUMP TO PUMP (13 3/4")	32-55828A1
21	FITTING, TOP PUMP	22-30468
22	SLEEVE, OTP PUMP FITTING	22-30175
23	NUT, TOP PUMP FITTING	22-30177
24	FUEL LINE, ADAPTOR TO LOWER FUEL PUMP	32-55829
25	ADAPTOR, CHECK UNIT (FUEL LINE)	30186
26	STEM, CHECK UNIT ADAPTOR	30187
27	SPRING, ADAPTOR STEM	24-30189
28	"O" RING, ADAPTOR STEM	25-16524
29	CUP WASHER, ADAPTOR	30188
30	SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")	10-69029
30	SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")	10-88488
31	NUT, ADAPTOR FASTENING SCREW	11-8M0207775

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)

Below is the parts list for Mercury 1150 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BEL	1623-4934A21
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE	1623-4934A20
1	GEAR HOUSING ASSEMBLY	1623-5244A6
2	SCREEN, WATER INLET EARLY MODELS ONLY Comment: EARLY MODELS ONLY	55662
3	SPRING, WATER INLET SCREEN RETAINING Comment: EARLY MODELS ONLY	24-57430
4	DOWEL PIN, GEAR HOUSING LOCATING	17-21438
5	STUD, GEAR HOUSING TO DRIVE SHARFT HOUSING (4")	16-57921
6	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")	16-8M0133358
7	STUD, WATER PUMP TO GEAR HOUSING (3 3/8")	16-8M0034463	16-56297 2
8	STUD, WATER PUMP TO GEAR HOUSING (5/16-18 X 3 5/16")	16-57919
8	STUD, WATER PUMP TO GEAR HOUSING (1/4-20 X 3 1/8")	16-306671
9	BEARING, ROLLER - DRIVE SHAFT	31-32898T
10	DRIVE SHAFT (SHOFT SHAFT) Comment: SERIAL 00000000-02933900	45-47433
10	DRIVE SHAFT (LONG SHAFT) Comment: SERIAL 00000000-02933900	45-47434
10	DRIVE SHAFT (SHORT SHAFT) Comment: SERIAL 03023086-09999999	45-64388
10	DRIVE SHAFT (LONG SHAFT) Comment: SERIAL 03023086-09999999	45-64389
11	GEAR, PINION - DRIVE SHAFT	43-55688
12	NUT, PINION GEAR TO DRIVE SHAFT	11-35921
13	SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10	15-30278A1
13	SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)	15-30278A1
14	BEARING, BALL - DRIVE SHAFT	30-63326T
15	RING, RETAINING - BALL BEARING	53-30726
16	GASKET, WATER PUMP BASE TO GEAR HOUSING	27-32438
17	"O" RING, WATER PUMP BASE	25-8M0204651
18	WATER PUMP BASE ASSEMBLY	46-48747A1
19	OIL SEAL, WATER PUMP BASE	26-94038
20	OIL SEAL, WATER PUMP BASE	26-16977
21	DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY	17-35973
22	GASKET, LOWER - WATER PUMP BASE TO FACE PLATE	27-8M0090319	27-85608 1
23	PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY	8M0204677
24	GASKET, UPPER - FACE PLATE TO WATER PUMP BODY	27-858524	27-85609 1, 27-85609B 1
25	WATER PUMP BODY ASSEMBLY	46-96148T1
26	INSERT, WATER PUMP BODY	48752T
27	OIL SEAL, WATER PUMP BODY	26-16977
28	SEAL, RUBBER - WATER INLET TUBE	26-38970
29	IMPELLER - WATER PUMP	47-89984T4
30	KEY, IMPELLER DRIVE	28-8M0214992
31	SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")	10-30720
32	LOCKWASHER, WATER PUMP BODY SCREW	13-26992
33	WASHER, WATER PUMP BODY FASTENING SCREW AND STUD	12-8M0204649
34	NUT, WATER PUMP FASTENING SCREW	11-826709109	11-33825, 11-35045
35	WASHER, WATER PUMP BODY FASTENING STUD	12-36001
36	NUT, WATER PUMP BODY FASTENING STUD	11-826709111	11-45592
37	RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)	25-8M0214918
38	SLEEVE, GUIDE - WATER INLET TUBE	23-29804T
39	"O" RING, UPPER - DRIVE SHAFT (SERIAL #29335769 AND BELOW) Comment: SERIAL 00000000-29335769	25-8M0214919
40	SEAL, EXHAUST TUBE	37641001
41	PLATE, SUPPORT - EXHAUST TUBE SEAL	38051
42	SHAFT ASSEMBLY, SHIFT - LOWER	76062A1
43	"E" RING, RETAINING - SHIFT SHAFT	53-29641
44	"O" RING, SHIFT SHAFT BUSHING	25-25439
45	BUSHING ASSEMBLY, SHIFT SHAFT	23-77631A2
46	OIL SEAL, SHIFT SHAFT HOUSING (LOWER)	26-24590
46	OIL SEAL, SHIFT SHAFT BUSHING (UPPER)	26-892361
47	WASHER, RUBBER - SHIFT SHAFT BUSHING	12-31266
48	SPACER, LOWER - REVERSE LOCKING NOT USED WITH FULL POWER Comment: NOT USED WITH FULL POWER TRIM	78036
49	CAM, REVERSE LOCKING Comment: NOT USED WITH FULL POWER TRIM	43308T1
50	SCREW, GREASE FILLER AND VENT HOLE	10-79953Q04
51	WASHER, GREASE FILLER AND VENT HOLE SCREW	12-191833
52	PLUG, GEAR HOUSING FLUSHING HOLE	19-48750
53	WASHER, GEAR HOUSING FLUSHING HOLE PLUG	12-8M0204663

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)

Below is the parts list for Mercury 1150 GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2):

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW	1623-4934A21
-	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW	1623-4934A20
1	GEAR HOUSING ASSEMBLY (SEE PAGE 27 FOR PARTS BREAKDOWN)	1623-5244A6
54	CAM, SHIFT	760394
55	FOLLOWER, CAM	30625
56	SLIDE, CROSS PIN	30624
57	SPRING, COMPRESSION - CAM FOLLOWER	24-30622
58	SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)	15-30923A1
59	TAPERED ROLLER BEARING ASSEMBLY	31-30894A1
60	BEARING, ROLLER - FORWARD GEAR	31-30895T
61	FORWARD GEAR ASSEMBLY	43-57011A4
62	RATCHET, SLIDING CLUTCH	52-822539T	52-822539, 52-814756, 52-12777
63	PIN, CROSS - RATCHET TO PROPELLER SHAFT	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
64	SPRING, RETAINING - CROSS PIN	24-30893
65	SHAFT, PROPELLER	44-93003
66	REVERSE GEAR ASSEMBLY	43-55689
67	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)	15-29955A1
68	WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING	12-71143A1
69	BEARING, BALL - REVERSE GEAR	30-31265
70	"O" RING, BEARING CARRIER	25-29976
71	BEARING CARRIER ASSEMBLY	52132T1
72	BEARING, ROLLER - BEARING CARRIER	31-30956T
73	OIL SEAL, BEARING CARRIER	26-8M0204670
74	KEY, LOATING - BEARING CARRIER	28-30281
75	TAB WASHER, GEAR HOUSING COVER	14-52700
76	COVER, GEAR HOUSING	52699
77	TRIM TAB, GEAR HOUSING	97-31640Q4
78	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")	10-66024
79	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	12-45176
80	NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS	11-8M0204653
81	SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") Comment: PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY ,COMPLETE	10-34353
82	THRUST HUB AND WASHER ASSEMBLY (#) Comment: PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY ,COMPLETE
83	WASHER, CUPPED - THRUST HUB	12-29590
84	WASHER, SPLINED - PROPELLER NUT	12-31211Q03
85	TAB WASHER, PROPELLER NUT Comment: PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE	14-816629Q	14-816629, 14-31210, 14-816629B PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE
86	NUT, PROPELLER (PART OF A-1623-3909A3 AND A5 GEAR HOUSING AS	11-52707Q1

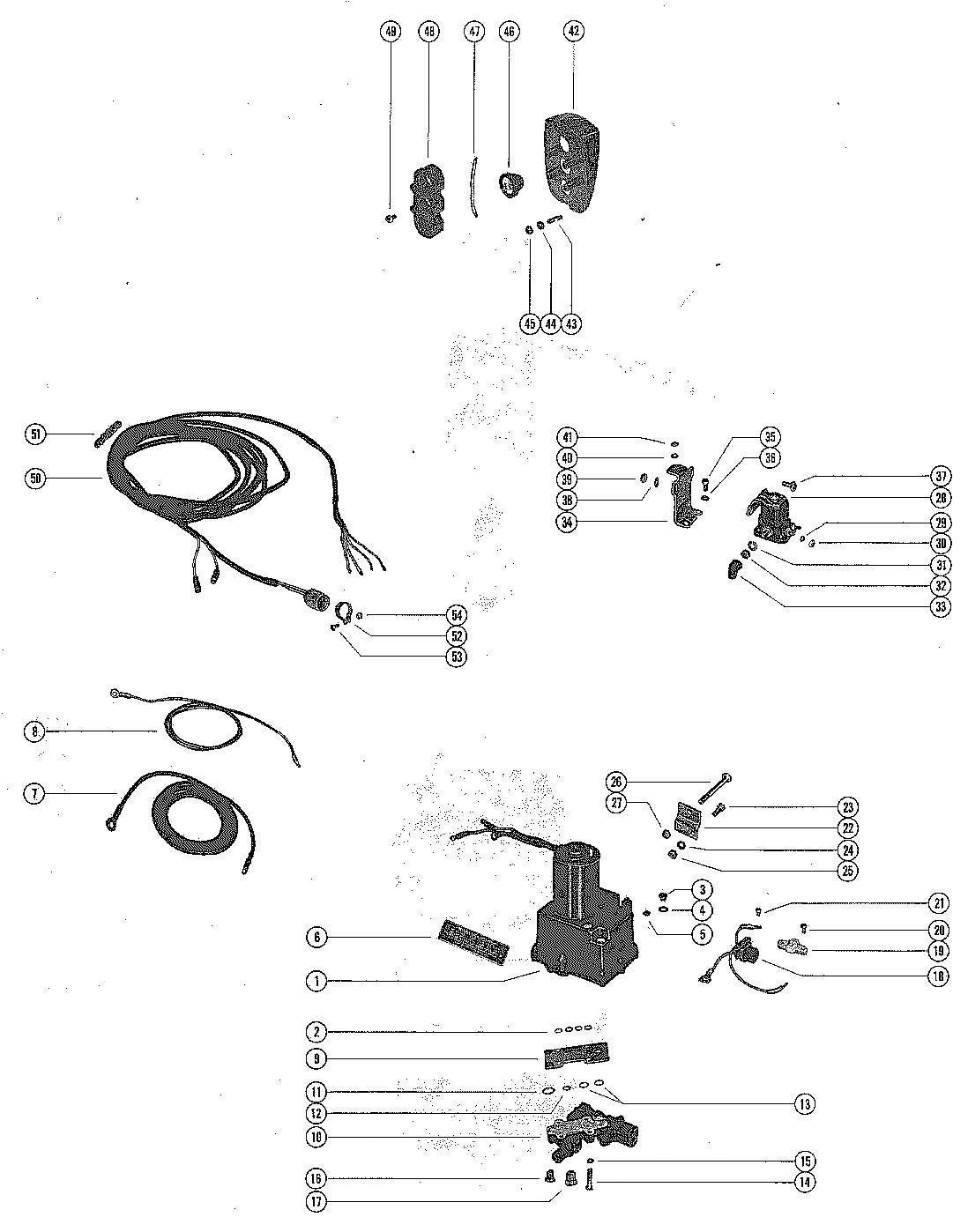

HYDRAULIC PUMP AND CONTROL PANEL

Below is the parts list for Mercury 1150 HYDRAULIC PUMP AND CONTROL PANEL:

Position No.	Part Name	OEM Number
1	HYDRAULIC PUMP ASSEMBLY	45060A7
2	"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE	25-48171
3	SCREW, FILLER - HYDRAULIC PUMP	10-79953Q04
4	WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW	12-191833
5	SCREW, VENT - HYDRAULIC PUMP	10-62269
6	DECAL, INSTRUCTION - HYDRAULIC PUMP	37-55901
7	BATTERY LEAD (POSITIVE)	32979
8	BATTERY LEAD (NEGATIVE)	32988
9	PLATE, MANIFOLD	45336
10	CONTROL VALVE ASSEMBLY	45197A2
--	"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE	25-48171
11	"O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4"O.D.)	25-45254
12	"O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)	25-48171
13	"O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8"O.D.)	25-45253
14	SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP (1	10-56500
15	LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW	13-26992
16	PLUG, CONTROL VALVE (3/8-24")	22-38609
17	PLUG, CONTROL VALVE (1/2-20")	22-46008
18	CONNECTOR AND HARNESS	45325A1
19	TERMINAL BLOCK, HYDRAULIC PUMP	45559
20	SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")	10-35519
21	SCREW, HANRESS LEADS TO TERMINAL BLOCK (3/8")	10-62568
22	BRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT	45377T
23	SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")	10-35386
24	LOCKWASHER, MOUNTING BRACKET SCREW	13-39107
25	NUT, MOUNTING BRACKET SCREW	11-21908
26	BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")	10-68298
27	NUT, HYDRAULIC PUMP BOLT	11-35304
28	STARTER SOLENOID	25661T1
29	LOCKWASHER, STARTER SOLENOID TERMINAL	10,13-26996
30	NUT, STARTER SOLENOID TERMINAL	10,11-68219
31	LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")	13-8M0204647
32	NUT, STARTER SOLENOID TERMINAL (5/16")	11-22053
33	BOOT, RUBBER - STARTER SOLENOID TERMINAL	46265
34	BRACKET, MOUNTING - STARTER SOLENOID	74407T
35	SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")	10-21140
36	LOCKWASHER, MOUNTING BRAKCET SCREW	13-26992
37	SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")	16-24290
38	LOCKWASHER, STARTER SOLENOID SCREW	13-26992
39	NUT, STARTER SOLENOID SCREW	11-21825
40	LOCKWASHER, HYDRAULIC PUMP THRU BOLT	13-27660
41	NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT	11-68219
--	CONTROL PANEL ASSEMBLY, COMPLETE	55642A13
42	PANEL, CONTROL	55642A17
43	STUD, CONTROL PANEL TO BOAT (2")	16-55422
44	WASHER, CONTROL PANEL STUD	12-24676
45	NUT, CONTROL PANEL STUD	11-27164
46	SWITCH, PUSH BUTTON - CONTROL PANEL	55738A1
47	JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4")	48078
47	JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE -3")	53107
48	RETAINER, PUSH BUTTON SWITCH	55641
49	SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")	10-62568
50	HARNESS, CONTROL PANEL (20 FEET)	84-87394A20
51	BINDER, NYLON - CONTROL PANEL HARNESS	33865
52	CLAMP, HARNESS FASTENING	95814
53	SCREW, HARNESS FASTENING CLAMP (1/2")	10-29227
54	NUT, HARNESS FASTENING SCREW	11-34388

HYDRAULIC PUMP ASSEMBLY

Below is the parts list for Mercury 1150 HYDRAULIC PUMP ASSEMBLY:

Position No.	Part Name	OEM Number
-	HYDRAULIC PUMP ASSEMBLY, COMPLETE	45060A7
1	"O" RING, HYDRAULIC PUMP	25-48171
2	VALVE BODY AND GEAR ASSEMBLY	392-7734
3	CAN, VALVE BODY	392-2618
4	SCREW, VALVE BODY TO RESERVIOR	10-20411
5	SEAL, RESERVIOR TO VALVE BODY AND GEAR	392-7735
6	RESERVIOR ASSEMBLY	392-2939
7	SCREW, VENT - HYDRAULIC PUMP	10-62269
8	SCREW, FILLER - HYDRAULIC PUMP	10-79953Q04
9	WASHER, SEALING - FILLER SCREW	12-191833
10	WASHER, THRUST - ARMATURE	392-2623
11	ARMATURE, FIELD AND FRAME	392-2943
12	FIELD AND FRAME ASSEMBLY	392-2942
13	BALL, COMMUTATOR END PLATE	392-2944
14	PLATE ASSEMBLY, COMMUTATOR END	392-2940
15	BRUSH SET, COMMUTATOR END PLATE	392-8989
16	SPRING SET, BRUSH TENSION	392-2529
17	BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR	392-2938
18	LOCKWASHER, THRU BOLT	13-26996

MISCELLANEOUS PARTS/ACCESSORIES

Below is the parts list for Mercury 1150 MISCELLANEOUS PARTS/ACCESSORIES:

Position No.	Part Name	OEM Number
-	MERC 1150E-SS PARTS LIST	90-56974
-	GASKET SET (MOTOR OVERHAUL)	27-55284A1
-	EXTRA HEAVY DUTY WATER PUMP KIT	53168A1
-	DECAL SET (SERIAL #2933900 AND BELOW)	37-12832A87
-	DECAL SET (SERIAL #3023086 THRU #3114543)	37-12832A87
-	DECAL SET (SERIAL #3270480 AND UP)	37-12832A87
-	TACHOMETER ASSEMBLY	79-73370A3

OVERSIZE PISTONS AND RINGS

Below is the parts list for Mercury 1150 OVERSIZE PISTONS AND RINGS:

Position No.	Part Name	OEM Number	Supersedes
--	PISTON AND PISTOIN PIN ASSEMBLY (.015 OVERSIZE)	774-9137A13
--	RING, PISTON (.015 OVERSIZE) - 1/16" THICK	39-78811A12

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS

Below is the parts list for Mercury 1150 STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS:

Position No.	Part Name	OEM Number	Supersedes
1	WIRING HARNESS, INTERNAL	84-69236A1
2	TERMINAL, HARNESS AND MERCURY SWITCH LEADS	30050
3	CLAMP, WIRING HARNESS TO BOTTOM COWL	54-76368
4	SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")	10-45862
5	LOCKWASHER, WIRING HARNESS CLAMP SCREW	13-26996
6	WASHER, WIRING HARNESS CLMAP SCREW	12-847883	12-20128
7	SPRING, GARTER - INTERNAL WIRING HARNESS	24-28975
8	SCREW, GROUND WIRE TO BOTTOM COWL	10-98256
9	LOCKWASHER, GROUND WIRE SCREW	13-24669
10	GROMMET, RECTIFIER TO SWITCH BOX WIRE (SERIAL #3114543 AND B Comment: SERIAL 00000000-03114543	25-26547
11	CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")	54-648552
12	SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")	10-62568
13	"D" WASHER, WIRING HARNESS CLIP SCREW	8M0084613	69205
14	TERMINAL BLOCK, STATOR LEADS	45559
15	SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")	10-62568
16	SWITCH BOX ASSEMBLY	332-2986A21
17	NUT, SWITCH BOX TERMINAL	11-45076
18	SCREW, SWITCH BOX (3/8")	10-45218
19	SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")	10-64279
20	NUT, SWITCH BOX SCREW	11-8M0207775
21	CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET	84-93389A12
22	SCREW, WIRE CABLE TO STARTER MOTOR	10-69035
23	STOP, RUBBER - STARTER MOTOR	8M0043376	68042
24	SPACER, COLLAR TO TOP MOUNTING CAP	23-56774
25	COLLAR, RUBBER - STARTER MOTOR MOUNT	23-8M0034918	23-8M0001391, 56703
26	STARTER MOTOR ASSEMBLY	50-898265010	50-72467
27	LOCKWASHER, STARTER MOTOR TERMINAL	13-26992
28	NUT, STARTER MOTOR TERMINAL	11-20890
29	SOLENOID, STARTER	25661T1
30	SCREW, SOLENOID TO COIL BRACKET (3/4")	10-69028
31	LOCKWASHER, STARTER SOLENOID FASTENING SCREW	13-26992
32	BUMPER, RUBBER - STARTER SOLENOID	269011
33	LOCKWASHER, SOLENOID TERMINAL	10,13-26996
34	NUT, SOLENOID TERMINAL	10,11-68219
35	CABLE, WIRE - STARTER MOTOR TO SOLENOID	48396
36	LOCKWASHER, SOLENOID TERMINAL (5/16")	13-8M0204647
37	NUT, SOLENOID TERMINAL (5/16")	11-22053
38	BOOT, SOLENOID TERMINAL	46265
39	RECTIFIER ASSEMBLY	78614A1
40	SCREW, RECTIFIER TO MOUNTING BRACKET (1")	10-64278
41	NUT, RECTIFIER MOUNTING SCREW	11-8M0207775
42	NUT, FASTENING - RECTIFIER STATOR LEADS	11-45076

TOP COWL AND SUPPORT BRACKETS

Below is the parts list for Mercury 1150 TOP COWL AND SUPPORT BRACKETS:

Position No.	Part Name	OEM Number
1	COWL, TOP	2114-3806
2	RETAINER ASSEMBLY, TOP COWL Comment: SERIAL 00000000-02933900	52733A9
3	PAD, BUMPER - TOP COWL RETAINER Comment: SERIAL 00000000-02933900	35496
4	EMBLEM, TOP COWL RETAINER Comment: SERIAL 00000000-02933900	37-61018A1
2	RETAINER ASSEMBLY - TOP COWL RETAINER Comment: SERIAL 03023086-03114543	52733A9
2	RETAINER ASSEMBLY - TOP COWL RETAINER Comment: SERIAL 03270480-09999999	52733A9
3	PAD< BUMPER - COWL RETAINER	35496
5	SCREW, RETAINER TO TOP COWL (1 1/4")	10-74824
6	LOCKWASHER, RETAINER TO TOP COWL SCREW	13-39107
7	SHIELD, TOP COWL - REAR	76370
8	SCREW, SHIELD TO TOP COWL (5/8")	10-37370
9	LOCKWASHER, SHIELD SCREW	13-37371
10	ROPE, STARTER (FOR MANUAL STARTING ONLY)	47341A11
11	HINGE, COWL LATCH - TOP COWL	52739
12	LEVER, COWL LATCH HINGE	94918F1
13	PIN, ROLL - COWL LATCH LEVER TO HINGE	17-58998
14	SPRING, COWL LATCH HINGE Comment: SERIAL 00000000-03114543	24-53019
15	HOOK, TOP COWL LATCH - REAR	55455
16	SCREW, REAR HOOK TO TOP COWL (7/8")	10-22956
17	LOCKWASHER, REAR HOOK MOUNTING SCREW	13-26992
18	FRAME, TOP COWL SUPPORT	79897A4
19	DECAL, TIMING Comment: SERIAL 00000000-02933900	37-60204
19	DECAL, TIMING Comment: SERIAL 03023086-09999999	37-60204
20	MOUNT, RUBBER - TOP COWL FRAME	90435
20	MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)	46096
21	NUT, RUBBER MOUNT TO TOP COWL FRAME	11-8267089
22	BRACKET, TOP COWL SUPPORT - REAR	54685
23	MOUNT, RUBBER - REAR SUPPORT BRACKET	31014
24	LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET	13-26992
26	NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET	11-20088
27	SCREW, REAR BRACKET TO TOP COWL FRAME (1")	10-26065
28	NUT, REAR BRACKET SCREW	11-29250
29	SCREW, REAR BRACKET TO BOTTOM COWL (1")	10-35386
30	LOCKWASHER, REAR SUPPORT BRACKET SCREW	13-8M0204647
31	BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT	77116A1
32	SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")	10-78841
33	NUT, FRONT SUPPORT BRACKET SCREW	11-29250
34	SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")	10-73657
35	LOCKWASHER, FRONT SUPPORT BRACKET SCREW	13-8M0204647
36	MOUNT, RUBBER - FRONT SUPPORT BRACKET	37640
37	LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET	13-8M0204647
38	NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET	11-22053

TRIM CYLINDERS AND HYDRAULIC HOSES

Below is the parts list for Mercury 1150 TRIM CYLINDERS AND HYDRAULIC HOSES:

Position No.	Part Name	OEM Number	Supersedes
1	TRIM CYLINDER ASSEMBLY	45194A9
2	SCREW, BLEED - SHOCK CYLINDER	10-45265
3	"O" RING, SHOCK CYLINDER BLEED SCREW	25-45016
4	SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")	10-45264
5	SPACER, SHOCK CYLINDER - LOWER	23-45280
6	BUSHING, RUBBER - SHOCK CYLINDER	23-94907A1
7	BRACKET, MOUNTING - SHOCK CYLINDER (PORT)	89108A3
8	SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")	10-45263
9	BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")	10-68298
10	WASHER, MOUNTING BRACKET BOLT	12-68410
11	NUT, MOUNTING BRACKET BOLT	11-82670912
12	BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)	89807A1
13	OIL SEAL, STARBOARD MOUNTING BRACKET	26-24590
14	PLUNGER, LIMIT SWITCH PLUNGER	89290
15	SPRING, TENSION - LIMIT SWITCH PLUNGER	24-95881
16	STUD, MOUNTING BRACKET AND CLAMP BRACKET	16-45282
17	LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD	13-8M0204647
18	NUT, MOUNTING BRACKET TO CLAMP BRACKET STUD	11-28770
19	SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")	10-45328
20	WASHER, SHOCK CYLIONDER SCREW (STARBOARD ONLY)	12-37807
21	NUT, SHOCK CYLINDER SCREW	11-20696
22	SPRING, TENSION - ADJUSTING STUD	24-24390
23	STUD, ADJUSTING - CUT-OUT LIMIT SWITCH	16-8M0034461	16-21085
24	NUT, JAM - LIMIT SWITCH ADJUSTING STUD	11-8M0204718
25	CAM, LIMIT SWITCH ADJUSTING STUD	99897
26	PLATE, RETAINING - LIMIT SWITCH CAM	86967
27	SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER	10-31903
28	LOCKWASHER, RETAINING PLATE AND CAM SCREW	13-26996
29	SWITCH ASSEMBLY, CUT-OUT LIMIT SWITCH	45326A2
30	BUSHING, RUBBER - CUT-OUT LIMIT SWITCH	23-45354
31	SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")	10-47255
32	COVER, LIMIT SWITCH	45287
33	GASKET, LIMIT SWITCH COVER	27-45275
34	SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")	10-24942
35	COBER, INLET - TRANSOM	87774A1
36	GASKET, INLET COVER	27-45274
37	GROMMET, RUBBER - INLET COVER	25-45507
38	SCREW, INLET COVER TO BOAT (2")	10-32866
39	WASHER, INLET COVER SCREW	12-20878
40	NUT, INLET COVER SCREW	11-8M0204718
41	HOSE, TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32"O.D.	32-88005
42	HOSE, LIFE - CYLINDER TO CONTROL VALVE (5') - 17/32"O.D.	32-88006
43	GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE	23-35977
44	TILT STOP	73519A1
45	TUBE, MOUNTING - TILT STOP	63441
46	PIN, MOUNTING TUBE	17-63442

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
