Mercury 115 DFI (3 CYL.)(1.5L) (1B417702 THRU 1B736885) Outboard Motor Parts Diagram & Catalog – Free PDF Download

by JLM Marine 30 Apr 2025 0 Comments

Mercury 115 DFI (3 CYL.)(1.5L) Outboard Motor Parts Diagram & Catalog – Free PDF Download

Accessories

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Accessories:

Position No.	Part Name	OEM Number	Supersedes
-	FLUSH KIT, Coastal	858566A02
-	SENSOR KIT, Pitot	881879A22	881879A12
-	HOSE ASSEMBLY, Water Pressure	32-892156A01
-	SENDER KIT, Trim, Digital	891777A01
-	SENDER KIT, Power Trim, Analog	821400A2
-	TANK ASSEMBLY, Oil	1257-8742A25
-	RING, Seal	25-892071
-	HARNESS ASSEMBLY, Digital Adaptor	84-859244T1
-	SWITCH KIT, Tilt Limit	87-887979A2
-	STEERING HANDLE KIT, Tiller	896648A09	896648A05, 896648A02
-	HARNESS ASSEMBLY	84-12649T11

Air Compressor

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Air Compressor:

Position No.	Part Name	OEM Number	Supersedes
1	COMPRESSOR ASSEMBLY, Air	8M0050654	8M0048123, 854333T11, 854333T07
2	END CAP	8M0114192
3	O-RING	25-86391
4	CONNECTING ROD ASSEMBLY	657-853658T02
5	NOT SOLD SEPARATE, Piston Assembly-With Rings	NSS
6	LOCK RING	53-854638
7	REED PLATE ASSEMBLY	853584A10
8	GASKET	27-854442
9	GASKET	27-854443
10	HEAD, Compressor	854334T02
11	FITTING, (.375-18)	22-38565
12	SCREW, (M8 x 35 MM)	10-82446035
13	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
14	FITTING	22-856744	22-856744 1
15	O-RING, (.468 x .078)	25-831985	25-885187
16	SENSOR ASSEMBLY	8M0148668
17	O-RING, (1.78 mm x .08 mm)	25-896699	25-888814
18	CHECK VALVE	21-888421
19	PIN, Special (1.5 Inches)	8215832
20	FITTING	22-15133
21	TIE STRAP, (5.50 Inches)	8M0214940
22	HOSE, (.125 x 25.00 Inches)	32-88306955
23	CONNECTOR	21-889851
24	SCREW, (M6 x 25)	10-82130025
25	PULLEY	853944T03	853944T01
26	SCREW, (M6 x 12)	10-85593912
27	TENSIONER ARM	8M0047394	854799001
28	PULLEY	8547971
29	SCREW, (M10 x 25) Hex Flange - Stainless Steel	10-4010825
30	BEARING, Flanged	30-8570111
31	BUSHING	23-856549001
32	TUBING, (18.00 Inches Bulk), Cut to 8 Inches	32-88104441
33	SPRING	24-8547953
34	SCREW, (M10 x 60)	10-4000382
35	TUBING, (18.00 Inches Bulk), Cut to 13 Inches	32-88104441
36	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
37	SCREW, (M8 x 90)	10-82446090

Air Hoses

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Air Hoses:

Position No.	Part Name	OEM Number	Supersedes
1	HOSE, (32.00 Inches), Cut to 8 Inches	32-85525884
2	CLAMP, Hose (15.3)	54-8M0214964
3	HOSE, Air	32-885376
4	HOSE ASSEMBLY, Air By-Pass	32-881041A1
5	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
6	MUFFLER, Air	881197
7	HOSE, (17.00 Inches Bulk), Cut to 4-1/2 Inches	32-85833939

Bleed System

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Bleed System:

Position No.	Part Name	OEM Number	Supersedes
1	FITTING, Tee	22-59169003
2	TUBING, (38.00 Inches Bulk), Cut to 3-1/4 Inches	32-8M0054152	32-856060 65
3	TUBING, (38.00 Inches Bulk), Cut to 3-1/4 Inches	32-8M0054152	32-856060 65
4	TUBING, (38.00 Inches Bulk), Cut to 19 Inches	32-8M0054152	32-856060 65
-	POWERHEAD ASSEMBLY, 75 DFI Comment: 75 Horsepower	895233A07	895233A05 75 Horsepower
-	POWERHEAD ASSEMBLY, 90/115 DFI Comment: 90/115/Jet 80	891767A07	891767A04 90/115/Jet 80

Bottom Cowl

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Bottom Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	BOTTOM COWL, Starboard	100-880775A03	100-880775A00
2	NOT SOLD SEPARATE, Sound Blanket - Part of 889720A00	NSS
3	BOTTOM COWL, Port	100-880774A03	100-880774A02
4	SOUND BLANKET KIT	889720A00
5	PIN	17-885116
6	SEAL, Cowl (41.00 Inches)	8M0111278
7	TIE STRAP, (11.750 Inches)	54-850181
8	LEVER, Cowl Latch	880783T
9	BUSHING	23-335891
10	FITTING, Vent	22-889684002	22-889684001
11	CAM, Latch	884468
12	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
13	SCREW, (M6 x 16)	10-1993716
14	RETAINER	822363T1
15	SCREW, (M6 x 16)	10-82130016
16	CHECK VALVE ASSEMBLY, Drain	21-817519A2
17	SPRING	24-892166001	24-892166
18	SCREW, (M6 x 40)	10-82130040
19	BRACKET, Cable Retainer	19812T03
20	LATCH	98889
21	DRIVE SCREW	10-42975
22	CUP	39519
23	SCREW, (M8 x 50) Stainless Steel	10-40011154
24	NUT, (M8)	11-401388
25	WASHER	12-817274	12-817274 1
26	STUD	16-8M0034456	16-42917 2
27	GROMMET	25-855362001	25-855362
28	BUSHING	23-855364
29	SEAL, Lower Cowl (44.75 Inches)	8M0043167	8M0036668, 884256 4
30	SWITCH, Trim	87-8M0235191
31	FITTING	22-94848
32	SPACER	23-892427
33	BOOT, Idle Relief	884464
34	CLAMP, Upper	8M0000504	884465001, 884465
35	CLAMP, Lower	8M0000484	884466, 896637
36	SCREW, (M6 x 16)	10-82130016
37	GROMMET	25-8M0006618
-	DECAL, Strip	37-854700T05

Coastal Flush Kit, 858566A02

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Coastal Flush Kit, 858566A02:

Position No.	Part Name	OEM Number	Supersedes
-	FLUSH KIT, Coastal	858566A02
1	FITTING	22-835454001
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	TUBING, (.312) (70.00 Inches Bulk)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
4	COUPLING BODY	22-857176
5	CAP	19-858240	861427
6	COUPLING INSERT	22-857175	22-861405

Coastal Flush Kit, Outboard

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Coastal Flush Kit, Outboard:

Position No.	Part Name	OEM Number	Supersedes
-	FLUSH KIT, Coastal	858566A02
1	NOT SOLD SEPARATE, Fitting Comment: Not used in this Application	NSS
2	FITTING	22-835454001
3	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
4	TUBING, (.312) (70.00 Inches Bulk)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
5	COUPLING BODY	22-857176
6	CAP	19-858240	861427
7	COUPLING INSERT	22-857175	22-861405
8	NOT SOLD SEPARATE, Grommet Comment: Not used in this Application	NSS

Crankshaft, Pistons and Connecting Rods

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Crankshaft, Pistons and Connecting Rods:

Position No.	Part Name	OEM Number	Supersedes
1	CRANKSHAFT ASSEMBLY	400-879633T01
2	RING, Retaining	53-880119
3	BEARING, Ball, Lower	30-43011T
4	KEY, Woodruff	28-91800
5	WEAR SLEEVE	786611
6	O-RING, (.859 x .139)	25-35126
7	RING, Seal	39-8M0071643	39-879850
8	BEARING ASSEMBLY	31-879848A02	879848A01
9	NOT SOLD SEPARATE, Needle Bearing	NSS
10	PISTON ASSEMBLY Comment: Standard	700-879858T08	700-879858T03 Standard
10	PISTON ASSEMBLY Comment: .015 Oversize	700-896961A02
10	PISTON ASSEMBLY Comment: .030 Oversize	700-896962A02
11	NOT SOLD SEPARATE, Piston Pin	NSS
12	RING	40-841202
13	RING SET, Piston Comment: Standard	39-827179A12	39-815958A12 Standard
13	RING SET, Piston Comment: .015 Oversize	39-875252A12	39-856939A12, 39-826293A12 .015 Oversize
13	RING SET, Piston Comment: .030 Oversize	39-875257A12	39-826297A12, 39-856940A12 .030 Oversize
14	CONNECTING ROD ASSEMBLY	600-888470T08
15	THRUST WASHER	12-88263
16	BEARING, Needle	29-8M0204715
17	SCREW, (.375-24 x 1.250)	10-94320
18	BEARING ASSEMBLY	31-844338A01	31-43012A04
19	NOT SOLD SEPARATE, Roller Bearing	NSS
20	BEARING ASSEMBLY, Roller, Upper	31-879853A01
21	SEAL, Oil	26-879635
-	GASKET SET, Powerhead	27-879855A04
	POWERHEAD ASSEMBLY, 75 DFI	895233A07	895233A05
	POWERHEAD ASSEMBLY, 90/115 DFI	891767A07	891767A04

Cylinder Block and Crankcase

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Cylinder Block and Crankcase:

Position No.	Part Name	OEM Number	Supersedes
1	CYLINDER BLOCK ASSEMBLY Comment: 75 Horsepower	800-878581A32
1	CYLINDER BLOCK ASSEMBLY Comment: 90/115/Jet 80	800-878581A34
2	PIN, Dowel - Without Hole (.375 x .625)	17-43044
3	PIN, Center Main	17-8M0036405	17-67296
4	SCREW, (M10 x 80)	10-4009680
5	BRACKET	8M0111325
6	SCREW, (M8 x 40)	10-81742740
7	FITTING, (.250-18 x .62) Brass	22-36382
8	PLUG, Pipe (.375-18)	22-185981
9	SCREW, (M8 x 35 MM)	10-82127335
10	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
11	CHECK VALVE	21-883139001
12	CHECK VALVE	21-889830
13	FITTING, Elbow 45 Degree (1.25)	22-782792
14	CHECK VALVE	21-8282182
15	DEFLECTOR, Water	8248576
16	PLUG, Pipe (.375-18)	22-185981
17	FITTING	22-881866	22-859432
18	STUD, (M10 x 136)	16-892561001	16-889607
19	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
20	NUT, (M10)	11-40140
21	CHECK VALVE, 90 Degree (.0625-27)	21-8592352
22	SEAL	891956
23	FITTING	22-835454001
24	SCREW, (M8 x 20)	10-81742720
25	SENSOR, Crank Position	8M0082988	8M0030022, 828358 2
26	SCREW, (M5 x 16) Stainless Steel	10-40011107
27	COVER, Flywheel	880198T
28	GROMMET	25-8M0153609
29	BRACKET, Oil Reservoir	880731002
30	HOSE ASSEMBLY, Flushing	32-8M0102826	8M0001037
-	GASKET SET, Powerhead	27-879855A04
-	POWERHEAD ASSEMBLY, 75 DFI	895233A07	895233A05
-	POWERHEAD ASSEMBLY, 90/115 DFI	891767A07	891767A04

Driveshaft Housing

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Driveshaft Housing:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING ASSEMBLY, Driveshaft	1598-881913T01
2	STUD, (M10 x 100) Comment: Long	16-903501
2	STUD, (M10 x 227) Comment: X-Long	16-9035015
3	STUD, (M10 x 63) Comment: Long	16-9035012
3	STUD, (M10 x 190) Comment: X-Long	16-8M0034462	16-90350 16 X-Long
4	WASHER, (.406 x .750 x .105) Stainless Steel	12-8M0214963
5	NUT, (M10)	11-40140
6	PICKUP ASSEMBLY, Speedometer	22-85822A4
7	CONNECTOR, 90 Degree - With Vibraseal	22-433351
8	CONNECTOR, Straight	22-85822T
9	MOUNT	881916
10	SCREW, (M12 x 154)	10-898835001	10-42973
11	WASHER, (.500 x .810 x .090) Stainless Steel	12-856982
12	NUT, (M12), Nylon Insert	11-897926
13	CABLE ASSEMBLY, Ground, To Swivel Bracket	88238A10
14	SCREW, (.250-20 x .500) Stainless Steel	10-41508
15	CLAMP	8M0036786	881917
16	NUT	11-35521
17	SCREW, (M8 x 25 MM)	10-889833025
18	COVER	100-8M4500754	8M0000852, 882752
19	SCREW, (#12-24 x .620)	10-88417
20	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel	12-8M0204648
21	WASHER, Neoprene	12-881976
22	SPACER KIT Comment: X-Long	12092A3
23	PIN, Dowel - With Hole (.375 x .625) Comment: Front - With Hole - X-Long	17-8M0084244	17-43043 Front - With Hole - X-Long
23	PIN, Dowel - Without Hole (.375 x .625) Comment: Rear - X-Long	17-43044
24	PLATE WASHER	892214

Electrical Components

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Electrical Components:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Electrical Plate Assembly-Complete	NSS
1	PLATE ASSEMBLY, Electrical	880190T05
2	COIL, Ignition	300-8M0077471	300-879984T01, 339-879984A 1, 339-879984T00
3	LEAD, Hi Tension	84-884442T03	84-884442 3
4	SCREW, (M6 x 30)	10-82129130
5	SCREW, (M6 x 12)	10-82130012
6	SENSOR KIT, (0-50 PSI)	71-8M0157742
7	CLIP, (.865)	54-883066
8	FITTING	22-8M0207782
9	TUBING, (52.00 Inches Bulk), Cut to 6 Inches	32-85978571
10	TUBING, (52.00 Inches Bulk), Cut to 1.50 Inches	32-85978571
11	TUBING, (52.00 Inches Bulk), Cut to 52 Inches	32-85978571
12	COUPLER	22-8M0214971
13	PLUG	22-859732
14	PIN, Special (1.5 Inches)	8215832
15	SPACER	889992	889992F10
16	BUSHING	23-8502341
17	TEE, Fitting	22-875207
18	GROMMET	25-833155
19	HARNESS ASSEMBLY, Engine	84-896264T03
20	FUSE, Mini - Tan - 5 Ampere	88-832969T05	88-832969 5
20	FUSE, Mini - Gray - 2 Ampere	88-8M0207797
20	FUSE, Mini - Blue - 15 Ampere	88-832969T15	88-832969 15
21	FUSE, Mini - Yellow - 20 Ampere	88-832969T20	88-832969 20
22	COVER, Fuse	858754
-	HARNESS ASSEMBLY, 5 Pin	879346A51	84-854839T02
23	HARNESS ASSEMBLY, Fuse - 100 Ampere	84-878231A03
24	HARNESS ASSEMBLY, Starter	84-882829A03
25	BOOT, Insulator - Red	85-830233
26	CABLE ASSEMBLY, Battery - Positive	84-88439A46
27	BOOT, Insulator - Red	85-8500671
28	CABLE ASSEMBLY, (12.00 Inches) Black	84-856583A07
29	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
30	TIE STRAP, (5.50 Inches)	8M0214940
31	SPARK PLUG, NGK#IZFR5J	33-892567Q	33-892567001
32	CLIP	828791
33	WASHER	12-4002318
34	SCREW, (M8 x 35 MM)	10-82446035
35	COVER	880192T01	880192T
36	GROMMET	25-8M0153609
37	CONNECTOR ASSEMBLY, Weather Cap 6 Pin	877613A02
38	CONNECTOR ASSEMBLY, Weather Cap - Male	830796A04
39	CAP ASSEMBLY, Connector - 3 Pin Male	822447T01	822447A01
-	CAP, Female	13540
-	PLUG, Male	13541

Electrical Components, PCM Mounting

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Electrical Components, PCM Mounting:

Position No.	Part Name	OEM Number	Supersedes
-	NOT SOLD SEPARATE, Electrical Plate Assembly-Complete	NSS
1	PLATE ASSEMBLY, Electrical	880190T05
2	SCREW, (M6 x 14)	10-82129114
3	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
4	CABLE ASSEMBLY, Braided	84-858414A1
5	CLIP, (1.00)	54-858755
6	PCM, Propulsion Control Module Comment: 75 Horsepower SN# 1B456849 & Below	89790623T	89790601T 75 Horsepower SN# 1B456849 & Below
6	PCM, Propulsion Control Module Comment: 75 Horsepower SN# 1B456850 & Up	89790623T	89790601T 75 Horsepower SN# 1B456850 & Up
6	PCM, Propulsion Control Module Comment: 90 Horsepower SN# 1B456849 & Below	89790624T	89790602T 90 Horsepower SN# 1B456849 & Below
6	PCM, Propulsion Control Module Comment: 90 Horsepower SN# 1B456850 & Up	89790624T	89790602T 90 Horsepower SN# 1B456850 & Up
6	PCM, Propulsion Control Module Comment: 115 Horsepower SN# 1B456849 & Below	89790625T	89790603T 115 Horsepower SN# 1B456849 & Below
6	PCM, Propulsion Control Module Comment: 115/Jet 80 SN# 1B456850 & Up	89790625T	89790603T 115/Jet 80 SN# 1B456850 & Up
7	SCREW, (M6 x 25 MM)	10-82129125
8	WASHER, (.265 x .750 x .048) Stainless Steel	12-65567
9	GROMMET	25-8M0190980
10	BUSHING	23-856954
11	BRACKET	858953
12	RELAY ASSEMBLY	8M0207773
13	BRACKET	828102
14	GROMMET	25-818967
15	BUSHING	23-8M0214955
16	PIN, Special (1.5 Inches)	8215832
17	SPACER	889600	889600F10
18	NUT, (M6)	11-401376
19	CLIP, (.625)	54-858954
20	SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)	89-817109A2
21	GROMMET	25-822179
22	BUSHING	23-8M0214955
23	NUT, Brass	10-32,11-45076
24	CAP NUT,	10-32,11-813938
25	HOT STUD ASSEMBLY	85-875302A1
26	NUT, (M8) Stainless Steel	11-400213
27	LOCKWASHER, (.312)	13-53166
28	NUT, (.312-18)	11-8M0204668
29	CABLE ASSEMBLY, (4.00 Inches) Black	84-88807A16
30	BOOT, Insulator - Yellow	85-8500673
31	HARNESS ASSEMBLY, Trim	84-819514T21	84-819514A21
32	CABLE ASSEMBLY, Black	84-93388T21
33	WASHER	12-85172
34	NUT, (M8) Stainless Steel	11-400213

Engine Overhaul Gasket Set Components

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Engine Overhaul Gasket Set Components:

Position No.	Part Name	OEM Number	Supersedes
-	GASKET SET, Powerhead	27-879855A04
0	DIAPHRAGM KIT, Fuel Pump	21-857005A1
0	NOT SOLD SEPARATE, Diaphragm	NSS
0	NOT SOLD SEPARATE, Retainer	NSS
0	NOT SOLD SEPARATE, Spring	NSS
0	NOT SOLD SEPARATE, Cap	NSS
0	NOT SOLD SEPARATE, Spring-Boost	NSS
0	NOT SOLD SEPARATE, Cap-Spring End	NSS
0	NOT SOLD SEPARATE, Gasket-Boost	NSS
0	NOT SOLD SEPARATE, Gasket-Pulse	NSS
0	GASKET, Fuel Pump	27-8M0204705
0	GASKET, Cylinder Block	27-430075
0	SEAL, Oil, Lower End Cap	26-419533
0	O-RING, Lower End Cap	25-89224
0	GASKET, Reed Adaptor Plate	27-879840
0	GASKET, Cover	27-879843
0	GASKET, Reed Block	27-880122
0	O-RING, (1.78 mm x .08 mm), Temperature Sensor	25-896699	25-888814
0	DIAPHRAGM, Poppet	812887002	812887 1
0	GASKET, Thermostat and Poppet Cover	27-879855001	27-879855
0	GASKET, Thermostat	27-8M0204714
0	O-RING, (.859 x .139), Crankshaft-Lower	25-35126
0	SEAL, Oil, Crankshaft-Top	26-879635
0	SEAL, Cylinder Block	891956

Exhaust Plate

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Exhaust Plate:

Position No.	Part Name	OEM Number	Supersedes
1	PLATE, Exhaust	881912T01
2	PIN, Dowel	17-23784
3	RETAINER	881973
4	MOUNT	881915002	881915001
5	SCREW, (M8 x 35 MM)	10-881975
6	SCREW, (M12 x 175)	10-898487	10-42974
7	NUT, (M12)	11-896963	11-859129, 11-90099
8	SPACER Comment: Long	23-813745	23-43041 Long
8	SPACER Comment: X-Long	23-11289
9	COUPLING	43585
10	GASKET	27-430086
11	TUBE, Exhaust	42966T07
12	SCREW, (M8 x 35) Stainless Steel	10-40011151
13	SEAL	8M0039075	42962
14	GROMMET	25-89417004
15	TUBE, Water - Long (13.21 Inches)	32-8M0042791	32-881201 1
15	TUBE, Water - X Long (18.21 Inches)	32-8M0042792	32-881201 2
16	CLAMP	824661
17	SEAL, Upper	814080001	814080
18	SCREW, (M8 x 45)	10-889833045
19	CLAMP	881918T03	881918T02, 881918T
20	GROMMET	25-12602002
21	BUSHING Comment: Non-Jet	23-48237
22	LEVER ASSEMBLY, Shift Shaft Comment: Non-Jet	892245T02
23	SHIFT LINK Comment: Non-Jet	892246A01
24	BUSHING Comment: Non-Jet	23-892263
25	WASHER, (.255 x .620 x .030) Stainless Steel Comment: Non-Jet	12-69056
26	NUT, (M6) Stainless Steel Comment: Non-Jet	11-401386
27	SCREW, (M8 x 35) Stainless Steel	10-40011151
28	SCREW, (M8 x 70) Stainless Steel	10-40011158
29	SWITCH	87-889514T02	87-889514A02
30	SCREW, (M3 x 20)	10-88075020
31	PLUG Comment: Jet	19-8M0033786

Flywheel and Alternator

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Flywheel and Alternator:

Position No.	Part Name	OEM Number	Supersedes
1	FLYWHEEL ASSEMBLY	200-878588T08	200-878588T03, 200-878588T04
2	DAMPER	888842T01	888842T
3	SCREW, (M8 x 20)	10-8M0143223
4	BELT	57-8M0026410	57-8M0012623, 57-892318
5	ALTERNATOR	8M6013461
6	SCREW, (M10 x 50)	10-82130150
7	WASHER	12-4002319
8	CABLE ASSEMBLY	84-856583A5
9	NUT, (M6) Stainless Steel	11-401386
10	BRACKET, Alternator	879856T02
11	PIN, Special (1.5 Inches)	8215832
12	MOUNT	23-856975	849639
13	SCREW, (M10 x 45)	10-82130145
14	WASHER	12-855725
15	PLUG, Yellow	19-45907
16	WASHER, (.641 x 1.250 x .190)	12-33001
17	NUT, (M16)	11-42979

Fuel Pump

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Fuel Pump:

Position No.	Part Name	OEM Number
1	PUMP ASSEMBLY, Fuel	14360T74
2	DIAPHRAGM KIT	21-857005A1
3	NOT SOLD SEPARATE, Gasket-Boost	NSS
4	NOT SOLD SEPARATE, Diaphragm	NSS
5	NOT SOLD SEPARATE, Gasket-Pulse	NSS
6	NOT SOLD SEPARATE, Spring	NSS
7	NOT SOLD SEPARATE, Cap	NSS
8	NOT SOLD SEPARATE, Retainer	NSS
9	NOT SOLD SEPARATE, Spring	NSS
10	NOT SOLD SEPARATE, Cap	NSS
11	BASE	144303
12	PLATE	987752
13	FITTING, Elbow 45 Degree (1.25)	22-782792
14	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
15	SCREW, (M5 x 40)	10-82104540
16	SCREW, (M6 x 50)	10-82130050
17	ELBOW	22-888493
18	O-RING, (.301 x .070)	25-8M0204683
19	GASKET	27-8M0204705
-	GASKET SET, Powerhead	27-879855A04

Fuel Rail

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Fuel Rail:

Position No.	Part Name	OEM Number	Supersedes
1	FUEL RAIL ASSEMBLY	8M0185151
2	PLUG	19-804834
3	O-RING KIT	804532	25-803987
4	CLAMP	54-804830
5	SCREW PACKAGE, (2 Per)(M5 x 10)	10-804525001	804525
6	O-RING KIT	25-804840
7	FITTING	22-291112
8	BRACKET	891820
9	INJECTOR	8M0222157
10	O-RING KIT	25-804530
11	O-RING KIT	25-804529
12	CLAMP	804522
13	VALVE ASSEMBLY, (.375 Inch Diameter), SCHRADER	8M0047053	883542, 804838A 1
14	CAP, Shrader Valve - Brass	22-805515	19-804839001, 19-804839
15	O-RING KIT	25-804840
16	CLAMP	8M0041097
17	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon	22-996642
18	PLUG	19-804835
19	O-RING KIT, 16 per kit	804532	25-803987
20	O-RING	25-804536
21	CLAMP	54-804832
22	O-RING KIT	25-804840
23	FITTING	22-804836002

Fuel System

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Fuel System:

Position No.	Part Name	OEM Number	Supersedes
1	HOSE, Vent, To Vent Fitting	32-889712001
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	HOSE ASSEMBLY, Fuel Supply	32-881040A1
4	HOSE ASSEMBLY, Fuel By-Pass	32-878506A1
5	SHRADER VALVE	884820
6	O-RING	25-891778
7	CLIP	54-884819
8	SCREW, (M6 x 12)	10-82130012
9	TUBING, (.312) (70.00 Inches Bulk), Cut to 6-1/2 Inches - To Crankcase	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
10	CONNECTOR	22-822769
11	TUBING, (.312) (70.00 Inches Bulk), Cut to 28 Inches	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
12	TUBING, (.312) (70.00 Inches Bulk) (Cut to 8-1/2 Inches)	32-8M0108349	32-8M0047448, 32-830757130, 32-830757 80
13	CLAMP, Hose (15.3)	54-8M0214964
14	HOSE	32-883545002
15	SEAL, Fuel Director	26-888852

Gear Housing, Driveshaft - 2.07:1 Gear Ratio

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Gear Housing, Driveshaft - 2.07:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: Long	1667-9011J33
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: X-Long	1667-9011J35
1	GEAR HOUSING ASSEMBLY, Basic	1667-9011G59
2	PIN, Dowel - With Hole (.375 x .625) , Front	17-8M0084244	17-43043
3	TUBE, Oiler	43046
4	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
5	SEAL	26-8M0204693
6	PIN, Dowel - Without Hole (.375 x .625), Rear	17-43044
7	TRIM TAB	31640T07
8	SCREW, (.437-14 x 1.250) Stainless Steel	10-825427	10-15942
9	WASHER, (.453 x .812 x .105) Black Oxide	12-451761
10	CARRIER ASSEMBLY	43040T1
11	NOT SOLD SEPARATE, Needle Bearing	NSS
12	ANODE	97-826134Q	826134, 826134A 1
13	NUT, (M6) Stainless Steel	11-401386
14	SCREW, (M6 x 40)	10-4000333
15	GEAR, Pinion - 14 Teeth Comment: Also Part of 43-881260A3	43-881259T
16	NUT, (.625-18)	11-35921
17	CAM, Shift Control	850307
18	BEARING ASSEMBLY, Tapered Roller	31-883047A1
19	SHIM SET	15-44492A1
20	DRIVESHAFT ASSEMBLY Comment: Long	45-888933A1
20	DRIVESHAFT ASSEMBLY Comment: X-Long	45-888934A1
21	SLEEVE/RING KIT	42461A1
22	NOT SOLD SEPARATE, Seal Ring	NSS
23	COVER ASSEMBLY, Water Pump	43055A4
24	GASKET	27-430331
25	GASKET	27-8M0214931
26	SEAL, Oil, Lower	26-43036
27	SEAL, Oil, Upper	26-43035
28	GASKET	27-8172771
29	HOUSING KIT, Upper Water Pump	817275A2
30	FACEPLATE	8M0204709
31	SCREW, (M6 x 30)	10-82684430
32	SEAL	430232
33	KEY	28-8M0204723
34	IMPELLER	47-43026T2
35	SCREW, (M6 x 25)	10-82684425
36	SHIFT SHAFT ASSEMBLY Comment: Long -12 Inches	853906A1
36	SHIFT SHAFT ASSEMBLY Comment: X-Long - 17 Inches	853908A1
37	E RING	53-29641
38	BUSHING ASSEMBLY	23-43052A4
39	O-RING, (1.424 x .103)	25-8M0204681
40	SEAL, Oil	26-8M0204708
41	SCREW, (M6 x 25)	10-82684425
42	SEAL, Face	26-861415	26-816575
-	SEAL KIT, Gear Housing	26-43035A4
-	REPAIR KIT, Water Pump	46-8M0113799
-	REPAIR KIT, Water Pump Impeller	47-8M0100526	47-43026Q06
-	REPAIR KIT, Clutch/Cam	52-803489T1
-	BEARING/SEAL KIT, Without Forward Bearing	31-803496T2

Gear Housing, Driveshaft - 2.33:1 Gear Ratio

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Gear Housing, Driveshaft - 2.33:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: Long	1667-9011J37
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: X-Long	1667-9011J39
1	GEAR HOUSING ASSEMBLY, Basic	1667-9011G59
2	PIN, Dowel - With Hole (.375 x .625) , Front	17-8M0084244	17-43043
3	TUBE, Oiler	43046
4	SCREW KIT, (.375-16 x .250) Drain	10-79953Q04
5	SEAL	26-8M0204693
6	PIN, Dowel - Without Hole (.375 x .625), Rear	17-43044
7	TRIM TAB	31640T07
8	SCREW, (.437-14 x 1.250) Stainless Steel	10-825427	10-15942
9	WASHER, (.453 x .812 x .105) Black Oxide	12-451761
10	CARRIER ASSEMBLY	43040T1
11	NOT SOLD SEPARATE, Needle Bearing	NSS
12	ANODE	97-826134Q	826134, 826134A 1
13	NUT, (M6) Stainless Steel	11-401386
14	SCREW, (M6 x 40)	10-4000333
15	NOT SOLD SEPARATE, Pinion Gear - 12 Teeth Comment: Part of 43-882813A3	NSS
16	NUT, (.625-18)	11-35921
17	CAM, Shift Control	850307
18	BEARING ASSEMBLY, Tapered Roller	31-883047A1
19	SHIM SET	15-44492A1
20	DRIVESHAFT ASSEMBLY Comment: Long	45-888933A1
20	DRIVESHAFT ASSEMBLY Comment: X-Long	45-888934A1
21	SLEEVE/RING KIT	42461A1
22	NOT SOLD SEPARATE, Seal Ring	NSS
23	COVER ASSEMBLY, Water Pump	43055A4
24	GASKET	27-430331
25	GASKET	27-8M0214931
26	SEAL, Oil, Lower	26-43036
27	SEAL, Oil, Upper	26-43035
28	GASKET	27-8172771
29	HOUSING KIT, Upper Water Pump	817275A2
30	FACEPLATE	8M0204709
31	SCREW, (M6 x 30)	10-82684430
32	SEAL	430232
33	KEY	28-8M0204723
34	IMPELLER	47-43026T2
35	SCREW, (M6 x 25)	10-82684425
36	SHIFT SHAFT ASSEMBLY Comment: Long	853906A1
36	SHIFT SHAFT ASSEMBLY Comment: X-Long	853908A1
37	E RING	53-29641
38	BUSHING ASSEMBLY	23-43052A4
39	O-RING, (1.424 x .103)	25-8M0204681
40	SEAL, Oil	26-8M0204708
41	SCREW, (M6 x 25)	10-82684425
42	SEAL, Face	26-861415	26-816575
-	SEAL KIT, Gear Housing	26-43035A4
-	REPAIR KIT, Water Pump	46-8M0113799
-	REPAIR KIT, Water Pump Impeller	47-8M0100526	47-43026Q06
-	REPAIR KIT, Clutch/Cam	52-803489T1
-	BEARING/SEAL KIT, Without Forward Bearing	31-803496T2

Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: Long	1667-9011J33
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: X-Long	1667-9011J35
1	GEAR HOUSING ASSEMBLY, Basic	1667-9011G59
2	BEARING SET, Cup And Cone	31-30894A1
3	NOT SOLD SEPARATE, Cup	NSS
4	GEAR, Forward - 29 Teeth	43-881260A3
5	BEARING, Needle	31-30895T
6	RING, Retaining	53-856823
7	FOLLOWER KIT, Cam	850315A1
8	BALL	30-44530
9	NOT SOLD SEPARATE, Slide	NSS
10	SPRING	24-850327
11	CLUTCH	52-850048T	52-850048
12	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
13	SPRING	24-30893
14	PROPELLER SHAFT	44-8M0140445
15	GEAR, Reverse - 29 Teeth	43-850036T	43-850036
16	CARRIER ASSEMBLY, Bearing	8M0168901
17	O-RING, (3.609 x .139)	25-8M0214974
18	BEARING, Needle	31-30956T
19	SEAL, Oil, Inner	26-8M0205728
20	SEAL, Oil, Outer	26-8M0205729
21	BEARING, Roller	31-12578T
22	THRUST WASHER	12-12577
23	BEARING, Thrust	31-12576
24	STUD, (M8 x 48)	16-8M0034456	16-42917 2
25	WASHER, (.323 x .590 x .112) Stainless Steel	12-855941
26	NUT, (M8)	11-401378
27	SHIM SET	15-44491A1
28	NOT SOLD SEPARATE, Insert	NSS
29	NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification	NSS
30	FLO TORQUE III KIT	8M0150151
31	NOT SOLD SEPARATE, Adaptor	NSS
32	NOT SOLD SEPARATE, Lock Nut	NSS
-	NOT SHOWN, See Accessory Guide-Propellers-For Appropriate Hardware. Thrust Washers/Nuts	NS
-	SEAL KIT, Gear Housing	26-43035A4
-	REPAIR KIT, Clutch/Cam	52-803489T1
-	BEARING/SEAL KIT, Without Forward Bearing	31-803496T2

Gear Housing, Propeller Shaft - 2.33:1 Gear Ratio

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Gear Housing, Propeller Shaft - 2.33:1 Gear Ratio:

Position No.	Part Name	OEM Number	Supersedes
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: Long	1667-9011J37
-	GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) Comment: X-Long	1667-9011J39
1	GEAR HOUSING ASSEMBLY, Basic	1667-9011G59
2	BEARING SET, Cup And Cone	31-30894A1
3	NOT SOLD SEPARATE, Cup	NSS
4	GEAR KIT, Forward And Pinion 28 Teeth	43-882813A3
5	BEARING, Needle	31-30895T
6	RING, Retaining	53-856823
7	FOLLOWER KIT, Cam	850315A1
8	BALL	30-44530
9	NOT SOLD SEPARATE, Slide	NSS
10	SPRING	24-850327
11	CLUTCH	52-850048T	52-850048
12	PIN, Cross	17-8M0100263	17-8M0084681, 17-8M0020941, 17-30632
13	SPRING	24-30893
14	PROPELLER SHAFT	44-8M0140445
15	GEAR, Reverse - 28 Teeth	43-882814T
16	CARRIER ASSEMBLY, Bearing	8M0168901
17	O-RING, (3.609 x .139)	25-8M0214974
18	BEARING, Needle	31-30956T
19	SEAL, Oil, Inner	26-8M0205728
20	SEAL, Oil, Outer	26-8M0205729
21	BEARING, Roller	31-12578T
22	THRUST WASHER	12-12577
23	BEARING, Thrust	31-12576
24	STUD, (M8 x 48)	16-8M0034456	16-42917 2
25	WASHER, (.323 x .590 x .112) Stainless Steel	12-855941
26	NUT, (M8)	11-401378
27	SHIM SET	15-44491A1
28	NOT SOLD SEPARATE, Insert	NSS
29	NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification	NSS
30	FLO TORQUE III KIT	8M0150151
31	NOT SOLD SEPARATE, Adaptor	NSS
32	NOT SOLD SEPARATE, Lock Nut	NSS
-	SEAL KIT, Gear Housing	26-43035A4
-	REPAIR KIT, Clutch/Cam	52-803489T1
-	BEARING/SEAL KIT, Without Forward Bearing	31-803496T2

Oil Tank, 75/90/115/Jet 80

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Oil Tank, 75/90/115/Jet 80:

Position No.	Part Name	OEM Number	Supersedes
1	TANK, Oil	1200-879844T08	879844T04
2	VENT ASSEMBLY	19299A1
3	VALVE	21-64871
4	SWITCH	87-856156T04	87-856156A 4
5	WASHER, (.203 x .562 x .060) Stainless Steel	12-72761
6	SCREW, (.164-18 x .375)	10-58376
7	BUSHING	23-883821
8	GROMMET	25-883820001	25-883820
9	FILTER	35-883037T
10	COVER, To Air Compressor	883044001
11	SCREW, (#10-16 x 1.25)	10-883075
12	PLUG	19-854310	806899
13	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
14	BOOT	25-879857
15	CAP	36-8M0073266	8M0043969, 8M0030358, 828475A09, 828475A 8
16	O-RING	25-26318T
17	CHAIN	887776002	887776001
18	NUT	11-65110
19	SCREW, (M8 x 35 MM)	10-82446035
20	WASHER	12-4002318
21	DECAL, Caution-Start in Gear	37-881865	37-825064

Oiling System

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Oiling System:

Position No.	Part Name	OEM Number	Supersedes
1	HOSE, (.125 x 25.00 Inches)	32-88306955
2	TUBING, (18.00 Inches Bulk), Cut to 13 Inches	32-88104441
3	TUBING, (18.00 Inches Bulk), Cut to 13-1/2 Inches	32-88104441
4	TUBING, (18.00 Inches Bulk), Cut to 18 Inches	32-88104441
5	TUBING, (25.00 Inches Bulk), Cut to 3-1/4 Inches	32-82381455
6	TUBING, (25.00 Inches Bulk), Cut to 7 Inches	32-82381455
7	FILTER, Oil - In Line	35-875284T01	35-875284001, 35-875284
8	TIE STRAP, (4.00 Inches)	56762
9	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
10	CONDUIT, (10.00 Inches Bulk), Cut to 6 Inches	32-828547412
11	TIE STRAP, (5.50 Inches)	8M0214940
12	PUMP ASSEMBLY, Oil	8M0185614
13	SCREW, (M8 x 20)	10-81893420
14	TUBING, (18.00 Inches Bulk), Cut to 8 Inches	32-88104441

Pitot Sensor Kit, 881879A22

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Pitot Sensor Kit, 881879A22:

Position No.	Part Name	OEM Number	Supersedes
-	SENSOR KIT, Pitot, With Adapter Harness	881879A22	881879A12
-	SENSOR ASSEMBLY, Pitot	881879T25	881879A16
1	SENSOR, Pressure (0 - 100 PSI)	881879T11	881879011, 881879A 6
2	CLIP, (.865)	54-883066
3	FITTING	22-8M0207782
4	NOT SOLD SEPARATE, Bracket	NSS
5	GROMMET	25-818967
6	BUSHING	23-8M0214955
7	SCREW, (M6 x 25)	10-82130025
8	TUBING, (72.00 Inches Bulk), Cut to 40.00 Inch Length	32-85944975
9	FITTING	22-840908	22-892119
10	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
11	HARNESS ASSEMBLY, Adapter	84-897485A01
-	SENSOR KIT, Pitot, With Adapter Harness	881879A22	881879A12
-	SENSOR ASSEMBLY, Pitot	881879T25	881879A16
1	SENSOR, Pressure (0 - 100 PSI)	881879T11	881879011, 881879A 6
2	CLIP, (.865)	54-883066
3	FITTING	22-8M0207782
4	NOT SOLD SEPARATE, Bracket	NSS
5	GROMMET	25-818967
6	BUSHING	23-8M0214955
7	SCREW, (M6 x 25)	10-82130025
8	TUBING, (72.00 Inches Bulk), Cut to 40.00 Inch Length	32-85944975
9	FITTING	22-840908	22-892119
10	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
11	HARNESS ASSEMBLY, Adapter	84-897485A01

Poppet/Thermostat Mounting

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Poppet/Thermostat Mounting:

Position No.	Part Name	OEM Number	Supersedes
1	POPPET	884389
2	DIAPHRAGM	812887002	812887 1
3	WASHER	12-94182
4	SCREW, (#10-16 x .750)	10-69570
5	SPRING	24-892321
6	COVER	8M0036780	879854
7	SCREW, (M8 x 35 MM)	10-82127335
8	GASKET	27-879855001	27-879855
9	GASKET	27-8M0204714
10	THERMOSTAT, 62Â°C (143Â°F)	833072004	833072002
11	CLAMP	54-814634
12	SCREW, (M6 x 12)	10-82130012
13	SENSOR ASSEMBLY	8M0148668
14	O-RING, (1.78 mm x .08 mm)	25-896699	25-888814
15	SPACER	23-892265
16	BRACKET ASSEMBLY	897486A01
17	GROMMET	25-8M0190980
18	BUSHING	23-822003
19	CLIP	54-879962
20	SCREW, (M6 x 25)	10-82130025
21	WASHER	12-8M0214930
-	GASKET SET, Powerhead	27-879855A04
-	POWERHEAD ASSEMBLY, 75 DFI	895233A07	895233A05
-	POWERHEAD ASSEMBLY, 90/115 DFI	891767A07	891767A04

Power Trim Components

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Power Trim Components:

Position No.	Part Name	OEM Number	Supersedes
-	PUMP ASSEMBLY, Power Trim	8M0171818
1	SHOCK ROD KIT	8M0171821
2	O-RING KIT, Rebuild	25-8M0171819
3	PISTON ASSEMBLY, Memory	8M0171822
4	CYLINDER ASSEMBLY	893916A01	811669A 1
5	VALVE KIT, Trim Limit	893905A02	809873A 1
6	PUMP ASSEMBLY	893906A02	809874A 1
7	MOTOR KIT	893907A02	809885A 2
8	PLUG	22-8134351
9	MANUAL RELEASE ASSEMBLY	893929A01	813442A 2
10	MANIFOLD KIT	893909A02	809875A 1
11	SCREW KIT, Motor	10-809876A1
12	CABLE ASSEMBLY	88238A18
13	DRIVESHAFT/SEAL KIT	809877A1
14	FILTER KIT	35-893912A02	809878A 1
15	POPPET KIT	893913A02	809879A 1
-	O-RING KIT, Complete Trim	25-893914A02	25-809880A 1
16	PIN, Trilobe	17-821539	17-13794, 17-19603
17	PIN, Anchor	17-818898
18	SHAFT	99625002

Reed Block

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Reed Block:

Position No.	Part Name	OEM Number	Supersedes
1	SHIFT RAIL ASSEMBLY	42881A1
2	TAB WASHER	14-42981
3	SCREW, (M8 x 25)	10-40001134
4	SLIDE	988851
5	NUT, (M6) Stainless Steel	11-401386
6	WASHER	12-35459
7	NUT, (M6) Stainless Steel	11-401386
8	GASKET	27-430075
9	CAP ASSEMBLY, Lower End	1169-858552T2
10	CHECK VALVE	21-426585
11	SEAL, Oil	26-419533
12	O-RING	25-89224
13	SCREW, (M10 x 25) Hex Flange - Stainless Steel	10-4010825
14	PLATE ASSEMBLY, Reed Adaptor	879839A00
15	GASKET	27-879840
16	FITTING	22-768431
17	COVER	879841A03
18	GASKET	27-879843
19	SCREW, (M8 x 45)	10-82127345
20	SCREW, (M8 x 35 MM)	10-82127335
21	REED BLOCK	828623T4
22	GASKET	27-880122
23	SCREW, (M6 x 20)	10-4007420
24	SENSOR, MAP	854445
25	BRACKET, MAP Sensor	884522	804873, 841095
26	SCREW, (M6 x 16)	10-82130016
27	SENSOR ASSEMBLY	8M0148668
28	O-RING, (1.78 mm x .08 mm)	25-896699	25-888814
29	CABLE ASSEMBLY, Battery - Negative	84-88439A26
30	SCREW, (M8 x 14)	10-81893414
31	WASHER	12-36001
32	CLAMP	54-889559
33	WASHER, (.255 x .620 x .030) Stainless Steel	12-69056
-	GASKET SET, Powerhead	27-879855A04
-	POWERHEAD ASSEMBLY, 75 DFI	895233A07	895233A05
-	POWERHEAD ASSEMBLY, 90/115 DFI	891767A07	891767A04

Service/Support Material

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Service/Support Material:

Position No.	Part Name	OEM Number	Supersedes
-	PARTS MANUAL, 75/90/115 DFI 1.5L (3 Cylinder)	90-891837007
-	SERVICE MANUAL	90-8M0047659	90-889785R01, 90-889785
-	OPERATION/INSTALLATION MANUAL	90-10208083
-	OWNERS MANUAL, 75/90/115 DFI, French	90-10208D71
-	OWNERS MANUAL, 75/90/115 DFI, Spanish	90-10208J71
-	DECAL, EPA Label Information Comment: (2007)	37-891765A07
-	DECAL, EPA Label Information Comment: (2008)	37-891765A08

Starter Motor

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Starter Motor:

Position No.	Part Name	OEM Number	Supersedes
1	STARTER MOTOR ASSEMBLY	50-892339T01	50-892339T, 50-853329T
2	NOT SOLD SEPARATE, Thru Bolt	NSS
3	GEAR KIT	43-880805A1
4	SOLENOID KIT	809463A1
5	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel	10-69035
6	CABLE ASSEMBLY, (6.00 Inches) Black	84-93388A1
7	DECAL, Warning, High Voltage	37-8272822
8	LOCKWASHER, (M5)	13-400255
9	NUT, (M5) Stainless Steel	11-400211
10	LOCKWASHER, (.312)	13-8M0204647
11	NUT, (M8) Stainless Steel	11-400213
12	COLLAR, Starter Motor	23-8M0034918	23-8M0001391, 56703
13	STOP	8M0043276	879845

Steering Handle Kit

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Steering Handle Kit:

Position No.	Part Name	OEM Number	Supersedes
-	STEERING HANDLE KIT, Tiller	896648A09	896648A05, 896648A02
1	HANDLE ASSEMBLY, Steering Arm	12020A3
NS	FITTING, Grease	22-8M0169589
2	BUSHING	23-42992T02
3	HOUSING	48414
4	PLATE	48519
5	GASKET	27-48518
6	SCREW, (#10-16 x .600)	10-878609	10-812832 1
7	SCREW, (#10-16 x .500)	10-878608	10-812832
8	CLAMP	54-889729	54-12013
9	SCREW, (M5 x 40)	10-40007112
10	WING NUT,	10-32,11-816874	11-73651, 11-816873, 11-90052
11	SWITCH KIT, Stop - Throttle Handle	87-823609A15	87-15823A 6, 96495A 3, 87-15823A 5
12	SWITCH ASSEMBLY, Stop	87-8M0104612	87-823609A 5
13	NOT SOLD SEPARATE, Insulator	NSS
14	TUBE ASSEMBLY, Throttle	12018A4
15	NOT SOLD SEPARATE, Drive Wheel	NSS
16	NOT SOLD SEPARATE, Roll Pin	NSS
17	SCREW, (#10-16 x .375)	10-62568
18	GRIP	8M0221732
19	CLIP	54-648552
20	NUT, (M10)	11-40140
21	CONDUIT, (9.03 Inches)	8885241
22	GUIDE TUBE	895665
23	BARREL, Throttle Actuator	89578
24	SET SCREW,	10-32,10-824081	10-89601
25	CABLE ASSEMBLY	12019003
26	GUIDE, Cable	8M0204660
27	ANCHOR, Cable End	20007
28	SET SCREW,	8-32,10-8M0204644
29	SCREW, (M10 x 105) Hex Flange - Stainless Steel	10-823567105	10-817430105
30	CAP	48416
31	WASHER	12-4002319
32	WASHER, (.402 x .787 x .039 Bellevi)	12-12024
33	SPACER	23-146011
34	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
35	NOT SOLD SEPARATE, Decal-Throttle	NSS
36	GROMMET, Hose Cable	25-896641
37	COVER, Cable-Upper	8M0008289	896636
38	COVER, Cable-Lower	8M0000484	884466, 896637

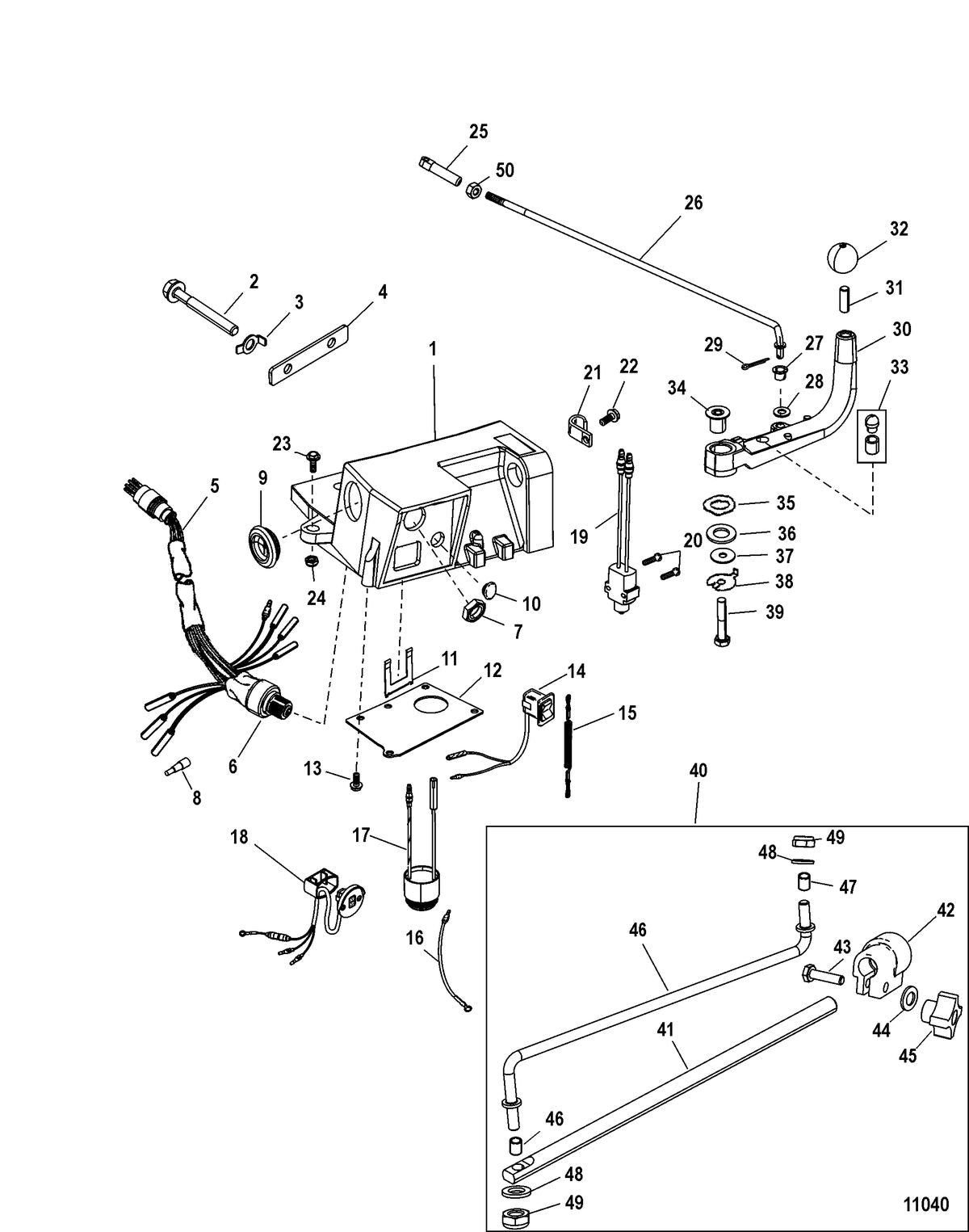

Steering Handle Kit Components

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Steering Handle Kit Components:

Position No.	Part Name	OEM Number	Supersedes
-	STEERING HANDLE KIT, Tiller	896648A09	896648A05, 896648A02
1	HANDLE, Bracket	816366T08
2	SCREW, (.313-24 x 3.50)	10-881261
3	TAB WASHER	14-42981
4	SPACER	822263
5	HARNESS ASSEMBLY	84-12649T11
6	SWITCH KIT, Key, With Keys Comment: For Replacement Key - Order 89491--1 Thru 89491-12 - See Key Chart - Ignition Switch Section	87-88107A5
7	NUT, Special - Black Nylon	11-879755	11-93543
8	PLUG, Male	13541
9	GROMMET	121051
10	PLUG	19-889730	19-12014
11	RETAINER, Brass	8M0032846	12044 1
12	COVER	8158041
13	SCREW, (#10-16 x .500)	10-878608	10-812832
14	SWITCH ASSEMBLY, Stop	87-11083A4
15	LANYARD ASSEMBLY Comment: Quicksilver Brand	15920Q54
15	LANYARD ASSEMBLY Comment: Mercury Brand	15920T54
16	CABLE ASSEMBLY	84-11149A3
17	HORN ASSEMBLY	889528T01
18	SWITCH KIT, Trim (25.00 Feet)	87-18286A19
19	SWITCH	87-8M0052927	87-813960A 3
20	SCREW, (#6-32 x .750)	10-12110
21	CLAMP	54-648551
22	SCREW, (#10-16 x .500)	10-878608	10-812832
23	SCREW, (.375-24 x 1.250)	10-849838	10-14000
24	NUT, (.375-24) Stainless Steel	11-8M0204726
25	ROD END Comment: 2.66 Inch	48419T01
26	ROD, Shift	896640
27	BUSHING	23-26856
28	WASHER, (.273 x .437 x .031) Stainless Steel	12-35950
29	COTTER PIN	18-25191
30	LEVER, Shift	8163677
31	STUD, (.375-24 x 1.125)	16-8M0034452	16-58152
32	KNOB	98530
33	DETENT/SPRING KIT	12016A2
34	BUSHING	23-8159831
35	WASHER	12-823970
36	WASHER, Plastic	12-824610
37	WASHER	12-814803	12-93853
38	TAB WASHER	14-8158051
39	SCREW, (M8 x 45)	10-4000357
40	CO PILOT ASSEMBLY	56-52148A08
41	PILOT ROD, (15.00 Inches)	52148002
42	NUT ASSEMBLY	11-52155A1
43	SCREW, (.250-28 x 1.00)	10-36137
44	KNOB, Prong	821621
45	ROD, Link	873491
46	BUSHING	23-26841
47	WASHER, (.323 x .563 x .063) Stainless Steel	12-8M0042642	12-70132
48	NUT, (.312-24) Stainless Steel	11-826709111	11-45592
49	NUT, (.250-20)	11-64015

Steering Handle Kit Components, 896648A02

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Steering Handle Kit Components, 896648A02:

Position No.	Part Name	OEM Number	Supersedes
-	STEERING HANDLE KIT, Tiller	896648A09	896648A05, 896648A02
1	HANDLE, Bracket Comment: Use with Black Vinyl Covered Conduit	816366T08
2	SCREW, (.313-24 x 3.50)	10-881261
3	TAB WASHER	14-42981
4	SPACER	822263
5	HARNESS ASSEMBLY	84-12649T11
6	SWITCH KIT, Key, With Keys Comment: For Replacement Key - Order 89491--1 Thru 89491-12 - See Key Chart - Ignition Switch Section	87-88107A5
7	NUT, Special - Black Nylon	11-879755	11-93543
8	PLUG, Male	13541
9	GROMMET	121051
10	PLUG	19-889730	19-12014
11	RETAINER, Brass	8M0032846	12044 1
12	COVER	8158041
13	SCREW, (#10-16 x .500)	10-878608	10-812832
14	SWITCH ASSEMBLY, Stop	87-11083A4
15	LANYARD ASSEMBLY Comment: Quicksilver Brand	15920Q54
15	LANYARD ASSEMBLY Comment: Mercury Brand	15920T54
16	CABLE ASSEMBLY	84-11149A3
17	HORN ASSEMBLY	889528T01
18	SWITCH KIT, Trim (25.00 Feet)	87-18286A19
19	SWITCH	87-8M0052927	87-813960A 3
20	SCREW, (#6-32 x .750)	10-12110
21	CLAMP	54-648551
22	SCREW, (#10-16 x .500)	10-878608	10-812832
23	SCREW, (.375-24 x 1.250)	10-849838	10-14000
24	NUT, (.375-24) Stainless Steel	11-8M0204726
25	ROD END Comment: 2.66 Inch	48419T01
26	ROD, Shift	896640
27	BUSHING	23-26856
28	WASHER, (.273 x .437 x .031) Stainless Steel	12-35950
29	COTTER PIN	18-25191
30	LEVER, Shift	8163677
31	STUD, (.375-24 x 1.125)	16-8M0034452	16-58152
32	KNOB	98530
33	DETENT/SPRING KIT	12016A2
34	BUSHING	23-8159831
35	WASHER	12-823970
36	WASHER, Plastic	12-824610
37	WASHER	12-814803	12-93853
38	TAB WASHER	14-8158051
39	SCREW, (M8 x 45)	10-4000357
40	CO PILOT ASSEMBLY Comment: Use with Black Vinyl Covered Conduit	56-52148A08
41	PILOT ROD, (15.00 Inches) Comment: Use with Black Vinyl Covered Conduit	52148002
42	NUT ASSEMBLY	11-52155A1
43	SCREW, (.250-28 x 1.00)	10-36137
44	KNOB, Prong	821621
45	ROD, Link	873491
46	BUSHING	23-26841
47	WASHER, (.323 x .563 x .063) Stainless Steel	12-8M0042642	12-70132
48	NUT, (.312-24) Stainless Steel	11-826709111	11-45592
49	NUT, (.250-20)	11-64015

Steering Handle Kit, 896648A02

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Steering Handle Kit, 896648A02:

Position No.	Part Name	OEM Number	Supersedes
-	STEERING HANDLE KIT, Tiller	896648A09	896648A05, 896648A02
1	HANDLE ASSEMBLY, Steering Arm	12020A3
NS	FITTING, Grease	22-8M0169589
2	BUSHING	23-42992T02
3	HOUSING	48414
4	PLATE	48519
5	GASKET	27-48518
6	SCREW, (#10-16 x .600)	10-878609	10-812832 1
7	SCREW, (#10-16 x .500)	10-878608	10-812832
8	CLAMP	54-889729	54-12013
9	SCREW, (M5 x 40)	10-40007112
10	WING NUT,	10-32,11-816874	11-73651, 11-816873, 11-90052
11	SWITCH KIT, Stop - Throttle Handle	87-823609A15	87-15823A 6, 96495A 3, 87-15823A 5
12	SWITCH ASSEMBLY, Stop	87-8M0104612	87-823609A 5
13	NOT SOLD SEPARATE, Insulator	NSS
14	TUBE ASSEMBLY, Throttle	12018A4
15	NOT SOLD SEPARATE, Drive Wheel	NSS
16	NOT SOLD SEPARATE, Roll Pin	NSS
17	SCREW, (#10-16 x .375)	10-62568
18	GRIP	8M0221732
19	CLIP	54-648552
20	NUT, (M10)	11-40140
21	CONDUIT, (9.03 Inches) Comment: Black Vinyl Covered	8885241
22	GUIDE TUBE	895665
23	BARREL, Throttle Actuator	89578
24	SET SCREW,	10-32,10-824081	10-89601
25	CABLE ASSEMBLY	12019003
26	GUIDE, Cable	8M0204660
27	ANCHOR, Cable End	20007
28	SET SCREW,	8-32,10-8M0204644
29	SCREW, (M10 x 105) Hex Flange - Stainless Steel	10-823567105	10-817430105
30	CAP	48416
31	WASHER	12-4002319
32	WASHER, (.402 x .787 x .039 Bellevi)	12-12024
33	SPACER	23-146011
34	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
35	NOT SOLD SEPARATE, Decal-Throttle	NSS
36	GROMMET, Hose Cable	25-896641
37	COVER, Cable-Upper	8M0008289	896636
38	COVER, Cable-Lower	8M0000484	884466, 896637

Swivel Bracket and Steering Arm

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Swivel Bracket and Steering Arm:

Position No.	Part Name	OEM Number	Supersedes
1	SWIVEL BRACKET ASSEMBLY	1400-8M0220957
2	SEAL, Oil	26-87735
3	BUSHING	23-818764	23-67669
4	O-RING	25-8M0214926
5	SPACER	23-816039
6	FITTING, Grease	22-8M0169589
7	BUSHING	23-821207	23-99608
8	SCREW, (.250-28 x .500)	10-64014
9	SWIVEL PIN ASSEMBLY	99661A35
10	LINK ROD ASSEMBLY	92876A12
11	SCREW, (.375-24 x 1.250)	10-849838	10-14000
12	NUT, (.375-24) Stainless Steel	11-8M0204726
12	NUT, (.375-24) Brass	11-8M0204726
13	WASHER, (.390 x .625 x .062) Stainless Steel	12-37828
14	BUMPER	8M0000519	881974
15	YOKE, Bottom	881914T01
16	RING, Retaining	53-67684
17	THRUST WASHER	12-816432
18	NOT SOLD SEPARATE, Decal-Serial Overlaminate	NSS
19	NOT SOLD SEPARATE, Decal-Serial Number	NSS
20	SENDER KIT, Power Trim	821400A2
21	WASHER, (.203 x .406 x .040)	12-89302
22	SCREW, (#10-24 x .750)	10-852368	10-56682
23	LOCKWASHER, Stainless Steel	10,13-26996

Throttle Body

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Throttle Body:

Position No.	Part Name	OEM Number	Supersedes
1	THROTTLE BODY ASSEMBLY Comment: 75 Horsepower	893370T02
1	THROTTLE BODY ASSEMBLY Comment: 90 Horsepower	893301T02
1	THROTTLE BODY ASSEMBLY Comment: 115/Jet 80	880129T04
2	RETAINER	891770
3	SCREW	10-891771
4	SEAL	26-891772
5	SEAL	26-891772002
6	CLAMP, Oetiker	54-804842001
7	SCREW	10-891771001
8	WASHER	12-891773
9	WASHER	12-891773001
10	BUSHING	23-891774
11	LEVER KIT, Throttle	853659A01
12	LEVER ASSEMBLY, Throttle	858851A03
13	LOCKWASHER, External	10,13-69432
14	WASHER, Spool	12-881992
15	WASHER, Cupped	12-881991
16	SCREW, Special	10-889354
17	INSERT Comment: 75 Horsepower	892623002
17	INSERT Comment: 90 Horsepower	892623001	892623 90 Horsepower
18	BRACKET	899077
19	SCREW, (M6 x 16)	10-1993716
20	CABLE	8819881
21	CAM	891776
22	BUSHING	23-421621
23	WASHER, (.2656 x .625 x .0625) Stainless Steel	12-35462
24	SCREW, (M6 x 40)	10-4000333
25	COUPLER	899078
26	SENSOR, Throttle Position	898042
27	SCREW	10-8M0007224
28	CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk), Cut to 13 Inches	32-828547253
29	CLAMP, Oetiker	54-889691

Throttle Lever and Linkage

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Throttle Lever and Linkage:

Position No.	Part Name	OEM Number
1	LEVER ASSEMBLY, Throttle	881969A1
2	BUMPER	822458
3	BUSHING	23-812930A1
4	NOT SOLD SEPARATE, Insert	NSS
5	SCREW, (M10 x 45)	10-4007180
6	ARM ASSEMBLY, Bracket Lever	881970A2
7	SCREW, (M6 x 35) Stainless Steel	10-40011131
8	NUT, (M6) Stainless Steel	11-400212
9	CAP	42942
10	SCREW, (M6 x 16)	10-4006731
11	WASHER	12-35459
12	NUT, (M6) Stainless Steel	11-401386

Tools

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Tools:

Position No.	Part Name	OEM Number	Supersedes
-	TOOL, Fuel Filter	91-896661
-	TEST TOOL, Direct Injector	91-899883A08

Top Cowl

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Top Cowl:

Position No.	Part Name	OEM Number	Supersedes
1	TOP COWL ASSEMBLY, Mercury, Includes all Decals except Horsepower	100-898436T01	100-880778A15, 100-880778T03
1	TOP COWL ASSEMBLY, Mariner	100-8M0075375
1	TOP COWL ASSEMBLY, Mercury, Without decals	100-8M0075373
1	TOP COWL ASSEMBLY, Mariner, Without decals	100-8M0075375
2	MOUNT	813546003	813546 2
3	CAP	828716A2
4	SEAL	828352
5	SEAL	8283511
6	HOOK KIT, Rear	892208A01
7	SCREW, (M6 x 16)	10-82130016
8	SOUND BLANKET KIT	880781A02	880781A01
9	NOT SOLD SEPARATE, Sound Blanket-Starboard	NSS
10	NOT SOLD SEPARATE, Sound Blanket-Top	NSS
11	NOT SOLD SEPARATE, Decal-Clean Cowl Cling-On	NSS
12	NOT SOLD SEPARATE, Decal-Break-In	NSS
-	DECAL SET Comment: Mercury 75	37-895231A07
-	DECAL, Horsepower (75)	37-8M0061175	37-896857002
-	DECAL SET Comment: Mariner 75	37-895232A05
-	DECAL SET Comment: Mercury 90	37-891815A07
-	DECAL, Horsepower (90)	37-8M0061177	37-896857004
-	DECAL SET Comment: Mariner 90	37-891819A04
-	DECAL SET Comment: Mercury 115	37-891814A07
-	DECAL, Horsepower (115)	37-8M0061180	37-896857006
-	DECAL SET Comment: Mariner 115	37-891818A04
-	DECAL SET, Jet Drive 80 - 1.5L	37-826321A08
-	DECAL, Strip	37-854700T05

Transom Bracket

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Transom Bracket:

Position No.	Part Name	OEM Number	Supersedes
1	BRACKET ASSEMBLY, Transom - Starboard	3426-828334T02	3426-828334F 1
2	BRACKET ASSEMBLY, Transom - Port	3425-828333T07	3425-828333A 3
3	FITTING, Grease, Port	22-8M0169588
4	TILT TUBE	826125A1
5	NUT, (1.00-14) Nylon Insert	11-826135
6	O-RING, (.612 x .103)	25-45711
7	WASHER	13-88750
8	NUT, (.875-14)	11-826164
9	SCREW, (.500-20 x 4.500)	10-8M0149747
10	WASHER, (.500 x .810 x .090) Stainless Steel	12-856982
11	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel	12-8M0204648
12	NUT, (.500-20)	11-82671117
13	SPRING, Tension	24-830899
14	LEVER ASSEMBLY, Tilt Lock	8M0109798	821176T02, 821176T 1
15	NYLINER	23-65830
16	SPRING, Compression	24-830900
17	KNOB	99633
18	PIN, Groove	17-99615
19	PIN	17-893709	17-99617
20	BRACKET, Anchor	8M0086406	818771T 1
21	SCREW, (M10 x 30)	10-858771
22	WASHER	12-4002319
23	NUT, (M10 x 1.5)	11-40114
24	ANODE KIT	97-818298T1
25	SCREW, (M6 x 25)	10-8M0204707
26	WASHER, (.281 x .500 x .060) Stainless Steel	12-8M0204649
27	CLIP	54-22740
28	C WASHER	8M0084613	69205
29	SCREW, (#10-16 x .600)	10-878609	10-812832 1

Vapor Separator

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Vapor Separator:

Position No.	Part Name	OEM Number	Supersedes
-	VAPOR SEPARATOR ASSEMBLY	880133T12	880133T07, 880133T06, 880133T11
1	COVER KIT	889317T1
2	NOT SOLD SEPARATE, Seat	NSS
3	PLATE, Baffle	889318001	889318
4	SCREW, (M6 x 16)	10-883223
5	GASKET	27-889319	27-889319001
6	FITTING	22-883556
7	O-RING	25-8M0062785	25-883209
8	FITTING	22-14868
9	PLUG	19-883208	19-881830
10	FILTER, Fuel	35-8M0122423
11	FLOAT KIT	889320A1
12	SHAFT	F10064
13	PUMP ASSEMBLY, Fuel - High Pressure	888725T02
14	SLEEVE	8M6000589	23-855428
15	O-RING	25-8893162
16	SEAL	26-889321
17	RETAINER	889328
18	SCREW	1395-9643
19	PUMP ASSEMBLY, Boost	888733T02	888733T 1
20	GROMMET	25-889322
21	O-RING	25-889316
22	SEAL	26-8M6001413	26-889323
23	BOWL KIT	889324T03	889324T02
24	WIRE	84-889325A02	84-889325A 1
25	NOT SOLD SEPARATE, Check Valve	NSS
26	FITTING	22-855424011
27	VALVE KIT, Inlet	889326A1
28	SCREW, Drain	10-889327002
29	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
30	SENSOR, Water	8M0214989
31	FITTING, Elbow 45 Degree (1.25)	22-782792
32	O-RING, (.301 x .070)	25-627021
33	INSERT	889430

Vapor Separator/Fuel Rail Mounting

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Vapor Separator/Fuel Rail Mounting:

Position No.	Part Name	OEM Number	Supersedes
1	STUD, (M10 x 91)	16-8M0063255
2	NUT, (M10) Brass/Nickel Plated	11-826292
3	INJECTOR ASSEMBLY, Air	8M6001744	8M0065917, 884595A01, 884595A 1, 884595A02
4	SEAL KIT	26-804875	26-835083
5	WASHER ASSEMBLY, Cupped	12-828694A1
6	SPACER	23-883050
7	GROMMET	25-855362001	25-855362
8	WASHER	12-4002318
9	SCREW, (M8 x 60)	10-82446060
10	SCREW, (M8 x 35 MM)	10-82446035
11	BUSHING	23-855364

Water Hoses

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Water Hoses:

Position No.	Part Name	OEM Number	Supersedes
1	STRAINER	35-8348084
2	TIE STRAP, (8.00 Inches)	54-816311T	54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275
3	HOSE	32-883060001	32-883060
4	HOSE, (17.00 Inches Bulk), Cut to 10-1/2 Inches	32-85833939
5	HOSE, (17.00 Inches Bulk), Cut to 6-1/2 Inches - To Telltale	32-85833939

Water Pump Kit, Jet

Below is the parts list for Mercury 115 DFI (3 CYL.)(1.5L) Water Pump Kit, Jet:

Position No.	Part Name	OEM Number	Supersedes
1	HOUSING KIT, Upper Water Pump	817275A2
2	SCREW, (M6 x 30)	10-82684430
3	FACEPLATE	8M0204709
4	GASKET	27-430331
5	GASKET	27-8172771
6	IMPELLER	47-43026T2
7	KEY	28-8M0204723
8	SEAL, Face	26-861415	26-816575
9	SEAL	430232

Download this page as PDF: Click here

For Mercury Owners:

To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:

Mercury / Mercruiser / Mariner Parts from JLM Marine

About JLM Marine

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
