Mercury 110 (3795658 THRU 4839253) Outboard Motor Parts Diagram & Catalog – Free PDF Download
30 Apr 2025
0 Comments
BOTTOM COWL AND STOP SWITCH ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 BOTTOM COWL AND STOP SWITCH ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | COWL, BOTTOM Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 2159-6681A2 | |
| 1 | COWL, BOTTOM Comment: UNITED STATES 4079000 THRU 4387436 AUSTRALIA 8023990 THRU 8037874 BELGIUM 9068374 THRU 9113964 CANADA 7042123 THRU 7074272 | 2159-6681A2 | |
| 1 | COWL, BOTTOM Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 2159-6681A2 | |
| 1A | PLUG, BOTTOM COWL (MANUAL) | 74360 | |
| 2 | GROMMET, CHOKE SHAFT - BOTTOM COWL | 39778 | |
| 3 | COVER, ACCESS HOLE | 66353 | |
| 4 | COVER, ACCESS HOLE | 65479 | |
| 5 | ANCHOR, LATCH - BOTTOM COWL | 39474 | |
| 6 | SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8") | 10-22483 | |
| 7 | LOCKWASHER, LATCH ANCHOR SCREW | 13-26992 | |
| 8 | WASHER, NYLON - WATER OUTLET TUBE | 23-13127 | |
| 9 | SEAL, RUBBER - WATER OUTLET TUBE | 26-36556 | |
| 10 | SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING (3/4") | 10-38111 | |
| 11 | LOCKWASHER, BOTTOM COWL SCREW | 13-26992 | |
| 12 | GASKET, POWERHEAD TO ADAPTOR PLATE | 27-89937 | |
| 13 | LEVER, COWL LATCH Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 74349 | |
| 13 | LEVER, COWL LATCH Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74349 | |
| 14 | CABLE, COWL LATCH | 65613 | |
| 15 | SCREW, COWL LATCH CABLE | 10-65554 | |
| 15A | WASHER, COWL LATCH CABLE SCREW | 12-8M0204666 | |
| 16 | SPRING, CABLE TO ARM LATCH | 24-65520 | |
| 17 | LATCH, ARM - BOTTOM COWL Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 72791 | |
| 17 | LATCH, ARM - BOTTOM COWL Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 72791 | |
| 18 | PIN, ARM LOCATING | 29-714221 | |
| 19 | LATCH, BODY - BOTTOM COWL | 69154 | |
| 19A | WASHER, BODY LATCH | 12-34680 | |
| 20 | SCREW, LATCH TO BOTTOM COWL | 10-32228 | |
| 21 | GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING | 27-39050 | |
| 22 | STOP SWITCH ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 59065A4 | |
| 23 | SPRING, STOP SWITCH Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 24-60239 | |
| 24 | COVER ASSEMBLY, STOP SWITCH Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 38950A1 | |
| 25 | WASHER, STATOR LEAD TO STOP SWITCH Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 12-59061 | |
| 26 | LOCKWASHER, STOP SWITCH CONNECTOR Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 13-21972 | |
| 27 | NUT, STOP SWITCH TO BOTTOM COWL Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 11-21971 | |
| 28 | LOCKWASHER, CONNECTOR BASE Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 13-26996 | |
| 29 | NUT, CONNECTOR BASE TO BOTTOM COWL Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 11-68219 | |
| 30 | STOP SWITCH ASSEMBLY Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 87-69508A31 | |
| 31 | LOCKWASHER, STOP SWITCH Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 13-69845 | |
| 32 | NUT, STOP SWITCH Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 11-69844 |
CARBURETOR AND CHOKE ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 CARBURETOR AND CHOKE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1364-8782A13 | |
| 1 | CARBURETOR, ASSEMBLY, COMPLETE Comment: UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 | 1364-8782A13 | |
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1364-8782A13 | |
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1364-8782A13 | |
| 2 | FUEL LINE, ADAPTOR TO CARBURETOR | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 3 | CLAMP, FUEL LINE ATTACHING | 54-68424 | |
| 4 | FITTING, FUEL LINE TO ADAPTOR Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 22-63981 | |
| 4 | FITTING, FUEL LINE TO ADAPTOR Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 22-98750 | |
| 5 | ADAPTOR, CHECK UNIT (FUEL LINE) | 22833 | |
| 6 | STEM, CHECK UNIT ADAPTOR | 23069 | |
| 7 | "O" RING, ADAPTOR STEM | 25-16524 | |
| 8 | SPRING, ADAPTOR STEM | 24-23067T | |
| 9 | CUP WASHER, ADAPTOR | 30188 | |
| 10 | SCREW, ADAPTOR TO BOTTOM COWL (1 1/4") | 10-37923 | |
| 11 | SCREW, CARBURETOR | 65552 | |
| 12 | SCREW, SCREEN TO CARBURETOR | 10-69022 | |
| 13 | KNOB, CHOKE | 86381 | |
| 14 | NUT, CHOKE CABLE TO BOTTOM COWL | 11-73710 | |
| 15 | CABLE, CHOKE Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 72465 | |
| 15 | CABLE, CHOKE Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 72465 | |
| 16 | SCREW, CHOKE CABLE TO CARBURETOR Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 10-45862 | |
| 17 | WASHER, CHOKE CABLE SCREW Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 12-8M0204666 | |
| 18 | SPACER, CHOKE CABLE SCREW Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 23-63932 | |
| 19 | STUD, CHOOKE CABLE TO CARBURETOR Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 16-69036 | |
| 20 | WASHER, CHOKE CABLE STUD Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 12-8M0204666 | |
| 21 | CLIP, TRIGGER LEADS Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 54-25231 | |
| 22 | "D" WASHER, TRIGGER LEAD CLIP Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 8M0084613 | 69205 UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP |
| 23 | NUT, CHOKE CABLE STUD Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 11-45076 | |
| 24 | NUT, CARBURETOR ATTACHING | 11-8M0207775 |
CARBURETOR ASSEMBLY, COMPLETE
Back to TopBelow is the parts list for Mercury 110 CARBURETOR ASSEMBLY, COMPLETE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1364-8782A13 | |
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 | 1364-8782A13 | |
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1364-8782A13 | |
| 1 | CARBURETOR ASSEMBLY, COMPLETE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1364-8782A13 | |
| 2 | WELCH PLUG, BODY CHANNEL (LARGE) (#) | ||
| 3 | SCREW, IDLE MIXTURE (#) | ||
| 4 | SPRING, IDLE MIXTURE SCREW (#) | ||
| 5 | SPRING, RETURN - THROTTLE SHAFT (#) | ||
| 6 | MAIN NOZZLE (#) | ||
| 7 | FLOAT | 1395-9293 | |
| 8 | PIN, FLOAT RETAINING (#) | ||
| 9 | FUEL BOWL | 1399-5127 | |
| 10 | GASKET, FUEL BOWL (#) | ||
| 11 | SCREW, FUEL BOWL TO CARBURETOR | 1399-5128 | |
| 12 | GASKET, FUEL BOWL SCREW (#) | ||
| 13 | INLET NEEDLE AND SPRING Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1395-9022 | |
| 13 | INLET NEEDLE AND SPRING Comment: UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP | 1399-6141 | |
| 14 | WELCH PLUG, BODY CHANNEL (SMALL) (#) | ||
| 15 | JET, MAIN FUEL (.041) | 1399-1896 | |
| 16 | PLUG, BODY CHANNEL (#) | ||
| 17 | VALVE, CHOKE RELIEF Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5122 | |
| 18 | SPRING, CHOKE RELIEF VALVE Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5195 | |
| 19 | CHOKE SHUTTER Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5125 | |
| 19 | CHOKE SHUTTER Comment: UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP | 1399-5756 | |
| 20 | SCREW, CHOKE SHUTTER TO CHOKE SHAFT | 10-23035 | |
| 21 | VENTURI Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 63907 | |
| 21 | VENTURI Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 69764 | |
| 22 | GASKET, FUEL PUMP DIAPHRAGM (#) | ||
| 23 | DIAPHRAGM, FUEL PUMP (#) | ||
| 24 | BODY, FUEL PUMP | 1399-5129 | |
| 25 | GASKET, FUEL PUMP DIAPHRAGM (#) | ||
| 26 | DIAPHRAGM, GUEL PUMP (#) | ||
| 27 | BODY STRAINER | 1399-5131 | |
| 28 | SCREW, STRAINER BODY TO CARBURETOR | 1395-808612 | 1399-5132 |
| 29 | SCREEN, STRAINER Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5758 | |
| 29 | SCREEN, STRAINER Comment: UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP | 1399-5758 | |
| 30 | GASKET, STRAINER COVER (#) | ||
| 31 | COVER ASSEMBLY, STRAINER (INLET) Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 64194A1 | |
| 31 | COVER ASSEMBLY, STRAINER (INLET) Comment: UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP | 99941 | |
| 32 | SCREW, STRAINER COVER TO BODY (#) | ||
| 33 | GASKET, STRAINER COVER SCREW (#) | ||
| 34 | CHOKE SHAFT Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5124 | |
| 34 | CHOKE SHAFT Comment: UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 | 1399-5755 | |
| 34 | CHOKE SHAFT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 1399-5827 | |
| 35 | SPRING RETURN - CHOKE SHAFT (#) | ||
| 36 | THROTTLE SHAFT | 1399-5133 | |
| 37 | LEVER, THROTTLE | 63646 | |
| 38 | SCREW, THROTTLE LEVER ATTACHING | 1395-6027 | |
| 39 | IDLE TUBE (#) | ||
| 40 | GASKET, IDLE TUBE (#) | ||
| 41 | SCREW, PLUG - IDLE TUBE | 10-23178 | |
| 42 | THROTTLE SHUTTER Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-5749 | |
| 42 | THROTTLE SHUTTER Comment: UNITED STATES 4079000 AND UP AUSTRALIA 8023990 AND UP BELGIUM 9068374 AND UP CANADA 7042123 AND UP | 1399-5759 | |
| 43 | SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT (#) | ||
| 44 | GASKET, CARBURETOR FLANGE | 27-63309 | |
| -- | GASKET SET | 1399-5135 | |
| -- | REPAIR PARTS KIT Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 1399-879194026 | 1399-5136, 1399-5139, 1399-5760, 1399-5800, 1399-5963, 1399-6142, 1399-6348, 1399-7569, 1399-7573 UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 |
| -- | REPAIR PARTS KIT Comment: UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 | 1399-879194026 | 1399-5136, 1399-5139, 1399-5760, 1399-5800, 1399-5963, 1399-6142, 1399-6348, 1399-7569, 1399-7573 UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 |
| -- | REPAIR PARTS KIT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 1399-879194026 | 1399-5136, 1399-5139, 1399-5760, 1399-5800, 1399-5963, 1399-6142, 1399-6348, 1399-7569, 1399-7573 UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP |
| -- | DIAPHRAGM AND GASKET KIT | 1399-5137 |
CLAMP BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 CLAMP BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CLAMP BRACKET ASSEMBLY (PORT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1468-5570A3 | |
| 2 | CLAMB BRACKET ASSEMBLY (STARBOARD) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 59170A3 | |
| 4 | WASHER, TUMB SCREW Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 12-26227 | |
| 1 | CLAMB BRACKET ASSEMBLY (PORT) Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1468-5570A3 | |
| 2 | CLAMP BRACKET ASSEMBLY (STARBOARD) Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 10-77190A3 | |
| 4 | WASHER, THUMB SCREW Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 12-26227 | |
| 1 | CLAMB BRACKET ASSEMBLY (PORT) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1468-5570A3 | |
| 2 | CLAMB BRACKET ASSEMBLY (STARBOARD) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1467-5571A3 | |
| 3 | THUMB SCREW ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 10-77190A3 | |
| 5 | WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 12-52864 | |
| 6 | TILT TUBE, CLAMP TO SWIVEL BRACKET Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 45757 | |
| 5 | WASHER, TILT TUBE - CLAMB TO SWIVEL BRACKET Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 12-71421 | |
| 6 | TILT TUBE, CLAMP TO SWIVEL BRACKET Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 96962 | |
| 7 | PLUB, TILT TUBE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 19-39333 | |
| 8 | CLIP, SAFETY CHAIN - TILT TUBE | 54-8M0085928 | 54-30954 |
| 9 | NUT, TILT TUBE FASTENING | 11-858869 | 11-30499 |
| 10 | HANDLE, CARRING Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 65475 | |
| 11 | STUD, CLAMP BRACKET Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 16-59622 | |
| 10 | HANDLE, CARRING Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 71420 | |
| 11 | STUD, CLAMP BRACKET Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 16-71417 | |
| 12 | LOCKWASHER, CLAMP BRACKET STUD | 13-26992 | |
| 13 | NUT, CLAMP BRACKET STUD | 11-29598 | |
| 14 | SPRING, TILT LOCK PIN | 24-62143 | |
| 15 | TILT LOCK PIN ASSEMBLY Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 17-55952A1 | |
| 15 | TILT LOCK PIN ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 17-71418A2 | |
| 16 | BOLT, CLAMP BRACKET TO BOAT | 10-67982 | |
| 17 | WASHER, CLAMP BRACKET SCREW | 12-67983 | |
| 18 | NUT, CLAMP BRACKET SCREW | 11-8267098 |
CRANKSHAFT AND MAIN BEARING ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 CRANKSHAFT AND MAIN BEARING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CRANKSHAFT | 421-5275 | |
| 2 | CARRIER ASSEMBLY, SEAL CRANKSHAFT Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 26-72793 | |
| 3 | SEAL, CRANKSHAFT CARRIER Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 26-72793 | |
| 3 | SEAL, CRANKSHAFT Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 26-72793 | |
| 4 | MAIN BEARING ASSEMBLY (VALVE TYPE) | 550-8122A5 | |
| 5 | PIN, DOWEL - MAIN BEARING | 17-20032 | |
| 5 | PIN, DOWEL - REED LOCATING | 17-65855 | |
| 6 | SCREW, MAIN BEARING CLAMPING | 10-56781 | |
| 7 | PIN, DOWEL - MAIN BEARING TO BLOCK | 17-20032 | |
| 8 | REED SET, MATCHED - MAIN BEARING | 34-31942A1 | |
| 9 | REED STOP, MAIN BEARING REED VALVES | 34-20053 | |
| 10 | SCREW, REED STOP MOUNTING | 10-27304 |
CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 CYLINDER BLOCK AND CRANKCASE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 837-6543A5 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4304785 THRU 4387436 AUSTRALIA 8034895 THRU 8037874 BELGIUM 9101514 THRU 9113964 CANADA 7063748 THRU 7074272 | 837-6543A5 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4387437 THRU 4605111 AUSTRALIA 8037875 THRU 8044349 BELGIUM 9113965 THRU 9149504 CANADA 7074273 THRU 7093497 | 837-6543A5 | |
| 1 | CYLINDER BLOCK AND CRANKCASE ASS'Y Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 837-6543A5 | |
| 2 | STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING | 16-728091 | |
| 3 | STUD, CARBURETOR MOUNTING | 10-657461 | |
| 4 | PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK | 17-8M0084726 | 17-85500 |
| 5 | SCREW, ADJ - THROTTLE CONTROL (1") Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 10-23015 | |
| 5 | SCREW, ADJ - THROTTLE CONTROL (1 1/4") Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 10-69560 | |
| 6 | NUT, THROTTLE CONTROL ADJUSTING SCREW | 11-68219 | |
| 7 | VALVE ASSEMBLY, BLEED DRAIN | 21-64871A1 | |
| 8 | HOSE, BLEED DRAIN (6 1/2") | 32-892024122 | 32-99130122 |
| 9 | CLAMP, BLEED HOSE ATTACHING | 54-56223 | |
| 10 | ELBOW, BLEED (MANUAL) | 22-61294 | |
| 10 | ELBOW, BLEED (ELECTRIC) | 22-56759 | |
| 11 | ELBOW, TELL TALE - CYLINDER BLOCK | 22-996642 | |
| 12 | SCREW, CRANKCASE TO CYLINDER BLOCK (1") Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 10-64278 | |
| 13 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4") Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 10-24624 | |
| 14 | NUT, CRANKCASE FASTENING SCREW Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 11-24652 | |
| 12 | SCREW, CRANKCASE TO CYLINDER BLOCK Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 10-76621 | |
| 13 | SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2") Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 10-73280 | |
| 15 | SCREW, MAIN BEARING LOCKING (5/8") | 10-98260 | |
| 16 | TAB WASHER, MIAN BEARING LOCKING SCREW | 14-20091 | |
| 17 | SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10) | 15-31412A1 | |
| 18 | BEARING HOUSING ASSEMBLY, UPPER Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 1164-6413A1 | |
| 18 | BEARING HOUSING ASSEMBLY, UPPER Comment: UNITED STATES 4387437 THRU 4605111 AUSTRALIA 8037875 THRU 8044349 BELGIUM 9113965 THRU 9149504 CANADA 7074273 THRU 7093497 | 1164-6413A1 | |
| 18 | BEARING HOUSING ASSEMBLY, UPPER Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 1164-6413A1 | |
| 19 | BEARING, BALL - UPPER BEARING HOUSING | 30-72961 | |
| 20 | BEARING, ROLLER - UPPER BEARING HOUSING | 31-31410 | |
| 21 | OIL SEAL, UPPER BEARING HOUSING | 26-66301 | |
| 22 | "O" RING, UPPER BEARING HOUSING | 25-20863 | |
| 23 | SCREW, UPPER BEARING HOUSING (1/2") Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 10-39002 | |
| 23 | SCREW, UPPER BEARING HOUSING (1/2") Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 10-76611 | |
| 23A | TAB WASHER, UPPER BEARING HOUSING SCREW Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 14-78102 | |
| 24 | GASKET, TRANSFER PORT COVER | 27-780321 | |
| 25 | COVER, TRANSFER PORT - MANUAL | 61155 | |
| 26 | SCREW, PORT COVER TO CYLINDER BLOCK (1/2") - MANUAL | 10-20665 | |
| 25 | COVER, TRANSFER PORT - ELECTRIC | 74344 | |
| 26 | SCREW, PORT COVER TO CYLINDER BLOCK - ELECTRIC | 10-26537 | |
| 27 | COVER ASSEMBLY, CYLINDER BLOCK | 1019-7465A1 | |
| 28 | PLUG, CYLINDER BLOCK COVER | 22-390721 | |
| 29 | GASKET, CYLINDER BLOCK COVER | 27-41382 | |
| 30 | SCREW, CYL BLOCK COVER TO CYL BLOCK (1 1/8") Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 10-21091 | |
| 31 | NUT, CYLINDER BLOCK COVER MOUNTAIN SCREW Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 11-24652 | |
| 30 | SCREW, CYL BLOCK COVER TO CYL BLOCK (1") Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 10-8M0214943 | |
| 32 | GASKET, CYLINDER BLOCK TO BAFFLE PLATE | 27-78035 | |
| 33 | PLATE, BAFFLE - EXHAUST MANIFOLD | 78034 | |
| 34 | GASKET, BAFFLE PLATE | 27-78035 | |
| 35 | COVER, EXHAUST MANIFOLD Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 74919T | |
| 35 | COVER, EXHAUST MANIFOLD Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74919T | |
| 36 | SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4") | 10-28668 | |
| 37 | BEARING, BALL - CRANKCASE (LOWER) | 30-72961 | |
| 38 | OIL SEAL, CRANKCASE (LOWER) | 26-66301 |
DRIVE SHAFT HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 DRIVE SHAFT HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 1556-8451A1 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 1558-4902A2 | |
| 2 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 5/16") Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 16-66373 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1556-8451A1 | |
| 1 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1558-8453A1 | |
| 2 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 5/16") Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 16-66373 | |
| 3 | NUT, DRIVE SHAFT HOUSING STUD (3/8 - 24) | 11-8M0204726 | |
| 4 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (5/16 - 24) | 11-82670911 | |
| 5 | COVER, TRIM - DRIVE SHAFT HOUSING Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 72471 | |
| 5 | COVER, TRIM - DRIVE SHAFT HOUSING Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 72471 | |
| 6 | SCREW, TRIM COVER TO BOTTOM COWL (1/2") | 10-64652 | |
| 7 | HOSE, TELL TALE (9 1/2") | 32-8M0108355 | 32-8M0047428, 32-830756109, 32-99127109, 32-877821 |
| 8 | TUBE, WATER OUTLET (SHORT SHAFT) | 32-39061 | |
| 8 | TUBE, WATER OUTLET (LONG SHAFT) | 32-39062 | |
| 9 | SCREW, FLUSH - DRIVE SHAFT HOUSING | 10-79953Q04 | |
| 10 | WASHER, SEALING - FLUSH SCREW | 12-191833 | |
| 11 | GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING | 27-39050 | |
| 12 | NUT, DROVE SHAFT HOUSING TO PWOERHEAD STUDS | 11-24652 | |
| 12 | NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS | 11-24652 | |
| 13 | BLOCK ASSEMBLY, DRIVE SHAFT - LONG SHAFT | 47259A1 | |
| 14 | SCREW, BLOCK TO DRIVE SHAFT HSG (1 1/4") - LONG SHAFT | 10-47225 | |
| 15 | SADDLE, Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 1559-8448A2 | |
| 15 | SADDLE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1559-8448A2 | |
| 16 | BUMPER, THRUST - SADDLE | 64076 | |
| 17 | MOUNT ASSEMBLY (LOWER AND UPPER) - SEE NOTE BELOW | 79896A1 | |
| 18 | RING, RETAINING - UPPER AND LOWER MOUNT | 53-26406 | |
| 19 | COVER, LOWER MOUNT Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 71490 | |
| 19 | COVER, LOWER MOUNT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 71490 | |
| 20 | SCREW, LWOER MOUNT COVER TO MOUNT (7/16") | 10-45817 | |
| 21 | LINK ROD, REVERSE LOCK Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 71057 | |
| 21 | LINK ROD, REVERSE LOCK Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 71057 | |
| 22 | SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4") | 10-65414 | |
| 23 | CAM, REVERSE LOCK | 65216 | |
| 24 | RETAINER, REVERSE LOCK CAM Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 72007 | |
| 24 | RETAINER, REVERSE LOCK CAM Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 72007 |

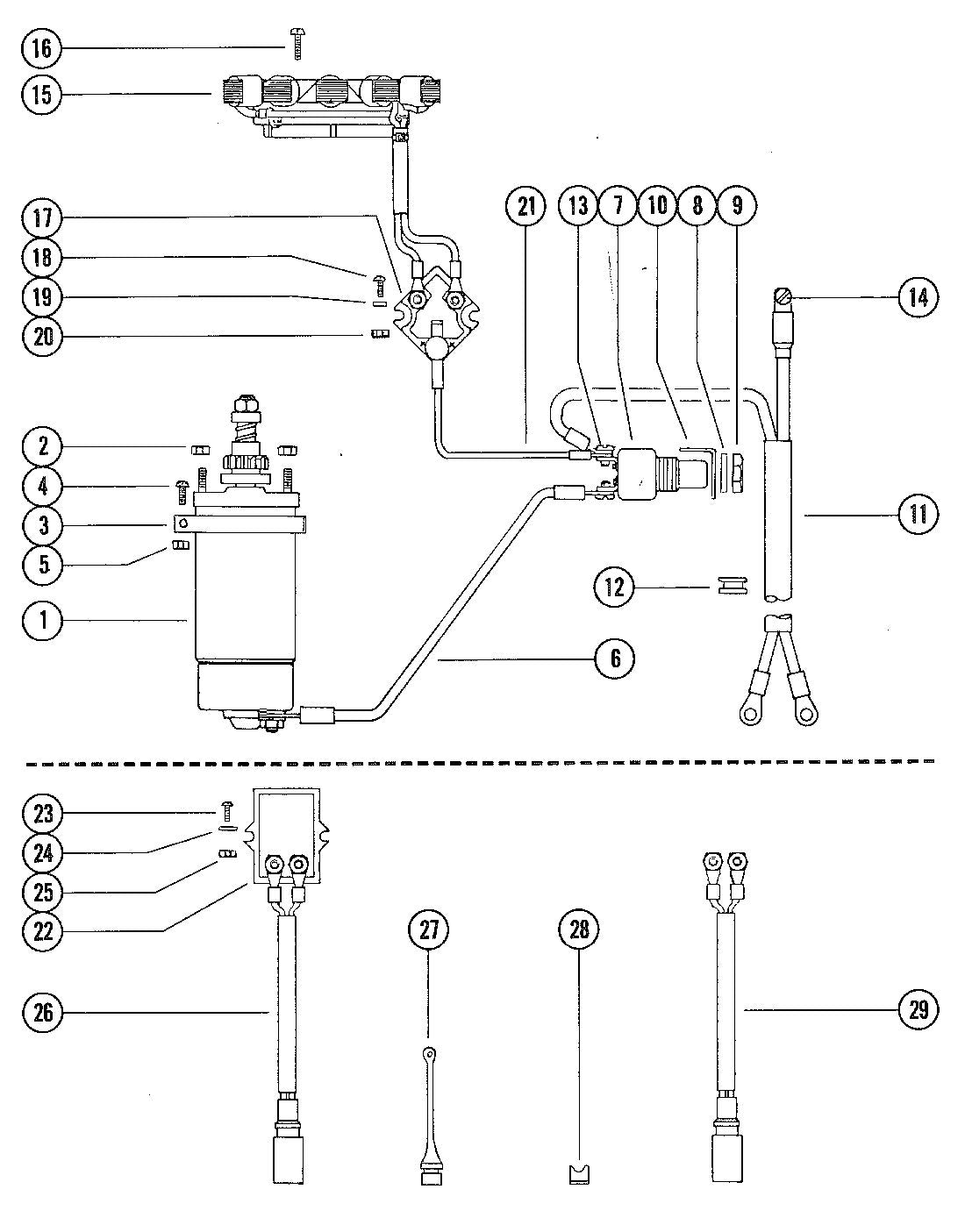

ELECTRIC COMPONENTS
Back to TopBelow is the parts list for Mercury 110 ELECTRIC COMPONENTS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | STARTER MOTOR | 50-73531 | |
| 2 | NUT, STARTER MOTOR STUD | 11-8267089 | |
| 3 | CLAMP, STARTER MOTOR ATTACHING | 54-47993 | |
| 4 | SCREW, STARTER MOTOR CLAMP (1") | 10-46378 | |
| 5 | NUT, CLAMP SCREW | 11-20088 | |
| 6 | WIRE ASSEMBLY, STARTING SWITCH (YELLOW) Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 84-76741A1 | |
| 6 | WIRE ASSEMBLY, START SWITCH (YELLOW) Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 84-76741A1 | |
| 7 | SWITCH, STARTING | 87-73883 | |
| 8 | WASHER, STARTING SWITCH | 12-30516 | |
| 9 | NUT, STARTING SWITCH | 11-74394 | |
| 10 | PROTECTOR, STARTING SWITCH | 74515 | |
| 11 | CABLE, BATTERY | 84-72535A4 | |
| 12 | GROMMET, BATTERY CABLE | 25-74444 | |
| 13 | SCREW, BATTERY CABLE ATTACHING (5/16") | 10-45742 | |
| 14 | SCREW, BATTERY CABLE ATTACHING (7/8") | 10-98253 | |
| 15 | LIGHTING STATOR ASSEMBLY Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 74367A15 | |
| 15 | LIGHTING STATOR ASSEMBLY Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 74367A15 | |
| 16 | SCREW, LIGHTING STATOR ATTACHING (1 5/8") | 10-73696 | |
| 17 | RECTIFIER ASSEMBLY | 8M0058226 | 816770T, 816770, 62351A 1, 83-70350A 1, 83-70350A 3 |
| 18 | SCREW, RECTIFIER TO MANIFOLD COVER (1/2") | 10-48408 | |
| 19 | SPACER, RECTIFIER SCREW | 23-62769 | |
| 20 | NUT, RECTIFIER TERMINAL | 11-45076 | |
| 21 | WIRE ASSEMBLY, RECTIFIER TO STARTING SWITH (RED) | 84-61393A6 | |
| 22 | VOLTAGE REGULATOR Comment: BELGIUM 9113965 AND UP | 95845T | |
| 23 | SCREW, VOLTAGE REGULATOR TO MANIFOLD COVER (1") Comment: BELGIUM 9113965 AND UP | 10-74841 | |
| 24 | SPACER, VOLTAGE REGULATOR SCREW Comment: BELGIUM 9113965 AND UP | 23-62769 | |
| 25 | NUT, VOLTAGE REGULATOR TERMINAL Comment: BELGIUM 9113965 AND UP | 11-45076 | |
| 26 | HARNESS ASSEMBLY, VOLTAGE REGULATOR (BLACK/RED) Comment: BELGIUM 9113965 AND UP | 84-74725A1 | |
| 27 | PLUG, HARNESS Comment: BELGIUM 9113965 AND UP | 71663 | |
| 28 | PLUG, HARNESS TO BOTTOM COWL Comment: BELGIUM 9113965 AND UP | 74361 | |
| 29 | HARNESS ASSEMBLY, LIGHTING (EXTERNAL) Comment: BELGIUM 9113965 AND UP | 84-65017A2 | |
| 15 | LIGHTING STATOR ASSEMBLY | 74367A15 |

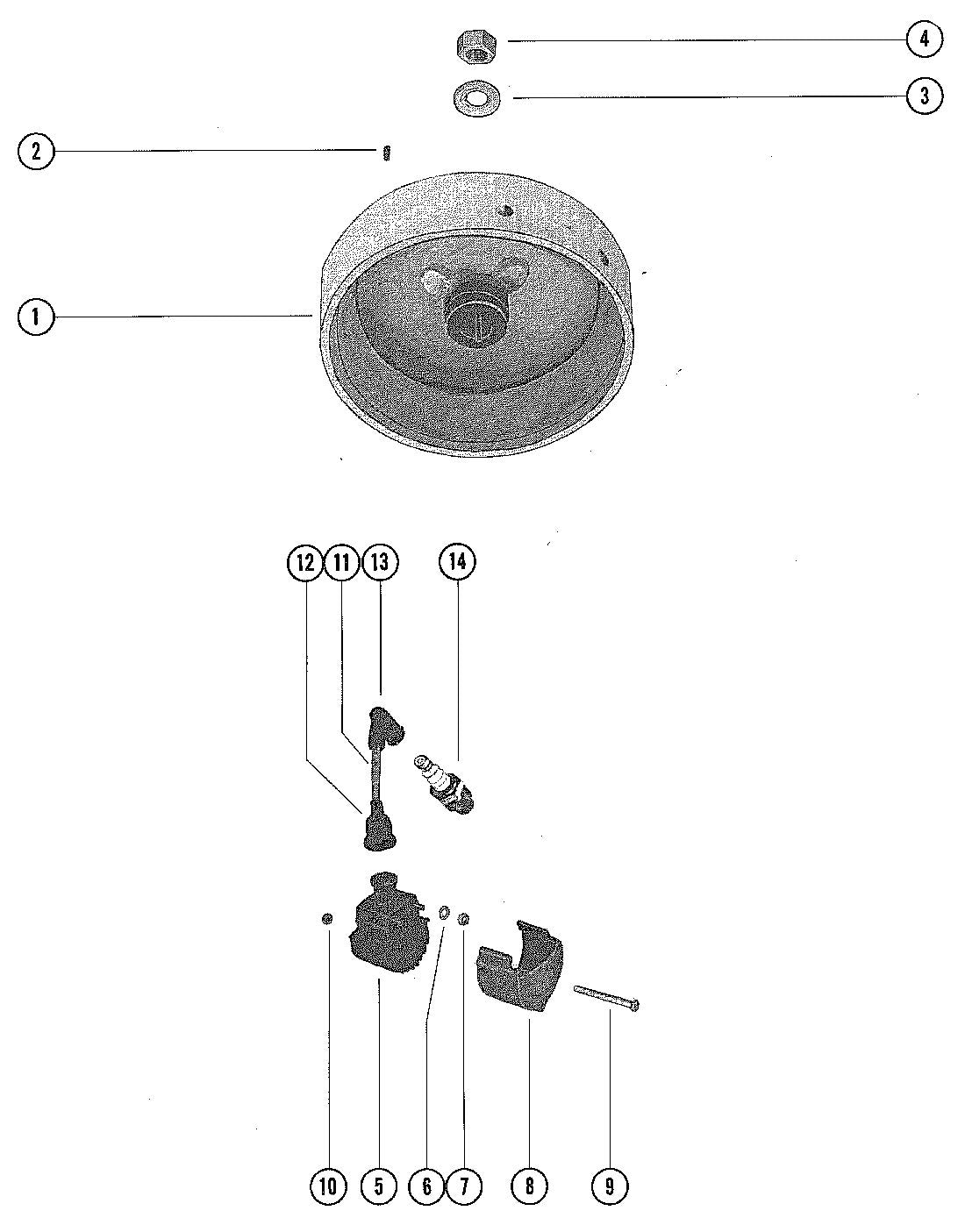

FLYWHEEL AND IGNITION COIL
Back to TopBelow is the parts list for Mercury 110 FLYWHEEL AND IGNITION COIL:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | FLYWHEEL ASSEMBLY Comment: UNITED STATES 3795658 THRU 3922994 AUSTRALIA 8015040 THRU 8018739 BELGIUM 9041439 THRU 9057623 CANADA 7027323 THRU 7035222 | 245-5277A1 | |
| 1 | FLYWHEEL ASSEMBLY Comment: UNITED STATES 3922995 THRU 4387436 AUSTRALIA 8018740 THRU 8037874 BELGIUM 9057624 THRU 9113964 CANADA 7035223 THRU 7074272 | 245-5277A3 | |
| 1 | FLYWHEEL ASSEMBLY Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP CANADA 7074273 AND UP | 251-6105A1 | |
| 1 | FLYWHEEL ASSEMBLY (ELECTRIC) | 251-6105A1 | |
| 1 | FLYWHEEL ASSEMBLY Comment: BELGIUM 9113965 AND UP | 251-6105A1 | |
| 2 | KEY, FLYWHEEL DRIVE | 28-20094 | |
| 3 | WASHER, FLYWHEEL NUT | 12-36245 | |
| 4 | NUT, FLYWHEEL | 11-20696 | |
| 5 | COIL ASSEMBLY, IGNITION Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 300-8M0166172 | |
| 5 | COIL ASSEMBLY, IGNITION Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 300-8M0166172 | |
| 5 | COIL ASSEMBLY, IGNITION Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 300-8M0166172 | |
| 6 | LOCKWASHER, IGNITION COIL TERMINAL | 13-26996 | |
| 7 | NUT, IGNITION COIL TERMINAL | 11-45076 | |
| 8 | COVER, IGNITION COIL | 66355 | |
| 9 | SCREW, COIL COVER TO REAR SUPPORT BRACKET (4 5/8") | 10-72074 | |
| 10 | NUT, COIL COVER SCREW | 11-20110 | |
| 11 | LEAD ASSEMBLY, HIGH TENSION | 84-813715A1 | |
| 12 | NIPPLE, IGNITION COIL | 332-2854T01 | |
| 13 | PROTECTOR ASSEMBLY, SPARK PLUG | 85-63709A1 | |
| 14 | SPARK PLUG (CHAMPION L-77V) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 33-896329827 | 33-827C UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 |
| 14 | SPARK PLUG (AC V40FFK) Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 33-896329833 | 33-833C UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP |
GEAR HOUSING ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 GEAR HOUSING ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1630-7360A13 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1630-7360A13 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLEGE (LONG SHAFT) Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A13 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 1630-4921A1 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A11 | |
| 46 | CAM, SHIFT | 44434 | |
| 47 | FOLLOWER, SHIFT CAM | 31334 | |
| 48 | SPRING, COMPRESSION - CAM FOLLOWER Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 24-31333 | |
| 48 | SPRING, COMPRESSION - CAM FOLLOWER Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 24-76298 | |
| 49 | SHIM ASSEMBLY, BALL BEARING TO HOUSING (.002-3-5-10) | 15-30522A1 | |
| 50 | BEARING, BALL - FORWARD GEAR | 30-21889 | |
| 51 | FORWARD GEAR ASSEMBLY | 43-48577A3 | |
| 52 | BEARING, ROLLER - FORWARD GEAR | 31-22458 | |
| 53 | RACHET, SLIDING CLUTCH | 52-63314 | |
| 54 | RING, RETAINING - CROSS PIN | 53-32449 | |
| 55 | PIN, CROSS - RATCHET TO PROPELLER SHAFT | 17-30535 | |
| 56 | SHAFT ASSEMBLY, PROPELLER Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 44-75667A2 | |
| 56 | SHAFT ASSEMBLY, PROPELLER Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 44-75667A2 | |
| 57 | REVERSE GEAR ASSEMBLY | 43-63316 | |
| 58 | WASHER, THRUST - REVERSE GEAR Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 12-30531 | |
| 58 | SLEEVE, THRUST - REVERSE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 71479 | |
| 59 | BEARING, BALL - RESERVE GEAR | 30-21889 | |
| 60 | SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10) | 15-30532A1 | |
| 61 | "O" RING, BEARING CARRIER | 25-30529 | |
| 62 | BEARING CARRIER ASSEMBLY Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 63317T3 | |
| 62 | BEARING CARRIER ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 72673T1 | |
| 63 | BEARING, ROLLER - BEARING CARRIER | 31-22458 | |
| 64 | OIL SEAL, BEARING CARRIER | 26-66022 | |
| 65 | WASHER, GEAR HOUSING COVER Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 12-30528 | |
| 66 | COVER, GEAR HOUSING Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 30537 | |
| 66 | COVER, GEAR HOUSING Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 86236 | |
| 67 | CO>>AR, PROPELLER GUIDE | 86665A1 | |
| 68 | PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FOR FACTORY) | 48-47922A10 | |
| 68 | PROPELLER ASS'Y, 9" DIA., 10" PITCH, 2 BLADES (ALUMINUM) | 48-47922A10 | |
| 68 | PROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (ALUMINUM) | 48-47670A10 | |
| 68 | PROPELLER ASSY'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (NYLON) | 48-65012A1 | |
| -- | THRUST HUB (USED WITH NYLON PROP ONLY) | 66606 | |
| 69 | SPACER, PROPELLER SHAFT (PART FOR PROPELLER SHAFT ASSEMBLY) | 11-64075A1 | |
| 70 | NUT, PROPELLER | 11-64075A1 |
GEAR HOUSING ASSEMBLY, COMPLETE
Back to TopBelow is the parts list for Mercury 110 GEAR HOUSING ASSEMBLY, COMPLETE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1630-7360A13 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) (#1630-4921A 6) Comment: SEE NOTE BELOW UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | ||
| - | GEAR HOUSING ASSEMBLY, COMPLEGE (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1630-7360A13 | |
| - | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A12 | |
| - | GEAR HOUSING ASSEMBLY, COMPLEGE (LONG SHAFT) Comment: SEE NOTE BELOW UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A13 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 1630-4921A1 | |
| 1 | GEAR HOUSING ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1630-7360A11 | |
| 2 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 7/16") | 16-58138 | |
| 3 | STUD, WATER PUMP HOUSING TO GEAR HOUSING (2 3/4") | 16-58136 | |
| 4 | GEARING, ROLLER - DRIVE SHAFT | 31-22756 | |
| 5 | PIN, DOWEL - LOCATING | 17-20032 | |
| 6 | SEAL, RUBBER - WATER INTAKE TUBE | 26-33613 | |
| 7 | WASHER, NYLON - INTAKE TUBE SEAL | 23-86215 | |
| 8 | SCREEN, WATER INTAKE | 35-33425 | |
| 9 | SCREW, WATER INTAKE SCREEN TO GEAR HOUSING | 10-28642 | |
| 10 | SCREW, GREASE FILLER HOLE | 10-79953Q04 | |
| 11 | WASHER, GREASE FILLER HOLE SCREW | 12-191833 | |
| 12 | WASHER, GREASE VENT HOLE SCREW | 19643 | |
| 13 | SCREW, GREASE VENT HOLE | 10-28653 | |
| 14 | SHAFT ASSEMBLY, SHIFT (SHORT SHAFT Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 71659A1 | |
| 14 | SHAFT ASSEMBLY, SHIFT (LONG SHAFT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 71658A1 | |
| 14 | SHAFT ASSEMBLY, SHIFT (SHORT SHAFT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 71659A1 | |
| 14 | SHAFT ASSEMBLY, SHIFT (LONG SHAFT) Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 71658A1 | |
| 15 | RING, RETAINING - SHIFT SHAFT | 53-22899 | |
| 16 | BUSHING, ASSEMBLY, SHIFT SHAFT | 23-30676A1 | |
| 17 | "O" RING, SHAFT SHAFT BUSING | 25-26802 | |
| 18 | OIL SEAL, SHIFT SHAFT BUSING | 26-30696 | |
| 19 | SCREW, SHIFT SHAFT BUSING RETAINER | 10-39149 | |
| 20 | GEAR, PINION | 43-98696 | |
| 21 | TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW | 14-30377 | |
| 22 | SCREW, PINION GEART TO DRIVE SHAFT | 10-30376 | |
| 23 | DRIVE SHAFT (SHORT SHAFT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 45-75034A1 | |
| 23 | DRIVE SHAFT (LONG SHAFT) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 45-75033A1 | |
| 23 | DRIVE SHAFT (SHORT SHAFT) Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 45-75034 | |
| 23 | DRIVE SHAFT (LONG SHAFT) Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 45-75033 | |
| 24 | SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) | 15-30527A1 | |
| 25 | BEARING, BALL - DRIVE SHAFT Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 30-33076 | |
| 25 | BEARING, BALL - DRIVE SHAFT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 30-70944 | |
| 26 | RING, RETAINING - BALL BEARING TO DRIVE SHAFT | 53-30523 | |
| 27 | SHIM ASSEMBLY, BALL BEARING TO GEAR HOUSING (.002-3-5-10) | 15-30527A1 | |
| 28 | WATER PUMP HOUSING ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 46-46893A3 | |
| 28 | WATER PUMP HOUSING ASSEMBLY Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 46-70941T01 | |
| 29 | "O" RING, WATER PUMP HOUSING | 25-29439 | |
| 30 | OIL SEAL, WATER PUMP HOUSING | 26-30900T | |
| 31 | SEAL, WATER INTAKE TUBE | 26-33613 | |
| 32 | TUBE, WATER INTAKE | 32-34293 | |
| 33 | INSERT, WATER PUMP HOUSING | 70977T | |
| 34 | KEY, IMPELLER DRIVE | 28-8M0032835 | 28-56655 |
| 35 | IMPELLER, WATER PUMP | 47-89981 | |
| 36 | PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER | 46895 | |
| 37 | WATER PUMP COVER ASSEMBLY | 93224A1 | |
| 38 | SEAL, WATER PUMP COVER | 26-36558 | |
| 39 | WASHER, NYLON - WATER PUMP COVER | 23-13127 | |
| 40 | OIL SEAL, WATER PUMP COVER | 26-30913 | |
| 41 | WASHER, WATER PUMP HOUSING AND COVER STUDS | 12-20533 | |
| 42 | NUT, WATER PUMP HOUSING AND COVER STUDS | 11-35888 | |
| 43 | RINGG, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT) | 25-30526 | |
| 44 | SLEEVE, GUIDE - WATER INLET TUBE | 23-31792T |
IGNITION COMPONENTS
Back to TopBelow is the parts list for Mercury 110 IGNITION COMPONENTS:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | STATOR ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 339-5209A9 | |
| 1 | STATOR ASSEMBLY Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 339-5566A5 | |
| 1 | STATOR ASSEMBLY Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 339-5209A9 | |
| 2 | SCREW, STATOR TO END CAP (7/8") | 10-66707 | |
| 3 | SCREW, STATOR TO END CAP (3/8") - MANUAL | 10-35400 | |
| 4 | COIL ASSEMBLY (3 1/2" AND 1 1/2" LEADS) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 339-5312A1 | |
| 4 | COIL ASSEMBLY (4 5/8" AND 3 3/4" LEADS) Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 339-5313A1 | |
| 5 | CLIP, COIL RETAINING Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 54-59538 | |
| 6 | CLIP, COIL RETAINING Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 54-65927 | |
| 7 | TERMINAL BLOCK, STATOR Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 86-66560 | |
| 8 | SCREW, TERMINAL BLOCK TO STATOR (5/8") Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 10-38055 | |
| 9 | NUT, TERMINAL BLOCK SCREW Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 11-46438 | |
| 10 | SCREW, LEADS TO TERMINAL BLOCK (3/8") Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 10-62568 | |
| 4 | COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS) Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 339-5589A1 | |
| 4 | COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS) Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 339-5590A1 | |
| 5 | CLIP, COIL RETAINING Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 54-59538 | |
| 6 | CLIP, COIL RETAINING Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 54-65927 | |
| 7 | TERMINAL BLOCK, STATOR Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 86-69348 | |
| 8 | SCREW, TERMINAL BLOCK TO STATOR (5/8") Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 10-69347 | |
| 9 | NUT, TERMINAL BLOCK SCREW Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 11-46438 | |
| 10 | SCREW, LEADS TO TERMINAL BLOCK (3/8") Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 10-22654 | |
| 4 | COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS) Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 339-6119A1 | |
| 4 | COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS) Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 339-6120A1 | |
| 5 | CLIP, COIL RETAINING Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 54-59538 | |
| 6 | CLIP, COIL RETAINING Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 54-65927 | |
| 7 | TERMINAL BLOCK, STATOR Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 86-85365 | |
| 8 | SCREW, TERMINAL BLOCK TO STATOR (5/8") Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 10-38055 | |
| 9 | NUT, TERMINAL BLOCK SCREW Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 11-46438 | |
| 10 | SCREW, LEADS TO TERMINAL BLOCK (3/8") Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 10-22654 | |
| 11 | TRIGGER HOUSING ASSEMBLY Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 338-5286A1 | |
| 12 | COIL ASSEMBLY, TRIGGER Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 66392A1 | |
| 11 | TRIGGER HOUSING ASSEMBLY Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 338-7283A3 | |
| 14 | LINK, TRIGGER HOUSING TO THROTTLE ELVER | 42501 | |
| 15 | NUT, PUSH - LINK TO TRIGGER HOUSING | 11-65110 | |
| 16 | SWITCH BOX Comment: UNITED STATES 3795658 THRU 3922994 AUSTRALIA 8015040 THRU 8018739 BELGIUM 9041439 THRU 9057623 CANADA 7027323 THRU 7035222 | 339-6222A10 | |
| 16 | SWITCH BOX Comment: UNITED STATES 3922995 THRU 4387436 AUSTRALIA 8018740 THRU 8037874 BELGIUM 9057624 THRU 9113964 CANADA 7035223 THRU 7074272 | 339-6222A10 | |
| 16 | SWITCH BOX Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 339-6222A10 | |
| 17 | SCREW, SWITCH ATTACHING (1/2") | 10-69022 | |
| 18 | WASHER, SWITCH BOX ATTACHING SCREW | 12-8M0204666 | |
| 19 | STA-STRAP | 61990 | |
| 20 | TERMINAL BLOCK Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 86-67460 | |
| 21 | SCREW, TERMINAL BLOCK ATTACHING (5/8") Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 10-48408 | |
| 22 | SCREW, LEADS TO TERMINAL BLOCK (3/8") Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 10-45218 | |
| 23 | LEAD ASSEMBLY, STOP SWITCH (11") Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 56319A7 | |
| 24 | BOOT, LEAD ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 59060 | |
| 25 | SCREW, GROUND LEAD TO CYLINDER BLOCK | 10-45218 |
MISCELLANEOUS PARTS/ACCESSORIES
Back to TopBelow is the parts list for Mercury 110 MISCELLANEOUS PARTS/ACCESSORIES:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | DECAL SET Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 37-13053A86 | |
| - | DECAL SET Comment: UNITED STATES 4079000 THRU 4304784 AUSTRALIA 8023990 THRU 8034894 BELGIUM 9069374 THRU 9101513 CANADA 7042123 THRU 7063747 | 37-13053A86 | |
| - | DECAL SET Comment: UNITED STATES 4304785 THRU 4605111 AUSTRALIA 8034895 THRU 8044349 BELGIUM 9101514 THRU 9149504 CANADA 7063748 THRU 7093497 | 37-13053A86 | |
| - | DECAL SET Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 37-13053A86 | |
| - | GASKET SET (MOTOR OVERHAUL) | 27-89014A80 | |
| - | MERC 110 PARTS LIST (SERIAL #3795658 AND UP) | 90-67136 | |
| - | RESISTANT WATER PUMP KIT | 46-46893A6 |
PISTON AND CONNECTING ROD ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 PISTON AND CONNECTING ROD ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | CONNECTING ROD ASSEMBLY | 608-7395A2 | |
| 2 | SCREW, CONNECTING ROD | 10-87374 | |
| 3 | BEARING, NEEDLE - CRANKPIN | 29-26815 | |
| 4 | NUT, CONNECTING ROD SCREW | 11-20061 | |
| 5 | WASHER, NEEDLE BEARING RETAINING | 12-65967 | |
| 6 | BEARING, NEEDLE - PISTON PIN | 29-31505 | |
| 7 | PISTON AND PISTON PIN ASSEMBLY | 719-7391T3 | |
| 8 | LOCK RING, PISTON PIN | 40-21666 | |
| 9 | RING, PISTON | 39-21665A12 |
SHIFT CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 110 SHIFT CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | HANDLE, SHIFT CONTROL (MANUAL) | 93730T | |
| 1 | HANDLE, SHIFT CONTROL (ELECTRIC) | 93730T | |
| 2 | WASHER, SHIFT CONTROL SHAFT | 12-8M0204649 | |
| 3 | NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT | 11-826709109 | 11-33825, 11-35045 |
| 4 | BUSHING, NYLON - SHIFT CONTROL SHAFT | 23-66375 | |
| 5 | LEVER, SHIFT CONTROL (REMOTE) Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 76994 | |
| 5 | LEVER, SHIFT CONTROL (REMOTE) Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74350 | |
| 6 | PIN, SHIFT LEVER TO SHIFT CONTROL SHAFT | 17-25905 | |
| 7 | SHAFT, SHIFT CONTROL | 66379 | |
| 8 | GEAR, SECTOR - SHIFT CONTROL SHAFT (HORIZONTAL) | 43-66377 | |
| 9 | WASHER, SHIFT CONTROL SHAFT | 12-8M0204649 | |
| 10 | NUT, SECTOR GEAR TO SHIFT CONTROL SHAFT | 11-8267089 | |
| 11 | SPRING, DETENT - SHIFT CONTROL LEVER | 24-39627 | |
| 12 | PLATE, DETENT SPRING | 39601 | |
| 13 | SCREW, PLATE AND SPRING TO ADAPTOR PLATE (1/2") | 10-25764 | |
| 14 | BUSHING, NYLON - UPPER SHIFT SHAFT | 23-27132 | |
| 15 | GEAR, SECTOR - SHIFT SHAFT | 43-86686A1 | |
| 16 | SHIFT SHAFT Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 71660 | |
| 16 | SHIFT SHAFT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 71660 |
STEERING HANDLE ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 STEERING HANDLE ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| - | STEERING HANDLE ASSEMBLY, COMPLETE | 60850A6 | |
| 1 | GRIP, HANDLE - THROTTLE | 60854 | |
| 2 | CAP, HANDLE - THROTTLE | 62251 | |
| 3 | SHAFT, THROTTLE | 66393 | |
| 4 | HANDLE, THROTTLE SHAFT | 66394A1 | |
| 5 | PIN, STEERING HANDLE | 17-46152 | |
| 6 | WASHER, THROTTLE HANDLE TO STEERING ARM | 12-62252 | |
| 7 | ARM, STEERING HANDLE | 60850 | |
| 8 | GEAR, BALL - THROTTLE SHAFT | 43-60852 | |
| 9 | PIN, BALL GEAR TO THROTTLE SHAFT | 17-27088 | |
| 10 | PIVOT, STEERING HANDLE TO BRACKET | 48003 | |
| 11 | SHIM, STEERING HANDLE PIVOT TO BRACKET (.015) | 15-48002015 | |
| 12 | SCREW, STEERING HANDLE TO ARM BRACKET (5/8") | 10-64074 | |
| 13 | UNIVERSAL JOINT ASSEMLBY | 60857A2 | |
| 14 | GEAR, BALL - UNIVERSAL JOINT | 43-60852 | |
| 15 | PIN, BALL GEAR TO UNIVERSAL JOINT | 17-68436 | |
| 16 | BRACKET ASSEMBLY, STEERING ARM | 96130A1 | |
| 17 | SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8") | 10-62233 | |
| 18 | SPRING, DETENT - STEERING HANDLE Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 24-72847 | |
| 18 | SPRING, DETENT - STEERING HANDLE Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 24-72847 | |
| 19 | SCREW, STEERING ARM BRACKET TO SADDLE (2 1/4") | 10-30679 | |
| 20 | NUT, STEERING ARM BRACKET FASTENING SCREW | 11-24652 |
SWIVEL BRACKET ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 SWIVEL BRACKET ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | SWIVEL BRACKET ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 1471-5822A1 | |
| 1 | SWIVEL BRACKET ASSEMBLY Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 1471-5822A1 | |
| 1 | SWIVEL BRACKET ASSEMBLY Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 1471-7324A1 | |
| 2 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 22-8M0169589 | |
| 2 | FITTING, GREASE - SWIVEL BRACKET Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 22-8M0169589 | |
| 3 | LUBRICAP, GREASE FITTING - SWIVEL BRACKET | 19-77633Q | |
| 4 | BUSHING, SWIVEL BRACKET | 23-64028 | |
| 5 | BUSHING, NYLON - REVERSE LOCK LEVER ROD | 23-26841 | |
| 6 | ROD, REVERSE LOCK TO SWIVEL BRACKET Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 63551 | |
| 6 | ROD, REVERSE LOCK TO SWIVEL BRACKET Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 71419 | |
| 7 | COTTER PIN, REVERSE LOCK LEVER TO ROD | 18-45882 | |
| 8 | LEVER, REVERSE LOCK | 63628T | |
| 9 | RETAINER, ROD - REVERSE LOCK | 61007 | |
| 10 | BRACKET, TROLL | 63559T | |
| 11 | SPRING, EXTENSION - TROLL BRACKET | 24-63630 | |
| 12 | GUIDE, SPRING | 63554 | |
| 13 | ROLL PIN, SPRING GUIDE | 17-25319 | |
| 14 | LEVER, CONTROL - TROLL BRACKET | 79744 | |
| 15 | WASHER, WAVE - TROLL BRACKET LEVER | 13-63631 | |
| 16 | TUBE, SWIVEL BRACKET TO SADDLE | 66559 | |
| 17 | CO-PILOT DISC Comment: UNITED STATES 3795658 THRU 4605111 AUSTRALIA 8015040 THRU 8044349 BELGIUM 9041439 THRU 9149504 CANADA 7027323 THRU 7093497 | 77334 | |
| 17 | CO-PILOT DISC Comment: UNITED STATES 4605112 AND UP AUSTRALIA 8044350 AND UP BELGIUM 9149505 AND UP CANADA 7093498 AND UP | 77334 | |
| 18 | SCREW, CO-PILOT DISC TO SADDLE (2 1/4") | 10-30679 | |
| 19 | NUT, CO-PILOT DISC FASTENING SCREW | 11-24652 | |
| 20 | DISC< FRICTION - CLAMP PLATE AND SWIVEL BRACKET | 20203 | |
| 21 | PLATE, CLAMMP - CO-PILOT Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 63647 | |
| 22 | SCREW, CLAMP PLATE ADJUSTING (1 5/8") Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 10-62506 | |
| 21 | PLATE ASSEMBLY, CLAMP - CO-PILOT Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 72845A1 | |
| 22 | SCREW, CLAMP PLATE ADJUSTING Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 10-76081 | |
| 23 | WASHER, CLAMP PLATE ADJUSTING SCREW | 12-35462 | |
| 24 | LEVER ASSEMBLY, TILT STOP | 63310A1 | |
| 25 | SCREW, TILT STOP LEVER | 10-41433 | |
| 26 | WASHER, WAVE - LEVER ANCHOR SCREW | 13-31030 | |
| 27 | NUT, TILT STOP LEVER SCREW | 11-35888 | |
| 28 | SCREW, SWIVEL BRACKET | 10-36398 | |
| 29 | STOP, REVERSE LOCK Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 72794 | |
| 30 | SCREW, REVERSE STOP TO SWIVEL BRACKET Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 10-71056 | |
| 31 | LOCKWASHER, REVERSE STOP SCREW Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 13-26992 | |
| 32 | WASHER, REVERSE STOP SCREW Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 12-71055 |
THROTTLE CONTROL LINKAGE
Back to TopBelow is the parts list for Mercury 110 THROTTLE CONTROL LINKAGE:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET | 43-60856 | |
| 2 | HOUSING, THROTTLE CONTROL | 60885T | |
| 3 | SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4") | 10-69069 | |
| 4 | FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER | 63308A1 | |
| 5 | SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8") | 10-20653 | |
| 6 | WASHER, SPEED LIMITER FOLLOWER SCREW | 12-8M0204649 | |
| 6A | SPRING, NEUTRAL SPEED LIMITER FOLLOWER | 24-39042 | |
| 7 | BUSHING, SPEED LIMITER FOLLOWER SCREW | 23-63320 | |
| 8 | STOP, NEUTRAL SPEED LIMITER | 36017 | |
| 9 | SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8") | 10-28710 | |
| 10 | WASHER, NEUTRAL SPEED LIMITER STOP SCREW | 12-24676 | |
| 11 | GEAR, THROTTLE CONTROL | 43-60858 | |
| 12 | SHIM ASSEMBLY, GEAR AND SHAFT (LOWER) | 15-64653A1 | |
| 13 | LEVER ASSEMBLY, THROTTLE CONTROL | 66374A2 | |
| 14 | PIN, ROLL - THROTTLE CONTROL LEVER TO CONTROL SHAFT | 17-76207 |
TOP COWL AND STARTER ASSEMBLY
Back to TopBelow is the parts list for Mercury 110 TOP COWL AND STARTER ASSEMBLY:
| Position No. | Part Name | OEM Number | Supersedes |
|---|---|---|---|
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 3795658 THRU 4078999 AUSTRALIA 8015040 THRU 8023989 BELGIUM 9041439 THRU 9068373 CANADA 7027323 THRU 7042122 | 2147-5652A5 | |
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 4079000 THRU 4126459 AUSTRALIA 8023990 THRU 8028439 BELGIUM 9068374 THRU 9078138 CANADA 7042123 THRU 7049107 | 2147-5652A5 | |
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 4126460 THRU 4387436 AUSTRALIA 8028440 THRU 8037874 BELGIUM 9078139 THRU 9113964 CANADA 7049108 THRU 7074272 | 2147-5565A4 | |
| 1 | TOP COWL ASSEMBLY Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 2160-7264A10 | |
| 2 | SEAL, TOP COWL (16 1/2") | 654893 | |
| 3 | BLANKET, TOP COWL - TOP | 66942 | |
| 4 | BLANKET, TOP COWL - SIDE | 85544 | |
| 5 | BLANKET, TOP COWL - FRONT Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 69522 | |
| 5 | BLANKET, TOP COWL - FRONT Comment: UNITED STATES 4126460 AND UP AUSTRALIA 8028440 AND UP BELGIUM 9078139 AND UP CANADA 7049108 AND UP | 69522 | |
| 6 | GROMMET, COWL LATCH - TOP COWL | 25-39086 | |
| 7 | COVER, FRONT | 71502 | |
| 8 | NUT, SPEED - FRONT COVER TO COWL | 11-65517 | |
| 9 | BUMPER, COWL - REAR | 69346 | |
| 10 | CATCH, TOP COWL Comment: UNITED STATES 3795658 THRU 4304784 AUSTRALIA 8015040 THRU 8034894 BELGIUM 9041439 THRU 9101513 CANADA 7027323 THRU 7063747 | 17-72856 | |
| 10 | PIN, TOP COWL CATCH Comment: UNITED STATES 4304785 AND UP AUSTRALIA 8034895 AND UP BELGIUM 9101514 AND UP CANADA 7063748 AND UP | 17-72856 | |
| 11 | WASHER, TOP COWL CATCH (LOWER) | 12-65567 | |
| 11A | WASHER, TOP COWL CATCH (UPPER) | 12-71055 | |
| 12 | SPRING, COMPRESSION - COWL CATCH | 24-65553 | |
| 13 | NUT, COWL CATCH TO TOP COWL | 11-8M0207775 | |
| 14 | STARTER HOUSING ASSEMBLY Comment: UNITED STATES 3795658 THRU 4126459 AUSTRALIA 8015040 THRU 8028439 BELGIUM 9041439 THRU 9078138 CANADA 7027323 THRU 7049107 | 65660A3 | |
| 14 | STARTER HOUSING ASSEMBLY Comment: UNITED STATES 4126460 THRU 4304784 AUSTRALIA 8028440 THRU 8034894 BELGIUM 9078139 THRU 9101513 CANADA 7049108 THRU 7063747 | 73342A4 | |
| 14 | STARTER HOUSING ASSEMBLY Comment: UNITED STATES 4304785 THRU 4387436 AUSTRALIA 8034895 THRU 8037874 BELGIUM 9101514 THRU 9113964 CANADA 7063748 THRU 7074272 | 73342A4 | |
| 14 | STARTER HOUSING ASSEMBLY Comment: SEE NOTE 1 IN BLOCK COMMENTS UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 91871A1 | |
| 15 | INSERT, ROPE GUIDE - STARTER HOUSING | 57821 | |
| 16 | SEAL, STARTER HOUSING TO TOP COWL | 654991 | |
| 17 | SCREW, STARTER HOUSING TO CRANKCASE (1") | 10-72862 | |
| 18 | PULLEY, STARTER CABLE | 55860 | |
| 19 | SCREW, CABLE PULLEY TO STARTER HOUSING (3/4") | 10-28789 | |
| 20 | WASHER, CABLE PULLEY SCREW | 12-22887 | |
| 21 | SPACER, CABLE PULLEY | 23-309772 | |
| 22 | TAB WASHER, SHEAVE SHAFT NUT | 14-20165 | |
| 23 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) | 11-20166 | |
| 24 | RETAINER, STARTER SPRING | 20155 | |
| 25 | SPRING, STARTER REWIND | 24-29340T02 | |
| 26 | BUSHING, STARTER SPRING GUIDE | 23-28912 | |
| 27 | STARTER SHEAVE ASSEMBLY Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 50-93696A2 | |
| 28 | PIN, RETAINER - STARTER CABLE Comment: UNITED STATES 3795658 THRU 4387436 AUSTRALIA 8015040 THRU 8037874 BELGIUM 9041439 THRU 9113964 CANADA 7027323 THRU 7074272 | 17-22896 | |
| 27 | STARTER SHEAVE ASSEMBLY Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 50-93696A2 | |
| 28 | PIN, RETAINER - STARTER CABLE Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 17-22896 | |
| 29 | SHAFT, INTERLOCK Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74359 | |
| 30 | LEVER, LOCK Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74353 | |
| 31 | LEVER, FOLLOWER Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 74351 | |
| 32 | ROLL PIN, INTERLOCK SHAFT Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 17-38489 | |
| 33 | BUSHING, NYLON - INTERLOCK SHAFT Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 23-26856 | |
| 34 | SPRING, TORSION - INTERLOCK SHAFT Comment: UNITED STATES 4387437 AND UP AUSTRALIA 8037875 AND UP BELGIUM 9113965 AND UP CANADA 7074273 AND UP | 24-74347 | |
| 35 | WASHER, WAVE - STARTER PAWL | 13-36206 | |
| 36 | PAWL, STARTER | 30596 | |
| 37 | BUSHING, NYLON - SHEAVE SHAFT SPACER | 23-28919 | |
| 38 | SPACER, SHEAVE SHAFT | 23-61005 | |
| 39 | RETAINER, SHEAVE SHAFT TO STARTER SHEAVE | 26179 | |
| 40 | WASHER, SHEAVE SAHFT RETAINER | 12-35559 | |
| 41 | WASHER, WAVE - RETAINER TENSION | 13-20160 | |
| 42 | PLATE, RETAINER - STARTER PAWL | 30595 | |
| 43 | SHAFT, SHEAVE | 35558 | |
| 44 | STARTER CABLE ASSEMBLY | 50-12066Q10 | |
| 45 | HANDLE, STARTER CABLE | 30782 | |
| 46 | RETAINER, STARTER CABLE AND HANDLE | 79470A1 | |
| 47 | SPRING | 24-45823 |
Download this page as PDF: Click here
For Mercury Owners:
To assist you in maintaining and repairing your marine engines, we hope the following resources may be of use:
-
Mercury / Mercruiser / Mariner Parts from JLM Marine
- Mercury Thermostat
- Mercury Water Pump
- Mercury Water Pump Impeller
- Mercury Water Pump Impeller Kit
- Mercury Carburetor
- Mercury Carburetor Repair Kit
- Mercury Fuel Pump
- Mercury Fuel Pump Kit
- Mercury Air Filter
- Mercury Oil Filter
- Mercury Oil Seal
- Mercury Fuel Filter
- Mercury Gasket
- Mercury Relay
- Mercury Ignition Switch
- Mercury Trim Tilt Switch
- Mercury Ignition Sensor
- Mercury Spark Plug Wire
- Mercury Water Distribution Housing
- Mercury Bellow
- Mercury Bellows Kit
- Mercury Serpentine Pulley
- Mercury Accessories
- Mercury Belt
- Mercury Oil Plug
- Mercury Drain Plug
- Mercury Bellows Replacement Tool
About JLM Marine
Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.
As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.
We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
Mercury Parts on Sale
Carburetor for Mercury 8HP 9.9HP 8M0176126
Product Details: Part Numbers: OEM: Mercury Mariner 3303-895110T11, 3303-8M0104462, 1300-8M0167272, 3303-895110T01, 8M0173875, 8M0176126 Aftermarket: AM8M0176126 Equivalent Part Numbers: 8M0167272, 8M0173875, 895110A03, 895110T15, 8M0104462, 895110A13, 895110T01, 895110T11, 8M0104464, 895110A18, 3303-895110T01, 3303-895110T11 Compatible Models: Mercury Mariner: Four-Stroke Engines: 8HP 9.9HP Product Features High Quality: Manufactured to...
- $58.60
$70.00- $58.60
- Unit price
- per
Water Drain Distribution Housing Assembly for Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI
Product Details: Fits: Mercury MerCruiser 4.3 5.0 5.7 6.2L and 350 377 383 MPI Replaces OEM: Mercury MerCruiser 863444T1, 863444A1, 863802T2 and 863444T2 Compatible Models: Mercury MerCruiser: Specific Models: 4.3 5.0 5.7 6.2L, 350 377 383 MPI Product Features High Quality: Manufactured to OEM...
- $87.90
$119.00- $87.90
- Unit price
- per
Fuel Pump Assembly for Mercury Mariner 15-55HP 2-Stroke Models (43113T)
OEM Part Numbers 43113T, 43113M, 93045M, 94799M, 84651M, 81328M, 84139M, 853729A1 Compatible Models Mercury Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C / 25C (Thru prop. exhaust) 30A, 40 (Twin Carb) (W/oil injection) (w/auto-blend) 55, W-55, 70 Mariner Two-Stroke Engines: 9.5A, 12A, 15A, 15, 20C...
- $28.90
- $28.90
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Decals Sticker Kit Set 37-15167A90 Fit Bravo One - JLM Marine
- Red
Reference Code JLM Marine 23DC024B, Mercury MerCruiser Marine 37-15167A90, Mercury MerCruiser Marine 15167A90 This marine engine sticker replaces faded or missing OEM decals on SternDrive, inboard engines, or shaft drives. Compatibility MerCruiser BRAVO ONE Product Use Meets regulations and emission-label compliance requirements Replaces faded...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Fuel Pump Assembly for Mercury/Mariner 35HP-300HP 2-Stroke Models (14360A16, 14360A41, 14360A43)
OEM Part Numbers 14360A16, 14360A41, 14360A43, 14360A50, 14360A71, 14360A73, 14360T74, 14360A78, 8M0036779, 98766, 14430-C1, 14360T77 Compatible Models Mercury Two-Stroke Engines: 35HP, 50HP, 60HP, 115HP 75/90/115 HP DFI (1.5L) 200/225/250/300 HP DTS/DFI Mariner Two-Stroke Engines: 30-250HP Outboard Explosion Diagram Technical Specifications Weight: 228g Package Dimensions:...
- $52.90
$60.00- $52.90
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner Nissan 2.5HP, 3.5HP; Tohatsu 2.5HP, 3.5HP 2-Stroke Models (3F0-87122-1)
OEM Part Numbers Yamaha: 6G1-W0093-00, 6G1-W0093-00-00, 6G1-W0093-00-XX, 6G1W009300, 6G1W00930000, 6G1W009300XX, 6L5-W0093-00-00, 6L5W00930000, 6N0-W0093-00-00, 6N0W00930000, 6G1-W0093-01-00, 6G1W00930100 Mercury/Mariner: 11502M Sierra: 18-7765 Tohatsu: 369-87122-1, 369871220, 369871220M, 369871221, 369871221M, 3B2871220, 3B2871220M, 3K9871220, 3K9871220M Aftermarket: AM6G1-W0093-00 Compatible Models Nissan Two-Stroke Engines: NS 2.5A2, NS 3.5A2, NS 3.5B, NS...
- $22.50
$13.00- $22.50
- Unit price
- per
Fuel Pump Assembly for Mercury/Mariner 9.9-30HP 4-Stroke Models (803529T04)
OEM Part Numbers 803529T04 Compatible Models Mercury/Mariner Four-Stroke Engines: 10 HP Carbureted 2-Cylinder 15 HP Carbureted 2-Cylinder (includes Seapro) 20 HP Carbureted 2-Cylinder 25 HP EFI 3-Cylinder (includes 25 JET EFI & SEAPRO) 30 HP EFI 3-Cylinder Explosion Diagram Technical Specifications Weight: 251g Package...
- $57.90
$72.00- $57.90
- Unit price
- per
Water Pump Impeller Kit for Mercury 2 Str 15-25 HP 4 Str 9.9-15 HP 99157T2
Product Details: Part Numbers: Mercury Mariner 99157T2, 85098A2, 99157A2 Equivalent Part Numbers: 46-99157A02, 46-99157T2, 85098A2, 99157A02, 99157A2, 99157T2. HJ MHJB-99157, AM46-99157T2, GLM12014 Included in Repair Kits: Yes Compatible Models: Mercury: Two-Stroke Engines: 15 hp, 18 hp, 20 hp, 25 hp Four-Stroke Engines: 9.9 hp,...
- $57.50
$63.00- $57.50
- Unit price
- per
Carburetor for Mercury 8 9.9 13 15 HP 3323-835382T04
OEM Part Numbers Replaced: 3323-835382A1, 3323-835382T1, 3323-835382T3, 3323-835382T04 Compatibility: Engine Models: Mercury/Mariner 4-Stroke Outboards: 9.9HP (323 cc) 13.5HP (International models) 15HP (323 cc) Specific Applications: Mercury 8HP (BODENSEE) 4-stroke (International) Mariner 13.5HP 4-stroke (International) Mercury/Mariner 9.9HP & 15HP (323 cc) Product Features High...
- $55.69
$78.00- $55.69
- Unit price
- per
Mercury 115 HP Outboards Motor Top Cowl Cove Decal Sticker Set 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 - JLM Marine
Reference Code JLM Marine 23DC197R / 23DC197B OEM Reference: 881649A01, 881649A05, 891814A04, 881840A05, 37-881649A01, 823407A00, 803165A00, 804685A00 This precision-made outboard motor decal set restores factory identification markings for Mercury marine engines. Compatibility Mercury 115 hp Outboards (1999-2006 models: FourStroke EFI, Optimax, Saltwater series) Mercury...
- $59.00
- $59.00
- Unit price
- per
Mercury 40 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803641A00, 824093A00, 82409316, 897510A02, 82409316 - JLM Marine
Reference Code JLM Marine: 24DC826MR40, 24DC827MB40, 24DC828MR40, 24DC829MB40; Mercury MerCruiser Marine: 803641A00, 824093A00, 82409316, 897510A02, 37-883524A02, 37-826325A01, 826325A01, 830163A00, 37-859270-6, 37-859270-10, 37-859270-11, 803641A99 This replacement outboard motor decal set restores the original appearance of your marine engine. Compatibility 1998-2006 MERCURY 40 hp MANUAL (824093A00)...
- $38.50
- $38.50
- Unit price
- per
Mercury 90 HP Outboards Motor Top Cowl Cove Decal Sticker Set 823417A00, 826321A00, 804857A00, 881841A01 - JLM Marine
Reference Code JLM Marine: 24DC846MR90, 24DC847MB90, 24DC848MR90, 24DC849MB90, 24DC850MR90, 24DC851MB90 Mercury OEM: 823417A00, 826321A00, 804857A00, 881841A01, 881841A03, 891815A04, 881841A05, 804857A05, 856795A00 Restore OEM appearance with this precision-cut outboard motor decal kit for Mercury engines. Compatibility 1999-2006 Mercury 90HP (including JET, Optimax, FourStroke, and Saltwater...
- $54.00
- $54.00
- Unit price
- per
Water Pump Repair Kit for Mercury / Tohatsu Nissan 25-40 HP 361873220
Product Details Mercury Mariner OEM Part Numbers: 853792A07, 853792A1, 853792T01 Tohatsu/Nissan OEM Part Numbers: 361-87322-0, 361873220M, 361873220 Compatible Models Mercury Marine Four-Stroke EFI Engines 25HP Models: Sea Pro (0R051710 & Up) EFI Standard (0R106999 & Up) EFI JET (0R165086 & Up) 30HP Models: EFI...
- $51.50
$55.00- $51.50
- Unit price
- per
Water Pump Impeller kit for Mercury 6 8 9.9 15 HP 47-42038-2 47-420381 47-42038Q02
Product Details: OEM Part Numbers: 47-42038-2, 47-420381, 47-42038Q02, 420381, 420382, 42038Q02. Aftermarket Part Numbers: AM47-420382, 18-3062. Equivalent Part Numbers: GLM 89451, Mallory 9-45309, 9-45309-10, Sierra 18-3062. Compatible Models: Mercury Two-Stroke Engines: 6-15 HP, 8 (Bodensee)(Intern), 13.5 (International). Four-Stroke Engines: 8/ 9.9 HP (2004 &...
- $26.69
$29.00- $26.69
- Unit price
- per
Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 861431A98 Fit Alpa One Gen Two - JLM Marine
- Red
Reference Code JLM Marine 23DC022R, Mercury MerCruiser Marine 37-861431A98, Mercury MerCruiser Marine 861431A98 Replace faded or illegible markings with this precision-engineered marine engine sticker for clear identification and compliance. Compatibility ALPHA ONE (GEN.II) 1998 AND UP - 0L100040 & Up Product Use Maintains emission-label...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
13682A90 Mercury MerCruiser Stern Drive Engine Red Decals Sticker Kit Set 37-13682A90 Fit Alpa One - JLM Marine
- Red
Reference Code JLM Marine 23DC023B, Mercury MerCruiser Marine 37-13682A90, Mercury MerCruiser Marine 13682A90 This marine engine sticker set restores OEM identification markings for stern drives and shaft drives. Compatibility R/MR/Alpha One (Sterndrive) 1983-1990 - 6225577 THRU 0F386995 R/MR/Alpha One (Transom Assembly) 1983-1990 - 6216687...
- $22.80
- $22.80
- Unit price
- per
-
Red
-
Blue
Mercury 30 HP Outboards Motor Top Cowl Cove Decal Sticker Set 803640A00, 897510A01, 82409316 - JLM Marine
Reference Code JLM Marine 24DC820MR30 / 24DC822MR30 / 24DC824MR30, Mercury MerCruiser 803640A00, 897510A01, 82409316 Replace faded identification markings on your boat engine with this precision-fit outboard motor decal kit. Compatibility 1998-2006 Mercury 30HP Electric/Manual (RED) 1999-2005 Mercury 30HP FourStroke 2002-2005 Mercury 30HP Outboards (Red)...
- $34.50
- $34.50
- Unit price
- per
Mercury 6 HP Outboards Motor Top Cowl Cove Decal Sticker Set 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 - JLM Marine
Reference Code JLM Marine: 24DC803MR6, 24DC804MB6, 24DC805MR6 | Mercury MerCruiser: 808522A00, 808522A96, 808522A94, 804769A00, 37-808522A96, 37-808522A94 Restore your engine's original appearance with this precision-fit outboard motor decal set designed as an exact replacement for worn or missing markings. Compatibility Mercury Outboard Engines (1999-2006): 6.0...
- $31.50
- $31.50
- Unit price
- per
Mercury 60 HP Outboards Motor Top Cowl Cove Decal Sticker Set 879753A01, 826313A01, 883526A02, 804704A00 - JLM Marine
Reference Code JLM Marine: 24DC834MR60, 24DC835MB60, 24DC836MR60, 24DC837MB60Mercury MerCruiser Marine: 879753A01, 826313A01, 883526A02, 804704A00, 37-804704A00, 37-826313A01, 8592677, 85927015 This marine engine sticker set provides OEM-specified replacements for Mercury outboard identification decals. Compatibility 1999-2006 Mercury 60 HP · 1999-2006 Mercury 60 HP SeaPro 2002-2004 Mercury...
- $45.50
- $45.50
- Unit price
- per
Carburetor Rebuild Kit for Mercury Mariner 6HP, 8HP, 9.9HP, 10HP, 15HP, 20HP, 25HP Two-Stroke Models (97611)
OEM Part Numbers 1395-811357, 1395-9179, 1395-9377, 1395-9645, 1395-9725, 1395-9761, 1395-97611, 1395-9761-1, 1395-9803, 97611 Compatible Models Mercury Mariner Two-Stroke Engines: 6HP 8HP 9.9HP 10HP (SeaPro, Marathon, XR10, Magnum) 15HP 20HP 25HP Technical Specifications Weight: 26g Package Dimensions: 18x15x2 cm Installation Instructions Make sure the engine...
- $30.50
$59.00- $30.50
- Unit price
- per
Tags:
