Water Pump Kit – Fits Suzuki DF150AP, DF175AP, DF200A, DF200AP (2016+)

This high-quality water pump kit is engineered for Suzuki 4-stroke outboard engines, specifically the DF150AP, DF175AP, DF200A, and DF200AP models produced from 2016 onward. Designed to restore optimal cooling performance, this kit ensures your engine runs at the correct operating temperature under all conditions.

This kit serves as a direct replacement for OEM part number 17400-96832, delivering reliable performance for routine maintenance and repair. It provides all the essential components needed for a complete water pump rebuild.

• Complete rebuild kit with all necessary impeller components
• Ensures proper cooling system function and prevents overheating
• Designed for straightforward installation with basic marine tools

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

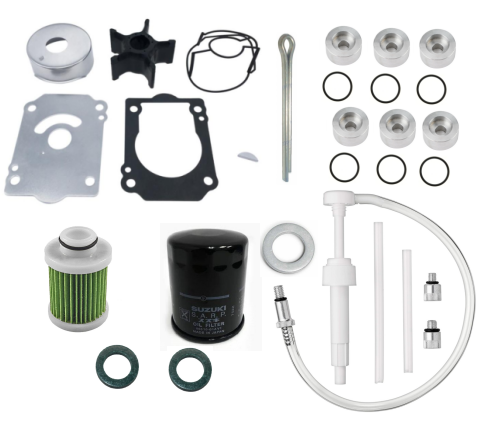

Package Contents

This water pump kit includes all components necessary for a complete rebuild:

• 17413-96301 (Cup) × 1
• 17471-93J02 (Plate) × 1
• 09420-05009/6 (Key) × 1
• 17416-96J00 (Seal) × 1
• 17472-93J00 (Gasket) × 1
• 17461-90J00/01 (Impeller) × 1
• 15412-92J00 (Fuel filter) × 1 View Part →
• 55321-87J00 (Zinc Anode) × 6
• 09280-22019 (O-ring) × 6
• 16510-96J10 (Oil filter) × 1 View Part →
• 09168-12012 (Drain Gasket) × 1 View Part →
• 09168-10034 (Drain Gasket) × 2
• 09204-03003 (Cotter Pin) × 1
• 24OP149 (Gear Oil Pump) × 1

Note: Verify that all components match your original parts before installation.

Installation Guide

1. Disconnect the battery and ensure the engine is completely cool before beginning work.
2. Remove the lower unit from the outboard motor according to your service manual. This typically involves removing mounting bolts and shift linkage.
3. Locate the water pump housing on the lower unit, just above the propeller shaft.
4. Remove the water pump cover by loosening the retaining bolts. Keep track of all fasteners.
5. Extract the old impeller and inspect the pump housing for scoring, corrosion, or damage.
6. Clean all mating surfaces thoroughly, removing old gasket material and debris.
7. Lubricate the new impeller blades with marine grease or glycerin to ease installation and prevent damage.
8. Install the new impeller into the housing, ensuring the blades are oriented correctly (typically curved in the direction of rotation).
9. Install new gaskets and seals from the kit in the proper sequence as shown in your service manual.
10. Reassemble the water pump cover and torque all bolts to manufacturer specifications.
11. Reinstall the lower unit onto the outboard, reconnect shift linkage, and secure all mounting hardware.
12. Test the cooling system by running the engine in a test tank or on muffs, confirming strong water flow from the tell-tale indicator.

Troubleshooting & FAQ

Q: How do I know if my water pump needs replacement?
A: Common signs include weak or no water flow from the tell-tale (indicator stream), engine overheating alarms, steam from the engine, or loss of power. Suzuki recommends inspecting the water pump impeller annually and replacing it every 2-3 years or 200-300 hours of operation, whichever comes first.

Q: Will this kit fit my specific engine serial number?
A: This kit fits Suzuki DF150AP, DF175AP, DF200A, and DF200AP models from 2016 onward. Verify your model year and check the OEM part number (17400-96832) against your engine's parts diagram to ensure compatibility.

Q: What's the difference between this kit and the OEM Suzuki kit?
A: This is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: Do I need any special tools to install this water pump kit?
A: Basic marine mechanic tools are required, including socket wrenches, screwdrivers, and a torque wrench. You'll also need marine grease for impeller lubrication. A service manual for your specific engine model is highly recommended for proper torque specifications and assembly sequence.

Q: Can I reuse the old gaskets if they look okay?
A: No, always replace all gaskets and seals with the new components provided in this kit. Reusing old gaskets can lead to leaks, air intrusion, and cooling system failure even if they appear intact.

Q: Is this an OEM part or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
