8M0222308 Maintenance Kit for Suzuki DF150 DF175 DF150SS | JLM Marine

8M0222308 Maintenance Kit for Suzuki DF150 DF175 DF150SS

This comprehensive maintenance kit is designed for Suzuki DF150, DF175, and DF150SS outboard engines. It provides all essential components needed for routine servicing, helping you maintain peak engine performance and extend service life.

This aftermarket kit directly replaces OEM part number 8M0222308, delivering a complete maintenance solution in one convenient package.

• Includes oil filter, fuel filter, gaskets, and gear oil pump for complete service
• Fits Suzuki DF150/175/150SS models
• All critical maintenance components in one kit

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

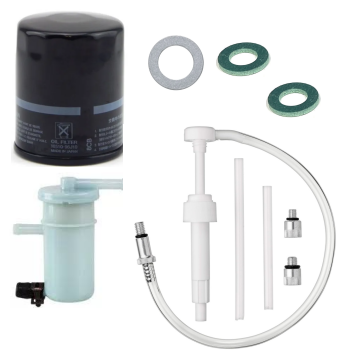

Package Contents

This maintenance kit includes the following components:

• Oil Filter – 16510-96J00 / 16510-96J10 (Qty: 1) View Part →
• Fuel Filter – 15410-96J00 (Qty: 1) View Part →
• Gasket – 09168-12012 (Qty: 1) View Part →
• Lower Unit Drain Gasket – 09168-10034 (Qty: 2)
• Gear Oil Pump – 24OP149 (Qty: 1)

Installation Guide

1. Preparation: Ensure the engine is off and cool. Gather tools including wrenches, oil drain pan, and cleaning rags.
2. Oil Filter Replacement: Locate the oil filter on your Suzuki engine. Remove the old filter using an oil filter wrench and install the new 16510-96J00/16510-96J10 filter, hand-tightening securely.
3. Fuel Filter Replacement: Disconnect fuel lines from the old fuel filter, noting the flow direction. Install the new 15410-96J00 filter with correct flow orientation and secure all connections.
4. Lower Unit Service: Position the outboard vertically and locate the lower unit drain and fill plugs. Remove both plugs and allow old gear oil to drain completely into your pan.
5. Install Drain Gaskets: Clean the plug threads and sealing surfaces thoroughly. Install new 09168-10034 gaskets on both drain and fill plugs.
6. Refill Gear Oil: Using the included 24OP149 gear oil pump, pump fresh gear oil into the lower drain hole until it flows from the upper fill hole. Replace the fill plug first, then the drain plug, torquing to specification.
7. Replace Upper Gasket: Install the 09168-12012 gasket at the appropriate location per your engine's service manual. Ensure proper seating and cleanliness.
8. System Check: Refill engine oil if drained, check all connections for tightness, and inspect for leaks. Start the engine and monitor for proper operation and any fluid seepage.

Troubleshooting & FAQ

Q: How do I confirm this maintenance kit fits my Suzuki engine?
A: This kit is designed specifically for Suzuki DF150, DF175, and DF150SS models. Cross-reference your engine model with our compatibility table above, and verify component part numbers using the Suzuki parts diagrams linked in the Compatible Engine Models section.

Q: How often should I perform maintenance with this kit?
A: Suzuki typically recommends oil and filter changes every 100 hours or annually, whichever comes first. Lower unit gear oil and fuel filter replacement should follow your engine's service manual intervals, usually annually or every 100 hours. Always consult your owner's manual for specific maintenance schedules.

Q: What's the difference between this aftermarket kit and the OEM version?
A: This aftermarket kit is manufactured to OEM specifications using comparable-grade materials and replaces OEM part number 8M0222308. All components are quality-tested to ensure proper fit and function, offering reliable performance at a more competitive price point than OEM.

Q: Can I use this kit if I'm not mechanically experienced?
A: While many boat owners perform their own maintenance, this kit requires familiarity with outboard service procedures including oil changes, filter replacement, and lower unit servicing. If you're not comfortable with these tasks, we strongly recommend having a qualified marine technician perform the work.

Q: Is this an OEM part or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
