Fuel Filter – Fits Suzuki DF150/175 4-Stroke Outboards (Replaces 15410-96J00)

Fuel Filter – Fits Suzuki DF150/175 4-Stroke Outboards (Replaces 15410-96J00)

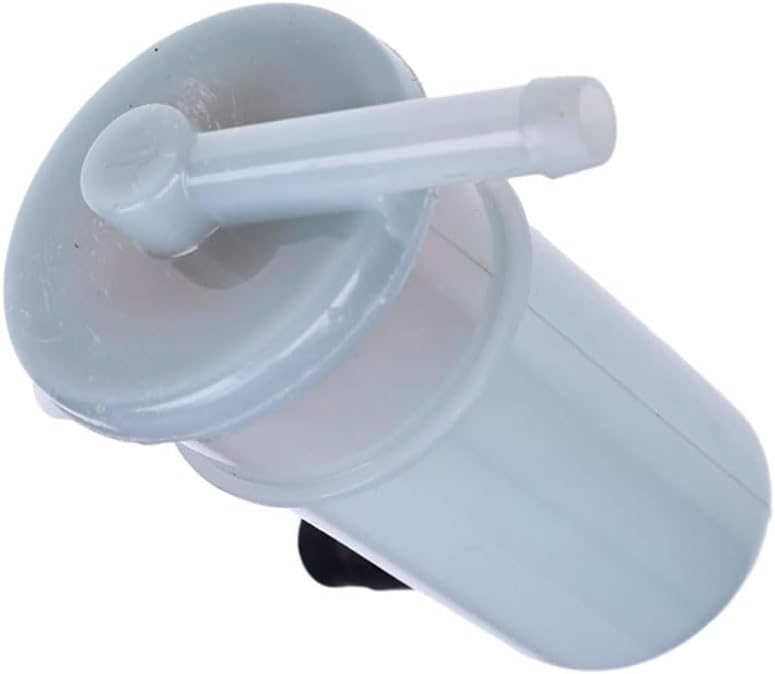

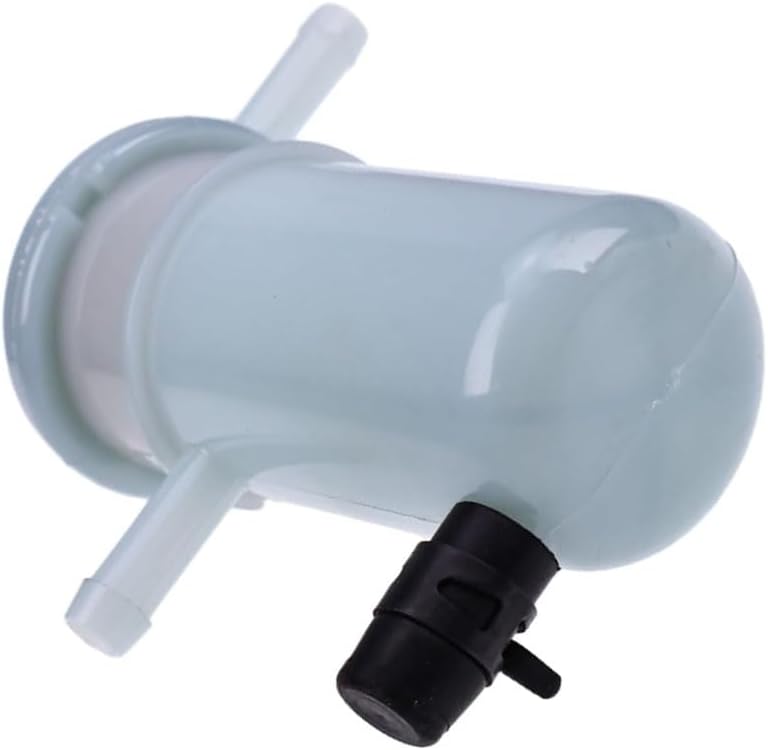

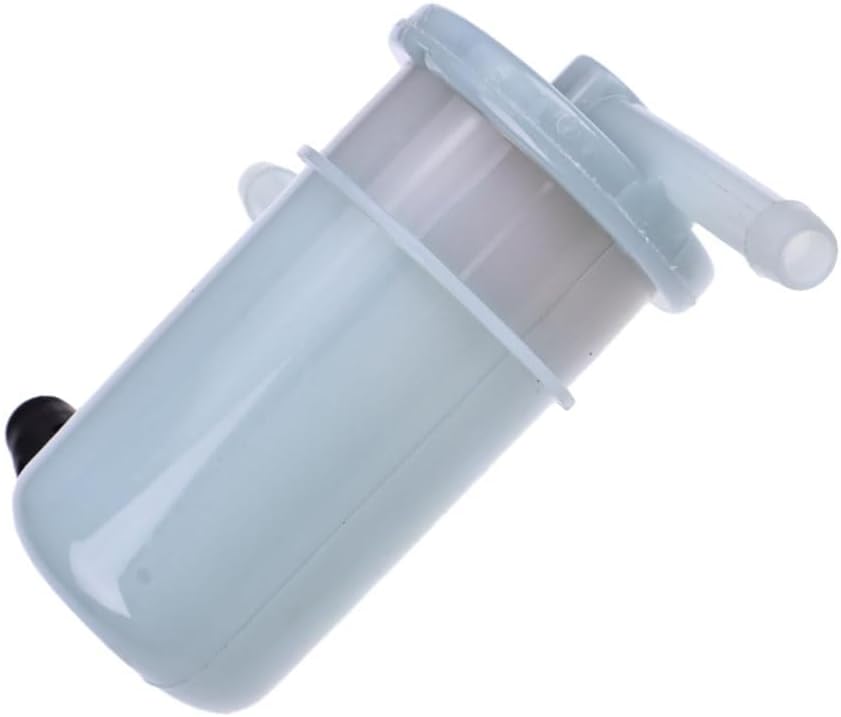

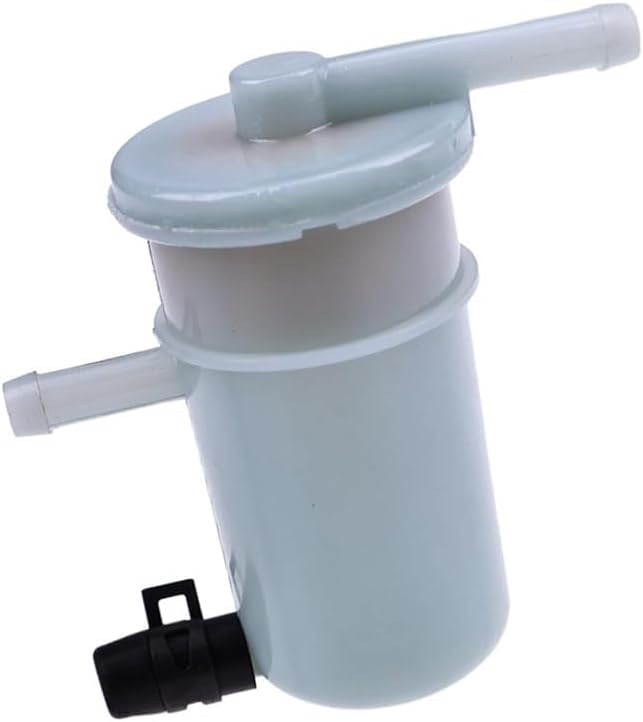

This high-quality fuel filter is designed for Suzuki Marine 150–175 HP 4-Stroke (2006–2009) outboard engines. It serves as a crucial component in the low-pressure fuel system, protecting your engine by removing contaminants from the fuel before they can cause damage.

This filter is a direct replacement for Suzuki part number 15410-96J00 and Sierra part number 18-7711.

• Installation Method: Simple in-line installation.
• Fuel Compatibility: Designed for gasoline, including fuels with up to 10% ethanol content.
• Primary Component: Includes one high-performance fuel filter.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Fuel Filter (15410-96J00)

Explosion Diagram

Installation Guide

Follow these steps for proper installation. Always consult your owner's manual for model-specific instructions and safety warnings.

1. Safety First: Shut off the fuel supply at the tank and disconnect the engine's battery cables.
2. Locate Filter: Find the existing low-pressure fuel filter mounted on the engine block.
3. Prepare for Spillage: Place a clean rag or suitable container underneath the filter to catch any residual fuel.
4. Disconnect Lines: Carefully loosen the clamps and disconnect the inlet and outlet fuel hoses from the old filter. Note their positions.
5. Remove Old Filter: Unbolt or unclamp the old filter from its mounting bracket and remove it.
6. Install New Filter: Mount the new JLM Marine filter, making sure the arrow on the housing points in the direction of fuel flow toward the engine.
7. Reconnect Lines: Securely attach the fuel hoses to the new filter and tighten the clamps.
8. Prime System: Prime the fuel system by squeezing the primer bulb until it feels firm, checking for any leaks.
9. Final Check: Reconnect the battery, start the engine, and carefully inspect the filter and connections for any signs of fuel leaks.

Troubleshooting & FAQ

The most reliable method is to cross-reference the part number. This filter replaces OEM part Suzuki 15410-96J00. Please also check the compatible engine models list to ensure your specific DF150 or DF175 model and year range (2006-2009) are listed.

For optimal engine health, it is recommended to replace the low-pressure fuel filter approximately every 200 hours of operation or at least once annually. Refer to your Suzuki owner's manual for the precise maintenance schedule for your engine.

Common signs include difficulty starting, engine hesitation or sputtering (especially at high speeds), reduced horsepower, and stalling. Replacing a clogged filter can often restore lost performance.

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
