Water-Separating Fuel Filters: Why Your Boat Needs One

Understanding Fuel Contamination in Marine Engines

As a licensed marine mechanic with over 15 years of experience working on outboard and inboard engines, I've seen firsthand what contaminated fuel can do to a boat's power plant. It strikes me every time I think about it: boats are constantly battling the elements, and that battle extends to the very fuel that powers them. I've certainly had my share of moments on the water, and the last thing anyone wants is for their engine to sputter and die because of something as preventable as dirty fuel. For anyone who loves spending time on the water, the health of their marine engine is paramount. Unfortunately, marine fuel is a prime target for contaminants, and the most insidious of these is water. This isn't just an inconvenience; it's a direct threat to your engine's longevity and your safety.

The marine environment is inherently damp, and fuel tanks, whether filled with gasoline or diesel, are no exception. Every time you take your boat out, or even when it sits docked, there's a potential for moisture to find its way into the fuel. This is exacerbated by factors like condensation, which forms when air in the tank cools, turning invisible water vapor into liquid. Then there's the issue of ethanol, a common additive in gasoline in the US. While intended to improve combustion, ethanol is hygroscopic, meaning it readily absorbs water from the air. According to BoatUS Technical Services, ethanol can absorb up to 10 times more water than conventional gasoline, making modern fuels particularly susceptible to water contamination [BoatUS: What's In A Fuel/Water Separator](https://www.boatus.com/expert-advice/expert-advice-archive/2025/may/fuel-water-separator).

This bonded water becomes part of the fuel mixture, making it incredibly difficult to separate out. The consequences of this contaminated fuel circulating through your engine are severe: corrosion, rust formation within fuel lines and injectors, and even microbial growth, which can form a slimy film that clogs filters and fuel passages.

These contaminants don't just cause minor hiccups; they can lead to significant and costly engine damage. I've heard stories, and even witnessed firsthand, the frustration of engine misfires, reduced power, and ultimately, complete engine failure. The potential for catastrophic engine damage while you're miles offshore, relying on your vessel for safe passage, is a terrifying thought. It can lead to costly repairs, extended downtime, and even dangerous situations if your engine fails unexpectedly.

How Water Enters Your Boat's Fuel System

Thinking about how water infiltrates a boat's fuel system is like looking for the smallest leak in a hull – it can come from a surprising number of places. The most common culprit, as I mentioned, is condensation in marine fuel tanks. When the air inside your fuel tank cools, any water vapor present in that air condenses into liquid water. This water is heavier than fuel, so it naturally settles to the bottom of the tank.

According to a study conducted by the American Boat and Yacht Council (ABYC), nearly 70% of fuel-related engine failures can be traced back to water contamination issues. The ABYC recommends that all marine fuel systems include water-separating filters as a basic safety component [ABYC Marine Fuel Systems Standard H-24](https://abycinc.org/).

Then there's the issue of refueling itself. If there's standing water around the fuel dock nozzle, or if moisture is present during the process, it can be siphoned directly into your tank. Even seemingly small things like a poorly sealed fuel cap or a leaking deck fill can allow rainwater or spray to enter. In essence, any element that allows air exchange or direct exposure to the elements is a potential entry point for water.

Consequences of Ignoring Fuel Filtration

Ignoring these fuel contamination issues is, in my humble opinion, one of the biggest mistakes a boater can make. The immediate effects might be subtle—a slight loss of power or an inconsistent idle—but these are early warnings of the impending damage. Contaminated fuel leads to accelerated wear and tear on critical engine components, such as fuel pumps and injectors. It can cause what's known as vapor lock, where the fuel system overheats and creates vapor bubbles that disrupt fuel flow. More commonly, it results in clogged injectors, preventing fuel from being sprayed into the cylinders correctly, which directly impacts efficiency and power.

You'll likely notice a significant reduction in fuel efficiency as the engine struggles to perform. According to Mercury Marine's service data, engines running with contaminated fuel can suffer efficiency losses of 10-15% before more serious symptoms appear [Mercury Marine Maintenance Resources](https://www.mercurymarine.com/en/us/). But the worst-case scenario, and the one that truly keeps me vigilant, is the potential for fuel contamination engine failure. This isn't just about inconvenience; it's about safety and substantial repair bills. The cost of marine engine repairs stemming from fuel issues can easily run into the thousands, if not tens of thousands, of dollars. I've personally worked on repairs where the bill exceeded $5,000 simply because a $30 filter wasn't maintained properly.

How Fuel Water Separators Work

This is where the magic happens, and frankly, why I believe every boat owner should have one. A fuel water separator is an indispensable component of your marine engine's fuel system. Its primary job, as the name suggests, is to prevent both water and other harmful contaminants from reaching your delicate engine components. Typically, these filters are installed inline, directly between the fuel tank and the engine, acting as the first line of defense for your fuel.

The genius of these devices lies in a combination of physical and chemical principles. At its core, the process relies on gravity and specialized filtration media. Water, being denser than fuel, is naturally drawn towards the bottom of the separator's bowl. As Tom, a respected marine technician from Tom's Tunes, explains: "This is a must-have nowadays with gas being high in ethanol [and] moisture getting into fuel more than ever… put one of these in line… this is a fail-safe to catch water in the bottom and also to catch debris." [YouTube Video](https://www.youtube.com/watch?v=vU80nOueXNc)

Many modern separators feature water-blocking or hydrophobic filter media. Think of it like a material that repels water but allows fuel to pass through freely. This media is crucial for capturing not just water but also smaller particulate contaminants. Different fuel filter micron ratings are available, indicating the size of particles the filter can trap. For instance, a 2-micron filter will capture much finer particles than a 30-micron filter. The choice of micron rating is vital and is usually dictated by your specific engine manufacturer's recommendations.

As the BoatUS Technical Editorial Team explains, "Basic fuel/water separators rely on gravity and specialized water-blocking media to do their job, ensuring only clean and pure fuel reaches your engine… Aquabloc media is waterproof and rustproof, capturing contaminants, while the specially treated surface separates water from the fuel." [BoatUS: What's In A Fuel/Water Separator](https://www.boatus.com/expert-advice/expert-advice-archive/2025/may/fuel-water-separator)

Types of Fuel Water Separators

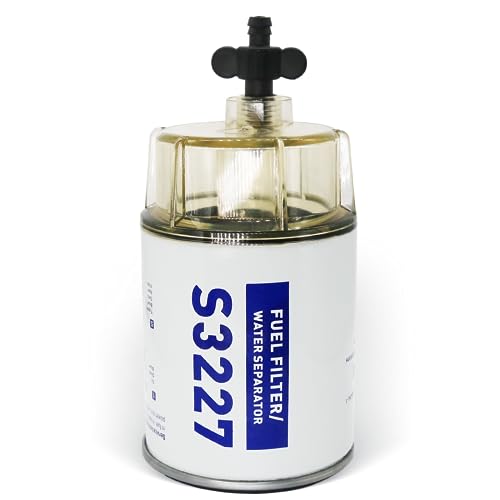

When you start looking into these devices, you'll notice a couple of main types dominating the market. The first is the traditional filter bowl separator, often characterized by a clear bowl at the bottom where separated water and debris collect. These are effective for most recreational boating needs. Then there are more advanced systems, often referred to as centrifugal turbine fuel filters. These employ a turbine mechanism that spins the fuel at high speeds. This centrifugal force, much like in a washing machine's spin cycle, flings heavier water droplets and contaminants outward, where they are collected.

These types are particularly beneficial for those with larger boats or engines that consume a lot of fuel, offering an extra layer of protection. According to Clear Flow Systems, most recreational boats use filters rated for 30 to 60 gallons per hour (gph), but the flow rate required depends on the horsepower of your engine—a typical boat may process thousands of gallons of fuel annually [Clear Flow Systems: Do I Need a Fuel Water Separator on My Boat?](https://clearflowsys.com/blog/do-i-need-a-fuel-water-separator-on-my-boat/).

We also talk about primary vs secondary fuel filters. A primary filter, like a water separator, handles the bulk of the larger contaminants and water, while a secondary filter, often located closer to the engine, catches the finer particles, ensuring pristine fuel delivery.

In the US market, several brands stand out for their quality and reliability. Racor (a division of Parker Hannifin) is widely considered the industry standard, with their 10-micron Aquabloc filters being particularly popular among professional marine mechanics. Sierra and Moeller also produce high-quality marine-specific options that meet ABYC standards. For outboard engines, many professionals, myself included, recommend sticking with filters from your engine manufacturer (like Yamaha, Mercury, or Suzuki) as they're specifically designed for those systems. You can find quality parts on sites like JLM Marine.

Features of Popular Fuel Water Separators

Beyond their core function, many high-quality fuel water separators come with features that make monitoring and maintenance a breeze. I personally love models with clear fuel water separator bowls because they allow for an instant visual inspection of your fuel's condition. Seeing that tell-tale water accumulating at the bottom is a crucial flashing red light that tells you it's time for maintenance.

Many also incorporate vacuum gauge fuel filters. A vacuum gauge measures the resistance to fuel flow; as the filter clogs up, the vacuum reading increases. This is an excellent proactive indicator, alerting you to an impending clog before it impacts engine performance. The U.S. Coast Guard Boating Safety Division recommends these gauges for vessels that operate in offshore environments, as they provide real-time feedback on filter condition [U.S. Coast Guard Boating Safety](https://www.uscgboating.org/).

When choosing between diesel vs gasoline separators, it's important to note that while the underlying principle is the same, specific materials and ratings might differ due to the chemical properties of diesel and gasoline and the typical operating pressures. Diesel engines, with their higher compression ratios and more precise injectors, often require finer filtration (typically 2-micron filters) compared to gasoline engines, which might use 10-30 micron filters.

Maintaining Your Fuel Water Separator

This is where many boaters, in my experience, fall short. They install a great filter and then forget about it. But like any critical component on your boat, a fuel water separator needs regular attention. Neglecting maintenance is akin to driving your car without ever changing the oil – catastrophic failure is not a matter of if, but when.

My personal marine fuel water separator maintenance routine involves a few key steps. First, visual inspections are paramount. Regularly check that clear bowl for any signs of water or sediment. If you see even a small amount of water, it's best to drain it immediately. Most separators have a drain plug or valve at the bottom. Second, you need to address the filter element itself. How often to change fuel filters is a common question.

According to Texas Saltwater Fishing Magazine's maintenance guide, fuel-water separator filters on most bay boats should be replaced once a year or every 100 engine hours; for larger boats exposed to harsher conditions, inspecting every six months is advised [Texas Saltwater Fishing Magazine: Fuel Water Separator Filter Maintenance](https://www.texassaltwaterfishingmagazine.com/gear/boats/fuel-water-separator-filter-maintenance). This aligns with my own professional recommendation.

However, if you notice the vacuum gauge indicating increased restriction or experience any engine performance issues, it's time for a change sooner. I recall a client who ignored his filter for three seasons – when we finally replaced it, it was so clogged with debris that fuel flow was reduced to a trickle. No wonder his engine had been struggling to maintain speed!

Changing the filter element is usually straightforward, but proper procedures are key. A basic filter replacement involves shutting off the fuel supply, unscrewing the old filter, draining any residual fuel in the bowl (handle this responsibly!), and then installing the new filter. After installing a new filter, especially on gasoline systems, you'll need to perform a process called air purging to ensure no air pockets remain in the fuel line. This is critical because air in the fuel system can cause rough running or prevent the engine from starting.

Always refer to your specific filter manufacturer's instructions for the exact procedure. For example, Racor publishes detailed service guides for each of their models, which include step-by-step instructions and important safety precautions [Racor Service Manual](https://www.parker.com/Literature/Racor/RacorServiceManual.pdf). I always recommend carrying spare filters and the necessary tools, just in case you encounter an unexpected clog while out on the water. It's a small precaution that can save you a lot of grief.

DIY Installation Tips and Precautions

For those of us who aren't afraid to get our hands dirty, installing fuel water separators on boats is a very achievable DIY project. However, safety and adherence to best practices are non-negotiable. Always ensure you are working in a well-ventilated area, away from any open flames or sparks, as you are dealing with highly flammable fuel. Before you begin, shut off the engine and disconnect the battery to prevent any accidental ignition.

The ABYC standard H-24 for Gasoline Fuel Systems specifies that fuel system components, including filters, must be installed in accessible locations for maintenance and must be secured to prevent movement from vibration. The standard also requires that all connections be leak-proof and that materials be compatible with the type of fuel used [ABYC Standard H-24](https://abycinc.org/page/Standards).

Identify the correct location for installation – it should be as close to the fuel tank as possible, before any fuel pumps or injection systems. Utilize proper fuel line fittings and hose clamps, ensuring they are rated for marine use and compatible with your fuel type. Many manufacturers provide detailed diagrams and installation guides, and it's wise to consult these, along with any boat fuel system maintenance tips specific to your vessel.

For example, Sierra Marine provides comprehensive installation manuals that include torque specifications for fittings and recommended mounting positions [Sierra Marine Parts Technical Resources](https://www.sierramarine.com/). Always double-check all connections to prevent fuel leaks, which are a significant fire hazard. The U.S. Coast Guard's Boating Safety Division recommends performing a thorough inspection for leaks after installation, both with the engine off and during initial engine operation [U.S. Coast Guard Boating Safety](https://www.uscgboating.org/).

Benefits of Using Fuel Water Separators

The advantages of installing and maintaining a quality fuel water separator are, in my opinion, undeniable. The most obvious is engine protection. By effectively removing water and contaminants, you're safeguarding your engine's sensitive internal components from corrosion, pitting, and premature wear. This directly translates to reduced repair costs over the life of your boat.

A study by Yamaha Marine found that proper filtration can extend the life of fuel system components by up to 30%, representing significant savings over the life of an engine [Yamaha Marine Outboard Maintenance](https://yamahaoutboards.com/en-us/home). Think about the cost of a fuel pump or injector replacement versus the relatively modest cost of a filter and a few minutes of your time for maintenance.

Beyond protection, proper filtration also contributes to improved marine engine efficiency. A clean fuel system allows the engine to run optimally, leading to better fuel economy. Mercury Marine testing has shown that clean fuel can improve efficiency by 5-7% compared to engines running with partially contaminated fuel [Mercury Marine Maintenance Resources](https://www.mercurymarine.com/en/us/). For me, the biggest benefit is the peace of mind. Knowing that your fuel system is clean and protected allows you to focus on enjoying your time on the water, rather than worrying about potential engine issues.

An impressive real-world case study comes from RACOR, whose Aquabloc fuel/water separators have prevented countless engine failures. One documented example involved a commercial fishing vessel operating in the Gulf of Mexico that had previously experienced repeated injector failures. After installing a RACOR turbine series separator, they operated for three full seasons without a single fuel-related issue, saving an estimated $12,000 in repairs and lost fishing time [BoatUS: What's In A Fuel/Water Separator](https://www.boatus.com/expert-advice/expert-advice-archive/2025/may/fuel-water-separator).

Additional Considerations and Expert Recommendations

When thinking about marine fuel filtration, especially in US waters, it's important to acknowledge the unique environmental challenges and the specific fuel formulations we deal with. The prevalence of ethanol, as we've discussed, significantly increases the risk of water contamination. Therefore, choosing marine-grade filters from reputable fuel water separator brands for boats is crucial. Brands that specialize in marine applications understand the corrosive effects of saltwater and the demands of the marine environment.

To further mitigate issues, experts often recommend keeping your fuel tanks as full as possible, especially during periods of inactivity. This reduces the amount of air within the tank, thereby minimizing condensation. Another useful tip is to use a fuel-water separation funnel during refueling, particularly if you suspect the fuel source might be suspect or if you're refueling from portable containers. This simple tool can catch a significant amount of water before it even enters your tank. I always feel more confident when my fuel system has multiple layers of protection, and a good water separator is the bedrock of that protection.

The CanadaWide Marine YouTube channel, which offers excellent educational content for boaters, emphasizes: "Water separating fuel filters [are] easy to change… why you need one, how often it should be replaced, and what to look for when replacing it… I also show you a sample of what water in the gas looks like so you can identify problems before they become a water in fuel problem." [YouTube Video](https://www.youtube.com/watch?v=HWbYwbngP6Y)

BoatUS recommends supplementing your water separator with fuel additives specifically designed to combat the effects of ethanol, although they caution that these products don't eliminate the need for proper filtration [BoatUS: What's In A Fuel/Water Separator](https://www.boatus.com/expert-advice/expert-advice-archive/2025/may/fuel-water-separator). Mercury Marine has similarly endorsed the use of fuel stabilizers during storage periods to prevent fuel degradation and water absorption [Mercury Marine Maintenance Resources](https://www.mercurymarine.com/en/us/).

Separ Filter North America, which supplies water-separating filters for both recreational and commercial vessels, including those used by the US Coast Guard, reports that their filters can separate over 99% of free water from fuel. Their case studies of Gulf and Atlantic coastal operations show how critical these systems are for preventing engine failures after poor-quality fuel dock refills or storm exposure [Separ Filter Products and Success Stories](https://separfilter.com).

How Often Should I Change My Boat's Fuel Water Separator Filter?

For most recreational boats, a good rule of thumb is to replace your fuel water separator filter annually, or every 100 engine hours, whichever comes first. However, this can vary based on your boating environment and fuel quality. If you operate in areas with known poor fuel quality, or if you frequently boat in wet conditions, inspecting and potentially changing your filter more often, perhaps every six months, is a wise approach.

I've seen significant variations in maintenance needs between freshwater and saltwater environments, with saltwater generally demanding more frequent inspection. The U.S. Coast Guard Auxiliary's vessel safety program recommends more frequent checks for boats that operate in saltwater or high-humidity environments [U.S. Coast Guard Auxiliary Vessel Safety Program](https://wow.uscgaux.info/content.php?unit=V-DEPT).

Many modern separators also include vacuum gauges, which can provide a more precise indicator; when the vacuum reading increases significantly, it signals that the filter is becoming clogged and needs replacement, regardless of the time elapsed. Sierra Marine specifically notes that a vacuum reading that increases by 5-7 inches of mercury (in-Hg) from the baseline indicates it's time to change the filter, even if you haven't reached the time or hour recommendation [Sierra Marine Parts Technical Resources](https://www.sierramarine.com/).

Can I Install a Fuel Water Separator Myself?

Yes, absolutely! For many boat owners, installing a fuel water separator is a manageable DIY project. It typically involves cutting into the existing fuel line, installing the separator with appropriate fittings, and then bleeding or purging the air from the system. Always ensure you're working in a well-ventilated area, away from ignition sources, and have the correct tools and marine-grade fuel lines and clamps.

It's highly recommended to consult your separator's installation manual and any specific guides for your boat's fuel system. The American Boat and Yacht Council provides technical information through their website that can help guide proper installation practices [ABYC Marine Fuel Systems Standard H-24](https://abycinc.org/). If you're ever unsure, it's always best to consult a qualified marine mechanic.

As someone who's installed hundreds of these systems, I can tell you that the most common DIY mistakes involve using automotive-grade (rather than marine-grade) components and improper mounting that allows excessive vibration, which can lead to cracked bowls or loose fittings over time.

What's the Difference Between a Fuel Filter and a Fuel Water Separator?

While both are designed to clean your fuel, a fuel filter primarily focuses on removing particulate contaminants, such as dirt, rust, and debris. A fuel water separator, on the other hand, is specifically engineered to remove both water and particulate contaminants. Many fuel water separators incorporate specialized media that repels water, allowing it to settle in a collection bowl for draining, alongside filtering out solid particles.

Think of a fuel water separator as a more comprehensive filtration system that addresses the unique challenge of water contamination in marine fuel. According to Clear Flow Systems, marine environments make water contamination almost inevitable, which is why specialized separators are the standard for boats rather than simple particulate filters [Clear Flow Systems: Do I Need a Fuel Water Separator on My Boat?](https://clearflowsys.com/blog/do-i-need-a-fuel-water-separator-on-my-boat/).

The technology behind these separators has evolved significantly. Many now feature coalescing elements that help tiny water droplets combine into larger ones that are easier to separate, enhancing their effectiveness in removing emulsified water from fuel.

How Do I Know If Water Is in My Boat's Fuel Tank?

There are several tell-tale signs that water might be present in your boat's fuel tank. The most obvious, if you have a separator with a clear bowl, is visual confirmation as water will settle at the bottom. Engine performance issues are also strong indicators: you might experience rough idling, sputtering, sudden loss of power, difficulty starting, or even complete engine stalling.

If you recently refueled at a questionable dock, or if your boat has been exposed to significant rain or humidity, it's a good idea to suspect water contamination. Another less common, but important, sign is the presence of white or cloudy fuel, which can indicate that water has emulsified with the fuel, though this is less common than free water settling out.

A marine YouTube educator demonstrated this dramatically by deliberately introducing water into a fuel system test rig. The separator effectively collected water at the bottom, preventing it from reaching the engine. The experiment showed that if the filter is regularly drained, water does not enter the combustion chamber, preventing catastrophic engine damage [YouTube Video](https://www.youtube.com/watch?v=ujXua0CkguE).

Are There Special Separators for Diesel vs Gasoline Marine Engines?

Yes, there are distinctions. While the fundamental principle of separating water and contaminants is the same, the specific designs, materials, and micron ratings may differ slightly between separators intended for diesel and gasoline engines. This is due to the different properties of diesel and gasoline fuels, varying operating pressures, and different sensitivities of their respective fuel systems.

For instance, diesel engines often benefit from finer filtration to protect highly precise fuel injectors. According to the BoatUS Technical Editorial Team, diesel engines typically require filters in the 2-10 micron range, while gasoline engines may use filters in the 10-30 micron range [BoatUS: What's In A Fuel/Water Separator](https://www.boatus.com/expert-advice/expert-advice-archive/2025/may/fuel-water-separator).

It's crucial to select a fuel water separator that is specifically designed and rated for your particular engine type—whether it's gasoline or diesel—and to adhere to the manufacturer's recommendations for micron ratings and flow rates. The material compatibility is also different; ethanol-resistant materials are essential for gasoline systems, while diesel systems must be able to handle the lubricating properties and different chemical composition of diesel fuel.

My journey on the water has taught me that prevention is always better than cure. Protecting your boat's engine with a quality water-separating fuel filter is not just a recommendation; it's essential maintenance for any vessel that calls the water home. From understanding the insidious nature of fuel contamination to the straightforward maintenance that keeps these vital systems running, the knowledge gained here empowers every boater to ensure reliable performance and avoid costly headaches.

The core takeaway is this: water in your fuel is a silent predator, capable of devastating your engine. A reliable water-separating fuel filter acts as your engine's bodyguard, diligently removing these harmful elements. By performing regular checks and timely maintenance, you're not just preserving your engine; you're ensuring countless more hours of safe, enjoyable, and worry-free adventures on the water. So, invest in a good filter, keep up with its care, and let your journey on the waves be powered by clean, pure fuel.
