Yamaha 1997 90EJRV-PUM Outboard Motor Parts Diagram & Catalog
15 May 2025
0 Comments
DRIVE FROM SERIAL 59500
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM DRIVE FROM SERIAL 59500:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | DRIVESHAFT ONLY | 6H1-JD009-67-00 |
| 1 | DRIVESHAFT ASSEMBLY W/BEARING C | 6E5-JD009-52-01 |
| 1 | DRIVESHAFT ONLY | 6G6-JD009-51-00 |
| 1 | DRIVESHAFT ASSY IN BEARING CARR | 6H1-JD009-68-01 |
| 2 | BEARING CARRIER W/SEAL, O-RIN | 6H1-JD003-93-05 |
| 3 | SHAFT SEAL (N472324) | 6H4-JD005-06-00 |
| 4 | SHAFT SEAL (N6324S) | 6H4-JD005-07-00 |
| 5 | O-RING | 6H4-JD005-21-00 |
| 6 | RETAINING RING | 6H4-JD005-17-00 |
| 7 | BEARING | 6H1-JD005-02-00 |
| 8 | BACK UP WASHER | 6H1-JD004-04-00 |
| 9 | SEAL RING ASSY, LARGE | 6H1-JD004-32-00 |
| 10 | O-RING | 6H1-JD005-27-00 |
| 11 | RETAINING RING | 6H4-JD005-17-00 |
| 12 | SHAFT SEAL | 6H4-JD005-06-00 |
| 13 | SHAFT SEAL (N6324S) | 6H4-JD005-07-00 |
| 14 | RETAINING RING | 6H1-JD005-13-00 |
| 15 | BOLT | 6H1-JD006-02-01 |
| 16 | SHAFT SLEEVE, IMPELLER | 6H1-JD001-36-00 |
| 17 | KEY, TEE | 6H1-JD004-34-00 |
| 18 | SHIM WASHER | 6H1-JD001-21-00 |
| 19 | NUT KEEPER | 6H1-JD007-81-00- |
| 20 | NUT, DRIVESHAFT FLAT | 6H1-JD001-22-10 |
| 21 | SHAFT BEARING THRUST RING | 6H4-JD000-41-00 |
| 22 | RETAINING RING | 6H4-JD005-11-00 |
| 23 | KEY, WOODRUFF | 90280-03024-00 |
DRIVE UP TO SERIAL 59499
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM DRIVE UP TO SERIAL 59499:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | DRIVESHAFT ONLY | 6G6-JD009-51-00 |
| 1 | DRIVESHAFT W/BRG CARR 1/4" BOLT | 6H1-JD009-68-00 |
| 1 | DRIVESHAFT ONLY | 6H1-JD009-67-00 |
| 1 | DRIVESHAFT ONLY | 6E5-JD009-52-00 |
| 2 | BEARING CARRIER W/SEAL, O-RIN | 6H1-JD003-93-00 |
| 3 | SHAFT SEAL (N472324) | 6H4-JD005-06-00 |
| 4 | SHAFT SEAL (N6324S) | 6H4-JD005-07-00 |
| 5 | O-RING | 6H4-JD005-21-00 |
| 6 | RETAINING RING | 6H4-JD005-17-00 |
| 7 | BEARING | 6H1-JD005-02-00 |
| 8 | BACK UP WASHER | 6H1-JD004-04-00 |
| 9 | SEAL RING ASSY, LARGE | 6H1-JD004-32-00 |
| 10 | O-RING | 6H1-JD005-27-00 |
| 11 | RETAINING RING | 6H4-JD005-17-00 |
| 12 | SHAFT SEAL | 6H4-JD005-06-00 |
| 13 | SHAFT SEAL (N6324S) | 6H4-JD005-07-00 |
| 14 | RETAINING RING | 6H1-JD005-13-00 |
| 15 | BOLT 1/4-20 X 7/8" | 6H1-JD005-75-00 |
| 16 | WASHER, SPRING LOCK | 6H4-JD006-38-00 |
| 17 | SHAFT SLEEVE, IMPELLER | 6H1-JD001-36-00 |
| 18 | KEY, TEE | 6H1-JD004-34-00 |
| 19 | SHIM WASHER | 6H1-JD001-21-00 |
| 20 | NUT KEEPER | 6H1-JD007-81-00 |
| 21 | NUT, DRIVESHAFT FLAT | 6H1-JD001-22-10 |
| 22 | SHAFT BEARING THRUST RING | 6H4-JD000-41-00 |
| 23 | RETAINING RING | 6H4-JD005-11-00 |
| 24 | KEY, WOODRUFF | 90280-03024-00 |
INTAKE ASSY FROM SERIAL 59500
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM INTAKE ASSY FROM SERIAL 59500:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | INTAKE ASSEMBLY, FLANGED 7/3/8" | 6H1-JD013-33-00 |
| 2 | INTAKE CASING, FLANGED | 6H1-JD013-32-00 |
| 3 | LINER, FLANGED 7-3/8" | 6H1-JD014-31-00 |
| 4 | GRILL BAR | 6H1-JD001-17-00 |
| 5 | GRILL ROD | 6H4-JD000-14-00 |
| 6 | STUD, 5/16-18 | 6H1-JD013-19-00 |
| 7 | NUT, 5/16-18 | 6H1-JD006-25-00 |
| 8 | IMPELLER, 4 BLADE V-6 | 64C-JD013-52-00 |
| 8 | IMPELLER 7-3/8" | 6E5-JD009-48-00 |
| 8 | IMPELLER 7-3/8" | 6H1-JD001-06-25 |
INTAKE ASSY UP TO SERIAL 59499
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM INTAKE ASSY UP TO SERIAL 59499:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | INTAKE ASSY 7-3/8" | 6H1-JD001-41-41 |
| 2 | INTAKE CASING 7-3/8" | 6H1-JD004-97-00 |
| 3 | LINER, INTAKE 7-3/8" | 6H1-JD004-94-00 |
| 4 | GRILL BAR | 6H1-JD001-17-00 |
| 5 | GRILL ROD | 6H4-JD000-14-00 |
| 6 | BOLT | 6H1-JD005-73-00 |
| 7 | WASHER, SPRING LOCK | 6H4-JD006-38-00 |
| 8 | IMPELLER 7-3/8" V-6 | 6G6-JD004-25-00 |
| 8 | IMPELLER 7-3/8" | 6E5-JD009-48-00 |
| 8 | IMPELLER 7-3/8" | 6H1-JD001-06-25 |
| 9 | BOLT | 6H1-JD005-96-00 |
MAIN HOUSING FROM SERIAL 59500
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM MAIN HOUSING FROM SERIAL 59500:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | MAIN HOUSING WEX TUBE | 6E5-JD009-41-01 |
| 1 | MAIN HOUSING WEXTUBE | 6H1-JD009-08-01 |
| 2 | DOWEL PIN | 6H4-JD006-31-00 |
| 3 | GREASE HOSE | 6H4-JD009-75-00 |
| 4 | GREASE FITTING | 6H4-JD005-39-00 |
| 5 | U-BOLT | 6H4-JD008-46-00 |
| 6 | NUT, NYLOC | 6H4-JD006-21-00 |
| 7 | EXHAUST TUBE | 6H1-JD001-28-00 |
| 8 | GATE BUMPER | 6H4-JD001-16-90 |
| 9 | SHIFT CAM LARGE | 6H1-JD001-03-40 |
| 10 | SHAFT, ROLLER | 6H4-JD001-04-30 |
| 11 | BOLT | 6H1-JD005-73-00 |
| 12 | BALL END | 63D-JD005-53-02 |
| 13 | NYLOC | 6H4-JD006-23-00 |
| 14 | BOLT, HEX HEAD NYLOC | 6H4-JD005-74-10 |
| 15 | CAM, ECCENTRIC DRILLED | 6H4-JD001-03-60 |
| 16 | SHAFT, ROLLER | 6H4-JD001-04-20 |
| 17 | WASHER, PLAIN | 6H4-JD006-35-00 |
| 18 | NUT, FIBER LOCK | 6H4-JD006-24-00 |
| 19 | BRACKET, CABLE SUPPORT | 6H4-JD001-56-00 |
| 20 | CABLE CLAMP | 6H4-JD005-43-00 |
| 21 | SCREW, FIL HEAD | 6H4-JD005-61-00 |
| 22 | NUT, FIBER LOCK #10-24 | 6H4-JD006-19-00 |
| 23 | BOLT | 6H4-JD005-72-00 |
| 24 | WASHER, PLAIN | 6H4-JD006-35-00 |
| 25 | GATE ASSY LARGE CAM 1/2" | 6H1-JD001-17-30 |
| 26 | GATE, PAINTED CAM LARGE 12" | 6H1-JD011-72-01 |
| 27 | NYLINER 4217A 1/2 ID X 82" | 6H1-JD005-36-00 |
| 28 | PIN, REVERSE PIVOT | 6H1-JD008-23-00 |
| 29 | BOLT | 6H4-JD005-74-00 |
| 30 | SHIM | 6H4-JD005-42-00 |
| 31 | HEX SD SLOTTED M8-125 X 12 | 6H4-JD001-02-00 |
| 32 | WASHER, FIBER M8 | 6H4-JD001-02-50 |
| 33 | BUSHING, CAM | 6H4-JD001-03-70 |
| 34 | WASHER, CAM | 6H4-JD001-03-80 |
| 35 | SHIM, CAM | 6H4-JD001-03-90 |
| 36 | SPRING, GATE BUMPER | 6H4-JD001-17-00 |
| 37 | SCREW, FIL HD SLOTTED | 6H4-JD005-58-00 |
| 38 | SPRING GATE PIVOT 1/2" | 6H1-JD001-17-80 |
| 39 | WASHER, SPRING LOCK M10 | 6H1-JD006-36-00 |
| 40 | BOLT 3/8-16 X 2-1/4" | 6H1-JD006-08-00 |
| 41 | BOLT 3/8-16 X 2-3/4" | 6H1-JD006-09-00 |
| 42 | BOLT 3/8-16 X 3" | 6H1-JD006-10-00 |
MAIN HOUSING UP TO SERIAL 59499
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM MAIN HOUSING UP TO SERIAL 59499:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | MAIN HOUSING W/EX TUBE | 6E5-JD009-41-00 |
| 1 | MAIN HOUSING W/EX TUBE | 6H1-JD009-08-00 |
| 2 | DOWEL PIN | 6H4-JD006-31-00 |
| 3 | GREASE HOSE | 6H4-JD009-75-00 |
| 4 | GREASE FITTING | 6H4-JD005-39-00 |
| 5 | U-BOLT | 6H4-JD008-46-00 |
| 6 | NUT, NYLOC | 6H4-JD006-21-00 |
| 7 | EXHAUST TUBE | 6H1-JD001-28-00 |
| 8 | GATE BUMPER | 6H4-JD001-16-90 |
| 9 | SHIFT CAM LARGE | 6H1-JD001-03-40 |
| 10 | SHAFT, ROLLER | 6H4-JD001-04-30 |
| 11 | BOLT | 6H1-JD005-73-00 |
| 12 | BALL END | 63D-JD005-53-02 |
| 13 | NYLOC | 6H4-JD006-23-00 |
| 14 | BOLT, HEX HEAD NYLOC | 6H4-JD005-74-10 |
| 15 | CAM, ECCENTRIC DRILLED | 6H4-JD001-03-60 |
| 16 | SHAFT, ROLLER | 6H4-JD001-04-20 |
| 17 | WASHER, PLAIN | 6H4-JD006-35-00 |
| 18 | NUT, FIBER LOCK | 6H4-JD006-24-00 |
| 19 | BRACKET, CABLE SUPPORT | 6H4-JD001-56-00 |
| 20 | CABLE CLAMP | 6H4-JD005-43-00 |
| 21 | SCREW, FIL HEAD | 6H4-JD005-61-00 |
| 22 | NUT, FIBER LOCK #10-24 | 6H4-JD006-19-00 |
| 23 | BOLT | 6H4-JD005-72-00 |
| 24 | WASHER, PLAIN | 6H4-JD006-35-00 |
| 25 | GATE ASSY LARGE CAM 1/2" | 6H1-JD001-17-30 |
| 26 | GATE, PAINTED CAM LARGE 12" | 6H1-JD011-72-01 |
| 27 | NYLINER 4217A 1/2 ID X 82" | 6H1-JD005-36-00 |
| 28 | PIN, REVERSE PIVOT | 6H1-JD008-23-00 |
| 29 | BOLT | 6H4-JD005-74-00 |
| 30 | SHIM | 6H4-JD005-42-00 |
| 31 | FLUSH SCREW | 6H4-JD001-02-40 |
| 32 | WASHER, FIBER M8 | 6H4-JD001-02-50 |
| 33 | BUSHING, CAM | 6H4-JD001-03-70 |
| 34 | WASHER, CAM | 6H4-JD001-03-80 |
| 35 | SHIM, CAM | 6H4-JD001-03-90 |
| 36 | SPRING, GATE BUMPER | 6H4-JD001-17-00 |
| 37 | SCREW, FIL HD SLOTTED | 6H4-JD005-58-00 |
| 38 | SPRING GATE PIVOT 1/2" | 6H1-JD001-17-80 |
| 39 | WASHER, SPRING LOCK M10 | 6H1-JD006-36-00 |
| 40 | BOLT 3/8-16 X 2-1/4" | 6H1-JD006-08-00 |
| 41 | BOLT 3/8-16 X 2-3/4" | 6H1-JD006-09-00 |
| 42 | BOLT 3/8-16 X 3" | 6H1-JD006-10-00 |
REPAIR KIT
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM REPAIR KIT:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | RETAINING RING | 6H1-JD005-13-00 |
| 1 | BEARING (U7305B-UA) | 6H1-JD005-02-00 |
| 1 | SHAFT SEAL (N472324) | 6H4-JD005-06-00 |
| 1 | SHAFT BEARING THRUST RING | 6H4-JD000-41-00 |
| 1 | RETAINING RING | 6H4-JD005-11-00 |
| 1 | SEAL RING ASSY, LARGE | 6H1-JD004-32-00 |
| 1 | BEARING, SNAP & O-RING KIT | 6H1-JD004-29-00 |
| 1 | O-RING | 6H1-JD005-27-00 |
| 1 | SHAFT SEAL (N6324S) | 6H4-JD005-07-00 |
| 1 | RETAINING RING | 6H4-JD005-17-00 |
| 1 | SEAL, SNAP & O-RING KIT | 6H1-JD004-62-00 |
| 1 | BACK UP WASHER | 6H1-JD004-04-00 |
WATER PUMP ADAPTER 90HP
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM WATER PUMP ADAPTER 90HP:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | ADAPTER Y | 6H1-JD008-71-00 |
| 2 | ADAPTER, WATER PUMP | 6H1-JD008-73-00 |
| 3 | DOWEL PIN | 6H4-JD006-16-00 |
| 4 | PIN, DOWEL | 93604-10M03-00 |
| 5 | SHIFT ROD GUIDE | 6H1-JD008-74-00 |
| 6 | BOLT, 3/8-16 X 1-14" | 6H4-JD006-06-00 |
| 7 | BOLT | 6H4-JD005-91-00 |
| 8 | WASHER, SPRING LOCK | 6H4-JD006-40-00 |
| 9 | BOLT | 6H4-JD005-92-00 |
| 10 | WASHER, LOCK M10 | 6H4-JD006-36-00 |
| 11 | BOLT, 5/16-18 X 3-1/2 | 6H1-JD006-00-00 |
| 12 | BOLT | 6H1-JD006-03-00 |
| 13 | WASHER, SPRING LOCK | 6H4-JD006-40-00 |
WATER PUMP ADAPTER 115 TO 200HP
Back to TopBelow is the parts list for Yamaha 1997 90EJRV-PUM WATER PUMP ADAPTER 115 TO 200HP:
| Position No. | Part Name | OEM Number |
|---|---|---|
| 1 | ADAPTER, AA | 6E5-JD009-36-00 |
| 2 | ADAPTER, WATER PUMP | 6E5-JD009-38-00 |
| 3 | DOWEL PIN | 6H4-JD006-31-00 |
| 4 | PIN, DOWEL | 93604-10M03-00 |
| 5 | SHIFT ROD GUIDE | 6E5-JD009-43-00 |
| 6 | BOLT, HEX HD 3/8-16 X 1-1/2" | 6E5-JD006-07-00 |
| 7 | WASHER, LOCK M10 | 6H4-JD006-36-00 |
| 8 | BOLT | 6H4-JD005-92-00 |
| 9 | WASHER, LOCK M10 | 6H4-JD006-36-00 |
| 10 | BOLT | 6H1-JD006-03-00 |
| 11 | WASHER, SPRING LOCK | 6H4-JD006-40-00 |
Repuestos Yamaha en venta
Filtro de combustible para Yamaha 150, 200, 225 y 250 HP 65L-24563-00
Detalles del producto: Números de pieza OEM: Yamaha 65L-24563-00 Números de piezas de recambio: REC 65L-24563-00 Número de pieza equivalente: 18-7936 Modelos compatibles: Yamaha: Motores de dos tiempos: 225F, 225G Motores de cuatro tiempos: F150A, F200A, F225A Suzuki: DF200 / DF225 / DF250 (2004-11),...
- $15.79
- $15.79
- Unit price
- per
Kit de reconstrucción de carburador para Yamaha 40-50 HP 6H4-W0093-04 18-7768
Detalles del producto: Números de pieza OEM de Yamaha: 6H4-W0093-04-00 / 6H4W00930400 (viene en un juego de 3), 6H4-W0093-03-00 / 6H4W00930300, 6H4-W0093-02-00 / 6H4W00930200 Número de pieza OEM de Sierra: 18-7768 Número de pieza de repuesto: AM6H4-W0093-02 (viene en 1 juego) Igual a: Tohatsu...
- $17.50
$32.00- $17.50
- Unit price
- per
Kit de reconstrucción de carburador para Yamaha 3 6 8 HP 6G1-14301-01
Detalles del producto : Números de pieza OEM de Yamaha: 6G1-14301-01-00 / 6G1143010100, 6G1-14301-03-00 / 6G1143010300, 6G1-14301-02-00 / 6G1143010200, 6G1-14301-00-00 / 6G1143010000, 6G1-14301-10-00 / 6G1143011000 / REC6G1-14301-01 Números de piezas OEM de Sierra: Ninguno Números de piezas de recambio: AM6G1-14301-01 Información del número de...
- $16.93
$17.99- $16.93
- Unit price
- per
Conjunto de bomba de combustible para Yamaha 115-300 HP V4 V6 (1989-2003) (6E5-24410-00)
Números de piezas OEM 6E5-24410-00 Modelos compatibles Yamaha Motores de dos tiempos : 115 HP V4/V6 (1989-2003) V6 de 200 CV (1989-2003) V6 de 225 CV (1989-2003) V6 de 250 CV (1989-2003) V6 de 300 CV (1989-2003) Diagrama de explosión Especificaciones técnicas Peso: 3769...
- $46.40
$47.00- $46.40
- Unit price
- per
Kit de reparación de carburador para Yamaha 25-30 HP (1984-1997) 689-W0093-00
Detalles del producto: Números de pieza OEM de Yamaha : 689-W0093-00, 689-W0093-01, 689-W0093-02 Número de pieza OEM de Mercury Marine : 84456M Número de pieza de repuesto de Sierra : 18-7770 Número de pieza de repuesto : AM689-W0093-02 Números de piezas equivalentes : Yamaha:...
- $16.99
$24.00- $16.99
- Unit price
- per
Kit de impulsor de bomba de agua para Yamaha 40/50 HP 2 tiempos (1994-05), F40/F50/F60 4 tiempos (1996+) 63D-W0078-01
Detalles del producto: Números de pieza OEM de Yamaha: 63D-W0078-01-00 / 63DW00780100, 63D-W0078-03-00 / 63DW00780300, 63D-W0078-02-00 / 63DW00780200, 63D-W0078-00-00 / 63DW00780000 Números de piezas de recambio: AM63D - W0078 - 01, GLM12276, 18 - 3415, 18 - 3434 Esta pieza está incluida en el...
- $22.78
- $22.78
- Unit price
- per
Impulsor de bomba de agua para Yamaha 6A / P165 / 8A 655-44352-09-00
Detalles del producto: Números de pieza: Yamaha OEM: 655 - 44352 - 09 - 00, 655 - 44352 - 09, 647-44352-00, 6474435200. Número de pieza de repuesto: HJB - J - 655. Modelos compatibles: Yamaha : Motores de cuatro tiempos : 6A / P165...
- $11.00
- $11.00
- Unit price
- per
Impulsor de bomba de agua para Yamaha 8, 9,9, 15 y 20 HP 63V-44352
Detalles del producto: Números de pieza OEM de Yamaha : 63V-44352-00-00, 63V-44352-01-00 Número de pieza OEM de Sierra : 18-3040 Números de piezas de recambio : AM63V-44352-01, CEF500363, PAF15-06050000, REC63V-44352-01 Números de pieza equivalentes : 63V-44352-00, 63V-44352-0100, 63V4435200, 63V4435201, 63V443520100 Incluido en el kit...
- $17.89
- $17.89
- Unit price
- per
Filtro de combustible para Yamaha 30-115 HP 6C5-24251-00
Detalles del producto: Números de pieza OEM de Yamaha: 6C5-24251-00, 6C5-24251-01 Número de pieza OEM de Sierra: 18-79983 Números de piezas de recambio: AM6C5-24251-00 Modelos compatibles: Yamaha: Motores de cuatro tiempos: F30B, F40D, F40H, F40F, F40G, F50F, FT50G, F50H, FT50J, F60C, FT60D, F60F, FT60G,...
- $19.79
- $19.79
- Unit price
- per
Línea de combustible de 6,5 pies y 5/16 pulgadas para Yamaha 4-350 HP 6Y1-24306-55
Detalles del producto: Números de pieza: Yamaha 6Y1-24306-55, 61J-24306-04-00, 6Y2-24306-56, 6YK-24306-64, 6YL-24306-68, 6Y2-24306-A2 Modelos compatibles: Yamaha: Motores de dos tiempos Motores de cuatro tiempos: Compatible con motores fueraborda Yamaha de 4, 5, 6, 8, 9,9, 15, 20, 25, 30, 40, 50, 60, 70, 75,...
- $30.00
- $30.00
- Unit price
- per
Termostato para motores fueraborda Yamaha de 2 tiempos y 3-250 HP 6E5-12411
Detalles del producto: Números de pieza OEM: Yamaha 688-12411, 6E5-12411, 6H3-12411, 6AH-12411 Números de pieza del mercado de accesorios: Parsun T15-04000010, Sierra 18-3540, 18-3622 Números de pieza equivalentes: 6E5-12411-30, 688-12411-10, 688-12411-11, 6E5-12411-10, 6E5-12411-20, 688-12411-00, 688-12411-01 Modelos compatibles: Yamaha Motores de dos tiempos: 9.9F, 15F,...
- $18.49
- $18.49
- Unit price
- per
Kit de reconstrucción de carburador para Yamaha 20HP 25HP 6L2-W0093-00 6L2-14301-11 18-7739
Detalles del producto: Números de pieza : OEM de Yamaha: 6L2-14301-11, 6L2-14302-11, 6L2-W0093-00 Sierra OEM: 18-7739 Mercado de accesorios: MAL9-37517 Información del número de pieza equivalente : Fabricante original de Yamaha: 6L2-W0093-00, 6L2-W0093-00-00, 6L2W009300, 6L2W00930000 Tohatsu: 3C8-87122-2, 3G2-87122-2 Modelos compatibles: Yamaha : Motores de...
- $16.23
- $16.23
- Unit price
- per
Kit de impulsor de bomba de agua para Yamaha 50, 60 y 70 HP 6H3-w0078
Detalles del producto: Números de pieza OEM de Yamaha: 6H3-W0078-00, 6H3-W0078-02, 6H3-W0078-02-00, 6H3-W0078-A0-00 Número de pieza del mercado de accesorios: HJ YHJB-6H3A Incluye impulsor 6H3-44352-00 Modelos compatibles: Yamaha Motores de dos tiempos 60 °F (97 ~ 03 °F) 70B (97 ~ 03) Motores de...
- $49.50
$46.00- $49.50
- Unit price
- per

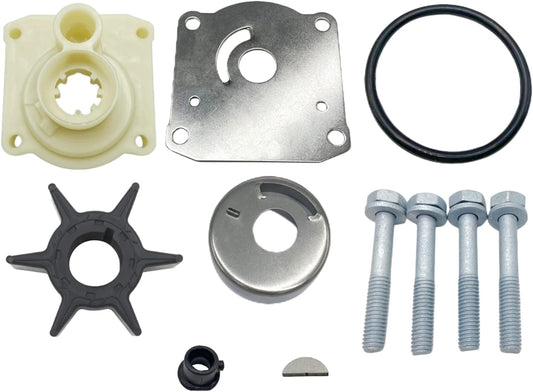

Kit de impulsor de bomba de agua para Yamaha 25 30 HP 61N-W0078
Detalles del producto: Números de pieza OEM de Yamaha : 61N-W0078-10-00, 61N-W0078-11-00, 61N-W0078-13-00, 61N-W0078-14-00 Números de piezas de recambio : AM61N-W0078-11 Números de pieza equivalentes : 69P-W0078-00, 69P-W0078-01, 69P-W0078-02 Modelos compatibles: Yamaha : Motores de dos tiempos : 25B (25BMHL 2001-18, 25BMHS 2001-07) 25X...
- $45.50
$48.50- $45.50
- Unit price
- per
Kit de impulsor de bomba de agua para Yamaha 15-20 HP 6AH-W0078-00-00 6AH-W0078-01-00 6AH-W0078-02-00
Detalles del producto: Números de pieza OEM de Yamaha : 6AH-W0078-00-00, 6AH-W0078-01-00, 6AH-W0078-02-00 Número de pieza OEM de Sierra : 18-3479 Números de piezas de recambio : AM6AH-W0078-00 Números de pieza equivalentes : 68T-W0078-00-00 Modelos compatibles: Yamaha : Motores de cuatro tiempos : F15C...
- $44.50
$56.00- $44.50
- Unit price
- per

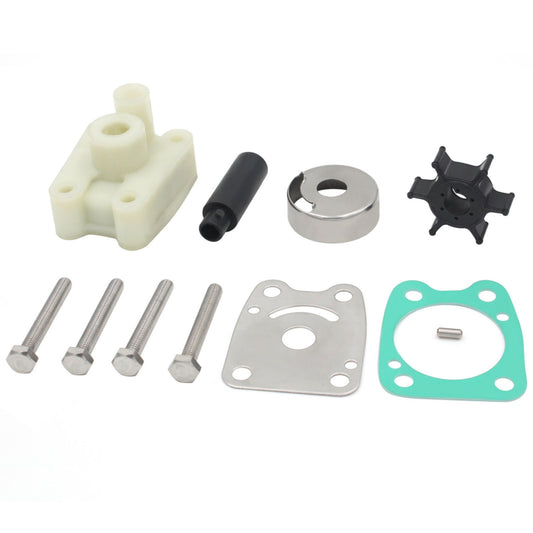

Kit de impulsor de bomba de agua para Yamaha 4HP 5HP 6E0-W0078-A2-00 6E0-W0078-02-00 6E0-W0078-01-00 6E0-W0078-00-00
Detalles del producto: Números de pieza OEM de Yamaha : 6E0-W0078-01, 6E0-W0078-00, 6E0-W0078-02, 6E0-W0078-A2, 6E0-W0078-A3, 6E0-W0078-A4, 6E0-W0078-A5. Números de piezas de recambio : HJ YHJB-6E0, AM6E0-W0078-A2 Números de pieza equivalentes : 68D-WG078-00-00 / 68DWG0780000, 67D-W0078-00-00 / 67DW00780000, 6E0-W0078-02-00 / 6E0W00780200, 6E0-W0078-00-00 / 6E0W00780000, 6E0-W0078-01-00...
- $46.50
$39.00- $46.50
- Unit price
- per
Filtro de combustible en línea para Yamaha F4 F6 F8 F9.9 F15 68T-24251-00 18-7710-1
Detalles del producto: Números de pieza OEM de Yamaha: 6EE-F4251-00-00, 6EEF42510000, 68T-24251-01-00, 68T242510100, 68T-24251-00-00, 68T242510000 Números de pieza OEM de Sierra: 18-7712, 18-7710, 18-7710-1 Números de piezas de recambio: PAF4-05000300 Modelos compatibles: Yamaha : Motores de dos tiempos: F4, F6, F8, F9.9 Motores de...
- $14.79
- $14.79
- Unit price
- per
Kit de termostato para Mercury 8–50HP y Yamaha F115/F130 6EK-12411-00-00 143 °F / 60 °C
Detalles del producto: Clasificación de temperatura : 143 °F / 60 °C Números de piezas OEM : Mercurio: 855676, 825212, 824853 Yamaha: 6EK-12411-00-00 Sierra Marine : 18-3642, 18-3639 Equivalente a : Yamaha 6EK-12411-00 Sierra 18-3639, 18-3642 Nota : También compatible con los modelos Yamaha...
- $37.50
$43.00- $37.50
- Unit price
- per
Kit de termostato para motores fueraborda Yamaha de 2 tiempos
Detalles del producto Reemplaza los números de piezas OEM: Termostato: 6E5-12411-00 / 01 / 02 Sello del termostato: 6E5-12412-00 Modelos compatibles Motores fueraborda Yamaha de 2 tiempos: 3A/Malta 4A, 4B, 5C, 6C, 6D 8C, 20D, 30D, 30G, 30H E25A, 25B, E25B, 25J, 25N (hasta...
- $18.49
- $18.49
- Unit price
- per
Termostato para motor fueraborda de dos tiempos YAMAHA 6E5-12411-30 6E5-12411-20 6E5-12411-20
Detalles del producto: Números de piezas OEM: Termostato: 6E5-12411-30 , 6E5-12411-20-00 , 6E5-12411-10-00 , 688-12411-10-00 , 688-12411-11-00 , 688-12411-01 Sello del termostato: 688-12412-00 Números de piezas equivalentes: Compatible con Sierra y equivalentes del mercado de accesorios (confirme con el proveedor para referencias cruzadas). Kit...
- $16.95
- $16.95
- Unit price
- per
