17400-92822 Water Pump Kit for Suzuki DF100A DF115A DF140A | JLM Marine
- $78.50
- $78.50
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns
Water Pump Kit – Fits Suzuki DF100A DF115A DF140A (2013+)
This water pump kit is engineered for Suzuki DF100A, DF115A, and DF140A outboard engines manufactured from 2013 onwards. It ensures reliable cooling system performance and is designed to meet the demanding conditions of marine environments.
Direct Replacement for OEM Part Number: 17400-92822
- Complete water pump repair kit for seamless maintenance
- Designed for mid-range four-stroke Suzuki outboards
- Essential for preventing overheating and engine damage
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| Suzuki | 17400-92822 |
Compatible Engine Models
Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.
| Brand | Model | Years | OEM Part No. |
|---|---|---|---|
| Suzuki | DF100A | 2013+ | 17400-92822 |
| Suzuki | DF115A | 2013+ | 17400-92822 |
| Suzuki | DF140A | 2013+ | 17400-92822 |
Technical Specifications
| Specification | Value |
|---|---|
| OEM Part Number | 17400-92822 |
| Compatible Models | DF100A / DF115A / DF140A |
| Year Range | 2013+ |
| Product Type | Water Pump Kit |

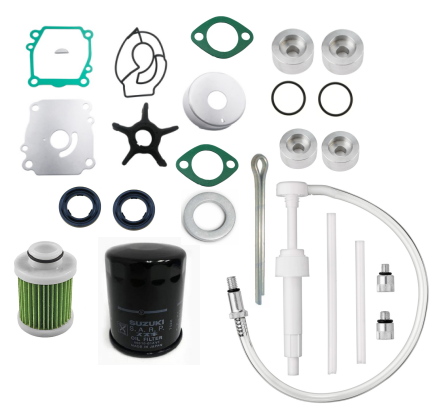

Package Contents
This complete water pump repair kit includes all necessary components for a thorough rebuild:
- 17413-92J01 (Cup) × 1
- 17471-92J00 (Plate) × 1
- 09420-05009/6 (Key) × 1
- 17416-92J10 (Seal) × 1
- 17472-87E10 (Gasket) × 1
- 17461-90J00 (Impeller) × 1
- 15412-92J00 (Fuel filter) × 1 View Part →
- 55321-87J00 (Zinc Anode) × 4
- 11265-87E10 (Protection cover gasket) × 2
- 09280-22019 (O-ring) × 2
- 16510-61A31 (Oil filter) × 1 View Part →
- 09168-12012 (Drain Gasket) × 1 View Part →
- 09168-10022 (Drain Gasket) × 2
- 09204-03003 (Cotter Pin) × 1
- 24OP149 (Gear Oil Pump) × 1
Installation Guide
- Disconnect the battery and remove the lower unit from the outboard motor following your service manual procedures.
- Access the water pump housing by removing the mounting bolts. Keep all hardware organized for reassembly.
- Remove the old impeller and inspect the pump housing for wear, scoring, or corrosion. Clean all surfaces thoroughly.
- Lubricate the new impeller with soapy water or glycerin and carefully install it into the housing, ensuring blades are oriented correctly.
- Replace all gaskets and O-rings included in the kit. Do not reuse old seals as they may cause leaks.
- Reassemble the water pump housing and torque mounting bolts to manufacturer specifications.
- Reinstall the lower unit, ensuring proper alignment and engagement with the driveshaft.
- Reconnect the battery and test the cooling system by running the engine in a test tank or on-water, checking for steady water discharge.
Troubleshooting & FAQ
How do I confirm this water pump kit fits my Suzuki outboard?
Verify that your engine model is DF100A, DF115A, or DF140A manufactured in 2013 or later. Cross-reference the OEM part number 17400-92822 with your service manual or exploded parts diagram.
How often should I replace the water pump?
Suzuki recommends inspecting the water pump annually and replacing it every 2–3 years or 200–300 hours of operation, whichever comes first. Replace immediately if you notice overheating or reduced water flow.
What are the signs my water pump is failing?
Common symptoms include engine overheating, weak or intermittent water discharge from the telltale (pee hole), steam from the engine, or a high-temperature alarm. Address these issues immediately to prevent serious engine damage.
Can I install this water pump kit myself?
If you have mechanical experience and the proper tools, you can install it yourself following your service manual. However, professional installation is recommended to ensure correct torque specifications and proper alignment.
What's the difference between OEM and aftermarket water pump kits?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
