Johnson TJ50TLESF (1990) Parts & Diagrams

🔎 Johnson TJ50TLESF Reference Library — Exploded parts diagrams (47 diagrams), specifications, common issues, and maintenance checklist.

Parts Diagrams & OEM Part Numbers

Expand the sections below to view detailed exploded parts diagrams and find the exact OEM replacement components for your Johnson TJ50TLESF.

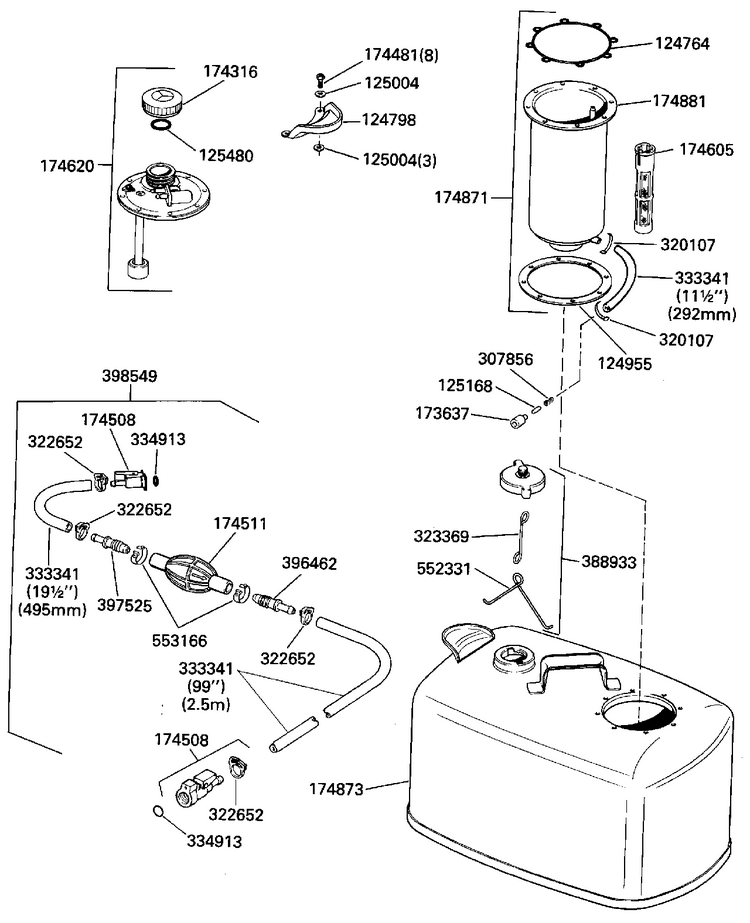

▶ACCUMIX FUEL TANK (28 parts)

Ref	OEM Part #	Part Name
0124764	0124764	SEAL
0124798	0124798	BRACKET
0124955	0124955	GASKET
0125004	0125004	SEAL
0125168	0125168	MAGNET, Fuel line
0125480	0125480	**GASKET, Cap
0173637	0173637	FUEL PICKUP
0174316	0174316	*CAP
0174481	0174481	SCREW & SEAL ASSY.
0174508	0775640	* QUICK-DISCONNECT FITTING
0174511	5008605	* PRIMER BULB
0174605	0174605	*FILTER ASSEMBLY
0174620	0174620	COVER ASSY.
0174871	0174871	PUMP & RESERVOIR ASSY.
0174873	0174873	NOT AVAILABLE
0174881	0174881	PUMP & RESERVOIR ASSY.
0307856	0307856	. SPRING, Valve
0320107	0320107	** TIE STRAP
0322652	0322652	** CLAMP, Snap
0323369	0323369	. LINK, Anchor
0333341	0772564	* HOSE
0334913	0334913	** O-RING
0388933	0388933	CAP ASSY., Fuel
0396462	0396462	** NIPLE & VALVE ASSY
0397525	0397525	** NIPPLE & VALVE ASSY
0398549	5008609	FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE
0552331	0552331	*ANCHOR, Cap
0553166	0553166	** CLAMP, Band, large

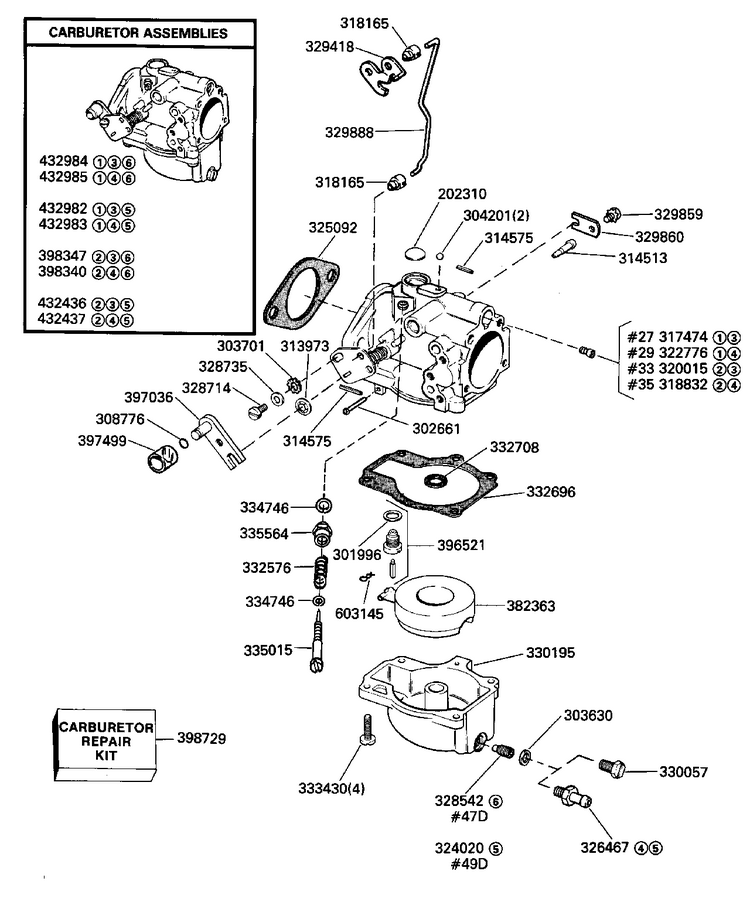

▶CARBURETOR - ALL 25 & 40 MODELS (82 parts)

Ref	OEM Part #	Part Name
1	0329860	*CLIP
2	0304201	*LEAD SHOT
3	0329859	*SCREW
4	0303630	*WASHER
5	0202310	*CORE PLUG
6	0314513	*FITTING, Fuel inlet
7	0343512	*GASKET, Nozzle
8	0332576	*RESSORT, soupape à pointeau
9	0318832	O-RING, No. 35
10	0314575	*PIN, Throttle shaft
11	0338880	*GASKET, Float bowl
12	0330057	*SCREW PLUG
13	0333430	*SCREW, Float bowl
14	0396521	*FLOAT VALVE & SEAT Assy
15	0301996	**GASKET
16	0313973	*NUT, Push
17	0334746	*O - RING, Needle valve
18	0326467	*NIPPLE, Vapor sep, vacuum pick-up
19	0324020	*ORIFICE PLUG, No. 49D
20	0302661	*HINGE PIN, Float
21	0382363	*FLOAT & ARM ASSEMBLY
22	0344271	*FLOAT CHAMBER Assy
23	0335015	*NEEDLE VALVE, Slow speed adj.
24	0335564	*ADAPTER, Needle valve
25	0336842	CLIP, SPRING
26	0397499	ROLLER & SLEEVE ASSY.
27	0308776	O-RING
28	0316355	BUT, Carburetor mounting
29	0325092	GASKET
30	0303701	*LOCK WASHER, Adjustment screw
31	0328714	**SCREW, Clip
32	0397036	LEVER & PIN
33	0328735	*WASHER, screw, ball joint
34	0396701	CARBURETOR REPAIR KIT
0202310	0202310	*CORE PLUG
0301996	0301996	**GASKET
0302661	0302661	*HINGE PIN, Float
0303630	0303630	*WASHER
0303701	0303701	*LOCK WASHER, Adjustment screw
0304201	0304201	*LEAD SHOT
0308776	0308776	O-RING
0313973	0313973	*NUT, Push
0314513	0314513	*FITTING, Fuel inlet
0314575	0314575	*PIN, Throttle shaft
0317474	0317474	*ORIFICE, #27, 90
0318165	0318165	DISPOSITIF DE RETENUE, tringlerie de carburateur
0318832	0318832	O-RING, No. 35
0320015	0320015	. ORIFICE, Idle rstr (#33)
0322776	0322776	ORIFICE 150 only
0324020	0324020	*ORIFICE PLUG, No. 49D
0325092	0325092	GASKET
0326467	0326467	*NIPPLE, Vapor sep, vacuum pick-up
0328542	0328542	*ORIFICE Intermediate #47D
0328714	0328714	**SCREW, Clip
0328735	0328735	*WASHER, screw, ball joint
0329418	0329418	LEVER, Synchronization adj.
0329859	0329859	*SCREW
0329860	0329860	*CLIP
0329888	0329888	LINK
0330057	0330057	*SCREW PLUG
0330195	0344271	*FLOAT CHAMBER Assy
0332576	0332576	*RESSORT, soupape à pointeau
0332696	0338880	*GASKET, Float bowl
0332708	0343512	*GASKET, Nozzle
0333430	0333430	*SCREW, Float bowl
0334746	0334746	*O - RING, Needle valve
0335015	0335015	*NEEDLE VALVE, Slow speed adj.
0335564	0335564	*ADAPTER, Needle valve
0382363	0382363	*FLOAT & ARM ASSEMBLY
0396521	0396521	*FLOAT VALVE & SEAT Assy
0397036	0397036	LEVER & PIN
0397499	0397499	ROLLER & SLEEVE ASSY.
0398340	0398340	CARB. ASSY.
0398347	0398347	CARB. ASSY.
0398729	0396701	CARBURETOR REPAIR KIT
0432436	0432436	CARB AY
0432437	0432437	CARB ASSY.
0432982	0432982	CARB ASSY.
0432983	0432983	CARB. ASSY.
0432984	0432984	CARB. ASSY.
0432985	0432985	CARB. ASSY.
0603145	0336842	CLIP, SPRING

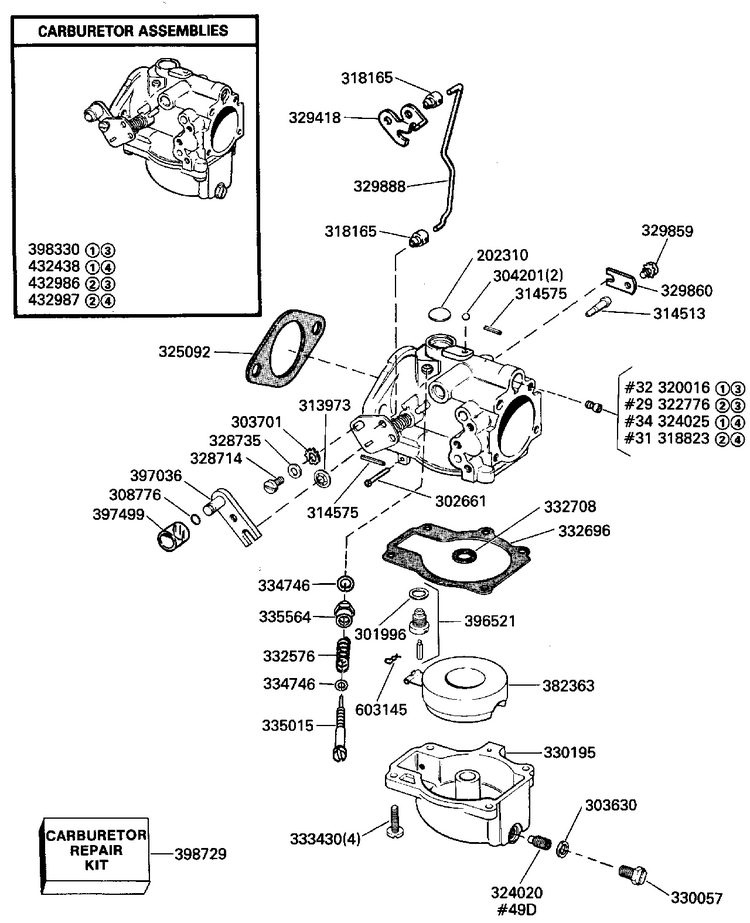

▶CARBURETOR - ALL 50 MODELS (74 parts)

Ref	OEM Part #	Part Name
1	0329860	*CLIP
2	0304201	*LEAD SHOT
3	0329859	*SCREW
4	0303630	*WASHER
5	0202310	*CORE PLUG
6	0314513	*FITTING, Fuel inlet
7	0343512	*GASKET, Nozzle
8	0332576	*RESSORT, soupape à pointeau
9	0324025	*HIGH SPEED ORIFICE, No. 34
10	0314575	*PIN, Throttle shaft
11	0338880	*GASKET, Float bowl
12	0330057	*SCREW PLUG
13	0333430	*SCREW, Float bowl
14	0396521	*FLOAT VALVE & SEAT Assy
15	0301996	**GASKET
16	0336842	CLIP, SPRING
17	0334746	*O - RING, Needle valve
18	0335015	*NEEDLE VALVE, Slow speed adj.
19	0324020	*ORIFICE PLUG, No. 49D
20	0302661	*HINGE PIN, Float
21	0382363	*FLOAT & ARM ASSEMBLY
22	0344271	*FLOAT CHAMBER Assy
23	0335564	*ADAPTER, Needle valve
24	0313973	*NUT, Push
25	0328714	**SCREW, Clip
26	0397499	ROLLER & SLEEVE ASSY.
27	0308776	O-RING
28	0397036	LEVER & PIN
29	0325092	GASKET
30	0303701	*LOCK WASHER, Adjustment screw
31	0328735	*WASHER, screw, ball joint
32	0396701	CARBURETOR REPAIR KIT
0202310	0202310	*CORE PLUG
0301996	0301996	**GASKET
0302661	0302661	*HINGE PIN, Float
0303630	0303630	*WASHER
0303701	0303701	*LOCK WASHER, Adjustment screw
0304201	0304201	*LEAD SHOT
0308776	0308776	O-RING
0313973	0313973	*NUT, Push
0314513	0314513	*FITTING, Fuel inlet
0314575	0314575	*PIN, Throttle shaft
0318165	0318165	DISPOSITIF DE RETENUE, tringlerie de carburateur
0318823	0318823	*HIGH SPEED ORIFICE, No. 31
0320016	0320016	*ORIFICE, Low speed, No. 32
0322776	0322776	ORIFICE 150 only
0324020	0324020	*ORIFICE PLUG, No. 49D
0324025	0324025	*HIGH SPEED ORIFICE, No. 34
0325092	0325092	GASKET
0328714	0328714	**SCREW, Clip
0328735	0328735	*WASHER, screw, ball joint
0329418	0329418	LEVER, Synchronization adj.
0329859	0329859	*SCREW
0329860	0329860	*CLIP
0329888	0329888	LINK
0330057	0330057	*SCREW PLUG
0330195	0344271	*FLOAT CHAMBER Assy
0332576	0332576	*RESSORT, soupape à pointeau
0332696	0338880	*GASKET, Float bowl
0332708	0343512	*GASKET, Nozzle
0333430	0333430	*SCREW, Float bowl
0334746	0334746	*O - RING, Needle valve
0335015	0335015	*NEEDLE VALVE, Slow speed adj.
0335564	0335564	*ADAPTER, Needle valve
0382363	0382363	*FLOAT & ARM ASSEMBLY
0396521	0396521	*FLOAT VALVE & SEAT Assy
0397036	0397036	LEVER & PIN
0397499	0397499	ROLLER & SLEEVE ASSY.
0398330	0398330	CARB. ASSY.
0398729	0396701	CARBURETOR REPAIR KIT
0432438	0432438	CARB. ASSY.
0432986	0432986	CARB. ASSY.
0432987	0432987	CARB. ASSY.
0603145	0336842	CLIP, SPRING

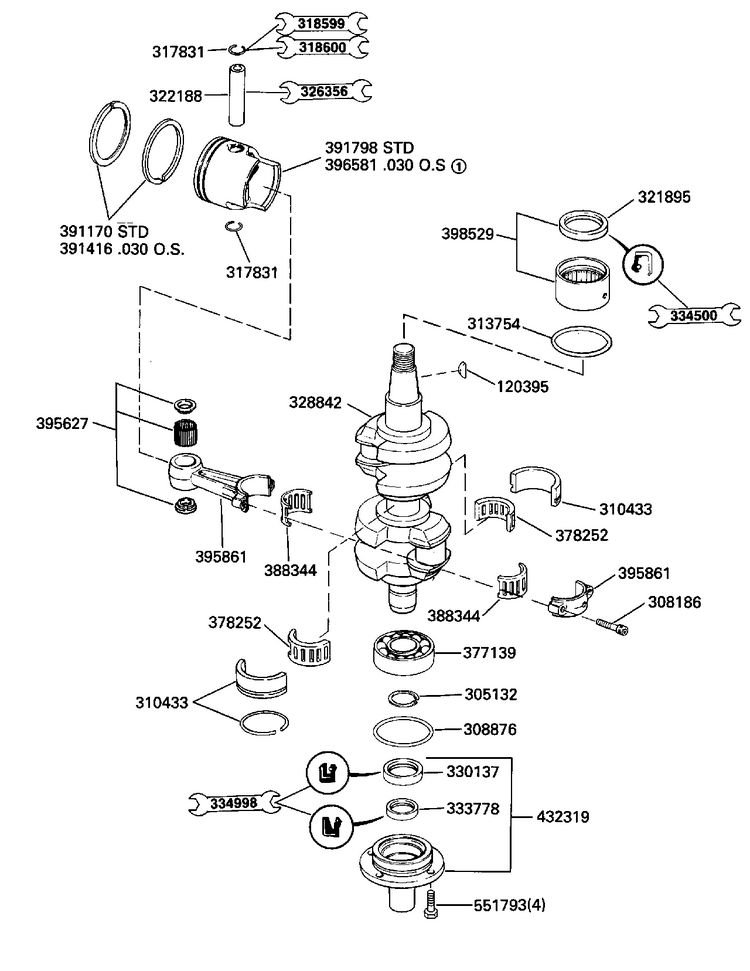

▶CRANKSHAFT & PISTON (51 parts)

Ref	OEM Part #	Part Name
1	5006665	Pstn&Ring Kit
2	0391416	RING SET .030
3	0317831	Circlip
4	0395861	CONNECTING ROD
5	0308186	**SCREW, Rod cap
6	0437088	BEARING Assy
7	0395627	BEARING & RETAINER
8	0398529	BEARING & SEAL ASSY., Crankshaft
9	0321895	*SEAL, Crankshaft
10	0313754	O RING
11	0120395	KEY
12	0334203	CRANKSHAFT
13	0310433	SLEEVE
14	0378252	BEARING ASSY., Needle
15	0377139	*BEARING Assy
16	0305132	*RETAINING RING
17	0308876	O RING CRANKCASE HEAD LOWER
18	0433863	CRANKCASE HEAD ASSY.
19	0330327	RETAINER, Oil driveshaft, outer
20	0331103	*SEAL
21	0322188	WRIST PIN
22	0551793	SCREW
0120395	0120395	KEY
0305132	0305132	*RETAINING RING
0308186	0308186	**SCREW, Rod cap
0308876	0308876	O RING CRANKCASE HEAD LOWER
0310433	0310433	SLEEVE
0313754	0313754	O RING
0317831	0317831	Circlip
0318599	0318599	DRIVER
0318600	0318600	TOOL
0321895	0321895	*SEAL, Crankshaft
0322188	0322188	WRIST PIN
0326356	0326356	PRESSING PIN
0328842	0334203	CRANKSHAFT
0330137	0330137	***SEAL
0333778	0333778	OIL RETAINER
0334500	0334500	INSTALLER-SEAL
0334998	0334998	INSTALLER-SEAL
0377139	0377139	*BEARING Assy
0378252	0378252	BEARING ASSY., Needle
0388344	0437088	BEARING Assy
0391170	0391170	RING SET STD.
0391416	0391416	RING SET .030
0391798	5006655	Pstn&Ring Kit-Std
0395627	0395627	BEARING & RETAINER
0395861	0395861	CONNECTING ROD
0396581	5006665	Pstn&Ring Kit
0398529	0398529	BEARING & SEAL ASSY., Crankshaft
0432319	0433863	CRANKCASE HEAD ASSY.
0551793	0551793	SCREW

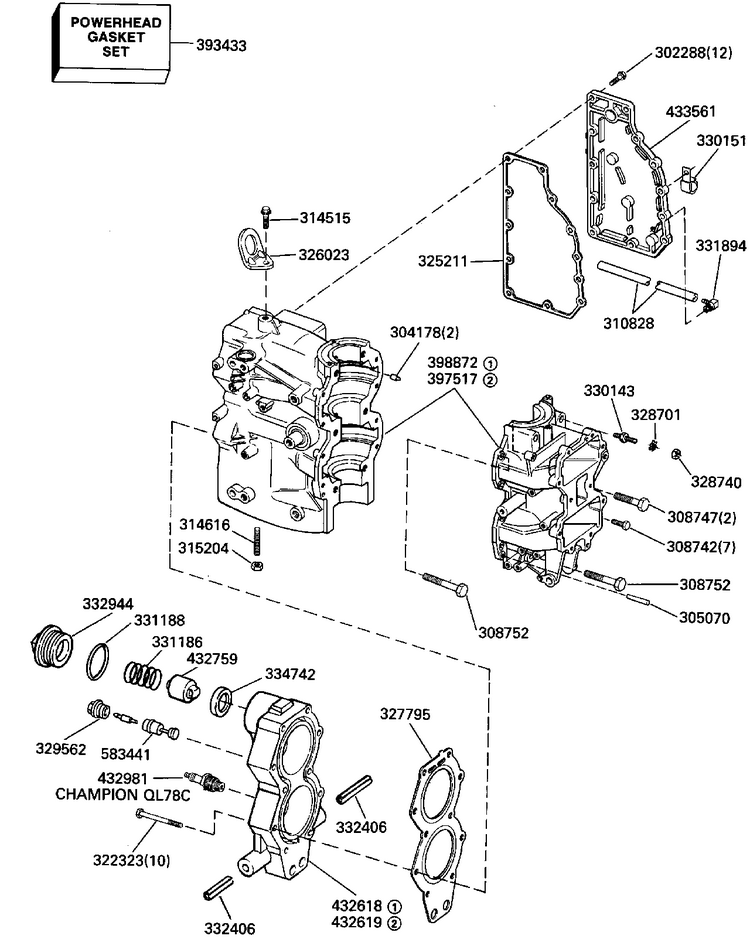

▶CYLINDER & CRANKCASE (64 parts)

Ref	OEM Part #	Part Name
1	0304178	**PIN, Dowel
2	0314616	*STUD
3	0305070	*AXE, carter-moteur vers bloc
4	0308747	*SCREW, Crankcase to cylinder
5	0308752	*SCREW, Main brg. upper & lower
6	0308742	*SCREW, Crankcase to cylinder
7	0321164	* PLUG
8	0332944	COVER, Thermostat
9	0331188	O-Ring
10	0322323	SCREW
11	0433379	THERMOSTAT
12	0334742	GASKET, Thermostat
13	0331186	SPRING
14	0314515	SCREW
15	0325211	GASKET
16	0437506	COVER & PLUG Assy, Water passage
17	0302288	BOLT
18	0432981	SP PLG QL78C
19	0316355	BUT, Carburetor mounting
20	0335359	GASKET, Cylinder head
21	0332406	*PIN, Exhaust housing
22	0432619	CYL HEAD AY
23	0584592	SWITCH, Temperature
24	0330151	*CABLE CLAMP, Filter
26	0321894	ELBOW, Indicator
27	0330143	*STUD, Ground
28	0328701	**LOCKWASHER, DOuble-ended bolt
29	0328740	** NUT, Throttle friction
30	0329562	*CACHE, interrupteur
32	0439083	POWERHEAD GASKET SET
0302288	0302288	BOLT
0304178	0304178	**PIN, Dowel
0305070	0305070	*AXE, carter-moteur vers bloc
0308742	0308742	*SCREW, Crankcase to cylinder
0308747	0308747	*SCREW, Crankcase to cylinder
0308752	0308752	*SCREW, Main brg. upper & lower
0310828	0310828	HOSE
0314515	0314515	SCREW
0314616	0314616	*STUD
0315204	0316355	BUT, Carburetor mounting
0322323	0322323	SCREW
0325211	0325211	GASKET
0326023	0326023	LIFT BRACKET
0327795	0335359	GASKET, Cylinder head
0328701	0328701	**LOCKWASHER, DOuble-ended bolt
0328740	0328740	** NUT, Throttle friction
0329562	0329562	*CACHE, interrupteur
0330143	0330143	*STUD, Ground
0330151	0330151	*CABLE CLAMP, Filter
0331186	0331186	SPRING
0331188	0331188	O-Ring
0331894	0331894	*ELBOW
0332406	0332406	*PIN, Exhaust housing
0332944	0332944	COVER, Thermostat
0334742	0334742	GASKET, Thermostat
0393433	0439083	POWERHEAD GASKET SET
0397517	0397517	CYL,CRKC,DWL AY
0398872	0398872	CYL,CRKC,DWL AY
0432618	0432618	CYL HEAD AY
0432619	0432619	CYL HEAD AY
0432759	0433379	THERMOSTAT
0432981	0432981	SP PLG QL78C
0433561	0437506	COVER & PLUG Assy, Water passage
0583441	0584592	SWITCH, Temperature

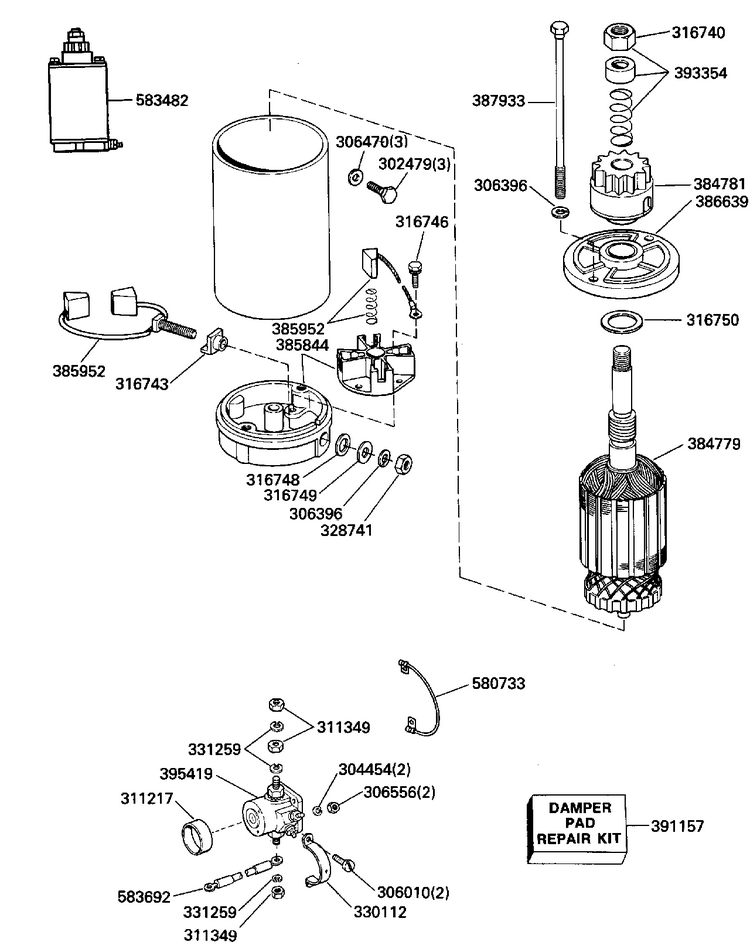

▶ELECTRIC STARTER & SOLENOID (58 parts)

Ref	OEM Part #	Part Name
1	0393354	NUT SPRING & SPACER KIT
2	0393354	NUT SPRING & SPACER KIT
3	0384779	ARATURE AY
4	0384781	DRIVE
5	0387933	THRU BOLT PACKAGE
6	0306396	**LOCK WASHER, Control to boat
7	0386639	. CAP ASSY.
8	0316750	. WASHER, Thrust
9	0385844	CAP ASSY COMMUTATOR
10	0328741	****NUT, Input stud
11	0385952	***BRUSH & SPRING SET
12	0316746	****BOLT & LOCK WASHER
13	0316743	****BUSHING, Insulation
14	0316748	****WASHER, Insulation
15	0316749	****WASHER, Lock
16	0306396	**LOCK WASHER, Control to boat
17	0316745	BRUSH HOLDER
18	0311217	*SLEEVE
19	0330112	*CLAMP, Solenoid
20	0328724	***SCREW
21	0311349	*NUT, Solenoid
22	0304454	***LOCK WASHER
23	0306556	*NUT, Leaf screw
24	0331259	*LOCK WASHER
25	0583692	*LEAD, Starter to solenoid
26	0302479	*SCREW, Starter mounting
27	0580733	*LEAD, Solenoid ground
28	0306470	*LOCK WASHER
29	0586180	*ENSEMBLE SOLÉNOÏDE
0302479	0302479	*SCREW, Starter mounting
0304454	0304454	***LOCK WASHER
0306010	0328724	***SCREW
0306396	0306396	**LOCK WASHER, Control to boat
0306470	0306470	*LOCK WASHER
0306556	0306556	*NUT, Leaf screw
0311217	0311217	*SLEEVE
0311349	0311349	*NUT, Solenoid
0316740	0393354	NUT SPRING & SPACER KIT
0316743	0316743	****BUSHING, Insulation
0316746	0316746	****BOLT & LOCK WASHER
0316748	0316748	****WASHER, Insulation
0316749	0316749	****WASHER, Lock
0316750	0316750	. WASHER, Thrust
0328741	0328741	****NUT, Input stud
0330112	0330112	*CLAMP, Solenoid
0331259	0331259	*LOCK WASHER
0384779	0384779	ARATURE AY
0384781	0384781	DRIVE
0385844	0385844	CAP ASSY COMMUTATOR
0385952	0385952	***BRUSH & SPRING SET
0386639	0386639	. CAP ASSY.
0387933	0387933	THRU BOLT PACKAGE
0391157	0391157	CAMPER PAD REPAIR KIT
0393354	0393354	NUT SPRING & SPACER KIT
0395419	0586180	*ENSEMBLE SOLÉNOÏDE
0580733	0580733	*LEAD, Solenoid ground
0583482	0586279	*STARTER MOTOR ASSY.
0583692	0583692	*LEAD, Starter to solenoid

▶ENGINE COVER - EVINRUDE - ROPE START ONLY (25 parts)

Ref	OEM Part #	Part Name
0206682	0341532	*SOUND BLANKET, Side
0210296	0210296	**BAFFLE, Tilt handle
0210862	0210862	OWNER'S MANUAL
0210863	0210863	89 O/M EV 40-50 R
0211109	0211109	FRAME
0211111	0211111	**SEAL, Cover, upper
0211125	0211125	PLATE
0211513	0211513	OWNER'S MANUAL
0211526	0211526	PLATE
0283521	0283521	ENGINE COVER ASSY.
0283759	0283759	DECAL SET
0283907	0283907	COVER AY,MOTOR-UPR
0283911	0283911	DECAL AY,SET
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0326948	0326948	***RIVET, Locating brackets
0332025	0332025	**SEAL, Cover bracket
0333090	0333090	**TILT HANDLE
0333937	0333937	*LOCATING BRACKET
0334309	0341533	*SOUND BLANKET, Top
0334432	0334432	*BUMPER

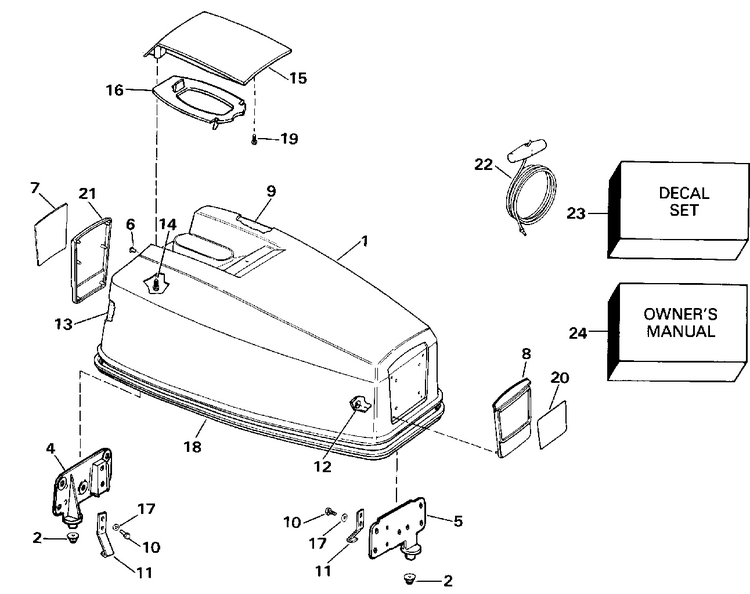

▶ENGINE COVER - EVINRUDE 25-40 (23 parts)

Ref	OEM Part #	Part Name
1	0283942	COVER AY,MOTOR-UPR
2	0334432	*BUMPER
4	0333939	*LOCATING BRACKET, Rear
5	0333938	*LOCATING BRACKET, Front
6	0326948	***RIVET, Locating brackets
7	0335757	PLATE, Rear
8	0335033	*FRAME, Front
9	0341531	*SOUND BLANKET, Top
10	0908158	***SCREW, Anode
11	0323176	*HOOK, Bracket
12	0317223	**FASTENERS, Push on
13	0341532	*SOUND BLANKET, Side
14	0323228	**SCREW
15	0208181	*HANDLE, Tilt
16	0210296	**BAFFLE, Tilt handle
17	0313079	*WASHER, Hook to bracket
18	0211111	**SEAL, Cover, upper
19	0323229	**SCREW, Tilt handle, front
20	0335755	PLATE, Applique
21	0335042	*FRAME, Rear
22	0378347	*ROPE AY, Starter
23	0283816	DECAL AY,SET
24	0211483	OWNER'S MANUAL

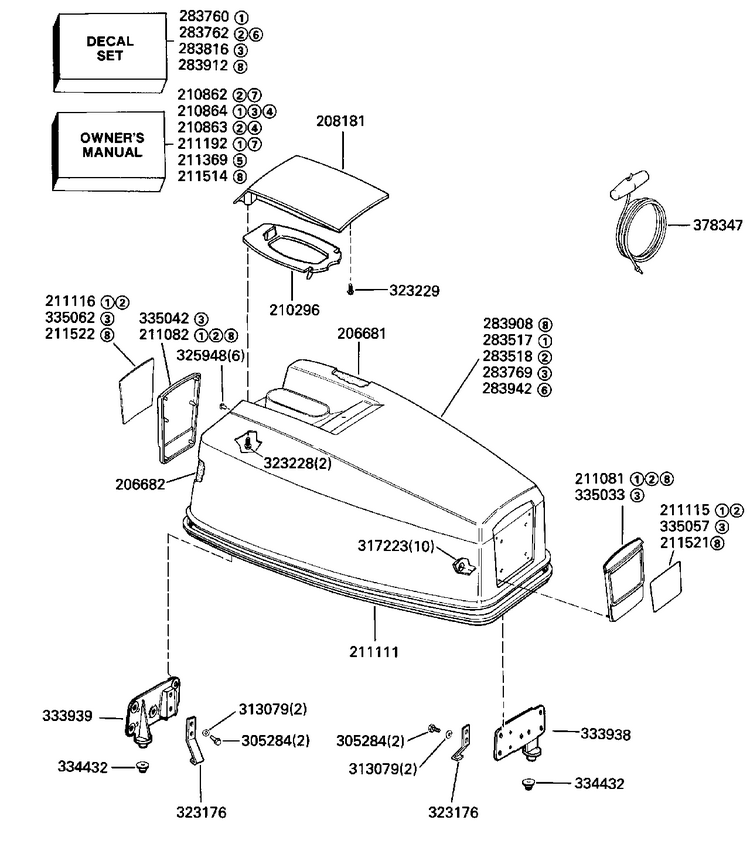

▶ENGINE COVER - EVINRUDE 40 (36 parts)

Ref	OEM Part #	Part Name
0206681	0341531	*SOUND BLANKET, Top
0206682	0341532	*SOUND BLANKET, Side
0208181	0208181	*HANDLE, Tilt
0210296	0210296	**BAFFLE, Tilt handle
0210862	0210862	OWNER'S MANUAL
0210863	0210863	89 O/M EV 40-50 R
0210864	0210864	89 O/M EV 40/50 EL
0211081	0211081	FRAME
0211082	0211082	FRAME
0211111	0211111	**SEAL, Cover, upper
0211115	0211115	PLATE
0211116	0211116	PLATE
0211192	0211192	OWNER'S MANUAL
0211369	0211369	89 O/M EV 40 TTL
0283517	0283517	ENGINE COVER ASSY.
0283518	0283518	MTR CVR
0283760	0283760	DECAL SET
0283762	0283762	DECAL SET
0283769	0283769	COVER AY,MOTOR-UPR
0283816	0283816	DECAL AY,SET
0283942	0283942	COVER AY,MOTOR-UPR
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0325948	0325948	NO DESCRIPTION
0333938	0333938	*LOCATING BRACKET, Front
0333939	0333939	*LOCATING BRACKET, Rear
0334432	0334432	*BUMPER
0335033	0335033	*FRAME, Front
0335042	0335042	*FRAME, Rear
0335057	0335057	PLATE
0335062	0335062	PLATE
0378347	0378347	*ROPE AY, Starter

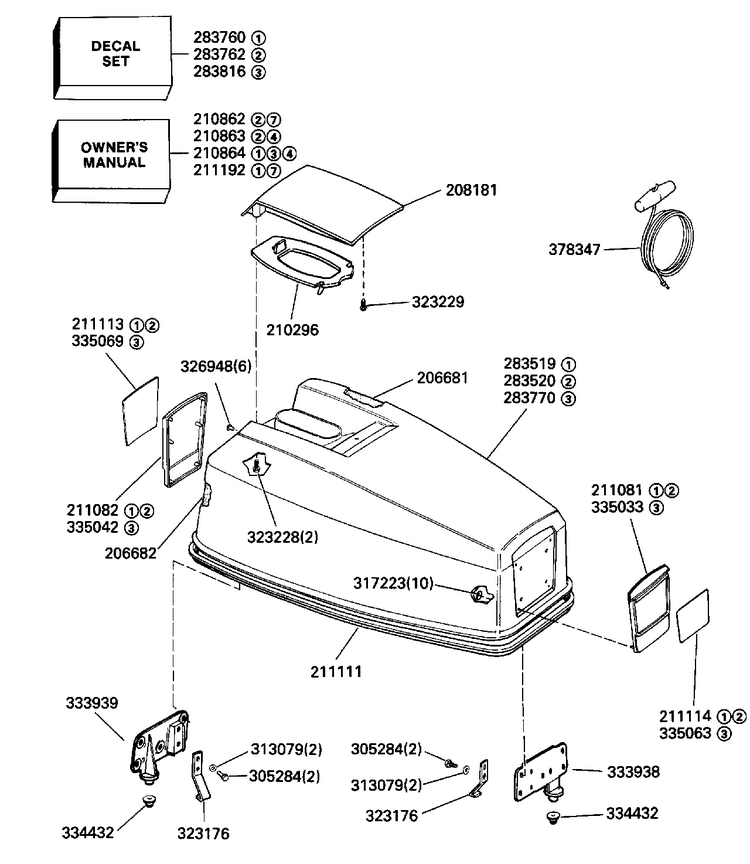

▶ENGINE COVER - EVINRUDE 50 (57 parts)

Ref	OEM Part #	Part Name
1	0283943	ENGINE COVER ASSY.
2	0334432	*BUMPER
4	0333939	*LOCATING BRACKET, Rear
5	0333938	*LOCATING BRACKET, Front
6	0326948	***RIVET, Locating brackets
7	0335756	PLATE, Rear
8	0335033	*FRAME, Front
9	0341531	*SOUND BLANKET, Top
10	0908158	***SCREW, Anode
11	0323176	*HOOK, Bracket
12	0317223	**FASTENERS, Push on
13	0341532	*SOUND BLANKET, Side
14	0323228	**SCREW
15	0208181	*HANDLE, Tilt
16	0210296	**BAFFLE, Tilt handle
17	0313079	*WASHER, Hook to bracket
18	0211111	**SEAL, Cover, upper
19	0323229	**SCREW, Tilt handle, front
20	0335754	PLATE, Applique
21	0335042	*FRAME, Rear
22	0378347	*ROPE AY, Starter
23	0283816	DECAL AY,SET
24	0211482	OWNER'S MANUAL
0206681	0341531	*SOUND BLANKET, Top
0206682	0341532	*SOUND BLANKET, Side
0208181	0208181	*HANDLE, Tilt
0210296	0210296	**BAFFLE, Tilt handle
0210862	0210862	OWNER'S MANUAL
0210863	0210863	89 O/M EV 40-50 R
0210864	0210864	89 O/M EV 40/50 EL
0211081	0211081	FRAME
0211082	0211082	FRAME
0211111	0211111	**SEAL, Cover, upper
0211113	0211113	PLATE
0211114	0211114	PLATE
0211192	0211192	OWNER'S MANUAL
0283519	0283519	ENGINE COVER ASSY.
0283520	0283520	ENGINE COVER ASSY., 50 models
0283760	0283760	DECAL SET
0283762	0283762	DECAL SET
0283770	0283770	COVER AY,MOTOR-UPR
0283816	0283816	DECAL AY,SET
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0326948	0326948	***RIVET, Locating brackets
0333938	0333938	*LOCATING BRACKET, Front
0333939	0333939	*LOCATING BRACKET, Rear
0334432	0334432	*BUMPER
0335033	0335033	*FRAME, Front
0335042	0335042	*FRAME, Rear
0335063	0335063	PLATE
0335069	0335069	PLATE
0378347	0378347	*ROPE AY, Starter

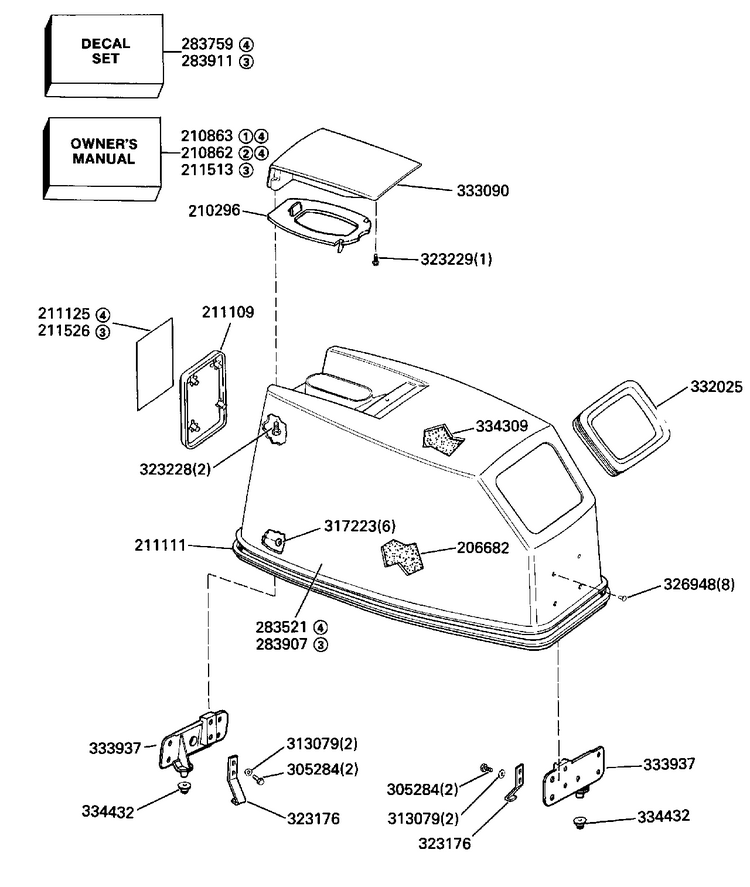

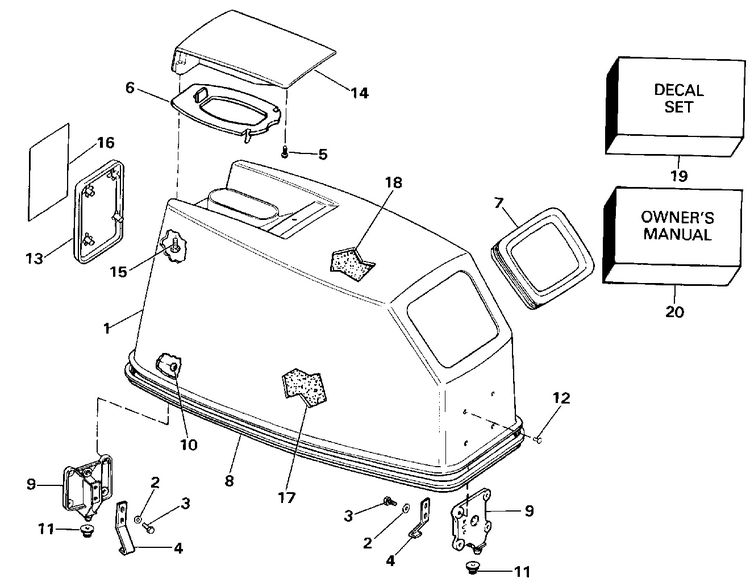

▶ENGINE COVER - EVINRUDE ROPE START ONLY (20 parts)

Ref	OEM Part #	Part Name
1	0283521	ENGINE COVER ASSY.
2	0313079	*WASHER, Hook to bracket
3	0908158	***SCREW, Anode
4	0323176	*HOOK, Bracket
5	0323229	**SCREW, Tilt handle, front
6	0210296	**BAFFLE, Tilt handle
7	0332025	**SEAL, Cover bracket
8	0211111	**SEAL, Cover, upper
9	0333937	*LOCATING BRACKET
10	0317223	**FASTENERS, Push on
11	0334432	*BUMPER
12	0326948	***RIVET, Locating brackets
13	0211109	FRAME
14	0333090	**TILT HANDLE
15	0323228	**SCREW
16	0211125	PLATE
17	0341532	*SOUND BLANKET, Side
18	0341533	*SOUND BLANKET, Top
19	0283759	DECAL SET
20	0211479	OWNER'S MANUAL

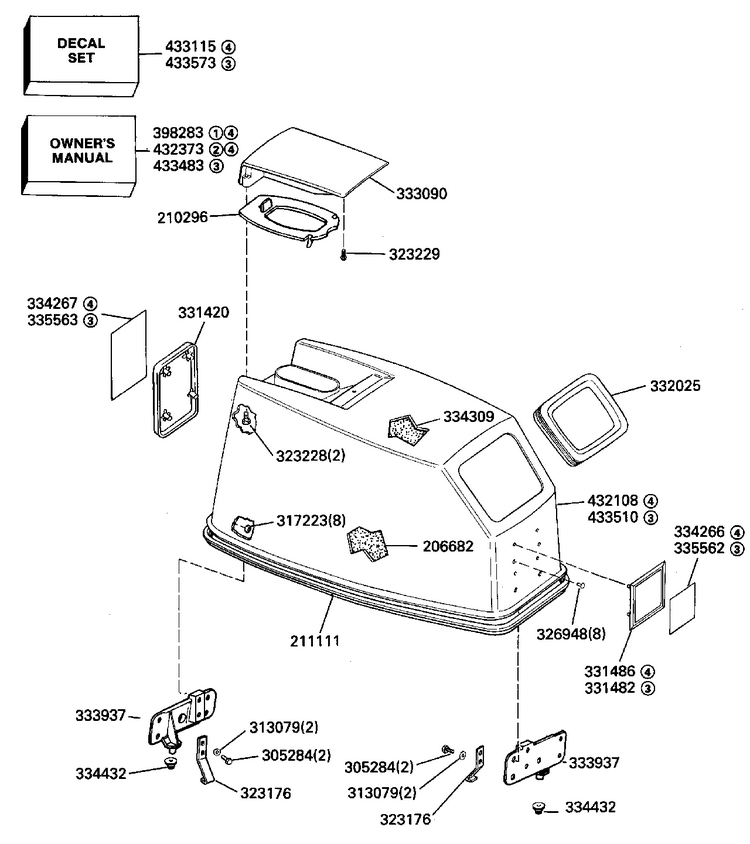

▶ENGINE COVER - JOHNSON - ROPE START ONLY (29 parts)

Ref	OEM Part #	Part Name
0206682	0341532	*SOUND BLANKET, Side
0210296	0210296	**BAFFLE, Tilt handle
0211111	0211111	**SEAL, Cover, upper
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0326948	0326948	***RIVET, Locating brackets
0331420	0331420	APPLIQUE, Engine cover
0331482	0331482	APPLIQUE, Rear
0331486	0331486	APPLIQUE
0332025	0332025	**SEAL, Cover bracket
0333090	0333090	**TILT HANDLE
0333937	0333937	*LOCATING BRACKET
0334266	0334266	PLATE
0334267	0334267	PLATE
0334309	0341533	*SOUND BLANKET, Top
0334432	0334432	*BUMPER
0335562	0335562	PLATE
0335563	0335563	PLATE
0398283	0398283	89 O/M JO 40/50 R
0432108	0433660	ENGINE COVER ASSY.
0432373	0432373	OWNER'S MANUAL
0433115	0433115	DECAL SET
0433483	0433483	OWNER'S MANUAL
0433510	0433510	COVER AY,MOTOR-UPR
0433573	0433573	DECAL AY,SET

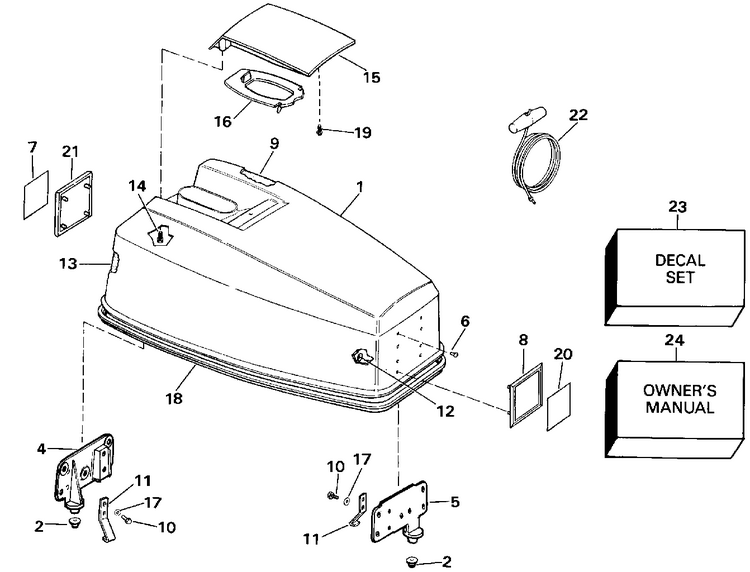

▶ENGINE COVER - JOHNSON 25-40 (23 parts)

Ref	OEM Part #	Part Name
1	5000736	Cover Ay
2	0334432	*BUMPER
4	0333939	*LOCATING BRACKET, Rear
5	0333938	*LOCATING BRACKET, Front
6	0326948	***RIVET, Locating brackets
7	0335757	PLATE, Rear
8	0335033	*FRAME, Front
9	0341531	*SOUND BLANKET, Top
10	0908158	***SCREW, Anode
11	0323176	*HOOK, Bracket
12	0317223	**FASTENERS, Push on
13	0341532	*SOUND BLANKET, Side
14	0323228	**SCREW
15	0208181	*HANDLE, Tilt
16	0210296	**BAFFLE, Tilt handle
17	0313079	*WASHER, Hook to bracket
18	0211111	**SEAL, Cover, upper
19	0323229	**SCREW, Tilt handle, front
20	0335755	PLATE, Applique
21	0335042	*FRAME, Rear
22	0378347	*ROPE AY, Starter
23	0433205	DECAL AY,SET
24	0433310	OWNER'S MANUAL

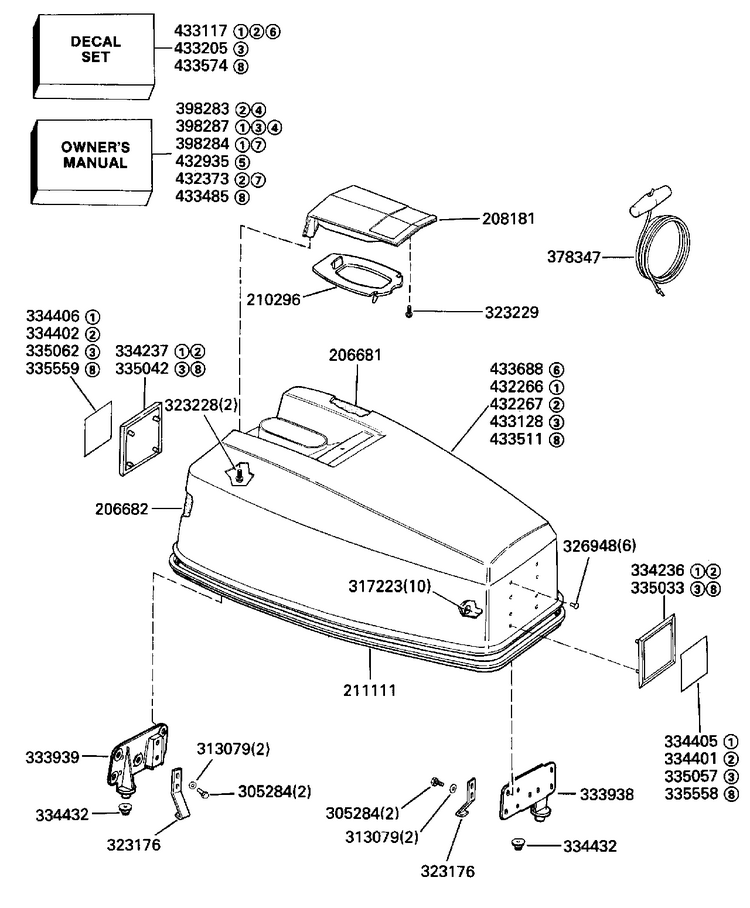

▶ENGINE COVER - JOHNSON 40 (37 parts)

Ref	OEM Part #	Part Name
0206681	0341531	*SOUND BLANKET, Top
0206682	0341532	*SOUND BLANKET, Side
0208181	0208181	*HANDLE, Tilt
0210296	0210296	**BAFFLE, Tilt handle
0211111	0211111	**SEAL, Cover, upper
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0326948	0326948	***RIVET, Locating brackets
0333938	0333938	*LOCATING BRACKET, Front
0333939	0333939	*LOCATING BRACKET, Rear
0334236	0334236	FRAME
0334237	0334237	FRAME
0334401	0334401	PLATE
0334402	0334402	PLATE
0334405	0334405	PLATE
0334406	0334406	PLATE
0334432	0334432	*BUMPER
0335033	0335033	*FRAME, Front
0335042	0335042	*FRAME, Rear
0335057	0335057	PLATE
0335062	0335062	PLATE
0378347	0378347	*ROPE AY, Starter
0398283	0398283	89 O/M JO 40/50 R
0398284	0398284	OWNER'S MANUAL
0398287	0398287	89 O/M JO 40/50 EL
0432266	0432266	COVER AY,MOTOR-UPR
0432267	0432267	MTR CVR 40HP 89
0432373	0432373	OWNER'S MANUAL
0432935	0432935	89 O/M JO 40 TTL
0433117	0433117	DECAL SET
0433128	5000736	Cover Ay
0433205	0433205	DECAL AY,SET
0433688	5000736	Cover Ay

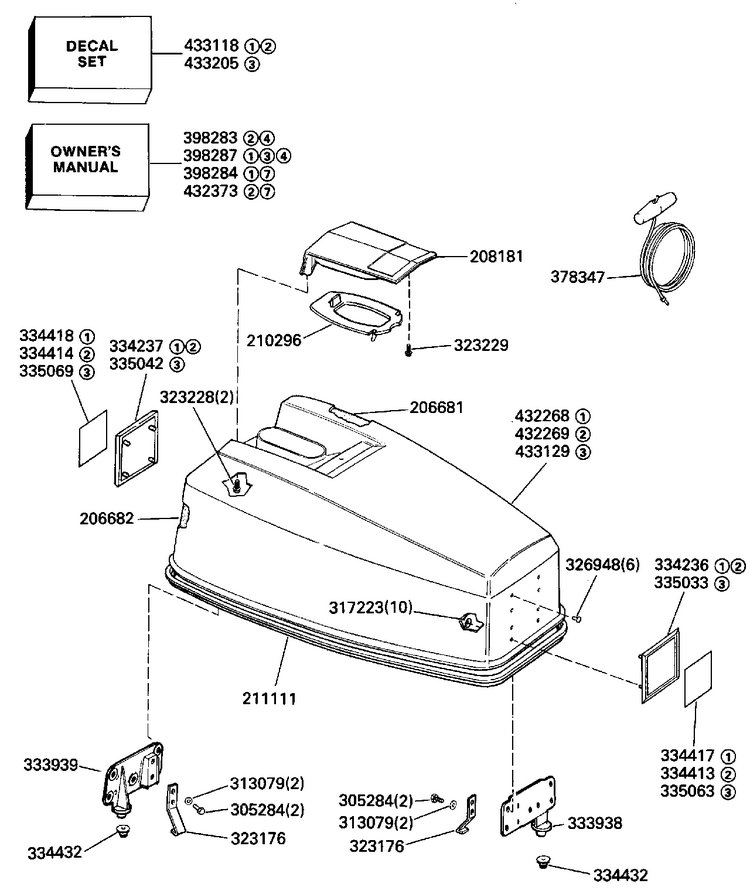

▶ENGINE COVER - JOHNSON 50 (58 parts)

Ref	OEM Part #	Part Name
1	5000736	Cover Ay
2	0334432	*BUMPER
4	0333939	*LOCATING BRACKET, Rear
5	0333938	*LOCATING BRACKET, Front
6	0326948	***RIVET, Locating brackets
7	0335756	PLATE, Rear
8	0335033	*FRAME, Front
9	0341531	*SOUND BLANKET, Top
10	0908158	***SCREW, Anode
11	0323176	*HOOK, Bracket
12	0317223	**FASTENERS, Push on
13	0341532	*SOUND BLANKET, Side
14	0323228	**SCREW
15	0208181	*HANDLE, Tilt
16	0210296	**BAFFLE, Tilt handle
17	0313079	*WASHER, Hook to bracket
18	0211111	**SEAL, Cover, upper
19	0323229	**SCREW, Tilt handle, front
20	0335754	PLATE, Applique
21	0335042	*FRAME, Rear
22	0378347	*ROPE AY, Starter
23	0433205	DECAL AY,SET
24	0433313	OWNER'S MANUAL
0206681	0341531	*SOUND BLANKET, Top
0206682	0341532	*SOUND BLANKET, Side
0208181	0208181	*HANDLE, Tilt
0210296	0210296	**BAFFLE, Tilt handle
0211111	0211111	**SEAL, Cover, upper
0305284	0908158	***SCREW, Anode
0313079	0313079	*WASHER, Hook to bracket
0317223	0317223	**FASTENERS, Push on
0323176	0323176	*HOOK, Bracket
0323228	0323228	**SCREW
0323229	0323229	**SCREW, Tilt handle, front
0326948	0326948	***RIVET, Locating brackets
0333938	0333938	*LOCATING BRACKET, Front
0333939	0333939	*LOCATING BRACKET, Rear
0334236	0334236	FRAME
0334237	0334237	FRAME
0334413	0334413	PLATE
0334414	0334414	PLATE
0334417	0334417	PLATE
0334418	0334418	PLATE
0334432	0334432	*BUMPER
0335033	0335033	*FRAME, Front
0335042	0335042	*FRAME, Rear
0335063	0335063	PLATE
0335069	0335069	PLATE
0378347	0378347	*ROPE AY, Starter
0398283	0398283	89 O/M JO 40/50 R
0398284	0398284	OWNER'S MANUAL
0398287	0398287	89 O/M JO 40/50 EL
0432268	0432268	COVER AY,MOTOR-UPR
0432269	0432269	COVER AY,MOTOR-UPR
0432373	0432373	OWNER'S MANUAL
0433118	0433118	DECAL SET
0433129	5000736	Cover Ay
0433205	0433205	DECAL AY,SET

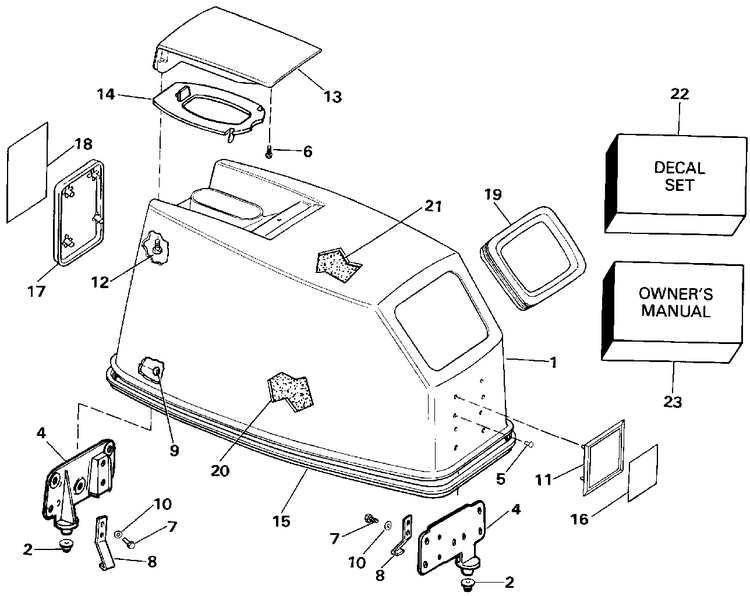

▶ENGINE COVER - JOHNSON ROPE START ONLY (22 parts)

Ref	OEM Part #	Part Name
1	0433660	ENGINE COVER ASSY.
2	0334432	*BUMPER
4	0333937	*LOCATING BRACKET
5	0326948	***RIVET, Locating brackets
6	0323229	**SCREW, Tilt handle, front
7	0908158	***SCREW, Anode
8	0323176	*HOOK, Bracket
9	0317223	**FASTENERS, Push on
10	0313079	*WASHER, Hook to bracket
11	0331486	APPLIQUE
12	0323228	**SCREW
13	0333090	**TILT HANDLE
14	0210296	**BAFFLE, Tilt handle
15	0211111	**SEAL, Cover, upper
16	0334266	PLATE
17	0331420	APPLIQUE, Engine cover
18	0334267	PLATE
19	0332025	**SEAL, Cover bracket
20	0341532	*SOUND BLANKET, Side
21	0341533	*SOUND BLANKET, Top
22	0433115	DECAL SET
23	0433310	OWNER'S MANUAL

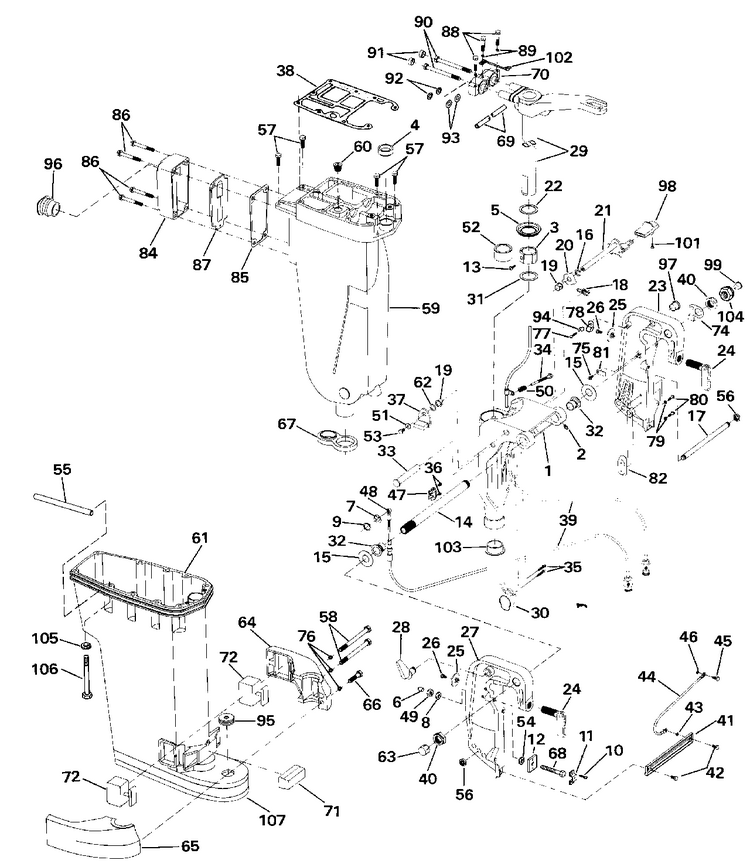

▶EXHAUST HOUSING & STERN & SWIVEL BRACKET (104 parts)

Ref	OEM Part #	Part Name
1	0350642	SWIVEL BRACKET
2	0313607	***LUBE FITTING
3	0329291	*BUSHING
4	0332407	SEAL
5	0332452	SEAL, Upper
6	0318572	Bolt thread protective cap 1/2 in.
7	0328260	E-RING
8	0320248	RONDELLE, écrou
9	0334162	WASHER
10	0319886	*SCREW
11	0318273	Bolt hex retainer 1/2 in.
12	0318272	Nut backing plate (square) 1/2 in.
13	0334682	SCREW
14	0351896	TILT TUBE
15	0317782	THRUST WASHER
16	0321863	**WASHER, Latch
17	0332447	PIN,TILT
18	0334259	CLIP
19	0315081	*BUSHING, Shoulder screw
20	0333765	SPRING
21	0398875	LEVER & SHAFT
22	0320866	RONDELLE DE BUTÉE, arbre d'articulation
23	0344104	STERN BRACKET, Port
24	0388052	*CLAMP SCREW, HANDLE AY, AL
25	0315571	. SWIVEL PLATE
26	0321923	PLATE&SCREW AY
27	0333624	STERN BRACKET, Starboard
28	0431962	LEVER Assy, Tilt assist
29	0433585	ARM & SHAFT Assy
30	0583690	SENDER
31	0333821	WASHER
32	0319787	BUSHING
33	0332435	PIN
34	0908158	***SCREW, Anode
35	0334884	*SCREW
36	0306014	*SCREW, Throttle adjustment
37	0432293	LEVER Assembly, Trail lock
38	0351018	*GASKET, Adapter to powerhead
39	0436202	CABLE, Tilt assist
40	0323599	LOCKNUT
41	0357240	TIE BAR, Stern bracket
42	0908158	***SCREW, Anode
43	0328701	**LOCKWASHER, DOuble-ended bolt
44	0582499	**LEAD, Bonding
45	0908158	***SCREW, Anode
46	0328701	**LOCKWASHER, DOuble-ended bolt
47	0334161	ANCHOR BLOCK
48	0334153	*CONNECTEUR, câble d'accélérateur
49	0363254	NUT, Stern bracket screw
50	0551113	*RESSORT de friction de direction
51	0328703	**WASHER, Screw hook
52	0334337	BUSHING
53	0908158	***SCREW, Anode
54	0307238	RONDELLE
55	0332414	SEAL
56	0122890	*LOCKNUT, Pulley
57	0309705	SCREW
58	0553122	SCREW
59	0433031	EXH. HOUSING, Inner, long
60	0335852	*PLUG
61	0332427	EXH. HSG., Outer, long
62	0314390	RETAINER
63	0317894	*CAP, Tilt tube
64	0332419	LWR MT BRKT
65	0332420	LWR MT BRKT
66	0314949	SCREW
67	0332429	GROMMET
68	0363011	SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm)
69	0344332	SEAL, Steering arm
70	0436470	MOUNT, Upper
71	0332421	MOUNT, Bracket front
72	0333764	MOUNT, Lower
74	0352105	CLAMP, Cable
75	0332226	*SCREW, Air temperature sensor
76	0306470	*LOCK WASHER
77	0308825	*SCREW ROLLER
78	0310442	*CLAMP, TPS lead
79	0327283	**LOCKWASHER
80	0333674	*SCREW, Start button
81	0324952	CLAMP
82	0173029	ANODE
84	0334343	BAFFLE, Exhaust relief
85	0334281	GASKET
86	0323626	SCREW
87	0334879	PLATE, Baffle
88	0306423	BOLT
89	0306470	*LOCK WASHER
90	0333868	SCREW
91	0313581	BUMBER, Mount screw
92	0321232	RETAINER WASHER
93	0313580	WASHER
94	0334341	*ROLLER
95	0321452	GROMMET
96	0334883	GROMMET
97	0321243	*BUSHING, Cable
98	0334438	KNOB
99	0318173	*PLUG, Stop switch
101	0318238	SCREW
102	0582494	GROUND STRAP
103	0332453	THRUST WASHER
104	0322376	NUT, Wiper, tilt tube
105	0301250	**RONDELLE
106	0133022	SCREW
107	0334716	DECAL

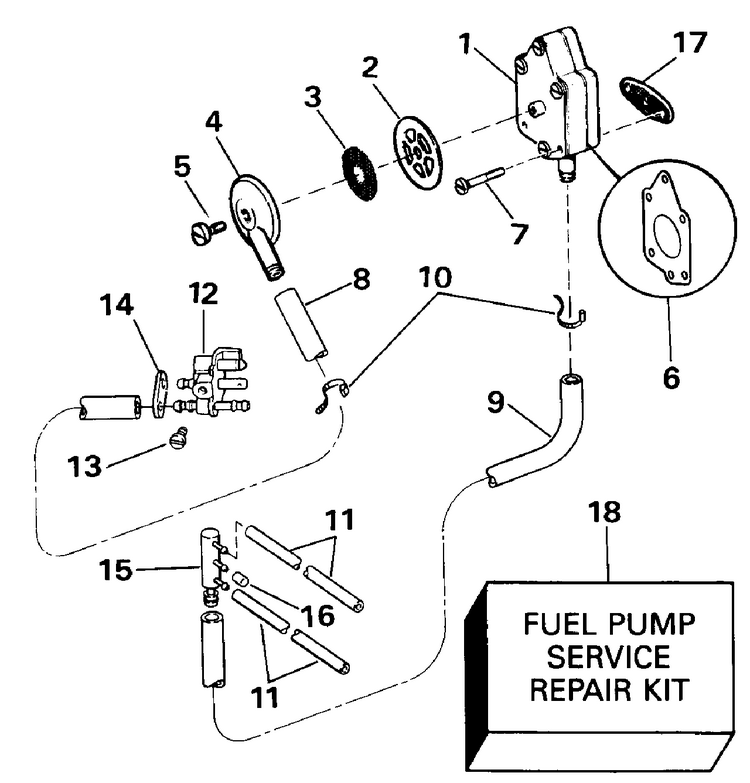

▶FUEL PUMP AND FILTER EARLY PRODUCTION (16 parts)

Ref	OEM Part #	Part Name
1	0438556	FUEL PUMP ASSY.
2	0338879	GASKET, Cap to pump, upper
3	0312675	*SCREEN
4	0330092	CAP Filter
5	0330061	*SCREW, Cap
6	0334640	DIAPHRAGM
7	0314417	*SCREW, Pump to base
10	0320107	** TIE STRAP
11	0329695	HOSE
12	0438793	*CONNECTOR, Fuel
13	0310379	SCREW
14	0330996	*SEAL, Fuel connector
15	5004610	FITTING, Fuel manifold
16	0333264	CAP, Fuel manifold
17	0303615	GASKET
18	0432962	FUEL PMP REP KIT

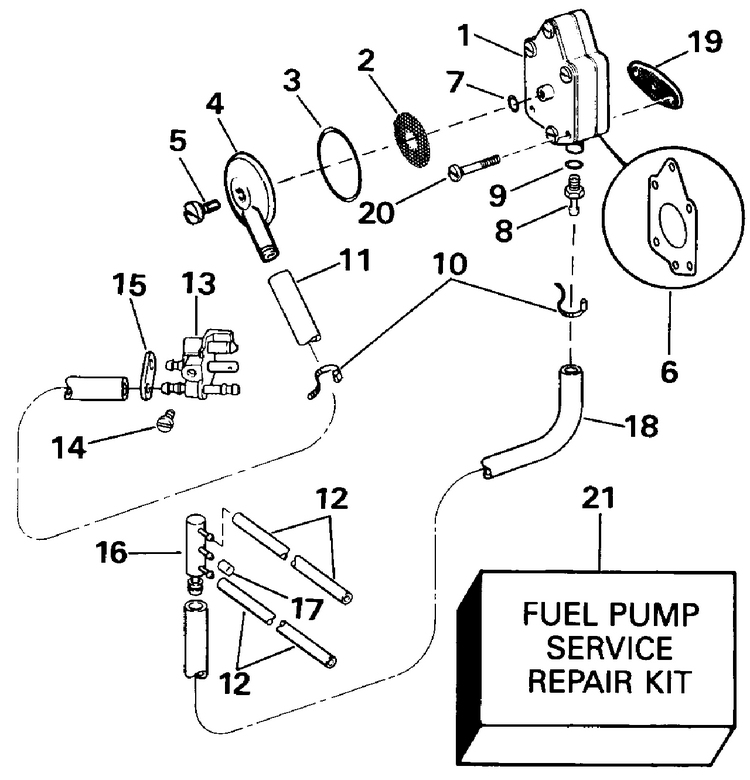

▶FUEL PUMP AND FILTER LATE PRODUCTION (19 parts)

Ref	OEM Part #	Part Name
1	0438556	FUEL PUMP ASSY.
2	0312675	*SCREEN
3	0319528	*O-RING
4	0335335	*CAP, Filter
5	0330061	*SCREW, Cap
6	0332678	*DIAPHRAGM
7	0324660	**O-RING
8	0343576	*FITTING, Outlet
9	0332437	*O-RING, Fitting
10	0320107	** TIE STRAP
12	0329695	HOSE
13	0438793	*CONNECTOR, Fuel
14	0310379	SCREW
15	0330996	*SEAL, Fuel connector
16	5004610	FITTING, Fuel manifold
17	0333264	CAP, Fuel manifold
19	0303615	GASKET
20	0314417	*SCREW, Pump to base
21	0438616	FUEL PUMP REPAIR KIT

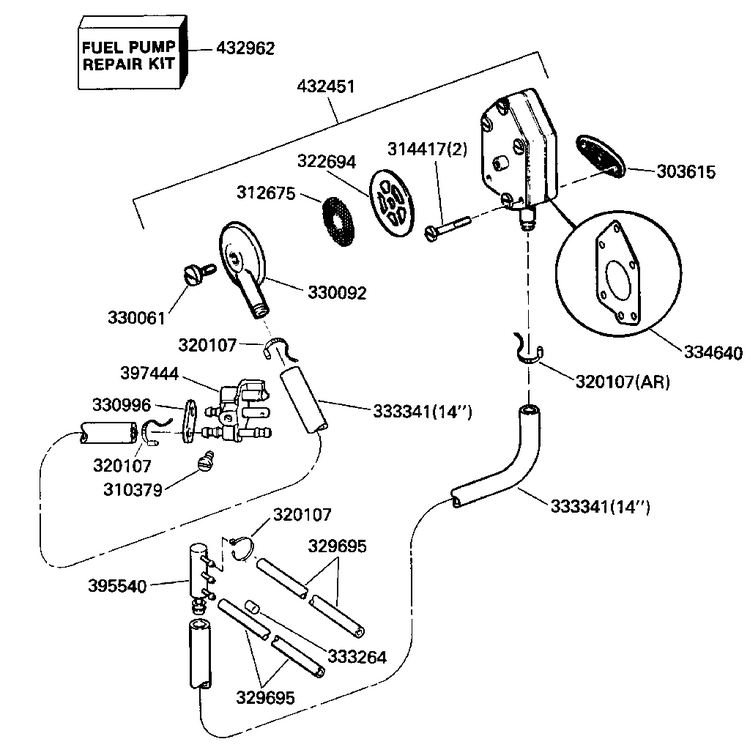

▶FUEL PUMP AND FILTER ROPE - TE - TTL (17 parts)

Ref	OEM Part #	Part Name
0303615	0303615	GASKET
0310379	0310379	SCREW
0312675	0312675	*SCREEN
0314417	0314417	*SCREW, Pump to base
0320107	0320107	** TIE STRAP
0322694	0322694	NO DESCRIPTION
0329695	0329695	HOSE
0330061	0330061	*SCREW, Cap
0330092	0330092	CAP Filter
0330996	0330996	*SEAL, Fuel connector
0333264	0333264	CAP, Fuel manifold
0333341	0772564	* HOSE
0334640	0334640	DIAPHRAGM
0395540	5004610	FITTING, Fuel manifold
0397444	0438793	*CONNECTOR, Fuel
0432451	0438556	FUEL PUMP ASSY.
0432962	0432962	FUEL PMP REP KIT

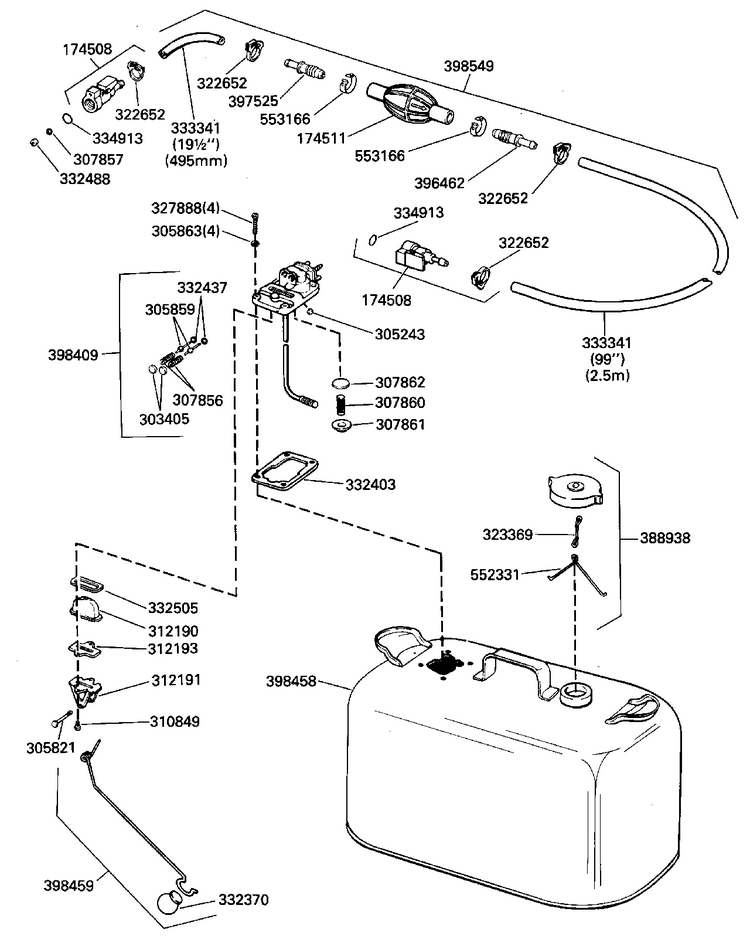

▶FUEL TANK (71 parts)

Ref	OEM Part #	Part Name
1	5008623	FUEL TANK
2	0327888	SCREW
3	0305863	*WASHER, Screw, cover
4	0305821	,PIN, Indicator
5	0398459	FLOAT & INDICATOR
6	0332370	FLOAT
7	0125530	GASKET, Housing to tank
8	0332505	SEAL
9	0312190	LENS
10	0312193	GASKET
11	0312191	SCREW, Indicator support
12	0310849	HOUSING ASSY., Valve
13	0398409	HOUSING
14	0305243	*PLUG, Core
15	0307862	. SPRING, Disc valve
16	0307860	. SPRING, Disc valve
17	0307861	. PIN, Guide
18	0308081	. PIN, Guide
19	0332488	RING, Quad
20	0307857	,,Retainer,valve
21	0303405	. .PLUG, Core
22	0307856	. SPRING, Valve
23	0305859	,,Valve, release
24	0332437	*O-RING, Fitting
25	0388938	CAP ASSY., Fuel
26	0323369	. LINK, Anchor
27	0552331	*ANCHOR, Cap
28	0775640	* QUICK-DISCONNECT FITTING
29	0322652	** CLAMP, Snap
30	0334913	** O-RING
32	0322652	** CLAMP, Snap
33	0397525	** NIPPLE & VALVE ASSY
34	0553166	** CLAMP, Band, large
35	0396462	** NIPLE & VALVE ASSY
37	0336269	BRAIDED SLEEVE
0174508	0775640	* QUICK-DISCONNECT FITTING
0174511	5008605	* PRIMER BULB
0303405	0303405	. .PLUG, Core
0305243	0305243	*PLUG, Core
0305821	0305821	,PIN, Indicator
0305859	0305859	,,Valve, release
0305863	0305863	*WASHER, Screw, cover
0307856	0307856	. SPRING, Valve
0307857	0307857	,,Retainer,valve
0307860	0307860	. SPRING, Disc valve
0307861	0307861	. PIN, Guide
0307862	0307862	. SPRING, Disc valve
0310849	0310849	HOUSING ASSY., Valve
0312190	0312190	LENS
0312191	0312191	SCREW, Indicator support
0312193	0312193	GASKET
0322652	0322652	** CLAMP, Snap
0323369	0323369	. LINK, Anchor
0327888	0327888	SCREW
0332370	0332370	FLOAT
0332403	0125530	GASKET, Housing to tank
0332437	0332437	*O-RING, Fitting
0332488	0332488	RING, Quad
0332505	0332505	SEAL
0332815	0332815	SPARY PAINT, 12 oz., dark red
0333341	0772564	* HOSE
0334913	0334913	** O-RING
0388938	0388938	CAP ASSY., Fuel
0396462	0396462	** NIPLE & VALVE ASSY
0397525	0397525	** NIPPLE & VALVE ASSY
0398409	0398409	HOUSING
0398458	5008623	FUEL TANK
0398459	0398459	FLOAT & INDICATOR
0398549	5008609	FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE
0552331	0552331	*ANCHOR, Cap
0553166	0553166	** CLAMP, Band, large

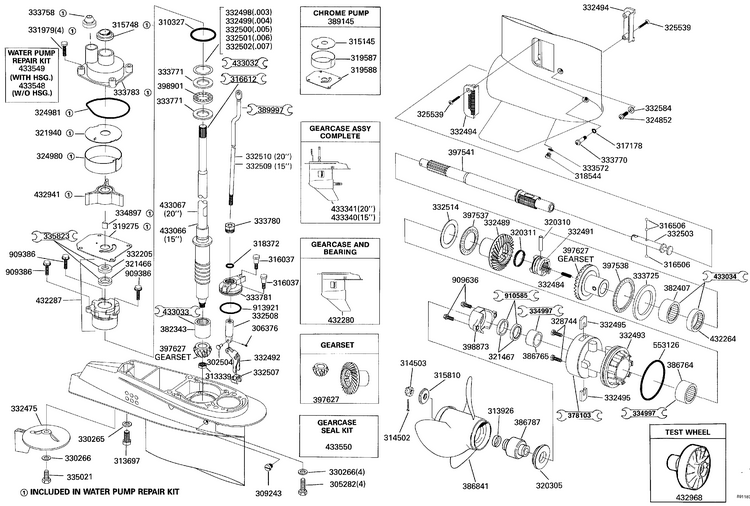

▶GEARCASE (186 parts)

Ref	OEM Part #	Part Name
1	0432280	GEARCASE & BEARING ASSY.
2	0382343	***BEARING, Pinion
3	0324852	***RETAINING SCREW & SEAL
3A	0332584	****WASHER, Seal ring
4	0432264	**BEARING Assy, Fwd gear
5	0382407	***BEARING ASSY, Forward gear
6	0309243	**PLUG, Fill & drain, upper
7	0333572	**O-RING
8	0333780	**BUSHING, Shift rod
10	0318544	**SCREW, Fill & drain
11	0333572	**O-RING
12	0332507	*CRADLE, Shift
13	0332514	*THRUST WASHER
14	0397537	*BEARING, Rev gear thrust
15	0397627	*GEAR SET, Forward
16	0332503	*SHAFT, Shift
17	0332491	*CLUTCH DOG
18	0320310	*PIN, Clutch dog
19	0320311	*SPRING, Clutch dog pin
20	0439138	*PROPELLER SHAFT Assy
21	0332489	*GEAR, Reverse
22	0332495	*RETAINER PLATE, Bearing housing
23	0332484	*SPRING, Shift shaft detent
24	0553126	*O-RING, Bearing housing
25	0332493	BEARING HOUSING
26	0386764	**BEARING Assy, Front
27	0386765	**BEARING Assy, Rear
28	0321467	. OIL RETAINER
29	0328744	**SCREW, Clamp - 1/4-20 x .75
31	0313339	**NUT, Pinion to driveshaft
33	0433067	D-SHAFT AY 20"
34	0398901	*BEARING, Driveshaft thrust
35	0333771	*THRUST WASHER
36	0313277	*SHIM, 0.007 in. (0,16mm)
37	0310327	"O" RING, Gearcase head
38	0435274	*BEARING HOUSING ASSY.
39	0332205	*SEAL, Adapter
40	0321466	. OIL RETAINER, Driveshaft
41	0302504	*PIN, Connector, shift rod
42	0332508	*CONNECTOR, Shift rod
44	0316506	*BALL, Detent
47	0397538	*BEARING, Fwd gear thrust
48	0434588	*COVER, Shift rod
49	0318372	"O" RING, Shift rod
50	0306376	*COTTER PIN
51	3852928	O-RING, Shift actuator housing
52	0332510	*SHIFT ROD
53	0333725	*THRUST WASHER, Forward gear
54	0317178	O RING
55	0333770	*SCREW, Shift lever
56	0909386	**SCREW, Housing to gearcase
57	0332494	SCREEN
58	3852473	SCREW, Cap to gimbal
59	0333783	HOUSING, Impeller
60	0333758	*GROMMET, Water tube
61	0331979	*SCREW
62	0325539	**SCREW, Sceen to gearcase
63	0398873	ANODE AY
64	0341732	*GROMMET, Housing
66	0305282	BOLT, Bowl & suction piece
67	0330266	**WASHER, Trail lock lever
68	0313697	SCR,Grc to hsg.long
69	0330265	*WASHER
71	0330266	**WASHER, Trail lock lever
72	0320305	*Thrust bushing
73	0315810	**SPACER, Impeller nut
74	0314503	**NUT, Impeller
75	0314502	**Cotter Pin
76	0340539	TRIM TAB, Gearcase
77	0330930	**SCREW, Plate - 3/8-16 x 1
79	0341187	*PLATE
80	0334897	**CAM, Impeller to driveshaft
81	0432941	IMPELLER
82	0324981	*SEAL, Impeller housing
86	0315145	PLATE, Chrome
87	0324587	LINER, Impeller housing
88	0390849	PROPELLER, 11-1/2 x 13-SST
89	0386787	*PROPELLER BUSHING Assy
90	0313926	*Propeller Hub Sleeve
91	0389145	CHROME CUP & PLATE KIT
92	0438592	WATER PUMP REPAIR KIT
93	0433550	GEARCASE SEAL KIT
0302504	0302504	*PIN, Connector, shift rod
0305282	0305282	BOLT, Bowl & suction piece
0306376	0306376	*COTTER PIN
0309243	0309243	**PLUG, Fill & drain, upper
0310327	0310327	"O" RING, Gearcase head
0313339	0313339	**NUT, Pinion to driveshaft
0313697	0313697	SCR,Grc to hsg.long
0313926	0313926	*Propeller Hub Sleeve
0314502	0314502	**Cotter Pin
0314503	0314503	**NUT, Impeller
0315145	0315145	PLATE, Chrome
0315748	0341732	*GROMMET, Housing
0315810	0315810	**SPACER, Impeller nut
0316037	0316037	*SCREW, Cover to gearcase
0316506	0316506	*BALL, Detent
0316612	0316612	SOCKET
0317178	0317178	O RING
0318372	0318372	"O" RING, Shift rod
0318544	0318544	**SCREW, Fill & drain
0319275	0341038	*PLATE, Impeller housing
0319587	0319587	CUP,IMPELLER HSG
0319588	0341187	*PLATE
0320305	0320305	*Thrust bushing
0320310	0320310	*PIN, Clutch dog
0320311	0320311	*SPRING, Clutch dog pin
0321466	0321466	. OIL RETAINER, Driveshaft
0321467	0321467	. OIL RETAINER
0321940	0321940	PLATE
0324852	0324852	***RETAINING SCREW & SEAL
0324980	0324980	LINDER, Impeller housing
0324981	0324981	*SEAL, Impeller housing
0325539	0325539	**SCREW, Sceen to gearcase
0328744	0328744	**SCREW, Clamp - 1/4-20 x .75
0330265	0330265	*WASHER
0330266	0330266	**WASHER, Trail lock lever
0331979	0331979	*SCREW
0332205	0332205	*SEAL, Adapter
0332475	0340539	TRIM TAB, Gearcase
0332484	0332484	*SPRING, Shift shaft detent
0332489	0332489	*GEAR, Reverse
0332491	0332491	*CLUTCH DOG
0332492	0332492	*LEVER, Shift
0332493	0332493	BEARING HOUSING
0332494	0332494	SCREEN
0332495	0332495	*RETAINER PLATE, Bearing housing
0332498	0313273	*SHIM, 0.003 in. (0,07mm)
0332499	0313274	*SHIM, 0.004 in. (0,10mm)
0332500	0313275	*SHIM, 0.005 in. (0,12mm)
0332501	0313276	*SHIM, 0.006 in. (0,14mm)
0332502	0313277	*SHIM, 0.007 in. (0,16mm)
0332503	0332503	*SHAFT, Shift
0332507	0332507	*CRADLE, Shift
0332508	0332508	*CONNECTOR, Shift rod
0332509	0332509	*SHIFT ROD
0332510	0332510	*SHIFT ROD
0332514	0332514	*THRUST WASHER
0332584	0332584	****WASHER, Seal ring
0333572	0333572	**O-RING
0333725	0333725	*THRUST WASHER, Forward gear
0333758	0333758	*GROMMET, Water tube
0333770	0333770	*SCREW, Shift lever
0333771	0333771	*THRUST WASHER
0333780	0333780	**BUSHING, Shift rod
0333781	0434588	*COVER, Shift rod
0333783	0333783	HOUSING, Impeller
0334897	0334897	**CAM, Impeller to driveshaft
0334997	0334997	INSTALLER-BRG
0335021	0330930	**SCREW, Plate - 3/8-16 x 1
0335823	0335823	INSTALLER,SEAL
0378103	0378103	FLYWHEEL PULLER
0382343	0382343	***BEARING, Pinion
0382407	0382407	***BEARING ASSY, Forward gear
0386764	0386764	**BEARING Assy, Front
0386765	0386765	**BEARING Assy, Rear
0386787	0386787	*PROPELLER BUSHING Assy
0386841	0386841	PROPELLER
0389145	0389145	CHROME CUP & PLATE KIT
0389997	0389997	GAUGE
0397537	0397537	*BEARING, Rev gear thrust
0397538	0397538	*BEARING, Fwd gear thrust
0397541	0439138	*PROPELLER SHAFT Assy
0397627	0397627	*GEAR SET, Forward
0398873	0398873	ANODE AY
0398901	0398901	*BEARING, Driveshaft thrust
0432264	0432264	**BEARING Assy, Fwd gear
0432280	0432280	GEARCASE & BEARING ASSY.
0432287	0435274	*BEARING HOUSING ASSY.
0432941	0432941	IMPELLER
0432968	0432968	TEST PROP
0433032	0433032	SHIM KIT-D-SHAFT
0433033	0433033	BRG PIN INSTALLE
0433034	0433034	BEARING INSTALER
0433066	0433066	DRIVESHAFT 15"
0433067	0433067	D-SHAFT AY 20"
0433340	0435276	GEARCASE ASSY., Stnd. (15")
0433341	0435277	GEARCASE ASSY., Long (20")
0433548	0438592	WATER PUMP REPAIR KIT
0433549	0438592	WATER PUMP REPAIR KIT
0433550	0433550	GEARCASE SEAL KIT
0553126	0553126	*O-RING, Bearing housing
0909386	0909386	**SCREW, Housing to gearcase
0909636	3852473	SCREW, Cap to gimbal
0910585	0910585	INSTALLER
0913921	3852928	O-RING, Shift actuator housing

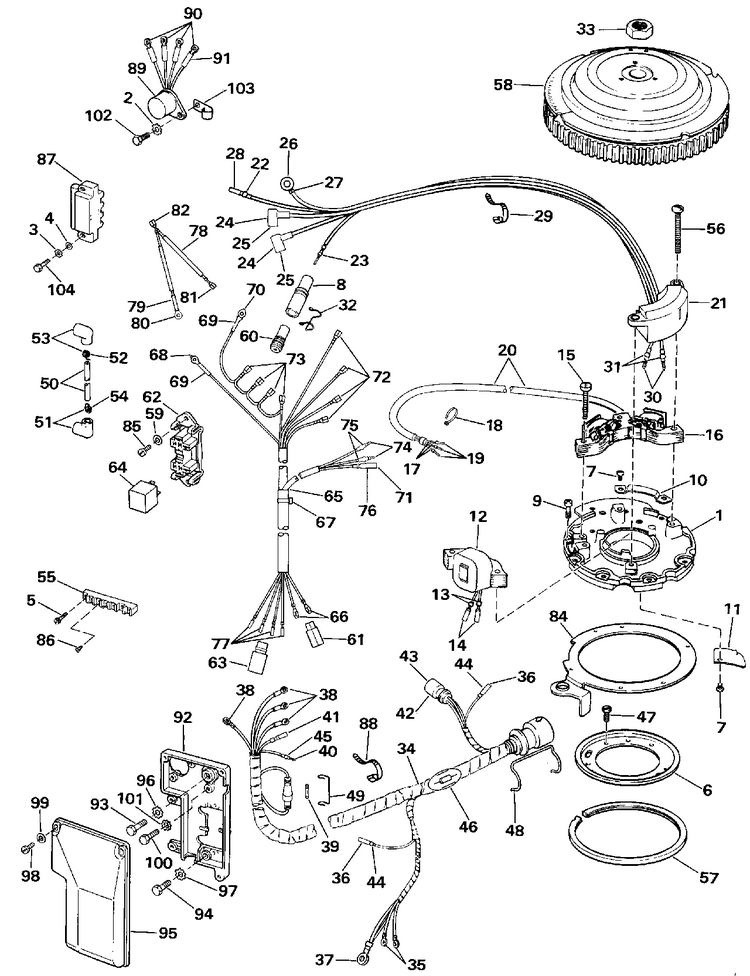

▶IGNITION SYSTEM - ELECTRIC START (104 parts)

Ref	OEM Part #	Part Name
1	0583285	PLAT & SLEEVE ASSY.
2	0303701	*LOCK WASHER, Adjustment screw
3	0328701	**LOCKWASHER, DOuble-ended bolt
4	0328703	**WASHER, Screw hook
5	0309483	*SCREW, Terminal block & rectifier
6	0332063	PLATE, Support
7	0303212	**SCREW, Cover
8	0513357	***CONNECTOR, 1-pin receptacle
9	0511460	**SCREW, Ignition plate
10	0511458	. CLAMP, Leads
11	0511459	. COVER, Leads
12	0584333	CHARGE COIL & LAM. ASSY.
13	0513186	**SHEATH, cell
14	0512876	***TERMINAL, Socket
15	0309545	*SCREW, Stator mounting
16	0584341	STATOR ASSEMBLY
17	0512136	**TUBING
18	0318322	*ATTACHE-CÂBLE
19	0510780	#8 RING TERMIANL
20	0511601	SLEEVE, Leads
21	0584489	IGNITION MODULE
22	0513186	**SHEATH, cell
23	0511469	***TERMINAL, Pin
24	0512478	*COUVERCLE, alvéole bobine primaire
25	0512256	*BROCHE, prise bobine primaire
26	0511829	**RING TERMINAL
27	0510781	* TUBING, Sleeve
28	0512876	***TERMINAL, Socket
29	0317893	** TIE STRAP
30	0512947	***TERMINAL, Bullet
31	0513185	** SLEEVE
32	0512741	**RETAINER, Connector, 1-pin
33	0326111	NUT
34	0583649	CABLE
35	0204036	#10 RING TERMIAL,12v
36	0512876	***TERMINAL, Socket
37	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre
38	0510780	#8 RING TERMIANL
39	0510884	*FUSE, 20 Amp.
40	0512947	***TERMINAL, Bullet
41	0581656	***TERMINAL, Socket
42	0512748	**CONNECTOR, 3-pin
43	0511469	***TERMINAL, Pin
44	0513186	**SHEATH, cell
45	0513185	** SLEEVE
46	0583898	**DIODE
47	0332070	SCREW, Retaining plate
48	0315182	*CLAMP, Cables
49	0321077	**RETAINER
50	0582365	H.T. LEAD ASSEMBLY, Spark plugs to ignition coil
51	0581027	*COVER & TERMINAL Assy, Spark plug
52	0510231	**SPRING
53	0580339	*COVER & TERMINAL Assy, Coil
54	0510231	**SPRING
55	0512762	*TERMINAL BLOCK
56	0513057	SCREW
57	0322435	*BEARING, Timer base plate to
58	0583696	FLYWHEEL ASSEMBLY
59	0328739	*RONDELLE entre ancrage et support
60	0513356	***CONNECTOR, 1-socket plug
61	0325699	. CONNECTOR
62	0334191	**BRACKET
63	0512753	**CONNECTOR, 5 Socket plug
64	0586224	**RELAY ASSY.
65	0583705	CABLE ASSEMBLY
66	0511656	*TERMINAL
67	0320107	** TIE STRAP
68	0510780	#8 RING TERMIANL
69	0510781	* TUBING, Sleeve
70	0512550	**TERMINAL
71	0512876	***TERMINAL, Socket
72	0513166	**TERMINAL, Receptacle
73	0513167	**TERMINAL, Receptacle
74	0512947	***TERMINAL, Bullet
75	0513185	** SLEEVE
76	0513186	**SHEATH, cell
77	0581656	***TERMINAL, Socket
78	0583706	CABLE, Relay
79	0510781	* TUBING, Sleeve
80	0512062	*TERMINAL, Ring
81	0513166	**TERMINAL, Receptacle
82	0513167	**TERMINAL, Receptacle
84	0332790	RETAINER
85	0306643	*SCREW
86	0329182	*SCREW, Ground terminal
87	0583740	COIL Assy
88	0320107	** TIE STRAP
89	0581778	*RECTIFIER & LEAD ASSY.
90	0510780	#8 RING TERMIANL
91	0510781	* TUBING, Sleeve
92	0334189	BRACKET
93	0330930	**SCREW, Plate - 3/8-16 x 1
94	0335020	SCREW, Bracket to block
95	0333757	COVER
96	0307161	**LOCK WASHER, Anode
97	0328701	**LOCKWASHER, DOuble-ended bolt
98	0306643	*SCREW
99	0328735	*WASHER, screw, ball joint
100	0306644	*SCREW, Rectifier mounting
101	0303701	*LOCK WASHER, Adjustment screw
102	0306644	*SCREW, Rectifier mounting
103	0310442	*CLAMP, TPS lead
104	0302325	**SCREW, Impeller housing
0583694	0583694	RELAY & CABLE ASSEMBLY, TNT

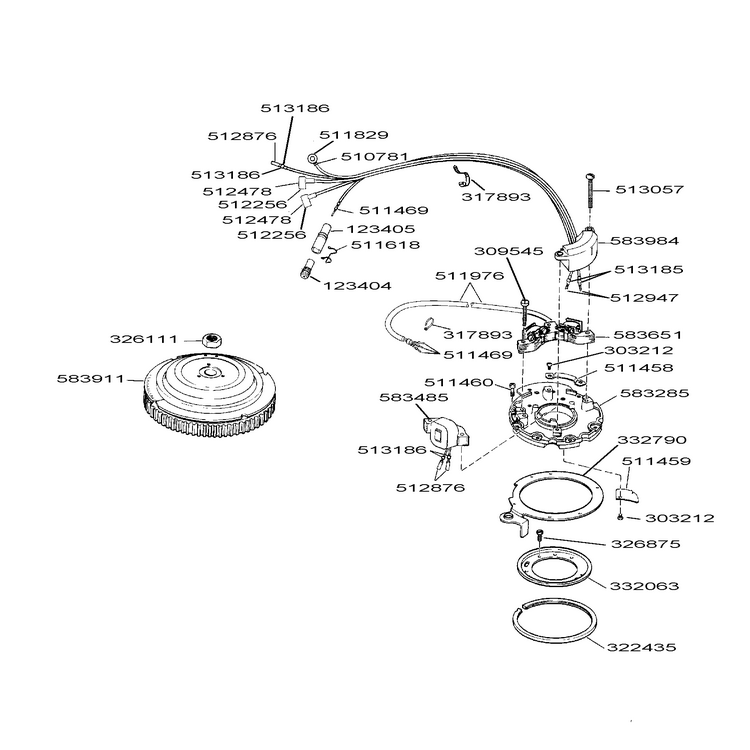

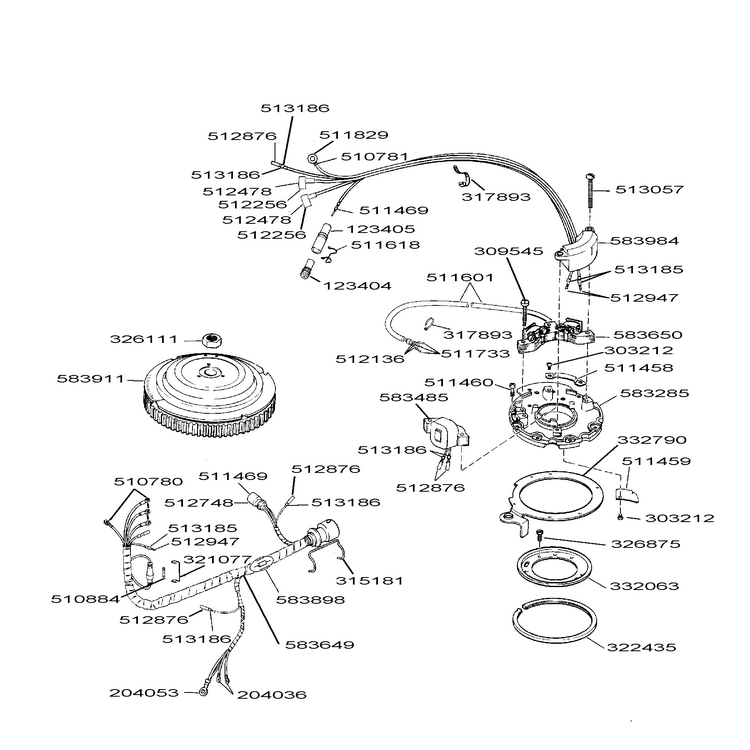

▶IGNITION SYSTEM - ELECTRIC START (Continued) (40 parts)

Ref	OEM Part #	Part Name
0123404	0123404	CONNECTOR, 1-socket plug
0123405	0123405	CONNECTOR
0204036	0204036	#10 RING TERMIAL,12v
0204053	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre
0303212	0303212	**SCREW, Cover
0309545	0309545	*SCREW, Stator mounting
0315181	0315181	CLAMP, Motor cable
0317893	0317893	** TIE STRAP
0321077	0321077	**RETAINER
0322435	0322435	*BEARING, Timer base plate to
0326111	0326111	NUT
0326875	0332070	SCREW, Retaining plate
0332063	0332063	PLATE, Support
0332790	0332790	RETAINER
0510780	0510780	#8 RING TERMIANL
0510781	0510781	* TUBING, Sleeve
0510884	0510884	*FUSE, 20 Amp.
0511458	0511458	. CLAMP, Leads
0511459	0511459	. COVER, Leads
0511460	0511460	**SCREW, Ignition plate
0511469	0511469	***TERMINAL, Pin
0511601	0511601	SLEEVE, Leads
0511618	0511618	*RETAINER, Connector, 2-pin
0511733	0510780	#8 RING TERMIANL
0511829	0511829	**RING TERMINAL
0512256	0512256	*BROCHE, prise bobine primaire
0512478	0512478	*COUVERCLE, alvéole bobine primaire
0512748	0512748	**CONNECTOR, 3-pin
0512876	0512876	***TERMINAL, Socket
0512947	0512947	***TERMINAL, Bullet
0513057	0513057	SCREW
0513185	0513185	** SLEEVE
0513186	0513186	**SHEATH, cell
0583285	0583285	PLAT & SLEEVE ASSY.
0583485	0584333	CHARGE COIL & LAM. ASSY.
0583649	0583649	CABLE
0583650	0584341	STATOR ASSEMBLY
0583898	0583898	**DIODE
0583911	0583696	FLYWHEEL ASSEMBLY
0583984	0584489	IGNITION MODULE

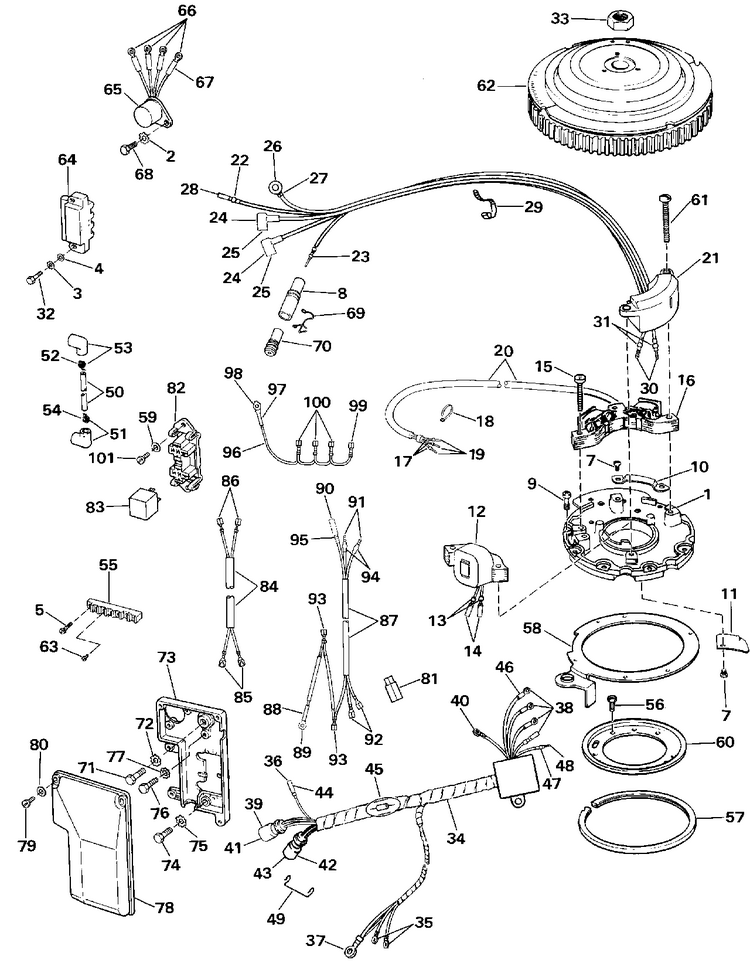

▶IGNITION SYSTEM - ELECTRIC START TE-TTL MODELS (101 parts)

Ref	OEM Part #	Part Name
1	0583285	PLAT & SLEEVE ASSY.
2	0303701	*LOCK WASHER, Adjustment screw
3	0328701	**LOCKWASHER, DOuble-ended bolt
4	0328703	**WASHER, Screw hook
5	0309483	*SCREW, Terminal block & rectifier
7	0303212	**SCREW, Cover
8	0513357	***CONNECTOR, 1-pin receptacle
9	0511460	**SCREW, Ignition plate
10	0511458	. CLAMP, Leads
11	0511459	. COVER, Leads
12	0584333	CHARGE COIL & LAM. ASSY.
13	0513186	**SHEATH, cell
14	0512876	***TERMINAL, Socket
15	0309545	*SCREW, Stator mounting
16	0584341	STATOR ASSEMBLY
17	0512136	**TUBING
18	0318322	*ATTACHE-CÂBLE
19	0510780	#8 RING TERMIANL
20	0511601	SLEEVE, Leads
21	0584489	IGNITION MODULE
22	0513186	**SHEATH, cell
23	0511469	***TERMINAL, Pin
24	0512478	*COUVERCLE, alvéole bobine primaire
25	0512256	*BROCHE, prise bobine primaire
26	0511829	**RING TERMINAL
27	0510781	* TUBING, Sleeve
28	0512876	***TERMINAL, Socket
29	0317893	** TIE STRAP
30	0512947	***TERMINAL, Bullet
31	0513185	** SLEEVE
32	0302325	**SCREW, Impeller housing
33	0326111	NUT
34	0584082	MOTOR CABLE ASSY.
35	0204036	#10 RING TERMIAL,12v
36	0512876	***TERMINAL, Socket
37	0330100	**TERMINAL
38	0511829	**RING TERMINAL
39	0512747	**CONNECTOR, 3-socket
40	0512062	*TERMINAL, Ring
41	0581656	***TERMINAL, Socket
42	0512750	**CONNECTOR, 4-pin
43	0511469	***TERMINAL, Pin
44	0513186	**SHEATH, cell
45	0583898	**DIODE
46	0510781	* TUBING, Sleeve
47	0513185	** SLEEVE
48	0512947	***TERMINAL, Bullet
49	0512742	*RETAINER, Connector
50	0582365	H.T. LEAD ASSEMBLY, Spark plugs to ignition coil
51	0581027	*COVER & TERMINAL Assy, Spark plug
52	0510231	**SPRING
53	0580339	*COVER & TERMINAL Assy, Coil
54	0510231	**SPRING
55	0512762	*TERMINAL BLOCK
56	0332070	SCREW, Retaining plate
57	0322435	*BEARING, Timer base plate to
58	0332790	RETAINER
59	0328739	*RONDELLE entre ancrage et support
60	0332063	PLATE, Support
61	0513057	SCREW
62	0583696	FLYWHEEL ASSEMBLY
63	0318324	*SCREW, Cover mounting
64	0583740	COIL Assy
65	0581778	*RECTIFIER & LEAD ASSY.
66	0510780	#8 RING TERMIANL
67	0510781	* TUBING, Sleeve
68	0306644	*SCREW, Rectifier mounting
69	0512741	**RETAINER, Connector, 1-pin
70	0513356	***CONNECTOR, 1-socket plug
71	0330930	**SCREW, Plate - 3/8-16 x 1
72	0307161	**LOCK WASHER, Anode
73	0334189	BRACKET
74	0335020	SCREW, Bracket to block
75	0328701	**LOCKWASHER, DOuble-ended bolt
76	0309483	*SCREW, Terminal block & rectifier
77	0303701	*LOCK WASHER, Adjustment screw
78	0333757	COVER
79	0306643	*SCREW
80	0328735	*WASHER, screw, ball joint
81	0325699	. CONNECTOR
82	0334191	**BRACKET
83	0586224	**RELAY ASSY.
84	0583955	CABLE AY
85	0511656	*TERMINAL
86	0513166	**TERMINAL, Receptacle
87	0583956	CABLE AY
88	0510781	* TUBING, Sleeve
89	0512062	*TERMINAL, Ring
90	0512876	***TERMINAL, Socket
91	0512947	***TERMINAL, Bullet
92	0513166	**TERMINAL, Receptacle
93	0513167	**TERMINAL, Receptacle
94	0513185	** SLEEVE
95	0513186	**SHEATH, cell
96	0583957	CABLE AY
97	0510781	* TUBING, Sleeve
98	0512550	**TERMINAL
99	0513166	**TERMINAL, Receptacle
100	0513167	**TERMINAL, Receptacle
101	0302325	**SCREW, Impeller housing
0583954	0583954	RELAY & CABLE AY.

▶IGNITION SYSTEM - ELECTRIC START TL MODELS (104 parts)

Ref	OEM Part #	Part Name
1	0583285	PLAT & SLEEVE ASSY.
2	0303701	*LOCK WASHER, Adjustment screw
3	0328701	**LOCKWASHER, DOuble-ended bolt
4	0328703	**WASHER, Screw hook
5	0309483	*SCREW, Terminal block & rectifier
6	0332063	PLATE, Support
7	0303212	**SCREW, Cover
8	0513357	***CONNECTOR, 1-pin receptacle
9	0511460	**SCREW, Ignition plate
10	0511458	. CLAMP, Leads
11	0511459	. COVER, Leads
12	0584333	CHARGE COIL & LAM. ASSY.
13	0513186	**SHEATH, cell
14	0512876	***TERMINAL, Socket
15	0309545	*SCREW, Stator mounting
16	0584341	STATOR ASSEMBLY
17	0512136	**TUBING
18	0318322	*ATTACHE-CÂBLE
19	0510780	#8 RING TERMIANL
20	0511601	SLEEVE, Leads
21	0584489	IGNITION MODULE
22	0513186	**SHEATH, cell
23	0511469	***TERMINAL, Pin
24	0512478	*COUVERCLE, alvéole bobine primaire
25	0512256	*BROCHE, prise bobine primaire
26	0511829	**RING TERMINAL
27	0510781	* TUBING, Sleeve
28	0512876	***TERMINAL, Socket
29	0317893	** TIE STRAP
30	0512947	***TERMINAL, Bullet
31	0513185	** SLEEVE
32	0512741	**RETAINER, Connector, 1-pin
33	0326111	NUT
34	0583649	CABLE
35	0204036	#10 RING TERMIAL,12v
36	0512876	***TERMINAL, Socket
37	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre
38	0510780	#8 RING TERMIANL
39	0510884	*FUSE, 20 Amp.
40	0512947	***TERMINAL, Bullet
41	0581656	***TERMINAL, Socket
42	0512748	**CONNECTOR, 3-pin
43	0511469	***TERMINAL, Pin
44	0513186	**SHEATH, cell
45	0513185	** SLEEVE
46	0583898	**DIODE
47	0332070	SCREW, Retaining plate
48	0315182	*CLAMP, Cables
49	0321077	**RETAINER
50	0582365	H.T. LEAD ASSEMBLY, Spark plugs to ignition coil
51	0581027	*COVER & TERMINAL Assy, Spark plug
52	0510231	**SPRING
53	0580339	*COVER & TERMINAL Assy, Coil
54	0510231	**SPRING
55	0512762	*TERMINAL BLOCK
56	0513057	SCREW
57	0322435	*BEARING, Timer base plate to
58	0583696	FLYWHEEL ASSEMBLY
59	0328739	*RONDELLE entre ancrage et support
60	0513356	***CONNECTOR, 1-socket plug
61	0325699	. CONNECTOR
62	0334191	**BRACKET
63	0512753	**CONNECTOR, 5 Socket plug
64	0586224	**RELAY ASSY.
65	0583705	CABLE ASSEMBLY
66	0511656	*TERMINAL
67	0320107	** TIE STRAP
68	0510780	#8 RING TERMIANL
69	0510781	* TUBING, Sleeve
70	0512550	**TERMINAL
71	0512876	***TERMINAL, Socket
72	0513166	**TERMINAL, Receptacle
73	0513167	**TERMINAL, Receptacle
74	0512947	***TERMINAL, Bullet
75	0513185	** SLEEVE
76	0513186	**SHEATH, cell
77	0581656	***TERMINAL, Socket
78	0583706	CABLE, Relay
79	0510781	* TUBING, Sleeve
80	0512062	*TERMINAL, Ring
81	0513166	**TERMINAL, Receptacle
82	0513167	**TERMINAL, Receptacle
84	0332790	RETAINER
85	0306643	*SCREW
86	0329182	*SCREW, Ground terminal
87	0583740	COIL Assy
88	0320107	** TIE STRAP
89	0581778	*RECTIFIER & LEAD ASSY.
90	0510780	#8 RING TERMIANL
91	0510781	* TUBING, Sleeve
92	0334189	BRACKET
93	0330930	**SCREW, Plate - 3/8-16 x 1
94	0335020	SCREW, Bracket to block
95	0333757	COVER
96	0307161	**LOCK WASHER, Anode
97	0328701	**LOCKWASHER, DOuble-ended bolt
98	0306643	*SCREW
99	0328735	*WASHER, screw, ball joint
100	0306644	*SCREW, Rectifier mounting
101	0303701	*LOCK WASHER, Adjustment screw
102	0306644	*SCREW, Rectifier mounting
103	0310442	*CLAMP, TPS lead
104	0302325	**SCREW, Impeller housing
0583694	0583694	RELAY & CABLE ASSEMBLY, TNT

▶IGNITION SYSTEM - ROPE START (55 parts)

Ref	OEM Part #	Part Name
1	0583285	PLAT & SLEEVE ASSY.
2	0328701	**LOCKWASHER, DOuble-ended bolt
3	0328703	**WASHER, Screw hook
4	0513357	***CONNECTOR, 1-pin receptacle
5	0513356	***CONNECTOR, 1-socket plug
6	0512741	**RETAINER, Connector, 1-pin
7	0303212	**SCREW, Cover
8	0302325	**SCREW, Impeller housing
9	0511460	**SCREW, Ignition plate
10	0511458	. CLAMP, Leads
11	0511459	. COVER, Leads
12	0584333	CHARGE COIL & LAM. ASSY.
13	0513186	**SHEATH, cell
14	0512876	***TERMINAL, Socket
15	0309545	*SCREW, Stator mounting
21	0584489	IGNITION MODULE
22	0513186	**SHEATH, cell
23	0511469	***TERMINAL, Pin
24	0512478	*COUVERCLE, alvéole bobine primaire
25	0512256	*BROCHE, prise bobine primaire
26	0511829	**RING TERMINAL
27	0510781	* TUBING, Sleeve
28	0512876	***TERMINAL, Socket
29	0317893	** TIE STRAP
30	0512947	***TERMINAL, Bullet
31	0513185	** SLEEVE
32	0513029	SPACER
33	0326111	NUT
34	0583675	LEAD ASSY., Module to temp. switch
35	0512876	***TERMINAL, Socket
36	0512947	***TERMINAL, Bullet
37	0513185	** SLEEVE
38	0513186	**SHEATH, cell
39	0332063	PLATE, Support
40	0322435	*BEARING, Timer base plate to
41	0332070	SCREW, Retaining plate
42	0332790	RETAINER
43	0513057	SCREW
44	0583740	COIL Assy
45	0583696	FLYWHEEL ASSEMBLY
46	0328735	*WASHER, screw, ball joint
47	0306643	*SCREW
48	0333757	COVER
49	0334189	BRACKET
50	0582365	H.T. LEAD ASSEMBLY, Spark plugs to ignition coil
51	0581027	*COVER & TERMINAL Assy, Spark plug
52	0510231	**SPRING
53	0580339	*COVER & TERMINAL Assy, Coil
54	0510231	**SPRING
55	0330930	**SCREW, Plate - 3/8-16 x 1
56	0307161	**LOCK WASHER, Anode
57	0328714	**SCREW, Clip
58	0303701	*LOCK WASHER, Adjustment screw
59	0335020	SCREW, Bracket to block
60	0328701	**LOCKWASHER, DOuble-ended bolt

▶IGNITION SYSTEM - ROPE START (Continued) (30 parts)

Ref	OEM Part #	Part Name
0123404	0123404	CONNECTOR, 1-socket plug
0123405	0123405	CONNECTOR
0303212	0303212	**SCREW, Cover
0309545	0309545	*SCREW, Stator mounting
0317893	0317893	** TIE STRAP
0322435	0322435	*BEARING, Timer base plate to
0326111	0326111	NUT
0326875	0332070	SCREW, Retaining plate
0332063	0332063	PLATE, Support
0332790	0332790	RETAINER
0510781	0510781	* TUBING, Sleeve
0511458	0511458	. CLAMP, Leads
0511459	0511459	. COVER, Leads
0511460	0511460	**SCREW, Ignition plate
0511469	0511469	***TERMINAL, Pin
0511618	0511618	*RETAINER, Connector, 2-pin
0511829	0511829	**RING TERMINAL
0511976	0511976	TUBING
0512256	0512256	*BROCHE, prise bobine primaire
0512478	0512478	*COUVERCLE, alvéole bobine primaire
0512876	0512876	***TERMINAL, Socket
0512947	0512947	***TERMINAL, Bullet
0513057	0513057	SCREW
0513185	0513185	** SLEEVE
0513186	0513186	**SHEATH, cell
0583285	0583285	PLAT & SLEEVE ASSY.
0583485	0584333	CHARGE COIL & LAM. ASSY.
0583651	0584059	AC LIGHTING KIT
0583911	0583696	FLYWHEEL ASSEMBLY
0583984	0584489	IGNITION MODULE

▶INTAKE MANIFOLD (62 parts)

Ref	OEM Part #	Part Name
1	0329396	COVER
2	0306418	*SCREW, Anchor block lower
3	0335633	GASKET
6	0306474	SCREW
7	0389810	LEAF PLATE
8	0327074	*SCREW
9	0323601	*BUTÉE DE CLAPET
10	0308947	*LEAF VALVE
11	0323412	*CALE
12	0328694	*SCREW, Bracket
13	0328735	*WASHER, screw, ball joint
14	0329418	LEVER, Synchronization adj.
15	0318165	DISPOSITIF DE RETENUE, tringlerie de carburateur
16	0333766	ANCHOR BLOCK
17	0334175	RETAINER
18	0303701	*LOCK WASHER, Adjustment screw
19	0433684	MANIFOLD Assy
20	0314497	*STUD, Carburetor mounting
21	0325659	*FITTING
22	0431994	BASE, Air silencer
23	0306409	*SCREW, Anchor block lower
24	0325092	GASKET
25	0316355	BUT, Carburetor mounting
26	0333706	**SCREW, Bearing housing to gearcase
27	0328724	***SCREW
28	0328714	**SCREW, Clip
31	0317893	** TIE STRAP
33	0320107	** TIE STRAP
34	0300646	*SCREW, Clamp, fuel filter
35	0330910	GASKET
36	0330698	GASKET
37	0329888	LINK
0306409	0306409	*SCREW, Anchor block lower
0306418	0306418	*SCREW, Anchor block lower
0306474	0306474	SCREW
0308947	0308947	*LEAF VALVE
0314497	0314497	*STUD, Carburetor mounting
0316355	0316355	BUT, Carburetor mounting
0317739	0317739	*LEAF VALVE
0317893	0317893	** TIE STRAP
0320107	0320107	** TIE STRAP
0323412	0323412	*CALE
0323601	0323601	*BUTÉE DE CLAPET
0325092	0325092	GASKET
0325659	0325659	*FITTING
0327074	0327074	*SCREW
0327228	0772571	**HOSE
0328694	0328694	*SCREW, Bracket
0329239	0333706	**SCREW, Bearing housing to gearcase
0329396	0329396	COVER
0330675	0330675	*LEAF STOP
0330698	0330698	GASKET
0330909	0330909	GASKET
0330910	0330910	GASKET
0330912	0330912	COVER, Air silencer
0332226	0332226	*SCREW, Air temperature sensor
0333522	0333522	BASE
0335633	0335633	GASKET
0389810	0389810	LEAF PLATE
0395361	0431994	BASE, Air silencer
0395442	0395442	LEAF PLATE ASSEMBLY
0433564	0433684	MANIFOLD Assy

▶LOWER ENGINE COVER (50 parts)

Ref	OEM Part #	Part Name
1	0344240	BRACKET, Fuel conn.
2	5004984	Lmc Ay
3	0332413	MOUNT
4	0320521	GROMMET
5	5004985	Lmc Ay
6	0340213	GROMMET, Cable
7	0332416	*GROMMET
8	0332415	SCREW
9	0321452	GROMMET
10	0332406	*PIN, Exhaust housing
11	0551793	SCREW
12	0912127	**SCREW, Hook
13	0344332	SEAL, Steering arm
14	0333772	BRACKET
15	0330253	HOOK Front
16	0553766	**BOW WASHER
17	0328703	**WASHER, Screw hook
18	0396611	***HANDLE, Latch
19	0334851	BUSHING
20	0321863	**WASHER, Latch
21	0334164	GROMMET
22	0332478	*GROMMET
23	0335694	*PLUG, Lower cover
0320521	0320521	GROMMET
0321452	0321452	GROMMET
0321863	0321863	**WASHER, Latch
0328703	0328703	**WASHER, Screw hook
0330253	0330253	HOOK Front
0332406	0332406	*PIN, Exhaust housing
0332412	5004985	Lmc Ay
0332413	0332413	MOUNT
0332415	0332415	SCREW
0332416	0332416	*GROMMET
0332441	0344332	SEAL, Steering arm
0332478	0332478	*GROMMET
0333511	5004984	Lmc Ay
0333759	0333759	BRACKET
0333760	0344240	BRACKET, Fuel conn.
0333761	0333761	BRACKET
0333772	0333772	BRACKET
0334164	0334164	GROMMET
0334462	0340213	GROMMET, Cable
0334833	0335694	*PLUG, Lower cover
0334843	0334843	SCREW
0334851	0334851	BUSHING
0334952	0334952	MTR CVR-LWR
0396611	0396611	***HANDLE, Latch
0551793	0551793	SCREW
0553766	0553766	**BOW WASHER
0912127	0912127	**SCREW, Hook

▶PAINT CHART (0 parts)

▶POWER TILT & TRIM (86 parts)

Ref	OEM Part #	Part Name
1	0438135	*HYCRAULIC LIFT ASSY.
2	0160084	**BALL
3	0302290	**WASHER
4	0320780	**SCREW, Motor & reservoir
5	0321357	**O-RING
6	0321942	**SCREW, Oil pump to manifold, short
7	0333496	**SPRING, Housing to poppet
8	0335128	HOUSING,VALVE
9	0335129	**O-RING, Manifold to housing
10	0335131	**FILTER, Reservoir
11	0335132	**O-RING, Manifold to housing
12	0335133	**O-RING, Valve seat
13	0335134	**POPPET, Check valve
14	0335136	**SPOOL, Shuttle
15	0335137	**SEAT, Poppet valve
16	0335138	**PLUG, Retainer
17	0335140	**PLUG, Retainer
18	0335141	**DRIVE COUPLING
19	0335142	**WASHER, Piston to tilt rod
20	0435566	**CAP ASSY.
21	0335148	***SEAL, Tilt rod
22	0335149	***O-RING, End cap
23	0335154	***WIPER
24	0335155	***RING, Backup
25	0335156	**GUIDE, Ball
26	0335157	SPRING
27	0335158	NEEDLE
28	0335159	**NUT, Tilt rod
29	0335171	**VALVE SEAT
30	0335657	**FILL PLUG
31	0335658	**O-RING, Fill plug
32	0335659	RETAINING RING, Manual release
33	0335660	**O-RING, Valve seat
34	0335661	**SEAL, Manifold
35	0335662	O-RING, Piston pump
36	0335663	**FILTER, Oil pump
37	0389836	**OIL PUMP ASSY.
38	0433225	**ROD & EYE ASSY.
39	0433226	MOTOR & CABLE ASSEMBLY
40	0800128	BALL
41	0335143	***O-RING, Piston
42	0438135	*HYCRAULIC LIFT ASSY.
43	0335153	**SPRING, Relief valve
44	0433814	**PISTON ASSY.
45	0332434	*BUSHING, CYLINDER TO BRACKET
46	0332436	*BUSHING, Cylinder to bracket
47	0325698	CONNECTOR
48	0582499	**LEAD, Bonding
49	0435567	*O-RING & SEAL KIT
0160084	0160084	**BALL
0302290	0302290	**WASHER
0320780	0320780	**SCREW, Motor & reservoir
0321942	0321942	**SCREW, Oil pump to manifold, short
0325698	0325698	CONNECTOR
0332434	0332434	*BUSHING, CYLINDER TO BRACKET
0332436	0332436	*BUSHING, Cylinder to bracket
0333496	0333496	**SPRING, Housing to poppet
0335128	0335128	HOUSING,VALVE
0335131	0335131	**FILTER, Reservoir
0335134	0335134	**POPPET, Check valve
0335136	0335136	**SPOOL, Shuttle
0335137	0335137	**SEAT, Poppet valve
0335138	0335138	**PLUG, Retainer
0335140	0335140	**PLUG, Retainer
0335141	0335141	**DRIVE COUPLING
0335142	0335142	**WASHER, Piston to tilt rod
0335151	0438135	*HYCRAULIC LIFT ASSY.
0335153	0335153	**SPRING, Relief valve
0335156	0335156	**GUIDE, Ball
0335157	0335157	SPRING
0335158	0335158	NEEDLE
0335159	0335159	**NUT, Tilt rod
0335171	0335171	**VALVE SEAT
0335657	0335657	**FILL PLUG
0335659	0335659	RETAINING RING, Manual release
0335660	0335660	**O-RING, Valve seat
0335663	0335663	**FILTER, Oil pump
0389836	0389836	**OIL PUMP ASSY.
0397532	0438135	*HYCRAULIC LIFT ASSY.
0433225	0433225	**ROD & EYE ASSY.
0433226	0433226	MOTOR & CABLE ASSEMBLY
0433814	0433814	**PISTON ASSY.
0433815	0435566	**CAP ASSY.
0433816	0435567	*O-RING & SEAL KIT
0583960	0582499	**LEAD, Bonding
0800128	0800128	BALL

▶POWER TRIM/TILT ELECTRICAL (62 parts)

Ref	OEM Part #	Part Name
1	0310981	. SCREW, Junction box mounting
2	0174679	KIT JAUGE CORRECTION D'ASSIETTE/RELEVAGE
3	0125432	*AMPOULE
4	0122553	*BULB SOCKET
5	0583255	LEAD ASSEMBLY
6	0310523	,Terminal
7	0310572	,Housing, connector
8	0510780	#8 RING TERMIANL
9	0125409	BRACKET
10	0125410	*ÉCROU
11	0125411	*LOCK WASHER
13	0583205	28' TRIM HARNESS
14	0512904	BULLET TERMINAL
15	0309474	. . . CONNECTOR
16	0309433	**BORNE
17	0512754	*CONNECTOR
18	0310572	,Housing, connector
19	0511469	***TERMINAL, Pin
20	0511829	**RING TERMINAL
21	0511465	***CONNECTOR, 3-pin recepticale
22	0511496	**PLUG, Seal
23	0317000	*CABLE, Starter cable
24	0582093	LEAD ASSY
25	0510151	. . TERMINAL
26	0511469	***TERMINAL, Pin
27	0512743	*RETAINER
28	0585146	*SWITCH ASSEMBLY
29	0512947	***TERMINAL, Bullet
30	0513185	** SLEEVE
31	0512876	***TERMINAL, Socket
32	0513186	**SHEATH, cell
33	0334656	**NUT
0125409	0125409	BRACKET
0125410	0125410	*ÉCROU
0125411	0125411	*LOCK WASHER
0125415	0125415	LOCKWASHER
0125432	0125432	*AMPOULE
0125553	0125553	BULB SOCKET
0174679	0174679	KIT JAUGE CORRECTION D'ASSIETTE/RELEVAGE
0309433	0309433	**BORNE
0309474	0309474	. . . CONNECTOR
0310572	0310572	,Housing, connector
0310981	0310981	. SCREW, Junction box mounting
0317000	0317000	*CABLE, Starter cable
0334656	0334656	**NUT
0510151	0510151	. . TERMINAL
0510780	0510780	#8 RING TERMIANL
0511465	0511465	***CONNECTOR, 3-pin recepticale
0511469	0511469	***TERMINAL, Pin
0511496	0511496	**PLUG, Seal
0511829	0511829	**RING TERMINAL
0512743	0512743	*RETAINER
0512754	0512754	*CONNECTOR
0512876	0512876	***TERMINAL, Socket
0512904	0512904	BULLET TERMINAL
0512947	0512947	***TERMINAL, Bullet
0513185	0513185	** SLEEVE
0513186	0513186	**SHEATH, cell
0582092	0582093	LEAD ASSY
0583205	0583205	28' TRIM HARNESS
0583255	0583255	LEAD ASSEMBLY
0583803	0585146	*SWITCH ASSEMBLY

▶PRIMER SYSTEM - ELECTRIC START (37 parts)

Ref	OEM Part #	Part Name
1	5007356	Kit Ay
2	0510780	#8 RING TERMIANL
3	0331365	***O-RING
4	0510818	***TERMINAL, Ring
5	0330121	**SCREW, Cover to housing
6	0511807	COVER&GASKET AY
7	0333448	GASKET
8	0511809	**PLUNGER
10	0332365	**FILTER, Valve housing
11	0511812	**LEVER & VALVE
12	0511986	**SPRING VALVE
13	0511987	**SPRING, Plunger
14	0333447	**VALVE, Plunger
15	0329182	*SCREW, Ground terminal
16	0317893	** TIE STRAP
19	0329217	**SCREW, Retainer
20	0330118	CLAMP
0317893	0317893	** TIE STRAP
0327228	0772571	**HOSE
0327229	0772568	FLEXIBLE, solénoïde d'amorçage vers raccord amorçage tribord, 14" (356 mm)
0328701	0328701	**LOCKWASHER, DOuble-ended bolt
0329182	0329182	*SCREW, Ground terminal
0329217	0329217	**SCREW, Retainer
0330118	0330118	CLAMP
0330121	0330121	**SCREW, Cover to housing
0331365	0331365	***O-RING
0332365	0332365	**FILTER, Valve housing
0333447	0333447	**VALVE, Plunger
0333448	0333448	GASKET
0397909	5007356	Kit Ay
0510780	0510780	#8 RING TERMIANL
0510818	0510818	***TERMINAL, Ring
0511807	0511807	COVER&GASKET AY
0511809	0511809	**PLUNGER
0511812	0511812	**LEVER & VALVE
0511986	0511986	**SPRING VALVE
0511987	0511987	**SPRING, Plunger

▶PRIMER SYSTEM - MANUAL START (38 parts)

Ref	OEM Part #	Part Name
1	0329670	NUT
2	5007336	Kit Ay
3	0331365	***O-RING
4	0331364	*O-RING
5	0331366	*O-RING
6	0432145	*END CAP & O-RING
7	0333639	**O-RING
8	0326334	*WASHER, O-ring
9	0432143	*PLUNGER & VALVE Assy
10	0326338	*RETAINER
11	0333540	*SPRING
12	0330992	0-RING
14	0334364	SCREW, Power knob
15	0329054	SCREW
18	0334365	KNOB
21	0325569	* TEE, Primer solenoid hoses
22	0320107	** TIE STRAP
26	0317893	** TIE STRAP
0320107	0320107	** TIE STRAP
0325569	0325569	* TEE, Primer solenoid hoses
0326334	0326334	*WASHER, O-ring
0326338	0326338	*RETAINER
0327228	0772571	**HOSE
0327229	0772568	FLEXIBLE, solénoïde d'amorçage vers raccord amorçage tribord, 14" (356 mm)
0329054	0329054	SCREW
0329670	0329670	NUT
0330992	0330992	0-RING
0331364	0331364	*O-RING
0331365	0331365	***O-RING
0331366	0331366	*O-RING
0333540	0333540	*SPRING
0333639	0333639	**O-RING
0334364	0334364	SCREW, Power knob
0334365	0334365	KNOB
0394337	0394337	*HOUSING & NIPPLE Assy
0432142	5007336	Kit Ay
0432143	0432143	*PLUNGER & VALVE Assy
0432145	0432145	*END CAP & O-RING

▶REMOTE CONTROL (188 parts)

Ref	OEM Part #	Part Name
1	0324831	*CAP
2	0390610	*SHIFT LEVER ASSY.
3	0393219	*CAM, Shift lockout
4	0585992	HORN
5	0320107	** TIE STRAP
6	0306643	*SCREW
7	0306559	*SCREW, Ignition switch
8	0205042	*SCREW, Switch to lever
9	0336245	**SCREW, Single control, portside
10	0325790	*SPRING, Friction adjusting screw
11	0324524	*SCREW, Mounting bracket switch
12	0323776	**CLEVIS PIN, Shift & throttle lever
13	0321888	*ROLLER, Detent, shift & thr. plate
14	0332179	*PUSH KNOB KEY
15	0323764	*BUSHING, Cam, hub cover
16	0323769	*RETAINER PLATE
17	0325780	*SPRING WASHER, Cam to housing
18	0175946	HOUSING & COVER ASSY.
19	0308527	. SCREW, Access cover to housing
20	0332200	CREW,. Ground
21	0320978	*PLUG
22	0334762	PLUG
23	0397272	*SHIFT & THROTTLE PLATE ASSY.
24	0323766	*MOUNTING PLATE, Neutral start switch
25	0321966	*SPACER
26	0350143	*APPLIQUE
27	0332428	*SLIDE, Neutral lock
28	0323775	*SCREW, Handle
29	0323762	GROMMET
30	0323757	*BUSHING, Throttle lever
31	0318321	**WASHER, Remote control to boat
32	0318322	*ATTACHE-CÂBLE
33	0318324	*SCREW, Cover mounting
34	0318349	**NUT, Mounting screw
35	0323772	*SCREW, Plate
36	0323773	*SPRING, Slide return
37	0393301	*SWITCH & KEY ASSEMBLEY
38	0394032	*THROTTLE LEVER ASSY.
39	0391036	*KNOB & FRICTION ADJ. SCREW ASSY.
40	0331050	*LATCH, Fast idle lever
41	0389265	*SWITCH ASSY., Neutral
42	0393129	CABLE
43	0204036	#10 RING TERMIAL,12v
44	0309437	**CLIP, drapeau
45	0204038	. . . RING TERMINAL
46	0390760	. LEAD ASSY
47	0336846	**BORNE
48	0581656	***TERMINAL, Socket
49	0327166	**TERMINAL, Ring
50	0511990	***CONNECTOR, 3-socket
51	0581959	. LEAD ASSY., Ground
52	0393132	EMERGECY IGNITION CUT-OFF SWITCH ASSY.
53	0323765	*WAVE WASHER, Shift & thr. hub
54	0323771	*PLATE, Slide control lever
55	0318625	*SPRING, Detent
56	0323763	GROMMET
57	0389267	*FRICTION ADJUSTMENT LEVER
58	0325191	*NUT, Friction lever
59	0318228	*WASHER, Fast idle lever
60	0318277	*SCREW
61	0336241	*KNOB, Handle
62	0321889	*SHOE, Detent, shift & throttle plate
63	0322012	*SEPARATOR, Levers
64	0318277	*SCREW
65	0323749	*BUSHING, Shift & throttle plate
66	0325779	*BUSHING, Fast idle lever
67	0325781	*LEVER, Shift lockout
68	0306396	**LOCK WASHER, Control to boat
69	0127152	*INDEX PLATE, Neutral lock
70	0395821	SWITCH & LEAD ASSEMBLY
71	0313113	**CONNECTEUR
72	0825886	TERMINAL
73	0336242	*COVER, Handle
74	0205042	*SCREW, Switch to lever
75	0322389	*CLAMP
76	0316245	**CLAMP
77	0432230	**ATTACHE ET CORDON
78	0328169	*ÉCROU, montage interrupteur
79	0328170	GUARD
80	0305009	**SCREW
81	0396124	FAST IDLE LVR KIT
82	0331428	*SCREW, Fast idle lever
83	0331430	*SCREW, Latch
84	0331429	*NUT, Fast idle lever
85	0330868	*KEEPER PLATE
86	0306643	*SCREW
87	0331048	LATCH
88	0127055	*HANDLE, Remote control
89	0303701	*LOCK WASHER, Adjustment screw
90	0584381	*BATTERY CABLE
91	0327121	**GROMMET
92	0320107	** TIE STRAP
93	0390795	SPACE KIT, Remote control mounting
94	0335707	DECAL, Horn
0204034	0204034	**TERMINAL, Ring
0204036	0204036	#10 RING TERMIAL,12v
0204038	0204038	. . . RING TERMINAL
0205042	0205042	*SCREW, Switch to lever
0303701	0303701	*LOCK WASHER, Adjustment screw
0305009	0305009	**SCREW
0306396	0306396	**LOCK WASHER, Control to boat
0306559	0306559	*SCREW, Ignition switch
0308527	0308527	. SCREW, Access cover to housing
0309437	0309437	**CLIP, drapeau
0313113	0313113	**CONNECTEUR
0316245	0316245	**CLAMP
0318228	0318228	*WASHER, Fast idle lever
0318277	0318277	*SCREW
0318321	0318321	**WASHER, Remote control to boat
0318322	0318322	*ATTACHE-CÂBLE
0318324	0318324	*SCREW, Cover mounting
0318349	0318349	**NUT, Mounting screw
0318625	0318625	*SPRING, Detent
0320107	0320107	** TIE STRAP
0320978	0320978	*PLUG
0321888	0321888	*ROLLER, Detent, shift & thr. plate
0321889	0321889	*SHOE, Detent, shift & throttle plate
0321966	0321966	*SPACER
0322012	0322012	*SEPARATOR, Levers
0322389	0322389	*CLAMP
0322693	0322693	**IGNITION KEY BLANK
0323749	0323749	*BUSHING, Shift & throttle plate
0323757	0323757	*BUSHING, Throttle lever
0323759	0127152	*INDEX PLATE, Neutral lock
0323762	0323762	GROMMET
0323763	0323763	GROMMET
0323764	0323764	*BUSHING, Cam, hub cover
0323765	0323765	*WAVE WASHER, Shift & thr. hub
0323766	0323766	*MOUNTING PLATE, Neutral start switch
0323769	0323769	*RETAINER PLATE
0323771	0323771	*PLATE, Slide control lever
0323772	0323772	*SCREW, Plate
0323773	0323773	*SPRING, Slide return
0323776	0323776	**CLEVIS PIN, Shift & throttle lever
0323779	0336245	**SCREW, Single control, portside
0324064	0306643	*SCREW
0324524	0324524	*SCREW, Mounting bracket switch
0324831	0324831	*CAP
0325191	0325191	*NUT, Friction lever
0325779	0325779	*BUSHING, Fast idle lever
0325780	0325780	*SPRING WASHER, Cam to housing
0325781	0325781	*LEVER, Shift lockout
0325790	0325790	*SPRING, Friction adjusting screw
0326593	0336245	**SCREW, Single control, portside
0327121	0327121	**GROMMET
0327164	0127055	*HANDLE, Remote control
0327166	0327166	**TERMINAL, Ring
0327490	0350143	*APPLIQUE
0328169	0328169	*ÉCROU, montage interrupteur
0328170	0328170	GUARD
0329873	0336242	*COVER, Handle
0330868	0330868	*KEEPER PLATE
0331048	0331048	LATCH
0331049	0336241	*KNOB, Handle
0331050	0331050	*LATCH, Fast idle lever
0331428	0331428	*SCREW, Fast idle lever
0331429	0331429	*NUT, Fast idle lever
0331430	0331430	*SCREW, Latch
0332179	0332179	*PUSH KNOB KEY
0332200	0332200	CREW,. Ground
0332428	0332428	*SLIDE, Neutral lock
0334762	0334762	PLUG
0389265	0389265	*SWITCH ASSY., Neutral
0389267	0389267	*FRICTION ADJUSTMENT LEVER
0390610	0390610	*SHIFT LEVER ASSY.
0390760	0390760	. LEAD ASSY
0390795	0390795	SPACE KIT, Remote control mounting
0391036	0391036	*KNOB & FRICTION ADJ. SCREW ASSY.
0391773	0434059	*MOUNTING HARDWARE KIT
0391858	0176517	TRIM CONVERSION KIT
0393129	0393129	CABLE
0393132	0393132	EMERGECY IGNITION CUT-OFF SWITCH ASSY.
0393219	0393219	*CAM, Shift lockout
0393301	0393301	*SWITCH & KEY ASSEMBLEY
0394032	0394032	*THROTTLE LEVER ASSY.
0395390	0584381	*BATTERY CABLE
0395821	0395821	SWITCH & LEAD ASSEMBLY
0396124	0396124	FAST IDLE LVR KIT
0432230	0432230	**ATTACHE ET CORDON
0432716	0175943	REMOTE CONTROL ASSY.
0432718	0175945	REMOTE CONTROL ASSY.
0432719	0175946	HOUSING & COVER ASSY.
0511990	0511990	***CONNECTOR, 3-socket
0512423	0512423	SLEEVE
0581656	0581656	***TERMINAL, Socket
0581959	0581959	. LEAD ASSY., Ground
0583891	0585992	HORN
0825886	0825886	TERMINAL

▶REWIND STARTER (96 parts)

Ref	OEM Part #	Part Name
1	0332910	*HOUSING STARTER
2	0331979	*SCREW
3	0341063	*BUSHING, Pulley
4	0328741	****NUT, Input stud
6	0325431	*SPRING, Starter
7	0394604	*PULLEY, Starter
8	0326120	*SPRING, Pawl plate to housing
9	0398228	*PAWL, Starter
10	0121266	*GLIDE PIN, Starter housing
11	0327768	*SCREW, Rope guide pulley
12	0438103	*PULLEY & O-RING
13	0339543	**O-RING
14	0326131	*SHIELD, Pulley spring
15	0326132	*SPRING, Pawl plate return
16	0326119	*RETAINING RING
17	0340817	*WASHER
18	0432111	*PAWL PLATE
19	0334350	**SLEEVE, Heat shrink
20	0309515	**WASHER, Spring
21	0311015	*BUSHING, Pawl
22	0326964	*SPRING WASHER, Bushing to pawl
23	0331929	*BUMPER, Pawl plate
24	0325429	*SHIELD, Housing spring
25	0328700	**WASHER
26	0301250	**RONDELLE
27	0908511	SCREW
28	0326129	SLEEVE
29	0326130	GROMMET
30	0306861	SCREW
31	0328731	*SCREW, Battery cable clamp
32	0306470	*LOCK WASHER
33	0306470	*LOCK WASHER
34	0330276	LOCKOUT LEVER
35	0326128	SPRING
36	0304325	*ANCHOR, Rope
37	0329211	RATCHET
38	0326609	*WASHER, Lockout
39	0326249	HANDLE, Starter
40	0328456	CLAMP
41	0319415	SCREW
42	0436662	BRACKET, Starter handle
43	0327768	*SCREW, Rope guide pulley
44	0326136	GROMMET
45	0331249	*WASHER, Handle
46	0330338	SLIDE
47	0436201	CABLE
48	0432546	LEVER AY,LOCKOUT
49	0331515	*GROMMET
0121266	0121266	*GLIDE PIN, Starter housing
0303059	0339543	**O-RING
0304325	0304325	*ANCHOR, Rope
0306470	0306470	*LOCK WASHER
0306861	0306861	SCREW
0309515	0309515	**WASHER, Spring
0311015	0311015	*BUSHING, Pawl
0316705	0772578	*ROPE, Starter
0319415	0319415	SCREW
0325429	0325429	*SHIELD, Housing spring
0325431	0325431	*SPRING, Starter
0325432	0341063	*BUSHING, Pulley
0325433	0340817	*WASHER
0326119	0326119	*RETAINING RING
0326120	0326120	*SPRING, Pawl plate to housing
0326128	0326128	SPRING
0326129	0326129	SLEEVE
0326130	0326130	GROMMET
0326131	0326131	*SHIELD, Pulley spring
0326132	0326132	*SPRING, Pawl plate return
0326135	0436662	BRACKET, Starter handle
0326136	0326136	GROMMET
0326249	0326249	HANDLE, Starter
0326609	0326609	*WASHER, Lockout
0326964	0326964	*SPRING WASHER, Bushing to pawl
0327768	0327768	*SCREW, Rope guide pulley
0328456	0328456	CLAMP
0328700	0328700	**WASHER
0328731	0328731	*SCREW, Battery cable clamp
0328741	0328741	****NUT, Input stud
0329211	0329211	RATCHET
0330276	0330276	LOCKOUT LEVER
0330338	0330338	SLIDE
0331249	0331249	*WASHER, Handle
0331515	0331515	*GROMMET
0331929	0331929	*BUMPER, Pawl plate
0331979	0331979	*SCREW
0332910	0332910	*HOUSING STARTER
0334350	0334350	**SLEEVE, Heat shrink
0394604	0394604	*PULLEY, Starter
0395007	0436201	CABLE
0397903	0438104	RECOIL STARTER Assy
0398228	0398228	*PAWL, Starter
0398519	0438103	*PULLEY & O-RING
0432111	0432111	*PAWL PLATE
0432546	0432546	LEVER AY,LOCKOUT
0908511	0908511	SCREW
0911009	0301250	**RONDELLE

▶SHIFT & THROTTLE LINKAGE (111 parts)

Ref	OEM Part #	Part Name
1	0206409	PIVOT SCREW
2	0328740	** NUT, Throttle friction
3	0328699	LEVER, Spark control
4	0318660	BUMPER, Screw, throttle stop
5	0908398	WASHER
6	0334064	LEVER, Cam
7	0334238	*SCREW, Shift detent lever
8	0334120	*CONNECTEUR, extrémité de câble de commande de sens de marche
9	0432685	*THROTTLE CABLE Assy.
10	0334063	*PIN
11	0319590	**SCREW, Plate - 3/8-16 x .75
12	0908398	WASHER
13	0305650	**COTTER PIN
14	0127386	**RONDELLE
15	0328735	*WASHER, screw, ball joint
16	0333774	**ATTACHE, commande vers tringlerie de sens de marche
17	0329160	*SCREW, Anchor to bracket
18	0328739	*RONDELLE entre ancrage et support
19	0432015	LEVER Assy, Spark
20	0334083	**ANCHOR, Control cable
21	0432572	ROLLER & SLEEVE ASSY
22	0125545	*WASHER, Hook, front
23	0511421	*WASHER, Air silencer
24	0308776	O-RING
25	0334153	*CONNECTEUR, câble d'accélérateur
26	0338676	BUMPER, Idle stop
27	0432684	SHELL
28	0334334	*BALL JOINT
29	0334788	LINK, Throttle cam
30	0334335	*NUT, Ball joint
31	0314136	*SCREW, Shift lever to bracket
32	0328703	**WASHER, Screw hook
33	0121497	**WASHER
34	0328708	*WASHER, Injector screw
35	0432722	CAM-THROTTLE
36	0328724	***SCREW
37	0306418	*SCREW, Anchor block lower
38	0333766	ANCHOR BLOCK
39	0334175	RETAINER
40	0300646	*SCREW, Clamp, fuel filter
0121497	0121497	**WASHER
0206409	0206409	PIVOT SCREW
0300646	0300646	*SCREW, Clamp, fuel filter
0303913	0127386	**RONDELLE
0304027	0304027	**SCREW
0304051	0328703	**WASHER, Screw hook
0305650	0305650	**COTTER PIN
0306418	0306418	*SCREW, Anchor block lower
0308738	0328724	***SCREW
0308776	0308776	O-RING
0312708	0312708	BUSHING
0313022	0313022	**LOCKNUT, Double-ended bolt
0314136	0314136	*SCREW, Shift lever to bracket
0315164	0315164	. . BALL, Valve shift
0318611	0318611	*SCREW
0318660	0318660	BUMPER, Screw, throttle stop
0319537	0319537	CLIP
0319590	0319590	**SCREW, Plate - 3/8-16 x .75
0321532	0321532	SCREW
0327400	0327400	*RONDELLE, poignée de commande de sens de marche
0328456	0328456	CLAMP
0328699	0328699	LEVER, Spark control
0328702	0328702	* WASHER
0328703	0328703	**WASHER, Screw hook
0328708	0328708	*WASHER, Injector screw
0328731	0328731	*SCREW, Battery cable clamp
0328735	0328735	*WASHER, screw, ball joint
0328739	0328739	*RONDELLE entre ancrage et support
0328740	0328740	** NUT, Throttle friction
0329160	0329160	*SCREW, Anchor to bracket
0329241	0329241	**WASHER
0330234	0330234	*BOW WASHER
0331109	0331109	SCREW, Lever
0332482	0332482	LEVER-SHIFT
0332486	0332486	SCREW
0332510	0332510	*SHIFT ROD
0333766	0333766	ANCHOR BLOCK
0333774	0333774	**ATTACHE, commande vers tringlerie de sens de marche
0333787	0333787	*SHIFT ROD
0334057	0334057	LINK
0334058	0334058	LEVER, Shift
0334063	0334063	*PIN
0334064	0334064	LEVER, Cam
0334083	0334083	**ANCHOR, Control cable
0334119	0334119	*CONNECTOR
0334120	0334120	*CONNECTEUR, extrémité de câble de commande de sens de marche
0334135	0334135	BUSHING
0334153	0334153	*CONNECTEUR, câble d'accélérateur
0334175	0334175	RETAINER
0334238	0334238	*SCREW, Shift detent lever
0334241	0334241	GUIDE
0334246	0334246	SPACER
0334248	0334248	DETENT
0334334	0334334	*BALL JOINT
0334335	0334335	*NUT, Ball joint
0334338	0334338	SCREW, Lever to shift rod
0334373	0334373	*BUSHING, Shift linkage rod snap
0334736	0338676	BUMPER, Idle stop
0334788	0334788	LINK, Throttle cam
0334814	0334814	*LEVER, Shift
0334815	0334815	*BAGUE de la poignée de commande de sens de marche
0395007	0436201	CABLE
0432014	0432014	SHAFT Assy, Shift
0432015	0432015	LEVER Assy, Spark
0432572	0432572	ROLLER & SLEEVE ASSY
0432684	0432684	SHELL
0432685	0432685	*THROTTLE CABLE Assy.
0432722	0432722	CAM-THROTTLE
0511421	0511421	*WASHER, Air silencer
0552783	0125545	*WASHER, Hook, front
0908398	0908398	WASHER

▶SHIFT & THROTTLE LINKAGE (CONTINUED) (39 parts)

Ref	OEM Part #	Part Name
1	0334241	GUIDE
2	0332482	LEVER-SHIFT
3	0315164	. . BALL, Valve shift
4	0321532	SCREW
5	0333774	**ATTACHE, commande vers tringlerie de sens de marche
6	0127386	**RONDELLE
7	0329241	**WASHER
8	0436201	CABLE
10	0334135	BUSHING
11	0319537	CLIP
12	0334058	LEVER, Shift
13	0334338	SCREW, Lever to shift rod
14	0332486	SCREW
15	0328702	* WASHER
16	0432014	SHAFT Assy, Shift
18	0312708	BUSHING
19	0334119	*CONNECTOR
20	0334063	*PIN
21	0334246	SPACER
22	0334057	LINK
23	0908398	WASHER
24	0313022	**LOCKNUT, Double-ended bolt
25	0330234	*BOW WASHER
26	0328703	**WASHER, Screw hook
27	0127386	**RONDELLE
28	0305650	**COTTER PIN
29	0304027	**SCREW
30	0314125	*BUSHING, Shift handle linkage rod
31	0308532	*BAGUE, levier de verrouillage
32	0318611	*SCREW
33	0331109	SCREW, Lever
34	0328456	CLAMP
35	0334248	DETENT
36	0327400	*RONDELLE, poignée de commande de sens de marche
37	0333787	*SHIFT ROD
38	0334814	*LEVER, Shift
39	0328731	*SCREW, Battery cable clamp
40	0334815	*BAGUE de la poignée de commande de sens de marche
41	0334373	*BUSHING, Shift linkage rod snap

▶STEERING CONNECTOR KIT (13 parts)

Ref	OEM Part #	Part Name
1	0122840	*ÉCROU, pivot
2	0122841	*ENTRETOISE, pivot
3	0344327	*BOLT, Steering connector
4	0315077	**LOCKNUT, (3/8-24 SS)
5	0319453	**RONDELLE
6	0174244	*STEERING LINK
0122840	0122840	*ÉCROU, pivot
0122841	0122841	*ENTRETOISE, pivot
0123178	0344327	*BOLT, Steering connector
0173699	5009793	Kit Ay
0174244	0174244	*STEERING LINK
0315077	0315077	**LOCKNUT, (3/8-24 SS)
0319453	0319453	**RONDELLE

▶STEERING HANDLE (100 parts)

Ref	OEM Part #	Part Name
1	0329879	*GUIDE
2	0434102	STEERING HANDLE ASSY.
3	0334960	**PIN, Inner steering handle
4	0397001	**HANDLE, Inner
4A	0332089	***RETAINING RING
5	0398692	IDLE STOP SWITCH ASSY.
6	0510818	***TERMINAL, Ring
7	0581656	***TERMINAL, Socket
8	0398602	**LANYARD ASSY.
9	0333499	***CLIP, Restart
10	0329880	*GOUPILLE
11	0329063	*SEAL
12	0329882	GRIP&HELIX AY
13	0323912	*TUBING
14	0350989	*SCREW
15	0315077	**LOCKNUT, (3/8-24 SS)
16	0433657	GRIP ASSY
17	0432685	*THROTTLE CABLE Assy.
18	0434674	CABLE AY., Tilt assist
19	0334153	*CONNECTEUR, câble d'accélérateur
20	0431941	LEVER
21	0328260	E-RING
22	0325452	*BAGUE entre barre et support
23	0327805	**ÉCROU
24	0327944	*PLATE, throttle control
28	0334161	ANCHOR BLOCK
29	0334162	WASHER
30	0306014	*SCREW, Throttle adjustment
31	0583845	PRIMER SWITCH AY
32	0391306	**COVER
33	0330100	**TERMINAL
34	0325729	*SCREW
35	0334642	BRACKET, Steering handle
36	0315077	**LOCKNUT, (3/8-24 SS)
37	0329881	*GALET, hélice vers câble
38	0310928	*CLAMP, Steering bracket
39	0583929	*STARTER SWITCH & LEAD ASSY.
40	0391306	**COVER
41	0330100	**TERMINAL
42	0511829	**RING TERMINAL
43	0583934	CABLE & HORN, VRO
44	0512748	**CONNECTOR, 3-pin
45	0317893	** TIE STRAP
46	0585992	HORN
47	0583935	CABLE ASSEMBLY
48	0510781	* TUBING, Sleeve
49	0510136	SLEEVE
50	0511469	***TERMINAL, Pin
51	0511828	**TERMINAL
52	0512876	***TERMINAL, Socket
53	0334942	COVER, Cable & horn
54	0333677	***SCREW
55	0438618	*START BUTTON KIT
56	0438618	*START BUTTON KIT
57	0313584	SPRING
58	0328480	*MOUNTING RING
59	0327805	**ÉCROU
0306014	0306014	*SCREW, Throttle adjustment
0310928	0310928	*CLAMP, Steering bracket
0313584	0313584	SPRING
0323912	0323912	*TUBING
0325450	0350989	*SCREW
0325451	0315077	**LOCKNUT, (3/8-24 SS)
0325452	0325452	*BAGUE entre barre et support
0325729	0325729	*SCREW
0327302	0438618	*START BUTTON KIT
0327303	0438618	*START BUTTON KIT
0327805	0327805	**ÉCROU
0327944	0327944	*PLATE, throttle control
0328260	0328260	E-RING
0328420	0328420	NO DESCRIPTION
0328480	0328480	*MOUNTING RING
0329063	0329063	*SEAL
0329879	0329879	*GUIDE
0329880	0329880	*GOUPILLE
0329881	0329881	*GALET, hélice vers câble
0329882	0329882	GRIP&HELIX AY
0330100	0330100	**TERMINAL
0330841	0334960	**PIN, Inner steering handle
0332089	0332089	***RETAINING RING
0333499	0333499	***CLIP, Restart
0334153	0334153	*CONNECTEUR, câble d'accélérateur
0334161	0334161	ANCHOR BLOCK
0334162	0334162	WASHER
0334642	0334642	BRACKET, Steering handle
0391306	0391306	**COVER
0395240	0395240	GRIP ASSY .,
0397001	0397001	**HANDLE, Inner
0398602	0398602	**LANYARD ASSY.
0398692	0398692	IDLE STOP SWITCH ASSY.
0431941	0431941	LEVER
0432025	0434674	CABLE AY., Tilt assist
0432615	0434102	STEERING HANDLE ASSY.
0432685	0432685	*THROTTLE CABLE Assy.
0510781	0510781	* TUBING, Sleeve
0510818	0510818	***TERMINAL, Ring
0511829	0511829	**RING TERMINAL
0581656	0581656	***TERMINAL, Socket
0583845	0583845	PRIMER SWITCH AY
0583929	0583929	*STARTER SWITCH & LEAD ASSY.

▶TILT ASSIST CYLINDER (3 parts)

Ref	OEM Part #	Part Name
1	0434037	TILT ASSIST CYLINDER
2	0332434	*BUSHING, CYLINDER TO BRACKET
3	0332436	*BUSHING, Cylinder to bracket

▶TRANSOM MOUNT KIT (7 parts)

Ref	OEM Part #	Part Name
1	0363013	*SCREW
2	0363253	*NUT,LOCK
3	0309192	*RONDELLE
4	0315776	*RONDELLE
5	0303776	*SCREW
6	0357732	*PLATE,TRANSOM
0433459	0433459	KIT AY,TRANSOM MTG

▶VRO OIL TANK KIT (1.8 GALLON) (23 parts)

Ref	OEM Part #	Part Name
0121470	0121470	**LOCKNUT, Hook bolt to cross bar
0121497	0121497	**WASHER
0123906	0123906	*GASKET
0124073	0124073	**LAG SCREW
0124290	0124290	CROSS BAR
0124291	0124291	HOOK BELT
0124292	0124292	**MOUNTING BRACKET
0124471	0772564	* HOSE
0124472	0772572	*HOSE, Exhaust pressure inlet
0124485	0124485	**SCREW, Pickup assy, to tank
0125294	0125294	SLEEVE
0125295	0125295	TERMINAL BULLET
0173851	0176217	*CAP ASSEMBLY
0174157	0174157	BULB, Primer \| Use 175985 when used with 1/4" braided hose Use 174511 when used with 1/4" vinyl hose
0174164	0176712	*OIL TANK
0174377	0174377	**FILTER
0174659	5008618	*KIT D'ASPIRATION RÉSERVOIR D’HUILE
0303596	0303596	. . CLAMP, Hose, small
0322654	0322654	**CLAMP, Hose
0396461	0397525	** NIPPLE & VALVE ASSY
0396462	0396462	** NIPLE & VALVE ASSY
0512131	0512131	*RING TERMINAL
0553166	0553166	** CLAMP, Band, large

▶VRO OIL TANK KIT - 1.8 GALLON ( P/N 175000 ) (27 parts)

Ref	OEM Part #	Part Name
1	0176712	*OIL TANK
2	0126822	COVER, Oil tank
3	0176217	*CAP ASSEMBLY
4	0123231	**GASKET, Cap
5	0175001	**ROD ASSEMBLY, Cover to bracket
6	0124292	**MOUNTING BRACKET
7	0124073	**LAG SCREW
8	0322654	**CLAMP, Hose
9	0124485	**SCREW, Pickup assy, to tank
10	5008618	*KIT D'ASPIRATION RÉSERVOIR D’HUILE
11	0772572	*HOSE, Exhaust pressure inlet
12	0174157	BULB, Primer
13	0303596	. . CLAMP, Hose, small
14	0397525	** NIPPLE & VALVE ASSY
15	0553166	** CLAMP, Band, large
16	0396462	** NIPLE & VALVE ASSY
17	0772564	* HOSE
18	0329661	**HOLDER, Plug
19	0513186	**SHEATH, cell
20	0512876	***TERMINAL, Socket
21	0125294	SLEEVE
22	0125295	TERMINAL BULLET
23	0322654	**CLAMP, Hose
24	0174377	**FILTER
25	0123906	*GASKET
0175000	5008617	OIL TANK. Assy
0512131	0512131	*RING TERMINAL

▶VRO OIL TANK KIT-1.8 GALLON (27 parts)

Ref	OEM Part #	Part Name
1	0176712	*OIL TANK
2	0121470	**LOCKNUT, Hook bolt to cross bar
3	0121497	**WASHER
4	0124290	CROSS BAR
5	0124291	HOOK BELT
6	0124292	**MOUNTING BRACKET
7	0124073	**LAG SCREW
8	0176217	*CAP ASSEMBLY
9	0124485	**SCREW, Pickup assy, to tank
10	5008618	*KIT D'ASPIRATION RÉSERVOIR D’HUILE
11	0772572	*HOSE, Exhaust pressure inlet
12	0174157	BULB, Primer
13	0303596	. . CLAMP, Hose, small
14	0397525	** NIPPLE & VALVE ASSY
15	0553166	** CLAMP, Band, large
16	0396462	** NIPLE & VALVE ASSY
17	0772564	* HOSE
18	0512131	*RING TERMINAL
19	0125295	TERMINAL BULLET
20	0125294	SLEEVE
21	0322654	**CLAMP, Hose
22	0123906	*GASKET
23	0174377	**FILTER
24	0322654	**CLAMP, Hose
0174637	5008617	OIL TANK. Assy
0510780	0510780	#8 RING TERMIANL
0510818	0510818	***TERMINAL, Ring

▶VRO2 PUMP (43 parts)

Ref	OEM Part #	Part Name
1	5007421	Kit Ay
2	0512749	**CONNECTOR
3	0581656	***TERMINAL, Socket
5	0398327	FILTER, MAP sensor
8	0331841	SIGHT TUBE OIL
9	0398229	BODY AY
10	5004610	FITTING, Fuel manifold
11	0320107	** TIE STRAP
12	0332851	*HOSE
13	0329661	**HOLDER, Plug
15	0310379	SCREW
16	0322652	** CLAMP, Snap
17	0322654	**CLAMP, Hose
18	0331683	*HOSE, Lift pump pulse, lower to #5
22	0331533	*SEAL
23	0315391	***COVER
24	0332845	HOSE
26	0512742	*RETAINER, Connector
28	0435009	**PULSE LIMITER
29	0333521	MOUNT, Isolation
0174404	0435009	**PULSE LIMITER
0174875	5007421	Kit Ay
0310379	0310379	SCREW
0315391	0315391	***COVER
0320107	0320107	** TIE STRAP
0322652	0322652	** CLAMP, Snap
0322654	0322654	**CLAMP, Hose
0327228	0772571	**HOSE
0329661	0329661	**HOLDER, Plug
0331533	0331533	*SEAL
0331683	0331683	*HOSE, Lift pump pulse, lower to #5
0331841	0331841	SIGHT TUBE OIL
0332845	0332845	HOSE
0332851	0332851	*HOSE
0333341	0772564	* HOSE
0333485	0772572	*HOSE, Exhaust pressure inlet
0333521	0333521	MOUNT, Isolation
0395540	5004610	FITTING, Fuel manifold
0398229	0398229	BODY AY
0398327	0398327	FILTER, MAP sensor
0512742	0512742	*RETAINER, Connector
0512747	0512747	**CONNECTOR, 3-socket
0581656	0581656	***TERMINAL, Socket

Popular Products

Popular Products

Popular Products

Johnson TJ50TLESF (1990) Parts & Diagrams

Categories

Refined By Clear all

Brand

Horsepower

Engine

Availability

Price

Need Help?

Images

Product

Price

Qty

Options
