Johnson J140PX4SDA (2006) Parts & Diagrams

🔎 Johnson J140PX4SDA Reference Library — Exploded parts diagrams (48 diagrams), specifications, common issues, and maintenance checklist.

Parts Diagrams & OEM Part Numbers

Expand the sections below to view detailed exploded parts diagrams and find the exact OEM replacement components for your Johnson J140PX4SDA.

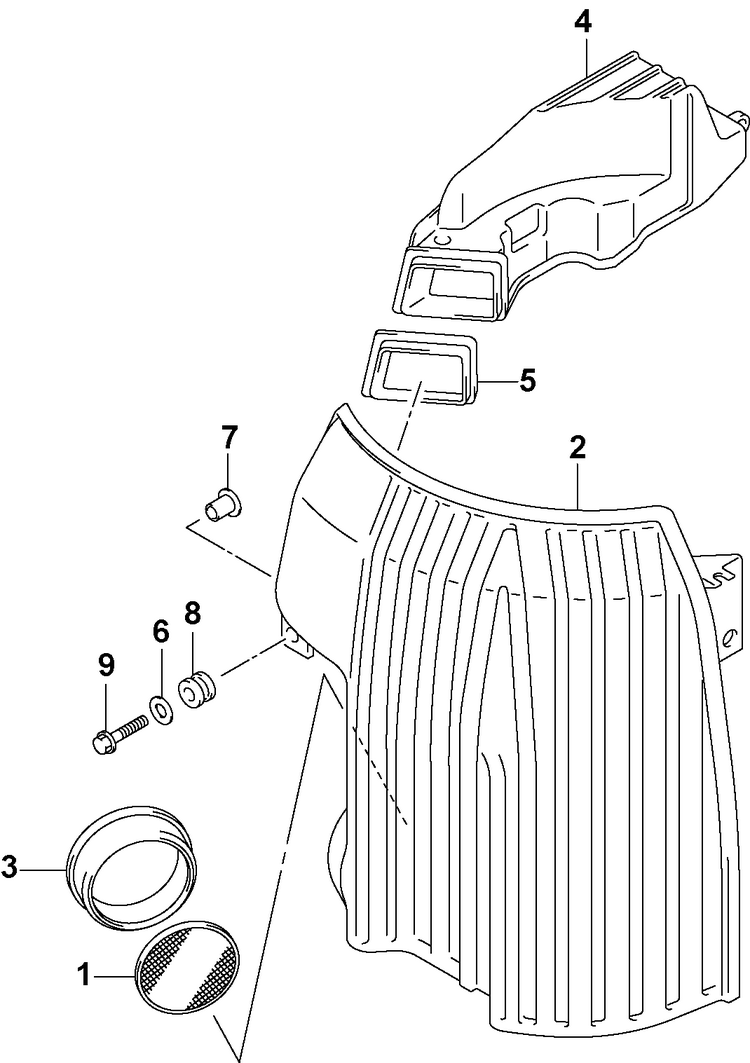

▶AIR SILENCER (9 parts)

Ref	OEM Part #	Part Name
1	5031070	ARRESTER, FLAME
2	5033694	SILENCER
3	5033695	HOLDER
4	5033696	DUCT, SILENCER
5	5033697	GROMMET, SILENCER
6	5030056	*WASHER
7	5033598	WASHER
8	5030556	CUSHION
9	5030001	*BOLT, Cylinder & crankcase

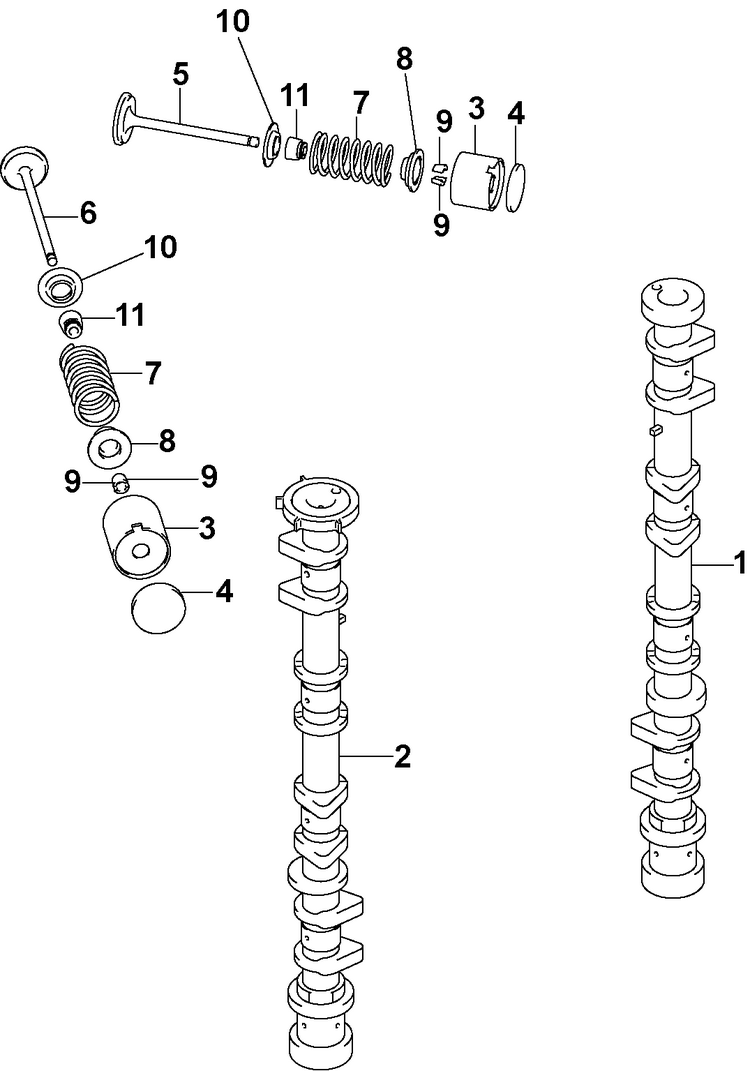

▶CAMSHAFT (11 parts)

Ref	OEM Part #	Part Name
1	5033917	CAMSHAFT, INTAKE
2	5033918	CAMSHAFT, EXHAUST
3	5033669	TAPPET
4	5033896	SHIM, TAPPET (T:3.13mm) \| Optional
5	5033897	VALVE, INTAKE
6	5034594	VALVE, EXHAUST
7	5033899	SPRING, VALVE
8	5033900	RETAINER, VALVE SPRING
9	5033687	COTTER, VALVE
10	5031959	SEAL, Valve spring
11	5033614	SEAL, VALVE STEM

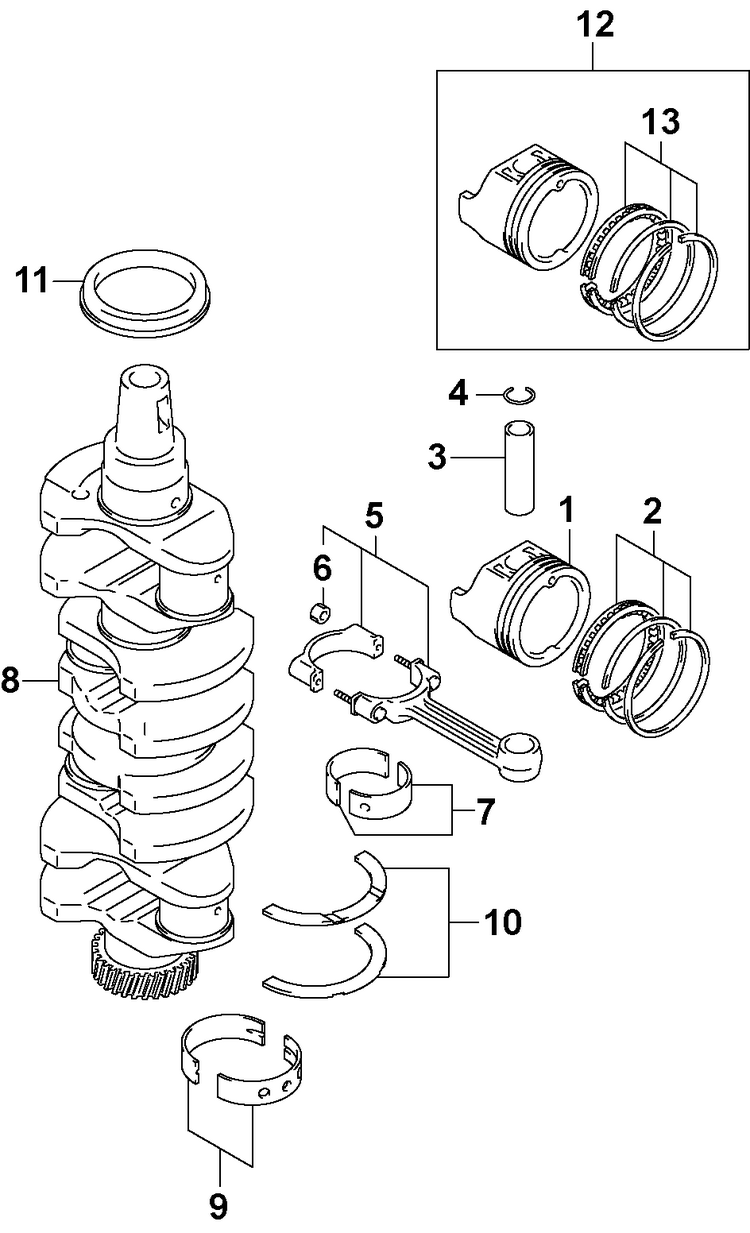

▶CRANKSHAFT & PISTONS (13 parts)

Ref	OEM Part #	Part Name
1	5033913	PISTON
2	5033914	RING SET, PISTON
3	5033871	PIN, PISTON
4	5033623	CIRCLIP
5	5033522	CONNECTING ROD Assy
6	5033514	*NUT
7	5033911	BEARING SET, CONNECTING ROD \| Optional
8	5033523	CRANKSHAFT
9	5033528	BEARING SET, CRANKSHAFT \| (US:0.25mm) - Blue, Optional
10	5033873	BEARING SET, CRANK THRUST \| (OS:0.12mm)
11	5030550	SEAL, OIL
12	5036621	PISTON SET (OS:0.50mm) \| Optional
13	5036623	*RING SET, PISTON (OS:0.50mm) \| Optional

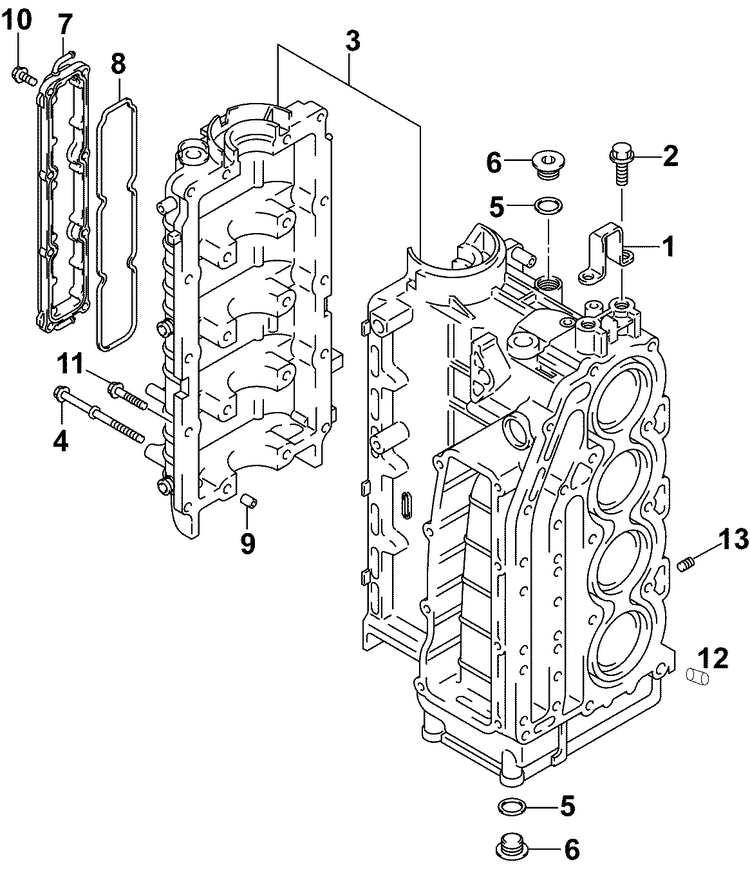

▶CYLINDER & CRANKCASE (12 parts)

Ref	OEM Part #	Part Name
1	5033646	HOOK, ENGINE
2	5034129	BOLT
4	5033637	*BOLT, CRANKCASE
5	5033645	*GASKET, OIL GALLERY PLUG
6	5033604	*PLUG, OIL GALLERY
7	5034146	*COVER, C/C WTR JKT
8	5033648	*O RING, C/C WTR JKT COVER
9	5031066	*PIN
10	5030000	*BOLT
11	5034545	*BOLT
12	5034544	PLUG
13	5030521	*BOUCHON

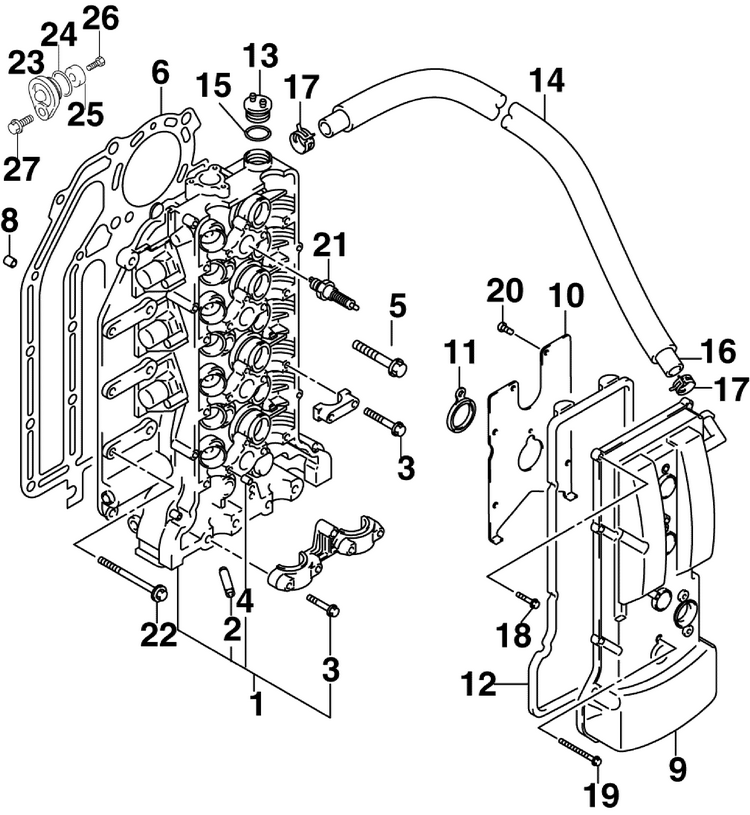

▶CYLINDER HEAD (26 parts)

Ref	OEM Part #	Part Name
1	5033635	HEAD, CYLINDER
2	5033636	*GUIDE, VALVE
3	5033638	*BOLT, CAM SHAFT HOUSING
4	5030515	**PIN
5	5031914	*BOLT, Crankcase inside
6	5034644	*GASKET, CYL HEAD
8	5031014	PIN
9	5033640	COVER, CYLINDER HEAD
10	5033641	PLATE, BREATHER
11	5033642	GASKET, SPARK PLUG HOLE
12	5033643	*GASKET, CYL HEAD COVER
13	5030633	CAP, OIL FILLER
14	5032912	PROTECTOR, BREATHER HOSE \| Cut to length from bulk roll
15	5030541	O RING
16	5031064	HOSE (L:770mm) \| Cut to length from bulk roll
17	5037165	CLIP
18	5030985	*BOLT, THROTTLE BODY
19	5034124	BOLT
20	5034132	SCREW
21	5033634	BOUGIE (BKR6E)
22	5034541	BOLT
23	5034866	ANODE COVER
24	5035305	O RING
25	5031705	*ANODE
26	5036691	*BOLT
27	5030994	**BOLT, LOWER

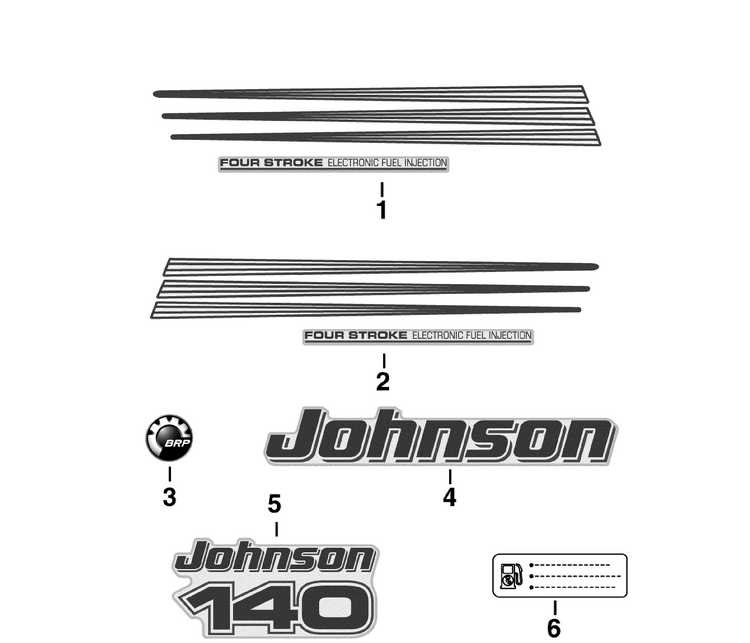

▶DECALS (6 parts)

Ref	OEM Part #	Part Name
1	5033237	DECAL, Stripe, Stbd \| Included with "ENGINE COVER Assy"
2	5033236	DECAL, Stripe, Port \| Included with "ENGINE COVER Assy"
3	5036677	DECAL, "BOMBARDIER" \| Included with "ENGINE COVER Assy"
4	5032867	*DECAL, "Johnson" \| Included with "ENGINE COVER Assy"
5	5033241	DECAL,"140HP"
6	5034204	*DECAL, Fuel

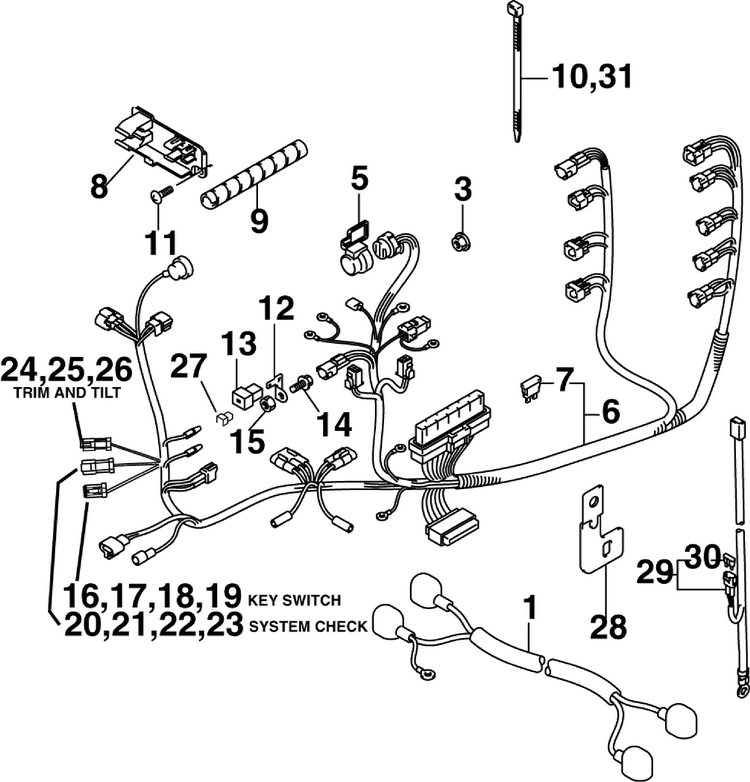

▶ELECTRICAL HARNESS (29 parts)

Ref	OEM Part #	Part Name
1	5033829	CABLE Assy
3	5031021	**NUT
5	5030800	CAP
6	5035960	HARNESS Assy
7	5032630	*FUSE (30A)
8	5033834	HOLDER
9	5034182	*TUBE
10	0320107	** TIE STRAP
11	5031690	*SCREW
12	5033835	TERMINAL, MAIN FUSE
13	5033633	FUSE (60A)
14	5034130	BOLT
15	5031020	NUT
16	0514687	***CONNECTEUR, fiche 6 broches
17	0514790	***JOINT, 6 alvéoles
18	0514683	***CALE VERROUILLAGE, fiche 6 broches
19	0514680	***SOCKET
20	0514688	***CONNECTOR, 6-PIN
21	0514679	***BORNE, broche
22	0514684	***LOCK WEDGE, 6-pin
23	0514690	***BOUCHON, mâle
24	0514686	***CONNECTEUR, 3 broches
25	0514682	***LOCK WEDGE, 3 pin
26	0514679	***BORNE, broche
27	5030529	CAP
28	5034515	BRACKET
29	5035107	BATTERY SUB CABLE
30	5035674	*FUSE (15A)
31	5031118	**CLAMP, LEAD

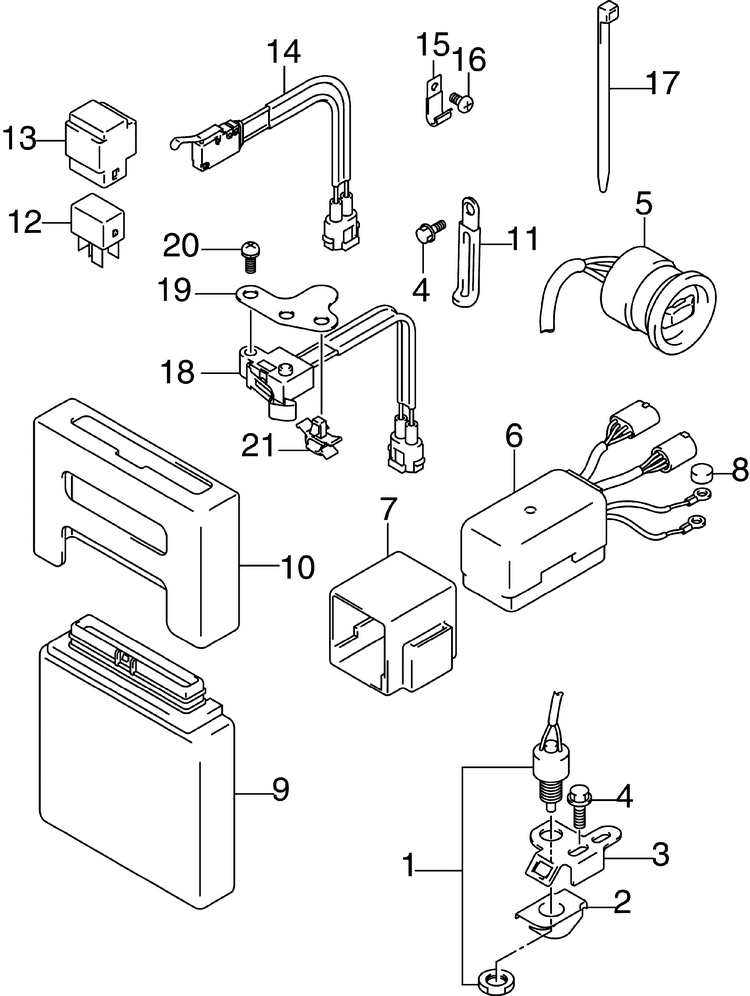

▶ENGINE CONTROL UNIT & POWER TRIM SWITCH (21 parts)

Ref	OEM Part #	Part Name
1	5033257	SWITCH, NEUTRAL \| Up to SN 032312
2	5030824	*ACTUATOR, Neutral switch \| Up to SN 032312
3	5033837	BRACKET, NEUTRAL SWITCH \| Up to SN 032312
4	5030989	*BOLT \| Up to SN 032312
5	5037191	SWITCH, TRIM/TILT
6	5036701	RELAY, TRIM/TILT
7	5034607	CAP
8	5030529	CAP
9	5036046	UNIT, ENGINE CONTROL - 90HP \| "B" Prefix Models only
10	5032441	CUSHION, ENGINE CONTROL UNIT
11	5030135	**CLAMP, RECT/REG LEAD
12	5033264	**RELAY ASSY
13	5033258	**HOLDER
14	5037194	SWITCH, TILT LIMIT \| SN 032313 & Up
15	5034518	CLAMP \| Up to SN 032312
16	5034517	BOLT \| Up to SN 032312
17	5031118	**CLAMP, LEAD \| SN 032313 & Up
18	5035109	SWITCH ASSY, NEUTRAL \| SN 032313 & Up
19	5037195	BRACKET, NEUTRAL SWITCH \| SN 032313 & Up
20	5035666	SCREW \| SN 032313 & Up
21	5037196	CLAMP, Neutral switch lead \| SN 032313 & Up

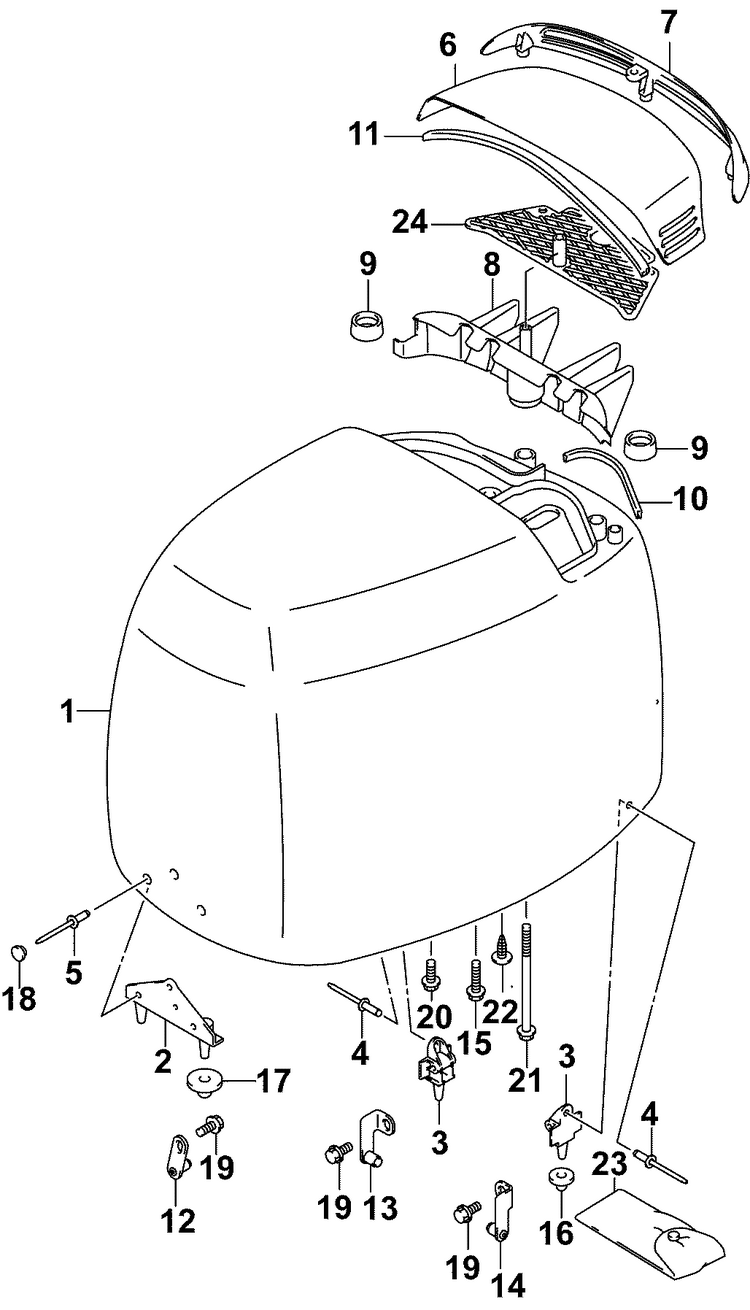

▶ENGINE COVER (24 parts)

Ref	OEM Part #	Part Name
1	5036798	COVER Assy, ENGINE \| Includes all decals
2	5033862	*BRACKET
3	5033866	*BRACKET, FASTENER
4	5030519	*RIVET
5	5033603	*RIVET
6	5033960	*HANDLE, TILT UP
7	5033961	*LOUVER, TILT UP HANDLE
8	5033962	*COVER, AIR INTAKE INNER
9	5033963	*CUSHION, AIR INTAKE INNER
10	5033860	*SEAL
11	5033964	*SEAL, TILT UP HANDLE
12	5035968	*FASTENER
13	5033867	*FASTENER, REAR STBD
14	5033868	*FASTENER, REAR PORT
15	5033965	*BOLT (6X20mm)
16	5030560	*CUSHION
17	5033620	*CUSHION
18	5033606	*CAP
19	5030988	**BOLT, Rectifier/Regula
20	5030989	*BOLT
21	5033293	*BOLT
22	5031012	*SCREW
23	5034538	TOOL SET
24	5034643	PLATE, AIR INTAKE \| OPTIONAL

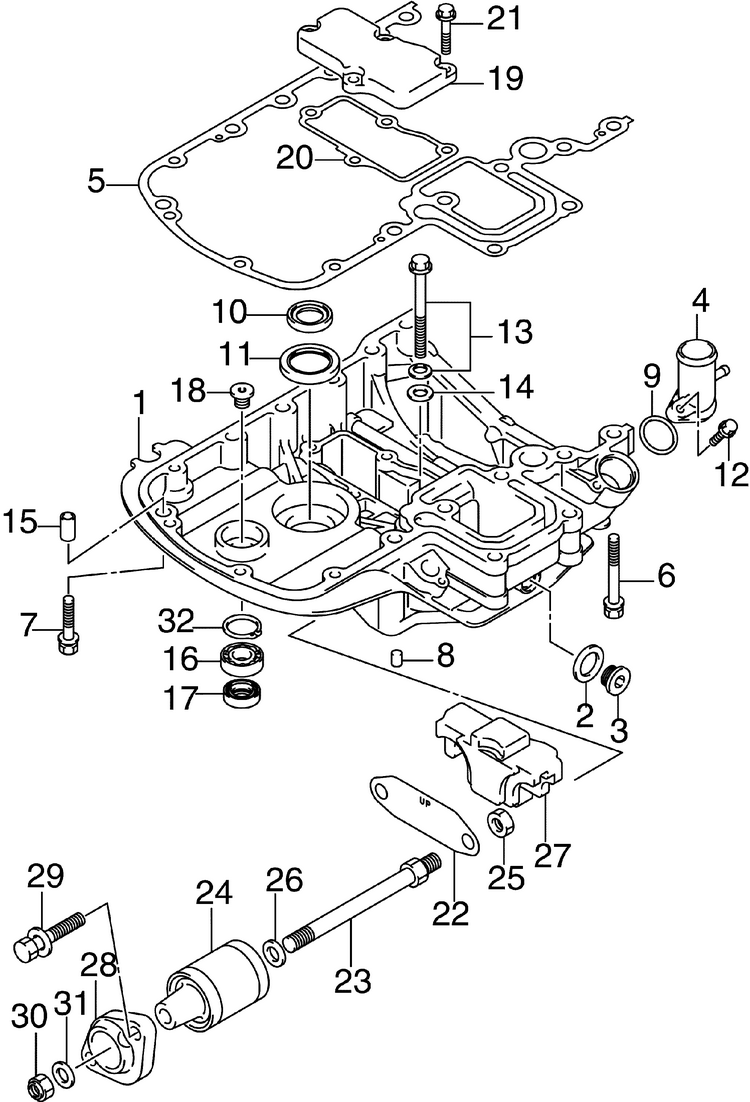

▶EXHAUST ADAPTER SN 032313 & Up (32 parts)

Ref	OEM Part #	Part Name
1	5037204	HOLDER, ENGINE
2	5030442	*GASKET
3	5036699	*PLUG
4	5033841	UNION, WATER RETURN
5	5037205	*GASKET, ADAPTER
6	5033587	BOLT (8X70mm)
7	5035665	BOLT (8X40)
8	5030515	**PIN
9	5030541	O RING
10	5033611	SEAL, OIL
11	5033613	SEAL, OIL
12	5030990	**BOLT
13	5030043	BOLT
14	5036539	*SPACER, Control cable holder
15	5033288	**PIN, Starter motor bracket
16	5034630	BEARING, CLUTCH
17	5034631	SEAL, CLUTCH
18	5034601	PLUG
19	5037206	COVER, Mount case
20	5037207	GASKET, Mount case cover
21	5037208	BOLT
22	5037209	PLATE, Upper mount
23	5037210	BOLT, Upper mount
24	5037211	MOUNT, Upper
25	5031221	NUT
26	5036613	WASHER
27	5037212	MOUNT, Upper thrust
28	5037213	COVER, Upper mount
29	5034787	BOLT
30	5031221	NUT
31	5036480	WASHER
32	5035662	CIRCLIP

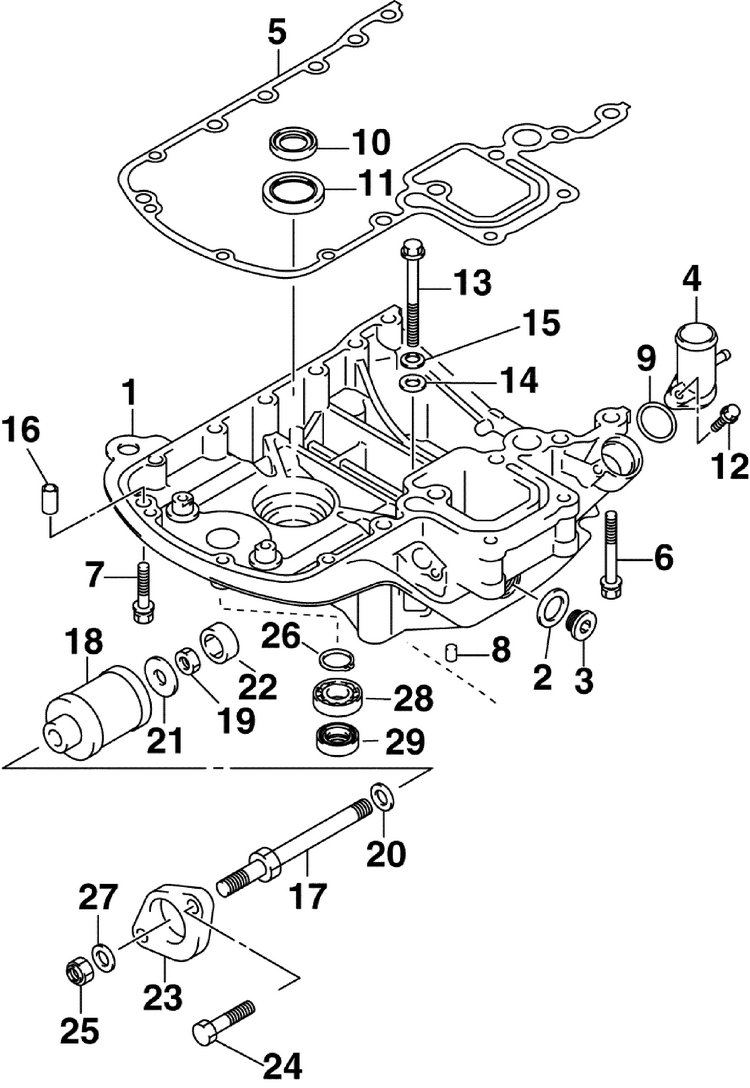

▶EXHAUST ADAPTER Up to SN 32312 (29 parts)

Ref	OEM Part #	Part Name
1	5036610	HOLDER, ENGINE
2	5030442	*GASKET \| Included in P/N 5036610
3	5036699	*PLUG \| Included in P/N 5036610
4	5033841	UNION, WATER RETURN
5	5034757	*GASKET, ADAPTER
6	5033587	BOLT (8X70mm)
7	5035665	BOLT (8X40)
8	5030515	**PIN
9	5030541	O RING
10	5033611	SEAL, OIL \| Included in P/N 5036610
11	5033613	SEAL, OIL \| Included in P/N 5036610
12	5030990	**BOLT
13	5034127	BOLT
14	5033591	WASHER (8.5X19X2.3mm)
15	5033596	Wave Wahser
16	5033288	**PIN, Starter motor bracket
17	5036553	BOLT, UPPER MOUNT
18	5033561	MOUNT, UPPER
19	5030419	NUT
20	5036612	WASHER (12.5X24X2.5mm)
21	5036480	WASHER
22	5033842	MOUNT, UPPER THRUST REVERSE
23	5033562	COVER, UPPER MOUNT
24	5034787	BOLT
25	5031221	NUT
26	5035662	CIRCLIP
27	5033597	WASHER (12.5X22X2.5mm)
28	5034630	BEARING, CLUTCH \| Included in P/N 5036610
29	5034631	SEAL, CLUTCH \| Included in P/N 5036610

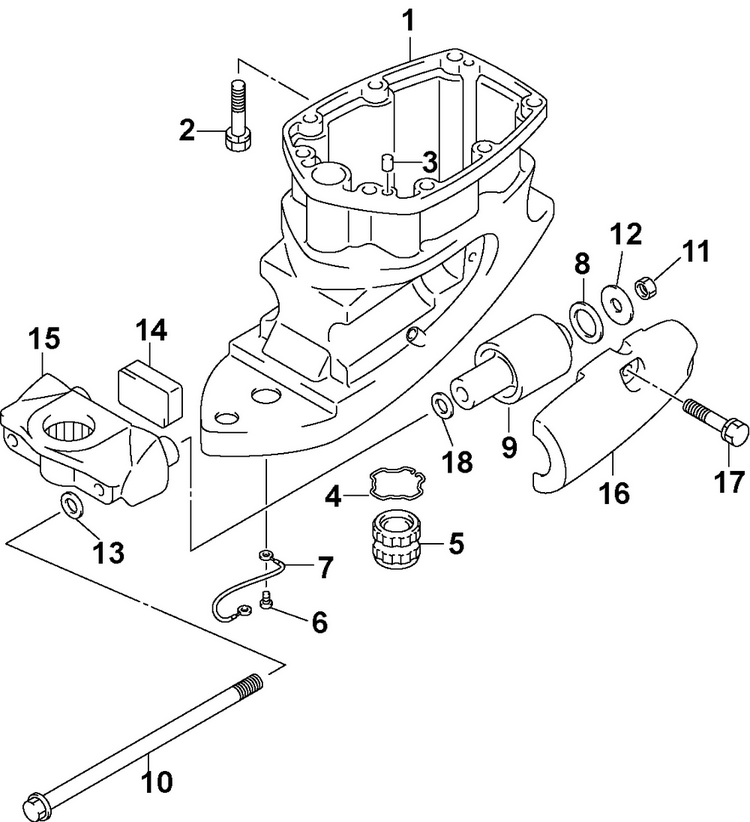

▶EXHAUST HOUSING (18 parts)

Ref	OEM Part #	Part Name
1	5035962	HOUSING - 25 in.
2	*5035792	BOLT, (10X45mm)
3	5030511	PIN
4	5033625	*RING, Prop shaft oil seal \| 25 in. Models
5	5033949	BUSHING, DRIVE SHAFT \| 25 in. Models
6	5030409	SCREW
7	5030822	LEAD (SWIVEL TO HSG) \| SN 032313 & Up
8	5030885	DAMPER, REVERSE STOP LWR
9	5033944	MOUNT, LOWER
10	5033583	BOLT (12X231mm)
11	5031221	NUT
12	5036602	WASHER (12.2X40X3.0mm)
13	5036613	WASHER
14	5033843	MOUNT, LOWER THRUST
15	5033563	BRACKET
16	5033564	COVER, LOWER MOUNT
17	*5035792	BOLT, (10X45mm)
18	5036603	WASHER

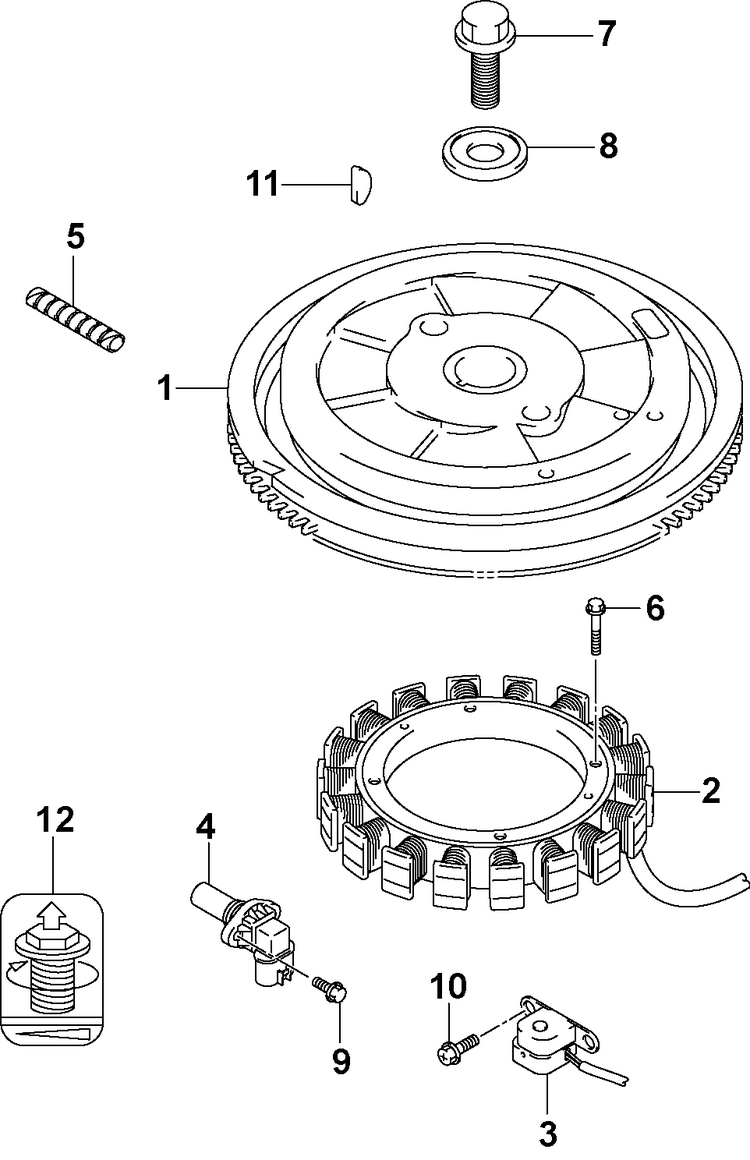

▶FLYWHEEL & STATOR (12 parts)

Ref	OEM Part #	Part Name
1	5033550	FLYWHEEL
2	5036617	COIL, BATTERY CHARGING
3	5034149	COIL, IGNITION TIMING
4	5031468	SENSOR, CAM POSITION
5	5034182	*TUBE \| Cut to length from bulk roll
6	5033584	BOLT (6X35mm)
7	5033512	BOLT (16X50mm)
8	5033515	WASHER (16.5X60.5X7.0mm)
9	5030989	*BOLT
10	5034133	SCREW
11	5031024	KEY
12	5033818	DECAL, INSTRUCTION

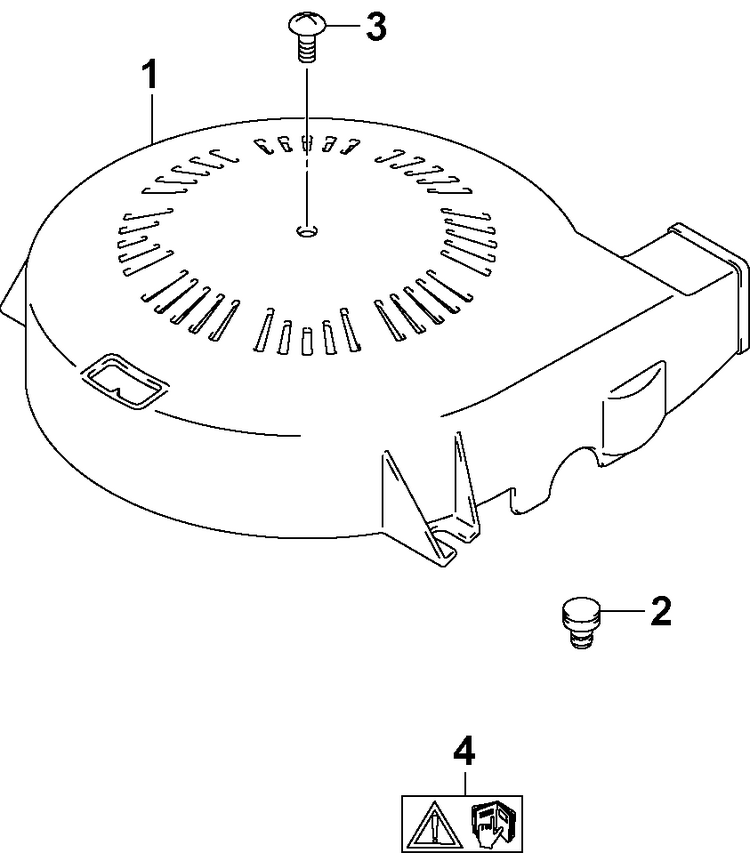

▶FLYWHEEL COVER (4 parts)

Ref	OEM Part #	Part Name
1	5033650	COVER Assy
2	5030639	CUSHION
3	5030410	SCREW (6X18mm)
4	5030336	CAUTION

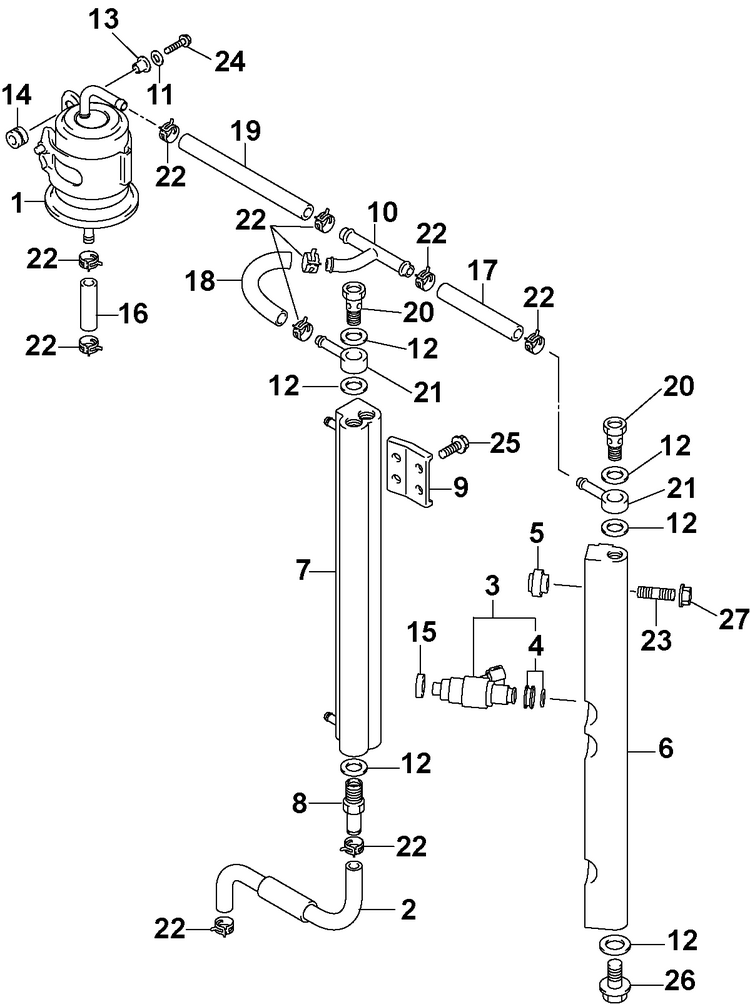

▶FUEL INJECTOR (27 parts)

Ref	OEM Part #	Part Name
1	5033704	FILTER, FUEL
2	5033536	HOSE Assy, FUEL
3	5033708	INJECTOR Assy, FUEL
4	5032694	*GROMMET KIT
5	5030709	INSULATOR, Delivery pipe
6	5036041	PIPE, DELIVERY
7	5036606	COOLER, FUEL
8	5033538	UNION, FUEL HOSE
9	5033710	BRACKET
10	5031754	TEE, Fuel
11	5030056	*WASHER
12	5030466	GASKET
13	5030471	SPACER
14	5030555	CUSHION
15	5031139	CUSHION
16	0772572	*HOSE, Exhaust pressure inlet \| Cut to length from bulk roll
17	0772572	*HOSE, Exhaust pressure inlet \| Cut to length from bulk roll
18	0772572	*HOSE, Exhaust pressure inlet \| Cut to length from bulk roll
19	0772572	*HOSE, Exhaust pressure inlet \| Cut to length from bulk roll
20	5030567	BOLT
21	5030569	UNION
22	5037167	CLIP
23	5030979	BOLT, STUD
24	5036696	BOLT
25	5030989	*BOLT
26	5031003	BOLT
27	5031021	**NUT

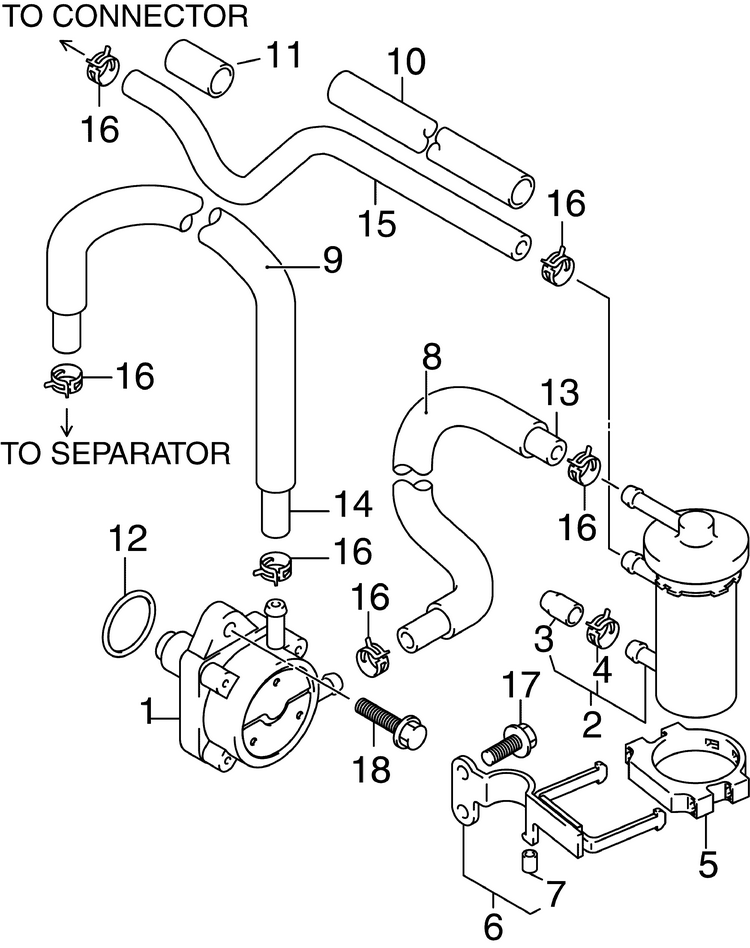

▶FUEL PUMP SN 032313 & Later (18 parts)

Ref	OEM Part #	Part Name
1	5036797	PUMP Assy, FUEL
2	5035974	FILTER, Fuel
3	5035975	*CAP
4	5036891	*CLIP
5	5036893	BRACKET, FUEL FILTER
6	5037168	BRACKET, Fuel filter \| Cut to length from bulk roll
7	5033618	*CUSHION, Bracket \| Cut to length from bulk roll
8	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
9	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
10	5030753	PROTECTOR (CONN TO CYL) (L:560mm)
11	5030753	PROTECTOR (CONN TO CYL) (L:560mm)
12	5030540	JOINT TORIQUE \| Cut to length from bulk roll
13	5033701	HOSE, FUEL
14	5030126	HOSE (IAC TO THB) (60mm)
15	5033700	HOSE, FUEL
16	5036891	*CLIP
17	5030989	*BOLT
18	5030990	**BOLT

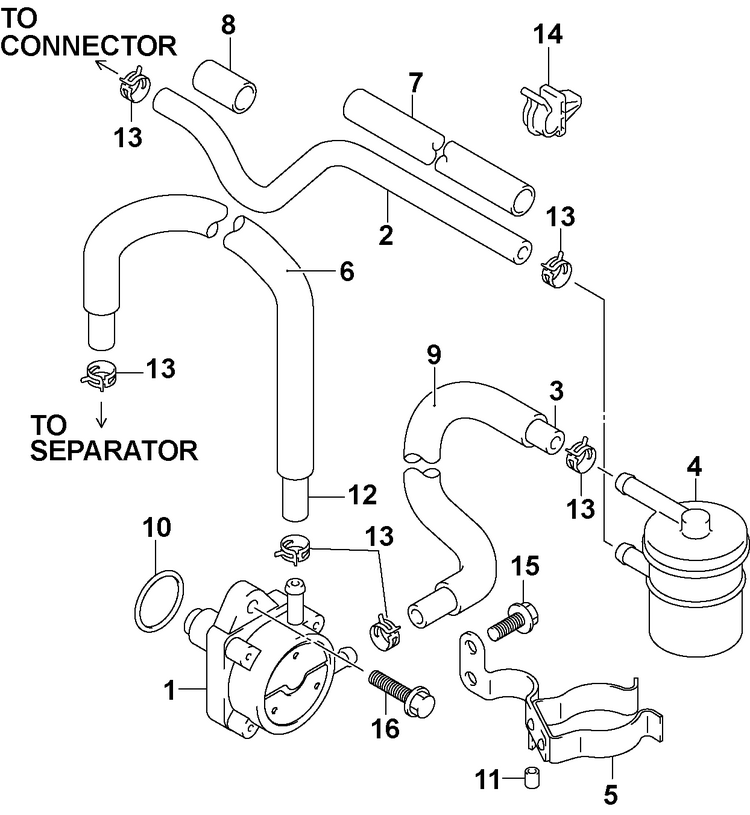

▶FUEL PUMP Up to SN 032312 (16 parts)

Ref	OEM Part #	Part Name
1	5036797	PUMP Assy, FUEL
2	5033700	HOSE, FUEL
3	5033701	HOSE, FUEL
4	5032323	FILTER, Fuel
5	5034596	BRACKET
6	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
7	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
8	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
9	5030753	PROTECTOR (CONN TO CYL) (L:560mm) \| Cut to length from bulk roll
10	5030540	JOINT TORIQUE
11	5033618	*CUSHION, Bracket
12	5030126	HOSE (IAC TO THB) (60mm) \| Cut to length from bulk roll
13	5030578	*CLIP
14	5033628	CLAMP
15	5030989	*BOLT
16	5030990	**BOLT

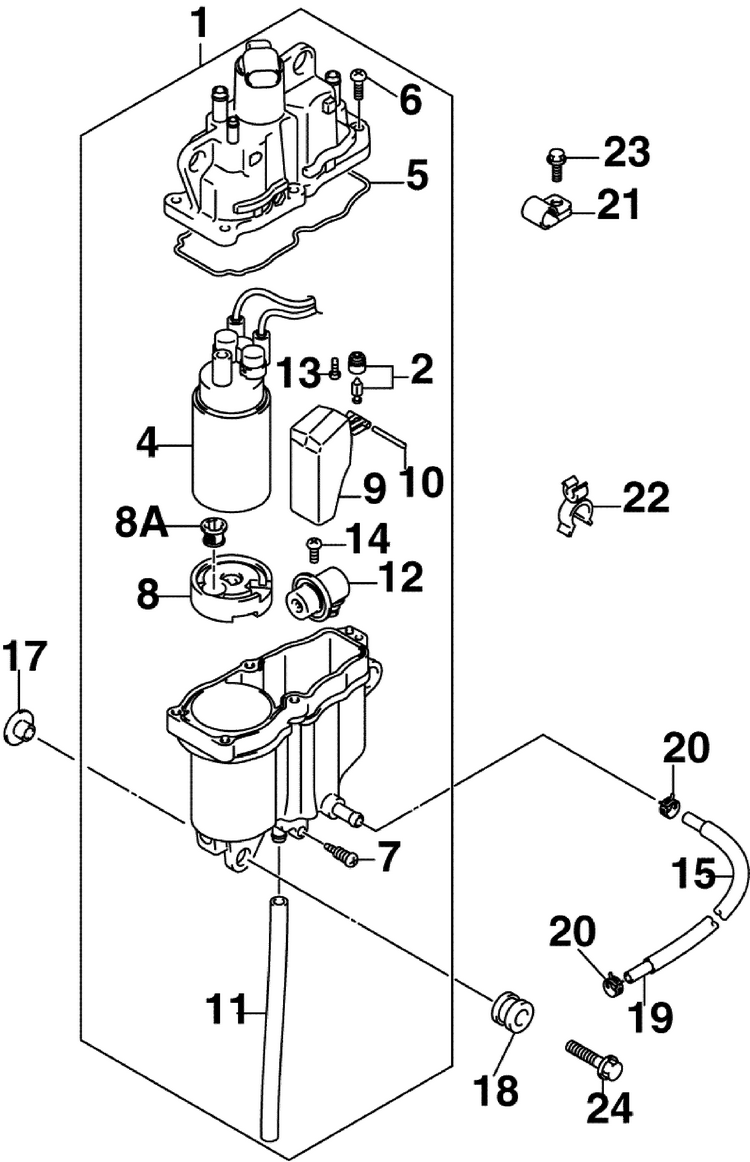

▶FUEL VAPOR SEPARATOR (23 parts)

Ref	OEM Part #	Part Name
1	5033705	SEPARATOR Assy, FUEL VAPOR
2	5031105	*VALVE, NEEDLE
4	5033702	*PUMP, FUEL
5	5033706	*SEAL
6	5031110	*SCREW
7	5031111	*SCREW, DRAIN
8	5034147	*SPACER
8A	5034148	*FILTER
9	5032219	*FLOAT
10	5032220	*PIN
11	5031648	*HOSE, DRAIN \| Cut to length from bulk roll
12	5031650	*REGULATOR
13	5035647	*SCREW
14	5031113	*SCREW
15	5034595	PROTECTOR (L:140mm)
17	5033598	WASHER
18	5030556	CUSHION
19	5031274	HOSE (140mm) \| Cut to length from bulk roll
20	5037166	CLIP
21	5031902	CLAMP
22	5033631	CLAMP
23	5030988	**BOLT, Rectifier/Regula
24	5036601	BOLT

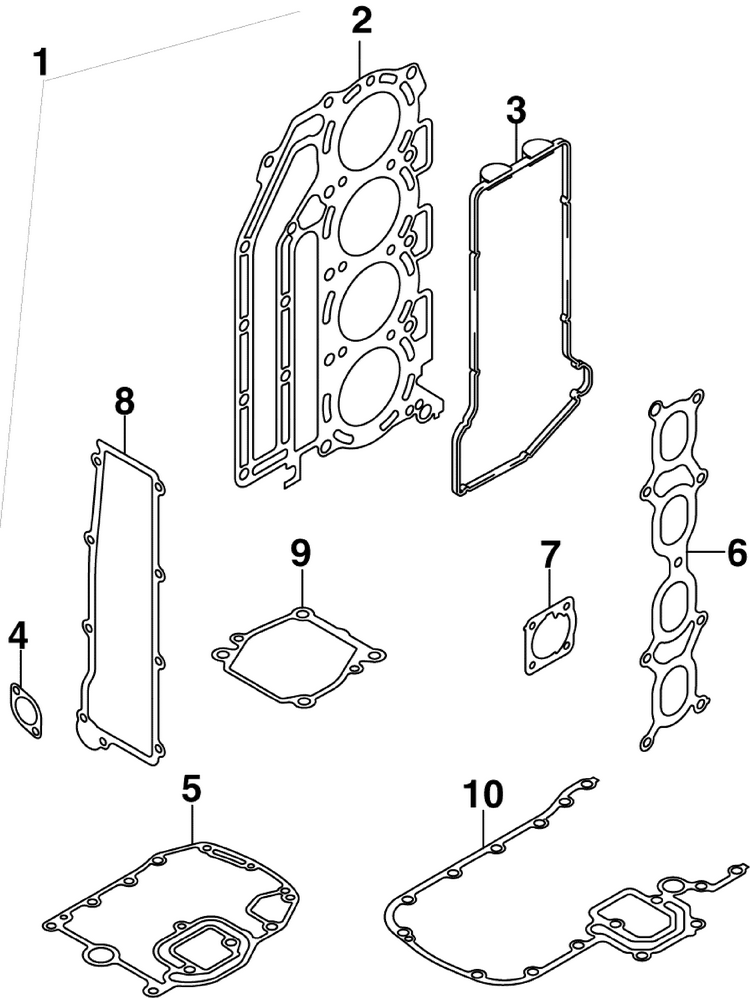

▶GASKET SET (10 parts)

Ref	OEM Part #	Part Name
1	5035942	GASKET SET, ENGINE
2	5034644	*GASKET, CYL HEAD
3	5033643	*GASKET, CYL HEAD COVER
4	5030623	*GASKET, Anode
5	5033649	*GASKET, OIL PAN
6	5033688	*GASKET, INTAKE
7	5033692	*GASKET, THROTTLE BODY
8	5033698	*GASKET, RECTIFIER
9	5030725	*GASKET, PUMP CASE PANEL
10	5034757	*GASKET, ADAPTER

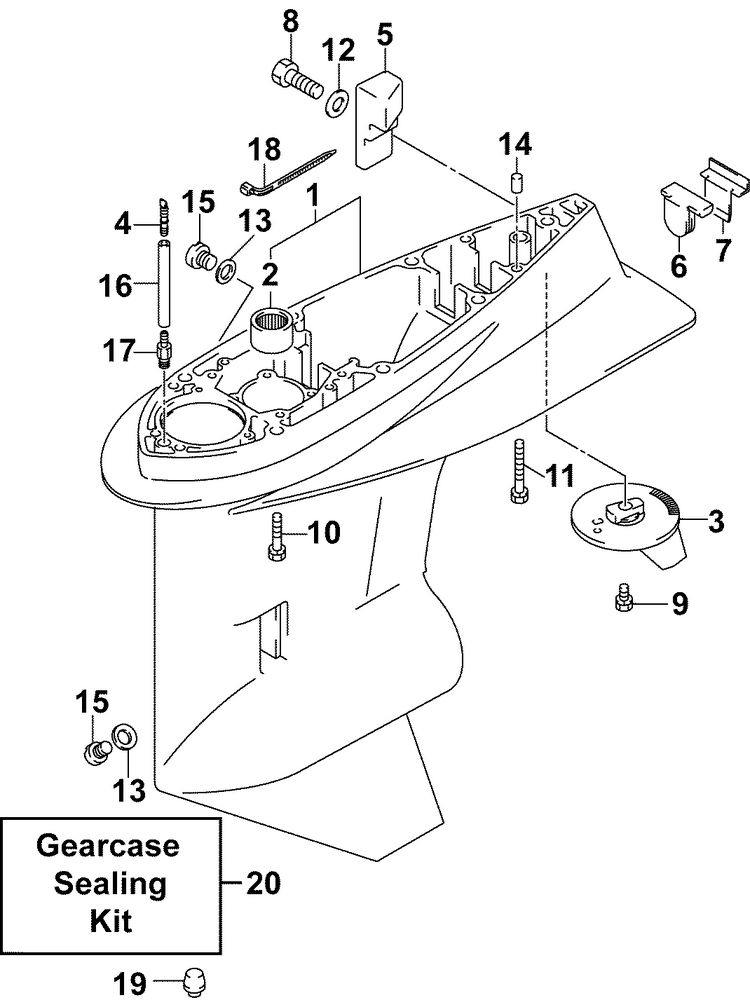

▶GEARCASE, STANDARD (21 parts)

Ref	OEM Part #	Part Name
-	5034744	G/C Ay
1	5036626	CASE, GEAR
2	5032541	*BEARING, PINION
3	5032929	TAB, TRIM
4	5030906	UNION, SPEEDOMETER HOSE
5	5032930	ANODE, GEAR CASE
6	5037215	RUBBER, EXHAUST SEAL
7	5032545	PLATE, EXHAUST SEAL
8	5030338	BOLT
9	5034400	*BOLT (8X22)
10	5034788	BOLT
11	5030401	BOLT
12	5030430	*WASHER
13	5030071	GASKET
14	5030511	PIN
15	5030094	BOLT (10X7.5mm)
16	5033622	HOSE \| Cut to length from bulk roll
17	5030568	FITTING
18	5031118	**CLAMP, LEAD
19	5032685	PLUG \| Optional
20	5033922	SEALING KIT, GEAR CASE \| Optional

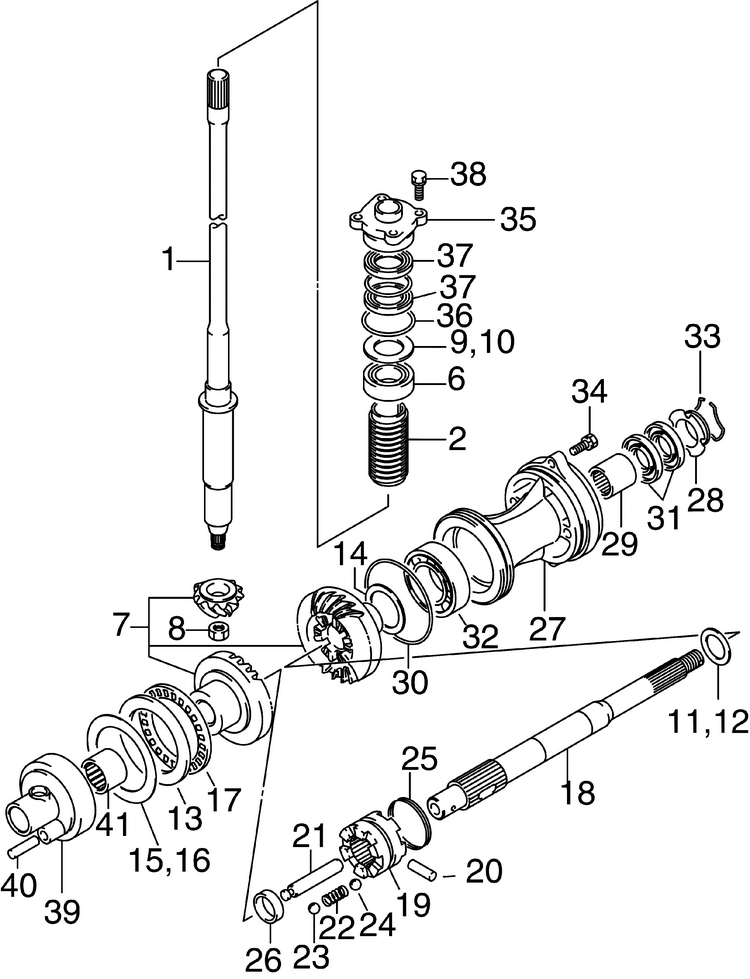

▶GEARS, STANDARD (38 parts)

Ref	OEM Part #	Part Name
1	5034640	SHAFT Assy, DRIVE 25 IN. MODELS
2	5032553	COLLAR, DRIVE SHAFT
6	5030532	BEARING
7	5037440	PINION / GEAR SET \| SN 032313 & Up
8	5033966	NUT
9	5030975	SHIM KIT, Driveshaft
10	5030497	*SHIM (41X52X1.15mm)
11	5033990	SHIM SET, PROP SHAFT REV
12	5033972	*WASHER (30X38X2.8mm)
13	5033973	WASHER, FWD (70X95X5.25mm)
14	5032575	*SHIM, (1.6mm)
15	5033991	SHIM SET
16	5033982	*SHIM (70X95X0.95mm)
17	5033986	BEARING (70X95X4.0mm) Forward
18	5037441	SHAFT Assy, PROPELLER \| SN 032313 & Up
19	5037442	SHIFTER, CLUTCH DOG \| SN 032313 & Up
20	5032584	PIN
21	5037221	PIN, CONNECTOR \| SN 032313 & Up
22	5034843	SPRING \| SN 032313 & Up
23	5037222	BALL, Detent No. 1 \| SN 032313 & Up
24	5037223	BALL, Detent No. 2 \| SN 032313 & Up
25	5034145	SPRING
26	5033952	SPACER
27	5033946	HOUSING, PROP SFT BRG
28	5033947	*WASHER, OIL SEAL PROTECTOR
29	5033905	*BEARING
30	5032589	*O RING
31	5033907	*OIL SEAL
32	5034137	*BEARING
33	5032592	*CIRCLIP
34	5031216	BOLT
35	5033846	HOUSING
36	5030542	*O RING
37	5033612	*OIL SEAL
38	5030398	BOLT
39	5033948	HOUSING, FWD GEAR BRG
40	5032549	*PIN, KNOCK
41	5033985	*BEARING

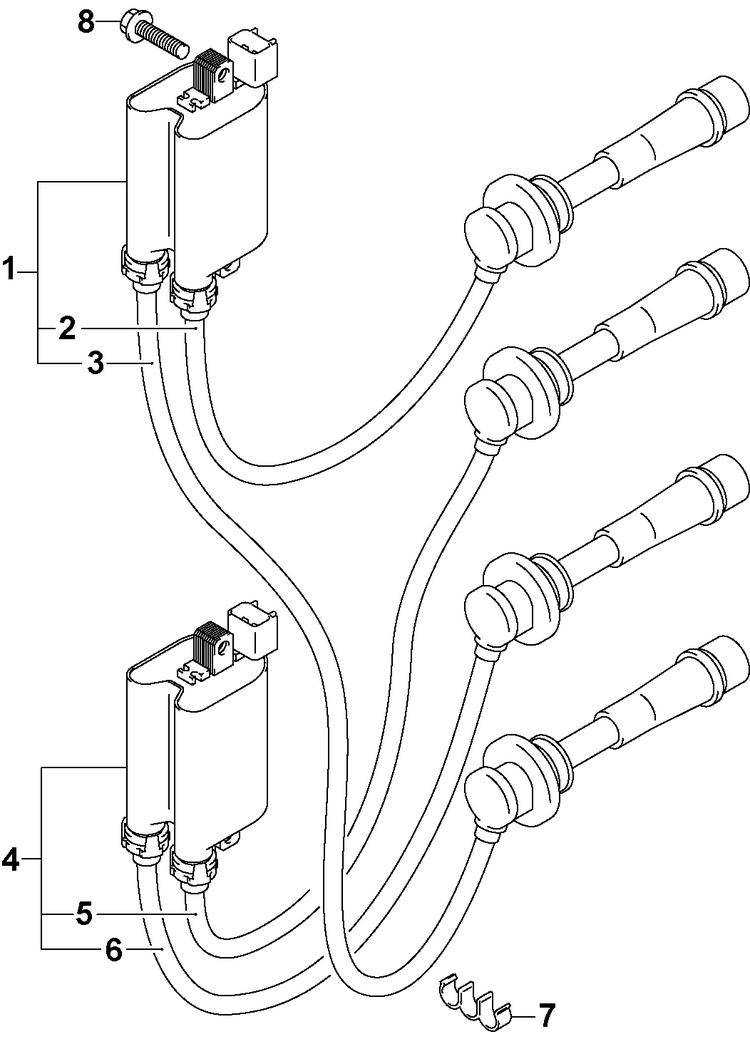

▶IGNITION COIL (8 parts)

Ref	OEM Part #	Part Name
1	5033823	COIL Assy, IGNITION
2	5033825	*LEAD, HIGH TENSION
3	5033828	*LEAD, HIGH TENSION
4	5033824	COIL Assy, IGNITION
5	5033826	*LEAD, HIGH TENSION
6	5033827	*LEAD, HIGH TENSION
7	5030590	CLAMP
8	5030000	*BOLT

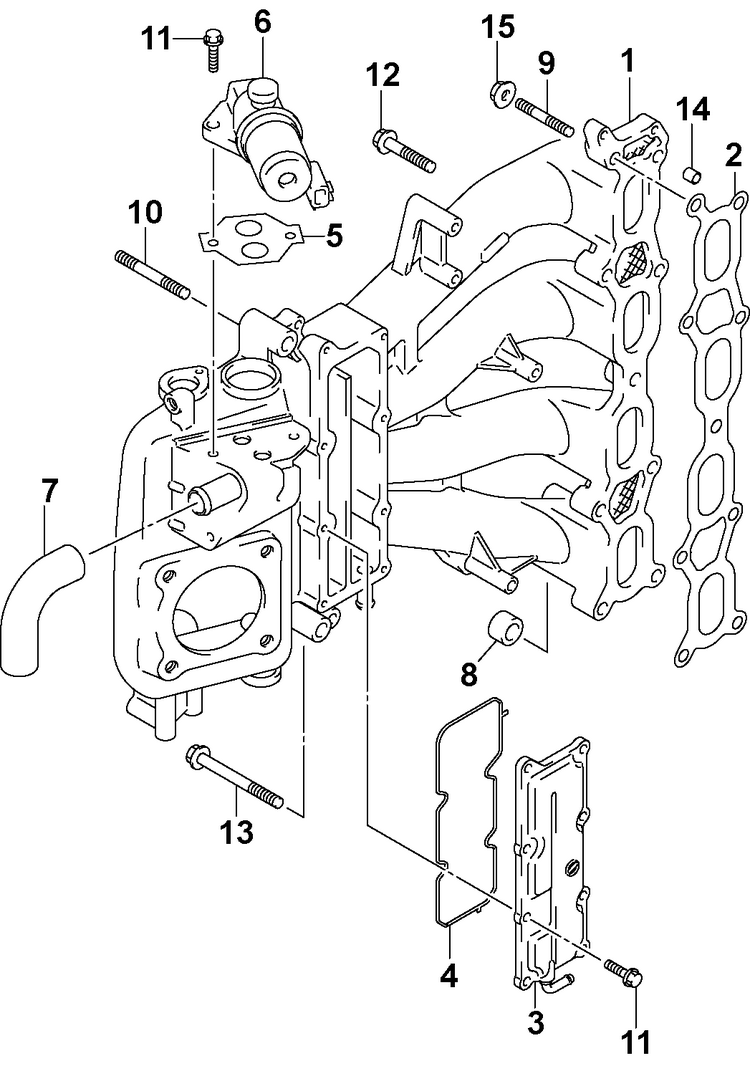

▶INTAKE MANIFOLD (15 parts)

Ref	OEM Part #	Part Name
1	5035951	MANIFOLD, INTAKE
2	5033688	*GASKET, INTAKE
3	5033689	COVER, WATER JACKET
4	5033690	O RING, WTR JKT COVER
5	5033726	GASKET, IAC VALVE
6	5033727	VALVE, IAC
7	5033728	HOSE, IAC
8	5030121	CUSHION
9	5030979	BOLT, STUD
10	5034122	BOLT, STUD
11	5030000	*BOLT
12	5030998	*BOLT
13	5031069	*BOLT
14	5033288	**PIN, Starter motor bracket
15	5031021	**NUT

▶LITERATURE (5 parts)

Ref	OEM Part #	Part Name
1	5036576	Operator's Guide - English
2	5036577	Operator's Guide - French
3	5006598	Service Manual - English
4	5006599	Service Manual - French
5	5009017	Special Tools Catalog – English

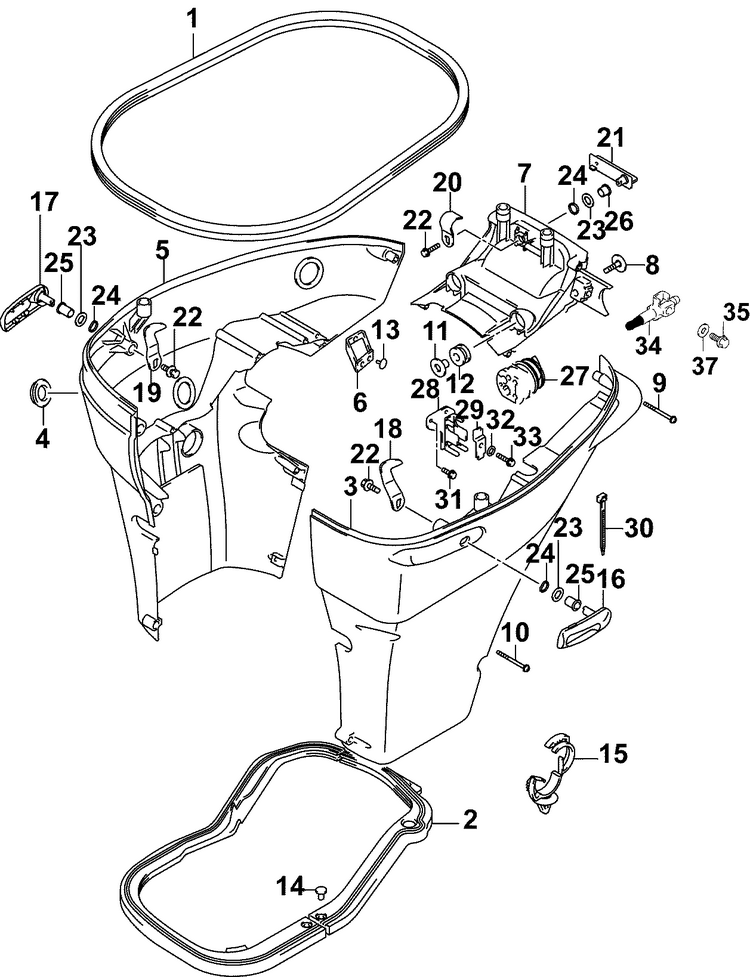

▶LOWER ENGINE COVER (36 parts)

Ref	OEM Part #	Part Name
1	5033857	RUBBER, SIDE COVER
2	5034642	SEAL, SIDE COVER - LOWER
3	5033578	COVER, SIDE STBD
4	5032128	PLUG, SIDE COVER
5	5033579	COVER, SIDE PORT
6	5033869	HOLDER, SIDE COVER
7	5036047	PANEL, FRONT
8	5030402	BOLT (8X40mm)
9	5033589	SCREW (6X35)
10	5033590	SCREW (6X55)
11	5030473	WASHER
12	5030558	CUSHION
13	5033619	CUSHION
14	5031906	CLIP
15	5031279	CLAMP, HARNESS
16	5037577	Lever
17	5037577	Lever
18	5033863	HOOK, ENGINE COVER RR STBD
19	5033864	HOOK, ENGINE COVER RR PORT
20	5033865	HOOK, ENGINE COVER FRONT
21	5033577	LEVER, HOOK FRONT
22	5031821	*BOLT (6X12)
23	5031833	WASHER (13.2X25X1.0)
24	5031858	*WASHER, Wave
25	5033518	BUSHING - REAR
26	5036048	BUSHING - FRONT
27	5035965	GROMMET, CONTROL CABLE
28	5033581	Holder
29	5033582	Stopper
30	0320107	** TIE STRAP
31	5030989	*BOLT
32	5034131	BOLT
33	5034142	*WASHER, THROTTLE LEVER
34	5032150	CONNECTOR, Fuel
35	5032817	*BOLT
37	5030430	*WASHER

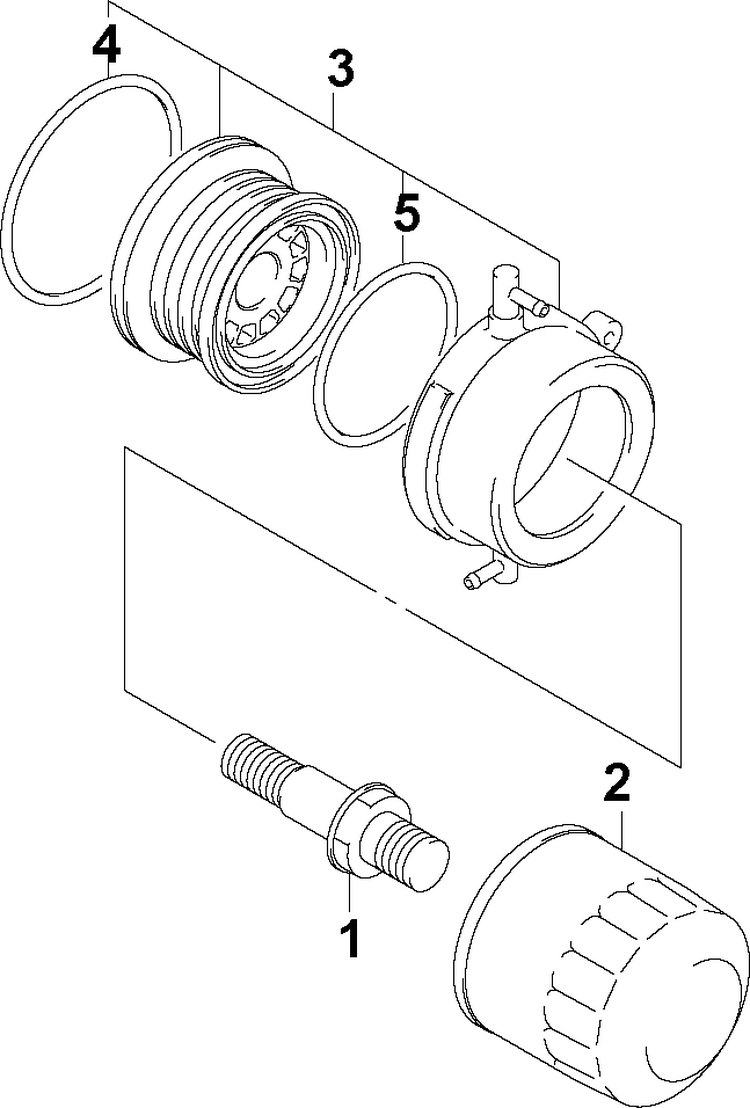

▶OIL FILTER (5 parts)

Ref	OEM Part #	Part Name
1	5033987	STAND, OIL FILTER
2	0778887	FILTER, OIL
3	5037436	Ay
4	5033988	*GASKET, OIL COOLER
5	5033906	*O RING

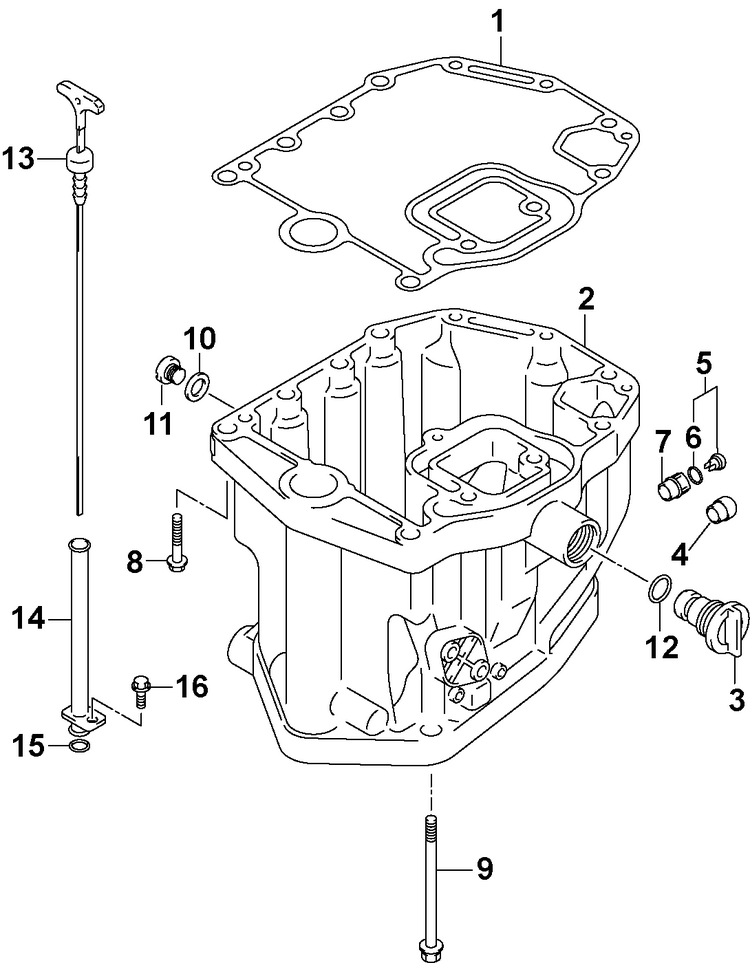

▶OIL PAN (16 parts)

Ref	OEM Part #	Part Name
1	5033649	*GASKET, OIL PAN
2	5033520	PAN, OIL
3	5032682	PLUG, Water
4	5030850	*PIPE, DRIVE SHAFT HSG
5	5030930	COVER
6	5031173	*O RING
7	5030929	TUBE, WATER INDICATOR
8	5035665	BOLT (8X40)
9	5033588	BOLT
10	5030465	GASKET
11	5034438	PLUG
12	5030536	O RING
13	5033715	GAUGE, OIL LEVEL
14	5033540	GUIDE
15	5032782	KIT
16	5030988	**BOLT, Rectifier/Regula

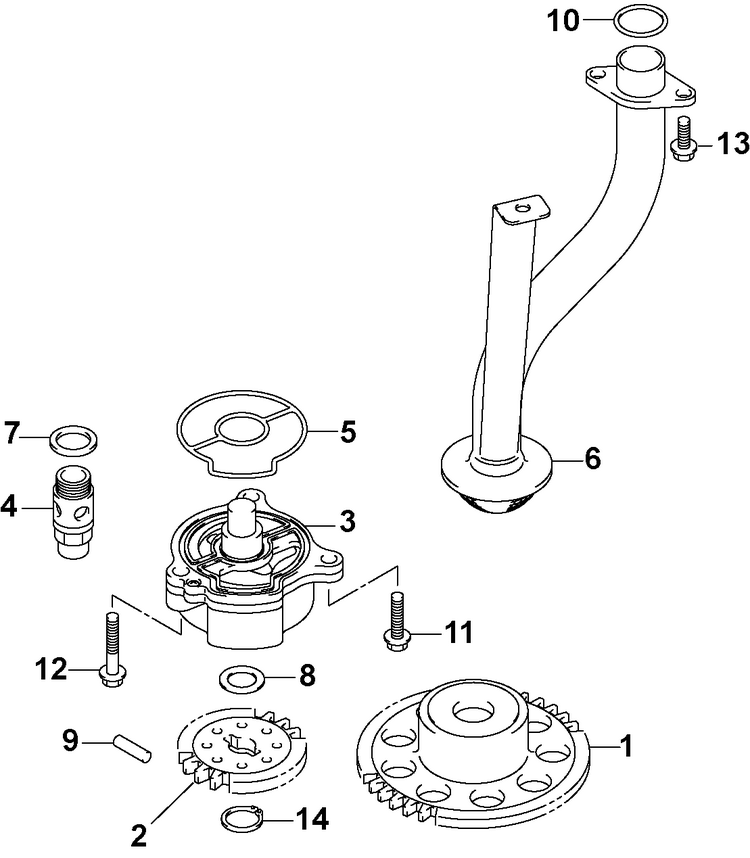

▶OIL PUMP (14 parts)

Ref	OEM Part #	Part Name
1	5035949	GEAR, OIL PUMP DRIVE
2	5035955	GEAR, OIL PUMP DRIVEN
3	5033712	PUMP Assy, OIL
4	5030712	VALVE Assy, OIL RELIEF
5	5033713	O RING, OIL PUMP
6	5033714	STRAINER, OIL PUMP
7	5030469	GASKET
8	5033600	SHIM, (12X20.0.5mm)
9	5033607	PIN
10	5033610	O RING
11	5030985	*BOLT, THROTTLE BODY
12	5034123	BOLT
13	5034125	BOLT
14	5034139	CIRCLIP

▶PAINT (7 parts)

Ref	OEM Part #	Part Name
1	0777172	Apprêt \| PPG Code - DP40401
2	0777179	Black \| PPG Code - 9696
3	0777171	Blanc \| PPG Code - 90538
4	0772414	772414 \| Use with base color on upper and lower engine covers.
5	0777177	Graphite \| PPG Code - 35718
6	0777175	BLEU (D.I., Johnson) \| PPG Code - 18319
7	0351907	BLEU (Evinrude E-TEC) \| PPG Code - SAC61243

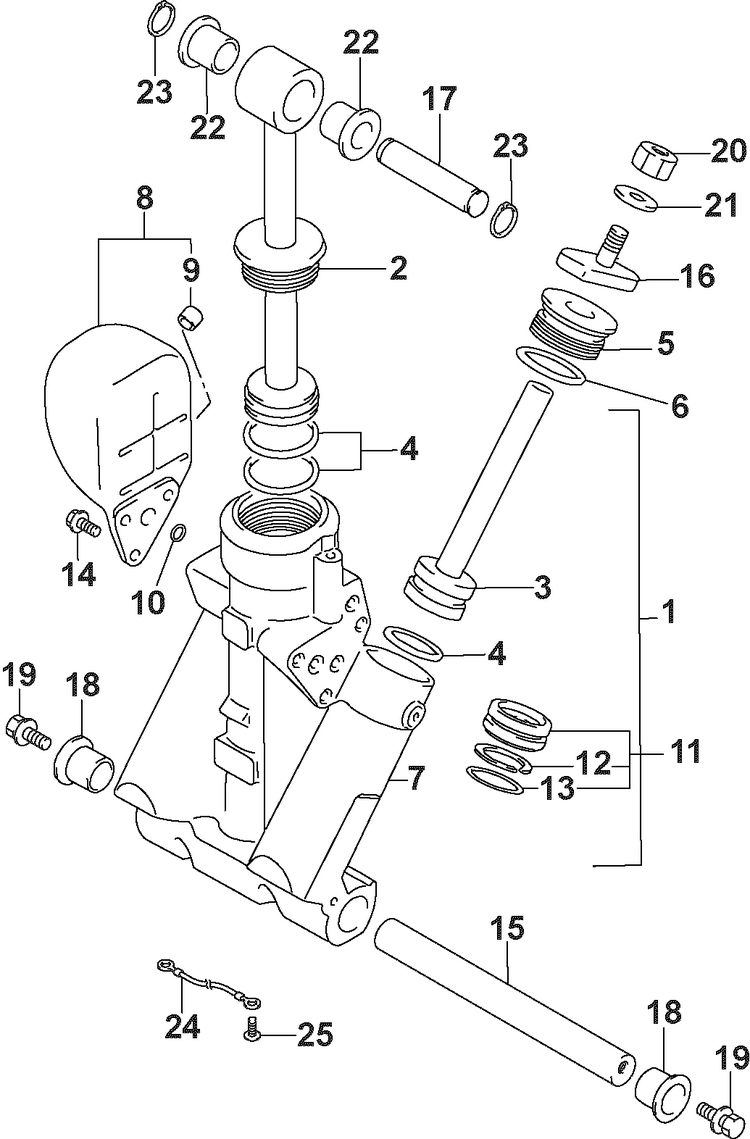

▶POWER TRIM & TILT (25 parts)

Ref	OEM Part #	Part Name
1	5033934	MANIFOLD SUB Assy
2	5033932	*PISTON Assy
3	5030868	*PISTON / RAM Assy
4	5030869	*O RING SET
5	5033935	*HEAD, TRIM CYLINDER
6	5030871	*O RING
7	5033936	*MANIFOLD, TNT
8	5030863	*RESERVOIR
9	5030864	**CAP
10	5030867	**O RING
11	5030872	*PISTON
12	5030861	**O RING
13	5031090	**RING SET, PISTON
14	5033938	*BOLT, RESERVOIR
15	5033931	SHAFT, TILT CYL LOWER
16	5030857	PAD, TRIM CYL RAM
17	5030858	PIN, Tilt cylinder, upper
18	5030859	BUSH
19	5033503	BOLT (10X35)
20	5034185	ÉCROU
21	5030069	*WASHER, Steering bracket
22	5030554	BUSHING
23	5030570	CIRCLIP, UPPER
24	5033836	LEAD (L:165mm)
25	5030409	SCREW

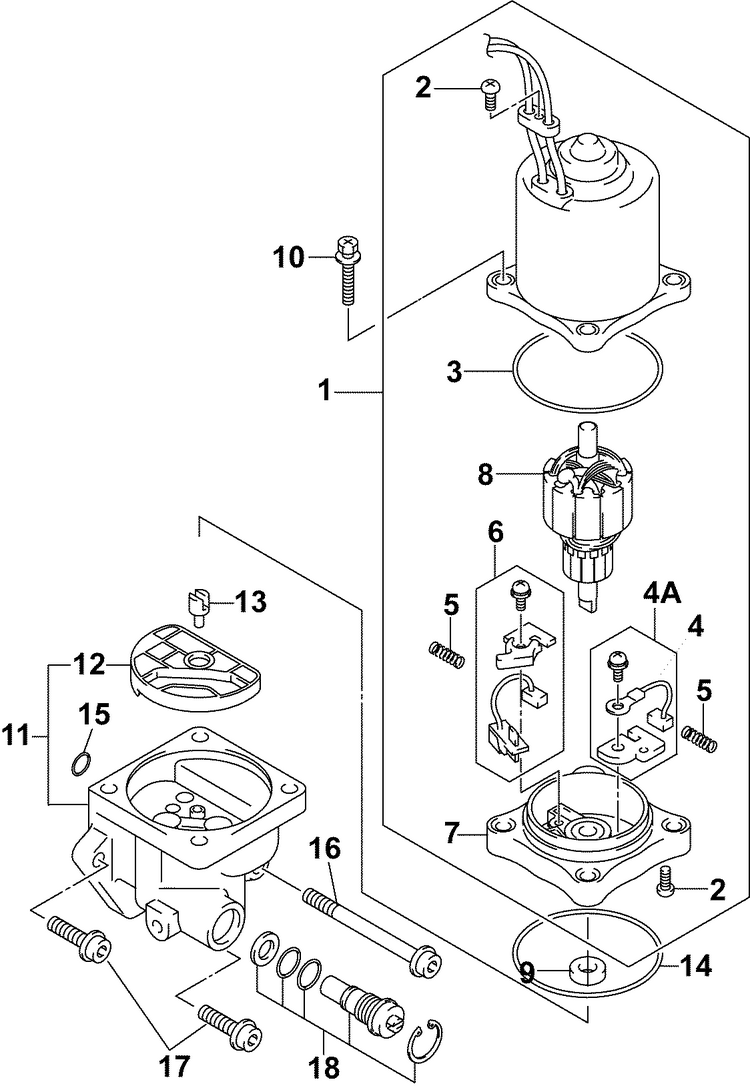

▶POWER TRIM & TILT ELECTRIC MOTOR (19 parts)

Ref	OEM Part #	Part Name
1	5034627	MOTOR Assy, TRIM/TILT
2	5031091	**SCREW
3	5032915	*O RING
4	5031093	**BRUSH
4A	5032638	**BRUSH
5	5031094	**SPRING
6	5033802	*BREAKER
7	5032227	**BRUSH HOLDER
8	5031092	**ARMATURE
9	5030805	*OIL SEAL
10	5033923	BOLT
11	5033933	PUMP Assy
12	5030865	*FILTER
13	5030866	*JOINT, DRIVE
14	5031096	O RING
15	5030867	**O RING
16	5033939	BOLT
17	5033940	BOLT
18	5033941	VALVE, MANUAL

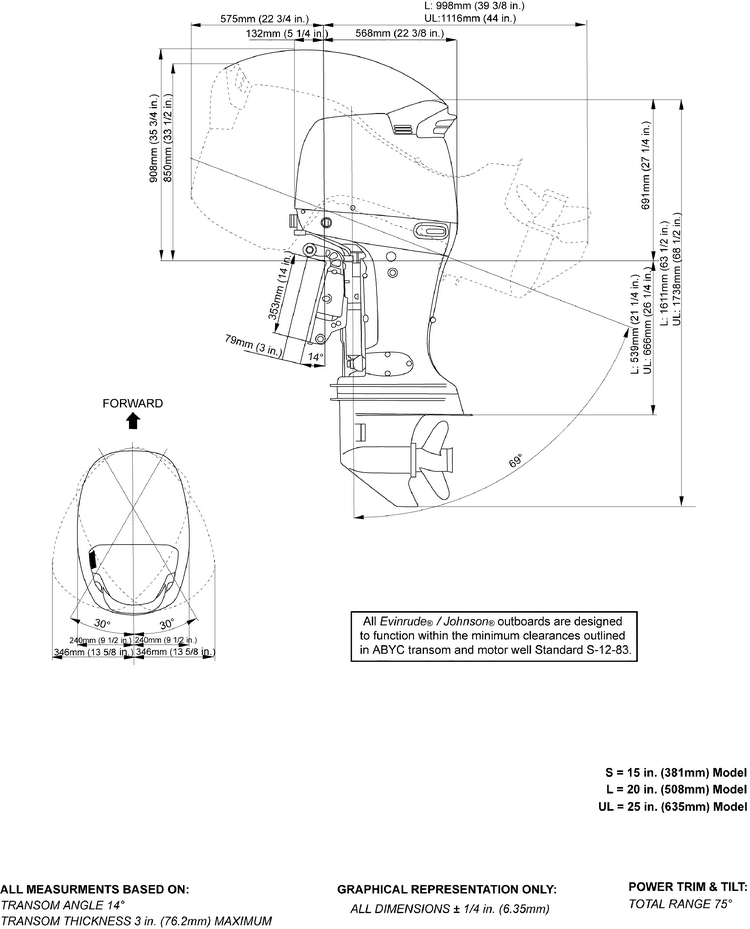

▶PROFILE DRAWING (0 parts)

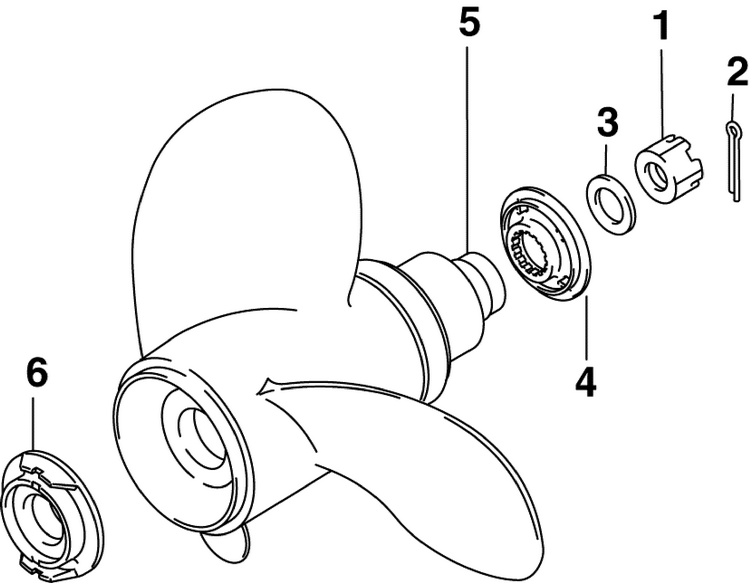

▶PROPELLER HARDWARE (6 parts)

Ref	OEM Part #	Part Name
1	5033854	KIT, PROPELLER NUT
2	5030087	*COTTER PIN
3	5030441	*Spacer washer
4	5034638	*Spacer
5	5033992	*BUSHING
6	5033954	STOP, PROPELLER BUSHING

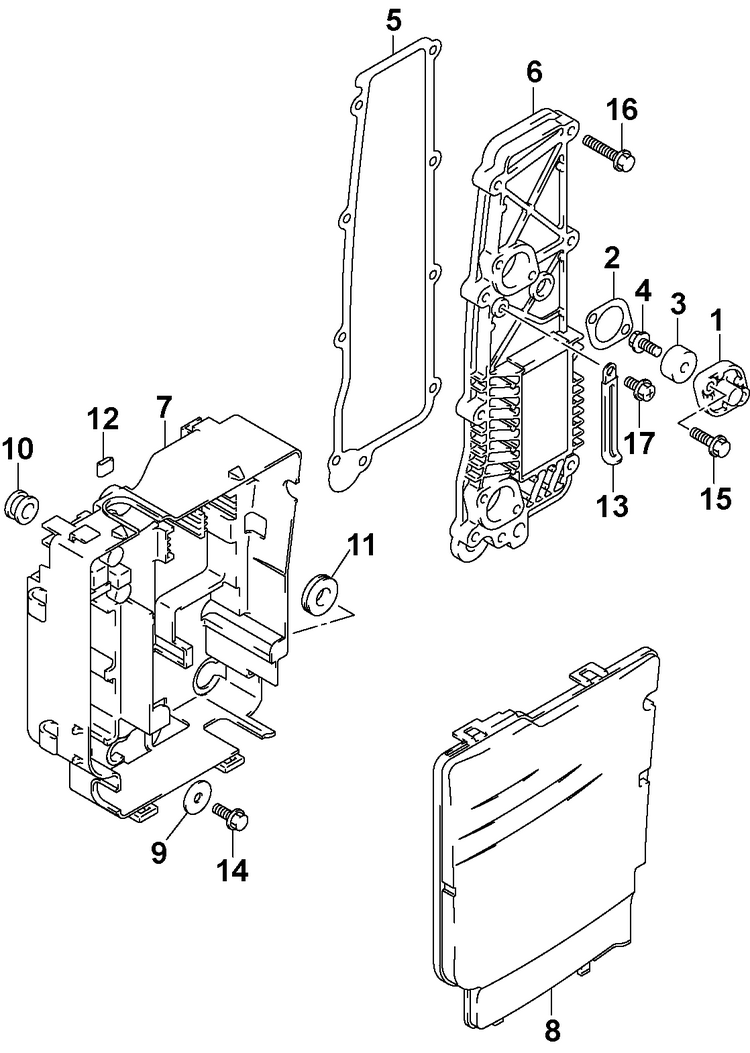

▶RECTIFIER (17 parts)

Ref	OEM Part #	Part Name
1	5034669	*COVER, PROTECTION ANODE
2	5030623	*GASKET, Anode
3	5034351	ANODE \| OPTIONAL
4	5036691	*BOLT
5	5033698	*GASKET, RECTIFIER
6	5036618	RECTIFIER & REGULATOR
7	5034604	HOLDER, ELECTRIC PARTS
8	5033822	COVER, ELECTRIC PARTS HOLDER
9	5030428	RONDELLE
10	5030557	CUSHION
11	5030559	CUSHION
12	5033022	CUSHION
13	5030135	**CLAMP, RECT/REG LEAD
14	5030989	*BOLT
15	5030000	*BOLT
16	5030001	*BOLT, Cylinder & crankcase
17	5034135	BOLT

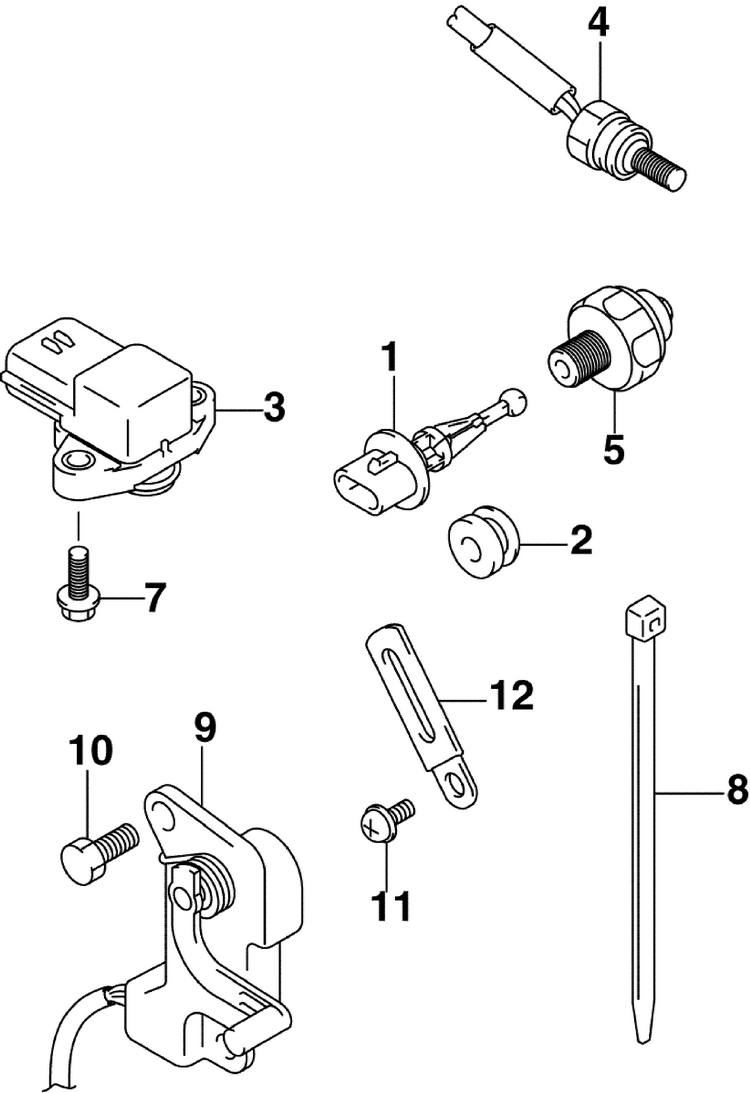

▶SENSORS (11 parts)

Ref	OEM Part #	Part Name
1	5031392	SENSOR, IAT
2	5031393	GROMMET
3	5033780	*SENSOR, MAP
4	5034087	SENSOR ASSY, CYLINDER TEMP
5	5030826	SWITCH ASSY, OIL PRESSURE
7	5034134	*SCREW, PRESSURE SENSOR
8	5031118	**CLAMP, LEAD
9	5036054	SENDER ASSY, TRIM
10	5031117	BOLT
11	5030409	SCREW
12	5030135	**CLAMP, RECT/REG LEAD

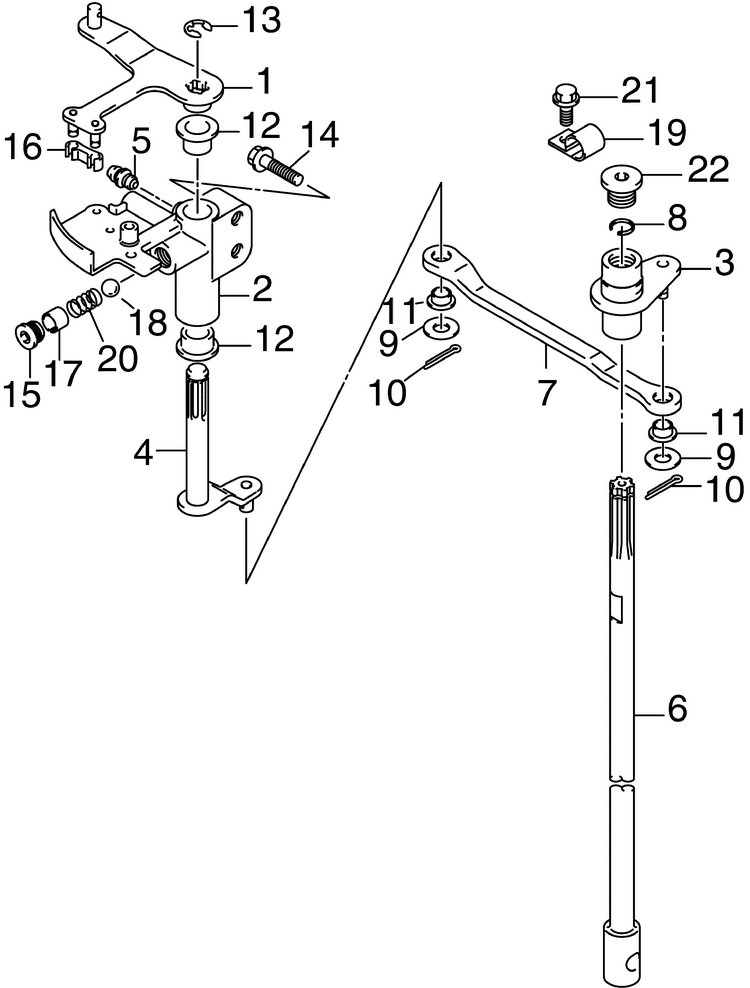

▶SHIFT LINKAGE SN 032313 & Up (22 parts)

Ref	OEM Part #	Part Name
1	5037179	LEVER, CLUTCH
2	5037180	HOLDER
3	5037181	SHAFT, CLUTCH
4	5037182	ARM, CLUTCH SHAFT
5	5030207	FITTING, GREASE
6	5033790	ROD, CLUTCH - 25 in.
7	5037183	LINK, CLUTCH LEVER
8	5033792	RING, CLUTCH ROD
9	5031147	*WASHER
10	5030512	*PIN
11	5033615	BUSHING
12	5030553	BUSHING
13	5033624	E RING
14	5030001	*BOLT, Cylinder & crankcase
15	5037184	PLUG, Notch spring
16	5035067	BUSHING, CLUTCH LEVER
17	5030091	*DOWEL PIN, Notch ball
18	5030096	BALL
19	5031902	CLAMP
20	5031282	SPRING
21	5030989	*BOLT
22	5034601	PLUG

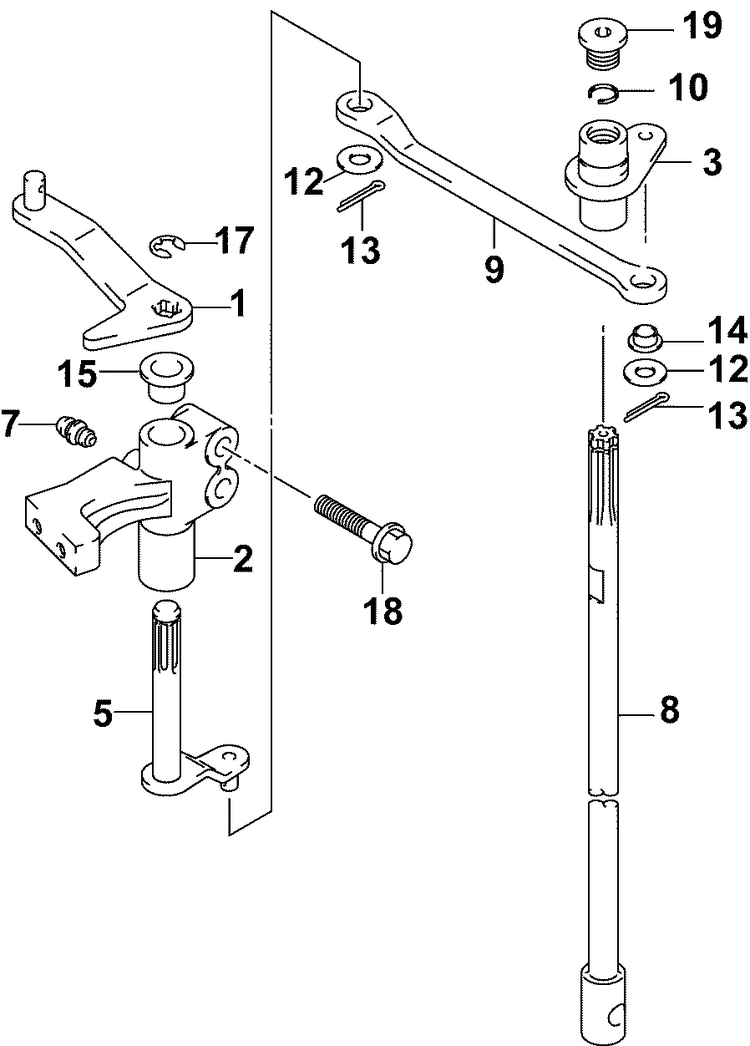

▶SHIFT LINKAGE Up to SN 032312 (15 parts)

Ref	OEM Part #	Part Name
1	5033546	LEVER, CLUTCH
2	5033547	HOLDER
3	5034599	SHAFT, CLUTCH
5	5033787	ARM, CLUTCH SHAFT
7	5030207	FITTING, GREASE
8	5033790	ROD, CLUTCH - 25 in.
9	5034600	LINK, CLUTCH LEVER
10	5033792	RING, CLUTCH ROD
12	5031147	*WASHER
13	5030512	*PIN
14	5033615	BUSHING
15	5030553	BUSHING
17	5033624	E RING
18	5030001	*BOLT, Cylinder & crankcase
19	5034601	PLUG

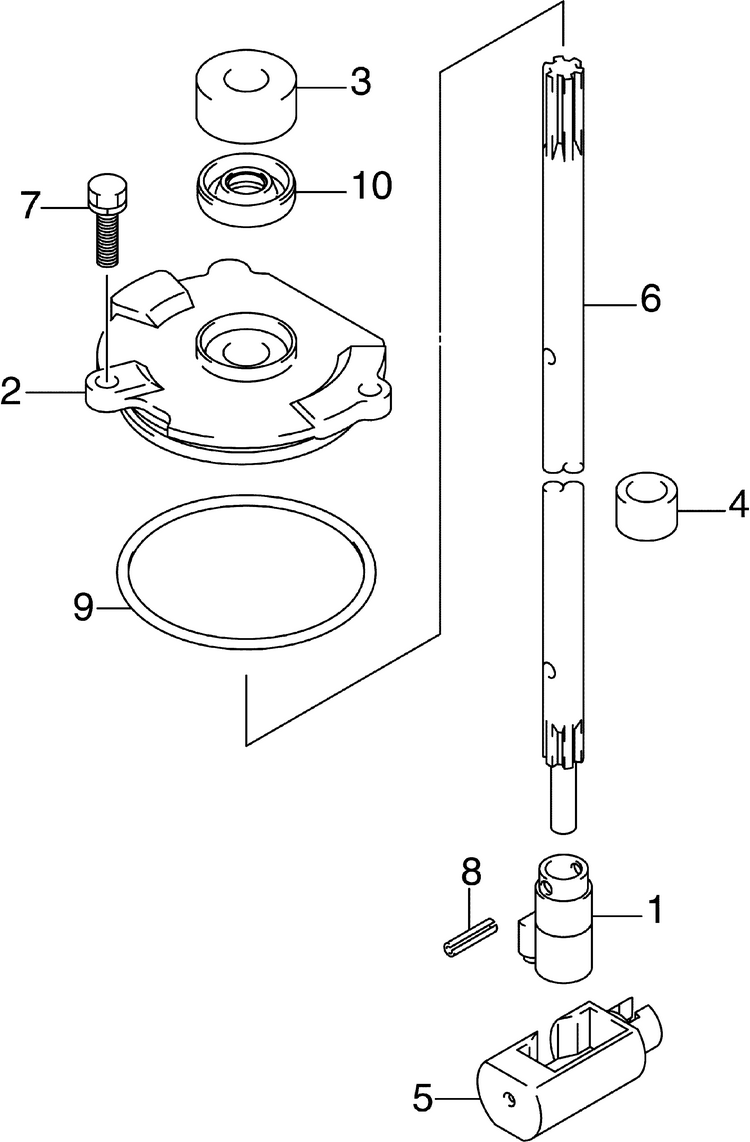

▶SHIFT ROD SN 032313 & Up (10 parts)

Ref	OEM Part #	Part Name
1	5037185	YOKE, SHIFTER
2	5037186	HOUSING, SHIFT ROD GUIDE
3	5037187	COVER, OIL SEAL
4	5033794	MAGNET, GEAR CASE
5	5037437	SLIDER, SHIFT HORIZONTAL \| Counter rotation model
6	5037190	ROD, SHIFT ASSIST-25 IN. MODELS
7	5030037	*BOLT
8	5033601	PIN
9	5030544	O RING
10	5033517	SEAL, DUST

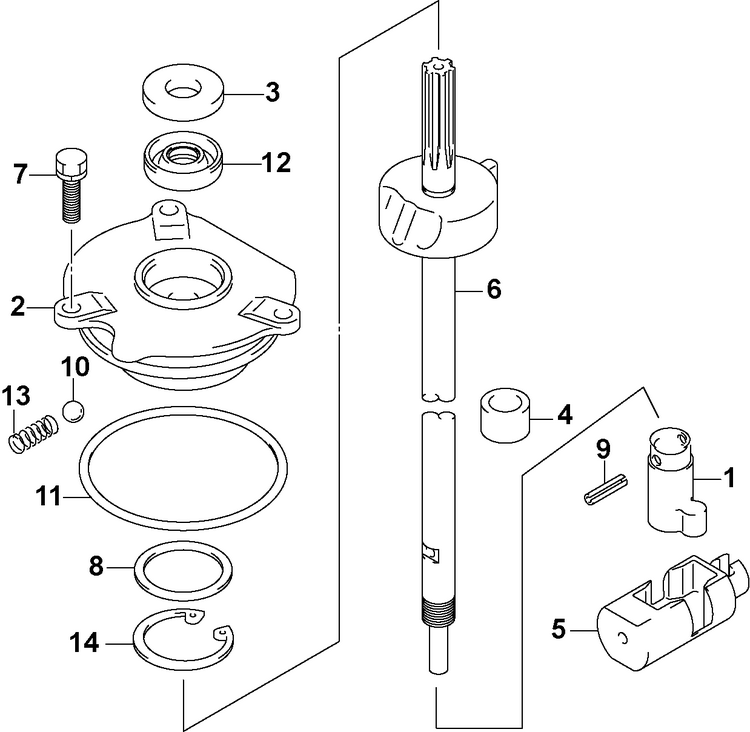

▶SHIFT ROD Up to SN 032312 (14 parts)

Ref	OEM Part #	Part Name
1	5033548	YOKE, SHIFTER
2	5034602	HOUSING, SHIFT ROD GUIDE
3	5033793	COVER, SHIFT GUIDE HSG OIL SEAL
4	5033794	MAGNET, GEAR CASE
5	5033795	SLIDER, SHIFT HORIZONTAL
6	5033797	ROD, SHIFT ASSIST-25 IN. MODELS
7	5030396	BOLT (6X20)
8	5033595	*WASHER (30X38X1.9mm)
9	5033601	PIN
10	5030096	BALL
11	5030544	O RING
12	5033517	SEAL, DUST
13	5030596	SPRING
14	5034141	CIRCLIP

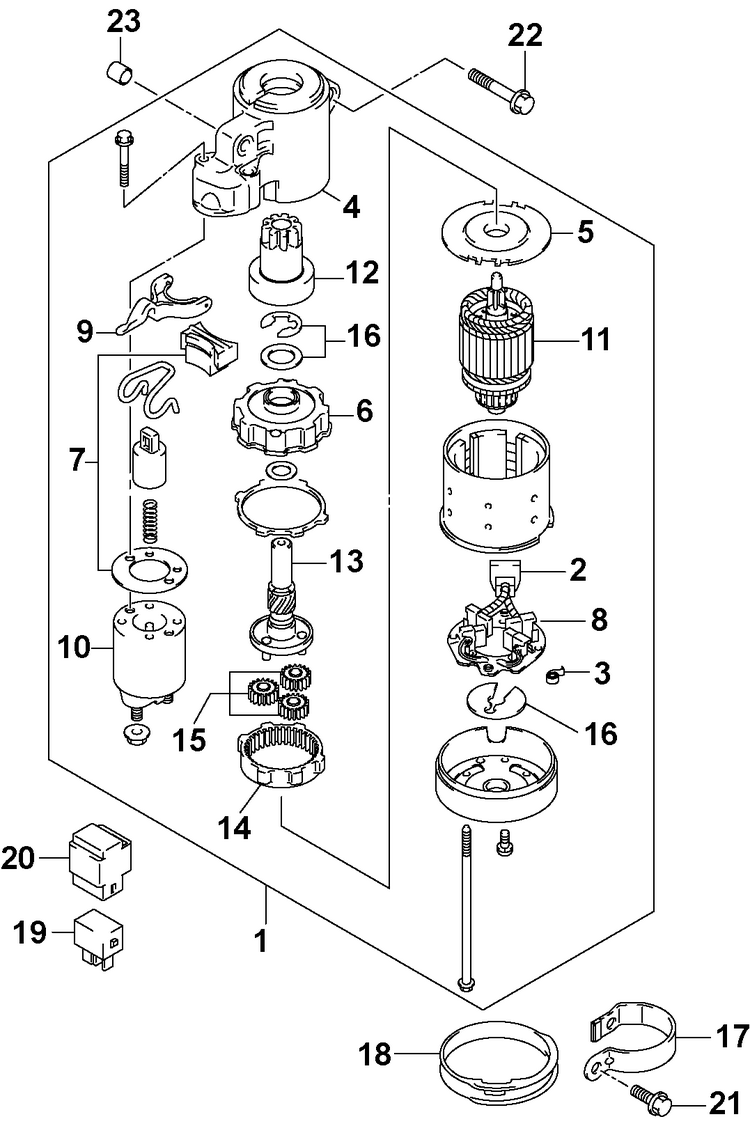

▶STARTER MOTOR (23 parts)

Ref	OEM Part #	Part Name
1	5033799	STARTER, MOTOR
2	5033800	*BRUSH SET
3	5033801	***SPRING
4	5033803	*CASE, GEAR
5	5033804	***PLATE, Center
6	5033805	***BRACKET, Planet gear
7	5033806	*COVER KIT, DUST
8	5033807	*HOLDER, BRUSH
9	5033808	*LEVER, SHIFT
10	5033809	*COMMUTATEUR, MAGNÉTIQUE
11	5033810	***ARMATURE
12	5033811	*PINION
13	5033812	*SHAFT, PINION
14	5033813	***INTERNAL GEAR
15	5033814	***GEAR, Planetary
16	5033815	*WASHER SET
17	5033816	BAND, STARTER MOTOR
18	5033817	**DAMPER
19	5033264	**RELAY ASSY
20	5033258	**HOLDER
21	5030994	**BOLT, LOWER
22	5034128	BOLT
23	5034136	PIN

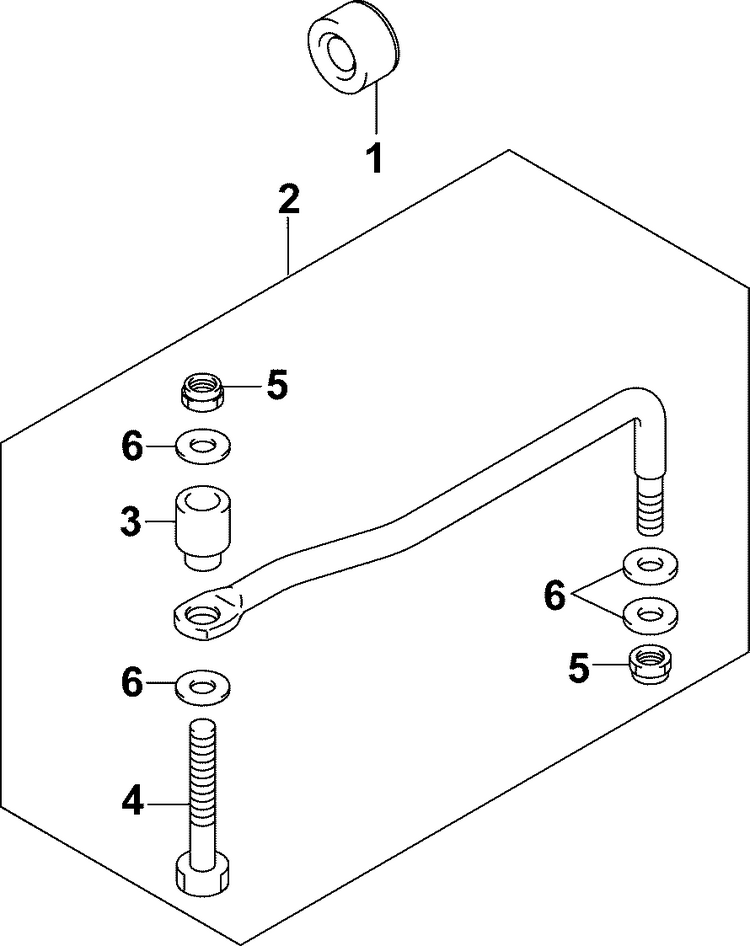

▶STEERING CONNECTOR KIT (6 parts)

Ref	OEM Part #	Part Name
1	5030840	*SEAL
2	5033870	LINK ASSY, DRAG
3	5030958	*SPACER
4	5032247	**BOLT
5	5032175	**NUT
6	5032176	**WASHER

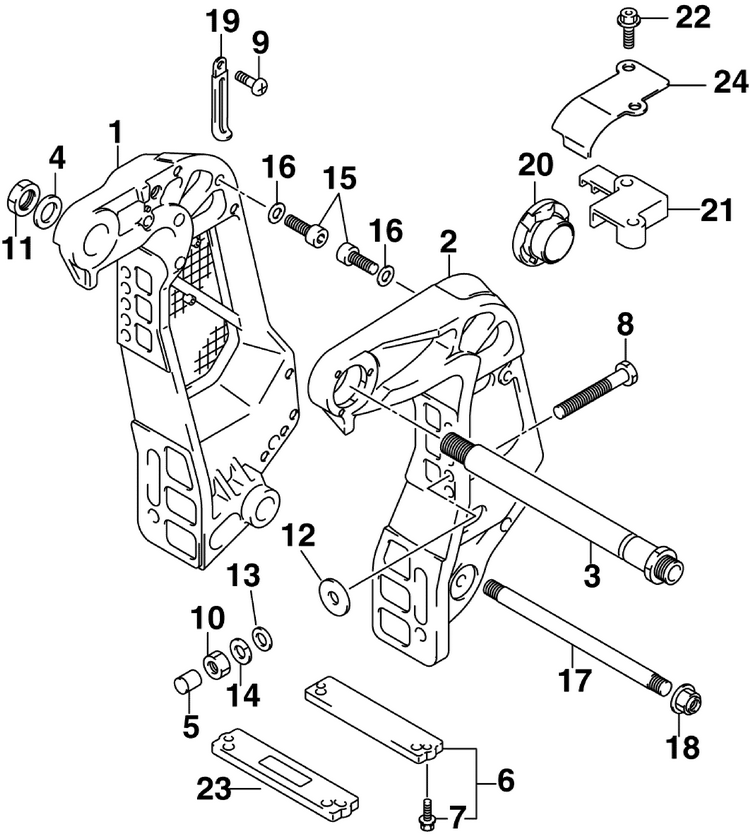

▶STERN BRACKET (24 parts)

Ref	OEM Part #	Part Name
1	5034609	BRACKET, CLAMP STBD
2	5035961	BRACKET, CLAMP PORT
3	5037198	SHAFT, CLAMP BRACKET \| SN 032313 & UP
4	5033928	WASHER, CLAMP BRKT SHAFT
5	5030839	CAP, TRANSOM BOLT
6	5030907	ANODE
7	5030391	*BOLT
8	5036599	Bolt
9	5030409	SCREW
10	5031221	NUT
11	5032820	ÉCROU
12	5030436	WASHER
13	5036480	WASHER
14	5030462	*WASHER, Lock
15	5030388	BOLT
16	5030057	WASHER
17	5030855	PIN, Tilt lock
18	5030426	NUT
19	5030135	**CLAMP, RECT/REG LEAD
20	5034523	CAM, TILT LIMIT
21	5034524	HOLDER
22	5036600	BOLT
23	5034522	ANODE \| OPTIONAL
24	5036645	COVER

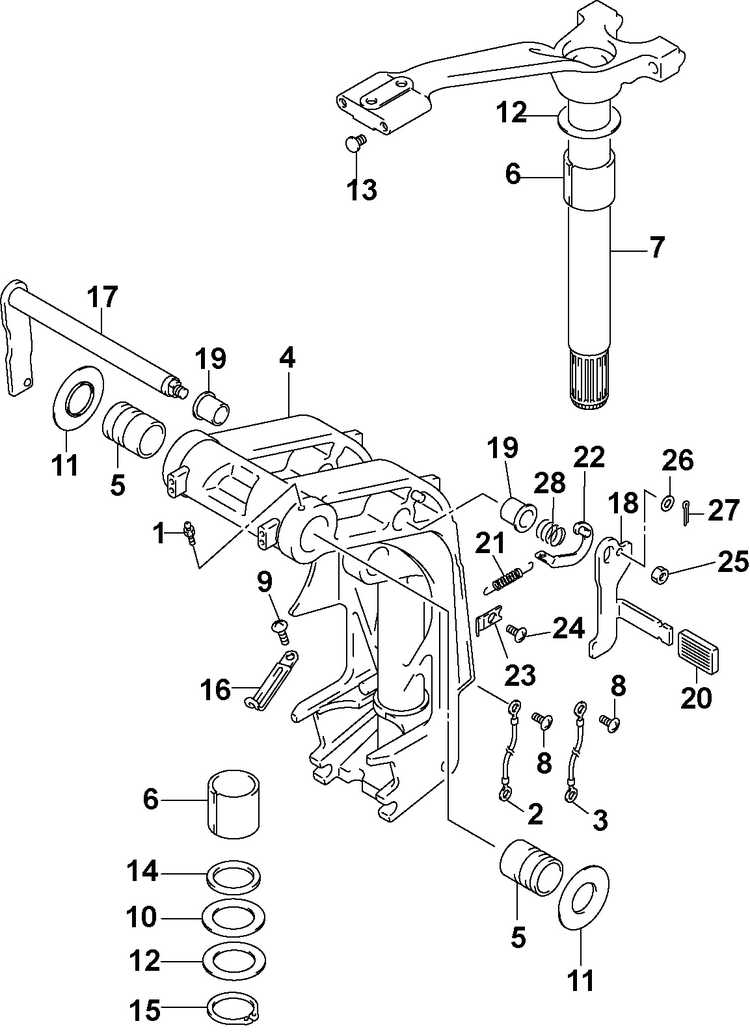

▶SWIVEL BRACKET (28 parts)

Ref	OEM Part #	Part Name
1	5030207	FITTING, GREASE
2	5030821	BONDING LEAD, Exh. hsg. to bracket
3	5033836	LEAD (L:165mm)
4	5037439	BRACKET, SWIVEL - 25 in. \| SN 032313 & Up
5	5037201	BUSHING, CLAMP SHAFT SWIVEL \| SN 032313 & Up
6	5030852	BUSHING, STEERING
7	5037203	BRACKET, STEERING - 25 in. \| SN 032313 & Up
8	5030407	SCREW (5X8)
9	5030409	SCREW
10	5030456	WASHER
11	5032635	BUSHING, Tilt tube
12	5030477	SHIM
13	5033605	PLUG
14	5030548	SEAL
15	5030572	CIRCLIP
16	5030135	**CLAMP, RECT/REG LEAD
17	5032917	LEVER, TILT LOCK
18	5030842	LEVER, TILT LOCK PORT
19	5030843	BUSHING, TILT STOP ROD
20	5030844	COVER, Tilt lock lever
21	5032918	SPRING, TILT LOCK LEVER
22	5030846	LINK, TILT LOCK LEVER
23	5030847	BRACKET, TILT LOCK SPRING
24	5030409	SCREW
25	5030417	NUT
26	5030429	*WASHER
27	5030512	*PIN
28	5030597	SPRING

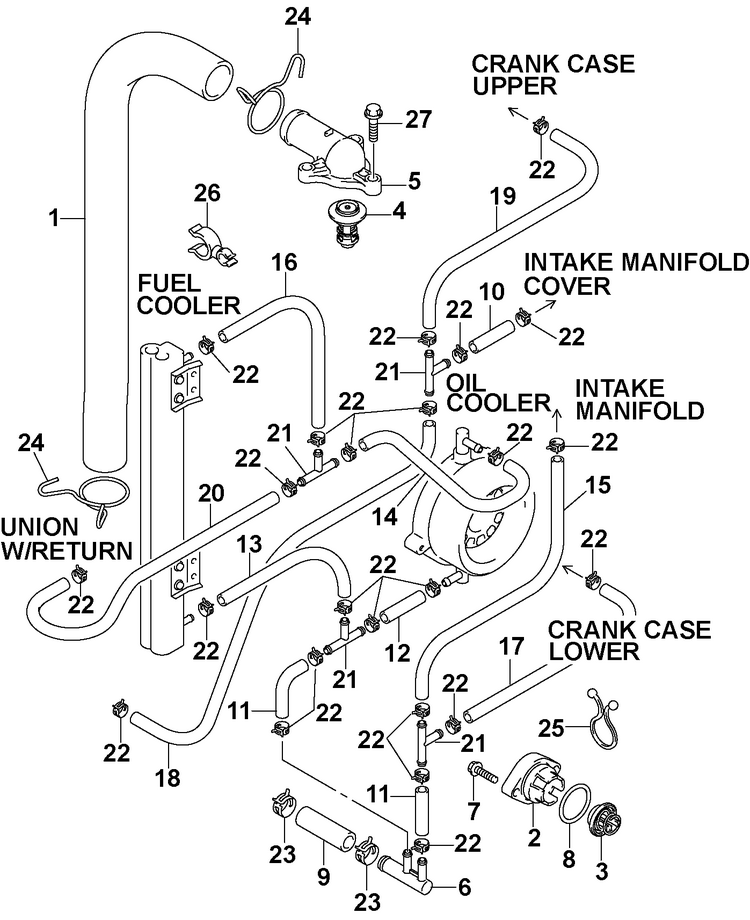

▶THERMOSTAT (27 parts)

Ref	OEM Part #	Part Name
1	5033644	HOSE, WATER RETURN
2	5035956	COVER, WATER PRESSURE VALVE
3	5033720	VALVE, WATER PRESSURE
4	5033722	THERMOSTAT (71.C) \| Optional
5	5036683	COVER, THERMOSTAT
6	5033724	3 way, WATER HOSE
7	5030391	*BOLT
8	5030541	O RING
9	5033621	HOSE (HOLDER TO 3 WAY - L:50mm) \| Cut to length from bulk roll
10	5030122	HOSE (150mm) \| Cut to length from bulk roll
11	5030122	HOSE (150mm) \| Cut to length from bulk roll
12	5030122	HOSE (150mm) \| Cut to length from bulk roll
13	5030122	HOSE (150mm) \| Cut to length from bulk roll
14	5030122	HOSE (150mm) \| Cut to length from bulk roll
15	5030122	HOSE (150mm) \| Cut to length from bulk roll
16	5030122	HOSE (150mm) \| Cut to length from bulk roll
17	5030122	HOSE (150mm) \| Cut to length from bulk roll
18	5030122	HOSE (150mm) \| Cut to length from bulk roll
19	5030122	HOSE (150mm) \| Cut to length from bulk roll
20	5030122	HOSE (150mm) \| Cut to length from bulk roll
21	5030127	3 WAY
22	5037047	CLIP
23	5033626	CLIP
24	5037177	CLIP
25	5033629	CLAMP
26	5033630	CLAMP
27	5030990	**BOLT

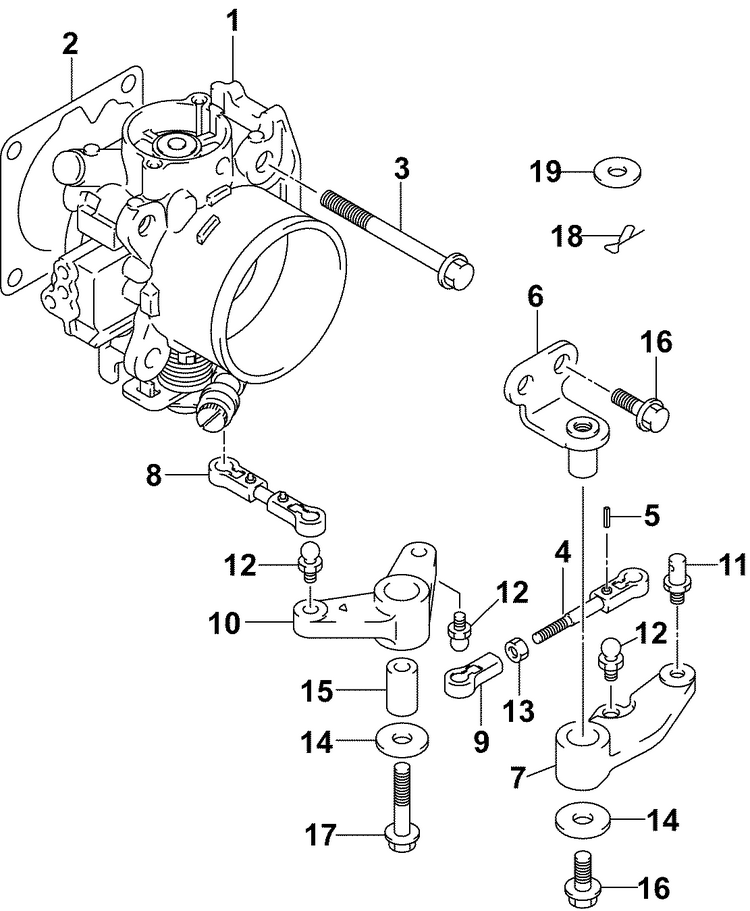

▶THROTTLE BODY (19 parts)

Ref	OEM Part #	Part Name
1	5033691	BODY Assy, THROTTLE
2	5033692	*GASKET, THROTTLE BODY
3	5031642	BOLT
4	5033693	ROD, THROTTLE
5	5030088	**PIN
6	5033781	HOLDER
7	5033782	LEVER, THROTTLE #1
8	5037178	ROD \| SN 032313 & Later
9	5030760	CONNECTEUR, TRINGLERIE D’ACCÉLÉRATEUR
10	5033784	LEVER, THROTTLE
11	*5032289	PIN,CONNECTOR
12	5030403	BOLT
13	5030416	ÉCROU
14	5031222	WASHER
15	5031236	SPACER
16	5030989	*BOLT
17	5030002	*BOLT
18	*5030575	CLIP
19	*5031080	WASHER,CONNECTOR

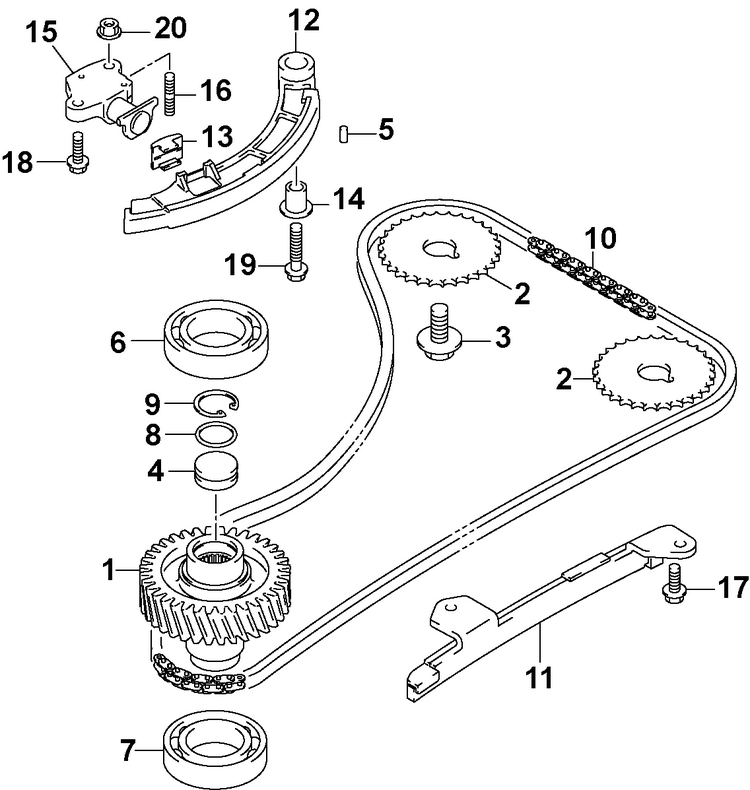

▶TIMING CHAIN (20 parts)

Ref	OEM Part #	Part Name
1	5033662	GEAR, DRIVEN
2	5033664	SPROCKET, CAM SHAFT TIMING
3	5033585	BOLT (12X25mm)
4	5033663	PLUG, DRIVEN GEAR
5	5031015	PIN
6	5033608	BEARING
7	5033609	BEARING
8	5033516	O RING
9	5034140	CIRCLIP
10	5033665	CHAIN, TIMING
11	5033666	GUIDE, TIMING CHAIN
12	5033667	TENSIONER, TIMING CHAIN
13	5031337	*PAD, TIMING CHAIN TENSIONER
14	5033668	SPACER, TIMING CHAIN TENSIONER
15	5036680	ADJUSTER Assy, TENSIONER
16	5034121	BOLT, STUD
17	5034125	BOLT
18	5031666	BOLT
19	5034126	BOLT
20	5034138	NUT

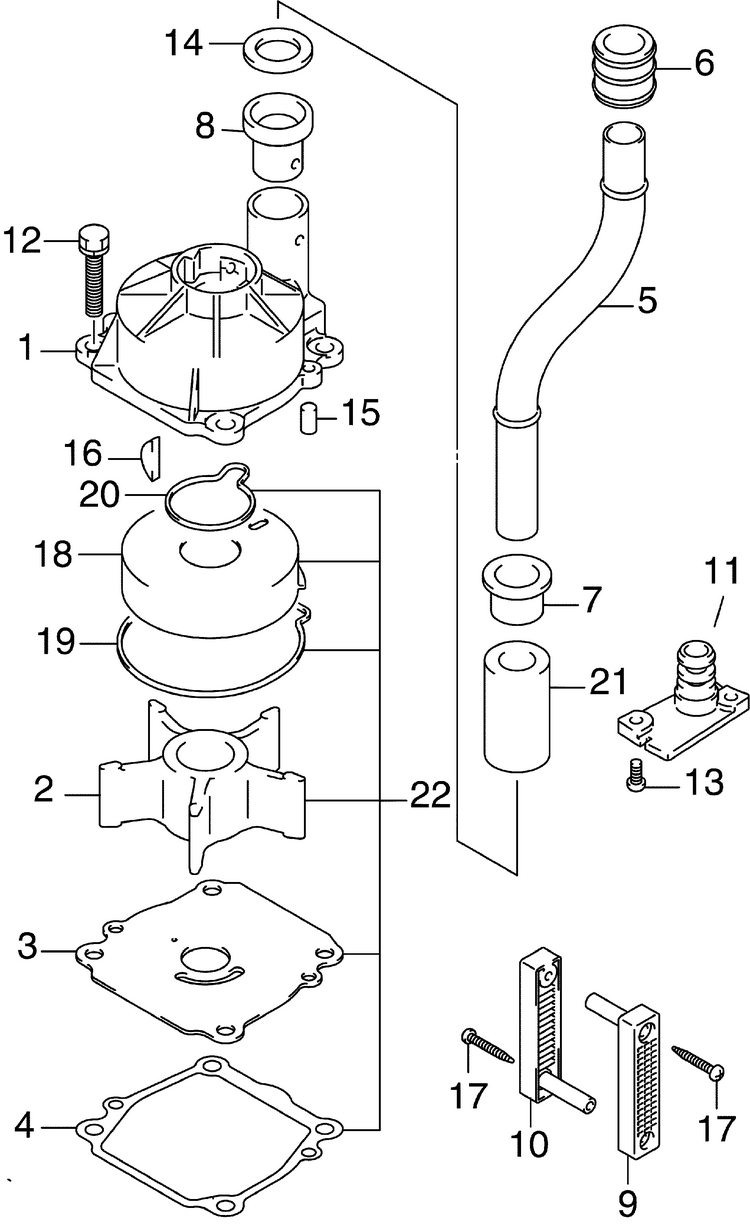

▶WATER PUMP SN 032313 & Later (22 parts)

Ref	OEM Part #	Part Name
1	5037169	CASE, WATER PUMP
2	5033542	IMPELLER \| Included in "WATER PUMP REPAIR KIT"
3	5037170	PANEL \| Included in "WATER PUMP REPAIR KIT"
4	5030725	*GASKET, PUMP CASE PANEL \| Included in "WATER PUMP REPAIR KIT"
5	5033544	TUBE, WATER - 25 IN. MODELS
6	5033717	BUSHING, WATER TUBE
7	5030728	BUSHING
8	5030729	BUSHING
9	5032594	FILTER, Water - Port
10	5032595	FILTER, Water - Stbd
11	5034509	PLUG
12	5036712	BOLT (8X45mm)
13	5030406	SCREW
14	5030461	WASHER
15	5030508	PIN
16	5034842	KEY
17	5034510	SCREW
18	5037173	SLEEVE, Water pump case
19	5037174	SEAL, Water pump case
20	5037175	SEAL, Water pump case
21	5033719	SPACER, WATER TUBE \| 25 IN. Models
22	5037176	WATER PUMP REPAIR KIT

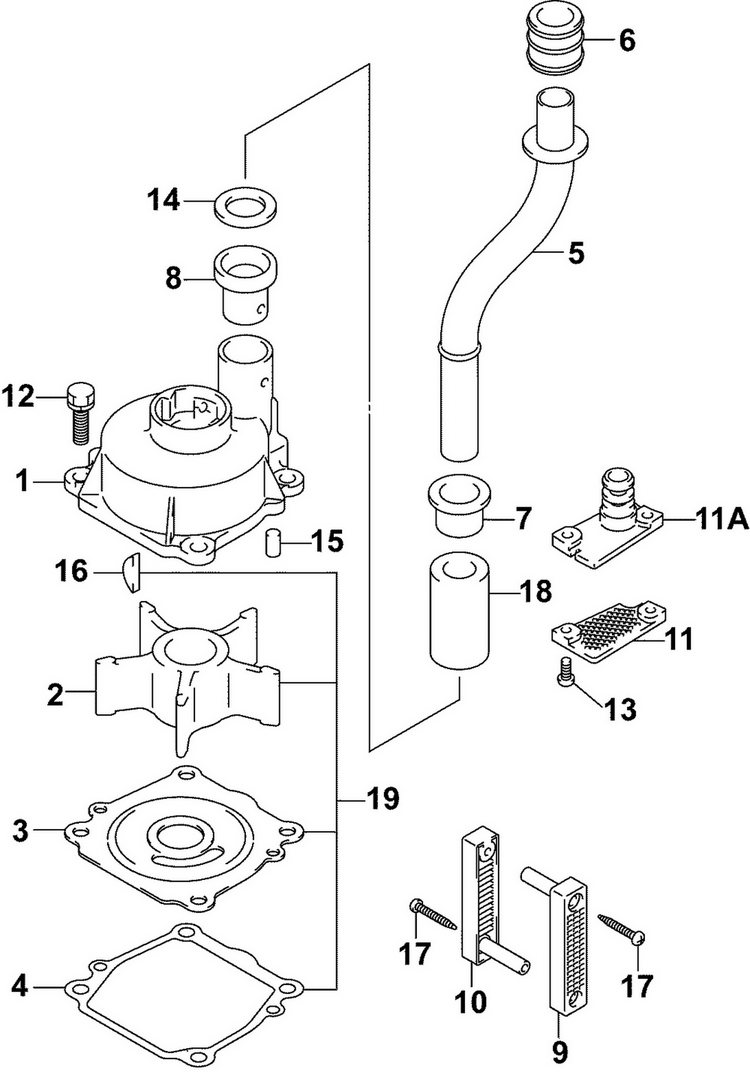

▶WATER PUMP Up to SN 032312 (20 parts)

Ref	OEM Part #	Part Name
1	5033716	CASE, WATER PUMP
2	5033542	IMPELLER \| INCLUDED IN WATER PUMP REPAIR KIT
3	5037170	PANEL \| Optional
4	5030725	*GASKET, PUMP CASE PANEL \| INCLUDED IN WATER PUMP REPAIR KIT
5	5033544	TUBE, WATER - 25 IN. MODELS
6	5033717	BUSHING, WATER TUBE
7	5030728	BUSHING
8	5030729	BUSHING
9	5032594	FILTER, Water - Port
10	5032595	FILTER, Water - Stbd
11	5030739	FILTER, SUB WATER
11A	5034509	PLUG \| Optional
12	5030398	BOLT
13	5030406	SCREW
14	5030461	WASHER
15	5030508	PIN
16	5034842	KEY \| INCLUDED IN WATER PUMP REPAIR KIT
17	5034510	SCREW
18	5033719	SPACER, WATER TUBE
19	5033541	WATER PUMP REPAIR KIT \| Optional

Popular Products

Popular Products

Popular Products

Johnson J140PX4SDA (2006) Parts & Diagrams

Categories

Refined By Clear all

Brand

Horsepower

Engine

Availability

Price

Need Help?

Images

Product

Price

Qty

Options
