Evinrude DE200CXAAA (2012) Parts & Diagrams

🔎 Evinrude DE200CXAAA Reference Library — Exploded parts diagrams (45 diagrams), specifications, common issues, and maintenance checklist.

Parts Diagrams & OEM Part Numbers

Expand the sections below to view detailed exploded parts diagrams and find the exact OEM replacement components for your Evinrude DE200CXAAA.

▶00_IN-BOX PARTS SHIPPED WITH ENGINE (59 parts)

Ref	OEM Part #	Part Name
_auto1	0216223	OPERATOR'S GUIDE - ENGLISH \| 150, 175 HP AAA, AAB Models
_auto10	0333774	**ATTACHE, commande vers tringlerie de sens de marche
_auto11	0333774	**ATTACHE, commande vers tringlerie de sens de marche
_auto12	0346150	*CLAMP, 18.5mm
_auto13	0346785	**CLAMP, 14.5 mm
_auto14	0352868	CLAMP, (69.5 mm) Rigging tube
_auto15	0584348	*CÂBLE, batterie 10' (3,0m)
_auto16	5011172	Kit Ay
_auto17	0434153	KIT MATÉRIEL DE MONTAGE D’HÉLICE
_auto18	0126870	*BAGUE, de butée
_auto19	0306394	**COTTER PIN
_auto2	0216224	OPERATOR'S GUIDE - ENGLISH \| 200 HP AAA, AAB Models only
_auto20	0320570	**Spacer, Nut
_auto21	5008966	*NUT & KEEPER, Propeller
_auto22	0216225	OPERATOR'S GUIDE - ENGLISH \| A, B Suffix
_auto23	0216222	Operator's Guide - 115-300 HP, All Models, \| C, D Suffix
_auto24	0318572	Bolt thread protective cap 1/2 in.
_auto25	0337586	*ÉCROU RACLEUR

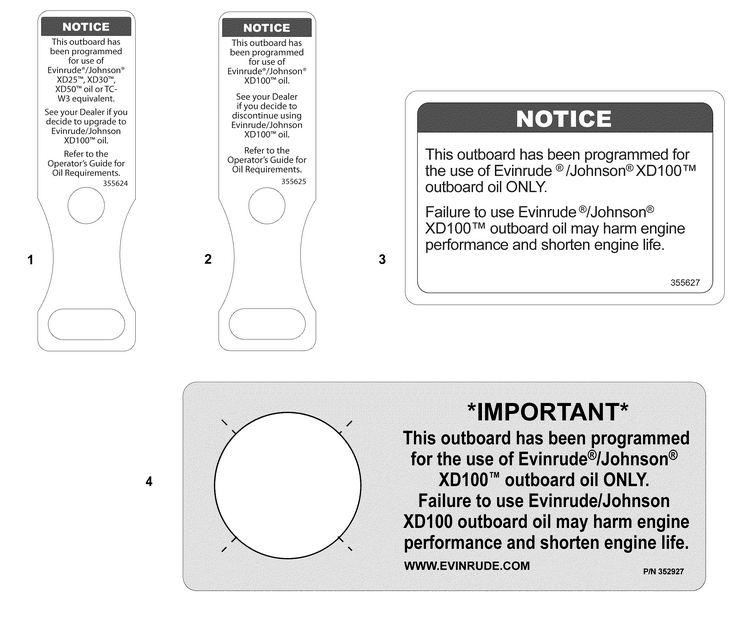

_auto26	0355625	EMM Oil program tag, XD 100 oil
_auto27	0352369	DECAL, XD-100 Oil
_auto28	0328702	* WASHER
_auto29	0333774	**ATTACHE, commande vers tringlerie de sens de marche
_auto3	0216222	Operator's Guide - 115-300 HP, All Models, \| 135, 150, 175, 200 HP AAC & Newer models
_auto30	0346150	*CLAMP, 18.5mm
_auto31	0346785	**CLAMP, 14.5 mm
_auto32	0352868	CLAMP, (69.5 mm) Rigging tube
_auto33	0584348	*CÂBLE, batterie 10' (3,0m)
_auto34	0434153	KIT MATÉRIEL DE MONTAGE D’HÉLICE
_auto35	0126870	*BAGUE, de butée
_auto36	0306394	**COTTER PIN
_auto37	0320570	**Spacer, Nut
_auto38	5008966	*NUT & KEEPER, Propeller
_auto39	0216223	OPERATOR'S GUIDE - ENGLISH \| 150, 175 HP AAA, AAB Models
_auto4	0318572	Bolt thread protective cap 1/2 in.
_auto40	0216224	OPERATOR'S GUIDE - ENGLISH \| 200 HP AAA, AAB Models only
_auto41	0216222	Operator's Guide - 115-300 HP, All Models, \| 135, 150, 175, 200 HP AAC & Newer models
_auto42	0318572	Bolt thread protective cap 1/2 in.
_auto43	0337586	*ÉCROU RACLEUR
_auto44	0355625	EMM Oil program tag, XD 100 oil
_auto45	0355627	DECAL, XD-100 oil usage
_auto46	0328702	* WASHER
_auto47	0328702	* WASHER
_auto48	0333774	**ATTACHE, commande vers tringlerie de sens de marche
_auto49	0333774	**ATTACHE, commande vers tringlerie de sens de marche
_auto5	0337586	*ÉCROU RACLEUR
_auto50	0346150	*CLAMP, 18.5mm
_auto51	0346785	**CLAMP, 14.5 mm
_auto52	0352868	CLAMP, (69.5 mm) Rigging tube
_auto53	0584348	*CÂBLE, batterie 10' (3,0m)
_auto54	5011172	Kit Ay
_auto55	0434153	KIT MATÉRIEL DE MONTAGE D’HÉLICE
_auto56	0126870	*BAGUE, de butée
_auto57	0306394	**COTTER PIN
_auto58	0320570	**Spacer, Nut
_auto59	5008966	*NUT & KEEPER, Propeller
_auto6	0355625	EMM Oil program tag, XD 100 oil
_auto7	0355627	DECAL, XD-100 oil usage
_auto8	0328702	* WASHER
_auto9	0328702	* WASHER

▶00_LITERATURE (49 parts)

Ref	OEM Part #	Part Name
_auto1	0216223	OPERATOR'S GUIDE - ENGLISH \| 150, 175 HP AAA, AAB Models
_auto10	5009020	AA Service Manual Set – French
_auto11	5009013	AA Service Manual CD – English
_auto12	5009014	AA Service Manual CD – French
_auto13	5009015	AA Installation & Predelivery – All Models – English
_auto14	5009016	AA Installation & Predelivery – All Models – French
_auto15	5009017	Special Tools Catalog – English
_auto16	5009018	Special Tools Catalog – French
_auto17	0767494	Material Safety Data Sheet (MSDS) Set \| On CD-RoM
_auto18	0216225	OPERATOR'S GUIDE - ENGLISH \| Shipped with engine from factory
_auto19	0216222	Operator's Guide - 115-300 HP, All Models, \| Shipped with engine from factory
_auto2	0216224	OPERATOR'S GUIDE - ENGLISH \| 200 HP AAA, AAB Models only
_auto20	0216257	Operator’s Guide 200 to 300 HP – French \| A, B Suffix
_auto21	0216254	Operator’s Guide 115 to 130 HP – French \| C, D Suffix
_auto22	5009011	Service Manual 200 to 300 HP – English
_auto23	5009012	Service Manual 200 to 300 HP – French
_auto24	5009019	AA Service Manual Set – English
_auto25	5009020	AA Service Manual Set – French
_auto26	5009013	AA Service Manual CD – English
_auto27	5009014	AA Service Manual CD – French
_auto28	5009015	AA Installation & Predelivery – All Models – English
_auto29	5009016	AA Installation & Predelivery – All Models – French
_auto3	0216255	Operator’s Guide 150, 175 HP – French \| 150, 175 HP AAA, AAB Models
_auto30	5009017	Special Tools Catalog – English
_auto31	5009018	Special Tools Catalog – French
_auto32	0767494	Material Safety Data Sheet (MSDS) Set \| On CD-RoM
_auto33	0216223	OPERATOR'S GUIDE - ENGLISH \| 150, 175 HP AAA, AAB Models
_auto34	0216224	OPERATOR'S GUIDE - ENGLISH \| 200 HP AAA, AAB Models only
_auto35	0216255	Operator’s Guide 150, 175 HP – French \| 150, 175 HP AAA, AAB Models
_auto36	0216256	Operator’s Guide 200 HP – French \| 200 HP AAA, AAB Models only
_auto37	0216222	Operator's Guide - 115-300 HP, All Models, \| 135, 150, 175, 200 HP AAC & Newer models
_auto38	0216254	Operator’s Guide 115 to 130 HP – French \| 135, 150, 175, 200 HP AAC & Newer models
_auto39	5009009	Service Manual 115 to 200 HP – English
_auto4	0216256	Operator’s Guide 200 HP – French \| 200 HP AAA, AAB Models only
_auto40	5009010	Service Manual 115 to 200 HP – French
_auto41	5009019	AA Service Manual Set – English
_auto42	5009020	AA Service Manual Set – French
_auto43	5009013	AA Service Manual CD – English
_auto44	5009014	AA Service Manual CD – French
_auto45	5009015	AA Installation & Predelivery – All Models – English
_auto46	5009016	AA Installation & Predelivery – All Models – French
_auto47	5009017	Special Tools Catalog – English
_auto48	5009018	Special Tools Catalog – French
_auto49	0767494	Material Safety Data Sheet (MSDS) Set \| On CD-RoM
_auto5	0216222	Operator's Guide - 115-300 HP, All Models, \| 135, 150, 175, 200 HP AAC & Newer models
_auto6	0216254	Operator’s Guide 115 to 130 HP – French \| 135, 150, 175, 200 HP AAC & Newer models
_auto7	5009009	Service Manual 115 to 200 HP – English
_auto8	5009010	Service Manual 115 to 200 HP – French
_auto9	5009019	AA Service Manual Set – English

▶00_PAINT (24 parts)

Ref	OEM Part #	Part Name
_auto1	0777172	Apprêt \| Midsection & Gearcase
_auto10	0777179	Black \| Engine cylinder/crankcase
_auto11	0351066	Black (Military) \| Exhaust Housing & Gearcase
_auto12	0777171	Blanc \| Base coat
_auto13	0772414	772414 \| Use with base coat on upper & lower engine covers.
_auto14	0351907	BLEU (Evinrude E-TEC) \| Base coat
_auto15	0777177	Graphite \| Base coat
_auto16	0351061	Green \| Base coat
_auto17	0777172	Apprêt \| Midsection & Gearcase
_auto18	0777179	Black \| Engine cylinder/crankcase
_auto19	0351066	Black (Military) \| Exhaust Housing & Gearcase
_auto2	0777179	Black \| Engine cylinder/crankcase
_auto20	0777171	Blanc \| Base coat
_auto21	0772414	772414 \| Use with base coat on upper & lower engine covers.
_auto22	0351907	BLEU (Evinrude E-TEC) \| Base coat
_auto23	0777177	Graphite \| Base coat
_auto24	0351061	Green \| Base coat
_auto3	0351066	Black (Military) \| Exhaust Housing & Gearcase
_auto4	0777171	Blanc \| Base coat
_auto5	0772414	772414 \| Use with base coat on upper & lower engine covers.
_auto6	0351907	BLEU (Evinrude E-TEC) \| Base coat
_auto7	0777177	Graphite \| Base coat
_auto8	0351061	Green \| Base coat
_auto9	0777172	Apprêt \| Midsection & Gearcase

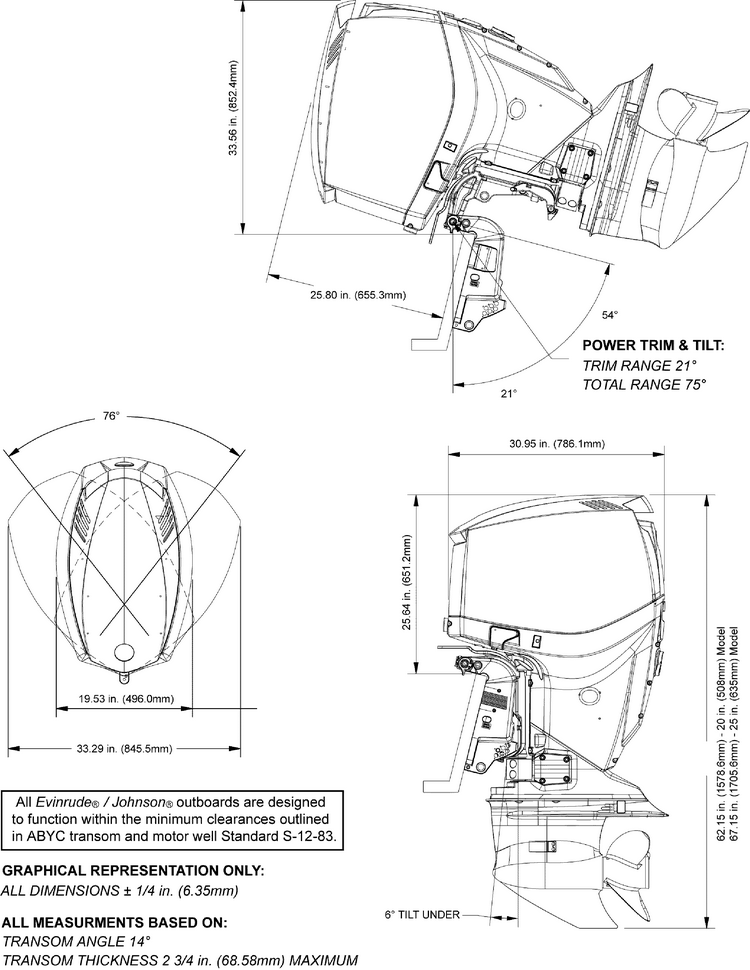

▶00_PROFILE DRAWING (0 parts)

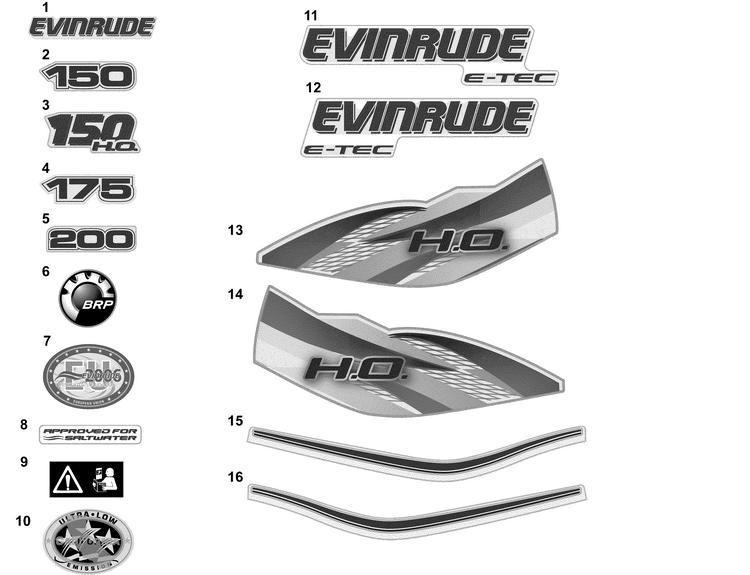

▶01-1_DECALS - White (19 parts)

Ref	OEM Part #	Part Name
NS	0216121	DECAL, Tournament Grade \| 250 H.O. Models only
1	0215545	EVINRUDE \| Included with Engine Cover Assembly
2	0215747	150 - Front & Rear
3	0215821	150 H.O. - Front & Rear
4	0215750	175 - Front & Rear
5	0215752	200 - Front & Rear
6	0217004	*LENS, Logo 68 mm \| Included with Engine Cover Assembly
7	0216969	EU, RCD II Compliant – Lower
8	0215896	APPROVED FOR SALTWATER
9	0355633	DECAL, Owner Attention
10	0215774	3 Star \| See Administrative Bulletin 2004-02(A) for order requirements
11	0215858	EVINRUDE E-TEC, Port - H.O. \| Included with Engine Cover Assembly
12	0215859	EVINRUDE E-TEC, Starboard - H.O. \| Included with Engine Cover Assembly
13	0215860	H.O. WAVE, Port \| Included with Engine Cover Assembly
14	0215861	H.O. WAVE, Starboard \| Included with Engine Cover Assembly
15	0215886	STRIPE - Port \| Included with Engine Cover Assembly
16	0215887	STRIPE - Stbd \| Included with Engine Cover Assembly
17	0215894	STRIPE, Port \| Included with Engine Cover Assembly
18	0215895	STRIPE, Starboard \| Included with Engine Cover Assembly

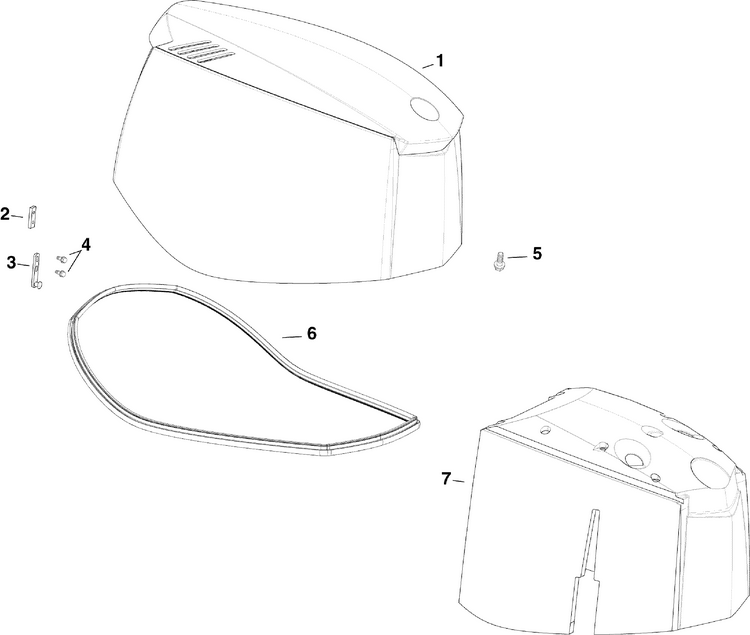

▶01-2_ENGINE COVER (11 parts)

Ref	OEM Part #	Part Name
-	0285683	ENGINE COVER \| 175DMX Models only, Military Green
1	0351800	*CAP \| White Models
2	0352508	*BRACKET, Latch
3	5005886	*HOOK ASSEMBLY
4	0350458	*SCREW, Hook to latch bracket \| new
5	0323229	**SCREW, Tilt handle, front
6	0351811	*SEAL, Upper to lower cover
7	0351806	*BLANKET SOUND
8	0351731	**BUMPER
9	0350871	*SEAL, Upper to lower cover
10	0350872	*BLANKET SOUND

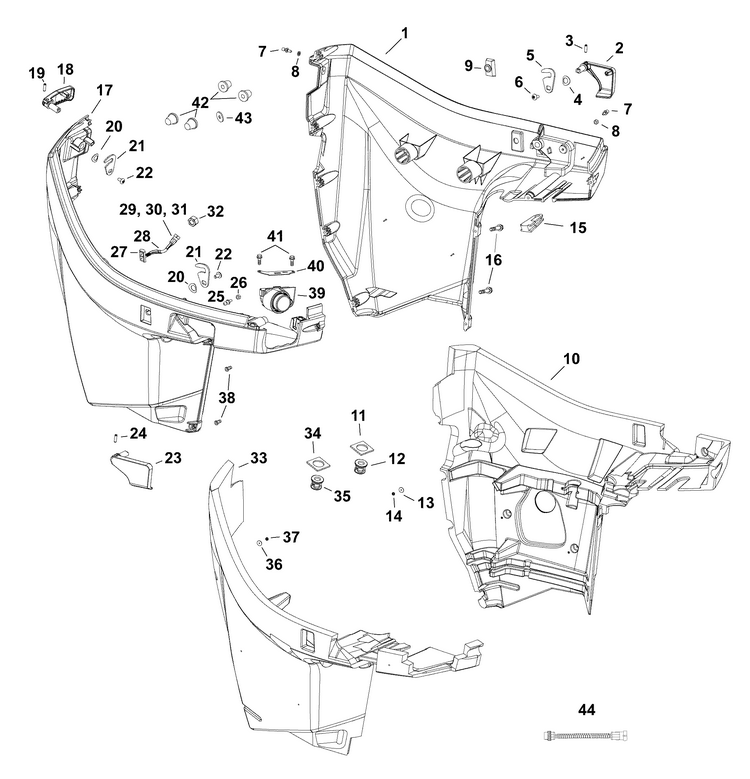

▶01-3_LOWER ENGINE COVER (45 parts)

Ref	OEM Part #	Part Name
NS	0215774	3 Star \| See Administrative Bulletin 2004-02(A) for order requirements
1	5008265	LOWER COVER, Port \| 175 DMX - Military Green
2	5005707	*HANDLE, Latch
3	0344630	**PIN, Roll
4	0330234	*BOW WASHER
5	0343578	*CROCHET, avant & arrière
6	0342191	*SCREW, Cam
7	0339575	*SCREW, Ball joint
8	0309485	*ÉCROU, vis, rotule
9	0335694	*PLUG, Lower cover
10	0354136	*FOAM BARRIER, Lower
11	0351029	*PLATE, Valve
12	5004576	*ENSEMBLE SOUPAPE
13	0352566	*WASHER, Foam barrier
14	0352567	*NUT, Push - Foam barrier
15	0350771	*GROMMET, Trim/Tilt lead to cover
16	0351152	SCREW, Port cover to starboard cover
17	5008266	LOWER COVER, Starboard \| 175 DMX - Military Green
18	5005709	*HANDLE, Rear latch
19	0344630	**PIN, Roll
20	0330234	*BOW WASHER
21	0343578	*CROCHET, avant & arrière
22	0342191	*SCREW, Cam
23	5005708	*HANDLE, Latch
24	0344630	**PIN, Roll
25	0339575	*SCREW, Ball joint
26	0309485	*ÉCROU, vis, rotule
27	0586789	*SWITCH ASSEMBLY, Trim & Tilt
28	0317893	** TIE STRAP
29	3011148	***CONTACT, Tab
30	3011225	**SEAL, Wire
31	3011156	**CONNECTOR, 3 position
32	0334656	**NUT
33	0354137	*FOAM BARRIER, Lower
34	0351029	*PLATE, Valve
35	5004576	*ENSEMBLE SOUPAPE
36	0352707	*WASHER, Foam barrier to cover
37	0352567	*NUT, Push - Foam barrier
38	0354835	*INSERT, Nut
39	0351277	GROMMET, Fuel & electric
40	0351463	BRACKET, Grommet to lower cover
41	0308743	*SCREW, Injector to Manifold
42	0349557	MOUNT
43	0349556	Washer
44	5006201	EXTENSION LEAD, Tilt/Trim & Tilt switch \| Optional Accessory

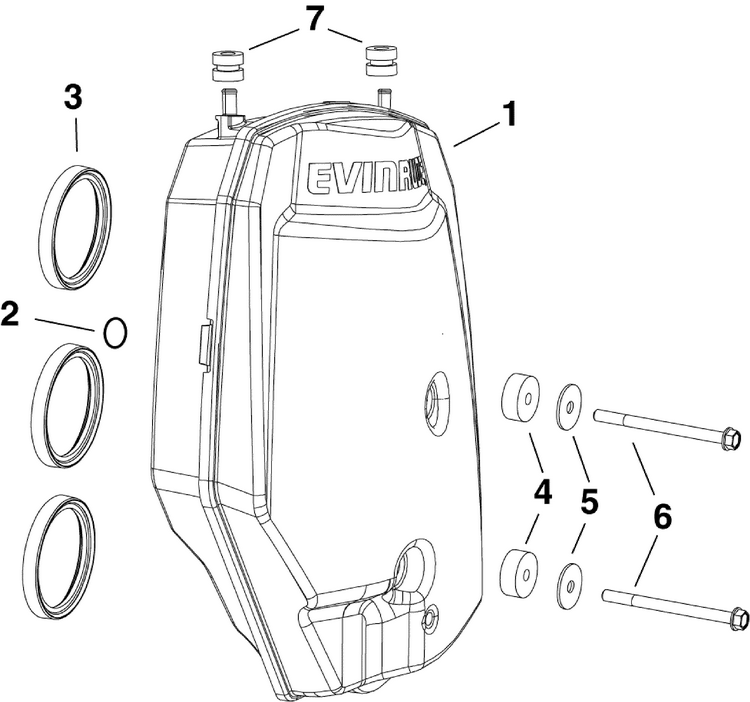

▶01-4_AIR SILENCER (9 parts)

Ref	OEM Part #	Part Name
NS	0355633	DECAL, Owner Attention
1	5007623	AIR SILENCER Assembly
2	0352425	O-RING, Silencer to idle air bypass
3	0350548	*SEAL, Silencer to throttle body
4	0340840	*SEAL
5	0511421	*WASHER, Air silencer
6	0324643	*SCREW
7	0333040	*ISOLATOR
8	0355633	DECAL, Owner Attention

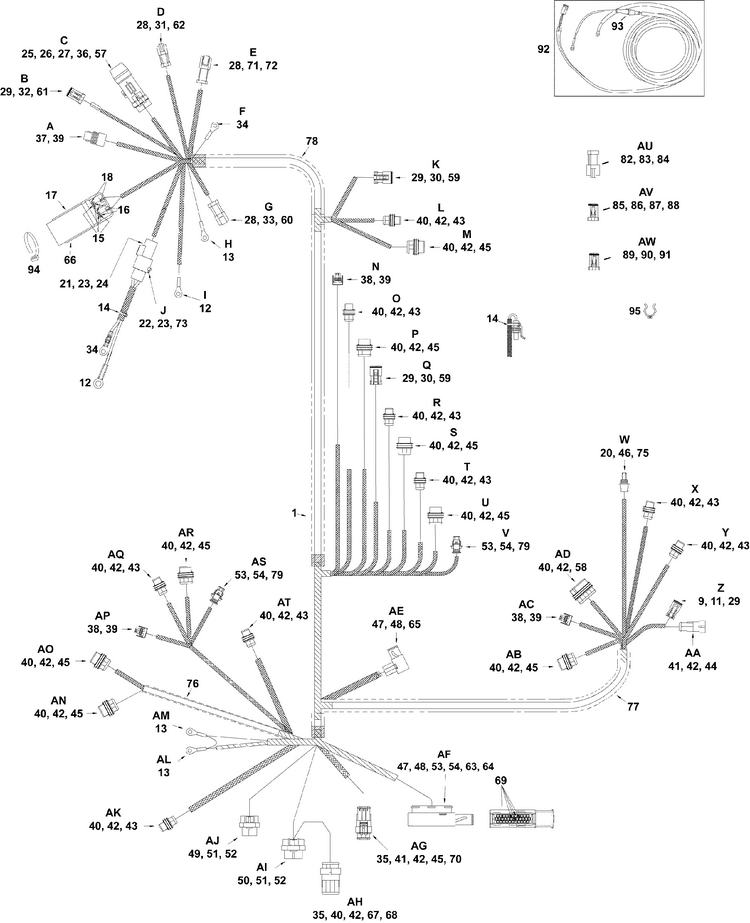

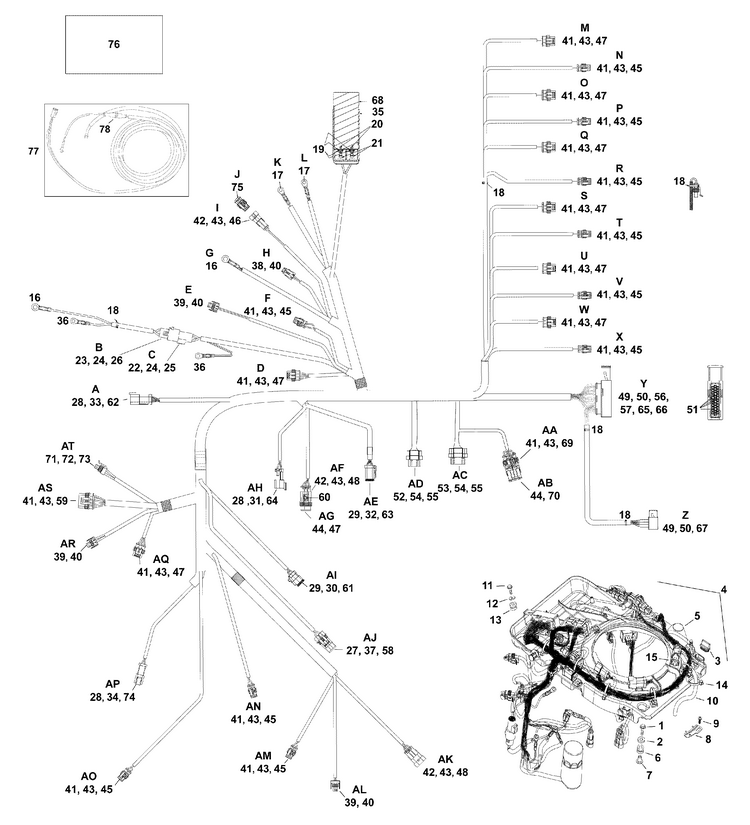

▶02-0_ELECTRICAL HARNESS (79 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	0333710	*SCREW, Anchor bracket
2	0328703	**WASHER, Screw hook
3	0514022	**PLUG, Fuse
4	0587010	BASE & HARNESS ASSEMBLY
5	0351751	*BASE, Flywheel cover
6	0333040	*ISOLATOR
7	0338558	*ENTRETOISE, à collerette
8	0352846	*TIMING POINTER
9	0315656	**SCREW
10	0772571	**HOSE \| 5/32 in. (3.96 mm) diameter Bulk Hose – 25 ft. (7.63 m)
11	0334528	*SCREW, Baffle to cover
12	0323972	*WASHER, EMM mounting screw
13	0333040	*ISOLATOR
14	0320107	** TIE STRAP
15	0586072	*CONNECTOR Assy, Diagnostic cover
16	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre \| 0.312 in. (7.9mm) diameter
17	0204363	**TERMINAL, Ring \| 0.250 in. (6.3mm) diameter
18	0317893	** TIE STRAP
19	0327283	**LOCKWASHER
20	0332067	**SCREW
21	0512550	**TERMINAL \| #10
22	0513663	**CONNECTOR
23	0513664	**CONNECTOR
24	0513665	**PLUG
25	0513666	**TERMINAL \| 0.312 in. (7.9 mm)
26	0513667	***TERMINAL \| 0.312 in. (7.9 mm)
27	0514035	**BORNE, prise
28	0514679	***BORNE, broche
29	0514680	***SOCKET
30	0514681	***LOCK WEDGE, 3 socket
31	0514682	***LOCK WEDGE, 3 pin
32	0514683	***CALE VERROUILLAGE, fiche 6 broches
33	0514684	***LOCK WEDGE, 6-pin
34	0514697	***LOCK WEDGE, 2-Pin
35	0514889	**COVER, Capacitor
36	0600138	Ring Terminal \| 0.250 in. (6.3mm) diameter
37	0967545	**FUSE, 10 AMP
38	3010123	**CONNECTOR & SEAL, 2-Socket plug
39	3011523	**CONNECTOR & SEAL, 2-Pin plug
40	3010125	**TERMINAL, Socket
41	3011147	* CONTACT, Female receptacle \| Included in accessory Terminal Service Kit P/N 777283.
42	3011148	***CONTACT, Tab \| Included in accessory Terminal Service Kit P/N 777283.
43	3011149	***SEAL, Wire
44	3011150	* PLUG, Sealing
45	3011153	**CONNECTEUR, fiche 2 positions
46	3011154	***CONNECTOR, 2 Position plug
47	3011155	**CONNECTEUR, fiche 3 positions
48	3011156	**CONNECTOR, 3 position
49	3011166	**TERMINAL - (14 Gauge)
50	3011167	**SEAL, WIRE - (14 Gauge)
51	3011168	**PLUG, Cavity
52	3011169	**CONNECTOR & SEAL, 26 Position plug
53	3011170	**CONNECTOR & SEAL, 34 Position plug
54	3011171	**TERMINAL
55	3011173	**PLUG, Cavity
56	3011174	**TERMINAL - (18 Gauge)
57	3011175	**SEAL, Wire - (18 Gauge)
58	3011258	**CONNECTEUR
59	3011266	**CONNECTOR & SEAL, 5 Position plug
60	3011292	**CLIP, Mounting
61	3011326	**CONNECTOR & SEAL, 3 Socket plug
62	3011327	**CONNECTOR, 6 Pin receptacle
63	3011328	**CONNECTOR & SEAL, 6 Socket plug
64	3011329	**CONNECTOR, 3 Pin receptacle
65	3011350	**SEAL, Wire
66	3011372	**CONNECTOR, 29 Position Plug
67	3011402	**CONNECTOR, 6 Pin Receptacle
68	3011409	**CAPACITOR
69	3011420	* CONNECTOR
70	3011421	**CONNECTEUR, EMM
71	3011446	**CONNECTEUR, fiche 3 positions
72	3011447	**JOINT, fil
73	3011448	**BORNE
74	3011469	**CONNECTOR, 2 Pin Receptacle
75	0586821	CONNECTOR & SEA, 2-Pin plug
76	0777283	AMP CONNECTOR & SEAL KIT \| AMP Style
77	5006253	AUXILIARY BATTERY CHARGE KIT \| Optional Accessory
78	0982019	**FUSE, 50 AMP

▶02-0_ELECTRICAL HARNESS (3.3 L) (82 parts)

Ref	OEM Part #	Part Name
NS	3011345	*ATTACHE
1	0587041	ENGINE HARNESS Assembly
9	0127287	**CALE VERROUILLAGE
11	0176295	**CONNECTEUR, 2 broches
12	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre \| 0.312 in. (7.9mm) diameter
13	0204363	**TERMINAL, Ring \| 0.250 in. (6.3mm) diameter
14	0317893	** TIE STRAP
15	0327283	**LOCKWASHER
16	0332067	**SCREW
17	0514889	**COVER, Capacitor
18	0512550	**TERMINAL \| #10
20	3011448	**BORNE
21	0513663	**CONNECTOR
22	0513664	**CONNECTOR
23	0513665	**PLUG
24	0513666	**TERMINAL \| 0.312 in. (7.9 mm)
25	0514022	**PLUG, Fuse
26	0514035	**BORNE, prise
27	0514491	**COVER, Fuse
28	0514679	***BORNE, broche
29	0514680	***SOCKET
30	0514681	***LOCK WEDGE, 3 socket
31	0514682	***LOCK WEDGE, 3 pin
32	0514683	***CALE VERROUILLAGE, fiche 6 broches
33	0514684	***LOCK WEDGE, 6-pin
34	0600138	Ring Terminal \| 0.250 in. (6.3mm) diameter
35	3011150	* PLUG, Sealing
36	0967545	**FUSE, 10 AMP
37	3010123	**CONNECTOR & SEAL, 2-Socket plug
38	3011523	**CONNECTOR & SEAL, 2-Pin plug
39	3010125	**TERMINAL, Socket
40	3011147	* CONTACT, Female receptacle \| Included in accessory Terminal Service Kit P/N 777283.
41	3011148	***CONTACT, Tab \| Included in accessory Terminal Service Kit P/N 777283.
42	3011149	***SEAL, Wire
43	3011153	**CONNECTEUR, fiche 2 positions
44	3011154	***CONNECTOR, 2 Position plug
45	3011155	**CONNECTEUR, fiche 3 positions
46	3011446	**CONNECTEUR, fiche 3 positions
47	3011166	**TERMINAL - (14 Gauge)
48	3011167	**SEAL, WIRE - (14 Gauge)
49	3011169	**CONNECTOR & SEAL, 26 Position plug
50	3011170	**CONNECTOR & SEAL, 34 Position plug
51	3011171	**TERMINAL
52	3011173	**PLUG, Cavity
53	3011174	**TERMINAL - (18 Gauge)
54	3011175	**SEAL, Wire - (18 Gauge)
57	3011258	**CONNECTEUR
58	3011266	**CONNECTOR & SEAL, 5 Position plug
59	3011326	**CONNECTOR & SEAL, 3 Socket plug
60	3011327	**CONNECTOR, 6 Pin receptacle
61	3011328	**CONNECTOR & SEAL, 6 Socket plug
62	3011329	**CONNECTOR, 3 Pin receptacle
63	3011350	**SEAL, Wire
64	3011372	**CONNECTOR, 29 Position Plug
65	3011402	**CONNECTOR, 6 Pin Receptacle
66	3011409	**CAPACITOR
67	3011420	* CONNECTOR
68	3011421	**CONNECTEUR, EMM
69	3011168	**PLUG, Cavity
70	3011156	**CONNECTOR, 3 position
71	3011469	**CONNECTOR, 2 Pin Receptacle
72	0514697	***LOCK WEDGE, 2-Pin
73	0513667	***TERMINAL \| 0.312 in. (7.9 mm)
75	3011447	**JOINT, fil
76	0348472	*TUBING - Convoluted \| 0.312 in. (7.9 mm) inside diameter
77	0503956	Split Convoluted Tubing Max Dia. (in.) 1/2 \| 0.75 in. (19 mm) inside diameter
78	3010592	*TUBING - Convoluted \| 1.0 in. (25.4 mm) inside diameter
79	3011663	*CONNECTOR, 2 way
82	0586072	*CONNECTOR Assy, Diagnostic cover
83	0514686	***CONNECTEUR, 3 broches
84	0514690	***BOUCHON, mâle
85	0586076	**JOINT, connecteur SystemCheck
86	0514687	***CONNECTEUR, fiche 6 broches
87	0514683	***CALE VERROUILLAGE, fiche 6 broches
88	0514690	***BOUCHON, mâle
89	0586821	CONNECTOR & SEA, 2-Pin plug \| DE models only
90	3011153	**CONNECTEUR, fiche 2 positions
91	3011150	* PLUG, Sealing
92	5006253	AUXILIARY BATTERY CHARGE KIT \| Optional Accessory
93	0982019	**FUSE, 50 AMP
94	0320107	** TIE STRAP
95	3011450	*CLIP

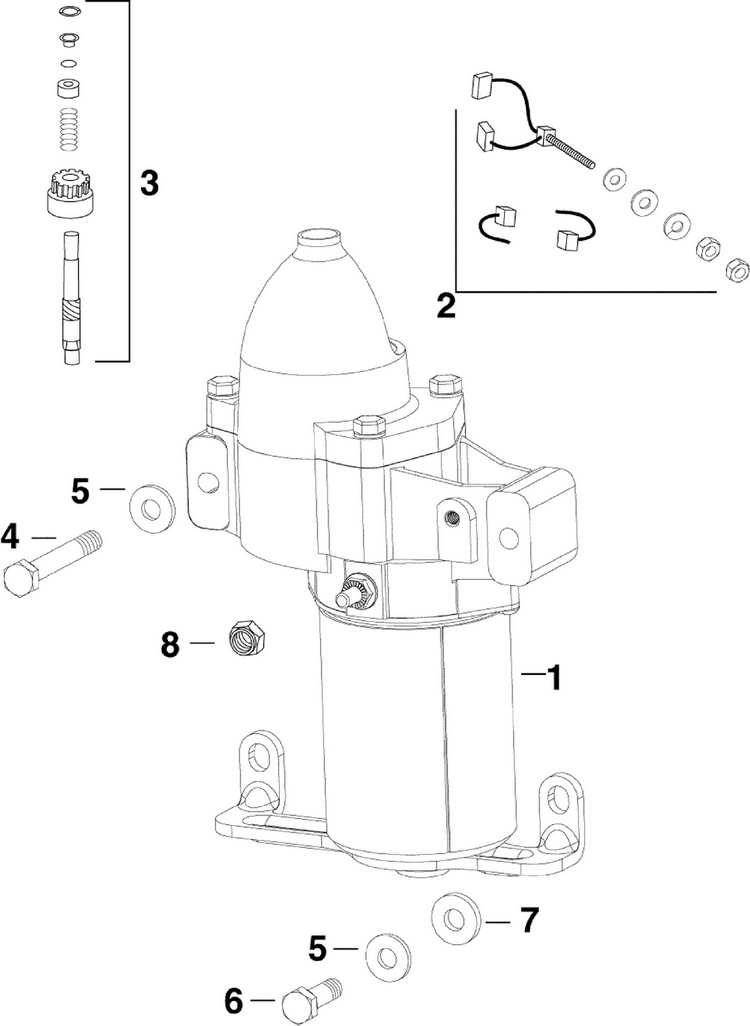

▶02-1_ELECTRIC STARTER (8 parts)

Ref	OEM Part #	Part Name
1	0586957	STARTER MOTOR ASSEMBLY \| 150 – 200 HP 60° V4 & V6 Models
2	0433850	**BRUSH & SPRING SET
3	5000369	**KIT, Drive & shaft
4	0331644	SCREW, Starter, mounting
5	0309543	*WASHER
6	0552940	*SCREW, Mounting
7	0352561	SPACER, Support bracket screw
8	0335778	***NUT, Input stud

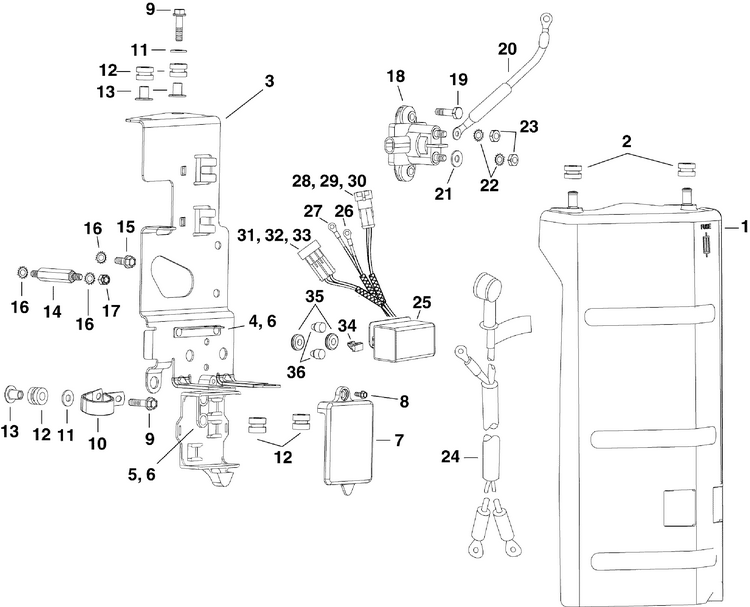

▶02-2_ELECTRICAL BRACKET & COMPONENTS (37 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	5008027	COVER, Electrical bracket
2	0333040	*ISOLATOR
3	0354797	BRACKET, Electrical
4	0514005	*BRACKET
5	0352051	BRACKET, Connector
6	0351756	**ŒILLET
7	0342265	COVER, Bracket
8	0330838	*SCREW, Baffle
9	0333710	*SCREW, Anchor bracket
10	0344044	CLAMP, Cable to c/c
11	0328703	**WASHER, Screw hook
12	0333040	*ISOLATOR
13	0338558	*ENTRETOISE, à collerette
14	3011358	STUD, Ground double end
15	0335687	**SCREW, Clamp - 1/4-20 x .75
16	0328701	**LOCKWASHER, DOuble-ended bolt
17	0328740	** NUT, Throttle friction
18	0587020	**SOLENOID Assy
19	0333710	*SCREW, Anchor bracket
20	0586832	CABLE, Starter to solenoid
21	0354046	**RONDELLE, de compression cuivre
22	0331259	*LOCK WASHER
23	0321472	*ÉCROU, câble solénoïde
24	0584348	*CÂBLE, batterie 10' (3,0m)
25	0586767	CABLE & RELAY ASSEMBLY
26	0600138	Ring Terminal \| 0.250 in. (6.3mm) diameter
27	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre \| 0.312 in. (7.9mm) diameter
28	3010023	****SEAL, Wire \| 0.312 in. (7.9mm) diameter
29	3010484	**CONNECTOR, 2-Pin recpticle
30	3010485	**TERMINAL
31	3011148	***CONTACT, Tab
32	3011149	***SEAL, Wire
33	3011154	***CONNECTOR, 2 Position plug
34	3011292	**CLIP, Mounting
35	3011290	*GROMMET
36	3011291	*BUMPER

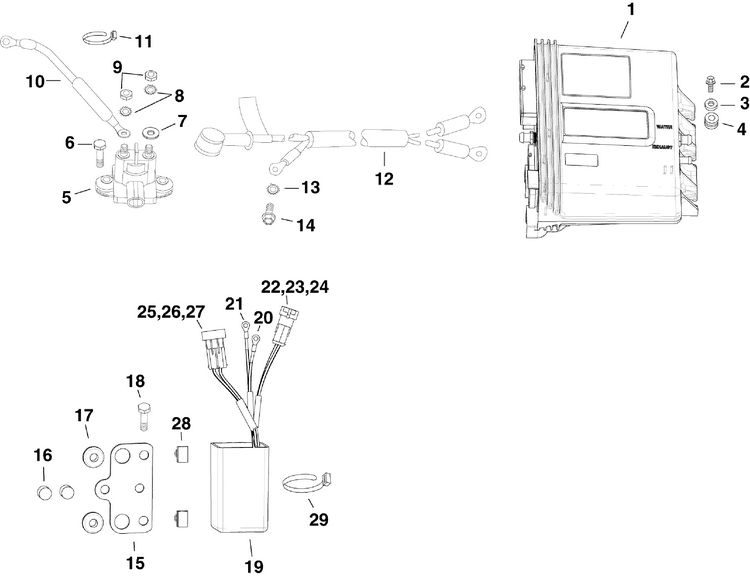

▶02-2_ELECTRICAL COMPONENTS (30 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	0587155	EMM \| "B" suffix models and newer
2	0334528	*SCREW, Baffle to cover
3	0323972	*WASHER, EMM mounting screw
4	0333040	*ISOLATOR
5	0587020	**SOLENOID Assy
6	0324334	*SCREW
7	0354046	**RONDELLE, de compression cuivre
8	0331259	*LOCK WASHER
9	0321472	*ÉCROU, câble solénoïde
10	0587027	CABLE, Starter motor to solenoid
11	0320107	** TIE STRAP
12	0584348	*CÂBLE, batterie 10' (3,0m)
13	0328701	**LOCKWASHER, DOuble-ended bolt
14	0328724	***SCREW
15	0586804	BRACKET & GROMMET Assembly
16	3011291	*BUMPER
17	3011290	*GROMMET
18	0312241	*SCREW, Electrical bracket
19	0586767	CABLE & RELAY ASSEMBLY
20	0600138	Ring Terminal \| 0.250 in. (6.3mm) diameter
21	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre \| 0.312 in. (7.9mm) diameter
22	3010023	****SEAL, Wire
23	3010484	**CONNECTOR, 2-Pin recpticle
24	3010485	**TERMINAL
25	3011148	***CONTACT, Tab
26	3011149	***SEAL, Wire
27	3011154	***CONNECTOR, 2 Position plug
28	3011292	**CLIP, Mounting
29	0907833	**ATTACHE-CÂBLE, câbles vers commande de sens de marche

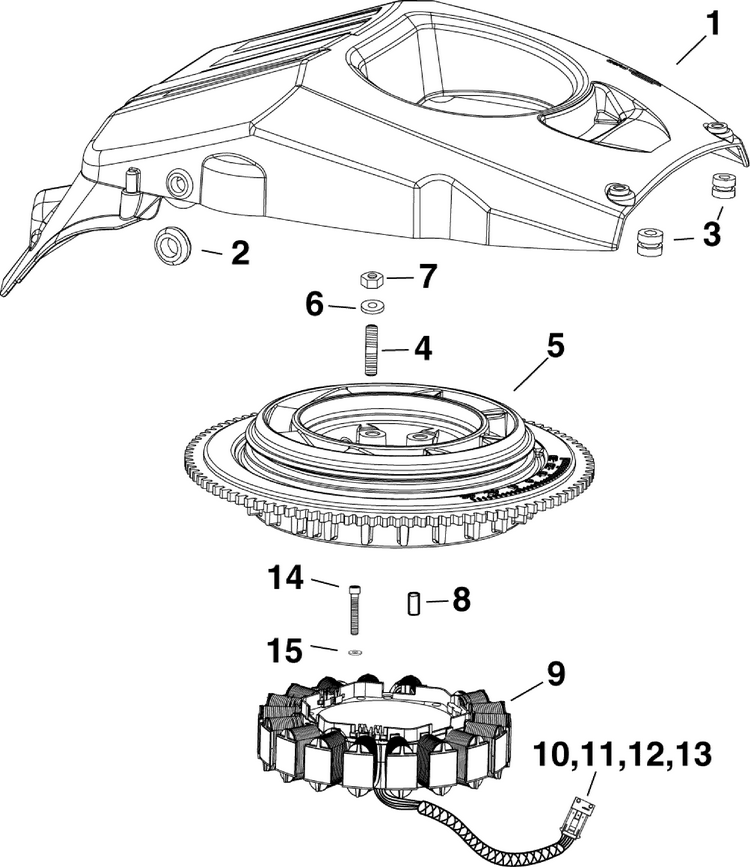

▶02-3_FLYWHEEL & STATOR (22 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	5007754	COVER, Flywheel
2	0329518	**GROMMET, ESM Mounting
3	0333040	*ISOLATOR
4	0354069	*STUD, Flywheel mounting
5	5007967	FLYWHEEL
6	0355192	*WASHER, Flywheel mounting
7	0320372	*LOCKNUT, Crankcase to cylinder
8	0354131	*ROLL PIN, Flywheel
9	0586948	STATOR
10	3011401	*TERMINAL, Pin
11	3011167	**SEAL, WIRE - (14 Gauge)
12	3011392	*CONNECTOR
13	3011393	*SEAL
14	0343525	SCREW, Stator
15	0360252	WASHER
16	3011392	*CONNECTOR
17	3011393	*SEAL
18	0343525	SCREW, Stator
19	0360252	WASHER
20	0348737	*CLAMP
21	0335200	*BONDING LEAD

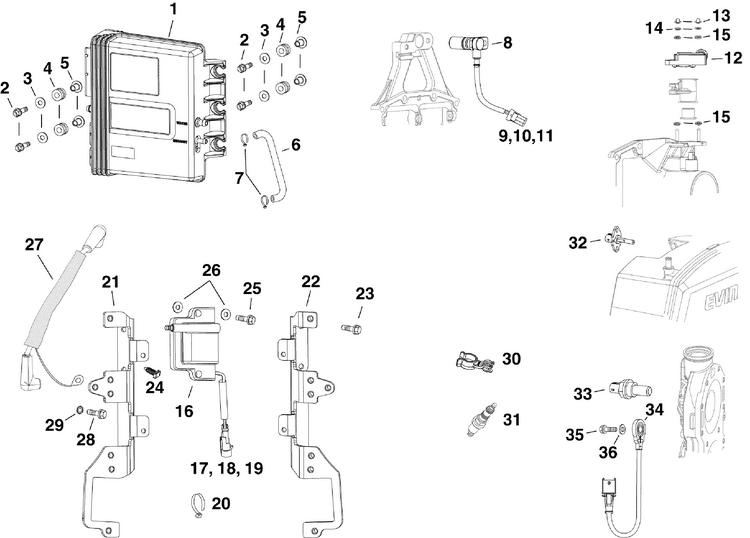

▶02-4_EMM, SENSORS, IGNITION COILS & SPARK PLUGS (37 parts)

Ref	OEM Part #	Part Name
NS	3011666	TUBING, Convoluted
1	0587155	EMM \| 3.3 AND 3.4 L, B Suffix and newer models ONLY
2	0333710	*SCREW, Anchor bracket
3	0328703	**WASHER, Screw hook
4	0333040	*ISOLATOR
5	0338558	*ENTRETOISE, à collerette
6	0353861	HOSE, Exh back pressure to EMM
7	0320107	** TIE STRAP
8	0587402	SENSOR, Crankshaft position (CPS)
9	3011148	***CONTACT, Tab
10	3011149	***SEAL, Wire
11	3011156	**CONNECTOR, 3 position
12	5006484	*SENSOR, Throttle position (TPS)
13	0352129	**NUT, TPS Push
14	0336197	**WASHER, TPS
15	0352122	**WASHER, TPS Isolation
16	0587275	IGNITION COIL
17	3011149	***SEAL, Wire
18	3011148	***CONTACT, Tab
19	3011156	**CONNECTOR, 3 position
20	0907833	**ATTACHE-CÂBLE, câbles vers commande de sens de marche
21	5007720	BRACKET, Ignition coil mount - Port
22	5007721	BRACKET, Ignition coil mount - Starboard
23	0335200	*BONDING LEAD
24	3011347	*CLIP Fuel filter connector
25	0353545	SCREW, Coil to bracket
26	0353540	WASHER, Ign coil screw (rubber)
27	5007415	SPARK PLUG LEAD
28	0335200	*BONDING LEAD
29	0328701	**LOCKWASHER, DOuble-ended bolt
30	3011346	CLIP
31	5007597	SPARK PLUG - QC8WEP
32	3010673	*SENSOR, Air temperature
33	3010674	ENGINE TEMPERATURE SENSOR
34	0587042	SENSOR, Knock
35	0339823	**SCREW, Gearcase to housing
36	0301250	**RONDELLE

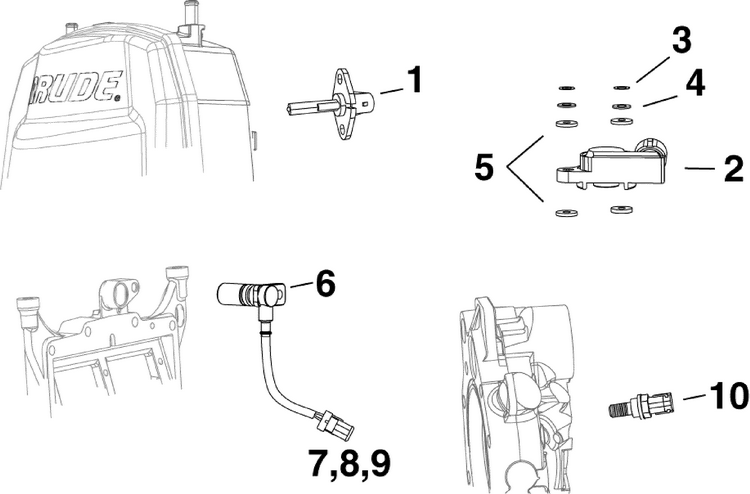

▶02-4_SENSORS (10 parts)

Ref	OEM Part #	Part Name
1	3010673	*SENSOR, Air temperature
2	5006484	*SENSOR, Throttle position (TPS) \| See INTAKE MANIFOLD ASSEMBLY
3	0352129	**NUT, TPS Push
4	0336197	**WASHER, TPS
5	0352122	**WASHER, TPS Isolation
6	0587402	SENSOR, Crankshaft position (CPS)
7	3011148	***CONTACT, Tab
8	3011149	***SEAL, Wire
9	3011156	**CONNECTOR, 3 position
10	3010674	ENGINE TEMPERATURE SENSOR

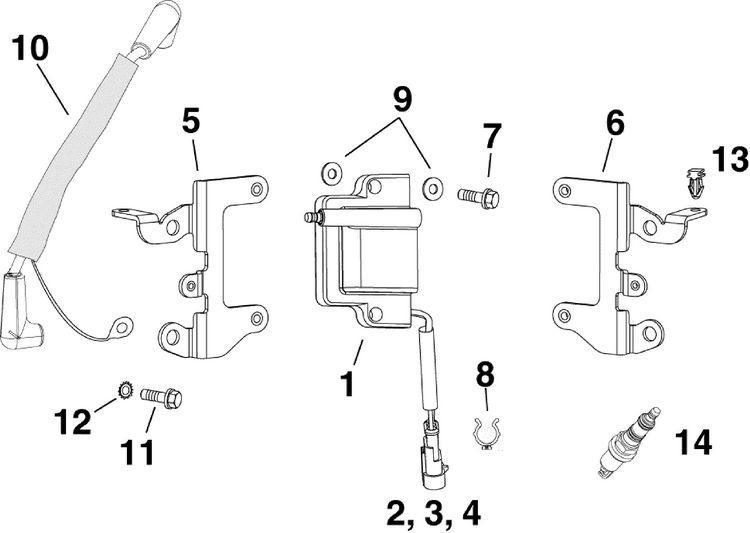

▶02-5_IGNITION COILS (14 parts)

Ref	OEM Part #	Part Name
1	0587275	IGNITION COIL
2	3011149	***SEAL, Wire
3	3011148	***CONTACT, Tab
4	3011156	**CONNECTOR, 3 position
5	0354055	BRACKET, Ign coil mount - Port
6	0354061	BRACKET, Ign coil mount - Stbd
7	0353545	SCREW, Coil to bracket
8	3011450	*CLIP
9	0353540	WASHER, Ign coil screw (rubber)
10	5007636	SPARK PLUG LEAD
11	0315287	SCREW
12	0327283	**LOCKWASHER
13	3011292	**CLIP, Mounting
14	5011240	Spk Plug Qc10Wep \| Refer to Emission Control Information Label

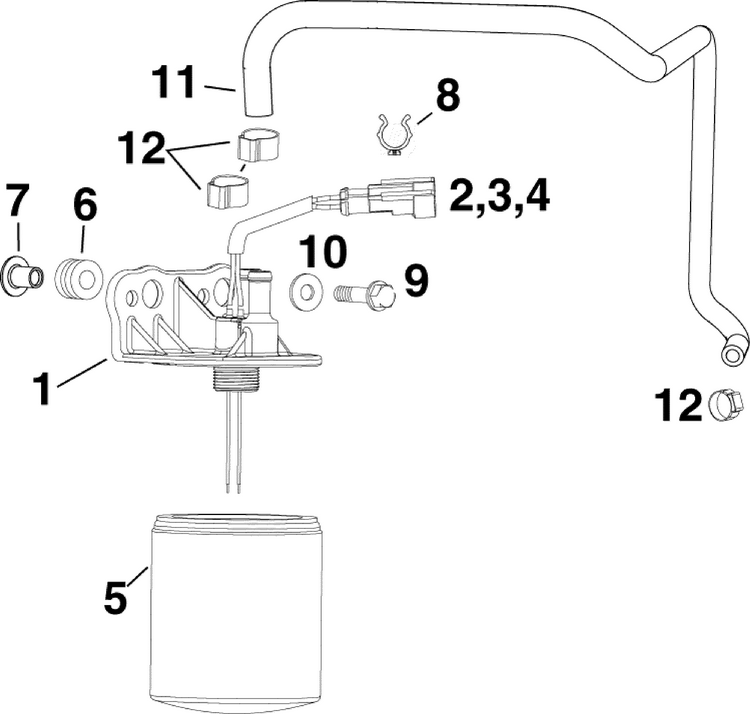

▶03-1_FUEL FILTER (17 parts)

Ref	OEM Part #	Part Name
1	5011097	FUEL FILTER & BRACKET ASSEMBLY
2	3011148	***CONTACT, Tab
3	3011149	***SEAL, Wire
4	3011154	***CONNECTOR, 2 Position plug
5	5012363	Filter Ay
6	0333040	*ISOLATOR
7	0338558	*ENTRETOISE, à collerette
8	3011450	*CLIP
9	0331025	*SCREW
10	0328703	**WASHER, Screw hook
11	0352413	HOSE Filter to vapor separator
12	0348839	* CLAMP, 17 mm
13	0335687	**SCREW, Clamp - 1/4-20 x .75
14	0351846	HOSE, Filter to vapor separator
15	0348839	* CLAMP, 17 mm
16	3011450	*CLIP
17	0352531	CLIP, Fuel & oil hoses

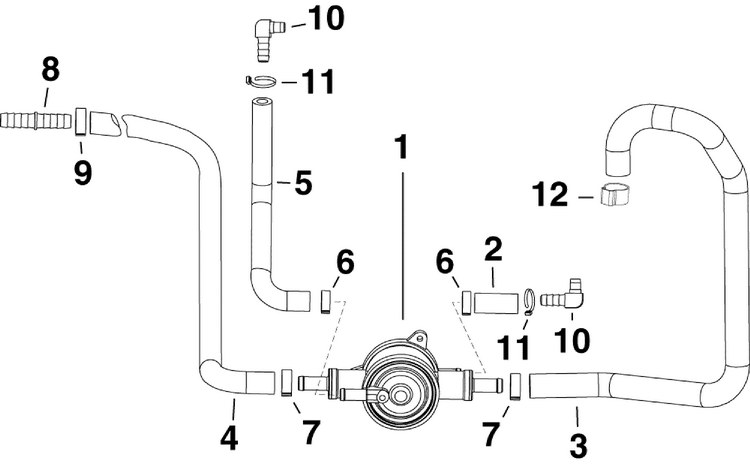

▶03-2_FUEL LIFT PUMP (12 parts)

Ref	OEM Part #	Part Name
1	5010744	LIFT PUMP Assembly, Fuel
2	0351939	*HOSE, Lower c/c pulse
3	0352828	*FLEXIBLE, pompe vers filtre
4	0353033	*HOSE, Connector to pump
5	0772564	* HOSE \| 5/16 in. (8 mm) diameter, Bulk Hose – 25 ft. (7.62 m)
6	0346786	** CLAMP
7	0348839	* CLAMP, 17 mm
8	0348939	*CONNECTOR, Fuel inlet
9	0346150	*CLAMP, 18.5mm
10	0323372	*FITTING, Water cover
11	0320107	** TIE STRAP
12	0348839	* CLAMP, 17 mm

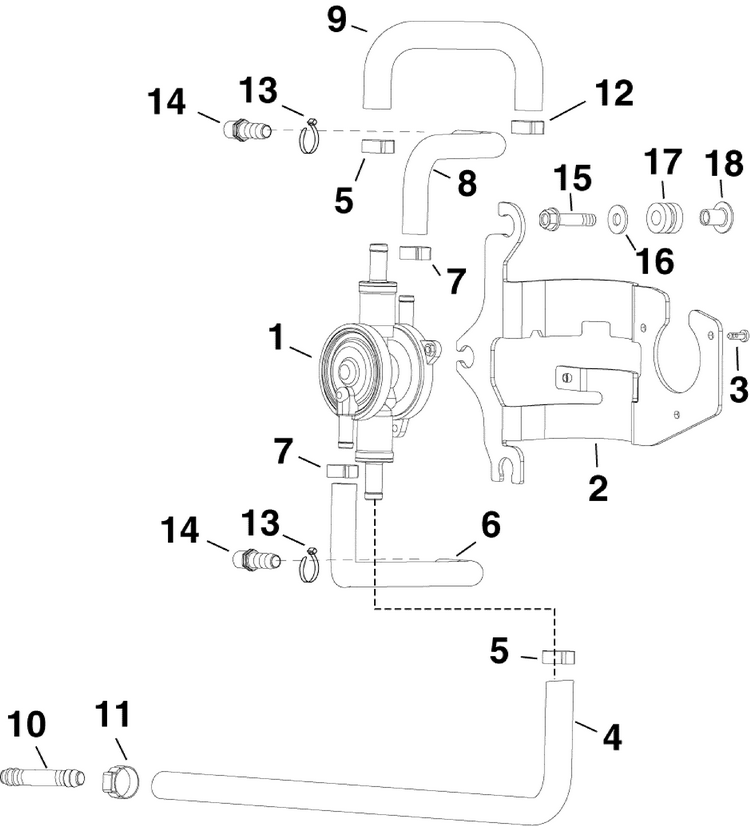

▶03-2_FUEL LIFT PUMP (3.3 L) (17 parts)

Ref	OEM Part #	Part Name
1	5010747	Pump
3	0124549	**SCREW, Fuel inlet
4	0353233	*HOSE, Inlet to pump
5	0348839	* CLAMP, 17 mm
6	0350981	*HOSE, Lower c/c pulse
7	0346786	** CLAMP
8	0350982	*HOSE, Upper c/c pulse
9	0350983	*HOSE, Fuel outlet
10	0348939	*CONNECTOR, Fuel inlet
11	0346150	*CLAMP, 18.5mm
12	0348839	* CLAMP, 17 mm
13	0320107	** TIE STRAP
14	0345702	*FITTING, Cooling hose
15	0333710	*SCREW, Anchor bracket
16	0328703	**WASHER, Screw hook
17	0333040	*ISOLATOR
18	0338558	*ENTRETOISE, à collerette

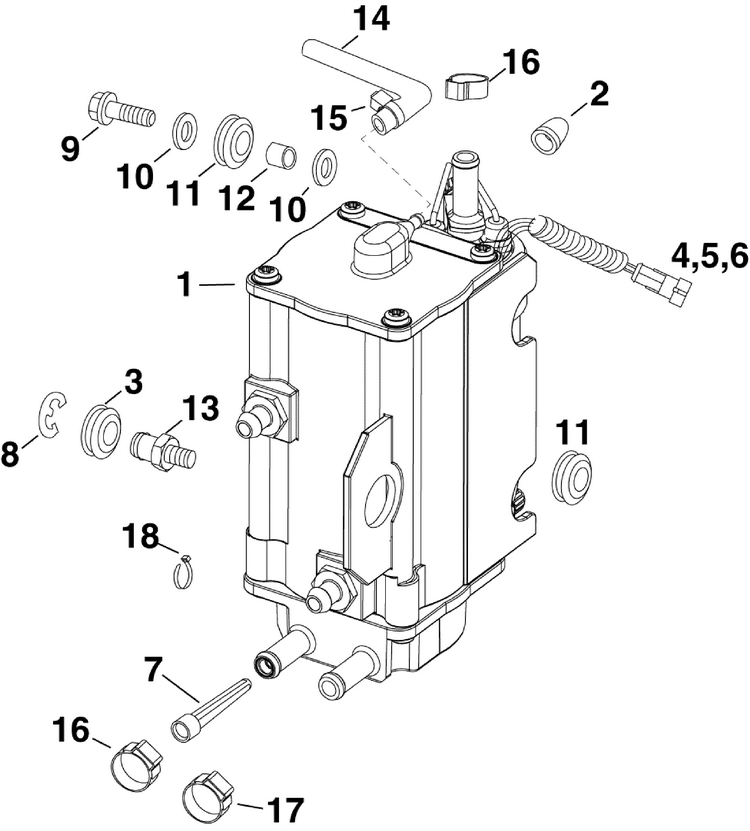

▶03-3_FUEL PUMP & VAPOR SEPARATOR (19 parts)

Ref	OEM Part #	Part Name
NS	0351633	CLAMP, Shipping - Vapor separator vent hose
1	5010819	Kit Ay-Vapor Sep
2	0126341	***CAP
3	0329518	**GROMMET, ESM Mounting
4	3011148	***CONTACT, Tab
5	3011149	***SEAL, Wire
6	3011154	***CONNECTOR, 2 Position plug
7	0362268	*FILTER, Fuel return
8	0510487	RETAINING RING
9	0302325	**SCREW, Impeller housing
10	0328700	**WASHER
11	0329518	**GROMMET, ESM Mounting
12	0335328	SCREW, Connector
13	0344848	**GOUJON, montage ESM
14	0772571	**HOSE \| 5/32 in. (3.96 mm) diameter
15	0320107	** TIE STRAP
16	0348839	* CLAMP, 17 mm
17	0348839	* CLAMP, 17 mm
18	0320107	** TIE STRAP

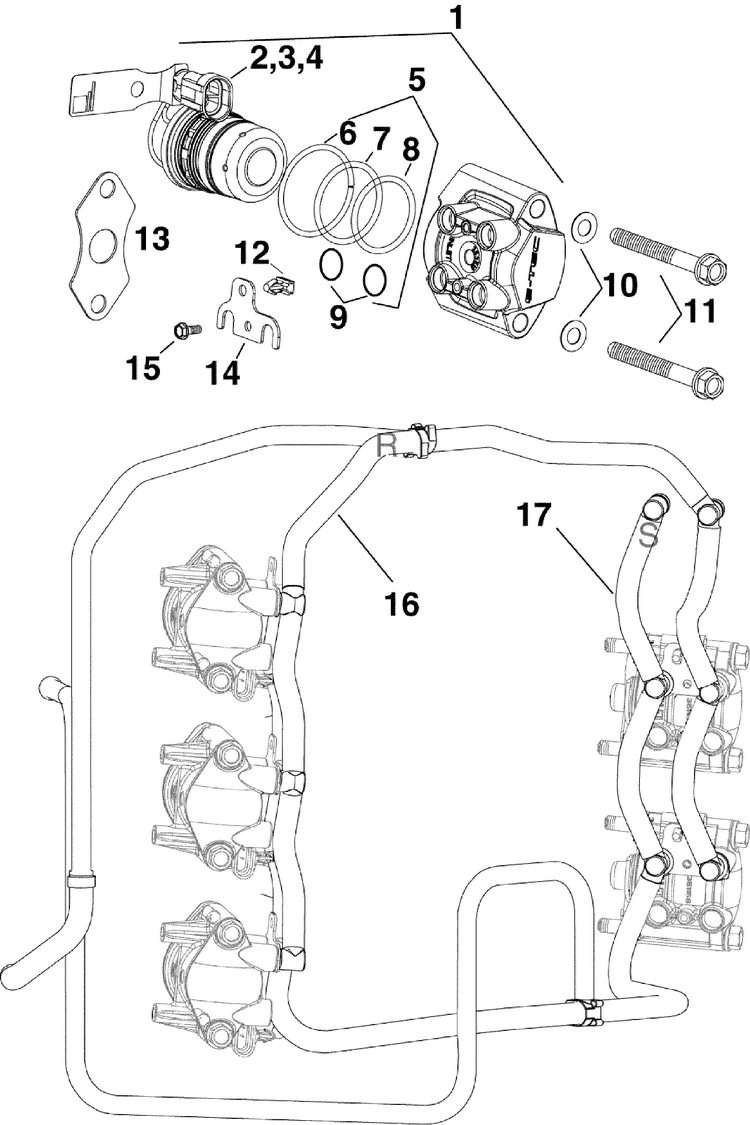

▶03-4_FUEL INJECTOR & RAILS (16 parts)

Ref	OEM Part #	Part Name
NS	0317893	** TIE STRAP
1	5007765	FUEL INJECTOR Assembly, Starboard
2	3011154	***CONNECTOR, 2 Position plug
3	3011148	***CONTACT, Tab
4	3011149	***SEAL, Wire
5	5007017	*FUEL INJECTOR Seal Kit \| Included in Powerhead Gasket & Seal Kit
6	0352809	**RING, Crush
9	0350779	**O-RING, Fuel rail
10	0356797	*SCREW, Injector to cylinder head \| new
11	0360961	*SCREW, Injector to cylinder head
12	3011292	**CLIP, Mounting
13	0351125	INSULATOR, Fuel injector to cyl head
14	0350775	BRACKET, Fuel rail to housing
15	0315287	SCREW
16	5008392	FUEL RAIL Assembly, Return
17	5008393	FUEL RAIL Assembly, Supply

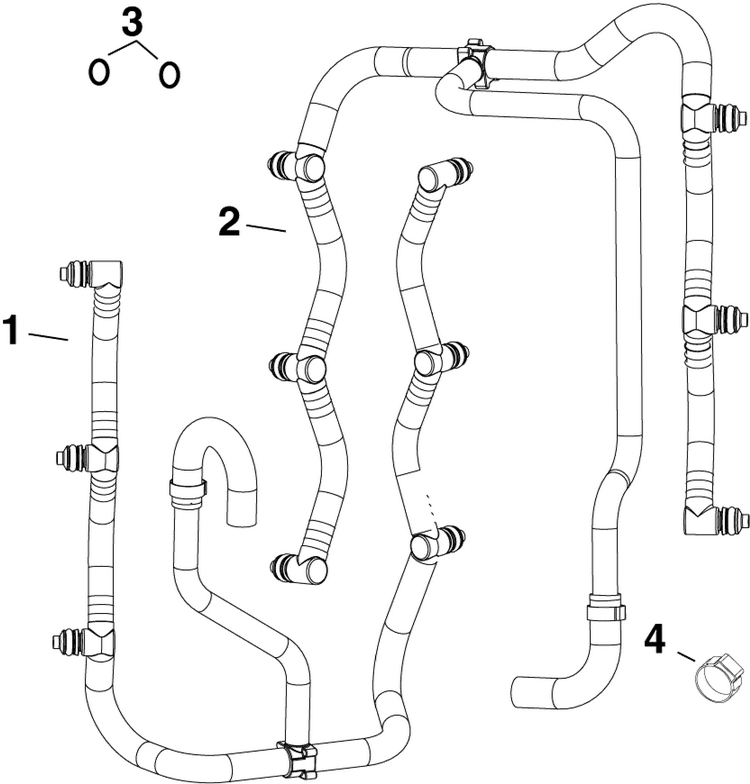

▶03-4_FUEL RAILS (4 parts)

Ref	OEM Part #	Part Name
1	5008385	FUEL RAIL Assembly, Supply
2	5008384	FUEL RAIL Assembly, Return
3	0350779	**O-RING, Fuel rail
4	0348839	* CLAMP, 17 mm

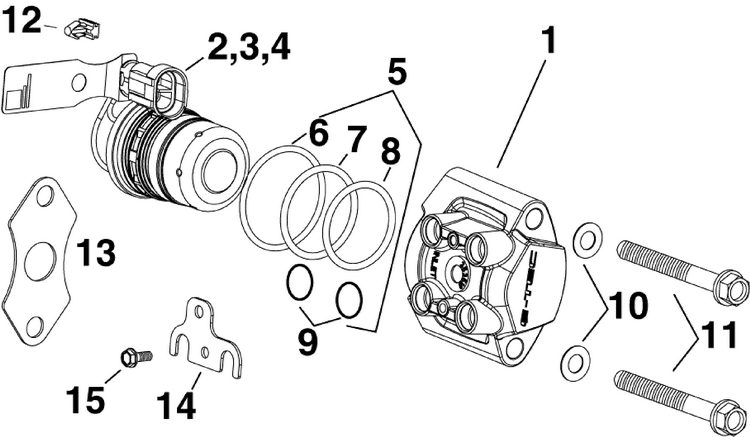

▶03-5_FUEL INJECTOR (14 parts)

Ref	OEM Part #	Part Name
NS	0317893	** TIE STRAP
1	5007765	FUEL INJECTOR Assembly, Starboard
2	3011154	***CONNECTOR, 2 Position plug
3	3011148	***CONTACT, Tab
4	3011149	***SEAL, Wire
5	5007017	*FUEL INJECTOR Seal Kit \| Included in Powerhead Gasket & Seal Kit
6	0352809	**RING, Crush
9	0350779	**O-RING, Fuel rail
10	0356797	*SCREW, Injector to cylinder head \| new
11	0360961	*SCREW, Injector to cylinder head
12	3011292	**CLIP, Mounting
13	0351125	INSULATOR, Fuel injector to cyl head
14	0350775	BRACKET, Fuel rail to housing
15	0315287	SCREW

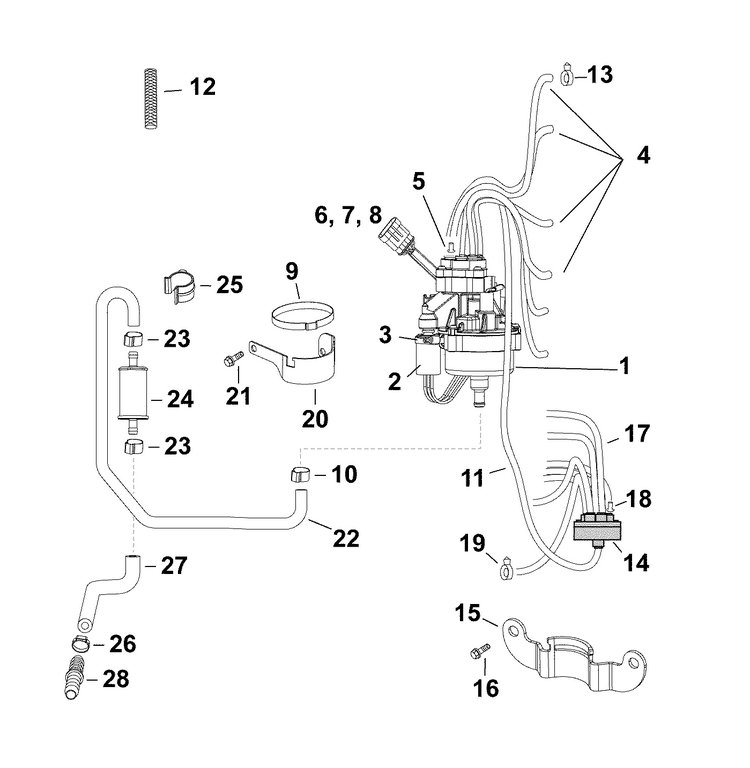

▶03-6_OIL PUMP (29 parts)

Ref	OEM Part #	Part Name
NS	0317893	** TIE STRAP
1	5007849	OIL PUMP
2	0586860	*SENSOR
3	0982115	** CLAMP
4	0778708	**HOSE \| Length 12 in. (305 mm)
5	0349898	*HOSE, Support
6	3011148	***CONTACT, Tab
7	3011149	***SEAL, Wire
8	3011267	***CAP, 5 Position
9	0352959	*CLAMP 60.5 mm, Oil pump to bracket
10	0346785	**CLAMP, 14.5 mm
11	0354118	*HOSE, Oil pump to rear manifold \| Length 39 in. (990 mm)
12	0508363	*SLEEVE, Braided \| Length 28 in. (711 mm)
13	0320107	** TIE STRAP
14	5007095	MANIFOLD, Rear oil distribution
15	0354078	*BRACKET, Rear oil manifold
16	0312241	*SCREW, Electrical bracket
17	0778708	**HOSE \| Length 32 in. (813 mm)
18	0349898	*HOSE, Support
19	0317893	** TIE STRAP
20	0352912	BRACKET, Oil pump to throttle body
21	0329217	**SCREW, Retainer
22	0352660	HOSE, Oil filter to pump
23	0346786	** CLAMP
24	5011891	Kit
25	0351783	RETAINER, Oil filter to throttle body
26	0346785	**CLAMP, 14.5 mm
27	0352659	HOSE, Oil inlet to filter
28	0358042	FITTING, Fuel hose

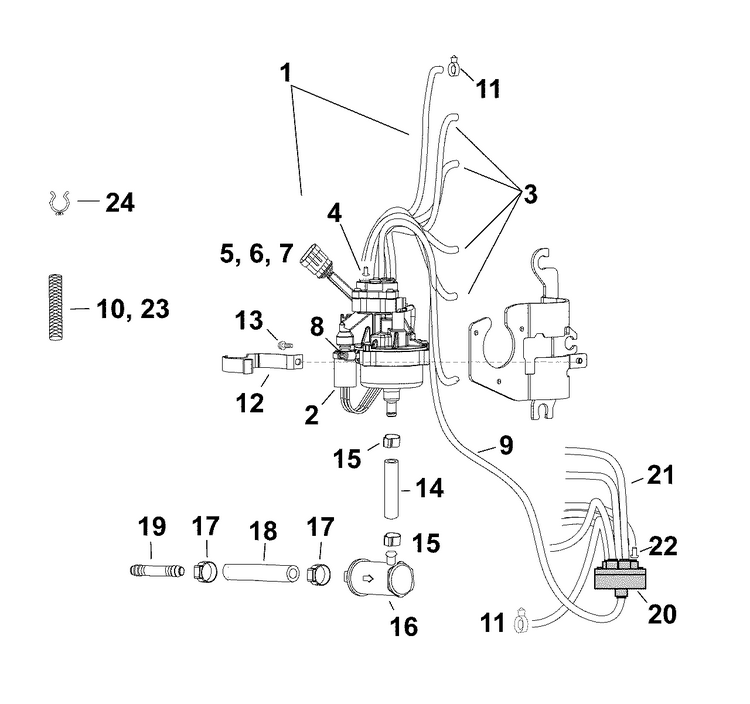

▶03-6_OIL PUMP (3.3 L) (25 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	5007849	OIL PUMP
2	0586860	*SENSOR
3	0778708	**HOSE \| Length 12 in. (305 mm)
4	0349898	*HOSE, Support
5	3011148	***CONTACT, Tab
6	3011149	***SEAL, Wire
7	3011267	***CAP, 5 Position
8	0982115	** CLAMP
9	0354118	*HOSE, Oil pump to rear manifold
10	0512937	*SLEEVE \| Length 10 in. (254 mm)
11	0317893	** TIE STRAP
12	0514891	CLAMP, Capacitor
13	0332226	*SCREW, Air temperature sensor
14	0778707	**FLEXIBLE, alimentation en huile \| 0.093 in. (2.3 mm) diameter
15	0346786	** CLAMP
16	5011891	Kit
17	0346785	**CLAMP, 14.5 mm
18	0778707	**FLEXIBLE, alimentation en huile
19	0358042	FITTING, Fuel hose
20	5007639	MANIFOLD, Rear oil distribution
21	0778708	**HOSE \| Length 32 in. (813 mm)
22	0349898	*HOSE, Support
23	0508363	*SLEEVE, Braided \| Bulk Roll – 100 ft. (30.48 m)
24	3011450	*CLIP

▶03-7_OIL TAGS & LABELS (4 parts)

Ref	OEM Part #	Part Name
1	0355624	*DECAL, Emergency stop clip - White
2	0355625	EMM Oil program tag, XD 100 oil
3	0355627	DECAL, XD-100 oil usage \| Affix near operator's station, or near optional remote oil fill.
4	0352927	EMM Oil program tag, Large - XD100 Oil \| Attach to filler neck of 1.8 and 3.0 gallon remote oil tanks.

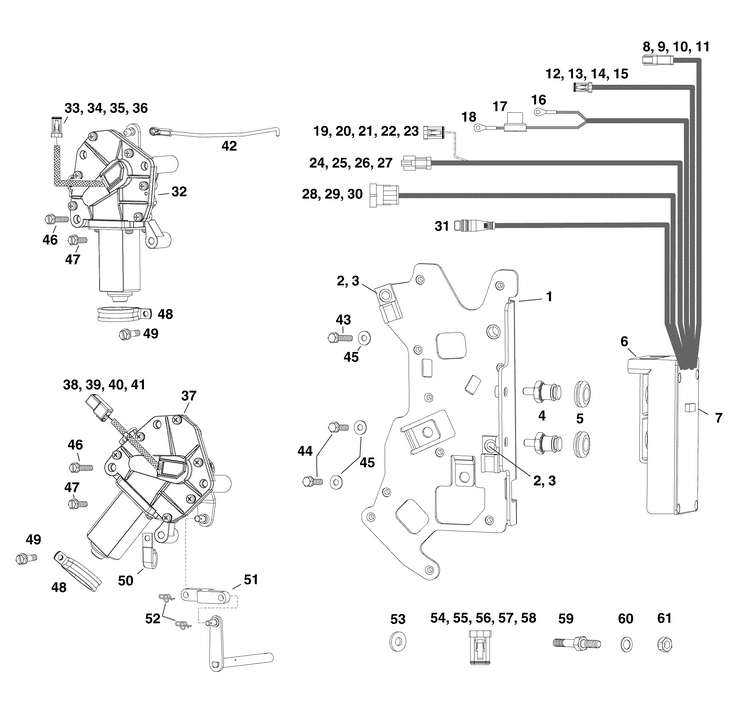

▶04-4_ELECTRONIC SHIFT AND THROTTLE (65 parts)

Ref	OEM Part #	Part Name
-	0764966	*KIT, Installation hardware
NS	0320107	** TIE STRAP
–	0765369	*KIT, Installation hardware
1	5008043	*PLAQUE, montage de la commande
2	3011694	**ATTACHE, connecteur
3	0351756	**ŒILLET
4	0344848	**GOUJON, montage ESM
5	0329518	**GROMMET, ESM Mounting
6	0587114	*MODULE, Electronic servo (ESM)
7	0764919	**FICHE, identification moteur - 4 (moteur 5)
8	3011701	**CONNECTEUR, 6 broches
9	3011702	**CALE VERROUILLAGE, 6 broches
10	3011703	**BORNE, broche
11	0514858	***BOUCHON, mâle
12	3011704	***CONNECTOR, 6 Socket plug
13	3011705	***LOCKWEDGE, 6 Socket plug
14	3011706	***TERMINAL, Socket
15	0514858	***BOUCHON, mâle
16	0600138	Ring Terminal \| 0.250 in. (6.3 mm)
17	3011729	**FUSE, ATM 30
18	0204053	**BORNE, anneau 0,312" (7,9 mm) diamètre \| 0.312 in. (7.9mm)
19	0514685	***CONNECTOR, 3 socket
20	0514789	****SEAL, Connector
21	0514680	***SOCKET
22	0514681	***LOCK WEDGE, 3 socket
23	0514690	***BOUCHON, mâle
24	0514688	***CONNECTOR, 6-PIN
25	0514684	***LOCK WEDGE, 6-pin
26	0514679	***BORNE, broche
27	0514690	***BOUCHON, mâle
28	3011421	**CONNECTEUR, EMM
29	3011148	***CONTACT, Tab
30	3011149	***SEAL, Wire
31	3011704	***CONNECTOR, 6 Socket plug
32	0587112	*ACTUATOR Assy, Throttle
33	3011704	***CONNECTOR, 6 Socket plug
34	3011705	***LOCKWEDGE, 6 Socket plug
35	3011706	***TERMINAL, Socket
36	0514858	***BOUCHON, mâle
37	0587113	*ACTUATOR Assy, Shift
38	3011701	**CONNECTEUR, 6 broches
39	3011702	**CALE VERROUILLAGE, 6 broches
40	3011703	**BORNE, broche
41	0514858	***BOUCHON, mâle
42	5008828	Link Ay
43	0330930	**SCREW, Plate - 3/8-16 x 1
44	0319590	**SCREW, Plate - 3/8-16 x .75
45	0301161	**RONDELLE, vis plaque de commande
46	0333976	**SCREW, Actuator - 1/4-20 x 2.5
47	0353064	**SCREW, Actuator - 1/4-20 x 1.5
48	0354154	**CLAMP, Actuator support
49	0328744	**SCREW, Clamp - 1/4-20 x .75
50	0310439	**CLAMP, Battery cable
51	0354919	**LINK, Shift actuator to lever
52	0333774	**ATTACHE, commande vers tringlerie de sens de marche
53	0354046	**RONDELLE, de compression cuivre
54	0586076	**JOINT, connecteur SystemCheck
55	0514687	***CONNECTEUR, fiche 6 broches
56	0514790	***JOINT, 6 alvéoles
57	0514683	***CALE VERROUILLAGE, fiche 6 broches
58	0514690	***BOUCHON, mâle
59	0341512	**BOLT, Double-ended, solenoid
60	0328701	**LOCKWASHER, DOuble-ended bolt
61	0328740	** NUT, Throttle friction
62	0329518	**GROMMET, ESM Mounting \| Included with actuator mounting plate, P/N 5007766

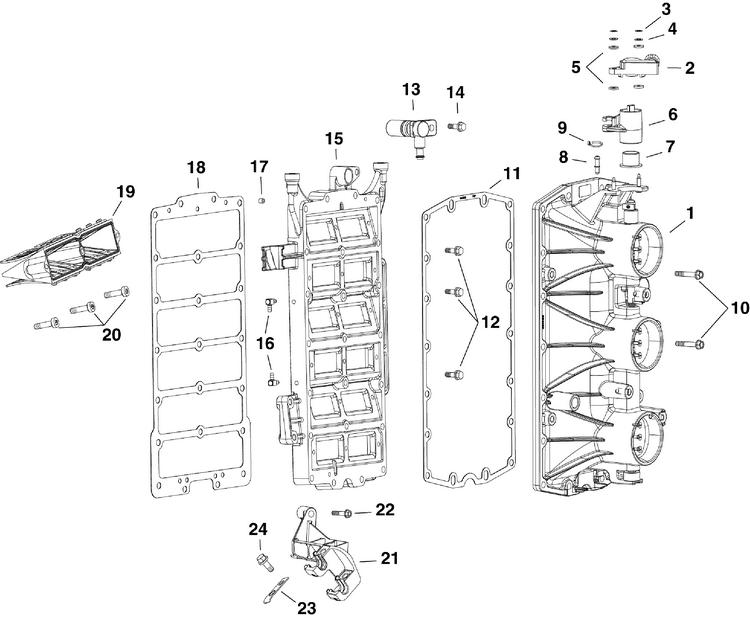

▶05-1_INTAKE MANIFOLD ASSEMBLY (37 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	5005829	THROTTLE BODY Assembly
2	5006484	*SENSOR, Throttle position (TPS)
3	0352129	**NUT, TPS Push
4	0336197	**WASHER, TPS
5	0352122	**WASHER, TPS Isolation
6	5005188	*LEVER, Throttle shaft - cam to shaft
7	0350970	*BUSHING, Throrrle lever
8	0349181	*FITTING, Reed plate vent to Vap. Sep.
9	0320107	** TIE STRAP
10	0335221	*SCREW, Cylinder to bracket
11	0352607	*GASKET, Plenum to reed plate \| Included in Powerhead Gasket & Seal Kit
12	0319126	*SCREW, Muffler, upper
13	0587402	SENSOR, Crankshaft position (CPS)
14	0329217	**SCREW, Retainer
15	5007025	REED PLATE
16	0437784	* ENS. CLAPET ANTI-RETOUR
17	0331880	***PIN, Housing to gearcase
18	0351366	*GASKET, Reed plate to C/C \| Included in Powerhead Gasket & Seal Kit
19	5006252	REED VALVE Assembly
20	0352089	*SCREW, Reed valve
21	0351927	TRUNNION BRACKET
22	0324334	*SCREW
23	0351928	**RETAINER, Control cable trunnion
24	0329217	**SCREW, Retainer
25	0335200	*BONDING LEAD
26	0328703	**WASHER, Screw hook
27	0350927	TIMING POINTER
28	0353252	REED PLATE \| 3.4 L Models
29	0331880	***PIN, Housing to gearcase
30	0350934	*GASKET, Reed plate to C/C \| Included in Powerhead Gasket & Seal Kit
31	5006208	REED VALVE Assembly
32	0352089	*SCREW, Reed valve
33	0351927	TRUNNION BRACKET
34	0329217	**SCREW, Retainer
35	0351928	**RETAINER, Control cable trunnion
36	0324334	*SCREW

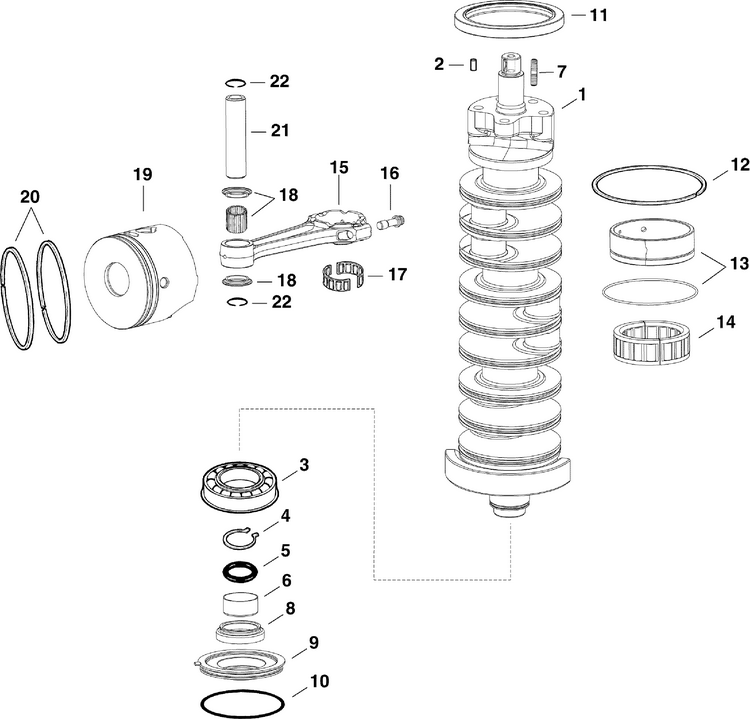

▶05-2_CRANKSHAFT & PISTONS (26 parts)

Ref	OEM Part #	Part Name
1	5007729	CRANKSHAFT Assembly
2	0354131	*ROLL PIN, Flywheel
3	0433503	*BEARING Assembly, Ball
4	0326047	Retaining Ring
5	0337087	O-Ring \| Included in Powerhead Gasket & Seal Kit
6	0337030	Sleeve, Crankshaft
7	0354069	*STUD, Flywheel mounting
8	0337085	*SEAL \| Included in Powerhead Gasket & Seal Kit
9	0340559	CORPS, joint, palier inférieur
10	0338518	*O-RING, Bearing housing \| Included in Powerhead Gasket & Seal Kit
11	0336232	*SEAL, Upper Crankshaft \| Included in Powerhead Gasket & Seal Kit
12	0319244	JOINT ANNULAIRE
13	0352960	BEARING RACE, Center main
14	5007190	BEARING Assembly, Center main
15	5006383	CONNECTING ROD
16	0308186	**SCREW, Rod cap
17	0387787	BEARING Assembly, Connecting rod
18	0395627	BEARING & RETAINER
19	5007039	PISTON & RING Assy, Stbd - 0.030 O.S. \| 0.030 in. oversize
20	5000820	*PISTON RING- (OS .030) \| 0.030 in. oversize
21	0327861	Wrist Pin
22	0317831	Circlip
23	0326765	*RETAINING RING
24	0352960	BEARING RACE, Center main
25	5007190	BEARING Assembly, Center main
26	0326749	SEAL RING

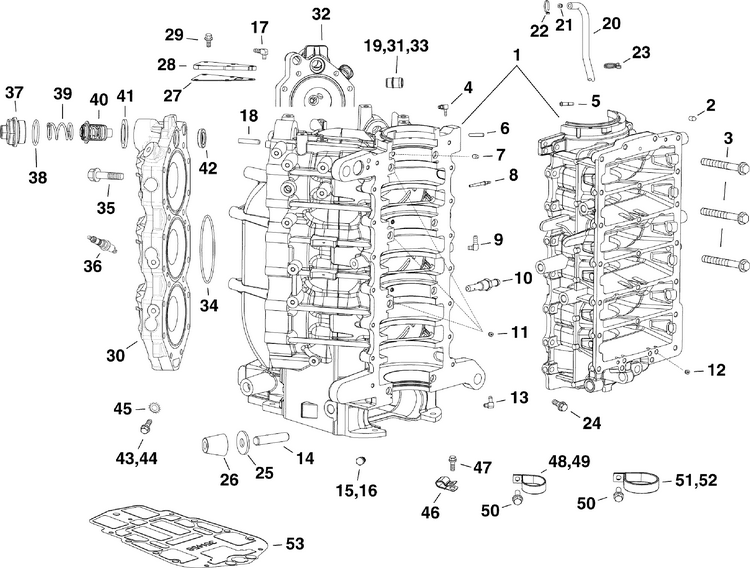

▶05-3_CYLINDER & CRANKCASE (54 parts)

Ref	OEM Part #	Part Name
NS	0357518	*PIN, Fuel deflector
1	5007437	CYLINDER & CRANKCASE Assembly \| 200 HP Models
2	0331880	***PIN, Housing to gearcase
3	0336166	*SCREW, C/C to block
4	0346137	* FITTING, Cylinder Oil inlet \| See "Oil Recirculation System"
5	0314513	*FITTING, Fuel inlet \| See "Oil Recirculation System"
6	0305070	*AXE, carter-moteur vers bloc
7	0304178	**PIN, Dowel
8	0344821	* FITTING, Crankcase Oil inlet
9	0323372	*FITTING, Water cover
10	5001298	*FITTTING, Exhaust back pressure
11	0437773	*CHECK VALVE
12	0435681	*CHECK VALVE ASSEMBLY
13	0348471	* FITTING, Oil recirculation elbow \| See "Oil Recirculation System"
14	0336630	*GOUPILLE, cylindrique
15	0332135	*PLUG
16	0332135	*PLUG
17	0323372	*FITTING, Water cover
18	0346237	*DAM, C/C Water
19	0351971	*NIPPLE, Water valve hose
20	0352415	HOSE, Exh back pressure to EMM
21	0353038	RESTRICTOR, 0.013
22	0320107	** TIE STRAP
23	0339277	*CLAMP,WIRE-.500
24	0324334	*SCREW
25	0349556	Washer
26	0349557	MOUNT
27	0351970	*GASKET, Water cover \| Included in Powerhead Gasket & Seal Kit
28	0352812	COVER, Water
29	0350458	*SCREW, Hook to latch bracket
30	5006393	HEAD, Cylinder head - Starboard
31	0351971	*NIPPLE, Water valve hose
32	5006385	HEAD, Cylinder head - Port
33	0351971	*NIPPLE, Water valve hose
34	0335523	*O-RING, Cylinder head \| Included in Powerhead Gasket & Seal Kit
35	0361609	SCREW, Cylinder head
36	5011240	Spk Plug Qc10Wep \| Refer to Emission Control Information Label
37	0338632	Thermostat Cover
38	0331188	O-Ring \| Included in Powerhead Gasket & Seal Kit
39	0351145	SPRING, T-Stat cover to T-Stat
40	5005440	THERMOSTAT
41	0339044	*GASKET \| Included in Powerhead Gasket & Seal Kit
42	0335981	*SEAL, T-Stat cylinder head to C/C \| Included in Powerhead Gasket & Seal Kit
43	0328724	***SCREW
44	0329217	**SCREW, Retainer
45	0328701	**LOCKWASHER, DOuble-ended bolt
46	0348737	*CLAMP
47	0335200	*BONDING LEAD
48	0310439	**CLAMP, Battery cable
49	0344044	CLAMP, Cable to c/c
50	0329217	**SCREW, Retainer
51	0351847	CLAMP, Electrical harness - Starboard \| 1.8 in. (45.7 mm) diameter
52	0352667	CLAMP, Capacitor \| 2.1 in. (53.3 mm) diameter
53	0351458	*GASKET, C/C to adapter \| Included in Powerhead Gasket & Seal Kit

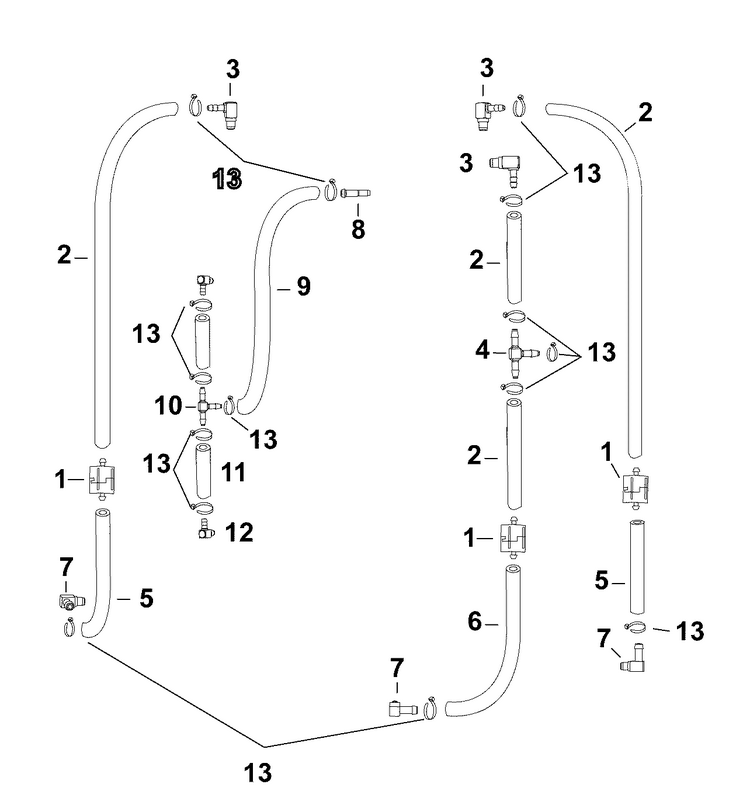

▶05-5_OIL RECIRCULATION SYSTEM (15 parts)

Ref	OEM Part #	Part Name
NS	0320107	** TIE STRAP
1	5009201	**CHECK VALVE ASSEMBLY
2	0778708	**HOSE \| 0.093 in. (2.36 mm) diameter – Bulk Hose – 25 ft. (7.62 m)
3	0346137	* FITTING, Cylinder Oil inlet
4	0352336	**TEE
5	0772571	**HOSE \| 5/32 in. (3.968 mm) diameter Bulk Hose – 25 ft. (7.62 m)
6	0772571	**HOSE \| 5/32 in. (3.968 mm) diameter Bulk Hose – 25 ft. (7.62 m)
7	0348471	* FITTING, Oil recirculation elbow
8	0314513	*FITTING, Fuel inlet
9	0772571	**HOSE \| 5/32 in. (3.968 mm) diameter Bulk Hose – 25 ft. (7.62 m)
10	0352937	TEE, Starboard-reed plate to upper bearing
11	0772571	**HOSE \| 5/32 in. (3.968 mm) diameter Bulk Hose – 25 ft. (7.62 m)
12	0437784	* ENS. CLAPET ANTI-RETOUR
13	0317893	** TIE STRAP
14	0317893	** TIE STRAP

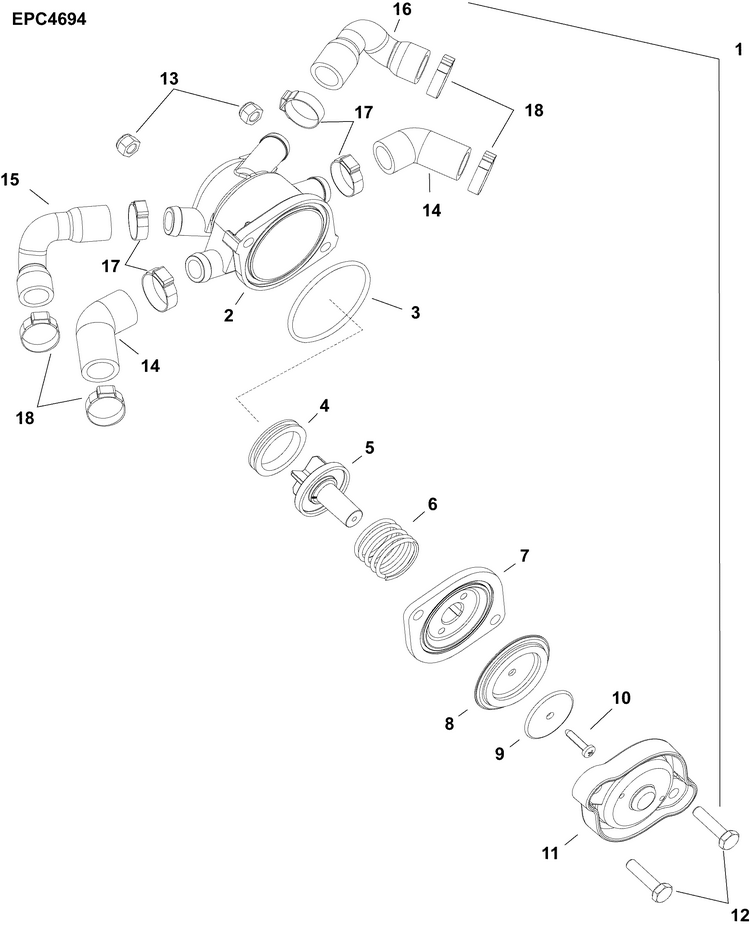

▶05-6_WATER PRESSURE RELIEF VALVE (19 parts)

Ref	OEM Part #	Part Name
1	5010090	Kit
2	0351964	*HOUSING
3	0354759	*O-RING
4	0347245	*SEAL, Plunger
5	0347238	*PLUNGER
6	0351122	*SPRING
7	0347240	*PLATE, Housing
8	0347244	*DIAPHRAGM
9	0347243	*SUPPORT, Diaphragm
10	0328649	**SCREW, Bowl to body
11	0347241	*COVER, Housing
12	0352322	*SCREW, Bracket cover
13	0313022	**LOCKNUT, Double-ended bolt
14	0352057	*HOSE, Valve to cylinder head
15	0352915	*HOSE, Valve to block - Port
16	0352914	*HOSE, Valve to block - Starboard
17	0352703	*CLAMP, 23.8mm - hose to block
18	0352703	*CLAMP, 23.8mm - hose to block
19	0346152	*CLAMP, 25.6 mm

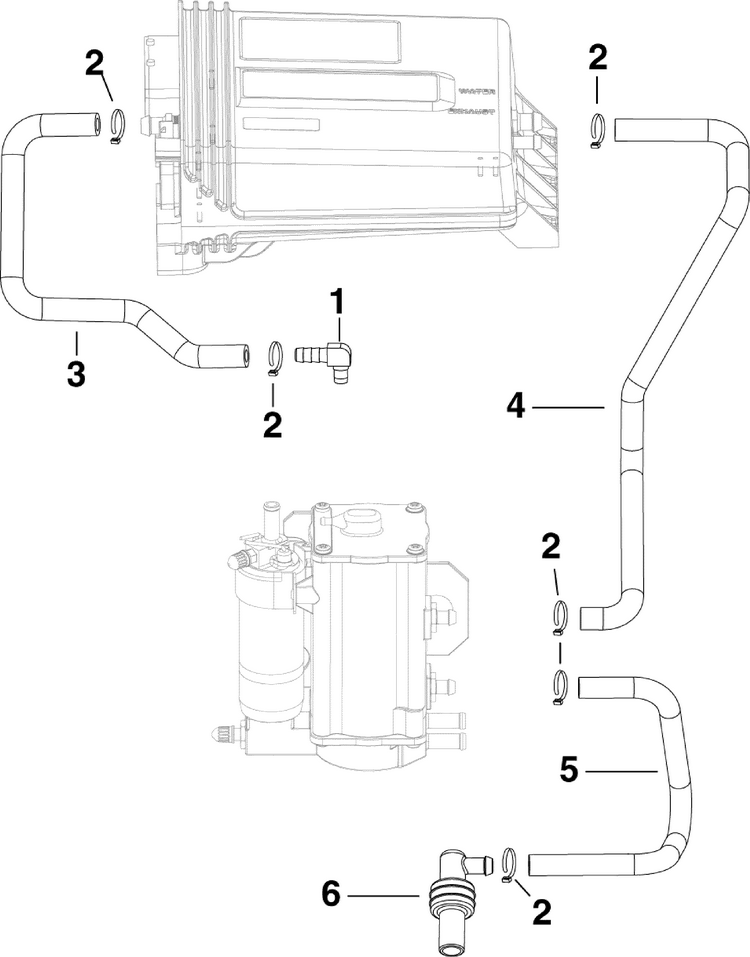

▶05-7_COOLING HOSES (13 parts)

Ref	OEM Part #	Part Name
1	0323372	*FITTING, Water cover
2	0320107	** TIE STRAP
3	0352831	HOSE, Water supply to EMM
4	0352414	HOSE, EMM to vapor separator
5	0351949	HOSE, Overboard indicator \| see Muffler Assembly
6	0352061	NIPPLE, Hose to exhaust grommet \| see Muffler Assembly
7	0355267	HOSE, Water from vapor separator
8	0320107	** TIE STRAP
9	0345702	*FITTING, Cooling hose
10	0347034	HOSE, Block to adapter \| 3.3 L Models
11	0331894	*ELBOW \| 3.3 L Models
12	0345702	*FITTING, Cooling hose \| 3.3 L Models
13	0320107	** TIE STRAP \| 3.3 L Models

▶05-8_GASKET & SEAL KIT (44 parts)

Ref	OEM Part #	Part Name
_auto1	0339044	*GASKET
_auto10	0352607	*GASKET, Plenum to reed plate
_auto11	0351366	*GASKET, Reed plate to C/C
_auto12	0351970	*GASKET, Water cover
_auto13	0331188	O-Ring
_auto14	0335981	*SEAL, T-Stat cylinder head to C/C
_auto15	5006342	Cylinder/ Crankcase Gasket & Seal Kit (3.3 L Models) \| 3.3 L Models
_auto16	5007698	Cylinder / Crankcase Gasket & Seal Kit (3.4 L Models) \| 3.4 L Models
_auto17	5007017	*FUEL INJECTOR Seal Kit
_auto18	0351535	*GASKET, C/C to adapter \| 3.3 L Models
_auto19	0353224	*GASKET, C/C to adapter \| 3.4 L Models
_auto2	5007129	Cylinder/Crankcase Gasket & Seal Kit
_auto20	0346007	*GASKET, Cylinder head
_auto21	0350933	*GASKET, Throttle body to reed plate
_auto22	0350934	*GASKET, Reed plate to C/C
_auto23	0344472	**GASKET, Rect. & reg. To cyl. block
_auto24	0301917	**O-RING
_auto25	0339299	*SEAL, Thermostat to cyl head
_auto26	0339620	**SEAL
_auto27	0326741	*O-RING, Crankcase head
_auto28	0337087	O-Ring
_auto29	0332585	**SEAL
_auto3	0336232	*SEAL, Upper Crankshaft
_auto30	0353076	*SEAL
_auto31	0339044	*GASKET
_auto32	5007129	Cylinder/Crankcase Gasket & Seal Kit
_auto33	0336232	*SEAL, Upper Crankshaft
_auto34	0337087	O-Ring
_auto35	0338518	*O-RING, Bearing housing
_auto36	0337085	*SEAL
_auto37	5007017	*FUEL INJECTOR Seal Kit
_auto38	0351458	*GASKET, C/C to adapter
_auto39	0335523	*O-RING, Cylinder head
_auto4	0337087	O-Ring
_auto40	0352607	*GASKET, Plenum to reed plate
_auto41	0351366	*GASKET, Reed plate to C/C
_auto42	0351970	*GASKET, Water cover
_auto43	0331188	O-Ring
_auto44	0335981	*SEAL, T-Stat cylinder head to C/C
_auto5	0338518	*O-RING, Bearing housing
_auto6	0337085	*SEAL
_auto7	5007017	*FUEL INJECTOR Seal Kit
_auto8	0351458	*GASKET, C/C to adapter
_auto9	0335523	*O-RING, Cylinder head

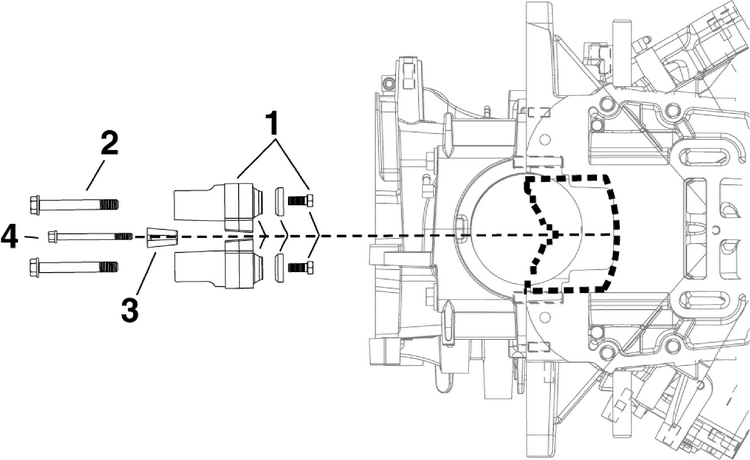

▶06-0_UPPER ENGINE MOUNTS (4 parts)

Ref	OEM Part #	Part Name
1	5004323	*KIT, Rubber mount assy., upper
2	0352662	*SCREW, Upper mount
3	0360761	RETAINER, Upper mount
4	0330263	*SCREW, Upper mount retention

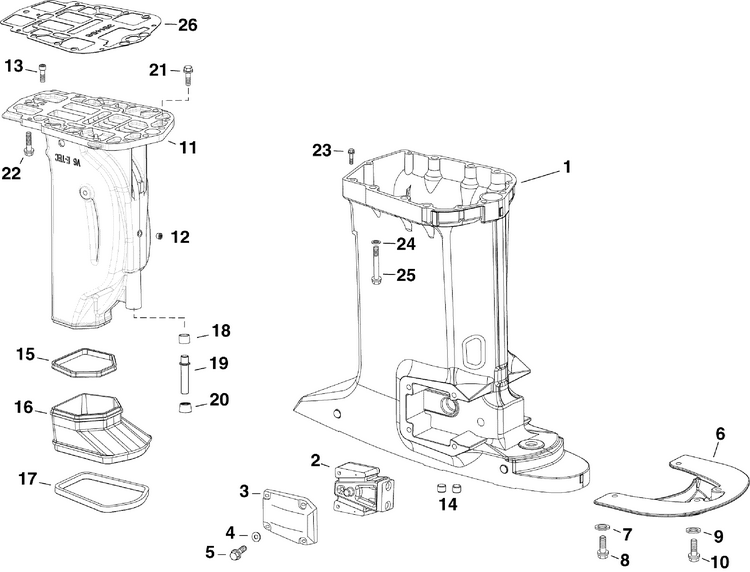

▶06-1_EXHAUST HOUSING (26 parts)

Ref	OEM Part #	Part Name
1	0353650	EXHAUST HOUSING \| 25 in. Models
2	0434629	MOUNT, Lower \| 150 H.O. Models
3	0338741	COVER, Mount bracket lower
4	0301250	**RONDELLE
5	0341013	SCREW, Cover
6	0345776	DÉFLECTEUR DE PROJECTIONS \| 25 in. Models
7	0911201	*WASHER, Starter housing to spindle
8	0910741	SCREW, Cover plate
9	0301250	**RONDELLE
10	0910736	SCREW, Deflector
11	5007767	EXHAUST HOUSING, Inner, upper
12	0321164	* PLUG
13	0352824	SCREW, Inner to outer housing, rear
14	0350943	* PIN
15	0320936	JOINT, boîtier échappement, inférieur
16	0338664	BOÎTIER D'ÉCHAPPEMENT, intérieur, inférieur \| 25 in. Models
17	0320961	JOINT, boîtier d'engrenages vers carter intérieur
18	0314008	*BAGUE, tube à eau vers capot
19	0335519	TUBE À EAU \| 25 in. Models
20	0341191	JOINT, tube à eau
21	0309484	SCREW
22	0349272	*SCREW, Injector to cyl head
23	0352946	SCREW, C/C to adapter
24	0330266	**WASHER, Trail lock lever
25	0356803	SCREW, Adapter to cylinder, long
26	0351458	*GASKET, C/C to adapter

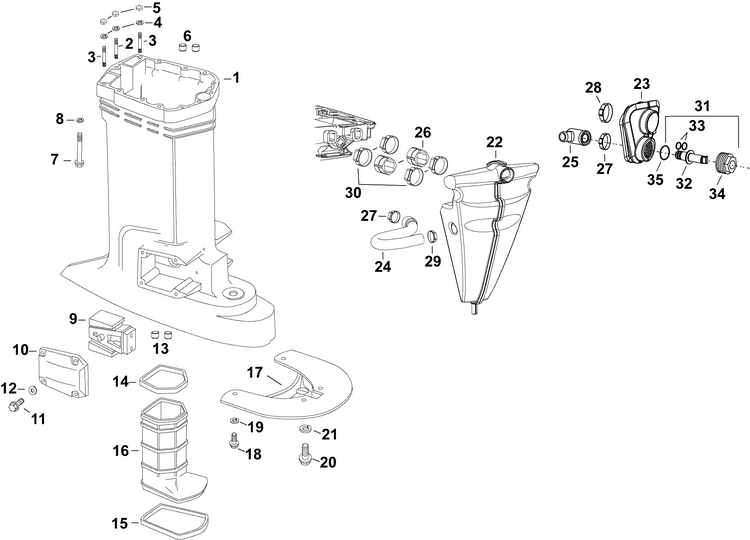

▶06-1_EXHAUST HOUSING & MUFFLER (33 parts)

Ref	OEM Part #	Part Name
1	0435130	EXH. HSG. \| 30 in. Models
2	0316040	*STUD, Exhaust housing
3	0351491	STUD, Adapter to outer housing
4	0329241	**WASHER
5	0328742	NUT
6	0350943	* PIN \| 3.4 L Models
7	0355037	SCREW, Exhaust housing to c/c
8	0330266	**WASHER, Trail lock lever
9	5007470	RUBBER MOUNT, Lower \| 25 & 30 in. Models
10	0338741	COVER, Mount bracket lower
11	0341013	SCREW, Cover
12	0301250	**RONDELLE
13	0350943	* PIN
14	0320936	JOINT, boîtier échappement, inférieur
15	0320961	JOINT, boîtier d'engrenages vers carter intérieur
16	0338664	BOÎTIER D'ÉCHAPPEMENT, intérieur, inférieur \| 25 & 30 in. Models
17	0345776	DÉFLECTEUR DE PROJECTIONS \| 25 & 30 in. Models
18	0910741	SCREW, Cover plate
19	0911201	*WASHER, Starter housing to spindle
20	0910736	SCREW, Deflector
21	0301250	**RONDELLE
22	5005699	MUFFLER Assembly
23	5008518	GROMMET Assembly, Exhaust relief
24	0351443	HOSE, Overboard indicator
25	0356448	ELBOW FITTING, Exhaust grommet
26	0351363	GROMMET, Adapter to muffler
27	0352335	**CLAMP, 33.1 mm
28	0352110	*CLAMP, 44.0 mm
29	0346152	*CLAMP, 25.6 mm
30	0349729	CLAMP, 41.0mm
31	5008838	PLUG & NOZZLE ASSEMBLY, Overboard water
33	0307450	"O" RING, Large
35	0301967	O RING

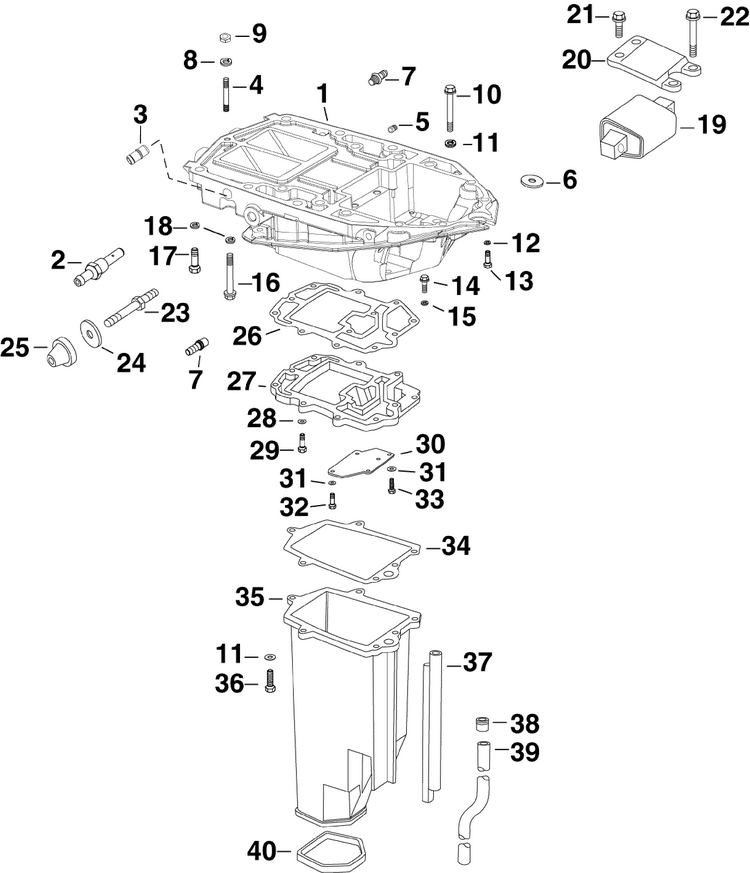

▶06-2_EXHAUST HOUSING INNER (3.3 L) (40 parts)

Ref	OEM Part #	Part Name
1	5007589	Kit
2	5007618	*FITTING, Exhaust back pressure
3	0347202	*FITTING, Cooling hose
4	0314616	*STUD
5	0321164	* PLUG
6	0339717	*GROMMET, Shift rod
7	0345702	*FITTING, Cooling hose
8	0301250	**RONDELLE
9	0306422	*NUT
10	0341011	SCREW, Adapter to housing, outer
11	0302290	**WASHER
12	0306470	*LOCK WASHER
13	0306503	*SCREW, Adjustment rod
14	0341011	SCREW, Adapter to housing, outer
15	0329241	**WASHER
16	0356803	SCREW, Adapter to cylinder, long \| new
17	0309484	SCREW
18	0330266	**WASHER, Trail lock lever
19	0432017	RUBBER MOUNT Assembly \| 25 & 30 in. Models
20	0330929	PLATE, Upper mount
21	0330930	**SCREW, Plate - 3/8-16 x 1
22	0330931	*SCREW
23	0329743	STUD, Cover mount
24	0349556	Washer
25	0349557	MOUNT
26	0343809	GASKET, Plate to adapter
27	0354508	WATER PLATE
28	0302290	**WASHER
29	0312978	SCREEN, Ground plt to intmd hsg
30	0333565	COVER, Water plate
31	0302290	**WASHER
32	0333165	SCREW, Cover, long
33	0124341	*SCREW, Cover
34	0334113	GASKET, Inner exh hsg to water plate
35	0351228	EXHAUST HOUSING, Inner, upper
36	0341010	SCREW, Adapter to inner housing
37	0334118	SEAL, Exhaust housing, front
38	0305145	GROMMET
39	0346899	WATER TUBE \| 30 in. Models
40	0320936	JOINT, boîtier échappement, inférieur

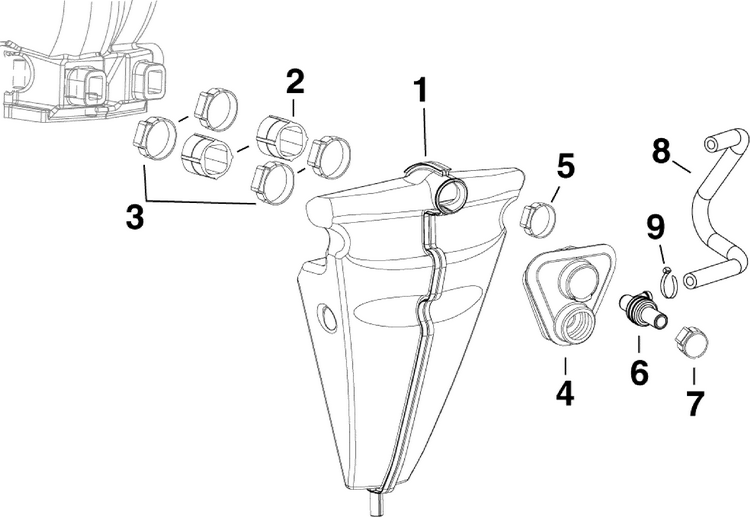

▶06-2_MUFFLER (9 parts)

Ref	OEM Part #	Part Name
1	5005699	MUFFLER Assembly
2	0351363	GROMMET, Adapter to muffler
3	0349729	CLAMP, 41.0mm
4	5008518	GROMMET Assembly, Exhaust relief
5	0352110	*CLAMP, 44.0 mm
6	0352061	NIPPLE, Hose to exhaust grommet
7	0352335	**CLAMP, 33.1 mm
8	0351949	HOSE, Overboard indicator
9	0320107	** TIE STRAP

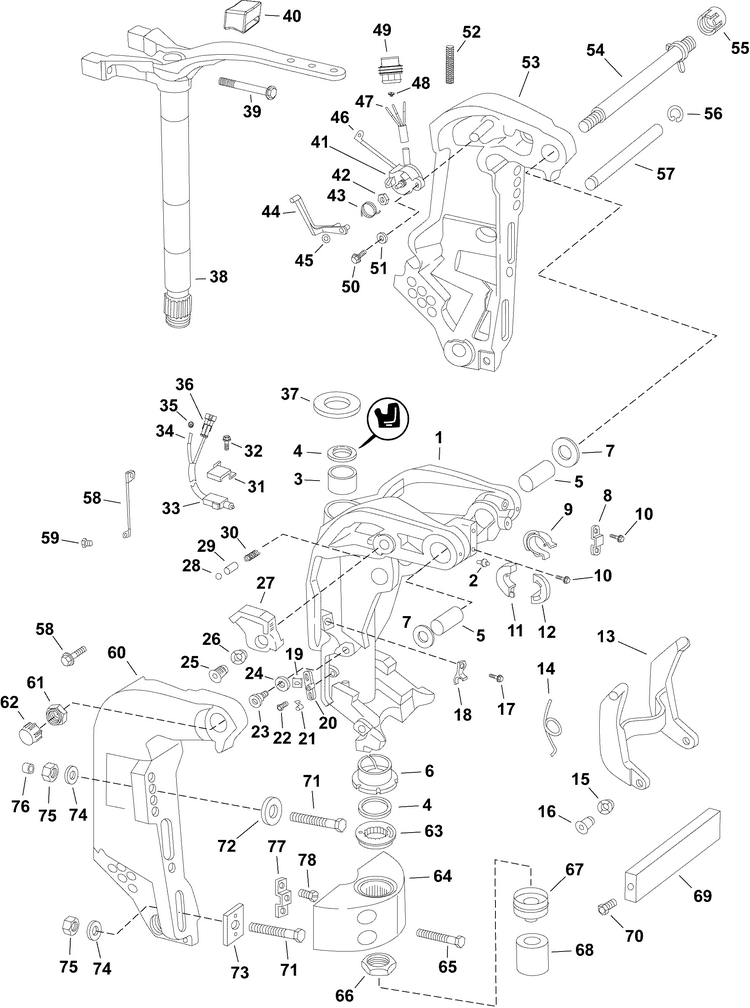

▶06-3_SWIVEL BRACKET (79 parts)

Ref	OEM Part #	Part Name
1	0434724	SUPPORT PIVOTANT \| 25 in. Models
2	0313607	***LUBE FITTING
3	0320962	*BUSHING
4	0335686	*JOINT
5	0337579	*BUSHING, Lower pivot shaft
6	0336819	*BUSHING, Lower pivot shaft
7	0910992	*RONDELLE, tube de relevage
8	0513787	DISPOSITIF DE RETENUE, interrupteur-limiteur de relevage
9	0337591	CAM, Tilt limit switch
10	0328724	***SCREW
11	0337592	COLLAR, Cam, tilt limit switch
12	0337593	COLLAR, Cam, tilt limit switch
13	0335470	ARM, Trail lock
14	0336210	**SPRING, Trail lock spring
15	0335701	**BUSHING, Trail lock lever
16	0335487	**SCREW, Trail lock lever
17	0342191	*SCREW, Cam
18	0336172	DISPOSITIF DE RETENUE, bras transport sur remorque
19	0336853	ATTACHE, vis, dispositif de retenue
20	0336467	RETAINER, Support
21	0335814	**RETAINER, Trail lock
22	0328724	***SCREW
23	0335487	**SCREW, Trail lock lever
24	0335949	ROULEAU DE BUTÉE
25	0335481	SCREW, Tilt lever to bracket
26	0335486	BAGUE, levier de relevage
27	0335485	LEVER, Tilt lock
28	0336209	BALL, Detent, tilt lock
29	0334241	GUIDE
30	0336230	RESSORT, dispositif de blocage, verrouillage de relevage
31	0336171	BRACKET, Tilt limit switch
32	0328724	***SCREW
33	0586786	SWITCH Assembly, Tilt limit
34	3011148	***CONTACT, Tab
35	3011225	**SEAL, Wire
36	3011154	***CONNECTOR, 2 Position plug
37	0320866	RONDELLE DE BUTÉE, arbre d'articulation
38	5009551	Strg Arm&Shft 25" \| 25 in. Models
39	0352662	*SCREW, Upper mount
40	0352657	BUMPER, Steering arm to cover
41	0587146	SENDING UNIT Assembly
42	0320689	*ÉCROU
43	0511528	**SPRING
44	0342386	*ARM
45	0511527	**RETAINER
46	0513871	*BORNE, anneau \| 0.250 in. (6.3mm) diameter
47	3011147	* CONTACT, Female receptacle
48	3011149	***SEAL, Wire
49	3011155	**CONNECTEUR, fiche 3 positions
50	0328744	**SCREW, Clamp - 1/4-20 x .75
51	0328702	* WASHER
52	0512258	GAINE, tressée - 3/16 x 32" \| 3/16 x 32 in. (9.5 x 812 mm)
53	0351921	STERN BRACKET, Port
54	0435007	TILT TUBE Assembly
55	0337586	*ÉCROU RACLEUR
56	0336529	ANNEAU DE RETENUE, tige de correction d'assiette
57	5009389	Kit
58	0584472	**BONDING LEAD
59	0328724	***SCREW
60	0351922	STERN BRACKET, Starboard
61	0335554	*LOCKNUT, Tilt tube
62	0317894	*CAP, Tilt tube
63	0327696	*KEEPER, Pivot shaft
64	0338744	MOUNT BRACKET \| 25 in. Models
65	0334936	SCREW, Mount
66	0320746	ÉCROU, support de montage
67	0912233	DISPOSITIF DE RETENUE, joint arbre d'articulation \| 25 in. Models
68	0911312	JOINT, arbre d'articulation \| 25 in. Models
69	5010190	ANODE KIT
70	0324816	SCREW, Anode
71	0354104	SCREW, Bracket mount, 1/2 x 9 in. \| Optional
72	0307238	RONDELLE
73	0318272	Nut backing plate (square) 1/2 in.
74	0320248	RONDELLE, écrou
75	0363254	NUT, Stern bracket screw
76	0318572	Bolt thread protective cap 1/2 in. \| Optional
77	0318273	Bolt hex retainer 1/2 in. \| Optional
78	0319886	*SCREW \| Optional
79	0319886	*SCREW \| Optional

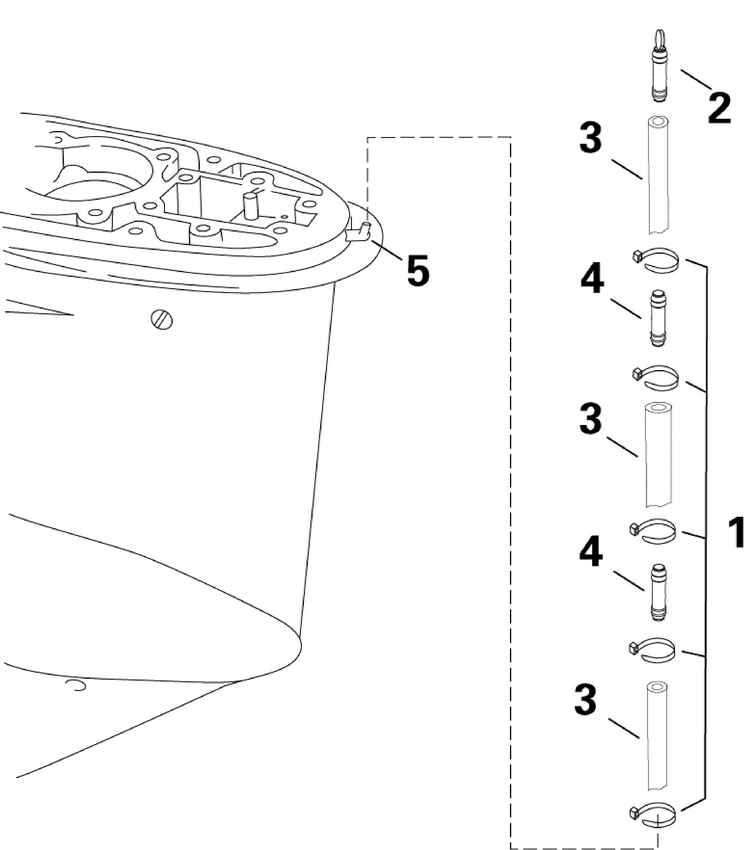

▶07-0_SPEEDOMETER HOSE ASSEMBLY (6 parts)

Ref	OEM Part #	Part Name
-	5009795	Hose & Nipple Ay
1	0317893	** TIE STRAP
2	0351956	*PLUG/CONNECTOR
3	0121829	**FLEXIBLE \| Bulk Roll – 23 ft. (7 m)
4	0352332	*FITTING, Hose
5	0336535	**FITTING, Pitot tube

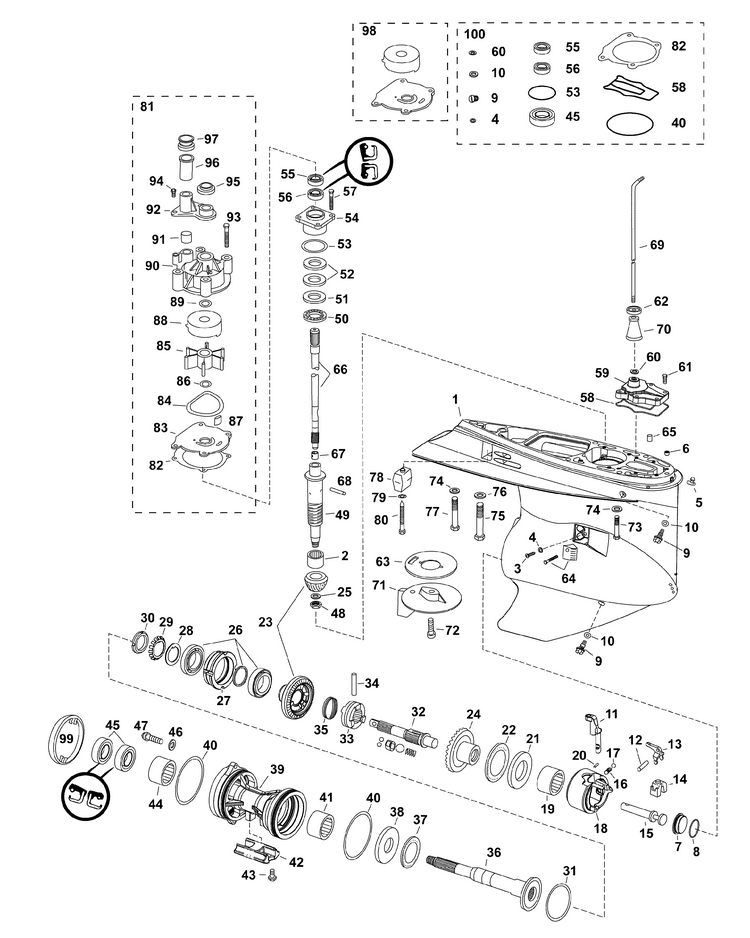

▶07-1_GEARCASE, M2-Type, Counter Rotation (103 parts)

Ref	OEM Part #	Part Name
-	0338552	*PLATE, Impeller \| Chrome
1	5009085	*GEARCASE & BEARING Assembly
2	5008904	**BEARING, Pinion
3	0324852	***RETAINING SCREW & SEAL
4	0332584	****WASHER, Seal ring \| Contents of GEARCASE SEAL KIT
5	0336535	**FITTING, Pitot tube
6	0321164	* PLUG
7	5007386	**PLUG, Gearcase
8	0354731	***O-Ring
9	0318544	**SCREW, Fill & drain \| Contents of GEARCASE SEAL KIT
10	0311598	***SEAL
11	0353375	*DETENT, Shift
12	0353973	*PIN, Shift lever
13	0334160	*LEVER, Shift
14	0334163	**CRADLE, Shifter
15	0348484	*SHAFT, Shift
16	0911962	*SPRING
17	0160084	**BALL
18	5007370	*BEARING HOUSING Assembly, Reverse Gear
19	0389039	** BEARING, Forward Gear
20	0353338	**PIN, Housing
21	0353039	*THRUST WASHER, Forward gear
22	0391473	*THRUST BEARING, Forward gear
23	5007388	**GEAR SET, Fwd, Rev, Pinion
24	5008224	**GEAR, Reverse
25	0350038	***WASHER, Pinion nut
26	5007359	**BEARING & SPACER, Forward Gear
27	0352713	**HOUSING, Forward gear bearing
28	0353551	**THRUST WASHER
29	0353336	**WASHER, Lock
30	0353096	**NUT, Spanner
31	0353334	**SHIM, 0.01 in. (0,25mm)
32	5007404	*CLUTCH SHAFT Assembly
33	0337774	*SHIFTER, Clutch dog
34	0313448	**PIN, Clutch dog
35	0324369	**SPRING, Clutch dog pin
36	5007360	*PROPELLER SHAFT
37	0382408	**THRUST BEARING
38	0313447	**THRUST WASHER
39	5007372	*BEARING HOUSING Assembly, Propshaft
40	0911700	** O-RING, Propshaft housing \| Contents of GEARCASE SEAL KIT
41	0431926	**NEEDLE BEARING Assembly, Front
42	0431708	***ANODE, Bearing housing
43	0908158	***SCREW, Anode
44	0436752	**BEARING, Propshaft
45	0334950	**SEAL \| Contents of GEARCASE SEAL KIT
46	0328743	**RONDELLE
47	0353355	*SCREW, Propshaft housing
48	0314730	**NUT, Pinion to driveshaft
49	0356900	*DRIVESHAFT, Lower
50	0387656	*BUTÉE, arbre d'entraînement
51	0327656	*RONDELLE DE BUTÉE, arbre d'entraînement
52	0314745	*CALE, 0,005" (0,12 mm)
53	0354731	***O-Ring \| Contents of GEARCASE SEAL KIT
54	0439476	*BEARING HOUSING & SEAL
55	0329922	**JOINT, supérieur \| Contents of GEARCASE SEAL KIT
56	0329923	**JOINT, inférieur \| Contents of GEARCASE SEAL KIT
57	0317624	*SCREW, Driveshaft hsg
58	0353162	*SEAL, Shift rod cover \| Contents of GEARCASE SEAL KIT
59	5007367	*COVER, Shift rod
60	0318372	"O" RING, Shift rod \| Contents of GEARCASE SEAL KIT
61	0328725	**SCREW, Cover to gearcase
62	0321008	*GROMMET, Exh hsg to shift rod
63	0331409	*SEAL, Trim tab
64	5011694	WATER SCREEN KIT, Ultra-high flow (+0.410 in) \| Optional
65	0350943	* PIN
66	5007137	DRIVESHAFT Assembly, Upper \| 25 in. Models
67	0338504	**RETAINER, Driveshaft
68	0311538	**ROLL PIN, Driveshaft
69	0352808	SHIFT ROD \| 25 in. Models
70	0321122	*SPACER, Shift rod \| 25 in. Models
71	0338743	TRIM TAB
72	0313715	SCREW, Cap, hex hd, 7/16-14 x 1
73	0331999	SCREW, Gearcase housing
74	0330266	**WASHER, Trail lock lever
75	0331998	SCREW, Gearcase to housing
76	0330265	*WASHER
77	0330263	*SCREW, Upper mount retention
78	0436745	**ANODE
79	0307161	**LOCK WASHER, Anode
80	0341219	**SCREW, Anode
81	5001595	Water Pump Repair Kit
82	0338484	*GASKET, Imp. hsg. Plate \| Contents of GEARCASE SEAL KIT
83	0338485	*PLATE, Impeller \| Stainless
84	0331353	Seal, Impeller Housing Plate.
85	5001593	*IMPELLER Assembly
86	0302035	"O" RING, Spacer to imp. hsg.
87	0331107	**CLAVETTE, turbine
88	0338486	*COUPELLE, turbine (inox) \| Stainless
89	0331188	O-Ring
90	0360347	*HOUSING, Impeller
91	0314008	*BAGUE, tube à eau vers capot
92	0338893	*CAPOT, carter de turbine
93	0302325	**SCREW, Impeller housing
94	0306643	*SCREW
95	0320943	*BAGUE, pompe vers carter d'échap.
96	0354580	* SLEEVE, Extension \| 25 in. Models
97	0338601	*GROMMET, Sleeve to exh hsg
98	0435526	CHROME CUP & PLATE KIT \| Optional
99	0126669	Renegade Bass Weed Ring \| Optional
100	5007700	GEARCASE SEAL KIT
101	0126669	Renegade Bass Weed Ring \| Optional
102	5007700	GEARCASE SEAL KIT

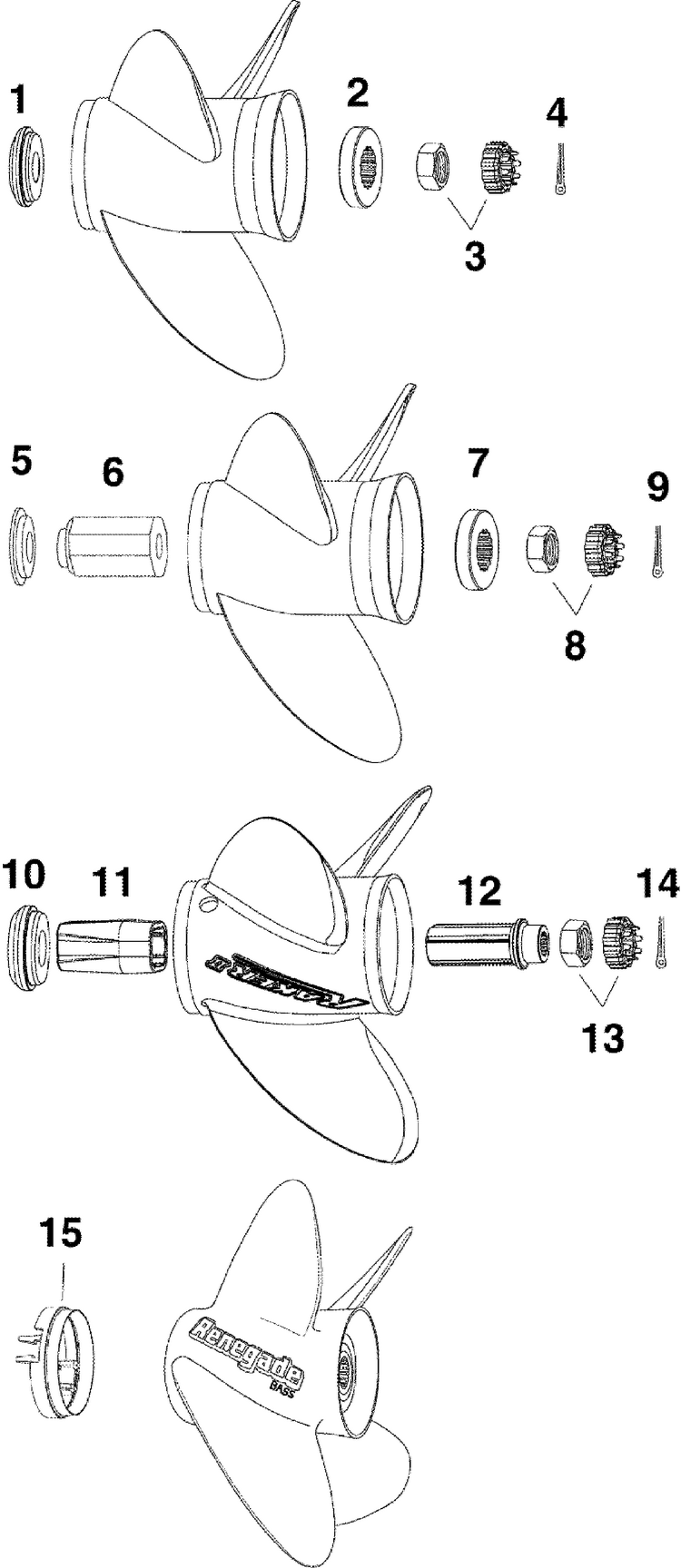

▶07-2_PROPELLER HARDWARE, All V6 (16 parts)

Ref	OEM Part #	Part Name
-	0765190	PROPELLER HUB KIT \| Aluminum Interchangeable Hub Propellers
–	0177283	KIT MOYEU D’HÉLICE \| TBX™ Interchangeable Hub Propellers
1	0126870	*BAGUE, de butée
2	0320570	**Spacer, Nut
3	5008966	*NUT & KEEPER, Propeller
4	0306394	**COTTER PIN
5	0765391	*BUSHING, Thrust
7	0765392	*SPACER, Prop Nut
8	5008966	*NUT & KEEPER, Propeller
9	0306394	**COTTER PIN
10	0128777	*BUSHING, Thrust
11	0128572	*BAGUE, torsion
12	0177282	*ENSEMBLE MANCHON
13	5008966	*NUT & KEEPER, Propeller
14	0306394	**COTTER PIN
15	0126669	Renegade Bass Weed Ring \| Renegade® Bass Propellers

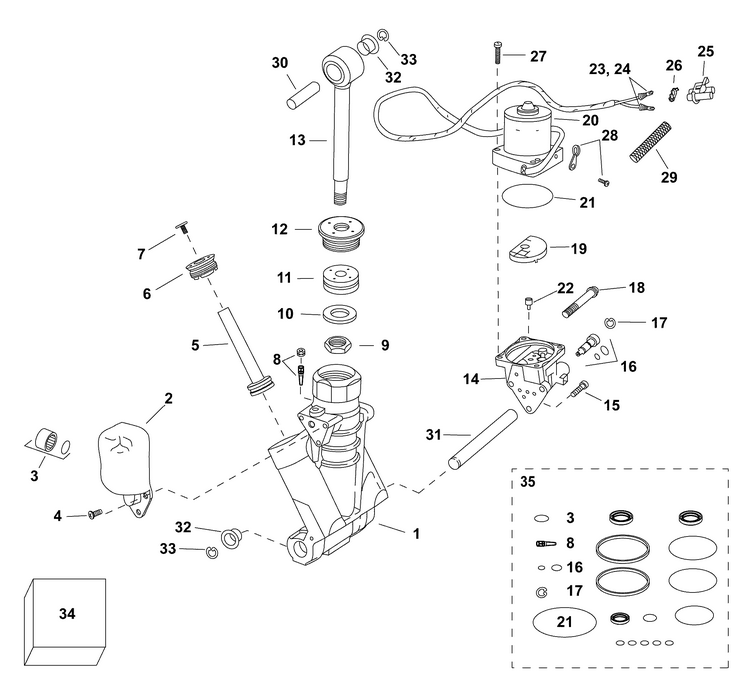

▶08-1_TRIM & TILT HYDRAULIC ASSEMBLY - All V6 & 25 in. V4 Models (36 parts)

Ref	OEM Part #	Part Name
NS	0317893	** TIE STRAP
1	5005114	ENSEMBLE HYDRAULIQUE \| 115 – 130 HP 60° V4
2	0435341	*ENSEMBLE RÉSERVOIR & BOUCHON
3	0435342	**CAP & O-RING Assembly
4	0336746	*SCREW, Reservoir to manifold
5	0436389	*TIGE DE CORRECTION D’ASSIETTE
6	0435345	*CHAPEAU ET JOINT DE TIGE DE CORRECTION D’ASSIETTE
7	0337496	*PLAQUETTE DE POUSSÉE
8	0337530	*BOUCHON & CRÉPINE
9	0324390	***HEX NUT, Rod end
10	0324385	***WASHER, Rod end
11	0435262	*ENSEMBLE PISTON \| 115 – 130 HP 60° V4 Models Only
12	0390006	***CAP, O-RING &SEAL ASSY.
13	0436390	*ROD & EYE
14	0435343	*CORPS DE VANNE \| 115 – 200 HP 60° V4 & V6 Models
15	0337517	*SCREW, Valve body, short
16	0435260	*ENSEMBLE SOUPAPE DE DÉTENTE MANUELLE & JOINT \| 115 – 130 HP 60° V4 Models Only
17	0914069	**RETAINING RING, Manual release
18	0337495	*SCREW, Valve body, long
19	0337497	*FILTER Assembly
20	5005254	*MOTEUR & JOINT TORIQUE
21	0321163	****O-RING, Motor
22	0914053	**DRIVE, Pump
23	3010063	**JOINT, fil
24	0514823	****TERMINAL
25	3010049	**CONNECTOR, 2 Position, Motor lead
26	3010050	**SECONDARY LOCK
27	0337494	*SCREW, Motor to manifold
28	0435261	*CLAMP & SCREW Assembly
29	0512258	GAINE, tressée - 3/16 x 32" \| 3/16 x 32 in. (9.5 x 812 mm)
30	0335480	*TILT PIN, Upper
31	0335463	*TILT PIN, Lower
32	0335479	*BUSHING, Tilt pin
33	0336534	*RETAINING RING, Lower tilt pin
34	0585229	BRUSH & SEAL KIT
35	0434519	*O-RING & SEAL KIT

Popular Products

Popular Products

Popular Products

Evinrude DE200CXAAA (2012) Parts & Diagrams

Categories

Refined By Clear all

Brand

Horsepower

Engine

Availability

Price

Need Help?

Images

Product

Price

Qty

Options
